Autec s r l LKNLA2MH Transceiver unit User Manual 5
Autec s.r.l. Transceiver unit 5
Contents
User Manual 5
Instruction Manual for the use and the
maintenance of the Radio Remote Control
Original instructions
DISPLAY
STOP
START
KEY ID OI
1
2
ENABLING
& STOP
STOP
3 4
1 2
DISPLAY
START
KEY ID OI
ENABLING
& STOP

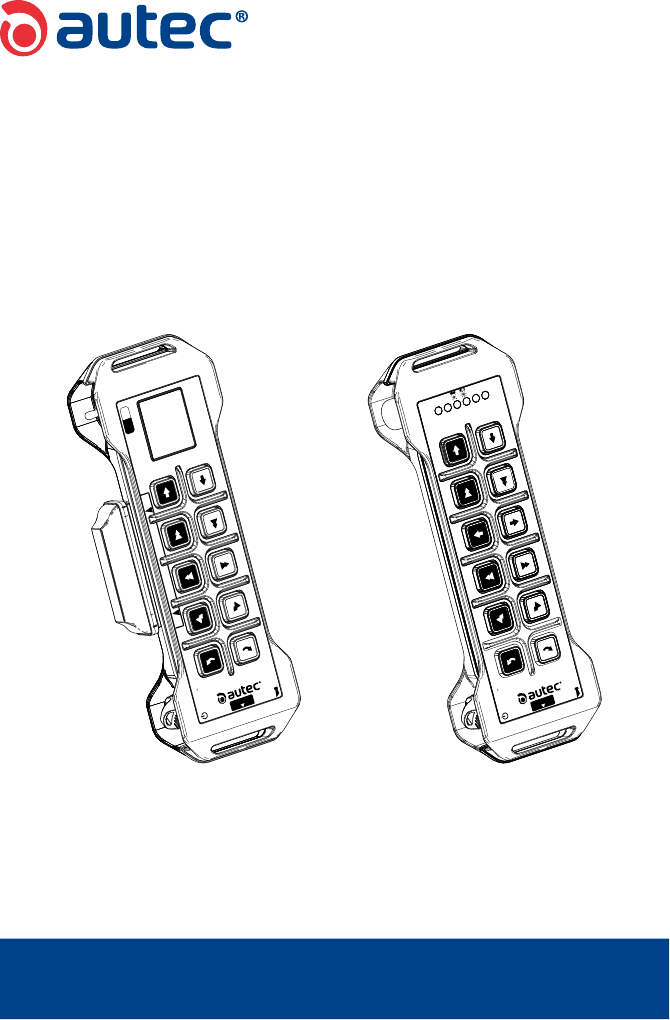

Part C: LK NEO 10, LK NEO 12 and
LK NEO 10 DF (Model LKN Type LA2EM,
DA2FM) Transmitting Unit
AIR SERIES
LIULK1ES0_eng-01
WARNING
THIS PART OF THE MANUAL CONSISTS OF: Part C - Information, instructions and
warnings for the LK NEO 10, LK NEO 12 and LK NEO 10 DF (Model LKN Type LA2EM,
DA2FM) Transmitting Unit. The Manual consists of Part A – General, Part B – Conformity
and Frequencies, Part C – Transmitting Unit, Part D – Receiving Unit, Part E – Battery
and Battery Charger, plus the Technical Data Sheet.
THIS MANUAL, INCLUDING ALL PARTS THEREOF, AND ALL INSTRUCTIONS CONTAINED
HEREIN, MUST BE READ CAREFULLY AND UNDERSTOOD BEFORE INSTALLING,
USING, MAINTAINING OR REPAIRING THE AUTEC RADIO REMOTE CONTROL.
FAILURE TO READ AND COMPLY WITH ALL APPLICABLE WARNINGS AND
INSTRUCTIONS OR ANY ONE OF THE LIMITATIONS NOTED IN THIS MANUAL CAN
RESULT IN SERIOUS BODILY INJURY OR DEATH, AND/OR PROPERTY DAMAGE.
THE AUTEC RADIO REMOTE CONTROL IS NOT A STANDALONE PRODUCT AND IS
INTENDED ONLY AS A COMPONENT ON A MACHINE:
-ON WHICH AND WHERE THE USE OF A RADIO REMOTE CONTROL IS APPROPRIATE,
-THAT CAN BE OPERATED SAFELY AND IN ACCORDANCE WITH ALL APPLICABLE
LAWS, REGULATIONS AND STANDARDS BY SUCH REMOTE CONTROL.
ACCORDINGLY, IT IS THE RESPONSIBILITY OF THE MANUFACTURER AND OF THE
DESIGN PROFESSIONALS OF THE MACHINE ON WHICH THE AUTEC RADIO REMOTE
CONTROL IS TO BE INSTALLED, that a full and proper risk assessment is done to
determine whether the use and installation of the Autec Radio Remote Control is
appropriate for the safe and eective operation of the Machine by a Radio Remote Control
in the facility and for the purposes intended, and that the installation, maintenance
and operation of the Autec Radio Remote Control and all of its components are done
solely and completely in accordance with this Manual, and with all local applicable
laws, safety rules and standards (all of the foregoing referred to herein as “Laws,
Regulations and Standards”).
With reference to the USA market the Laws, Regulations and Standards include all safety
rules and regulations of the Occupational Safety & Health Administration (OSHA) (http://
www.osha.gov), all federal, state and local laws, regulations and building and electrical
codes, and all applicable standards, including but not limited to ANSI Standards.
AUTEC LIULK1ES0_eng-01
It is also the responsibility of the Manufacturer and of the design professionals of
the Machine on which the Autec Radio Remote Control is to be installed and used to
be certain that the structure, condition, organization and markings of the Machine as
installed at the facility is appropriate for and will allow for the safe and reliable use and
control of the Machine through the Autec Radio Remote Control interface.
IT IS THE RESPONSIBILITY OF THE OWNER AND FACILITY OPERATOR, AND THEIR
DESIGN PROFESSIONALS, that the installation, maintenance and operation of the Autec
Radio Remote Control and all of its components are done solely and completely in
accordance with this Manual, and with all applicable Laws, Regulations and Standards,
even local. It is also the responsibility of the Manufacturer of the Machine on which the
Autec Radio Remote Control is to be installed and used, and their design professionals,
to be certain that the structure, condition, organization and markings of the Machine
as installed at the facility is appropriate for and will allow for the safe and reliable use
and control of the Machine through the Autec Radio Remote Control interface.
ONLY QUALIFIED AND PROPERLY TRAINED PERSONNEL SHOULD BE PERMITTED
TO OPERATE OR USE THE AUTEC RADIO REMOTE CONTROL AND THE MACHINE
OPERATED BY OR THROUGH THE AUTEC RADIO REMOTE CONTROL. ONLY QUALIFIED
AND PROPERLY TRAINED PERSONNEL SHOULD BE PERMITTED TO BE IN THE VICINITY
OF MACHINE OPERATED BY OR THROUGH THE AUTEC RADIO REMOTE CONTROL.
FAILURE TO PROPERLY INSTALL, OPERATE, MAINTAIN AND SERVICE THE AUTEC
RADIO REMOTE CONTROL CAN RESULT IN SERIOUS BODILY INJURY OR DEATH
AND/OR PROPERTY DAMAGE. Refer to this Manual and each of its Parts for further
assistance or contact Autec. Autec is not responsible for and shall not be held liable
for any installation of the Autec Radio Remote Control not performed by Autec or for
any use of the Autec Radio Remote Control not in complete compliance with, and/or
not maintained in complete compliance with, all Autec instructions and warnings and
all applicable Laws, Regulations and Standards, even local.
Autec is not responsible for and shall not be held liable for any alteration or modication
of the Autec Radio Remote Control, or the use of non-Autec components or products
used with or incorporated into the Autec Radio Remote Control.
IT IS THE RESPONSIBILITY OF THE OWNER AND FACILITY OPERATOR, AND THEIR
DESIGN PROFESSIONALS, to be certain that the Autec Radio Remote Control is
properly maintained and serviced at all times in compliance with all Autec instructions
and warnings, and with all applicable Laws, Regulations and Standards, even local.
LIULK1ES0_eng-01 AUTEC
IT IS THE RESPONSIBILITY OF THE OWNER AND FACILITY OPERATOR, AND THEIR
OFFICERS, MANAGERS AND SUPERVISORS, to be certain that all Users of the Autec
Radio Remote Control and that all Persons who are or will be working with or near
the Machine operated by or through the Autec Radio Remote Control are fully and
properly educated and trained by qualied Personnel in the proper and safe use of
the Autec Radio Remote Control and of the Machine, including without limitation
complete familiarity with and understanding of Autec warnings and instructions, and
all applicable Laws, Regulations and Standards, even local, and that such Users and
other Persons do in fact at all times operate or work with the Autec Radio Remote
Control safely and ONLY in compliance with Autec instructions and warnings and
with all applicable Laws, Regulations and Standards, even local. FAILURE TO DO SO
CAN RESULT IN SERIOUS BODILY INJURY OR DEATH AND/OR PROPERTY DAMAGE.
IT IS THE RESPONSIBILITY OF THE OWNER AND FACILITY OPERATOR, AND THEIR
OFFICERS, MANAGERS AND SUPERVISORS, to be certain that the areas in which
the Machine operated by or through the Autec Radio Remote Control is located and
operates are clearly delineated and marked in accordance with all Autec warnings
and instructions, and all applicable Laws, Regulations and Standards, even local, and
otherwise sucient to alert and warn ALL PERSONS that the Machine is operated by
or through a Radio Remote Control, and prohibiting any unauthorized access thereto.
FAILURE TO DO SO CAN RESULT IN SERIOUS BODILY INJURY OR DEATH AND/OR
PROPERTY DAMAGE.
FAILURE TO OPERATE THE AUTEC RADIO REMOTE CONTROL SAFELY AND IN
COMPLIANCE WITH AUTEC INSTRUCTIONS AND WARNINGS AND WITH APPLICABLE
LAWS, REGULATIONS AND STANDARDS, EVEN LOCAL, AND/OR PERMITTING USERS
OR OTHER PERSONS NOT PROPERLY TRAINED IN THE SAFE AND PROPER USE
OF THE SYSTEM, OR THE MACHINE ON WHICH IT IS INSTALLED, CAN RESULT IN
SERIOUS BODILY INJURY OR DEATH AND/OR PROPERTY DAMAGE.
AUTEC LIULK1ES0_eng-01
INDEX
1 Information on the use of instructions ................................................................ 8
1.1 Structure of the Instruction Manual ................................................................ 8
1.2 Caption and terminology .............................................................................. 10
1.3 Symbols ...................................................................................................... 10
1.4 To whom the instructions are addressed ..................................................... 11
1.5 Instruction storage ....................................................................................... 11
1.6 Intellectual property ..................................................................................... 11
2 Brief product presentation ................................................................................. 12
2.1 Series, Radio Remote Control and Unit ....................................................... 12
2.2 Conformity with standards ........................................................................... 12
2.3 Contacts and useful addresses .................................................................... 12
2.4 Warranty ..................................................................................................... 12
2.5 Technical assistance and spare parts .......................................................... 12

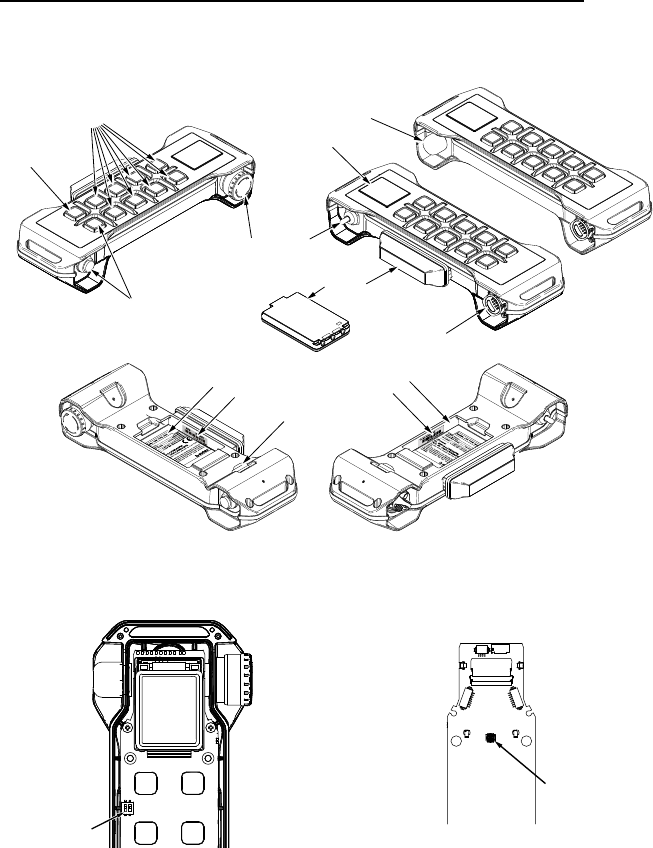

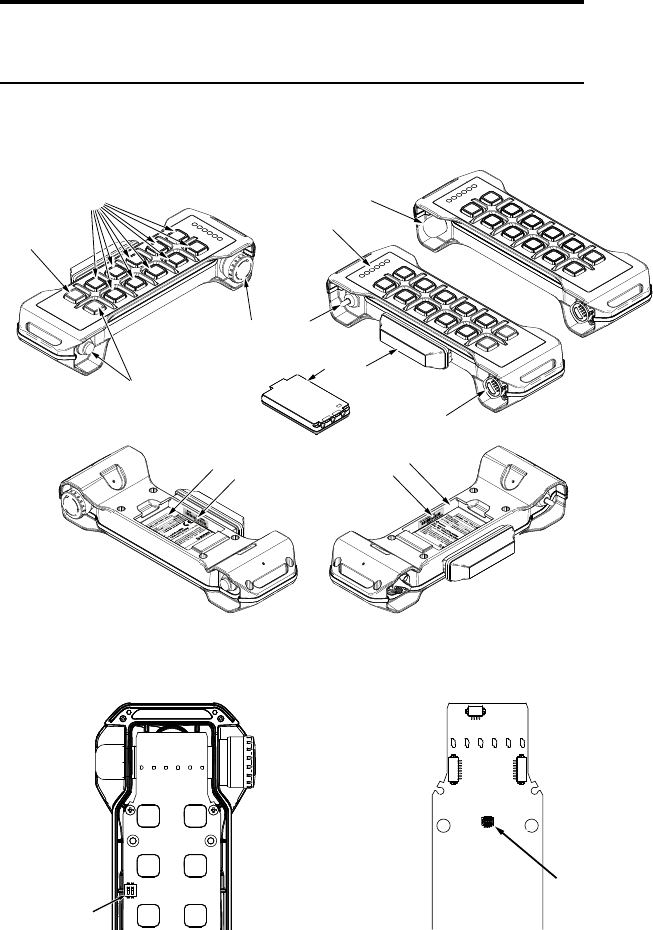

3 Description of the Transmitting Unit ................................................................. 13
3.1 Description of LK NEO 10 and LK NEO 12 Transmitting Units (Model LKN
Type LA2EM) .............................................................................................. 13

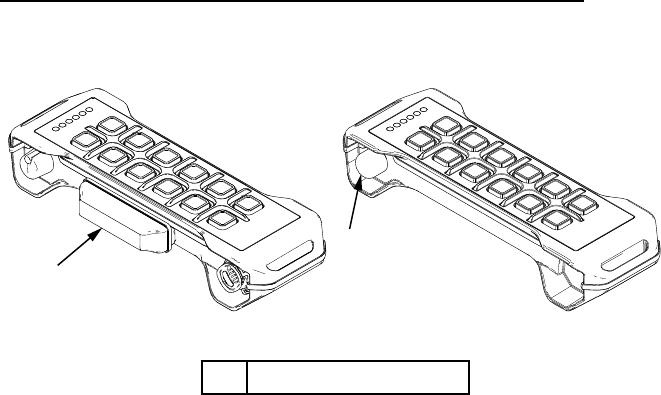

3.2 Description of LK NEO 10 DF Transmitting Unit (Model LKN Type DA2FM) 15
4 Technical data ..................................................................................................... 17
4.1 Technical data of LK NEO 10 and LK NEO 12 Transmitting Units (Model LKN
Type LA2EM) .............................................................................................. 17
4.2 Technical data of LK NEO 10 DF Transmitting Unit (Model LKN
Type DA2FM) .............................................................................................. 17
5 Technical Data Sheet .......................................................................................... 17
6 Plates ................................................................................................................... 18
6.1 Plates on the LK NEO 10, LK NEO 12 and LK NEO 10 DF (Model LKN
Type LA2EM, DA2FM) Transmitting Unit in a Radio Remote Control ........... 18
6.2 Plates on the LK NEO 10, LK NEO 12 and LK NEO 10 DF (Model LKN
Type LA2EM, DA2FM) Transmitting Unit in a "Take & Release"
Radio Remote Control ................................................................................. 18
6.3 Plates on the LK NEO 10, LK NEO 12 and LK NEO 10 DF (Model LKN
Type LA2EM, DA2FM) Transmitting Unit in a "Multi Units" or "Multi Receiver"
Radio Remote Control ................................................................................. 19

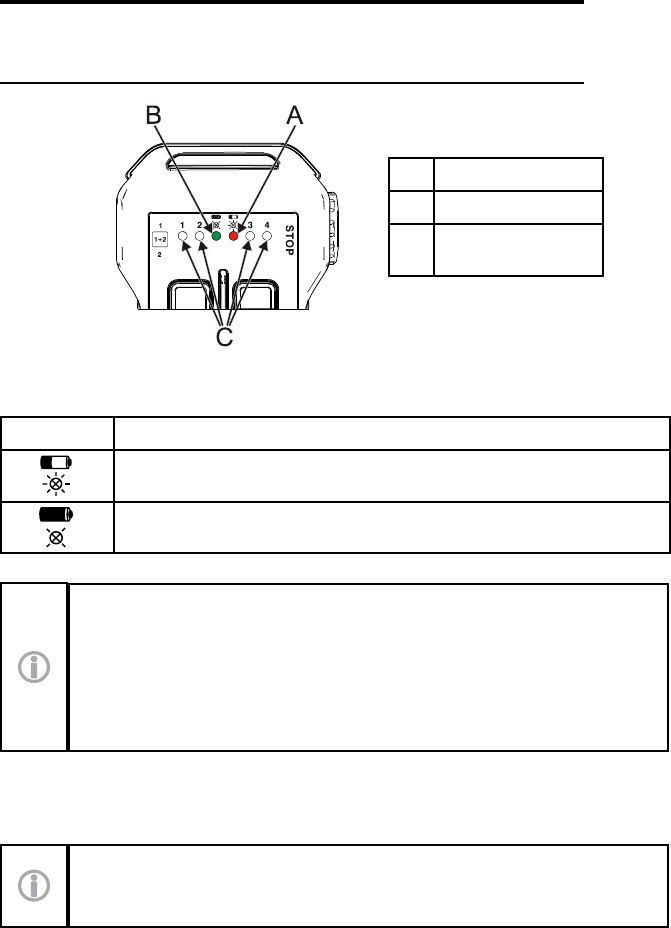

7 Light signals ........................................................................................................ 20
7.1 Light signals on LK NEO 10 and LK NEO 12 Transmitting Units (Model LKN
Type LA2EM) .............................................................................................. 20

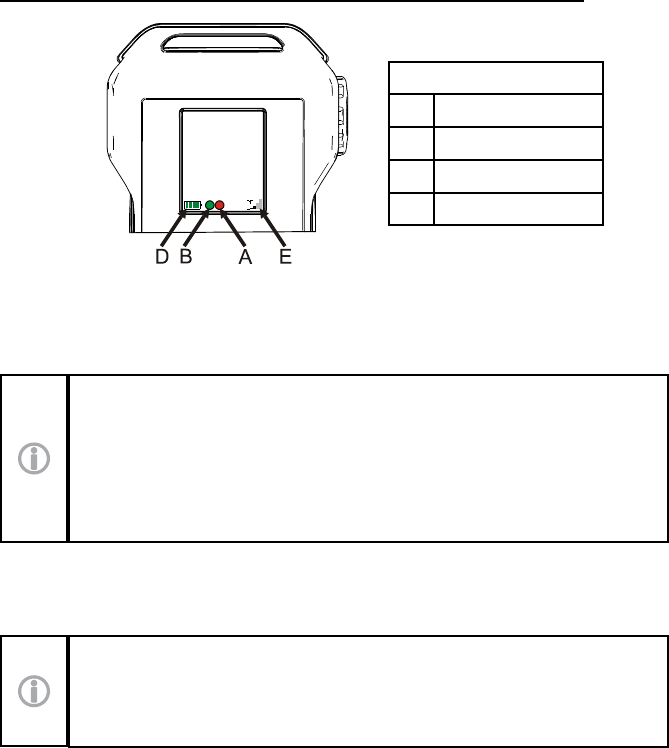

7.2 Light signals on the LK NEO 10 DF Transmitting Unit (Model LKN
Type DA2FM) .............................................................................................. 23
8 General operating instructions .......................................................................... 27

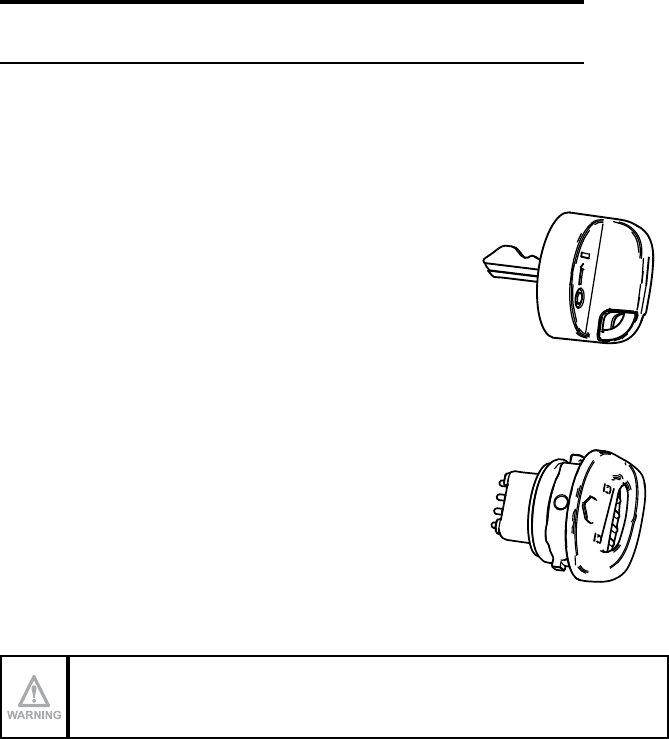

8.1 Power keyswitch .......................................................................................... 27
8.2 START pushbutton ...................................................................................... 28
8.3 STOP pushbutton ........................................................................................ 28
8.4 FUNCTION pushbutton ............................................................................... 28
8.5 DISPLAY pushbutton (if the Transmitting Unit has a display) ....................... 28
8.6 "Enabling&Stop" pushbutton ........................................................................ 29

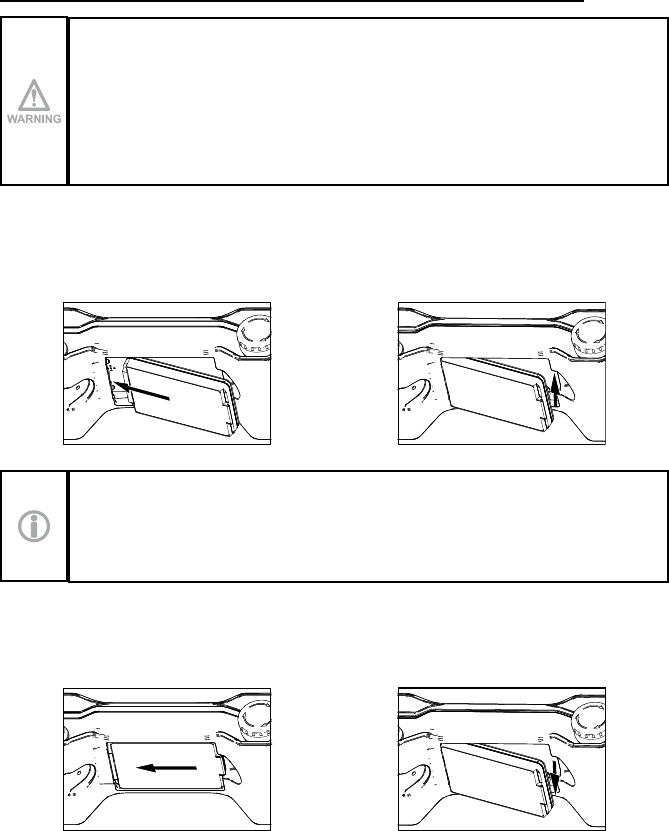

8.7 Battery ......................................................................................................... 31

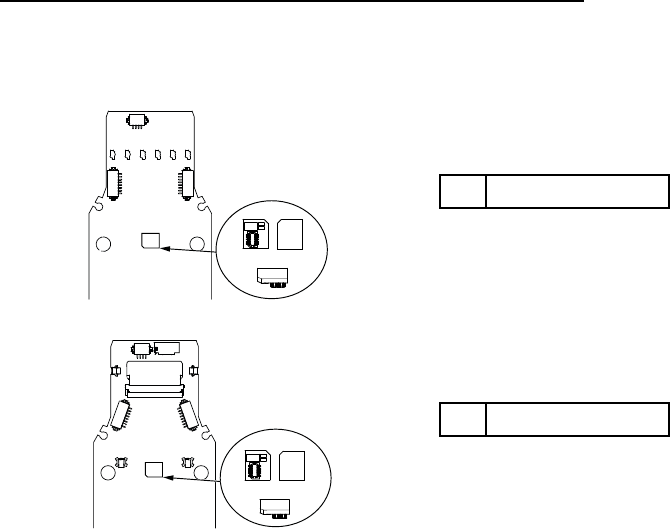

8.8 ID internal tx memory .................................................................................. 33
8.9 Zero-G sensor ............................................................................................. 34
LIULK1ES0_eng-01 AUTEC
8.10 Vibration alarm ............................................................................................ 34

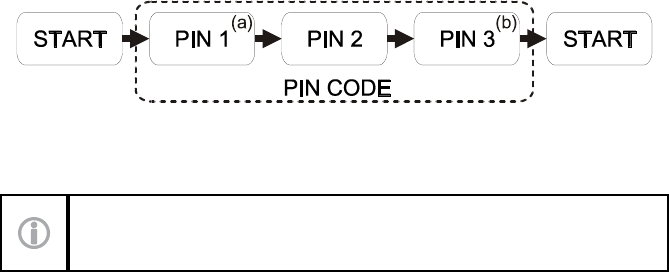

8.11 Starting up the Radio Remote Control ......................................................... 35
8.12 Command activation .................................................................................... 38
8.13 Radio link interruption .................................................................................. 38
8.14 Transmitting Unit automatic switch o ......................................................... 38
8.15 Switching o the Transmitting Unit .............................................................. 39
8.16 "Data Feedback" function ............................................................................ 40
8.17 BACK-UP UNIT ........................................................................................... 41
9 Instructions for the User .................................................................................... 42
9.1 Usage restrictions ........................................................................................ 42
9.2 User behaviour ............................................................................................ 42

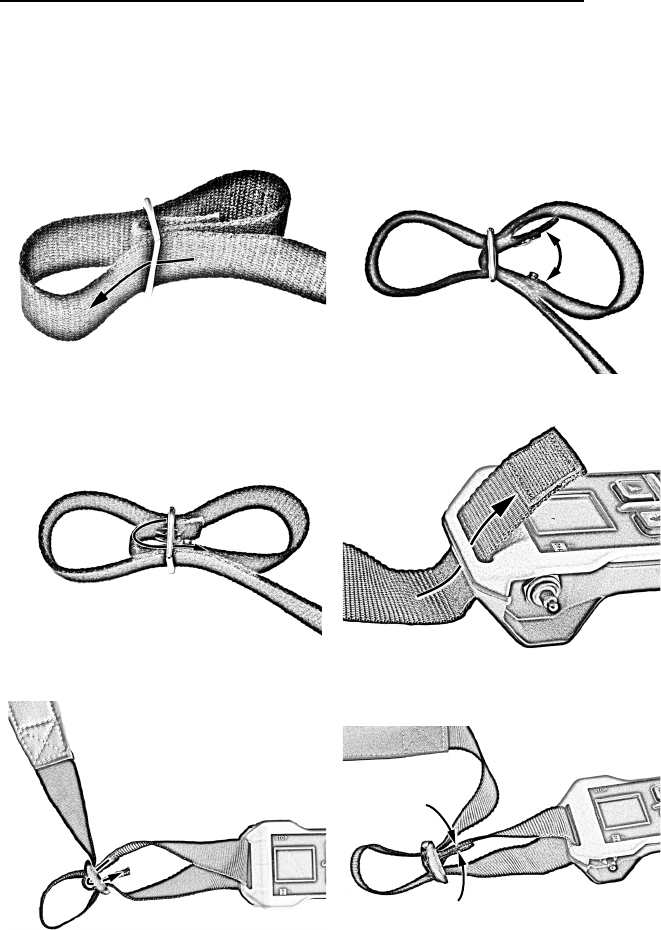

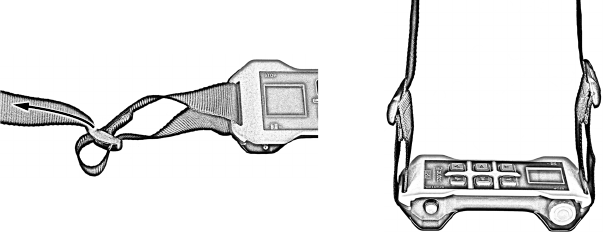

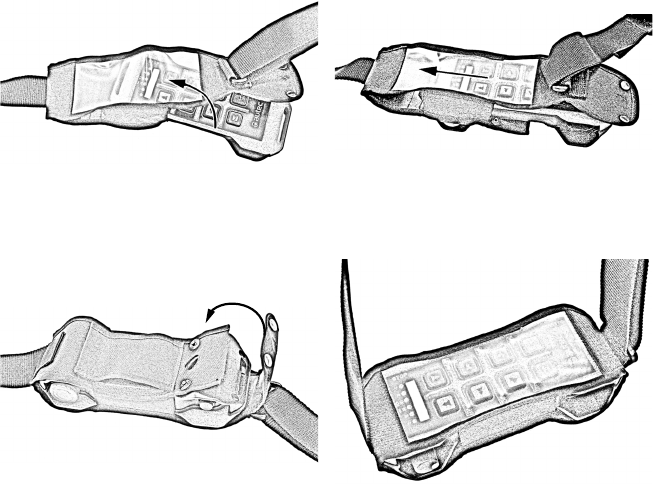

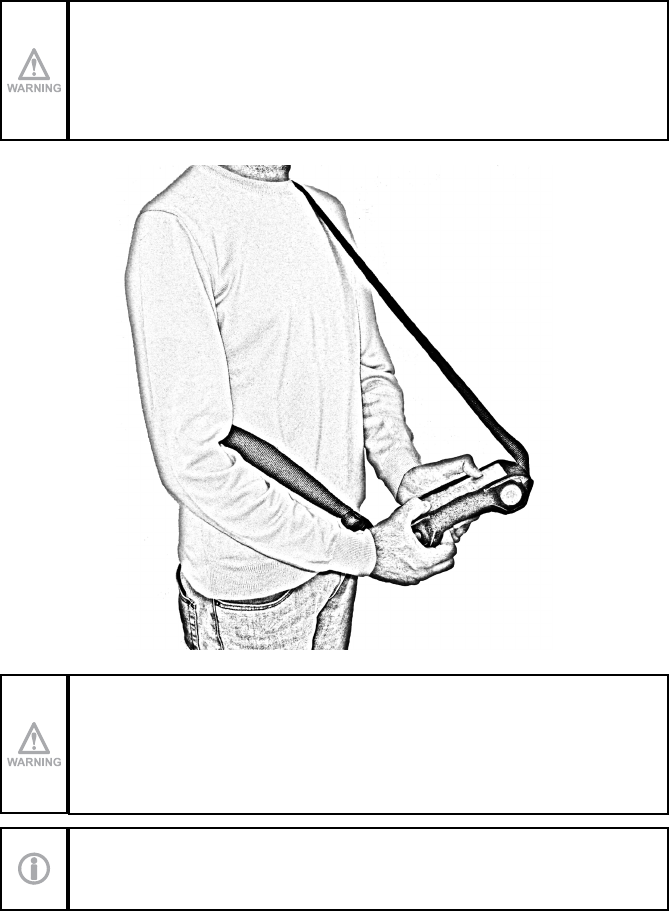

9.3 Belt and pouch with belt .............................................................................. 44
10 Maintenance ........................................................................................................ 49
11 Malfunction signalled by the Transmitting Unit ................................................ 49
12 Decommissioning and disposal ......................................................................... 51
AUTEC LIULK1ES0_eng-01
1 Information on the use of instructions
Before reading this part of the Manual, you must read and understand the general
part (Part A) of the Manual provided with the Radio Remote Control.
1.1 Structure of the Instruction Manual
The Manual for the use and maintenance of Autec Air series Radio Remote Controls consists of
dierent parts, that altogether form the Manual; the Manual must be read carefully, understood
and applied by the Radio Remote Control's Owner, User and by all those Persons that, for any
reasons, may operate with the Radio Remote Control or with the Machine where it is installed.
The following table describes the structure of the Instruction Manual for the use and the
maintenance of the Radio Remote Control.
Part Title Contents
AGeneral part
- General information regarding the series,
- directions for risk assessment of the "Machine+Radio Remote
Control" system,
- warnings for installation of the Radio Remote Control,
- warnings for use and maintenance of the Radio Remote Control,
- instructions for correct transportation and storage of Radio Remote
Control.
BConformity and
frequencies
- Operating frequency bands of the Radio Remote Control,
- conformity and law references of the Radio Remote Control.
CTransmitting Unit
Description and instructions concerning the Transmitting Unit,
including:
- description of operation,
- commands,
- light signals,
- malfunctions,
- additional instructions to the general part.
DReceiving Unit
Description and instructions concerning the Receiving Unit,
including:
- description of operation,
- light signals,
- malfunctions,
- additional instructions to the general part.
EBattery and
Battery Charger
Description, warnings and instructions concerning batteries and
Battery Chargers, including:
- description of operation,
- light signals,
- malfunctions,
- instructions for the User.
8
LIULK1ES0_eng-01
Information on the use of instructions
AUTEC - Air series
Usage and maintenance instructions are supplemented by the Radio Remote Control's
Technical Data Sheet, that:
-describes the Transmitting Unit's conguration,
-indicates the relation between commands sent by the Transmitting Unit and those available
on the Receiving Unit.
Usage and maintenance instruction as a whole are to be considered as an integral part both
of the Autec Radio Remote Control and of the Machine, system, device or Machinery system
where the Radio Remote Control is installed.
The Manufacturer of the Machine on which the Autec Radio Remote Control is installed, and
the Owner and User of the Machine, must make sure that the Instruction Manual and all of
its parts are included in the Instruction Manual of the Machine.
The CD attached to each Instruction Manual includes the translations of the Manual.
Act as follows to identify the single Manual parts in the relevant language in the CD:
-identify the correct section depending on the Radio Remote Control serial number,
-choose the desired language,
-select the single parts of the Manual: refer to the code name provided on the cover of
each part.
XXXXXXXXX_language-XX
XXXXXXXXX_language-XX
Instruction Manual for the use and the
maintenance of the Radio Remote Control
Original instructions
Part X: XXXXXXXXXXXXXXXXXXXXXXXXXXXXX
XX SERIES
AUTEC - Air series
Information on the use of instructions 9
LIULK1ES0_eng-01
1.2 Caption and terminology
Contact Autec if any of the instructions, symbols, warnings or images are not
clear and understandable, or if you have doubts or questions.
In this part of the Manual, the terms listed below have the same meaning explained in the
corresponding paragraph of the general part (Part A):
-Unit
-Radio Remote Control
-Transmitting Unit
-Receiving Unit
-Machine
-Manufacturer
-Installer
-User
-Maintenance Technician
-Manual or Instruction Manual
-Installation Manual
-Person
-Owner
Functions indicated for the Manufacturer, the Installer, the User and the Maintenance
Technician may be performed by a single Person, if he/she has the needed competence
and undertakes the resulting responsibilities. Each Person must be aware of the instructions
contained in the Manual, depending on the activity they carry out.
For example, if a Manufacturer is also the Installer, and/or Maintenance Technician, he must
also know and follow the instructions specically addressed to those Persons. The same
applies, for example, if a User is also the Manufacturer and/or the Installer.
1.3 Symbols
This symbol identies the parts of text in the Manual that must be read with
special attention.
This symbol identies the parts of text in the Manual containing warnings,
information and/or instructions that are particularly relevant with regards
to safety; failure in understanding them may cause hazards for People and/
or property.
10
LIULK1ES0_eng-01
Information on the use of instructions
AUTEC - Air series
1.4 To whom the instructions are addressed
Addressees of instructions are listed in the paragraph with the same title in the general part:
please refer to that part.
1.5 Instruction storage
Regulation for the storage of instructions are described in the paragraph with the same title
in the general part: please refer to that part.
1.6 Intellectual property
Restrictions connected to intellectual property are described in the paragraph with the same
title in the general part: please refer to that part.
AUTEC - Air series
Information on the use of instructions 11
LIULK1ES0_eng-01
2 Brief product presentation
2.1 Series, Radio Remote Control and Unit
The object of this part of the Manual is the LK NEO 10, LK NEO 12 and LK NEO 10 DF (Model
LKN Type LA2EM, DA2FM) Transmitting Unit of an Air series' Autec Radio Remote Control.
Autec Air series' Radio Remote Controls are designed to be used on Machines and provide
a command interface to their command and control system, to be used from an appropriate
distance and position.
2.2 Conformity with standards
The conformity of Radio Remote Controls with standards and with working requirements and
conditions in the single Countries is provided in the related specic part “Conformity and
frequencies” (Part B) of the Manual.
2.3 Contacts and useful addresses
The Radio Remote Controls are produced by Autec srl – Via Pomaroli, 65 – 36030 Caldogno
(VI) – ITALY.
You can nd contacts for Autec, its distributors, dealers and authorized service centres on
the website www.autecsafety.com.
2.4 Warranty
General warranty conditions are indicated both in the relevant sheet provided together with
this documentation, and in the specic page on the website www.autecsafety.com.
2.5 Technical assistance and spare parts
If you need technical services and/or spare parts, please refer to contacts provided in the
website www.autecsafety.com.
When applying for technical service to Autec, its distributors, dealers and authorized service
centres, the Radio Remote Control's serial number is required; you can nd it on the
identication plate on the Transmitting Unit and/or on the Receiving Unit.
12
LIULK1ES0_eng-01
Brief product presentation
AUTEC - Air series
3 Description of the Transmitting Unit
3.1 Description of LK NEO 10 and LK NEO 12 Transmitting Units (Model
LKN Type LA2EM)
A
B
C
D
E
F
G
H
J
K
L
M
N
N
P
Q
AUTEC - Air series
Description of the Transmitting Unit 13
LIULK1ES0_eng-01
ALEDs
BActuator (selector, pushbutton) (if present)
CBattery
DPower keyswitch (if present)
EBattery housing
FTransmitting Unit identication plate
GRadio Remote Control identication plate
HTechnical data plate
JSTART pushbutton
KFUNCTION pushbutton
LCommand pushbuttons
MSTOP pushbutton
N"Enabling&Stop" pushbutton
PDIP switches
QConnector for "ID internal tx memory"
14
LIULK1ES0_eng-01
Description of the Transmitting Unit
AUTEC - Air series
3.2 Description of LK NEO 10 DF Transmitting Unit (Model LKN Type
DA2FM)
A
B
C
D
E
F
G
H
J
K
L
M
N
P
P
Q
R
AUTEC - Air series
Description of the Transmitting Unit 15
LIULK1ES0_eng-01
ADisplay
BActuator (selector, pushbutton) (if present)
CBattery
DPower keyswitch (if present)
EBattery housing
FTransmitting Unit identication plate
GDISPLAY pushbutton
HRadio Remote Control identication plate
JTechnical data plate
KSTART pushbutton
LFUNCTION pushbutton
MCommand pushbuttons
NSTOP pushbutton
P"Enabling&Stop" pushbutton
QDIP switches
RConnector for "ID internal tx memory"
16
LIULK1ES0_eng-01
Description of the Transmitting Unit
AUTEC - Air series
4 Technical data
4.1 Technical data of LK NEO 10 and LK NEO 12 Transmitting Units (Model
LKN Type LA2EM)
Power supply (battery MHM03) .............................................................................. 3.6V
Power supply (battery LPM01) ............................................................................... 3.7V
Antenna .................................................................................................................. internal
Housing material .......................................................................................... PA 6 (20%fg)
Protection degree ....................................................................................... IP65 (NEMA 4)
Dimensions ................................................................ 265x85x49mm (10.43x3.35x1.92In)
Weight ....................................................................................................... 450g (0.992Lb)
Run time at 20°C (68°F):
- with battery MHM03 .................................................................................................... >8h
- with battery LPM01 ................................................................................................... >16h
4.2 Technical data of LK NEO 10 DF Transmitting Unit (Model LKN Type
DA2FM)
Power supply (battery LPM01) ............................................................................... 3.7V
Antenna .................................................................................................................. internal
Housing material .......................................................................................... PA 6 (20%fg)
Protection degree ....................................................................................... IP65 (NEMA 4)
Dimensions ................................................................ 265x85x49mm (10.43x3.35x1.92In)
Weight ....................................................................................................... 450g (0.992Lb)
Run time at 20°C (68°F) ............................................................................................ >10h
5 Technical Data Sheet
The Radio Remote Control 's Technical Data Sheet:
-describes the Transmitting Unit's conguration,
-indicates the relation between commands sent by the Transmitting Unit and those available
on the Receiving Unit.
The Technical Data Sheet must be lled in, checked and signed by the Installer, who is
responsible for correct wiring.
A Technical Data Sheet must always be kept together with this Manual: if you need to use
the Technical Data Sheet for administrative purposes (tests, check, etc.), make a copy of it.
The wiring of the Receiving Unit's outputs must always reect the wiring
indicated in the Technical Data Sheet.
AUTEC - Air series
Technical data 17
LIULK1ES0_eng-01
6 Plates
The following instructions refer to the plates on dierent types of Radio Remote Controls
where the LK NEO 10, LK NEO 12 and LK NEO 10 DF (Model LKN Type LA2EM, DA2FM)
Transmitting Unit may be used.
6.1 Plates on the LK NEO 10, LK NEO 12 and LK NEO 10 DF (Model LKN
Type LA2EM, DA2FM) Transmitting Unit in a Radio Remote Control
Plate Position Content
Radio Remote Control
identication plate
Key ID 0-1 (if present)
Radio Remote Control serial number
(S/N)
Battery housing (if the
“ID internal tx memory” is
present)
Transmitting Unit
identication plate Battery housing
Manufacturing year, bar code and
Transmitting Unit identication number
(TU ID)
Technical data plate Battery housing
MODEL, TYPE and main Transmitting
Unit technical data, marking and
possible Radio Remote Control marks
6.2 Plates on the LK NEO 10, LK NEO 12 and LK NEO 10 DF (Model LKN
Type LA2EM, DA2FM) Transmitting Unit in a "Take & Release" Radio
Remote Control
Plate Position Content
Radio Remote Control
identication plate
Key ID 0-1 (if present)
Radio Remote Control serial number
(S/N)
Battery housing (if the
“ID internal tx memory” is
present)
Transmitting Unit
identication plate Battery housing
Manufacturing year, bar code and
Transmitting Unit identication number
(TU ID)
Technical data plate Battery housing
MODEL, TYPE and main Transmitting
Unit technical data, marking and
possible Radio Remote Control marks
18
LIULK1ES0_eng-01
Plates
AUTEC - Air series
6.3 Plates on the LK NEO 10, LK NEO 12 and LK NEO 10 DF (Model LKN
Type LA2EM, DA2FM) Transmitting Unit in a "Multi Units" or "Multi
Receiver" Radio Remote Control
Plate Position Content
Radio Remote Control
identication plate
Key ID 0-1 (if present)
Radio Remote Control serial number
(MULTI S/N)
Battery housing (if the
“ID internal tx memory” is
present)
Transmitting Unit
identication plate Battery housing
Manufacturing year, bar code and
Transmitting Unit identication number
(TU ID)
Technical data plate Battery housing
MODEL, TYPE and main Transmitting
Unit technical data, marking and
possible Radio Remote Control marks
AUTEC - Air series
Plates 19
LIULK1ES0_eng-01
7 Light signals
7.1 Light signals on LK NEO 10 and LK NEO 12 Transmitting Units (Model
LKN Type LA2EM)
ARed LED
BGreen LED
CLEDs for "Data
Feedback" function
The LK NEO 10 and LK NEO 12 Transmitting Units always have a green LED [B] and a red
LED [A] that provide information regarding the Radio Remote Control.
Symbol Meaning
This symbol identies the red LED [A].
This symbol identies the green LED [B].
The meaning of signals provided by the LEDs identied with “C” are explained in
the "Data Feedback" function part (see paragraph 8.16). The meaning of LEDs
related to the "Data Feedback" function are decided and established by the
Machine Manufacturer depending on the Machine's functions for which he wants
to receive information.
7.1.1 Red LED [A] and green LED [B]
The meaning of red LED [A] and green LED [B] signals is described in the following tables;
possible actions to carry out are given in chapter 11.
The meaning of the red and green LED signals cannot be modied.
20
LIULK1ES0_eng-01
Light signals
AUTEC - Air series
Signal Meaning
The green LED [B] is o. The Transmitting Unit is o.
The green LED [B] is lit with a
steady light. The Transmitting and Receiving Unit do not communicate.
The green LED [B] repeats the
sequence: two blinks and a pause.
The working range of the remote control has been
exceeded for more than 20 seconds.
The green LED [B] repeats the
sequence: three blinks and a
pause.
The Receiving Unit does not communicate with the
transmitting Unit. If the Transmitting Unit communicates
with the Receiving Unit, it is possible to send commands.
The green LED [B] blinks fast.
The Transmitting and Receiving Unit communicate. It
is only possible to send commands after pressing the
START pushbutton.
The green LED [B] blinks slowly
(one blink per second). It is possible to send commands.
Signal Meaning
The red LED [A] is o. The Transmitting Unit works correctly.
The red LED [A] is steady on
during start up.
The STOP pushbutton is pressed or damaged.
Press the "Enabling&Stop" pushbutton halfway (ON - rst
step, see paragraph 8.6).
The red LED [A] blinks twice per
second during start up.
At least one of the commands that were checked at start-
up is enabled or damaged (see Technical Data Sheet).
The red LED [A] blinks three times
per second during start up. The battery is at.
The red LED [A] is steady on for
two seconds during start up. The Transmitting Unit does not work correctly.
The red LED [A] blinks slowly (one
blink per second). The battery has less than 1h run time.
The red LED [A] blinks fast. The battery has a 10min run time.
AUTEC - Air series
Light signals 21
LIULK1ES0_eng-01
Signal Meaning
The green [B] and red [A] LEDs are
steady on during start up.
A wrong "Key ID 0-1" or "ID internal tx memory" has been
inserted in the Transmitting Unit, or this is a "BACK-UP
UNIT".
The green [B] and red [A] LEDs
blink 3 times per second during
start up.
The "Key ID 0-1" or the "ID internal tx memory" is
damaged.
The green LED [B] is lit with a
steady light and the red LED [A]
blinks two times per second during
start up.
The START pushbutton is activated.
The green [B] and red [A] LEDs
blink alternating.
30 s left before the Transmitting Unit automatically
switches o.
The green LED [B] repeats the
sequence: 3 blinks and a pause,
and the red LED [A] is steady on
during start up.
The UNPAIR procedure has been carried out.
22
LIULK1ES0_eng-01
Light signals
AUTEC - Air series
7.2 Light signals on the LK NEO 10 DF Transmitting Unit (Model LKN Type
DA2FM)
Display icons
ARed LED
BGreen LED
DBattery
ERadio link
The following icons are always available on the display of LK NEO 10 DF Transmitting Units:
-red LED [A] and green LED [B] providing information about the Radio Remote Control,
-battery [D] providing indication of the battery power level,
-radio link [E] providing indication of radio link strength.
The meaning of other icons shown on the display is explained in the "Data
Feedback" function part (see paragraph 8.16). The meaning of such icons is
decided and established by the Manufacturer depending on the Machine's functions
for which he wants to receive information.
7.2.1 Red LED [A] and green LED [B]
The meaning of red LED [A] and green LED [B] signals is described in the following tables;
possible actions to carry out are given in chapter 11.
The meaning of the red and green LED signals cannot be modied.
AUTEC - Air series
Light signals 23
LIULK1ES0_eng-01
Signal Meaning
The green LED [B] is o. The Transmitting Unit is o.
The green LED [B] is lit with a
steady light. The Transmitting and Receiving Unit do not communicate.
The green LED [B] repeats the
sequence: two blinks and a pause.
The working range of the remote control has been
exceeded for more than 20 seconds.
The green LED [B] repeats the
sequence: three blinks and a
pause.
The Receiving Unit does not communicate with the
transmitting Unit. If the Transmitting Unit communicates
with the Receiving Unit, it is possible to send commands.
The green LED [B] blinks fast.
The Transmitting and Receiving Unit communicate. It
is only possible to send commands after pressing the
START pushbutton.
The green LED [B] blinks slowly
(one blink per second). It is possible to send commands.
Signal Meaning
The red LED [A] is o. The Transmitting Unit works correctly.
The red LED [A] is steady on
during start up.
The STOP pushbutton is pressed or damaged.
Press the "Enabling&Stop" pushbutton halfway (ON - rst
step, see paragraph 8.6).
The red LED [A] blinks twice per
second during start up.
At least one of the commands that were checked at start-
up is enabled or damaged (see Technical Data Sheet).
The red LED [A] blinks three times
per second during start up. The battery is at.
The red LED [A] is steady on for
two seconds during start up. The Transmitting Unit does not work correctly.
The red LED [A] blinks slowly (one
blink per second). The battery has less than 1h run time.
The red LED [A] blinks fast. The battery has a 10min run time.
24
LIULK1ES0_eng-01
Light signals
AUTEC - Air series
Signal Meaning
The green [B] and red [A] LEDs are
steady on during start up.
A wrong "Key ID 0-1" or "ID internal tx memory" has been
inserted in the Transmitting Unit, or this is a "BACK-UP
UNIT".
The green [B] and red [A] LEDs
blink 3 times per second during
start up.
The "Key ID 0-1" or the "ID internal tx memory" is
damaged.
The green LED [B] is lit with a
steady light and the red LED [A]
blinks two times per second during
start up.
The START pushbutton is activated.
The green [B] and red [A] LEDs
blink alternating.
30 s left before the Transmitting Unit automatically
switches o.
The green LED [B] repeats the
sequence: 3 blinks and a pause,
and the red LED [A] is steady on
during start up.
The UNPAIR procedure has been carried out.

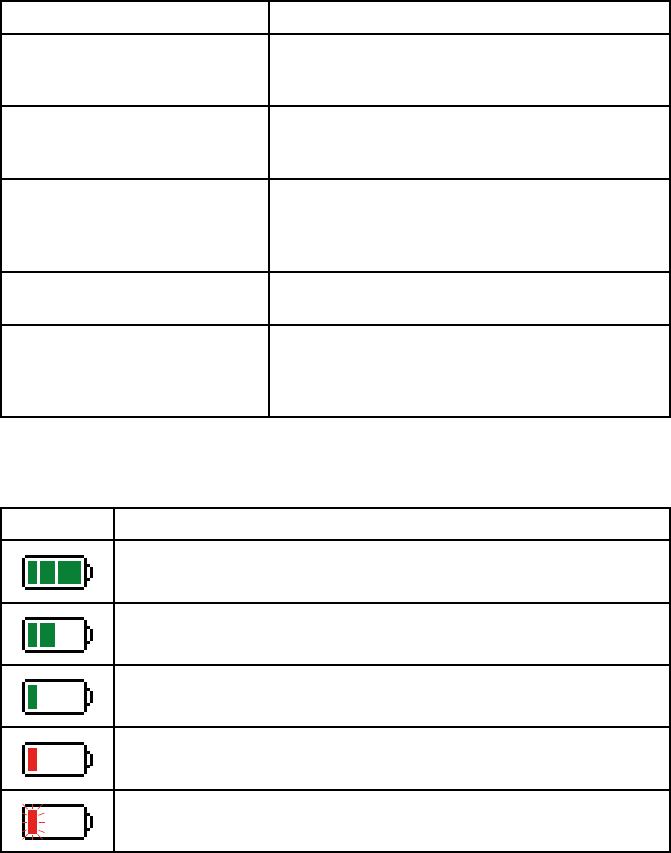

7.2.2 Battery [D]
The Battery icon [D] has a bar, whose length and colour indicate the battery power level.
Symbol Meaning
High power level (green bar).
Medium power level (green bar).
Low power level (green bar): the battery has less than 1h run time from the
beginning of this signal.
Very low power level (red bar): the battery has 10min run time from the beginning
of this signal.
The Unit is about to switch o (blinking red bar): the battery has 2min run time
from the beginning of this signal.
AUTEC - Air series
Light signals 25
LIULK1ES0_eng-01

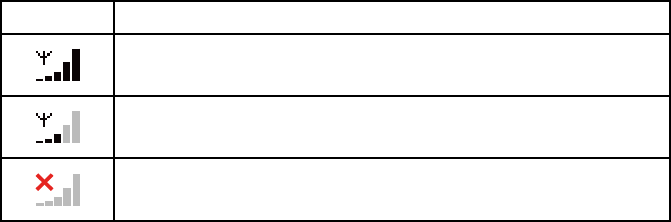

7.2.3 Radio link [E]
The Radio link icon [E] consists of ve vertical bars. The amount of dark bars is proportional
to the quality of radio link.
Symbol Meaning
Strong radio link signal.
Medium radio link signal.
No radio link.
26
LIULK1ES0_eng-01
Light signals
AUTEC - Air series
8 General operating instructions
8.1 Power keyswitch
When the Transmitting Unit has a power keyswitch, this can be:
-A mechanical key (see paragraph 8.1.1)
-A Key ID 0-1 (see paragraph 8.1.2).
The Radio Remote Control cannot work if the power keyswitch is not inserted in the Transmitting
Unit.
8.1.1 Mechanical key
The mechanical key makes it possible to power the Transmitting
Unit.
8.1.2 "Key ID 0-1"
The "Key ID 0-1" makes it possible to power the Transmitting Unit.
It stores the Radio Remote Control's address. Therefore, the "Key
ID 0-1" can only be used in the Transmitting Unit of the Radio
Remote Control to which it belongs.
As the Radio Remote Control's address is stored in the "Key ID
0-1", this must be used with very strict care.
Only use the "Key ID 0-1" for the Transmitting Unit with which it was provided.
8.1.3 power keyswitch insertion
Perform the following operations to insert the power keyswitch:
1. introduce the power keyswitch inside the corresponding housing.
2. rotate the power keyswitch clockwise.
8.1.4 power keyswitch removal
Perform the following operations to remove the power keyswitch:
3. rotate the power keyswitch anticlockwise,
4. pull the power keyswitch to remove it from the corresponding housing.
AUTEC - Air series
General operating instructions 27
LIULK1ES0_eng-01
8.2 START pushbutton
The START pushbutton is used to:
-start the Radio Remote Control (see paragraph 8.11),
-activate the horn when the Radio Remote Control is started.
8.3 STOP pushbutton
When the STOP pushbutton is activated, the Machine stops and the Transmitting Unit switches
o. To start the Radio Remote Control again and enable it to control the Machine after the
STOP pushbutton has been pressed, you need to:
-make sure that the working and usage conditions are safe,
-pull or turn the STOP pushbutton in the arrow direction (show on the button) to unlock it,
-start the Radio Remote Control following the procedure described in paragraph 8.11.
The STOP pushbutton should be pressed when it is necessary to stop the
Machine immediately whenever a dangerous condition occurs.
The Machine Manufacturer and/or the Installer must provide the User with the
instructions and warnings concerning possible risks that may originate from
the Machine stop (by way of example: movement inertia, swinging load…).
8.4 FUNCTION pushbutton
The function of the FUNCTION pushbutton is decided by the Installer of the Radio Remote
Control. The Machine Manufacturer and/or the Installer must provide the user with instructions
about the relation between the FUNCTION pushbutton and the corresponding movement on
the Machine. The User must be properly trained about this.
8.5 DISPLAY pushbutton (if the Transmitting Unit has a display)
The functions of this pushbutton are:
-Activates the display lighting.
-It cyclically scrolls the information on the display in two dierent modes:
-Manual: the lines scroll up each time the pushbutton is pressed.
-Automatic: when the DISPLAY pushbutton is pressed for 3 seconds, the lines scroll
automatically. If the DISPLAY pushbutton is pressed again, it switches back to Manual
mode.
It is not possible to scroll the lines if icons only are displayed.
The display lighting stays on for a time set by the Machine Manufacturer.
No function other than the above mentioned functions must be given to the
display pushbutton when the Unit is installed.
28
LIULK1ES0_eng-01
General operating instructions
AUTEC - Air series
8.6 "Enabling&Stop" pushbutton
A three-position pushbutton, called "Enabling&Stop", is present on the left side of the
Transmitting Unit.
A
A
A"Enabling&Stop" pushbutton
The "Enabling&Stop" pushbutton is used to perform two functions:
a. Enabling function: if it is activated at the same time as other actuators, it enables sending
the corresponding commands to the Machine;
b. Stop function: if it is released or completely pressed, it switches o the Transmitting Unit
and stops the Radio Remote Control.
These are the three possible positions for the "Enabling&Stop" pushbutton:
1. not pressed (OFF - rest position): the release of the "Enabling&Stop" pushbutton stops
the Radio Remote Control;
2. halfway pressed (ON - rst step): the "Enabling&Stop" pushbutton enables the operation
of the other actuators in the Radio Remote Control;
3. completely pressed (OFF - second step): the "Enabling&Stop" pushbutton disables the
operation of the other actuators while also stopping the Radio Remote Control.
The Radio Remote Control can start only if the "Enabling&Stop" pushbutton is in the halfway
position (position “2”; see paragraph 8.11)
When you release the "Enabling&Stop" pushbutton from position "3", you will skip position
"2" and go directly to position "1".
To start the Radio Remote Control again and enable it to control the Machine after the
"Enabling&Stop" pushbutton has activated the stop, you need to:
-make sure that the working and usage conditions are safe,
-start the Radio Remote Control following the procedure described in paragraph 8.11.
AUTEC - Air series
General operating instructions 29
LIULK1ES0_eng-01
The Machine Manufacturer and/or the Installer must provide the User with the
instructions and warnings concerning possible risks that may originate from
the Machine stop (by way of example: movement inertia, swinging load…).
NEVER USE TAPE, RUBBER BANDS OR OTHER OBJECTS TO INTERFERE
WITH THE OPERATION OF THE "ENABLING&STOP" PUSHBUTTON. DOING
SO COULD DAMAGE THE UNIT, PREVENTS THE PROPER FUNCTIONING
OF THE UNIT AND COULD CAUSE SERIOUS INJURY OR DEATH, AND/OR
PROPERTY DAMAGE.
The stop function activated by the ”Enabling&Stop” pushbutton meets the
requirements up to PL=d according to the EN ISO 13849-1.
30
LIULK1ES0_eng-01
General operating instructions
AUTEC - Air series
8.7 Battery
The Air series' Transmitting Units can only be powered by Autec rechargeable
batteries.
For any warnings and instructions regarding the battery, see "Part E" in
the Instruction Manual.
8.7.1 Battery insertion
Push the battery towards the contacts on the Transmitting Unit (1) and insert it inside the
housing (2).
12
The battery slides easily into place and ensures that the positive (+) and negative
(-) poles are correctly connected only if it is inserted with the plate facing its
housing, so that the battery's contacts match the Transmitting Unit's contacts.
8.7.2 Battery removal
Push the battery towards the contacts on the Transmitting Unit (3) and remove it from the
housing (4).
34
When the Transmitting Unit is not in use, remove the battery if possible.
AUTEC - Air series
General operating instructions 31
LIULK1ES0_eng-01
8.7.3 Indication of the battery charge level in the LK NEO 10 DF Transmitting Unit
(Model LKN Type DA2FM)
See paragraph 7.2.2 to check the battery charge level in the LK NEO 10 DF Transmitting Unit.
8.7.4 Indication of the battery charge level in the LK NEO 10 and LK NEO 12 Transmitting
Unit (Model LKN Type LA2EM)
Perform the following procedure to check the charge level of the battery in the LK NEO 10
and LK NEO 12 Transmitting Units:
1. switch o the Transmitting Unit and unlock the STOP pushbutton,
2. press the "Enabling&Stop" pushbutton halfway (ON - rst step, see paragraph 8.6);
3. activate command S1 (check in the Technical Data Sheet which actuator it corresponds
to) and press the START pushbutton until LED 1, LED 2 and LED 3 (indicating battery
level) illuminate:
-1 LED on: low level
-2 LEDs on: medium level.
-3 LEDs on: maximum level.
Run time indication disappears after some seconds.
Commands associated to the actuators that are activated during the procedure
to check the battery charge level are not sent to the Machine.
32
LIULK1ES0_eng-01
General operating instructions
AUTEC - Air series
8.8 ID internal tx memory
The "ID internal tx memory" is a key containing the address that is used to code messages
exchanged between the Transmitting Unit and the Receiving Unit.
This key, if present, is inside the Transmitting Unit.
LK NEO 10 and LK NEO 12 (Model LKN Type LA2EM)
S/N:
XXXXXXX
S/N:
XXXXXXX
S/N:
XXXXXXX
A
LK NEO 10 DF (Model LKN Type DA2FM)
S/N:
XXXXXXX
S/N:
XXXXXXX
S/N:
XXXXXXX
A
AID internal tx memory
AID internal tx memory
When the Transmitting Unit does not have the"Key ID 0-1" (see paragraph 8.1.2), the
Technical Data Sheet shows if an "ID internal tx memory" is present (DIP switch 2 is set in
the ON position).
AUTEC - Air series
General operating instructions 33
LIULK1ES0_eng-01
8.9 Zero-G sensor
The Transmitting Unit is equipped with a Zero-G sensor only upon request
of the Machine Manufacturer and/or of the Installer, who are responsible for
the decision on the conditions for the Zero-G sensor to activate.
The Zero-G sensor can activate for one or more of the following causes:
-Impact: the Zero-G sensor activates when the Transmitting Unit impacts with at least a
30-centimetre movement and with an acceleration higher than 2g.
-Fall: the Zero-G sensor activates when the Transmitting Unit falls from higher than 1 meter.
-Tilt: the Zero-G sensor activates when the Transmitting Unit is tilted for more than one
second by a dened angle with respect to the ground. The value of the tilting angle is set
by Autec, but it is decided by the Machine Manufacturer and/or by the Installer (possible
options: 45°/60°/90°).
The Zero-G sensor may also activate if the Transmitting Unit is thrown or is rolling. In this
case the Zero-G sensor activates due to the rst detected event among the above-mentioned
ones (impact, fall, tilt).
Autec sets the system so that when the Zero-G sensor activates, one of the following
behavior occur:
-the Transmitting Unit switches o,
-all the Radio Remote Control's commands are deactivated, except one particular Machine
function, which is activated at the same time (e.g. horn).
The Machine Manufacturer and/or the Installer have the responsibility to
decide the behaviour of the Zero-G sensor. Before using the Machine, the
User must be aware of the expected behaviour and make sure that it works
correctly.
8.10 Vibration alarm
The LK NEO 10 DF Transmitting Unit (Model LKN Type DA2FM) can be equipped with the
"Vibration alarm".
The "Vibration alarm" activates the Transmitting Unit's vibration if specic signals coming
from the Machine are shown on the display.
The Transmitting Unit's vibration aims at drawing the User's attention to the corresponding
signal shown on the display.
The Transmitting Unit can be equipped with the "Vibration alarm" upon request of the Machine
Manufacturer and/or the Installer.
The Machine Manufacturer and/or the Installer decide which signals shown
in the display must cause the vibration of the Transmitting Unit.
34
LIULK1ES0_eng-01
General operating instructions
AUTEC - Air series
8.11 Starting up the Radio Remote Control
Starting up the Radio Remote Control consists in establishing a radio link between the
Transmitting Unit and the Receiving Unit.
The Radio Remote Control start up is protected by means of a power
keyswitch and/or a PIN code to prevent unauthorised use of the Machine.
To start up the Radio Remote Control, you need to insert the power keyswitch
and\or to key in the PIN code according to the procedure provided in
paragraph 8.11.1,8.11.2 or 8.11.3.
The PIN code is not a sequence of numbers, but it consists in the sequential activation of
actuators.
Commands associated to the actuators that are activated while inserting the PIN
code are not sent to the Machine.
If the Transmitting Unit does not have a power keyswitch, the Radio Remote Control start
up is protected by PIN code.
On the contrary, when the Transmitting Unit needs a power keyswitch, Radio Remote Control
start up is protected by the power keyswitch itself. If the risk assessment requires further
protection of the Radio Remote Control start up, the PIN code can be activated too.
8.11.1 power keyswitch start up (no PIN code)
When the Receiving Unit is powered on correctly, perform the following procedure:
1. Insert a charged battery in the Transmitting Unit (see paragraph 8.7.1),
2. insert the power keyswitch in the Transmitting Unit (see paragraph 8.1.3),
3. press the "Enabling&Stop" pushbutton halfway (ON - rst step, see paragraph 8.6),
4. press the START pushbutton and hold it down until the green LED blinks quickly.
5. release the START pushbutton.
When the green LED blinks slowly, the Radio Remote Control is active and it can send
commands and activate the Machine.
AUTEC - Air series
General operating instructions 35
LIULK1ES0_eng-01
8.11.2 PIN code start up (no power keyswitch)
When the Receiving Unit is correctly powered on, perform the following procedure; press
each pushbutton within 3 seconds after releasing the previous one:
1. Insert a charged battery in the Transmitting Unit (see paragraph 8.7.1),
2. press the "Enabling&Stop" pushbutton halfway (ON - rst step, see paragraph 8.6),
3. press the START pushbutton and hold it down until the green LED illuminates,

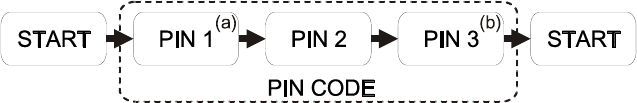

4. activate the commands corresponding to PIN code in the correct sequence (PIN 1, PIN
2 and PIN 3 given in the Technical Data Sheet).
a. PIN 1 shall not be included in the start up procedure if it coincides with the START
pushbutton.
b. PIN 3 shall not be included in the start up procedure if it coincides with the START
pushbutton.
5. press the START pushbutton and hold it down until the green LED blinks quickly.
6. release the START pushbutton.
When the green LED blinks slowly, the Radio Remote Control is active and it can send
commands and activate the Machine.
Note: default PIN code set by AUTEC is:
-PIN 1=START pushbutton.
-PIN 2=FUNCTION pushbutton.
-PIN 3=START pushbutton.
Autec will set a customized PIN code only upon request by the Machine
Manufacturer or the Installer.
36
LIULK1ES0_eng-01
General operating instructions
AUTEC - Air series
8.11.3 power keyswitch and PIN CODE start up
When the Receiving Unit is correctly powered on, perform the following procedure; press
each pushbutton within 3 seconds after releasing the previous one:
1. Insert a charged battery in the Transmitting Unit (see paragraph 8.7.1),
2. insert the power keyswitch in the Transmitting Unit (see paragraph 8.1.3),
3. press the "Enabling&Stop" pushbutton halfway (ON - rst step, see paragraph 8.6),
4. press the START pushbutton and hold it down until the green LED illuminates,
5. activate the commands corresponding to PIN code in the correct sequence (PIN 1, PIN
2 and PIN 3 given in the Technical Data Sheet).
a. PIN 1 shall not be included in the start up procedure if it coincides with the START
pushbutton.
b. PIN 3 shall not be included in the start up procedure if it coincides with the START
pushbutton.
6. press the START pushbutton and hold it down until the green LED blinks quickly.
7. release the START pushbutton.
When the green LED blinks slowly, the Radio Remote Control is active and it can send
commands and activate the Machine.
AUTEC - Air series
General operating instructions 37
LIULK1ES0_eng-01
8.11.4 Procedure to modify the PIN code
If a PIN code is needed for the Transmitting Unit, it can be modied to limit the use of the
Radio Remote Control.
To modify the PIN code, perform the following procedure with the Transmitting Unit switched
o and the STOP pushbutton released.
1. Press the "Enabling&Stop" pushbutton halfway (ON - rst step, see paragraph 8.6).
2. Press pushbuttons FUNCTION and START and hold them down until the green LED
blinks (1 blink per second).
3. Activate the commands of the PIN code sequence provided in the Technical Data Sheet.
4. Activate command S1 (see Technical Data Sheet) repeatedly until LED 2 illuminates.
5. Activate command S2 (see Technical Data Sheet) to conrm your selection (green LED
blinks twice per second). You can choose the 3 commands you want to set as PIN code
amongst all the commands on the Unit. If you want to start the Radio Remote Control with:
-a single-command PIN code: press the START pushbutton as PIN 1 and PIN 3;
-two-command PIN code: press the START pushbutton as PIN 1 or PIN 3.
6. Activate the command you want to allocate as PIN 1 (LED 1 and green LED are steady on).
7. Activate the command you want to allocate as PIN 2 (LED 2 and green LED are steady on).
8. Activate the command you want to allocate as PIN 3 (LED 3 and green LED are steady
on). PIN code is saved automatically.
8.12 Command activation
When the Radio Remote Control is started, it is possible to activate movements, functions
and commands on the Machine by acting on the related pushbuttons or switches, whose
functions and symbols are decided by the Manufacturer and/or the Installer. To identify the
relation between the actuators and the corresponding Machine movements, the Machine
Manufacturer and/or the Installer shall provide relevant instructions and the User shall be
properly trained.
8.13 Radio link interruption
When the radio link is incorrect or interrupted, the automatic stop function activates (see
paragraph "Control devices" in the Instruction Manual's general part).
The green LED on the Transmitting Unit switches from blinking slowly to blinking fast , steady
on, repeats the sequence: two blinks and a pause or three blinks and a pause (see chapter 11).
8.14 Transmitting Unit automatic switch o
The Transmitting Unit automatically switches o when:
-the battery is at (see paragraph 8.14.1),
-the Radio Remote Control is not used for a certain time (see paragraph 8.14.2).
To start the Radio Remote Control, see paragraph 8.11.
38
LIULK1ES0_eng-01
General operating instructions
AUTEC - Air series
8.14.1 Low battery
The Transmitting Unit indicates if the battery is not suciently charged.
-the red LED blinks slowly (one blink per second): the battery has less than 1h run time.
-The red LED blinks fast: the battery has a 10 minute run time from the rst signal, after
which the Transmitting Unit automatically switches o.
The battery needs to be replaced with a charged one (see paragraph 8.7).
8.14.2 When the Transmitting Unit is not used
If the Transmitting Unit remains started with no enabled commands, it will automatically
switch o after a predetermined time frame. This time frame is specied in the Technical
Data Sheet (SWITCH-OFF).
Before the Transmitting Unit switches o automatically, the green and red LEDs blink
alternating for 30 seconds.
Activating any actuator corresponding to a movement command reduces the predetermined
automatic switch-o time (SWITCH-OFF) to zero.
Setting or removal of the automatic switch o time (SWITCH-OFF) is done by
Autec and decided by the Machine Manufacturer or by the Installer, depending
on the operation and functions they need on the Machine.
8.15 Switching o the Transmitting Unit
Switch o the Transmitting Unit when not actively using the Radio Remote
Control to operate the Machine, or when work is otherwise interrupted, even
for short periods. Do not leave the load hanging or the Machine in dangerous
conditions (even when charging the Unit or changing the battery).
FAILURE TO DO SO CAN RESULT IN SERIOUS BODILY INJURY OR DEATH
AND/OR PROPERTY DAMAGE.
Voluntary switch o of the Transmitting Unit occurs in the following cases:
-when the power keyswitch (if present) is turned anti-clockwise or removed;
-when battery is removed (see paragraph 8.7.2);
-when the "Enabling&Stop" is released or completely pressed (see paragraph 8.6);
-when the STOP pushbutton is pressed.
AUTEC - Air series
General operating instructions 39
LIULK1ES0_eng-01
8.16 "Data Feedback" function
The "Data Feedback" function acts through the LED array or the display. The User receives
information and/or signals concerning some particular situations and the movements of the
controlled Machine by means of this function.
During normal Radio Remote Control operation, pay particular attention to the indications
displayed and signalled by the display or through the LEDs: they can be helpful to evaluate
the Machine working status.
Any information shown and signalled on the display and/or through the
"Data Feedback" LEDs can never be considered or used as a safety signal
or for legal metrology.
When operating and moving the Machine, remember that the Radio Remote
Control does not operate autonomously when potential hazardous situations
are displayed and signalled.
If the green LED repeats the sequence "three blinks and a pause", there is no
information and/or signals coming from the "Data Feedback" function. In this
case, bring the Transmitting Unit closer to the Receiving Unit until the green
LED blinks slowly.
8.16.1 Operation with display
If the Transmitting Unit has a display, it is possible to show warning icons, the measurements
collected from the Machine and their description.
The Machine Manufacturer chooses which information are displayed and the way they are
displayed (icons and/or measurements and/or descriptions).
8.16.2 Operation with LED
If the Transmitting Unit has an LED array for the "Data Feedback" function, specic Machine
conditions are signalled if they are illuminated (by way of example: load limits, limit switch).
The signalled conditions depend on the settings chosen by the Machine Manufacturer.
40
LIULK1ES0_eng-01
General operating instructions
AUTEC - Air series
8.17 BACK-UP UNIT
If the Transmitting Unit cannot be used, it can be replaced with a Transmitting Unit called
"BACK-UP UNIT"; you need to ask for it from Autec.
It is identical to the Unit that can no longer be used; the only dierence is the presence of
the plate “BACK-UP UNIT” on the battery housing.
Set DIP switch 2 in the "BACK-UP UNIT" as shown in the Technical Data Sheet.
If no "Key ID 0-1" or "ID internal tx memory" is present in the Transmitting
Unit that can no longer be used, perform the PAIR procedure to pair the
“BACK-UP UNIT” with a Receiving Unit (the Technical Data Sheet shows
which PAIR procedure to use).
If a "Key ID 0-1" or an "ID internal tx memory" is present in the Transmitting
Unit that can no longer be used, move it to the "BACK-UP UNIT" and perform
the address saving procedure described below.
As required by standard IEC 60204-32, each Radio Remote Control is uniquely
identied through a serial number. Therefore, upon replacement of the Unit,
the serial number of the Transmitting Unit to be replaced must be marked
on the "BACK-UP UNIT", so that all Units belonging to the Radio Remote
Control will show the same serial number.
Autec cannot be held responsible if the serial number of the Transmitting
Unit to be replaced has not been marked on the "BACK-UP UNIT".
Address storage
With fully charged battery and power keyswitch in the "BACK-UP UNIT", perform this procedure:
1. press the "Enabling&Stop" pushbutton halfway (ON - rst step, see paragraph 8.6),
2. press the START pushbutton and hold it down until the green and red LEDs light up,
3. wait until the green LED blinks slowly,
4. within 3 seconds, activate in sequence the commands corresponding to PIN 1, PIN 2 and
PIN 3 that compose the PIN code given in the Technical Data Sheet.
If the PIN code is incorrect, the red LED illuminates and the Transmitting Unit switches o.
In this case, the storage procedure shall be repeated.
If the PIN code is correct, the green LED turns steady on and the Transmitting Unit switches
o: this indicates that the address has been stored in the "BACK-UP UNIT". It is now
possible to start the Radio Remote Control and control the Machine with the "BACK-UP
UNIT" Transmitting Unit.
AUTEC - Air series
General operating instructions 41
LIULK1ES0_eng-01
9 Instructions for the User
The chapter "Instructions for the User" in "Part A" of the Instruction Manual contains the
warnings for the use that add to those provided in this chapter. Therefore, please refer to
that part of the Manual.
The following instructions refer to general usage situations for the LK NEO 10, LK NEO 12
and LK NEO 10 DF (Model LKN Type LA2EM, DA2FM) Transmitting Unit, and indicate how
user should or should not behave when using the Unit: these do not cover any possible risk
situation and/or drawback that may depend on specic applications of Autec Radio Remote
Controls.
However, instructions given in the following paragraphs do not replace nor complete the
instructions that must be provided to the User by the Manufacturer of the Machine where
an Autec Radio Remote Control (to which the LK NEO 10, LK NEO 12 and LK NEO 10 DF
(Model LKN Type LA2EM, DA2FM) Transmitting Unit belongs) is installed.
9.1 Usage restrictions
If the Radio Remote Control User wears electronic devices (by way of
example: pacemaker, implantable cardiac debrillator, hearing aids), the
Transmitting Unit must be kept at least 15 cm away from those devices
when in use.
9.2 User behaviour
Besides the instructions contained in the General Part (Part A) of the Instruction Manual, when
using the LK NEO 10, LK NEO 12 and LK NEO 10 DF (Model LKN Type LA2EM, DA2FM)
Transmitting Unit, the User must:
-observe and comply with all instructions and warnings provided by the Machine
Manufacturer;
-observe and comply with all instructions and warnings provided by the Installer;
-observe and comply with all instructions and warnings provided by the Person responsible
for the Machine commissioning or making the Machine available for work;
-observe and comply with all instructions and warnings provided in the Radio Remote
Control Manual;
-observe and comply with all applicable Laws, Regulations and Standards, even local.
-follow and put into practice the working instructions he received, and/or those he must
be aware of because of his work and his tasks;
-avoid using the Radio Remote Control if he has not been properly trained and prepared,
and if he has not been qualied for its use by the Person responsible for the work;
-make sure that the Transmitting Unit and the Receiving Unit are whole and work perfectly;
-make sure that the Machine reacts correctly to the commands activated by the Autec
Radio Remote Control;
42
LIULK1ES0_eng-01
Instructions for the User
AUTEC - Air series
-not perform any operation if the tests mentioned in the previous two points did not give
positive results;
-make sure that the Radio Remote Control operation and the consequent Machine
movement occur in safety conditions, to prevent hazards to people and/or property;
-adopt the necessary caution to avoid that the Machine operation causes dangerous
situations of any type; to this end, the User's physical and health status shall be taken
into account too;
-avoid leaving the Transmitting Unit unattended or in such a condition that it may be
damaged, tampered with, operated by people who are not qualied or by the movement
of people and/or objects (by way of example due to: fall, movement, contact);
-operate the Transmitting Unit by holding it correctly in his hands, so that he can activate
the Machine movements correctly and in safe conditions and monitor its light signals;
-keep at a safe distance from any risk situations originating from the use of the Machine
where the Autec Radio Remote Control is installed;
-avoid doing anything else while using the Radio Remote Control, such as, by way of
example, operate other Machines and/or other devices, eat and/or drink, use communication
devices (phone, radio phone, etc.), keyboards, computers, IT devices or AV equipment,
or carry out any other action that may pose the User in the situation not to be able to
correctly control the Transmitting Unit and/or the Machine;
-activate immediately, and anyway in safe conditions, the stop devices available on the
Transmitting Unit and/or on the Machine, in case dangerous situations occur, even if
they do not depend on the use of the Machine;
-use the Transmitting Unit in such a way as to avoid contact with objects and/or people,
fall and loss of control;
-use the Transmitting Unit with supports such as belts and the like, which are provided
with the Radio Remote Control;
-not modify or tamper with the Transmitting Unit, its components and/or its commands;
not modify the indications and/or meaning and/or abbreviations and/or symbols and/or
original stickers on the Transmitting Unit's panel.
AUTEC - Air series
Instructions for the User 43
LIULK1ES0_eng-01
9.3 Belt and pouch with belt
The LK NEO 10, LK NEO 12 and LK NEO 10 DF (Model LKN Type LA2EM, DA2FM)
Transmitting Unit always comes with a belt or a pouch with belt: the User must mount and
use the belt and the pouch with belt as explained in the paragraphs 9.3.1 and 9.3.2.
9.3.1 Belt or harness
Assembly
1 2
3 4
5 6
44
LIULK1ES0_eng-01
Instructions for the User
AUTEC - Air series
78
AUTEC - Air series
Instructions for the User 45
LIULK1ES0_eng-01

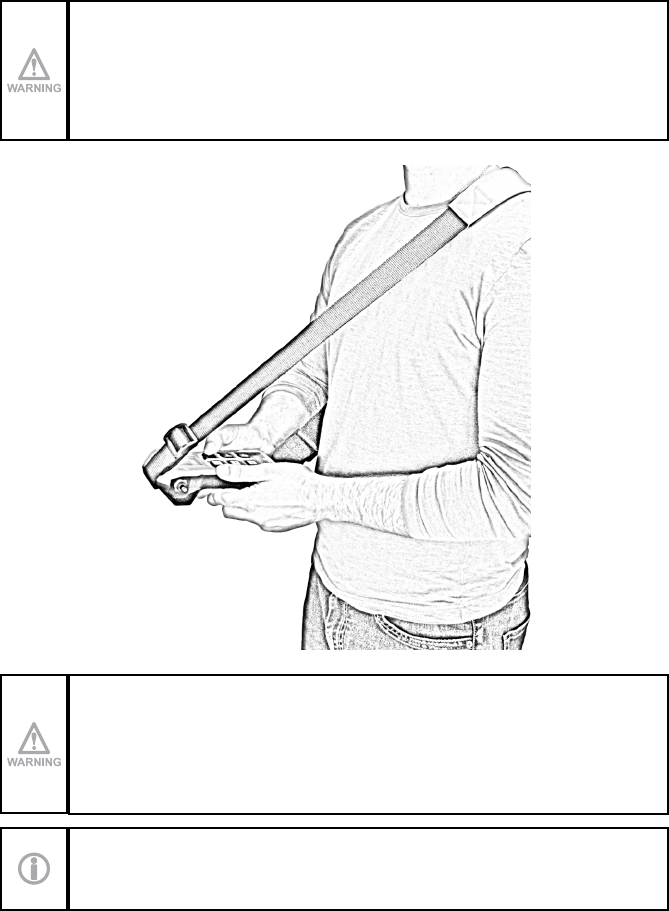

Use
The User must wear the Radio Remote Control with the belt as shown in
the photo below, to avoid its fall, loss, loss of control, accidental contact
and improper use.
If the Transmitting Unit and the belt are used in a dierent way from the
one described in the above mentioned gure, this constitutes improper use
and may lead to damage to the Transmitting Unit, to the User, to people
and/or property.
Replace the belt or harness if it is damaged or worn.
46
LIULK1ES0_eng-01
Instructions for the User
AUTEC - Air series
9.3.2 Pouch with belt
Assembly
1 2
3 4
AUTEC - Air series
Instructions for the User 47
LIULK1ES0_eng-01
Use
The User must wear the Radio Remote Control with the pouch with belt as
shown in the photo below, to avoid its fall, loss, loss of control, accidental
contact and improper use.
If the Transmitting Unit and the pouch with belt are used in a dierent way
from the one described in the above mentioned gure, this constitutes
improper use and may lead to damage to the Transmitting Unit, to the User,
to people and/or property.
Replace the pouch with belt if it is damaged or worn.
48
LIULK1ES0_eng-01
Instructions for the User
AUTEC - Air series
10 Maintenance
Instructions for correct Radio Remote Control maintenance are described in the chapter
"Maintenance" included in "Part A" of the Instruction Manual. Therefore, please refer to that
part of the Manual.
11 Malfunction signalled by the Transmitting Unit
The table below lists malfunctions that are signalled by LEDs on the Transmitting Unit and
the solution to those malfunctions.
If the problem persists after attempting the suggested solution, contact the support service
of the Machine Manufacturer.
Signals Possible reason Solutions
The green LED is lit
with a steady light or it
repeats the sequence:
three blinks and a
pause.
The Transmitting and
Receiving Unit do not
communicate.
Bring the Transmitting Unit closer to
the Receiving Unit until the green LED
blinks quickly (if the signal doesn't
change, check that the Receiving Unit
is powered), then press and release the
START pushbutton. When the START
pushbutton is released, the green LED
starts blinking slowly (it is possible to
send commands).
The green LED repeats
the sequence: two
blinks and a pause.
The working range
of the Radio Remote
Control (see paragraph
"Technical data" in
the general part of the
Instruction Manual) has
been exceeded for more
than 20 seconds.
Bring the Transmitting Unit close to
the Receiving Unit, then press and
release the START pushbutton. When
the START pushbutton is released, the
green LED starts blinking slowly (it is
possible to send commands).
The green LED blinks
fast.
Temporary loss of radio
link.
Bring the actuators related to
movement commands to the rest
position, then press and release the
START pushbutton. When the START
pushbutton is released, the green LED
starts blinking slowly (it is possible to
send commands).
The green LED blinks
slowly
(one blink per second).
The Receiving Unit may
not work correctly.
See "Malfunctions signalled by the
Receiving Unit " in "Part D" of the
Manual.
AUTEC - Air series
Maintenance 49
LIULK1ES0_eng-01
Signals Possible reason Solutions
The red LED is steady
on during start up
The STOP pushbutton is
pressed or damaged. Unlock the STOP pushbutton.
Press the
"Enabling&Stop"
pushbutton halfway (ON -
rst step, see paragraph
8.6).
Press the "Enabling&Stop" pushbutton
halfway (ON - rst step, see paragraph
8.6).
The red LED blinks
twice per second during
start up.
At least one of the
commands that were
checked at start-up is
enabled or damaged (see
Technical Data Sheet).
Move the actuators related to the
commands monitored during the start up
to the rest position.
The red LED blinks
three times per second
during start up.
The battery is at. Replace the battery with a charged one.
The red LED is steady
on for two seconds
during start up.
The Transmitting Unit
does not work correctly.
Contact the support service of the
Machine Manufacturer.
The green and red LEDs
are steady on during
start up.
A wrong "Key ID 0-1" or
"ID internal tx memory"
has been inserted in the
Transmitting Unit.
Use the correct "Key ID 0-1" or "ID
internal tx memory".
You are using a "BACK-
UP UNIT" with the "Key
ID 0-1" or "ID internal
tx memory" of the
Transmitting Unit that has
been replaced.
Store the address in the "BACK-UP
UNIT" (see paragraph 8.17).
The green and red LEDs
blink three times per
second during start up.
The "Key ID 0-1" or the
"ID internal tx memory" is
damaged.
Contact the support service of the
Machine Manufacturer.
50
LIULK1ES0_eng-01
Maintenance
AUTEC - Air series
Signals Possible reason Solutions
The green LED is lit
with a steady light and
the red LED blinks two
times per second during
start up.
The START pushbutton is
activated. release the START pushbutton.
The green LED repeats
the sequence: 3 blinks
and a pause, and the
red LED is steady on
during start up.
The UNPAIR procedure
provided in the document
"Menu of Transmitting
Unit (MTU)" has been
carried out.
Perform the ALIGNMENT procedure.
12 Decommissioning and disposal
Instructions for correct decommissioning and disposal of Radio Remote Controls are described
in chapter "Decommissioning and disposal" in "Part A" of the Instruction Manual. Therefore,
please refer to that part of the Manual.
AUTEC - Air series
Decommissioning and disposal 51
LIULK1ES0_eng-01
Via Pomaroli, 65 - 36030 Caldogno (VI), ITALY
PH: +39 0444 901000 - Fax: +39 0444 901011
info@autecsafety.com - www.autecsafety.com
MADE IN ITALY
