OWNER'S MANUAL
VGA Video Sender
MODEL VK72A
(INCLUDES VT37A USB SENDER AND VR30A
RECEIVER)
VT37AVR30A
32
FCC CAUTION
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
(2)THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING
INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
This equipment generates and uses radio frequency energy, and if not installed and
used properly, that is, in strict accordance with the manufacturers instructions, it may
cause interference to radio and television reception. It has been type tested and found
to comply with the limits for remote control devices in accordance with the
specifications in Sub-Parts B and C of Part 15 of FCC Rules, which are designed to
provide reasonable protection against such interference in a residential installation.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause interference to radio or television reception,
which can be determined by unplugging the equipment, try to correct the interference
by one or more of the following measures.
• Reorient the antenna of the radio/TV experiencing the interference.
• Relocate the equipment with respect to the radio/TV.
• Move the equipment away from the radio/TV.
• Plug the equipment into an outlet on a different electrical circuit from the radio/TV
experiencing the interference.
• If necessary, consult your local Dealer for additional suggestions.
NOTE: Modifications to this product will void the user's authority to operate this
equipment.
INTRODUCTION
Your Wireless VGA Video Sender kit consists of a Sender base unit
which connects to the audio out jack, the VGA output, and the USB
port on your PC, and a Receiver unit which you connect to your TV.
The Sender converts the audio signal from your PC's sound card,
and the VGA video from your PC's video card into a radio
frequency (RF) signal and transmits it (even through walls) to the
Receiver unit. The Receiver converts the signals back to their
original form and passes them to your TV. The USB port allows you
to use the VGA sender with X10 RF remote controls, (sold
separately) to control your PC wirelessly.
WARNING:
To reduce the risk of fire or electric shock, do not expose this product
to rain or moisture.
SYSTEM REQUIREMENTS
To use the VGA Video Sender system your PC must have a USB
port, a VGA out port (that normally connects to your monitor) and a
sound card with mono or stereo output. Max resolution is 1024 x
768, but 800 x 600 is recommended.
54

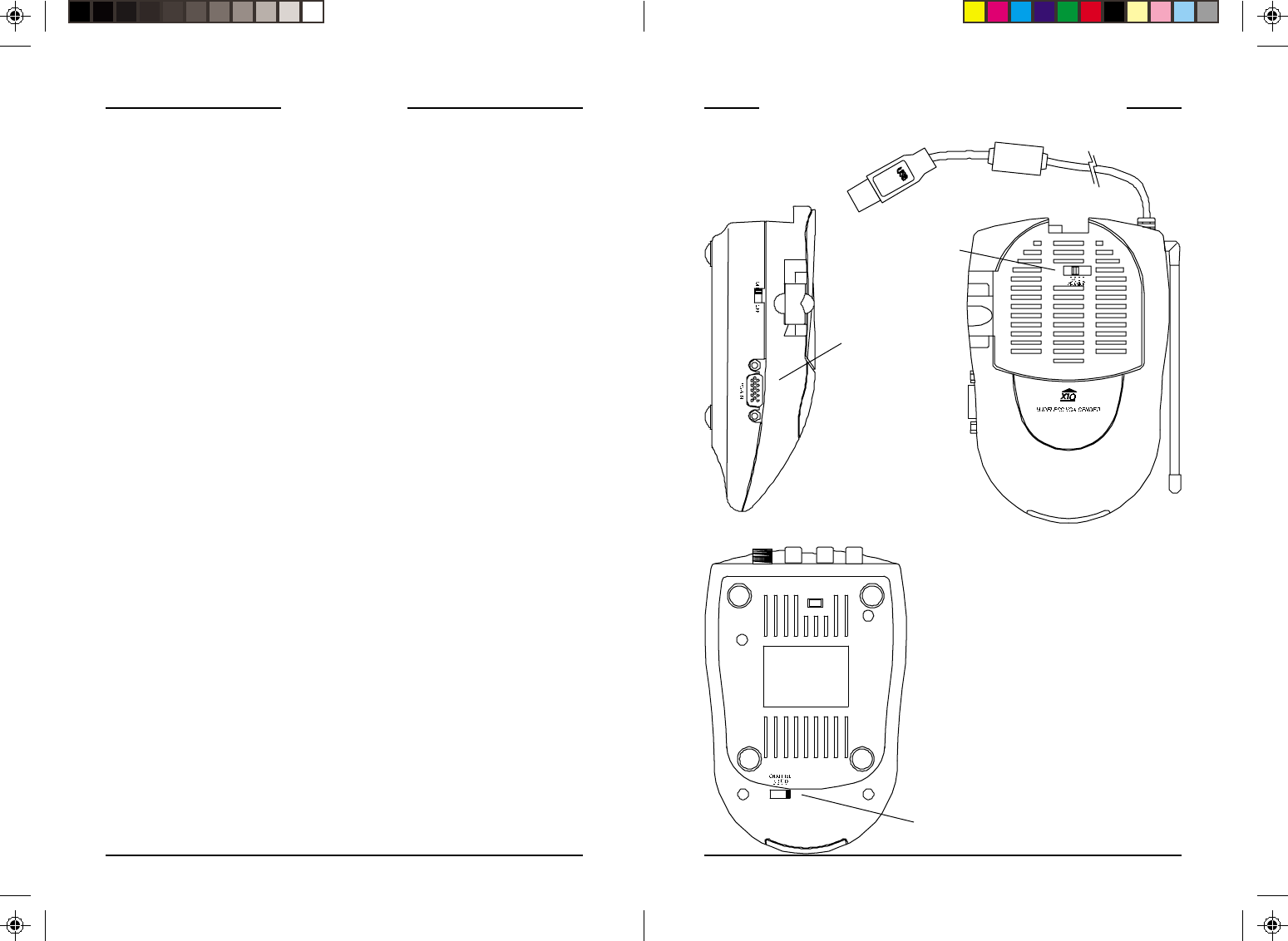

SENDER
(TOP VIEW)
RECEIVER
(BOTTOM VIEW)
2.4 GHz
Channel Switch
2.4 GHz
Channel Switch
CONTROLS AND CONNECTIONS
SENDER
(SIDEVIEW)
VGA In
CONTENTS
CONTROLS AND CONNECTIONS ...................................................5
SENDER ..........................................................................6
RECEIVER ........................................................................7
BEFORE YOU START .................................................................8
CONNECTING UP..................................................................9
HOOKING UP THE SENDER ....................................................9
HOOKING UP THE RECEIVER .................................................10
FINE TUNING YOUR SYSTEM ....................................................12
TROUBLESHOOTING ...............................................................13
USB port
connector
76

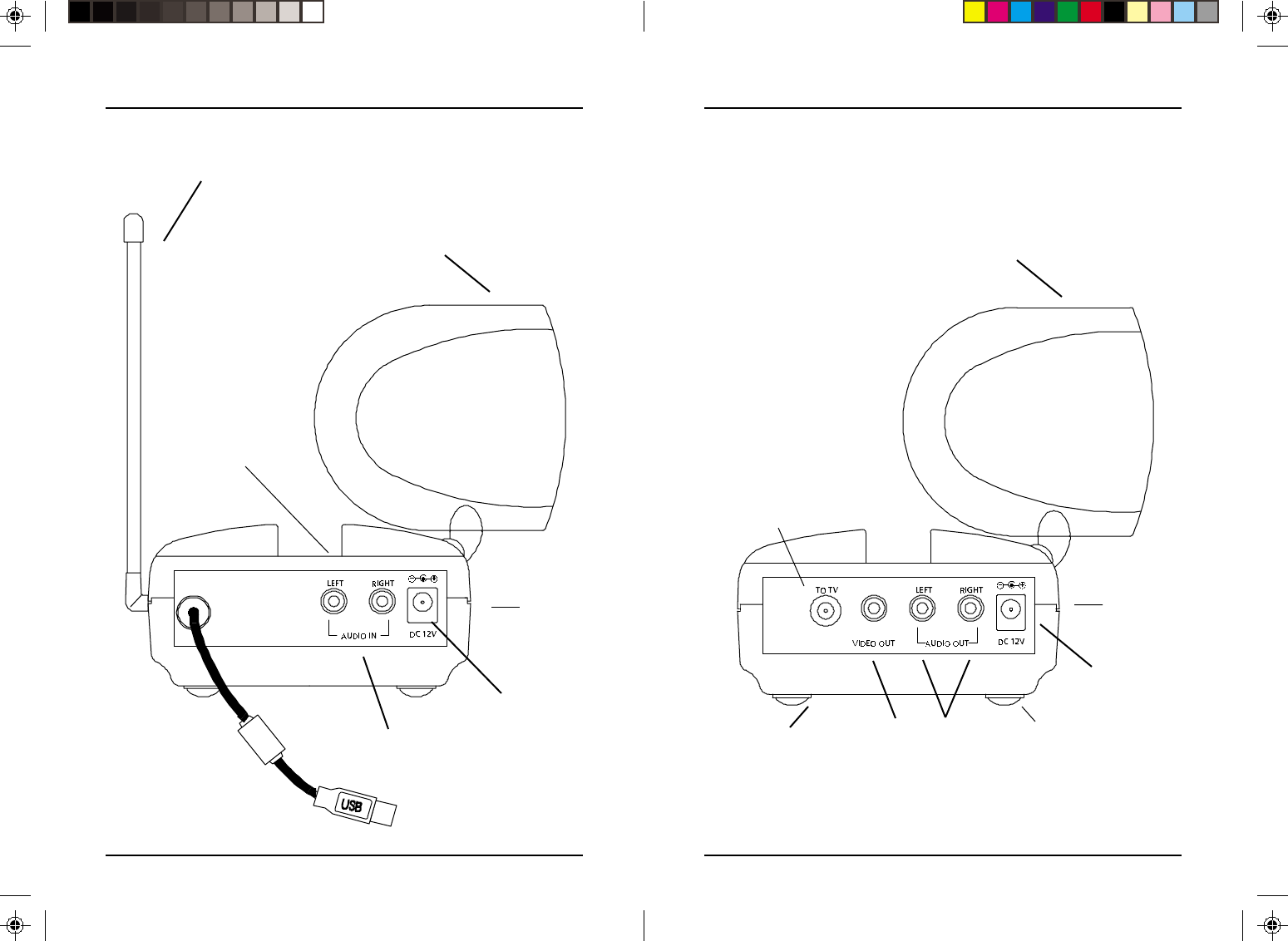

RECEIVER
2.4 GHz
Video
Antenna
TV Output
Connector
A/V Input
Jacks
Power Supply
Jack
2.4 GHz Channel
Switch
(on bottom)
TV Channel
Switch
(on bottom)
ON-OFF
Switch
(on side)
SENDER
310 MHz Antenna for
use with UR83A remote
Audio Input
Jacks
Power Supply
Jack
2.4 GHz
Video
Antenna
ON-OFF
Switch
(on side)
2.4 GHz Channel
Switch
USB port
connector
98
CONNECTING UP
HOOKING UP THE VGA SENDER
1. Connect the jack on the audio cable (supplied) to the audio out
jack on your PC sound card.
2. Connect the red RCA plug to the socket labelled AUDIO RIGHT
and the white RCA plug to the jack labeled AUDIO LEFT on the
VGA Video Sender.
3. Connect the VGA cables as show below so that the VGA out from
your PC connects to the VGA input on the VT37A and then also
passes to the VGA input on your monitor.
4. Set the channel switch (on the TOP of the unit) to channel A (to
the RIGHT).
5. Plug the VGA Video Sender's Power Supply (the larger of the
two power supplies) into a convenient 120 volt wall outlet and
plug its jack into the VGA Video Sender.
6. Position the VGA Video Sender in a convenient location and
orient the antenna so that the flat side points in the direction of the
room where you will be installing the Video Receiver.
P
Before you start installing your VGA System it is recommended that
you read this entire owner's manual. This will familiarize you with
the basic hardware installation. Then install the hardware (do NOT
connect the USB connector yet). You will be able to see a picture
from your PC on our TV screen. You can then visit www.x10.com/
software and download the "Boom" program, which will give you
control over what is sent from your PC to your TV.
Install the Boom software (do NOT plug the VGA sender into your
USB port yet). When instructed to do so by the Boom installation
program, plug the VGA sender into your USB port. Windows will
tell you it has found new hardware and will automatically install the
X10 USB driver for the VGA sender.
BEFORE YOU START
USB port connecter (do not
connect until you install the
Boom software)
* If your PC does not have a USB port you won't be
able to use the remote control features of the UR83A.
1110

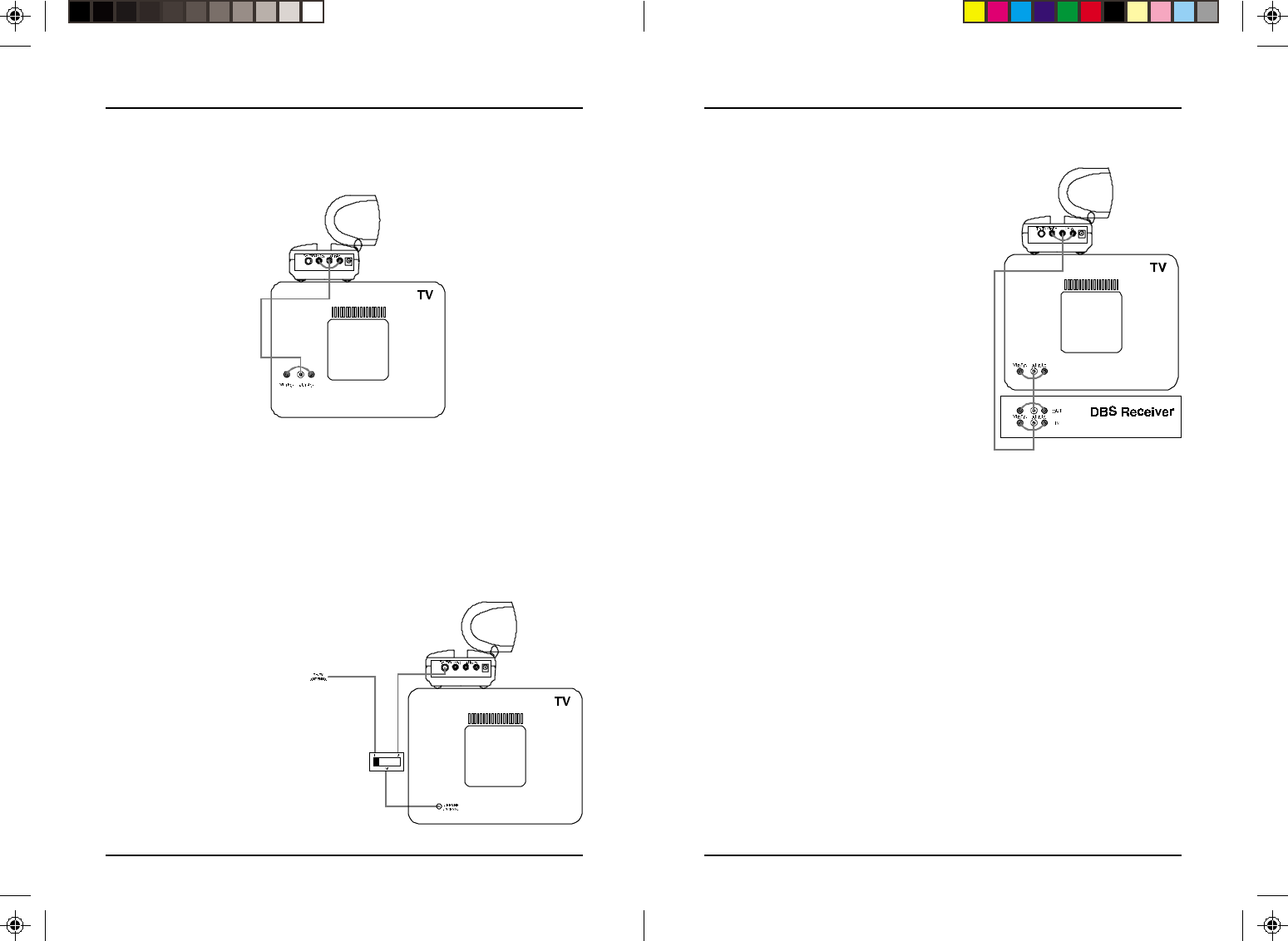

IF YOUR SECOND TV IS ALREADY HOOKED UP TO A DBS RECEIVER OR
OTHER A/V DEVICE
If your DBS Receiver or other A/V
component is connected to the TV using
A/V cables, you can connect the Video
Receiver to the free LINE IN jacks on
the component. If there are no LINE IN
jacks, you will need to use a TV
antenna splitter as described earlier.
HOOKING UP THE AUDIO RECEIVER
1. Connect a set of Audio/Video cables to the A/V OUT jacks of
the Video Receiver. Connect the other end to your TV.
2. Plug the Video Receiver's Power Supply (the smaller of the two
power supplies) into a 120 volt wall outlet and plug its jack
into the Video Receiver.
3. Position the Video Receiver in a convenient location such as on
top of the TV and orient the antenna so that the flat side points
in the direction of the room where you set up the Video Sender.
IF YOUR TV DOES NOT HAVE A/V CONNECTORS
You can use the supplied
coaxial cable to connect the
TV OUT socket on the Video
Receiver to the Antenna
input on your TV. If you
already have an antenna
connected to your TV, you
will need to use a TV
antenna splitter.
Set your TV and the TV
Channel switch on the
Video Receiver (on bottom)
to the same channel (3 or 4).
1312
FINE TUNING YOUR SYSTEM
The Wireless VGA Video Sender usually works best with the flat faces
of the antennas on the Sender and Receiver units facing each other
(see diagram below). Sometimes, however, reflections and other
effects in your home may affect the signal so that some adjustment of
either the Sender or Receiver antenna might be necessary to get the
best the signal.
TROUBLESHOOTING
IF YOU ARE NOT GETTING ANY AUDIO OR VIDEO AT ALL FROM THE
VR30A
•Check that the CHANNEL slide switch (labeled A, B, C, D) on both
units is set to the same letter.
•Check that both the transmitter and receiver's power supplies are
plugged in. Check that the ON/OFF switch on the transmitter and
receiver are ON.
IF THE SOUND OR VIDEO IS POOR, OR THERE IS INTERFERENCE
•Try changing the channel on both units. Do this by adjusting the
CHANNEL slide switch on each unit to any position (A, B, C, or
D).
•Make sure both units are set to the same letter. Try repositioning
the antenna on each unit.
1514
12 MONTH LIMITED WARRANTY
X10.COM A DIV. OF X10 WIRELESS TECHNOLOGY, INC. (X10)
WARRANTS ITS PRODUCTS TO BE FREE FROM DEFECTIVE MATERIAL AND
WORKMANSHIP FOR A PERIOD OF ONE (1) YEAR FROM THE ORIGINAL
DATE OF PURCHASE AT RETAIL. X10 AGREES TO REPAIR OR REPLACE, AT
ITS SOLE DISCRETION, A DEFECTIVE X10 PRODUCT IF RETURNED TO X10
WITHIN THE WARRANTY PERIOD AND WITH PROOF OF PURCHASE.
IF SERVICE IS REQUIRED UNDER THIS WARRANTY:
1. CALL 1-800-675-3044, OR VISIT WWW.X10.COM, OR E-MAIL
SALES@X10.COM TO OBTAIN A RETURN AUTHORIZATION (RA)
NUMBER.
2. RETURN THE DEFECTIVE UNIT POSTAGE PREPAID TO THE ADDRESS
ON BACK.
3. ENCLOSE A CHECK FOR $4.00 TO COVER HANDLING AND RETURN
POSTAGE.
4. ENCLOSE A DATED PROOF OF PURCHASE.
5. X10 IS NOT RESPONSIBLE FOR SHIPPING DAMAGE. UNITS TO BE
RETURNED SHOULD BE PACKED CAREFULLY.
THIS WARRANTY DOES NOT EXTEND TO ANY X10 PRODUCTS WHICH
HAVE BEEN SUBJECT TO MISUSE, NEGLECT, ACCIDENT, INCORRECT
WIRING OR TO USE IN VIOLATION OF OPERATING INSTRUCTIONS
FURNISHED BY US, NOR EXTEND TO ANY UNITS ALTERED OR REPAIRED
FOR WARRANTY DEFECT BY ANYONE OTHER THAN X10. THIS
WARRANTY DOES NOT COVER ANY INCIDENTAL OR CONSEQUENTIAL
DAMAGES AND IS IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR
IMPLIED AND NO REPRESENTATIVE OR PERSON IS AUTHORIZED TO
ASSUME FOR US ANY OTHER LIABILITY IN CONNECTION WITH THE
SALE OF OUR PRODUCTS.
SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN
IMPLIED WARRANTY LASTS, AND/OR THE EXCLUSION OR LIMITATION
OF INCIDENTAL OR CONSEQUENTIAL DAMAGES SO THE ABOVE
LIMITATIONS AND EXCLUSIONS MAY NOT APPLY TO THE ORIGINAL
CUSTOMER. THIS WARRANTY GIVES YOU SPECIFIC RIGHTS AND YOU
MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.
NOTES
X10.com, a division of X10 Wireless Technology, Inc.
(Returns Depot), 3824 North 5th St., Suite C,
North Las Vegas, NV 89030
VK72A-05/01
