Autodata Systems PFK-201S Multi-Function Keyboard User Manual PJBPKF 201S manual

Autodata Systems Co., Ltd. Multi-Function Keyboard PJBPKF 201S manual

User Manual

Multi Function Keyboard USER’S GUIDE Autodata System Co., Ltd.

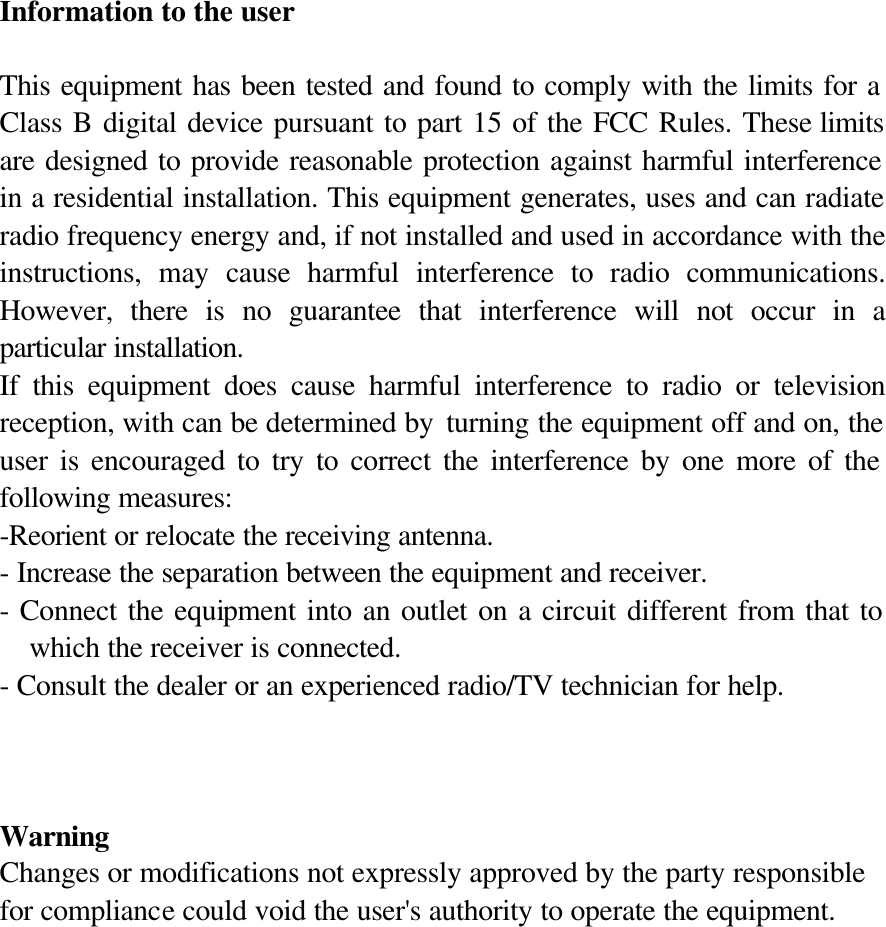

Information to the user This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, with can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one more of the following measures: -Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Warning Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
Installation Methods 1. Put a plus phone on a telephone holder of keyboard 2. Connect a telephone wire to a connection jack on the left-up side of keyboard Ear Set : Connect a jack of ear set to a handset It is possible to use calls and internet-calls. A plus phone is possible to be connected with PSTN. Function explanations 1. Ear set function It’s possible to use both handset and ear set. 2. Mute function Being on the telephone, a caller can shut off a voice by pushing mute button. 3. Memory dialing function a. Memory button enables us to use a one-touch call. b. Input methods of memory dialing numbers c. Methods of memory dial calls

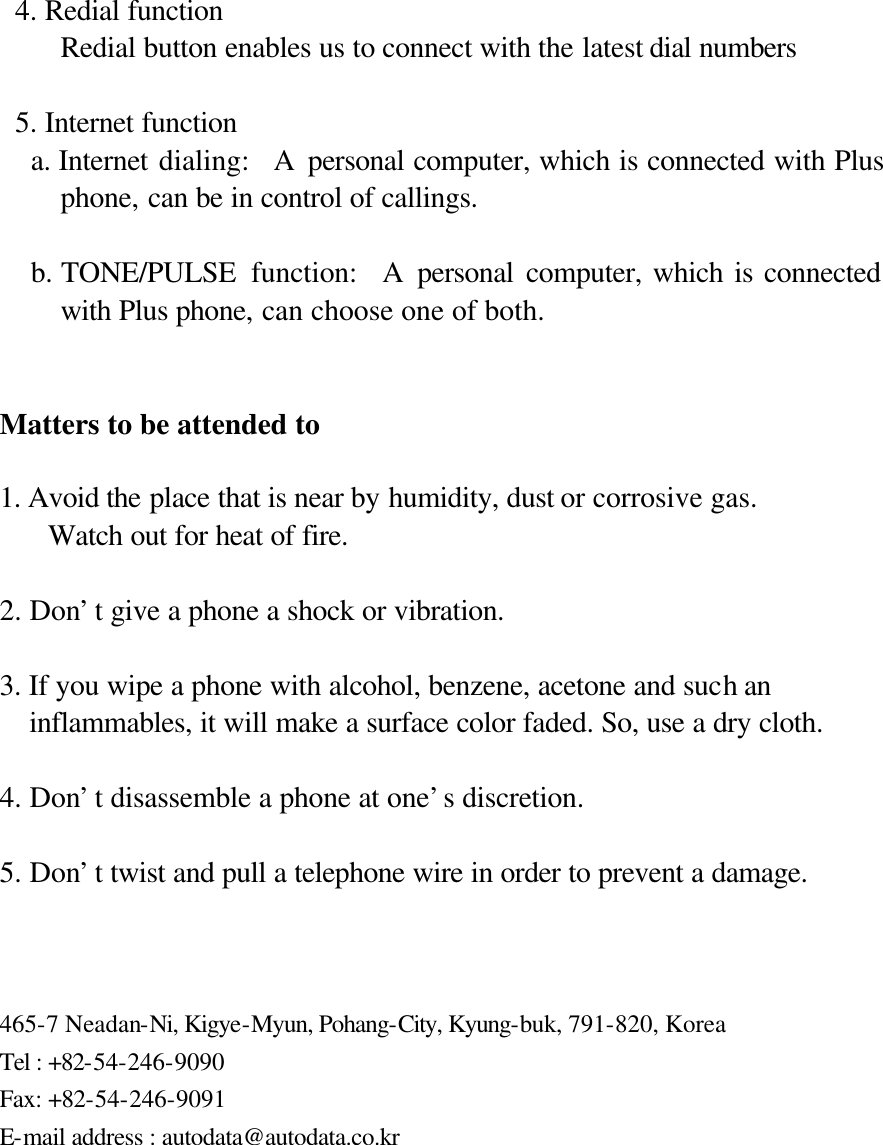

4. Redial function Redial button enables us to connect with the latest dial numbers 5. Internet function a. Internet dialing: A personal computer, which is connected with Plus phone, can be in control of callings. b. TONE/PULSE function: A personal computer, which is connected with Plus phone, can choose one of both. Matters to be attended to 1. Avoid the place that is near by humidity, dust or corrosive gas. Watch out for heat of fire. 2. Don’t give a phone a shock or vibration. 3. If you wipe a phone with alcohol, benzene, acetone and such an inflammables, it will make a surface color faded. So, use a dry cloth. 4. Don’t disassemble a phone at one’s discretion. 5. Don’t twist and pull a telephone wire in order to prevent a damage. 465-7 Neadan-Ni, Kigye-Myun, Pohang-City, Kyung-buk, 791-820, Korea Tel : +82-54-246-9090 Fax: +82-54-246-9091 E-mail address : autodata@autodata.co.kr
