Automotive Distance Control Systems ARS3-B Adaptive Cruise Control Radar System User Manual ARS3 B Exhibit 0 ARS2 ABC ARS3 AB ADC Manual
Automotive Distance Control Systems GmbH Adaptive Cruise Control Radar System ARS3 B Exhibit 0 ARS2 ABC ARS3 AB ADC Manual
User Manual
Instruction Manual
BC Driver Assistance Systems
ARS2-ABC_ARS3-A_ADC_Manual.doc Page 1 of 22 Rev. B
ARS2-A, ARS2-B, ARS2-C, ARS3-A & ARS3-B
Adaptive Cruise Control Radar System (Distronic)
A.D.C.
Automotive Distance Control Systems GmbH
Peter-Dornier Str. 10
D-88131 Lindau / Germany
Phone: +49-8382-9699-0 Fax: +49-8382-9699-19
Instruction Manual
BC Driver Assistance Systems
ARS2-ABC_ARS3-A_ADC_Manual.doc Page 2 of 22 Rev. B
http://www.temic.com
Instruction Manual
BC Driver Assistance Systems
ARS2-ABC_ARS3-A_ADC_Manual.doc Page 3 of 22 Rev. B
Contents

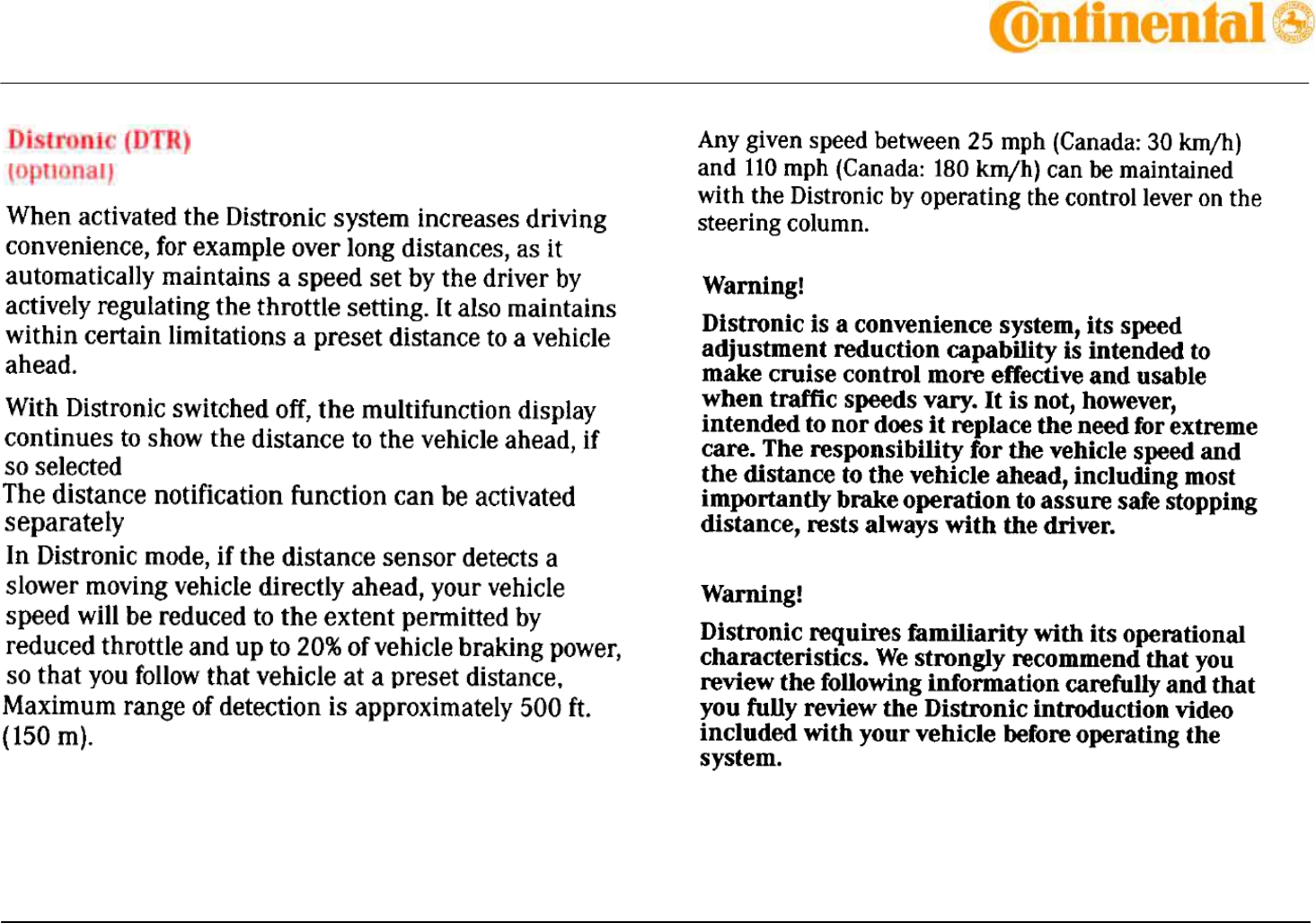

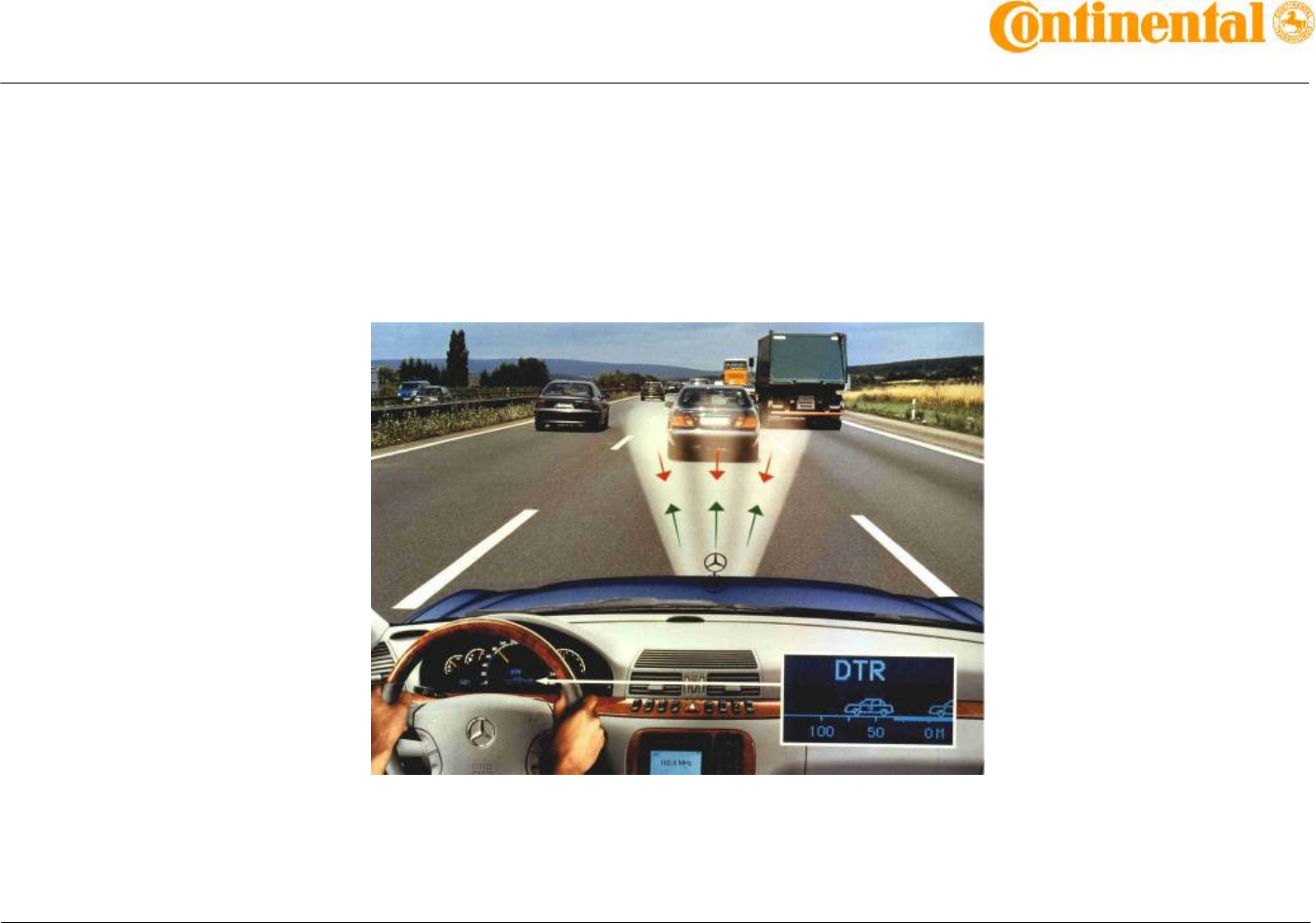

Distronic (DTR) 3

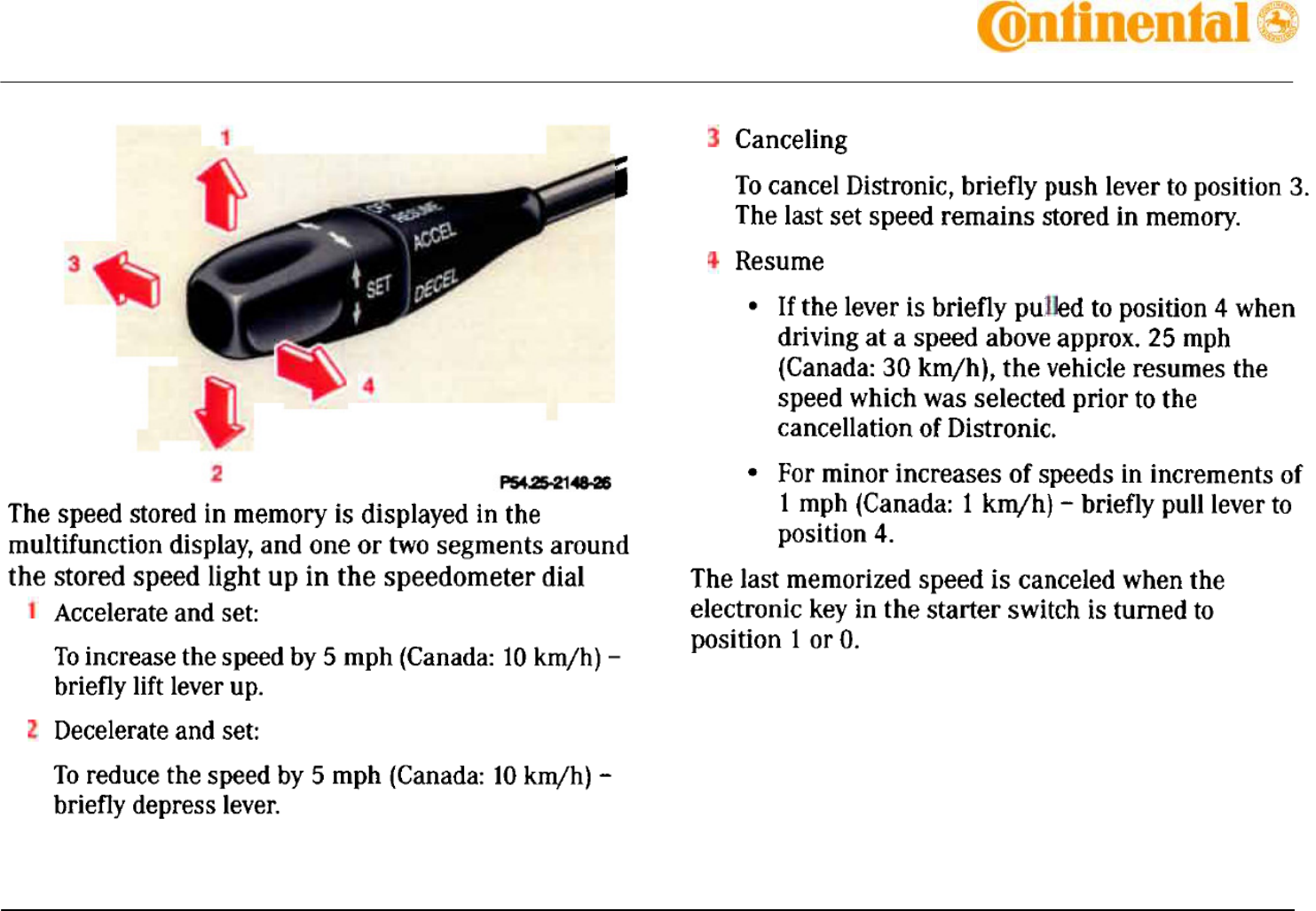

Activation of Distronic 7

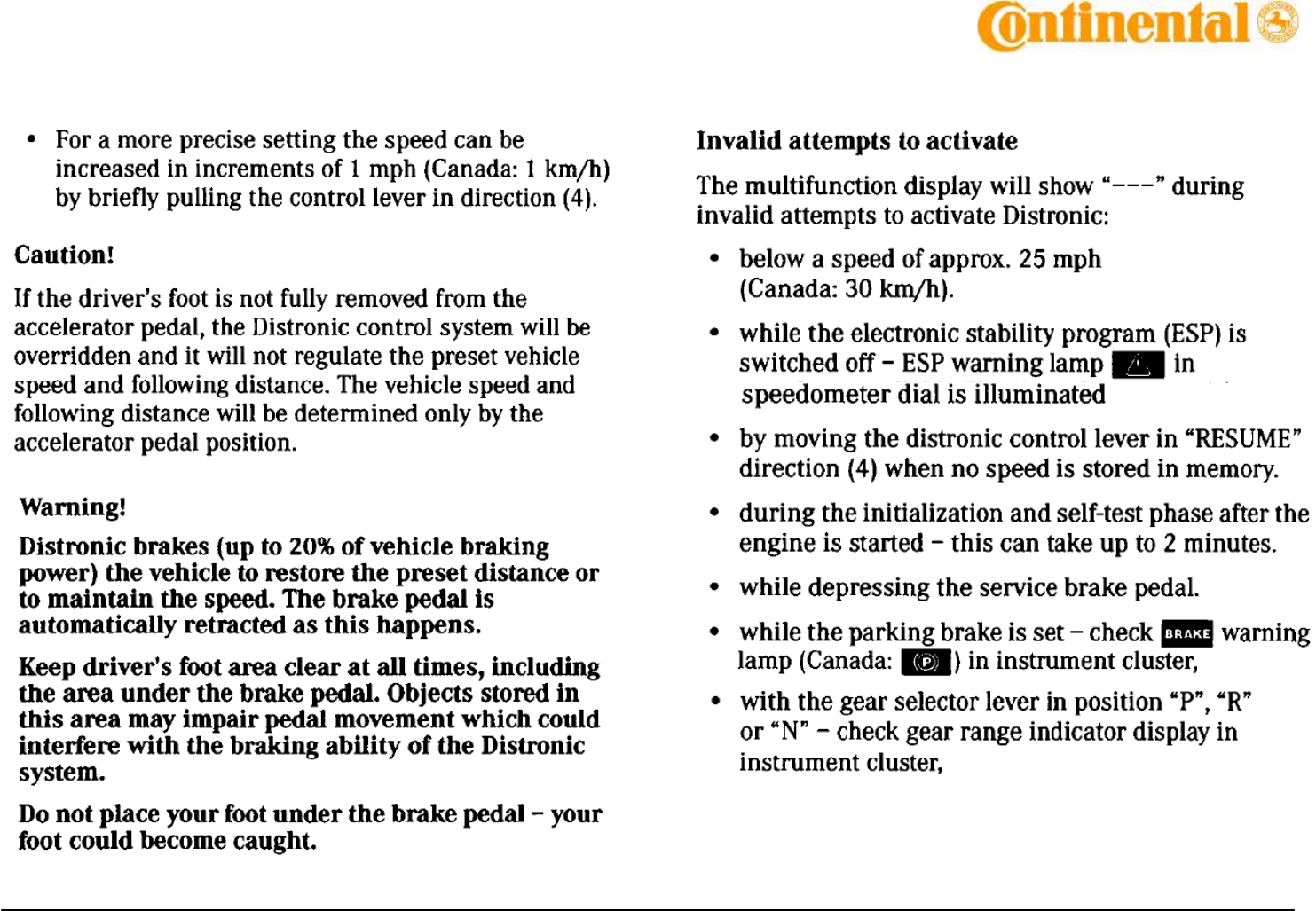

Invalid attempts to activate 8

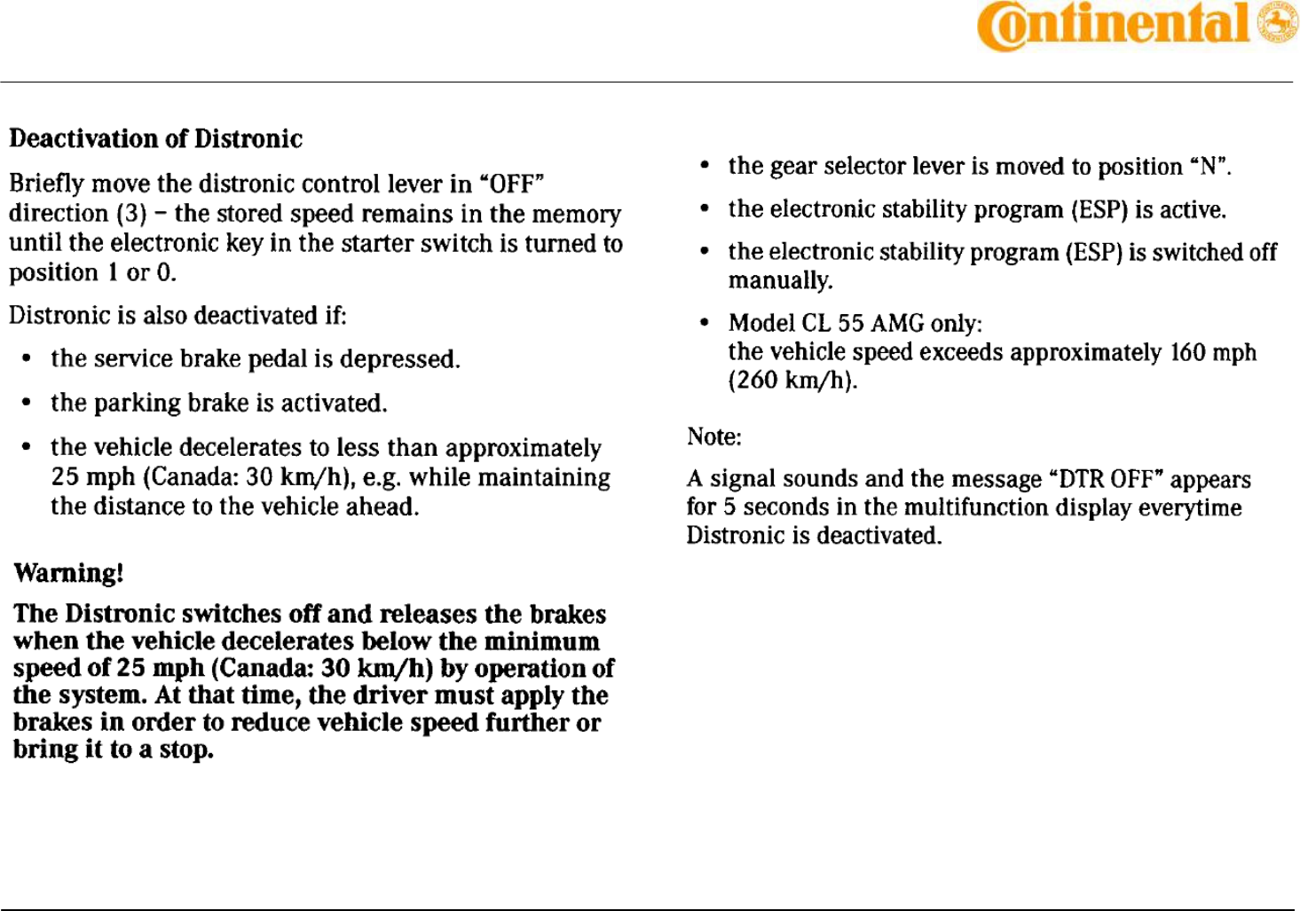

Deactivation of Distronic 9

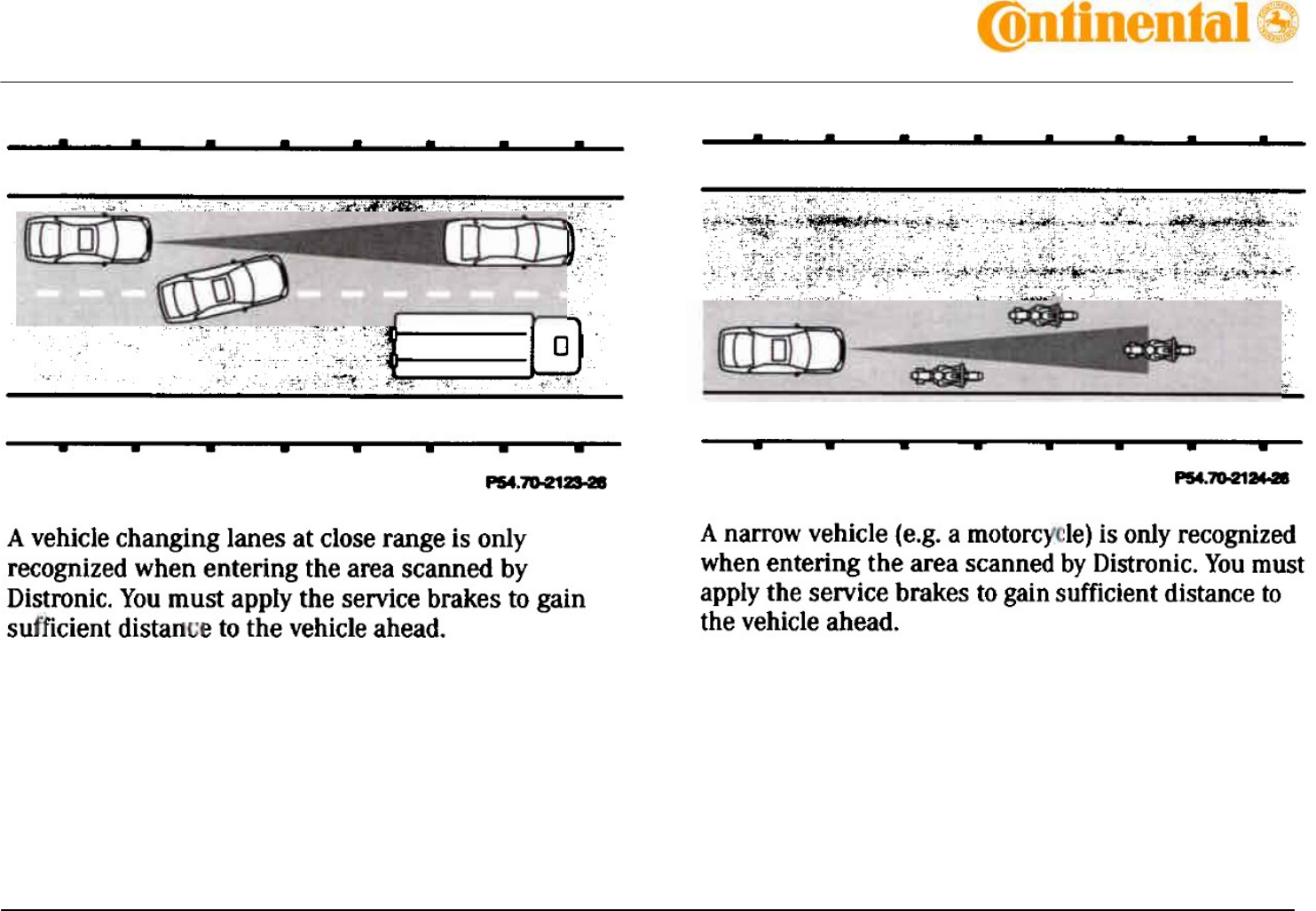

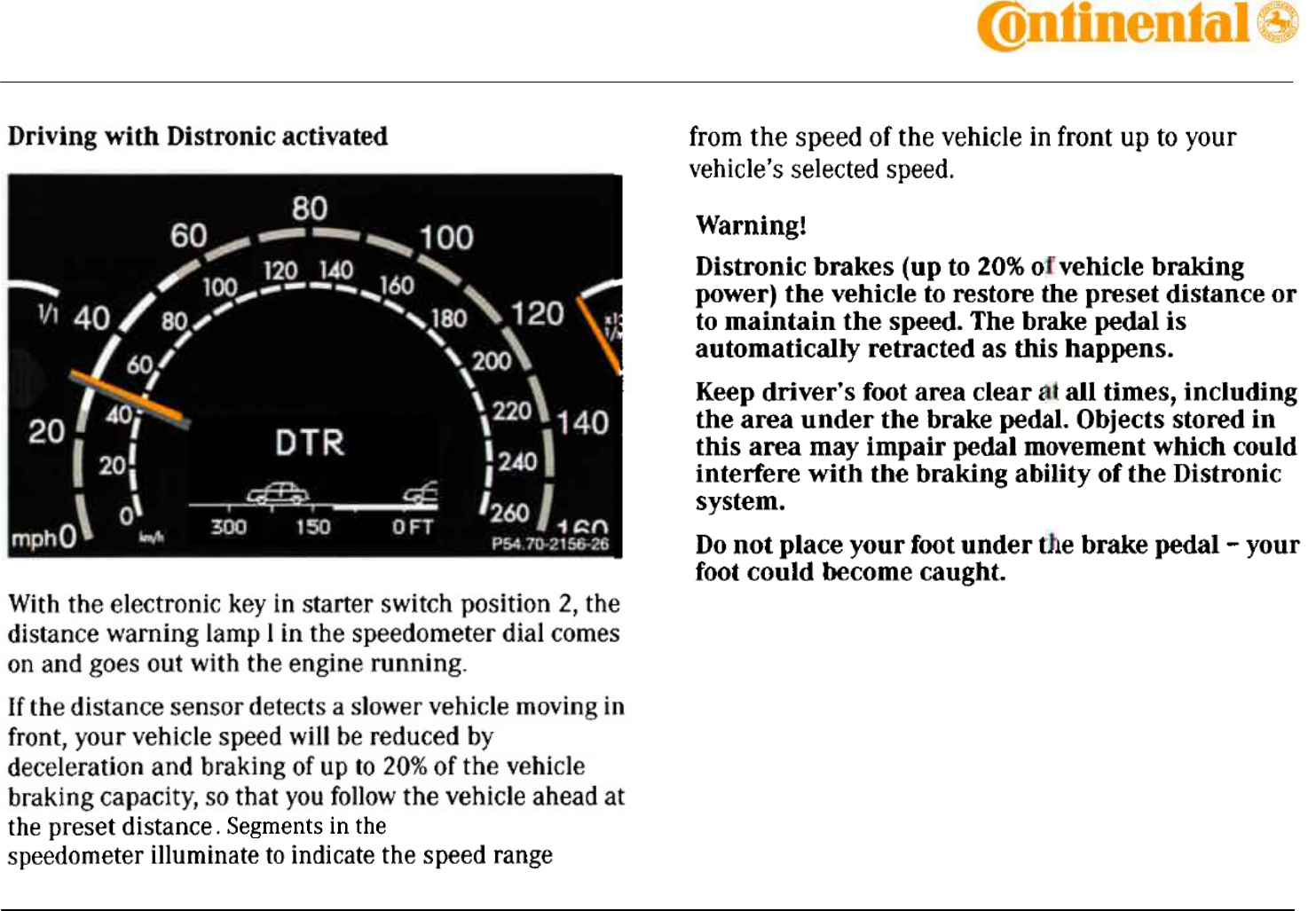

Driving with Distronic activated 10

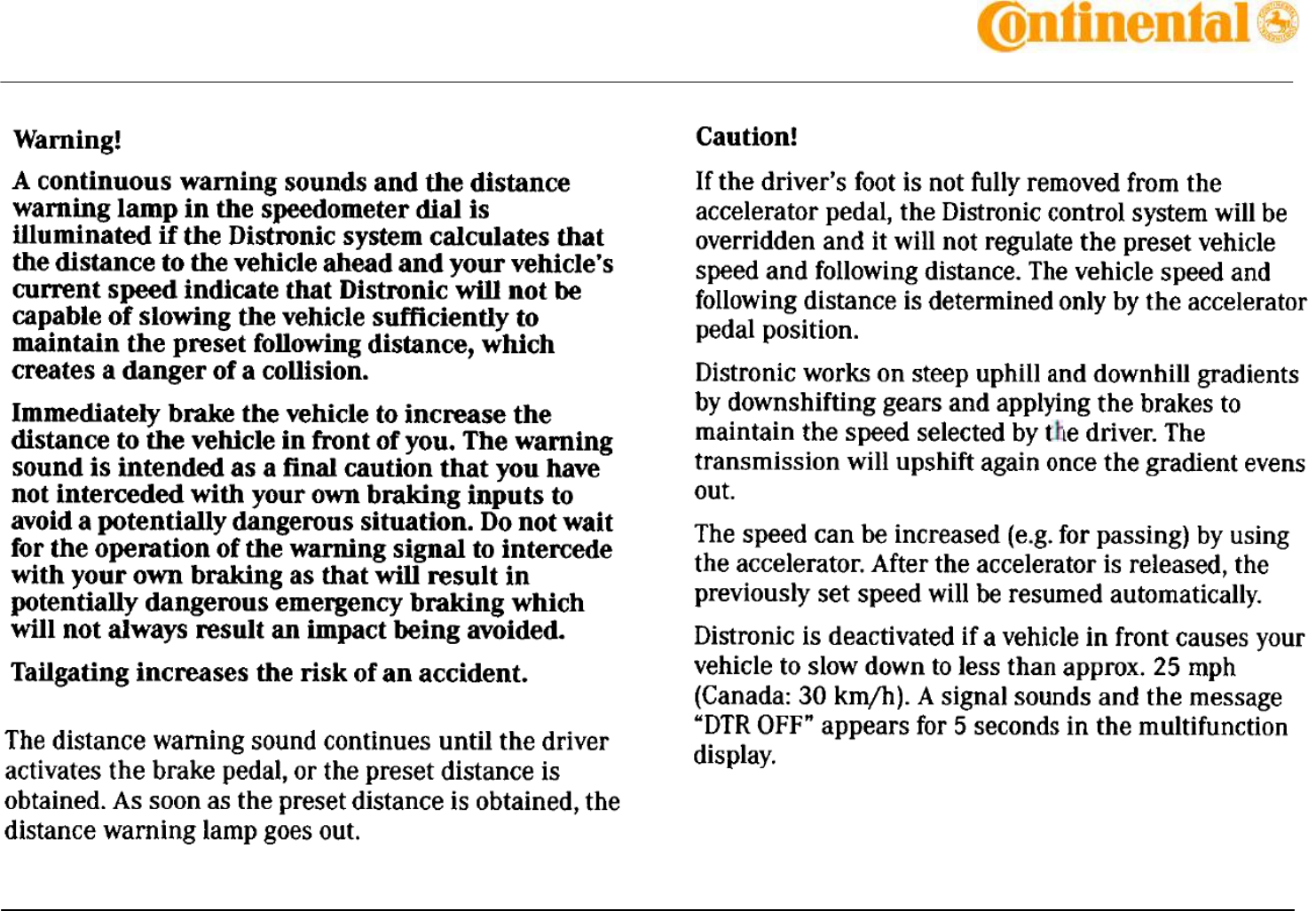

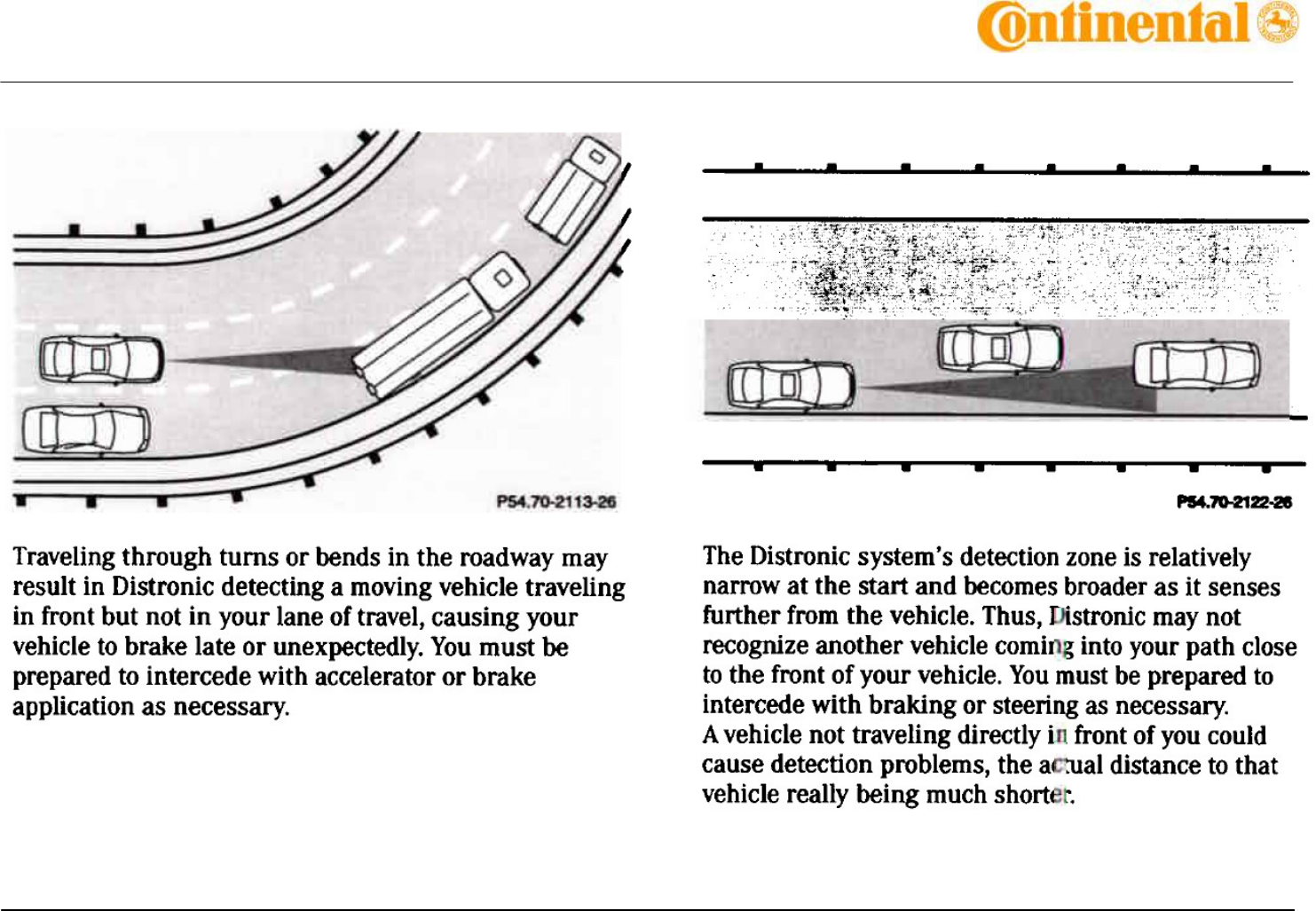

Additional driving hints 11

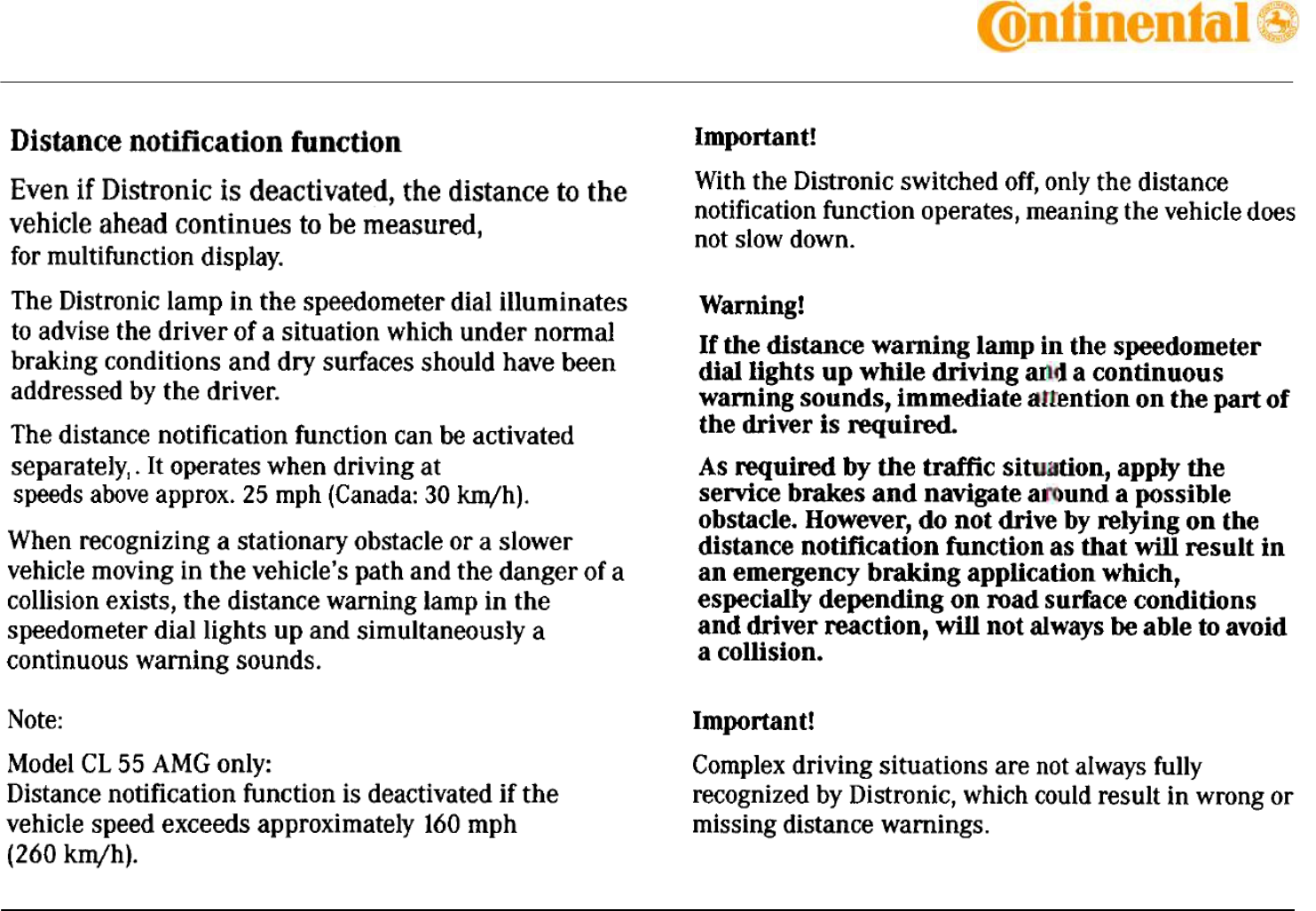

Distance notification functions 15

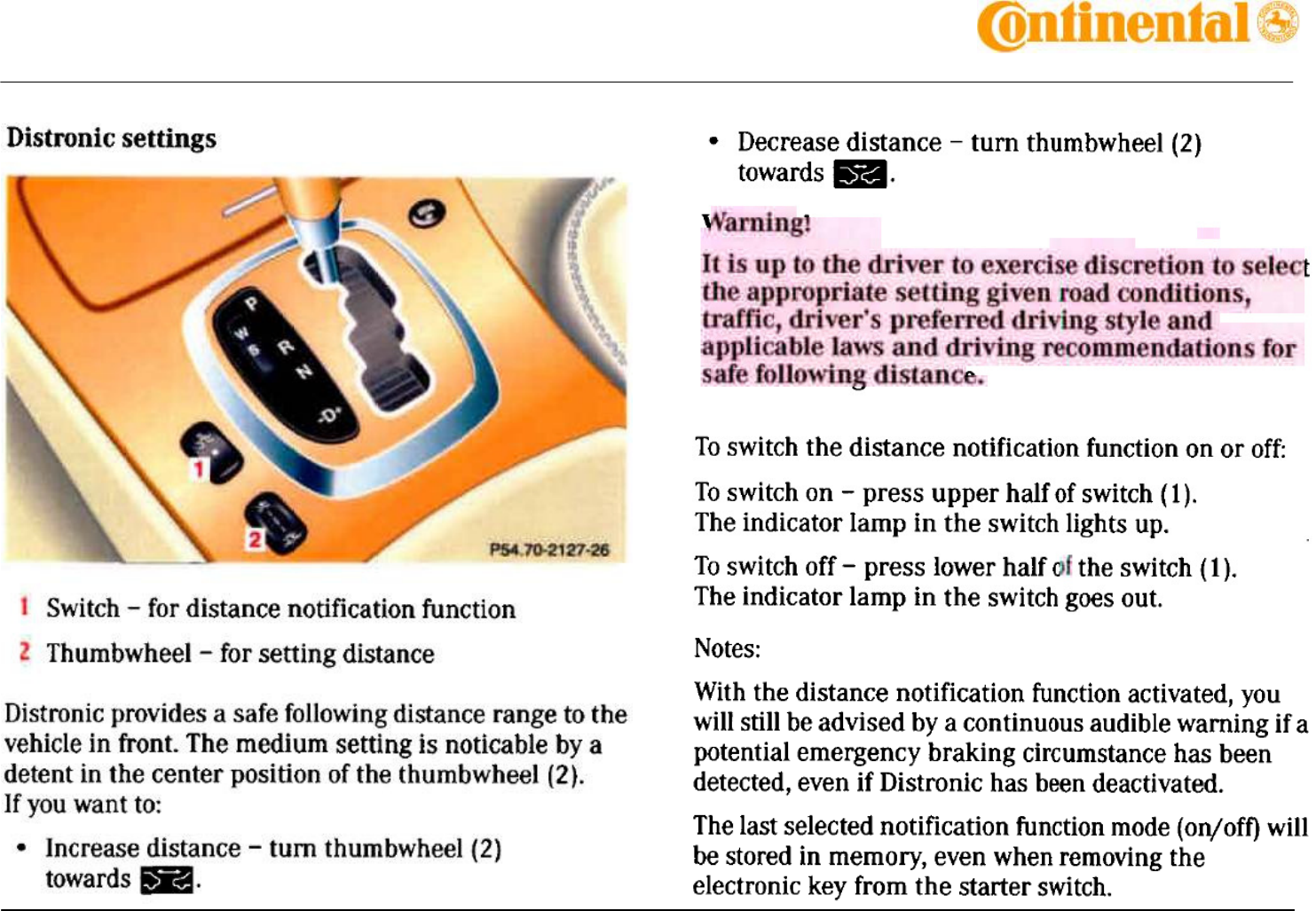

Distronic settings 16

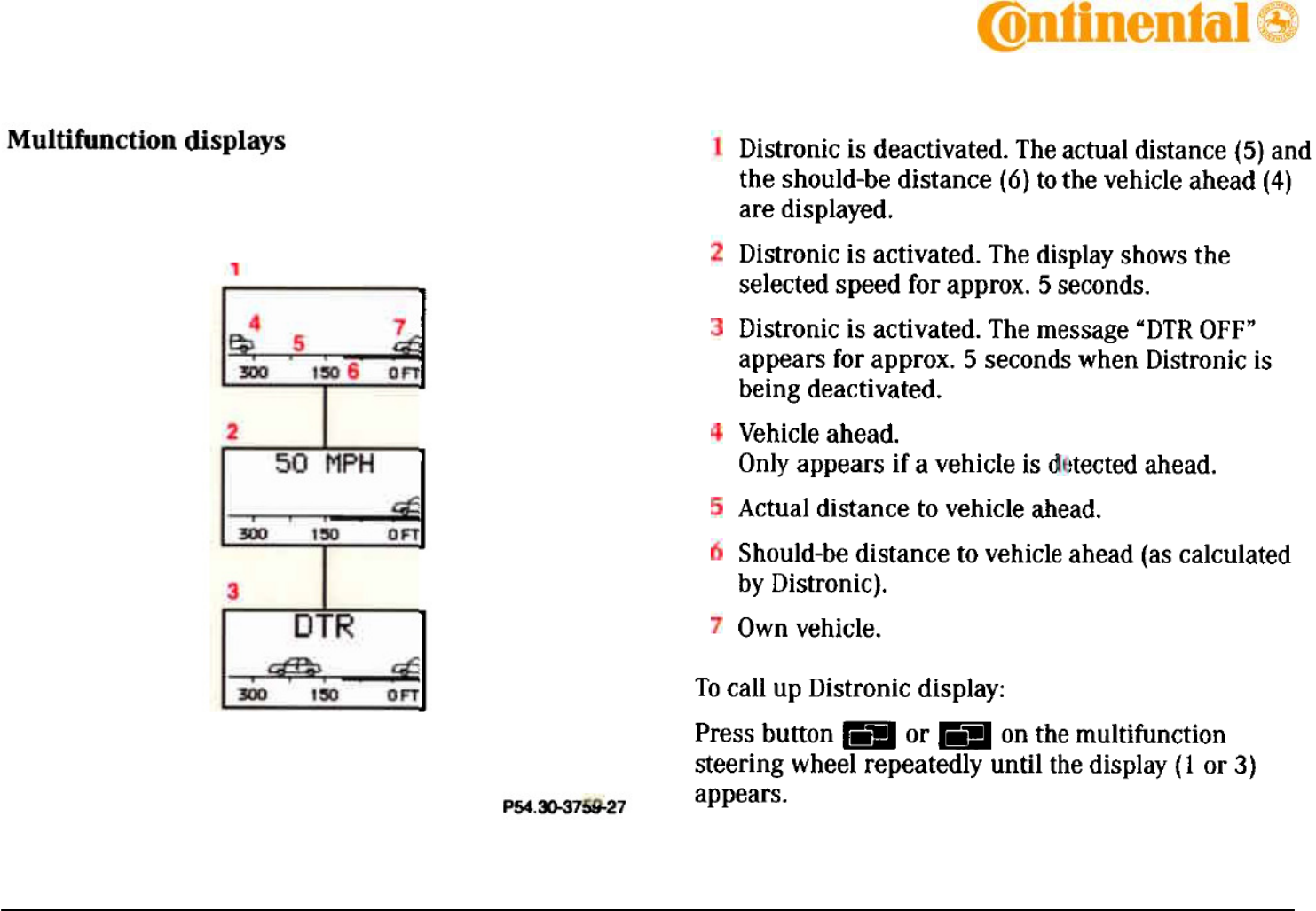

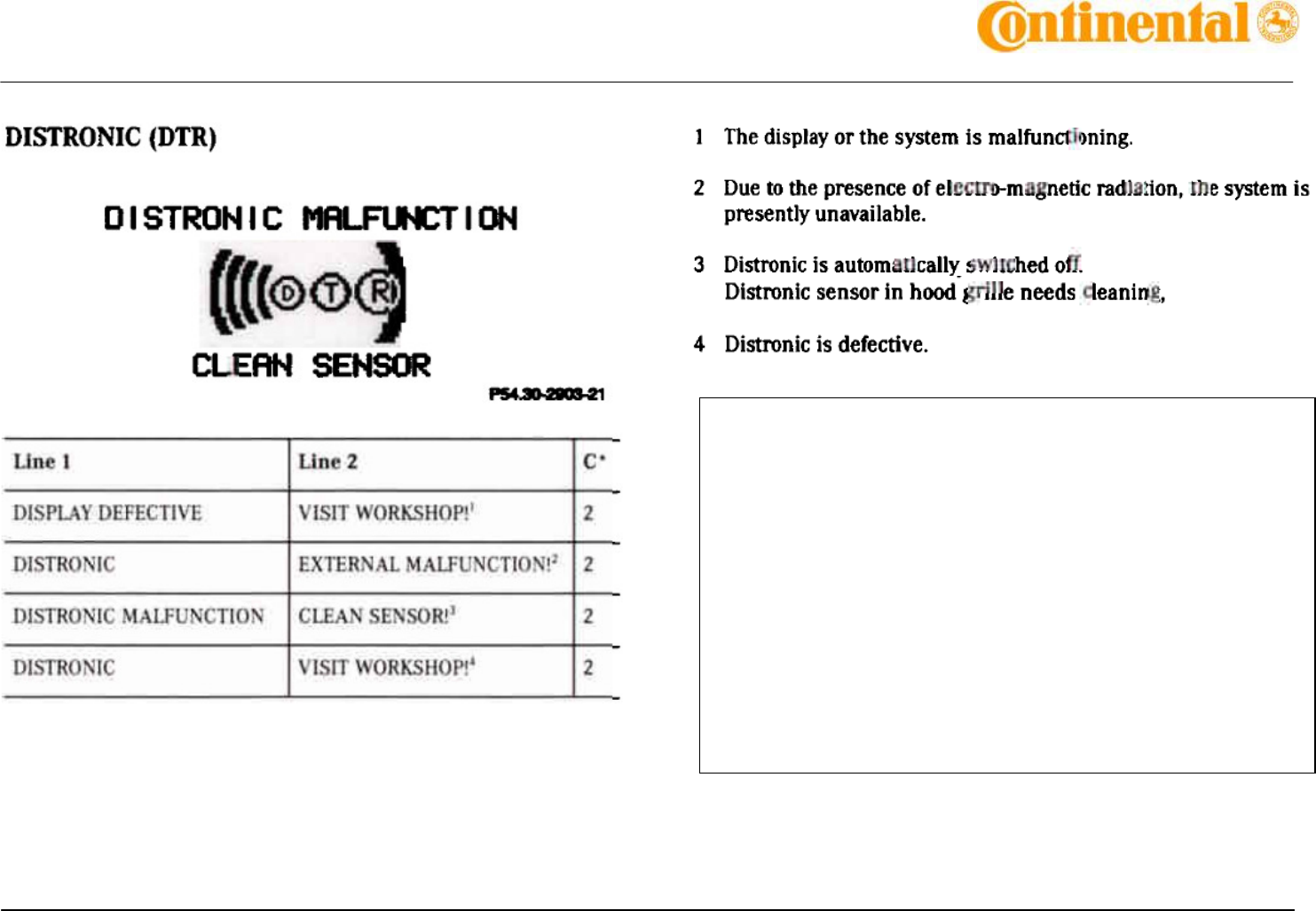

Multifunction display 17

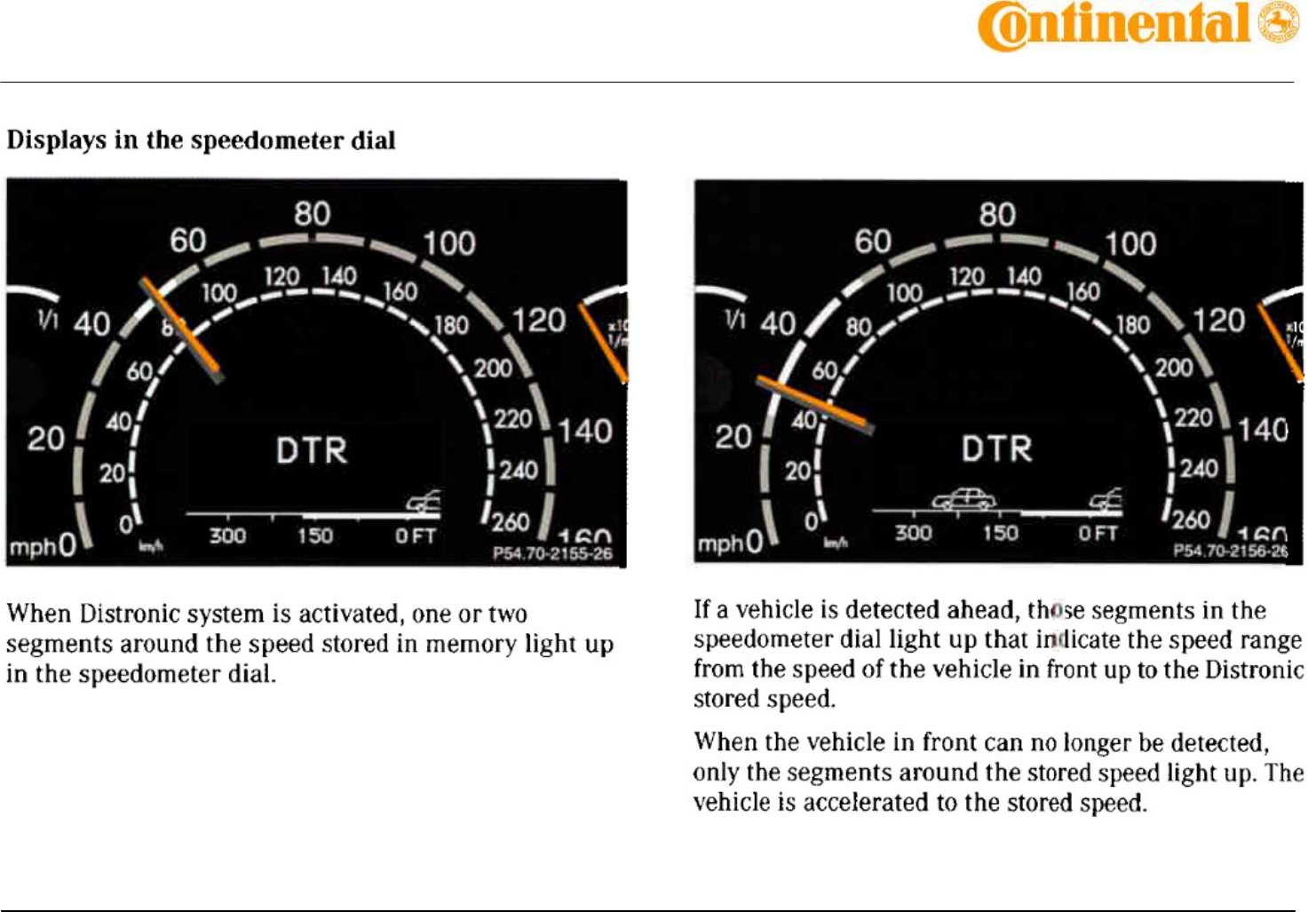

Displays in the speedometer dial 18
Operation in the USA 19

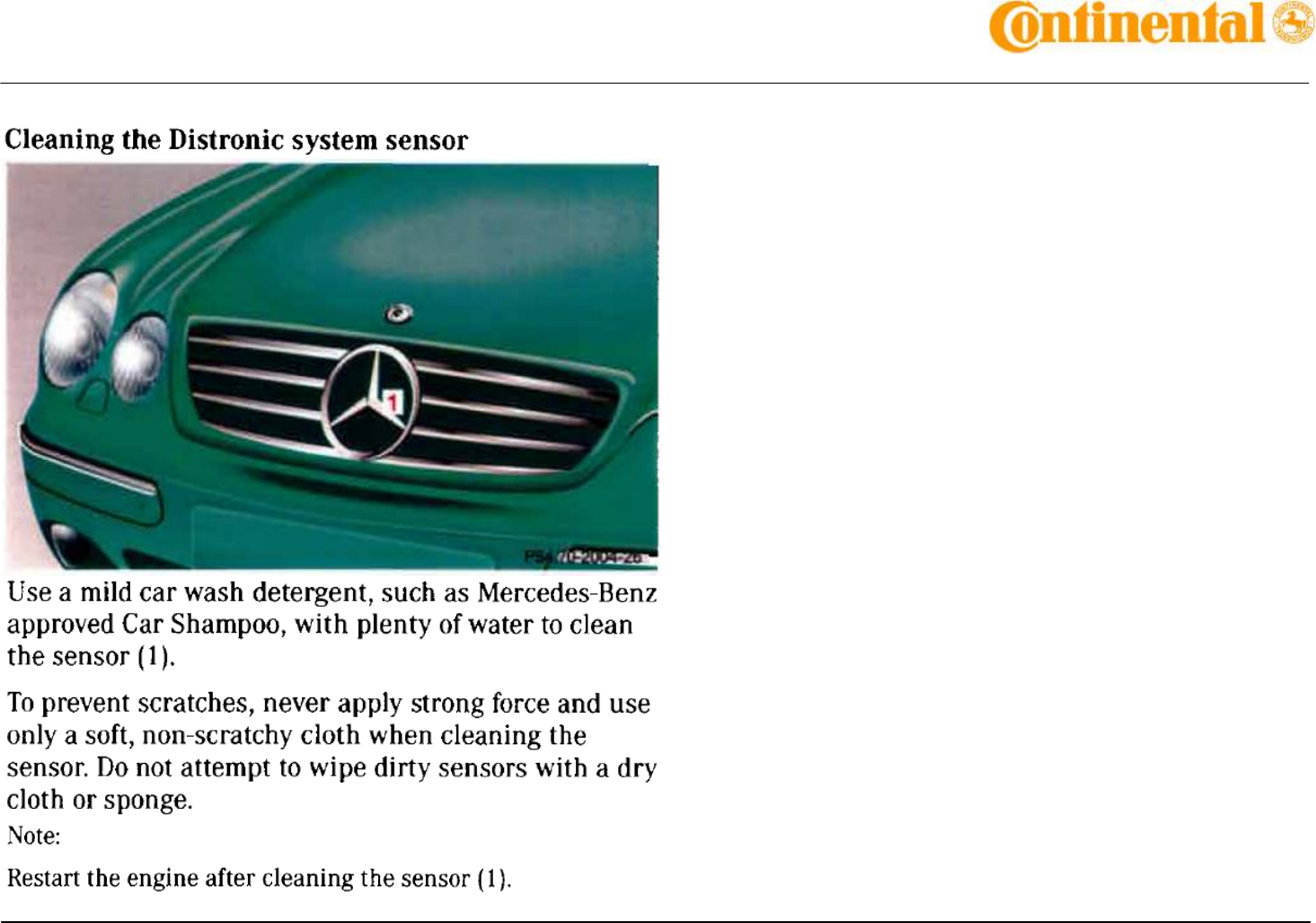

Cleaning the Distronic system sensor 20
ARS2-A, ARS2-B, ARS2-C, ARS3-A Sensor Overview 21
Instruction Manual
BC Driver Assistance Systems
ARS2-ABC_ARS3-A_ADC_Manual.doc Page 4 of 22 Rev. B
Instruction Manual
BC Driver Assistance Systems
ARS2-ABC_ARS3-A_ADC_Manual.doc Page 5 of 22 Rev. B
Instruction Manual
BC Driver Assistance Systems
ARS2-ABC_ARS3-A_ADC_Manual.doc Page 6 of 22 Rev. B
Instruction Manual
BC Driver Assistance Systems
ARS2-ABC_ARS3-A_ADC_Manual.doc Page 7 of 22 Rev. B
Instruction Manual
BC Driver Assistance Systems
ARS2-ABC_ARS3-A_ADC_Manual.doc Page 8 of 22 Rev. B
Instruction Manual
BC Driver Assistance Systems
ARS2-ABC_ARS3-A_ADC_Manual.doc Page 9 of 22 Rev. B
Instruction Manual
BC Driver Assistance Systems
ARS2-ABC_ARS3-A_ADC_Manual.doc Page 10 of 22 Rev. B
Instruction Manual
BC Driver Assistance Systems
ARS2-ABC_ARS3-A_ADC_Manual.doc Page 11 of 22 Rev. B
Instruction Manual
BC Driver Assistance Systems
ARS2-ABC_ARS3-A_ADC_Manual.doc Page 12 of 22 Rev. B
Instruction Manual
BC Driver Assistance Systems
ARS2-ABC_ARS3-A_ADC_Manual.doc Page 13 of 22 Rev. B
Instruction Manual
BC Driver Assistance Systems
ARS2-ABC_ARS3-A_ADC_Manual.doc Page 14 of 22 Rev. B
Instruction Manual
BC Driver Assistance Systems
ARS2-ABC_ARS3-A_ADC_Manual.doc Page 15 of 22 Rev. B
Instruction Manual
BC Driver Assistance Systems
ARS2-ABC_ARS3-A_ADC_Manual.doc Page 16 of 22 Rev. B
Instruction Manual
BC Driver Assistance Systems
ARS2-ABC_ARS3-A_ADC_Manual.doc Page 17 of 22 Rev. B
Instruction Manual
BC Driver Assistance Systems
ARS2-ABC_ARS3-A_ADC_Manual.doc Page 18 of 22 Rev. B
Instruction Manual
BC Driver Assistance Systems
ARS2-ABC_ARS3-A_ADC_Manual.doc Page 19 of 22 Rev. B
Instruction Manual
BC Driver Assistance Systems
ARS2-ABC_ARS3-A_ADC_Manual.doc Page 20 of 22 Rev. B

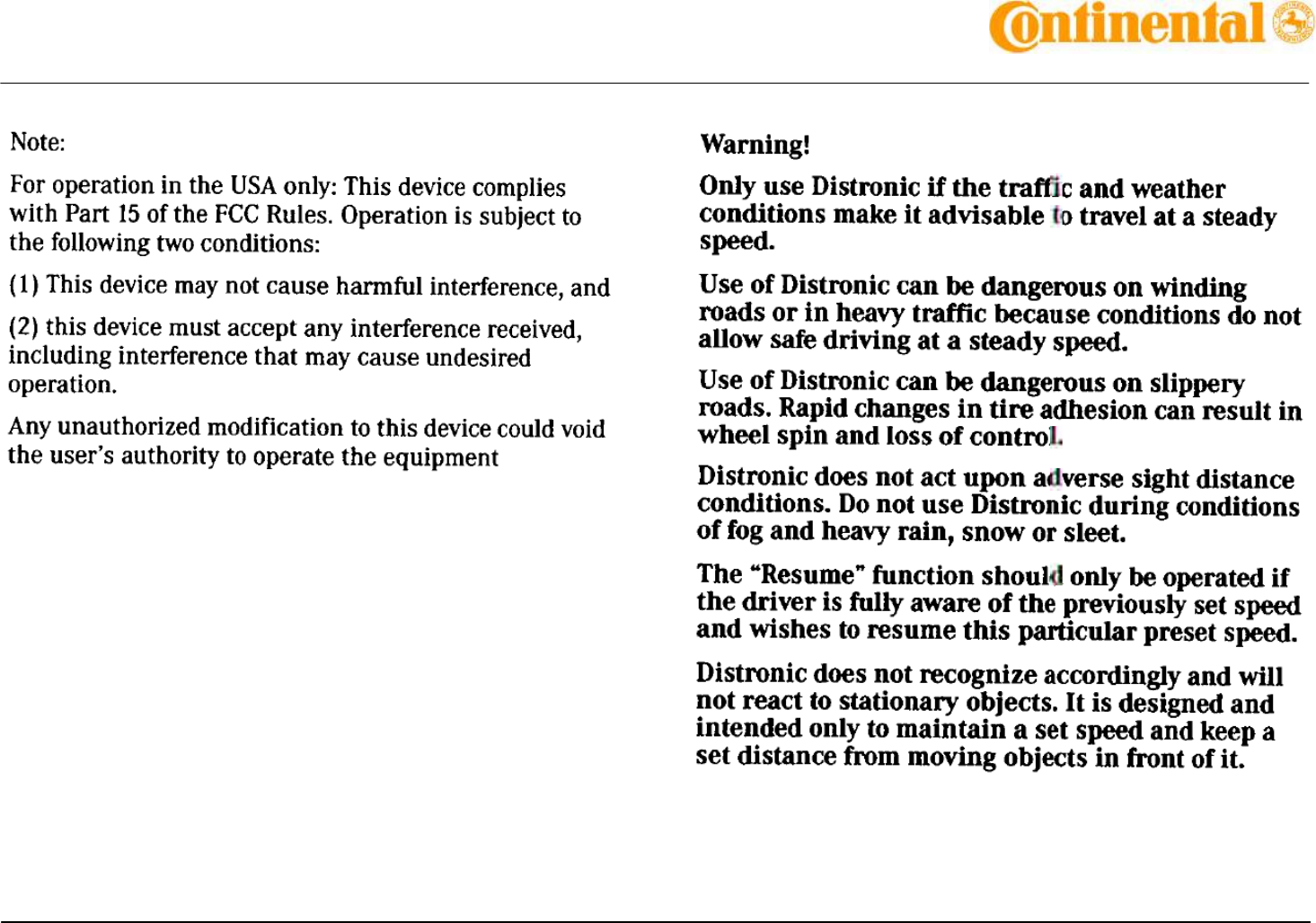

For operation in the USA and Canada:
This device complies with Part 15 of the FCC rules and with
RSS-210 of Industry Canada.
Operation is subjected to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
WARNING:
Changes or modifications made to this equipment not
expressly approved by Continental may void the FCC
authorization to operate this equipment !
Instruction Manual
BC Driver Assistance Systems
ARS2-ABC_ARS3-A_ADC_Manual.doc Page 21 of 22 Rev. B
Instruction Manual
BC Driver Assistance Systems
ARS2-ABC_ARS3-A_ADC_Manual.doc Page 22 of 22 Rev. B
Sensor Overview:
ARS 2-A is the basic model of all second
generation ARS variants.
ARS 2-B The basic model ARS 2-A with
following modifications:
Electronic: - Yaw rate sensor ( DC
output )
Mechanical: - fixing points

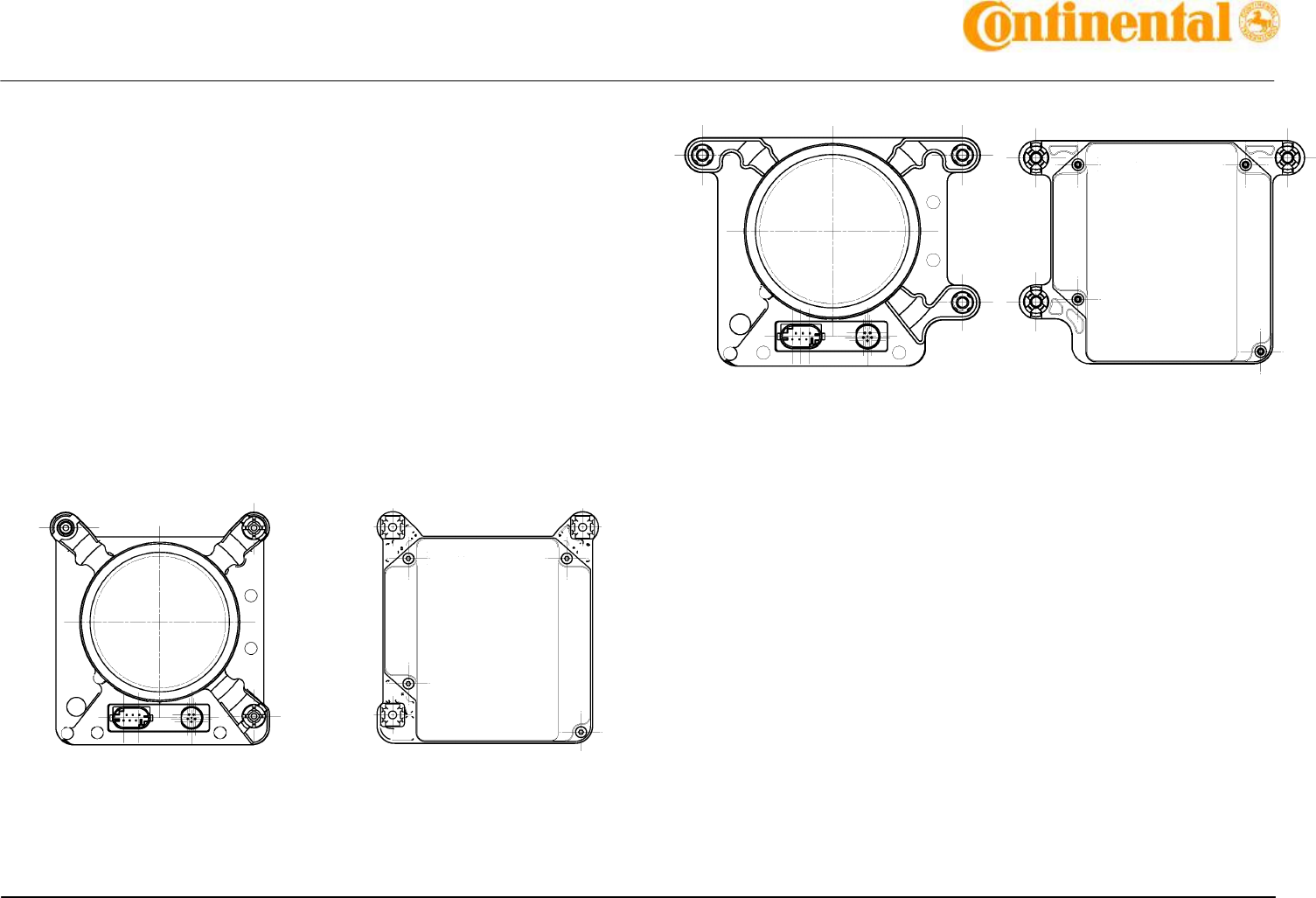

ARS 2-A front view
ARS 2-A rear view
ARS 2-B front view
ARS 2-B rear view
ARS 2-C: The basic model ARS 2-A
with following modifications:
Electronic: none
Mechanical: - polarizing key
Instruction Manual
BC Driver Assistance Systems
ARS2-ABC_ARS3-A_ADC_Manual.doc Page 23 of 22 Rev. B

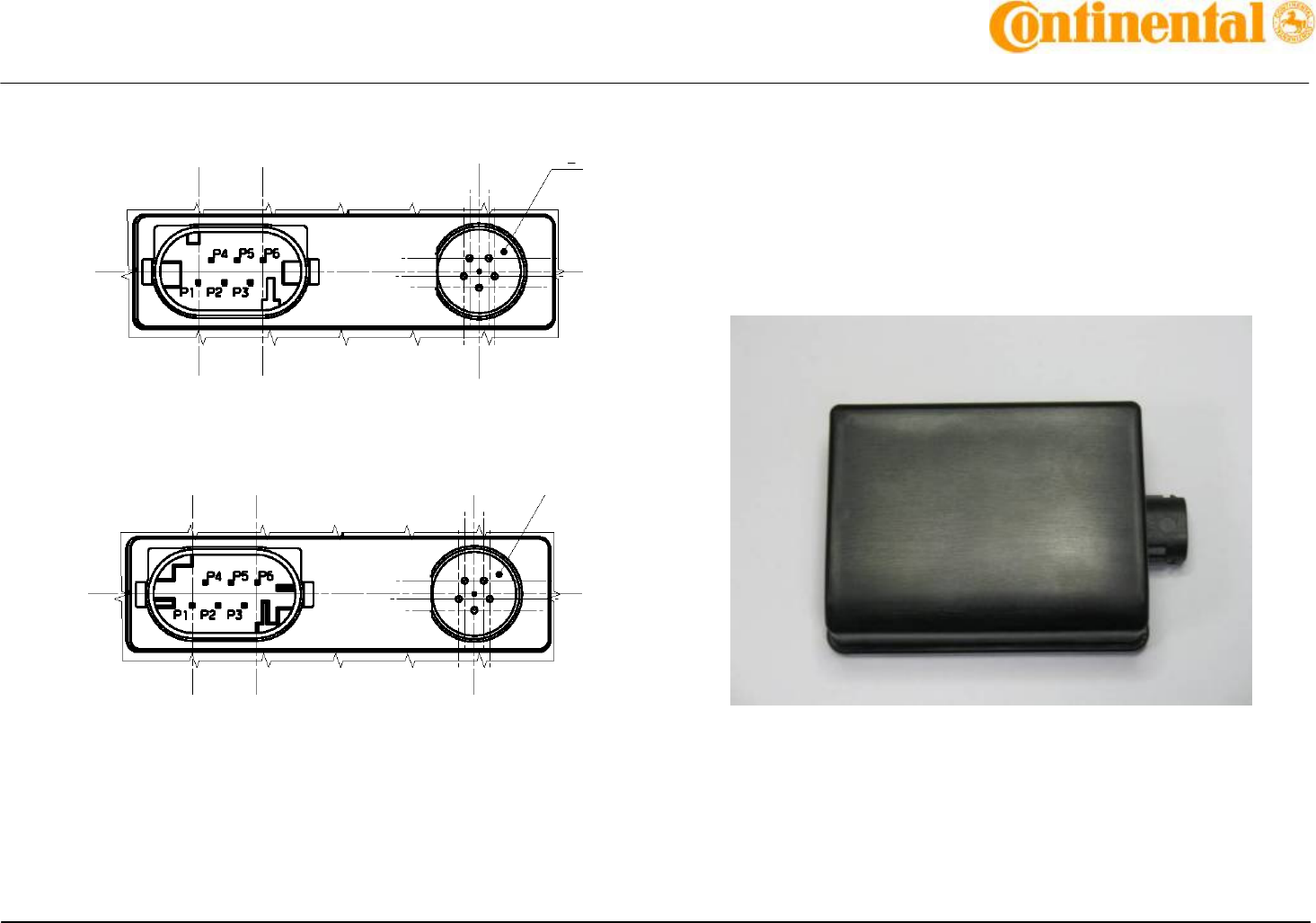

ARS 2-C connector pin designation:
ARS 2-A connector pin designation
ARS 3-A is the basic model of all 3rd
generation ARS variants. All variants
differ only internally (CAN electronics
and power supply
