9. REVISION SYNOPSIS
Name
Description
Revision
Date
dbl
Initial release
01
May 21, 2009
dbl
Updated content, format,
etc.
02
April 22, 2010
dbl
Updated content, format,
etc.
03
December 16,
2010
dbl Updated page 1 and 44 04 January 12, 2011
10. Approvals
Approval Name
Date
Title
CarFi Users Guide
Introducing the Autonet Mobile CarFi Hotspot
Thank you for purchasing Autonet Mobile’s CarFi hotspot, designed
specifically for the stringent demands of mobile vehicles.
The advantages of Autonet Mobile are reliable seamless internet
connections wherever you are and whenever you need them most,
in your car. Whether it’s the patent-pending TRU Technology
keeping your connections from losing signals between cell towers,
tunnels, or areas of poor reception, or the dedicated and diligent
customer service providing support for your network, devices or
billing in our centralized local call center, Autonet Mobile is
dedicated in providing you world class and unparalleled service and
products.
Autonet Mobile CarFi:
“It’s the Internet on Wheels”
CarFi Overview 1
Quickstart guide 5
Configuring the CarFi 6
Configuring Wireless Settings 7
Configuring Security Settings 10
Disabling Login Screen 11
Changing the password 11
Checking Connection status 12
Troubleshooting guide 13
Service Information 15
Technical Specifications 16
Installation Instructions 18
Care and Maintenance 21
Regulatory Information 22
Safety Information 23
A
ccepted Use Policy 28
A
utonet Software License 32
Limited Warranty 35
Legal Disclosure 37
Table of contents
The Autonet Mobile CarFi Hotspot Overview
Package Contents:
CarFi Unit and docking station
User’s guide included in the package
Installation kit or installation cable
Activation guide
Snapshot of features
Reliable TRU technology yielding maximum connection uptime
Maximum reliability, featuring ruggedized device designed
specifically for automotive applications
Docking station for vehicle-vehicle mobility (must purchase
additional dock for this application)
I/O’s: 2 x USB ports, Ethernet port
Memory-1G internal, CF slot for additional memory
FCC compliant & OEM Automotive approved
Remote administration monitoring, configuring and firmware
updates
Compatible with all major OS: Windows, OSX, Linux, Solaris
Device compatibility: works with any WiFi device such as
desktops, laptops, handset, s, servers, POS systems, ATM
machines, remote security, sensing/metering devices
1

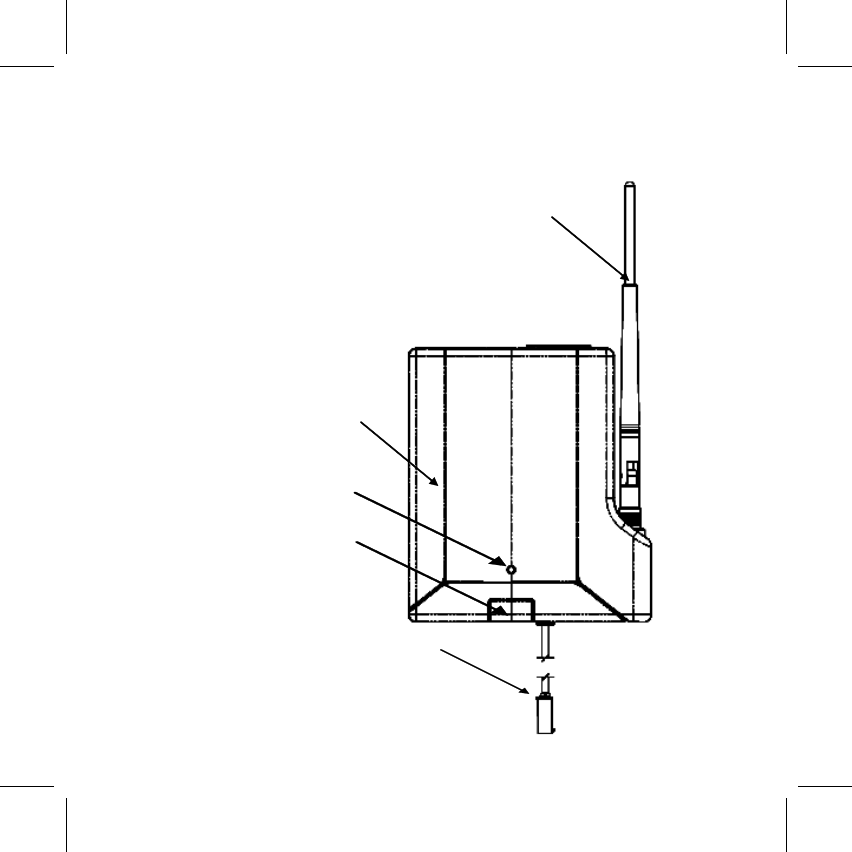

About your CarFi
1. External cellular antenna-TNC
2. Complete unit with dock
5. Power cable/harness
3. Blue indicator LED
1
2
3
5
2
4
4. Pushbutton for undocking CarFi
USB
About your CarFi continued
1
2
3
1. Ethernet port
2. (2) USB ports
4
4. TNC antenna connector
3. Compact Flash slot
5
6
5. Dock mounting holes (4)
6. Pushbutton for undocking CarFi
3
4
For technical support please call Autonet Mobile
customer service center: 1-800-977-2107
A
utonet Mobile assumes no responsibility for the configurations,
security, or data files on your wireless device resulting from
connection to Autonet Mobile’s network. Anti-virus, privacy and
security protection is the responsibility of the user.
Do not operate CarFi while driving or perform any function
that takes your attention away from safely operating your
vehicle. Any function that requires prolonged attention should
be performed after coming to a complete stop. Always stop
the vehicle in a safe location before performing these
functions. Failure to do so may result in an accident.
If CarFi is found, please call: 1-800-977-2107. The CarFi is
automatically disabled if reported lost or stolen.
Step 4
Happy Surfing!
(Please note: You must complete an Autonet service agreement in
order to activate CarFi. The Autonet service agreement can be
found at: https://www.autonetmobile.com/signup
5
Quickstart Guide
Step 1
Turn your car to the Acc position to power up Autonet Mobile’s
CarFi.
Step 2
Open your wireless network list and connect to “autonet-XXXX”.
(The last 4 digits will be the same as your last 4 digits of CarFi
serial number).
Step 3
Open your web browser.
Click on the login button.
6
Configuring CarFi
It is highly recommended to enable “encryption type/key security” and
change the default password for CarFi
Configuring CarFi’s settings
Step 1
Locate CarFi’s ten digit serial number located on the back side of CarFi, or in front of the
User’s guide included in the package. (If you have trouble locating the serial number of the
CarFi, please call our customer support line at 1-800-977-2107 for assistance)
Step 2:

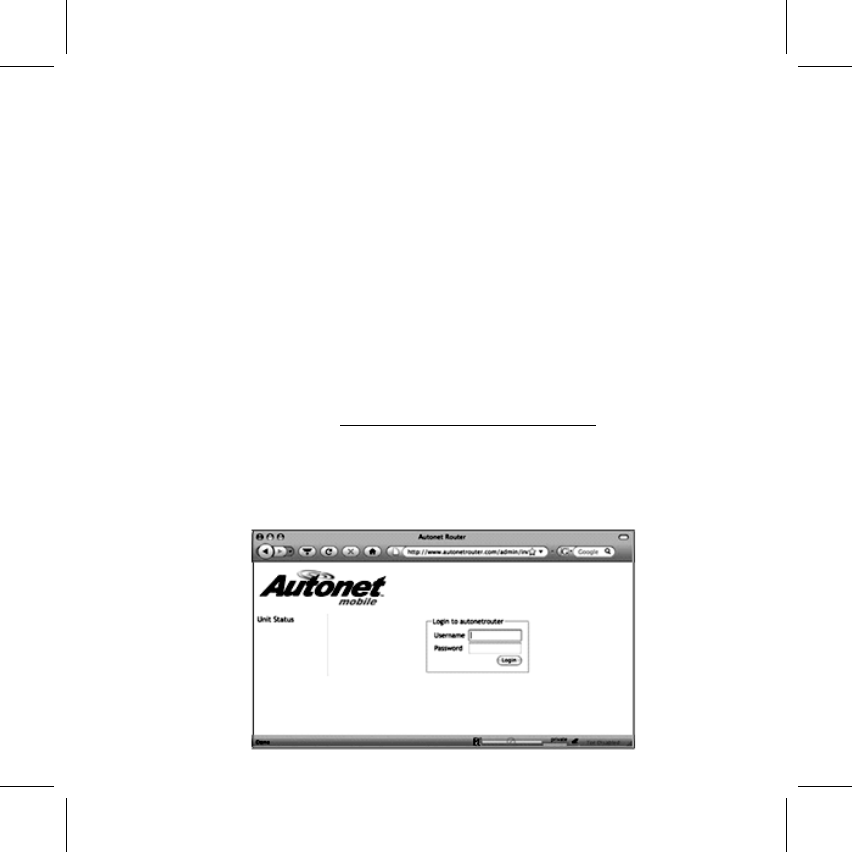

Open a web browser and go to: http://www.autonetrouter.com/admin
Login with username “autonet” and use CarFi’s serial number as the password (e.g.
0024C76258). Click on the login button. Please note that all Alpha characters must be
capitalized.
Configuring Wireless Settings

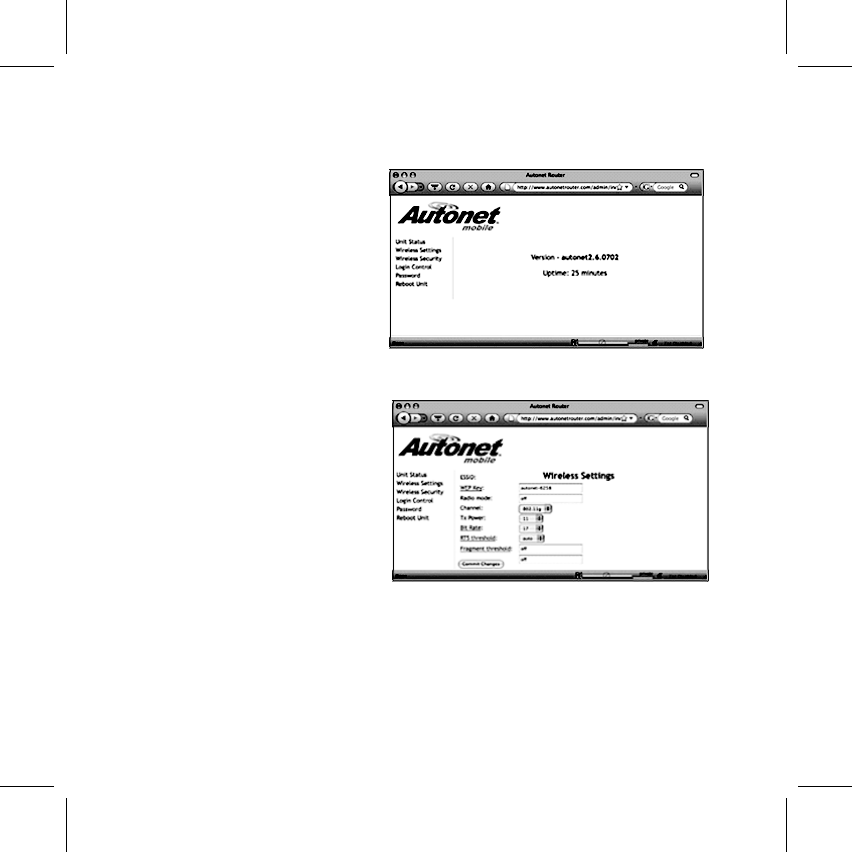

Click on “Wireless Settings”
The wireless settings default
page will look similar to the right
7
Setting ESSID
The ESSID is the identifying name of a wireless network - strictly it is the identifying name of
a wireless access point. It allows one wireless network to be clearly distinguishable from
another. The default ESSID is autonet-xxxx, where xxxx is the last 4 digits of CarFi’s serial
number. Although this can be modified, it is recommended that you keep this ESSID as the
default to distinguish CarFi from other hotspots in the same vicinity. Please note that if you
change this name, you may need to reset your networks list/connection on your web
accessible device.
8
Configuring Wireless Settings (continued)
Setting the Encryption type/key
By default the encryption type and key are not set at the factory. To set the current
encryption type (WEP, WPA, WPA2), use the pull down menu to select the
encryption type, then enter the encryption key value.
Min/Max digits for each encryption type are the following:
WEP-Wired Equivalent Privacy. An IEEE standard security protocol for 802.11
networks. This protocol has been superseded by WPA and WPA2. A 10 Hex digit
string (i.e. 0123456789) or a 5 character ASCII string (i.e. s: smile)
Security Strength:Good
WPA-WiFi Protected Access. A WiFi Alliance security protocol for 802.11 networks
A
8-63 ASCII character string length (the longer the character string, the stronger the
encryption)
Security Strength: Better
WPA2-WiFi Protected Access. A WiFi Alliance security protocol for 802.11 networks. A
8-63 ASCII character string (the longer the character string, the stronger the encryption)
Security Strength: Best
Autonet Mobile recommends WPA2
Radio Mode
This feature allows you to select whether the radio is in 802.11b, 802.11g or 802.11a mode.
The default setting is (g), which is backward compatible with (b) but not (a). If your system
only supports (a), you will need to set CarFi’sRadio mode to (a) to operate properly.
This action requires a re-boot of the CarFi if changed.
Configuring Wireless Settings (continued)
Channel
Direct communication between an 802.11 Radio card and an access point occurs over a
common channel frequency. The FCC allows channels 1 through 11 within the U.S. An
important concept to note regarding channel assignments is that the channel actually
represents the center frequency that the transceiver within the radio and access point uses
(e.g., 2.412 GHz for channel 1 and 2.417 GHz for channel 2). There is only 5 MHz separation
between the center frequencies, and an 802.11b signal occupies approximately 30 MHz of
the frequency spectrum. The signal falls within about 15 MHz of each side of the center
frequency. As a result, an 802.11b signal overlaps with several adjacent channel frequencies.
This leaves you with only three channels (channels 1, 6, and 11 for the U.S.) That you can
use without causing interference between access points.
TxPower
This allows you to set the transmit power of the radio. Setting a lower value limits the range o
f
the radio and reduces interference with other access points. (default: 19 recommended)
Bit rate
This allows you to set the bit rate in Mbs. The bit rate is the speed at which bits are
transmitted over the medium. The user speed of the link is lower due to medium sharing and
various overhead. Select a value to lock the card to a particular bit rate. If you specify auto,
the driver will use all bit rates to find an optimum rate. (default: auto recommended)
RTS threshold
RTS/CTS adds a handshake before each packet transmission to make sure that the channel
is clear. This adds overhead, but Increases performance in case of hidden nodes or a large
number of active nodes. This parameter sets the size of the smallest packet for which the
node sends rts; a value equal to the maximum packet size disables the mechanism. You may
also set this parameter to off. (default: off recommended)
9
Configuring Wireless Settings (continued)
Fragmentation threshold
Fragmentation allows the splitting of an IP packet in a burst of smaller fragments
transmitted on the medium. In most cases this adds overhead, but in a very noisy
environment this reduces the error penalty and allows packets to get through
interference bursts. This parameter sets the maximum fragment size. You may
also set this to off to disable the mechanism. (default: off recommended)
The Wireless Security Settings allow you to control which wireless-equipped devices
may communicate with the router, depending on their MAC addresses. By default
these MAC filters are disabled. If you turn MAC filters on, you should be sure and
include the MAC address of the device that you are using to communicate with.
Otherwise, the device that you’re using will lose its connection to CarFi’s Hotspot.
To enable MAC filters, change the MAC filters option to “on” and then check the
“Allowed” box next to the MAC addresses that you wish to allow to join the network.
If you would like to connect devices that are not currently attached to CarFi’s
Hotspot, you may add them in the text field. You can add multiple devices by separating
them with a space. Select “commit changes” when finished.(Default setting: MAC filters off)

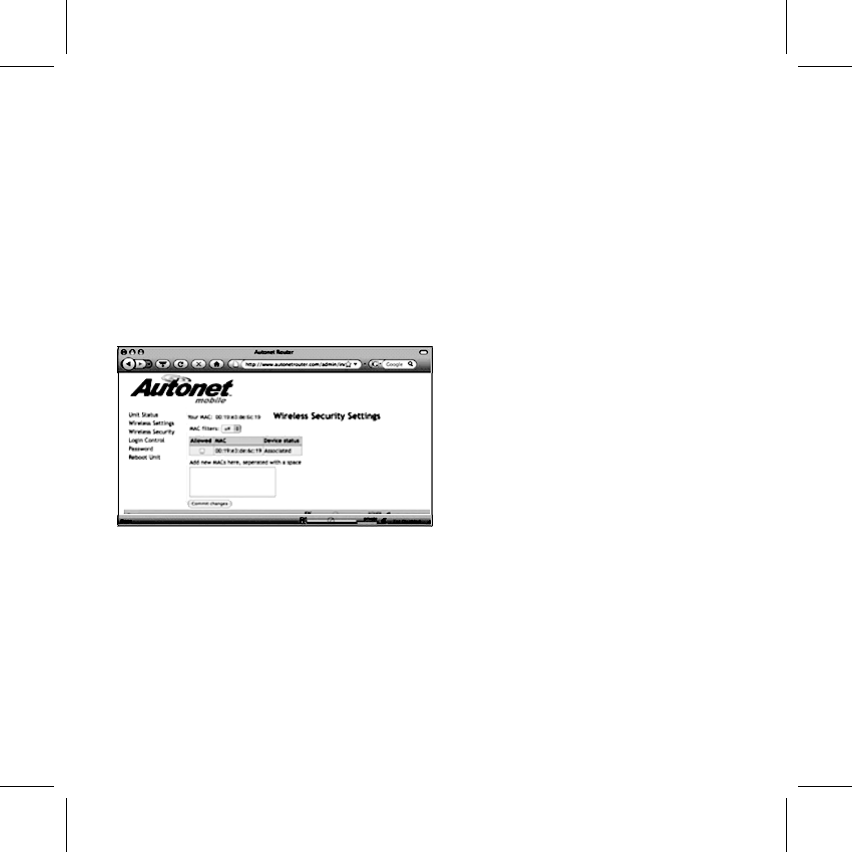

Configuring Wireless Security Settings
Click on “Wireless Security”
10

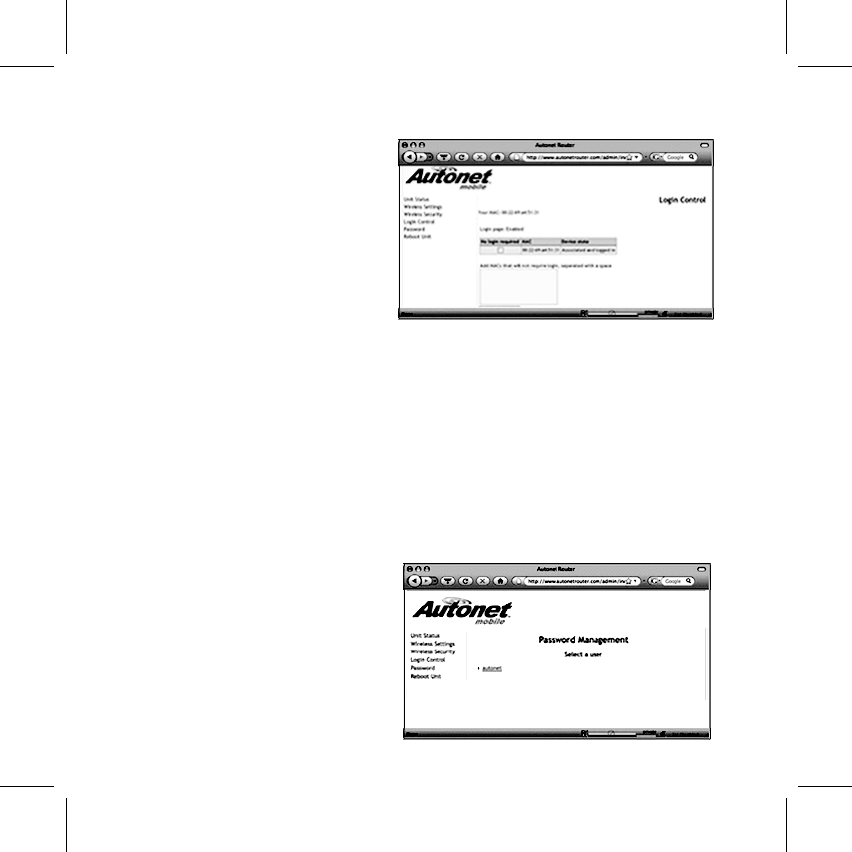

Disabling the Login Screen
Click on “login control”
Normally a device that connects to the Autonet Mobile network must first click through the
login screen that comes up on your web browser. However, there are some devices that do
not have a web browser (cameras, music players, etc.), so we’ve created a method for
disabling the login page for those devices.
To bypass the login screen for a device, check the box under “no login required” next to the
MAC address of that device.
If you would like to add devices that are not currently attached to CarFi’s Hotspot, then you
may add them in the text field. You can add multiple devices by separating them with a
space. Select “Commit Changes” when you are finished.
Changing the Password

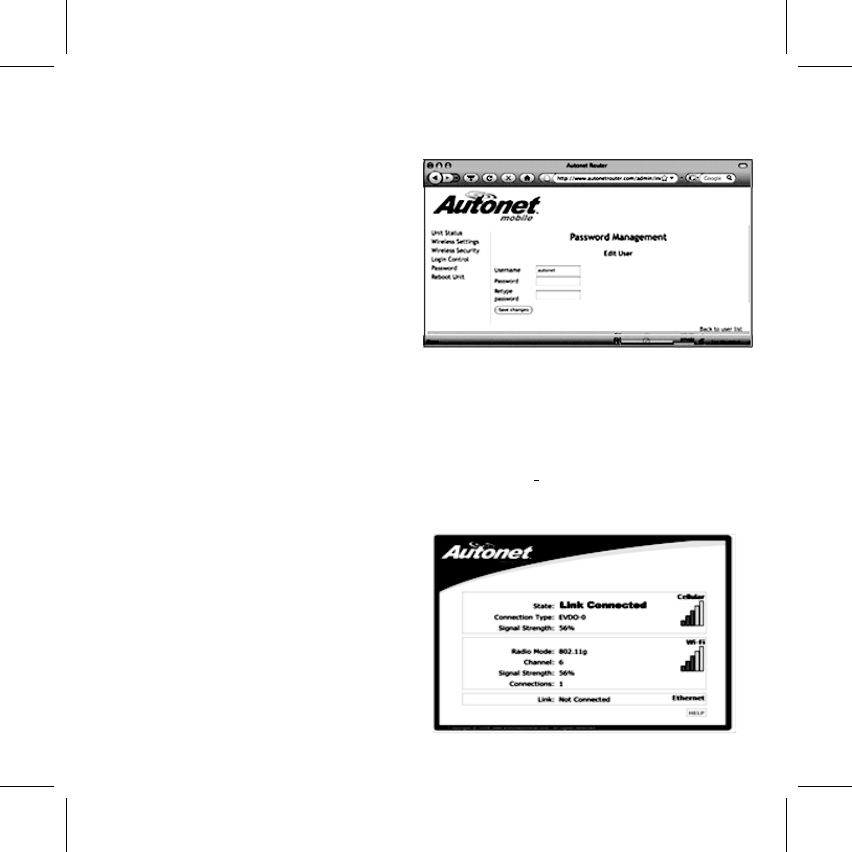

Click on “Password”
11
Changing the Password (continued)
Click on the user name “autonet”
Enter a new password and
click on “Save Changes”
If you forget your password, please contact the Autonet Mobile Customer
Service Center to have it reset.
Checking the connection status of the CarFi
Go to the website http://www.autonetrouter.com to see the current
connection status of CarFi.
12
Troubleshooting Guide
For a more complete listing of errors/information please visit our website or call our
customer support center: 1-800-977-2107 (http://www.autonetmobile.com/)
Problem/Error
Solution
CarFi has no power (The LED indicator
is not visible)
Please note at CarFi startup the LED
will be off for approximately 15 seconds
in its sequencing mode
(see LED sequencing pg. 16 )
Check to ensure the main enclosure is
firmly attached to the bottom docking
station.
Check to make sure the power
installation cable is properly installed,
and you have a regulated 12V DC
supply with a min. 1.8A.
Check the inline fuse. If “open” or
damage, please call our customer
support center to order a replacement.
Reboot CarFi by turning your car ignition
off and on again (while parked in a safe
location).
Connectivity issues-limited, low signal
or no signal
(If the Blue LED continues it’s fast
blinking sequence and will not go to a
solid state, you are likely in an area with
no coverage. Please call our customer
support center to review your coverage
area.)
Disconnect from the “Autonet” wireless
network and reconnect.
Ensure the cell antenna on CarFi is
secured properly.
Position CarFi in a different location in
your vehicle.
Reboot CarFi by turning your car ignition
off and on again (while parked in a safe
location).
13
Troubleshooting Guide (cont.)
If you have any quesons or problems, please call the Autonet
Mobile Customer support center phone line: 1-800-977-2107
Problem/Error
Solution
Wireless configuration issues (Autonet-
XXXX does not appear in your wireless
networks window)
Disable and then re-enable your
wireless interface.
Refresh your available wireless
networks window.
Disconnect CarFi from your wireless
network and reconnect.
Consult the configuration instructions
provided by your Wi-Fi device
manufacturer.
If Autonet-XXXX still does not appear in this
list, call our customer support center for further
troubleshooting.
Forgotten password
Please call are customer support center to
reset password
14
Service Information
Turn off your vehicle ignition; disconnect CarFi or any other Autonet Mobile accessories
and, if necessary, refer the issue to qualified service personnel or call Autonet Customer
Service Center if:
The main unit, docking station, power cable/connection or connector to
your CarFi is damaged.
Liquid has spilled or objects have fallen into your CarFi or Autonet
Mobile accessories.
Your CarFi or other Autonet Mobile accessories become excessively
hot to the touch.
Your CarFi or other Autonet Mobile accessories have been exposed to rain or
water.
Your CarFi or other Autonet Mobile accessories have been dropped or
damaged in any way.
Your CarFi or other Autonet Mobile accessories do not appear to operate
normally in accordance with the instructions contained in any guide provided
by Autonet Mobile Inc.
Your CarFi or other Autonet Mobile accessories exhibit a distinct change in
performance.
A
ll servicing of CarFi or other Autonet accessories should be performed
by qualified personnel. Do not attempt to disassemble, modify, or repair
A
utonet’s CarFi or any other Autonet accessories yourself.
If you have any quesons or problems, please call the Autonet
Mobile Customer support center phone line: 1-800-977-2107
15
Technical Specifications of Autonet’s CarFi
Led status overview-General usage
Status LED (Blue) Indicates
LED not lit CarFi is not connected to power, or has been
recently turned on (Please note: Blue LED
does turn off for approximately 15 seconds at
startup)
LED slow blink CarFi is in sleep mode (if there are no Wi-Fi
users connected to it, the unit will go into
sleep mode and automatically reconnect once
a device is attached)
LED fast blink CarFi is acquiring the cellular network (after
waking up from sleep mode)
LED solid CarFi is connected
Led status overview-initialization sequence (at power on)
Status LED (Blue) Indicates
LED not lit (20-30 seconds) CarFi has been powered on
LED in medium blink mode (20-30 seconds) CarFi is in initialization mode
LED fast blink (20-30 seconds) CarFi is acquiring the cellular network
LED solid CarFi is connected to the cellular network
CDMA/EVDO Specifications
CDMA/EVDO specification CDMA Rev. A, Rev 0, 1XRTT
Band Designation 800/1900 Mhz
Transmit Band 824.7 – 848.31MHz/
1851.25 – 1908.75MHz
Receive Band 869.7 – 893.31MHz/
1931.25 – 1988.75MHz
16
Technical specifications (continued)
LAN (Local Area Network)/Connector Specifications
802.11 a/b/g NAT DHCP server
(2) USB connectors Ethernet Compact Flash
Power Connector External TNC (WAN antenna)
WAN (Wide Area Network) Specifications
TRU Technology Link Management for fast and easy connect
TRU Technology Link Management for maintaining WAN
connections without impacting LAN sessions (patent pending)
TRU Technology Network Management for link monitoring
Auto failover between broadband and backup coverage networks
Environmental Specifications
Operating temperature -20°C to 70 °C
Storage temperature -20°C to 85 °C
Mechanical Specifications
Dimensions (W x D x H) 165mm x 35mm x 184mm
Weight 29 oz
Memory specifications
Memory-1G internal
17
Installation Instructions
Safety Precautions
The Autonet Mobile installation instructions must be followed to minimize
potential interference with other electronics on the vehicle.
WARNING: To prevent injury or fire, take the following precautions:
When extending the ignition, battery or ground wires, make sure to use automotive
grade/UL approved wires with a min. 18 AWG.
To prevent a short circuit, never insert or leave any metallic objects (such as coins
or metal tools) inside or around the unit.
If the unit starts to emit smoke or strange smells, disconnect immediately and
consult the Autonet Mobile Customer Service Center.
Do not touch CarFi during use because the surface of the unit may become hot
and may cause burns if touched.
CAUTION: To prevent damage to CarFi and its wiring, take the
following precautions:
Do not remove or disassemble the plastic enclosure of CarFi. Removing or
disassembling the unit will void the warranty.
Do not install CarFi in a spot exposed to direct sunlight, excessive heat, humidity,
water/dust intrusion.
To prevent a short circuit when replacing a fuse, first turn off the ignition and
disconnect the wiring harness. When replacing a fuse, only use an Autonet
approved fuse. Any fuse more than the approved rating may cause damage to the
CarFi.
Make sure the car ignition is turned off before attempting to install the CarFi unit
and its power cable/connections.
Be sure CarFi is connected to a 12V DC power source with a negative ground
connection, with a minimum of 1.8A.
Connect CarFi’s ground wire to an appropriate car chassis ground point that has a
direct connection to the car batteries negative terminal.
18
Installation Instructions (continued)
Connect the 12V positive power wire for CarFi, directly from the ignition
power source. Installing the wiring in the inline harness may cause blown
fuses, etc. Installing it directly to the car battery can deplete the battery and
possibly cause a “dead” battery scenario.
When installing the wiring, do not run along any sharp chassis edges or
through any exposed sharp chassis openings. Use insulation grommets or
other appropriate insulation materials.
Mounting Locations-Do’s and Don’ts
CarFi is typically mounted in the following locations:
On the inside rear side panel in an SUV or Van.
Under the rear deck lid in a sedan.
In the trunk of the vehicle.
In a location that gives the antennas the fewest obstructions to the outside
of the vehicle.
CarFi should not be mounted in the following locations:
In a location that interferes with driving.
In a location that may have water intrusion.
In a location that has extreme dust intrusion
In a location that is extremely hot or has hot air flowing on the unit.
In a location that gets direct sunlight.
In a location within 20 cm of any passenger.
In a location under or surrounded by carpet.
In a location that does not allow heat to easily dissipate (glove box, etc.).
In a location near the dashboard, rear tray or air bag safety parts.
19
Installation Instructions (continued)
Fastening CarFi to the Vehicle
Use the appropriate fasteners to attach the docking unit to the vehicle. Do not
over tighten the screws or fasteners.
When making a hole or openings in a side panel, under a seat, in the trunk,
in the rear deck or somewhere else in the vehicle, check that there is nothing
hazardous on the opposite side such as a gas tank, brake line, battery or wiring
harness.
Ensure that the unit is securely fastened and that it cannot be dislodged after
installation.
Electrical wiring
Remove the ignition key and disconnect the negative terminal of the battery when
installing CarFi.
The electrical wiring must be routed to the power source in a manner that prevents
the wire from being damaged or nicked in any way. It should also be ensured that
the wire is not exposed in a manner that may allow it to become snagged or
entangled in any way. When extending the ignition, battery, or ground wires, make
sure to use automotive grade/UL approved wires with a minimum 18 AWG.
Connect the power wire (Red wire) to a circuit that only provides power when the
ignition is turned on. Be sure to install the 2A protective fuse/fuse holder in line with
the power wire.
Connect the Ground wire (Black wire) to an appropriate car chassis ground point
that has a direct connection to the car batteries negative terminal.
After powering up CarFi, the blue indicator LED will begin to blink after
about 15 seconds.
After installing the unit and wiring, check to make sure that electrical equipment
such as the brake lamps, turn signal lamps and windshield wipers operate normally
.
Mounting and wiring this product requires the appropriate skill
and experience. For safety’s sake, leave the mounting and wiring
work to professionals.
20
21
Care and maintenance of CarFi
A
lthough designed specifically for the stringent environment of an
A
utomobile, CarFi must be handled similar to any typical
electronic device. Follow these guidelines in using and maintaining
your device:
If CarFi becomes excessively dirty, turn off the ignition
power, remove CarFi unit from the docking station and wipe
the enclosure with a dry silicone cloth or soft cloth.
Do not spray the enclosure with any household cleaners
or liquids of any kind.
Do not wipe CarFi with a hard cloth or a cloth dampened by
volatile solvents such as paint thinners or alcohol.
To prevent the battery from draining please refrain from
leaving the key in the ACC on position for any extended
amount of time.
Regulatory Information (To maintain compliance with FCC exposure
guidelines, use only accessories supplied or approved by Autonet Mobile Inc.)
Exposure to Radio Frequency Signals
Autonet Mobile is a low power radio transmitter and receiver. When it is turned on, it sends
out and receives RF signals. Autonet Mobile complies with FCC guidelines respecting safe
levels of RF exposure for handled wireless devices, which in turn are consistent with the
following safety standards previously set by certain standards bodies:
ANSI/IEEE C95.1-1999, IEEE Standard for Safety Levels with Respect to Human Exposure
to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz -- National Counsel on
Radiation Protection and Measurements (NCRP) Report 86, - 1986, Biological Effects and
Exposure criterion for Radio Frequency Electromagnetic Fields -- International Commission
on Non-Ionising Radiation Protection (ICNIRP) 1988, Guidelines for limiting exposure to time-
varying electric, magnetic, and electromagnetic fields (up to 300 GHz)
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required to correct
the interference at his own expense.
This equipment complies with the FCC RF radiation exposure
limits set forth for an uncontrolled environment. This equipment should be installed and operated
with a minimum distance of 20 centimeters between the radiator and your body.
Specific Absorption Rate Data
Autonet Mobile meets U.S. government requirements for exposure to radio waves. Autonet
Mobile is a radio transmitter and receiver. It is designed and manufactured not to exceed the
emission limits for exposure to RF energy set by the FCC. These limits are part of
comprehensive guidelines and establish permitted levels of exposure to RF energy for the
general population. These guidelines are based on standards that were developed by
independent scientific organizations through periodic and thorough evaluation of scientific
studies. The standards include a substantial safety margin designed to assure the safety of
all persons, regardless of age and health. Any changes or modifications not expressly
approved by the party responsible for compliance could void the user’s authority to operate
the equipment. The FCC requires that you be notified that any changes or modifications
made to this device that are not expressly approved by Autonet Mobile may void your
authority to operate the equipment.
22
23
Important Safety Information
Please read this Safety Policy concerning the usage of CarFi suitable for use in motorized
vehicles (“Autonet Mobile”) before operating CarFi. Retain this Safety Policy for your future
reference.
Accessories
Use only accessories manufactured or approved by Autonet Mobile, Inc. with CarFi. The use
of any accessories not manufactured or approved by Autonet Mobile, Inc. for use with CarFi
may be dangerous and may void the warranty.
Driving
Do not use CarFi when driving a motor vehicle because driving safely is your first
responsibility and requires your full attention. If you find it necessary to use CarFi while
driving a motor vehicle, please pull off the road and park in a safe place before using.
For vehicles equipped with air bags
A
n air bag inflates with great force. Do not place objects, including CarFi, in the area adjacent
to any air bag or in any air bag deployment area. If CarFi is improperly installed and an air
bag inflates, serious injury could result.
Electronic Devices
Most modern electronic equipment is shielded from radio frequency (RF) signals. However,
certain electronic equipment may not be shielded against the RF signals from CarFi. It is your
responsibility to determine any effects that your use of CarFi may have on other electronic
equipment. In particular, consult the manufacturer of any motor vehicle in which you intend to
use CarFi to determine if the electronic equipment in that vehicle is adequately shielded from
the RF energy emitted by your CarFi. You should also consult the manufacturer of any
electronic equipment that you have added to that vehicle to ensure that it is adequately
shielded from the RF energy emitted by CarFi. You are responsible for any affects that your
use of CarFi may have on the electronic equipment in any vehicle in which it is operated.
Important Safety Information (continued)
Pacemakers
If you have a pacemaker, you should consult a physician or the manufacturer of your
pacemaker if you have questions regarding the effect of RF signals on your pacemaker. If
you have a pacemaker, ensure that you are using CarFi in accordance with the safety
requirements for that particular pacemaker, which may include the following:
Always keep CarFi more than 20 cm (7 Inches) from the pacemaker when CarFi
is turned on.
If you have any reason to believe that CarFi is interfering with the proper
functioning of your pacemaker, turn CarFi off immediately.
Hearing Aids
Some digital wireless devices may interfere with the normal operations of some hearing aids.
In case of such interference, consult your service provider or contact the manufacturer of
your hearing aid to determine alternatives.
Other Medical Devices
If you use any other personal medical devices, consult the manufacturer of that device to
determine if it is adequately shielded from external RF energy. Your physician may be able to
assist you in obtaining this information.
Medical Facilities
Turn CarFi off in hospitals and other health care facilities when any regulations posted in
these facilities tell you to do so. Hospitals and other health care facilities may be using
equipment that could be sensitive to external RF energy.
Posted Facilities
Turn CarFi off in any facility where posted notices so require.
24
Important Safety Information (continued)
Blasting Areas
To avoid interfering with any blasting operations, turn CarFi off when in any “blasting area” or
in any area posted: “turn off two-way radio.” Obey all signs and instructions.
Potentially Explosive Atmospheres
Turn CarFi off when in any area with a potentially explosive atmosphere and obey all signs
and instructions. Sparks in such areas could cause an explosion or fire and result in bodily
injury or death.
A
reas with a potentially explosive atmosphere are often, but not always, clearly marked. They
Include fueling areas, like a gasoline/petrol station, fuel or chemical transfer or storage
facilities; vehicles using liquefied petroleum gas (such as propane and butane); areas where
the air contains chemicals or particles, such as grain, dust, or metal powders; and any other
area where you would normally be advised to turn off your vehicle engine.
Power Cable/Connections
To prevent damage to yourself or CarFi, take the following precautions:
To prevent a short circuit when replacing a fuse, first turn off the ignition and
disconnect the wiring harness. When replacing a fuse, only use an Autonet
approved fuse. Any fuse less than the approved rating may cause damage to
CarFi.
Unplug the power cable/connections during any lightning storms to avoid electrical
shock or fire.
Make sure the car ignition is turned off before attempting to remove or modify any
power cable/connections.
Keep the minimum required amount of space between the power
cable/connections and any heat sources.
Do not allow the power cable/connections to be walked on, pinched, twisted or
pulled which could cause damage.
Do not use CarFi if any power cable/connections are damaged which could cause
fire or electrical shock.
25
Important Safety Information (continued)
Foreign Objects and Liquids
Never push objects of any kind into CarFi or any Autonet accessories
because such insertion may cause components to short out and result
in a fire or electrical shock.
Do not use CarFi or any other Autonet accessories near or in water, or if wet.
Never spill liquid of any kind on CarFi or any Autonet accessories.
Stability
Do not place CarFi or any Autonet accessories on any unstable surfaces. They may
fall or shift while the vehicle is moving, thereby potentially causing serious injury to a
person or animal, and/or serious damage to CarFi or any Autonet accessories.
Magnetic Items
Do not place items with magnetic components, like credit cards, phone cards, bank
books, or subway tickets, near your CarFi.
Extreme Temperatures
Never expose your CarFi unit to excessively hot or cold temperatures because CarFi
may malfunction or be damaged. CarFi and any Autonet accessories should be
located away from any heat sources.
Storage
Store your CarFi unit in a clean, dust-free environment when not in use as well as out of
reach of small children and animals.
26
Important Safety Information (continued)
Adjustments to CarFi
A
djust only those controls for CarFi that are discussed in the instructions
contained in any guide provided by Autonet Mobile, Inc. An improper adjustment of
other controls for CarFi may result in damages and may require extensive
work by a qualified technician to restore CarFi or any Autonet accessory, as
the case may be.
Misuse
Do not drop, strike, or severely shake CarFi. Such actions may damage its
internal circuit boards or other components/cables.
Antenna Usage
Only use the supplied integral antenna with CarFi or approved Autonet external antenna
accessories. Unauthorized antenna modifications, or attachments could
damage CarFi and may violate U.S. Federal communications commission
(FCC) regulations. No one should hold the antenna or let it come into contact with his or
her body when CarFi is in use. Do not use CarFi if the antenna is
damaged. If a damaged antenna touches the skin, it may cause a slight burn.
Local Laws
Drivers and their passengers are responsible for determining and complying with any
local laws affecting the use of CarFi. Accordingly, you should familiarize
yourself with any applicable laws in jurisdictions where you use CarFi. Always
obey those laws.
27
A
cceptable Use Policy
1. Introduction
A
utonet Mobile, Inc’s Acceptable Use Policy (“AUP”) is intended to help enhance the use of
the internet by preventing unacceptable use. All users of Autonet Mobile, Inc’s internet
services (the “services”) those who access some of our services but do not have accounts
(“visitors”), as well as those who pay a monthly service fee to subscribe to the services
(“members”) must comply with this AUP. We support the free flow of information and ideas
over the internet and do not actively monitor use of the services under normal circumstances.
Similarly, we do not exercise editorial control over the content of any web site, electronic mail
transmission, newsgroup, or other material created or accessible over or through the
services, except for certain proprietary websites. However, in accordance with our internet
Service Agreement, we may remove any materials that, in our sole discretion, may be illegal,
may subject us to liability, or which may violate this AUP. Autonet Mobile, Inc may cooperate
with legal authorities and/or third parties in the investigation of any suspected or alleged
crime or civil wrong. Your violation of this AUP may result in the suspension or termination of
either your access to the services and/or your Autonet Mobile, Inc account or other actions as
detailed in section 3. This AUP should be read in conjunction with our internet Service
A
greement and other policies.
2. Violations of Autonet Mobile’s Acceptable Use Policy
A
. Illegal use. Using the services to transmit any material (by e-mail, uploading, posting, or
otherwise) that, intentionally or unintentionally, violates any applicable local, state, national or
international law, or any rules or regulations promulgated there under.
B. Harm to minors. Using the services to harm, or attempt to harm, minors in any way.
C. Threats. Using the services to transmit any material (by e-mail, uploading, posting, or
otherwise) that threatens or encourages bodily harm or destruction of property.
D. Harassment. Using the services to transmit any material (by e-mail, uploading, posting, or
otherwise) that harasses another.
E. Fraudulent activity. Using the services to make fraudulent offers to sell or buy products,
items, or services or to advance any type of financial scam such as “pyramid schemes,”
“ponzi schemes,” and “chain letters.”
28
A
cceptable Use Policy (continued)
F. Forgery or impersonation. Adding, removing, or modifying identifying network header
information in an effort to deceive or mislead is prohibited. Attempting to impersonate any
person by using forged headers or other identifying information is prohibited. The use of
anonymous remailers or nicknames does not constitute impersonation. Using deliberately
misleading headers (“munging” headers) in news postings in order to avoid spam e-mail
address collectors is allowed.
G. Unsolicited commercial e-mail/unsolicited bulk e-mail. Using the services to transmit any
unsolicited commercial e-mail or unsolicited bulk e-mail. Activities that have the effect of
facilitating unsolicited commercial e-mail or unsolicited bulk e-mail whether or not that email
is commercial in nature are prohibited.
H. Unauthorized access. Using the services to access, or to attempt to access, the accounts
of others, or to penetrate, or attempt to penetrate, security measures of Autonet Mobile, Inc’s
or another entity’s computer software or hardware, electronic communications system, or
telecommunications system, whether or not the intrusion results in the corruption or loss of
data.
I. Copyright or trademark infringement. Using the services to transmit any material (by e-
mail, uploading, posting, or otherwise) that Infringes any copyright, trademark, patent, trade
secret, or other proprietary rights of any third party, Including, but not limited to, the
unauthorized copying of copyrighted material, the digitization and distribution of photographs
from magazines, books, or other copyrighted sources, and the unauthorized transmittal of
copyrighted software. Autonet Mobile, Inc. is registered under the digital millennium copyright
act of 1998.
J. Collection of personal data. Using the services to collect, or attempt to collect, personal
information about third parties without their knowledge or consent.
K. Reselling the services. Reselling the services without Autonet Mobile’s authorization.
29
A
cceptable Use Policy (continued)
L. Network disruptions and unfriendly activity. Using the services for any activity which
adversely affects the ability of other people or systems to use Autonet Mobile, Inc services or
the internet. This Includes “denial of service” (dos) attacks against another network host or
individual user. Interference with or disruption of other network users, network services or
network equipment is prohibited.It is the user’s responsibility to ensure that their network is
configured in a secure manner. A user may not, through action or inaction, allow others to
use their network for illegal or inappropriate actions. A user may not permit their network,
through action or inaction, to be configured in such a way that gives a third party the
capability to use their network in an illegal or inappropriate manner.
M. News. Autonet Mobile users should use their best judgment when posting to any
newsgroup. Many groups have charters, published guidelines, FAQ’s, or “community
standards” describing what is and is not considered appropriate. Usenet can be a valuable
resource if used properly. The continued posting of off-topic articles is prohibited. Commercial
advertisements are off- topic in most newsgroups, especially regional groups not specifically
named for such. The presence of such articles in a group is not indicative of the group’s
“intended” use. Please familiarize yourself with basic Usenet netiquette before posting to a
newsgroup. Autonet Mobile considers “multiposting” to 10 or more groups within a two week
sliding window to be excessive. Autonet Mobile servers currently limit the number of
allowable “cross-posts” to 9. Autonet Mobile users may not cancel messages other than their
own messages. A user may cancel posts forged in that user’s name. We may cancel any
postings which violate this AUP.
N. Long connections and multiple logins. Using a personal account for high volume or
commercial use is prohibited. The services are intended for periodic, active use of e-mail,
newsgroups, file transfers, internet chat, games, and browsing the World Wide Web. Users
may stay connected so long as they are actively using that connection for the above
purposes. Users may not use the services on a standby or inactive basis in order to maintain
a connection. Pinging is expressly prohibited. Accordingly, Autonet Mobile, Inc maintains the
right to terminate any member’s connection following any extended period of inactivity as
determined by Autonet Mobile, Inc.
30
31
A
cceptable Use Policy (continued)
3. Reporting Violations of Autonet’s AUP
A
utonet Mobile, Inc requests that anyone who believes that there is a violation of this AUP
direct the information to director abuse department, at: abuse@autonetmobile.com. If
available, please provide the following information:
The IP address used to commit the alleged violation.
The date and time of the alleged violation, Including the time zone or offset from
GMT.
Evidence of the alleged violation E-mail with full header information provides all of
the above, as do syslog files. Other situations will require different methods of
providing the above information.
A
utonet Mobile, Inc may take any one or more of the following actions in response to
complaints:
Issue warnings: written or verbal.
Suspend the member’s newsgroup posting privileges.
Suspend the member’s account.
Terminate the member’s account.
Bill the member for administrative costs and/or reactivation charges.
Bring legal action to enjoin violations and/or to collect damages, if any, caused by
violations.
4. Revisions to this Acceptable Use Policy
A
utonet Mobile, Inc. reserves the right to revise, amend, or modify this AUP, our internet
Service Agreement and our other policies and agreements at any time and in any manner.
Notice of any revision, amendment, or modification will be posted in accordance with the
Internet Service.
A
utonet Mobile Software License
Important – read carefully
. By removing the tamper label or otherwise using the
software in your Autonet Mobile In-Car Router, you agree to be bound by the license terms
and conditions below. If you do not agree to these terms and conditions you must im-
mediately return your Autonet Mobile In-Car Router in its original condition and packaging to
the point of purchase for a refund of your purchase price (after inspection).
Subject to these terms and conditions, Autonet Mobile, Inc. grants you a non-exclusive
license, with no right to sublicense, to execute the software included with the Autonet Mobile
In-Car Router or subsequently provided to you by Autonet Mobile (together, the “software”)
on your Autonet Mobile In-Car Router solely for your personal use on the intended features
and functions of the Autonet Mobile In-Car Router. The license may be transferred only with
the transfer of the Autonet Mobile In-Car Router on which Autonet Mobile, Inc. has installed
the software; any transferee will be subject to the terms and conditions of this license.
This license will terminate automatically, without notice, if you fail to comply with the terms
and conditions, including the restrictions, of this license.
A
utonet Mobile, Inc. and its licensors own and retain all proprietary rights, including all
patents, copyright, trade secret, trademark, and other intellectual property rights in and to the
A
utonet Mobile In-Car Router software. You acknowledge that the license granted above
does not provide you with title to or ownership of the software, but only a right of limited use
under these terms and conditions. The software embodies Autonet Mobile, Inc.’s trade
secrets and other proprietary information and materials. Any attempt to modify, enhance,
disassemble, decompile, reverse engineer or otherwise gain access to the source code of the
software, to remove or unbundle the software from the Autonet Mobile In-Car Router, or to
sublicense or distribute the software is strictly prohibited, except as expressly set for in the
paragraph titled “GPLand lGPL software” and “other open source software” below or except
as may be otherwise agreed by Autonet Mobile, Inc. in writing. Certain components of the
software included with the Autonet Mobile In-Car Router are subject to the GNU general
public license (“GPL”), the lesser GNU general public license (“lGPL”), or other “open source”
or “free software” licenses (“open source software”). Some of the open source software is
owned by third parties. The open source software is not subject to the terms and conditions
of the section titled “Autonet Mobile, Inc. software license” above. Instead, each item of open
source software is licensed under the terms of the end-user license that accompanies such
open source software.
32
33
Autonet Mobile Software License (continued)
Nothing in this document limits your rights under, or grants you rights that supersede, the
terms and conditions of any applicable end user license for the open source software. In
particular, nothing in this document restricts your right to copy, modify, and distribute that
open source software subject to the terms of the GPL and lGPL. As required by the terms of
the GPL and lGPL, Autonet Mobile, Inc. makes the open source software provided under the
GPL and lGPL available to the public in source code form on a CD. To receive a CD, please
send $9.00 To Autonet Mobile, Inc. for the cost of preparing and mailing the CD to you.
Requests can be mailed to Source Code CD Request, Autonet Mobile Inc.., 1700
Montgomery Ste. 111, San Francisco, CA 94111.
The following open source software is included with the Subaru Mobile Internet: GPL and
lGPL software. The Subaru Mobile Internet is provided with the following software licensed
under the GPL and lGPL. A copy of the GNU GPL license is available from the free software
foundation (http://www.GNU.Org).
Host AP driver from http://hostap.epitest
iptables from http://www.netfilter.org
Linux operating system
Openswan http://www.openswan.org
PPP from http://www.samba.org/ftp/unpacked/ppp/
dnsmasq from http://www.thekelleys.org.uk/dnsmasq/
nocat from http://nocat.net
wifiadmin from http://wifiadmin.sourceforge.net/
gpsd from http://gpsd.berlios.de/
squid from http://www.squid-cache.org/
radius from http://www.freeradius.org/
madwifi from http://madwifi.org/
wpa_supplicant: http://hostap.epitest.fi/wpa_supplicant/
A
utonet Mobile Software License (continued)
Other Open Source Software
A
utonet Mobile CarFi is provided with the following software licensed under bsd licenses or
other open source software licenses. The software and license details are available from the
referenced web-sites.
34
nginx from http://wiki.nginx.org/
openssh from the openbsd project (http://www.openssh.com)
madwifi from http://madwifi.org/
WPA supplicant from http://hostap.epitest.fi/wpa_supplicant/
hostapd from http://hostap.epitest.fi/hostapd/
ushare from http://ushare.geexbox.org/
mt-daapd from http://www.fireflymediaserver.org
bluez from http://www.bluez.org/
aufs from http://aufs.sourceforge.net/
php from http://www.php.net
A
utonet Mobile Limited Warranty and Liability
No warranties of any kind are provided by Autonet Mobile, Inc. With respect to this
product, except as stated in Autonet Mobile Limited Warranty below.
A
utonet Mobile, Inc. warrants to the original end user purchaser (“you”) that the
product shall be free of defects in materials and workmanship under normal use
for one (1) year from the original date of purchase (the “warranty period”). These
warranties are expressly in lieu of all other warranties, express or implied, including,
without limitation, all implied warranties of merchantability and fitness for a particular
purpose and any warranties arising from course of performance, course of dealing
or trade usage.
A
utonet Mobile, Inc.’s exclusive liability and your exclusive remedy hereunder is
expressly limited to, at Autonet Mobile Inc.’s sole option and discretion, (a) exchange,
repair or replacement of defective or nonconforming materials, parts or components;
or (b) refund of all amounts paid directly to Autonet Mobile, Inc. for any defective
product. Replacement products may be new or remanufactured.
The above shall apply whether Autonet Mobile, Inc.’s liability arises from any breach
of its express warranty, breach of any obligation or otherwise with respect to the
manufacture and sale of any units of the product, whether liability is asserted in
contract or tort, including negligence and strict product liability. In no event shall
A
utonet Mobile, Inc. Be liable for special, indirect, incidental or consequential
damages of any kind or nature due to any cause, regardless of whether Autonet
Mobile, Inc. has been advised of the potential for such damages or if such
damages are foreseeable, or for claims by any third party. Autonet Mobile Inc.’s
maximum aggregate liability to purchaser shall not exceed the amount paid by
purchaser for the product.
35
36
A
utonet Mobile Limited Warranty and Liability
(continued)
The foregoing warranties do not extend to: (i) nonconformities, defects, or errors in
the product due to accident, abuse, misuse, or negligent use of the product or use in
other than a normal and customary manner, environmental conditions not conforming
to Autonet Mobile, Inc.’s specification, improper installation, or failure to follow
prescribed operating and maintenance procedures; (ii) defects, errors or non
conformities in the product due to modifications, alterations, additions, or changes
to the product not authorized by Autonet Mobile, Inc., In writing in advance; (iii) normal
wear and tear; (iv) damage caused by force of nature or act of any third person,
including shipping damage; (v) service or repair of product by the purchaser without
prior written consent from Autonet Mobile, Inc.; (vi) products designated by Autonet
Mobile, Inc. As beta site test samples, experimental, developmental, reproduction,
sample, incomplete or out-of-specification products; (vii) returned products if the
original identification marks or tamper seals have been removed from the product or
altered; (viii) condensation, water, or liquid damage; (ix) damage caused to the user’s
computer; (x) loss of data; or (xi) damage caused by viruses. The foregoing limitations
will apply even if any warranty or remedy provided hereunder fails of its essential
purpose. This warranty gives you specific legal rights, and you may also have other
rights that vary by jurisdiction. Some jurisdictions do not allow limitations on how
long an implied warranty lasts or the exclusion or limitation of incidental or
consequential damages, so the above warranty limitations may not apply to you.
Legal Disclosure Copyright © 2011 by Autonet Mobile, Inc.
A
ll rights reserved. No part of this publication may be reproduced in any form
or by any means or used to make any derivative work (such as translation,
transformation, or adaptation) without written permission from Autonet Mobile, Inc.
A
utonet Mobile, Inc. Reserves the right to revise this publication and to make
changes in content from time to time without obligation to provide notification of
such revision or change. Autonet Mobile, Inc. Provides this guide without warranty
of any kind, either implied or expressed, including, but not limited to, the implied
warranties of merchantability and fitness for a particular purpose. Autonet Mobile,
Inc. may make improvements or changes in the product(s) and product
specifications described in this user guide at any time. Product may contain
repackaged and/or reconditioned parts. By using this product, you agree to the
terms and conditions of the Autonet Mobile, Inc. Service Agreement.
A
ll trademarks, trade names, product names, service names, and service marks
listed in this user guide or with the software are the exclusive property of their
respective owners. Neither Autonet Mobile, Inc. Nor the Autonet Mobile In-Car
Router are endorsed by or affiliated with the respective companies listed above
and no such endorsement is implied. Autonet Mobile, Inc. Autonet mobile In-Car
Router, the Autonet Mobile logo, and TRU technology are all trademarks of
A
utonet Mobile, Inc. All other trademarks, product names or service names,
are the properties of their respective owners.
37
For technical support please call Autonet Mobile
customer service center: 1-800-977-2107
A
utonet Mobile assumes no responsibility for the configurations,
security, or data files on your wireless device resulting from
connection to Autonet Mobile’s network. Anti-virus, privacy and
security protection is the responsibility of the user.
Do not operate CarFi while driving or perform any function
that takes your attention away from safely operating your
vehicle. Any function that requires prolonged attention should
be performed after coming to a complete stop. Always stop
the vehicle in a safe location before performing these
functions. Failure to do so may result in an accident.
If CarFi is found, please call: 1-800-977-2107. The CarFi is
automatically disabled if reported lost or stolen.
Autonet Mobile customer support line:
1-800-977-2107
© 2011 Autonet Mobile Inc.
P/N: 186-1100-001, rev. 05
