一. Functions and Use help
1. Note: 1. Dear users, before using the equipment, you should combine your mobile
phone and the device by send a registration command. Send “ZC device password #
receiving alarm information mobile phone number # SIM card number of device”.
e.g.: ZC000000#15888185569#0
2. Device displays green on platform means online
Device displays Yellow on platform means over speed
Device displays grey on platform means offline or non-positioning
·ACC Security
1. ACC ON (Car key start ON), cancel anti theft function automatically.
2. ACC OFF (Car key switch off), anti theft function activate.
·Vibration Warning
1 Cancel vibration alert: Send “ZC000000#0#0”
2. Platform alert: automatic implementation
·SOS Alarm
1. Platform alarm: automatic implementation
·Access Equipment Address
1. Send “DW” command returns map link(e.g.:
http://maps.google.com/maps/?f=q&hl=en&&q=31.237395,121.390373333333;S=0;T
=2012-5-23 12:00:00;D=0 & equipment current position information (Assure SIM
with GPSR service)
·Cut off Oil or Power
1. Send “DO” cut of oil or power, send “TO” regain oil or power
2. Platform oil or power cut warning: automatic implementation
·Real Time Monitoring
1. Mobile phone real time monitoring: e.g.: www.gps588.com/wap
2. Platform real time monitoring: e.g.: www.gps588.com
·Track Playback
Login platform, press replay button
·Statement Statistics(Parking statements, Driving statements, Mileage statements,
Over speed statements)
Login platform, press statement statistics button
·E-fence:
1. Mobile phone E-fence Settings: Send: “RCMA1”
2. Mobile phone clear E-fence: Send “DRC”
· Over speed Alarm
Mobile phone over speed settings: Send “ ODn” (0<n<100; 0 means close over speed
setting ). e.g.: OD80, over 80km/h, equipment issues warning
· Blind Area Storage
When there is GPS no GSM signal, it can store 1000 positions; Device will upload blind
area positions automatically when GSM regains.
· Domain Name Settings:
e.g.: IP:1#www.gps588.com#(port) 8169#
Format: IP:1#XXX.XXXXXXXX.XXX#XXX#
· Modify Password
MP + Original password + New password
e.g.: MP000000987654, 987654 is the new password
· Time interval Positioning
Moving Vehicle: e.g.: XTn (5<n<65530)
Static Vehicle: e.g.: XTn (5<n<65530 Default 5min)
· GPS Restart
Send “GPSCQ”
· Equipment Restart
Send “SBCQ”
· Acquire Equipment Information
Receiving alert information mobile phone sends “CX”, returns ID, IP, APN, upload time
interval and stand-by time.
· ID Settings
1. 15 bit ID modification: Send “IMEI15”
2. 10 bit ID modification: Send “IMEI10”
· Dial the Phone
Make a call and hang up within 7 sec, it returns current position information and map link,
if not hang up, it will turns to monitoring lately.
· APN Settings
Send “APN:AA,XX,YY” (AA is the Operator, XX is user name, YY is password)
e.g.: APN:cmnet,,
二． LED State
Red LED（ Power ）
Flashing Low power alarm
Always light Charging
Slow Flashing Charge full, Normal working
Dark Low power/Shut
1、Yellow LED（GSM）
Slow Flashing(15 sec) GSM initialization
Flashing GSM signal regular
Always light GSM calling/GPRS start
dark GSM no signal
2、Blue LED（GPS）
Flashing GSM signal regular
dark GSM no signal
三
三三

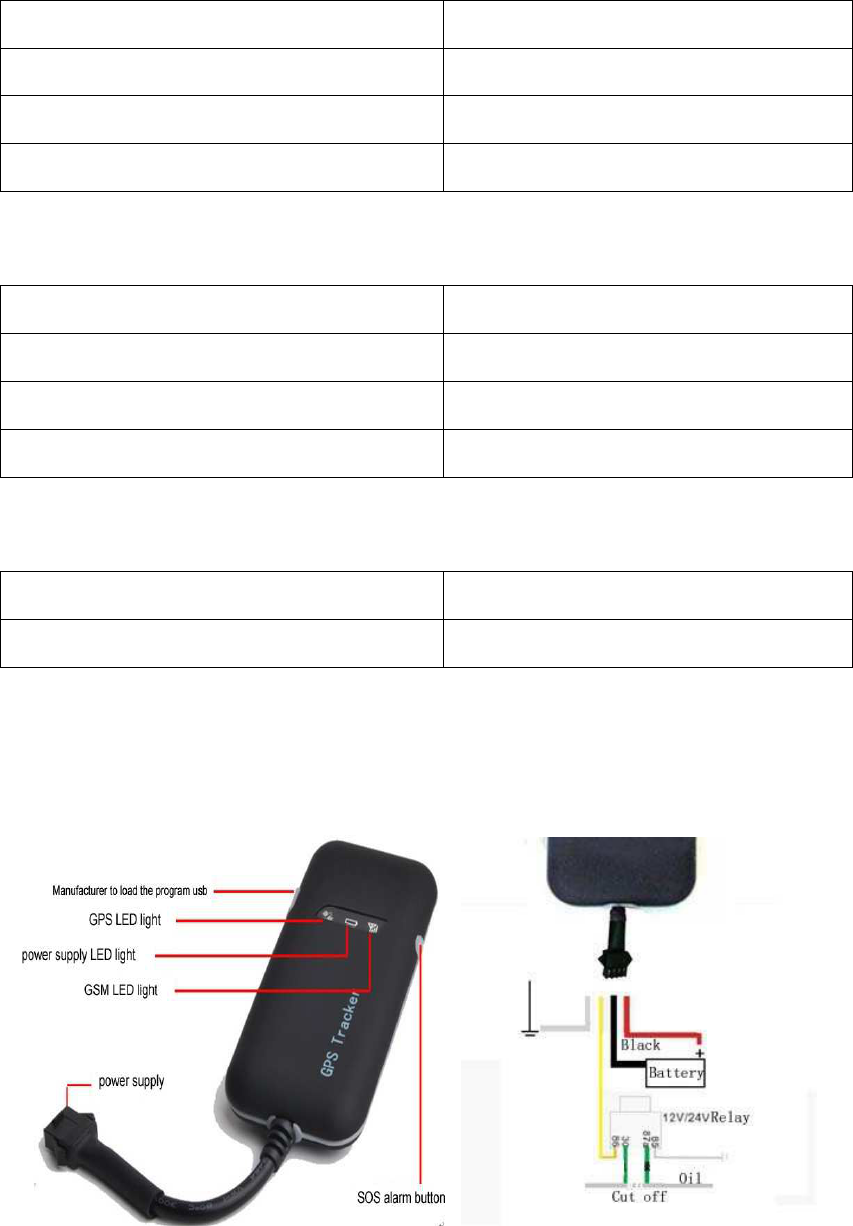

三. Appearance schemes
Picture 1 Picture 2
四. Product Specification
1. Product Dimensions: L: 7cm, W: 4cm, H: 0.6cm
2. Product Weight: 45g
3. Standard Voltage: 9V-36VDC
五. Installation Statement
1. Preparation before installation
a. Terminal needs insert a SIM card
b. GSM card China Unicom or Mobile optional (GSM worldwide application)
2. Relay Use Method
Connect relay yellow cable with device yellow cable. See Picture 2.
