Autonet Mobile ANMSTWRTR-01 In-Car Router User Manual ANM User Guide

Autonet Mobile In-Car Router ANM User Guide

Contents

user Guide

© 2008 Autonet Mobile Inc.
In-Car Router
Serial Number
User's Guide
Version 2.1
In-Car Router
Using your Autonet Mobile In-Car Router
Configuring the In-Car Router
Configuring Wireless Settings
Configuring Wireless Security Settings
Configuring Login Screen
Changing the Password on your In-Car Router
Checking the Connection Status of the In-Car Router
Troubleshooting Guide
Safety Policy
Acceptable Use Policy
Autonet Mobile Software License
Autonet Mobile LimitedWarranty and Liability
Legal Disclosure
Contents
................................ 2
...................................................... 3
....................................................... 4
....................................... 7
............................................................... 8
............................... 9
........ 10
................................................................ 10
..................................................................................... 12
................................................................... 18
.............................................. 22
......................... 24
................................................................................. 26
1
Configuring the In-Car Router
It is highly recommended that the user enable WEP security and
change the default password on the Autonet Mobile In-Car Router.
Configuring the Wi-Fi interface on your In-Car Router
Locating the unit’s serial number
The unit’s serial number is located in several locations for your con-
venience. It is a ten digit hexadecimal number located in three places.
It is located:
• on the back of the In-Car Router
• on the side of the In-Car Router where the antennas attach
• on the front of this users manual
• on the front of the Quick Start guide.
If you have trouble locating the serial number of the router please call our
customer support line at 1-800-977-2107 for assistance.

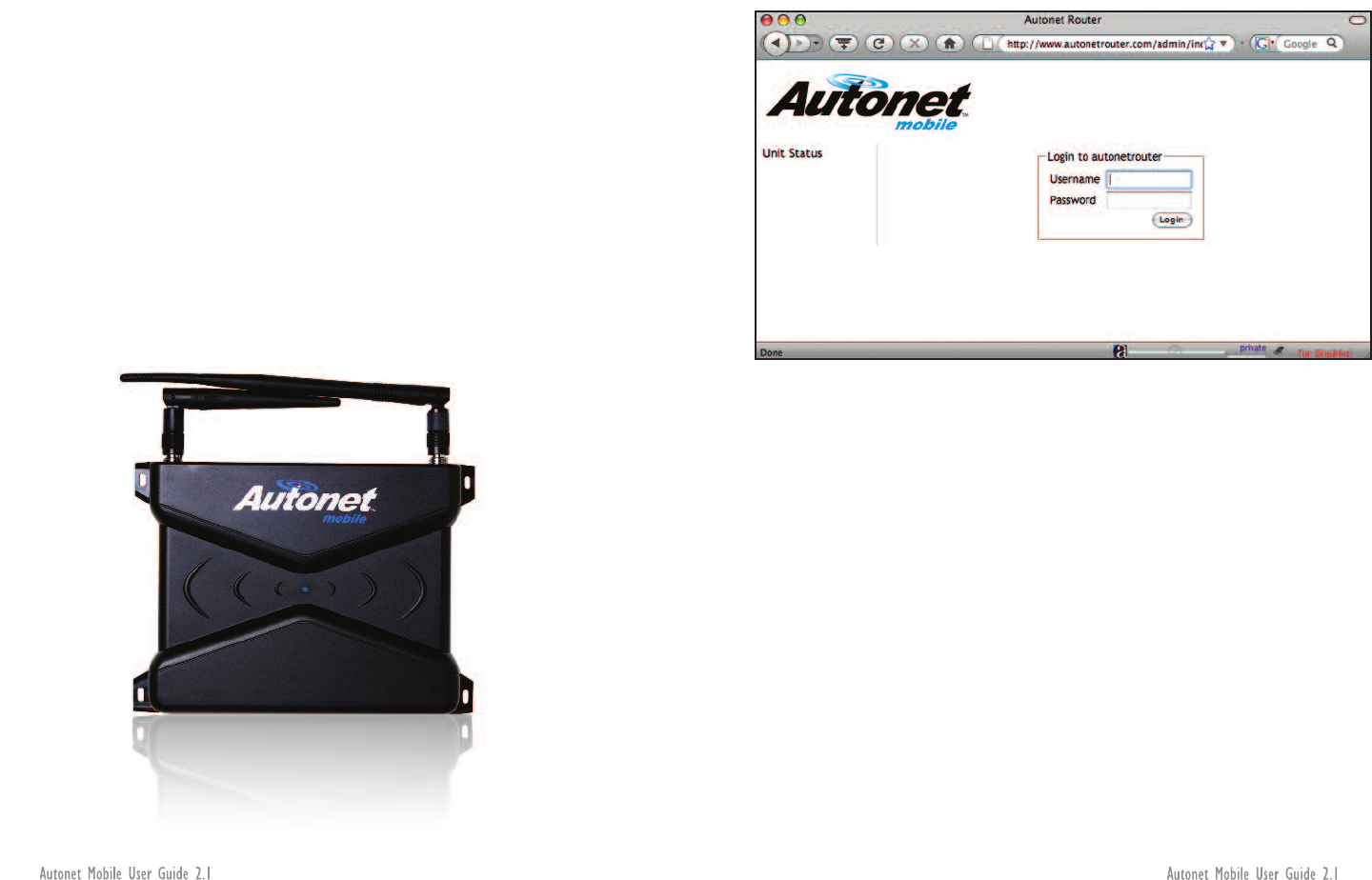

Open a web browser and go to the URL:
http://www. autonetrouter.com/admin
Login as username “autonet” and use the unit’s serial number as the
password. (i.e. 0024C76258 ) and click on the “Login” button.
Using your Autonet Mobile In-Car Router
Power up the Autonet Mobile In-Car Router. In most installations this is
done by simply turning your car ignition on.
If the unit is in a visible location, you will notice that the blue status light
on top of the In-Car Router will begin to blink. Once this light remains
constantly on, your network has been connected and is ready for use.
Connect your computer to the wireless network that contains the
name “autonet”.
Open your web browser and connect to any website. The Autonet
Mobile In-Car Router login page will appear.
After agreeing to the “Safety Policy” and “Terms and Conditions Policy”,
click on the Login button to access the Internet.
Happy Surfing!
3
2
Autonet Mobile must be limited to passenger use only while the vehicle is in motion.
Radio Mode
This allows you to select whether the radio is in 802.11b, 802.11g and
802.11a mode. Not all routers support all modes, so only the supported
modes for your In-Car Router are shown.
Channel
Direct communication between an 802.11 radio card and an access point
occurs over a common channel frequency. The FCC allows channels 1
through 11 within the U.S.An important concept to note regarding chan-
nel assignments is that the channel actually represents the center fre-
quency that the transceiver within the radio and access point uses (e.g.,
2.412 GHz for channel 1 and 2.417 GHz for channel 2).There is only 5
MHz separation between the center frequencies,and an 802.11b signal oc-
cupies approximately 30 MHz of the frequency spectrum. The signal falls

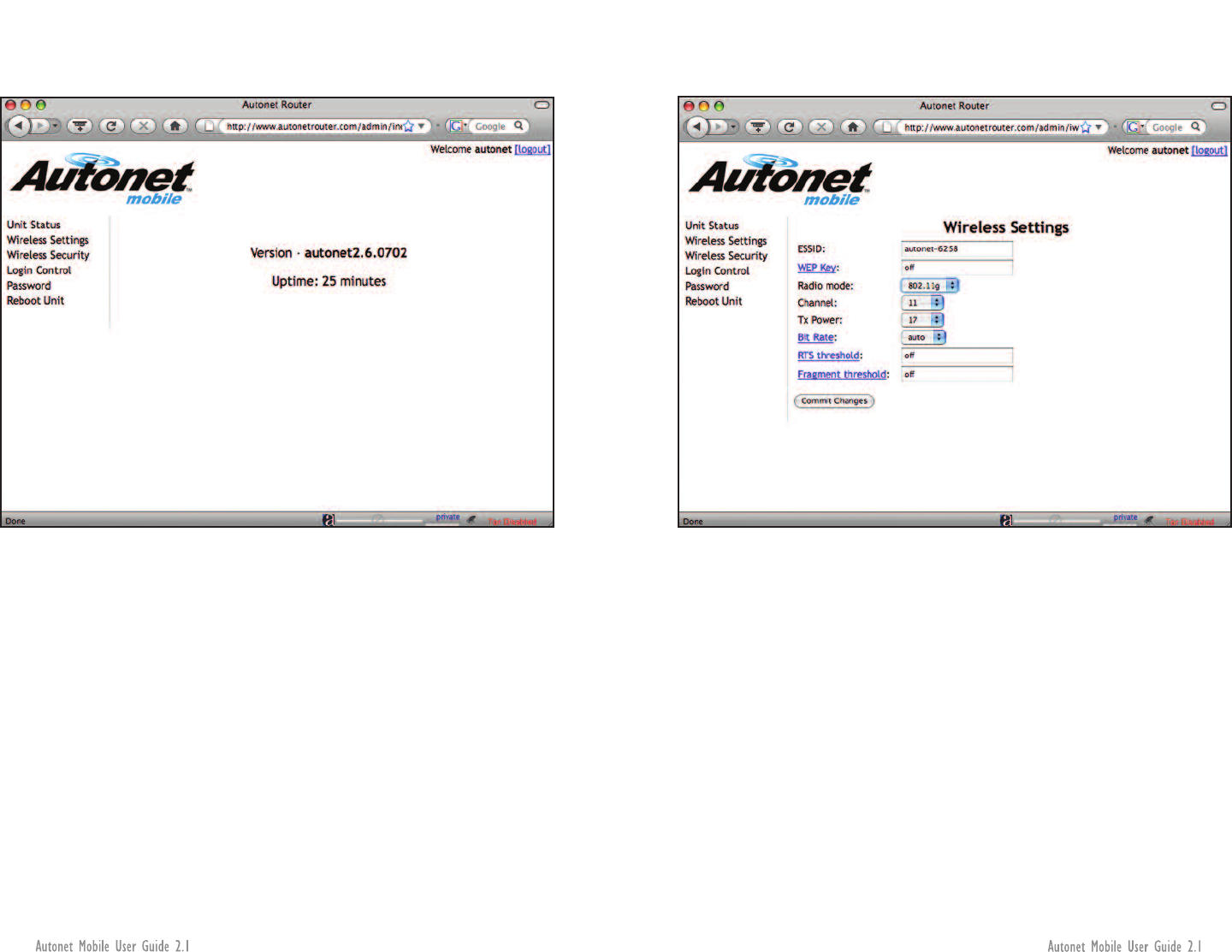

Configuring Wireless Settings
Click on “Wireless Settings.”
ESSID
Extended Service Set ID.The ESSID is the identifying name of a wireless network -
strictly it is the identifying name of a wireless access point.It allows one wireless net-
work to be clearly distinguishable from another.The default ESSID is autonet-XXXX,
where XXXX is the last 4 digits of the In-Car Router’s serial number.It is recom-
mended that you keep this ESSID in order to distinguish your router from other
routers that may be in the area.
WEP Key
TheWEP key is not shown if it is set.You do not have to set it,if you want it to re-
main the same.To set the current encryption key,just enter the key in hex digits as
XXXXXXXXXX.The key must be 10 hex digits, (e.g.1234567890 )You can also
enter the key as anASCII string by using the s:prefix.TheASCII string must be 5 char-
acters, (e.g.s:smile ).To disableWEP,enter "off" as theWEP key.
5
4

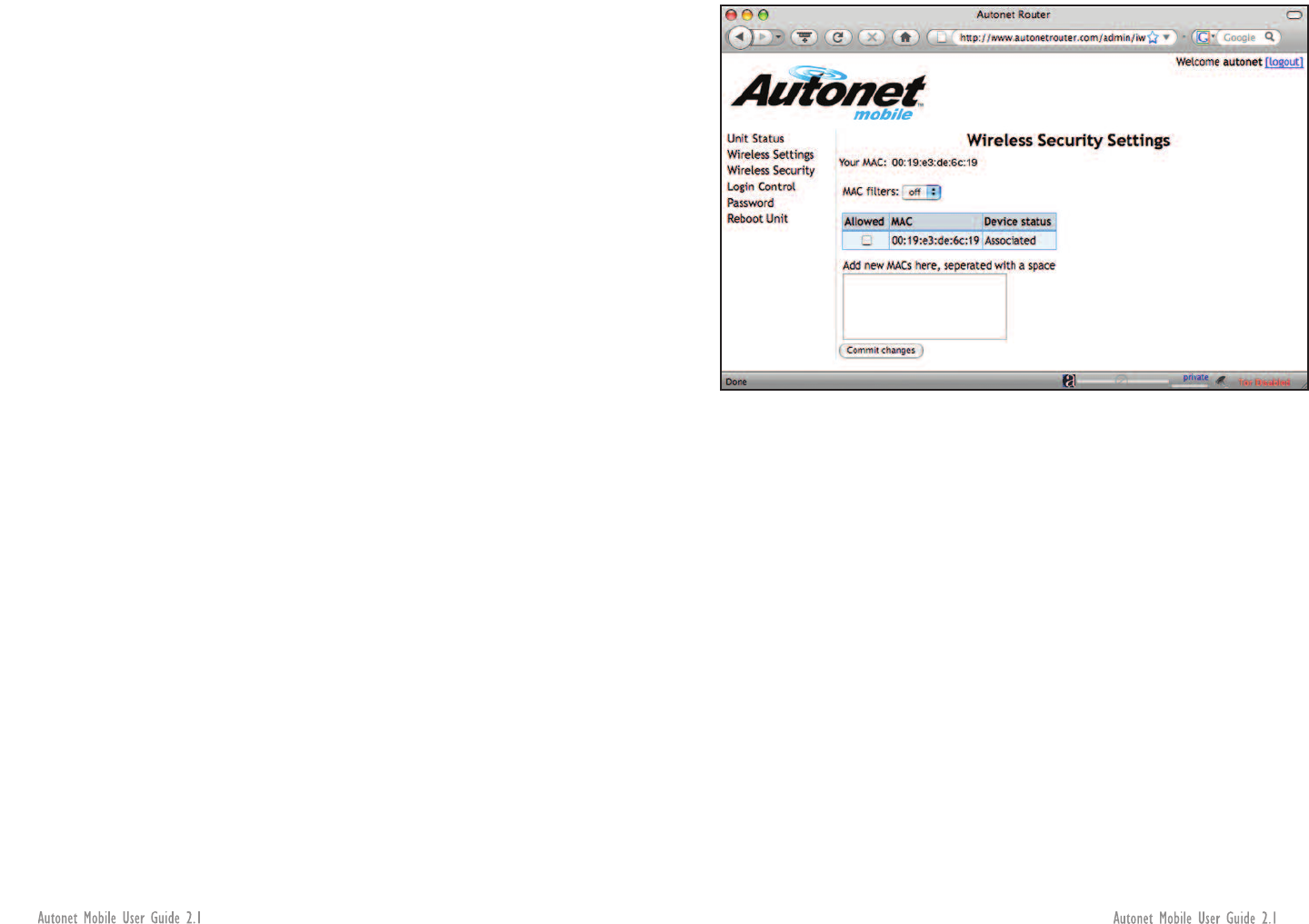

Configuring Wireless Security Settings
Click on “Wireless Security”
The Wireless Security Settings allows you to control which wireless-
equipped devices may communicate with the router depending on their
MAC addresses.By default these MAC filters are disabled. If you turn MAC
Filters on, you should be sure and include the MAC address of the device
that you are using to communicate with. Otherwise, the machine that
you’re using will lose its connection to the In-Car Router.
This page will show you all of the wireless devices currently attached to
the In-Car Router.
To enable MAC Filters, change the MAC Filters option to “on”. And then
check the “Allowed” box next to the MAC addresses that you wish to
allow to join the network.
If you would like to have devices connect that are not currently attached
to the In-Car Router you may add them in the box.You can add multiple
devices by separating them with a space.
Select “Commit Changes” when you are finished.
within about 15 MHz of each side of the center frequency. As a result, an
802.11b signal overlaps with several adjacent channel frequencies.This
leaves you with only three channels (channels 1, 6, and 11 for the U.S.)
that you can use without causing interference between access points.
Bit rate
This allows you to set the bit rate in MBs. The bit rate is the speed at
which bits are transmitted over the medium.The user speed of the link is
lower due to medium sharing and various overhead. Select a value to lock
the card to a particular bit rate. If you specify auto, the driver will use all
bit rates to find an optimum rate.
RTS threshold
RTS/CTS adds a handshake before each packet transmission to make sure
that the channel is clear.This adds overhead, but increases performance in
case of hidden nodes or a large number of active nodes.This parameter
sets the size of the smallest packet for which the node sends RTS; a value
equal to the maximum packet size disables the mechanism. You may also
set this parameter to off.
Fragmentation threshold
Fragmentation allows to split an IP packet in a burst of smaller fragments
transmitted on the medium. In most cases this adds overhead, but in a very
noisy environment this reduces the error penalty and allow packets to get
through interference bursts.This parameter sets the maximum fragment
size.You may also set this to off to disable the mechanism.
TxPower
This allows you to set the transmit power of the radio. Setting a lower
value limits the range of the radio and reduces interference with other
access points.
7
6

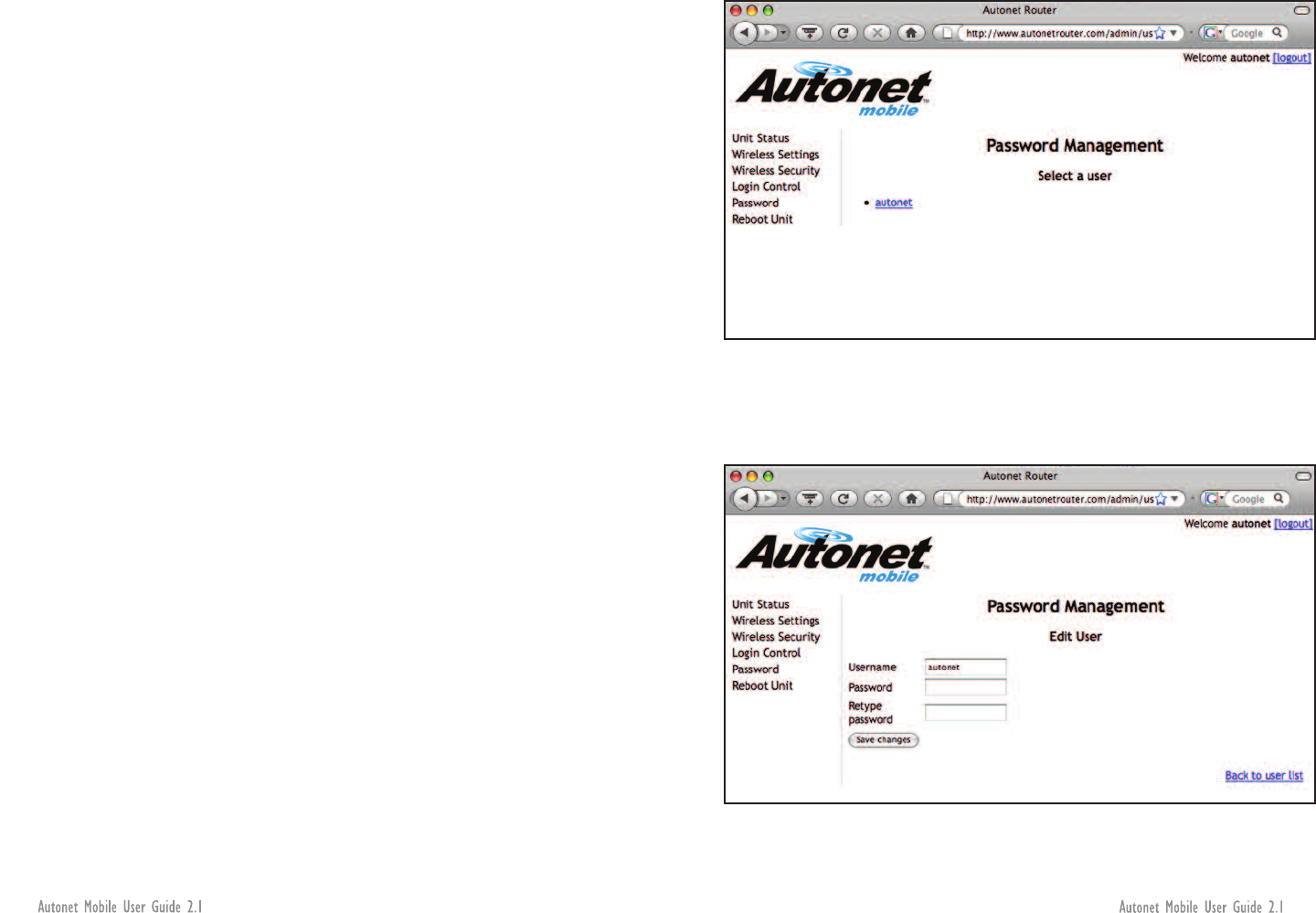

Changing the Password on your In-Car Router
Click on “Password”
Click on the user name “autonet”
Enter a new password and click on “Save Changes”
If you ever forget your password, please contactAutonet Mobile Customer
Service Center to have it reset.
Configuring Login Screen
Click on “Login Control”
Normally a device that connects to the Autonet Mobile Network must
first click through the login screen that comes up on your web browser.
However, there are some devices that do not have a web browser (cam-
eras, music players, etc.) so we've created a method for disabling the login
page for those devices.
This page will show you all of the wireless devices currently attached to
the In-Car Router.
To bypass the login screen for a device, check the box under“No login re-
quired” next to the Mac address of that device.
If you would like to add devices that are not currently attached to the
In-Car Router then you may add them in the box.You can add multiple
devices by separating them with a space.
Select “Commit Changes” when you are finished.
9
8
1. Ensure the antennas on the In-Car Router are screwed on tightly.
2. Unplug/plug in the In-Car Router.
If the light continues to flash, it is likely that you are in an area that has no coverage.
If you receive the“limited or no connectivity” status after connecting wire-
lessly to the In-Car Router:
1. Click the Disconnect button.
2. Click the Connect button to reconnect.
If autonet does not appear in the list of wireless networks window, try
the following steps:
1. Refresh your available wireless networks window.
2. Disable and then Enable your wireless interface.
3. If autonet still does not appear in this list,consult the configuration instructions
provided by your Wi-Fi device manufacturer, or call the Autonet Mobile Cus-
tomer Service Center.Please have your serial number available when you call.
If you are experiencing issues connecting to the Internet, check to make
sure your browser is NOT configured to use a proxy server.
If the Internet connection seems slow or intermittent, it is likely that you
are in an area that does not have the high speed 3G coverage.The
Autonet Mobile In-Car Router automatically optimizes your connection
speed based on the maximum potential speed of the underlying cellular
data network.These speeds will vary as you move between different net-
works.
Hands free phone audio may experience minor distortions, pops or
crackles during hands free phone calls while large data transfers are in
progress.This minor interference is due to the Bluetooth wireless com-
munication sharing the same frequency band as the Wi-Fi wireless com-
munication system.This will subside when the transfer is completed.
The web connection depends on the signal strength in your area. If you
are experiencing poor signal quality in an enclosed structure, try moving
the vehicle to an open area.
For further assistance, please call Autonet Mobile, Inc. at 1-800-977-2107.
Please have your serial number available when you call.

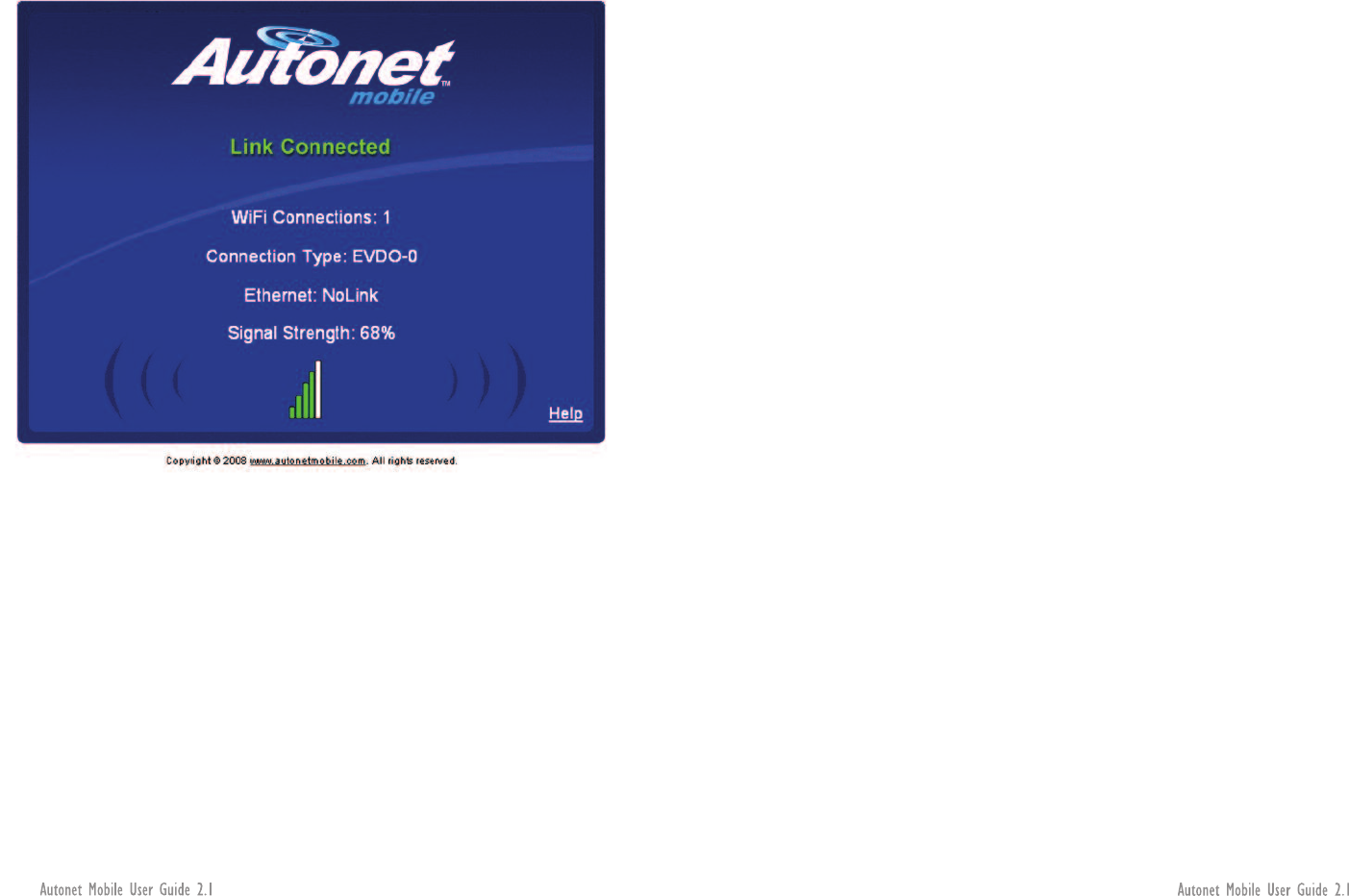

Checking the Connection Status of the
In-Car Router
In your web browser open the URL http://www.autonetrouter.com to see
the current connect status of your In-Car Router.
Troubleshooting Guide
The solid blue light on top of the In-Car Router indicates the Internet
connection is currently connected. If there are no Wi-Fi users currently
connected to the In-Car Router the connection will be dropped and the
blue light will start blinking to indicate that it is in idle mode. When a Wi-
Fi user attempts to connect to the Internet, the In-Car Router will auto-
matically set up the connection and the blue light will go solid when the
Internet connection is ready.
A flashing blue light on top of the In-Car Router indicates the unit is at-
tempting to connect to the Internet or is in idle mode. If the light doesn’t
stop flashing after 3 minutes, try the following steps:
11
10
Pacemakers
If you have a pacemaker, you should consult a physician or the manufac-
turer of your pacemaker if you have questions regarding the effect of RF
signals on your pacemaker. If you have a pacemaker, ensure that you are
using the In-Car Router in accordance with the safety requirements for
that particular pacemaker, which may include the following:
•Always keep the In-Car Router more than 20 cm (7 inches) from
the pacemaker when the In-Car Router is turned on;
•Do not carry the In-Car router in any breast pocket; and
•If you have any reason to believe that the In-Car Router is interfering
with the proper functioning of your pacemaker, turn the In-Car
Router off immediately.
Hearing Aids
Some digital wireless devices may interfere with the normal operations of
some hearing aids.In case of such interference,consult your service provider
or contact the manufacturer of your hearing aid to determine alternatives.
Other Medical Devices
If you use any other personal medical devices, consult the manufac-
turer of that device to determine if it is adequately shielded from ex-
ternal RF energy.Your physician may be able to assist you in obtaining
this information.
Medical Facilities
Turn the In-Car Router off in hospitals and other health care facilities when
any regulations posted in these facilities tell you to do so. Hospitals and
other health care facilities may be using equipment that could be sensitive
to external RF energy.
Posted Facilities
Turn the In-Car Router off in any facility where posted notices so require.
Blasting Areas
To avoid interfering with any blasting operations, turn the In-Car Router
off when in any “blasting area” or in any area posted: “Turn off two-way
radio.” Obey all signs and instructions.
Safety Policy
Please read this safety policy concerning the use of a wireless router suit-
able for use in motorized vehicles (“Autonet Mobile”) before operating the
In-Car Router. Retain this safety policy for your future reference.
Accessories
Use only accessories manufactured by Autonet Mobile, Inc. with the In-
Car Router.The use of any accessories not manufactured by Autonet Mo-
bile, Inc. for use with the In-Car Router may be dangerous.
Driving
Do not use the In-Car Router when driving a motor vehicle because
driving safely is your first responsibility and requires your full atten-
tion. If you find it necessary to use the In-Car Router while driving a
motor vehicle, please pull off the road and park in a safe place be-
fore using the In-Car Router.
For Vehicles Equipped with Air Bags
An air bag inflates with great force. DO NOT place objects, including the
In-Car Router, in the area adjacent to any air bag or in any air bag deploy-
ment area. If the In-Car Router is improperly installed and an air bag in-
flates, serious injury could result.
Electronic Devices
Most modern electronic equipment is shielded from radio frequency
(RF) signals. However, certain electronic equipment may not be
shielded against the RF signals from the In-Car Router. It is your re-
sponsibility to determine any effects that your use of the In-Car
Router may have on other electronic equipment. In particular, consult
the manufacturer of any motor vehicle in which you intend to use
the In-Car Router to determine if the electronic equipment in that
vehicle is adequately shielded from the RF energy emitted by your
In-Car Router.You should also consult the manufacturer of any elec-
tronic equipment that you have added to that vehicle to ensure that
it is adequately shielded from the RF energy emitted by the In-Car
Router. You are responsible for any affects that your use of the In-
Car Router may have on the electronic equipment in any vehicle in
which it is operated.
13
12
WARNING
Stability
Do not place the In-Car Router or any accessories on any unstable sur-
faces. They may fall, thereby potentially causing serious injury to a per-
son or animal, and/or serious damage to the In-Car Router or any
accessories.
Care
Do not use liquid or aerosol cleaners or solvents on or near your In-Car
Router, or any accessories. Clean your In-Car Router, or any accessories
only with a dry cloth. If you use harsh chemicals, like alcohol, benzene, or
thinners, to clean the In-Car Router, there is a risk of causing a fire.
Magnetic Items
Do not place items with magnetic components, like credit cards, phone
cards, bank books, or subway tickets, near your In-Car Router.
Extreme Temperatures
Never expose your In-Car Router to excessively hot or cold temperatures
because the In-Car Router may malfunction or be damaged.The In-Car
Router and any accessories should be located away from any heat sources.
Storage
Store your In-Car Router in a clean, dust-free environment when not in
use. Store your In-Car Router out of reach of small children and animals.
Service
Disconnect your In-Car Router, any charging unit, or any accessory and, if
necessary, refer them to qualified service personnel if:
• The power supply, plug, or connector to your In-Car Router is damaged;
• Liquid has been spilled or objects have fallen into your In-Car Router,
any charging unit, or any accessory;
• Your In-Car Router, any charging unit, or any accessory has been
exposed to rain or water;
•Your In-Car Router or any accessory becomes very hot to the touch;
• Your In-Car Router, any charging unit, or any accessory has been
dropped or damaged in any way;
Potentially Explosive Atmospheres
Turn the In-Car Router off when in any area with a potentially explosive
atmosphere and obey all signs and instructions. Sparks in such areas could
cause an explosion or fire and result in bodily injury or death.
Areas with a potentially explosive atmosphere are often, but not always,
clearly marked.They include fueling areas, like a gasoline/petrol station, fuel
or chemical transfer or storage facilities;vehicles using liquefied petroleum
gas (such as propane and butane); areas where the air contains chemicals
or particles, such as grain, dust, or metal powders; and any other area
where you would normally be advised to turn off your vehicle engine.
Power Cord
Protect any power cord from being walked on or pinched, and such pro-
tection especially should be afforded at any plugs, receptacles, and the point
where they exit from the In-Car Router;
• Unplug the power cord during lighting storms to avoid electrical shock
or fire;
• Unplug the power cord prior to cleaning the In-Car Router;
• Keep the minimum required amount of space between the power
cord and any heat sources;
• Clean the power plug when it is dirty;
• Do not bend, twist, pull, or heat the power cord because such actions
may damage the power cord;
• Do not use the power plug if it is loose as it may cause a fire or
electric shock;
• Wash hands after handling the power cord;
• To reduce the risk of damage to the cord or the plug, pull the plug
instead of the cord when disconnecting from a receptacle.
Foreign Objects and Liquids
Never push objects of any kind into the In-Car Router or any accessories
because such insertion may cause parts to short out and result in a fire
or electric shock. Do not use the In-Car Router or any accessories near
or in water or if wet. Never spill liquid of any kind on the In-Car Router
or any accessories. Disconnect the In-Car Router and any accessories
before cleaning them.
15
14
wireless devices, which in turn are consistent with the following safety
standards previously set by certain standards bodies:
• ANSI/IEEE C95.1-1999, IEEE Standard for Safety Levels with Respect
to Human Exposure to Radio Frequency Electromagnetic Fields,
3 kHz to 300 GHz;
• National Counsel on Radiation Protection and Measurements (NCRP)
Report 86, - 1986, Biological Effects and Exposure criterion for Radio
Frequency Electromagnetic Fields; and
• International Commission on Non-Ionising Radiation Protection
(ICNIRP) 1988, Guidelines for limiting exposure to time-varying
electric, magnetic, and electromagnetic fields (up to 300 GHz).
To maintain compliance with FCC exposure guidelines, use only acces-
sories supplied or approved by Autonet Mobile, Inc.
Specific Absorption Rate Data
The In-Car Router meets U.S. government requirements for exposure to
radio waves. the In-Car Router is a radio transmitter and receiver. It is de-
signed and manufactured not to exceed the emission limits for exposure
to RF energy set by the FCC.These limits are part of comprehensive guide-
lines and establish permitted levels of exposure to RF energy for the gen-
eral population. These guidelines are based on standards that were
developed by independent scientific organizations through periodic and
thorough evaluation of scientific studies.The standards include a substan-
tial safety margin designed to assure the safety of all persons, regardless of
age and health.
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a
ClassA digital device,pursuant to part 15 of the FCC Rules.These limits are
designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment.This equip-
ment generates, uses, and can radiate radio frequency energy and, if not in-
stalled and used in accordance with the instruction manual, may cause
harmful interference to radio communications.Operation of this equipment
in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
• Your In-Car Router or any accessory does not operate normally
in accordance with the instructions contained in any guide provided
by Autonet Mobile, Inc.; and
• Your In-Car Router or any accessory exhibits a distinct change in
performance.
All servicing of the In-Car Router or any accessory should be undertaken
only by qualified service personnel. Do not attempt to disassemble, mod-
ify, or repair the In-Car Router or any accessory yourself.
Adjustments
Adjust only those controls for the In-Car Router that are discussed in
the instructions contained in any guide provided by Autonet Mobile, Inc.
An improper adjustment of other controls for the In-Car Router may re-
sult in damages and may require extensive work by a qualified technician
to restore the In-Car Router or any accessory, as the case may be.
Rough Treatment
Do not drop, strike or shake severely the In-Car Router. Such actions may
damage its internal circuit boards.
Antenna Care
Only use any supplied integral antenna with the In-Car Router. Unautho-
rized antenna modifications, or attachments could damage the In-Car
Router and may violate U.S. Federal Communications Commission (FCC)
regulations. No one should hold the antenna or let it come into contact
with his or her body when the In-Car Router is in use. Do note use the
In-Car Router if the antenna is damaged. If a damaged antenna touches
skin, it may cause a slight burn.
Local Laws
Drivers and their passengers are responsible for determining and com-
plying with any local laws affecting the use of the In-Car Router.Accord-
ingly, you should familiarize yourself with any applicable laws in jurisdictions
where you use the In-Car Router.Always obey those laws.
Exposure to Radio Frequency Signals
the In-Car Router is a low power radio transmitter and receiver.When it
is turned on, it sends out and receives RF signals.The In-Car Router com-
plies with FCC guidelines respecting safe levels of RF exposure for handled
17
16
e. Fraudulent activity. Using the Services to make fraudulent offers to sell
or buy products,items, or services or to advance any type of financial scam
such as "pyramid schemes," "Ponzi schemes," and "chain letters."
f. Forgery or impersonation.Adding, removing or modifying identifying net-
work header information in an effort to deceive or mislead is prohibited.
Attempting to impersonate any person by using forged headers or other
identifying information is prohibited.The use of anonymous remailers or
nicknames does not constitute impersonation. Using deliberately mislead-
ing headers ("munging" headers) in news postings in order to avoid spam
email address collectors is allowed.
g. Unsolicited commercial email/unsolicited bulk email.Using the Services
to transmit any unsolicited commercial email or unsolicited bulk email.Ac-
tivities that have the effect of facilitating unsolicited commercial email or
unsolicited bulk email whether or not that email is commercial in nature,
are prohibited.
h. Unauthorized access. Using the Services to access, or to attempt to ac-
cess, the accounts of others, or to penetrate, or attempt to penetrate, se-
curity measures of Autonet Mobile, Inc’s or another entity's computer
software or hardware, electronic communications system, or telecommu-
nications system, whether or not the intrusion results in the corruption or
loss of data.
i. Copyright or trademark infringement. Using the Services to transmit
any material (by email, uploading, posting, or otherwise) that infringes any
copyright, trademark, patent, trade secret, or other proprietary rights of
any third party, including, but not limited to, the unauthorized copying of
copyrighted material, the digitization and distribution of photographs from
magazines, books, or other copyrighted sources, and the unauthorized
transmittal of copyrighted software.Autonet Mobile,Inc is registered under
the Digital Millennium Copyright Act of 1998.
j. Collection of personal data. Using the Services to collect, or attempt to
collect, personal information about third parties without their knowledge
or consent.
k. Reselling the services. Reselling the Services without Autonet Mobile’s
authorization.
Acceptable Use Policy
1. INTRODUCTION
Autonet Mobile, Inc’s Acceptable Use Policy ("AUP") is intended to help en-
hance the use of the Internet by preventing unacceptable use.All users of
Autonet Mobile, Inc’s Internet services (the "Services")-those who access
some of our Services but do not have accounts ("Visitors"), as well as those
who pay a monthly service fee to subscribe to the Services ("Members")-
must comply with this AUP.We support the free flow of information and
ideas over the Internet and do not actively monitor use of the Services
under normal circumstances. Similarly, we do not exercise editorial control
over the content of anyWeb site, electronic mail transmission, news group,
or other material created or accessible over or through the Services, ex-
cept for certain proprietary websites. However, in accordance with our In-
ternet Service Agreement, we may remove any materials that, in our sole
discretion,may be illegal,may subject us to liability, or which may violate this
AUP.Autonet Mobile, Inc may cooperate with legal authorities and/or third
parties in the investigation of any suspected or alleged crime or civil wrong.
Your violation of this AUP may result in the suspension or termination of
either your access to the Services and/or your Autonet Mobile, Inc account
or other actions as detailed in Section 3.This AUP should be read in con-
junction with our Internet Service Agreement and other policies.
2. VIOLATIONS OF AUTONET MOBILE'S ACCEPTABLE USE POLICY
The following constitute violations of this AUP:
a. Illegal use. Using the Services to transmit any material (by email, up-
loading, posting, or otherwise) that, intentionally or unintentionally, vio-
lates any applicable local, state, national or international law, or any rules
or regulations promulgated there under.
b. Harm to minors. Using the Services to harm, or attempt to harm, mi-
nors in any way.
c. Threats. Using the Services to transmit any material (by email, upload-
ing, posting,or otherwise) that threatens or encourages bodily harm or de-
struction of property.
d. Harassment. Using the Services to transmit any material (by email, up-
loading, posting, or otherwise) that harasses another.
19
18
3. REPORTING VIOLATIONS OF AUTONET'S AUP
Autonet Mobile, Inc requests that anyone who believes that there is a vi-
olation of this AUP direct the information to Director-Abuse Department,
at: abuse@ autonet mobile.com.
If available, please provide the following information:
• The IP address used to commit the alleged violation
• The date and time of the alleged violation, including the time zone or
offset from GMT
• Evidence of the alleged violation
Email with full header information provides all of the above, as do sys-
log files. Other situations will require different methods of providing
the above information.
Autonet Mobile, Inc may take any one or more of the following actions in
response to complaints:
• issue warnings: written or verbal
• suspend the Member's newsgroup posting privileges
• suspend the Member's account
• terminate the Member's account
• bill the Member for administrative costs and/or reactivation charges
• bring legal action to enjoin violations and/or to collect damages, if
any, caused by violations.
4. REVISIONS TO THIS ACCEPTABLE USE POLICY
Autonet Mobile, Inc reserves the right to revise, amend, or modify this
AUP, our Internet Service Agreement and our other policies and agree-
ments at any time and in any manner. Notice of any revision, amendment,
or modification will be posted in accordance with the Internet Service.
l. Network disruptions and unfriendly activity. Using the Services for any
activity which adversely affects the ability of other people or systems to
use Autonet Mobile, Inc Services or the Internet.This includes "denial of
service" (DoS) attacks against another network host or individual user. In-
terference with or disruption of other network users,network services or
network equipment is prohibited. It is the user’s responsibility to ensure
that their network is configured in a secure manner. A user may not,
through action or inaction, allow others to use their network for illegal or
inappropriate actions.A user may not permit their network, through action
or inaction, to be configured in such a way that gives a third party the ca-
pability to use their network in an illegal or inappropriate manner.
m. News. Autonet Mobile users should use their best judgment when
posting to any newsgroup. Many groups have charters, published guide-
lines, FAQs, or "community standards" describing what is and is not con-
sidered appropriate. Usenet can be a valuable resource if used properly.
The continued posting of off-topic articles is prohibited. Commercial ad-
vertisements are off-topic in most newsgroups, especially regional groups
not specifically named for such.The presence of such articles in a group
is not indicative of the group's "intended" use. Please familiarize yourself
with basic Usenet netiquette before posting to a newsgroup.
Autonet Mobile considers "multiposting" to 10 or more groups within a
two week sliding window to be excessive. Autonet Mobile servers cur-
rently limit the number of allowable "cross-posts" to 9.
Autonet Mobile users may not cancel messages other than their own
messages. A user may cancel posts forged in that user's name. We may
cancel any postings which violate this AUP.
n. Long Connections and Multiple Logins. Using a personal account for
high volume or commercial use is prohibited.The services are intended
for periodic, active use of email, newsgroups, file transfers, Internet chat,
games, and browsing the World Wide Web. Users may stay connected so
long as they are actively using that connection for the above purposes.
Users may not use the Services on a standby or inactive basis in order to
maintain a connection. Pinging is expressly prohibited. Accordingly, Au-
tonet Mobile, Inc maintains the right to terminate any member's connec-
tion following any extended period of inactivity as determined by Autonet
Mobile, Inc.
21
20
each item of Open Source Software is licensed under the terms of the end-user
license that accompanies such Open Source Software.Nothing in this document
limits your rights under,or grants you rights that supersede,the terms and condi-
tions of any applicable end user license for the Open Source Software.In particu-
lar, nothing in this document restricts your right to copy, modify, and distribute
that Open Source Software subject to the terms of the GPL and LGPL.As re-
quired by the terms of the GPL and LGPL,Autonet Mobile,Inc makes the Open
Source Software provided under the GPL and LGPL available to the public in
source code form on a CD.To receive a CD, please send $9.00 to Autonet Mo-
bile, Inc for the cost of preparing and mailing the CD to you. Requests can be
mailed to Source Code CD Request,Autonet Mobile Inc., 1700 Montgomery
Ste.111,San Francisco,CA 94111
The following Open Source Software is included with the Autonet Mo-
bile In-Car Router. GPL and LGPL Software.The Autonet Mobile In-Car
Router is provided with the following software licensed under the GPL
and LGPL. A copy of the GNU GPL license is available from the Free
Software Foundation (http://www.gnu.org).
• BusyBox from http://www.busybox.net
• Card Services for Linux from http://pcmcia-cs.sourceforge.net
• Host AP driver from http://hostap.epitest.
• fiiptables from http://www.netfilter.org
• Linux operating system version 2.4.29
• Openswan (http://www.openswan.org
• PPP from http://www.samba.org/ftp/unpacked/ppp/
• dnsmasq from http://www.thekelleys.org.uk/dnsmasq/
• nocat from http://nocat.net
• wifiadmin from http://wifiadmin.sourceforge.net/
• gpsd from http://gpsd.berlios.de/
• squid from http://www.squid-cache.org/
• radius from http://www.freeradius.org/
Other Open Source Software.Autonet Mobile In-Car Router is provided
with the following software licensed under BSD licenses or other open
source software licenses. The software and license details are available
from the referenced web sites.
• Net-SNMP from the NET-SNMP Project (http://www.net-snmp.org)
• OpenSSH from the OpenBSD Project (http://www.openssh.com)
• thttpd from Jef Poskanzer (http://www.acme.com)
Autonet Mobile Software License
IMPORTANT – READ CAREFULLY.By removing the tamper label or otherwise
using the software in yourAutonet Mobile In-Car Router,you agree to be bound
by the license terms and conditions below.If you do not agree to these terms and
conditions you must immediately return yourAutonet Mobile In-Car Router in its
original condition and packaging to the point of purchase for a refund of your pur-
chase price (after inspection).
Subject to these terms and conditions,Autonet Mobile,Inc grants you a non-ex-
clusive license,with no right to sublicense,to execute the software included with
the Autonet Mobile In-Car Router or subsequently provided to you by Autonet
Mobile (together,the“Software”) on yourAutonet Mobile In-Car Router solely for
your personal use on the intended features and functions of the Autonet Mobile
In-Car Router.The license may be transferred only with the transfer of theAutonet
Mobile In-Car Router on which Autonet Mobile, Inc has installed the Software;
any transferee will be subject to the terms and conditions of this license.
This license will terminate automatically,without notice,if you fail to comply with
the terms and conditions,including the restrictions,of this license.
Autonet Mobile,Inc and its licensors own and retain all proprietary rights,includ-
ing all patents, copyright, trade secret, trademark and other intellectual property
rights in and to the Autonet Mobile In-Car Router Software.You acknowledge
that the license granted above does not provide you with title to or ownership of
the Software,but only a right of limited use under these terms and conditions.The
Software embodiesAutonet Mobile,Inc’s trade secrets and other proprietary in-
formation and materials.Any attempt to modify,enhance,disassemble,decompile,
reverse engineer or otherwise gain access to the source code of the Software,to
remove or unbundled the Software from theAutonet Mobile In-Car Router,or to
sublicense or distribute the Software is strictly prohibited,except as expressly set
for in the paragraph titled “GPLand LGPL Software” and “Other Open Source
Software” below or except as may be otherwise agreed byAutonet Mobile,Inc in
writing.Certain components of the Software included with theAutonet Mobile In-
Car Router are subject to the GNU General Public License (“GPL”), the Lesser
GNU General Public License (“LGPL”),or other“open source” or“free software”
licenses (“Open Source Software”).Some of the Open Source Software is owned
by third parties.The Open Source Software is not subject to the terms and con-
ditions of the section titled“Autonet Mobile,Inc Software License” above.Instead,
23
22
ties in the product due to modifications, alterations, additions or changes
to the product not authorized by AUTONET MOBILE, INC., in writing in
advance; (iii) normal wear and tear; (iv) damage caused by force of nature
or act of any third person, including shipping damage; (v) service or re-
pair of product by the Purchaser without prior written consent from AU-
TONET MOBILE, INC.; (viii) products designated by AUTONET MOBILE,
INC. as beta site test samples, experimental, developmental, reproduc-
tion, sample, incomplete or out-of-specification products; (viii) returned
products if the original identification marks or tamper seals have been re-
moved from the product or altered; (ix) condensation, water or liquid
damage; (x) damage caused to the user’s computer; (xi) loss of data; or
(xii) damage caused by viruses. The foregoing limitations will apply even
if any warranty or remedy provided hereunder fails of its essential pur-
pose. This warranty gives you specific legal rights, and You may also have
other rights that vary by jurisdiction. Some jurisdictions do not allow
limitations on how long an implied warranty lasts or the exclusion or
limitation of incidental or consequential damages, so the above warranty
limitations may not apply to You.
Autonet Mobile Limited Warranty and Liability
NO WARRANTIES OF ANY KIND ARE PROVIDED BY AUTONET MO-
BILE, INC.WITH RESPECT TO THIS PRODUCT, EXCEPT AS STATED IN
AUTONET MOBILE LIMITED WARRANTY BELOW.
AUTONET MOBILE, INC. warrants to the original end user purchaser
(“You”) that the product shall be free of defects in materials and work-
manship under normal use for one (1) year from the original date of pur-
chase (the “Warranty Period”).THESE WARRANTIES ARE EXPRESSLY IN
LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUD-
ING, WITHOUT LIMITATION, ALL IMPLIED WARRANTIES OF MER-
CHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE AND
ANY WARRANTIES ARISING FROM COURSE OF PERFORMANCE,
COURSE OF DEALING OR TRADE USAGE.
AUTONET MOBILE, INC.’s exclusive liability and your exclusive remedy
hereunder is expressly limited to, at AUTONET MOBILE INC.’s sole op-
tion and discretion, (a) exchange, repair or replacement of defective or
nonconforming materials, parts or components; or (b) refund of all
amounts paid directly to AUTONET MOBILE, INC. for any defective
product. Replacement products may be new or remanufactured.
THE ABOVE SHALL APPLY WHETHER AUTONET MOBILE, INC.’S LIABIL-
ITY ARISES FROM ANY BREACH OF ITS EXPRESS WARRANTY, BREACH
OF ANY OBLIGATION OR OTHERWISE WITH RESPECT TO THE MAN-
UFACTURE AND SALE OF ANY UNITS OF THE PRODUCT, WHETHER
LIABILITY IS ASSERTED IN CONTRACT OR TORT, INCLUDING NEGLI-
GENCE AND STRICT PRODUCT LIABILITY. IN NO EVENT SHALL AU-
TONET MOBILE, INC. BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL
OR CONSEQUENTIAL DAMAGES OF ANY KIND OR NATURE DUE TO
ANY CAUSE, REGARDLESSS OF WHETHER AUTONET MOBILE, INC.
HAS BEEN ADVISED OF THE POTENTIAL FOR SUCH DAMAGES OR IF
SUCH DAMAGES ARE FORESEEABLE, OR FOR CLAIMS BY ANY THIRD
PARTY.AUTONET MOBILE INC.’S MAXIMUM AGGREGATE LIABILITY TO
PURCHASER SHALL NOT EXCEED THE AMOUNT PAID BY PURCHASER
FOR THE PRODUCT.
The foregoing warranties do not extend to: (i) nonconformities, defects
or errors in the product due to accident, abuse, misuse or negligent use
of the product or use in other than a normal and customary manner, en-
vironmental conditions not conforming to AUTONET MOBILE, INC.’s
specification, improper installation or failure to follow prescribed oper-
ating and maintenance procedures; (ii) defects, errors or non conformi-
25
24
Legal Disclosure
Copyright © 2007-2008 by Autonet Mobile, Inc.
All rights reserved. No part of this publication may be reproduced in any form or
by any means or used to make any derivative work (such as translation, transfor-
mation or adaptation) without written permission from Autonet Mobile, Inc.
Autonet Mobile, Inc reserves the right to revise this publication and to make
changes in content from time to time without obligation to provide notification
of such revision or change.Autonet Mobile, Inc provides this guide without war-
ranty of any kind, either implied or expressed,including,but not limited to, the im-
plied warranties of merchantability and fitness for a particular purpose.Autonet
Mobile, Inc may make improvements or changes in the product(s) and product
specifications described in this User Guide at any time.
Product may contain repackaged and/or reconditioned parts. By using this prod-
uct, you agree to the terms and conditions of the Autonet Mobile, Inc Service
Agreement.
All trademarks, trade names, product names, service names and service marks
listed in this User Guide or with the software are the exclusive property of their
respective owners. Neither Autonet Mobile, Inc nor the Autonet Mobile In-Car
Router are endorsed by or affiliated with the respective companies listed above
and no such endorsement is implied.
Autonet Mobile, Inc,Autonet Mobile In-Car Router, the Autonet Mobile logo, and
TRU technology are all trademarks of Autonet Mobile, Inc.All other trademarks,
product names or service names are the property of their respective owners.
27
26

Navigation menu
