USERS MANUAL
DOC: 1.00 (i) – January 4, 2007 DL Lp Manufactured in Canada by Autostart
TWO-WAY LED AUTOMATIC TRANSMISSION
REMOTE STARTER
AS-2310TW-FM
User Guide
WARNING
It is the responsibility of the vehicle operator to ensure
their vehicle is parked in a safe and responsible
manner.
1. When leaving the vehicle, it is the user’s
responsibility to ensure that the gearshift lever is in
“Park” in order to avoid accidents upon remote
starting.
2. It is the user's responsibility to ensure that the
remote starter is disabled or put into valet mode before
servicing.
FCC/IC Notice:
This device complies with Part 15 of the FCC Rules, and RSS-210 of the IC rules. Operation is
subject to the following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
User Guide P. 2
The manufacturer is not responsible for any radio or TV interference caused by unauthorized
modifications to this equipment. Such modifications could void the user's authority to operate
the equipment.
P. 3 User Guide AS-1525 SH
Table of Contents
Introduction........................................... 3
Using the Remote Control ................... 4
Vehicle Presets..................................... 4
Heater & Heated Seat ................................4
Windshield Wipers & Radio & Headlights .. 4
Arming the Starter Kill.......................... 5
Remote-Starting Your Vehicle............. 5
Remote-starting..........................................5
Driving Off ..................................................5
Remote Starter Features...................... 5
Idle Mode....................................................5
Valet Modes ...............................................6
Ignition Valet...................................6
Remote Valet Mode........................ 6
Panic Mode ................................................6
Quick LockoutTM .........................................7
Cold Weather Mode ...................................7
Extended Run Time ................................... 7
Feature Confirmation Chart................. 8
Advanced Features: Installation-
programmable Options........................ 8
Remote Door Locks ................................... 8
Priority Door Access................................... 8
Ignition-Controlled Door Locks...................8
Ignition Re-lock...........................................8
Secure Lock................................................9
Remote Trunk Release ..............................9
The Starter Kill and the Anti-grind Feature.9
Safe Start....................................................9
Valet Modes................................................9
Valet Mode Using the Valet Switch (if
installed) ......................................... 9
“Home ValetTM” Mode.................................9
Turbo Mode ..............................................10
Engine Run Time......................................10
Flashing LED............................................10
Multi-car Operation...................................10
Multi-Level Features (default state)..... 11
Vehicle Status Request...................... 12
Status Request When the Engine IS NOT
Running ....................................................12
Status Request When the Engine is
Running ....................................................13
Troubleshooting Transmitting Range13
Diagnostics – Parking Light Flash
Table .................................................... 15
Introduction
This is a state-of-the-art remote starter system. The system is packed with advanced features such
as priority access to the driver’s door (commodity features) and the safe start children safety
feature. With many an advanced function, this product will satisfy any one your expectations from
high-end commodity and security systems, without neglecting any standard feature commonly
offered by entry-level starters.
P. 4 User Guide

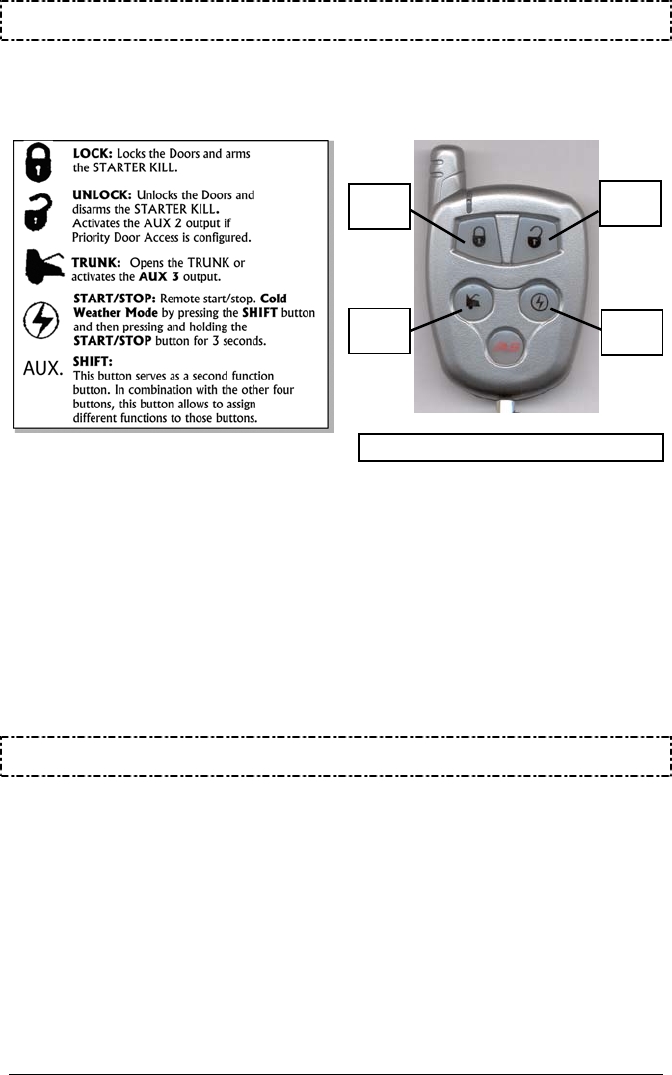

Using the Remote Control
Your remote starter is equipped with a 5-button multi-channel remote control. It can operate two
independent vehicles equipped with a remote starter (see Multi-car operation section on page
10). The functions of the transmitter are as follows:
Picture serves as example only.
For certain vehicles:
• Pressing and holding the LOCK button for more than 3 seconds will lock all doors and will send a
constant pulse as long as the LOCK button is held down (maximum of 15 seconds). This
constant pulse can be configured to activate certain functionalities such as rolling up the
windows – Please refer to your installer to see if your vehicle is compatible with this
option.
• Pressing and holding the UNLOCK button for more than 3 seconds will unlock all doors and will
send a constant pulse as long as the UNLOCK button is held down (maximum of 15 seconds).
This constant pulse can be configured to activate certain functionalities such as rolling down the
windows – Please refer to your installer to see if your vehicle is compatible with this
option.
Vehicle Presets
Heater & Heated Seat
When leaving the vehicle it is recommended to preset the accessory controls in preparation for the
next remote start. Settings for the blower motor (fan), front and rear, as well as heated seats (if
equipped) should not be left on HIGH. It is recommended to leave the settings on LOW or MEDIUM
instead.
Windshield Wipers & Radio & Headlights
Certain vehicles require the radio and / or windshield wiper and / or headlight circuits to become
energized while running under remote start. When leaving the vehicle you must ensure that the
windshield wiper and headlight switches are OFF. Leaving the headlight switch ON on certain types
of vehicles could cause them to remain ON even after remote starter shut down, resulting in a dead
battery.
LED #2
LED #4
LED #1
LED #3
Transmitter Part Number: ASRF3501
User Guide P. 5
Arming the Starter Kill
The starter kill (if installed) can be configured by the installer so as to arm automatically (passive
mode) or not to arm automatically (active mode).
• To disarm the starter kill, press the UNLOCK button on the transmitter.
The parking lights will flash twice.
If remote door locks are installed, this will also unlock the doors.
• To arm the Starter Kill, press the LOCK button on the transmitter.
The parking lights will flash once.
If remote door locks are installed, this will also lock the doors.
• In passive mode, the starter kill will automatically arm if the ignition key is not inserted
Into the ignition switch within 1 or 3 minutes after unlocking (the key sense feature
must be installed).
Remote-Starting Your Vehicle
Remote-starting
Press the START/STOP button for approx. 1 second. The parking lights will come ON to inform you
that the remote starter has received your signal. Approximately 5 seconds later, the engine will
start. The parking lights will remain ON during the pre-programmed run time of the engine.
If the vehicle does not start at the first attempt, the system will shut down, wait a few seconds and
try to start the engine again. There will be 3 start attempts before the system gives up.
Driving Off
With the vehicle running under remote control, press the UNLOCK button to disarm and unlock the
doors. Enter the vehicle and do the following:
Turn the ignition key to the IGNITION ON (RUN) position. (Do not turn the key to the CRANK position
while the engine is running. This would cause the starter motor to re-engage.)
Press the brake pedal to disengage the remote starter unit.
You are now ready to drive off.
Remote Starter Features
Idle Mode
Convenience feature: Idle mode allows you to keep the engine running and the doors
locked while you stop, for example, at a convenience store or for a short delivery.
This feature allows you to let the remote starter take over control of the vehicle (i.e. no key in the
ignition switch) while the engine is running. For example, if you stop for a delivery or at a conveni-
ence store, lock your vehicle and leave it running for the length of a run cycle while you are away.
To leave the vehicle in idle mode:
1. With the engine running, press the LOCK or UNLOCK button (to unlock the doors) or the
START/STOP button on the remote control until the parking lights come on.
2. Remove the key and exit the vehicle. The engine will go on running.
3. Lock the doors if needed.
The engine will go on running until the user re-enters the vehicle or until the expiration of the
engine run time.
Caution!!! Do not leave children or pets unattended in a vehicle standing in Idle Mode.
P. 6 User Guide
Valet Modes
When your vehicle is in valet mode, the remote starter functionalities are disabled. If the vehicle
needs to be serviced, or if you park it indoors, the valet mode will prevent the engine from being
remote-started accidentally.
Ignition Valet
This feature will allow you to remotely put your system into valet mode by using the ignition key
instead of the valet button as above. Ignition valet can be used without a valet button installed.
To put the system i n t o valet mode:
Insert the ignition key into the ignition switch. Within 10 sec., turn the key 5 times successively into
the IGNITION ON / RUN and OFF positions.
The parking lights will flash three times to indicate that the vehicle is now in valet mode. The L.E.D.
will come ON solid.
To take the system o u t o f valet mode:
Insert the ignition key into the ignition switch. Within 10 sec., turn the key 5 times successively into
the IGNITION ON / RUN and OFF positions.
The parking lights will flash twice to indicate that the vehicle is now out of valet mode. The L.E.D.
will go out.
Note: With the ignition valet activated, the remote starter functions will be disabled.
Remote Valet Mode
This feature will allow you to remotely put your system into valet mode by using the transmitter
instead of the valet button as above.
Getting into valet mode
• Hold the UNLOCK and START/STOP buttons simultaneously for 3 second.
• The parking lights will flash 3 times.
The LED will remain on solid.
Getting out of valet mode
• Hold the UNLOCK and START/STOP buttons simultaneously for 3 second.
• The parking lights will flash 2 times.
The LED will turn off.
Note: With the remote valet activated, the remote starter functions will be disabled.
Panic Mode
Note: Panic mode can only be activated if the horn has been adequately configured by your
installer.
In an emergency situation, you can activate panic mode by pressing and holding the SHIFT button
for 3 seconds. If the vehicle is under a remote start, you can shutdown the engine, stop the horn
and lock your doors by pressing the LOCK button:
If the car is not running, you can stop the horn by pressing the LOCK or UNLOCK buttons but it will not
lock or unlock the doors.
Furthermore, the panic mode can be stop by activating one of the following three (3) features:
a) Remote valet (pressing UNLOCK and START/STOP for 3 seconds)
b) Ignition valet (turning the key inside the ignition switch from OFF to ON 5 times in a row)
c) By pressing the valet switch (if included).
Panic Mode will automatically shut down after 25 sec.
User Guide P. 7
Quick LockoutTM
(Also called secure panic.) For fast protection in emergency situations, the system will LOCK all
doors when you press the brake pedal while you hear the sound signal. (Quick lockout is only
available when panic mode has been set off.)
Cold Weather Mode
When cold weather mode is active, the engine starts every 2 hours and runs for 3 minutes (or for 8
or 20 minutes with diesel engines). Cold weather mode automatically ends after 24 hours.
To enter Cold Weather Mode:
• Press the SHIFT button and then the START/STOP for 3 seconds.
• There will be two (2) beeps and the parking lights will flash three (3) times.
To exit Cold Weather Mode, do any one of the following actions:
• Open the hood.
• Start the engine by remote.
• Turn the ignition key to the IGNITION ON (RUN) position.
• Press the SHIFT button and then the START/STOP button for three seconds.
There will be one (1) beep and the parking lights will flash once.
To verify whether the system is in cold weather mode:
Press and release the brake pedal:
If the vehicle is in cold weather mode, the parking lights will stay on while the pedal is pressed.
Extended Run Time
While the vehicle is running under a remote start, pressing and holding the START/STOP button
for more than 3 seconds will reset the run time counter to zero and restart the run time cycle from
the beginning. There will be one beep ⎯a pause⎯ three more beeps; the parking lights will flash
three times and the horn (if configured) will honk once. The extended run time procedure can
only be carried out once per remote start.
To stop the vehicle, at any moment, simply press the START/STOP button.
Example: If your remote car starter is programmed for a run time of 3 minutes and your vehicle
has been running for 3 minutes already, pressing the START/STOP button will reset the
counter to zero and allow the engine to run for another cycle (in this case, 3 minutes).
P. 8 User Guide
Feature Confirmation Chart
A visual and audible confirmation is emitted each time a command is sent. The following chart
indicates the confirmation sequences:
Feature LED #1 LED #2 LED #3 LED #4 Beep(s)
Lock 3 flashes X X X 1
Unlock X 3 flashes X X 2
Trunk X X 3 flashes X 1
LED ON/OFF 3 flashes 3 flashes X X 1
Start X X X 3 flashes 1
Running X X X 3 flashes 3
Stop X X X 3 flashes 2
Entering Cold
Weather Mode X X X 3 flashes 2
Exiting Cold
Weather Mode X X X 3 flashes 1
Home Valet 3 flashes X X 3 flashes 2
Valet Mode 3 flashes X X 3 flashes 1
Exit ValetMode X 3 flashes X 3 flashes 1
Advanced Features: Installation-programmable Options
The remote starter was designed with flexibility and OEM integration in mind. With its program-
mable options, this unit can single-handedly control nearly any electrical system in your vehicle.
Caution: The programming of your system should be left to a professional. Changing any
one of the settings may affect the operation of your remote starter.
Remote Door Locks
If your remote starter was installed with the remote door locks option, you will have the
convenience of remote keyless entry. See section Arming the Starter Kill, on page 5, for further
instructions on remote door locking and unlocking.
Priority Door Access
If the remote door locks option is installed on your vehicle, this safety feature allows you unlock
solely the driver’s door with a single press of the UNLOCK button on the transmitter; upon a second
press of the UNLOCK button, all the other doors will unlock.
Ignition-Controlled Door Locks
This is an added security feature. If your remote starter was installed with the ignition-controlled
door locks option, the doors will automatically be locked as soon as the ignition key is turned to the
IGNITION ON (RUN) position while the brakes are pressed. When the key is turned to the OFF position,
the doors will automatically be unlocked.
Ignition Re-lock
On remote starters of this series, when ignition-controlled door locks are enabled and the ignition
key is in the IGNITION ON (RUN) position, should any door be unlocked and opened, all doors will be
relocked next time the brake pedal is pressed.
User Guide P. 9
Secure Lock
Before it can remote-start your vehicle, the remote starter must first disarm the factory security
system. The secure lock feature may be required on certain vehicle models with factory security
systems that automatically unlock the doors when the security system is disarmed.
To keep your vehicle protected when the factory security system is disarmed for a remote start,
secure lock will relock your doors as soon as the vehicle has started. Once the engine run cycle
ends, secure lock will rearm your factory security system.
Remote Trunk Release
If your system was installed with the remote trunk release option, you can open your trunk by
pressing the TRUNK button. There will be one beep and LED #3 will flash 3 times.
The Starter Kill and the Anti-grind Feature
With this added security feature, the system will prevent your vehicle from starting with the ignition
key when the starter kill is armed. If your remote starter was installed with the starter kill option,
one will not be able to start your vehicle with the key unless the system has been unlocked and
disarmed first, or put into valet mode.
Note: If the starter kill is installed, your vehicle will benefit from a protection against starter
motor damage that could occur after remote-starting the engine should the user, by force of
habit, turn the ignition key to the CRANK position.
Safe Start
If this feature is enabled, the user must press the START/STOP button 2 times within 3 seconds to
remote-start the vehicle. This will eliminate accidental remote starts, e.g. when children are playing
with the transmitter.
If swap start mode is selected, to remote-start your vehicle, press the SHIFT button and then the
LOCK button. The AUX 2 output can be activated by pressing the START/STOP button.
Valet Modes
Valet Mode Using the Valet Switch (if installed)
To put the system i n t o valet mode:
1. Turn the ignition key to the IGNITION ON (RUN) position.
2. Within 3 sec., press the valet button.
The parking lights will flash three times to indicate that the vehicle is now in valet mode.
3. Turn the ignition key to the OFF position.
The L.E.D. will come ON solid.
To take the system o u t o f valet mode:
1. Turn the ignition key to the IGNITION ON (RUN) position.
2. Within 3 sec., press and release the valet button.
The parking lights will flash twice to indicate that the vehicle is now out of valet mode.
3. Turn the ignition key to the OFF position.
The L.E.D. will go out.
Note: Once valet mode is activated, the remote starter functions will be disabled.
“Home ValetTM” Mode
If configured at installation, this feature will remotely set the vehicle to a no-remote-start mode: if
the vehicle is parked indoors there is no danger of it starting accidentally by remote control.
Note: Once the home valet mode is activated, the vehicle will not start by remote.
P. 10 User Guide
To take the system i n t o home valet mode:
• Press the LOCK or UNLOCK button.
• Within 3 seconds, press the LOCK and START/STOP buttons simultaneously until the
parking lights go out
To take the system o u t o f home valet mode:
• Turn the ignition key to the IGNITION ON (RUN) position.
The system will warn you if someone attempts to start your vehicle while it stands in home valet
mode. The parking lights will:
1- Turn ON then OFF; then
2- Flash twice, pause; then
3- Flash twice again.
Turbo Mode
If turbo mode is configured at installation, it will allow a turbocharger to idle down after the user
leaves the vehicle: the unit will take over the vehicle and keep it running for 60 seconds (or until it
is shut down by remote control), then shut down the engine.
Proceed as follows to set the system to Turbo Mode:
1. With the engine already running, press the LOCK button on the transmitter until the parking lights
come ON.
2. Remove the ignition key from the ignition switch. The engine will go on running.
3. Exit the vehicle and close the door.
4. Press the TRUNK button to lock the doors; the engine will shut down after 60 seconds of Turbo
Mode.
Engine Run Time
If you have a gas engine, your remote starter can be programmed to run the engine for 3, 15, or
25 minutes (15 minutes by default). If you have a diesel engine, the remote starter can be
programmed to run the engine for 8, 20, or 30 minutes (20 minutes default).
Flashing LED
The user may decide to turn on or off LED flashing at any moment. To do so, simultaneously press
and hold the LOCK and UNLOCK buttons on the transmitter. There will be an initial beep. Keep
holding the buttons pressed until you hear another beep. At that point release the buttons. The
LED will toggle to its next state –i.e.: ON/OFF:
There are three programmable options regarding the flashing LED:
i. The LED flashes once the starter kill is activated (passive or active arming) and will
turn itself off once the user turns the key to the IGNITION ON position.
ii. The LED is totally disabled and will not flash –it will turn on solid, however, when in
valet mode.
iii. The LED will flash once the starter kill is activated but requires pressing the UNLOCK
button to turn itself off. Failure to press the UNLOCK button will make the LED flash
even if the key is in the IGNITION ON position.
Multi-car Operation
This option allows the owner of two vehicles, both equipped with the same remote starter model, to
control both systems with a single remote control. To control the second vehicle:
User Guide P. 11
Press TRUNK + LOCK buttons simultaneously:......................... LOCK
Press TRUNK + UNLOCK simultaneously:.................................. UNLOCK
Press TRUNK + START/STOP simultaneously:....................................START
Press TRUNK + START/STOP simultaneously:............................ STOP
Press SHIFT ¾ SHIFT ¾ TRUNK: ................................................ TRUNK
or Press SHIFT ¾ SHIFT ¾ LOCK:.................................................. LOCK
Press SHIFT ¾ SHIFT ¾ UNLOCK:............................................. UNLOCK
Press SHIFT ¾ SHIFT ¾ START/STOP:..................................................START
Press SHIFT ¾ SHIFT ¾ START/STOP: ....................................... STOP
Press SHIFT ¾ SHIFT ¾ TRUNK: ............................................... TRUNK
Note: If the multi-level features have been modified from their default state by your installer,
the SHIFT button may have to be pressed once, twice or three times, according to the option
you chose.
Multi-Level Features (default state)
The multi-level features allow you to access different features of your vehicle or of a second car by
pressing the shift button once, twice or three times. By default, the multi-level features are
programmed as follows:
Basic Features (press the SHIFT button 1X)
SHIFT ¾ LOCK: .......................................................................aux 2
SHIFT ¾ TRUNK:.....................................................................status request
SHIFT ¾ START/STOP............................................................cold weather
Multi-Car Operation (press the SHIFT button 2X)
SHIFT ¾ SHIFT ¾ LOCK:......................... 2nd car lock
SHIFT ¾ SHIFT ¾ UNLOCK:..................... 2nd car unlock
SHIFT ¾ SHIFT ¾ START/STOP:............... 2nd car start/stop
SHIFT ¾ SHIFT ¾ TRUNK:....................... 2nd car trunk
Customized Features (press the SHIFT button 3X)
(May not be applicable for certain vehicles)
Your installer can add customized features such as turning on the radio, opening sliding doors, etc.
SHIFT ¾ SHIFT ¾ SHIFT ¾......................LOCK: customized feature 1
SHIFT ¾ SHIFT ¾ SHIFT ¾......................UNLOCK: customized feature 2
SHIFT ¾ SHIFT ¾ SHIFT ¾......................TRUNK: customized feature 3
SHIFT ¾ SHIFT ¾ SHIFT ¾......................START/STOP: customized feature 4
Your installer can customize the system as to personalize these multi-level features in an order that
best suits you. Your options are: Option 1:
Level 1 (requires pressing the SHIFT button 1X) Æ Multi car operation
Level 2 (requires pressing the SHIFT button 2X) Æ Basic features
Level 3 (requires pressing the SHIFT button 3X) Æ Customized features
Option 2:
Level 1 (requires pressing the SHIFT button 1X) Æ Basic features
Level 2 (requires pressing the SHIFT button 2X) Æ Multi car operation
Level 3 (requires pressing the SHIFT button 3X) Æ Customized features
P. 12 User Guide
Option 3:
Level 1 (requires pressing the SHIFT button 1X) Æ Customized features
Level 2 (requires pressing the SHIFT button 2X) Æ Multi car operation
Level 3 (requires pressing the SHIFT button 3X) Æ Basic features
Option 4:
Level 1 (requires pressing the SHIFT button 1X) Æ Basic features
Level 2 (requires pressing the SHIFT button 2X) Æ Customized features
Level 3 (requires pressing the SHIFT button 3X) Æ Multi car operation
Example: If the multi-level features have been modified from their default state to option 3, the
setup would be as follows:
For “Basic features”:
To access the aux.2 feature, the user needs to press on the SHIFT button three (3) times
followed by the LOCK button.
To access the status request feature, the user needs to press on the SHIFT button three (3)
times followed by the TRUNK button.
To access cold weather mode, the user needs to press on the SHIFT button three (3) times
followed by the START/STOP button.
Vehicle Status Request
The status request feature allows the user to see the status of the vehicle ⎯i.e.: if the doors are
locked or unlocked or if the vehicle is in cold weather mode, home valet mode, in valet mode or
how much time is left in the run time cycle. The following charts (Tables 1 and 2) indicate the
confirmation sequences.
To retrieve the vehicle status:
Press and release the SHIFT button then press and release the TRUNK button (there will be a beep).
The transmitter will then flash the corresponding sequence of LEDs depending on the vehicle’s
status.
If the engine is NOT running, refer to Table 1.
If the engine IS running under a remote start, refer to Table 2 (if the doors are locked)
or refer to Table 3 (if the doors are unlocked).
The status request feature is a two-step procedure:
• The first sequence of flashes denotes if the vehicle’s doors are locked or unlocked.
• The second sequence of flashes (if applicable) denotes if the vehicle is Cold weather mode,
Home valet mode, or, Valet mode.
• If there is no second sequence transmission, that the vehicle is not in any of the three (3)
mentioned features (Cold weather mode, Home valet mode or Valet mode).
Status Request When the Engine IS NOT Running
STATUS SEQUENCE LED #1 LED #2 LED #3 LED #4 Beep(s)
Lock 3 flashes X X X 1
Unlock X 3 flashes X X 2
1st sequence if
locked 3 flashes X X X 2
1st sequence if
unlocked X 3 flashes X X 2
Cold
Weather
2nd sequence X X X 1 second X
User Guide P. 13
STATUS SEQUENCE LED #1 LED #2 LED #3 LED #4 Beep(s)
1st sequence if
locked 3 flashes X X X 2
1st sequence if
unlocked X 3 flashes X X 2
Home
Valet
2nd sequence 1 second X X 1 second X
1st sequence if
locked 3 flashes X X X 1
1st sequence if
unlocked X 3 flashes X X 1
Valet
Mode
2nd sequence 1 second X X 1 second X
Table 1
Status Request When the Engine is Running
When the vehicle doors are locked:
The LED # 1 will flash 3 times to denote that the vehicle’s doors are locked.
When the vehicle doors are unlocked:
The LED # 2 will flash 3 times to denote that the vehicle’s doors are unlocked.
RUN TIME Beep(s) LED #1 LED #2 LED #3 LED #4
If there is more than 3/4 of run
time cycle 3 ON for 1-sec ON for 1-sec ON for 1-sec ON for 1-sec
If there is more than half of
run time cycle 3 ON for 1-sec ON for 1-sec ON for 1-sec X
If there is more than 1/4 of run
time cycle 3 ON for 1-sec ON for 1-sec X X
If there is less than 1/4 of run
time cycle 3 ON for 1-sec X X X
Table 2
Troubleshooting Transmitting Range
Many factors may affect the operating range of the transmitter. Some of these are:
• The condition of the battery in the transmitter.
• The operating environment (for example: downtown radio-frequency noise, airports, cellular
phone towers…)
• Metal: any type of metal will affect operating range. This includes the metal in the car.
• The shape of the vehicle can affect range as well; vans in general have an especially poor
range.
• The shape of the roof and A-pillars brings about considerable radio-frequency deflection (in this
case the signal from the remote control). As a result, the direction in which the vehicle is facing
in relation to the remote control can affect the range. Straight on – standing in front of the
vehicle – generally gives you the greatest range; the second best performance is from the back.
Using the remote control from either side of the vehicle will usually give the lowest range.
• The range will be significantly lower in a crowded parking lot than in open space.
P. 14 User Guide
• Always hold the transmitter high, approximately at shoulder height. Holding the transmitter
against your chin will also increase your range: your head acts as an antenna.
• The operating range will be somewhat lower on vehicles equipped with an aftermarket or factory
alarm.
User Guide P. 15
Diagnostics – Parking Light Flash Table
Flashes Description
1
• Doors locked, starter kill armed
• End of run time
• TRUNK button pressed
• Start signal received by the module
• Cold weather mode cancelled
2
• Doors unlocked, starter kill disarmed
• Run time cancelled
• Remote start attempt cancelled by remote
• Exiting remote valet
• Exiting ignition valet
3
• Entering cold weather mode.
• Entering extended run time.
• Entering remote valet
• Entering ignition valet
4 • +12 V where detected on the brake line and cranking was cancelled.
• Entering tach-programming mode
5 • New transmitter programmed.
• Tach programmed.
6 • A remote start was attempted while a tach or a vacuum signal was detected
before cranking.
8 • Unit reset: occurs when the unit is reset to the factory defaults.
10 • The hood switch line went to ground during cranking or run time.
1 – pause – 2 • There was an attempt to start the vehicle while the module was in valet
mode.
ON solid • Cold weather mode: the brake pedal is being held down.
2 – pause – 2 • There was an attempt to start the vehicle while the module was in home valet
mode.
ON 2 sec. • The hood is up and the hood switch line went to ground. This is step one of
the programming centre procedure.
ON 3 sec. • First press of the START button under safe start.
ON 4 sec. • Locking or unlocking a door (with door pulses configured to 4 sec.)
ON 25 sec.
• The hood pin-switch has been pressed twice: the unit went into step 1 of the
programming centre procedure, and no transmitter activity was detected for
20 seconds.
• Or the unit went into step 1 of the transmitter programming procedure and no
activity was detected for a few seconds. The unit has exited the transmitter
programming procedure.
Irregular
• If the unit gives irregular signals (1 to 10 flashes followed by a pause,
followed by further flashes), the system is playing back start failure codes.
This occurs when the hood pin-switch is pressed three times
Constant
flashes
up to 25 sec.
• Panic mode is triggered.
