TWO-WAY LCD AUTOMATIC TRANSMISSION REMOTE STARTER
DOC:.1.53 – July 31, 2006 CA FB TL Manufactured in Canada
User Guide
A note concerning the battery inside the transmitter:
Depending on your usage of the transmitter, the battery can last anywhere between 3 to 6 months.
When the battery is low, the transmitter will produce two beeps in a repetitive cycle. At that point
you should replace your battery with a new one. That is why we recommend that you keep a
spare battery somewhere handy such as the glove compartment.
Table of Contents
Transmitter Part Number and Serial Number of the
Remote Car Starter Module..................................... 2
Introduction .............................................................. 2
Using the Transmitter............................................... 2
Remote-Starting Your Vehicle ................................. 2
Vehicle Presets (Heater & Heated Seat) ................. 2
Driving Off ................................................................ 2
Using the Remote Starter ........................................ 3
Arming the Starter Kill .............................................. 3
Idle Mode.................................................................. 3
Turbo Mode.............................................................. 3
Valet Mode Using the Valet Switch (if installed)...... 3
Ignition Valet ............................................................ 4
Remote Valet Mode ................................................. 4
“Home ValetTM” Mode............................................... 4
Panic Mode .............................................................. 4
Quick LockoutTM ....................................................... 5
Cold Weather Mode ................................................. 5
Advanced Features: Installation-programmable
Options ..................................................................... 5
Remote Door Locks ................................................. 5
Priority Door Access................................................. 5
Active or Passive Arming ......................................... 5
The Starter Kill and the Anti-grind Feature .............. 6
Flashing LED............................................................ 6
Safe Start ................................................................. 6
Home Valet TM .......................................................... 6
Ignition-Controlled Door Locks ................................ 6
Ignition Re-lock ........................................................ 6
Secure Lock ............................................................. 6
Turbo Mode.............................................................. 6
Remote Trunk Release ............................................ 6
Engine Run Time ..................................................... 7
Extended Run Time ................................................. 7
Multi-car Operation................................................... 7
Troubleshooting Transmitting Range....................... 7

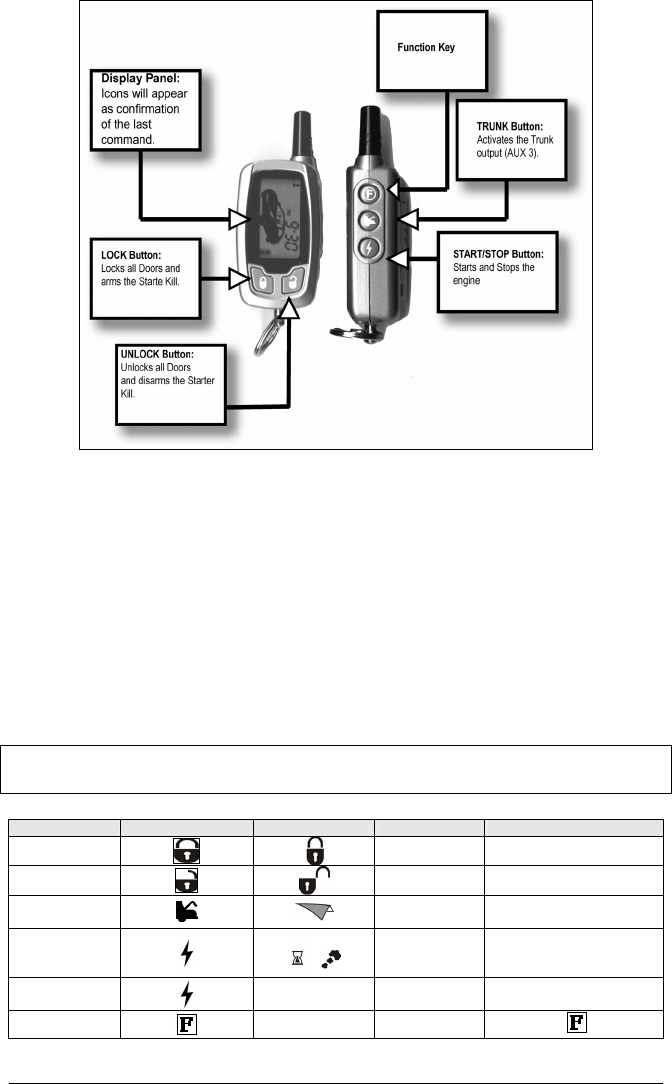

LCD Remote Functions............................................ 8
Basic Vehicle Operations......................................... 8
Transmitter Mode Selection ..................................... 9
Time or Alarm Clock Adjustments ........................... 9
Cold Weather Mode ................................................. 9
Home ValetTM ........................................................... 9
Safe Start Mode ..................................................... 10
Timing Countdown Adjustment.............................. 10
LCD Transmitter Operation and Confirmations
(Second Car Control) ............................................. 10
Basic Operations.................................................... 10
Start/Stop While in Safe Start Mode ...................... 10
Missing a Start or a Stop Confirmation.................. 11
Multi-Level Features (default state) ....................... 11
Accessing the Multi-Level Features and Other
Transmitter Functions ............................................ 11
Diagnostics – Parking Light Flash Table ............... 12
FCC USER NOTICE (U.S.A.):
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation. NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized
modifications to this equipment. Such modifications could void the user's authority to operate the equipment.
P. 2 User Guide
Transmitter Part Number and Serial Number of the Remote Car
Starter Module
The boxes below contain information concerning your transmitter and Remote Car Starter.
We entered the part number of your transmitter for you. Should you need to order a new
transmitter, you will need to provide the transmitter part number which is printed below.
The second box contains the serial number of the Remote Car Starter. Please make sure that the
installer has entered the serial number in that box.
Transmitter Part Number: ASRF-5501G-100
The installer must use the space below to write the serial number of the Remote Car Starter and
the location of the valet switch (if installed):
Serial Number of the Remote Car Starter:
Location of the Valet Switch (if installed):
Introduction
This is a state-of-the-art remote starter system. The system is packed with advanced features such
as priority access to the driver’s door (commodity features) and the safe start children safety
feature. With many an advanced function, this product will satisfy any one of your expectations
from high-end commodity and security systems, without neglecting any standard feature commonly
offered by entry-level starters.
Using the Transmitter
Your remote starter is equipped with a 5-button multi-channel remote control. It can operate two
independent vehicles equipped with identical remote starters (see Multi-car operation section on
page 7).
Remote-Starting Your Vehicle
Press the START/STOP button for approx. 1 second. The parking lights will come ON to inform you
that the remote starter has received your signal. Approximately 5 seconds later, the engine will
start. The parking lights will remain ON during the pre-programmed run time of the engine. If the
vehicle does not start at the first attempt, the system will shut down, wait a few seconds and try to
start the engine again. There will be 3 start attempts before the system gives up.
Vehicle Presets (
Heater & Heated Seat
)
When leaving the vehicle it is recommended to preset the accessory controls in preparation for the
next remote start. Settings for the blower motor (fan), front and rear, as well as heated seats (if
equipped) should not be left on HIGH. It is recommended to leave the settings on LOW or MEDIUM
instead.
Windshield Wipers & Radio & Headlights
Certain vehicles require the radio and / or windshield wiper and / or headlight circuits to become
energized while running under remote start. When leaving the vehicle you must ensure that the
windshield wiper and headlight switches are OFF. Leaving the headlight switch ON on certain types
of vehicles could cause them to remain ON even after remote starter shut down, resulting in a dead
battery.
Driving Off
With the vehicle running under remote control, press the UNLOCK button to disarm and unlock the
doors. Enter the vehicle and do the following:
Turn the ignition key to the IGNITION ON (RUN) position. (Do not turn the key to the CRANK position
while the engine is running. This would cause the starter motor to re-engage.)
Press the brake pedal to disengage the remote starter unit.
You are now ready to drive off.
User Guide P. 3
Using the Remote Starter
Arming the Starter Kill
The starter kill (if installed) can be configured by the installer so as to arm automatically (passive
mode) or not to arm automatically (active mode). See section passive or active arming on p. 5 for
more details on passive mode and active mode.
• To disarm the starter kill, press the UNLOCK button on the transmitter.
The parking lights will flash twice.
If remote door locks are installed, this will also unlock the doors.
• To arm the Starter Kill, press the LOCK button on the transmitter.
The parking lights will flash once.
If remote door locks are installed, this will also lock the doors.
• In passive mode, the starter kill will automatically arm if the ignition key is not inserted
into the ignition switch within 1 or 3 minutes after unlocking (the key sense feature
must be installed).
Idle Mode
Convenience feature: Idle mode allows you to keep the engine running and the doors locked
while you stop, for example, at a convenience store or for a short delivery.
This feature allows you to let the remote starter take over control of the vehicle (i.e. no key in the
ignition switch) while the engine is running. For example, if you stop for a delivery or at a conveni-
ence store, lock your vehicle and leave it running for the length of a run cycle while you are away.
To leave the vehicle in idle mode:
1. With the engine running, press the LOCK or UNLOCK button (to unlock the doors) or the
START/STOP button on the remote control until the parking lights come on.
2. Remove the key and exit the vehicle. The engine will go on running.
3. Lock the doors if needed.
The engine will go on running until the user re-enters the vehicle or until the expiration of the
engine run time .
Caution!!! Do not leave children or pets unattended in a vehicle standing in Idle Mode.
Turbo Mode
If turbo mode is configured at installation, it will allow a turbocharger to idle down after the user
leaves the vehicle: the unit will take over the vehicle and keep it running for 60 seconds (or until it
is shut down by remote control), then shut down the engine.
Proceed as follows to set the system to Turbo Mode:
1. With the engine already running, press the LOCK button on the transmitter until the parking lights
come ON.
2. Remove the ignition key from the ignition switch. The engine will go on running.
3. Exit the vehicle and close the door.
4. Press the TRUNK button to lock the doors; the engine will shut down after 60 seconds of Turbo
Mode.
Valet Mode Using the Valet Switch (
if installed
)
When your vehicle is in valet mode, the remote starter functionalities are disabled. If the vehicle
needs to be serviced, or if you park it indoors, the valet mode will prevent the engine from being
remote-started accidentally.
To put the system i n t o valet mode with Valet Switch:
1. Turn the ignition key to the IGNITION ON (RUN) position.
2. Within 3 sec., press the valet button (the L.E.D. will come ON solid).
3. The parking lights will flash three times to indicate that the vehicle is now in valet mode. The
L.E.D. will come ON solid.
— The icon will appear on your LCD remote.
To take the system o u t o f valet mode with Valet Switch:
1. Turn the ignition key to the IGNITION ON (RUN) position.
2. Within 3 sec., press and release the valet button (the L.E.D. will come OUT).
3. The parking lights will flash twice to indicate that the vehicle is now in valet mode.
The L.E.D. will go out.
— The icon will disappear from your LCD remote.
P. 4 User Guide
Note: Once valet mode is activated, the remote starter and alarm functions will be disabled.
Ignition Valet
This feature will allow you to remotely put your system into valet mode by using the ignition key
instead of the valet button as above. Ignition valet can be used without a valet button installed.
To put the system i n t o I g n i t i o n valet mode:
Insert the ignition key into the ignition switch. Within 10 sec., turn the key 5 times successively into
the IGNITION ON / RUN and OFF positions.
The parking lights will flash three times to indicate that the vehicle is now in valet mode. The L.E.D.
will come ON solid.
— The icon will appear on your LCD remote.
To take the system out of Ignition valet mode:
Insert the ignition key into the ignition switch. Within 10 sec., turn the key 5 times successively into
the IGNITION ON / RUN and OFF positions.
The parking lights will flash twice to indicate that the vehicle is now out of valet mode. The L.E.D.
will go out.
— The icon will disappear from your LCD remote.
Note: With the remote valet activated, the remote starter and alarm functions will be disabled.
Remote Valet Mode
This feature will allow you to remotely put your system into valet mode by using the transmitter
instead of the valet button as above.
Getting into Remote valet mode
• Hold the UNLOCK and START/STOP buttons simultaneously for 3 second.
• The parking lights will flash 3 times.
The LED will remain on solid.
— The icon will appear on your LCD remote.
Getting out of Remote valet mode
• Hold the UNLOCK and START/STOP buttons simultaneously for 3 second.
• The parking lights will flash 2 times.
The LED will turn off.
— The icon will disappear from your LCD remote.
“Home ValetTM” Mode
If configured at installation, this feature will remotely set the vehicle to a no-remote-start mode: if
the vehicle is parked indoors there is no danger of it starting accidentally by remote control.
Note: Once the home valet mode is activated, the vehicle will not start by remote.
To take the system i n t o home valet mode:
• Press the LOCK or UNLOCK button.
• Within 3 seconds, press the LOCK and START/STOP buttons simultaneously until the parking lights
go out
To take the system o u t o f home valet mode:
• Turn the ignition key to the IGNITION ON (RUN) position.
The system will warn you if someone attempts to start your vehicle while it stands in home valet
mode. The parking lights will:
1- Turn ON then OFF; then
2- Flash twice, pause; then
3- Flash twice again.
Panic Mode
In an emergency situation, you can activate panic mode by pressing and holding the FUNCTION
button for 3 seconds. If the vehicle is under a remote start, the engine will shutdown automatically
before setting off the horn. You can stop the horn by pressing LOCK (this will lock your doors) or by
pressing UNLOCK (this will unlock your doors).
If the car is not running, you can stop the horn by pressing the LOCK or UNLOCK buttons but it will not
lock or unlock the doors.
Furthermore, the panic mode can be stop by activating one of the following three (3) features:
a) Remote valet (pressing UNLOCK and START/STOP for 3 seconds)
User Guide P. 5
b) Ignition valet (turning the key inside the ignition switch from off to on 5 times in a row)
c) By pressing the valet switch (if included).
Panic mode will automatically shut down after 30 sec.
Note: Panic mode can only be activated if the horn has been adequately configured by
your installer.
Quick LockoutTM
(Also called secure panic.) For fast protection in emergency situations, the system will LOCK all
doors when you press the brake pedal while you hear the sound signal. (Quick lockout is only
available when panic mode has been set off.)
Cold Weather Mode
When cold weather mode is active, the engine starts every 2 hours and runs for 4 minutes (or for 9
or 20 minutes with diesel engines). Cold weather mode automatically ends after 24 hours.
To enter Cold Weather Mode:
• Press the FUNCTION button and then the START/STOP for 3 seconds.
• There will be two (2) beeps and the parking lights will flash three (3) times.
To exit Cold Weather Mode, do any one of the following actions:
• Open the hood.
• Start the engine by remote.
• Turn the ignition key to the IGNITION ON (RUN) position.
• Press the FUNCTION button and then the START/STOP button for three seconds.
• There will be one (1) beep and the parking lights will flash once.
To verify whether the system is in cold weather mode:
Press the brake pedal: If the vehicle is in cold weather mode, the parking lights will stay on while
the pedal is pressed.
Advanced Features: Installation-programmable Options
The remote starter was designed with flexibility and OEM integration in mind. With its program-
mable options, this unit can single-handedly control nearly any electrical system in your vehicle.
Caution: The programming of your system should be left to a professional. Changing any
one of the settings may affect the operation of your remote starter.
The installation-programmable options are as follows:
• Remote Door Locks
• Priority Door Access
• Passive or Active Arming
• Starter Kill / Anti-grind feature
• Horn Chirp Timing
• Safe Start
• Home Valet TM
• Ignition-controlled door locks
• Ignition Re-lock
• Secure Lock
• Turbo Mode
• Remote Trunk Release
• Engine Run Time
Remote Door Locks
If your remote starter was installed with the remote door locks option, you will have the
convenience of remote keyless entry. See section Arming and Disarming the Remote Starter, on
page 3, for further instructions on remote door locking and unlocking.
Priority Door Access
If the remote door locks option is installed on your vehicle, this safety feature allows you unlock
solely the driver’s door with a single press of the UNLOCK button on the transmitter; upon a second
press of the UNLOCK button, all the other doors will unlock.
Active or Passive Arming
The starter kill can be configured either to passive mode (so as to arm automatically) or active
mode (so as to require user intervention for arming). By default, your remote starter is configured to
passive mode. In passive mode, the starter kill will automatically arm 60 seconds after the last door
is closed. The remote starter will not arm if a door is left open, or if you re-open a door within the
60-second delay.
Important note: When the remote starter re-arms automatically, you can disarm the When
the remote starter by simply pressing the UNLOCK button.
P. 6 User Guide
The Starter Kill and the Anti-grind Feature
With this added security feature, the system will prevent your vehicle from starting with the ignition
key when the starter kill is armed. If your remote starter was installed with the starter kill option,
one will not be able to start your vehicle with the key unless the system has been unlocked and
disarmed first, or put into valet mode.
Note: If the starter kill is installed, your vehicle will benefit from a protection against starter
motor damage that could occur after remote-starting the engine should the user, by force of
habit, turn the ignition key to the CRANK position.
Flashing LED
The user may decide to turn on or off LED flashing at any moment. To do so, simultaneously press
and hold the LOCK and UNLOCK buttons on the transmitter. There will be an initial beep. Keep
holding the buttons pressed until you hear another beep. At that point release the buttons. The
LED will toggle to its next state –i.e.: ON/OFF:
There are three programmable options regarding the flashing LED:
i. The LED flashes once the starter kill is activated (passive or active arming) and will
turn itself off once the user turns the key to the IGNITION ON position.
ii. The LED is totally disabled and will not flash –it will turn on solid, however, when in
valet mode.
iii. The LED will flash once the starter kill is activated but requires pressing the UNLOCK
button to turn itself off. Failure to press the UNLOCK button will make the LED flash
even if the key is in the IGNITION ON position.
Safe Start
If this feature is enabled, the user must press the START/STOP button 2 times within 3 seconds to
remote-start the vehicle. This will eliminate accidental remote starts, e.g. when children are playing
with the transmitter.
If swap start mode is selected, to remote-start your vehicle, press the FUNCTION button and then the
LOCK button. The AUX 2 output can be activated by pressing the START/STOP button.
Home Valet TM
If this feature is installed, the user will have the possibility to remotely set the vehicle to a no-
remote-start mode. See home valet section, on page 4, for full instructions.
Ignition-Controlled Door Locks
This is an added security feature. If your remote starter was installed with the ignition-controlled
door locks option, the doors will automatically be locked as soon as the ignition key is turned to the
IGNITION ON (RUN) position while the brakes are pressed. When the key is turned to the OFF position,
the doors will automatically be unlocked.
Ignition Re-lock
On remote starters of this series, when ignition-controlled door locks are enabled and the ignition
key is in the IGNITION ON (RUN) position, should any door be unlocked and opened, all doors will be
relocked next time the brake pedal is pressed.
Secure Lock
Before it can remote-start your vehicle, the remote starter must first disarm the factory security
system. The secure lock feature may be required on certain vehicle models with factory security
systems that automatically unlock the doors when the security system is disarmed. To keep your
vehicle protected when the factory security system is disarmed for a remote start, secure lock will
relock your doors as soon as the vehicle has started. Once the engine run cycle ends, secure lock
will rearm your factory security system.
Turbo Mode
When left in turbo mode, the remote starter will keep the engine running for 60 seconds before
shutting it down. This is to allow a turbocharger to idle down after the user leaves the vehicle. See
Turbo Mode section on page 3.
Remote Trunk Release
If your system was installed with the Remote Trunk Release option, you can open your trunk by
pressing the TRUNK button for 3 seconds on the remote transmitter or by pressing the TRUNK button
TWICE within 3 seconds.
User Guide P. 7
Engine Run Time
If you have a gas engine, your remote starter can be programmed to run the engine for 4, 15, or
25 minutes (15 minutes by default). If you have a diesel engine, the remote starter can be
programmed to run the engine for 9, 20, or 30 minutes (20 minutes default).
Extended Run Time
While the vehicle is running under a remote start, pressing and holding the START/STOP button
for more than 3 seconds will reset the run time counter to zero and restart the run time cycle from
the beginning. There will be one beep a pause three more beeps; the parking lights will flash
three times and the horn (if configured) will honk once. The extended run time procedure can
only be carried out once per remote start.
To stop the vehicle, at any moment, simply press the START/STOP button.
Example: If your remote car starter is programmed for a run time of 4 minutes and your vehicle
has been running for 3 minutes already, pressing the START/STOP button will reset the
counter to zero and allow the engine to run for another cycle (in this case, 4 minutes).
Multi-car Operation
This option allows the owner of two vehicles, both equipped with the same remote starter model, to
control both systems with a single remote control. To control the second vehicle:
Note: Your remote control must be configured for second car operation by the installer.
Press COFFRE + LOCK:............................................................. LOCK
Press COFFRE + UNLOCK:......................................................... UNLOCK
Press COFFRE + START/STOP: .................................................................START
Press COFFRE + START/STOP: ................................................... STOP
Press FUNCTION ¾ FUNCTION + TRUNK:.................................... TRUNK
or
Press FUNCTION ¾ FUNCTION ¾ + LOCK: .................................. LOCK
Press FUNCTION ¾ FUNCTION ¾ + UNLOCK:.............................. UNLOCK
Press FUNCTION ¾ FUNCTION ¾ + START/STOP: ...............................START
Press FUNCTION ¾ FUNCTION ¾ + START/STOP: ........................ STOP
Press FUNCTION ¾ FUNCTION ¾ + TRUNK: ................................ TRUNK
Troubleshooting Transmitting Range
Many factors may affect the operating range of the transmitter. Some of these are:
• The condition of the battery in the transmitter.
• The operating environment (for example: downtown radio-frequency noise, airports, cellular
phone towers…)
• Metal: any type of metal will affect operating range. This includes the metal in the car.
• The shape of the vehicle can affect range as well; vans in general have an especially poor
range.
• The shape of the roof and A-pillars brings about considerable radio-frequency deflection (in this
case the signal from the remote control). As a result, the direction in which the vehicle is facing
in relation to the remote control can affect the range. Straight on – standing in front of the
vehicle – generally gives you the greatest range; the second best performance is from the back.
Using the remote control from either side of the vehicle will usually give the lowest range.
• The range will be significantly lower in a crowded parking lot than in open space.
• Always hold the transmitter high, approximately at shoulder height. Holding the transmitter
against your chin will also increase your range: your head acts as an antenna.
• The operating range will be somewhat lower on vehicles equipped with an aftermarket or factory
alarm.
The functions of the transmitter are as follows:
P. 8 User Guide
• Pressing and holding the LOCK button for more than 3 seconds will lock all doors and will send a
constant pulse as long as the LOCK button is held down (maximum of 15 seconds). This
constant pulse can be configured to activate certain functionalities such as rolling up the
windows – Please refer to your installer to see if your vehicle is compatible with this
option.
• Pressing and holding the UNLOCK button for more than 3 seconds will unlock all doors and will
send a constant pulse as long as the UNLOCK button is held down (maximum of 15 seconds).
This constant pulse can be configured to activate certain functionalities such as rolling down the
windows – Please refer to your installer to see if your vehicle is compatible with this
option.

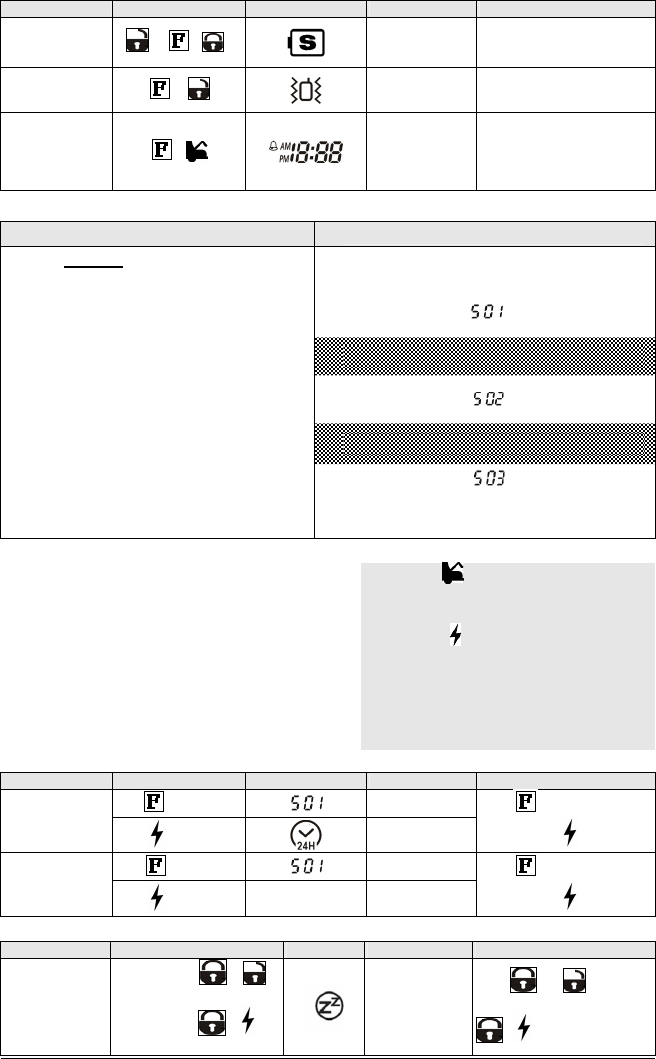

LCD Remote Functions
The transmitter offers several command-confirmation and timer features. This section explains
some of the key functions available. The next section gives a summary of the button combinations
used to access the functions.
Note: If you wish to exit a function while still in the process of accessing it, simply stop and wait at
least 10 seconds: the transmitter will return to its normal state.

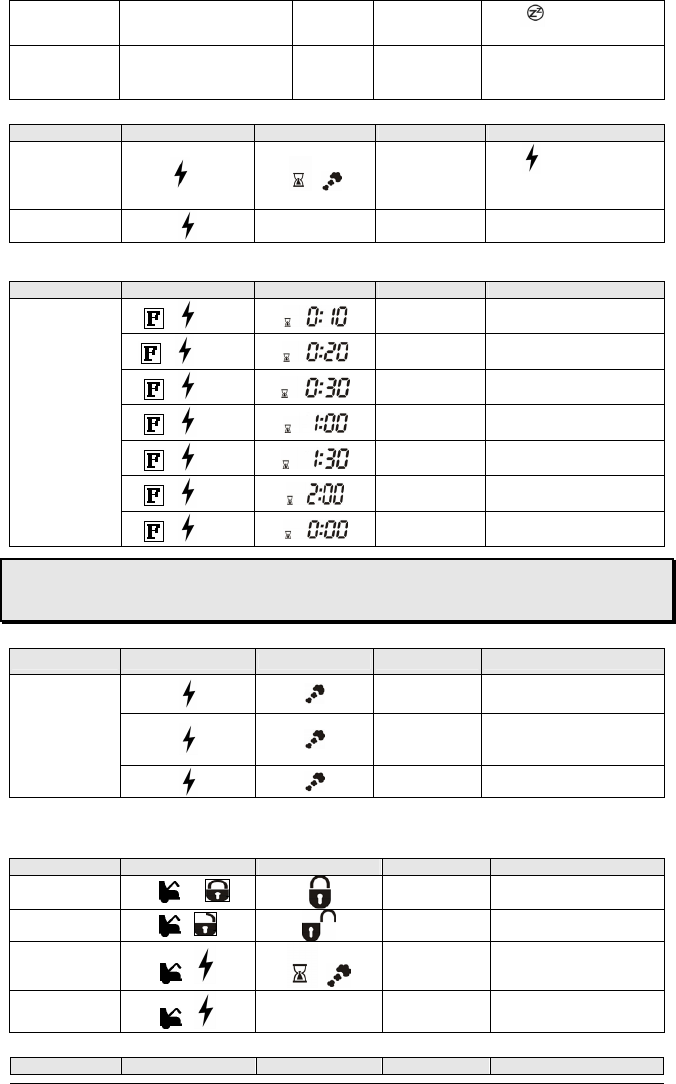

Basic Vehicle Operations
Function Button pressed Icon Sound Instructions /description
Lock 1 beep Lock and arm the starter kill
Unlock 2 beeps Unlock and disarm the starter kill
Trunk or aux 3 1 beep Trunk output
Start *
(see runtime options
below) + Melody Start the engine
Stop None Melody Stop the engine
Back light On for 5 seconds Press once
User Guide P. 9
Transmitter Mode Selection
Function Button pressed Icon sound Instructions /description
Power-saving mode + ( + ) Melody
Press unlock first and then
press the function button and
the lock button simultaneously.
Vibration mode + Vibrates 4x
Alarm clock mode
on/off + Melody
z Press once to have alarm
clock on
z Press twice to have alarm
clock off
Time or Alarm Clock Adjustments
User Transmitter
1. Press and hold the FUNCTION button until a
beep is heard
The backlight will turn on the moment the
FUNCTION button is pressed.
2. Upon hearing the beep, release the FUNCTION
button, ............................ is displayed
3. Press and hold the FUNCTION button once more
4. Release the FUNCTION button when a beep is
heard, ............................ is displayed
5. Press and hold the FUNCTION button once more
until a beep is heard,
6. Release the FUNCTION button ............................ is displayed
7. At that point, press and hold the FUNCTION
button until 2 beeps are heard. .......... The hour setting will start to flash.
Pressing the FUNCTION button
1X ........................................... Adjust hour (current time)
2X ...................................... Adjust minutes (current time)
3X ..................................................... Adjust hour (Alarm)
4X ................................................Adjust minutes (Alarm)
5X ..............Melody selection for the ringing of the alarm
6X ..................... Activate (ON) / Deactivate (OFF) Alarm
7X ............................................. Adjust hour (countdown)
8X ........................................Adjust minutes (countdown)
9X ........................... Melody selection for the countdown
10X...........Activate (ON) / Deactivate (OFF) countdown
a. Press the button to increase the value or
to activate or deactivate a function or to toggle
through the melodies.
b. Press the to decrease the value or to
activate or deactivate a function or to toggle
through the melodies.
c. To save modifications, do not touch any
buttons for approx 5 to 10 seconds. There
will be a beep and the display will return to the
time.
Cold Weather Mode
Function Button pressed Icon Sound Instructions /description
for 1 sec 1 Beep
To enter cold
weather mode
for 3sec 1 Beep
Press for 1 second and then
press and hold for 3 seconds.
for 1sec 1 Beep
To exit cold weather
mode
for 3sec None
Press for 1 second and then
press and hold for 3 seconds.
Home ValetTM
Function By pressing Icon Sound Instructions / description
To enter home
valet™ mode
Step 1 : or
step 2 : +
simultaneously
1 beep
Press or
Within 5 seconds, press
+ the transmitter will
P. 10 User Guide
within 5 sec. display and there will be 1
beep.
To exit home valet
™ mode None None None
Insert key in ignition switch and
turn to the on position. The icon
will disappear.
Safe Start Mode
Function By pressing Icon Sound Instructions / description
Start on safe start
mode x 2 + Melody Press twice within 3 seconds.
Press for 1 sec-melody-then
press 1 sec.
Stop on safe start
mode None Melody
Timing Countdown Adjustment
(see “ON PRESS NUMBER” 8 of Alarm and Countdown Adjustment)
Function By pressing Icon Sound Instructions / description
+ 1st time Melody 10 min parking count down mode
+ 2nd time Melody 20 min parking count down mode
+ 3rd time Melody 30 min parking count down mode
+ 4th time Melody 60 min parking count down mode
+ 5th time Melody 90 min parking count down mode
+ 6th time Melody 120 min parking count down
mode
For parking count
down
+ 7th time Melody Parking count down off mode
Once the Countdown is activated it will continue counting down until reaching 0:00. If the Timer has not
reached 0:00 and you are starting the vehicle, you should reset your Countdown Timer to 0:00 before starting
your vehicle as to avoid being startled.
*Runtime Status (Indication purpose only)
Function By pressing Icon Gasoline Diesel
4 minutes 9 minutes
Engine runtime 15 minutes 20 minutes
25 minutes 30 minutes
LCD Transmitter Operation and Confirmations (Second Car Control)
Basic Operations
Function Button press Icon Sound Description
Lock + 1 beep
Unlock + 2 beeps
Start + +
Melody
Stop + None Melody
Start/Stop While in Safe Start Mode
Function Button press Icon Sound Description
User Guide P. 11
Start on safe
start mode + x 2 +
Melody
Press +
simultaneously twice within 3
seconds. Press for 1 sec- a beep
will be heard- then press 1 sec
and a melody will be heard
again.
Stop on safe
start mode + None Melody
Missing a Start or a Stop Confirmation
If you have not received a Start or the Stop confirmation after pressing the START/STOP button,
simply press the LOCK button. Pressing the LOCK button will refresh the display and will confirm if
the vehicle was started or stopped.
No Start Confirmation Was Received:
If after remote starting the vehicle no confirmation was received, simply press the LOCK button, this
will refresh the display. If the vehicle was started successfully, the smoke icon and the hourglass
icon will appear as well as the run time countdown. Pressing the LOCK button will also lock all doors
(the lock icon will appear). If the doors were already locked prior to pressing the LOCK button, there
will be no change in the status of the doors i.e. the doors will remain locked.
On models where starter kills were installed, pressing the LOCK button will also activate the starter
kill.
No Stop Confirmation Was Received:
If after remote stopping the vehicle no confirmation was received i.e. the display did not return to
its basic state simply press the LOCK button, this will refresh the display. If the engine was
stopped, the smoke icon and the hourglass icon will disappear and the time will be displayed.
Pressing the LOCK button will also lock all doors (the lock icon will appear). If the doors were
already locked prior to pressing the LOCK button, there will be no change in the status of the doors
i.e. the doors will remain locked.
On models where starter kills were installed, pressing the LOCK button will also activate the starter
kill.
Multi-Level Features (default state)
Basic Features (press the FUNCTION button 1X)
FUNCTION ¾ LOCK:........................................................ aux 2
FUNCTION ¾ START/STOP ............................................... cold weather
Multi-Car Operation (press the FUNCTION button 2X)
FUNCTION ¾ FUNCTION ¾ LOCK:......................... 2nd car lock
FUNCTION ¾ FUNCTION ¾ UNLOCK:..................... 2nd car unlock
FUNCTION ¾ FUNCTION ¾ START/STOP:............... 2nd car start/stop
FUNCTION ¾ FUNCTION ¾ TRUNK:....................... 2nd car trunk
Customized Features (press the FUNCTION button 3X)
(May not be compatible with some vehicles)
Your installer can add customized features such as turning on the radio, opening sliding doors, etc.
FUNCTION ¾ FUNCTION ¾ FUNCTION ¾ LOCK:................ customized feature 1
FUNCTION ¾ FUNCTION ¾ FUNCTION ¾ UNLOCK: ............ customized feature 2
FUNCTION ¾ FUNCTION ¾ FUNCTION ¾ START/STOP: ...... customized feature 3
FUNCTION ¾ FUNCTION ¾ FUNCTION ¾ TRUNK: .............. customized feature 4
By default, the multi-level features are programmed as follows:
x Level 1 (Basic Features)
x Level 2 (Multi car operation)
x Level 3 (Customized Features)
Accessing the Multi-Level Features and Other Transmitter Functions
x To access a Level 1 feature, press and hold the FUNCTION button until you hear a “beep”; within
three seconds of hearing the “beep”, release the FUNCTION button. will be displayed. This
display means that you are now in Level 1. Simply press the corresponding button to access
the desired feature.
P. 12 User Guide
x To access a Level 2 feature, press and hold the FUNCTION button until you hear a “beep within
three seconds of hearing the “beep”, release the FUNCTION button and press and release the
FUNCTION button once more. will be displayed. This display means that you are now in
Level 2. Simply press the corresponding button to access the desired feature.
x To access a Level 3 feature, press and hold the FUNCTION button until you hear a “beep”; within
three seconds of hearing the “beep”, release the FUNCTION button and press and release the
FUNCTION button two more times. will be displayed. This display means that you are now
in Level 3. Simply press the corresponding button to access the desired feature.
x To access the transmitter functions (clock and alarm adjustments), press and hold the FUNCTION
button until you hear a “beep”; within three seconds of hearing the “beep”, release the FUNCTION
button and press and release the FUNCTION button three more times. There will be two quick
“beeps” indicating that you are now in the transmitter functions adjustment menu. The Hour
position will be flashing. Simply press and release the FUNCTION button until you reach the
desired location and proceed with the adjustment by pressing the START/STOP or TRUNK buttons.
Your installer can customize the system as to personalize these multi-level features in an order that
best suits you. Your options are:
Option 1:
Level 1 (requires pressing the FUNCTION button 1X) Æ Multi car operation
Level 2 (requires pressing the FUNCTION button 2X) Æ Basic features
Level 3 (requires pressing the FUNCTION button 3X) Æ Customized features
Option 2:
Level 1 (requires pressing the FUNCTION button 1X) Æ Basic features
Level 2 (requires pressing the FUNCTION button 2X) Æ Multi car operation
Level 3 (requires pressing the FUNCTION button 3X) Æ Customized features
Option 3:
Level 1 (requires pressing the FUNCTION button 1X) Æ Customized features
Level 2 (requires pressing the FUNCTION button 2X) Æ Multi car operation
Level 3 (requires pressing the FUNCTION button 3X) Æ Basic features
Option 4:
Level 1 (requires pressing the FUNCTION button 1X) Æ Basic features
Level 2 (requires pressing the FUNCTION button 2X) Æ Customized features
Level 3 (requires pressing the FUNCTION button 3X) Æ Multi car operation
Example: If the multi-level features were set to option 3, the setup would be as follows:
x Level 1 Æ Customized feature
x Level 2 Æ Multi car operation
x Level 3 Æ Basic features
The “Basic features” are now programmed as level 3 and therefore:
x To access the aux. 2 feature, the user needs to press on the FUNCTION button three (3) times
followed by the LOCK button.
x To access cold weather mode, the user needs to press on the FUNCTION button three (3) times
followed by the START/STOP button.
Diagnostics – Parking Light Flash Table
Flashes Description
1
• Doors locked, starter kill armed.
• End of run time.
• TRUNK button pressed
• Start signal received by the module.
• Cold weather mode cancelled.
• Cannot start after maximum number of attempts is reached.
• Enabling LED.
2
• Doors unlocked, starter kill disarmed.
• Run time cancelled.
• Remote start attempt cancelled by remote.
• Exiting remote valet
• Exiting ignition valet
User Guide P. 13
3
• Entering cold weather mode.
• Entering extended run time.
• Entering remote valet
• Entering ignition valet
• Disabling LED
4 • +12 V where detected on the brake line and cranking was cancelled.
• Entering tach-programming mode
5 • New transmitter programmed.
• Tach programmed.
6 • A remote start was attempted while a tach or a vacuum signal was detected before cranking.
8 • Unit reset: occurs when the unit is reset to the factory defaults.
10 • The hood switch line went to ground during cranking or run time.
1 – pause – 2 • There was an attempt to start the vehicle while the module was in valet mode.
ON solid • Cold weather mode: the brake pedal is being held down.
2 – pause – 2 • There was an attempt to start the vehicle while the module was in home valet mode.
ON 2 sec. • The hood is up and the hood switch line went to ground. This is step one of the programming
centre procedure.
ON 3 sec. • First press of the START button under safe start.
ON 4 sec. • Locking or unlocking a door (with door pulses configured to 4 sec.)
ON 25 sec.
• The hood pin-switch has been pressed twice: the unit went into step 1 of the programming
centre procedure, and no transmitter activity was detected for 20 seconds.
• Or the unit went into step 1 of the transmitter programming procedure and no activity was
detected for a few seconds. The unit has exited the transmitter programming procedure.
Irregular
• If the unit gives irregular signals (1 to 10 flashes followed by a pause, followed by further
flashes), the system is playing back start failure codes. This occurs when the hood pin-
switch is pressed three times
Constant flashes
up to 30 sec. • Panic mode is triggered.
