Astoria

Pellet Stove

• Horizontal Or Vertical Vent

• Freestanding Stove

• Mobile Home Approved

• Class A Chimney Retrofit

• Hearth Stove into Existing

Masonry Chimney , Masonry

Fireplace, or Z.C. Fireplace

-- Please read this entire manual before

installation and use of this pellet fuel-

burning room heater. Failure to follow

these instructions could result in

property damage bodily injury or even

death.

-- Contact local building or fire officials

about restrictions and installation

inspection requirements in your area.

Tested and Listed by

OMNI-Test Laboratories, Inc.

Beaverton, Oregon

Report # 028–S–42-2

ASTME-1509 1995, ULCC 1482

Owner's Manual

Installer: After installation give this manual to the home-owner

and explain operation of this heater.

Mukilteo, WA 98275

2Introduction

Travis Industries Heritage PS 270603

Introduction

We welcome you as a new owner of an Astoria pellet heater. In purchasing an Astoria you have joined

the growing ranks of concerned individuals whose selection of an energy system reflects both a

concern for the environment and aesthetics. The Astoria is one of the finest home heaters the world

over. This manual will explain the installation, operation, and maintenance of this pellet-burning

heater. Please familiarize yourself with the Owner's Manual before operating your heater and save the

manual for future reference. Included are helpful hints and suggestions which will make the

installation and operation of your new heater an easier and more enjoyable experience. We offer our

continual support and guidance to help you achieve the maximum benefit and enjoyment from your

heater.

Important Information

No other Astoria heater has the same serial number as

yours. The serial number is on the hopper lid.

This serial number will be needed in case you require

service of any type.

Model: Astoria

Serial Number:

Purchase Date:

Purchased From:

Mail your Warranty Card

Today, and Save Your Bill of

Sale.

To receive full warranty coverage,

you will need to show evidence of

the date you purchased your

heater. Do not mail your Bill of

Sale to us.

We suggest that you attach your

Bill of Sale to this page so that you

will have all the information you

need in one place should the need

for service or information occur.

Table of Contents 3

Travis Industries 4050225 100-01154

Introduction

Introduction......................................................2

Important Information .........................................2

Safety Precautions

Safety Precautions ............................................4

Specifications

Heating Specifications........................................6

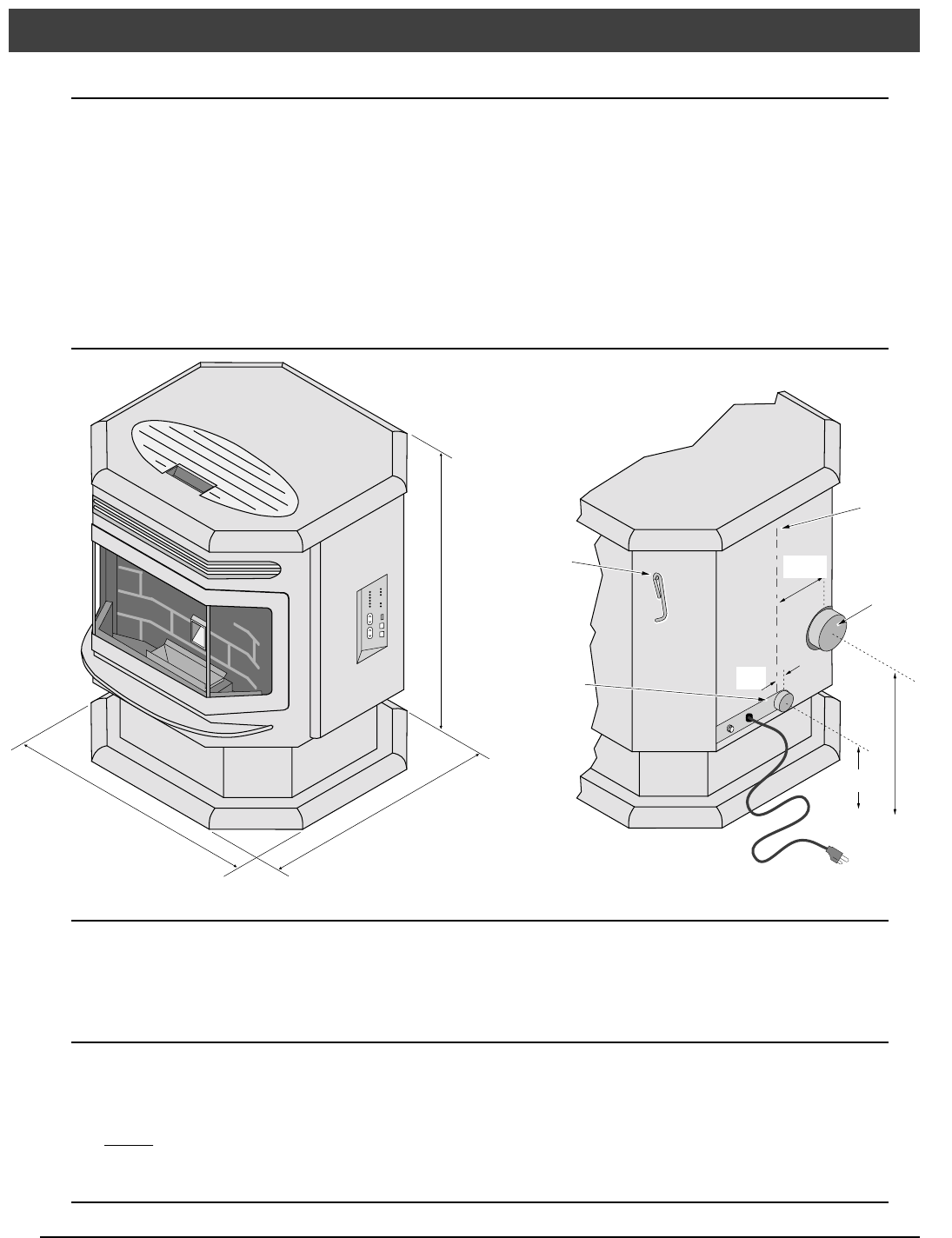

Dimensions.......................................................6

Electrical Specifications......................................6

Fuel.................................................................6

EPA Compliance................................................6

Installation

Before you Begin ...............................................7

Packing List......................................................7

Installation Options............................................7

Planning the Installation......................................7

Stove Placement ...............................................7

Floor Protection Requirements..............................7

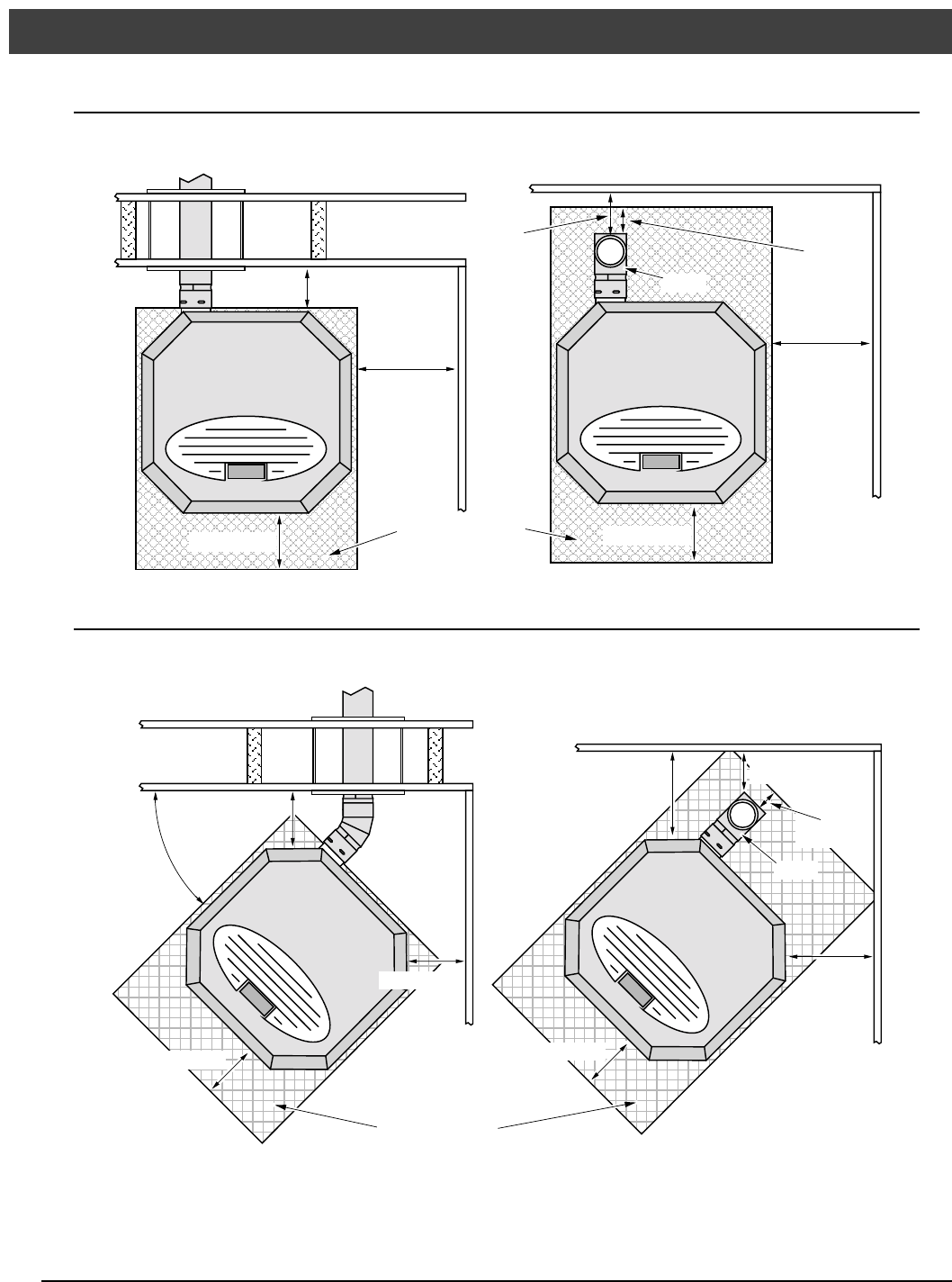

Clearances - Straight Installation ..........................8

Clearances - Corner Installation............................8

Venting the Pellet Stove......................................9

Maximum Venting Distance .............................9

Pellet Vent Type............................................10

Installing the Pellet Vent.................................10

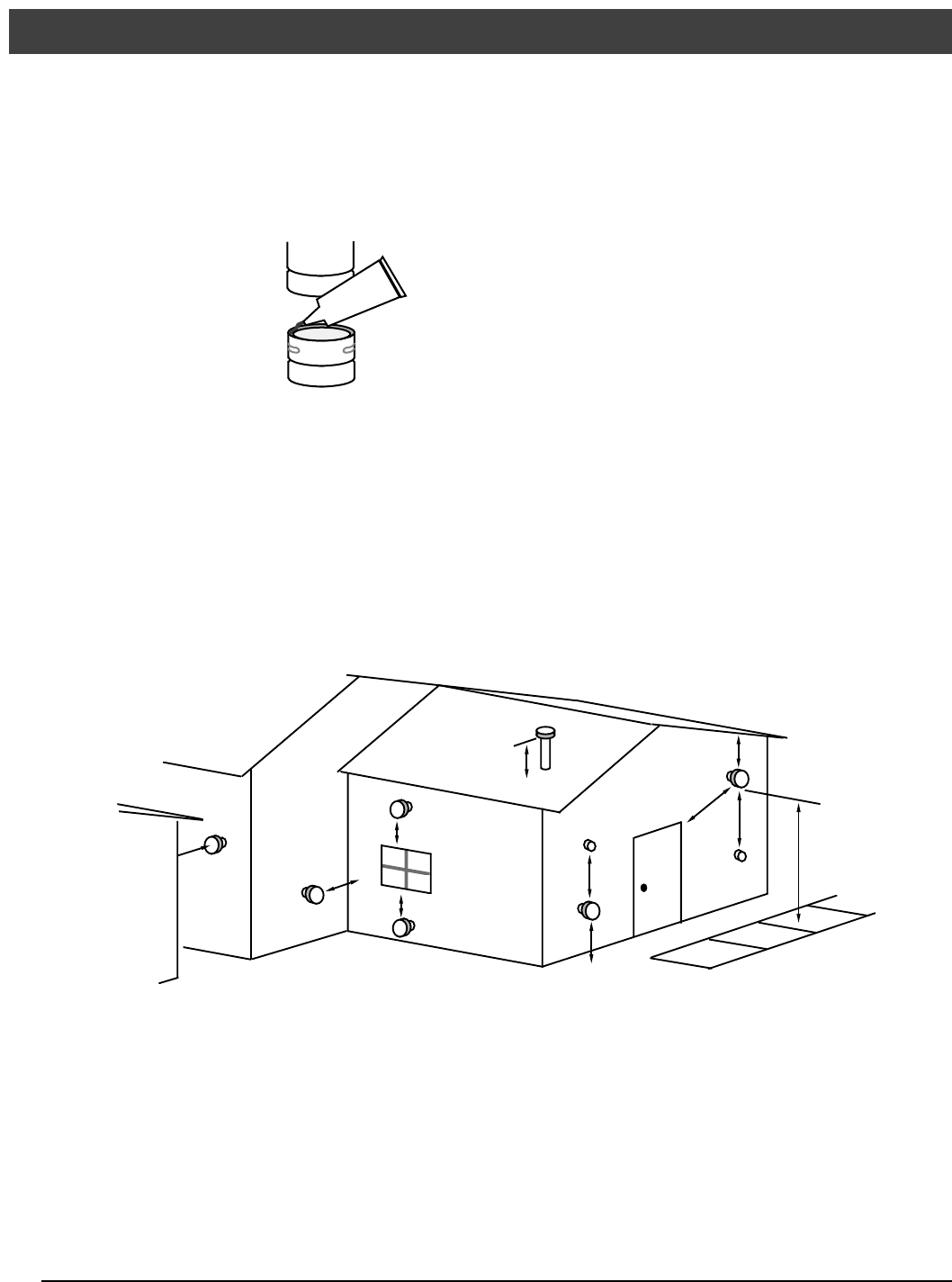

Pellet Vent Termination...................................10

Mobile Home Requirements..................................11

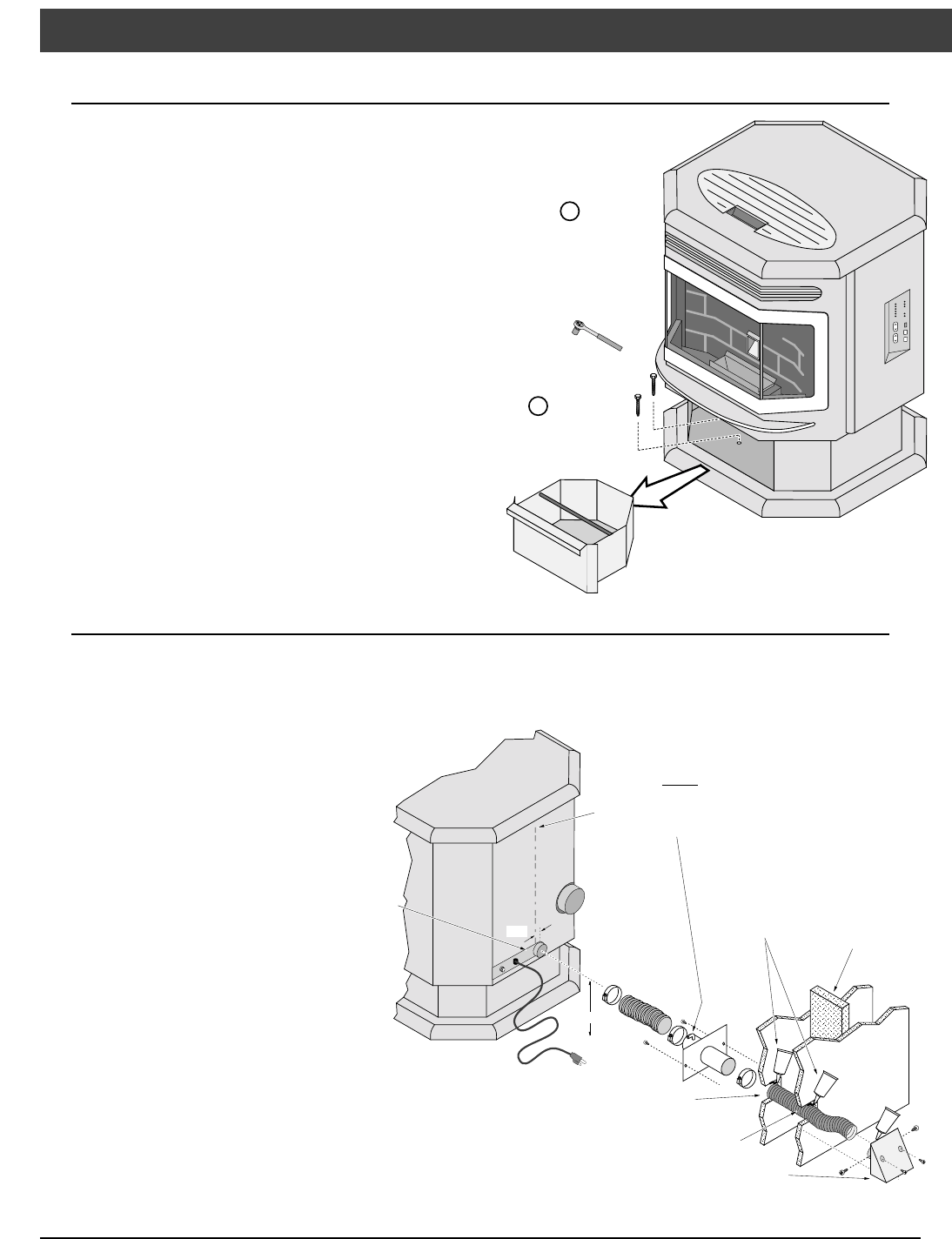

Outside Air .......................................................11

Alcove Installation Requirements..........................12

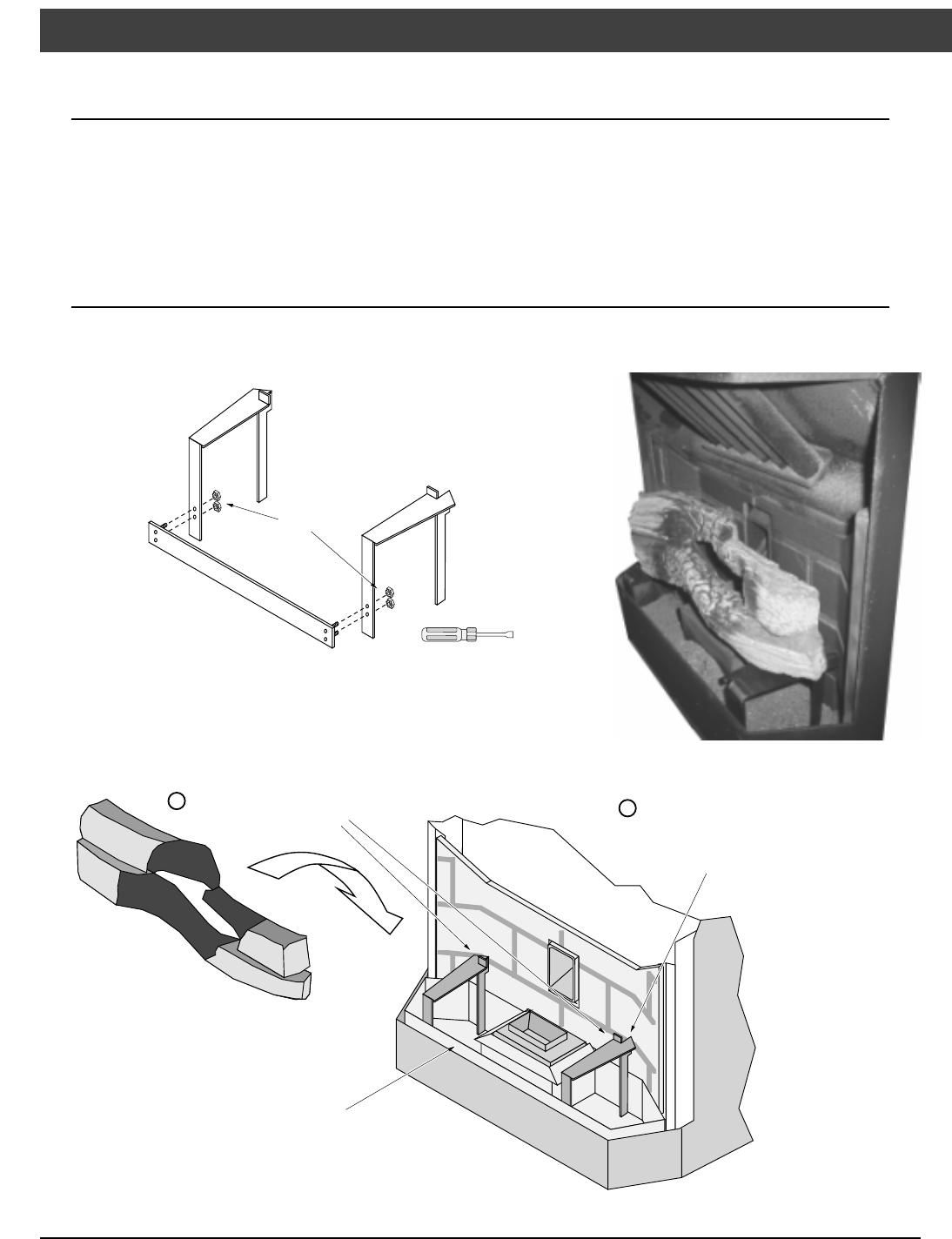

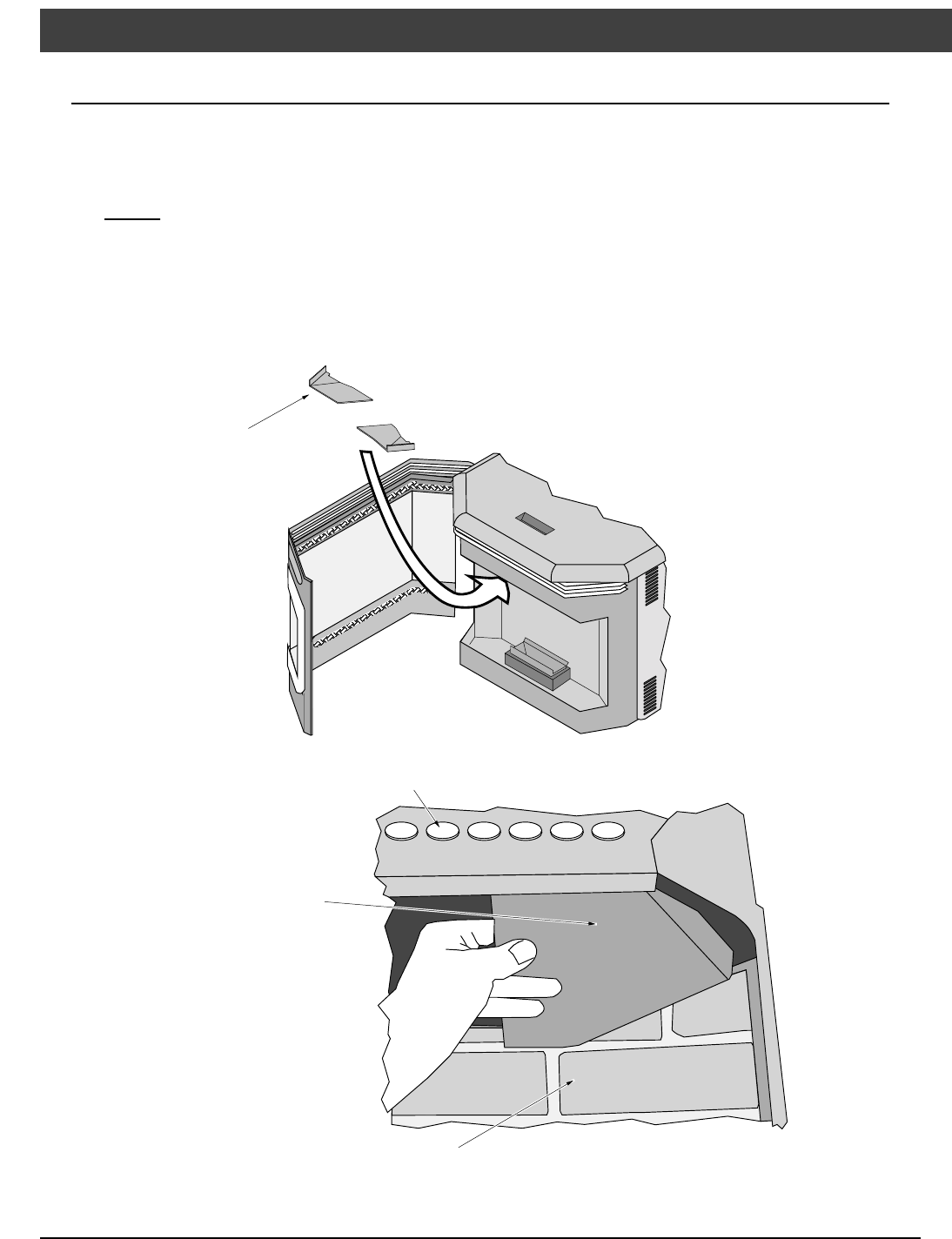

Baffle Installation...............................................12

Door Seal Verification .........................................12

Restrictor Adjustment.........................................12

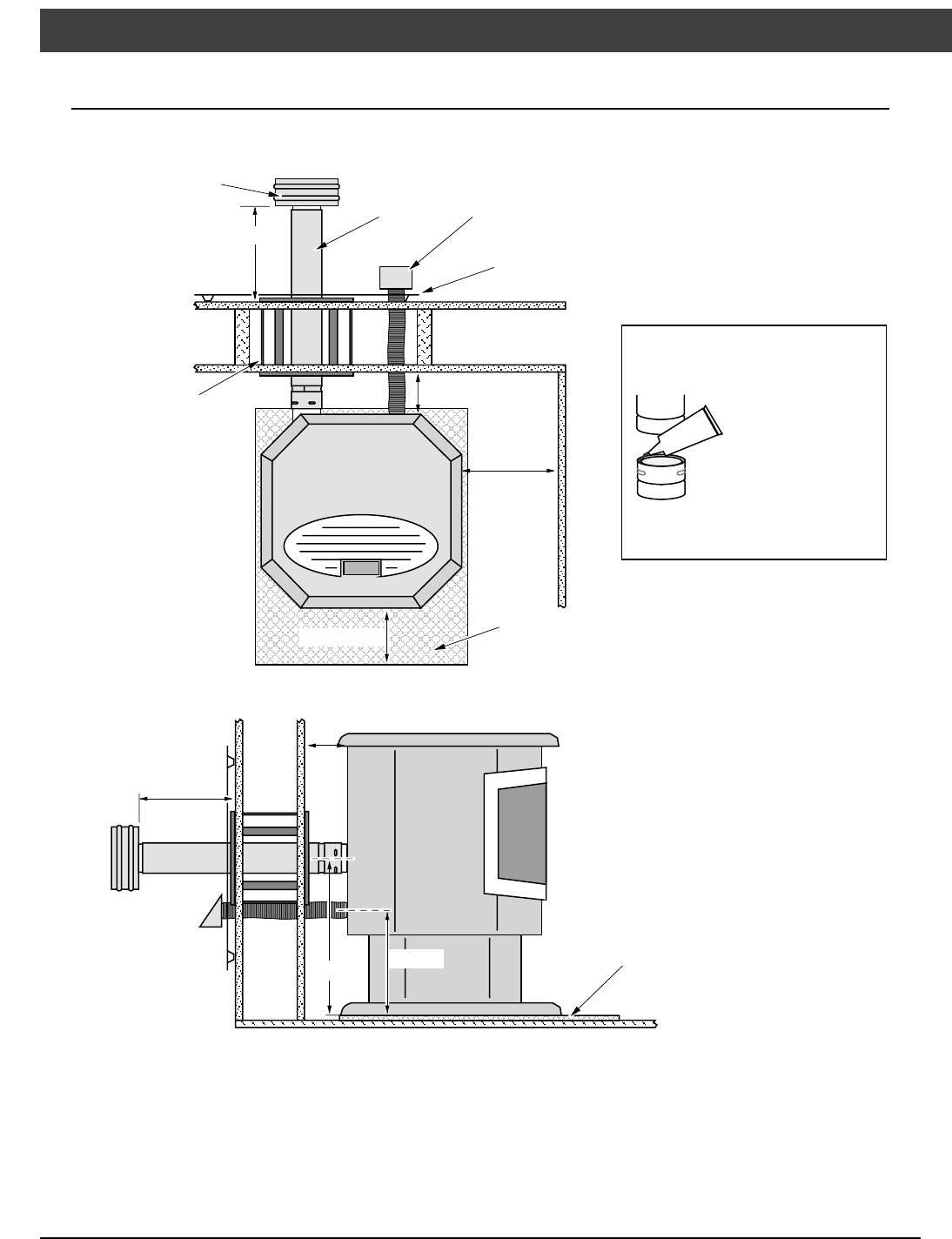

Installation Example: Direct "Through the Wall" ........13

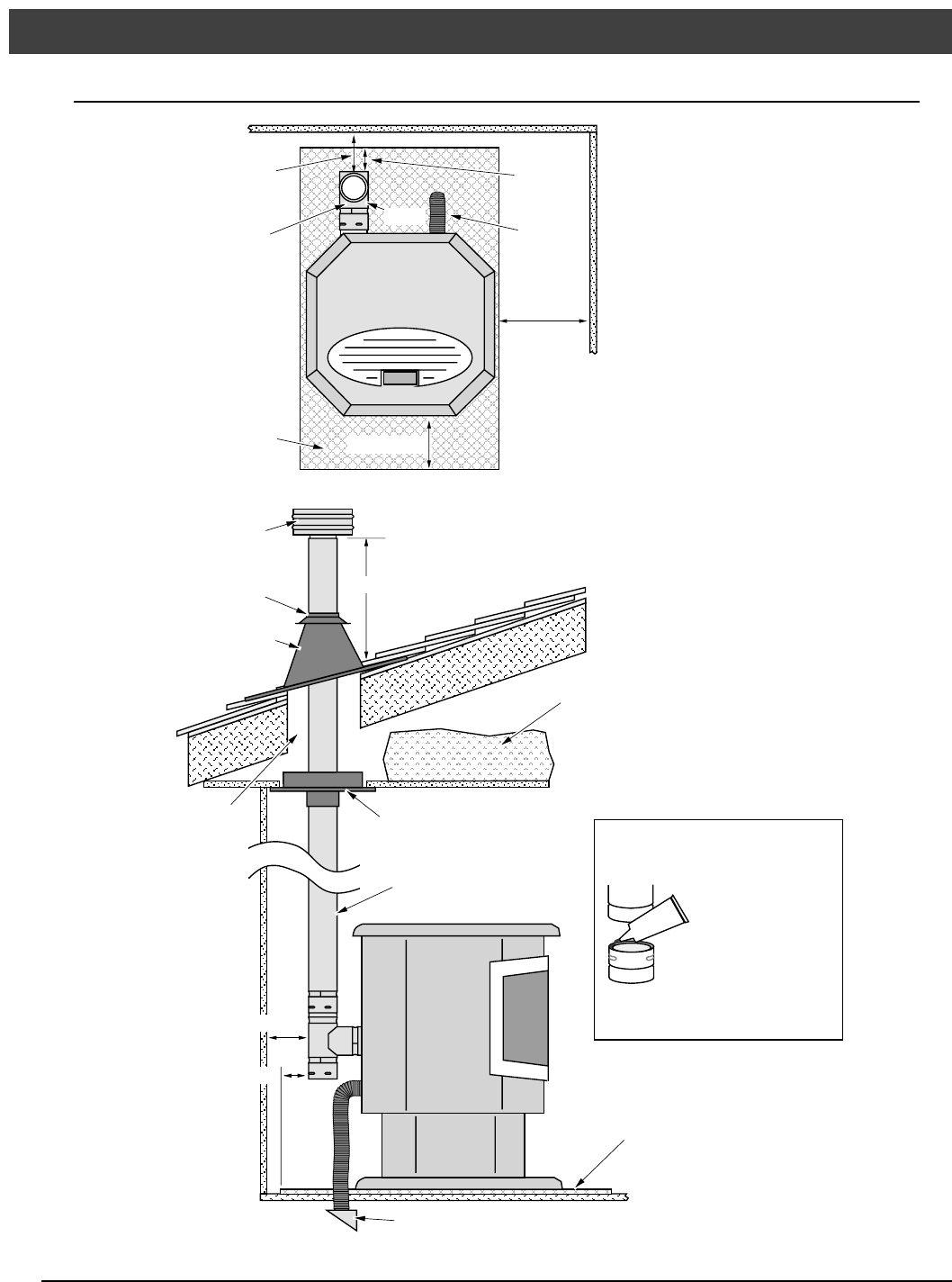

Installation Example: Interior Vertical.....................14

Installation Example: Type A Chimney Retrofit.........15

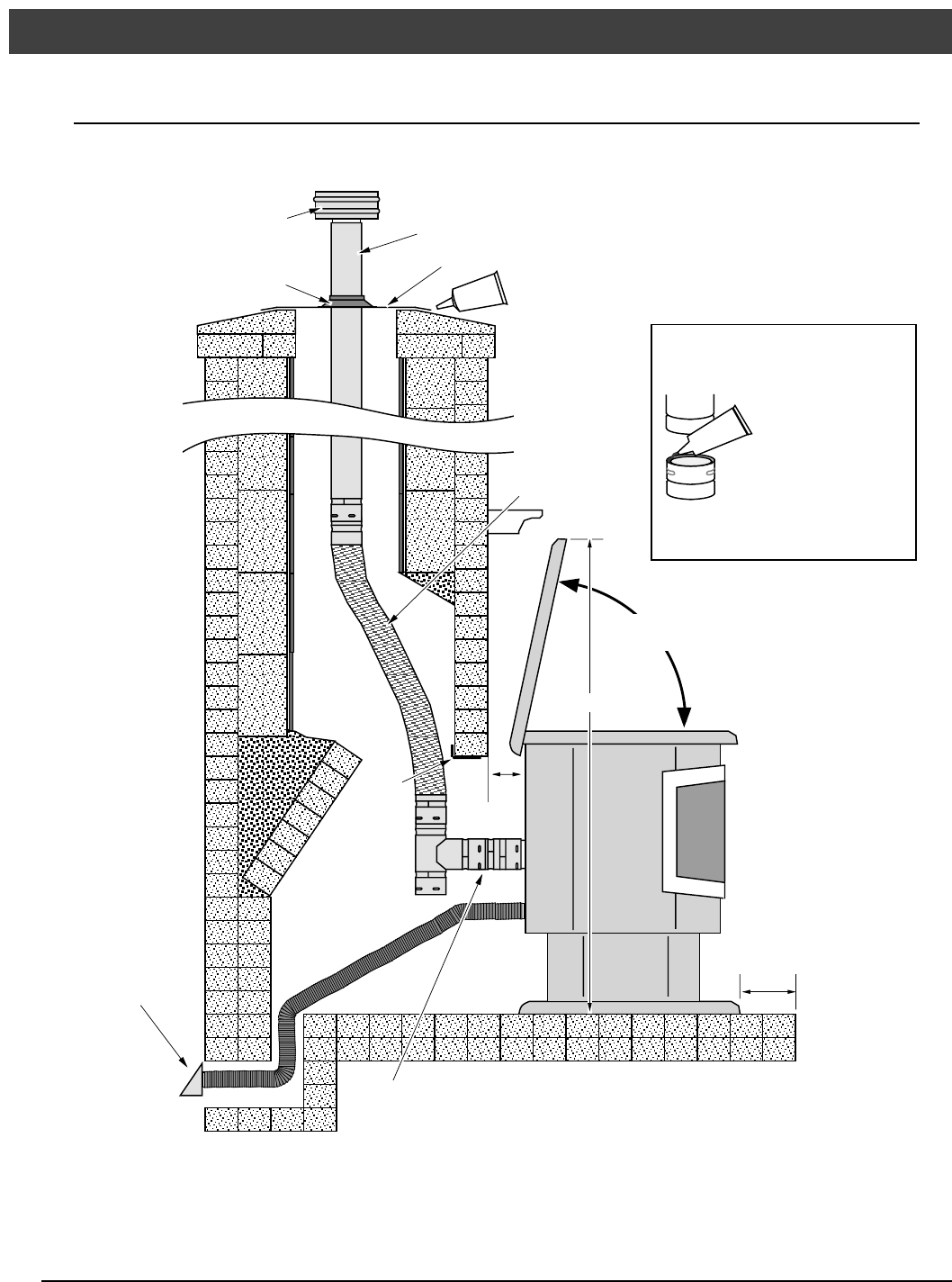

Installation Example: Masonry Fireplace.................16

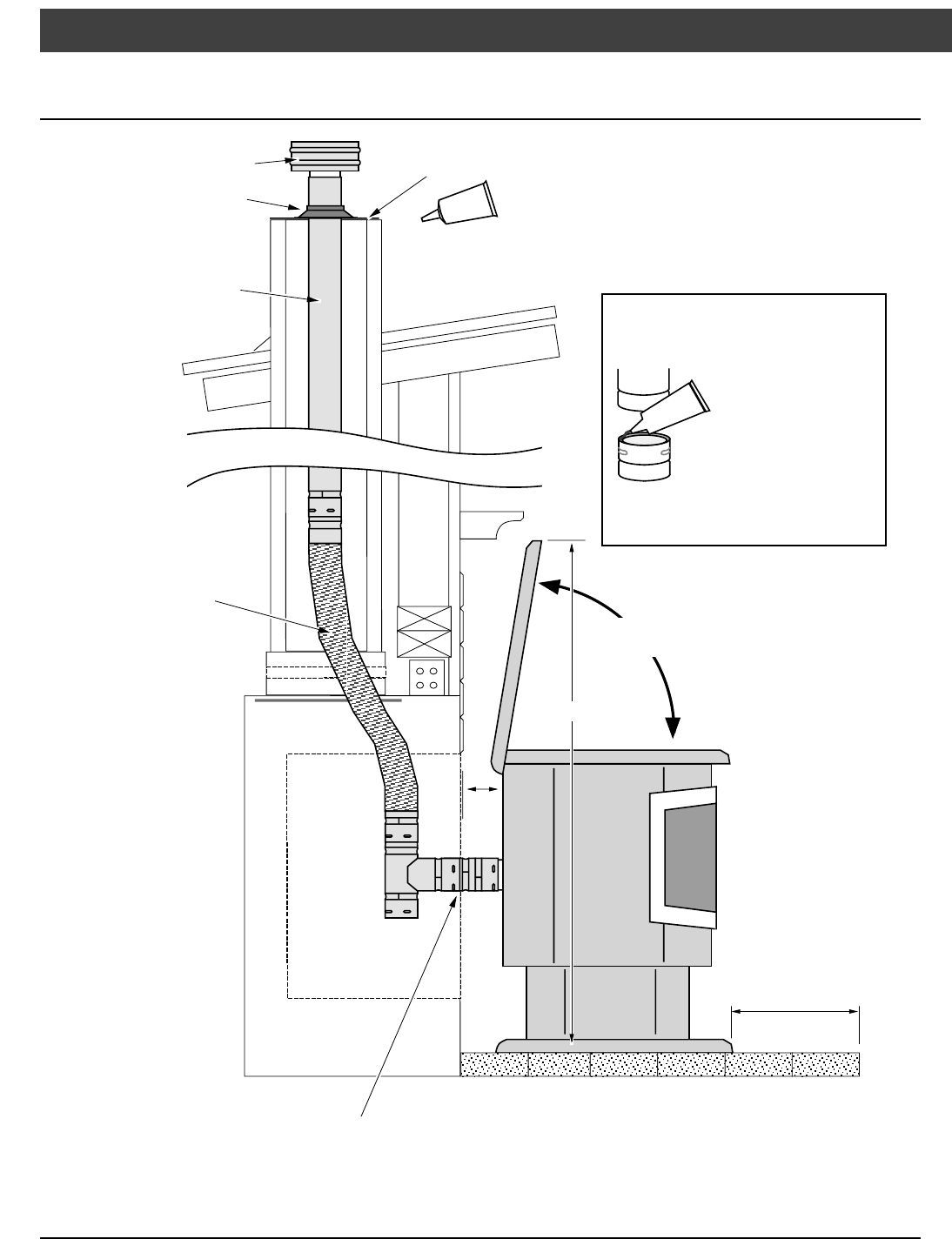

Installation Example: Zero-Clearance (Metal) Firepl...17

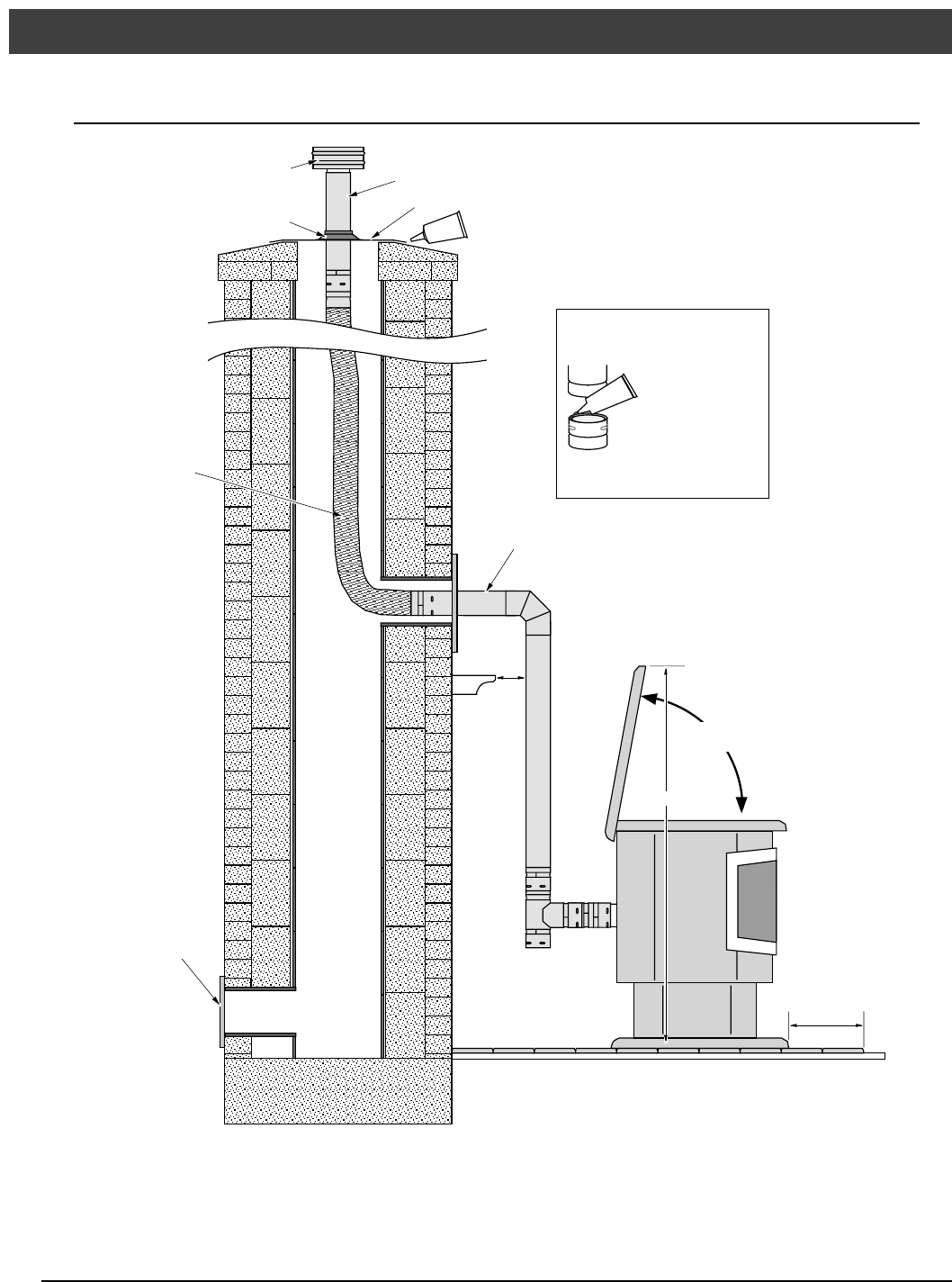

Installation Example: Freestanding Masonry Chim....18

Operation

Safety Notice....................................................19

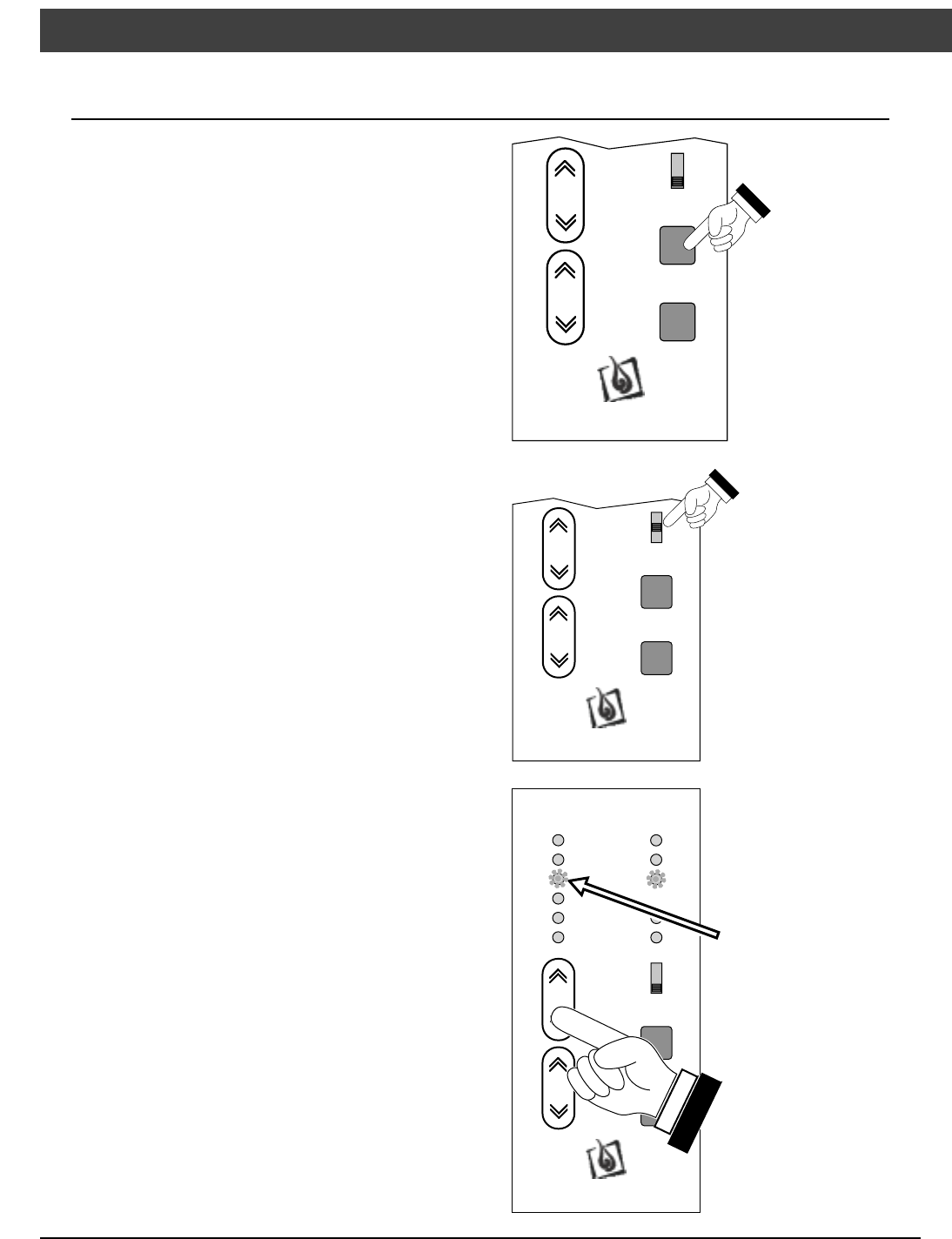

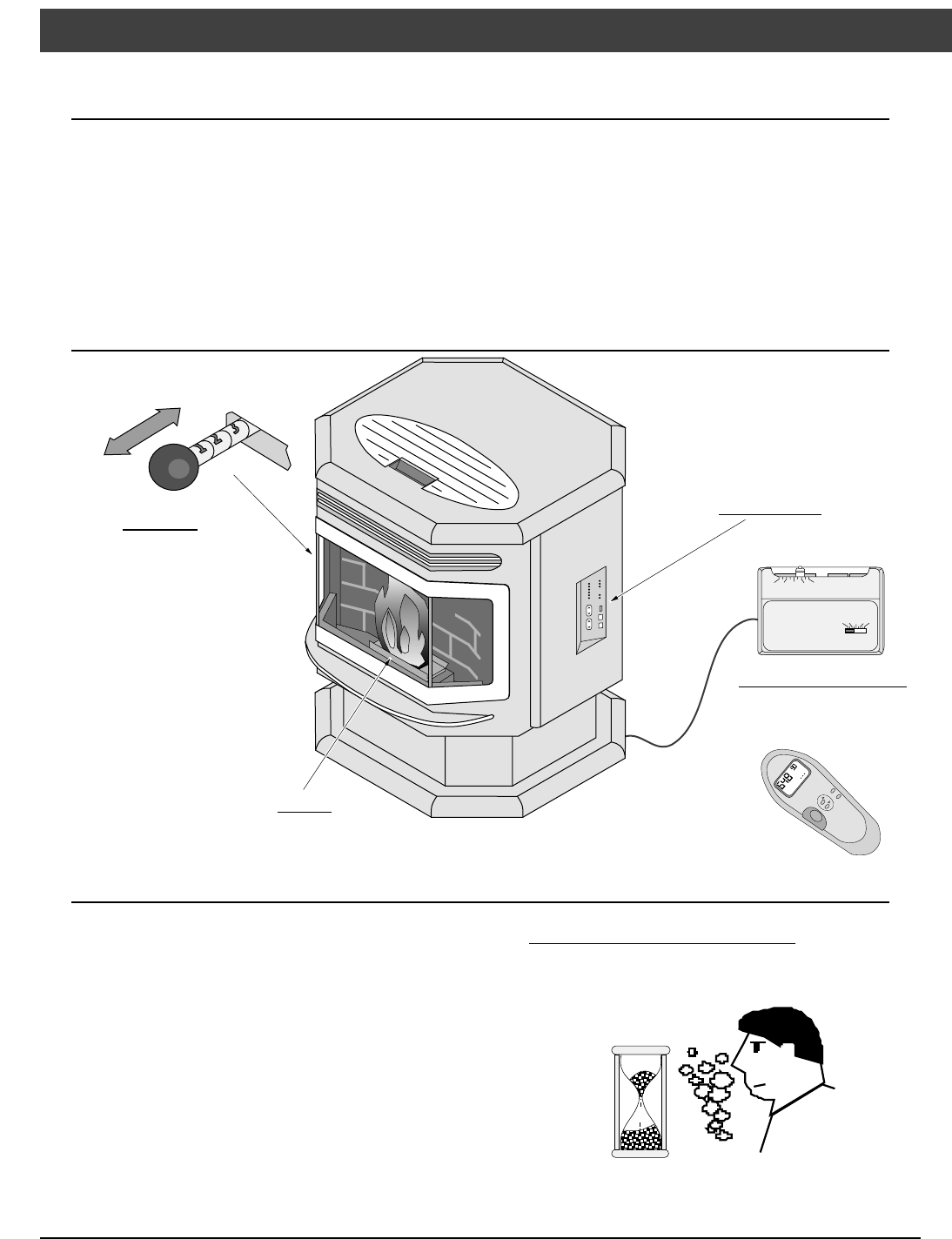

Location of Controls ...........................................19

Starting the Heater for the First Time......................19

Curing the Paint ............................................19

Priming the Auger..........................................19

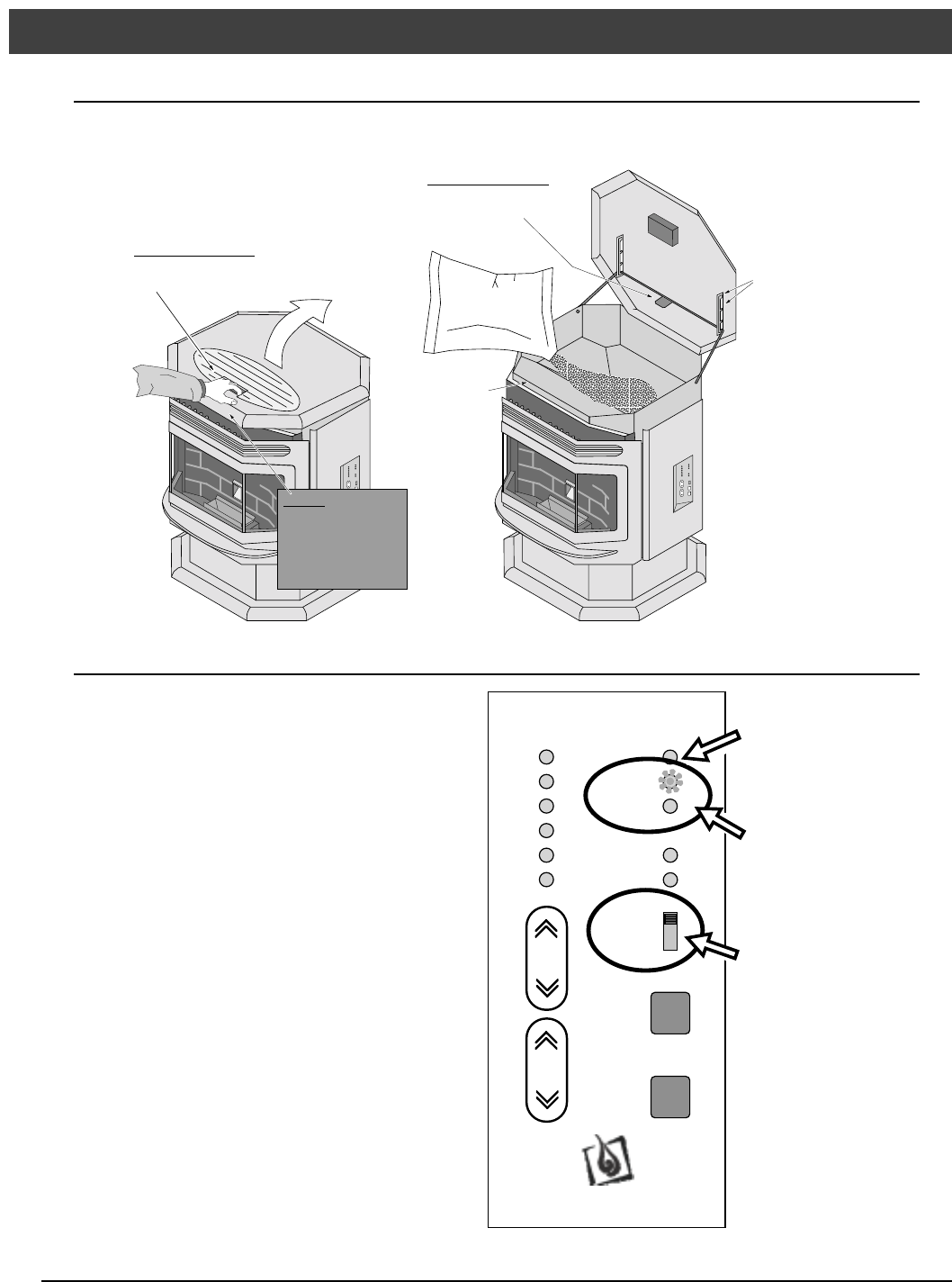

Loading Pellets..................................................20

The Two Modes of Operation ................................20

Operation (continued)

Manual Mode.....................................................21

Auto Mode........................................................22

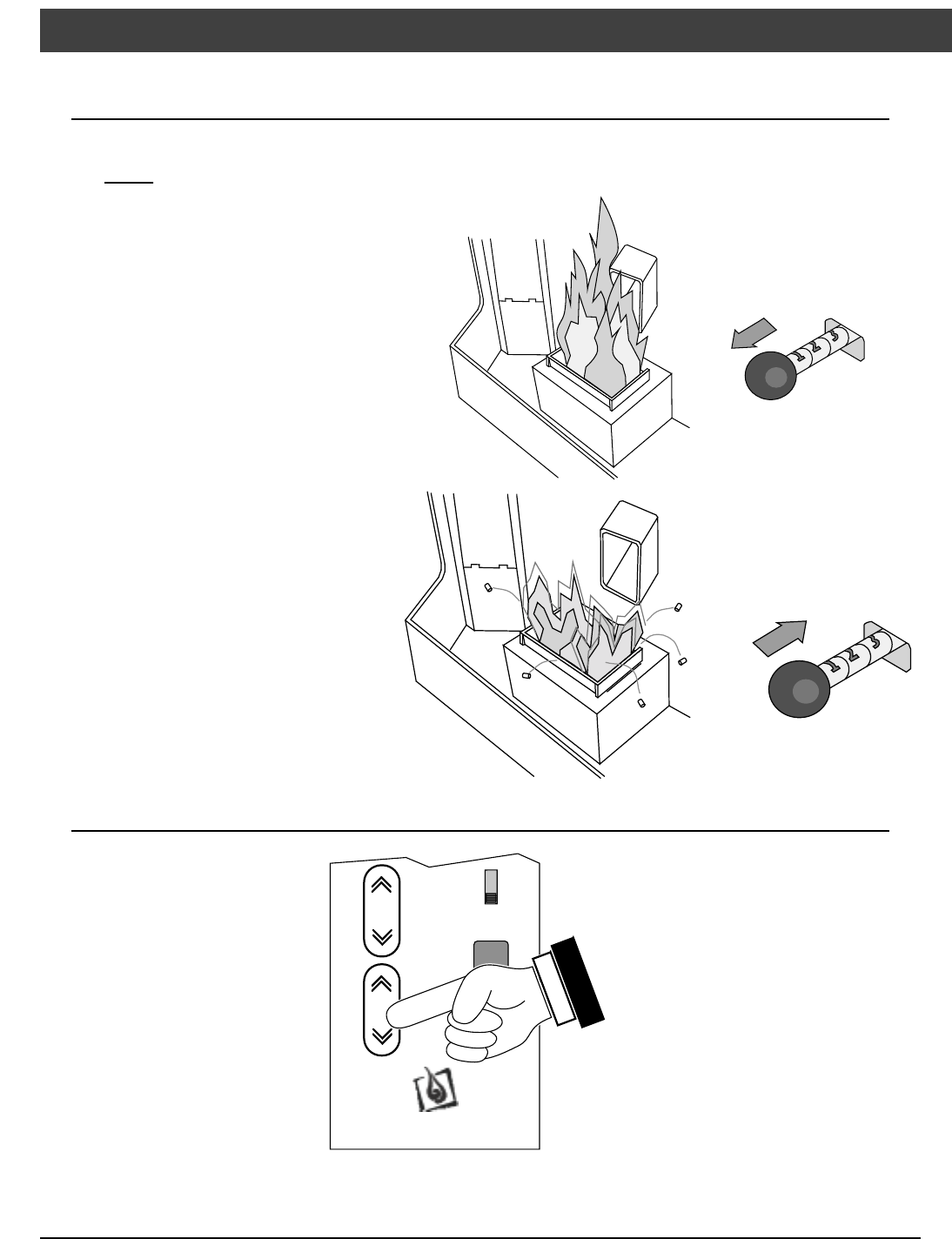

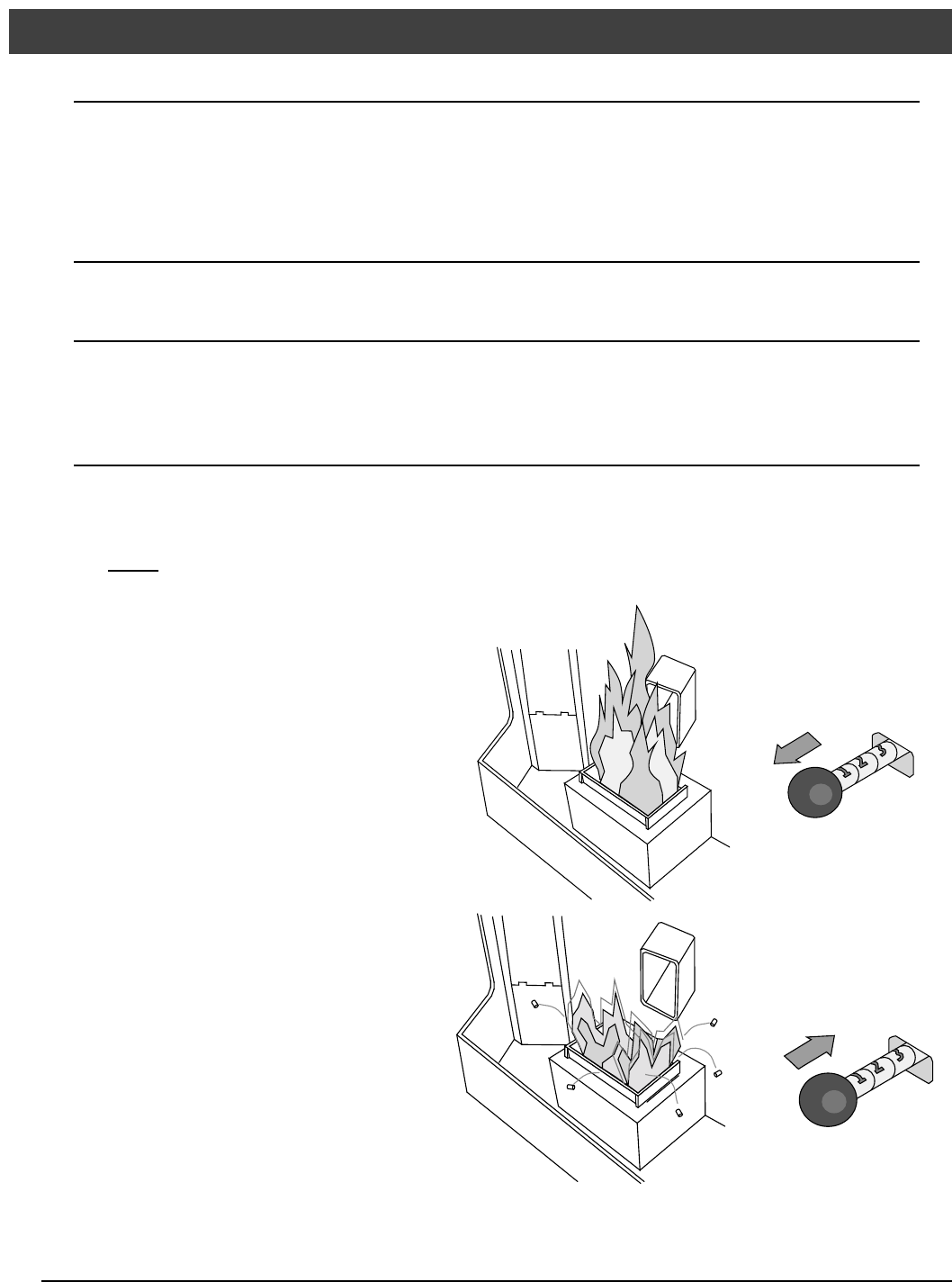

Restrictor Adjustment.........................................23

Adjusting the Fan Speed......................................23

Start-Up Sequence.............................................24

"AUGER ON" Light..............................................24

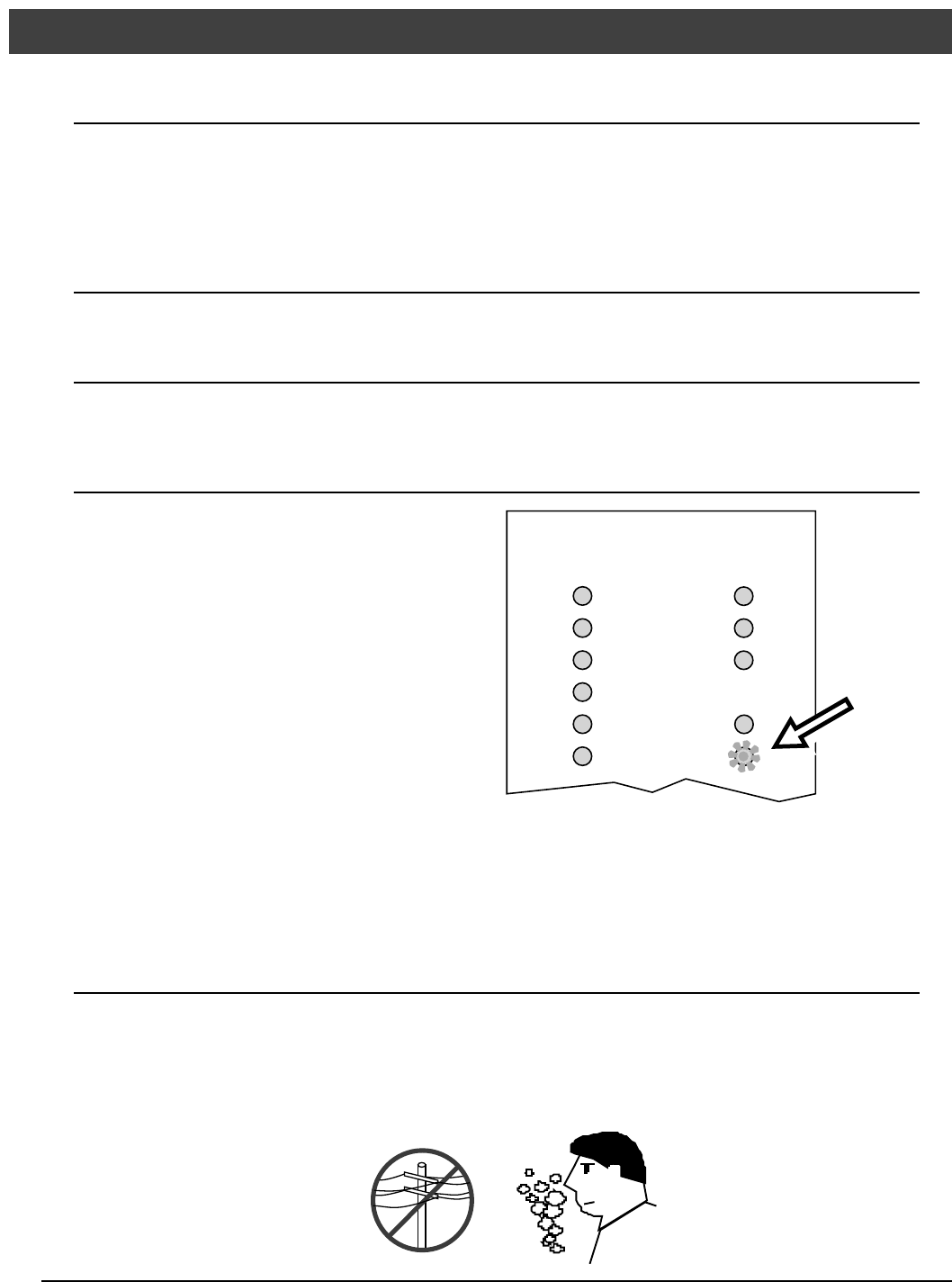

"FAULT" Light....................................................24

Power Outages..................................................24

Maintenance

Daily Maintenance (whenever using the stove).........25

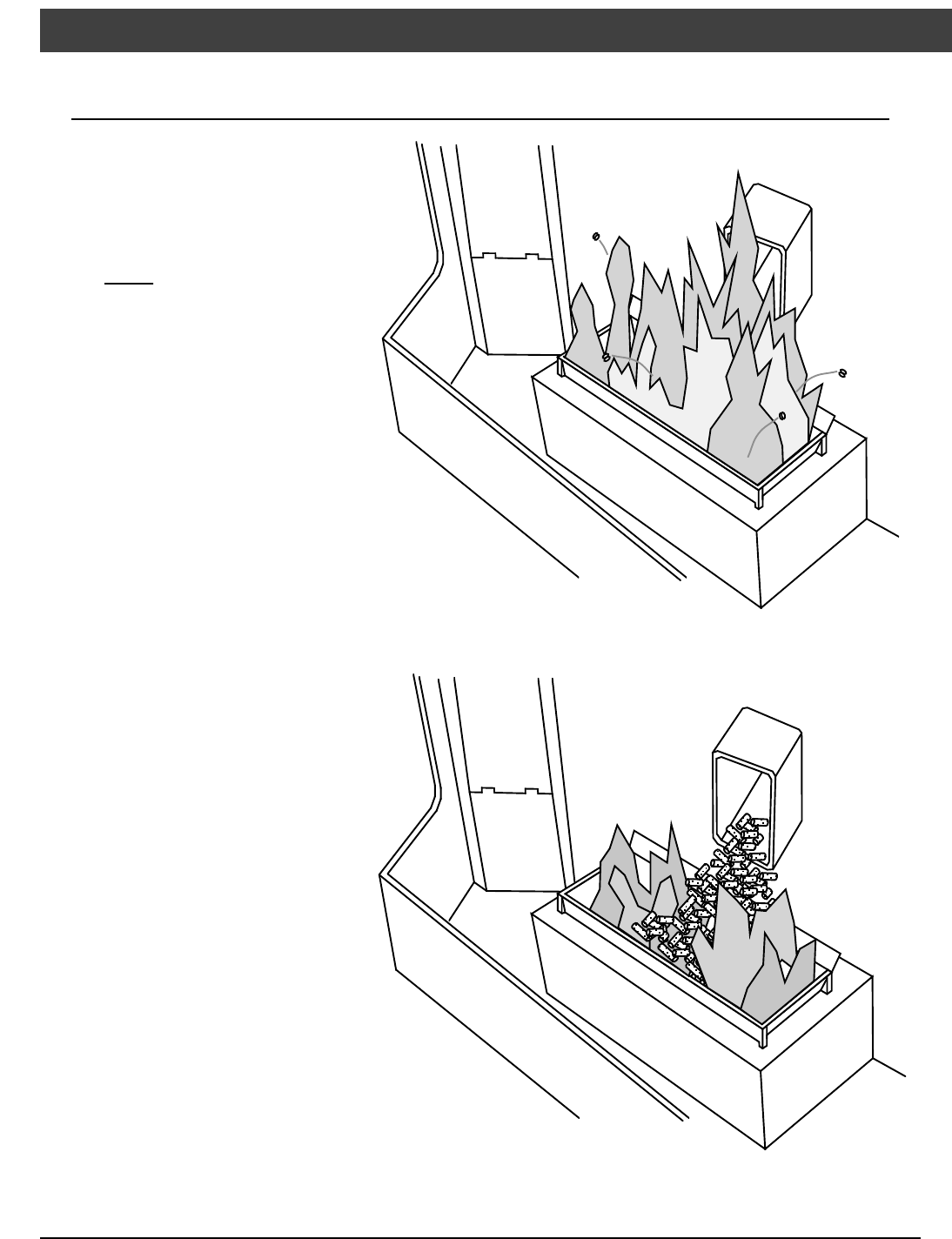

Inspect the Burn ...........................................25

Make Sure Pellets are not Piling Up...................25

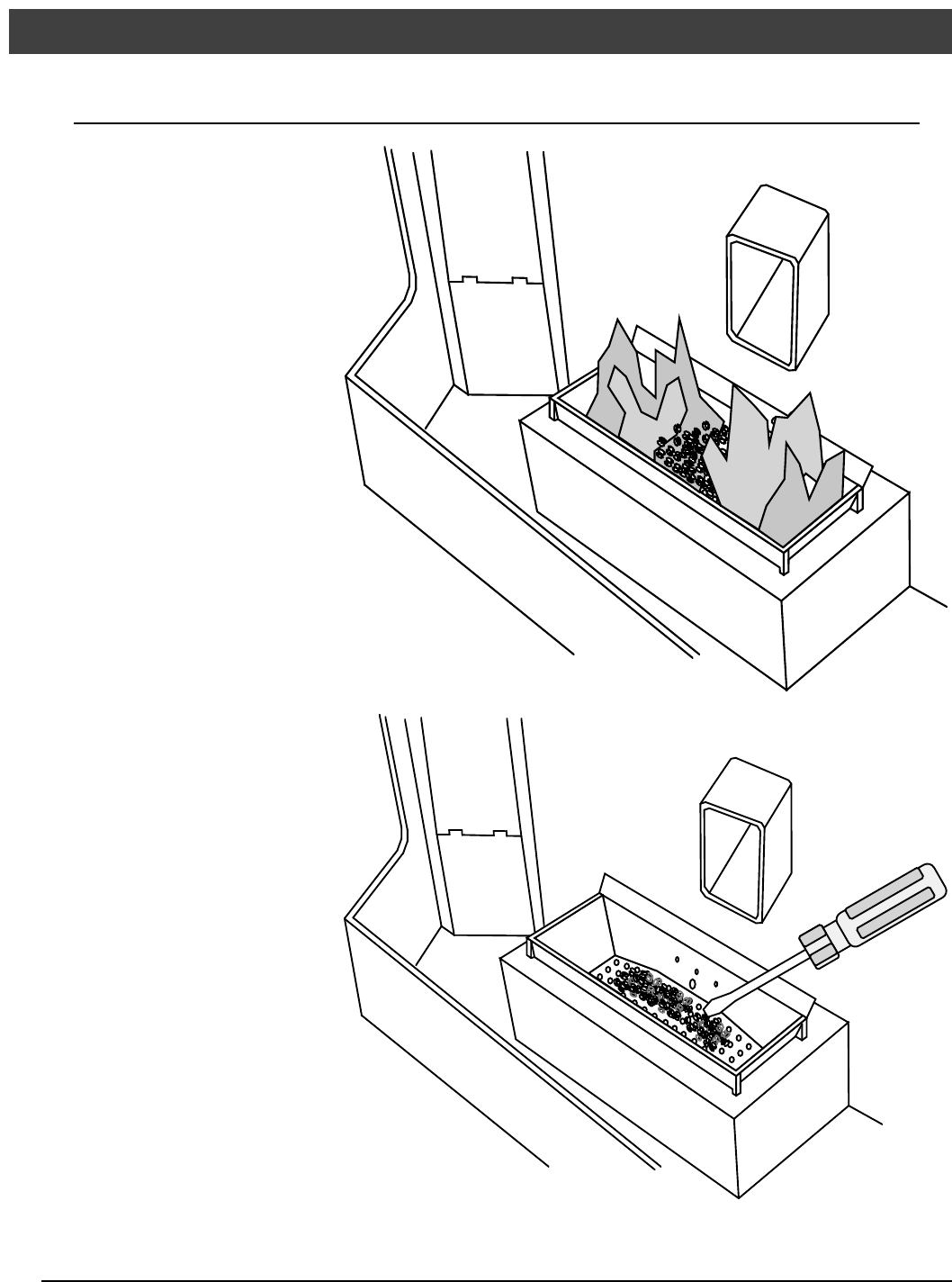

Check Firepot for Clinkers...............................26

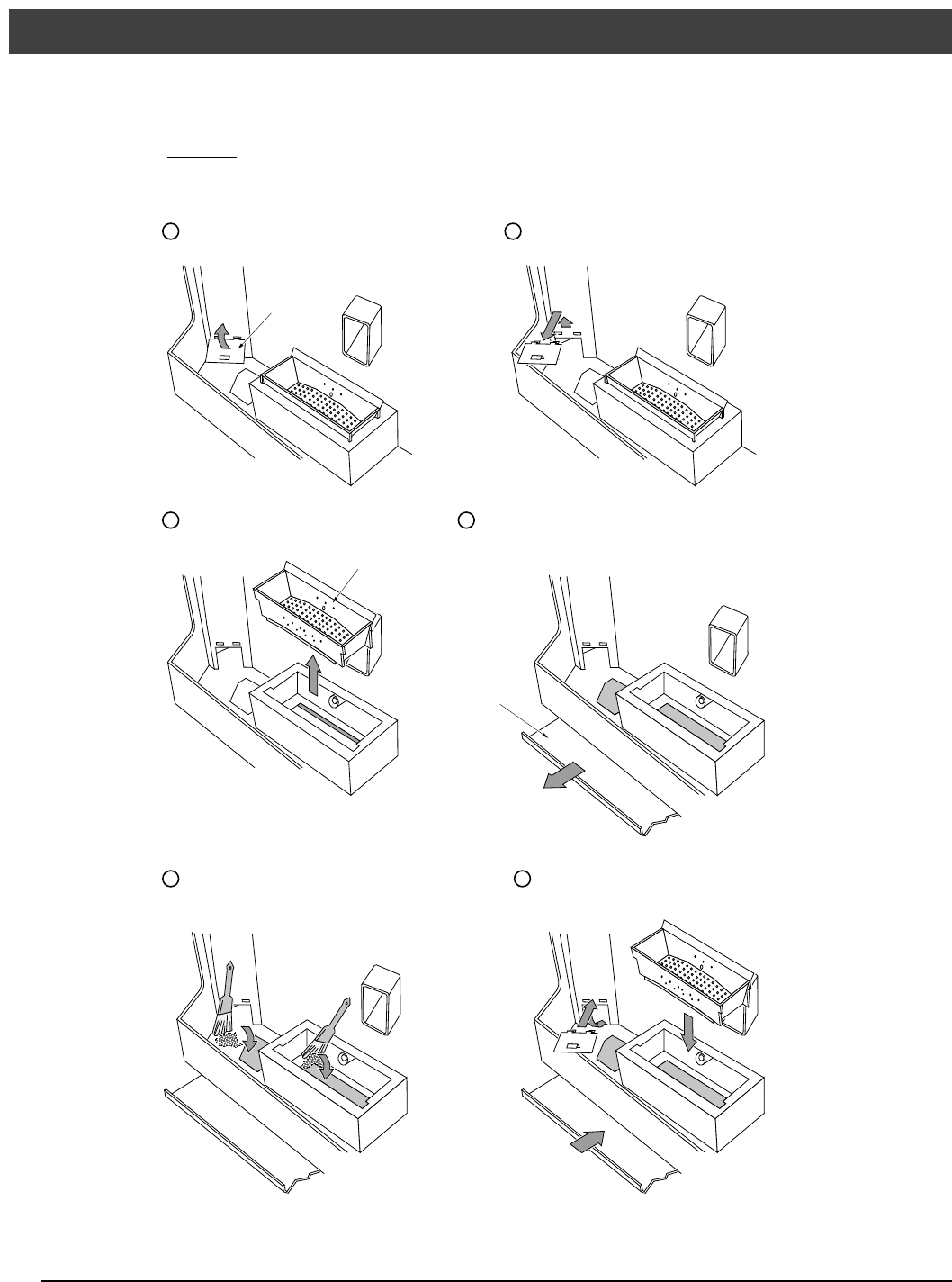

Cleaning the Firepot.......................................26

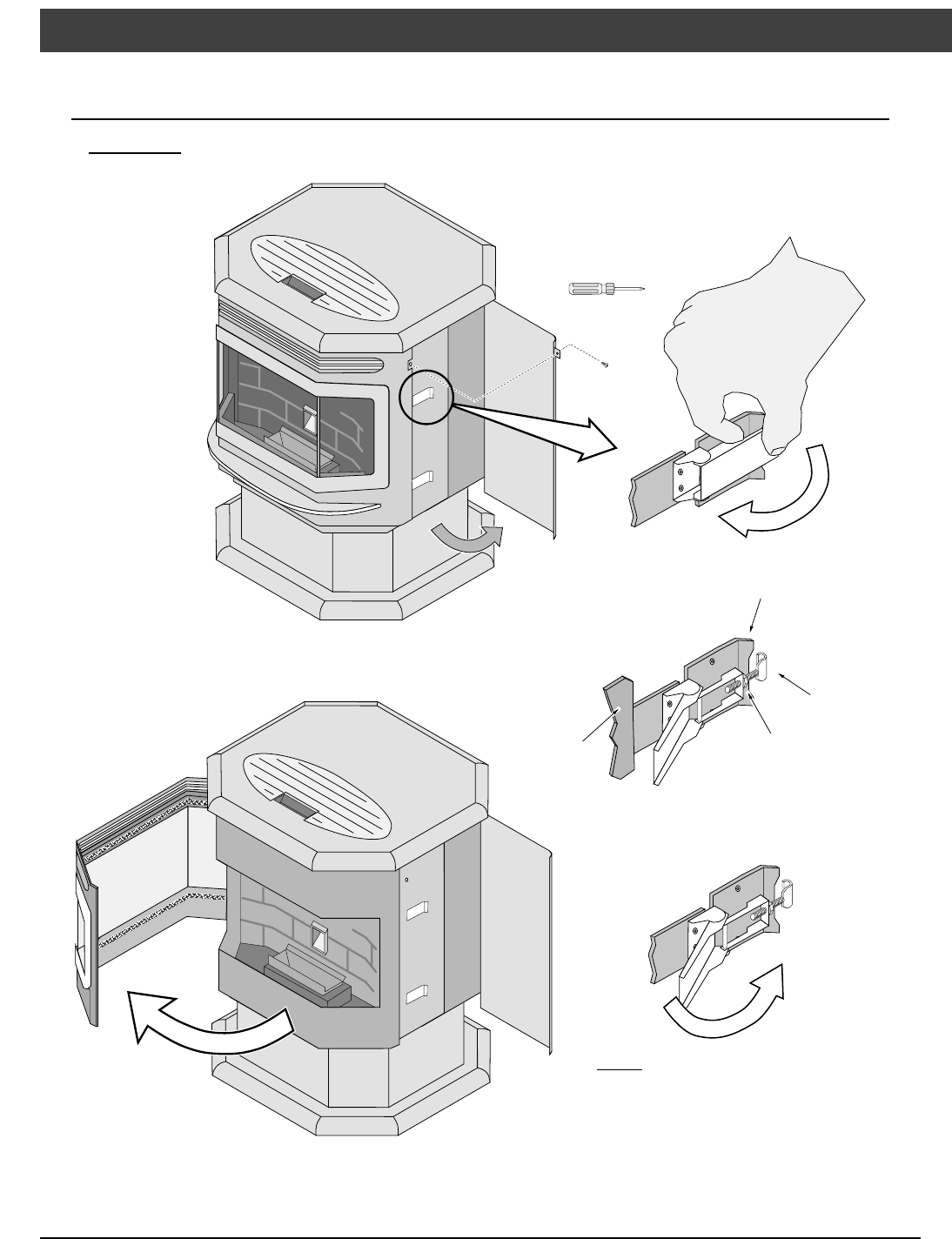

Opening the Door...............................................27

Bi-Weekly Maintenance (or every 10 bags pellets)....28

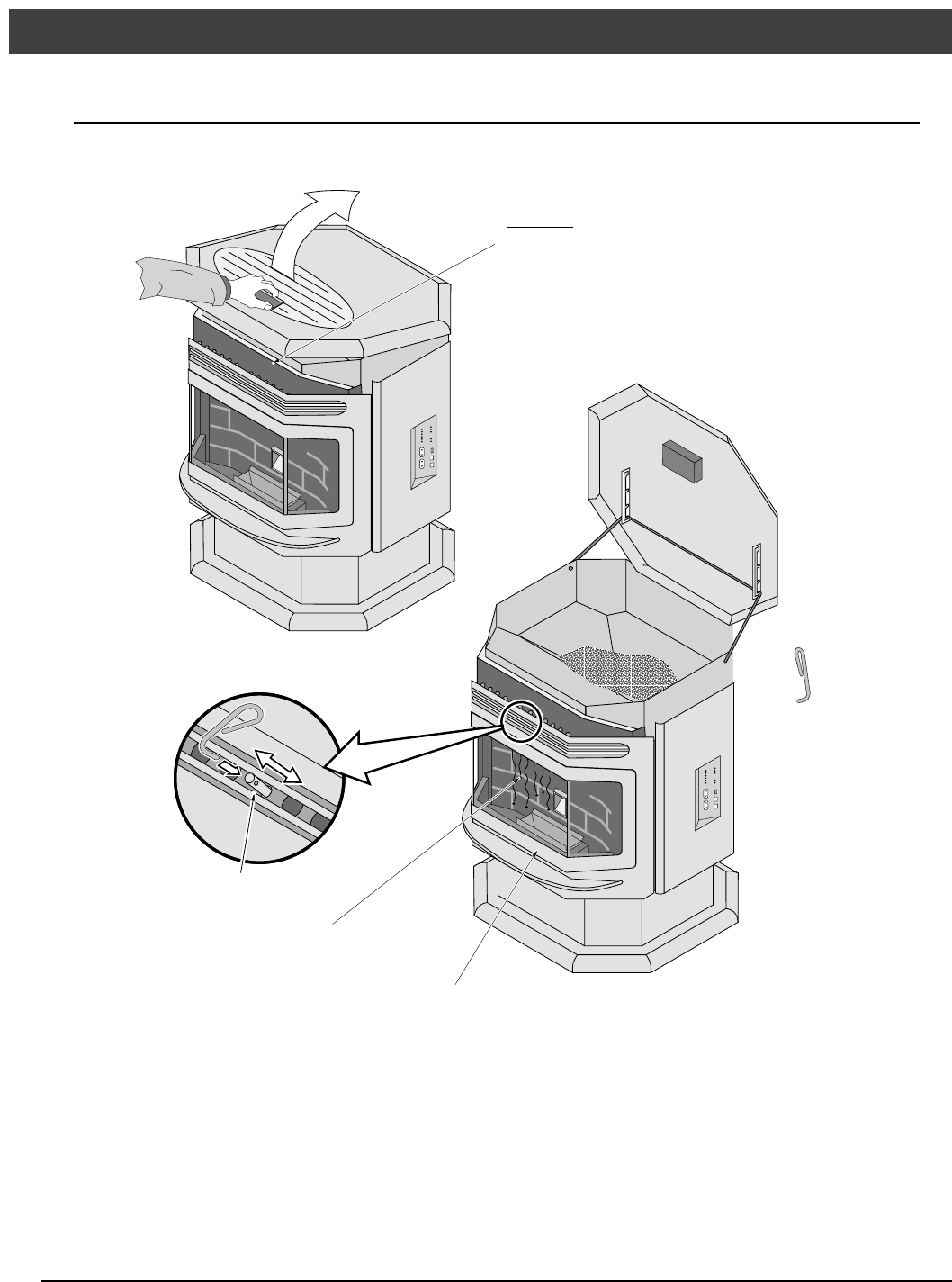

Clean the Heat Exchange Tubes.......................28

Vacuum Hopper ............................................28

Clean the Gold Door.......................................28

Clean the Baffles...........................................29

Sweep Ash Into Ashpan..................................30

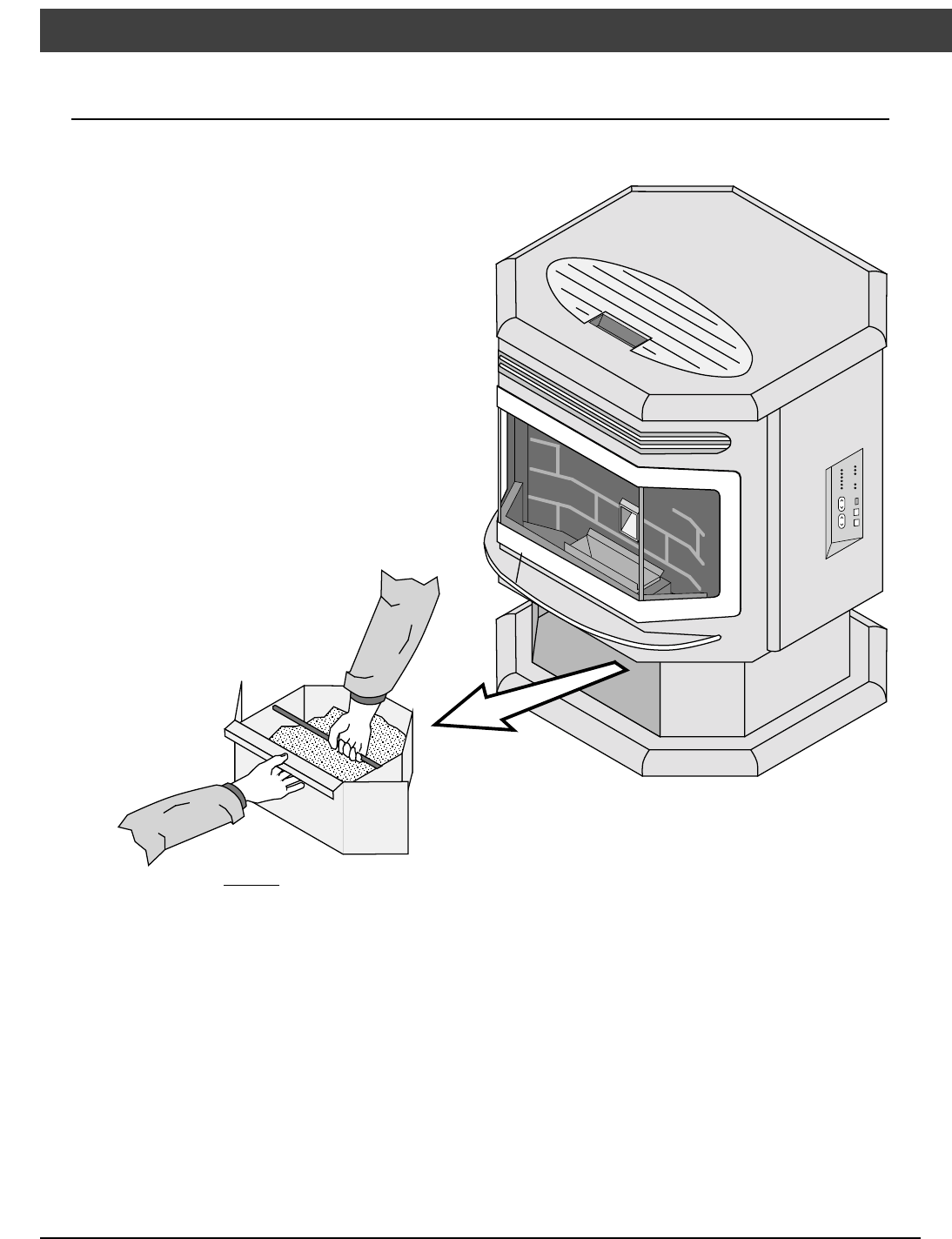

Check Ashpan, Dispose if Necessary................31

Clean the Glass ............................................31

Yearly Maintenance (or every two tons)..................32

Clean the Exhaust Duct..................................32

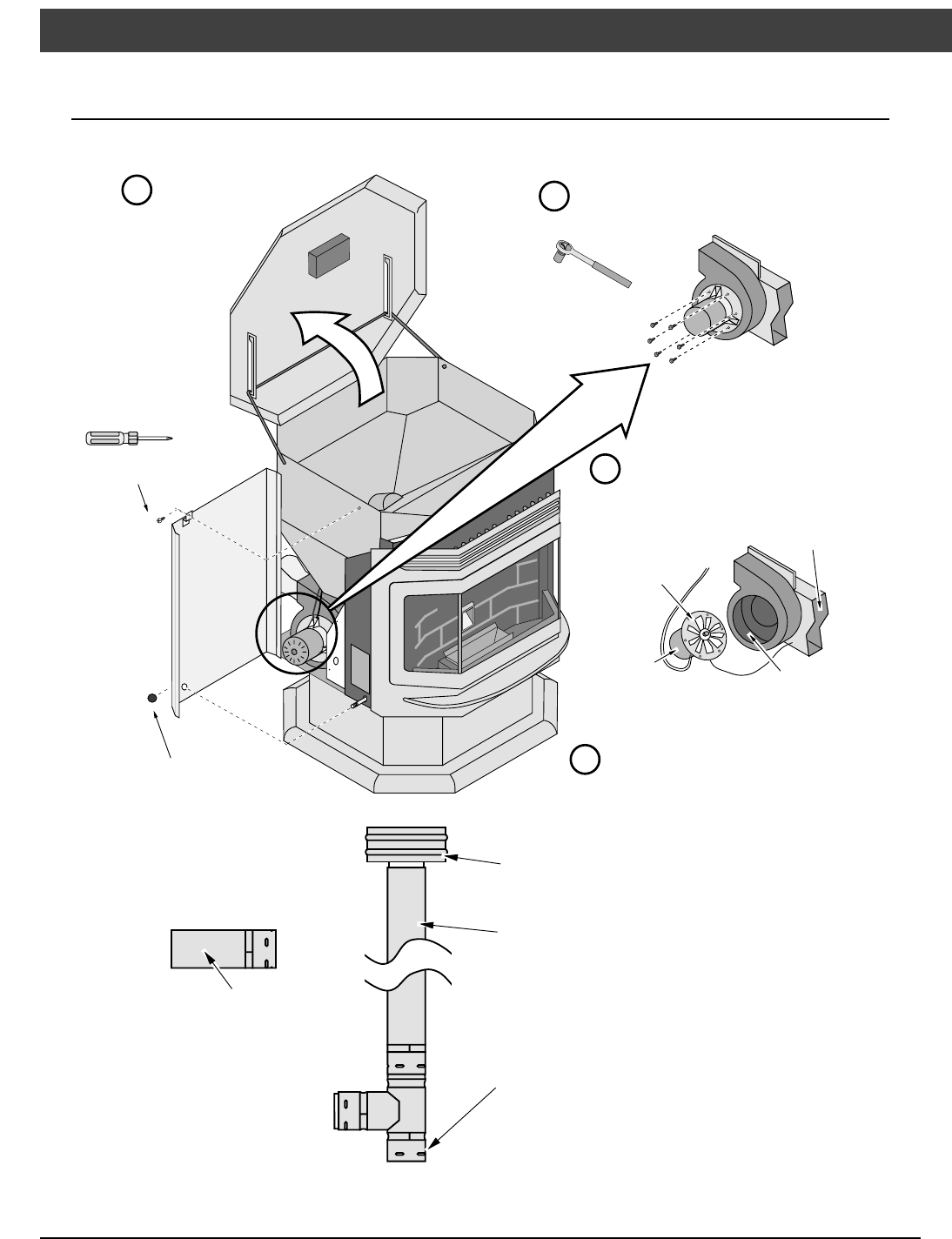

Clean the Exhaust Blower ...............................33

Clean the Vent..............................................33

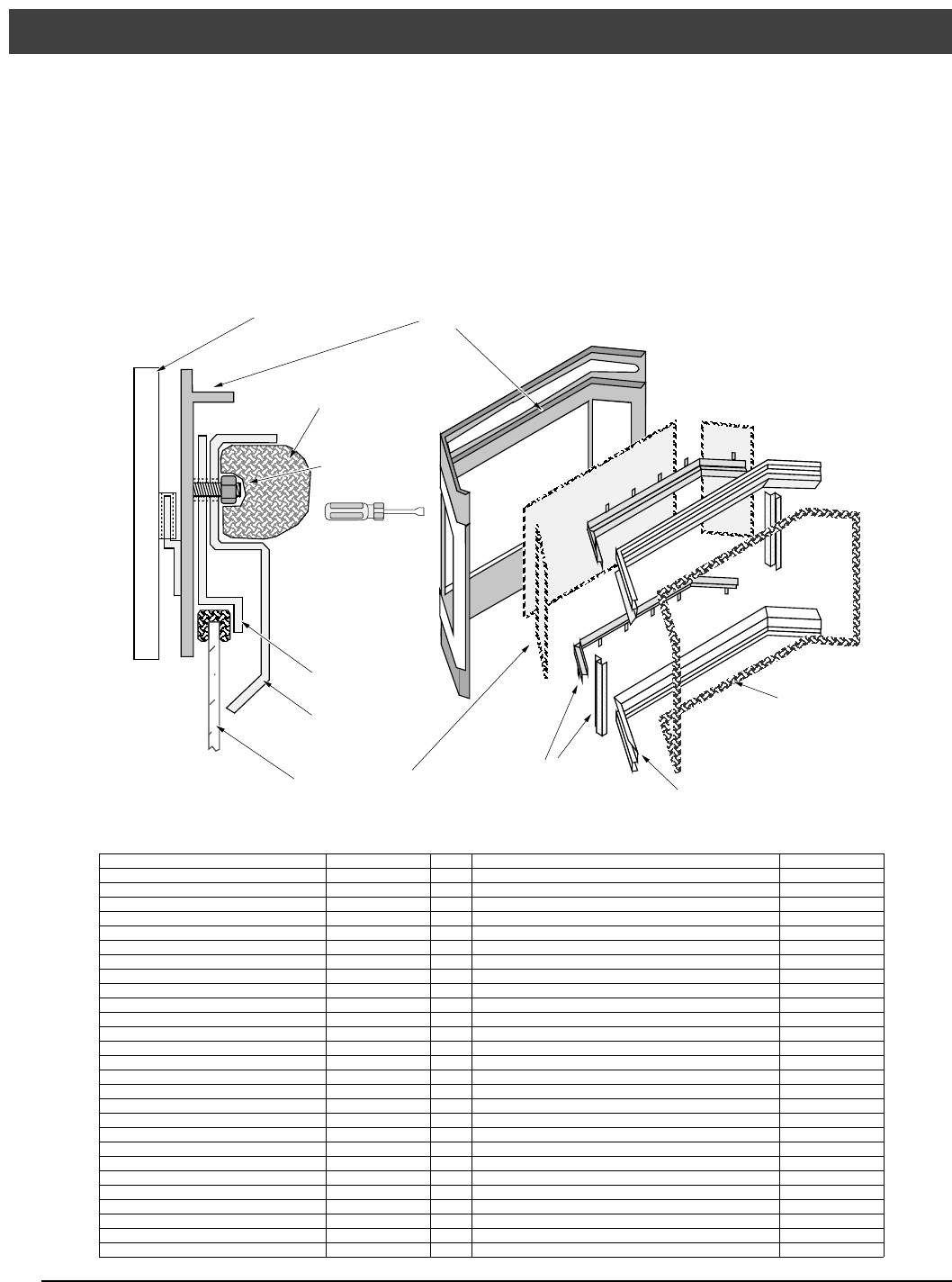

Door Seal.....................................................34

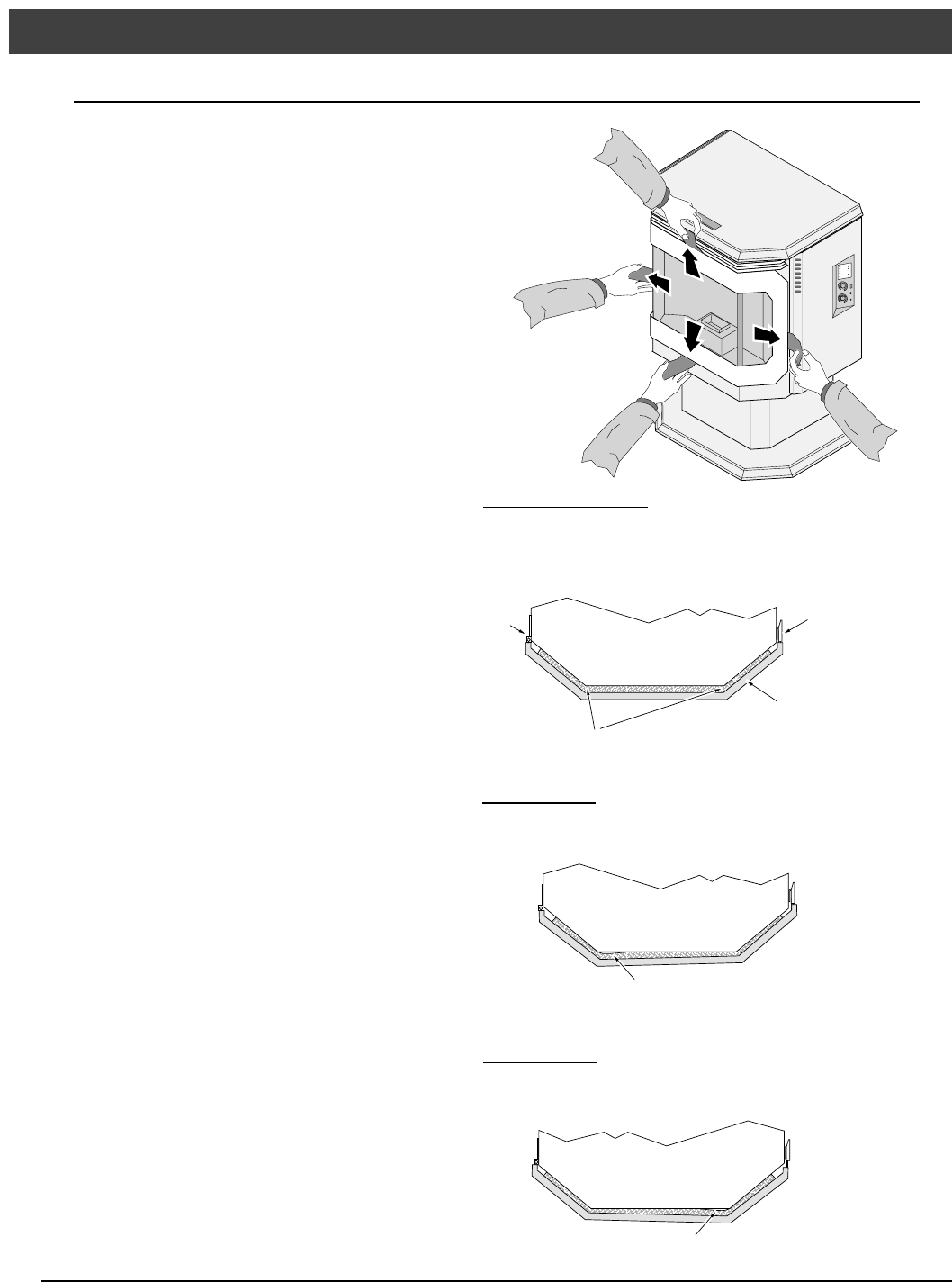

Door Alignment .............................................34

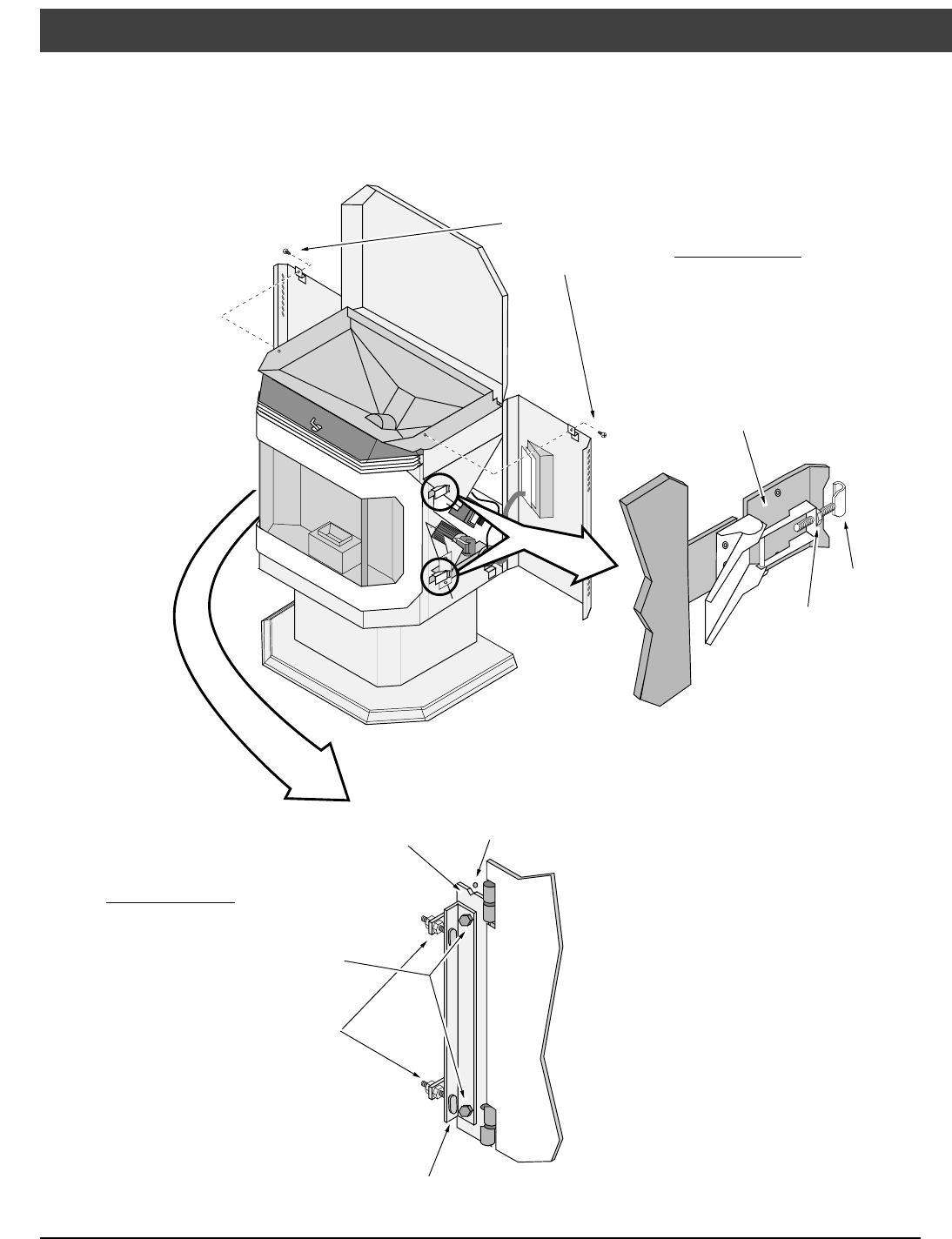

Adjusting the Door Hinge and Latch...................35

Check for Air Leaks - Door, Glass and Ashpan ....36

Replacement Parts.............................................36

Normal Operating Sounds

Normal Operating Sounds....................................37

Safety Label

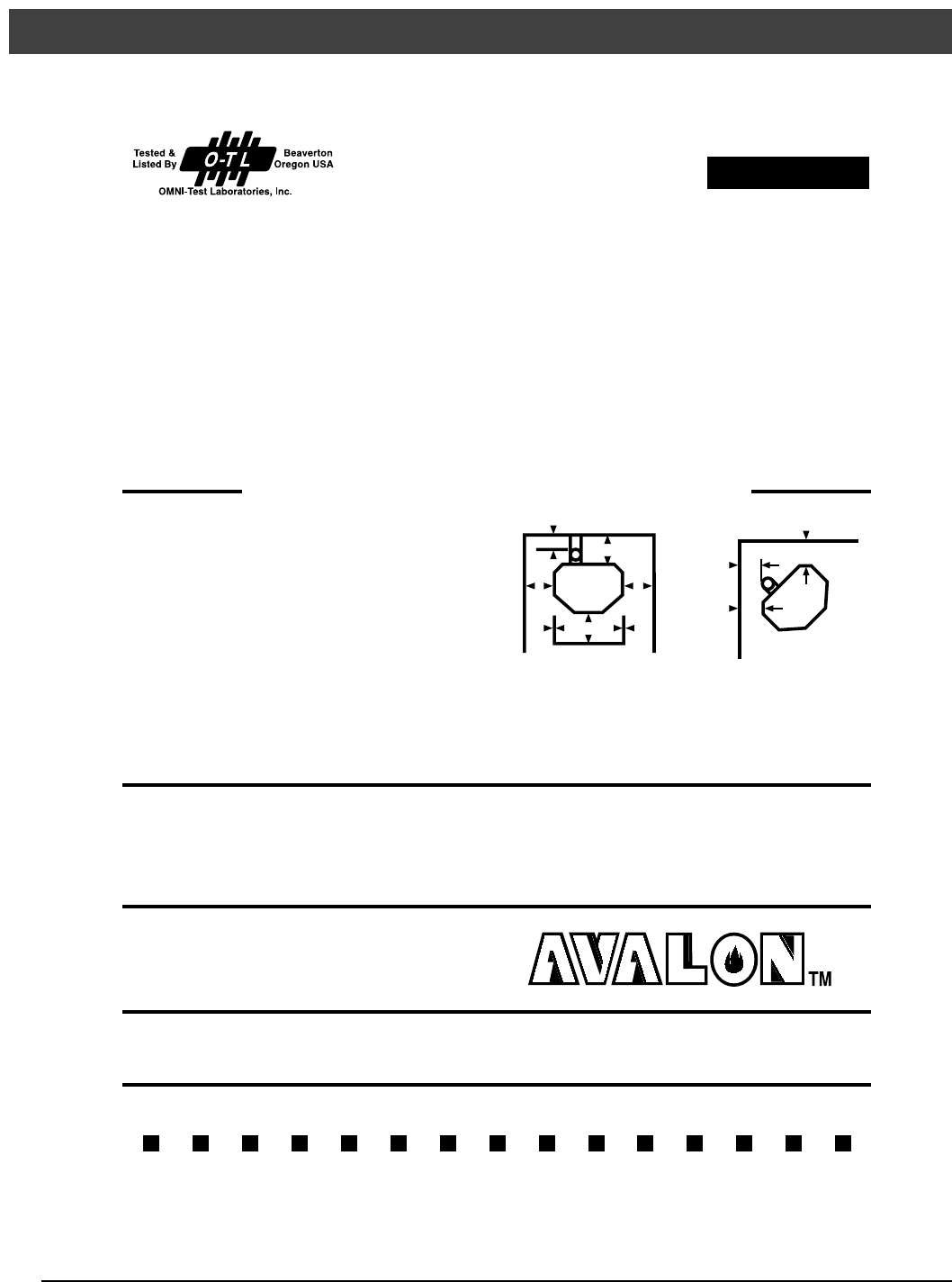

Safety Label .....................................................38

Warranty

Warranty..........................................................39

Optional Equipment

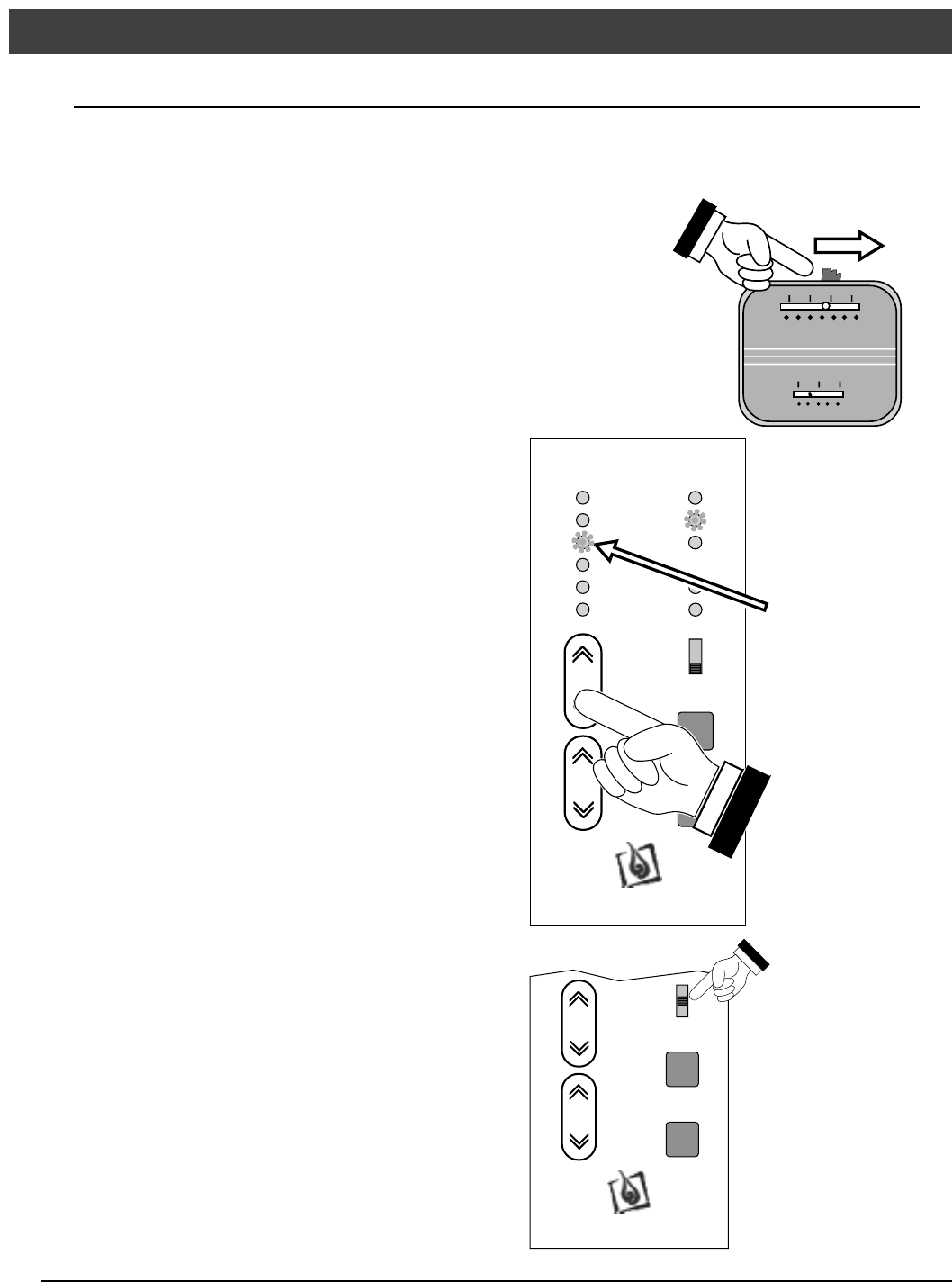

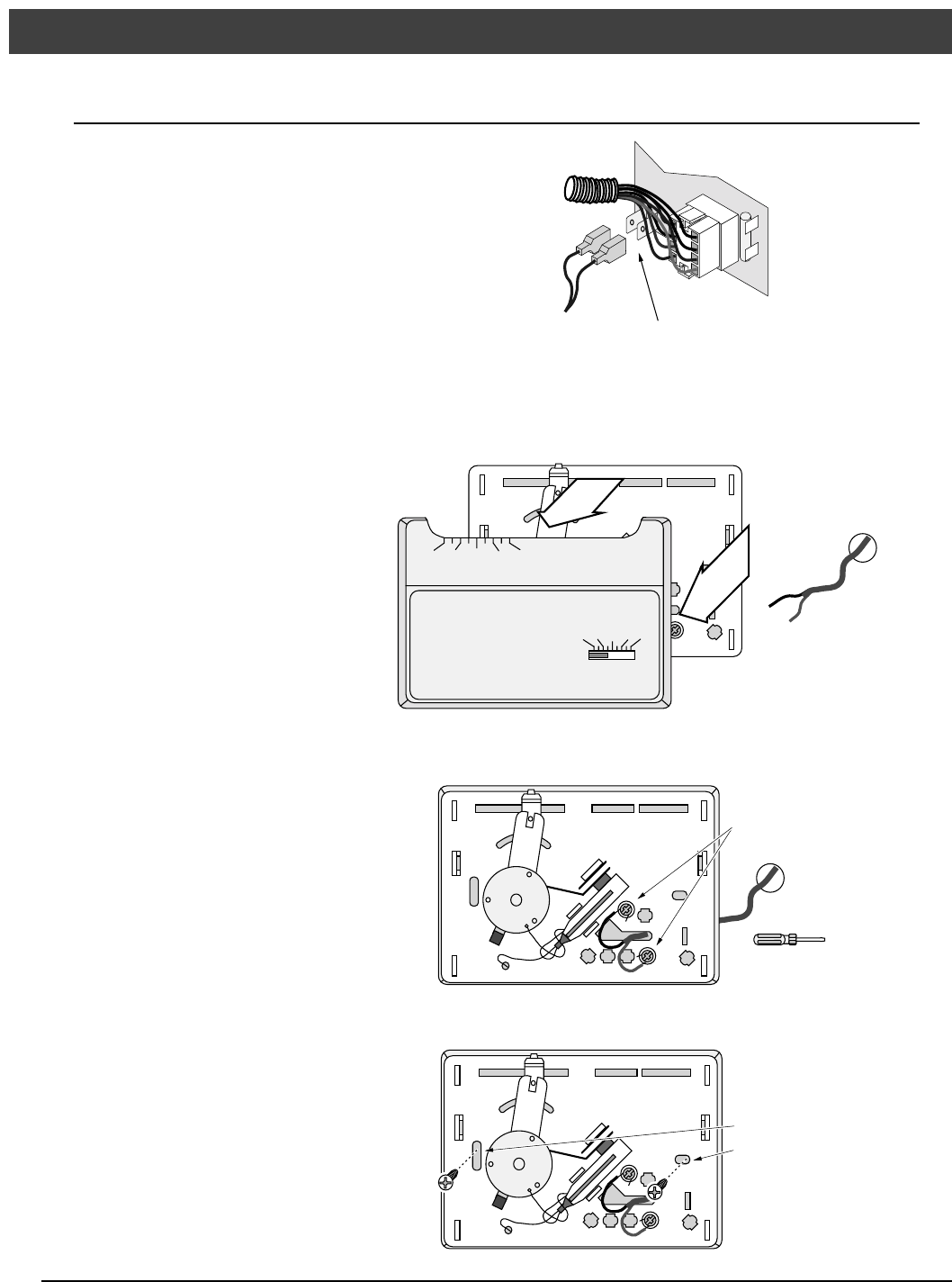

Thermostat.......................................................40

Pellet Log.........................................................41

Index

Index...............................................................42

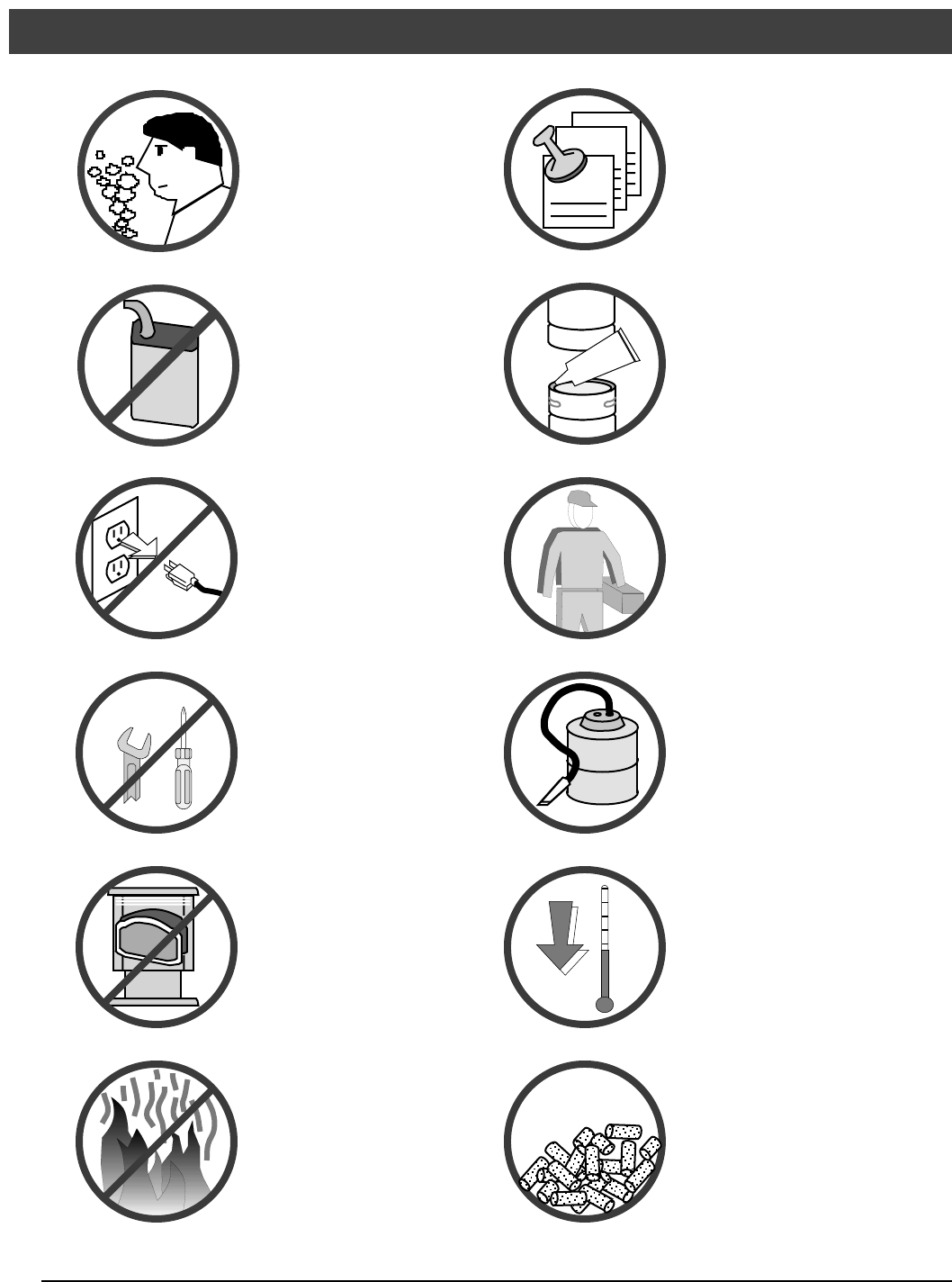

4Safety Precautions

Travis Industries 4050225 100-01154

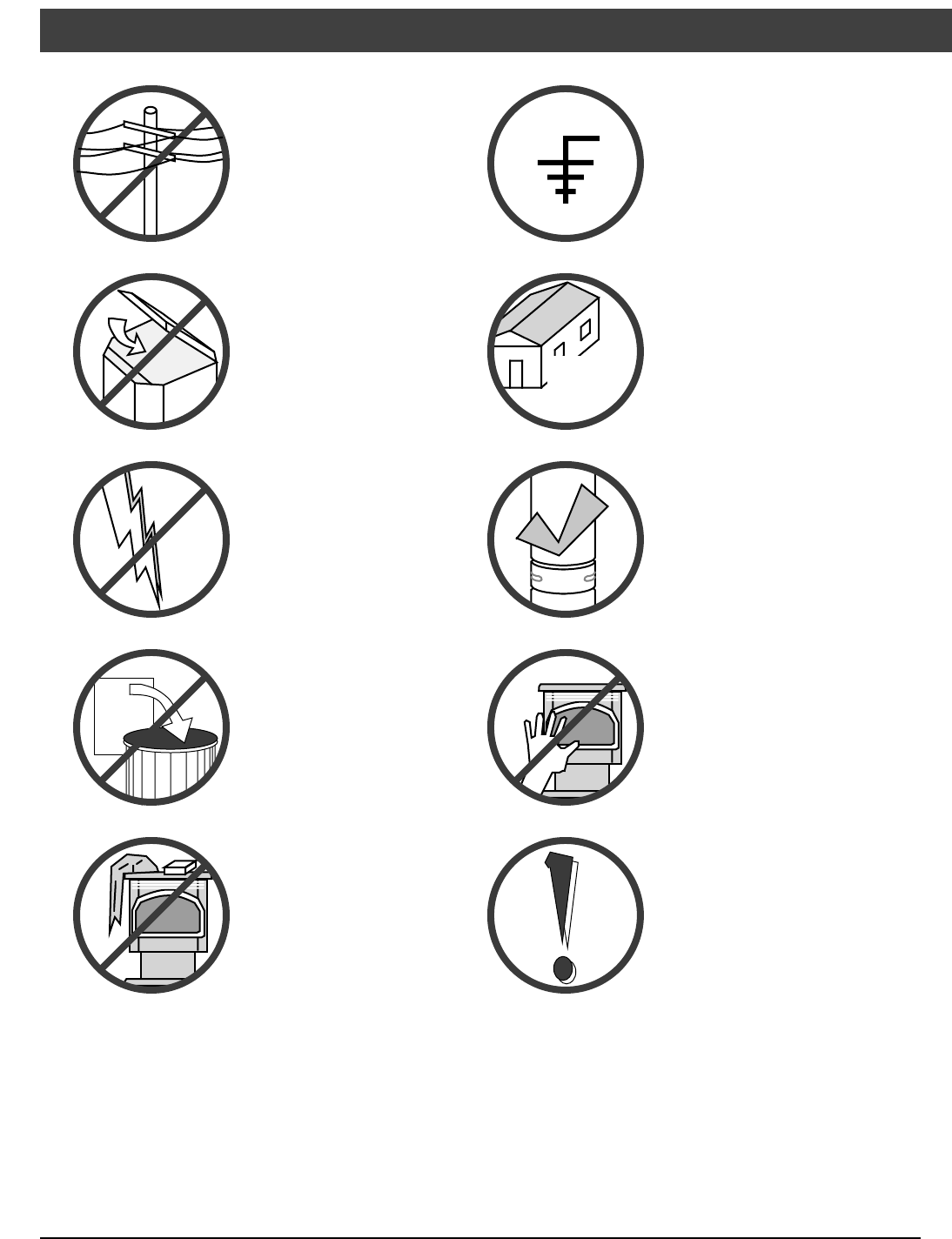

•Do not operate the

heater if you smell

smoke coming from

the heater. Turn the

MODE switch to

"OFF", monitor your

heater, and call your

dealer.

•Contact your local building

officials to obtain a permit

and information on any

installation restrictions or

inspection requirements

in your area. Notify your

insurance company of this

heater as well.

Gas

•Never use gasoline,

gasoline-type lantern fuel,

kerosene, charcoal lighter

fluid, or similar liquids to

start or 'freshen up' a fire in

this heater. Keep all such

liquids well away from the

heater while it is in use.

Sealant

•The exhaust system must

be completely airtight and

properly installed. The

pellet vent joints must be

sealed with RTV 500o F.

(260o C.) silicone sealant.

•Do not unplug the heater

if you suspect a

malfunction. Turn the

MODE SWITCH to "OFF"

and periodically inspect

the heater.

•This unit must be properly

installed to prevent the

possibility of a house fire.

The instructions must be

strictly adhered to. Do not

use makeshift methods or

compromise in the

installation.

•Never try to repair or

replace any part of the

heater unless instructions

are given in this manual.

All other work should be

done by a trained

technician.

•Your heater requires

periodic maintenance and

cleaning (see "Maintaining

Your Heater"). Failure to

maintain your heater may

lead to smoke spillage in

your home.

•The viewing door and

ashpan must be closed

and latched during

operation.

•Never block free airflow

through the open vents of

the unit.

•Allow the heater to cool

before carrying out any

maintenance or cleaning.

Ashes must be disposed

in a metal container with a

tight lid and placed on a

non-combustible surface

well away from the home

or structure.

•Do not operate the heater

if the flame becomes dark

& sooty of if the firepot

overfills with pellets. Turn

the MODE SWITCH to

"OFF" and periodically

inspect the heater (see

"Running Your Heater").

•This heater is designed

and approved for

pelletized wood fuel only.

Any other type of fuel

burned in this heater will

void the warranty and

safety listing (see page 6

for details).

Safety Precautions 5

Travis Industries 4050225 100-01154

•The heater will not operate

during a power outage. If

a power outage does

occur, check the heater

for smoke spillage and

open a window if any

smoke spills into the room.

•This heater must be

connected to a standard

115 V., 60 Hz grounded

electrical outlet. Do not

use an adapter plug or

sever the grounding plug.

Do not route the electrical

cord underneath, in front

of, or over the heater.

?•Keep foreign objects out

of the hopper.

Mobile

Home

•When installed in a mobile

home, the heater must be

bolted to the floor, have

outside air, and NOT BE

INSTALLED IN THE

BEDROOM (Per H.U.D.

requirements). Check

with local building officials.

•Disconnect the power

cord before performing

any maintenance.

NOTE:

Turning the Mode Switch

to "OFF" does not

disconnect all power to

the heater.

•The exhaust system

should be checked twice a

year minimum for any

build-up of soot or

creosote.

This

Manual

•Do not throw this manual

away. This manual has

important operating and

maintenance instructions

that you will need at a later

time. Always follow the

instructions in this manual.

•Do not touch the hot

surfaces of the heater.

Educate all children of the

danger of a high-

temperature heater.

Young children should be

supervised when they are

in the same room as the

heater.

•Do not place clothing or

other flammable items on

or near the heater.

Because this heater can

be controlled by a

thermostat there is a

possibility of the heater

turning on and igniting any

items placed on or near it.

•Travis Industries, Inc.

grants no warranty,

implied or stated, for

the installation or

maintenance of your

heater, and assumes

no responsibility of

any consequential

damage(s).

6Specifications

Travis Industries 4050225 100-01154

Heating Specifications:

Approximate Maximum Heating Capacity (in square feet)*.................................800 to 2,250 Sq. Feet

Burn Rate (Pounds per Hour)**.......................................................................1.7 to 5.5

Maximum Burn Time on Low Burn** ................................................................67.5 Hours

Hopper Capacity............................................................................................115 Pounds

* Heating capacity will vary depending on the home's floor plan, degree of insulation, and the outside

temperature. It is also affected by the fuel size, quality, and moisture level.

** Small pellets will increase or decrease the stated burn rates and burn times. Differences of plus or minus 20%

depending on fuel quality may occur.

Dimensions:

Weight: 250 Lbs.

Air Inlet

(1-3/4"

Outside

Diameter)

Diameter

Exhaust

10-1/2”

17-5/8"

1/2"

7-1/4"

Center

Line

33-3/8"

26-1/2"

28"

This tab is for

the scraper

rod tool.

Electrical Specifications:

Electrical Rating.......................................................................................115 Volts, 3.6 Amps, 60 Hz

Watts During Start-Up Sequence..............................................................400 (approximately)

Watts During Operation............................................................................180 (approximately)

Fuel:

The unit is designed for wood pellets that comply with the standards set by the Association of Pellet Fuel

Industry (density of at least 40 lbs. per cubic foot, 1/4" to 5/16" diameter, length no greater than 1–1/2", 8200

BTU's/lb., moisture under 8% by weight, ash under 1% by weight, and salt under 300 parts per million). If the fuel

does not comply to this standard, the unit may not operate as designed.

NOTE : This heater may use alternative fuel if equipped with the multi-fuel fire pot and properly maintained. See the

publication “Multi-Fuel Pellet Fire Pot” for requirements (available from your Travis Industries, Inc. dealer).

EPA Compliance:

This heater has been tested exempt from EPA Phase II Requirements by OMNI Test Labs.

Installation 7

Travis Industries 4050225 100-01154

Before You Begin

READ THIS ENTIRE MANUAL BEFORE YOU INSTALL AND USE THIS HEATER.

FAILURE TO FOLLOW THE INSTRUCTIONS MAY RESULT IN PROPERTY DAMAGE,

BODILY INJURY, OR EVEN DEATH.

Check with local building officials for any permits required for installation of this pellet heater and notify

your insurance company before proceeding with installation.

Packing List

• Thermostat & Wire • Scraper Rod Tool • Brush • Fuses (2)

Installation Options:

•Residential or Mobile Home (see the section "Mobile Home Requirements")

•Alcove Compatible (see the section "Alcove Installation")

•Horizontal or Vertical Vent

•Outside Air Compatible

•Vent with L-Vent, L-Vent Fireplace Liner, or Type A Chimney (with adapter)

Planning The Installation

HINT: Have an authorized Travis Industries dealer install this heater. If you install the heater

yourself, have your dealer review your installation plans.

HINT: Sketch out a detailed plan of the installation including dimensions. Then verify the

dimensions with the requirements listed in this manual.

HINT: When determining the location of the stove, locate the wall studs (for horizontal

penetrations) and ceiling trusses (for vertical penetrations). You may wish to adjust the

stove position slightly to ensure the vent does not intersect with a framing member.

HINT: Place the heater outside and load 10 pounds of pellets inside the hopper. Plug the

heater in and let it run on HIGH until the pellets run out. This will cure the paint and burn

off any oil on the steel, eliminating any smell inside the home.

Stove Placement

•Stove must be placed so that no combustibles are within, or can swing within (e.g. drapes,

doors), 36" of the front of the heater.

?If the stove is placed in a location where the ceiling height is less than 7', it must follow the

requirements in the section "Alcove Installation Requirements".

HINT: REDUCING CLEARANCES - Clearances may be reduced by methods specified in NFPA

211, listed wall shields, pipe shields, or other means approved by local building or fire

officials.

•Heater and floor protection must be installed on a level, secure floor.

Floor Protection Requirements

•The heater must be installed on a non-combustible floor protector extending the full width

and depth of the heater and extending 6" in front (Minimum 28" wide by 32-1/2" deep)

(minimum .018" thick - 26 gauge) .

•Must extend under and 2" to each side and rear of a "Tee" (if used).

8Installation

Travis Industries 4050225 100-01154

Clearances - Straight Installation

6” Minimum

3” Minimum

9” Minimum

3”

Minimum

Through the Wall Installations Interior Vertical Vents

Floor Protection

6” Minimum

2”

Minimum

9” Minimum

“Tee”

Clearances - Corner Installation

6” Minimum

Through the

Wall Vents

3” Minimum

45° Elbow

45°

3” Minimum

Interior Vertical

Vents

3”

Minimum

6” Minimum

2”

Minimum

Floor Protection

“Tee”

3” Minimum

3”

Minimum

Note: If interior vertical pellet vent is used, the clearance to the backwall is determined by the

upward-turning elbow or "Tee". It will vary in depth depending on the brand of pellet vent

used (it is approximately 5"). Before placing the heater, connect the elbow or "Tee" and

measure off the 3" clearance.

Installation 9

Travis Industries 4050225 100-01154

Venting the Pellet Stove

•PELLET VENT MUST MAINTAIN A MINIMUM 3" CLEARANCE TO ANY

COMBUSTIBLE (INSTALL VENT AT CLEARANCES SPECIFIED BY THE

VENT MANUFACTURER).

•DO NOT CONNECT THE PELLET VENT TO A VENT SERVING ANY

OTHER APPLIANCE OR STOVE.

•DO NOT INSTALL A FLUE DAMPER IN THE EXHAUST VENTING SYSTEM

OF THIS UNIT.

• USE AN APPROVED WALL THIMBLE WHEN PASSING THE VENT

THROUGH WALLS AND A CEILING SUPPORT/FIRE STOP SPACER

WHEN PASSING THE VENT THROUGH CEILINGS (MAKE SURE TO

MAINTAIN 3" CLEARANCE TO ANY COMBUSTIBLES.

•No more than one tee and 180° of elbows (one tee with two 90° elbows, one tee with one

90° and two 45° elbows, etc.).

Maximum Venting

Distance:

•Vent must have a support

bracket every 5' of pellet vent

when exterior of structure

0 Feet

5 Feet

10 Feet

(max.)

0 Feet

5 Feet

10 Feet

15 Feet

20 Feet

25 Feet

30 Feet

33 Feet

(max.)

The vent height and run

must not exceed the

distance shown in the

shaded region shown to the

right.

NOTE: To achieve optimum

performance, we

recommend keeping the

vent as short as possible

(horizontal run especially).

Venting into this shaded

area may require restrictor

adjustments. See the

section “Restrictor

Adjustment” for details.

10 Installation

Travis Industries 4050225 100-01154

Pellet Vent Type

•Must be 4" diameter Type "L"(except for masonry fireplace installations) - or - connect the

vent to a factory built type "A" chimney. All vent joints (including adapters, elbows, etc…)

must be sealed with 500° F. RTV silicone.

Installing the Pellet Vent

Seal each vent section (including

adapters, elbows, etc...) by

injecting a liberal amount of 500°

F. RTV silicone into the gap

between sections.

500° F. RTV

Silicone

•Horizontal sections must have a 1/4" rise every 12" of travel.

•Pellet vent connections must be sealed airtight with 500° F. RTV silicone and screwed

together with at least three sheet metal screws.

Pellet Vent Termination (See the illustration below)

•Must have an approved cap (to prevent water from entering) or a 45° downturn.

•If the termination is located on a windy side of the house, an approved house shield is

recommended to prevent soot from building up on the side of the house.

•Must not be located where it will become plugged by snow or other material.

•Horizontal terminations must protrude 12" from the wall, verticall terminations require 24".

NOTE: Measure clearances to the nearest edge of the exhaust hood.

A Minimum 4' clearance below or beside any door or window that opens

Minimum 1’ clearance below or beside any window that does not open.

B Minimum 1' clearance above any door or window that opens

C Minimum 2' clearance from any adjacent building

D Minimum 7' clearance above any grade when adjacent to public walkways

NOTE: Vent may not terminate in covered walkway or breezeway.

E Minimum 2' clearance above any grass, plants, or other combustible materials

F Minimum 3' clearance from any forced air intake of any other appliance

G Minimum 2' clearance below eaves or overhangs

H Minimum 1' clearance horizontally from combustible wall

X Must be a minimum of 2' above the roof

Installation 11

Travis Industries 4050225 100-01154

Mobile Home Requirements

•Outside air is required (used for

combustion) - see the directions

below.

•The heater must be bolted to the

floor (Some states do not require

this; check with your local building

department). See the illustration

to the right.

•The heater must be grounded to

the steel chassis of the mobile

home (Some states do not require

this; check with your local building

department).

WARNING: DO NOT INSTALL IN

SLEEPING ROOM.

CAUTION: THE STRUCTURAL

INTEGRITY OF THE

MANUFACTURED HOME

FLOOR, WALL, AND

CEILING/ROOF MUST BE

MAINTAINED.

7/16”

Socket

Remove the ash pan

(see page 29).

Use the lag bolts (used

to secure the stove to

the pallet) to screw the

pedestal to the floor.

Outside Air (used for combustion)

•Must not be drawn from an enclosed space (garage, unventilated crawl space).

HINT: Travis Industries strongly suggests outside air for all residential installations, especially for

those that are energy efficient, air-tight homes.

•Must not be over 15'

long.

•Must be made with 1 3/4"

diameter or larger metal

or aluminum duct with a

metal screen attached to

the end to keep out

rodents (P.V.C. or other

combustible materials

may not be used). We

recommend the Travis

Industries Outside Air Kit

(part # 99200136).

• Must not terminate above

or within 1' of the

chimney termination.

•Must have a rain cap or

down-turned elbow to

prevent water from

entering.

•Must be located so that it

will not become plugged

by snow or other material.

Air Inlet

(1-3/4"

Outside

Diameter) 1/2"

Center

Line

1-3/4" Diameter Flex Duct

Select a location

between framing

members for the

outside air hole.

Rain Hood with Rodent Screen

Silicone

Cut a minimum 2" diameter

hole in the wall.

Silicone

Seal the area around

the tube to prevent

air from entering

through the wall.

Silicone

10-1/2”

NOTE:

This valve must be open (the rod

parallel with the tube) when the

stove is in operation.

12 Installation

Travis Industries 4050225 100-01154

Alcove Installation Requirements

When the pellet stove is placed in a location where the ceiling height is less than 7' tall, it is considered

an alcove installation. Because of the reduced height, the requirements listed below must be met.

•Minimum height is 60"

•Minimum width is 46"

•Maximum depth is 48"

•Minimum clearance of 9" on each side and 3" on back

Baffle Installation

Install the baffles included with the stove (see page 29 for details).

Door Seal Verification

The door is aligned prior to leaving the factory. However, shipping and installation may cause the door to

become mis-aligned. Verify the door is correctly aligned and seals properly (see the section "Door Seal"

under Yearly Maintenance).

Restrictor Adjustment

The exhaust restrictor “fine tunes” your appliance, ensuring it pulls the correct amount of air through

the firebox. Altitude, vent configuration, and other factors make restrictor adjustment necessary for

every installation.

NOTE : the optimal restrictor position will vary over time as soot builds up inside the exhaust system –

make sure the homeowner knows how to visually inspect the flame and adjust the restrictor.

Not Enough Air:

If clinkers develop or the flame appears

lazy and slow to blow the ash out of the

firepot, pull the restrictor outward until

the flame becomes active and the

firepot holes remain clean. NOTE: If the

restrictor is fully out (“5”), yet the firepot

does not remain clean, the stove needs

to be cleaned and checked for air leaks

(see “Maintenance” section of this

manual).

Too Much Air:

If the flames are too active (small,

flickering flames) or if burning pellets are

expelled from the firepot, move the

restrictor rod inwards until the flame

slows down and no burning pellets are

expelled. Another symptom of too

much air is the heater “blowing the fire

out” – a condition in which the pellets

burn faster than they are fed (this is most

common on low).

Installation 13

Travis Industries 4050225 100-01154

Installation Example: Direct "Through-the-wall" Installation

3” Minimum

9” Minimum

Floor Protection

6” Minimum

12” Minimum

Horizontal Rain Cap

Wall Thimble (note

3” clearance

between vent and

combustibles)

Outside Air

Type "L"

Vent

12”

Minimum

3” Minimum

17-5/8”10-1/2”Floor Protection

Seal each vent

section (including

adapters, elbows,

etc...) by injecting a

liberal amount of

500° F. RTV

silicone into the gap

between sections.

500° F. RTV

Silicone

House Shield - prevents discoloration to outside of

home - HIGHLY RECOMMENDED

14 Installation

Travis Industries 4050225 100-01154

Installation Example: Interior Vertical Installation

Type "L" Vent

6” Minimum

3”

Minimum

Floor Protection

2”

Minimum

9” Minimum

Outside

Air

(optional)

Floor Protection

24” Minimum

Insulation

must maintain

3” clearance.

Outside air may be drawn from

a ventilated crawl space.

2” Min.

3” Min.

Ceiling Support / Fire Stop Spacer

Roof Flashing

Storm Collar

Vertical Cap

Vent must

maintain 3”

clearance to

combustibles.

“L” Vent

Seal each vent

section (including

adapters, elbows,

etc...) by injecting a

liberal amount of

500° F. RTV

silicone into the gap

between sections.

500° F. RTV

Silicone

“Tee”

Installation 15

Travis Industries 4050225 100-01154

Installation Example: Class A Chimney Retrofit

Type "L" Vent

6” Minimum

3”

Minimum

Floor Protection

2”

Minimum

9” Minimum

Outside

Air

(optional)

Floor Protection

Outside air may be drawn from

a ventilated crawl space.

2” Min.

3” Min.

Class A Chimney Ceiling Support

Roof Flashing

“L” Vent to Class A Chimney Adapter

Class A Chimney

“L” Vent

Storm Collar

Class A Chimney must

maintain clearances outlined

in the chimney’s installation

instructions (usually 2”).

“Tee”

Seal each vent

section (including

adapters, elbows,

etc...) by injecting a

liberal amount of

500° F. RTV

silicone into the gap

between sections.

500° F. RTV

Silicone

16 Installation

Travis Industries 4050225 100-01154

Installation Example: Masonry Fireplace Hearth Stove

Outside air

may be

drawn from

the ash

cleanout.

6” Min.

“L” Vent

Storm Collar

Vertical Cap

Cover Plate (non-combustible)

Silicone

Seal the cover

plate with silicone.

NOTE: you will probably need a short horizontal section

here to clear the lintel and allow the hopper lid to open.

Allow room for the

hopper lid to open

Lintel 3”

Seal each vent

section (including

adapters, elbows,

etc...) by injecting a

liberal amount of

500° F. RTV

silicone into the gap

between sections.

500° F. RTV

Silicone

57-1/2”

“L” Vent Flex

Section

Installation 17

Travis Industries 4050225 100-01154

Installation Example: Zero-Clearance (Metal) Fireplace Hearth Stove

“L” Vent Flex

Section

6” Min.

“L” Vent

Storm Collar

Vertical Cap Cover Plate (non-combustible)

Silicone

Seal the cover

plate with silicone.

NOTE: you will probably need a short horizontal section

here to clear the lintel and allow the hopper lid to open.

Allow room for the

hopper lid to open

57-1/2”

3”

Seal each vent

section (including

adapters, elbows,

etc...) by injecting a

liberal amount of

500° F. RTV

silicone into the gap

between sections.

500° F. RTV

Silicone

18 Installation

Travis Industries 4050225 100-01154

Installation Example: Freestanding Masonry Chimney

“L” Vent

Sections

6” Min.

“L” Vent

Storm Collar

Vertical Cap

Cover Plate (non-combustible)

Silicone

Seal the cover

plate with silicone.

Allow room for the

hopper lid to open

3”

Minimum

Clean-Out Access

Seal each vent

section (including

adapters, elbows,

etc...) by injecting a

liberal amount of

500° F. RTV

silicone into the gap

between sections.

500° F. RTV

Silicone

57-1/2”

“L” Vent Flex

Section

Operation 19

Travis Industries 4050225 100-01154

Safety Notice

Read this entire manual (especially the "Safety Precautions" on pages 4 and 5)

before using this stove. Failure to follow the instructions may result in property

damage, bodily injury, or even death.

!Do not unplug the stove to turn it off. This stove relies upon electricity to push the flue

gases out the pellet vent – unplugging it may lead to smoke entering your room.

!Failure to maintain your heater will lead to a restricted combustion air system, leading to

poor performance and in some cases, smoke spillage into the room. See the

"Maintenance" section for details.

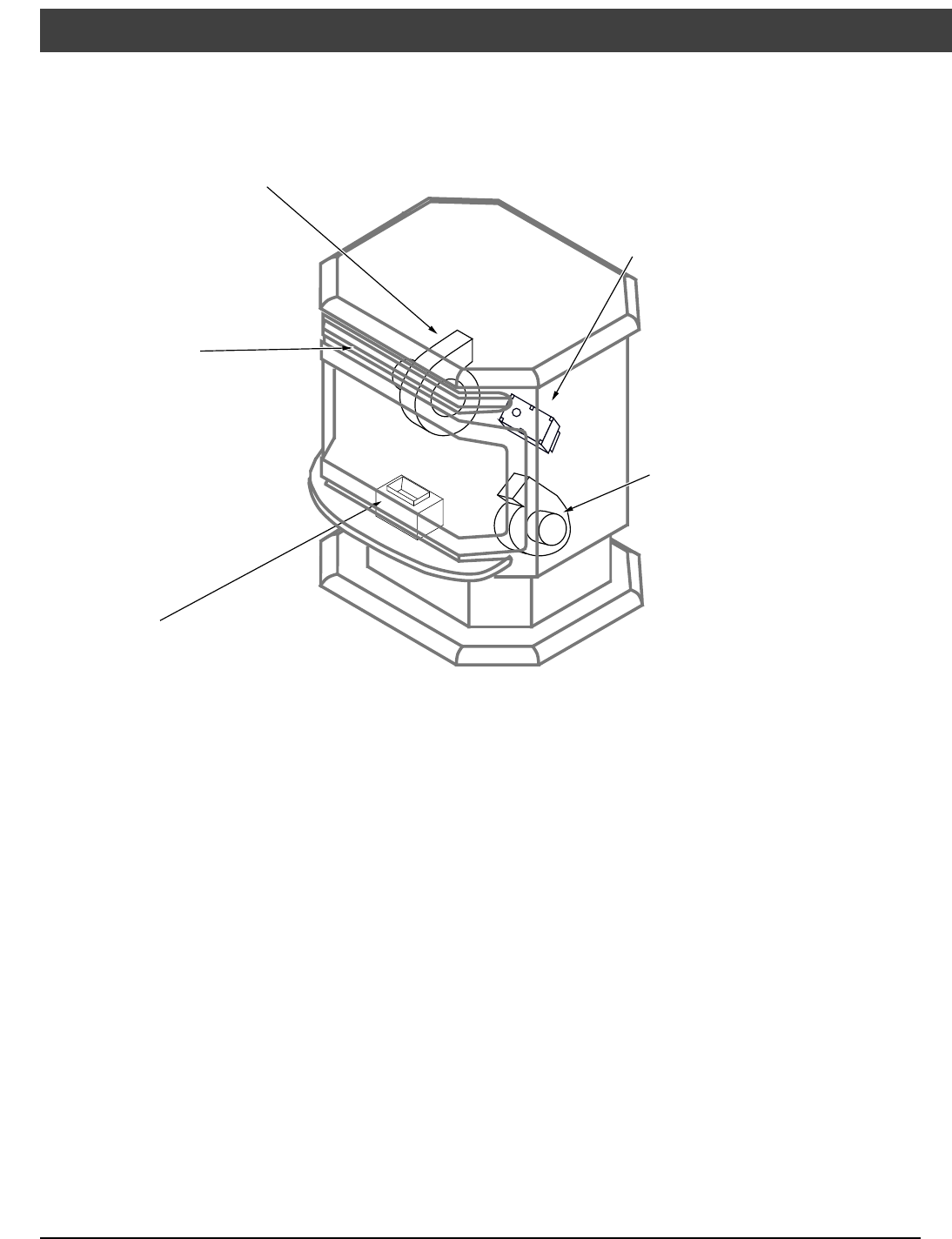

Location of Controls

Control Panel

Thermostat or Remote

(required for Auto

Operation)

Firepot

OFF

ROOM TEMP

°F

SET TEMP

TIMER

MIN

Time

Set

Time

Cancel

50 60 70 80 90

Robertshaw

Restrictor

The restrictor

adjusts the amount

of air flowing to the

flame.

Starting the Heater for the First Time

Start the Heater - Let it Burn for 1 Hour - THEN OPEN THE DOOR

The stove paint is cured through heat. To prevent it from bonding to the door gasket, you must burn

the heater for approximately 1 hour, then open and close the door to break any bonding.

Curing the Paint

This stove uses a heat-activated paint that will emit some

fumes while starting the first fire. Open doors and

windows to the room to vent these fumes. You may also

notice oil burning off of the interior of the stove. This

rust-stopping agent will soon dissipate.

Priming the Auger

2 to 4 hours

Because of its electronic control panel, this stove does not require priming. If you run out of pellets

you may notice it will take approximately 5 minutes longer for the stove to start.

20 Operation

Travis Industries 4050225 100-01154

Loading Pellets

Lift the hopper lid to its vertical position. Pour pellets into the hopper until full. NOTE: The hopper

holds approximately 115 pounds of pellets.

Make sure pellets

are not left on this

heat shield.

To Close the Hopper Lid:

lift the lid, pull this tab forward,

then lower the lid down.

To Open the Hopper Lid:

lift the hopper lid from this handle.

These notches allow

you to open the hopper

lid to the level you wish.

Warning:

The front edge of the

hopper lid becomes very

hot, do not touch the area

below the handle.

The Two Modes of Operation:

Manual

Manual mode requires the user to turn

the heater on and off manually.

Auto (requires a thermostat)

Auto mode allows you to use a

thermostat to control room

temperature. The stove automatically

turns on when the temperature drops

below the thermostat setting. Once the

stove reaches operating temperature,

the stove then runs at the heat output

setting selected.

Switching Modes While in

Operation

Whenever the stove is switched from

one mode to another while in

operation, the stove will enter the "start-

up" sequence for a minimum of 20

minutes.

HIGH

DISCONNECT POWER BEFORE SERVICE

REMOTE

AUTO

MANUAL

MED

LOW

AUGER

FAULT

AUTO

OFF

MANUAL

DOWN

MANUAL

START

AUGER

TRAVIS INDUSTRIES

HOUSE OF FIRE

Use the mode

switch to

determine the

mode.

These indicator lights

are used to determine

which mode you are in.

NOTE: if using a

modulating remote, this

light will come on to

indicate the remote is

controlling the heater.

Operation 21

Travis Industries 4050225 100-01154

Manual Mode

Manual mode requires the user to turn the

heater on and off manually.

To Start

Press the "Manual Start" button. That's it. The

stove automatically goes to a medium burn rate

and high fan while the igniter starts the fire

burning within 10 minutes. During this period

the lowest “HEAT OUTPUT” light will flash. If

the stove does not start in 30 minutes, the

stove turns off.

Once up to temperature, the stove will then

run at the heat output setting selected on the

control panel (see “To Adjust the Heat” below).

AUTO

OFF

MANUAL

DOWN

MANUAL

START

AUGER

TRAVIS INDUSTRIES

HOUSE OF FIRE

To Shut Down

Move the mode switch to "OFF". The exhaust

blower will still run until the heater cools down.

AUTO

OFF

MANUAL

DOWN

MANUAL

START

AUGER

TRAVIS INDUSTRIES

HOUSE OF FIRE

To Adjust the Heat

Press the "Heat” buttons to adjust the heat

output.

NOTE: During start-up you may adjust the heat

setting. This heat setting will take affect once

the start-up sequence is complete.

HIGH

DISCONNECT POWER BEFORE SERVICE

REMOTE

AUTO

MANUAL

MED

LOW

AUGER

FAULT

AUTO

OFF

MANUAL

DOWN

MANUAL

START

AUGER

TRAVIS INDUSTRIES

HOUSE OF FIRE

These lights

indicate the

heat output

setting.

NOTE: the

lights may

be difficult to

see from an

angle.

Press the

“up” or

“down”

button to

adjust the

heat output.

22 Operation

Travis Industries 4050225 100-01154

Auto Mode

Auto mode allows you to use a thermostat to control room temperature. The stove automatically turns

on when the temperature drops below the thermostat setting. Once the stove reaches operating

temperature, the stove then runs at the heat output setting selected.

To Adjust Room Temperature (or Start the Stove)

Move the thermostat to the heat setting desired. If the room is

cooler than the setting, the stove will go through the start-up

sequence for approximately 10 minutes. During this period the

lowest “HEAT OUTPUT” light will flash. Once up to temperature,

the stove will then run at the heat output setting selected on the

control panel. If the room is too hot, move the thermostat to a

lesser setting.

To Adjust the Heat

Press the "Heat” buttons to adjust the heat

output.

HINT:

If you find that the stove turns on and off

repeatedly, you may wish to turn the heat

output to a lesser setting. The lower setting

will provide a more consistent heat output over

time, eliminating the need for the thermostat to

repeatedly turn the stove off.

NOTE:

If the thermostat calls for heat while the stove is

still cooling down, the stove will go through the

start-up sequence (for a minimum of 20

minutes).

HIGH

DISCONNECT POWER BEFORE SERVICE

REMOTE

AUTO

MANUAL

MED

LOW

AUGER

FAULT

AUTO

OFF

MANUAL

DOWN

MANUAL

START

AUGER

TRAVIS INDUSTRIES

HOUSE OF FIRE

These lights

indicate the

heat output

setting.

NOTE: the

lights may

be difficult to

see from an

angle.

Press the

“up” or

“down”

button to

adjust the

heat output.

To Shut Down

Move the mode switch to "OFF". The exhaust

blower will still run until the heater cools down.

AUTO

OFF

MANUAL

DOWN

MANUAL

START

AUGER

TRAVIS INDUSTRIES

HOUSE OF FIRE

Operation 23

Travis Industries 4050225 100-01154

Restrictor Adjustment

The exhaust restrictor “fine tunes” your appliance, adjusting the amount of air flowing to the flame.

NOTE : the optimal restrictor position will vary over time as soot builds up inside the exhaust system.

Not Enough Air:

If clinkers develop or the flame

appears lazy and slow to blow the

ash out of the firepot, pull the

restrictor outward until the flame

becomes active and the firepot

holes remain clean. NOTE: If the

restrictor is fully out (“5”), yet the

firepot does not remain clean,

the stove needs to be cleaned

and checked for air leaks (see

“Maintenance” section of this

manual).

Too Much Air:

If the flames are too active (small,

flickering flames) or if burning

pellets are expelled from the

firepot, move the restrictor rod

inwards until the flame slows

down and no burning pellets are

expelled. Another symptom of

too much air is the heater

“blowing the fire out” – a

condition in which the pellets

burn faster than they are fed (this

is most common on low).

Adjusting the Fan Speed

AUTO

OFF

MANUAL

DOWN

MANUAL

START

AUGER

TRAVIS INDUSTRIES

HOUSE OF FIRE

Press the

“up” or

“down”

button to

adjust the

fan speed.

24 Operation

Travis Industries 4050225 100-01154

Start-Up Sequence

This stove utilizes a start-up sequence whenever the mode switch is changed or the heater is started

when cold. This is to ensure proper operation through all possible settings and operational states (hot

or cold, pellets burning or not burning, etc.). This sequence over-rides all user settings (except the

"OFF" position) to set the auger feed rate to medium, the exhaust blower to high, and the igniter on.

During this period the lowest “HEAT OUTPUT” light will flash.

"MANUAL AUGER" Button

This button turns the auger on. It is used to “prime” the auger after the hopper has run out of pellets.

"AUGER ON" Light

This light comes on when the auger is turning. This allows the operator to determine when the auger

is turning.

"FAULT" Light

This light comes on when an error occurs:

•The stove runs out of pellets

•During initial start-up (for a split

second) or for improper electrical

frequency

•A start-up sequence that does not

result in the heater coming up to

temperature

To reset the fault light, turn the mode switch to

off and re-start the stove.

HIGH

DISCONNECT POWER BEFORE SERVICE

REMOTE

AUTO

MANUAL

MED

LOW

AUGER

FAULT

Fault Codes (for qualified service personnel only)

Fault and #2 (LOW) Light Flash = Flow Switch Fault

Fault and # 4 (MID) Light Flash = System Snap Disk Fault (pellets run out & stove goes cold)

Fault and # 6 (HIGH) Light Flash = Safety Snap Disk Fault

Power Outages

If a sustained power outage occurs while in "Manual", the stove will go to a "cool down" mode to

vacate smoke once power returns. If the power outage was short, the heater will go to the start-up

sequence. If in "Auto", the stove will re-start (if the room is cool).

!Because this stove relies upon a blower to evacuate the smoke, some smoke may enter

the home during a power outage. To keep to a minimum, leave the door closed.

Maintenance 25

Travis Industries 4050225 100-01154

Daily Maintenance (whenever using the stove)

Inspect the Burn

When burning on high, the

flames should be bright orange

with embers jumping from the

firepot.

NOTE : the optimal restrictor

position will vary over time as soot

builds up inside the exhaust

system. See "Restrictor

Adjustment" for details.

Make Sure Pellets are

Not Piling Up

If the pellets pile up over the burn

pot, turn the mode switch to

"OFF".

The most likely causes are:

•Restrictor needs adjustment

(see “Restrictor Adjustment”

in the installation section of

this manual)

•The door, glass, or ashpan is

open or has an air leak

•The firepot requires cleaning

•The exhaust system requires

cleaning

26 Maintenance

Travis Industries 4050225 100-01154

Daily Maintenance (whenever using the stove) - Continued

Check Firepot for

Clinkers

If the flames seem to be

coming only from the sides,

or are orange/black, turn

the heater off and check for

clinkers.

The most likely causes are:

•Restrictor needs

adjustment (see

“Restrictor

Adjustment” in the

installation section of

this manual)

•Poor pellet quality

•The door or glass has

an air leak

•The exhaust system

requires cleaning

Cleaning the Firepot

WARNING:

Make sure the heater

has fully cooled

(approximately 25

minutes) before

opening the door and

conducting service.

To clean the firepot, open

the door (see page 27) and

knock away any debris on

the firepot with a

screwdriver. If severely

clogged, remove the

firepot to gain better

access.

Maintenance 27

Travis Industries 4050225 100-01154

Door Opening

WARNING : Make sure the heater has fully cooled (approximately 25 minutes) before opening the door.

When securing the door, make sure the

pawl fits over the bracket before tightening.

NOTE: Do not overtighten the pawl.

This can permanently damage the

latch and prematurely wear out the

door gasket.

Door Frame

Bracket (attached to side of

heater)

Pawl

Lock Nut

Phillips

Screwdriver

With the pawl free of the bracket,

the door may be swung open.

28 Maintenance

Travis Industries 4050225 100-01154

Bi-Weekly Maintenance (or every 10 bags of pellets)

Clean the Heat Exchange Tubes

Heat Exchanger

Cleaning Rod

Keep the door closed so the

flyash does not enter the room.

WARNING:

The front edge of the

hopper lid becomes very

hot, do not touch the area

below the handle.

Open the hopper lid.

Store the scraper

rod tool by hanging

it on the hanger on

the back of the

stove.

With the door closed, insert the included

tool into the hole on the heat exchanger

cleaning rod. Move the heat exchange

cleaner up and down several times.

Vacuum Hopper

Run the stove until the pellets run out. Open the hopper and vacuum out the entire hopper. The

dust and any other debris near the bottom should be removed to prevent excessive build-up.

Cleaning the Optional Gold Surfaces (Door and optional Grill)

Fingerprints or other marks left on gold surfaces may become etched in place if they are not wiped

clean prior to turning the stove on. Clean the gold with denatured alcohol and a soft cloth (make sure

the heater is cool). Other cleaners may leave a film that may become etched into the gold.

Maintenance 29

Travis Industries 4050225 100-01154

Bi-Weekly Maintenance (or every 10 bags of pellets) - Continued

Clean the Baffles

Use both hands to lift each baffle up and forward. Then tilt the baffle downward to remove any flyash

that may have accumulated on top of the baffle.

NOTE : you do not need to remove the baffle from the firebox.

The firebox baffles install on ledges at the top of the firebox. The two tabs (at the

outside back corners) insert into notches at the right and left rear corners of the

firebox walls.

The baffles install on

ledges above the

firebrick.

Air Tubes

Firebrick

NOTE: The left baffle

is larger than the

right baffle.

30 Maintenance

Travis Industries 4050225 100-01154

Sweep Ash Into Ashpan

HINT: The more often you clean out the flyash, the more efficient your heater will burn.

Swing the side ash trap door up. Lift it up and away from the firebox.

Repeat for the opposite side.

Lift the firepot out of its holder. Slide the ash pan trap door forward to expose the ash

dumps (the door can be removed and cleaned if necessary)

Brush all flyash into the ash dumps, including

the flyash inside the firepot holder.

Replace the ash trap doors and firepot.

Slide the ash pan trap door forward.

WARNING:

The firebox becomes very hot during operation. Let the stove cool completely before conducting service.

Ash Pan

Trap Door

Firepot

Ash Trap

Door

Maintenance 31

Travis Industries 4050225 100-01154

Bi-Weekly Maintenance (or every 10 bags of pellets) - Continued

Check Ashpan, Dispose if necessary

NOTE:

When replacing the ash pan make

sure it is pushed all the way in.

The ash pan has a built in

handle to ease

transportation of the ashes.

Disposal of Ashes – Ashes should be placed in a metal container with a tight fitting lid. The closed

container of ashes should be placed on a noncombustible floor or on the ground, well

away from all combustible materials, pending final disposal. If the ashes are disposed of

by burial in soil or otherwise locally dispersed, they should be retained in the closed

container until all cinders have been thoroughly cooled.

Clean the Glass

Open the door and clean the glass with a non-abrasive glass cleaner and rag. This will increase the

amount of light and heat given off by the heater.

32 Maintenance

Travis Industries 4050225 100-01154

Yearly Maintenance (or every two tons)

WARNING: Disconnect the power cord prior to conducting service.

The following section details extensive maintenance procedures. We strongly suggest these items

be carried out by a trained service technician, possibly by a service agreement set up with your dealer.

Soot and Flyash: Formation and Need for Removal – The products of combustion will

contain small particles of flyash. The flyash will collect in the exhaust venting system and restrict the

flow of the flue gases. Incomplete combustion, such as occurs during startup, shutdown, or incorrect

operation of the room heater will lead to some soot formation which will collect in the exhaust venting

system. The exhaust venting system should be inspected at least once every year to determine if

cleaning is necessary.

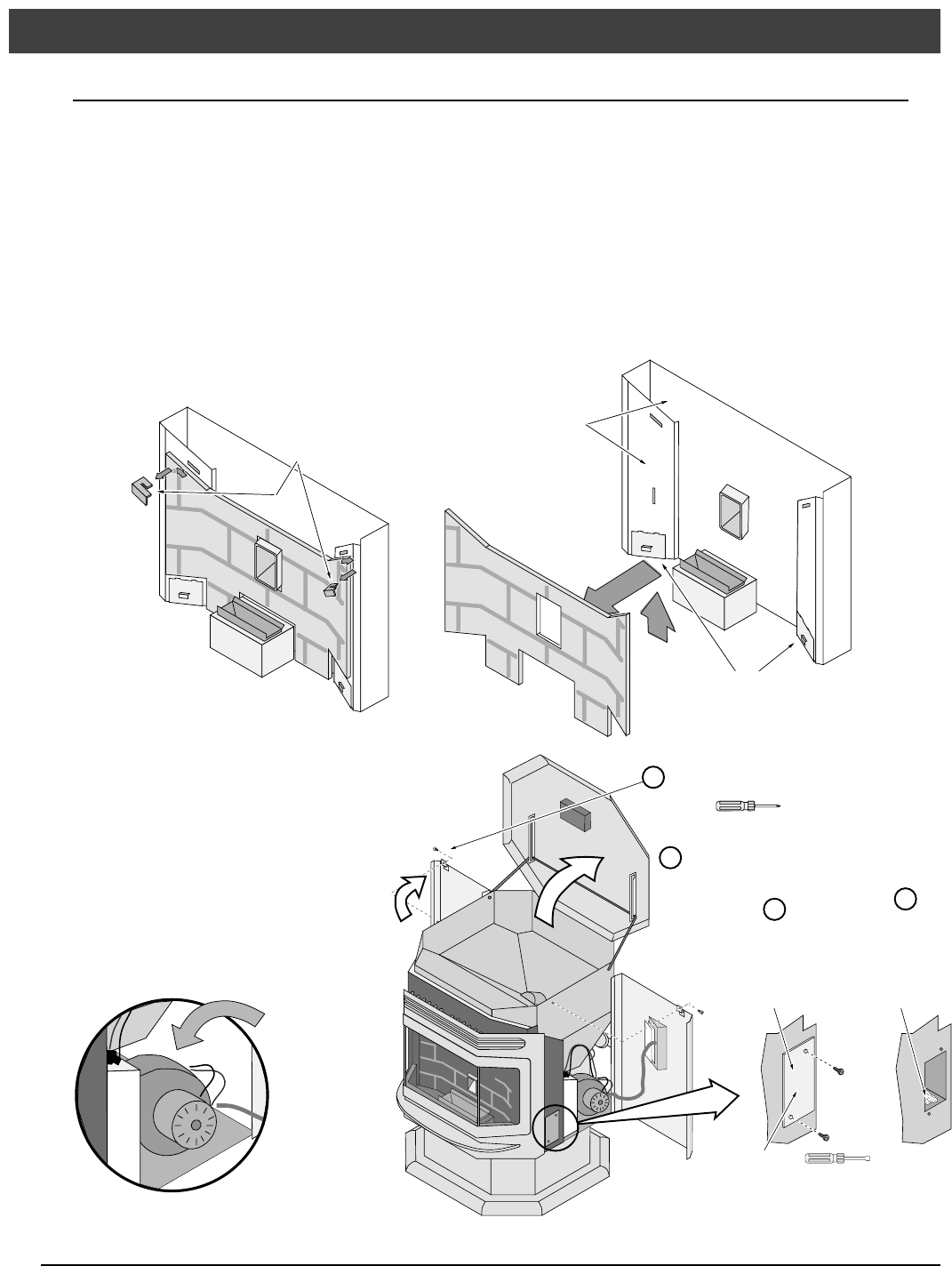

Clean the Vertical Exhaust Duct (the stove must be cool and unplugged)

Clean the refractory and

the entire area behind it

(both sides).

Remove these doors to

remove fallen flyash and

soot (see “Bi-Weekly

Remove both

refractory clips.

Clean the Exhaust Duct

(the stove must be cool and

unplugged)

Clean the Convection

Blower

(the stove must be cool and

unplugged)

The convection

blower inlet can

be vacuumed

out (if needed).

If extensive

cleaning is

needed, it can

be removed for

cleaning.

Remove the

cover plates over

the exhaust duct

(both sides)

Swing the side panels open.

7/16" Nutdriver

Cover Plate

Use a vacuum or bottle

brush to remove all

flyash from the exhaust

duct (if the gasket is

damaged, replace).

Phillips

Screwdriver

Open the hopper lid and remove the two

screws holding the side doors in place.

Maintenance 33

Travis Industries 4050225 100-01154

Yearly Maintenance (or every two tons) - Continued

Clean the Exhaust Blower (make sure the stove is cool and unplugged)

Open the hopper lid

and remove the

screw holding the

left door in place.

Remove the knob

on the restrictor

rod. Swing the left

side panel open.

Remove the six screws holding the

exhaust blower motor in place.

11/32" Socket

cPull the motor out (be careful not

to damage the wiring or blades -

replace gasket if it is damaged).

Clean the blower blades, blower housing,

and exhaust box. You may wish to use a

Exhaust

Motor

Blower

Blades

Blower

Housing

Exhaust Box

Phillips

Screwdriver

Restrictor Knob

Clean the Vent (make sure the stove and vent is cool)

Check the vent sections for creosote

accumulation (indicating a poorly burning

stove). Accumulation over 1/4” must be

removed.

On vertically vented systems, the dirtiest

portion is often the point where the vent turns

upwards (i.e. the "Tee"). Fortunately, the "Tee"

has a built-in clean out cover. Remove the

cover and vacuum out. While open, use a

flashlight to look up the pellet vent to check for

build-up.

Make sure the cap is free of debris

(especially if it has a screen that could

become blocked).

Flyash will deposit along

sections that are horizontal.

Warning: Whenever any portion of the pellet vent is disconnected, the joints must be sealed with

RTV 500° F. silicone sealant.

34 Maintenance

Travis Industries 4050225 100-01154

Yearly Maintenance (or every two tons) - Continued

Door Seal

!Air leaks into the firebox will decrease the

stove's performance greatly, leading to

excessive sooting, inefficient burning,

and perhaps a malfunction.

•The door gasket must contact the entire

perimeter of the door and create an air-

tight seal. To verify this, open the door,

hold a dollar bill against the body of the

heater, close the door, and secure the

latch. The dollar bill should be held firmly

in place (check the entire perimeter of the

door. If it is loose or falls out, the door

must be adjusted (see the following

page).

Door Alignment

Because the door is three-sided, it is

crucial the door is aligned correctly.

We recommend that you open the

hopper lid and look down upon the

door and body of the heater. Use the

illustration to the right to determine

the correct door alignment.

Correctly Aligned Door

When properly adjusted, the door should be evenly

spaced from the front of the stove (and shut tight,

compressing the gasket).

Top of Stove

Door

Hinge Latch

Note how both corners are evenly spaced.

Latch Too Tight - In the illustration below, the

latch is too tight (this is the most common mis-

alignment). Loosen the latch and tighten the hinge.

Note how the gasket separates from the body.

Hinge Too Tight - In the illustration below, the

hinge is too tight. Loosen the hinge and tighten

the latch.

Note how the gasket separates from the body.

Maintenance 35

Travis Industries 4050225 100-01154

Adjusting the Door Hinge and Latch

•The door hinge and door latches may be adjusted to pull the door closer to the body. The

illustration below details how to adjust these components. NOTE: Make sure to read the section

"Door Alignment" on the previous page before adjusting the door.

Open the hopper lid

and remove the two

screws holding the

side doors in place. Latch Adjustment

Loosen the lock nut and twist

the pawl (clockwise to tighten,

counter-clockwise to loosen).

Tighten the lock nut to secure

in place.

Door

Bracket (attached to side of

heater)

Lock Nut

Pawl

Door Hinge Bracket

Door

Hinge Adjusting Plate

Hinge Adjustment

(1) With the door closed, loosen the

two bolts going through the door

hinge bracket.

(2) Loosen the four nuts used to

move the hinge adjusting plate.

Tighten or loosen these nuts to

adjust the door hinge bracket. Adjust

the upper and lower nuts equally to

insure the door remains level.

Tighten the four nuts.

(3) Tighten the two bolts loosened in

Dimple (used to monitor hinge

bracket position)

36 Maintenance

Travis Industries 4050225 100-01154

Check for Air Leaks Around the Door, Glass, and Ashpan

!Air leaks into the firebox will decrease the stove's performance greatly, leading to excessive

sooting, inefficient burning, and perhaps a malfunction.

•Inspect the door gasket to make sure it is fully attached. Use stove gasket cement to re-attach if

necessary. If the door gasket is worn or flattened, replace.

•If the glass is cracked, replace. The glass is held in place by glass clips that are underneath the

airwash brackets. See the illustration below for details.

•Remove the ashpan and inspect the gasket around the perimeter of the ashpan. Re-attach, or

replace the gasket if necessary.

Door

Gasket

Airwash Bracket

Door

Frame

Door Trim

Glass (with

channel gasket)

Door Gasket

Glass Clips

Airwash Brackets

Glass Clip

5/16"

Nutdriver

Attachment

Nuts

Replacement Parts

ASH DUMP PLATE, LARGE PS/PI 91002022 GASKET, DOOR 7/8" x 85" WHITE ROPE 99900431

ASHTRAP DOORS 93005054 GASKET, GLASS 5/8"x137" BLACK 99900398

AUGER BEARING PLT, LOWER, LRG 91002024 GLASS, FRONT, P12/14, P13 91002004

AUGER BUSHING PLATE, UPPER 93005093 GLASS, SIDE, P12/14, P13 91002005

AUGER DRIVE COLLAR, 1997 & UP 91002021 GROMMET, IGNITOR WIRE BLACK RUBBER 100-02811

AUGER FLIGHT INSPECTION COVER 210-02702 GSKT, CLEAN-OUT CVR, 3.250 x 2.750 100-03235

AUGER FLIGHT, 2000+ LRG PEL 91002013 GSKT, COMB BLOWER (BODY) 100-03206

AUGER MOTOR STOP, P11-P15 93005096 GSKT, COMB BLOWER(MOTOR) 7" dia 100-03231

AUGER MOTOR, ALL PS/PI 90-0191 GSKT, EXHAUST PLATE 4.25"x4.25" 100-03230

AUGER SUB-ASS'Y - LARGE PEL 91002020 HANDLE, HOPPER LID 100-04312

BLOWER, COMB, PELLET 93005535 HANDLE, PEL CNTRL BOARD 97 99300094

BLOWER, CONV, P2-8/11-15/G1 98900755 HINGE PLATE ASS'Y 91002017

BRUSH, BROOM STYLE - PELLET 100-04301 HOSE NIPPLE, BARBED 100-04307

BURNPOT ASSY, FIREPOT 99300171 IGNITER, LG PS/PI 99300149

CABLE HANGER CLIP 100-04310 KNOB (PHENOLIC), 3/4" dia 100-04241

CNTRL BRD, LG PEL (P13-15) 100-00203 LBL, EXHAUST DAMPER 112-00505

CORD RESTRAINER 100-00112 MAGNET w/OUT SHEATH 1x.75" 1/4" THICK 100-02801

DAMPER PLATE S-ASS'Y - LRG PS 221-22089 OIL PAN, COMB BLOWER - LG PEL 210-03216

DRAFT (FLOW) SWITCH 93005060 POWER CORD, PS/PI 93005015

DRAFT FLOW TUBING 99300164 REFRACTORY SIDE CLIP, LEFT 210-03831L

FIRE-BACK, CAST IRON, 93005059 REFRACTORY SIDE CLIP, RIGHT 210-03831R

FIREBOX BAFFLE, LEFT 210-05199 SCRAPER ROD (P12/13/14) 211-01660

FIREBOX BAFFLE, RIGHT 210-05198 SNAP-DISC - 120deg CERAMIC NO 100-00232

FUSE HOLDER (IN-LINE) 100-00210 SNAP-DISC - 120deg NO # NO 100-00231

FUSE, 5AMP, 5 - FOR INLINE 93-0695 SNAP-DISC - 200deg NC # NC 100-00233

FUSE, 6AMP, 5 - CONTROL BOARD 93005019 TOOL, GLASS LATCH/RESTRICT0R 100-02302

GASKET CEMENT (WHITE), 4oz. 99900409 WIRE HRNS, PEL, JUMPER, LRGPELLET 100-00390

GASKET, ASHPAN 70" BLK 1/2"x1/8" ADH 99900428 WIRE HRNS, PEL, PS/PI 97 & UPLARGE OR SMALL 100-00391

Normal Operating Sounds 37

Travis Industries 4050225 100-01154

Auger Motor

When feeding pellets, you

may hear the intermittent

buzz of this motor running.

Heat Exchanger Tubes

You may hear the heated

air being forced through

these tubes by the

convection fan.

Firepot

As pellets are fed into the

firepot, a light clicking

sound may be heard.

Convection Fan

The modern high efficiency

fan may produce a low

hum, particularly on

"HIGH". This sound will

change as the FAN setting

is changed.

Exhaust Blower

This blower may create a

low-pitched hum. This

sound will change as the

HEAT OUTPUT is altered.

38 Safety Label

Travis Industries 4050225 100-01154

WARNING - DO NOT REMOVE OR COVER THIS LABEL

Listed Pelletized

Solid Fuel Burning Appliance

Also for Use in Mobile Homes

Model: Astoria PS

Serial No:

Tested to: ASTM E, 1509-95, Room Heater Pellet Burning Type (UM) 84 HUD

Electrical Rating: 115V, 60Hz, 3 Amp; Start 3 Amps, Run 1.5 Amps

Maximum Input Rating: 5.5 lbs (2.5kg)/hr

This pellet fired appliance has been tested and listed for use in manufactured (mobile) homes in accordance

with OAR 814-23-900 through 814-23-909.

WARNING - FOR MANUFACTURED HOMES: Do not install appliance in a sleeping room. Must utilize outside

combustion air inlet (part #99200136) or equivalent. Structural integrity of the manufactured home floor,

ceiling, and walls must be maintained.

Install only in accordance with the manufacturer’s installation and operating instructions. Contact local

building or fire officials about restrictions and installation inspection in your area.

Use only listed 4 in./100 mm diameter listed type “L” or “PL” venting system. See manufacturer’s installation

instructions and local codes for precautions required for passing chimney through a combustible wall or

ceiling. Do not connect this appliance to a vent serving another appliance. Inspect and clean exhaust venting

system frequently in accordance with manufacturer’s instructions.

May be installed in a sleeping room with use of outside combustion air inlet (Part #99200136) or equivalent.

Minimum Clearance to Combustible Materials (Measured to Stove Top)

BACKWALL

LEFT SIDEWALL

FLOOR PROTECTOR

EADJACENT WALL

ADJACENT WALL

RIGHT SIDEWALL

Interior Vertical Horizontal Through

Flue Installation the Wall Installation

Left Sidewall A 9” 9”

Right Sidewall B 9” 9”

Backwall C ** 3”

Corner D 3” 3”

Flue Vent E 3” 3”

Maximum alcove depth 48 in/1220 mm, minimum ceiling height 60 in/1525 mm, minimum alcove width

46 in/1165 mm.

Combustible floor must be protected by a non-combustible material, extending to the front (G) 6 in/150 mm

and to the sides (H) 0 in/0 mm.

EXCEPTIONS: Non-combustible floor protection must extend beneath a vent tee when installed.

** This dimension will vary depending on brand of listed type “L” vent. See manual for details.

For use with 1/4 in/6 mm to 5/16 in/7 mm diameter pelletized wood fuels only.

Replace glass only with 5 mm ceramic glass available from your dealer.

DANGER: Risk of electrical shock. Disconnect power supply before servicing. Route power cord away from

unit. Do not route power cord beneath heater.

Operate only with viewing door and ash removal tray tightly closed. Do not obstruct combustion air openings.

The space beneath heater must not be obstructed. Keep all furnishings away from heater.

U.S. ENVIRONMENTAL PROTECTION AGENCY

This model is exempt from EPA certification under 40 CFR 60.531 by definition

[Wood Heater (A) “Air-to-fuel Ratio”].

Date of Manufacture

2001 2002 2003 Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec

DO NOT REMOVE THIS LABEL MADE IN U.S.A.

Mfg. by TRAVIS INDUSTRIES, INC.

10850 117th Pl N.E.

Kirkland, WA 98033

Report No. 028-S-42-2

0406

Limited 7 Year Warranty 39

Travis Industries 4050225 100-01154

To register your TRAVIS INDUSTRIES, INC. 7 Year Warranty, complete the enclosed warranty card and mail it within ten (10) days of the appliance

purchase date to: TRAVIS INDUSTRIES, INC., 4800 Harbour Pointe Blvd. SW, Mukilteo, WA 98275. TRAVIS INDUSTRIES, INC. warrants this gas

appliance (appliance is defined as the equipment manufactured by Travis Industries, Inc.) to be defect-free in material and workmanship to the original

purchaser from the date of purchase as follows:

Check with your dealer in advance for any costs to you when arranging a warranty call.

Mileage or service charges are not covered by this warranty. This charge can vary from store to store.

Years 1 & 2 - COVERAGE: PARTS & LABOR

Firebox Assembly:

Firepot, Firepot Holder, Ash Cleanout Doors, Ashbox or Ash

Dump, Cast Fireback, Heat Exchanger Tubes, Exhaust

Manifold, Exhaust Box

Door Assembly:

Door Frame, Latch Assembly, Glass Retainers

Auger Assembly

Auger Flight, Auger Tube, Auger Bushings

Ceramic Glass

Glass (breakage from thermal shock)

Igniter System

Igniter, Igniter Leads

Electrical System

Auger Motor, Convection Blower, Exhaust Blower, Circuit

Board, Snap Disks, Wiring Harness, Vacuum Switch

Accessories

Panels, Legs, Pedestal, Gold Trim, Ceramic Log with Log Shelf,

Gold Door (See # 9 below)

Re-Installation Allowance

In cases where heater must be removed from home for repairs, a

partial cost of re-installation is covered (pre-authorization required)

One-Way Freight Allowance

One-way freight allowance on pre-authorized repair done at factory

is covered.

Exclusions:Paint, Gasketing

Years 3 Through 5 - COVERAGE: PARTS & LABOR

Firebox Assembly:

Firepot, Firepot Holder, Ash Cleanout Doors, Ashbox or Ash

Dump, Cast Fireback, Heat Exchanger Tubes, Exhaust

Manifold, Exhaust Box

Door Assembly:

Door Frame, Latch Assembly, Glass Retainers

Auger Assembly

Auger Flight, Auger Tube, Auger Bushings

One-Way Freight Allowance

One-way freight allowance on pre-authorized repair done at

factory is covered.

Exclusions:Paint, Gasketing, Ceramic Glass, Igniter System, Electrical System, Accessories (panels, legs, pedestal, gold trim, ceramic log, gold

door), Re-Installation Allowance

Years 6 & 7 - COVERAGE: PARTS ONLY

Firebox Assembly:

Firepot, Firepot Holder, Ash Cleanout Doors, Ashbox or Ash Dump, Cast

Fireback, Heat Exchanger Tubes, Exhaust Manifold, Exhaust Box

Door Assembly:

Door Frame, Latch Assembly, Glass Retainers

Exclusions:Paint, Gasketing, Ceramic Glass, Igniter System, Electrical System, Accessories (panels, legs, pedestal, gold trim, ceramic log, gold

door), Auger Assembly, Re-Installation Allowance, One-Way Freight Allowance, Labor

CONDITIONS & EXCLUSIONS

1. This new appliance must be installed by a qualified installer. It must be installed, operated, and maintained at all times in accordance with the instructions in

the Owner’s Manual. Any alteration, willful abuse, accident, neglect, or misuse of the product shall nullify this warranty.

2. This warranty is nontransferable, and is made to the ORIGINAL purchaser, provided that the purchase was made through an authorized Travis dealer.

3. Discoloration and some minor expansion, contraction, or movement of certain parts and resulting noise, is normal and not a defect and, therefore, not covered

under warranty.

4. The warranty, as outlined within this document, does not apply to the chimney components or other Non-Travis accessories used in conjunction with the

installation of this product. If in doubt as to the extent of this warranty, contact your authorized Travis retailer before installation.

5. Travis Industries will not be responsible for inadequate performance caused by environmental conditions such as nearby trees, buildings, roof tops, wind, hills

or mountains or negative pressure or other influences from mechanical systems such as furnaces, fans, clothes dryers, etc.

6. This Warranty is void if:

a. The unit has been operated in atmospheres contaminated by chlorine, fluorine or other damaging chemicals.

b. The unit is subject to submersion in water or prolonged periods of dampness or condensation.

c. Any damage to the unit, combustion chamber, heat exchanger or other components due to water, or weather damage which is the result of, but not limited

to, improper chimney/venting installation.

7. Exclusions to this 7 Year Warranty include: injury, loss of use, damage, failure to function due to accident, negligence, misuse, improper installation,

alteration or adjustment of the manufacturer's settings of components, lack of proper and regular maintenance, damage incurred while the appliance is in

transit, alteration, or act of God.

n This 7 Year warranty excludes damage caused by normal wear and tear, such as paint discoloration or chipping, worn or torn gasketing, chipped

or cracked firebrick, etc. Also excluded is damage to the unit caused by abuse, improper installation, modification of the unit, or the use of fuel other than that

for which the unit is configured.

n Damage to gold or nickel surfaces caused by fingerprints, scratches, melted items, or other external sources left on the gold or nickel from the

use of cleaners other than denatured alcohol is not covered in this warranty.

10. TRAVIS INDUSTRIES, INC. is free of liability for any damages caused by the appliance, as well as inconvenience expenses and materials. Incidental or

consequential damages are not covered by this warranty. In some states, the exclusion of incidental or consequential damage may not apply.

11. This warranty does not cover any loss or damage incurred by the use or removal of any component or apparatus to or from the Travis appliance without the

express written permission of TRAVIS INDUSTRIES, INC. and bearing a TRAVIS INDUSTRIES, INC. label of approval.

12. Any statement or representation of Travis products and their performance contained in Travis advertising, packaging literature, or printed material is not part of

this 7 year warranty.

13. This warranty is automatically voided if the appliance’s serial number has been removed or altered in any way. If the appliance is used for commercial

purposes, it is excluded from this warranty.

14. No dealer, distributor, or similar person has the authority to represent or warrant Travis products beyond the terms contained within this warranty. TRAVIS

INDUSTRIES, INC. assumes no liability for such warranties or representations.

15. Travis Industries will not cover the cost of the removal or re-installation of hearths, facing, mantels, venting or other components.

16. If for any reason any section of this warranty is declared invalid, the balance of the warranty remains in effect and all other clauses shall remain in effect.

17. This 7 year warranty is the only warranty supplied by Travis Industries, Inc., the manufacturer of the appliance. All other warranties, whether express or

implied, are hereby expressly disclaimed and purchaser’s recourse is expressly limited to the warranties set forth herein.

IF WARRANTY SERVICE IS NEEDED:

1. If you discover a problem that you believe is covered by this warranty, you MUST REPORT it to your Travis dealer WITHIN 30 DAYS, giving them proof of purchase, the purchase date, and the

model name and serial number.

2. Travis Industries has the option of either repairing or replacing the defective component.

3. If your dealer is unable to repair your appliance’s defect, he may process a warranty claim through TRAVIS INDUSTRIES, INC., including the name of the dealership where you purchased the

appliance, a copy of your receipt showing the date of the appliance’s purchase, and the serial number on your appliance. At that time, you may be asked to ship your appliance, freight charges prepaid,

to TRAVIS INDUSTRIES, INC. TRAVIS INDUSTRIES, INC., at its option, will repair or replace, free of charge, your appliance if it is found to be defective in material or workmanship within the

time frame stated within this 7 year warranty. TRAVIS INDUSTRIES, INC. will return your appliance, freight charges (years 1 to 5) prepaid by TRAVIS INDUSTRIES, INC., to your regional

distributor, or dealership.

4. Check with your dealer in advance for any costs to you when arranging a warranty call. Mileage or service charges are not covered by this warranty. This charge can vary from store to

store.

40 Optional Equipment

Travis Industries 4050225 100-01154

Thermostat (Part # 99300650)

! Do not connect 120 VAC

to the thermostat circuit of

this heater (do not use a

household thermostat

used for a wall-board or

other electical heater).

1 Attach the thermostat wire to

the circuit board (see the

illustration to the right). Route

the wire through the back of the

heater (away from any hot or

moving components).

2 Determine a location for the

thermostat that is within range of

the 20' length of thermostat

wire. It should be centralized in

the room and away from the

heater. The wire may be routed

externally on the wall or behind

the wall (preferred).

3 Follow the directions to the right

to attach the thermostat and

thermostat wires.

Attach the quick-connects

to the two posts near the

molex connector on the

circuit board (orientation

does not mater).

50 60 70 80 90

Robertshaw

Run the thermostat wires

through the wall (cut off excess

wire, leaving 6” of slack).

Pull the cover off the thermostat

Expose 1/2” of wire and

attach to these two posts.

Standard

Screwdriver

Attach the thermostat to

the wall through these

two holes.

Optional Equipment 41

Travis Industries 4050225 100-01154

Remote Thermostat

Follow the instructions included with the remote thermostat for installation.

Using the Remote Thermostat

The remote thermostat has a 1 to 2 minute lag time between the time the thermostat is turned up and

the heater turns on. Included with the remote thermostat is a set of instructions that details the

operating characteristics of this optional component.

Pellet Log (part # 98900126)

! Make sure the heater has fully cooled before installation.

1 Assemble the log shelf following the directions below.

Right Log Shelf Leg

Left Log Shelf Leg

Log Shelf Cross Brace

3/8" Nutdriver

Nuts

2 Remove the firepot from the pellet stove. Center the log shelf

assembly (with extender attached) over the burnpot holder.

Replace the burnpot. Place the log on the log shelf extender.

When in place, the log should appear as shown in the

photograph to the right.

Center the log on the log shelf and

push it back so it rests against

these two tabs.

Place the log shelf assembly so the

back edge contacts the cast firebrick

in the rear of the firebox. Note how

the taper on the assembly matches

the taper on the cast firebrick.

NOTE:

On inserts, the ash box must be

installed before placing the log shelf

assembly.

42 Index

Travis Industries 4050225 100-01154

Adjusting the Fan Speed......................................23

Air Leaks..........................................................36

Alcove Installation Requirements..........................12

Ashpan (Opening and Disposing Ashes).................31

AUGER ON Light................................................24

Auto Mode........................................................22

Bi-Weekly Maintenance (or every 10 bags pellets)....28

Blower (Exhaust Blower Cleaning) .........................33

Blower Speed Adjustment....................................23

Cap (Pellet Vent Termination) ...............................10

Check for Air Leaks - Door, Glass and Ashpan.........36

Chimney Retrofit (wood stove)..............................15

Clean the Exhaust Blower....................................33

Clean the Exhaust Duct.......................................32

Clean the Glass.................................................31

Clean the Heat Exchange Tubes ...........................28

Clean the Vent...................................................33

Cleaning Ashpan (Opening and Disposing Ashes).....31

Cleaning the Firebox (Sweep Ash Into Ashpan) ........30

Cleaning the Firepot...........................................26

Cleaning the Hopper (Vacuum Hopper) ...................28

Clearances - Corner Installation............................8

Clearances - Straight Installation ..........................8

Clinkers (Check Firepot for Clinkers)......................26

Controls...........................................................19

Curing the Paint.................................................19

Daily Maintenance (whenever using the stove).........25

Dimensions.......................................................6

Direct "Through the Wall" Installation......................13

Door (cleaning the gold).......................................28

Door (Opening)..................................................27

Door Gasket (inspection, removal) ........................36

Electrical Specifications......................................6

Emissions (EPA Compliance) ...............................6

EPA Compliance................................................6

Exhaust Blower (Cleaning)...................................33

Exhaust Duct (Cleaning)......................................32

Fan (Adjusting the Fan Speed)..............................23

FAULT Light......................................................24

Firebox (Cleaning)..............................................32

Fireplace Installation ..........................................16

Firepot Cleaning.................................................26

Firepot Inspection (Inspect the Burn).....................25

Flames (Inspect the Burn)....................................25

Floor Protection Requirements..............................7

Fuel.................................................................6

Gasket (door, glass - inspection & removal) ............36

Glass (Cleaning)................................................31

Glass Removal..................................................36

Gold (cleaning)..................................................28

Hearth (Floor Protection Requirements)..................7

Hearth Fireplace................................................16

Heat Exchange Tubes (cleaning) ..........................28

Heating Specifications........................................6

Hopper Cleaning (Vacuum Hopper)........................28

Important Information.........................................2

Installation Options............................................7

Installation Warnings (Before you Begin)................7

Interior Vertical Vent Installation...........................14

Introduction......................................................2

Listing Label.....................................................38

Loading Pellets .................................................20

Manual Mode ....................................................21

Masonry Fireplace .............................................16

Mobile Home Requirements..................................11

Modes of Operation............................................20

Noise (Normal Operating Sounds) .........................37

Normal Operating Sounds....................................37

Opening the Door...............................................27

Outside Air.......................................................11

Parts List.........................................................36

Pellet Vent Termination.......................................10

Pellets (Fuel) ....................................................6

Pellets (loading) ................................................20

Pellets Piling Up ................................................25

Placing the Stove ..............................................7

Planning the Installation......................................7

Power Outages .................................................24

Priming the Auger ..............................................19

Restrictor Adjustment.........................................23

Safety Label.....................................................38

Safety Precautions............................................4,5

Serial Number Label ...........................................38

Smell in Home (Starting Heater for the First Time) .....19

Start-Up Sequence ............................................24

Stove Placement...............................................7

Thermostat Operation (Auto Mode)........................22

Type A Chimney Retrofit......................................15

Vent (Cleaning) .................................................33

Vent Type ........................................................10

Venting Distance...............................................9

Venting the Pellet Stove......................................9

Warnings .........................................................4, 5

Warranty..........................................................39

Yearly Maintenance (or every two tons)..................32

Zero-Clearance (metal) Fireplace ..........................17

Avalon Stoves Pellet Stove Astoria Ps Users Manual

Avalon Pellet Stove Astoria PS to the manual 4549608d-4505-4175-88ec-0b4e163e1cf7

Navigation menu

Versions of this User Manual:

Views

Navigation
