DVS Insert EF II

Owner's Manual

Featuring the

Burner

Tested and Listed by

OMNI-Test Laboratories, Inc.

Beaverton, Oregon

Report # 028-F-73-5

ANSI Z21.88

• Direct Vent Fireplace Insert

• Masonry or Factory Built (Metal)

Wood-Burning Fireplace

• Residential or Mobile Home

WARNING: If the information in these instructions is not followed exactly, a fire or

explosion may result causing property damage, personal injury or loss of life.

- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or

any other appliance.

WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Immediately call gas supplier from a neighbor's phone. Follow the gas supplier's

instructions.

• If you cannot reach your gas supplier, call the fire department.

- Installation and service must be performed by a qualified installer, service agency or the

gas supplier.

This appliance may be installed as an OEM installation in a manufactured (mobile) home and must be

installed in accordance with the manufacturer’s instructions and the manufactured home construction

and safety standard, Title 24 CFR, Part 3280.

This appliance is only for use with the type(s) of gas indicated on the rating plate. A conversion kit is

supplied with the appliance.

Installer: After installation give this manual to the home-owner and

explain operation of this heater.

Travis Industries, Inc.

4800 Harbour Pointe Blvd. SW

Mukilteo, WA 98275

2Introduction

Introduction

We welcome you as a new owner of a DVS Insert. In purchasing this fireplace insert you have

joined the growing ranks of concerned individuals whose selection of an energy system reflects

both a concern for the environment and aesthetics. It is one of the finest home heaters the world

over. This manual will explain the installation, operation, and maintenance of this heater. Please

familiarize yourself with the Owner's Manual before operating your heater and save the manual for

future reference. Included are helpful hints and suggestions that will make the operation and

maintenance of your new heater an easier and more enjoyable experience. We offer our continual

support and guidance to help you achieve the maximum benefit and enjoyment from your heater.

Important Information

No other DVS Insert has the same serial number as

yours. The serial number is below and to the left of

the gas control valve.

This serial number will be needed in case you

require service of any type.

Model: DVS Insert EF II

Serial Number:

Purchase Date:

Purchased From:

traviswarranty.com

Or, mail your warranty card to:

Travis Industries House of Fire

4800 Harbour Pointe Blvd. SW

Mukilteo, WA 98275

Save Your Bill of Sale.

To receive full warranty coverage, you will

need to show evidence of the date you

purchased your heater. Do not mail your

Bill of Sale to us.

We suggest that you attach your Bill of

Sale to this page so that you will have all

the information you need in one place

should the need for service or information

occur.

Table of Contents 3

Introduction and Important Information

Introduction......................................................2

Safety Precautions

Safety Precautions............................................4

Features & Specifications

Features..........................................................6

Installation Options............................................6

Heating Specifications .......................................6

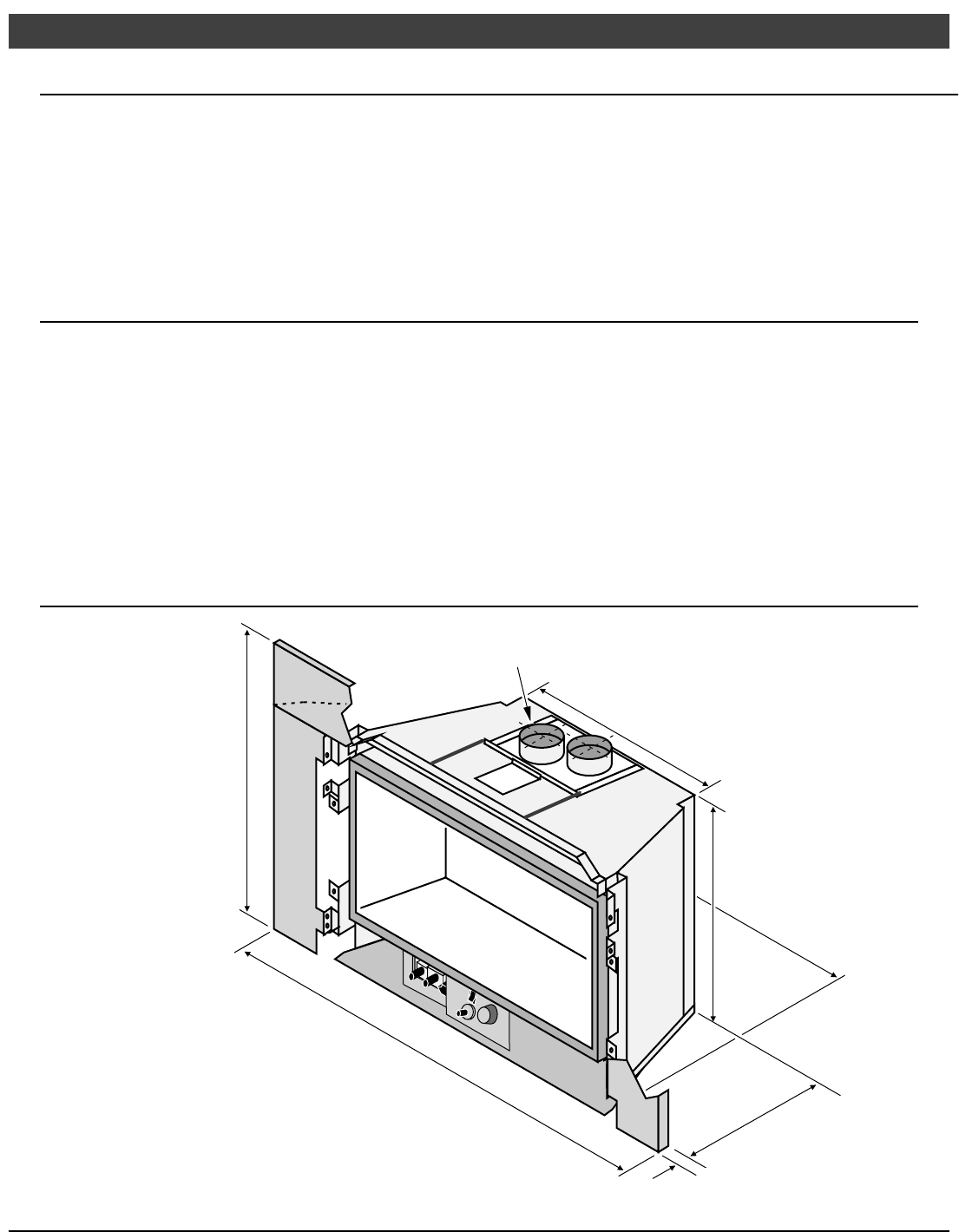

Dimensions......................................................6

Installation

Installation Warnings .........................................7

Packing List......................................................7

Additional Items Required...................................7

Items Packed with the Face................................7

Order of Installation...........................................7

Top Convection Deflector...................................8

Fireplace Requirements .....................................8

Factory-Built (Metal) Wood-Burning Fireplace

Requirements...............................................9

Hearth Requirements.........................................9

Clearances.......................................................10

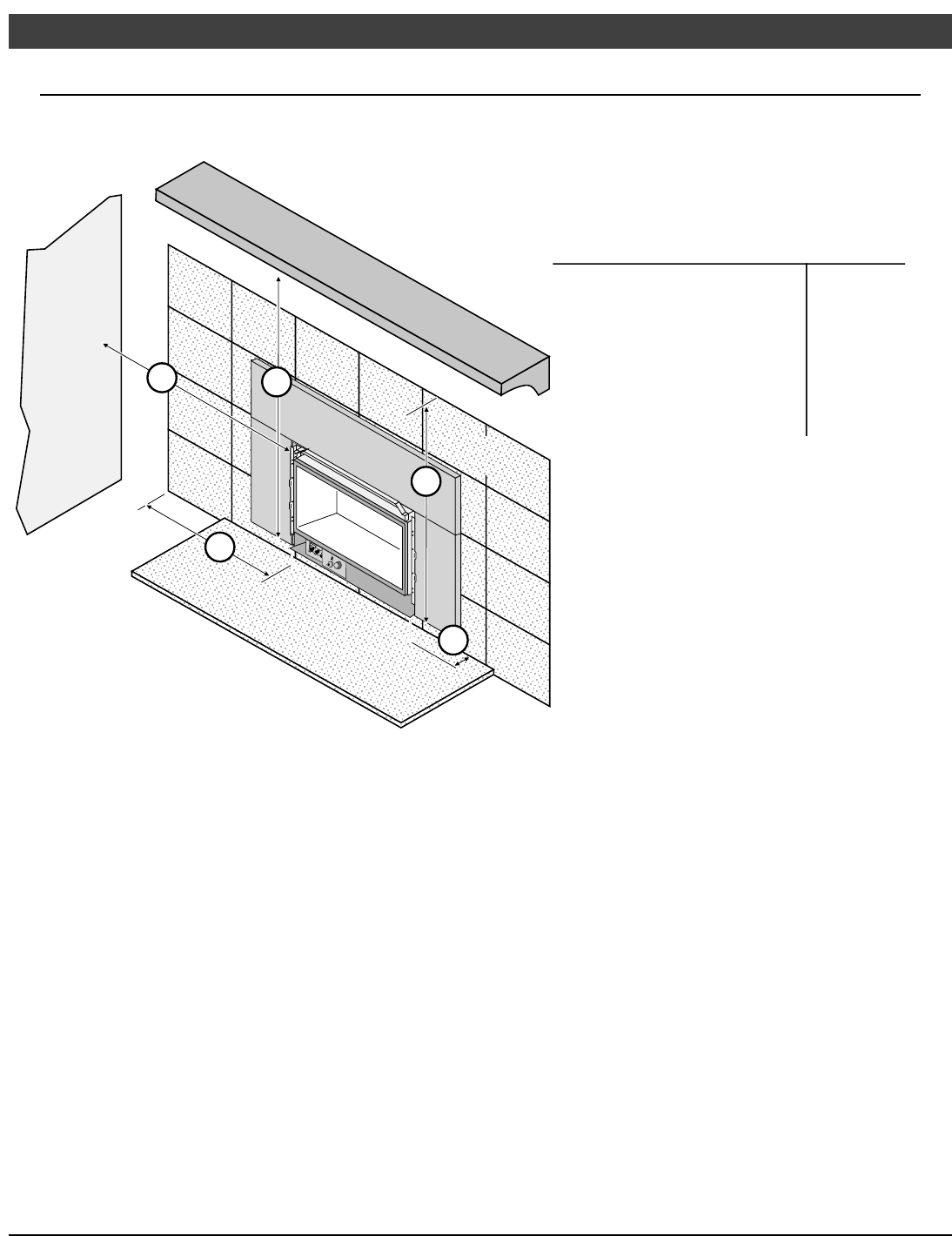

Mantel Clearances.........................................10

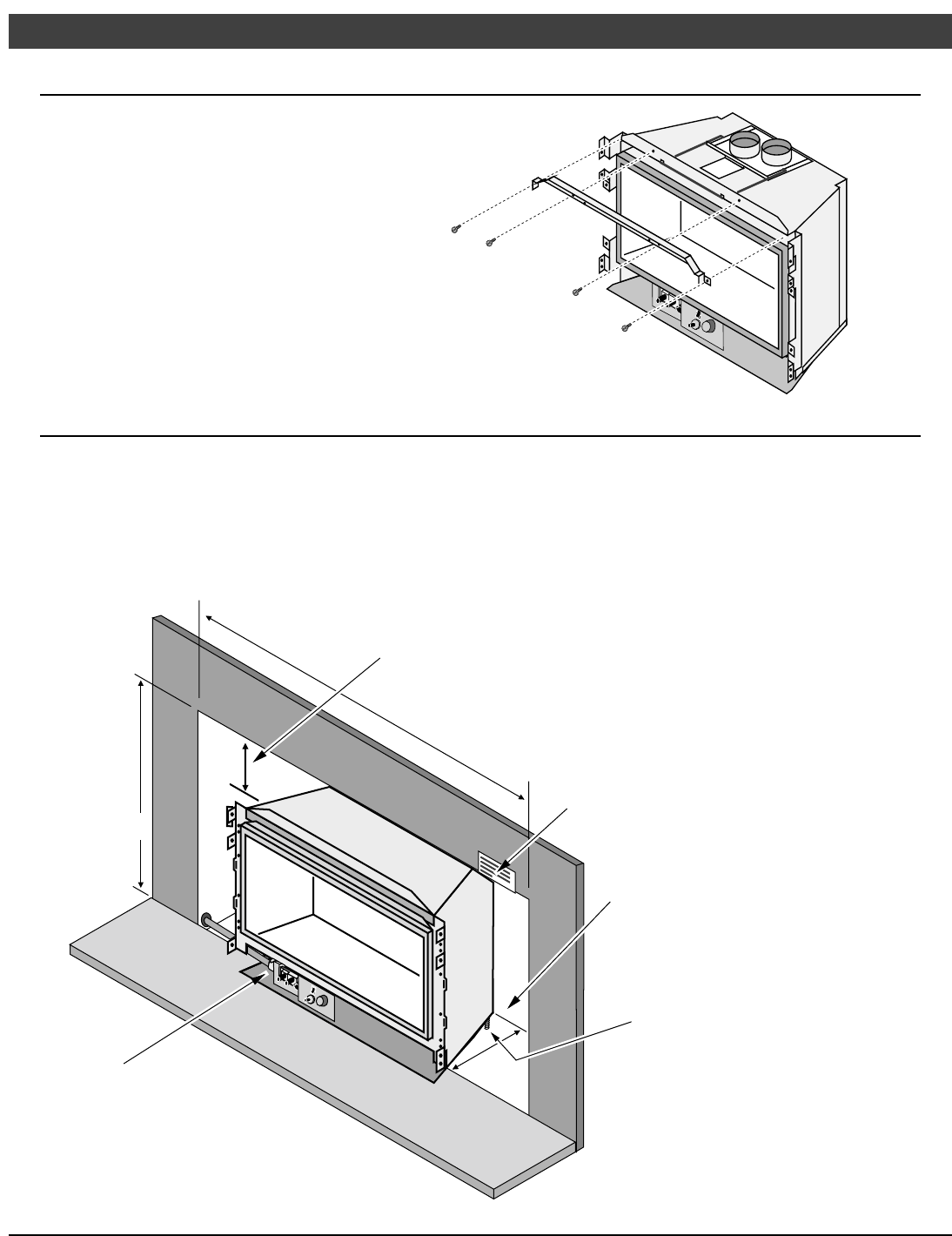

Face Sizing ......................................................11

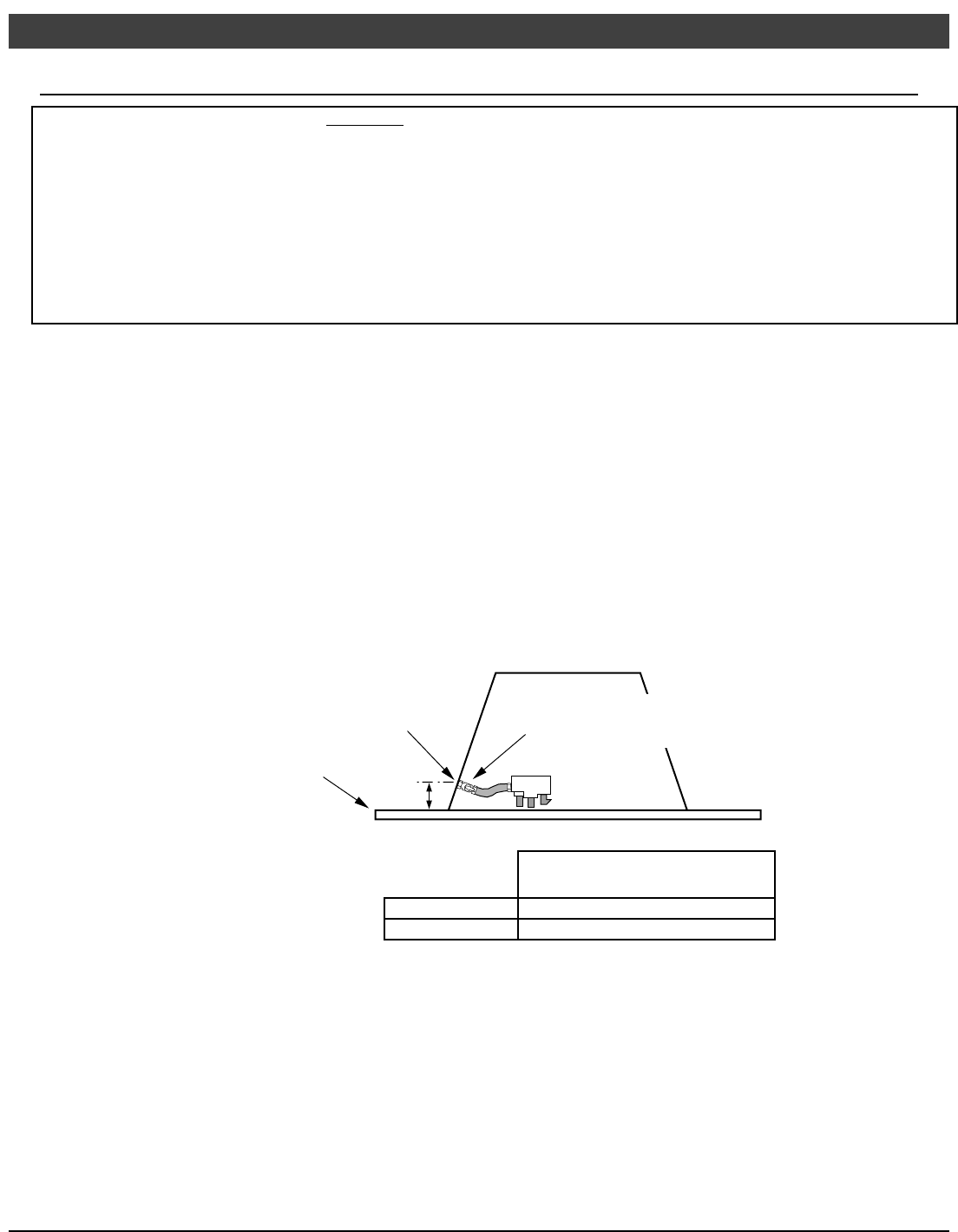

Gas Line Requirements......................................13

Gas Line Location .........................................13

Gas Inlet Pressure ........................................13

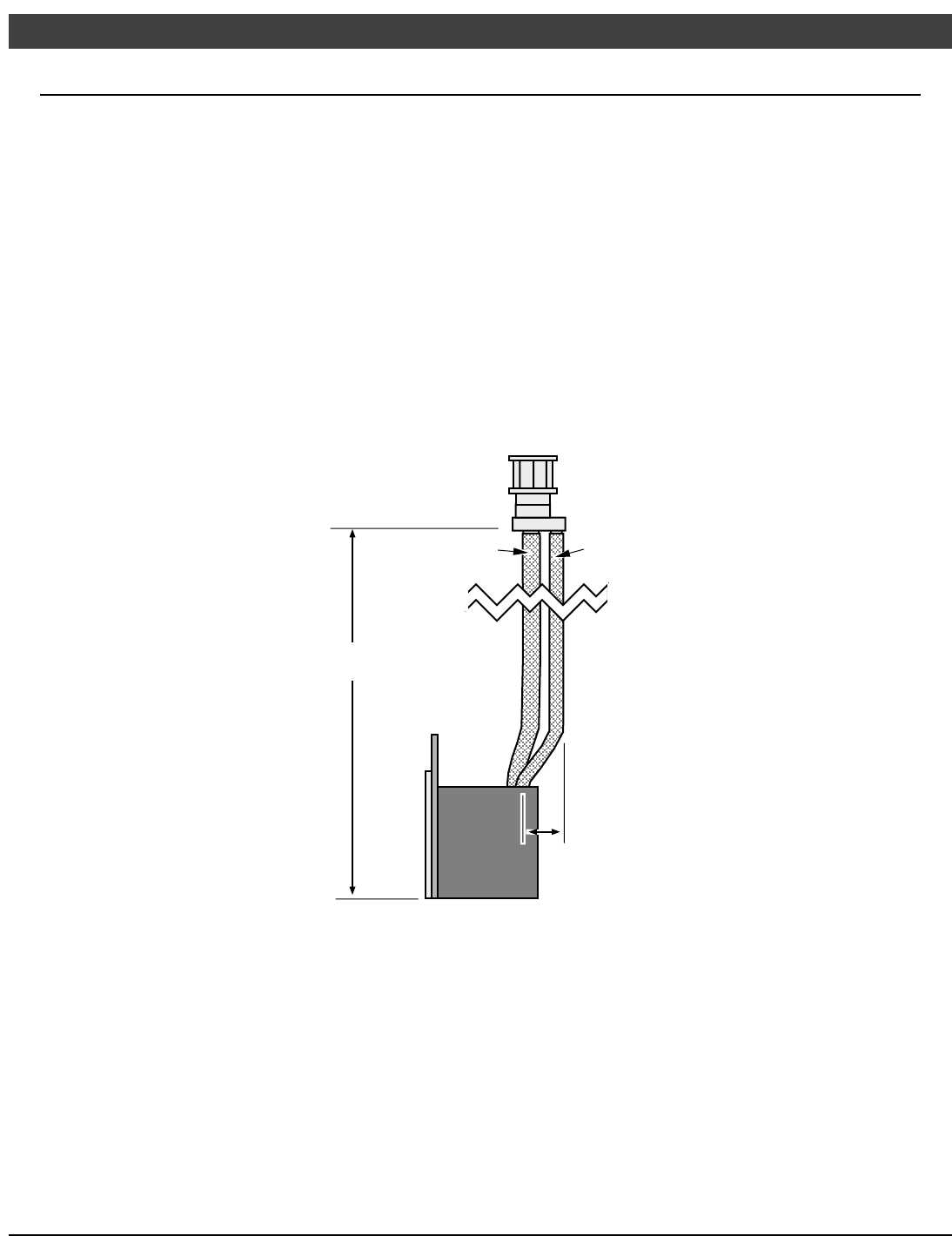

Vent Requirements............................................14

Altitude Considerations ..................................14

Vent Restrictor .............................................15

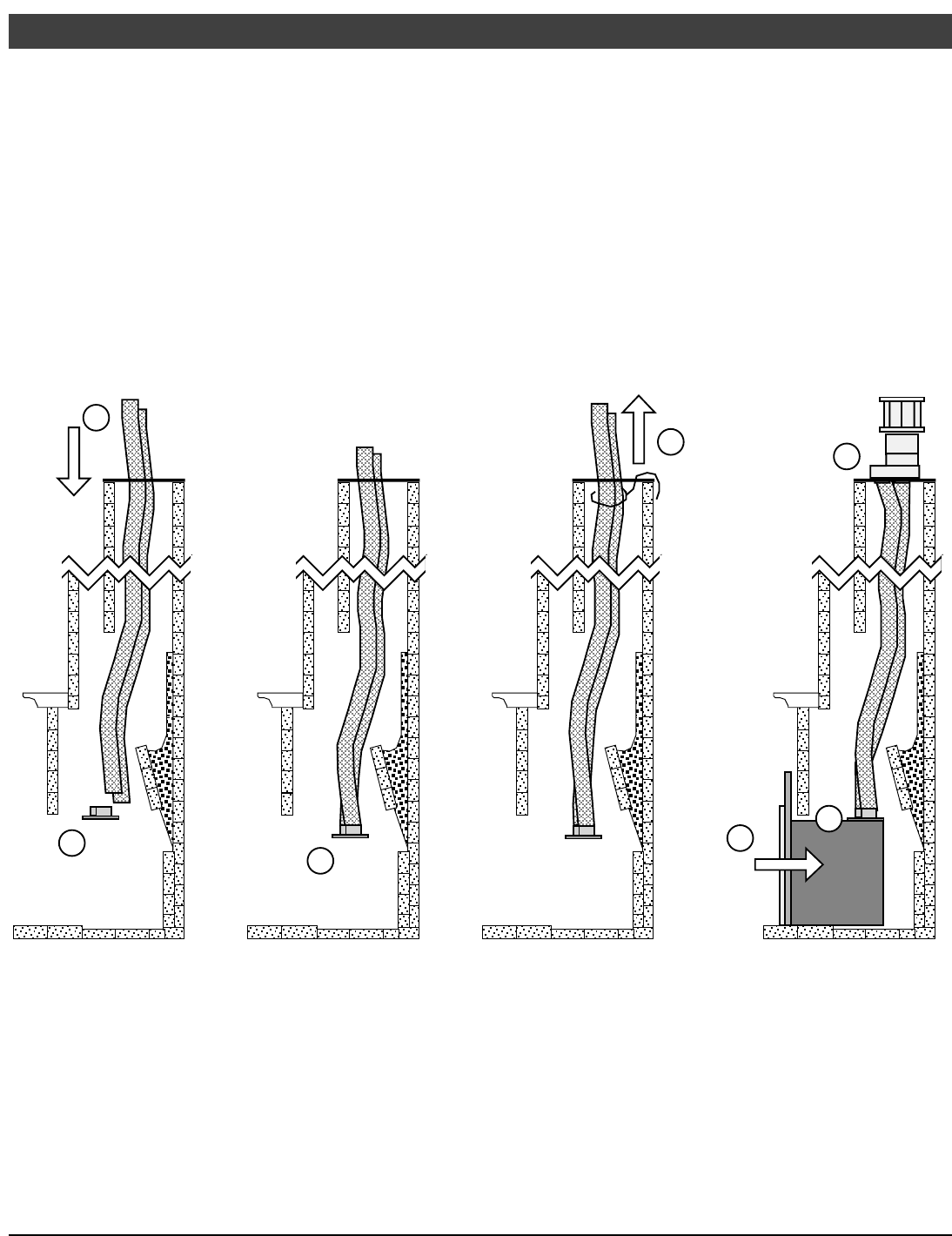

Vent Installation............................................15

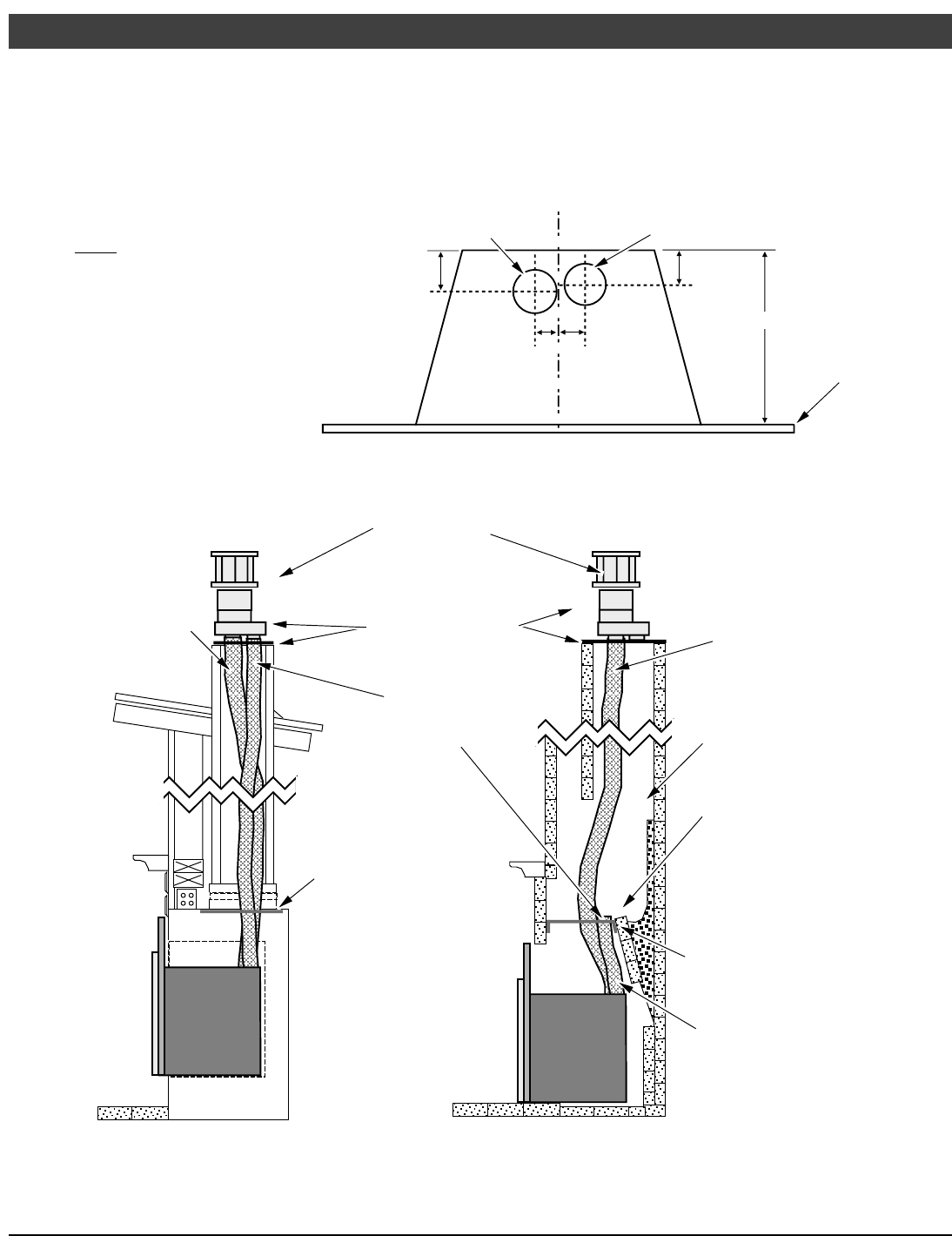

Vent Location...............................................16

Vent Configurations.......................................16

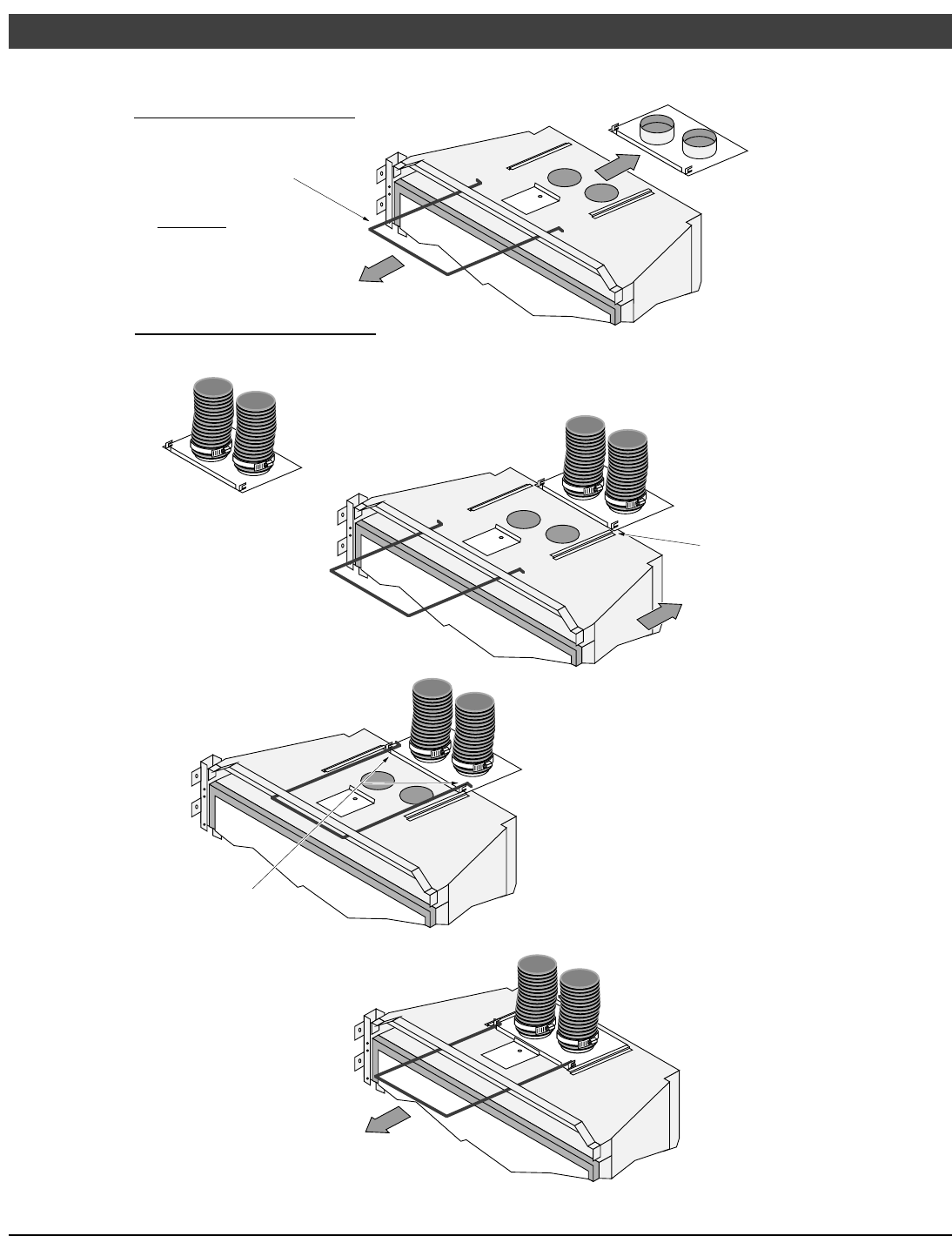

Vent Connector Removal and Installation...........17

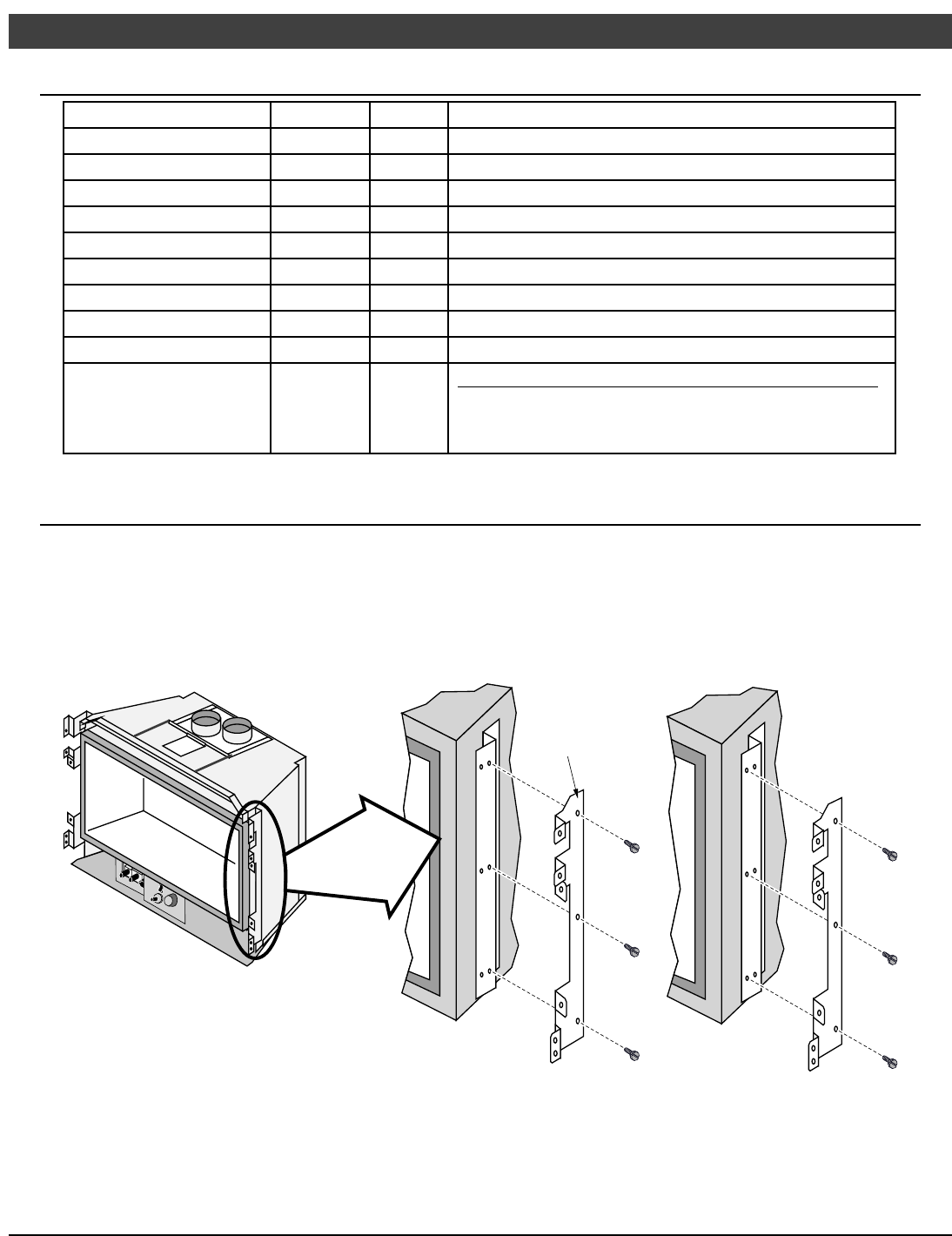

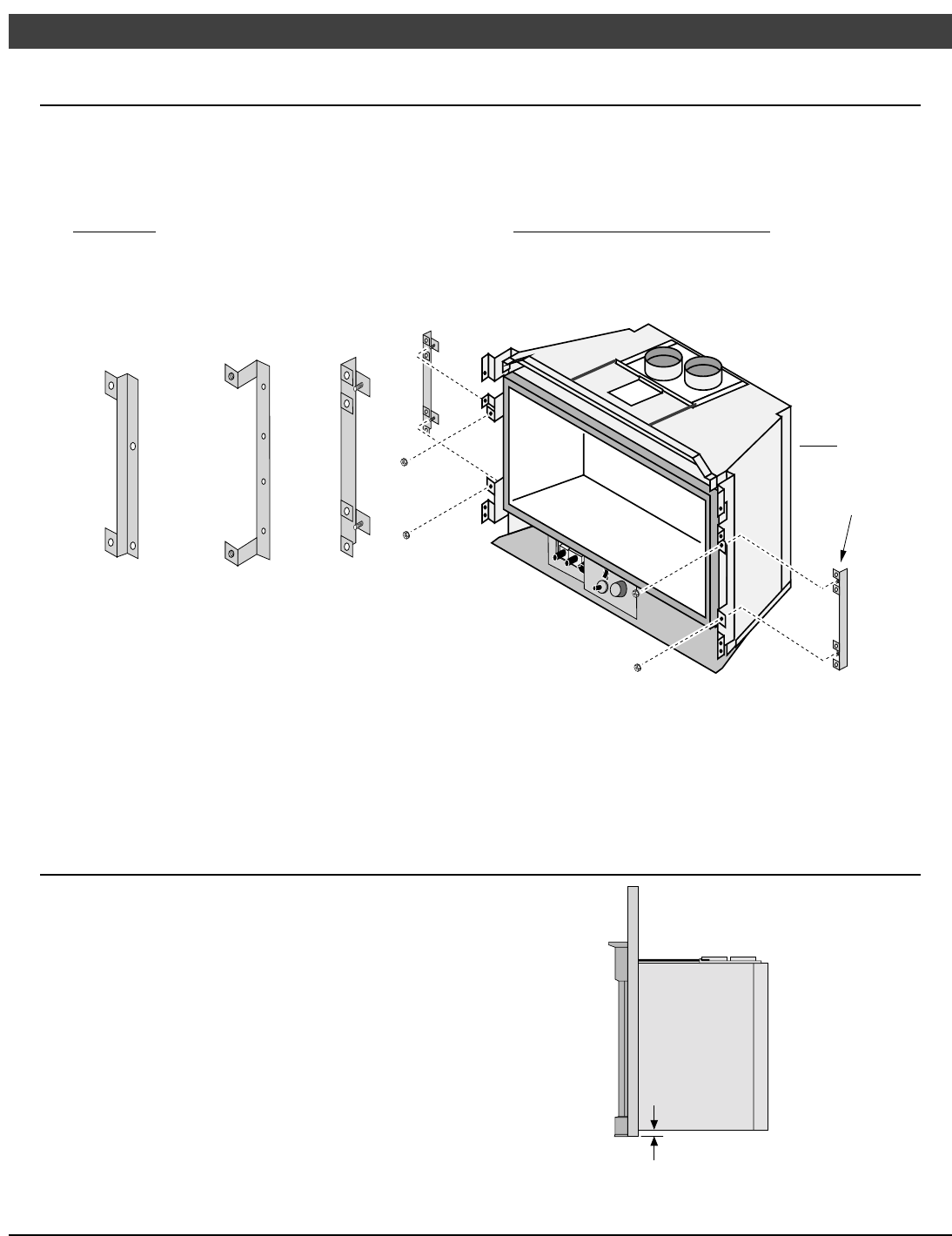

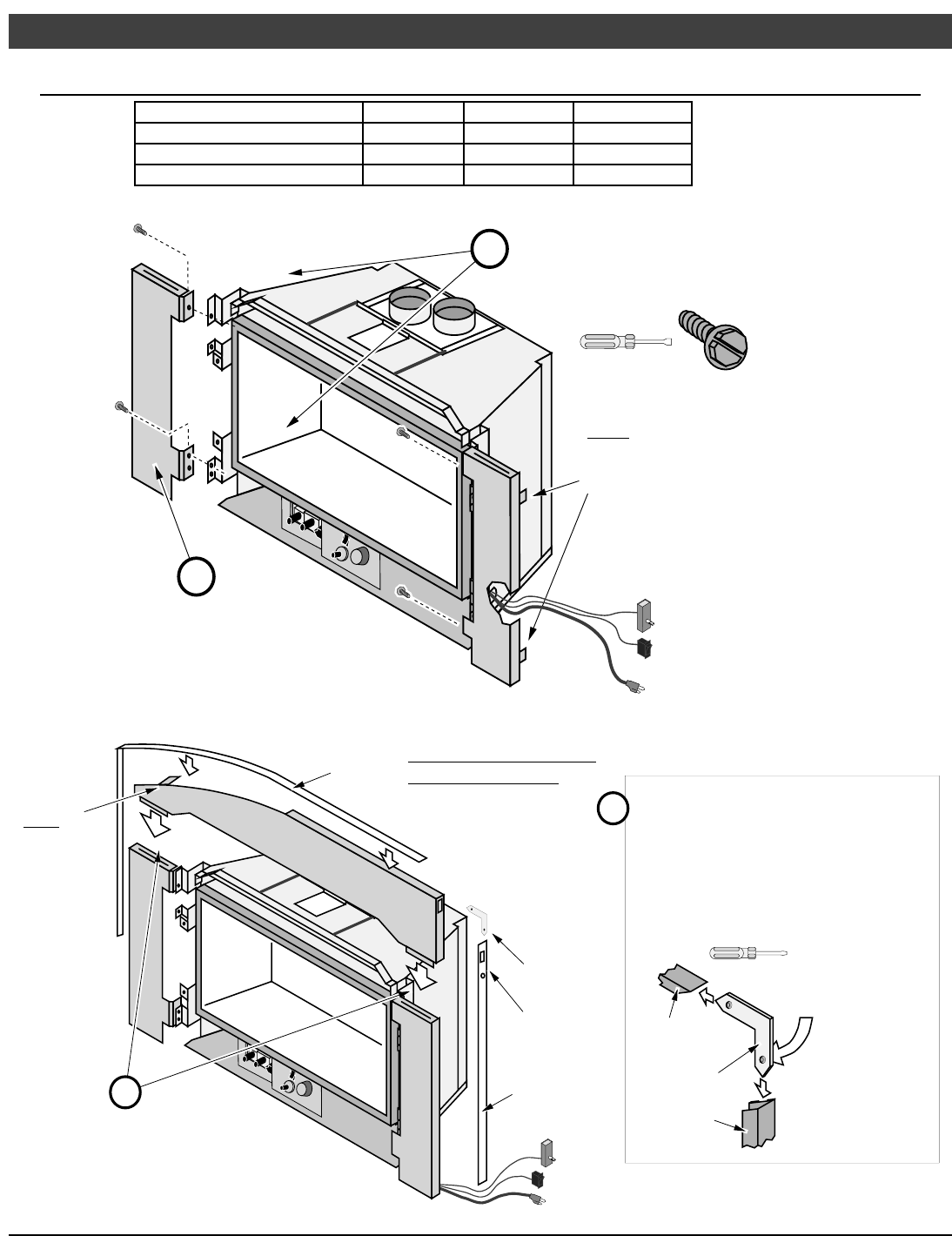

Surround Panel Installation .................................19

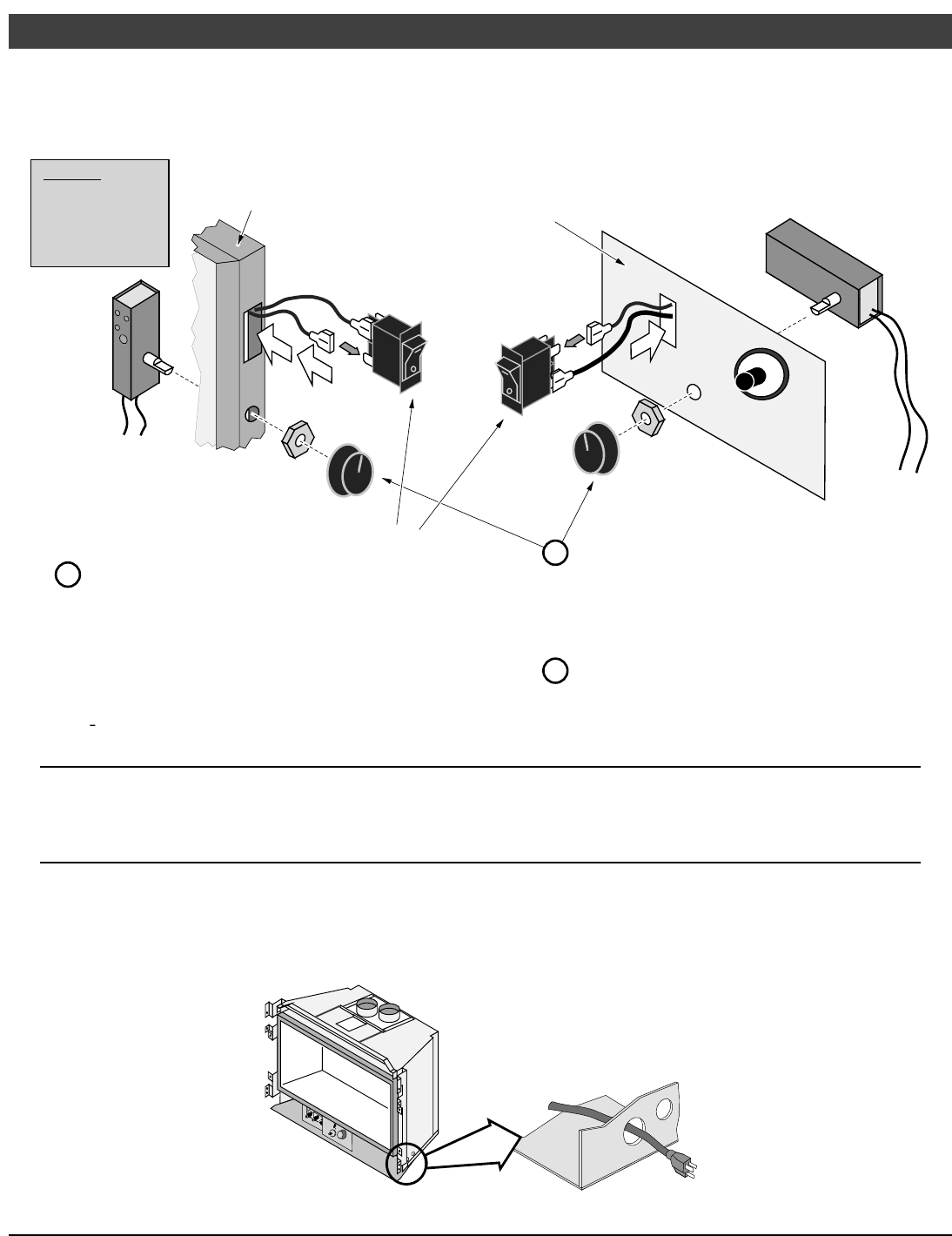

Installation of the On/Off Switch and Rheostat ...20

Installation Without Surround Panels....................20

Electrical Connection.........................................20

Finalizing the Installation

Glass Frame Removal and Installation.................21

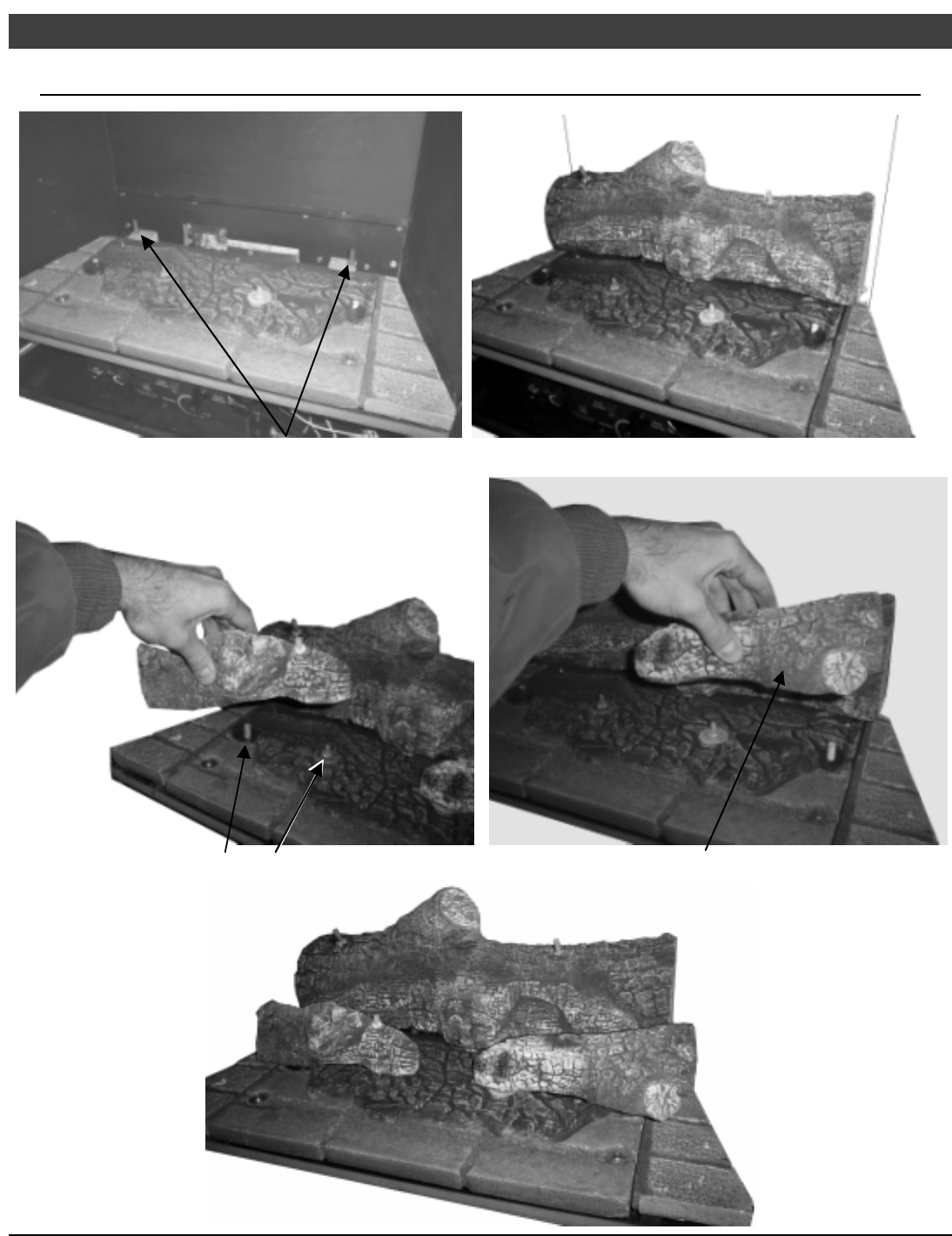

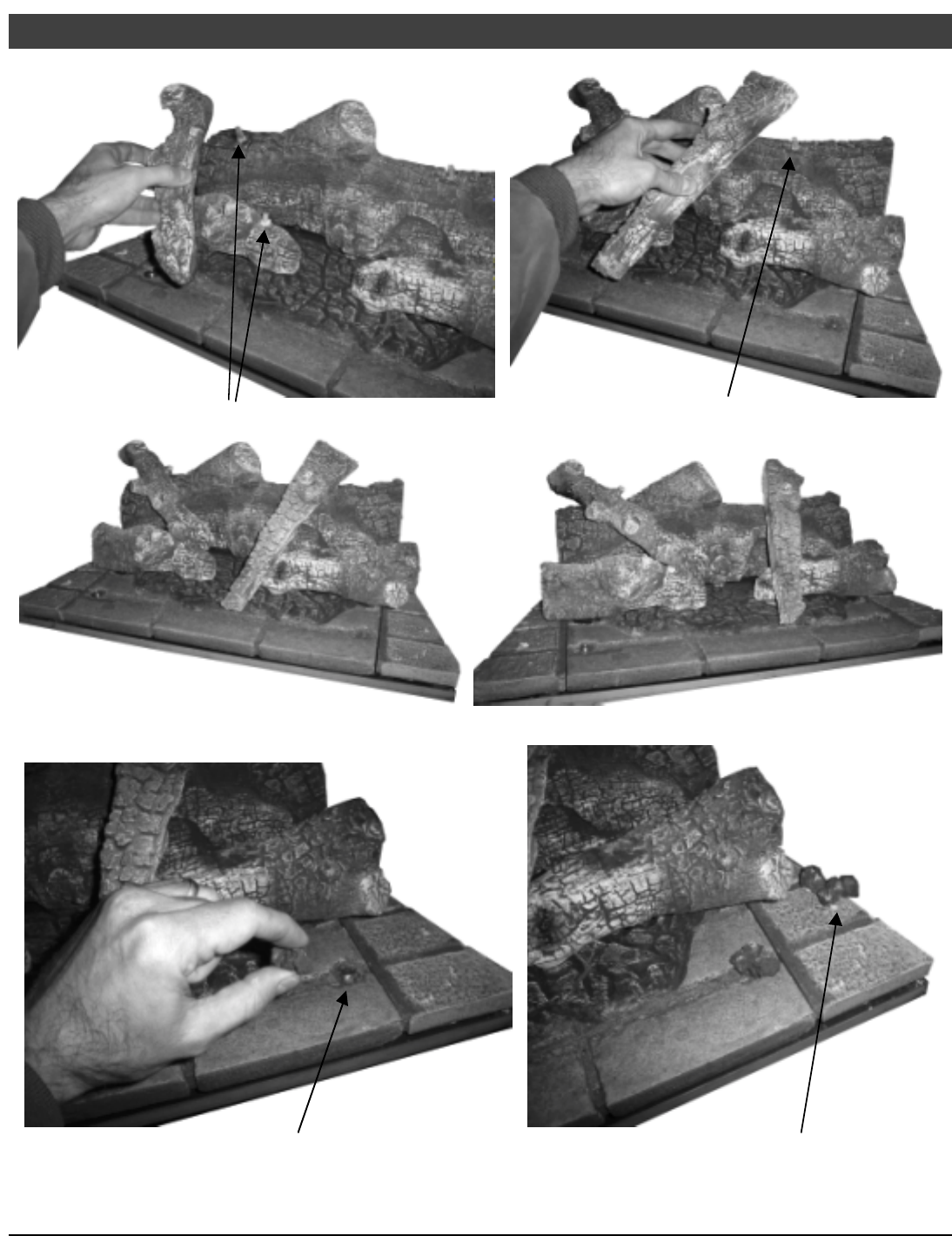

Log Set Installation............................................23

Steps for Finalizing the Installation.......................25

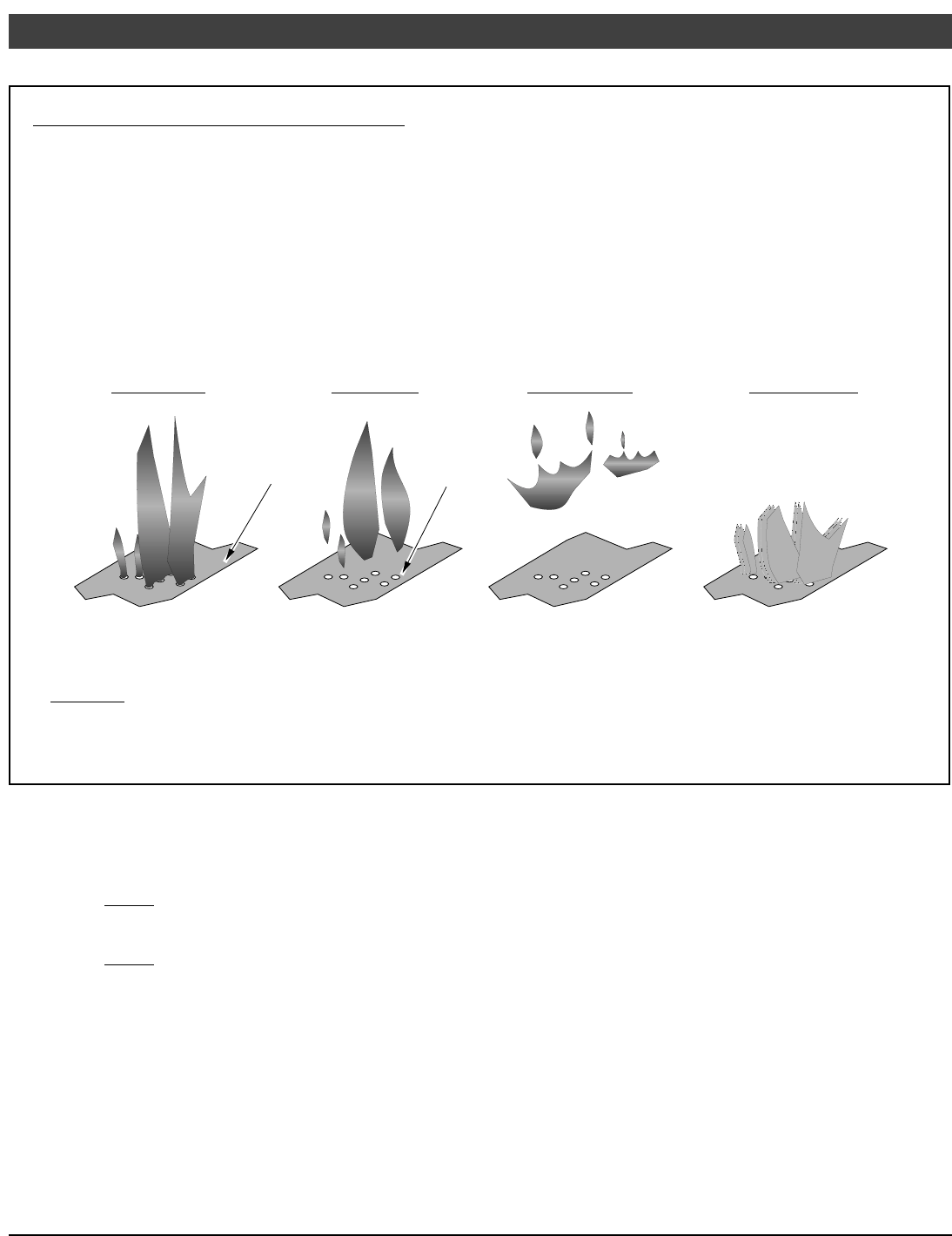

Pilot Flame Inspection .......................................25

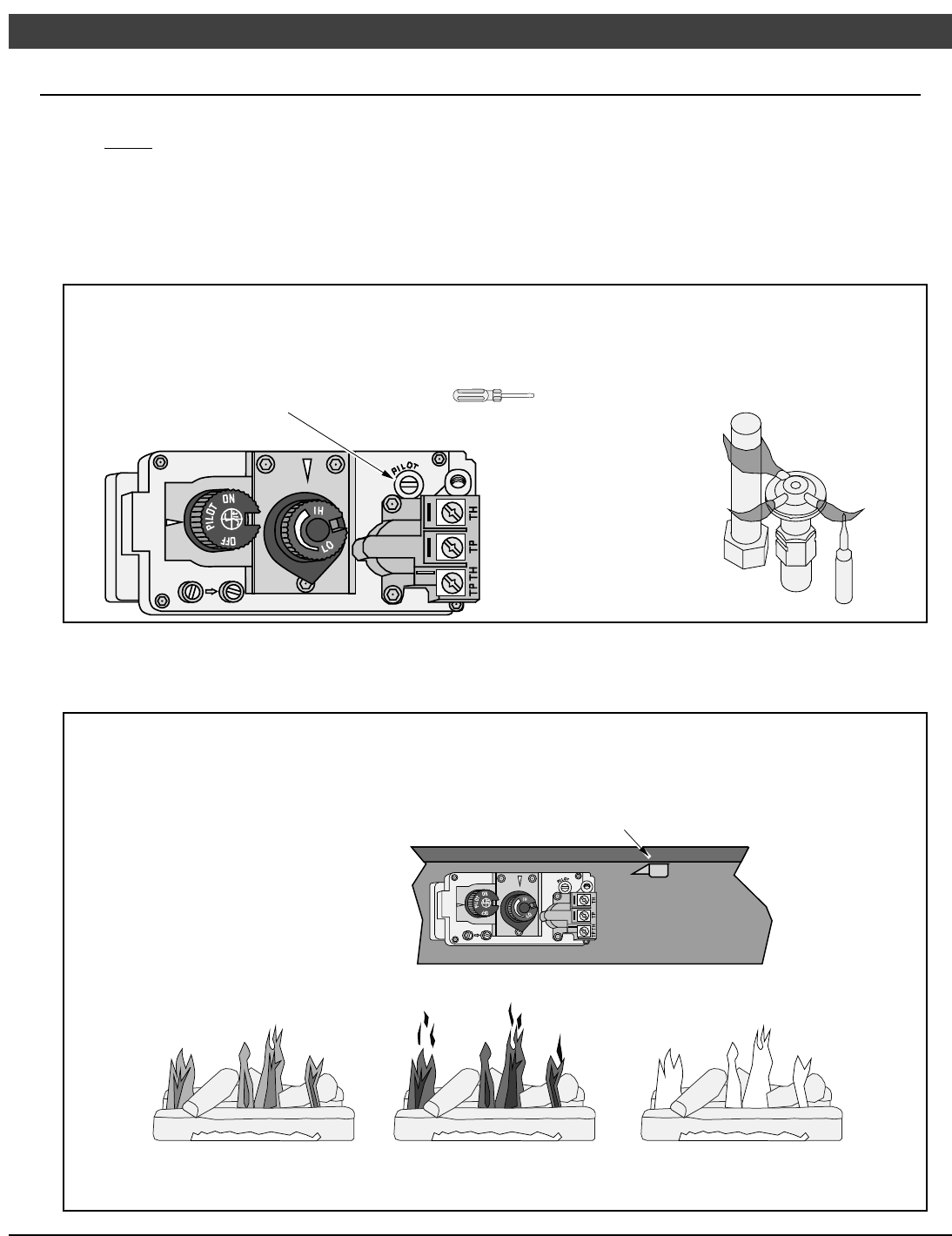

Air Shutter Adjustment.......................................25

Operation

Before You Begin..............................................27

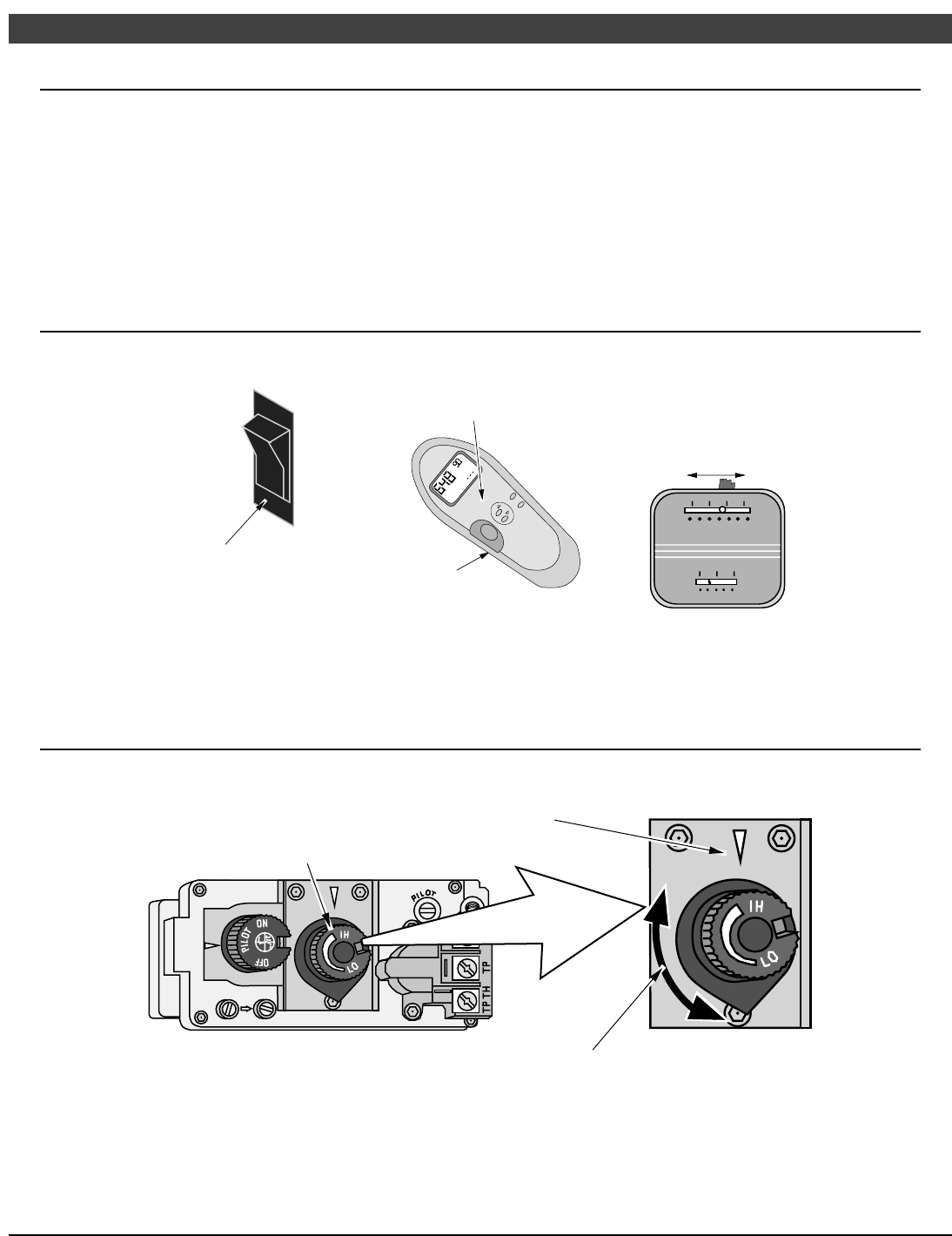

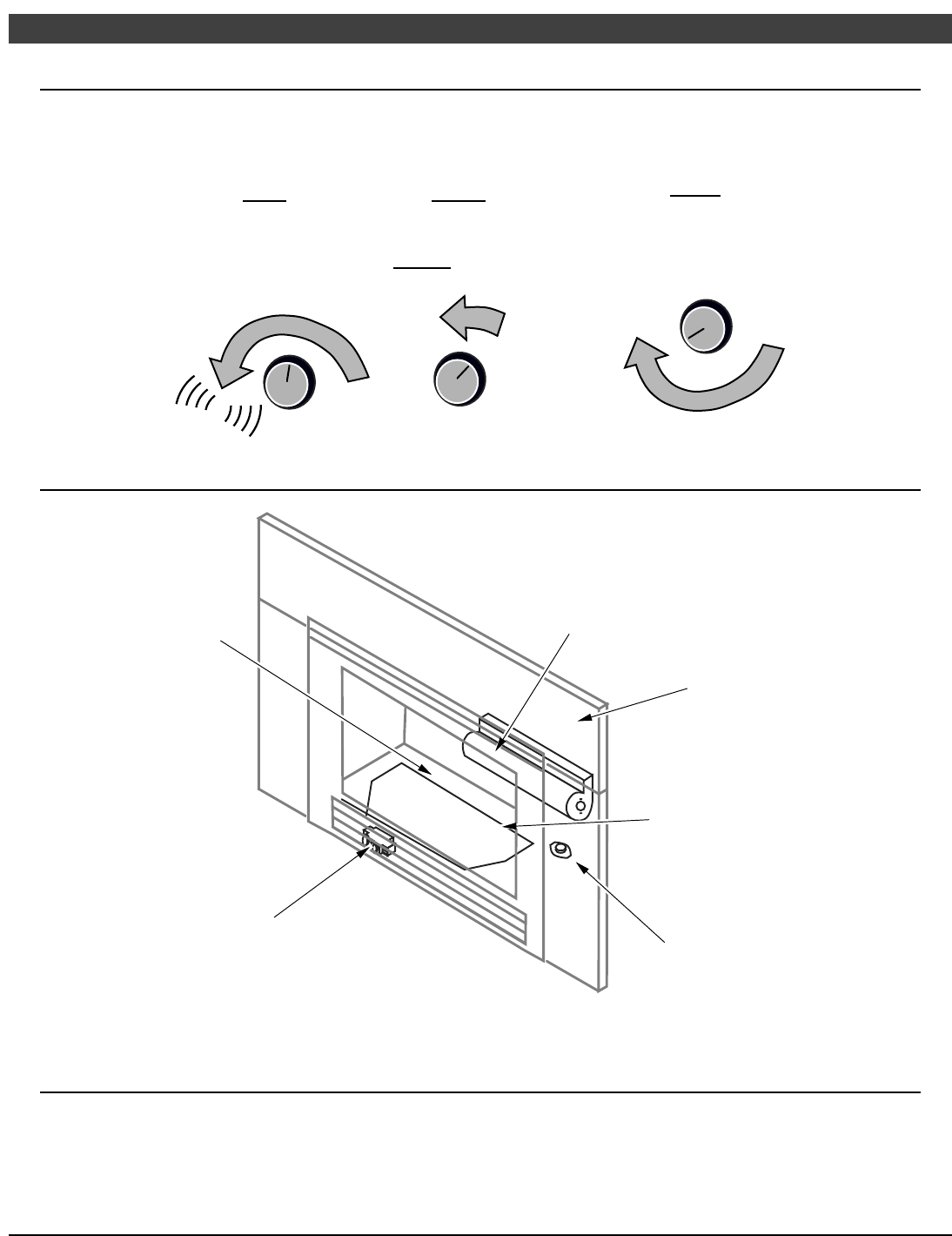

Location of Controls ..........................................27

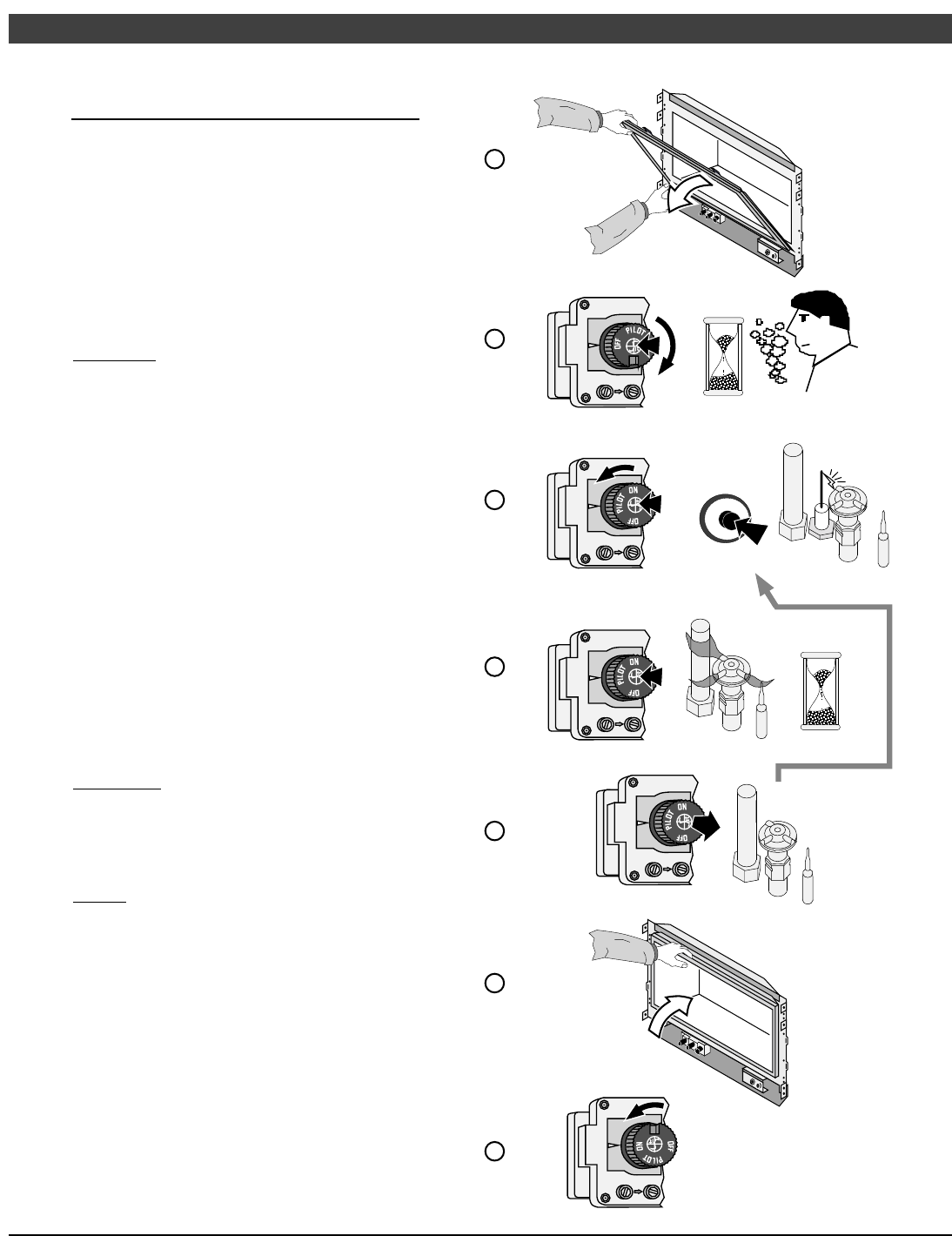

Starting The Pilot Flame .....................................28

Starting the Heater for the First Time ...................29

Turning the Heater On and Off ............................29

Adjusting the Flame Height.................................29

Adjusting the Blower Speed .................................30

Normal Operating Sounds...................................30

Normal Operating Odors.....................................30

Maintenance

Maintaining Your Heater's Appearance .................31

Yearly Service Procedure...................................31

Troubleshooting Table ........................................32

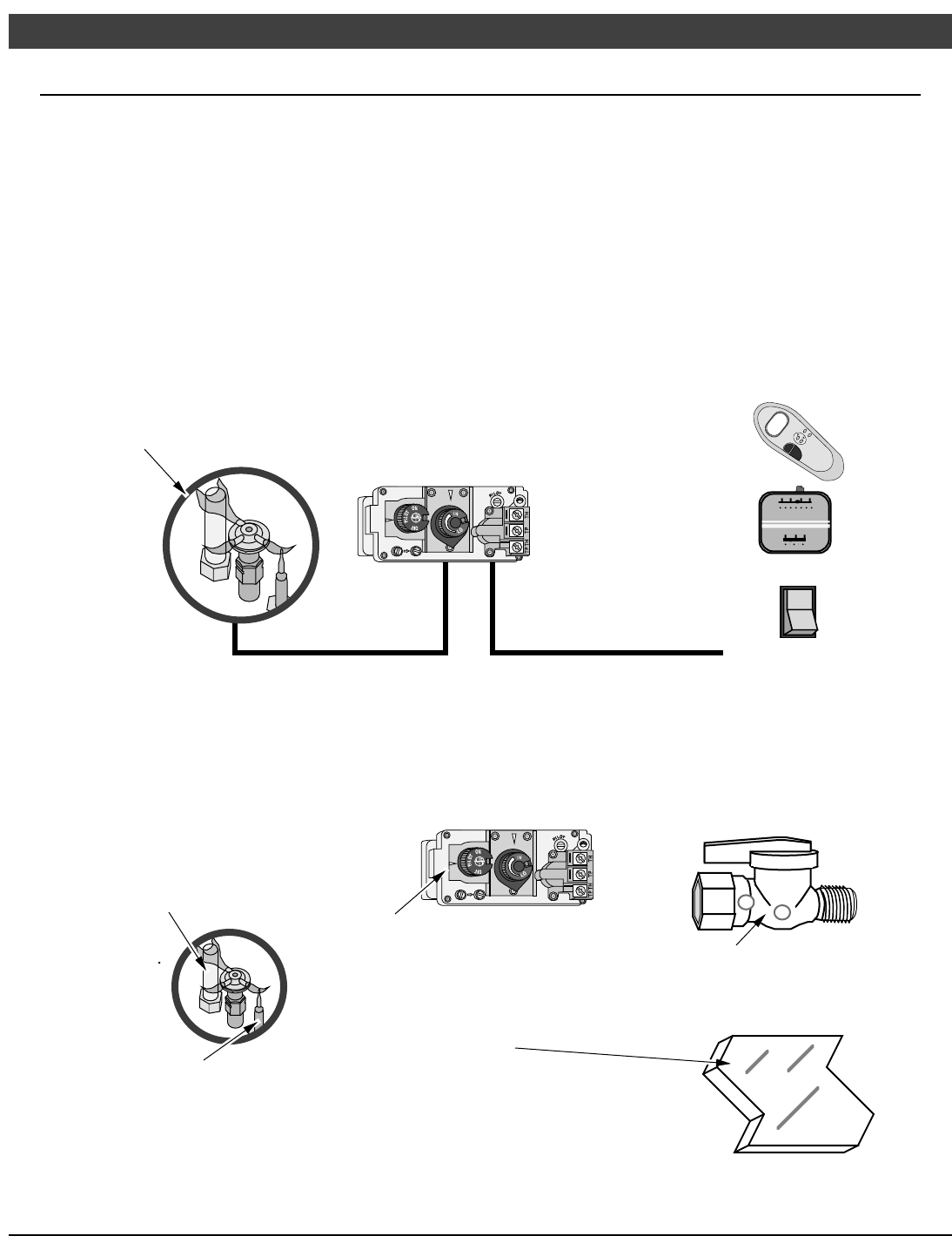

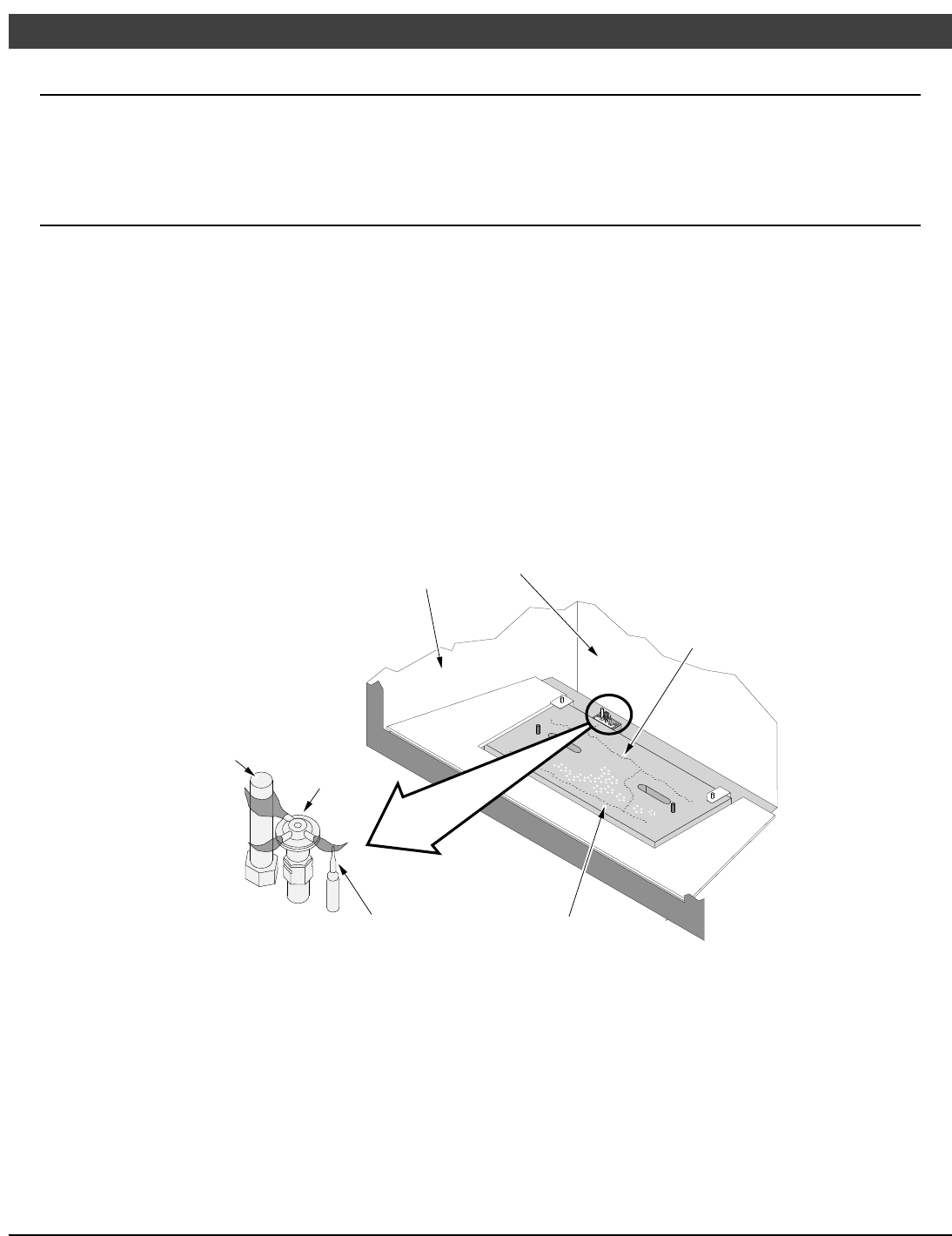

How this Heater Works.......................................33

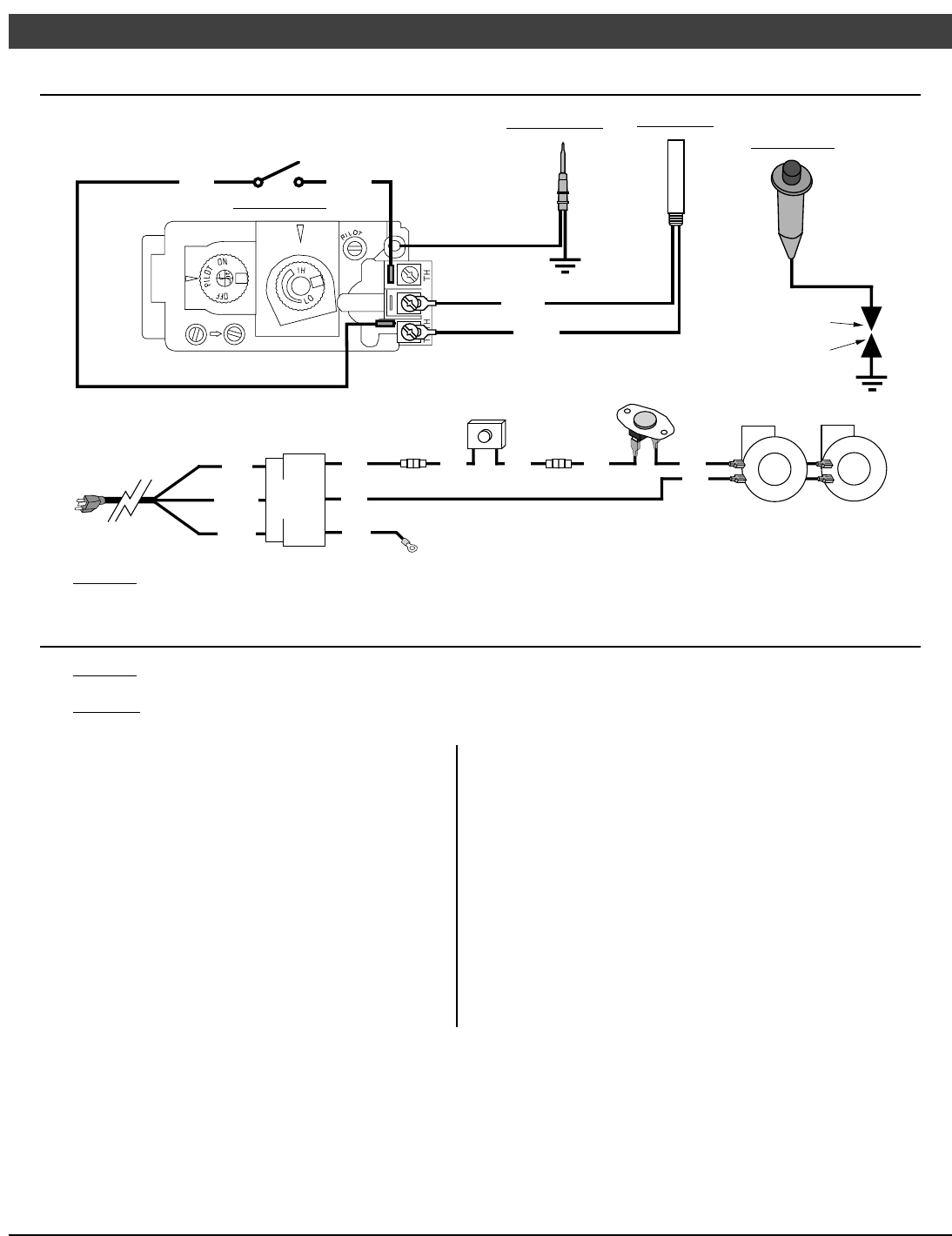

Wiring Diagram.................................................34

Replacement Parts List......................................34

Safety Label

Safety Label.....................................................35

Warranty

Warranty .........................................................36

Optional Equipment

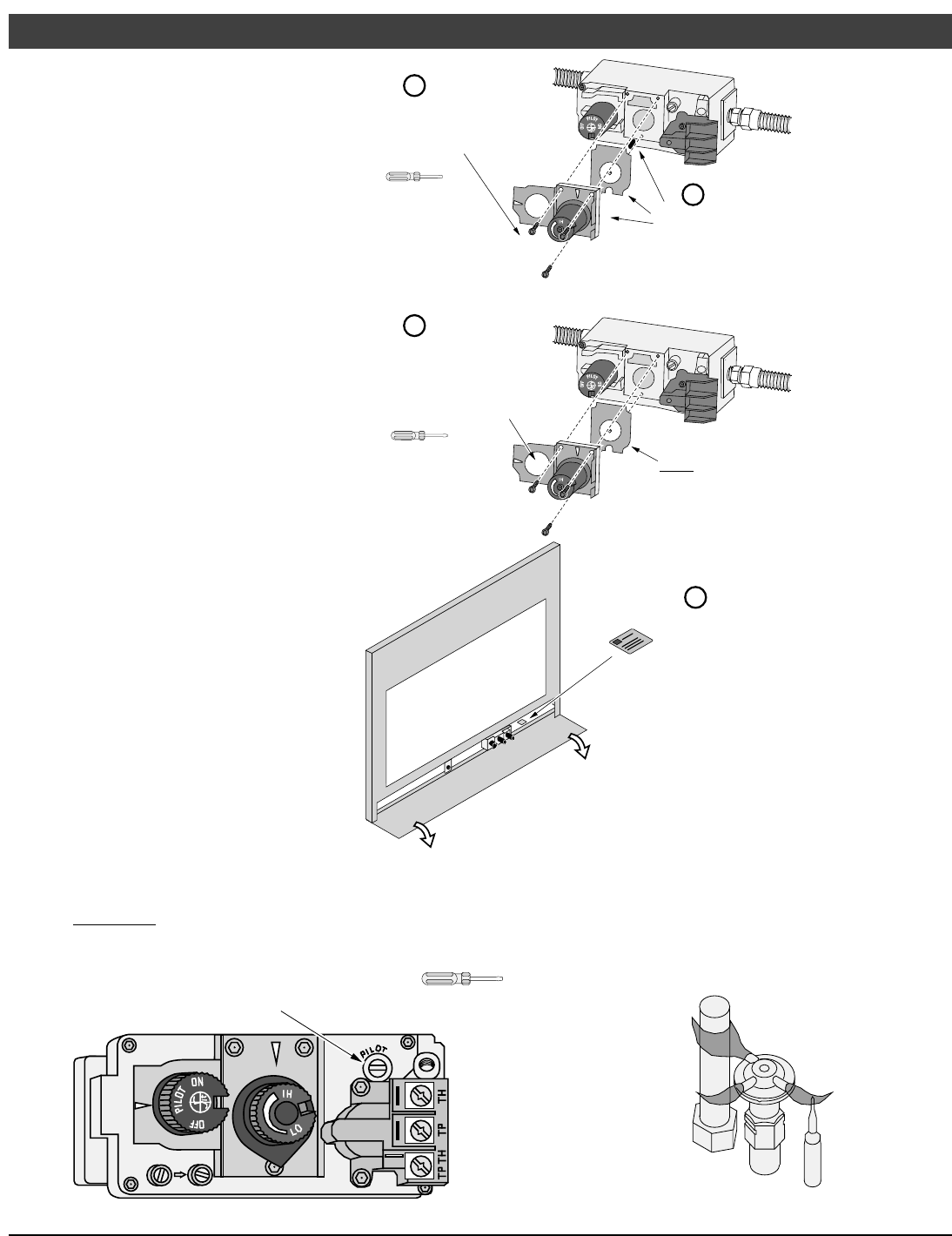

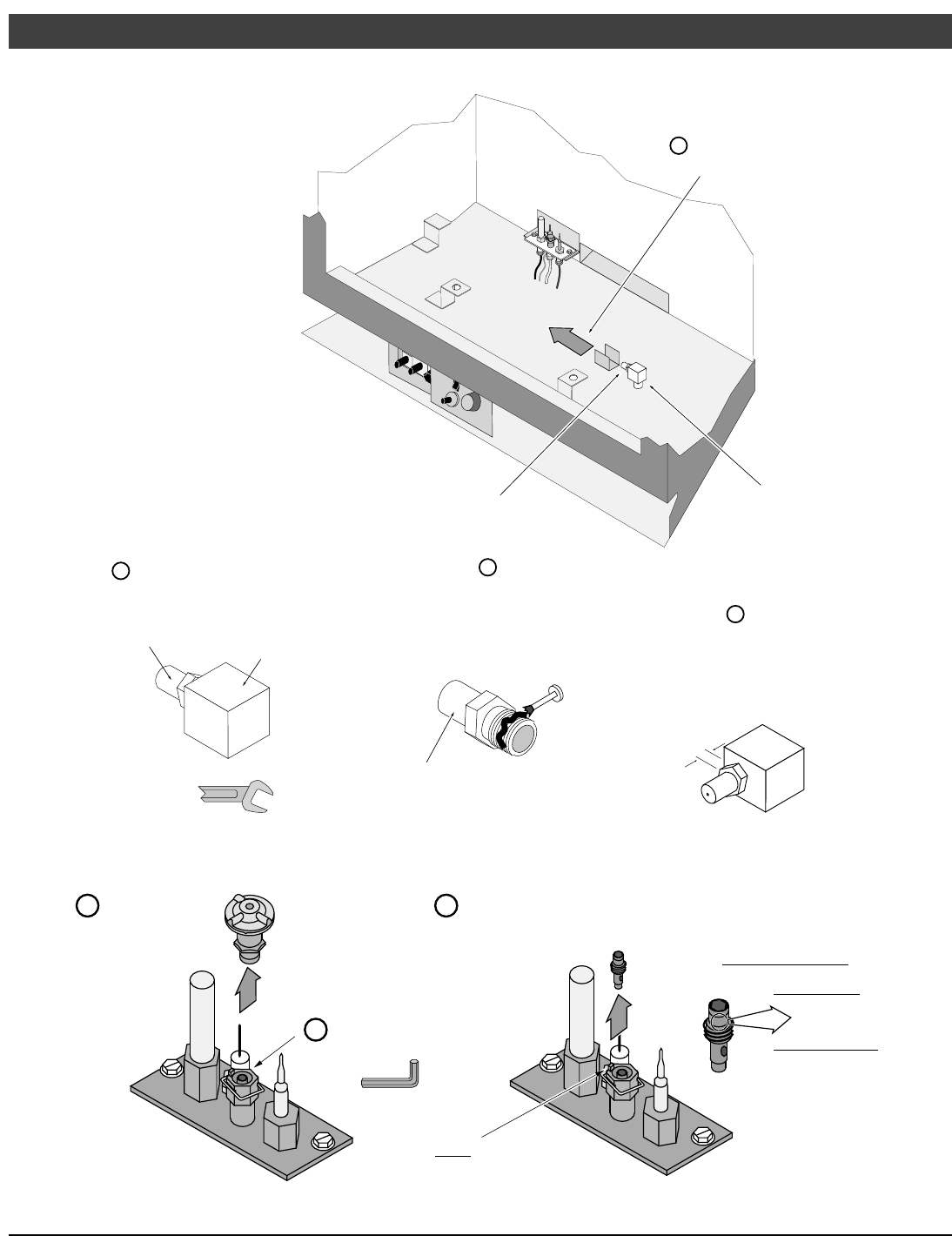

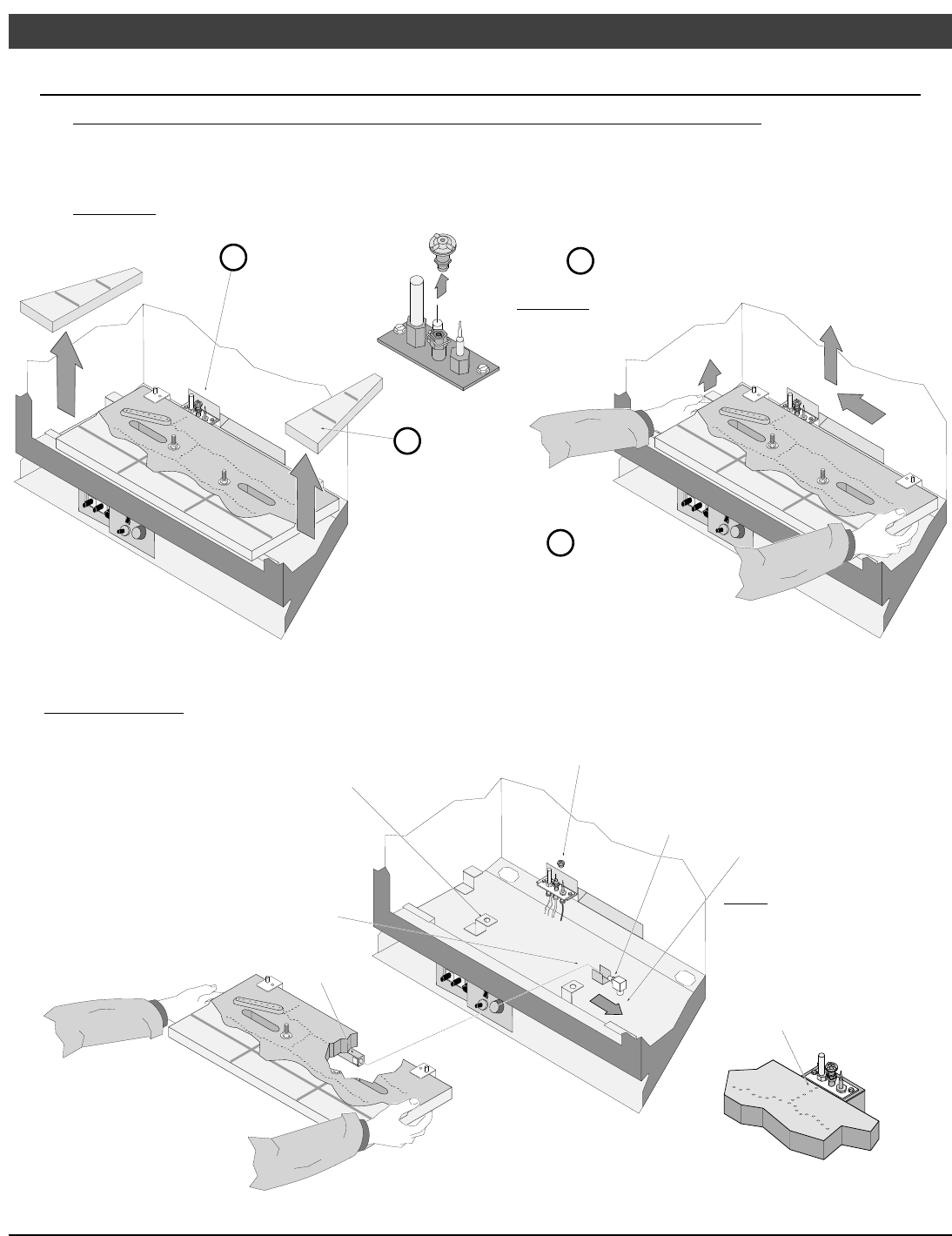

LP Conversion Instructions.................................37

Firebacks.........................................................40

Index

Index...............................................................42

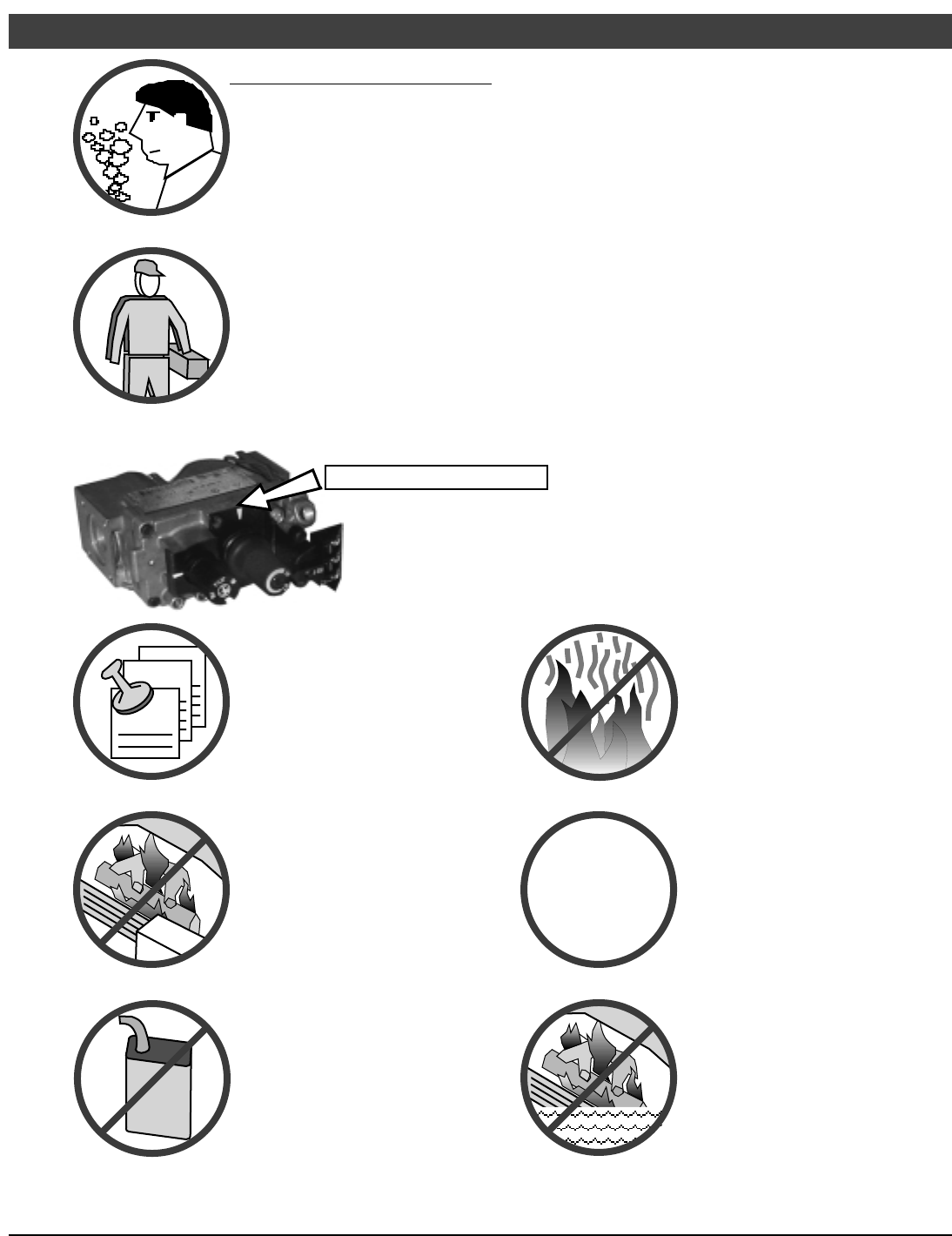

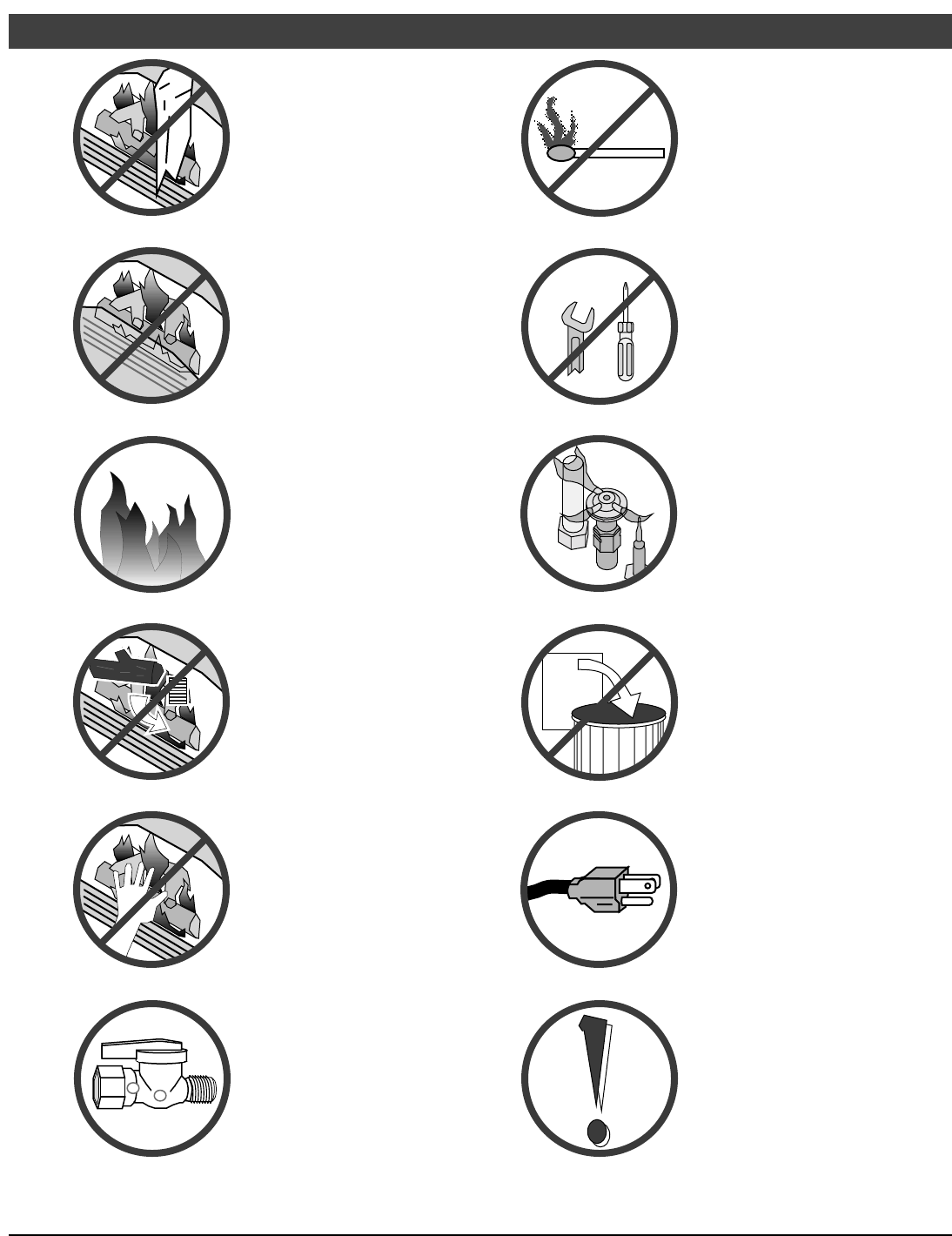

4Safety Precautions

IF YOU SMELL GAS:

* Do not light any appliance

* Extinguish any open flame

* Do not touch any electrical switch or plug or unplug anything

* Open windows and vacate building

* Call gas supplier from neighbor's house, if not reached, call fire department

This unit must be installed b

a qualified installer to prevent the possibilit

of an

explosion. Your dealer will know the requirements in your area and can inform you

of those people considered qualified. The room heater should be inspected and

cleaned before use and at least annually by a qualified service person. More

frequent cleaning may be required due to excessive lint from carpeting, bedding

material, etc.

The instructions in this manual must be strictl

adhered to. Do not use makeshift

methods or compromise in the installation. Improper installation will void the

warrant

and safet

listin

For LPG only | Pout 11” W.C.

Look for this label:

If the label is present, the

heater is equipped for LP

(propane). If the label is

absent, the heater is equipped

for NG (natural gas).

This heater is either approved for natural

gas (NG) or for propane (LP). Burning the

incorrect fuel will void the warranty and

safety listing and may cause an extreme

safety hazard. Direct questions about the

type of fuel used to your dealer. Check the

label and flame adjust knob on the gas

control valve.

Contact

our local buildin

officials to obtain a permit and

information on any installation

restrictions or inspection

requirements in your area.

Notify your insurance

company of this heater as

well.

If the flame becomes soot

dark orange in color, or

extremely tall, do not operate

the heater. Call your dealer

and arrange for proper

servicing.

It is imperative that control

compartments, screens, or

circulating air passageways of

the heater be kept clean and

free of obstructions. These

areas provide the air necessary

for safe operation. ?Do not operate the heater if it is

not operating properly in any

fashion or if you are uncertain.

Call your dealer for a full

explanation of your heater and

what to expect.

Gas

Do not store or use

asoline or

other flammable liquids in the

vicinity of this heater.

Do not operate if an

portion of

the heater was submerged in

water or if an

corrosion occurs.

Immediately call a qualified

service technician to inspect

the appliance and to replace

any part of the control system

that has been under water.

Safety Precautions 5

Do not place clothin

or other

flammable items on or near

the heater. Because this

heater can be controlled by a

thermostat there is a possibility

of the heater turning on and

igniting any items placed on

or near it.

ht the heater usin

the built-

in piezo igniter. Do not use

matches or any other external

device to light your heater.

Allow the heater to cool before

carrying out any maintenance

or cleaning.

The viewin

lass should be

opened only for lighting the

pilot or conducting service. Do

not operate with cracked,

broken, or removed glass.

safet

screen or

uard

removed for servicing must be

replaced prior to operating the

heater.

Never remove, replace, modify

or substitute any part of the

heater unless instructions are

given in this manual. All other

work must be done by a trained

technician. Don't modify or

replace orifices.

Operate the heater accordin

to the instructions included in

this manual.

If the main burners do not start

correctly turn the gas off at the

gas control valve and call your

dealer for service.

The pilot flame must contact

the thermopile and

thermocouple (see the

illustration to the left). If it does

not, turn the gas control valve

to "OFF" and call your dealer.

This unit is not for use with

solid fuel

Do not place an

thin

inside

the firebox (except the

included fiber logs).

If the fiber lo

s become

damaged, replace with Travis

Industries log set.

This

Manual

Do not throw this manual awa

This manual has important

operating and maintenance

instructions that you will need

at a later time. Always follow

the instructions in this manual.

Children and adults should be

alerted to the hazards of high

surface temperature and

should stay away to avoid

burns or clothing ignition.

Young children should be

supervised when they are in

the same room as the heater.

Plug the heater into a 120V

grounded electrical outlet. Do

not remove the grounding plug.

Don’t route the electrical cord

in front of, over, or under the

heater

Instruct ever

one in the house

how to shut gas off to the

appliance and at the gas main

shutoff valve. The gas main

shutoff valve is usually next to

the gas meter or propane tank

and requires a wrench to shut

off.

Travis Industries, Inc.

rants

no warranty, implied or stated,

for the installation or

maintenance of your heater,

and assumes no

responsibility of any

consequential damage(s).

6Features and Specifications

Features

• Works During Power Outages (millivolt system)

• High Efficiency

• Optional Thermostat or Remote Control

• Ember Fyre™ Burner for "Wood Fire" Look

• Quiet Blower for Effective Heat Distribution

• Convenient Operating Controls

• Variable-Rate Heat Output

• Low Maintenance

Installation Options

• Residential or Mobile Home

• Fireplace Insert

• Masonry or Factory Built (Metal) Wood-

Burning Fireplace

Heating Specifications

Natural Gas Propane

Approximate Heating Capacity (in square feet)* 500 to 1,500 500 to 1,500

Maximum BTU Input Per Hour 31,000 31,000

Minimum BTU Output on Low 18,600 16,000

Steady State Efficiency** (with blowers on) 80 % 80.5 %

AFUE (Annual Fuel Utilization Efficiency) 72.1 % 73.9 %

* Heating capacity will vary with floor plan, insulation, and outside temperature.

** Efficiency rating is a product of thermal efficiency rating determined under continuous

operation independent of installed system.

Dimensions

37-1/8"* 4x6 Panels

40-3/8"* 8x10 Panels

44-3/8"* 10x13 Panels

* Includes trim

NOTE: on older style panels the 3/8" standoffs

are no longer required and may be bent back.

18"

See the section "Vent Requirements"

for vent location.

1-1/4"*

19-1/2"

26-1/2"

15-1/8"

25"*

4x6 Panels

28-7/8"*

8x10 Panels

31-7/8"*

10x13 Panels

Weight:

115 Lbs.

Installation (for qualified installers only) 7

Installation Warnings

• Failure to follow all of the requirements may result in property damage, bodily

injury, or even death.

• This heater must be installed by a qualified installer who has gone through a

training program for the installation of direct vent gas appliances.

• This appliance must be installed in accordance with all local codes, if any; if not,

follow ANSI Z223.1 and NFPA 54(88).

• In Manufactured or Mobile Homes must conform with Manufactured Home

Construction and Safety Standard, Title 24 CFR, Part 3280, or, when such a

standard is not applicable, the Standard for Manufactured Home Installations,

ANSI/NCSBCS A225.1. This appliance may be installed in Manufactured Housing

only after the home is site located.

• The heater is designed to operate on natural gas, or propane (LP).

• All exhaust gases must be vented outside the structure of the living-area.

Combustion air is drawn from outside the living-area structure.

• Notify your insurance company before hooking up this heater.

• The requirements listed below are divided into sections. All requirements must

be met simultaneously. The order of installation is not rigid – the qualified

installer should follow the procedure best suited for the installation.

Packing List

• Propane Conversion Kit

• Log Set

• Cove Covers

• Glass Latch Key (to un-latch glass frame)

• "Fireplace Altered" tag (attach to the fireplace)

• Arched/Artisan/Metropolitan/Vict. Lace Face Brackets

Additional Items Required

• Faceplate

• 6-5/8" to 3" & 3" Co-Linear Adapter - with flashing (Simpson Duravent part # 923GK)

• 3" Diameter Gas Liner (2)

• Direct Vent Cap (Simpson Duravent Part # 991)

• Gas Line Equipment (shutoff valve, pipe, etc.)

Items Packed with the Face

• Face with attachment hardware (Note: use the cove covers included with the heater)

• Face Installation Instructions

Order of Installation

1 If the heater is to use propane, install the propane conversion kit (see page 37).

2Install gas line into the fireplace (do not connect to unit).

3Position the heater.

4Connect the gas line and gas vent to the appliance.

5Install the optional surround panels and trim. Attach the on/off switch.

6Follow the instructions under "Finalizing the Installation" on page 25.

8Installation (for qualified installers only)

Top Convection Deflector

Install the top convection deflector as

shown to the right.

The deflector is shipped on top of the

insert. The screws are shipped inside

the owner's pack.

Fireplace Requirements

• Insert must be placed within a code-conforming masonry fireplace or tested and listed factory-

built (metal) wood-burning fireplace. Repair any fireplace damage prior to installation.

• Because the insert uses a circulation blower, clean the fireplace, smoke shelf, and chimney

prior to installation.

• This heater may be placed in a bedroom. Please be aware of the large amount of heat this

appliance produces when determining a location.

The DVS inserts 15-1/8" into the

fireplace.

Min. 26-1/2" - additional space may be required for gas line installation.

For tight fits (under 24") see the section "Removing the

Vent Connector"

See "Leveling Bolts" for details

on leveling the heater.

Min. 19-1/2"

The gas line and shutoff

valve should be installed

prior to insert placement.

Attach the "This fireplace has been altered..." plate

to the fireplace (use two screws or other suitable

method). You may wish to place it in a location

where it will be covered by the surround panels.

Installation (for qualified installers only) 9

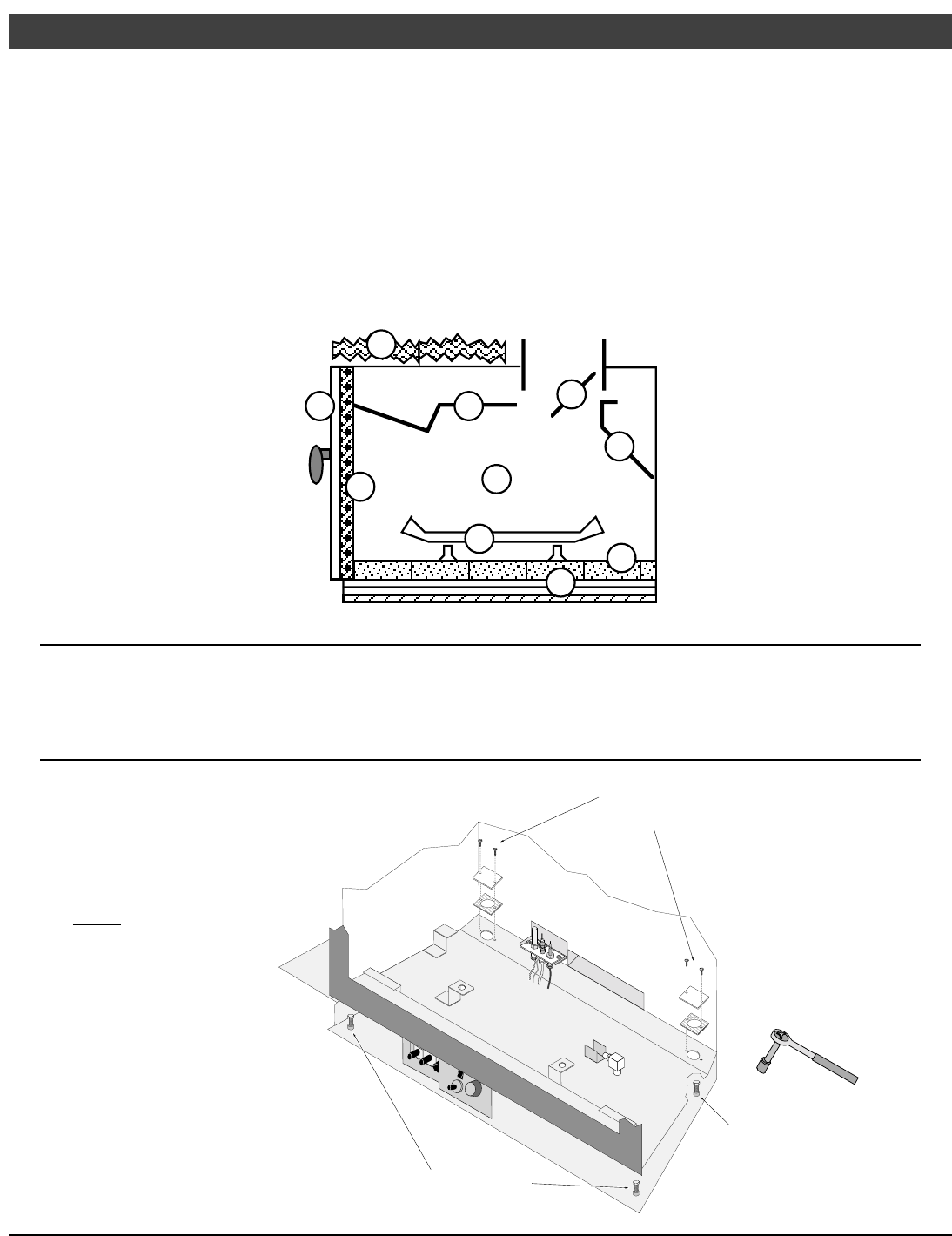

Factory-Built (Metal) Wood-Burning Fireplace Requirements

The damper ("A") and grate (with log set) ("B") must be removed (see the illustration below)

The smoke shelf ("C"), internal baffles ("D"), screen ("E"), masonry lining or refractory ("G" & "I"), and

metal or glass doors ("F") may be removed (if applicable)

NOTE: If any internal baffle is cut, bent, or removed, the fireplace must be permanently marked to

indicate that it has been altered and is no longer suitable for burning solid fuel (wood).

The insulation ("H"), and any structured rigid frame members must not be removed or altered (side

and top of door frame, side and top of the face of the fireplace, metal sides, etc.).

The metal floor ("J") may be removed to allow additional room for installation of the insert. If the

floor is removed the insert must be placed directly on the metal base of the metal fireplace.

Hearth Requirements

The heater and face must not contact combustible surfaces. A non-combustible hearth extension

is not required. However, if the heater is installed next to the floor, we recommend a hearth to

protect the flooring surface from discoloration or other negative impact from the heater.

Leveling Bolts

This heater includes

front and rear leveling

bolts to accommodate

fireplaces with a step-

down firebox.

NOTE: To access the

rear leveling bolts,

remove the burner

(see page 40).

Use a 1/2” socket wrench

(with extension) to adjust

the leveling bolts.

To access the rear leveling bolts remove these

access plates (replace access plate and

gasket after adjustment).

Front Leveling Bolts

Rear Leveling Bolt

10 Installation (for qualified installers only)

Clearances

Due to the high temperature of the heater, it should be located out of traffic and away from

furniture and draperies.

Side

Wall

Combustible or Non-Combustible Mantel

Combustible Top Facing

Non-Combustible

Facing

Minimum Clearances

Sidewall to Insert

Side Facing

Top Facing

Mantel

Extension onto Hearth

4-1/2"

35" *

1-1/4"

m* Measured from the base of the insert.

Mantel Clearances

The maximum mantel depth is 12”.

NOTE: The combustible area above the facing must not protrude more than 3/4" from the facing.

If it does, it is considered a mantel and must meet the mantel requirements listed in this manual.

Installation (for qualified installers only) 11

Face Sizing

Face Height Width Notes

Rawhide 22-1/2” 32”

Victorian 22-1/2” 32”

Rosario 21-9/16” 32”

Cambridge 21-1/2” 33”

Craftsman 21-1/2” 32”

Classic Arched, Artisan 22” 30” Side begins arch 3-1/2” below top - 34” radius

Metropolitan 22” 30”

Architectural Series 22-3/4” 29-7/8”

Discovery 21-9/16” 32”

Bedford 22-3/4” 34-1/8” Requires the Bedford DVS EF II Face Upgrade Kit.

This lowers the face 1-1/4” - see “Mounting the

Bedford Face” on the following page.

2-1/4” Deep, requires 5/8” above for installation

Modifying the Face Connector for Rosario, Discovery, and Artisan Faces

The Rosario and Discovery face attach with screws that insert near the glass frame. To better

access these screws, we recommend you re-position the face connector following the directions

below. NOTE: The connector can be left in the stock position, but this makes face installation

difficult.

Face Connector

Bracket

Remove the face connector bracket

from the heater (on both sides). Re-attach the face connector to the

heater using the forward mounting holes.

12 Installation (for qualified installers only)

Face Mounting Brackets -- Arched, Metropolitan, Artisan Vict. Lace Faces

Some Arched, Artisan, Metropolitan, and Victorian Lace Faces include old brackets that will not

mount to the heater (see illustration below). For these faces, make sure to use the new mounting

brackets (either included with the heater or available through your dealer - SKU 225-20055).

WARNING: When attaching the Victorian Lace Face, do not over-tighten the screws. Over-

tightening the screws may damage the face – simply tighten the screws until they contact the face.

Old Arched,

Metropolitan, or

Artisan Bracket

New

Bracket

Old Victorian

Lace

Bracket

Install the face mounting

brackets to the heater with the

included nuts.

NOTE: The brackets

install with this pair of

closely spaced flanges

at the top.

NOTE: The face attaches to the brackets with the screws included with the face – see the

instructions included with the face.

Mounting the Bedford Face

Some Bedford Faces include old brackets that

will not mount to the heater. For these faces,

make sure to use the new DVS Insert EF II Face

Upgrade Kit (either included with the face or

available through your dealer - SKU 250-

00029). The kit lowers the face and surround

panels 1-1/4”. This means you must install this

with a raised fireplace or raise the insert 1-1/4”

above the hearth. To do this you may extend

the leveling bolts or place bricks or other non-

combustible under the insert.

1-1/4”

Installation (for qualified installers only) 13

Gas Line Requirements

MASSACHUSETTS INSTALLATIONS - WARNING:

THIS PRODUCT MUST BE INSTALLED BY A LICENSED PLUMBER OR GAS FITTER WHEN INSTALLED WITHIN THE

COMMONWEALTH OF MASSACHUSETTS.

OTHER MASSACHUSETTS CODE REQUIREMENTS:

• Flexible connector must not be longer than 36 inches.

• Shutoff valve must be a “T” handle gas cock.

• Only direct vent sealed combustion products are approved for bedrooms or bathrooms.

• Fireplace dampers must be removed or welded in the open position prior to the installation of a fireplace insert or gas log.

• A carbon monoxide (CO) detector is required in the same room as the appliance.

• The gas line must be installed in accordance with all local codes, if any; if not, follow ANSI

223.1 and the requirements listed below.

• A manual shutoff valve is required within 3’ of the heater. It should be placed upstream of the

flex line (if used) and may be installed behind the access door inside the heater. ).

• The heater and gas control valve must be disconnected from the gas supply piping during any

pressure testing of that system at test pressures in excess of 1/2 psig. For pressures under 1/2

psig, isolate the gas supply piping by closing the manual shutoff valve.

• Leak test all gas line joints and the gas control valve prior to and after starting the heater.

• This heater is designed either for natural gas or for propane (but not for both). Check the sticker on the top of the

gas control valve to make sure the correct fuel is used (see illustration on page 4).

• Installation must be performed by a qualified installer, service agency or the gas supplier (In Massachusetts

a licensed plumber/gasfitter).

Gas Line Location

The gas inlet

accepts a 1/2" MPT.

2-3/4"

Shutoff Valve (secured to

the fireplace insert)

Fireplace Opening

Gas Inlet Pressure Standard Input Pressure

Natural Gas 7" W.C. (1.74 kPA)

Propane 13" W.C. (2.73 kPA)

• If the pressure is not sufficient, make sure the piping used is large enough, the supply regulator is

adequately adjusted, and the total gas load for the residence does not exceed the amount supplied.

• The supply regulator (the regulator that attaches directly to the residence inlet or to the propane tank) should

supply gas at the suggested input pressure listed above. Contact the local gas supplier if the regulator is at

an improper pressure.

14 Installation (for qualified installers only)

Vent Requirements

• The gas appliance and vent system must be vented directly to the outside of the building, and

never be attached to a chimney serving a separate solid fuel or gas-burning appliance. Each

direct vent gas appliance must use it's own separate vent system.

• Make sure the exhaust pipe on the heater connects to the exhaust portion of the cap. The

illustrations below show how the flex liners should be attached.

• The exhaust vent must reline the entire length of the chimney and terminate above the

chimney top

• Be careful not to crimp or rupture the liner when bending it into chimney offsets

• When installed, the vent must meet all of the vent manufacturer's requirements

• Make sure to order the following:

3” UL 441 Gas Liner for Exhaust and Air Inlet

6-5/8” to 3” & 3” Co-Linear Adapter & Flashing (Simpson Duravent Part # 923GK).

Vertical Termination Cap (Dura-Vent pt # 991)

Max. Ht. 40'

Min. Ht. 8'

Inlet

(3" dia.)

Exhaust

(3" dia.)

Max. 2'

offset

Altitude Considerations

• This heater has been tested at altitudes ranging from sea level to 8,000 feet (2,400 M). In this testing we

have found that the heater, with its standard orifice, burns correctly with just an air shutter adjustment.

• Failure to adjust the air shutter properly may lead to improper combustion which can create a safety hazard.

Consult your dealer or installer if you suspect an improperly adjusted air shutter.

Installation (for qualified installers only) 15

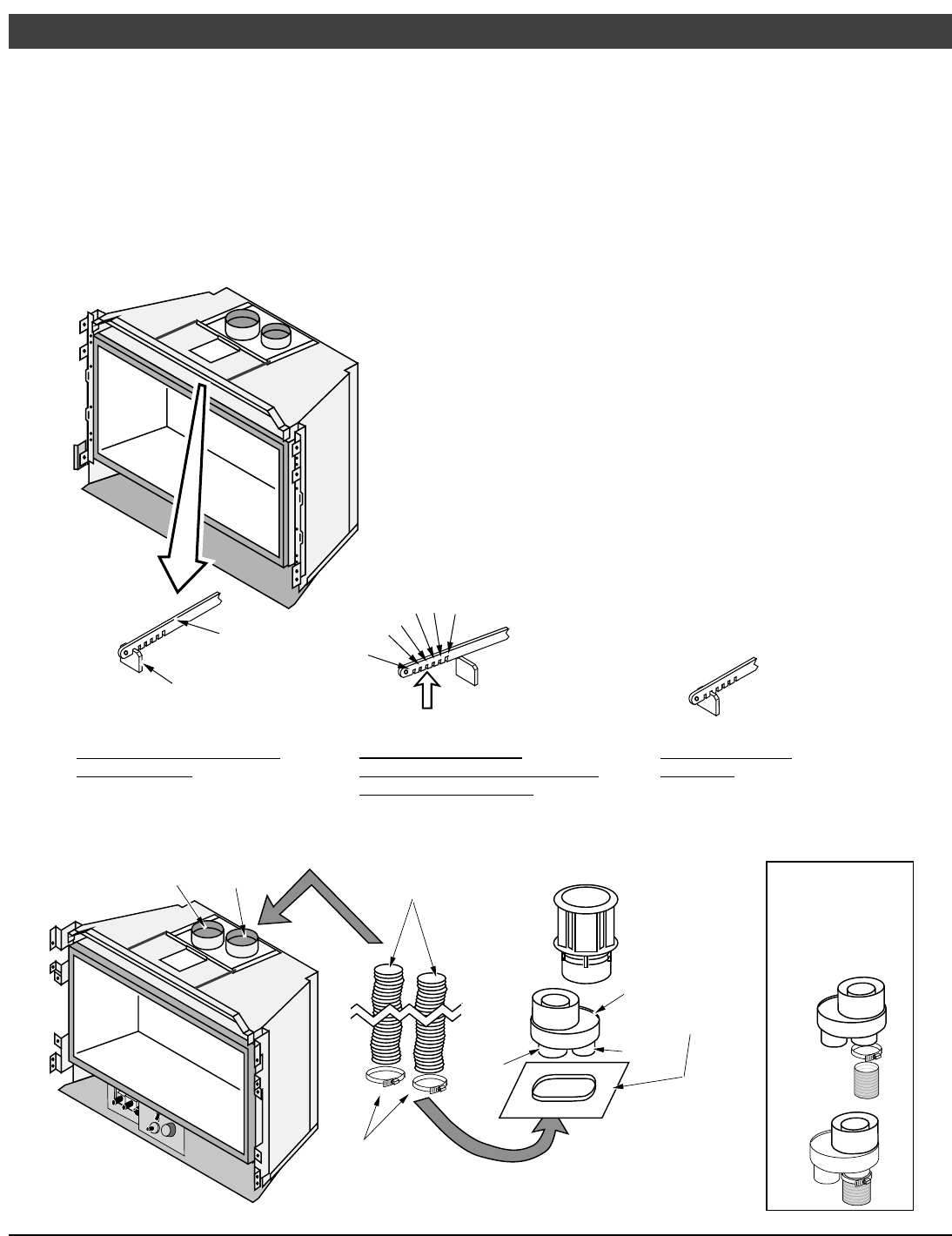

Vent Restrictor

WARNING: Restrictor adjustment should only be done by a qualified installer.

Only those installations determined to be over-drafting require this adjustment. The best indication

of over-drafting is a hyper-active flame pattern (flames that move too quickly). If the air shutter is

constricted, the flames become short and yellow, yet still very active. Over-drafting may affect the

pilot, but this is not the best way to determine over-drafting. Over-drafting is most likely in tall

venting configurations (especially if using an “Exhaust Only Re-Line”). Do not over-restrict the vent

(this leads to ghosting or lifting flames - reduce restrictor setting).

Remove the face.

To Adjust the Restrictor:

To Access the Restrictor:

This restrictor is in position 1

(factory setting). This restrictor is in

position 2.

Adjustment

Bracket

To adjust, lift up on the

adjustment plate and push it back

(use pliers if necessary).

WARNING: Use a glove to protect

your hand from burns.

Adjustment

Plate

#2#3

Determine a restrictor position. Start low (move

the restrictor a maximum two positions at a time)

and thoroughly test the heater before adjusting further.

Lift up the adjustment plate and move it so the correct notch falls

into the slot on the adjustment bracket.

#4 #5 #6

Vent Installation

Inlet (3”)

Exhaust (3”)

Inlet

Exhaust

Termination Cap

(Simpson Part # 991)

6-5/8” to 3” & 3” Co-

Linear Adapter

(Simpson Duravent

Part # 923GK)

3” dia. Gas Liner

Use hose-clamps

to secure the vent.

Alternative Method: use high-temperature

silicone and secure with screws.

Use hose-clamps to

secure the vent.

Alternative Method: use

high-temperature

silicone and secure with

screws.

16 Installation (for qualified installers only)

Vent Location

• A vent restrictor is built into the appliance to adjust the flow rate of exhaust gases. This ensures

proper combustion for all vent configurations. Depending upon the vent configuration, you

may be required to adjust the restrictor position. The charts for acceptable vent configurations

detail the correct vent restrictor position.

1-1/4”

Center Line

Inlet (3” Dia.)

Exhaust (3” Dia.)

Fireplace

Opening

1-1/4”

2-5/8”

15-1/8”

6-1/8”

NOTE: Vent location changes based

upon restrictor position. Position # 1 is

shown to the right. Each restrictor

position moves the vent location forward

(toward the fireplace opening)

approximately 1/4”.

Vent Configurations

Factory Built (Metal) Wood-

Burning Fireplace

Inlet & Exhaust Re-Line Exhaust Only Re-Line

Direct Vent Cap

(part # 991)

Recommended Block-Off

Plate (non-combustible

metal and/or insulation).

Prevents odors from

chimney entering room.

6-5/8" to 3" & 3" Colinear

Adapter & Flashing

(Simpson Duravent

#923GK)

A block-off plate must

seal the intake to the

chimney space. This

way air is drawn down

the chimney for

combustion air.

Block-Off Plate

(non-combustible

materials)

NOTE: You may use either re-line configuration with a masonry or zero-clearance fireplace.

Inlet

Masonry Fireplace

Any cracks or

damage inside the

chimney must be

repaired.

Exhaust

3" dia.

Gas Liner

Inlet

3" dia. Gas Liner

Exhaust

3" dia. Gas Liner

Installation (for qualified installers only) 17

Vent Connector Removal and Installation

• The vent connector is shipped attached to the insert, but may be removed to facilitate tight

installations. See the directions below for installation.

1. Route the flex vent through the chimney from above (leave an extra 3' at the top). Make sure

the flex is thoroughly stretched.

2. Remove the vent connector and attach it to the flex vent (see the instructions on the following

page). NOTE: be careful of the anti-seize on the connector – it will stain clothing, etc.

3. Pull on the flex vent until the vent connector is at the same height as the insert. Temporarily

attach the flex vent to the top of the chimney (leave extra slack).

4. Slide the insert into place, guiding the vent connector into the guides on top of the insert.

5. Attach the vent connector to the appliance (see the following page for details).

6. Remove any excess slack in the flex line and attach the vent termination.

18 Installation (for qualified installers only)

Vent Connector Removal and Installation (continued)

Vent Connector Removal

Slide the

connector to the

rear. It will

"snap" out.

Pull the vent connector

rod forward.

Vent Connector Installation

Attach the flex vent to

the vent connector.

Slide the insert

into place, lining

up these guides

with the edges of

the vent

connector.

Push the vent

connector rod in, lift

slightly, and line it up

so the tabs on the end

of the rod engage the

hooks on the vent

connector

Pull on the vent connector rod until the

vent connector snaps into place. Slide

the vent connector rod in to conceal it.

WARNING: The anti-seize on

the vent connector can stain

clothing, carpets, or other

items.

Installation (for qualified installers only) 19

Surround Panel Installation

PANEL SIZE WIDTH HEIGHT PART #

8" x 10" Rectangular 40-3/8" 28-7/8" 98500610

Arched (8” x 10”) 40-3/8" 28-7/8" 98500622

10” x 13” Rectangular 44-3/8" 31-7/8" 98500611

1 Follow the directions below to install the side panels.

NOTE:

These 3/8" stand-offs are not required

and may be flattened (both sides).

Line up each side surround

panel and insert two screws from

the outside to secure in place.

5/16" Nutdriver

Pre-thread the holes on the surround

panels with the screws included in the

surround panel kit.

Run the rheostat wires,

on/off switch wires, and

power cord through the

access hole on the insert

2 Follow the directions below to install the top panel.

Install the top panel so the

two tabs insert into the slots

on the side panels.

Top

Panel

Top Trim

"L" Bracket

Right Side Trim

Construct the panel trim. Insert one leg of each "L"

bracket into the top and side trim piece. Align the

trim to form a precise corner, then tighten the two set

screws with a small standard screwdriver. Slide the

trim over the panels.

Tighten the set

screws from the back

side with a small

standard screwdriver

"L" Bracket

Right Side

Trim

Top Trim

Slot for on/off

switch and hole

for rheostat

NOTE:

These 3/8"

stand-offs are

not required

and may be

flattened.

The insulation included with the

panels may be discarded.

20 Installation (for qualified installers only)

Installation of the On/Off Switch and Rheostat

The on/off switch and rheostat may be installed in either the surround panels or control panel. See

the illustration below for installation details.

Disconnect the red and brown wires leading to the on/off switch.

Insert the wires through the rectangular mounting hole (on the

surround panel or control panel) and attach to the on/off switch.

The wires must attach to the top and bottom posts on one side of

the switch - it does not matter which wire is on top. Press the

switch into the rectangular hole until it locks into place.

WARNING:

Make sure the heater

is unpluged before

installing the rheostat.

Upper Right of Trim

(preferred)

Remove the knob and nut from the rheostat. Insert the

shaft on the rheostat through the circular hole (on the

surround panel or control panel). Secure with the nut.

Replace the knob.

Make sure the wires do not contact the burner pan or

other hot surfaces (secure with lock ties if necessary).

Control Panel

(next to gas control valve)

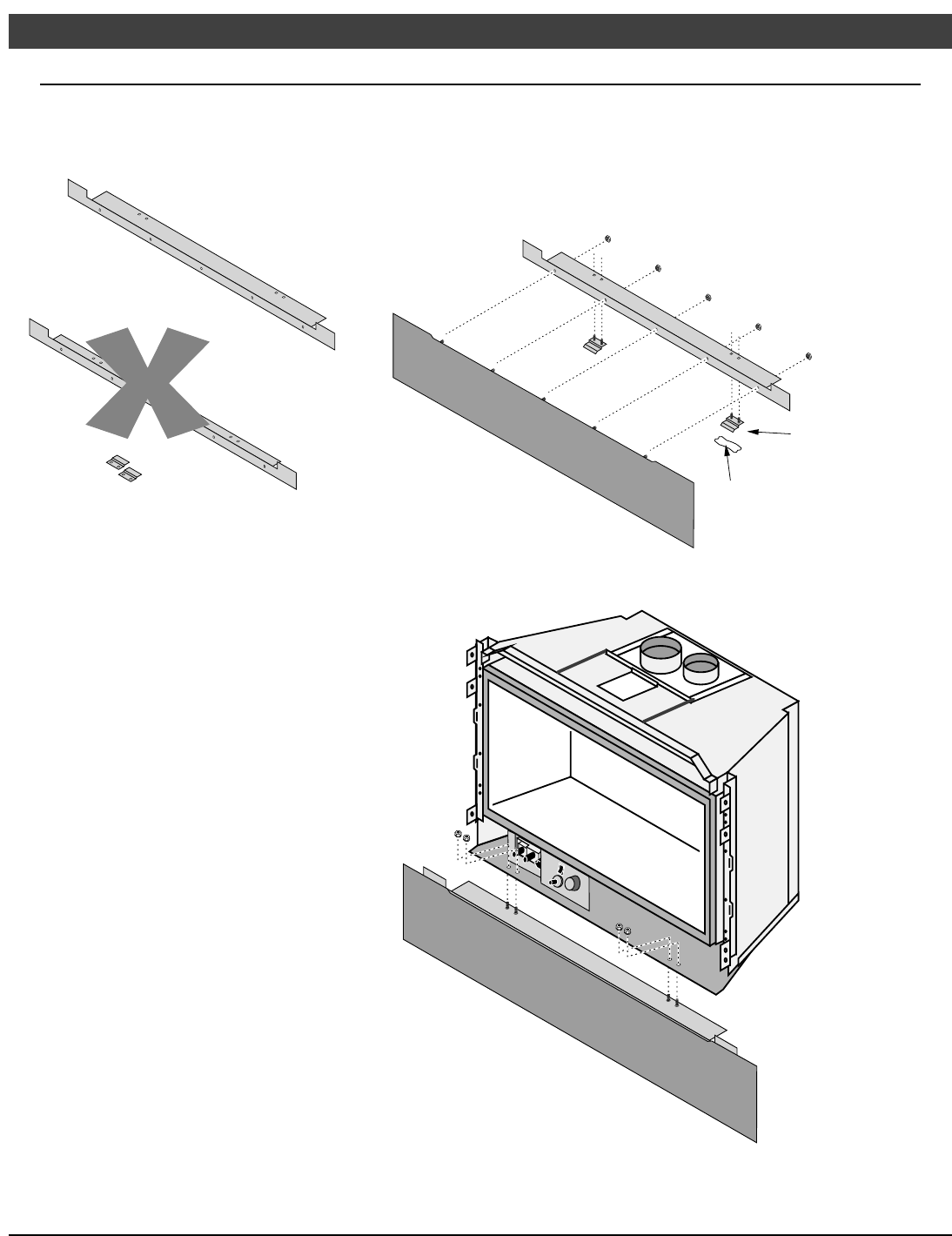

Installation Without Surround Panels

The insert may be installed without surround panels. Mount the on/off switch and rheostat to the

control panel under the burner pan (see “ Installation of the On/Off Switch and Rheostat” on page 20).

Electrical Connection

• Route the power cord out of the access hole on the right side of the appliance.

• Plug the power cord into a grounded 120 Volt outlet (do not remove the grounding pin).

• The electrical connection may also be made using the optional Wiring Kit (SKU 97200315).

Finalizing the Installation 21

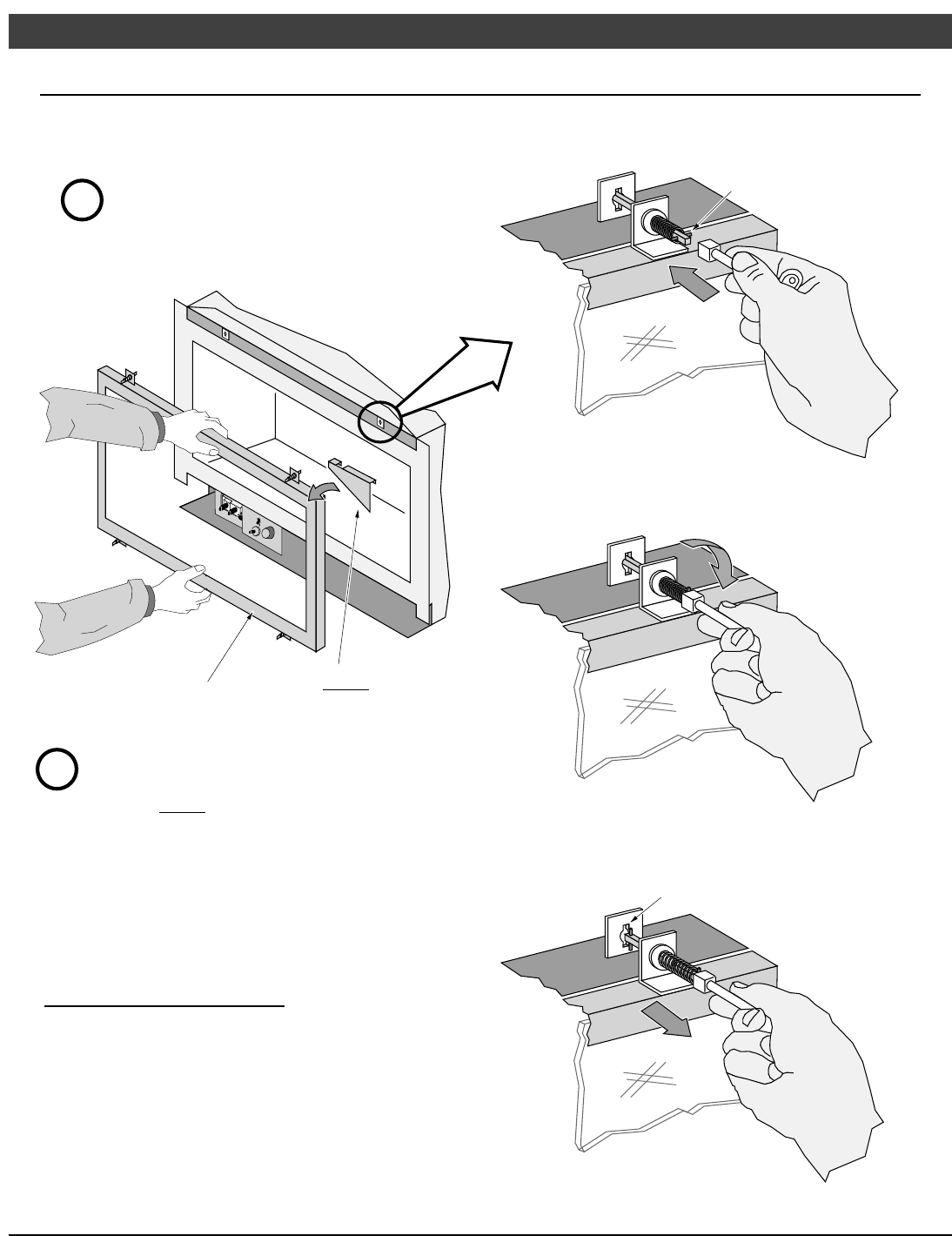

Glass Frame Removal and Installation

Warning: The appliance must be completely cool before removing the glass.

Warning: Do not strike or slam the glass.

Open the four latches holding the glass

frame in place (start with the two below

the glass) - follow the directions shown

to the right.

Glass Frame

Lift the glass frame up

and pull it forward to

remove. NOTE:

You may need to lift the

glass frame while re-

attaching.

Re-Attaching the Glass Frame:

a) Hang the glass frame on the firebox.

b) While holding in place, attach the upper latches

(follow the instructions to the right in reverse).

c) Lift the glass frame slightly and attach the lower latches.

NOTE:

Use the included cove

covers for those faces

requiring them.

Twist 1/4 turn.

Top of

Firebox

The spring pin will

disengage from the

latch bracket,

opening the latch.

Latch Bracket

Insert the 1/4” key

into the spring

pin.

Glass

Spring Pin

22 Finalizing the Installation

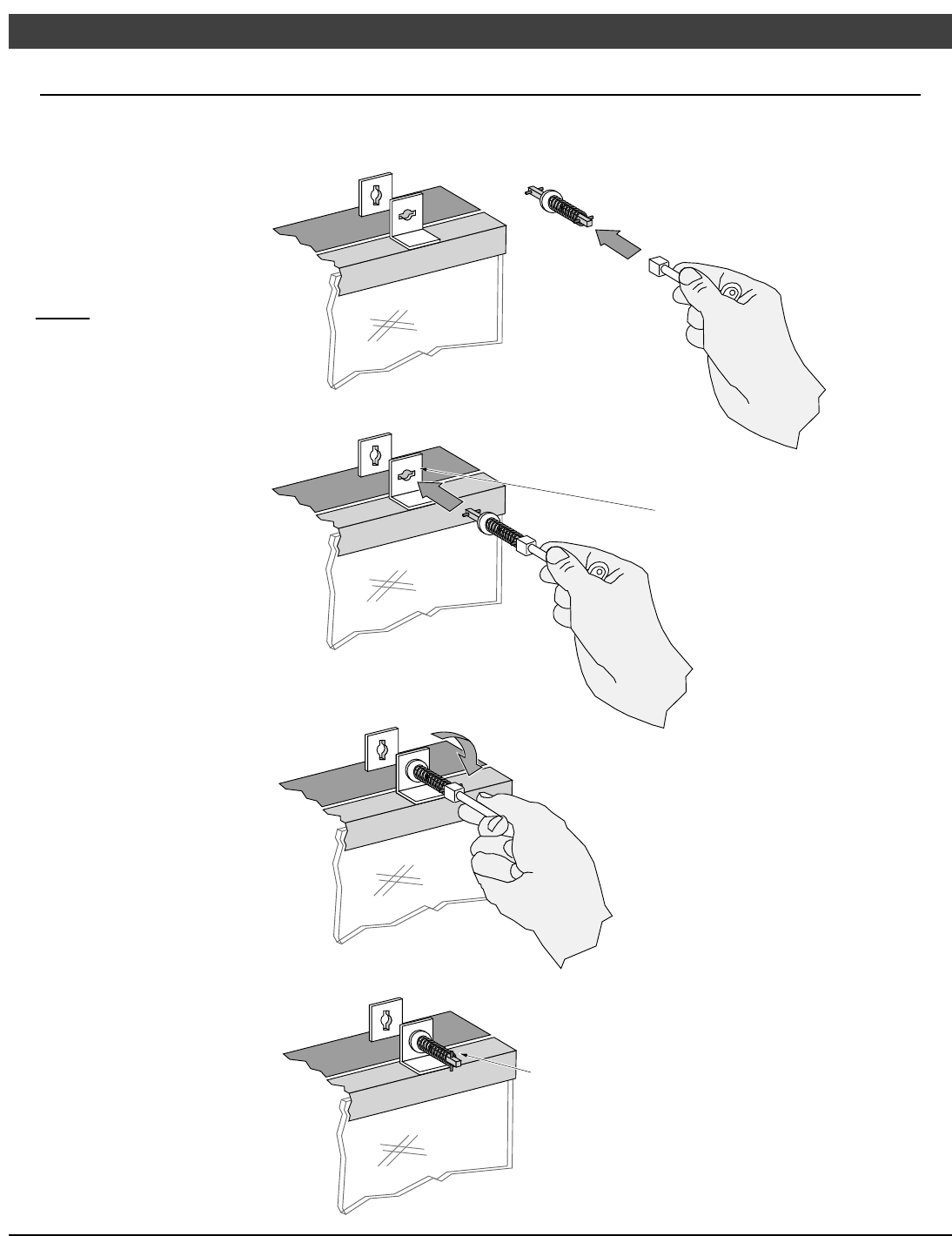

Glass Frame Removal and Installation (continued)

The spring pin can come loose from the latch assembly. This occurs when it is turned 1/4 turn

when it is disengaged. Follow the directions below to re-install the spring pin if it becomes loose.

To re-install the spring pin, first

insert this end into a 1/4” key.

Insert the spring pin into

this bracket with the pins

aligned horizontally.

Push in slightly and

twist 1/4 turn.

With this pin vertical, the spring

pin will remain in place.

NOTE: The spring pins

can be installed with the

glass frame in place or

removed.

Finalizing the Installation 23

Log Set Installation

Install the rear log. The two pins install into holes on the log.

Install the left log. This pin & bolt insert into holes in the bottom of the log. The right log installs the same way.

When in place,

the logs look like

this.

24 Finalizing the Installation

These 2 pins install into holes in the bottom of the left twig. The right twig installs over this pin.

When in place, the log set should look like the pictures above.

Use a kibble to cover any exposed screws. You

may wish to flatten the kibble to provide better

coverage.

Place other kibbles around the burner

as needed (do not cover any burner

holes).

Finalizing the Installation 25

Steps for Finalizing the Installation

1. Remove the glass (see page 21).

NOTE: If using propane (LP) convert the appliance prior to installing the logs.

2. We recommend you purge the gas line at this time (with the glass removed). This allows gas to

be detected once it enters the firebox, ensuring gas does not build up.

3. Turn on gas to the heater. Leak test all gas joints prior to starting the appliance. Start the pilot.

Start the main burner. Leak test all gas joints again.

4. Check the pilot flame following the directions below.

Pilot Flame Inspection

The pilot flame should look like the illustration below. Adjust the pilot flame if necessary.

Standard

Screwdriver

The pilot flame must contact the thermocouple and

thermopile (see the illustration below). Adjust the pilot up or

down as necessary.

To adjust the pilot flame, turn this screw. Clockwise

lowers the flame while counter-clockwise raises it.

5. Install the logs (see page 23).

6. Replace the glass.

7. Check the air shutter following the directions below.

Air Shutter Adjustment

Let the heater burn for fifteen minutes (make sure the logs and glass are in place. The flames should

look like the illustration below. Adjust the air shutter, if necessary, to achieve the correct looking flame.

NOTE: If the air control is all the way open,

yet the flames remain sooty, shut off gas to

the fireplace and contact a qualified gas

service technician.

Correct

Flames should be blue at the

base, yellow-orange on the top. If the flames are over 14" tall or sooty on

the ends, open the air shutter.

Not Enough Air

If the flames are all blue and

short, close the air shutter.

Too Much Air

NOTE: The logs must be installed correctly to

monitor the flame while adjusting the air shutter.

Move the controls left or right until the flame

looks correct. Pushing to the right gives the

flame more air, making it more blue.

Pushing to the left gives the flame less air,

making it more orange.

Air Shutter

26 Finalizing the Installation

FINE TUNING THE EMBER-FYRE™ BURNER

Each installation is affected by altitude, vent configuration, and fuel quality. Because of this, the

restrictor and air shutter may need to be fine tuned to each installation. Follow the hints below to fine-

tune the burner for optimum performance and aesthetics.

Restrictor Adjustment:

Only those installations determined to be over-drafting require this adjustment. See the instructions on

page 15 for details.

Air Shutter Hints:

• For more glow, open the air shutter, however, this will make the flames more blue.

• For yellow flames, close the air shutter, however, this may create less glow.

The flames should burn right

off the top of the burner ports

(if they are too blue, adjust

the air control).

Lifting flames indicate

insufficient draft (restrictor

is set too high).

Burner Burner Ports

(holes)

Ghosting flames indicate

insufficient air (restrictor set too

high, air shutter shut down, or

other venting error).

Lifting FlamesCorrect Flames Ghosting Flames Flickering Flames

Flickering, short flames

indicate excessive draft

(move air shutter to a higher

position).

Warning: If the vent configuration is installed incorrectly the vent may cause the flames inside the heater to

lift or “ghost” – a dangerous situation. Inspect the flames after installation to insure proper

performance. If the vent confi

uration is correct,

et the flames are liftin

hostin

, shut off

to the heater and contact the dealer for information on remedying the problem.

8. Replace the glass.

9. Attach the face following the directions included with the face.

NOTE: If using a Rosario or Discovery face you may wish to modify the face connector (see

page 11 for details).

NOTE: If using the Arched, Artisan, Metropolitan, or Victorian Lace Face you must use the face

mounting brackets included with the heater (see page 12 for details).

10. Turn the flame adjust knob to its highest position - the flames should not contact the top of the

firebox. Check the flame on low position. The flames should burn off of each burner hole. If

the heater does not work correctly, contact your dealer for a remedy.

11. Give this manual to the home owner and fully explain the operation of this heater.

Operation 27

Before You Begin

• Read this entire manual before you use your new heater (especially the section "Safety

Precautions" on pages 4 & 5). Failure to follow the instructions may result in property damage,

bodily injury, or even death.

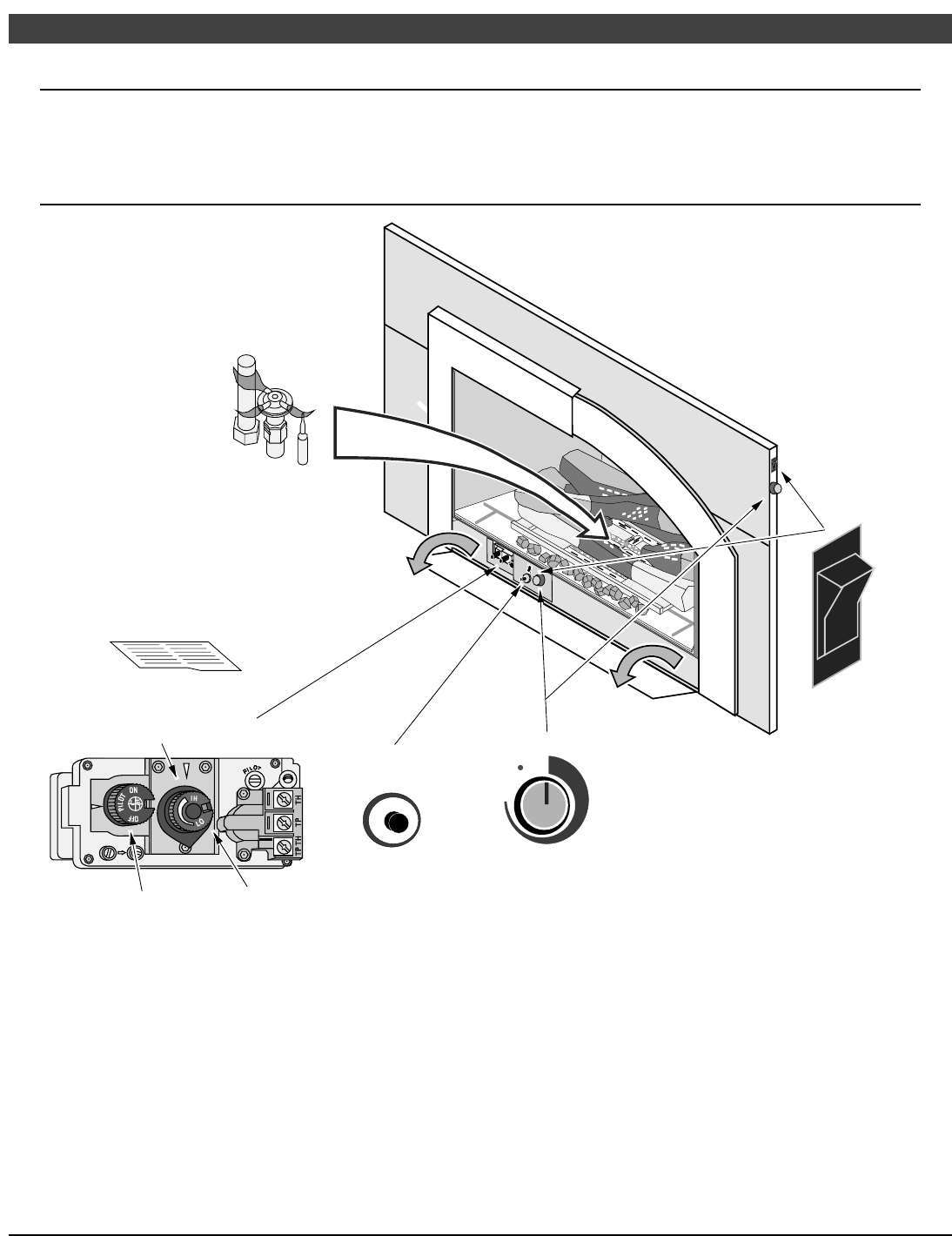

Location of Controls

Open the

access door

to view the

controls.

Gas Control Valve

Gas Control Knob Flame Adjust Knob

An instruction card for

operating the fireplace is

attached to the inside of the

fireplace here. Replace it for

easy reference.

PILOT

IGNITER LO

OFF HI

ON/OFF Switch is

located either on

the upper right of

the surround panels

or behind the

access panel

The Pilot Flame can be

found below the back log.

Blower Knob is located either on the upper

right of the surround panels or behind the

access panel

Blower Knob This knob controls the speed of the internal convection blower that

pushes the heated air into the room.

On/Off Switch This control is used to turn the heater on and off.

Pilot Igniter The pilot igniter is used only to start the pilot. When pressed, it sends an

electrical charge to the pilot assembly. This creates a blue spark

directly next to the pilot, igniting the pilot flame.

Gas Control Knob This knob is used to control gas to the heater and for starting the pilot.

There are three positions, ON, OFF, & PILOT. The pointer to the left of

the knob indicates the position this knob is in.

Flame Adjust Knob This knob controls the flame height from low ("LO") to high ("HI"). The

pointer above the knob points to the position this knob is in.

28 Operation

Starting The Pilot Flame

The pilot flame is required to ignite the

main burners (it also plays a safety role). It

should be left on once lit. It will stay lit

unless the gas control valve is turned to

"OFF". However, the pilot will go out if the

gas is shut off, the propane tank runs out (or

low) or if the stove malfunctions. If the pilot

turns off frequently, call your dealer for

information. To start the pilot follow the

directions below:

WARNING:

When lighting or re-lighting the pilot, the

glass must be removed (see page 21).

aRemove the glass (see page 21 for

details).

bPush the gas control knob in slightly and

turn it to the "OFF" position. The knob

will not turn from "ON" to "OFF" unless the

knob is depressed slightly. Wait five

minutes to let any gas that may have

accumulated inside the firebox escape.

If you smell leaking gas, follow the

directions on the cover "IF YOU SMELL

GAS".

cTurn the gas control knob to the "PILOT"

position and press the knob in, this will

allow gas to flow to the pilot light. Press

the button on the pilot igniter repeatedly

until you see the pilot light.

WARNING:

If the pilot does not light after 15 seconds,

release the knob and call your dealer for

service. Do not attempt to light pilot until

service has been performed.

NOTE:

You may wish to remove the log set to gain

a better view of the pilot (see page 23).

dKeep the gas control knob depressed for

30 seconds once it is lit.

eRelease the gas control knob. If the pilot

goes out, repeat step C. If the pilot

refuses to stay lit, call your dealer for

service. With the pilot lit, proceed to step

“f”.

fReplace the glass.

gTurn the gas control knob counter-

clockwise to "ON". The pilot is now lit

and the heater can be turned on and off.

30 seconds

PILOT

IGNITER

5 minutes

Operation 29

Starting the Heater for the First Time

• Burn the heater at a high setting with the blower off for an extended period (up to 48 hours).

This will cure the painted surfaces. Fumes from the paint curing and oil burning off the steel

will occur. This is normal. We recommend opening a window to vent the room.

• Condensation may appear on the glass each time you start the heater - this is normal.

• Blue Flames will occur on the heater when it first comes on. After fifteen minutes the flames

will turn a more realistic yellow and orange color.

• Certain installations use a remote "wall switch" to turn the heater on and off. If this is the case,

leave the ON/OFF switch "ON".

Turning the Heater On and Off

OFF

ROOM TEMP

°F

SET TEMP

TIMER

MIN

Time

Set

Time

Cancel

Use this switch to

turn the main burner

on and off manually.

After the pilot has been started...

See the instructions included

with the remote for details on

operation.

For systems with wall

thermostats, use this switch to

control the temperature (right

is hotter, left cooler). Some

systems require the on/off

switch to be on.

See the instructions

included with the

remote for changing

the battery.

• Do not place any combustible items on top of or directly in front of the heater, even

temporarily. The optional thermostat may start the heater causing a combustible item to ignite.

• If the heater turns on and off frequently while using the thermostat, you may want to adjust the

flame height down until it produces just enough heat needed.

Adjusting the Flame Height

• Your heater has an adjustable flame to tailor the look and heat output to your specific needs. It

is adjusted by turning the middle dial on the gas control valve.

Flame Height

Adjustment Knob

Index Mark

Turn counter-clockwise to adjust the flame higher, clockwise to lower.

30 Operation

Adjusting the Blower Speed

The blower helps transfer heat from the heater into the room. It will not turn on until the heater is

up to temperature (approximately 10 minutes after starting). See the illustration below for

instructions on adjusting the blower speed.

OFF

Turn the dial all the

way counter-clockwise

until it clicks off.

HIGH

The high position is all the

way counter-clockwise,

without clicking off.

LOW

Turn the dial all the

way clockwise.

Normal Operating Sounds

Gas Control Valve

As the gas control valve is turned on

and off you will hear a dull clicking

sound. This is the valve opening up

and shutting down.

Blower Snap Disk

This part can produce a clicking

sound as it turns the blower on

and off.

The appliance will creak

with change of temperature.

Pilot Flame

The pilot flame,

which remains on,

makes a very slight

"whisper" sound.

Blower

This heater uses a blower to push heated air

into the room. You will hear the sound of air

movement that increases as the speed is

increased.

Extinction Pops

It is not unusual, especially on

Propane (LP) appliances, to

experience a "pop" when the

burner is shut off.

Normal Operating Odors

This appliance has several areas that reach high temperatures. Dust or other particles on these

areas may burn and create an odor. This is normal during start-up. You may notice the smell is

more acute if the appliance was left idle for a long period.

Maintenance 31

Maintaining Your Heater's Appearance

Fingerprints or other marks left on the optional plated surface may become etched in place if they

are not wiped clean prior to turning the heater on. Clean the plated surfaces with denatured

alcohol and a soft cloth (with the heater cool). Other cleaners may leave a film that may become

etched into the surface.

Yearly Service Procedure

• Failure to inspect and maintain the heater may lead to improper combustion and a potentially dangerous

situation. We recommend the following procedures be done by a qualified technician.

1. Check the pilot flame. It should touch approximately 3/8" of the top of the thermopile and touch the top of

the thermocouple (see illustration below). If it does not, contact your dealer for service.

2. Shut off gas to the heater by turning the gas control knob to "OFF" (see step A under "Starting the Pilot" on

page 28). Let the heater cool for 15 minutes. Remove the face (see the instructions included with the face)

and glass (see page 21).

3. Remove the log set (NOTE: the logs are very fragile - see page 23). If severely deteriorated, replace.

Check the logs for sooting. A small amount of soot along the bottom of the logs is normal. If excessive

sooting is found, the heater will require adjustment. Contact your dealer.

4. Clean the burner (especially the burner holes) and inspect the following:

• Make sure the burner is not warped, cracked, or damaged.

• Check the firebox and area around the pilot to make sure there is no warping or damage.

• If any problem is found, discontinue use and contact your dealer for service.

Check the burner holes.

Make sure the

burner is not

warped or

damaged.

Check the walls and ceiling of the firebox for

deterioration.

Thermopile

Pilot Hood

Thermocouple

Before Disassembly -

Check the pilot flame. It

should touch the

thermocouple and

thermopile.

5. Replace the log set. Clean and replace the glass (use non-abrasive cleaner - if damaged, replace). Make

sure the gasket along the perimeter of the glass contacts the face of the firebox and forms an air-tight seal.

If it does not, re-align or replace the gasket to insure an air-tight seal. Replace the faceplate.

6. Inspect the area behind the access door. Check the gas control valve and the gas lines. If damage is

found, discontinue use and contact your dealer for service. Clean the air channels, ducts, and the area

around the blower.

7. Start the pilot and turn on the main burner. The flames should be orange/yellow and not touch the top of the

firebox. If the pilot or main burners do not burn correctly, contact your dealer for service. Monitor the

blower operation.

8. Remove any debris or vegetation near the vent termination. Contact your dealer if any sooting or

deterioration is found near the vent termination.

32 Maintenance

Troubleshooting Table

Problem: Possible Cause: Don't Call for Service

Until You:

Pilot Will Not Light A gas shut off valve is turned off

The gas control knob isn't turned to "PILOT"

The valve control knob isn't pushed in

The igniter wasn't pressed repeatedly

No Propane in Tank

Check all gas shut off valves

See "Starting the Pilot Light" Step C

Check Tank Level

Main Burners Will

Not Start

The pilot light has gone out

The gas control valve is turned to "PILOT" or "OFF"

The ON/OFF switch is turned to "OFF"

The remote control is not working correctly

The thermostat is disconnected or set too low

See "Starting the Pilot Light"

Turn the ON/OFF switch to "ON"

See the remote control instructions

See "Thermostat Operation"

Remote Control

Does Not Work

The pilot light has gone out

The gas control valve is turned to "PILOT" or "OFF"

The ON/OFF switch is turned to "OFF"

The remote is too far away from the heater

The remote control receiver is turned "Off"

One of the two remote control batteries is dead

See "Starting the Pilot Light"

Turn the ON/OFF switch to "ON"

Use the remote closer to the heater

See the remote control instructions

Thermostat Does

Not Work

The pilot light has gone out

The gas control valve is turned to "PILOT" or "OFF"

The ON/OFF switch is turned to "OFF"

The thermostat is set too low

See "Starting the Pilot Light"

Turn the ON/OFF switch to "ON"

See "Thermostat Operation"

Heater Will Not

Distribute Heat

The heater is not getting electricity

The heater is not up to temperature

Check the breaker switch

See "Operating Your Heater"

Pilot Goes Out

Intermittently

The gas supply has been shut off Keep the gas supply turned on

Flames Are Too

Blue

The heater has just been started

Improper air shutter adjustment

This is normal - see "Starting the Heater

for the First Time"

Adjust Air Shutter - contact your dealer

Flames Are Too

Short (Under 6")

The flame height may be turned too low Turn the flame height to "HI" -

See "Adjusting the Flame Height"

Thin Layer of Soot

Covers the Glass

The logs or coals are placed incorrectly

Improper air shutter adjustment

See "Log Set Installation"

Adjust Air Shutter - contact your dealer

Maintenance 33

How this Heater Works

This heater was designed with safety as the primary concern. Many of the components inside this

heater are for safety purposes. Therefore, only certified gas service technicians should service this

heater.

What Turns the Main Burners On and Off

This heater uses a millivolt system to control its operation (a millivolt is a very small amount of

electricity). The thermopile and thermocouple generate electricity when heated by the pilot

flame. This electricity is used to operate the gas valve. Without enough electricity, the gas valve

will not turn on. That is why when starting the pilot the gas control knob has to be pressed in long

enough for the thermocouple to heat up and generate enough electricity. The thermopile provides

power for the ON/OFF switch, remote control, or thermostat (see the illustration below). Because

the thermopile generates the electricity needed to turn the heater on and off, this heater can be

operated when the power is out (although the blower will not run).

When heated, the thermopile

generates electricity (a very small

amount measured in "Millivolts").

This electricity is

used to operate the

main burners. The main burners

are switched on and

off using the

electricity generated

by the thermopile.

The ON/OFF switch,

remote control, or

thermostat control

the circuit to the main

burner.

OFF

MAIN BURNER

TIMER

CLOCK

Cre

ate

Scott

Bleakney

What Prevents Gas Buildup

This appliance utilizes a high-technology gas valve in conjunction with a pilot flame to ensure no

gas builds up inside the firebox.

The thermocouple (next to the pilot) senses when the pilot flame is lit. If the pilot flame goes out,

this thermocouple no longer generates electricity, causing the gas valve to automatically shut off

all gas to the heater, preventing the pilot from spilling gas into the firebox.

Ceramic Glass

The glass in your heater is the most

durable glass available. It has been

tested to be extremely resistant to

breakage from temperature changes.

Gas Valve

This high-technology valve automatically

shuts off all gas if it does not receive a signal

from the thermocouple. If any component is

damaged or sensing a malfunction, or if the

wiring is damaged, it will shut off all gas.

Pilot Flame

The pilot flame is a time-proven

component that eliminates the possibility

of gas buildup inside the firebox.

Thermocouple

The thermocouple generates a small

amount of electricity. If the pilot flame

goes out, the gas valve automatically

shuts off all gas.

External Shut Off Valve

This valve is placed on the gas line

to shut off gas to the appliance

during maintenance procedures.

34 Maintenance

Wiring Diagram

Orange

White

Piezo Igniter

Thermopile

Red

Thermocouple

Copper Co-Axial

Wire

Red

Spark Electrode

Pilot Hood

On/Off Switch

Brown

Green

Hot

(black)

Common

(white)

Ground

(green)

Power In

Molex

Connector

Ground

(attached to stove)

White

Black

Rheostat

Black Black White Black

Snap Disk Blowers

White

Caution: Label all wires prior to disconnection when servicing controls. Wiring errors can cause

improper and dangerous operation.

Replacement Parts List

Caution: Use only Travis Industries replacement parts. Do not use substitute materials.

Warning: Do not operate appliance with the glass front removed, cracked, or broken.

Replacement of the glass should be done by a licensed or qualified service person.

BLOWER S-ASS'Y, LEFT DVL/DVS- 228-10085 PAINT, METALLIC BLACK 4oz 100-02401

BLOWER S-ASS'Y, RIGHT DVL/DVS- 228-10086 PILT/BRKT S-ASS'Y, DVS INS '06 226-44020

CNTRL VLV/BRKT ASS'Y, DVL/DVS- 226-42027 PIPE ADAPTER, 3/8 FLARE x3/8M 100-05113

CONV PARTS, LP - G18/22/G24- 93006503 POWER CORD, w/MOLEX CONNECTOR 100-00260

CORD RESTRAINER 100-00112 PREASSURE RELIEF DOOR ASSY 250-00022

FACE SCRW, PHP 1 - BLK-NKL 220-00064 RHEOSTAT, RECTANGULAR - w/OFF 100-00122

FLEX PIPE, 3/8od x 12 BLK # 100-05115 SHUTTER ASS'Y - DVS INS 2006 226-41044

FLEX PIPE, 3/8od x8 BLK, NO- 100-05129 SNAP-DISC, 110deg, 2 PR# 98500789

GLASS SPRING PIN ASSY, 2004+ 221-22220 SWITCH, ON/OFF - SMALL, GAS # 98900747

GSKT, WIRE PLATE - DVL/DVS INS 100-03260 THERMO-COUPLE - S.I.T. # 93006518

INJECTOR, PILOT - LP (#35) # 100-05217 TOOL, KEY - DIE CAST ZINC 100-02314

INJECTOR, PILOT - NG (#62) # 93006508 VALVE REGULATOR, LP SIT # 100-05504

KNOB (PLASTIC), RHEOSTATS # 100-04111 VALVE REGULATOR, NG SIT # 93006500

LOG EMBERS, E4 - SMALL BAG 90006820 VALVE, LP DV, '96-00 - DEXEN# 100-05520

MAGNET w/OUT SHEATH 250-00002 VALVE, NG - S.I.T. (1.6-3.5) 100-05508

MAGNET w/SHEATH 100-02802 WIRE HRNS EXT, DUAL-BLOWER 100-00306

ORIFICE, BURNER - .0625 # 100-05206 WIRE HRNS, MAIN - DV '96 & UP 100-00364

ORIFICE, BURNER - No. 37 # 100-05204

Safety Label 35

Safety Label

The safety (listing) label is attached to the operating tag (chained to the heater near the gas

control valve). A copy is shown below

36 Limted 7 Year Warranty

To register your TRAVIS INDUSTRIES, INC. 7 Year Warranty, complete the enclosed Warranty card and mail it within ten (10) days of the appliance

purchase date to: TRAVIS INDUSTRIES, INC., 4800 Harbour Pointe Blvd. SW, Mukilteo, WA 98275. TRAVIS INDUSTRIES, INC. warrants this gas

appliance (appliance is defined as the equipment manufactured by Travis Industries, Inc.) to be defect-free in material and workmanship to the original

purchaser from the date of purchase as follows:

Check with your dealer in advance for any costs to you when arranging a warranty call.

Mileage or service charges are not covered by this warranty. This charge can vary from store to store.

Years 1 & 2 - COVERAGE: PARTS & LABOR

Burner Assembly:

Burner, Burner Pan, Air Shutter Assembly, Main Burner

Orifice

Firebox Assembly:

Adjustable Air Restrictor, Pressure Relief Mechanisms,

Barometric Control Mechanism (for models with Remote Heat

Ducts), Glass Attachment Mechanism

Electrical Assembly (within heater

structure):

Blower, wiring harness, snap discs, rheostat speed control

Gas Control Assembly

Adjustable control valve, millivolt wiring and connectors (located within

the metal heater structure), thermopile, thermocouple, pilot hood,

orifices, pilot gas line, piezo ignitor

Ceramic Glass

Glass (breakage from thermal shock)

Ceramic Logs

Log Set, Coals, Ember Strip (Steel Fiber)

Gold, Nickel & Copper Plating

Face & Door (see “Conditions and Exclusions” # 9)

Accessories

Cast Brick, Cast Firebacks, Power Heat Ducts, Andirons

Convection Heat Exchanger

Re-Installation Allowance

In cases where heater must be removed from home for

repairs, a partial cost of re-installation is covered (pre-

authorization required)

One-Way Freight Allowance

One-way freight allowance on pre-authorized repair done at

factory is covered.

Exclusions:Paint, Gasketing

Years 3 THROUGH 5 - COVERAGE: PARTS & LABOR

Convection Heat Exchanger Firebox Assembly:

Adjustable Air Restrictor, Pressure Relief Mechanisms,

Barometric Control Mechanism (for models with

Remote Heat Ducts), Glass Attachment Mechanism

One-Way Freight Allowance

One-way freight allowance on pre-authorized repair done at

factory is covered.

Exclusions:Paint, Gasketing, Burner Assembly, Electrical Assembly, Gas Control Assembly, Ceramic Glass, Ceramic Logs, Gold, Nickel &

Copper Plating, Accessories, Re-Installation Allowance

Years 6 & 7 - COVERAGE: PARTS ONLY

Firebox Assembly:

Adjustable Air Restrictor, Pressure Relief Mechanisms, Barometric Control Mechanism (for models with Remote Heat Ducts), Glass Attachment Mechanism

Exclusions:Paint, Gasketing, Burner Assembly, Electrical Assembly, Gas Control Assembly, Ceramic Glass, Ceramic Logs, Gold, Nickel &

Copper Plating, Accessories, Convection Heat Exchanger, Re-Installation Allowance, One-Way Freight Allowance, Labor

CONDITIONS & EXCLUSIONS

1. This new gas appliance must be installed by a qualified gas appliance technician. It must be installed, operated, and maintained at all times in accordance with the instructions in the Owner’s

Manual. Any alteration, willful abuse, accident, neglect, or misuse of the product shall nullify this warranty.

2. This warranty is nontransferable, and is made to the ORIGINAL purchaser, provided that the purchase was made through an authorized TRAVIS dealer.

3. Discoloration and some minor expansion, contraction, or movement of certain parts and resulting noise, is normal and not a defect and, therefore, not covered under warranty. The installer

must ensure the appliance is burning as per the rating tag at the time of installation. Over-firing (operation above the listed BTU rate) of this appliance can cause serious damage and will nullify

this warranty.

4. The warranty, as outlined within this document, does not apply to the chimney components or other Non-Travis accessories used in conjunction with the installation of this product. If in doubt as

to the extent of this warranty, contact your authorized TRAVIS retailer before installation.

5. Travis Industries will not be responsible for inadequate performance caused by environmental conditions such as nearby trees, buildings, roof tops, wind, hills or mountains or negative pressure

or other influences from mechanical systems such as furnaces, fans, clothes dryers, etc.

6. This Warranty is void if:

a. The unit has been operated in atmospheres contaminated by chlorine, fluorine or other damaging chemicals.

b. The unit is subject to submersion in water or prolonged periods of dampness or condensation.

c. Any damage to the unit, combustion chamber, heat exchanger or other components due to water, or weather damage which is the result of, but not limited to, improper chimney/venting

installation.

7. Exclusions to this 7 Year Warranty include: injury, loss of use, damage, failure to function due to accident, negligence, misuse, improper installation, alteration or adjustment of the

manufacturer's settings of components, lack of proper and regular maintenance, damage incurred while the appliance is in transit, alteration, or act of God.

8. This 7 Year warranty excludes damage caused by normal wear and tear, such as paint discoloration or chipping, worn or torn gasketing, corroded or cracked logs, embers, etc. Also excluded is

damage to the unit caused by abuse, improper installation, modification of the unit, drilling of the orifices, or the use of fuel other than that for which the unit is configured. Units are shipped for

natural gas and must be converted to propane using the included conversion kit. Confirm fuel configuration with your installer.

9. Damage to gold or nickel surfaces caused by fingerprints, scratches, melted items , or other external sources left on the gold or nickel from the use of cleaners other than denatured alcohol is

not covered in this warranty.

10. TRAVIS INDUSTRIES, INC. is free of liability for any damages caused by the appliance, as well as inconvenience expenses and materials. Incidental or consequential damages are not covered

by this warranty. In some states, the exclusion of incidental or consequential damage may not apply.

11. This warranty does not cover any loss or damage incurred by the use or removal of any component or apparatus to or from the gas appliance without the express written permission of TRAVIS

INDUSTRIES, INC. and bearing a TRAVIS INDUSTRIES, INC. label of approval.

12. Any statement or representation of TRAVIS products and their performance contained in TRAVIS advertising, packaging literature, or printed material is not part of this 7 year warranty.

13. This warranty is automatically voided if the appliance’s serial number has been removed or altered in any way. If the appliance is used for commercial purposes, it is excluded from this warranty.

14. No dealer, distributor, or similar person has the authority to represent or warrant TRAVIS products beyond the terms contained within this warranty. TRAVIS INDUSTRIES, INC. assumes no

liability for such warranties or representations.

15. Travis Industries will not cover the cost of the removal or re-installation of hearths, facing, mantels, venting or other components.

16. If for any reason any section of this warranty is declared invalid, the balance of the warranty remains in effect and all other clauses shall remain in effect.

17. THIS 7 YEAR WARRANTY IS THE ONLY WARRANTY SUPPLIED BY TRAVIS INDUSTRIES, INC., THE MANUFACTURER OF THE APPLIANCE. ALL OTHER WARRANTIES,

WHETHER EXPRESS OR IMPLIED, ARE HEREBY EXPRESSLY DISCLAIMED AND PURCHASER’S RECOURSE IS EXPRESSLY LIMITED TO THE WARRANTIES SET FORTH

HEREIN.

IF WARRANTY SERVICE IS NEEDED:

1. If you discover a problem that you believe is covered by this warranty, you MUST REPORT it to your TRAVIS dealer WITHIN 30 DAYS, giving them proof of purchase, the purchase date,

and the model name and serial number.

2. Travis Industries has the option of either repairing or replacing the defective component.

3. If your dealer is unable to repair your appliance’s defect, he may process a warranty claim through TRAVIS INDUSTRIES, INC., including the name of the dealership where you purchased the

appliance, a copy of your receipt showing the date of the appliance’s purchase, and the serial number on your appliance. At that time, you may be asked to ship your appliance, freight charges

prepaid, to TRAVIS INDUSTRIES, INC. TRAVIS INDUSTRIES, INC., at its option, will repair or replace, free of charge, your TRAVIS appliance if it is found to be defective in material or

workmanship within the time frame stated within this 7 year warranty. TRAVIS INDUSTRIES, INC. will return your appliance, freight charges (years 1 to 5) prepaid by TRAVIS INDUSTRIES,

INC., to your regional distributor, or dealership.

4. Check with your dealer in advance for any costs to you when arranging a warranty call. Mileage or service charges are not covered by this warranty. This charge can vary from store to store.

Optional Equipment (for qualified installers only) 37

LP Conversion Instructions

Install the conversion kit prior to installing the gas line to ensure proper gas use.

1Remove the glass (see page 21). Remove the logs and coals (if installed - page 23)

2Remove the burner (see illustration below).

WARNING: Do not disassemble the burner – screws on the burner must be left in place.

WARNING:

The burner is fragile -

handle it with care.

Remove the

firebox floor.

Lift the pilot hood off

the pilot assembly

(you may need to pull

hard to remove).

Lift the left side of the burner slightly, then slide it to

the left and lift it upwards (lift the burner from below).

Pull the burner forward, out

of the firebox.

NOTE:

Make sure the burner

is fully seated. When

in place, the pilot

flame must align

directly above the

burner holes.

Slide the air shutter

all the way to the

right before

installing the burner.

Make sure the mixing tube

slides onto the orifice.

Make sure the bolt head on

the bottom of the burner

inserts into this hole.

Mixing Tube

Orifice

Replace the pilot hood

after replacing the burner.

Burner Replacement:

Make sure the burner is fully

seated. When in place, the pilot

flame must align directly above the

burner holes.

38 Optional Equipment (for qualified installers only)

3Follow the directions below to replace the orifices.

Look here for the orifice identification

Apply thread sealant to the LP

orifices prior to installation. Use

the chart below to identify the

correct orifices.

.0625

#37

Orifice

Manifold

1/2" Wrench

Use a 1/2” open end wrench

to unscrew the orifice.

Orifice Manifold Screw the LP orifice in so the

orifice shoulder protrudes 5/16”

(indicating full insertion).

5/16”

aSlide the air shutter all

the way to the left.

4Remove the pilot orifice following the instructions below. Replace with the propane pilot

orifice

Lift the pilot hood

off the pilot

assembly.

5/32" Hex

Use a hex wrench to

unscrew the orifice.

Remove the orifice and replace with the LP orifice. Screw the

orifice all the way in and replace the pilot hood.

LP (Propane) Orifice

Orifice Identification:

NG (Natural Gas) Orifice

NOTE: when re-attaching,

this pin lines up with the

notch in the pilot hood.

Optional Equipment (for qualified installers only) 39

5Install the logs

and embers.

6Replace glass

and face.

7Remove the

regulator from the

front of the gas

control valve.

Replace with the

propane

regulator, using

the new gasket

and screws

included with the

regulator. NOTE:

Leak test this

area after the

heater is

installed, gas is

connected, and

the main burner

is lit.

Place the LP

label on the base

near the gas

control valve.

Remove and discard the three

screws using a slotted screwdriver

of Torx T-20.

NOTE: Make sure the

regulator gasket is correctly

aligned before installation.

Remove and discard the

regulator, diaphram, spring

and center post.

Slotted

Screwdriver

(or T-20 Torx)

Install the LP regulator. Use

the screws included with the

LP regulator. Tighten to

approximately 25 Lbs. torque.

Slotted

Screwdriver

(or T-20 Torx)

8Make the gas line connection, bleed the gas line (if applicable), start the heater and thoroughly

leak-test all gas connections and the gas control valve. Check the pilot. Adjust if necessary.

WARNING: When lighting or re-lighting the pilot, the glass must be removed (see page 21).

Standard

Screwdriver

The pilot flame must contact the thermocouple and

thermopile (see the illustration below). Adjust the pilot up or

down as necessary.

To adjust the pilot flame, turn this screw (NOTE: if totally

unscrewed gas will come out of this port). Clockwise

lowers the flame while counter-clockwise raises it.

40 Optional Equipment (for qualified installers only)

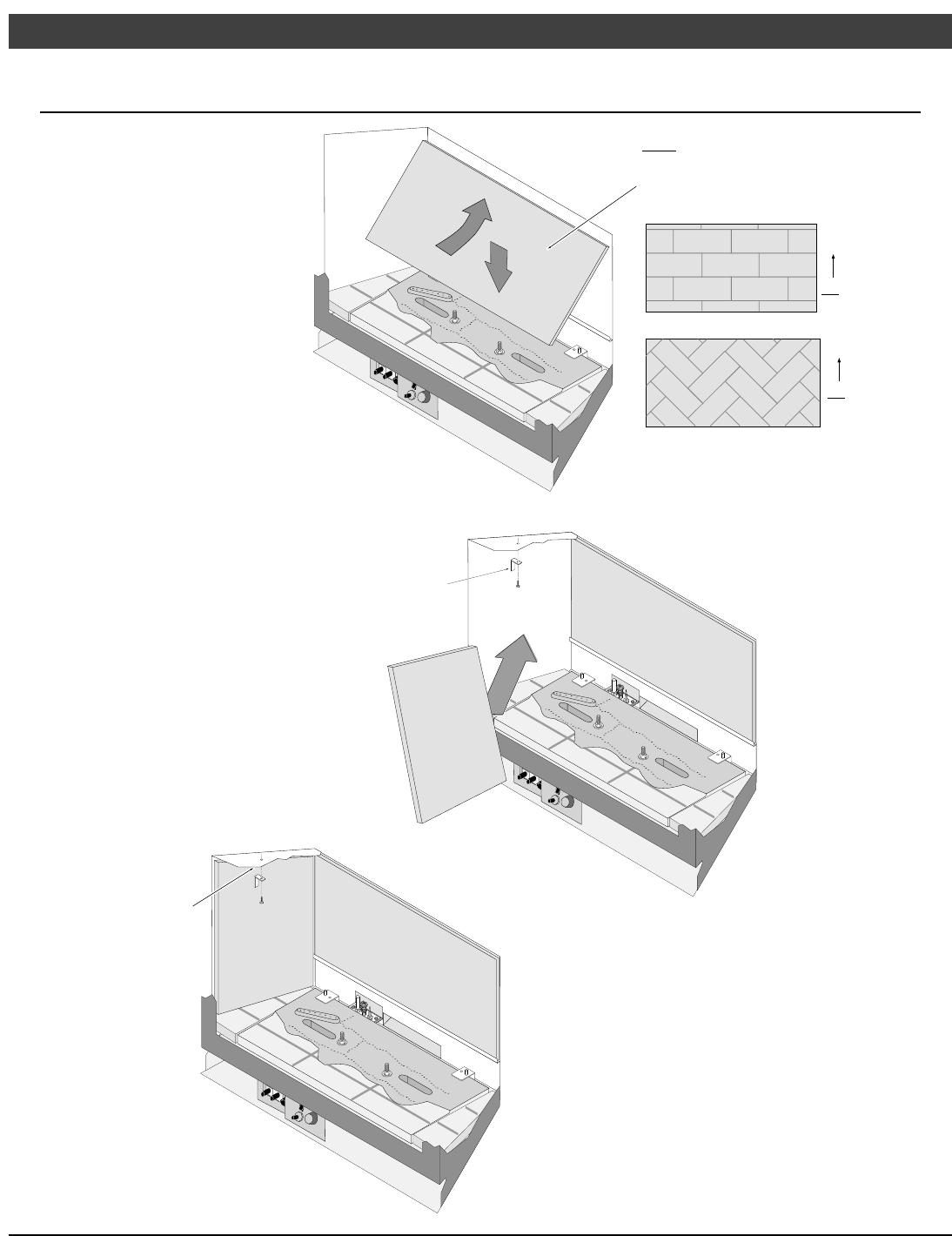

Firebacks

Slide the top of the rear

fireback behind the baffle on

top of the firebox and pivot it

back into place. It rests on

the shelf at the back of the

firebox.

Hold the side

firebacks at a

slight angle and

place them into

position (both

sides).

Remove this clip attached to

the firebox ceiling (both sides).

Replace the clip

to secure the

side fireback

(both sides).

NOTE: The rear fireback must be

installed as shown below for the

brick pattern to line up with the

side firebacks.

Optional Equipment (for qualified installers only) 41

Lower Surround Panel

The older lower surround panel (sku 98500619 and 98500628) are installed in a different fashion

than illustrated in the instruction sheet included with the panel. Follow the directions below.

1 Prepare the panel following the directions below.

Use the larger DVL

Insert Bracket

Lower Panel

Top Clip

Use tape to secure the clips to the

bracket (you may also wedge the clips

into place). This holds the clips in place

during installation.

Discard the

bottom clips

Discard the smaller

DVS Insert Bracket

Secure the lower panel to the bracket

with the nuts (included with the panel).

2 Attach the panel to the insert following the directions below.

Attach the lower surround panel to the

inset with the nuts (included with the

panel).

42 Index

Additional Items Required....................................7

Adjusting the Blower Speed ..................................30

Adjusting the Flame Height..................................29

Air Shutter Adjustment ........................................25

Altitude Considerations........................................14

Before You Begin ...............................................27

Blower Operation.................................................30

Cap (Termination) Requirements...........................14

Clearances........................................................10

Condensation on Glass (see "Starting Heater") .......29

Controls............................................................27

Dimensions .......................................................6

Electrical Connection ..........................................20

Face Sizing........................................................11

Factory-Built (Metal) Wood-Burning Fireplace

Requirements ....................................................9

Fan Operation....................................................30

Features ...........................................................6

Firebacks ..........................................................40

Fireplace Requirements.......................................8

Flame Height.....................................................29

Gas Inlet Pressure..............................................13

Gas Line Location...............................................13

Gas Line Requirements.......................................13

Glass Frame Removal and Installation ..................21

Hearth Requirements..........................................9

Heating Specifications.........................................6

How this Heater Works........................................33

Installation of the On/Off Switch and Rheostat .......20

Installation Options.............................................6

Installation Warnings...........................................7

Introduction .......................................................2

Items Packed with the Face .................................7

Safety Label ......................................................35

Location of Controls............................................27

Log Set Installation.............................................23

LP Conversion Instructions..................................37

Maintaining Your Heater's Appearance...................31

Mantel Clearances..............................................10

Normal Operating Odors......................................30

Normal Operating Sounds....................................30

Odors (see "Normal Operating Odors")...................30

On / Off Operation..............................................29

Order of Installation ............................................7

Packing List.......................................................7

Panels ..............................................................19

Pilot Flame - Starting ..........................................28

Pilot Flame Inspection.........................................25

Propane Conversion (LP Conversion Instructions)...37

Replacement Parts List.......................................34

Safety Label ......................................................35

Safety Precautions .............................................4

Service (Yearly Service Procedure).......................31

Smells (see "Normal Operating Odors")..................30

Sounds .............................................................30

Specifications ....................................................6

Starting the Heater for the First Time ....................29

Starting The Pilot Flame ......................................28

Steps for Finalizing the Installation ........................25

Surround Panel Installation...................................19

Troubleshooting Table..........................................32

Turning the Heater On and Off..............................29

Vent Configurations ............................................16

Vent Connector Removal and Installation...............17

Vent Installation .................................................15

Vent Location.....................................................16

Vent Requirements.............................................14

Vent Restrictor...................................................15

Warnings...........................................................4

Warranty ..........................................................36

Window (Glass) Removal and Installation...............21

Wiring Diagram ..................................................34

Yearly Service Procedure ....................................31

Avalon Stoves Dvs Insert Ef Ii Users Manual

DVS Insert EF II to the manual c15c59e0-c61f-406b-9a04-81f3ef4bd6cf

Navigation menu

Versions of this User Manual:

Views

Navigation
