Avantech Mobile CT2898 GSM 900/1800/1900 Mobile Phone with BT User Manual Philips9 9d

Avantech Mobile GSM 900/1800/1900 Mobile Phone with BT Philips9 9d

User Manual

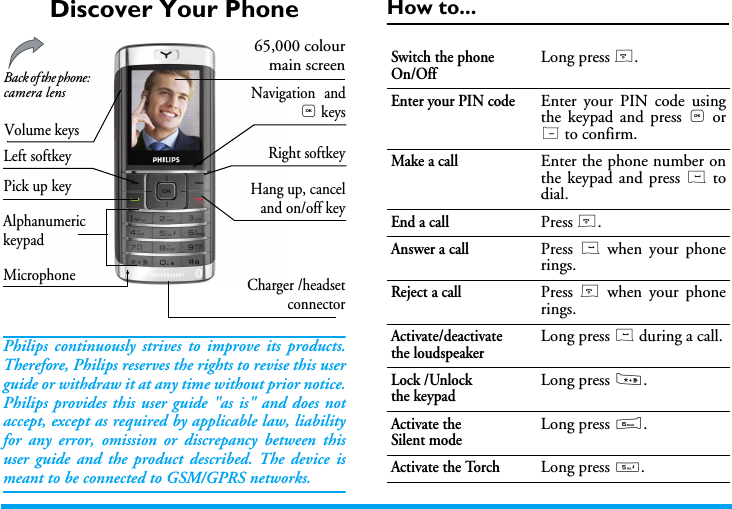

Discover Your PhonePhilips continuously strives to improve its products.Therefore, Philips reserves the rights to revise this userguide or withdraw it at any time without prior notice.Philips provides this user guide "as is" and does notaccept, except as required by applicable law, liabilityfor any error, omission or discrepancy between thisuser guide and the product described. The device ismeant to be connected to GSM/GPRS networks.How to...Alphanumeric keypadMicrophone65,000 colourmain screenPick up key Hang up, canceland on/off keyBack of the phone: camera lens Charger /headsetconnectorLeft softkey Right softkeyNavigation and, keysVolume keysSwitch the phone On/OffLong press ).Enter your PIN codeEnter your PIN code usingthe keypad and press , orL to confirm.Make a callEnter the phone number onthe keypad and press ( todial.End a callPress ).Answer a callPress ( when your phonerings.Reject a callPress ) when your phonerings.Activate/deactivate the loudspeakerLong press ( during a call.Lock /Unlock the keypadLong press *.Activate the Silent modeLong press 6.Activate the TorchLong press 5.

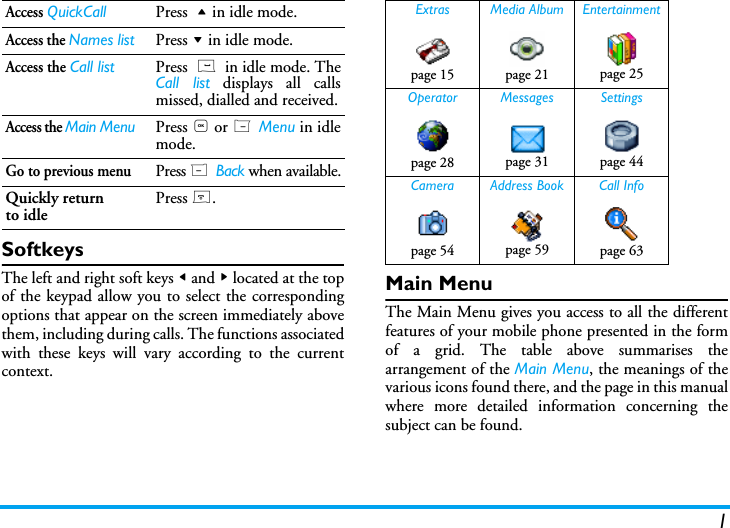

1SoftkeysThe left and right soft keys < and > located at the topof the keypad allow you to select the correspondingoptions that appear on the screen immediately abovethem, including during calls. The functions associatedwith these keys will vary according to the currentcontext.Main MenuThe Main Menu gives you access to all the differentfeatures of your mobile phone presented in the formof a grid. The table above summarises thearrangement of the Main Menu, the meanings of thevarious icons found there, and the page in this manualwhere more detailed information concerning thesubject can be found.Access QuickCall Press + in idle mode.Access the Names list Press - in idle mode.Access the Call list Press ( in idle mode. TheCall list displays all callsmissed, dialled and received.Access the Main Menu Press , or L Menu in idlemode.Go to previous menuPress R Back when available.Quickly returnto idle Press ).Extras Media Album Entertainmentpage 15 page 21 page 25Operator Messages Settingspage 28 page 31 page 44Camera Address Book Call Infopage 54 page 59 page 63

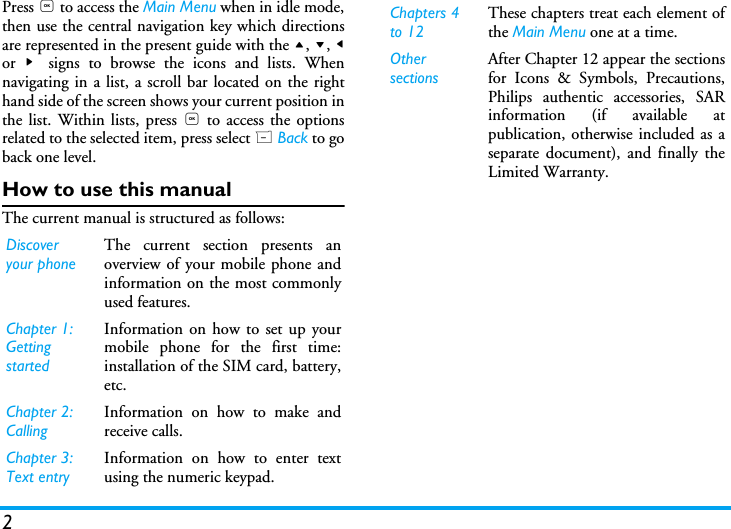

2Press , to access the Main Menu when in idle mode,then use the central navigation key which directionsare represented in the present guide with the +, -, <or > signs to browse the icons and lists. Whennavigating in a list, a scroll bar located on the righthand side of the screen shows your current position inthe list. Within lists, press , to access the optionsrelated to the selected item, press select R Back to goback one level.How to use this manualThe current manual is structured as follows:Discover your phoneThe current section presents anoverview of your mobile phone andinformation on the most commonlyused features.Chapter 1: Getting startedInformation on how to set up yourmobile phone for the first time:installation of the SIM card, battery,etc.Chapter 2: CallingInformation on how to make andreceive calls.Chapter 3: Text entryInformation on how to enter textusing the numeric keypad.Chapters 4 to 12These chapters treat each element ofthe Main Menu one at a time.Other sectionsAfter Chapter 12 appear the sectionsfor Icons & Symbols, Precautions,Philips authentic accessories, SARinformation (if available atpublication, otherwise included as aseparate document), and finally theLimited Warranty.

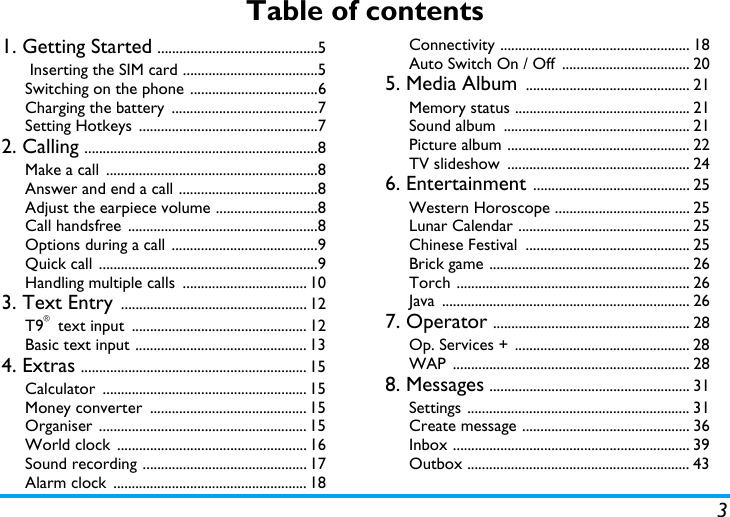

3Table of contents1. Getting Started ............................................5 Inserting the SIM card .....................................5Switching on the phone ...................................6Charging the battery ........................................7Setting Hotkeys .................................................72. Calling ................................................................8Make a call ..........................................................8Answer and end a call ......................................8Adjust the earpiece volume ............................8Call handsfree ....................................................8Options during a call ........................................9Quick call ............................................................9Handling multiple calls .................................. 103. Text Entry ................................................... 12T9® text input ................................................ 12Basic text input ............................................... 134. Extras .............................................................. 15Calculator ........................................................ 15Money converter ........................................... 15Organiser ......................................................... 15World clock .................................................... 16Sound recording ............................................. 17Alarm clock ..................................................... 18Connectivity .................................................... 18Auto Switch On / Off ................................... 205. Media Album ............................................. 21Memory status ................................................ 21Sound album ................................................... 21Picture album .................................................. 22TV slideshow .................................................. 246. Entertainment ........................................... 25Western Horoscope ..................................... 25Lunar Calendar ............................................... 25Chinese Festival ............................................. 25Brick game ....................................................... 26Torch ................................................................ 26Java .................................................................... 267. Operator ...................................................... 28Op. Services + ................................................ 28WAP ................................................................. 288. Messages ....................................................... 31Settings ............................................................. 31Create message .............................................. 36Inbox ................................................................. 39Outbox ............................................................. 43

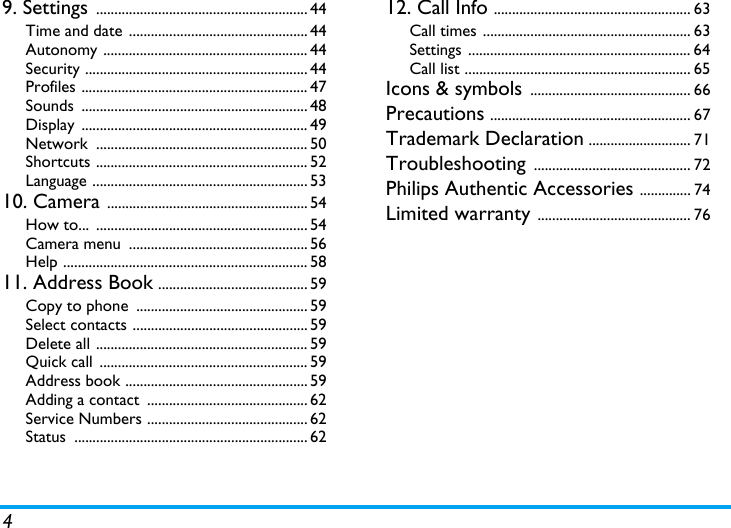

49. Settings .......................................................... 44Time and date ................................................. 44Autonomy ........................................................ 44Security ............................................................. 44Profiles .............................................................. 47Sounds .............................................................. 48Display .............................................................. 49Network .......................................................... 50Shortcuts .......................................................... 52Language ........................................................... 5310. Camera ....................................................... 54How to... .......................................................... 54Camera menu ................................................. 56Help ................................................................... 5811. Address Book ......................................... 59Copy to phone ............................................... 59Select contacts ................................................ 59Delete all .......................................................... 59Quick call ......................................................... 59Address book .................................................. 59Adding a contact ............................................ 62Service Numbers ............................................ 62Status ................................................................ 6212. Call Info ...................................................... 63Call times ......................................................... 63Settings ............................................................. 64Call list .............................................................. 65Icons & symbols ............................................ 66Precautions ....................................................... 67Trademark Declaration ............................ 71Troubleshooting ........................................... 72Philips Authentic Accessories .............. 74Limited warranty .......................................... 76
Getting Started 51. Getting StartedPlease read the safety instructions in the "Precautions"section before use.To use your phone, you must insert a valid SIM cardsupplied by a GSM operator or retailer. The SIM cardcontains your subscription information, your mobiletelephone number, and a memory in which you canstore phone numbers and messages. (see “AddressBook” on page 59) Inserting the SIM cardRemove the back coverTo insert the SIM card, you must first remove theback cover. Press on the back cover and slide the coverdownwards as shown below.Remove the batteryTo remove the battery, pull the battery up from thebottom.You may lose all your personal settings if you removethe battery when the phone is switched on.Insert the SIM cardUnlock the SIM card holder and then lift it up on itshinge (1). Remove the SIM card from its protectiveholder and (2) place it in the space provided, makingsure that the clipped corner of the card is in the correctcorner and that the gold contacts are facing down.

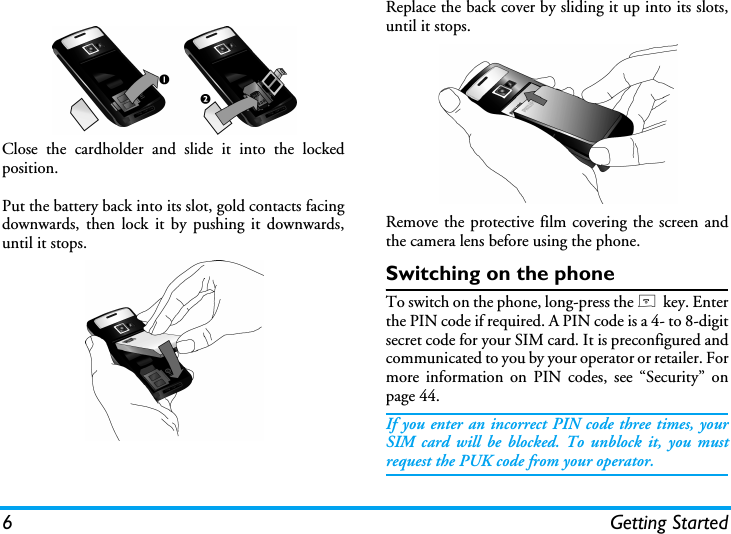

6 Getting StartedClose the cardholder and slide it into the lockedposition.Put the battery back into its slot, gold contacts facingdownwards, then lock it by pushing it downwards,until it stops.Replace the back cover by sliding it up into its slots,until it stops.Remove the protective film covering the screen andthe camera lens before using the phone.Switching on the phoneTo switch on the phone, long-press the ) key. Enterthe PIN code if required. A PIN code is a 4- to 8-digitsecret code for your SIM card. It is preconfigured andcommunicated to you by your operator or retailer. Formore information on PIN codes, see “Security” onpage 44.If you enter an incorrect PIN code three times, yourSIM card will be blocked. To unblock it, you mustrequest the PUK code from your operator.

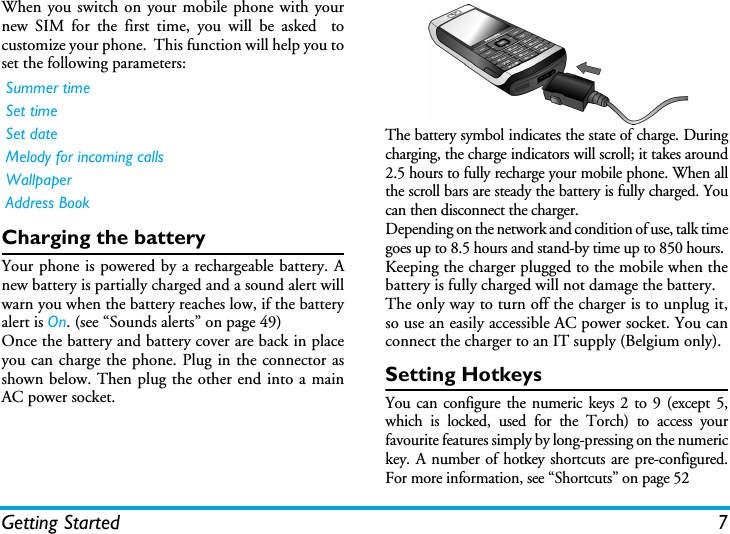

Getting Started 7When you switch on your mobile phone with yournew SIM for the first time, you will be asked tocustomize your phone. This function will help you toset the following parameters:Charging the batteryYour phone is powered by a rechargeable battery. Anew battery is partially charged and a sound alert willwarn you when the battery reaches low, if the batteryalert is On. (see “Sounds alerts” on page 49)Once the battery and battery cover are back in placeyou can charge the phone. Plug in the connector asshown below. Then plug the other end into a mainAC power socket.The battery symbol indicates the state of charge. Duringcharging, the charge indicators will scroll; it takes around2.5 hours to fully recharge your mobile phone. When allthe scroll bars are steady the battery is fully charged. Youcan then disconnect the charger.Depending on the network and condition of use, talk timegoes up to 8.5 hours and stand-by time up to 850 hours.Keeping the charger plugged to the mobile when thebattery is fully charged will not damage the battery. The only way to turn off the charger is to unplug it,so use an easily accessible AC power socket. You canconnect the charger to an IT supply (Belgium only).Setting HotkeysYou can configure the numeric keys 2 to 9 (except 5,which is locked, used for the Torch) to access yourfavourite features simply by long-pressing on the numerickey. A number of hotkey shortcuts are pre-configured.For more information, see “Shortcuts” on page 52Summer timeSet timeSet dateMelody for incoming callsWallpaperAddress Book

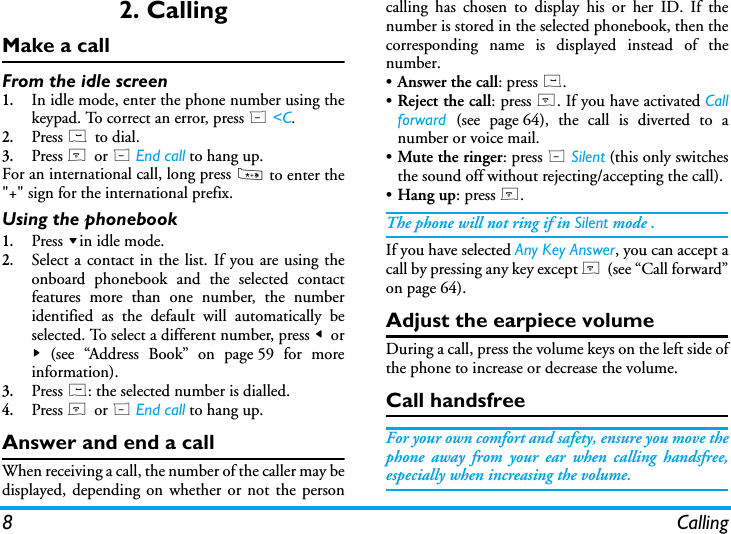

8 Calling2. CallingMake a callFrom the idle screen1.In idle mode, enter the phone number using thekeypad. To correct an error, press R <C.2.Press ( to dial.3.Press ) or R End call to hang up.For an international call, long press * to enter the"+" sign for the international prefix.Using the phonebook1.Press -in idle mode.2.Select a contact in the list. If you are using theonboard phonebook and the selected contactfeatures more than one number, the numberidentified as the default will automatically beselected. To select a different number, press < or> (see “Address Book” on page 59 for moreinformation).3.Press (: the selected number is dialled.4.Press ) or R End call to hang up.Answer and end a callWhen receiving a call, the number of the caller may bedisplayed, depending on whether or not the personcalling has chosen to display his or her ID. If thenumber is stored in the selected phonebook, then thecorresponding name is displayed instead of thenumber.•Answer the call: press (.•Reject the call: press ). If you have activated Callforward (see page 64), the call is diverted to anumber or voice mail.•Mute the ringer: press R Silent (this only switchesthe sound off without rejecting/accepting the call).•Hang up: press ).The phone will not ring if in Silent mode .If you have selected Any Key Answer, you can accept acall by pressing any key except ) (see “Call forward”on page 64).Adjust the earpiece volumeDuring a call, press the volume keys on the left side ofthe phone to increase or decrease the volume.Call handsfreeFor your own comfort and safety, ensure you move thephone away from your ear when calling handsfree,especially when increasing the volume.

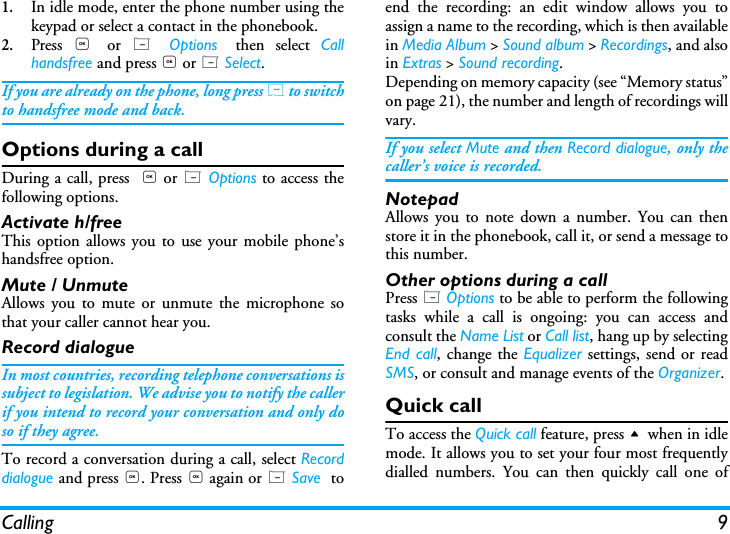

Calling 91.In idle mode, enter the phone number using thekeypad or select a contact in the phonebook.2.Press , or L Options then select Callhandsfree and press , or L Select.If you are already on the phone, long press ( to switchto handsfree mode and back.Options during a callDuring a call, press , or L Options to access thefollowing options.Activate h/freeThis option allows you to use your mobile phone’shandsfree option.Mute / UnmuteAllows you to mute or unmute the microphone sothat your caller cannot hear you.Record dialogueIn most countries, recording telephone conversations issubject to legislation. We advise you to notify the callerif you intend to record your conversation and only doso if they agree.To record a conversation during a call, select Recorddialogue and press ,. Press , again or L Save toend the recording: an edit window allows you toassign a name to the recording, which is then availablein Media Album > Sound album > Recordings, and alsoin Extras > Sound recording.Depending on memory capacity (see “Memory status”on page 21), the number and length of recordings willvary.If you select Mute and then Record dialogue, only thecaller’s voice is recorded.NotepadAllows you to note down a number. You can thenstore it in the phonebook, call it, or send a message tothis number.Other options during a callPress L Options to be able to perform the followingtasks while a call is ongoing: you can access andconsult the Name List or Call list, hang up by selectingEnd call, change the Equalizer settings, send or readSMS, or consult and manage events of the Organizer.Quick callTo access the Quick call feature, press + when in idlemode. It allows you to set your four most frequentlydialled numbers. You can then quickly call one of

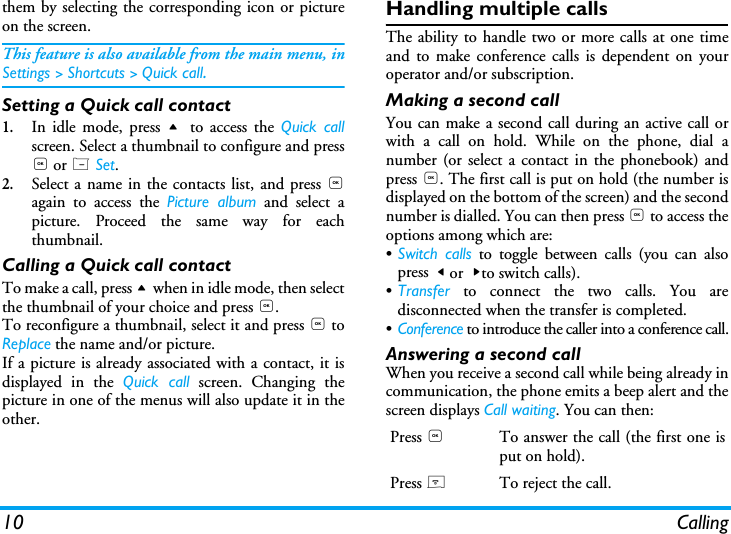

10 Callingthem by selecting the corresponding icon or pictureon the screen.This feature is also available from the main menu, inSettings > Shortcuts > Quick call.Setting a Quick call contact1.In idle mode, press + to access the Quick callscreen. Select a thumbnail to configure and press, or L Set.2.Select a name in the contacts list, and press ,again to access the Picture album and select apicture. Proceed the same way for eachthumbnail.Calling a Quick call contactTo make a call, press + when in idle mode, then selectthe thumbnail of your choice and press ,.To reconfigure a thumbnail, select it and press , toReplace the name and/or picture.If a picture is already associated with a contact, it isdisplayed in the Quick call screen. Changing thepicture in one of the menus will also update it in theother.Handling multiple callsThe ability to handle two or more calls at one timeand to make conference calls is dependent on youroperator and/or subscription.Making a second callYou can make a second call during an active call orwith a call on hold. While on the phone, dial anumber (or select a contact in the phonebook) andpress ,. The first call is put on hold (the number isdisplayed on the bottom of the screen) and the secondnumber is dialled. You can then press , to access theoptions among which are:•Switch calls to toggle between calls (you can alsopress < or >to switch calls).•Transfer to connect the two calls. You aredisconnected when the transfer is completed.•Conference to introduce the caller into a conference call.Answering a second callWhen you receive a second call while being already incommunication, the phone emits a beep alert and thescreen displays Call waiting. You can then:Press ,To answer the call (the first one isput on hold).Press )To reject the call.
Calling 11To receive a second call, you must have deactivated theCall forward for voice calls (see page 64) and activatedthe Call waiting (see page 64).Answering a third callIf you are in a call and have one call on hold, you can alsoreceive a third call. To do so, you must either end one ofthe calls or introduce the new caller to a conference.This service is limited to two current communications(one active and one on hold).Conference callSubscription dependent.A conference call is activated by making severaloutgoing calls or from a multiple call context. Itallows you to speak with up to five people at the sametime. 1.Make a first call with someone, then a secondone (see above).2.Press , or Options and select Conference.Repeat the process until five members areconnected. 3.Select Remove party to disconnect a member ofthe conference, or select Private call to have aprivate call with this member only (othermembers are put on hold).4.Press ) to disconnect all calls at once.If there is an incoming call during the conference calland there are less than five members, you can acceptthis new call and add this member to the Conferencecall (if five members are already connected, you cananswer the call, but not add it to the conference).Press , orL OptionsTo open the options list. You canselect End call to end the currentcall, then answer the incoming call.Press )To reject the call.Press , orL OptionsTo open the options list. You canselect Accept to answer theincoming call, or End call to end thecurrent call, then answer theincoming call.

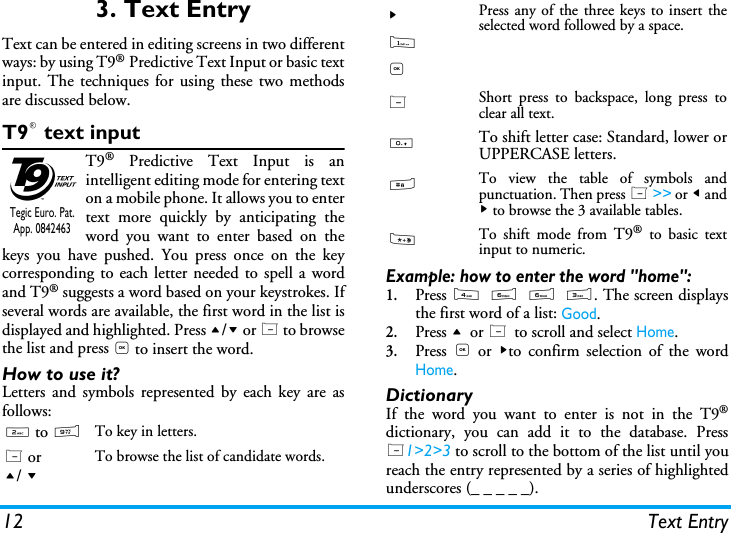

12 Text Entry3. Text EntryText can be entered in editing screens in two differentways: by using T9® Predictive Text Input or basic textinput. The techniques for using these two methodsare discussed below.T9® text inputT9® Predictive Text Input is anintelligent editing mode for entering texton a mobile phone. It allows you to entertext more quickly by anticipating theword you want to enter based on thekeys you have pushed. You press once on the keycorresponding to each letter needed to spell a wordand T9® suggests a word based on your keystrokes. Ifseveral words are available, the first word in the list isdisplayed and highlighted. Press +/- or L to browsethe list and press , to insert the word.How to use it?Letters and symbols represented by each key are asfollows:Example: how to enter the word "home":1.Press 4 6 6 3. The screen displaysthe first word of a list: Good.2.Press + or L to scroll and select Home.3.Press , or >to confirm selection of the wordHome.DictionaryIf the word you want to enter is not in the T9®dictionary, you can add it to the database. PressL1>2>3 to scroll to the bottom of the list until youreach the entry represented by a series of highlightedunderscores (_ _ _ _ _).2 to 9To key in letters.L or+/ -To browse the list of candidate words.Tegic Euro. Pat. App. 0842463>1,Press any of the three keys to insert theselected word followed by a space.LShort press to backspace, long press toclear all text.0To shift letter case: Standard, lower orUPPERCASE letters.#To view the table of symbols andpunctuation. Then press L >> or < and> to browse the 3 available tables.*To shift mode from T9® to basic textinput to numeric.

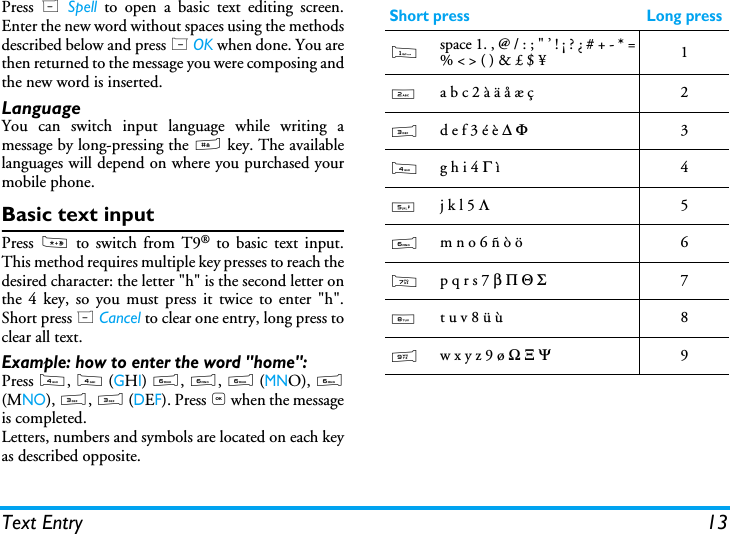

Text Entry 13Press R Spell to open a basic text editing screen.Enter the new word without spaces using the methodsdescribed below and press L OK when done. You arethen returned to the message you were composing andthe new word is inserted.LanguageYou can switch input language while writing amessage by long-pressing the # key. The availablelanguages will depend on where you purchased yourmobile phone.Basic text inputPress * to switch from T9® to basic text input.This method requires multiple key presses to reach thedesired character: the letter "h" is the second letter onthe 4 key, so you must press it twice to enter "h".Short press R Cancel to clear one entry, long press toclear all text. Example: how to enter the word "home":Press 4, 4 (GHI) 6, 6, 6 (MNO), 6(MNO), 3, 3 (DEF). Press , when the messageis completed.Letters, numbers and symbols are located on each keyas described opposite.Short press Long press1space 1. , @ / : ; " ’ ! ¡ ? ¿ # + - * =% < > ( ) & £ $ ¥ 12a b c 2 à ä å æ ç 23d e f 3 é è ∆ Φ34g h i 4 Γ ì45j k l 5 Λ56m n o 6 ñ ò ö 67p q r s 7 β Π Θ Σ78t u v 8 ü ù 89w x y z 9 ø Ω Ξ Ψ9

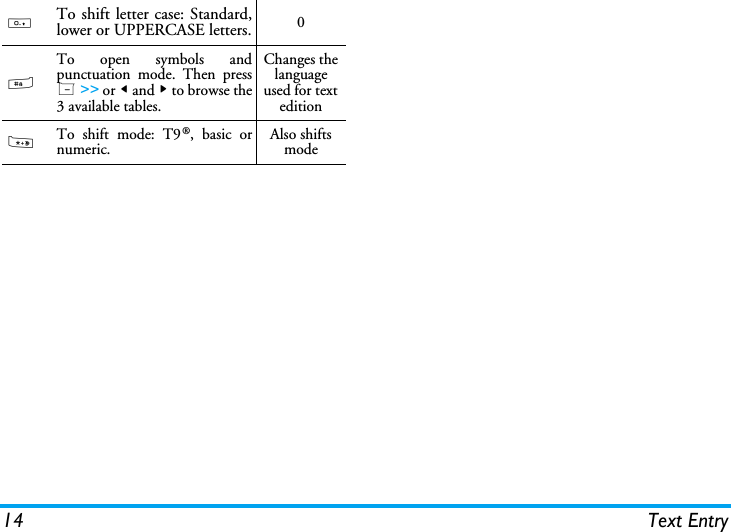

14 Text Entry0To shift letter case: Standard,lower or UPPERCASE letters. 0#To open symbols andpunctuation mode. Then pressL >> or < and > to browse the3 available tables.Changes the language used for text edition*To shift mode: T9®, basic ornumeric. Also shifts mode

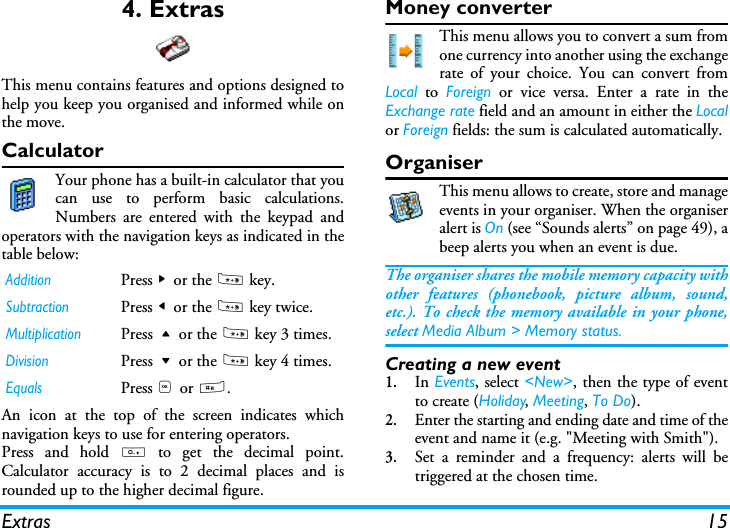

Extras 154. ExtrasThis menu contains features and options designed tohelp you keep you organised and informed while onthe move.CalculatorYour phone has a built-in calculator that youcan use to perform basic calculations.Numbers are entered with the keypad andoperators with the navigation keys as indicated in thetable below:An icon at the top of the screen indicates whichnavigation keys to use for entering operators.Press and hold 0 to get the decimal point.Calculator accuracy is to 2 decimal places and isrounded up to the higher decimal figure. Money converterThis menu allows you to convert a sum fromone currency into another using the exchangerate of your choice. You can convert fromLocal to Foreign or vice versa. Enter a rate in theExchange rate field and an amount in either the Localor Foreign fields: the sum is calculated automatically.OrganiserThis menu allows to create, store and manageevents in your organiser. When the organiseralert is On (see “Sounds alerts” on page 49), abeep alerts you when an event is due.The organiser shares the mobile memory capacity withother features (phonebook, picture album, sound,etc.). To check the memory available in your phone,select Media Album > Memory status.Creating a new event1.In Events, select <New>, then the type of eventto create (Holiday, Meeting, To Do).2.Enter the starting and ending date and time of theevent and name it (e.g. "Meeting with Smith").3.Set a reminder and a frequency: alerts will betriggered at the chosen time.AdditionPress > or the * key.SubtractionPress < or the * key twice.MultiplicationPress + or the * key 3 times.DivisionPress - or the * key 4 times.EqualsPress , or #.
16 ExtrasThe reminder only applies to Meeting and To Doevents. It will be updated when changing time zones(see “World clock” below).Deleting old eventsThis menu allows you to delete past events. Enter thestarting date (past or future) from which all previousevents will be deleted and press , twice to delete allevents preceding this date.To delete all events set in your organiser, enter astarting date several years ahead (e.g. 31st ofDecember 2010) to make sure all events preceding thisdate are deleted at once.Managing eventsSelect an event in the list and press , or L Optionsto access the options described below.Changing a repeating event modifies all instances ofthis event.Events viewsEvents stored in your organiser can be displayed inDay view, Week view and Month view. Select a viewformat and press ,, then use < or > to display theprevious or next day, week or month.World clockThis menu allows you to set and display boththe local time and the time in the foreign timezone of your choice. Note that if you chooseto display the local and foreign time on your homescreen, the image you selected as your wallpaper willno longer be displayed there, but will be replaced withthe standard World clock wallpaper.Local settingsDelete To delete the selected event.Change To change the selected event.Send by infraredTo transmit the selected event toanother infrared-compatible device.Change soundTo change the sound associated withthe alarm type of the selected event.Set time Allows you to set the time bypressing the appropriate keys.Local zone Move + or - to select the timezone corresponding to your area.

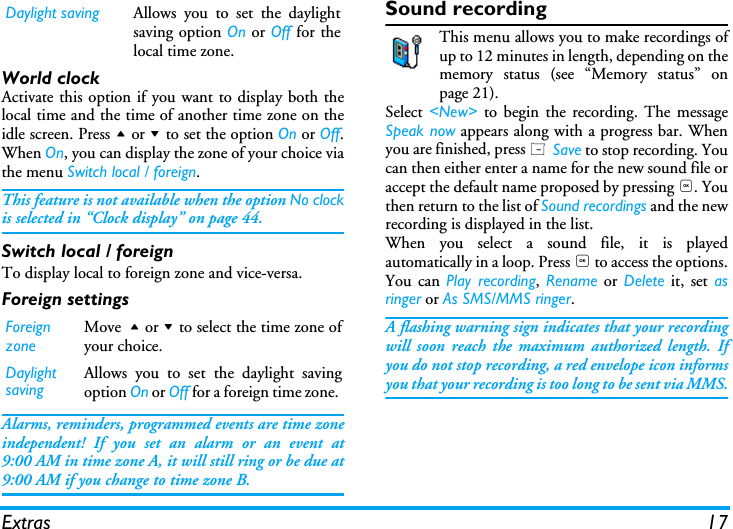

Extras 17World clockActivate this option if you want to display both thelocal time and the time of another time zone on theidle screen. Press + or - to set the option On or Off.When On, you can display the zone of your choice viathe menu Switch local / foreign. This feature is not available when the option No clockis selected in “Clock display” on page 44.Switch local / foreignTo display local to foreign zone and vice-versa.Foreign settingsAlarms, reminders, programmed events are time zoneindependent! If you set an alarm or an event at9:00 AM in time zone A, it will still ring or be due at9:00 AM if you change to time zone B.Sound recordingThis menu allows you to make recordings ofup to 12 minutes in length, depending on thememory status (see “Memory status” onpage 21).Select <New> to begin the recording. The messageSpeak now appears along with a progress bar. Whenyou are finished, press L Save to stop recording. Youcan then either enter a name for the new sound file oraccept the default name proposed by pressing ,. Youthen return to the list of Sound recordings and the newrecording is displayed in the list.When you select a sound file, it is playedautomatically in a loop. Press , to access the options.You can Play recording, Rename or Delete it, set asringer or As SMS/MMS ringer. A flashing warning sign indicates that your recordingwill soon reach the maximum authorized length. Ifyou do not stop recording, a red envelope icon informsyou that your recording is too long to be sent via MMS.Daylight saving Allows you to set the daylightsaving option On or Off for thelocal time zone.Foreign zoneMove + or - to select the time zone ofyour choice.Daylight savingAllows you to set the daylight savingoption On or Off for a foreign time zone.
18 ExtrasAlarm clockOur mobile phone has a built-in alarm clockwith a snooze feature. You can set up to threeseparate alarms and choose whether or notthe alarm should repeat. To set an alarm, follow thesteps below:1.Select an alarm and set it On.2.Then enter the time and press ,.3.Then select the frequency: Once, daily, Onweekdays.4.Finally, select the type of alarm: the Buzzer or amelody from the sounds album and press ,.Repeat above steps to set other alarms.The alarm clock will ring even if your mobile phone isswitched off and/or the ringer volume is set to Silent.When the alarm rings, press any key to stop it (exceptif the snooze mode is on, see below).Snooze modeThis menu allows you to set the snooze mode On orOff. When the alarm rings and the snooze mode is On:• press any key (except R Stop) to stop the ringingtemporarily. The alarm will ring again around 7minutes later.• press R Stop to stop the ringing and the alarmrepetition.The snooze mode is automatically deactivated after 9alarm repetitions.The snooze mode setting applies to all the alarms youhave set.ConnectivityYour mobile phone allows you to connect toa variety of external devices via infrared andbluetooth. This menu provides you withmore features to set up the connection withthese external devices. InfraredYour mobile phone has an infrared port that allowsyou to send or receive data to or from other infrared-compliant devices (e.g. another mobile phone, acomputer, a PDA, etc.) through a wireless link.Files that are copyright protected cannot be sent.When connecting with a PC, make sure you haveactivated its infrared option.

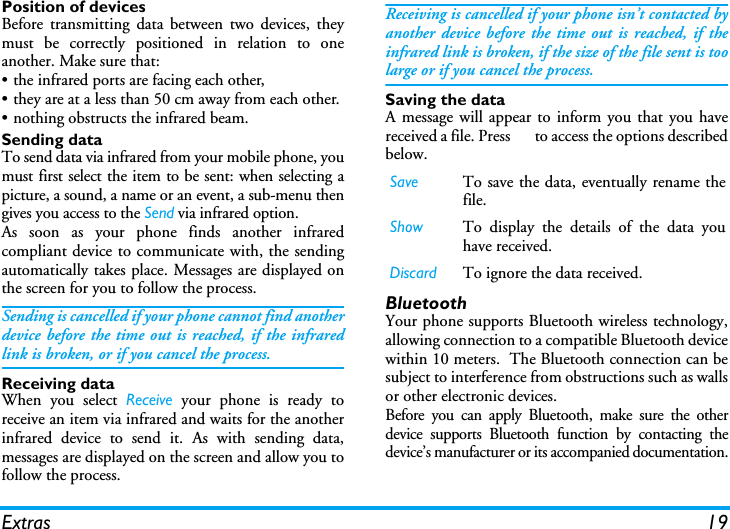

Extras 19Position of devicesBefore transmitting data between two devices, theymust be correctly positioned in relation to oneanother. Make sure that:• the infrared ports are facing each other,• they are at a less than 50 cm away from each other.• nothing obstructs the infrared beam.Sending dataTo send data via infrared from your mobile phone, youmust first select the item to be sent: when selecting apicture, a sound, a name or an event, a sub-menu thengives you access to the Send via infrared option.As soon as your phone finds another infraredcompliant device to communicate with, the sendingautomatically takes place. Messages are displayed onthe screen for you to follow the process.Sending is cancelled if your phone cannot find anotherdevice before the time out is reached, if the infraredlink is broken, or if you cancel the process.Receiving dataWhen you select Receive your phone is ready toreceive an item via infrared and waits for the anotherinfrared device to send it. As with sending data,messages are displayed on the screen and allow you tofollow the process.Receiving is cancelled if your phone isn’t contacted byanother device before the time out is reached, if theinfrared link is broken, if the size of the file sent is toolarge or if you cancel the process.Saving the dataA message will appear to inform you that you havereceived a file. Press o to access the options describedbelow.BluetoothYour phone supports Bluetooth wireless technology,allowing connection to a compatible Bluetooth devicewithin 10 meters. The Bluetooth connection can besubject to interference from obstructions such as wallsor other electronic devices.Before you can apply Bluetooth, make sure the otherdevice supports Bluetooth function by contacting thedevice’s manufacturer or its accompanied documentation.Save To save the data, eventually rename thefile.Show To display the details of the data youhave received.Discard To ignore the data received.

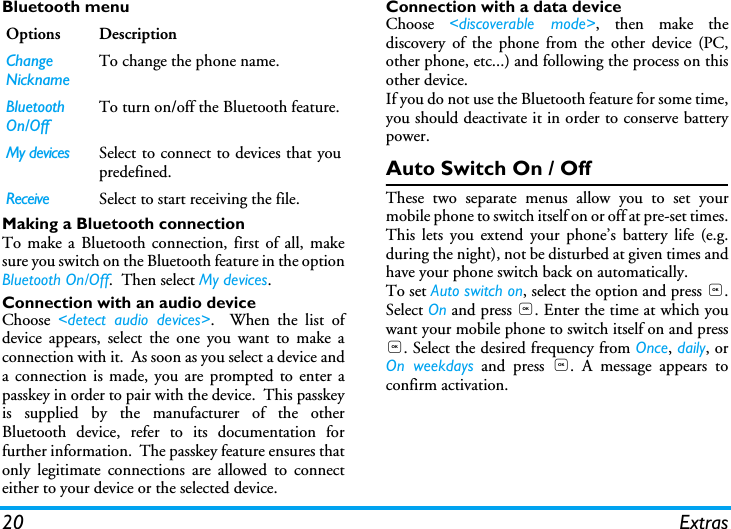

20 ExtrasBluetooth menuMaking a Bluetooth connectionTo make a Bluetooth connection, first of all, makesure you switch on the Bluetooth feature in the optionBluetooth On/Off. Then select My devices. Connection with an audio deviceChoose <detect audio devices>. When the list ofdevice appears, select the one you want to make aconnection with it. As soon as you select a device anda connection is made, you are prompted to enter apasskey in order to pair with the device. This passkeyis supplied by the manufacturer of the otherBluetooth device, refer to its documentation forfurther information. The passkey feature ensures thatonly legitimate connections are allowed to connecteither to your device or the selected device.Connection with a data deviceChoose <discoverable mode>, then make thediscovery of the phone from the other device (PC,other phone, etc...) and following the process on thisother device.If you do not use the Bluetooth feature for some time,you should deactivate it in order to conserve batterypower.Auto Switch On / OffThese two separate menus allow you to set yourmobile phone to switch itself on or off at pre-set times.This lets you extend your phone’s battery life (e.g.during the night), not be disturbed at given times andhave your phone switch back on automatically.To set Auto switch on, select the option and press ,.Select On and press ,. Enter the time at which youwant your mobile phone to switch itself on and press,. Select the desired frequency from Once, daily, orOn weekdays and press ,. A message appears toconfirm activation.Options DescriptionChange Nickname To change the phone name. Bluetooth On/Off To turn on/off the Bluetooth feature.My devices Select to connect to devices that youpredefined.Receive Select to start receiving the file.

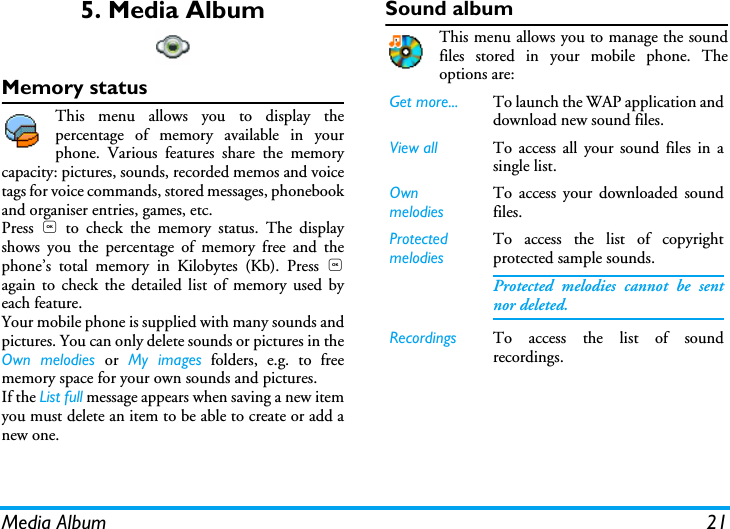

Media Album 215. Media AlbumMemory statusThis menu allows you to display thepercentage of memory available in yourphone. Various features share the memorycapacity: pictures, sounds, recorded memos and voicetags for voice commands, stored messages, phonebookand organiser entries, games, etc.Press , to check the memory status. The displayshows you the percentage of memory free and thephone’s total memory in Kilobytes (Kb). Press ,again to check the detailed list of memory used byeach feature.Your mobile phone is supplied with many sounds andpictures. You can only delete sounds or pictures in theOwn melodies or My images folders, e.g. to freememory space for your own sounds and pictures.If the List full message appears when saving a new itemyou must delete an item to be able to create or add anew one.Sound albumThis menu allows you to manage the soundfiles stored in your mobile phone. Theoptions are:Get more... To launch the WAP application anddownload new sound files.View all To access all your sound files in asingle list.Own melodiesTo access your downloaded soundfiles. Protected melodiesTo access the list of copyrightprotected sample sounds.Protected melodies cannot be sentnor deleted.Recordings To access the list of soundrecordings.

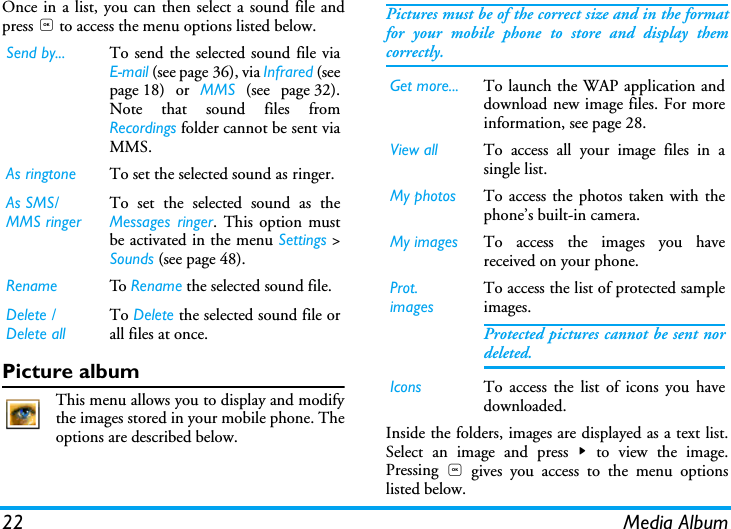

22 Media AlbumOnce in a list, you can then select a sound file andpress , to access the menu options listed below.Picture albumThis menu allows you to display and modifythe images stored in your mobile phone. Theoptions are described below.Pictures must be of the correct size and in the formatfor your mobile phone to store and display themcorrectly. Inside the folders, images are displayed as a text list.Select an image and press > to view the image.Pressing , gives you access to the menu optionslisted below.Send by... To send the selected sound file viaE!mail (see page 36), via Infrared (seepage 18) or MMS (see page 32).Note that sound files fromRecordings folder cannot be sent viaMMS.As ringtone To set the selected sound as ringer.As SMS/MMS ringerTo set the selected sound as theMessages ringer. This option mustbe activated in the menu Settings >Sounds (see page 48). Rename To Rename the selected sound file.Delete / Delete allTo Delete the selected sound file orall files at once.Get more... To launch the WAP application anddownload new image files. For moreinformation, see page 28.View all To access all your image files in asingle list.My photos To access the photos taken with thephone’s built-in camera.My images To access the images you havereceived on your phone.Prot. imagesTo access the list of protected sampleimages.Protected pictures cannot be sent nordeleted.Icons To access the list of icons you havedownloaded.

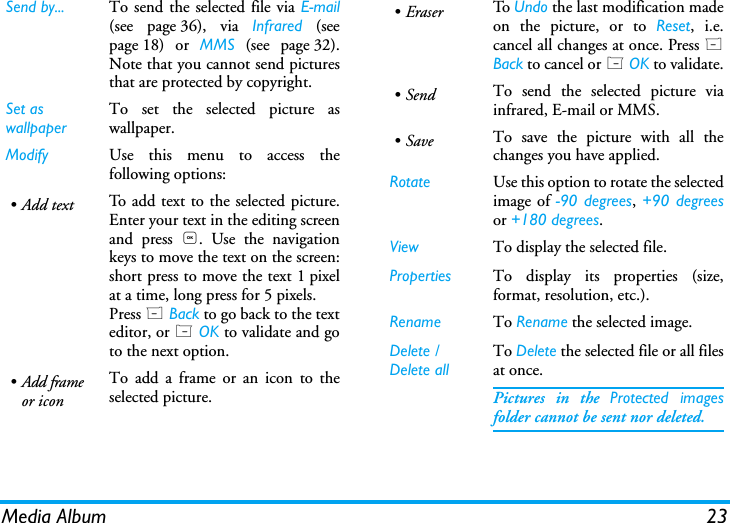

Media Album 23Send by... To send the selected file via E!mail(see page 36), via Infrared (seepage 18) or MMS (see page 32).Note that you cannot send picturesthat are protected by copyright.Set as wallpaperTo set the selected picture aswallpaper.Modify Use this menu to access thefollowing options:•Add text To add text to the selected picture.Enter your text in the editing screenand press ,. Use the navigationkeys to move the text on the screen:short press to move the text 1 pixelat a time, long press for 5 pixels.Press R Back to go back to the texteditor, or L OK to validate and goto the next option.•Add frameor iconTo add a frame or an icon to theselected picture.•Eraser To Undo the last modification madeon the picture, or to Reset, i.e.cancel all changes at once. Press RBack to cancel or L OK to validate.•Send To send the selected picture viainfrared, E-mail or MMS.•Save To save the picture with all thechanges you have applied.Rotate Use this option to rotate the selectedimage of -90 degrees, +90 degreesor +180 degrees.View To display the selected file.Properties To display its properties (size,format, resolution, etc.).Rename To Rename the selected image.Delete / Delete allTo Delete the selected file or all filesat once.Pictures in the Protected imagesfolder cannot be sent nor deleted.

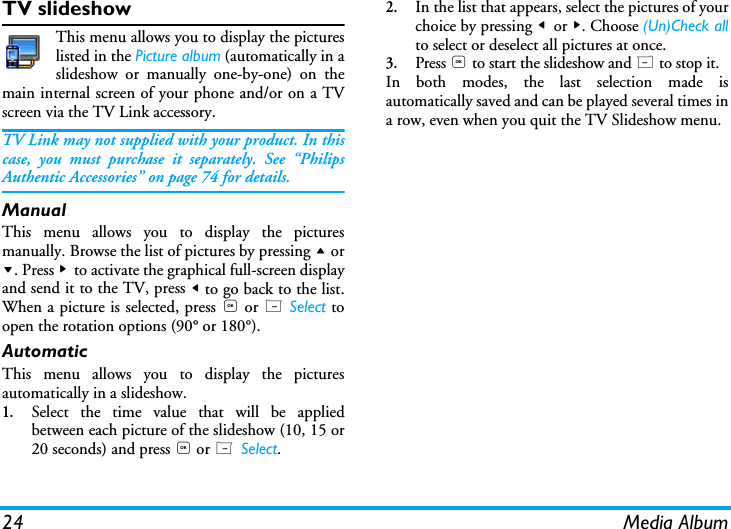

24 Media AlbumTV slideshowThis menu allows you to display the pictureslisted in the Picture album (automatically in aslideshow or manually one-by-one) on themain internal screen of your phone and/or on a TVscreen via the TV Link accessory.TV Link may not supplied with your product. In thiscase, you must purchase it separately. See “PhilipsAuthentic Accessories” on page 74 for details.ManualThis menu allows you to display the picturesmanually. Browse the list of pictures by pressing + or-. Press > to activate the graphical full-screen displayand send it to the TV, press < to go back to the list.When a picture is selected, press , or L Select toopen the rotation options (90° or 180°).AutomaticThis menu allows you to display the picturesautomatically in a slideshow.1.Select the time value that will be appliedbetween each picture of the slideshow (10, 15 or20 seconds) and press , or L Select.2.In the list that appears, select the pictures of yourchoice by pressing < or >. Choose (Un)Check allto select or deselect all pictures at once.3.Press , to start the slideshow and R to stop it.In both modes, the last selection made isautomatically saved and can be played several times ina row, even when you quit the TV Slideshow menu.

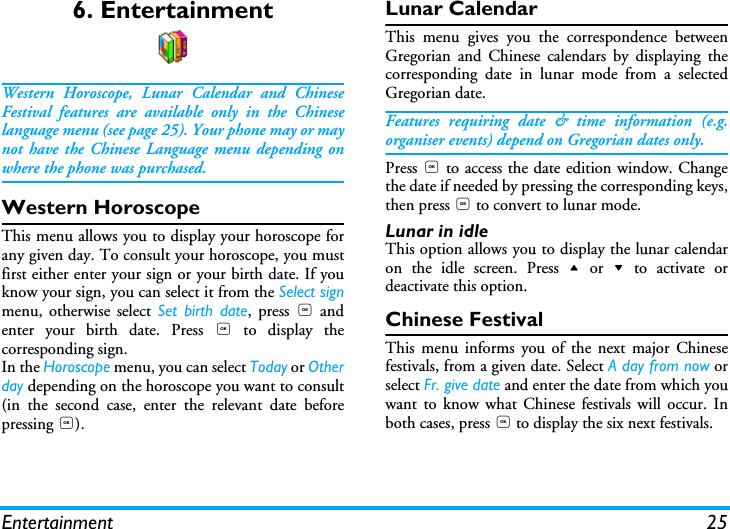

Entertainment 256. EntertainmentWestern Horoscope, Lunar Calendar and ChineseFestival features are available only in the Chineselanguage menu (see page 25). Your phone may or maynot have the Chinese Language menu depending onwhere the phone was purchased.Western HoroscopeThis menu allows you to display your horoscope forany given day. To consult your horoscope, you mustfirst either enter your sign or your birth date. If youknow your sign, you can select it from the Select signmenu, otherwise select Set birth date, press , andenter your birth date. Press , to display thecorresponding sign.In the Horoscope menu, you can select Today or Otherday depending on the horoscope you want to consult(in the second case, enter the relevant date beforepressing ,).Lunar CalendarThis menu gives you the correspondence betweenGregorian and Chinese calendars by displaying thecorresponding date in lunar mode from a selectedGregorian date.Features requiring date & time information (e.g.organiser events) depend on Gregorian dates only.Press , to access the date edition window. Changethe date if needed by pressing the corresponding keys,then press , to convert to lunar mode.Lunar in idleThis option allows you to display the lunar calendaron the idle screen. Press + or - to activate ordeactivate this option.Chinese FestivalThis menu informs you of the next major Chinesefestivals, from a given date. Select A day from now orselect Fr. give date and enter the date from which youwant to know what Chinese festivals will occur. Inboth cases, press , to display the six next festivals.

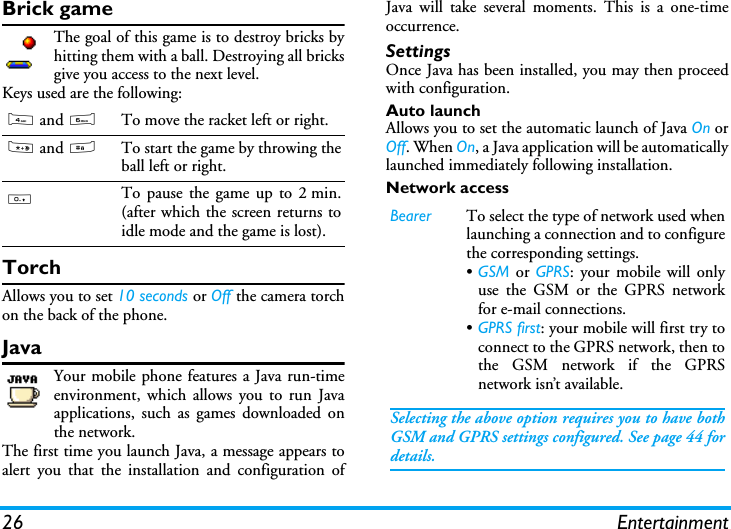

26 EntertainmentBrick gameThe goal of this game is to destroy bricks byhitting them with a ball. Destroying all bricksgive you access to the next level.Keys used are the following:TorchAllows you to set 10 seconds or Off the camera torchon the back of the phone.JavaYour mobile phone features a Java run-timeenvironment, which allows you to run Javaapplications, such as games downloaded onthe network.The first time you launch Java, a message appears toalert you that the installation and configuration ofJava will take several moments. This is a one-timeoccurrence.SettingsOnce Java has been installed, you may then proceedwith configuration.Auto launchAllows you to set the automatic launch of Java On orOff. When On, a Java application will be automaticallylaunched immediately following installation.Network access4 and 6To move the racket left or right.* and #To start the game by throwing theball left or right.0To pause the game up to 2 min.(after which the screen returns toidle mode and the game is lost). Bearer To select the type of network used whenlaunching a connection and to configurethe corresponding settings.•GSM or GPRS: your mobile will onlyuse the GSM or the GPRS networkfor e-mail connections.•GPRS first: your mobile will first try toconnect to the GPRS network, then tothe GSM network if the GPRSnetwork isn’t available.Selecting the above option requires you to have bothGSM and GPRS settings configured. See page 44 fordetails.

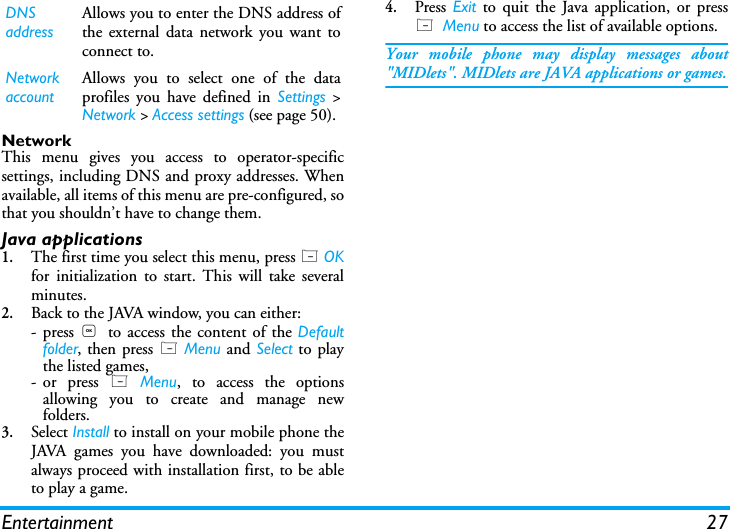

Entertainment 27NetworkThis menu gives you access to operator-specificsettings, including DNS and proxy addresses. Whenavailable, all items of this menu are pre-configured, sothat you shouldn’t have to change them.Java applications1.The first time you select this menu, press L OKfor initialization to start. This will take severalminutes.2.Back to the JAVA window, you can either:-press , to access the content of the Defaultfolder, then press L Menu and Select to playthe listed games,- or press L Menu, to access the optionsallowing you to create and manage newfolders.3.Select Install to install on your mobile phone theJAVA games you have downloaded: you mustalways proceed with installation first, to be ableto play a game.4.Press Exit to quit the Java application, or pressL Menu to access the list of available options.Your mobile phone may display messages about"MIDlets". MIDlets are JAVA applications or games.DNS addressAllows you to enter the DNS address ofthe external data network you want toconnect to.Network accountAllows you to select one of the dataprofiles you have defined in Settings >Network > Access settings (see page 50).

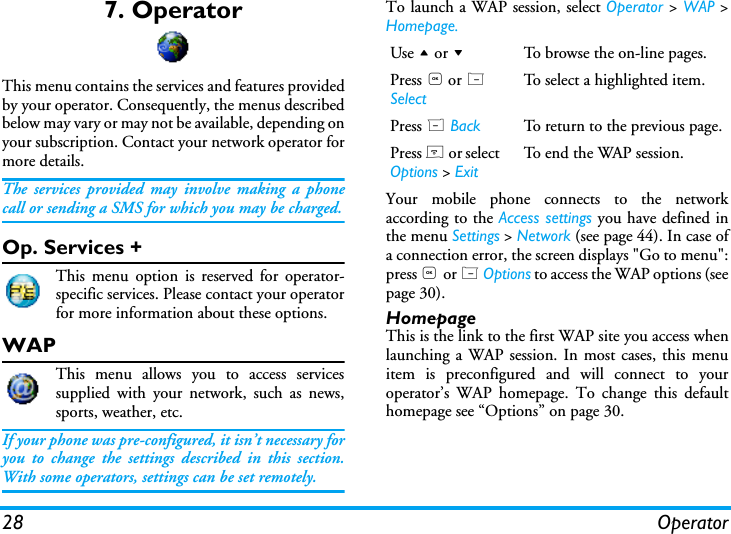

28 Operator7. OperatorThis menu contains the services and features providedby your operator. Consequently, the menus describedbelow may vary or may not be available, depending onyour subscription. Contact your network operator formore details.The services provided may involve making a phonecall or sending a SMS for which you may be charged.Op. Services +This menu option is reserved for operator-specific services. Please contact your operatorfor more information about these options.WAPThis menu allows you to access servicessupplied with your network, such as news,sports, weather, etc.If your phone was pre-configured, it isn’t necessary foryou to change the settings described in this section.With some operators, settings can be set remotely.To launch a WAP session, select Operator > WAP >Homepage.Your mobile phone connects to the networkaccording to the Access settings you have defined inthe menu Settings > Network (see page 44). In case ofa connection error, the screen displays "Go to menu":press , or L Options to access the WAP options (seepage 30).HomepageThis is the link to the first WAP site you access whenlaunching a WAP session. In most cases, this menuitem is preconfigured and will connect to youroperator’s WAP homepage. To change this defaulthomepage see “Options” on page 30.Use + or -To browse the on-line pages.Press , or L SelectTo select a highlighted item.Press R Back To return to the previous page.Press ) or select Options > ExitTo end the WAP session.

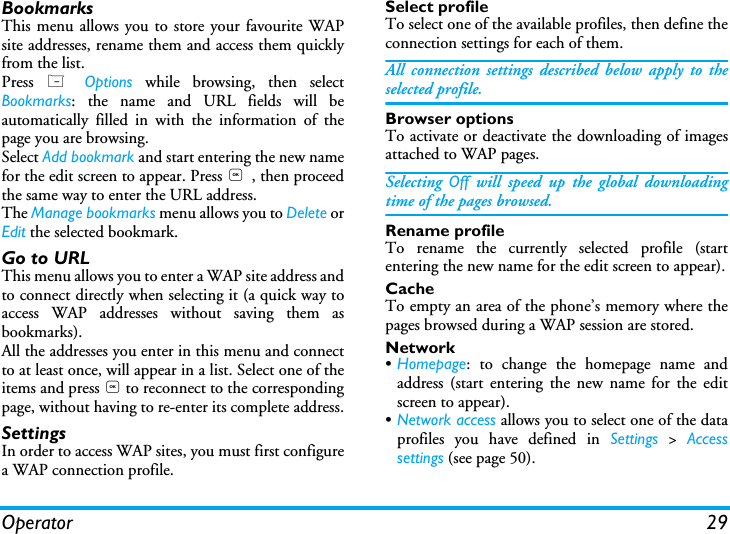

Operator 29BookmarksThis menu allows you to store your favourite WAPsite addresses, rename them and access them quicklyfrom the list.Press L Options while browsing, then selectBookmarks: the name and URL fields will beautomatically filled in with the information of thepage you are browsing.Select Add bookmark and start entering the new namefor the edit screen to appear. Press , , then proceedthe same way to enter the URL address.The Manage bookmarks menu allows you to Delete orEdit the selected bookmark.Go to URLThis menu allows you to enter a WAP site address andto connect directly when selecting it (a quick way toaccess WAP addresses without saving them asbookmarks).All the addresses you enter in this menu and connectto at least once, will appear in a list. Select one of theitems and press , to reconnect to the correspondingpage, without having to re-enter its complete address.SettingsIn order to access WAP sites, you must first configurea WAP connection profile.Select profileTo select one of the available profiles, then define theconnection settings for each of them.All connection settings described below apply to theselected profile.Browser optionsTo activate or deactivate the downloading of imagesattached to WAP pages.Selecting Off will speed up the global downloadingtime of the pages browsed.Rename profileTo rename the currently selected profile (startentering the new name for the edit screen to appear).CacheTo empty an area of the phone’s memory where thepages browsed during a WAP session are stored.Network•Homepage: to change the homepage name andaddress (start entering the new name for the editscreen to appear).•Network access allows you to select one of the dataprofiles you have defined in Settings > Accesssettings (see page 50).
30 Operator•Bearer allows you to select the type of network usedby the selected profile when launching a connection(see page 44).•Proxy address and Proxy port allow you to define agateway address and port number to be used whenlaunching a WAP connection using the selectedprofile.•Security: to display the list of installed securityCertificates (then display its details or delete it), theSession info or the Current certificate.Push inboxThis menu allows you to read and manage messagesautomatically sent to you by the network and / or byyour operator. In some cases, a red "@" sign will be displayed on thescreen to inform you that you have received a new pushmessage. Press , or L Read to read it or R Back togo back to idle. Push messages include URL links for quick access tothe corresponding WAP services: a single click on thelink will connect to the WAP site for browsing ordownloading multimedia files into your handset.If your push inbox is full, a message will advise you todelete some messages in WAP > Push Inbox.OptionsWhile browsing, press L Options to access:Homepage To access the default homepage.Back To go back to the previously browsedpage.Forward To go to the next browsed page.Refresh To reload the currently browsed pagefrom its original server.Set as homepageTo save the currently browsed WAPpage as the default homepage.Save as... To save images embedded in thepages that are displayed in the Picturealbum.Exit To end a WAP session.BookmarksGo to URLSettingsPush inboxSee page 29 for description of theseoptions.

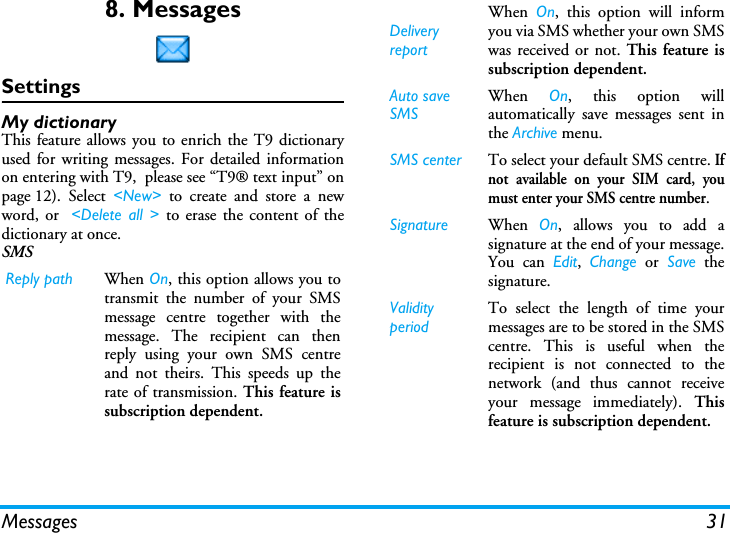

Messages 318. MessagesSettingsMy dictionaryThis feature allows you to enrich the T9 dictionaryused for writing messages. For detailed informationon entering with T9, please see “T9® text input” onpage 12). Select <New> to create and store a newword, or <Delete all > to erase the content of thedictionary at once.SMS Reply path When On, this option allows you totransmit the number of your SMSmessage centre together with themessage. The recipient can thenreply using your own SMS centreand not theirs. This speeds up therate of transmission. This feature issubscription dependent.DeliveryreportWhen On, this option will informyou via SMS whether your own SMSwas received or not. This feature issubscription dependent.Auto save SMSWhen On, this option willautomatically save messages sent inthe Archive menu.SMS center To select your default SMS centre. Ifnot available on your SIM card, youmust enter your SMS centre number.Signature When On, allows you to add asignature at the end of your message.You can Edit, Change or Save thesignature.Validity periodTo select the length of time yourmessages are to be stored in the SMScentre. This is useful when therecipient is not connected to thenetwork (and thus cannot receiveyour message immediately). Thisfeature is subscription dependent.

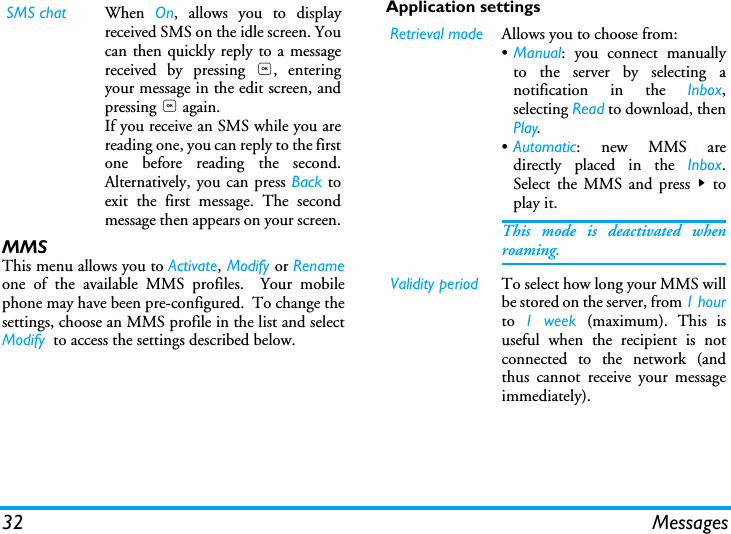

32 MessagesMMSThis menu allows you to Activate, Modify or Renameone of the available MMS profiles. Your mobilephone may have been pre-configured. To change thesettings, choose an MMS profile in the list and selectModify to access the settings described below.Application settingsSMS chat When On, allows you to displayreceived SMS on the idle screen. Youcan then quickly reply to a messagereceived by pressing ,, enteringyour message in the edit screen, andpressing , again.If you receive an SMS while you arereading one, you can reply to the firstone before reading the second.Alternatively, you can press Back toexit the first message. The secondmessage then appears on your screen.Retrieval mode Allows you to choose from:•Manual: you connect manuallyto the server by selecting anotification in the Inbox,selecting Read to download, thenPlay.•Automatic: new MMS aredirectly placed in the Inbox.Select the MMS and press > toplay it.This mode is deactivated whenroaming.Validity period To select how long your MMS willbe stored on the server, from 1 hourto 1 week (maximum). This isuseful when the recipient is notconnected to the network (andthus cannot receive your messageimmediately).

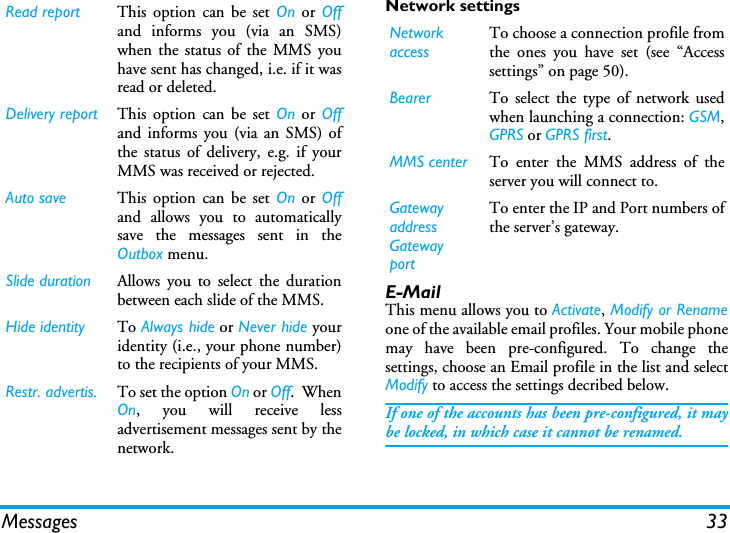

Messages 33Network settingsE-MailThis menu allows you to Activate, Modify or Renameone of the available email profiles. Your mobile phonemay have been pre-configured. To change thesettings, choose an Email profile in the list and selectModify to access the settings decribed below. If one of the accounts has been pre-configured, it maybe locked, in which case it cannot be renamed.Read report This option can be set On or Offand informs you (via an SMS)when the status of the MMS youhave sent has changed, i.e. if it wasread or deleted.Delivery report This option can be set On or Offand informs you (via an SMS) ofthe status of delivery, e.g. if yourMMS was received or rejected.Auto save This option can be set On or Offand allows you to automaticallysave the messages sent in theOutbox menu.Slide duration Allows you to select the durationbetween each slide of the MMS.Hide identity To Always hide or Never hide youridentity (i.e., your phone number)to the recipients of your MMS.Restr. advertis. To set the option On or Off. WhenOn, you will receive lessadvertisement messages sent by thenetwork.Network accessTo choose a connection profile fromthe ones you have set (see “Accesssettings” on page 50).Bearer To select the type of network usedwhen launching a connection: GSM,GPRS or GPRS first.MMS center To enter the MMS address of theserver you will connect to.Gatewayaddress GatewayportTo enter the IP and Port numbers ofthe server’s gateway.

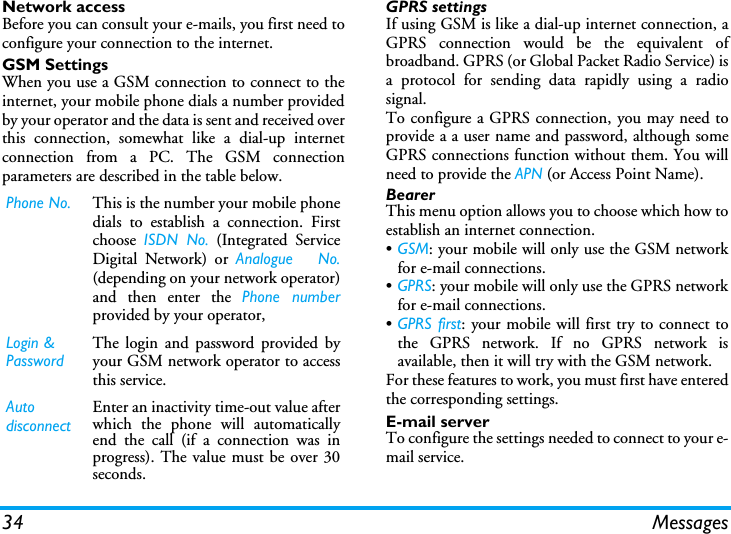

34 MessagesNetwork accessBefore you can consult your e-mails, you first need toconfigure your connection to the internet.GSM SettingsWhen you use a GSM connection to connect to theinternet, your mobile phone dials a number providedby your operator and the data is sent and received overthis connection, somewhat like a dial-up internetconnection from a PC. The GSM connectionparameters are described in the table below.GPRS settingsIf using GSM is like a dial-up internet connection, aGPRS connection would be the equivalent ofbroadband. GPRS (or Global Packet Radio Service) isa protocol for sending data rapidly using a radiosignal.To configure a GPRS connection, you may need toprovide a a user name and password, although someGPRS connections function without them. You willneed to provide the APN (or Access Point Name).BearerThis menu option allows you to choose which how toestablish an internet connection.•GSM: your mobile will only use the GSM networkfor e-mail connections.•GPRS: your mobile will only use the GPRS networkfor e-mail connections.•GPRS first: your mobile will first try to connect tothe GPRS network. If no GPRS network isavailable, then it will try with the GSM network. For these features to work, you must first have enteredthe corresponding settings.E!mail serverTo configure the settings needed to connect to your e-mail service.Phone No. This is the number your mobile phonedials to establish a connection. Firstchoose ISDN No. (Integrated ServiceDigital Network) or Analogue No.(depending on your network operator)and then enter the Phone numberprovided by your operator,Login & PasswordThe login and password provided byyour GSM network operator to accessthis service.Auto disconnectEnter an inactivity time-out value afterwhich the phone will automaticallyend the call (if a connection was inprogress). The value must be over 30seconds.

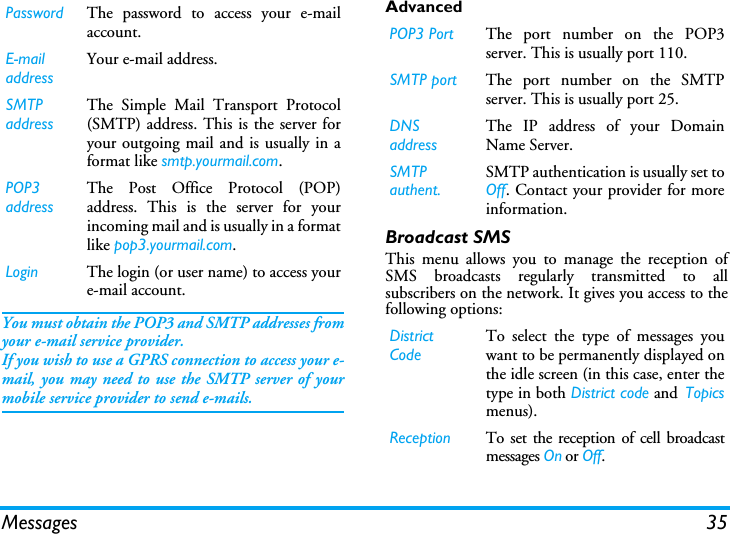

Messages 35You must obtain the POP3 and SMTP addresses fromyour e-mail service provider.If you wish to use a GPRS connection to access your e-mail, you may need to use the SMTP server of yourmobile service provider to send e-mails.AdvancedBroadcast SMSThis menu allows you to manage the reception ofSMS broadcasts regularly transmitted to allsubscribers on the network. It gives you access to thefollowing options:Password The password to access your e-mailaccount.E-mail addressYour e-mail address.SMTP addressThe Simple Mail Transport Protocol(SMTP) address. This is the server foryour outgoing mail and is usually in aformat like smtp.yourmail.com.POP3 addressThe Post Office Protocol (POP)address. This is the server for yourincoming mail and is usually in a formatlike pop3.yourmail.com.Login The login (or user name) to access youre-mail account.POP3 Port The port number on the POP3server. This is usually port 110.SMTP port The port number on the SMTPserver. This is usually port 25.DNS addressThe IP address of your DomainName Server.SMTP authent.SMTP authentication is usually set toOff. Contact your provider for moreinformation.District CodeTo select the type of messages youwant to be permanently displayed onthe idle screen (in this case, enter thetype in both District code and Topicsmenus).Reception To set the reception of cell broadcastmessages On or Off.

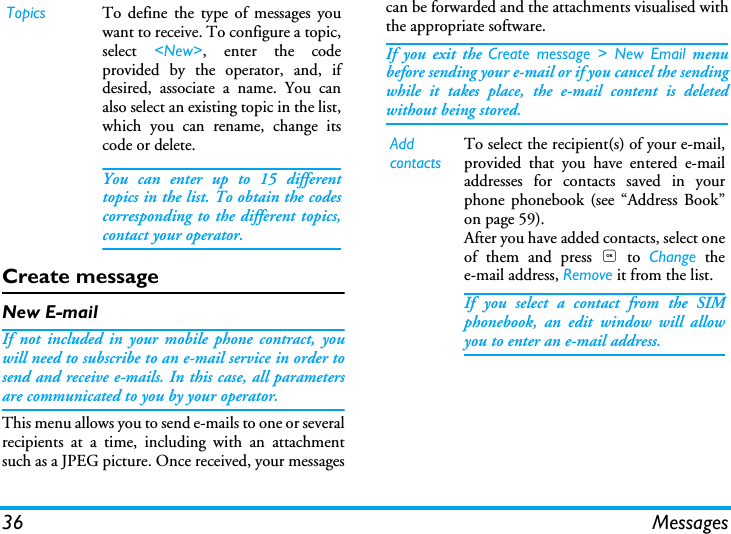

36 MessagesCreate messageNew E-mailIf not included in your mobile phone contract, youwill need to subscribe to an e-mail service in order tosend and receive e-mails. In this case, all parametersare communicated to you by your operator.This menu allows you to send e-mails to one or severalrecipients at a time, including with an attachmentsuch as a JPEG picture. Once received, your messagescan be forwarded and the attachments visualised withthe appropriate software.If you exit the Create message > New Email menubefore sending your e-mail or if you cancel the sendingwhile it takes place, the e-mail content is deletedwithout being stored.Topics To define the type of messages youwant to receive. To configure a topic,select <New>, enter the codeprovided by the operator, and, ifdesired, associate a name. You canalso select an existing topic in the list,which you can rename, change itscode or delete.You can enter up to 15 differenttopics in the list. To obtain the codescorresponding to the different topics,contact your operator.Add contactsTo select the recipient(s) of your e-mail,provided that you have entered e-mailaddresses for contacts saved in yourphone phonebook (see “Address Book”on page 59).After you have added contacts, select oneof them and press , to Change thee-mail address, Remove it from the list.If you select a contact from the SIMphonebook, an edit window will allowyou to enter an e-mail address.

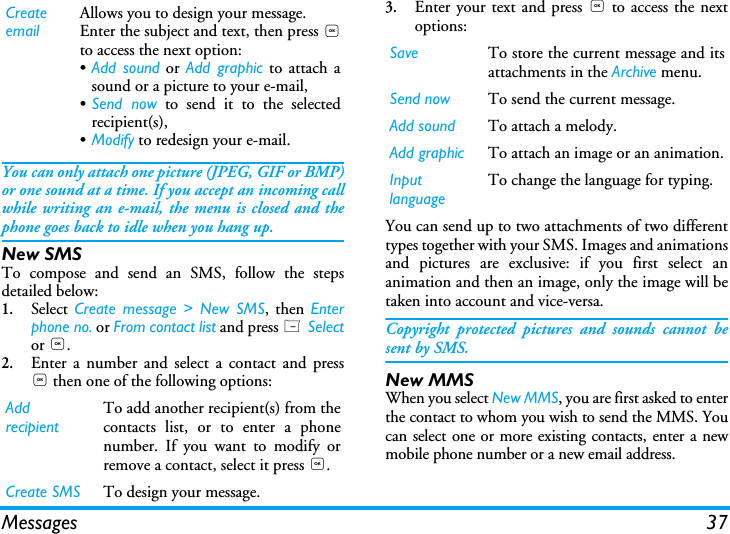

Messages 37You can only attach one picture (JPEG, GIF or BMP)or one sound at a time. If you accept an incoming callwhile writing an e-mail, the menu is closed and thephone goes back to idle when you hang up.New SMSTo compose and send an SMS, follow the stepsdetailed below:1.Select Create message > New SMS, then Enterphone no. or From contact list and press L Selector ,.2.Enter a number and select a contact and press, then one of the following options: 3.Enter your text and press , to access the nextoptions:You can send up to two attachments of two differenttypes together with your SMS. Images and animationsand pictures are exclusive: if you first select ananimation and then an image, only the image will betaken into account and vice-versa.Copyright protected pictures and sounds cannot besent by SMS.New MMSWhen you select New MMS, you are first asked to enterthe contact to whom you wish to send the MMS. Youcan select one or more existing contacts, enter a newmobile phone number or a new email address.Create emailAllows you to design your message. Enter the subject and text, then press ,to access the next option:•Add sound or Add graphic to attach asound or a picture to your e-mail,•Send now to send it to the selectedrecipient(s),•Modify to redesign your e-mail.Add recipientTo add another recipient(s) from thecontacts list, or to enter a phonenumber. If you want to modify orremove a contact, select it press ,.Create SMS To design your message.Save To store the current message and itsattachments in the Archive menu.Send now To send the current message.Add sound To attach a melody.Add graphic To attach an image or an animation.Input languageTo change the language for typing.

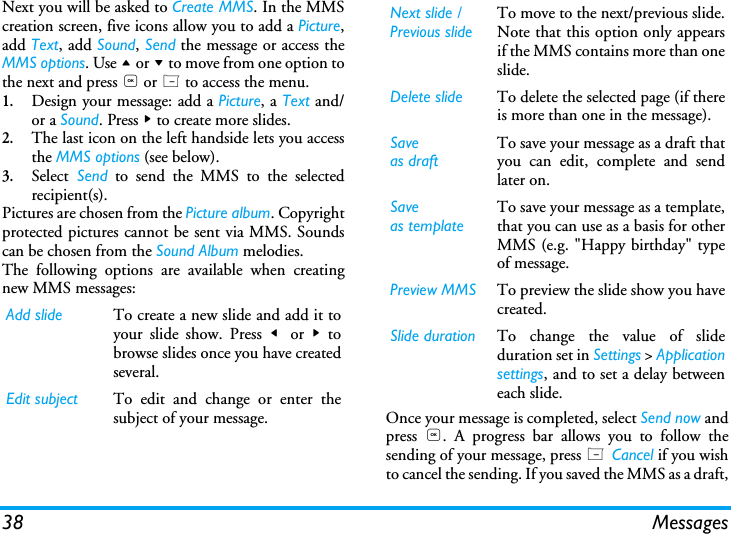

38 MessagesNext you will be asked to Create MMS. In the MMScreation screen, five icons allow you to add a Picture,add Text, add Sound, Send the message or access theMMS options. Use + or - to move from one option tothe next and press , or L to access the menu.1.Design your message: add a Picture, a Text and/or a Sound. Press > to create more slides.2.The last icon on the left handside lets you accessthe MMS options (see below).3.Select Send to send the MMS to the selectedrecipient(s).Pictures are chosen from the Picture album. Copyrightprotected pictures cannot be sent via MMS. Soundscan be chosen from the Sound Album melodies.The following options are available when creatingnew MMS messages: Once your message is completed, select Send now andpress ,. A progress bar allows you to follow thesending of your message, press L Cancel if you wishto cancel the sending. If you saved the MMS as a draft,Add slide To create a new slide and add it toyour slide show. Press < or > tobrowse slides once you have createdseveral.Edit subject To edit and change or enter thesubject of your message.Next slide /Previous slideTo move to the next/previous slide.Note that this option only appearsif the MMS contains more than oneslide.Delete slide To delete the selected page (if thereis more than one in the message).Saveas draftTo save your message as a draft thatyou can edit, complete and sendlater on.Saveas templateTo save your message as a template,that you can use as a basis for otherMMS (e.g. "Happy birthday" typeof message.Preview MMS To preview the slide show you havecreated.Slide duration To change the value of slideduration set in Settings > Applicationsettings, and to set a delay betweeneach slide.

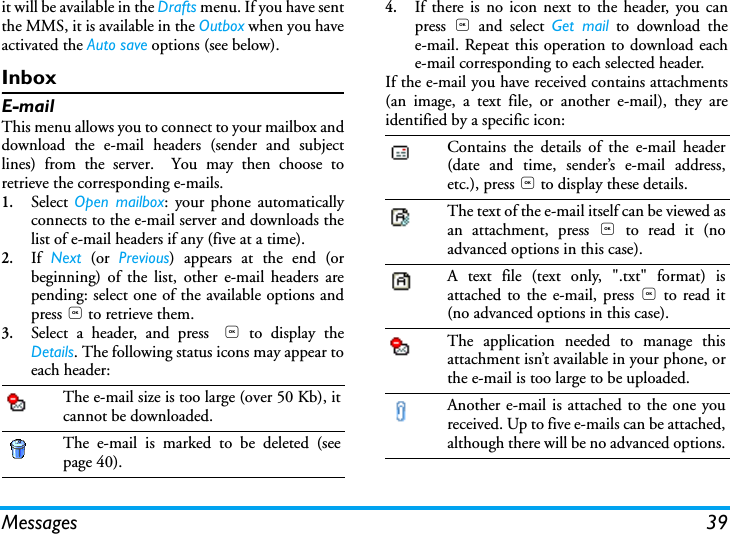

Messages 39it will be available in the Drafts menu. If you have sentthe MMS, it is available in the Outbox when you haveactivated the Auto save options (see below).InboxE-mailThis menu allows you to connect to your mailbox anddownload the e-mail headers (sender and subjectlines) from the server. You may then choose toretrieve the corresponding e-mails.1.Select Open mailbox: your phone automaticallyconnects to the e-mail server and downloads thelist of e-mail headers if any (five at a time).2.If Next (or Previous) appears at the end (orbeginning) of the list, other e-mail headers arepending: select one of the available options andpress , to retrieve them.3.Select a header, and press , to display theDetails. The following status icons may appear toeach header:4.If there is no icon next to the header, you canpress , and select Get mail to download thee-mail. Repeat this operation to download eache-mail corresponding to each selected header.If the e-mail you have received contains attachments(an image, a text file, or another e-mail), they areidentified by a specific icon:The e-mail size is too large (over 50 Kb), itcannot be downloaded.The e-mail is marked to be deleted (seepage 40).Contains the details of the e-mail header(date and time, sender’s e-mail address,etc.), press , to display these details.The text of the e-mail itself can be viewed asan attachment, press , to read it (noadvanced options in this case).A text file (text only, ".txt" format) isattached to the e-mail, press , to read it(no advanced options in this case).The application needed to manage thisattachment isn’t available in your phone, orthe e-mail is too large to be uploaded.Another e-mail is attached to the one youreceived. Up to five e-mails can be attached,although there will be no advanced options.

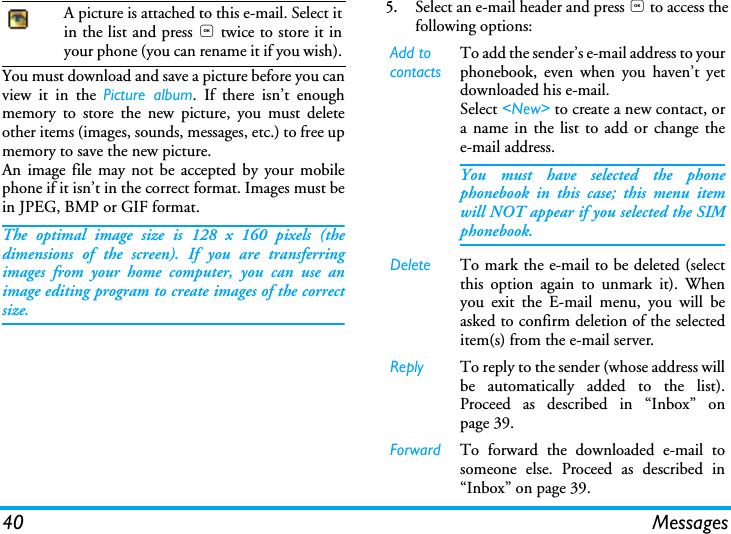

40 MessagesYou must download and save a picture before you canview it in the Picture album. If there isn’t enoughmemory to store the new picture, you must deleteother items (images, sounds, messages, etc.) to free upmemory to save the new picture.An image file may not be accepted by your mobilephone if it isn’t in the correct format. Images must bein JPEG, BMP or GIF format.The optimal image size is 128 x 160 pixels (thedimensions of the screen). If you are transferringimages from your home computer, you can use animage editing program to create images of the correctsize.5.Select an e-mail header and press , to access thefollowing options:A picture is attached to this e-mail. Select itin the list and press , twice to store it inyour phone (you can rename it if you wish). Add to contactsTo add the sender’s e-mail address to yourphonebook, even when you haven’t yetdownloaded his e-mail.Select <New> to create a new contact, ora name in the list to add or change thee-mail address.You must have selected the phonephonebook in this case; this menu itemwill NOT appear if you selected the SIMphonebook.Delete To mark the e-mail to be deleted (selectthis option again to unmark it). Whenyou exit the E-mail menu, you will beasked to confirm deletion of the selecteditem(s) from the e-mail server.Reply To reply to the sender (whose address willbe automatically added to the list).Proceed as described in “Inbox” onpage 39.Forward To forward the downloaded e-mail tosomeone else. Proceed as described in“Inbox” on page 39.

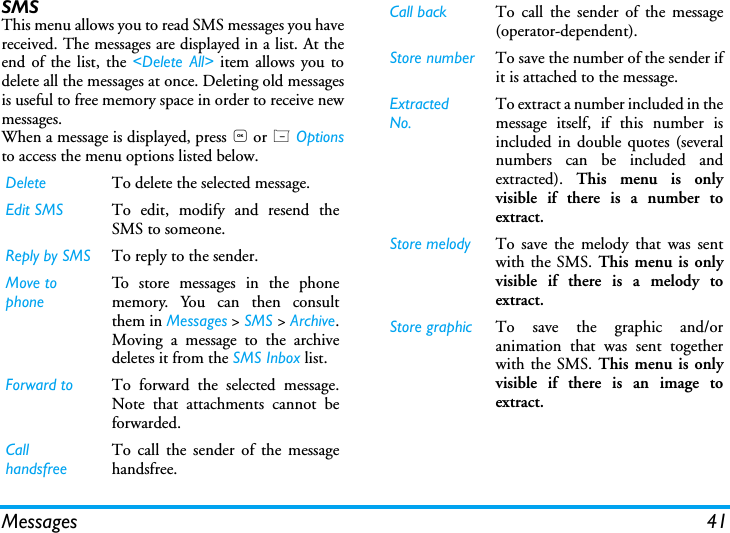

Messages 41SMS This menu allows you to read SMS messages you havereceived. The messages are displayed in a list. At theend of the list, the <Delete All> item allows you todelete all the messages at once. Deleting old messagesis useful to free memory space in order to receive newmessages.When a message is displayed, press , or L Optionsto access the menu options listed below.Delete To delete the selected message.Edit SMS To edit, modify and resend theSMS to someone.Reply by SMS To reply to the sender.Move to phoneTo store messages in the phonememory. You can then consultthem in Messages > SMS > Archive.Moving a message to the archivedeletes it from the SMS Inbox list.Forward to To forward the selected message.Note that attachments cannot beforwarded.Call handsfreeTo call the sender of the messagehandsfree.Call back To call the sender of the message(operator-dependent).Store number To save the number of the sender ifit is attached to the message.Extracted No.To extract a number included in themessage itself, if this number isincluded in double quotes (severalnumbers can be included andextracted). This menu is onlyvisible if there is a number toextract.Store melody To save the melody that was sentwith the SMS. This menu is onlyvisible if there is a melody toextract.Store graphic To save the graphic and/oranimation that was sent togetherwith the SMS. This menu is onlyvisible if there is an image toextract.

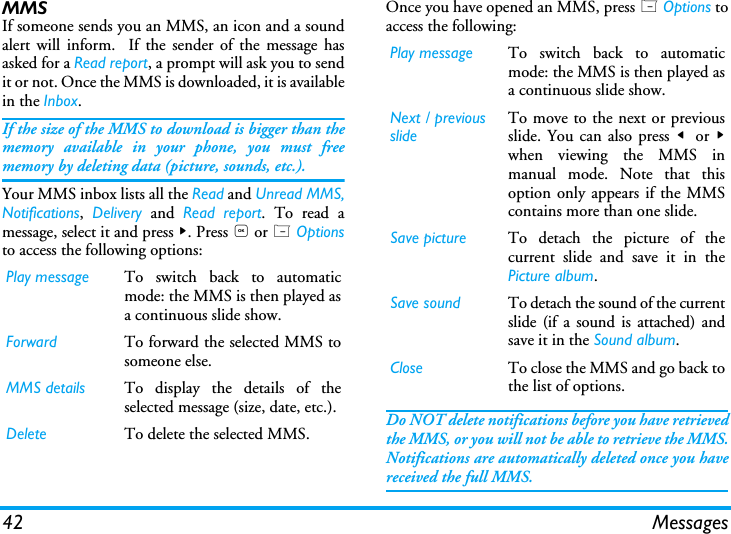

42 MessagesMMS If someone sends you an MMS, an icon and a soundalert will inform. If the sender of the message hasasked for a Read report, a prompt will ask you to sendit or not. Once the MMS is downloaded, it is availablein the Inbox.If the size of the MMS to download is bigger than thememory available in your phone, you must freememory by deleting data (picture, sounds, etc.). Your MMS inbox lists all the Read and Unread MMS,Notifications, Delivery and Read report. To read amessage, select it and press >. Press , or L Optionsto access the following options:Once you have opened an MMS, press L Options toaccess the following:Do NOT delete notifications before you have retrievedthe MMS, or you will not be able to retrieve the MMS.Notifications are automatically deleted once you havereceived the full MMS.Play message To switch back to automaticmode: the MMS is then played asa continuous slide show.Forward To forward the selected MMS tosomeone else.MMS details To display the details of theselected message (size, date, etc.).Delete To delete the selected MMS.Play message To switch back to automaticmode: the MMS is then played asa continuous slide show.Next / previousslideTo move to the next or previousslide. You can also press < or >when viewing the MMS inmanual mode. Note that thisoption only appears if the MMScontains more than one slide.Save picture To detach the picture of thecurrent slide and save it in thePicture album.Save sound To detach the sound of the currentslide (if a sound is attached) andsave it in the Sound album.Close To close the MMS and go back tothe list of options.

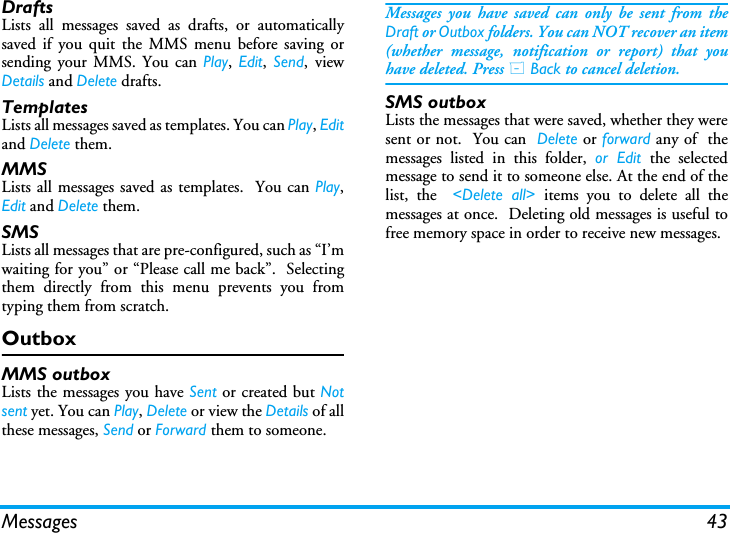

Messages 43DraftsLists all messages saved as drafts, or automaticallysaved if you quit the MMS menu before saving orsending your MMS. You can Play, Edit, Send, viewDetails and Delete drafts.TemplatesLists all messages saved as templates. You can Play, Editand Delete them.MMSLists all messages saved as templates. You can Play,Edit and Delete them.SMSLists all messages that are pre-configured, such as “I’mwaiting for you” or “Please call me back”. Selectingthem directly from this menu prevents you fromtyping them from scratch.OutboxMMS outboxLists the messages you have Sent or created but Notsent yet. You can Play, Delete or view the Details of allthese messages, Send or Forward them to someone.Messages you have saved can only be sent from theDraft or Outbox folders. You can NOT recover an item(whether message, notification or report) that youhave deleted. Press R Back to cancel deletion.SMS outboxLists the messages that were saved, whether they weresent or not. You can Delete or forward any of themessages listed in this folder, or Edit the selectedmessage to send it to someone else. At the end of thelist, the <Delete all> items you to delete all themessages at once. Deleting old messages is useful tofree memory space in order to receive new messages.

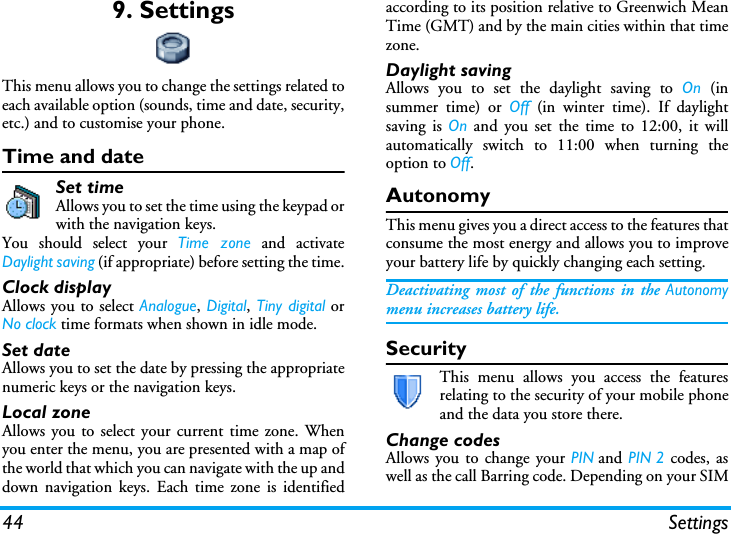

44 Settings9. SettingsThis menu allows you to change the settings related toeach available option (sounds, time and date, security,etc.) and to customise your phone.Time and dateSet timeAllows you to set the time using the keypad orwith the navigation keys.You should select your Time zone and activateDaylight saving (if appropriate) before setting the time.Clock displayAllows you to select Analogue, Digital, Tiny digital orNo clock time formats when shown in idle mode.Set dateAllows you to set the date by pressing the appropriatenumeric keys or the navigation keys.Local zoneAllows you to select your current time zone. Whenyou enter the menu, you are presented with a map ofthe world that which you can navigate with the up anddown navigation keys. Each time zone is identifiedaccording to its position relative to Greenwich MeanTime (GMT) and by the main cities within that timezone.Daylight savingAllows you to set the daylight saving to On (insummer time) or Off (in winter time). If daylightsaving is On and you set the time to 12:00, it willautomatically switch to 11:00 when turning theoption to Off.AutonomyThis menu gives you a direct access to the features thatconsume the most energy and allows you to improveyour battery life by quickly changing each setting.Deactivating most of the functions in the Autonomymenu increases battery life.SecurityThis menu allows you access the featuresrelating to the security of your mobile phoneand the data you store there.Change codesAllows you to change your PIN and PIN 2 codes, aswell as the call Barring code. Depending on your SIM

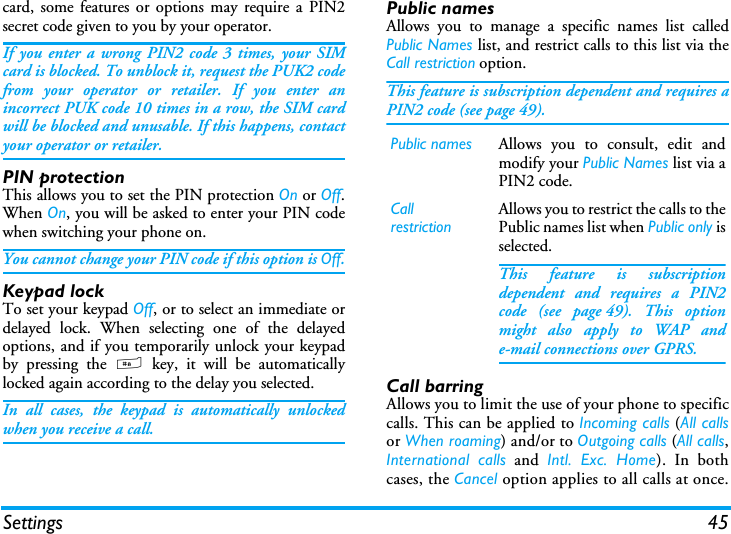

Settings 45card, some features or options may require a PIN2secret code given to you by your operator.If you enter a wrong PIN2 code 3 times, your SIMcard is blocked. To unblock it, request the PUK2 codefrom your operator or retailer. If you enter anincorrect PUK code 10 times in a row, the SIM cardwill be blocked and unusable. If this happens, contactyour operator or retailer.PIN protectionThis allows you to set the PIN protection On or Off.When On, you will be asked to enter your PIN codewhen switching your phone on.You cannot change your PIN code if this option is Off.Keypad lockTo set your keypad Off, or to select an immediate ordelayed lock. When selecting one of the delayedoptions, and if you temporarily unlock your keypadby pressing the # key, it will be automaticallylocked again according to the delay you selected.In all cases, the keypad is automatically unlockedwhen you receive a call.Public namesAllows you to manage a specific names list calledPublic Names list, and restrict calls to this list via theCall restriction option.This feature is subscription dependent and requires aPIN2 code (see page 49).Call barringAllows you to limit the use of your phone to specificcalls. This can be applied to Incoming calls (All callsor When roaming) and/or to Outgoing calls (All calls,International calls and Intl. Exc. Home). In bothcases, the Cancel option applies to all calls at once.Public names Allows you to consult, edit andmodify your Public Names list via aPIN2 code.CallrestrictionAllows you to restrict the calls to thePublic names list when Public only isselected.This feature is subscriptiondependent and requires a PIN2code (see page 49). This optionmight also apply to WAP ande-mail connections over GPRS.

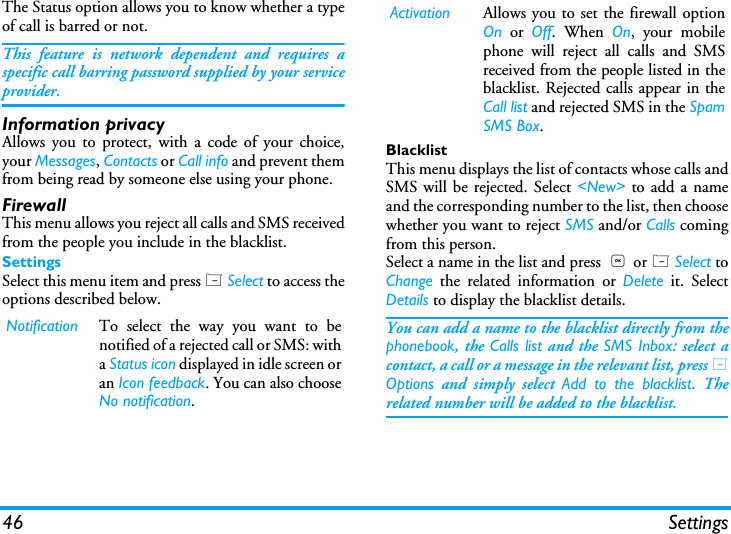

46 SettingsThe Status option allows you to know whether a typeof call is barred or not.This feature is network dependent and requires aspecific call barring password supplied by your serviceprovider.Information privacyAllows you to protect, with a code of your choice,your Messages, Contacts or Call info and prevent themfrom being read by someone else using your phone.FirewallThis menu allows you reject all calls and SMS receivedfrom the people you include in the blacklist.SettingsSelect this menu item and press L Select to access theoptions described below.BlacklistThis menu displays the list of contacts whose calls andSMS will be rejected. Select <New> to add a nameand the corresponding number to the list, then choosewhether you want to reject SMS and/or Calls comingfrom this person.Select a name in the list and press , or L Select toChange the related information or Delete it. SelectDetails to display the blacklist details.You can add a name to the blacklist directly from thephonebook, the Calls list and the SMS Inbox: select acontact, a call or a message in the relevant list, press LOptions and simply select Add to the blacklist. Therelated number will be added to the blacklist.Notification To select the way you want to benotified of a rejected call or SMS: witha Status icon displayed in idle screen oran Icon feedback. You can also chooseNo notification.Activation Allows you to set the firewall optionOn or Off. When On, your mobilephone will reject all calls and SMSreceived from the people listed in theblacklist. Rejected calls appear in theCall list and rejected SMS in the SpamSMS Box.

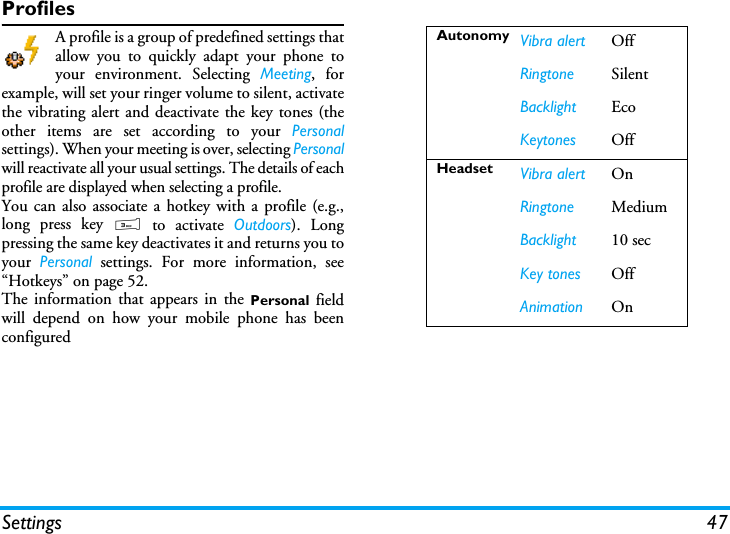

Settings 47ProfilesA profile is a group of predefined settings thatallow you to quickly adapt your phone toyour environment. Selecting Meeting, forexample, will set your ringer volume to silent, activatethe vibrating alert and deactivate the key tones (theother items are set according to your Personalsettings). When your meeting is over, selecting Personalwill reactivate all your usual settings. The details of eachprofile are displayed when selecting a profile.You can also associate a hotkey with a profile (e.g.,long press key 3 to activate Outdoors). Longpressing the same key deactivates it and returns you toyour Personal settings. For more information, see“Hotkeys” on page 52. The information that appears in the Personal fieldwill depend on how your mobile phone has beenconfiguredAutonomy Vibra alert OffRingtone SilentBacklight EcoKeytones OffHeadset Vibra alert OnRingtone MediumBacklight 10 secKey tones OffAnimation On

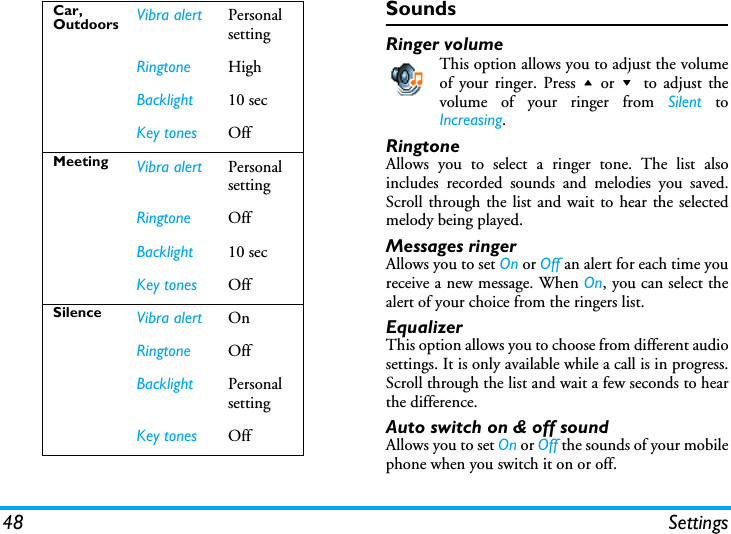

48 SettingsSoundsRinger volumeThis option allows you to adjust the volumeof your ringer. Press + or - to adjust thevolume of your ringer from Silent toIncreasing.RingtoneAllows you to select a ringer tone. The list alsoincludes recorded sounds and melodies you saved.Scroll through the list and wait to hear the selectedmelody being played.Messages ringerAllows you to set On or Off an alert for each time youreceive a new message. When On, you can select thealert of your choice from the ringers list.EqualizerThis option allows you to choose from different audiosettings. It is only available while a call is in progress.Scroll through the list and wait a few seconds to hearthe difference.Auto switch on & off soundAllows you to set On or Off the sounds of your mobilephone when you switch it on or off.Car, Outdoors Vibra alert PersonalsettingRingtone HighBacklight 10 secKey tones OffMeeting Vibra alert PersonalsettingRingtone OffBacklight 10 secKey tones OffSilence Vibra alert OnRingtone OffBacklight PersonalsettingKey tones Off

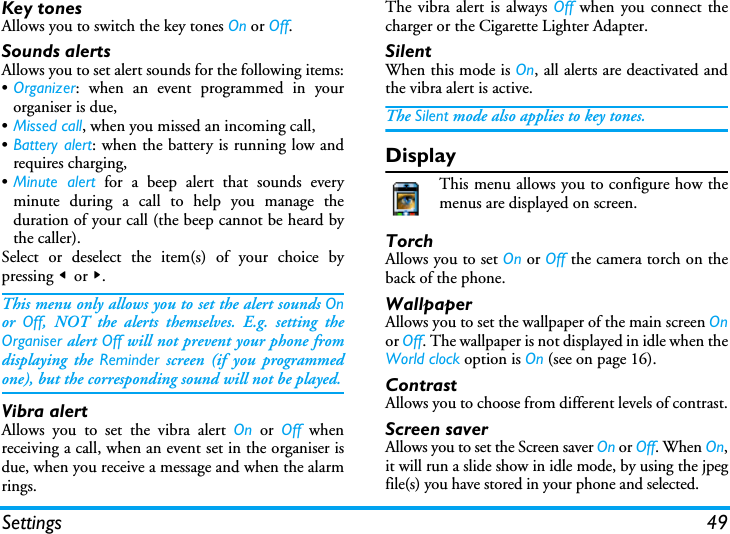

Settings 49Key tonesAllows you to switch the key tones On or Off.Sounds alertsAllows you to set alert sounds for the following items:•Organizer: when an event programmed in yourorganiser is due,•Missed call, when you missed an incoming call,•Battery alert: when the battery is running low andrequires charging,•Minute alert for a beep alert that sounds everyminute during a call to help you manage theduration of your call (the beep cannot be heard bythe caller).Select or deselect the item(s) of your choice bypressing < or >.This menu only allows you to set the alert sounds Onor Off, NOT the alerts themselves. E.g. setting theOrganiser alert Off will not prevent your phone fromdisplaying the Reminder screen (if you programmedone), but the corresponding sound will not be played.Vibra alertAllows you to set the vibra alert On or Off whenreceiving a call, when an event set in the organiser isdue, when you receive a message and when the alarmrings.The vibra alert is always Off when you connect thecharger or the Cigarette Lighter Adapter.SilentWhen this mode is On, all alerts are deactivated andthe vibra alert is active.The Silent mode also applies to key tones.DisplayThis menu allows you to configure how themenus are displayed on screen.TorchAllows you to set On or Off the camera torch on theback of the phone.WallpaperAllows you to set the wallpaper of the main screen Onor Off. The wallpaper is not displayed in idle when theWorld clock option is On (see on page 16).ContrastAllows you to choose from different levels of contrast.Screen saverAllows you to set the Screen saver On or Off. When On,it will run a slide show in idle mode, by using the jpegfile(s) you have stored in your phone and selected.

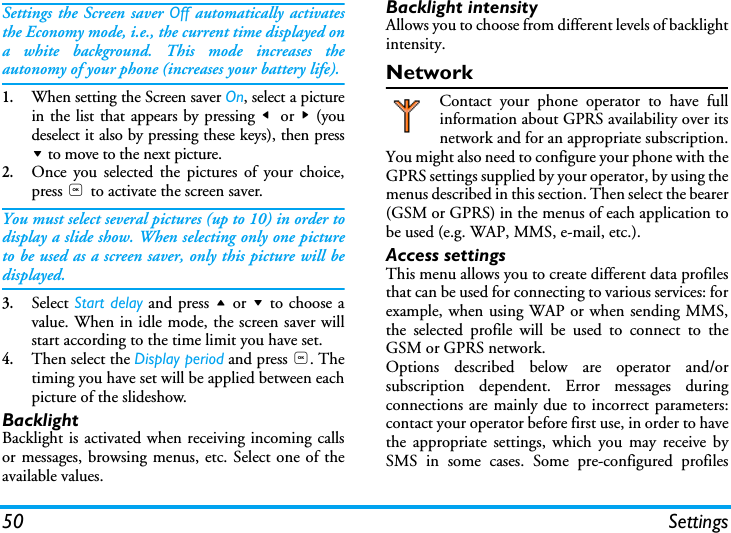

50 SettingsSettings the Screen saver Off automatically activatesthe Economy mode, i.e., the current time displayed ona white background. This mode increases theautonomy of your phone (increases your battery life).1.When setting the Screen saver On, select a picturein the list that appears by pressing < or > (youdeselect it also by pressing these keys), then press- to move to the next picture.2.Once you selected the pictures of your choice,press , to activate the screen saver.You must select several pictures (up to 10) in order todisplay a slide show. When selecting only one pictureto be used as a screen saver, only this picture will bedisplayed.3.Select Start delay and press + or - to choose avalue. When in idle mode, the screen saver willstart according to the time limit you have set.4.Then select the Display period and press ,. Thetiming you have set will be applied between eachpicture of the slideshow.BacklightBacklight is activated when receiving incoming callsor messages, browsing menus, etc. Select one of theavailable values.Backlight intensityAllows you to choose from different levels of backlightintensity.NetworkContact your phone operator to have fullinformation about GPRS availability over itsnetwork and for an appropriate subscription.You might also need to configure your phone with theGPRS settings supplied by your operator, by using themenus described in this section. Then select the bearer(GSM or GPRS) in the menus of each application tobe used (e.g. WAP, MMS, e-mail, etc.).Access settingsThis menu allows you to create different data profilesthat can be used for connecting to various services: forexample, when using WAP or when sending MMS,the selected profile will be used to connect to theGSM or GPRS network.Options described below are operator and/orsubscription dependent. Error messages duringconnections are mainly due to incorrect parameters:contact your operator before first use, in order to havethe appropriate settings, which you may receive bySMS in some cases. Some pre-configured profiles

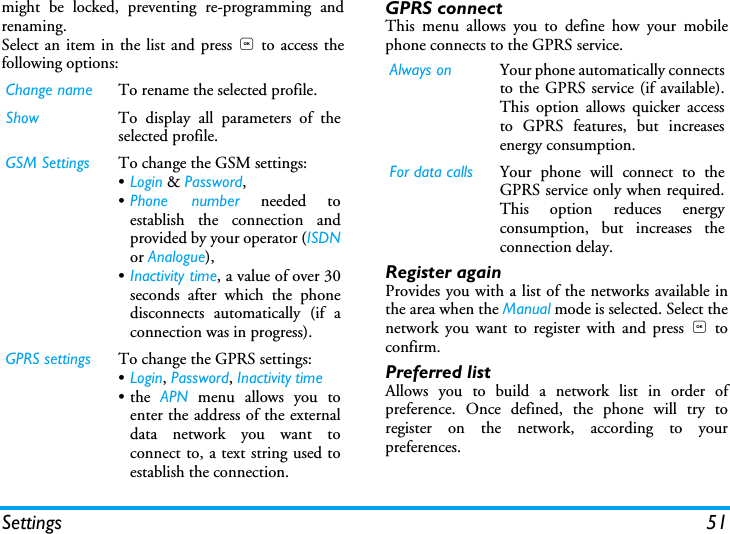

Settings 51might be locked, preventing re-programming andrenaming.Select an item in the list and press , to access thefollowing options:GPRS connectThis menu allows you to define how your mobilephone connects to the GPRS service.Register againProvides you with a list of the networks available inthe area when the Manual mode is selected. Select thenetwork you want to register with and press , toconfirm.Preferred listAllows you to build a network list in order ofpreference. Once defined, the phone will try toregister on the network, according to yourpreferences.Change name To rename the selected profile.Show To display all parameters of theselected profile.GSM Settings To change the GSM settings:•Login & Password,•Phone number needed toestablish the connection andprovided by your operator (ISDNor Analogue),•Inactivity time, a value of over 30seconds after which the phonedisconnects automatically (if aconnection was in progress).GPRS settings To change the GPRS settings:•Login, Password, Inactivity time•the APN menu allows you toenter the address of the externaldata network you want toconnect to, a text string used toestablish the connection.Always on Your phone automatically connectsto the GPRS service (if available).This option allows quicker accessto GPRS features, but increasesenergy consumption.For data calls Your phone will connect to theGPRS service only when required.This option reduces energyconsumption, but increases theconnection delay.

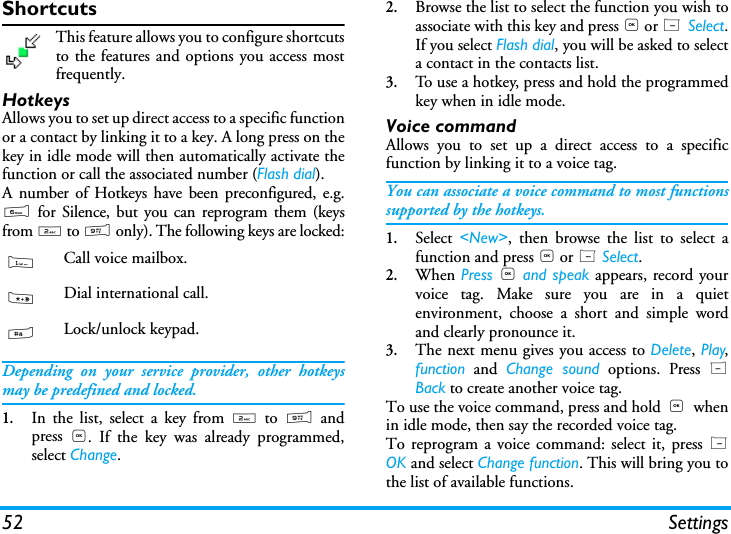

52 SettingsShortcutsThis feature allows you to configure shortcutsto the features and options you access mostfrequently.HotkeysAllows you to set up direct access to a specific functionor a contact by linking it to a key. A long press on thekey in idle mode will then automatically activate thefunction or call the associated number (Flash dial).A number of Hotkeys have been preconfigured, e.g.6 for Silence, but you can reprogram them (keysfrom 2 to 9 only). The following keys are locked:Depending on your service provider, other hotkeysmay be predefined and locked.1.In the list, select a key from 2 to 9 andpress ,. If the key was already programmed,select Change.2.Browse the list to select the function you wish toassociate with this key and press , or L Select.If you select Flash dial, you will be asked to selecta contact in the contacts list.3.To use a hotkey, press and hold the programmedkey when in idle mode.Voice commandAllows you to set up a direct access to a specificfunction by linking it to a voice tag.You can associate a voice command to most functionssupported by the hotkeys.1.Select <New>, then browse the list to select afunction and press , or L Select.2.When Press , and speak appears, record yourvoice tag. Make sure you are in a quietenvironment, choose a short and simple wordand clearly pronounce it.3.The next menu gives you access to Delete, Play,function and Change sound options. Press RBack to create another voice tag.To use the voice command, press and hold , whenin idle mode, then say the recorded voice tag.To reprogram a voice command: select it, press LOK and select Change function. This will bring you tothe list of available functions.1Call voice mailbox.*Dial international call.#Lock/unlock keypad.

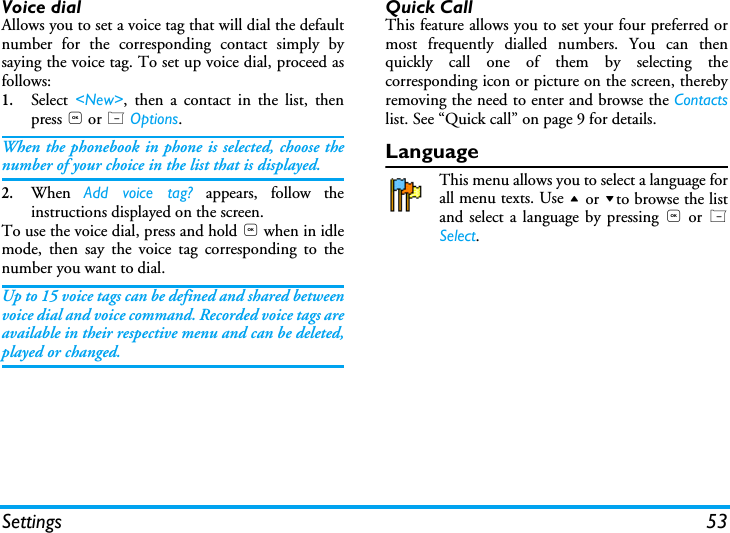

Settings 53Voice dialAllows you to set a voice tag that will dial the defaultnumber for the corresponding contact simply bysaying the voice tag. To set up voice dial, proceed asfollows:1.Select <New>, then a contact in the list, thenpress , or L Options.When the phonebook in phone is selected, choose thenumber of your choice in the list that is displayed.2.When Add voice tag? appears, follow theinstructions displayed on the screen. To use the voice dial, press and hold , when in idlemode, then say the voice tag corresponding to thenumber you want to dial.Up to 15 voice tags can be defined and shared betweenvoice dial and voice command. Recorded voice tags areavailable in their respective menu and can be deleted,played or changed.Quick CallThis feature allows you to set your four preferred ormost frequently dialled numbers. You can thenquickly call one of them by selecting thecorresponding icon or picture on the screen, therebyremoving the need to enter and browse the Contactslist. See “Quick call” on page 9 for details.LanguageThis menu allows you to select a language forall menu texts. Use + or -to browse the listand select a language by pressing , or LSelect.

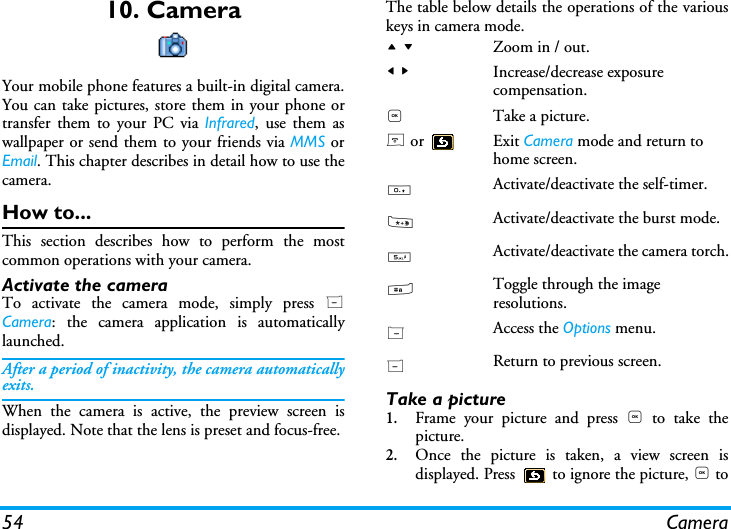

54 Camera10. CameraYour mobile phone features a built-in digital camera.You can take pictures, store them in your phone ortransfer them to your PC via Infrared, use them aswallpaper or send them to your friends via MMS orEmail. This chapter describes in detail how to use thecamera.How to...This section describes how to perform the mostcommon operations with your camera.Activate the camera To activate the camera mode, simply press RCamera: the camera application is automaticallylaunched.After a period of inactivity, the camera automaticallyexits.When the camera is active, the preview screen isdisplayed. Note that the lens is preset and focus-free.The table below details the operations of the variouskeys in camera mode.Take a picture1.Frame your picture and press , to take thepicture.2.Once the picture is taken, a view screen isdisplayed. Press to ignore the picture, , to+ -Zoom in / out.< >Increase/decrease exposure compensation.,Take a picture.) or Exit Camera mode and return to home screen.0Activate/deactivate the self-timer.*Activate/deactivate the burst mode.5Activate/deactivate the camera torch.#Toggle through the image resolutions.LAccess the Options menu.RReturn to previous screen.

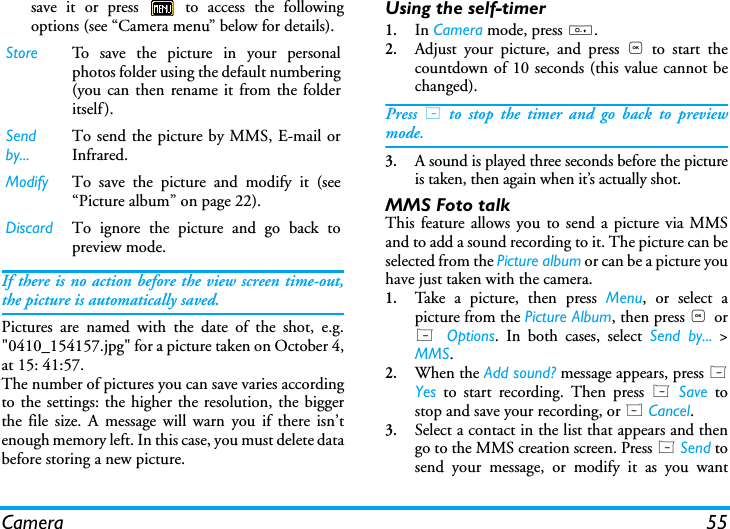

Camera 55save it or press to access the followingoptions (see “Camera menu” below for details).If there is no action before the view screen time-out,the picture is automatically saved.Pictures are named with the date of the shot, e.g."0410_154157.jpg" for a picture taken on October 4,at 15: 41:57.The number of pictures you can save varies accordingto the settings: the higher the resolution, the biggerthe file size. A message will warn you if there isn’tenough memory left. In this case, you must delete databefore storing a new picture.Using the self-timer1.In Camera mode, press 0.2.Adjust your picture, and press , to start thecountdown of 10 seconds (this value cannot bechanged).Press L to stop the timer and go back to previewmode.3.A sound is played three seconds before the pictureis taken, then again when it’s actually shot.MMS Foto talkThis feature allows you to send a picture via MMSand to add a sound recording to it. The picture can beselected from the Picture album or can be a picture youhave just taken with the camera.1.Take a picture, then press Menu, or select apicture from the Picture Album, then press , orL Options. In both cases, select Send by... >MMS.2.When the Add sound? message appears, press LYes to start recording. Then press L Save tostop and save your recording, or R Cancel.3.Select a contact in the list that appears and thengo to the MMS creation screen. Press L Send tosend your message, or modify it as you wantStore To save the picture in your personalphotos folder using the default numbering(you can then rename it from the folderitself).Send by...To send the picture by MMS, E-mail orInfrared.Modify To save the picture and modify it (see“Picture album” on page 22).Discard To ignore the picture and go back topreview mode.

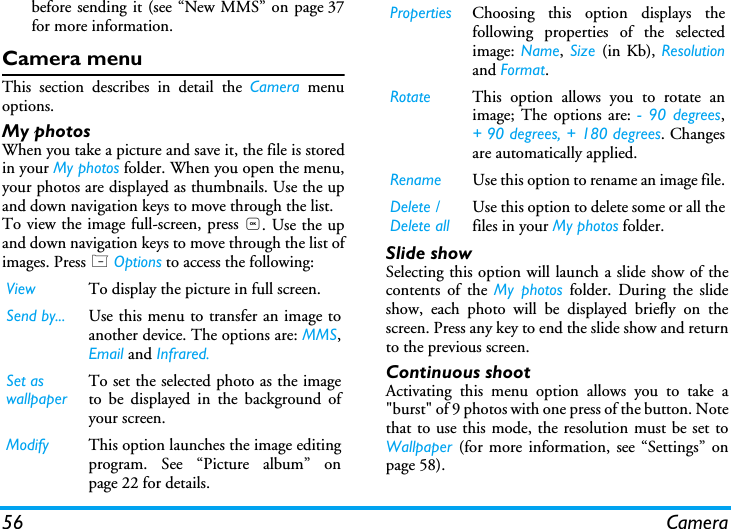

56 Camerabefore sending it (see “New MMS” on page 37for more information.Camera menuThis section describes in detail the Camera menuoptions.My photosWhen you take a picture and save it, the file is storedin your My photos folder. When you open the menu,your photos are displayed as thumbnails. Use the upand down navigation keys to move through the list. To view the image full-screen, press ,. Use the upand down navigation keys to move through the list ofimages. Press L Options to access the following: Slide showSelecting this option will launch a slide show of thecontents of the My photos folder. During the slideshow, each photo will be displayed briefly on thescreen. Press any key to end the slide show and returnto the previous screen.Continuous shootActivating this menu option allows you to take a"burst" of 9 photos with one press of the button. Notethat to use this mode, the resolution must be set toWallpaper (for more information, see “Settings” onpage 58).View To display the picture in full screen.Send by... Use this menu to transfer an image toanother device. The options are: MMS,Email and Infrared.Set as wallpaperTo set the selected photo as the imageto be displayed in the background ofyour screen.Modify This option launches the image editingprogram. See “Picture album” onpage 22 for details.Properties Choosing this option displays thefollowing properties of the selectedimage: Name, Size (in Kb), Resolutionand Format.Rotate This option allows you to rotate animage; The options are: - 90 degrees,+ 90 degrees, + 180 degrees. Changesare automatically applied.Rename Use this option to rename an image file.Delete / Delete allUse this option to delete some or all thefiles in your My photos folder.

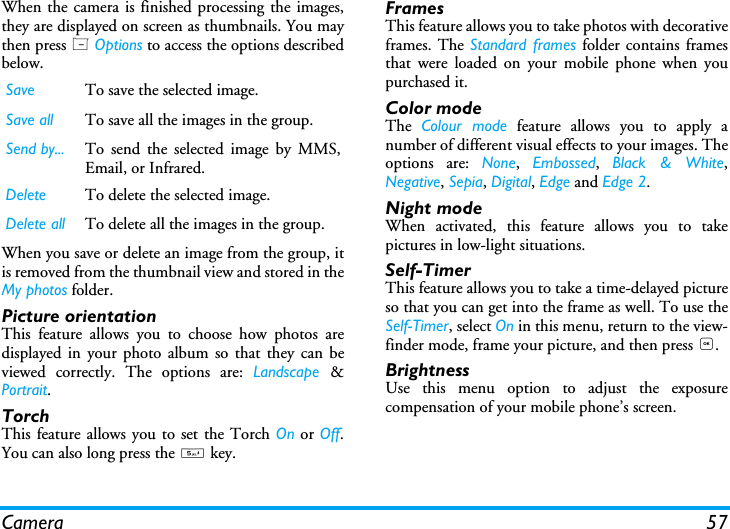

Camera 57When the camera is finished processing the images,they are displayed on screen as thumbnails. You maythen press L Options to access the options describedbelow.When you save or delete an image from the group, itis removed from the thumbnail view and stored in theMy photos folder.Picture orientationThis feature allows you to choose how photos aredisplayed in your photo album so that they can beviewed correctly. The options are: Landscape &Portrait.TorchThis feature allows you to set the Torch On or Off.You can also long press the 5 key.FramesThis feature allows you to take photos with decorativeframes. The Standard frames folder contains framesthat were loaded on your mobile phone when youpurchased it.Color modeThe Colour mode feature allows you to apply anumber of different visual effects to your images. Theoptions are: None, Embossed, Black & White,Negative, Sepia, Digital, Edge and Edge 2.Night modeWhen activated, this feature allows you to takepictures in low-light situations.Self-TimerThis feature allows you to take a time-delayed pictureso that you can get into the frame as well. To use theSelf-Timer, select On in this menu, return to the view-finder mode, frame your picture, and then press ,.BrightnessUse this menu option to adjust the exposurecompensation of your mobile phone’s screen.Save To save the selected image.Save all To save all the images in the group.Send by... To send the selected image by MMS,Email, or Infrared.Delete To delete the selected image.Delete all To delete all the images in the group.

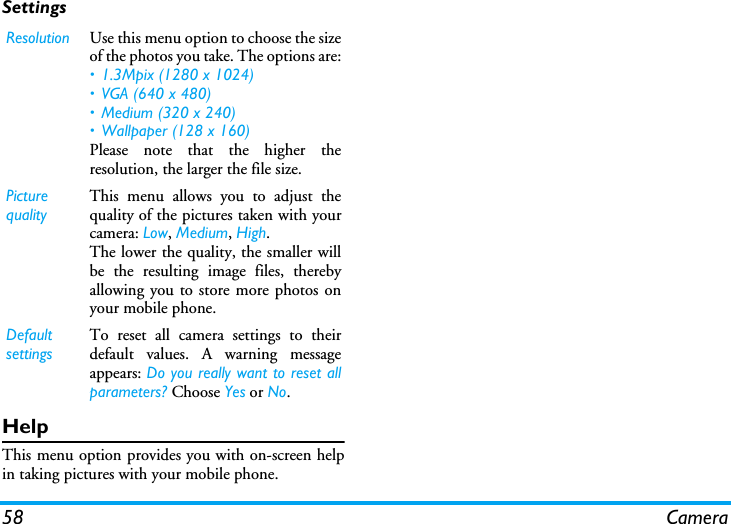

58 CameraSettingsHelpThis menu option provides you with on-screen helpin taking pictures with your mobile phone.Resolution Use this menu option to choose the sizeof the photos you take. The options are:• 1.3Mpix (1280 x 1024)• VGA (640 x 480)• Medium (320 x 240) • Wallpaper (128 x 160)Please note that the higher theresolution, the larger the file size.Picture qualityThis menu allows you to adjust thequality of the pictures taken with yourcamera: Low, Medium, High.The lower the quality, the smaller willbe the resulting image files, therebyallowing you to store more photos onyour mobile phone.Default settingsTo reset all camera settings to theirdefault values. A warning messageappears: Do you really want to reset allparameters? Choose Yes or No.

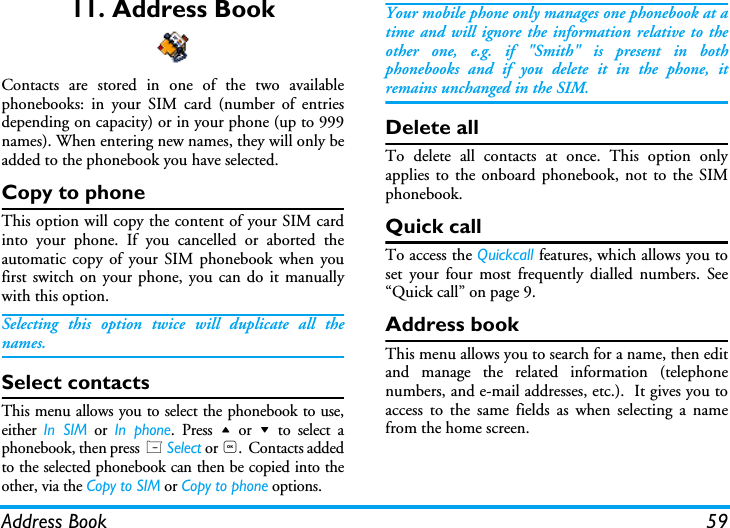

Address Book 5911. Address BookContacts are stored in one of the two availablephonebooks: in your SIM card (number of entriesdepending on capacity) or in your phone (up to 999names). When entering new names, they will only beadded to the phonebook you have selected.Copy to phoneThis option will copy the content of your SIM cardinto your phone. If you cancelled or aborted theautomatic copy of your SIM phonebook when youfirst switch on your phone, you can do it manuallywith this option.Selecting this option twice will duplicate all thenames.Select contactsThis menu allows you to select the phonebook to use,either In SIM or In phone. Press + or - to select aphonebook, then press L Select or ,. Contacts addedto the selected phonebook can then be copied into theother, via the Copy to SIM or Copy to phone options.Your mobile phone only manages one phonebook at atime and will ignore the information relative to theother one, e.g. if "Smith" is present in bothphonebooks and if you delete it in the phone, itremains unchanged in the SIM.Delete allTo delete all contacts at once. This option onlyapplies to the onboard phonebook, not to the SIMphonebook.Quick callTo access the Quickcall features, which allows you toset your four most frequently dialled numbers. See“Quick call” on page 9.Address bookThis menu allows you to search for a name, then editand manage the related information (telephonenumbers, and e-mail addresses, etc.). It gives you toaccess to the same fields as when selecting a namefrom the home screen.

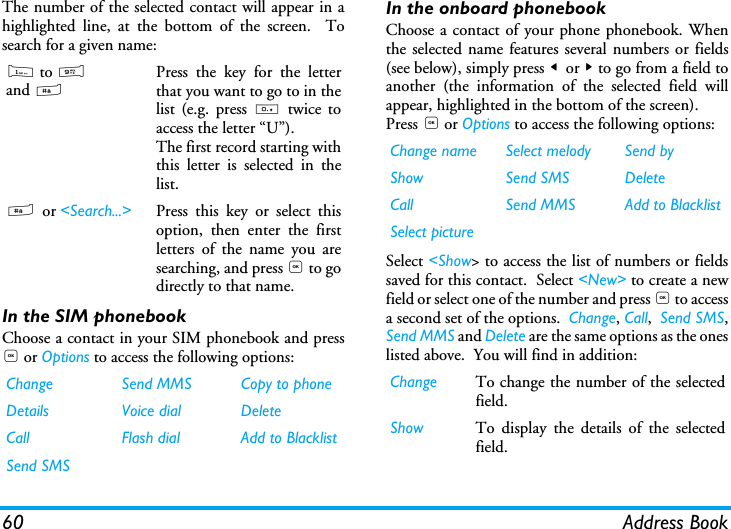

60 Address BookThe number of the selected contact will appear in ahighlighted line, at the bottom of the screen. Tosearch for a given name:In the SIM phonebookChoose a contact in your SIM phonebook and press, or Options to access the following options:In the onboard phonebookChoose a contact of your phone phonebook. Whenthe selected name features several numbers or fields(see below), simply press < or > to go from a field toanother (the information of the selected field willappear, highlighted in the bottom of the screen).Press , or Options to access the following options:Select <Show> to access the list of numbers or fieldssaved for this contact. Select <New> to create a newfield or select one of the number and press , to accessa second set of the options. Change, Call, Send SMS,Send MMS and Delete are the same options as the oneslisted above. You will find in addition:1 to 9 and # Press the key for the letterthat you want to go to in thelist (e.g. press 0 twice toaccess the letter “U”).The first record starting withthis letter is selected in thelist.# or <Search...> Press this key or select thisoption, then enter the firstletters of the name you aresearching, and press , to godirectly to that name.Change Send MMS Copy to phoneDetails Voice dial DeleteCall Flash dial Add to BlacklistSend SMSChange name Select melody Send byShow Send SMS DeleteCall Send MMS Add to BlacklistSelect pictureChange To change the number of the selectedfield.Show To display the details of the selectedfield.

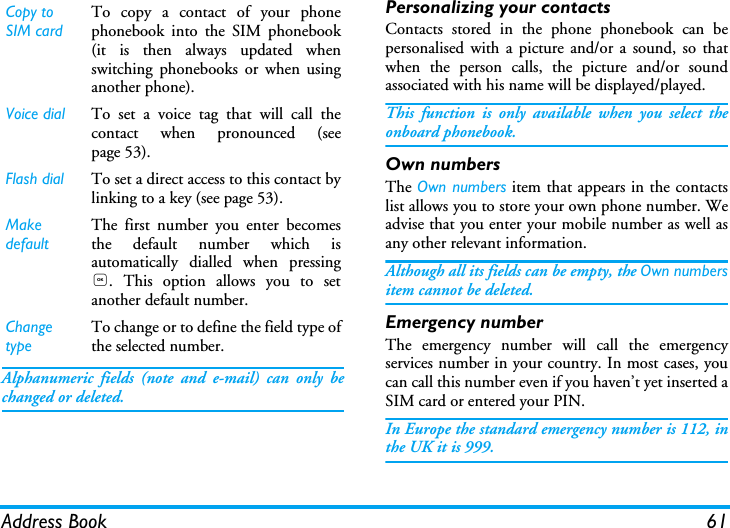

Address Book 61Alphanumeric fields (note and e-mail) can only bechanged or deleted.Personalizing your contactsContacts stored in the phone phonebook can bepersonalised with a picture and/or a sound, so thatwhen the person calls, the picture and/or soundassociated with his name will be displayed/played.This function is only available when you select theonboard phonebook.Own numbersThe Own numbers item that appears in the contactslist allows you to store your own phone number. Weadvise that you enter your mobile number as well asany other relevant information.Although all its fields can be empty, the Own numbersitem cannot be deleted.Emergency numberThe emergency number will call the emergencyservices number in your country. In most cases, youcan call this number even if you haven’t yet inserted aSIM card or entered your PIN.In Europe the standard emergency number is 112, inthe UK it is 999.Copy to SIM cardTo copy a contact of your phonephonebook into the SIM phonebook(it is then always updated whenswitching phonebooks or when usinganother phone).Voice dial To set a voice tag that will call thecontact when pronounced (seepage 53).Flash dial To set a direct access to this contact bylinking to a key (see page 53).Make defaultThe first number you enter becomesthe default number which isautomatically dialled when pressing,. This option allows you to setanother default number.Change typeTo change or to define the field type ofthe selected number.

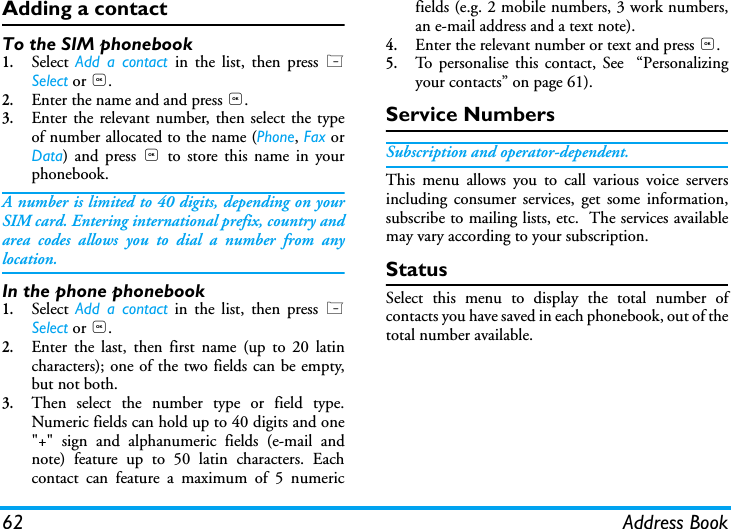

62 Address BookAdding a contact To the SIM phonebook1.Select Add a contact in the list, then press LSelect or ,.2.Enter the name and and press ,.3.Enter the relevant number, then select the typeof number allocated to the name (Phone, Fax orData) and press , to store this name in yourphonebook.A number is limited to 40 digits, depending on yourSIM card. Entering international prefix, country andarea codes allows you to dial a number from anylocation.In the phone phonebook1.Select Add a contact in the list, then press LSelect or ,.2.Enter the last, then first name (up to 20 latincharacters); one of the two fields can be empty,but not both.3.Then select the number type or field type.Numeric fields can hold up to 40 digits and one"+" sign and alphanumeric fields (e-mail andnote) feature up to 50 latin characters. Eachcontact can feature a maximum of 5 numericfields (e.g. 2 mobile numbers, 3 work numbers,an e-mail address and a text note).4.Enter the relevant number or text and press ,.5.To personalise this contact, See “Personalizingyour contacts” on page 61).Service NumbersSubscription and operator-dependent.This menu allows you to call various voice serversincluding consumer services, get some information,subscribe to mailing lists, etc. The services availablemay vary according to your subscription.StatusSelect this menu to display the total number ofcontacts you have saved in each phonebook, out of thetotal number available.

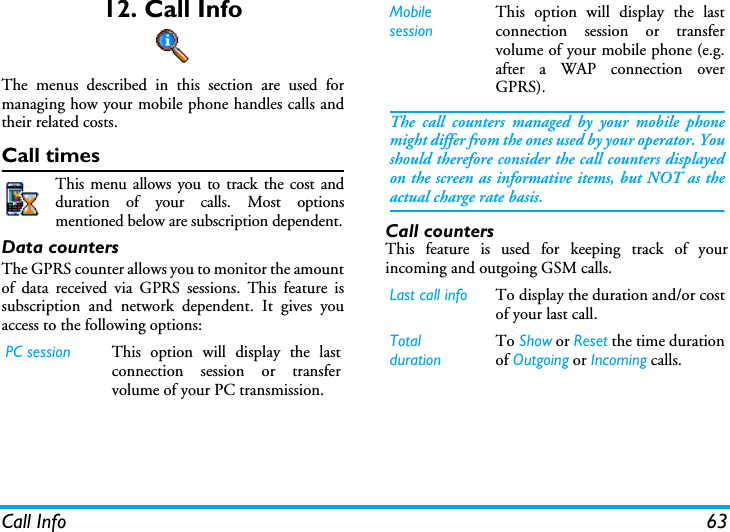

Call Info 6312. Call InfoThe menus described in this section are used formanaging how your mobile phone handles calls andtheir related costs.Call timesThis menu allows you to track the cost andduration of your calls. Most optionsmentioned below are subscription dependent.Data countersThe GPRS counter allows you to monitor the amountof data received via GPRS sessions. This feature issubscription and network dependent. It gives youaccess to the following options:Call countersThis feature is used for keeping track of yourincoming and outgoing GSM calls.PC session This option will display the lastconnection session or transfervolume of your PC transmission.MobilesessionThis option will display the lastconnection session or transfervolume of your mobile phone (e.g.after a WAP connection overGPRS).The call counters managed by your mobile phonemight differ from the ones used by your operator. Youshould therefore consider the call counters displayedon the screen as informative items, but NOT as theactual charge rate basis.Last call info To display the duration and/or costof your last call.TotaldurationTo Show or Reset the time durationof Outgoing or Incoming calls.

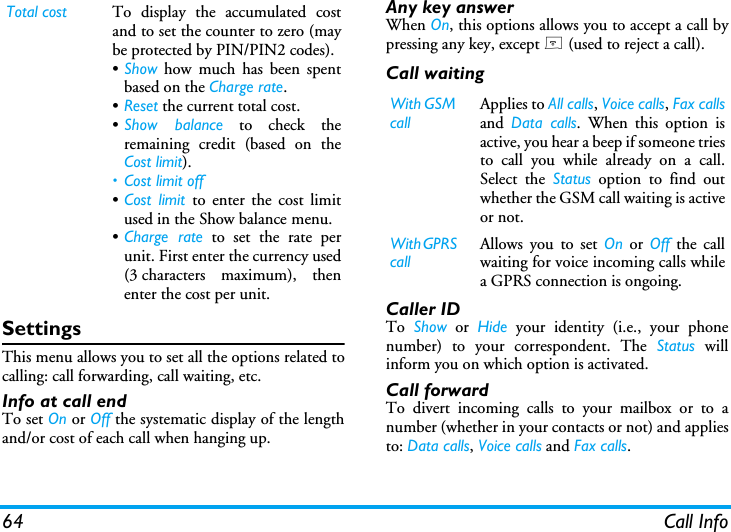

64 Call InfoSettingsThis menu allows you to set all the options related tocalling: call forwarding, call waiting, etc.Info at call endTo set On or Off the systematic display of the lengthand/or cost of each call when hanging up.Any key answerWhen On, this options allows you to accept a call bypressing any key, except ) (used to reject a call).Call waitingCaller IDTo Show or Hide your identity (i.e., your phonenumber) to your correspondent. The Status willinform you on which option is activated.Call forwardTo divert incoming calls to your mailbox or to anumber (whether in your contacts or not) and appliesto: Data calls, Voice calls and Fax calls.Total cost To display the accumulated costand to set the counter to zero (maybe protected by PIN/PIN2 codes).•Show how much has been spentbased on the Charge rate.•Reset the current total cost.•Show balance to check theremaining credit (based on theCost limit).• Cost limit off•Cost limit to enter the cost limitused in the Show balance menu.•Charge rate to set the rate perunit. First enter the currency used(3 characters maximum), thenenter the cost per unit.With GSM callApplies to All calls, Voice calls, Fax callsand Data calls. When this option isactive, you hear a beep if someone triesto call you while already on a call.Select the Status option to find outwhether the GSM call waiting is activeor not.With GPRS callAllows you to set On or Off the callwaiting for voice incoming calls whilea GPRS connection is ongoing.

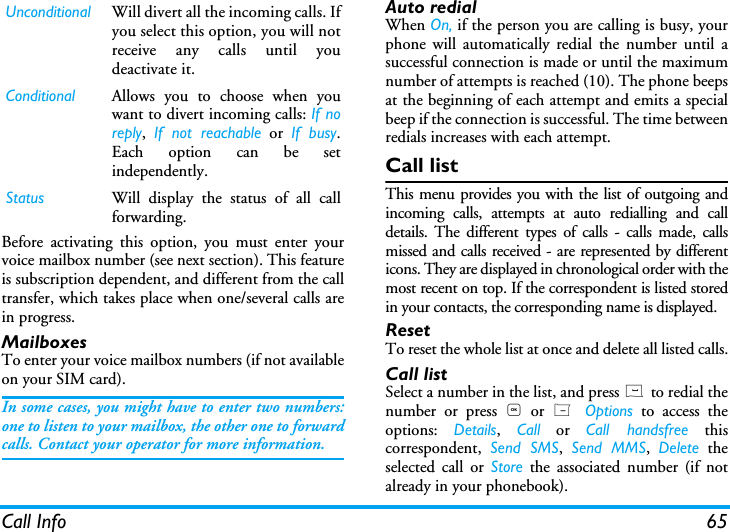

Call Info 65Before activating this option, you must enter yourvoice mailbox number (see next section). This featureis subscription dependent, and different from the calltransfer, which takes place when one/several calls arein progress.MailboxesTo enter your voice mailbox numbers (if not availableon your SIM card).In some cases, you might have to enter two numbers:one to listen to your mailbox, the other one to forwardcalls. Contact your operator for more information.Auto redialWhen On, if the person you are calling is busy, yourphone will automatically redial the number until asuccessful connection is made or until the maximumnumber of attempts is reached (10). The phone beepsat the beginning of each attempt and emits a specialbeep if the connection is successful. The time betweenredials increases with each attempt.Call listThis menu provides you with the list of outgoing andincoming calls, attempts at auto redialling and calldetails. The different types of calls - calls made, callsmissed and calls received - are represented by differenticons. They are displayed in chronological order with themost recent on top. If the correspondent is listed storedin your contacts, the corresponding name is displayed.ResetTo reset the whole list at once and delete all listed calls.Call listSelect a number in the list, and press ( to redial thenumber or press , or L Options to access theoptions: Details, Call or Call handsfree thiscorrespondent, Send SMS, Send MMS, Delete theselected call or Store the associated number (if notalready in your phonebook).Unconditional Will divert all the incoming calls. Ifyou select this option, you will notreceive any calls until youdeactivate it.Conditional Allows you to choose when youwant to divert incoming calls: If noreply, If not reachable or If busy.Each option can be setindependently.Status Will display the status of all callforwarding.

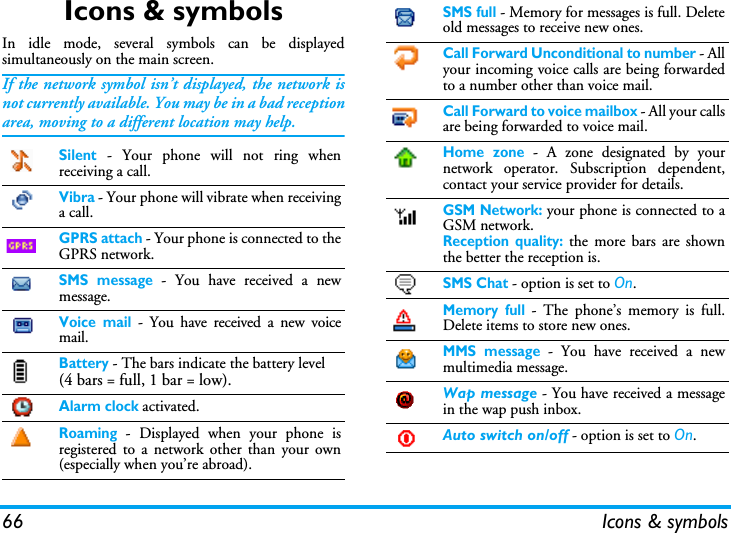

66 Icons & symbolsIcons & symbolsIn idle mode, several symbols can be displayedsimultaneously on the main screen.If the network symbol isn’t displayed, the network isnot currently available. You may be in a bad receptionarea, moving to a different location may help.Silent - Your phone will not ring whenreceiving a call.Vibra - Your phone will vibrate when receivinga call.GPRS attach - Your phone is connected to theGPRS network.SMS message - You have received a newmessage. Voice mail - You have received a new voicemail.Battery - The bars indicate the battery level (4 bars = full, 1 bar = low).Alarm clock activated.Roaming - Displayed when your phone isregistered to a network other than your own(especially when you’re abroad).SMS full - Memory for messages is full. Deleteold messages to receive new ones.Call Forward Unconditional to number - Allyour incoming voice calls are being forwardedto a number other than voice mail.Call Forward to voice mailbox - All your callsare being forwarded to voice mail.Home zone - A zone designated by yournetwork operator. Subscription dependent,contact your service provider for details.GSM Network: your phone is connected to aGSM network.Reception quality: the more bars are shownthe better the reception is.SMS Chat - option is set to On.Memory full - The phone’s memory is full.Delete items to store new ones.MMS message - You have received a newmultimedia message.Wap message - You have received a messagein the wap push inbox.Auto switch on/off - option is set to On.

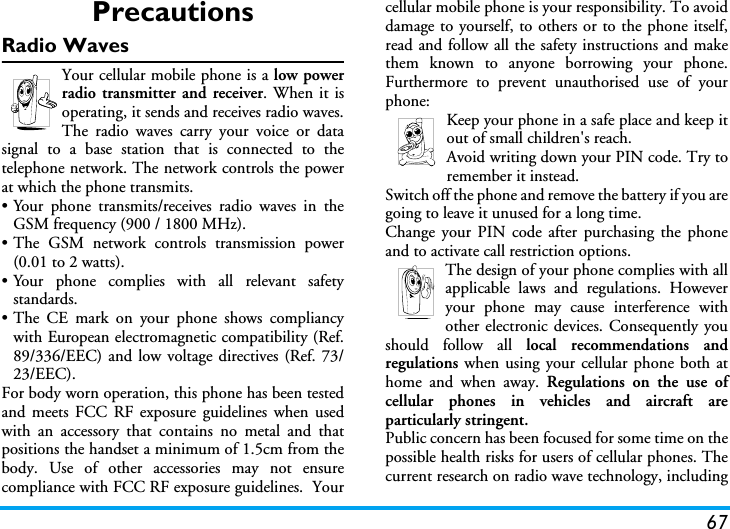

67PrecautionsRadio WavesYour cellular mobile phone is a low powerradio transmitter and receiver. When it isoperating, it sends and receives radio waves.The radio waves carry your voice or datasignal to a base station that is connected to thetelephone network. The network controls the powerat which the phone transmits.• Your phone transmits/receives radio waves in theGSM frequency (900 / 1800 MHz).• The GSM network controls transmission power(0.01 to 2 watts).• Your phone complies with all relevant safetystandards.•The CE mark on your phone shows compliancywith European electromagnetic compatibility (Ref.89/336/EEC) and low voltage directives (Ref. 73/23/EEC).For body worn operation, this phone has been testedand meets FCC RF exposure guidelines when usedwith an accessory that contains no metal and thatpositions the handset a minimum of 1.5cm from thebody. Use of other accessories may not ensurecompliance with FCC RF exposure guidelines. Yourcellular mobile phone is your responsibility. To avoiddamage to yourself, to others or to the phone itself,read and follow all the safety instructions and makethem known to anyone borrowing your phone.Furthermore to prevent unauthorised use of yourphone:Keep your phone in a safe place and keep itout of small children's reach.Avoid writing down your PIN code. Try toremember it instead. Switch off the phone and remove the battery if you aregoing to leave it unused for a long time.Change your PIN code after purchasing the phoneand to activate call restriction options.The design of your phone complies with allapplicable laws and regulations. Howeveryour phone may cause interference withother electronic devices. Consequently youshould follow all local recommendations andregulations when using your cellular phone both athome and when away. Regulations on the use ofcellular phones in vehicles and aircraft areparticularly stringent.Public concern has been focused for some time on thepossible health risks for users of cellular phones. Thecurrent research on radio wave technology, including

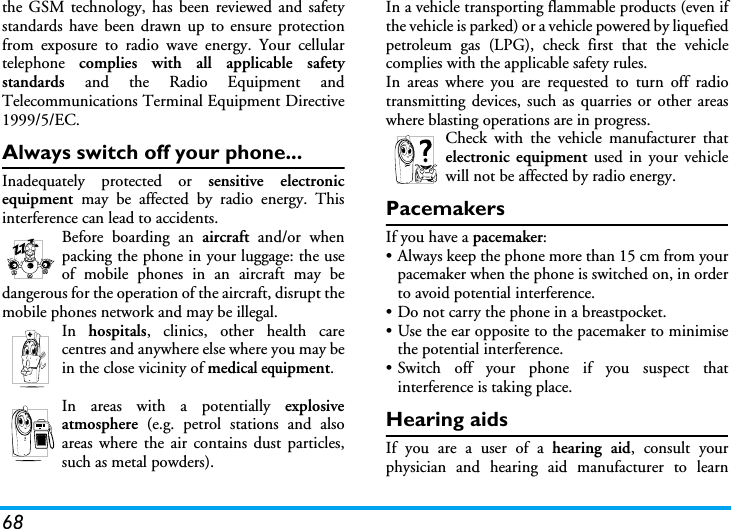

68the GSM technology, has been reviewed and safetystandards have been drawn up to ensure protectionfrom exposure to radio wave energy. Your cellulartelephone complies with all applicable safetystandards and the Radio Equipment andTelecommunications Terminal Equipment Directive1999/5/EC.Always switch off your phone...Inadequately protected or sensitive electronicequipment may be affected by radio energy. Thisinterference can lead to accidents.Before boarding an aircraft and/or whenpacking the phone in your luggage: the useof mobile phones in an aircraft may bedangerous for the operation of the aircraft, disrupt themobile phones network and may be illegal.In hospitals, clinics, other health carecentres and anywhere else where you may bein the close vicinity of medical equipment.In areas with a potentially explosiveatmosphere (e.g. petrol stations and alsoareas where the air contains dust particles,such as metal powders).In a vehicle transporting flammable products (even ifthe vehicle is parked) or a vehicle powered by liquefiedpetroleum gas (LPG), check first that the vehiclecomplies with the applicable safety rules.In areas where you are requested to turn off radiotransmitting devices, such as quarries or other areaswhere blasting operations are in progress.Check with the vehicle manufacturer thatelectronic equipment used in your vehiclewill not be affected by radio energy.PacemakersIf you have a pacemaker:• Always keep the phone more than 15 cm from yourpacemaker when the phone is switched on, in orderto avoid potential interference.• Do not carry the phone in a breastpocket.• Use the ear opposite to the pacemaker to minimisethe potential interference.• Switch off your phone if you suspect thatinterference is taking place.Hearing aidsIf you are a user of a hearing aid, consult yourphysician and hearing aid manufacturer to learn

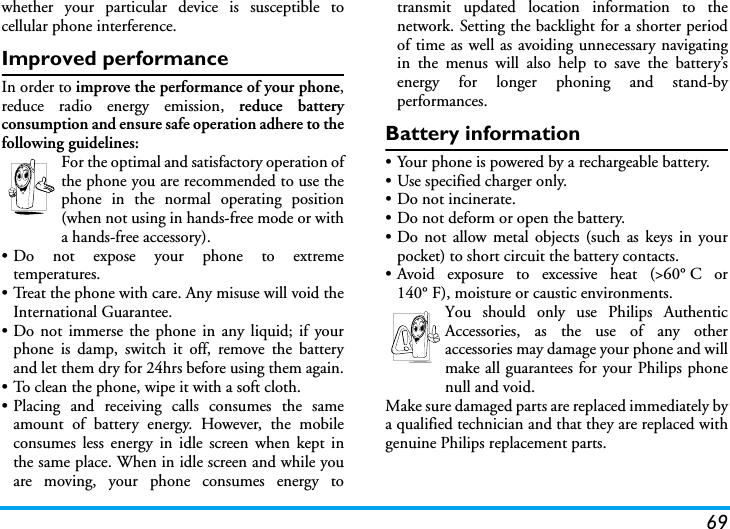

69whether your particular device is susceptible tocellular phone interference.Improved performanceIn order to improve the performance of your phone,reduce radio energy emission, reduce batteryconsumption and ensure safe operation adhere to thefollowing guidelines:For the optimal and satisfactory operation ofthe phone you are recommended to use thephone in the normal operating position(when not using in hands-free mode or witha hands-free accessory).• Do not expose your phone to extremetemperatures.• Treat the phone with care. Any misuse will void theInternational Guarantee.• Do not immerse the phone in any liquid; if yourphone is damp, switch it off, remove the batteryand let them dry for 24hrs before using them again.• To clean the phone, wipe it with a soft cloth.• Placing and receiving calls consumes the sameamount of battery energy. However, the mobileconsumes less energy in idle screen when kept inthe same place. When in idle screen and while youare moving, your phone consumes energy totransmit updated location information to thenetwork. Setting the backlight for a shorter periodof time as well as avoiding unnecessary navigatingin the menus will also help to save the battery’senergy for longer phoning and stand-byperformances.Battery information• Your phone is powered by a rechargeable battery.• Use specified charger only.• Do not incinerate.• Do not deform or open the battery.• Do not allow metal objects (such as keys in yourpocket) to short circuit the battery contacts.•Avoid exposure to excessive heat (>60°C or140° F), moisture or caustic environments.You should only use Philips AuthenticAccessories, as the use of any otheraccessories may damage your phone and willmake all guarantees for your Philips phonenull and void.Make sure damaged parts are replaced immediately bya qualified technician and that they are replaced withgenuine Philips replacement parts.

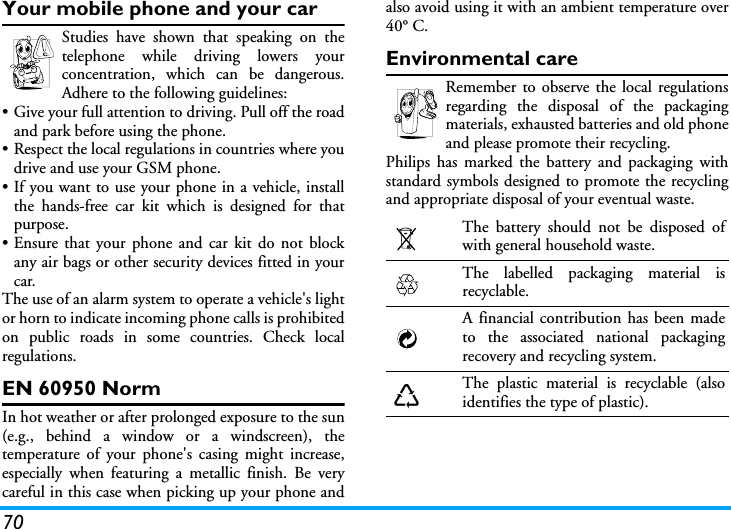

70Your mobile phone and your carStudies have shown that speaking on thetelephone while driving lowers yourconcentration, which can be dangerous.Adhere to the following guidelines:• Give your full attention to driving. Pull off the roadand park before using the phone.• Respect the local regulations in countries where youdrive and use your GSM phone.• If you want to use your phone in a vehicle, installthe hands-free car kit which is designed for thatpurpose.• Ensure that your phone and car kit do not blockany air bags or other security devices fitted in yourcar.The use of an alarm system to operate a vehicle's lightor horn to indicate incoming phone calls is prohibitedon public roads in some countries. Check localregulations.EN 60950 NormIn hot weather or after prolonged exposure to the sun(e.g., behind a window or a windscreen), thetemperature of your phone's casing might increase,especially when featuring a metallic finish. Be verycareful in this case when picking up your phone andalso avoid using it with an ambient temperature over40° C.Environmental careRemember to observe the local regulationsregarding the disposal of the packagingmaterials, exhausted batteries and old phoneand please promote their recycling.Philips has marked the battery and packaging withstandard symbols designed to promote the recyclingand appropriate disposal of your eventual waste.The battery should not be disposed ofwith general household waste.The labelled packaging material isrecyclable.A financial contribution has been madeto the associated national packagingrecovery and recycling system.The plastic material is recyclable (alsoidentifies the type of plastic).

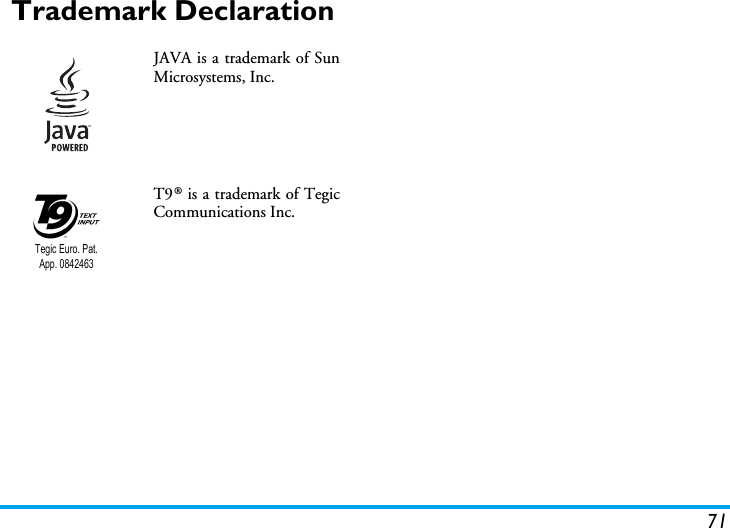

71Trademark DeclarationJAVA is a trademark of SunMicrosystems, Inc.T9® is a trademark of TegicCommunications Inc.Tegic Euro. Pat. App. 0842463

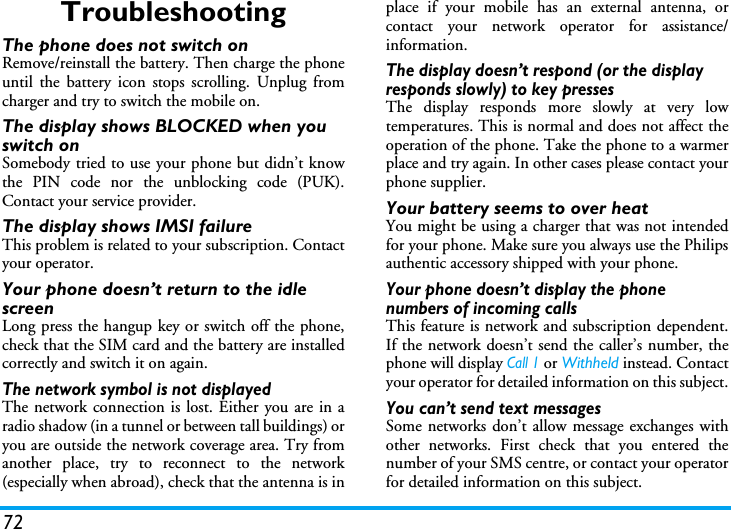

72TroubleshootingThe phone does not switch onRemove/reinstall the battery. Then charge the phoneuntil the battery icon stops scrolling. Unplug fromcharger and try to switch the mobile on.The display shows BLOCKED when you switch onSomebody tried to use your phone but didn’t knowthe PIN code nor the unblocking code (PUK).Contact your service provider.The display shows IMSI failureThis problem is related to your subscription. Contactyour operator.Your phone doesn’t return to the idle screenLong press the hangup key or switch off the phone,check that the SIM card and the battery are installedcorrectly and switch it on again.The network symbol is not displayedThe network connection is lost. Either you are in aradio shadow (in a tunnel or between tall buildings) oryou are outside the network coverage area. Try fromanother place, try to reconnect to the network(especially when abroad), check that the antenna is inplace if your mobile has an external antenna, orcontact your network operator for assistance/information.The display doesn’t respond (or the display responds slowly) to key pressesThe display responds more slowly at very lowtemperatures. This is normal and does not affect theoperation of the phone. Take the phone to a warmerplace and try again. In other cases please contact yourphone supplier.Your battery seems to over heatYou might be using a charger that was not intendedfor your phone. Make sure you always use the Philipsauthentic accessory shipped with your phone.Your phone doesn’t display the phone numbers of incoming callsThis feature is network and subscription dependent.If the network doesn’t send the caller’s number, thephone will display Call 1 or Withheld instead. Contactyour operator for detailed information on this subject.You can’t send text messagesSome networks don’t allow message exchanges withother networks. First check that you entered thenumber of your SMS centre, or contact your operatorfor detailed information on this subject.

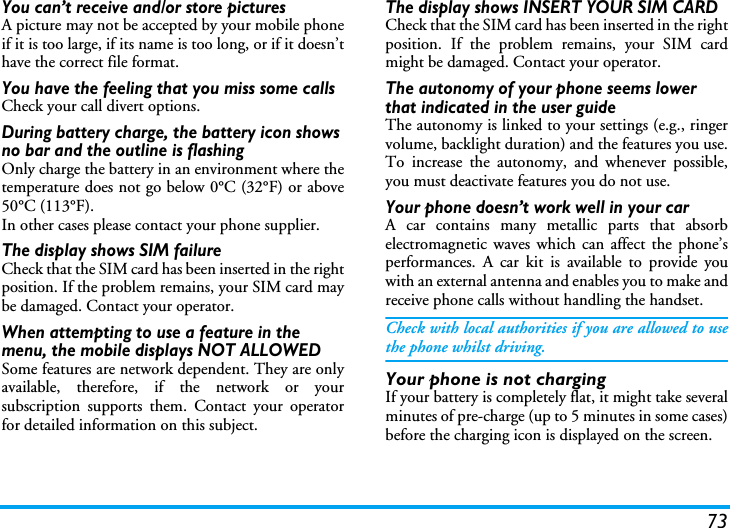

73You can’t receive and/or store picturesA picture may not be accepted by your mobile phoneif it is too large, if its name is too long, or if it doesn’thave the correct file format.You have the feeling that you miss some callsCheck your call divert options.During battery charge, the battery icon shows no bar and the outline is flashingOnly charge the battery in an environment where thetemperature does not go below 0°C (32°F) or above50°C (113°F).In other cases please contact your phone supplier.The display shows SIM failureCheck that the SIM card has been inserted in the rightposition. If the problem remains, your SIM card maybe damaged. Contact your operator.When attempting to use a feature in the menu, the mobile displays NOT ALLOWEDSome features are network dependent. They are onlyavailable, therefore, if the network or yoursubscription supports them. Contact your operatorfor detailed information on this subject.The display shows INSERT YOUR SIM CARDCheck that the SIM card has been inserted in the rightposition. If the problem remains, your SIM cardmight be damaged. Contact your operator.The autonomy of your phone seems lower that indicated in the user guideThe autonomy is linked to your settings (e.g., ringervolume, backlight duration) and the features you use.To increase the autonomy, and whenever possible,you must deactivate features you do not use.Your phone doesn’t work well in your carA car contains many metallic parts that absorbelectromagnetic waves which can affect the phone’sperformances. A car kit is available to provide youwith an external antenna and enables you to make andreceive phone calls without handling the handset.Check with local authorities if you are allowed to usethe phone whilst driving.Your phone is not chargingIf your battery is completely flat, it might take severalminutes of pre-charge (up to 5 minutes in some cases)before the charging icon is displayed on the screen.

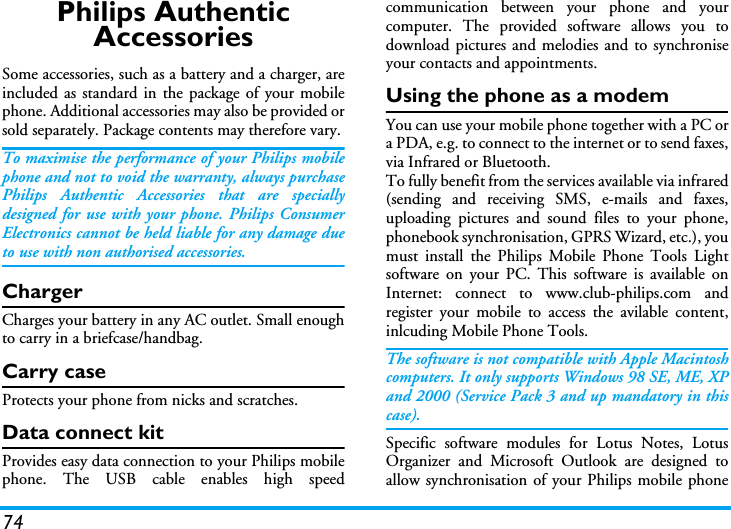

74Philips Authentic AccessoriesSome accessories, such as a battery and a charger, areincluded as standard in the package of your mobilephone. Additional accessories may also be provided orsold separately. Package contents may therefore vary.To maximise the performance of your Philips mobilephone and not to void the warranty, always purchasePhilips Authentic Accessories that are speciallydesigned for use with your phone. Philips ConsumerElectronics cannot be held liable for any damage dueto use with non authorised accessories.ChargerCharges your battery in any AC outlet. Small enoughto carry in a briefcase/handbag.Carry caseProtects your phone from nicks and scratches.Data connect kitProvides easy data connection to your Philips mobilephone. The USB cable enables high speedcommunication between your phone and yourcomputer. The provided software allows you todownload pictures and melodies and to synchroniseyour contacts and appointments.Using the phone as a modemYou can use your mobile phone together with a PC ora PDA, e.g. to connect to the internet or to send faxes,via Infrared or Bluetooth.To fully benefit from the services available via infrared(sending and receiving SMS, e-mails and faxes,uploading pictures and sound files to your phone,phonebook synchronisation, GPRS Wizard, etc.), youmust install the Philips Mobile Phone Tools Lightsoftware on your PC. This software is available onInternet: connect to www.club-philips.com andregister your mobile to access the avilable content,inlcuding Mobile Phone Tools.The software is not compatible with Apple Macintoshcomputers. It only supports Windows 98 SE, ME, XPand 2000 (Service Pack 3 and up mandatory in thiscase).Specific software modules for Lotus Notes, LotusOrganizer and Microsoft Outlook are designed toallow synchronisation of your Philips mobile phone

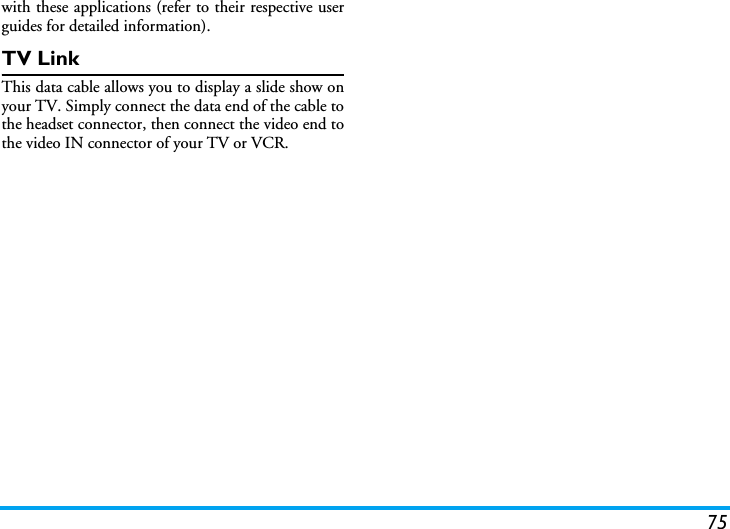

75with these applications (refer to their respective userguides for detailed information).TV LinkThis data cable allows you to display a slide show onyour TV. Simply connect the data end of the cable tothe headset connector, then connect the video end tothe video IN connector of your TV or VCR.

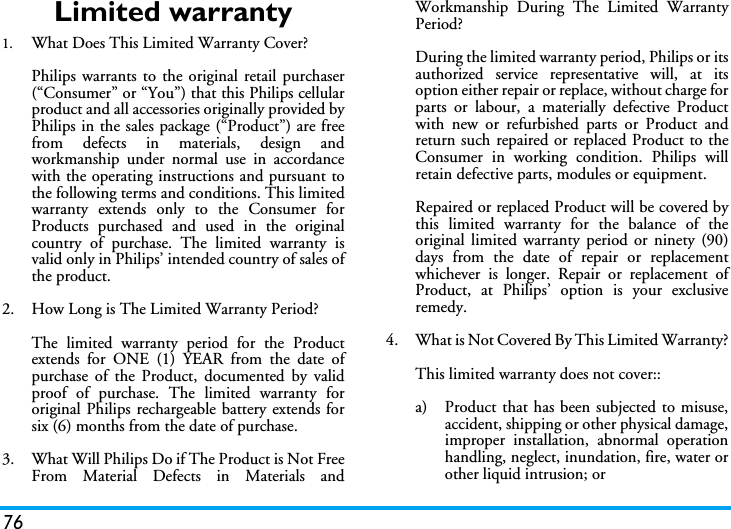

76Limited warranty1. What Does This Limited Warranty Cover?Philips warrants to the original retail purchaser(“Consumer” or “You”) that this Philips cellularproduct and all accessories originally provided byPhilips in the sales package (“Product”) are freefrom defects in materials, design andworkmanship under normal use in accordancewith the operating instructions and pursuant tothe following terms and conditions. This limitedwarranty extends only to the Consumer forProducts purchased and used in the originalcountry of purchase. The limited warranty isvalid only in Philips’ intended country of sales ofthe product.2. How Long is The Limited Warranty Period?The limited warranty period for the Productextends for ONE (1) YEAR from the date ofpurchase of the Product, documented by validproof of purchase. The limited warranty fororiginal Philips rechargeable battery extends forsix (6) months from the date of purchase.3. What Will Philips Do if The Product is Not FreeFrom Material Defects in Materials andWorkmanship During The Limited WarrantyPeriod?During the limited warranty period, Philips or itsauthorized service representative will, at itsoption either repair or replace, without charge forparts or labour, a materially defective Productwith new or refurbished parts or Product andreturn such repaired or replaced Product to theConsumer in working condition. Philips willretain defective parts, modules or equipment.Repaired or replaced Product will be covered bythis limited warranty for the balance of theoriginal limited warranty period or ninety (90)days from the date of repair or replacementwhichever is longer. Repair or replacement ofProduct, at Philips’ option is your exclusiveremedy.4. What is Not Covered By This Limited Warranty?This limited warranty does not cover::a) Product that has been subjected to misuse,accident, shipping or other physical damage,improper installation, abnormal operationhandling, neglect, inundation, fire, water orother liquid intrusion; or

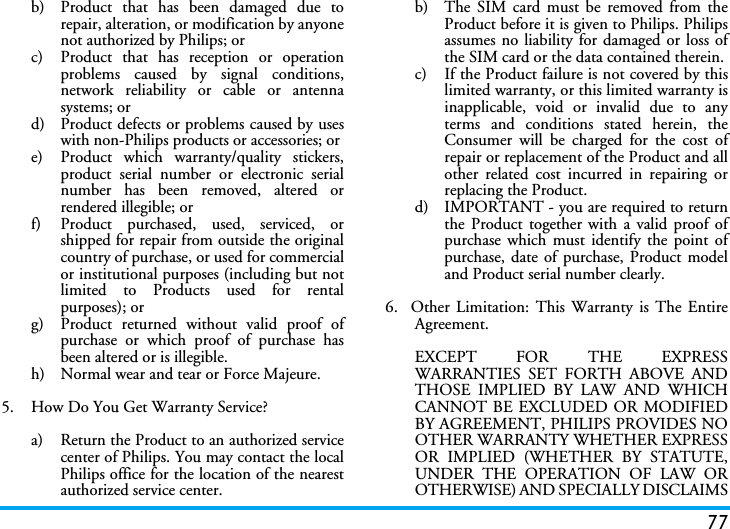

77b) Product that has been damaged due torepair, alteration, or modification by anyonenot authorized by Philips; orc) Product that has reception or operationproblems caused by signal conditions,network reliability or cable or antennasystems; ord) Product defects or problems caused by useswith non-Philips products or accessories; or e) Product which warranty/quality stickers,product serial number or electronic serialnumber has been removed, altered orrendered illegible; or f) Product purchased, used, serviced, orshipped for repair from outside the originalcountry of purchase, or used for commercialor institutional purposes (including but notlimited to Products used for rentalpurposes); or g) Product returned without valid proof ofpurchase or which proof of purchase hasbeen altered or is illegible.h) Normal wear and tear or Force Majeure.5. How Do You Get Warranty Service?a) Return the Product to an authorized servicecenter of Philips. You may contact the localPhilips office for the location of the nearestauthorized service center.b) The SIM card must be removed from theProduct before it is given to Philips. Philipsassumes no liability for damaged or loss ofthe SIM card or the data contained therein.c) If the Product failure is not covered by thislimited warranty, or this limited warranty isinapplicable, void or invalid due to anyterms and conditions stated herein, theConsumer will be charged for the cost ofrepair or replacement of the Product and allother related cost incurred in repairing orreplacing the Product.d) IMPORTANT - you are required to returnthe Product together with a valid proof ofpurchase which must identify the point ofpurchase, date of purchase, Product modeland Product serial number clearly.6. Other Limitation: This Warranty is The EntireAgreement.EXCEPT FOR THE EXPRESSWARRANTIES SET FORTH ABOVE ANDTHOSE IMPLIED BY LAW AND WHICHCANNOT BE EXCLUDED OR MODIFIEDBY AGREEMENT, PHILIPS PROVIDES NOOTHER WARRANTY WHETHER EXPRESSOR IMPLIED (WHETHER BY STATUTE,UNDER THE OPERATION OF LAW OROTHERWISE) AND SPECIALLY DISCLAIMS

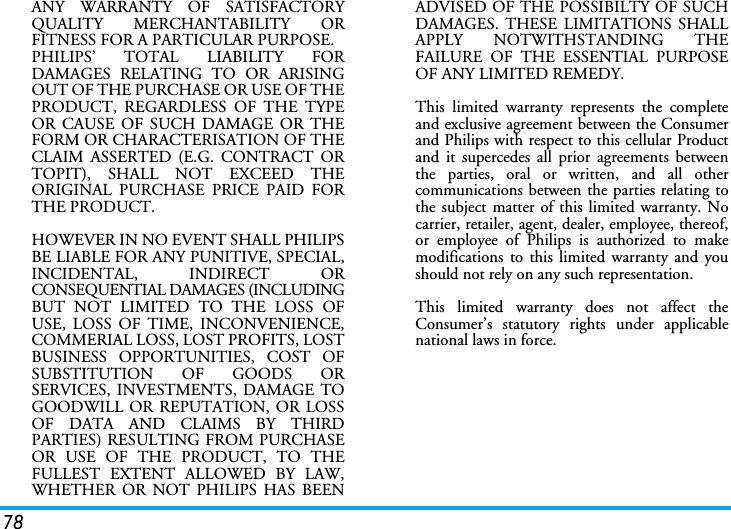

78ANY WARRANTY OF SATISFACTORYQUALITY MERCHANTABILITY ORFITNESS FOR A PARTICULAR PURPOSE.PHILIPS’ TOTAL LIABILITY FORDAMAGES RELATING TO OR ARISINGOUT OF THE PURCHASE OR USE OF THEPRODUCT, REGARDLESS OF THE TYPEOR CAUSE OF SUCH DAMAGE OR THEFORM OR CHARACTERISATION OF THECLAIM ASSERTED (E.G. CONTRACT ORTOPIT), SHALL NOT EXCEED THEORIGINAL PURCHASE PRICE PAID FORTHE PRODUCT.HOWEVER IN NO EVENT SHALL PHILIPSBE LIABLE FOR ANY PUNITIVE, SPECIAL,INCIDENTAL, INDIRECT ORCONSEQUENTIAL DAMAGES (INCLUDINGBUT NOT LIMITED TO THE LOSS OFUSE, LOSS OF TIME, INCONVENIENCE,COMMERIAL LOSS, LOST PROFITS, LOSTBUSINESS OPPORTUNITIES, COST OFSUBSTITUTION OF GOODS ORSERVICES, INVESTMENTS, DAMAGE TOGOODWILL OR REPUTATION, OR LOSSOF DATA AND CLAIMS BY THIRDPARTIES) RESULTING FROM PURCHASEOR USE OF THE PRODUCT, TO THEFULLEST EXTENT ALLOWED BY LAW,WHETHER OR NOT PHILIPS HAS BEENADVISED OF THE POSSIBILTY OF SUCHDAMAGES. THESE LIMITATIONS SHALLAPPLY NOTWITHSTANDING THEFAILURE OF THE ESSENTIAL PURPOSEOF ANY LIMITED REMEDY.This limited warranty represents the completeand exclusive agreement between the Consumerand Philips with respect to this cellular Productand it supercedes all prior agreements betweenthe parties, oral or written, and all othercommunications between the parties relating tothe subject matter of this limited warranty. Nocarrier, retailer, agent, dealer, employee, thereof,or employee of Philips is authorized to makemodifications to this limited warranty and youshould not rely on any such representation.This limited warranty does not affect theConsumer’s statutory rights under applicablenational laws in force.
