Avantech Mobile CT6558 GSM 1900 MHz Mobile Phone User Manual Philips655 GB APMEA

Avantech Mobile GSM 1900 MHz Mobile Phone Philips655 GB APMEA

Contents

Users Manual Part I

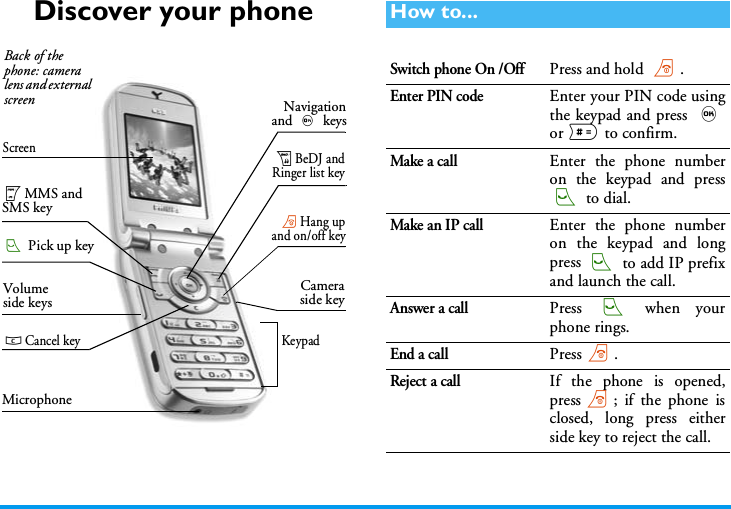

Discover your phoneKeypadMicrophoneNavigationand , keysmMMS and SMS keycCancel key( Pick up key )Hang upand on/off keyVolumeside keysScreenbBeDJ andRinger list keyBack of the phone: camera lens and external screenCameraside keyHow to...Switch phone On /OffPress and hold ).Enter PIN codeEnter your PIN code usingthe keypad and press ,or # to confirm.Make a callEnter the phone numberon the keypad and press( to dial.Make an IP callEnter the phone numberon the keypad and longpress ( to add IP prefixand launch the call.Answer a callPress ( when yourphone rings.End a callPress).Reject a callIf the phone is opened,press); if the phone isclosed, long press eitherside key to reject the call.

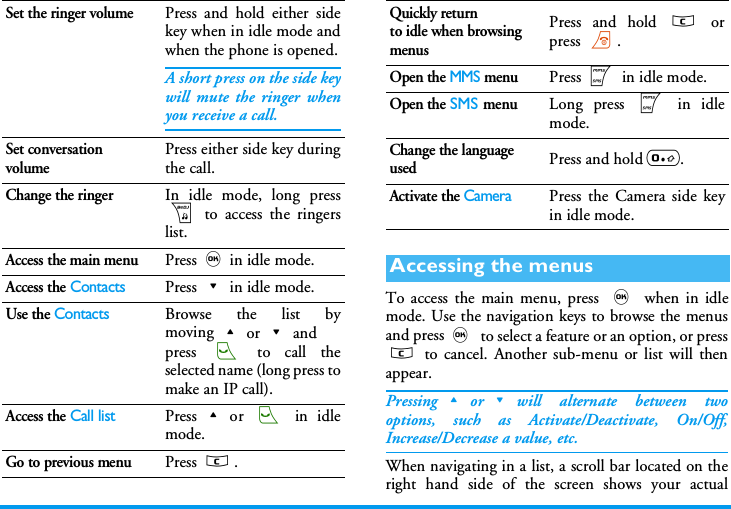

To access the main menu, press , when in idlemode. Use the navigation keys to browse the menusand press, to select a feature or an option, or pressc to cancel. Another sub-menu or list will thenappear.Pressing+or-will alternate between twooptions, such as Activate/Deactivate, On/Off,Increase/Decrease a value, etc.When navigating in a list, a scroll bar located on theright hand side of the screen shows your actualSet the ringer volumePress and hold either sidekey when in idle mode andwhen the phone is opened.A short press on the side keywill mute the ringer whenyou receive a call.Set conversationvolumePress either side key duringthe call.Change the ringerIn idle mode, long pressb to access the ringerslist.Access the main menuPress,in idle mode.Access the ContactsPress-in idle mode.Use the ContactsBrowse the list bymoving+or-andpress ( to call theselected name (long press tomake an IP call).Access the Call listPress+or ( in idlemode.Go to previous menuPress c.Quickly returnto idle when browsing menusPress and hold c orpress ).Open the MMS menuPress m in idle mode.Open the SMS menuLong press m in idlemode.Change the language usedPress and hold 0.Activate the CameraPress the Camera side keyin idle mode.Accessing the menus

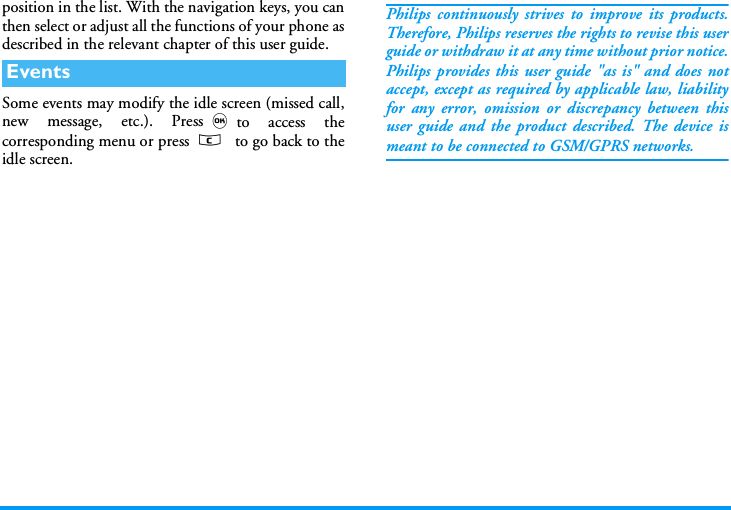

position in the list. With the navigation keys, you canthen select or adjust all the functions of your phone asdescribed in the relevant chapter of this user guide.Some events may modify the idle screen (missed call,new message, etc.). Press,to access thecorresponding menu or press c to go back to theidle screen.Philips continuously strives to improve its products.Therefore, Philips reserves the rights to revise this userguide or withdraw it at any time without prior notice.Philips provides this user guide "as is" and does notaccept, except as required by applicable law, liabilityfor any error, omission or discrepancy between thisuser guide and the product described. The device ismeant to be connected to GSM/GPRS networks.Events

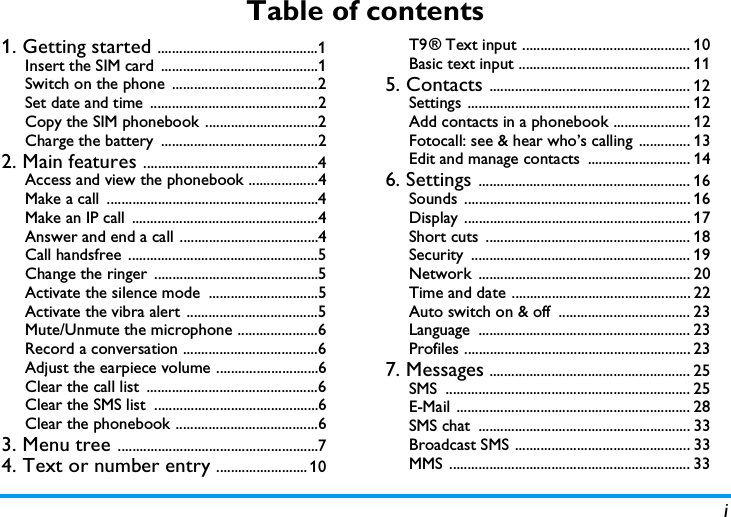

iTable of contents1. Getting started ............................................1Insert the SIM card ...........................................1Switch on the phone ........................................2Set date and time ..............................................2Copy the SIM phonebook ...............................2Charge the battery ...........................................22. Main features ................................................4Access and view the phonebook ...................4Make a call ..........................................................4Make an IP call ...................................................4Answer and end a call ......................................4Call handsfree ....................................................5Change the ringer .............................................5Activate the silence mode ..............................5Activate the vibra alert ....................................5Mute/Unmute the microphone ......................6Record a conversation .....................................6Adjust the earpiece volume ............................6Clear the call list ...............................................6Clear the SMS list .............................................6Clear the phonebook .......................................63. Menu tree .......................................................74. Text or number entry ......................... 10T9 ® Text input .............................................. 10Basic text input ............................................... 115. Contacts ....................................................... 12Settings ............................................................. 12Add contacts in a phonebook ..................... 12Fotocall: see & hear who’s calling .............. 13Edit and manage contacts ............................ 146. Settings .......................................................... 16Sounds .............................................................. 16Display .............................................................. 17Short cuts ........................................................ 18Security ............................................................ 19Network .......................................................... 20Time and date ................................................. 22Auto switch on & off .................................... 23Language .......................................................... 23Profiles .............................................................. 237. Messages ....................................................... 25SMS ................................................................... 25E-Mail ................................................................ 28SMS chat .......................................................... 33Broadcast SMS ................................................ 33MMS .................................................................. 33

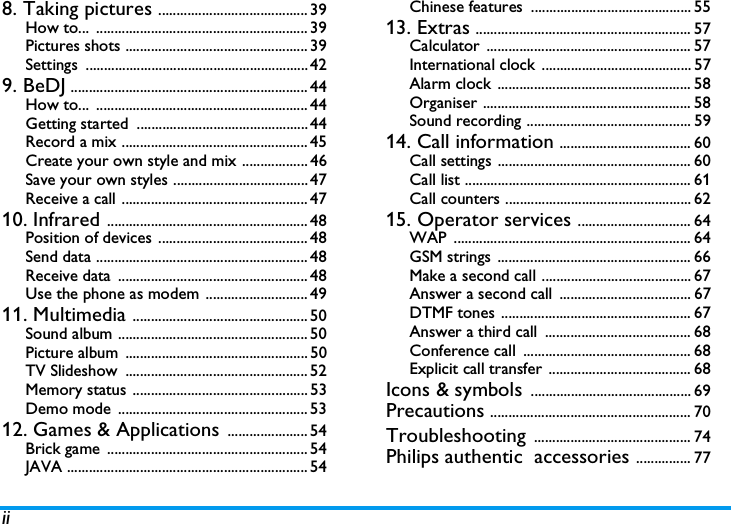

ii8. Taking pictures ......................................... 39How to... .......................................................... 39Pictures shots .................................................. 39Settings ............................................................. 429. BeDJ ................................................................. 44How to... .......................................................... 44Getting started ............................................... 44Record a mix ................................................... 45Create your own style and mix .................. 46Save your own styles ..................................... 47Receive a call ................................................... 4710. Infrared ....................................................... 48Position of devices ......................................... 48Send data .......................................................... 48Receive data .................................................... 48Use the phone as modem ............................ 4911. Multimedia ................................................ 50Sound album .................................................... 50Picture album .................................................. 50TV Slideshow .................................................. 52Memory status ................................................ 53Demo mode .................................................... 5312. Games & Applications ...................... 54Brick game ....................................................... 54JAVA .................................................................. 54Chinese features ............................................ 5513. Extras ........................................................... 57Calculator ........................................................ 57International clock ......................................... 57Alarm clock ..................................................... 58Organiser ......................................................... 58Sound recording ............................................. 5914. Call information .................................... 60Call settings ..................................................... 60Call list .............................................................. 61Call counters ................................................... 6215. Operator services ............................... 64WAP ................................................................. 64GSM strings ..................................................... 66Make a second call ......................................... 67Answer a second call .................................... 67DTMF tones .................................................... 67Answer a third call ........................................ 68Conference call .............................................. 68Explicit call transfer ....................................... 68Icons & symbols ............................................ 69Precautions ....................................................... 70Troubleshooting ........................................... 74Philips authentic accessories ............... 77

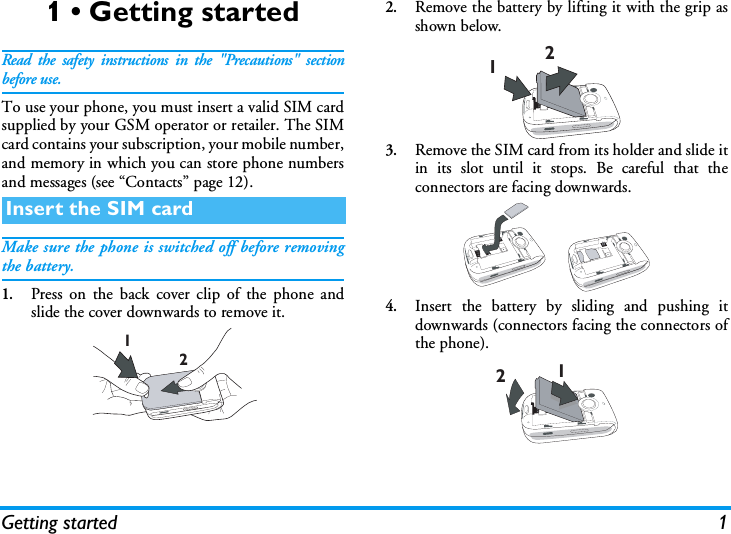

Getting started 11 • Getting startedRead the safety instructions in the "Precautions" sectionbefore use.To use your phone, you must insert a valid SIM cardsupplied by your GSM operator or retailer. The SIMcard contains your subscription, your mobile number,and memory in which you can store phone numbersand messages (see “Contacts” page 12).Make sure the phone is switched off before removingthe battery.1.Press on the back cover clip of the phone andslide the cover downwards to remove it.2.Remove the battery by lifting it with the grip asshown below.3.Remove the SIM card from its holder and slide itin its slot until it stops. Be careful that theconnectors are facing downwards.4.Insert the battery by sliding and pushing itdownwards (connectors facing the connectors ofthe phone).Insert the SIM card121212

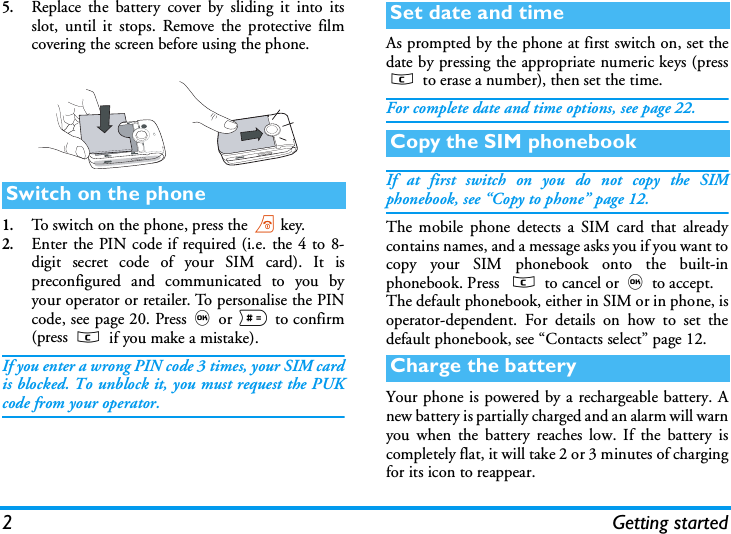

2Getting started5.Replace the battery cover by sliding it into itsslot, until it stops. Remove the protective filmcovering the screen before using the phone.1.To switch on the phone, press the)key.2.Enter the PIN code if required (i.e. the 4 to 8-digit secret code of your SIM card). It ispreconfigured and communicated to you byyour operator or retailer. To personalise the PINcode, see page 20. Press,or # to confirm(press c if you make a mistake).If you enter a wrong PIN code 3 times, your SIM cardis blocked. To unblock it, you must request the PUKcode from your operator.As prompted by the phone at first switch on, set thedate by pressing the appropriate numeric keys (pressc to erase a number), then set the time.For complete date and time options, see page 22.If at first switch on you do not copy the SIMphonebook, see “Copy to phone” page 12.The mobile phone detects a SIM card that alreadycontains names, and a message asks you if you want tocopy your SIM phonebook onto the built-inphonebook. Press c to cancel or,to accept. The default phonebook, either in SIM or in phone, isoperator-dependent. For details on how to set thedefault phonebook, see “Contacts select” page 12.Your phone is powered by a rechargeable battery. Anew battery is partially charged and an alarm will warnyou when the battery reaches low. If the battery iscompletely flat, it will take 2 or 3 minutes of chargingfor its icon to reappear.Switch on the phoneSet date and timeCopy the SIM phonebookCharge the battery

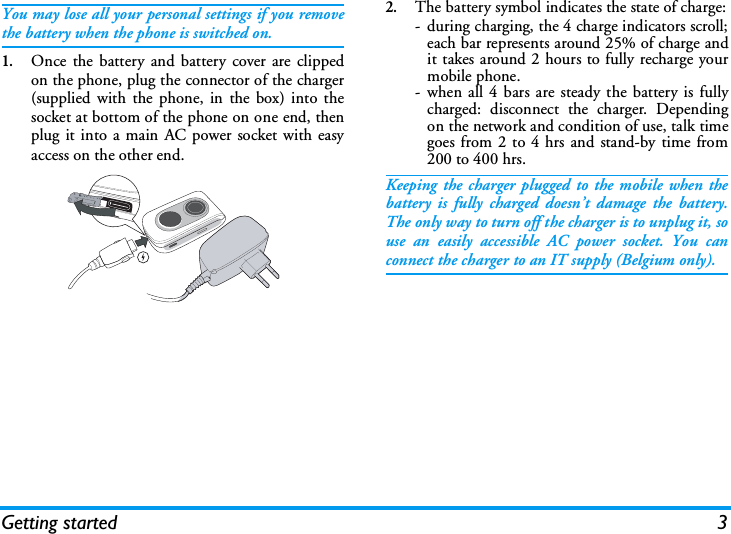

Getting started 3You may lose all your personal settings if you removethe battery when the phone is switched on.1.Once the battery and battery cover are clippedon the phone, plug the connector of the charger(supplied with the phone, in the box) into thesocket at bottom of the phone on one end, thenplug it into a main AC power socket with easyaccess on the other end.2.The battery symbol indicates the state of charge:- during charging, the 4 charge indicators scroll;each bar represents around 25% of charge andit takes around 2 hours to fully recharge yourmobile phone.- when all 4 bars are steady the battery is fullycharged: disconnect the charger. Dependingon the network and condition of use, talk timegoes from 2 to 4 hrs and stand-by time from200 to 400 hrs.Keeping the charger plugged to the mobile when thebattery is fully charged doesn’t damage the battery.The only way to turn off the charger is to unplug it, souse an easily accessible AC power socket. You canconnect the charger to an IT supply (Belgium only).

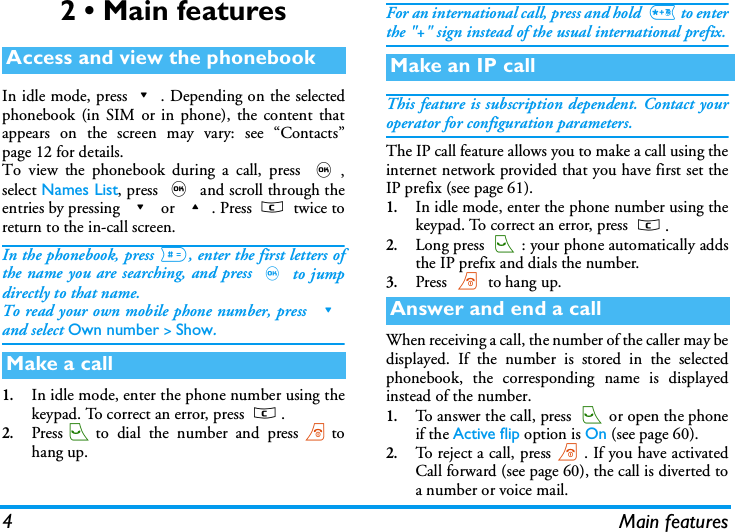

4 Main features2 • Main featuresIn idle mode, press-. Depending on the selectedphonebook (in SIM or in phone), the content thatappears on the screen may vary: see “Contacts”page 12 for details.To view the phonebook during a call, press ,,select Names List, press , and scroll through theentries by pressing - or +. Press c twice toreturn to the in-call screen.In the phonebook, press #, enter the first letters ofthe name you are searching, and press , to jumpdirectly to that name.To read your own mobile phone number, press -and select Own number > Show.1.In idle mode, enter the phone number using thekeypad. To correct an error, press c.2.Press(to dial the number and press)tohang up.For an international call, press and hold * to enterthe "+" sign instead of the usual international prefix.This feature is subscription dependent. Contact youroperator for configuration parameters.The IP call feature allows you to make a call using theinternet network provided that you have first set theIP prefix (see page 61).1.In idle mode, enter the phone number using thekeypad. To correct an error, press c.2.Long press (: your phone automatically addsthe IP prefix and dials the number.3.Press ) to hang up.When receiving a call, the number of the caller may bedisplayed. If the number is stored in the selectedphonebook, the corresponding name is displayedinstead of the number.1.To answer the call, press (or open the phoneif the Active flip option is On (see page 60).2.To reject a call, press). If you have activatedCall forward (see page 60), the call is diverted toa number or voice mail.Access and view the phonebookMake a callMake an IP callAnswer and end a call

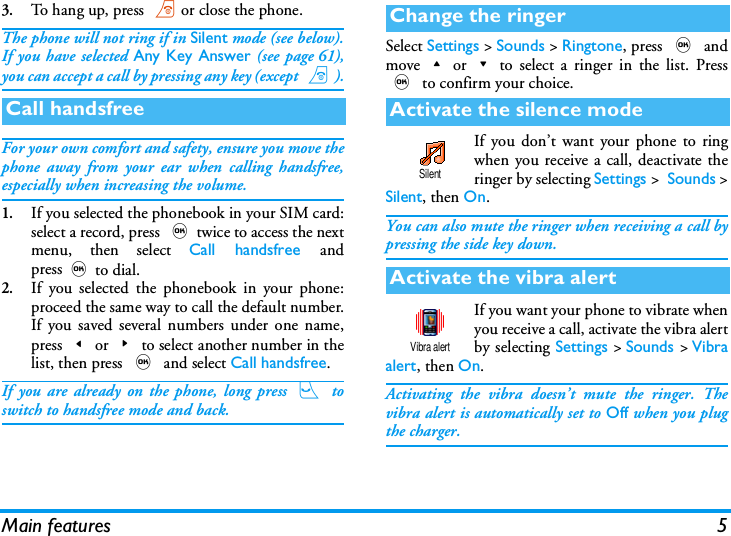

Main features 53.To hang up, press )or close the phone.The phone will not ring if in Silent mode (see below).If you have selected Any Key Answer (see page 61),you can accept a call by pressing any key (except )).For your own comfort and safety, ensure you move thephone away from your ear when calling handsfree,especially when increasing the volume.1.If you selected the phonebook in your SIM card:select a record, press ,twice to access the nextmenu, then select Call handsfree andpress,to dial.2.If you selected the phonebook in your phone:proceed the same way to call the default number.If you saved several numbers under one name,press<or>to select another number in thelist, then press , and select Call handsfree.If you are already on the phone, long press ( toswitch to handsfree mode and back.Select Settings > Sounds > Ringtone, press , andmove+or-to select a ringer in the list. Press, to confirm your choice.If you don’t want your phone to ringwhen you receive a call, deactivate theringer by selecting Settings > Sounds >Silent, then On.You can also mute the ringer when receiving a call bypressing the side key down.If you want your phone to vibrate whenyou receive a call, activate the vibra alertby selecting Settings > Sounds > Vibraalert, then On.Activating the vibra doesn’t mute the ringer. Thevibra alert is automatically set to Off when you plugthe charger.Call handsfreeChange the ringerActivate the silence modeActivate the vibra alertSilentVibra alert

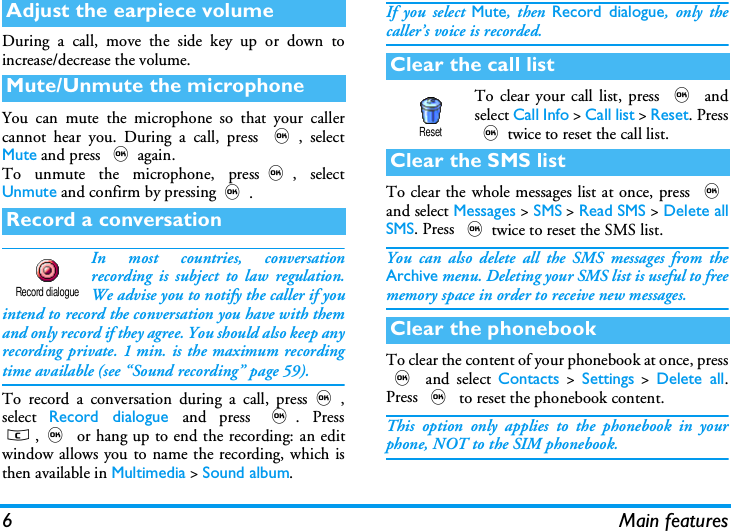

6 Main featuresDuring a call, move the side key up or down toincrease/decrease the volume.You can mute the microphone so that your callercannot hear you. During a call, press ,, selectMute and press ,again.To unmute the microphone, press,, selectUnmute and confirm by pressing,.In most countries, conversationrecording is subject to law regulation.We advise you to notify the caller if youintend to record the conversation you have with themand only record if they agree. You should also keep anyrecording private. 1 min. is the maximum recordingtime available (see “Sound recording” page 59).To record a conversation during a call, press,,select Record dialogue and press ,. Pressc,, or hang up to end the recording: an editwindow allows you to name the recording, which isthen available in Multimedia > Sound album.If you select Mute, then Record dialogue, only thecaller’s voice is recorded.To clear your call list, press , andselect Call Info > Call list > Reset. Press,twice to reset the call list.To clear the whole messages list at once, press ,and select Messages > SMS > Read SMS > Delete allSMS. Press ,twice to reset the SMS list.You can also delete all the SMS messages from theArchive menu. Deleting your SMS list is useful to freememory space in order to receive new messages.To clear the content of your phonebook at once, press, and select Contacts > Settings > Delete all.Press , to reset the phonebook content.This option only applies to the phonebook in yourphone, NOT to the SIM phonebook.Adjust the earpiece volumeMute/Unmute the microphoneRecord a conversationRecord dialogueClear the call listClear the SMS listClear the phonebookReset

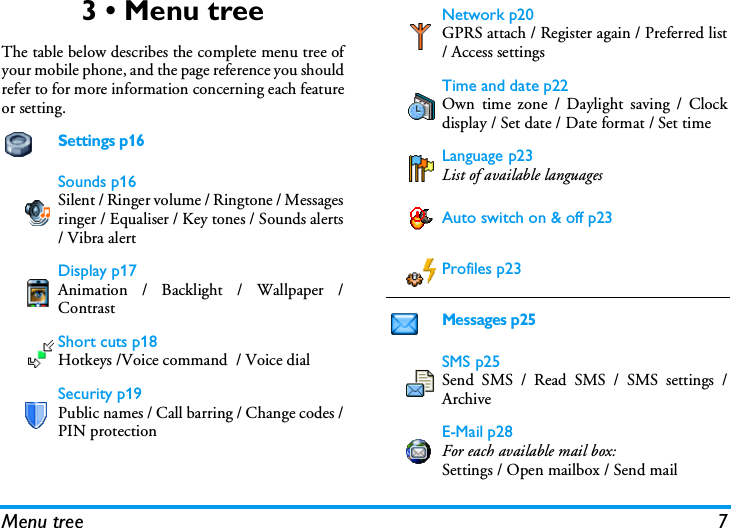

Menu tree 73 • Menu treeThe table below describes the complete menu tree ofyour mobile phone, and the page reference you shouldrefer to for more information concerning each featureor setting.Settings p16Sounds p16Silent / Ringer volume / Ringtone / Messagesringer / Equaliser / Key tones / Sounds alerts/ Vibra alertDisplay p17Animation / Backlight / Wallpaper /ContrastShort cuts p18Hotkeys /Voice command / Voice dialSecurity p19Public names / Call barring / Change codes /PIN protectionNetwork p20GPRS attach / Register again / Preferred list/ Access settingsTime and date p22Own time zone / Daylight saving / Clockdisplay / Set date / Date format / Set timeLanguage p23List of available languagesAuto switch on & off p23Profiles p23Messages p25SMS p25Send SMS / Read SMS / SMS settings /ArchiveE-Mail p28For each available mail box:Settings / Open mailbox / Send mail

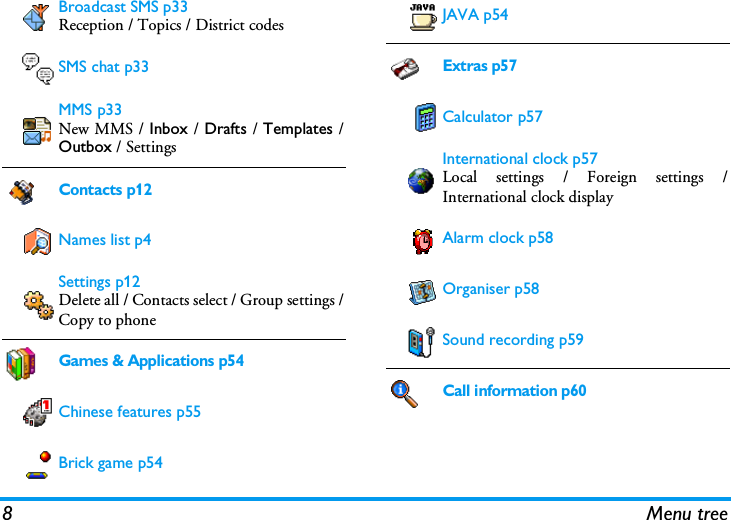

8 Menu treeBroadcast SMS p33Reception / Topics / District codesSMS chat p33MMS p33New MMS / Inbox / Drafts / Templates /Outbox / SettingsContacts p12Names list p4Settings p12Delete all / Contacts select / Group settings /Copy to phoneGames & Applications p54Chinese features p55Brick game p54JAVA p54Extras p57Calculator p57International clock p57Local settings / Foreign settings /International clock displayAlarm clock p58Organiser p58Sound recording p59Call information p60

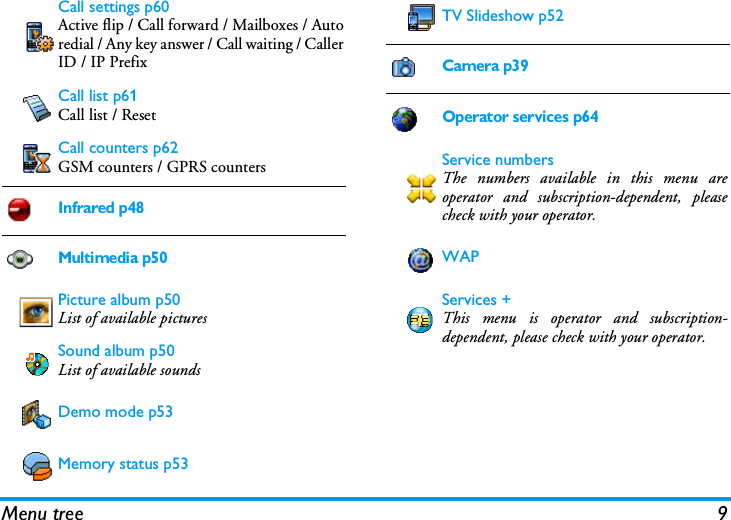

Menu tree 9Call settings p60Active flip / Call forward / Mailboxes / Autoredial / Any key answer / Call waiting / CallerID / IP PrefixCall list p61Call list / ResetCall counters p62GSM counters / GPRS countersInfrared p48Multimedia p50Picture album p50List of available picturesSound album p50List of available soundsDemo mode p53Memory status p53TV Slideshow p52Camera p39Operator services p64Service numbersThe numbers available in this menu areoperator and subscription-dependent, pleasecheck with your operator.WAPServices +This menu is operator and subscription-dependent, please check with your operator.

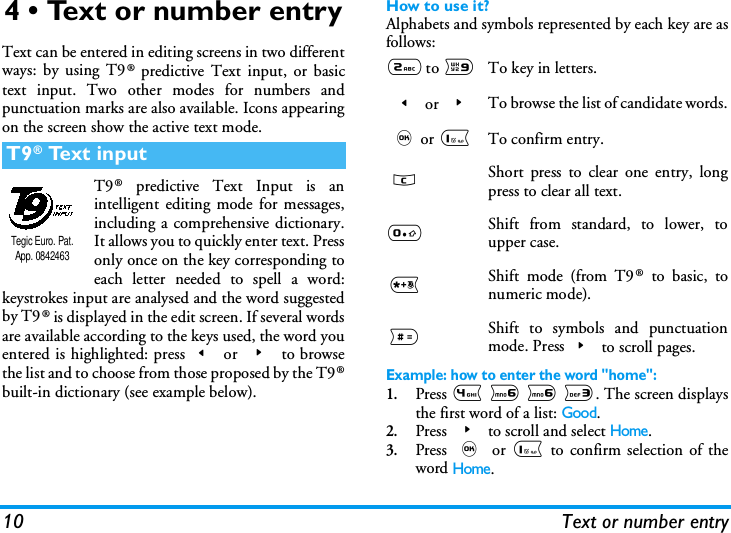

10 Text or number entry4 • Text or number entryText can be entered in editing screens in two differentways: by using T9® predictive Text input, or basictext input. Two other modes for numbers andpunctuation marks are also available. Icons appearingon the screen show the active text mode.T9® predictive Text Input is anintelligent editing mode for messages,including a comprehensive dictionary.It allows you to quickly enter text. Pressonly once on the key corresponding toeach letter needed to spell a word:keystrokes input are analysed and the word suggestedby T9® is displayed in the edit screen. If several wordsare available according to the keys used, the word youentered is highlighted: press< or > to browsethe list and to choose from those proposed by the T9®built-in dictionary (see example below).How to use it?Alphabets and symbols represented by each key are asfollows:Example: how to enter the word "home":1.Press 4 6 6 3. The screen displaysthe first word of a list: Good.2.Press > to scroll and select Home.3.Press , or 1 to confirm selection of theword Home.T9® Text inputTegic Euro. Pat. App. 08424632 to 9To key in letters.< or >To browse the list of candidate words.,or 1To confirm entry.c Short press to clear one entry, longpress to clear all text.0Shift from standard, to lower, toupper case.*Shift mode (from T9 ® to basic, tonumeric mode).#Shift to symbols and punctuationmode. Press> to scroll pages.

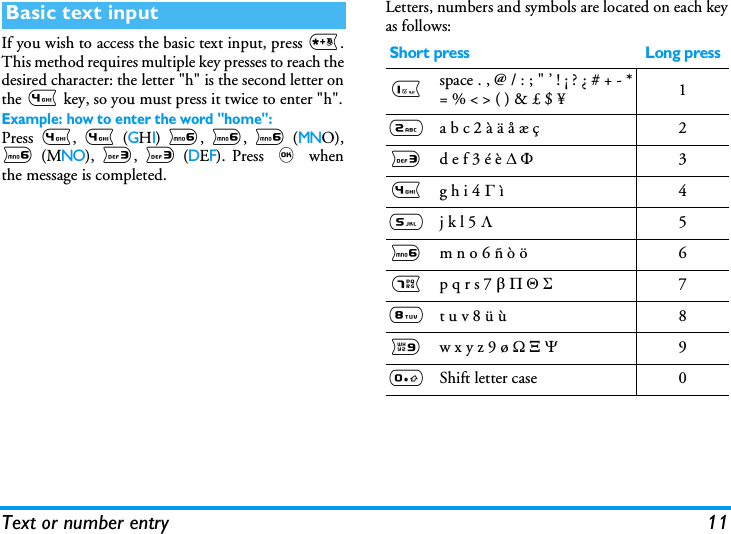

Text or number entry 11If you wish to access the basic text input, press *.This method requires multiple key presses to reach thedesired character: the letter "h" is the second letter onthe 4 key, so you must press it twice to enter "h".Example: how to enter the word "home":Press 4, 4 (GHI) 6, 6, 6 (MNO),6 (MNO), 3, 3 (DEF). Press , whenthe message is completed.Letters, numbers and symbols are located on each keyas follows:Basic text inputShort press Long press1space . , @ / : ; " ’ ! ¡ ? ¿ # + - *= % < > ( ) & £ $ ¥ 12a b c 2 à ä å æ ç 23d e f 3 é è D F34g h i 4 G ì45j k l 5 L56m n o 6 ñ ò ö 67p q r s 7 b P Q S78t u v 8 ü ù 89w x y z 9 ø W X Y90Shift letter case 0

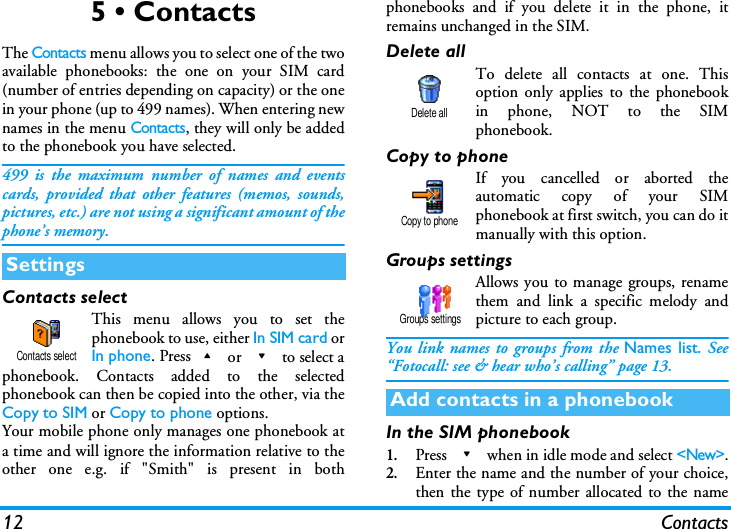

12 Contacts5 • ContactsThe Contacts menu allows you to select one of the twoavailable phonebooks: the one on your SIM card(number of entries depending on capacity) or the onein your phone (up to 499 names). When entering newnames in the menu Contacts, they will only be addedto the phonebook you have selected.499 is the maximum number of names and eventscards, provided that other features (memos, sounds,pictures, etc.) are not using a significant amount of thephone’s memory.Contacts selectThis menu allows you to set thephonebook to use, either In SIM card orIn phone. Press+ or - to select aphonebook. Contacts added to the selectedphonebook can then be copied into the other, via theCopy to SIM or Copy to phone options.Your mobile phone only manages one phonebook ata time and will ignore the information relative to theother one e.g. if "Smith" is present in bothphonebooks and if you delete it in the phone, itremains unchanged in the SIM.Delete allTo delete all contacts at one. Thisoption only applies to the phonebookin phone, NOT to the SIMphonebook.Copy to phoneIf you cancelled or aborted theautomatic copy of your SIMphonebook at first switch, you can do itmanually with this option.Groups settingsAllows you to manage groups, renamethem and link a specific melody andpicture to each group.You link names to groups from the Names list. See“Fotocall: see & hear who’s calling” page 13.In the SIM phonebook1.Press - when in idle mode and select <New>.2.Enter the name and the number of your choice,then the type of number allocated to the nameSettingsContacts selectAdd contacts in a phonebookDelete allCopy to phoneGroups settings

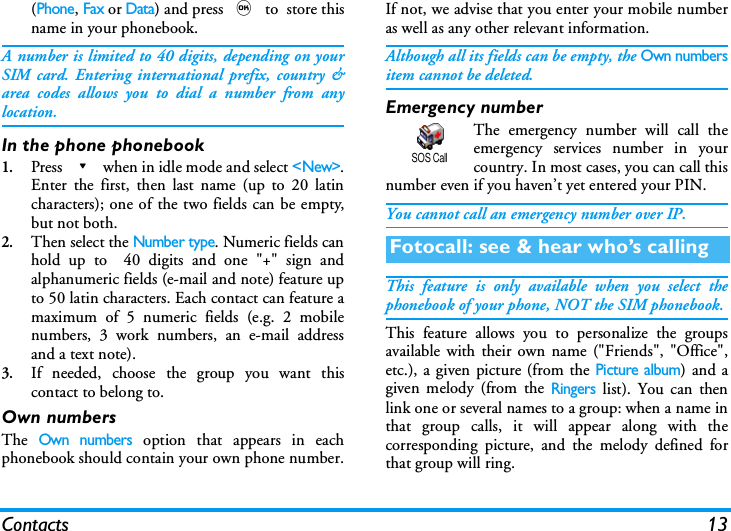

Contacts 13(Phone, Fax or Data) and press , to store thisname in your phonebook.A number is limited to 40 digits, depending on yourSIM card. Entering international prefix, country &area codes allows you to dial a number from anylocation.In the phone phonebook1.Press - when in idle mode and select <New>.Enter the first, then last name (up to 20 latincharacters); one of the two fields can be empty,but not both.2.Then select the Number type. Numeric fields canhold up to 40 digits and one "+" sign andalphanumeric fields (e-mail and note) feature upto 50 latin characters. Each contact can feature amaximum of 5 numeric fields (e.g. 2 mobilenumbers, 3 work numbers, an e-mail addressand a text note).3.If needed, choose the group you want thiscontact to belong to. Own numbersThe Own numbers option that appears in eachphonebook should contain your own phone number.If not, we advise that you enter your mobile numberas well as any other relevant information.Although all its fields can be empty, the Own numbersitem cannot be deleted.Emergency numberThe emergency number will call theemergency services number in yourcountry. In most cases, you can call thisnumber even if you haven’t yet entered your PIN.You cannot call an emergency number over IP.This feature is only available when you select thephonebook of your phone, NOT the SIM phonebook.This feature allows you to personalize the groupsavailable with their own name ("Friends", "Office",etc.), a given picture (from the Picture album) and agiven melody (from the Ringers list). You can thenlink one or several names to a group: when a name inthat group calls, it will appear along with thecorresponding picture, and the melody defined forthat group will ring.Fotocall: see & hear who’s callingSOS Call

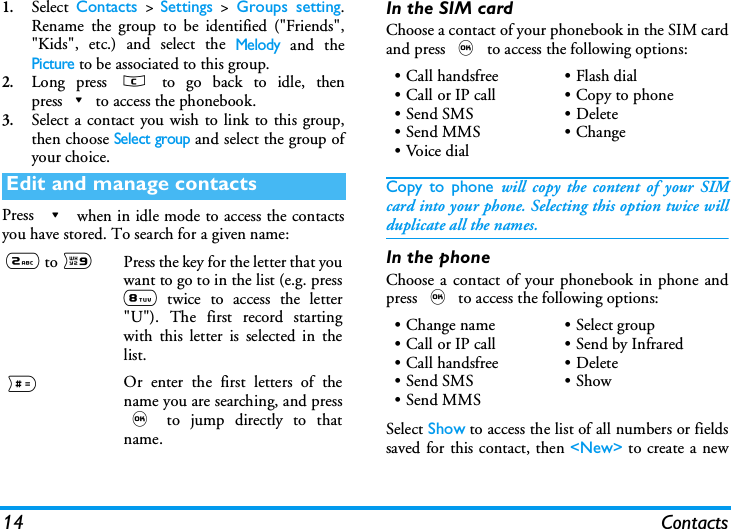

14 Contacts1.Select Contacts > Settings > Groups setting.Rename the group to be identified ("Friends","Kids", etc.) and select the Melody and thePicture to be associated to this group.2.Long press c to go back to idle, thenpress-to access the phonebook. 3.Select a contact you wish to link to this group,then choose Select group and select the group ofyour choice.Press - when in idle mode to access the contactsyou have stored. To search for a given name:In the SIM cardChoose a contact of your phonebook in the SIM cardand press , to access the following options:Copy to phone will copy the content of your SIMcard into your phone. Selecting this option twice willduplicate all the names.In the phoneChoose a contact of your phonebook in phone andpress , to access the following options:Select Show to access the list of all numbers or fieldssaved for this contact, then <New> to create a newEdit and manage contacts2 to 9Press the key for the letter that youwant to go to in the list (e.g. press8 twice to access the letter"U"). The first record startingwith this letter is selected in thelist.#Or enter the first letters of thename you are searching, and press, to jump directly to thatname.• Call handsfree•Call or IP call•Send SMS•Send MMS•Voice dial•Flash dial• Copy to phone• Delete•Change• Change name•Call or IP call• Call handsfree•Send SMS• Send MMS•Select group• Send by Infrared • Delete•Show

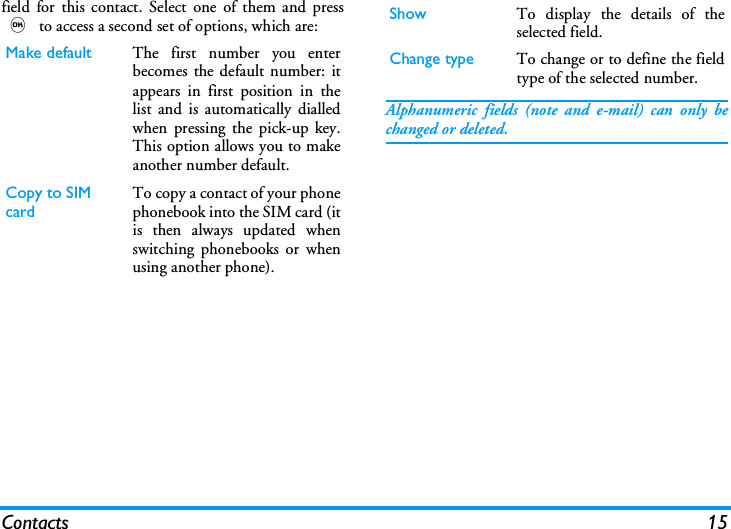

Contacts 15field for this contact. Select one of them and press, to access a second set of options, which are:Alphanumeric fields (note and e-mail) can only bechanged or deleted.Make default The first number you enterbecomes the default number: itappears in first position in thelist and is automatically dialledwhen pressing the pick-up key.This option allows you to makeanother number default.Copy to SIM cardTo copy a contact of your phonephonebook into the SIM card (itis then always updated whenswitching phonebooks or whenusing another phone).Show To display the details of theselected field.Change type To change or to define the fieldtype of the selected number.

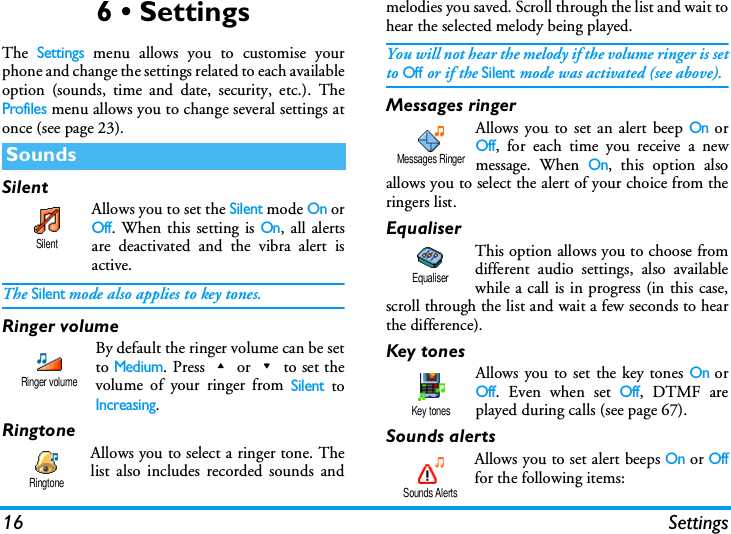

16 Settings6 • SettingsThe Settings menu allows you to customise yourphone and change the settings related to each availableoption (sounds, time and date, security, etc.). TheProfiles menu allows you to change several settings atonce (see page 23).SilentAllows you to set the Silent mode On orOff. When this setting is On, all alertsare deactivated and the vibra alert isactive.The Silent mode also applies to key tones.Ringer volume By default the ringer volume can be setto Medium. Press+or-to set thevolume of your ringer from Silent toIncreasing.RingtoneAllows you to select a ringer tone. Thelist also includes recorded sounds andmelodies you saved. Scroll through the list and wait tohear the selected melody being played.You will not hear the melody if the volume ringer is setto Off or if the Silent mode was activated (see above).Messages ringerAllows you to set an alert beep On orOff, for each time you receive a newmessage. When On, this option alsoallows you to select the alert of your choice from theringers list.EqualiserThis option allows you to choose fromdifferent audio settings, also availablewhile a call is in progress (in this case,scroll through the list and wait a few seconds to hearthe difference).Key tonesAllows you to set the key tones On orOff. Even when set Off, DTMF areplayed during calls (see page 67).Sounds alertsAllows you to set alert beeps On or Offfor the following items:SoundsSilentRinger volumeRingtoneMessages RingerEqualiserKey tonesSounds Alerts

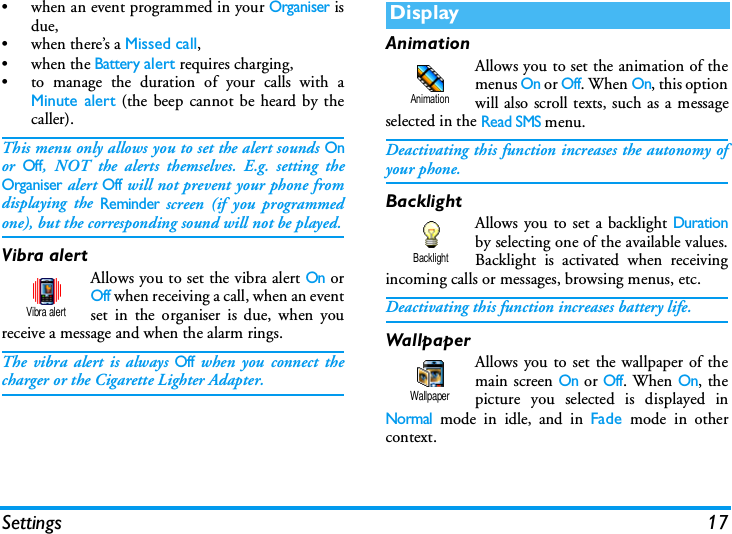

Settings 17• when an event programmed in your Organiser isdue,• when there’s a Missed call,•when the Battery alert requires charging,• to manage the duration of your calls with aMinute alert (the beep cannot be heard by thecaller).This menu only allows you to set the alert sounds Onor Off, NOT the alerts themselves. E.g. setting theOrganiser alert Off will not prevent your phone fromdisplaying the Reminder screen (if you programmedone), but the corresponding sound will not be played.Vibra alertAllows you to set the vibra alert On orOff when receiving a call, when an eventset in the organiser is due, when youreceive a message and when the alarm rings.The vibra alert is always Off when you connect thecharger or the Cigarette Lighter Adapter.AnimationAllows you to set the animation of themenus On or Off. When On, this optionwill also scroll texts, such as a messageselected in the Read SMS menu.Deactivating this function increases the autonomy ofyour phone.BacklightAllows you to set a backlight Durationby selecting one of the available values.Backlight is activated when receivingincoming calls or messages, browsing menus, etc.Deactivating this function increases battery life.WallpaperAllows you to set the wallpaper of themain screen On or Off. When On, thepicture you selected is displayed inNormal mode in idle, and in Fade mode in othercontext.Vibra alertDisplayAnimationBacklightWallpaper

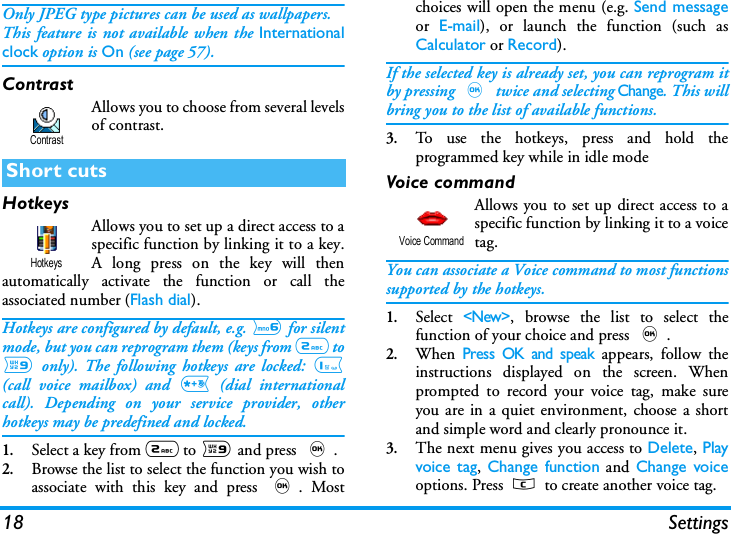

18 SettingsOnly JPEG type pictures can be used as wallpapers.This feature is not available when the Internationalclock option is On (see page 57).ContrastAllows you to choose from several levelsof contrast.HotkeysAllows you to set up a direct access to aspecific function by linking it to a key.A long press on the key will thenautomatically activate the function or call theassociated number (Flash dial).Hotkeys are configured by default, e.g. 6 for silentmode, but you can reprogram them (keys from 2 to9 only). The following hotkeys are locked: 1(call voice mailbox) and * (dial internationalcall). Depending on your service provider, otherhotkeys may be predefined and locked. 1.Select a key from 2 to 9 and press ,.2.Browse the list to select the function you wish toassociate with this key and press ,. Mostchoices will open the menu (e.g. Send messageor E-mail), or launch the function (such asCalculator or Record).If the selected key is already set, you can reprogram itby pressing , twice and selecting Change. This willbring you to the list of available functions.3.To use the hotkeys, press and hold theprogrammed key while in idle modeVoice commandAllows you to set up direct access to aspecific function by linking it to a voicetag.You can associate a Voice command to most functionssupported by the hotkeys.1.Select <New>, browse the list to select thefunction of your choice and press ,.2.When Press OK and speak appears, follow theinstructions displayed on the screen. Whenprompted to record your voice tag, make sureyou are in a quiet environment, choose a shortand simple word and clearly pronounce it.3.The next menu gives you access to Delete, Playvoice tag, Change function and Change voiceoptions. Press c to create another voice tag.Short cutsContrastHotkeysVoice Command

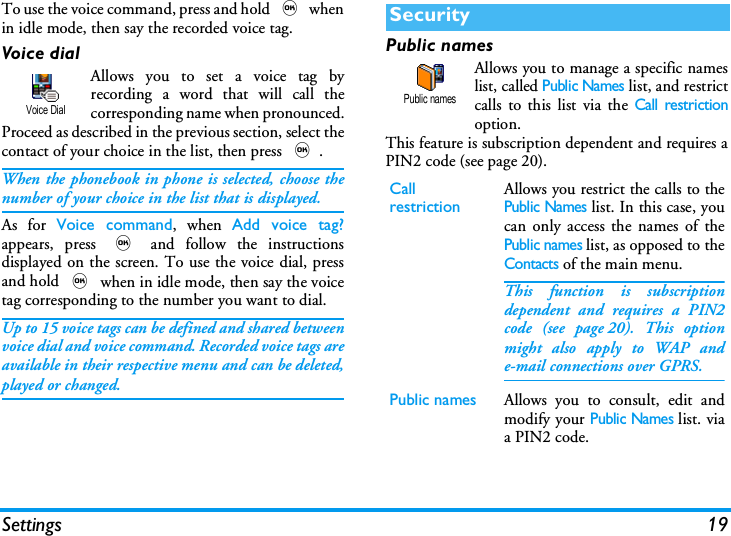

Settings 19To use the voice command, press and hold , whenin idle mode, then say the recorded voice tag.Voice dialAllows you to set a voice tag byrecording a word that will call thecorresponding name when pronounced.Proceed as described in the previous section, select thecontact of your choice in the list, then press ,.When the phonebook in phone is selected, choose thenumber of your choice in the list that is displayed.As for Voice command, when Add voice tag?appears, press , and follow the instructionsdisplayed on the screen. To use the voice dial, pressand hold , when in idle mode, then say the voicetag corresponding to the number you want to dial.Up to 15 voice tags can be defined and shared betweenvoice dial and voice command. Recorded voice tags areavailable in their respective menu and can be deleted,played or changed.Public namesAllows you to manage a specific nameslist, called Public Names list, and restrictcalls to this list via the Call restrictionoption.This feature is subscription dependent and requires aPIN2 code (see page 20).Voice DialSecurityCallrestrictionAllows you restrict the calls to thePublic Names list. In this case, youcan only access the names of thePublic names list, as opposed to theContacts of the main menu.This function is subscriptiondependent and requires a PIN2code (see page 20). This optionmight also apply to WAP ande-mail connections over GPRS.Public names Allows you to consult, edit andmodify your Public Names list. viaa PIN2 code.Public names

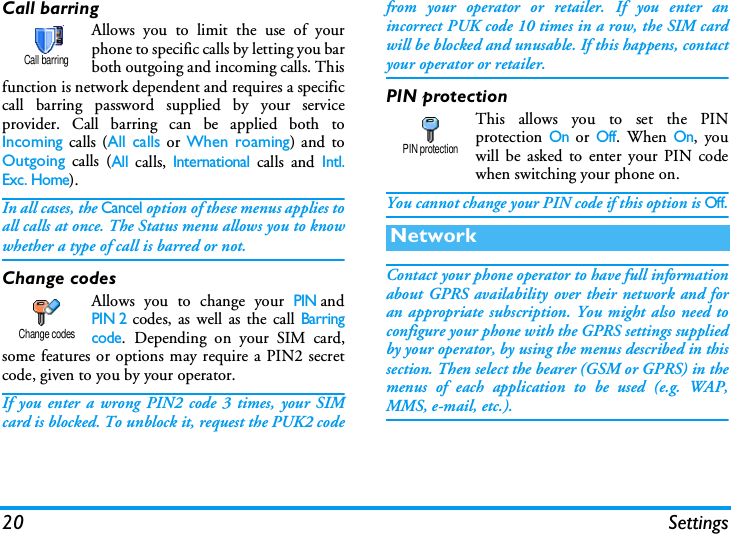

20 SettingsCall barringAllows you to limit the use of yourphone to specific calls by letting you barboth outgoing and incoming calls. Thisfunction is network dependent and requires a specificcall barring password supplied by your serviceprovider. Call barring can be applied both toIncoming calls (All calls or When roaming) and toOutgoing calls (All calls, International calls and Intl.Exc. Home). In all cases, the Cancel option of these menus applies toall calls at once. The Status menu allows you to knowwhether a type of call is barred or not.Change codesAllows you to change your PINandPIN 2 codes, as well as the call Barringcode. Depending on your SIM card,some features or options may require a PIN2 secretcode, given to you by your operator.If you enter a wrong PIN2 code 3 times, your SIMcard is blocked. To unblock it, request the PUK2 codefrom your operator or retailer. If you enter anincorrect PUK code 10 times in a row, the SIM cardwill be blocked and unusable. If this happens, contactyour operator or retailer.PIN protectionThis allows you to set the PINprotection On or Off. When On, youwill be asked to enter your PIN codewhen switching your phone on.You cannot change your PIN code if this option is Off.Contact your phone operator to have full informationabout GPRS availability over their network and foran appropriate subscription. You might also need toconfigure your phone with the GPRS settings suppliedby your operator, by using the menus described in thissection. Then select the bearer (GSM or GPRS) in themenus of each application to be used (e.g. WAP,MMS, e-mail, etc.).Call barringChange codesNetworkPIN protection

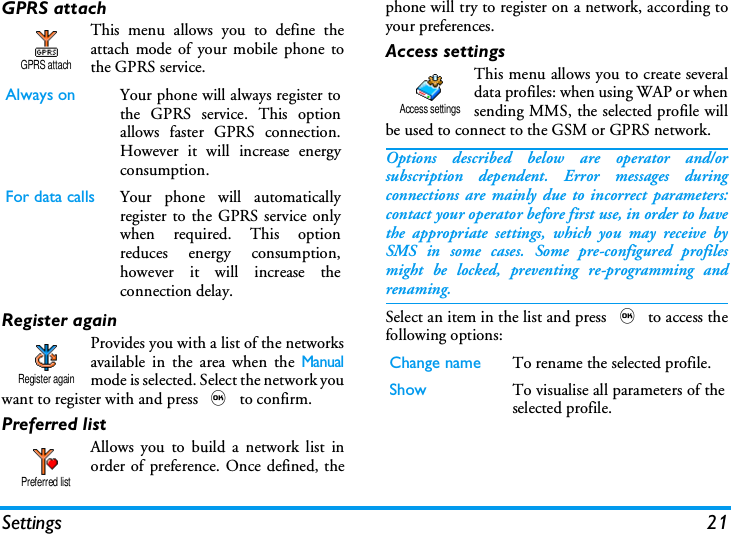

Settings 21GPRS attachThis menu allows you to define theattach mode of your mobile phone tothe GPRS service.Register againProvides you with a list of the networksavailable in the area when the Manualmode is selected. Select the network youwant to register with and press , to confirm.Preferred listAllows you to build a network list inorder of preference. Once defined, thephone will try to register on a network, according toyour preferences.Access settingsThis menu allows you to create severaldata profiles: when using WAP or whensending MMS, the selected profile willbe used to connect to the GSM or GPRS network.Options described below are operator and/orsubscription dependent. Error messages duringconnections are mainly due to incorrect parameters:contact your operator before first use, in order to havethe appropriate settings, which you may receive bySMS in some cases. Some pre-configured profilesmight be locked, preventing re-programming andrenaming.Select an item in the list and press , to access thefollowing options:Always on Your phone will always register tothe GPRS service. This optionallows faster GPRS connection.However it will increase energyconsumption.For data calls Your phone will automaticallyregister to the GPRS service onlywhen required. This optionreduces energy consumption,however it will increase theconnection delay.GPRS attachRegister againPreferred listChange name To rename the selected profile.Show To visualise all parameters of theselected profile.Access settings

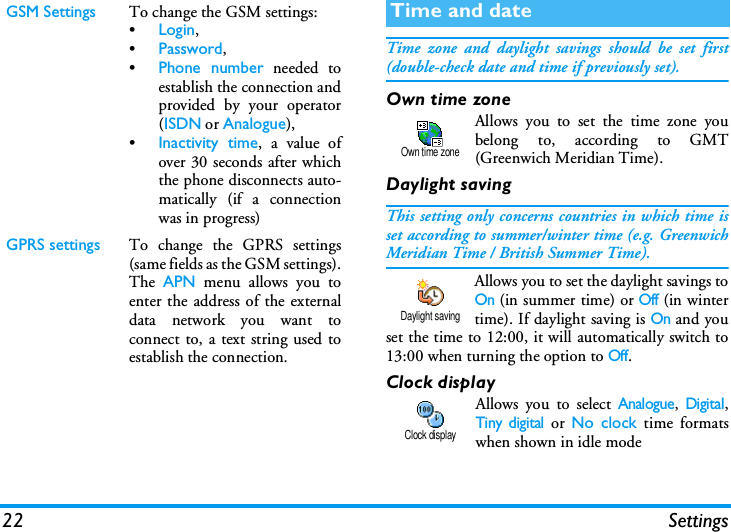

22 SettingsTime zone and daylight savings should be set first(double-check date and time if previously set).Own time zoneAllows you to set the time zone youbelong to, according to GMT(Greenwich Meridian Time). Daylight savingThis setting only concerns countries in which time isset according to summer/winter time (e.g. GreenwichMeridian Time / British Summer Time).Allows you to set the daylight savings toOn (in summer time) or Off (in wintertime). If daylight saving is On and youset the time to 12:00, it will automatically switch to13:00 when turning the option to Off.Clock displayAllows you to select Analogue, Digital,Tiny digital or No clock time formatswhen shown in idle modeGSM Settings To change the GSM settings:•Login,•Password,•Phone number needed toestablish the connection andprovided by your operator(ISDN or Analogue),•Inactivity time, a value ofover 30 seconds after whichthe phone disconnects auto-matically (if a connectionwas in progress)GPRS settings To change the GPRS settings(same fields as the GSM settings).The APN menu allows you toenter the address of the externaldata network you want toconnect to, a text string used toestablish the connection.Time and dateOwn time zoneDaylight savingClock display

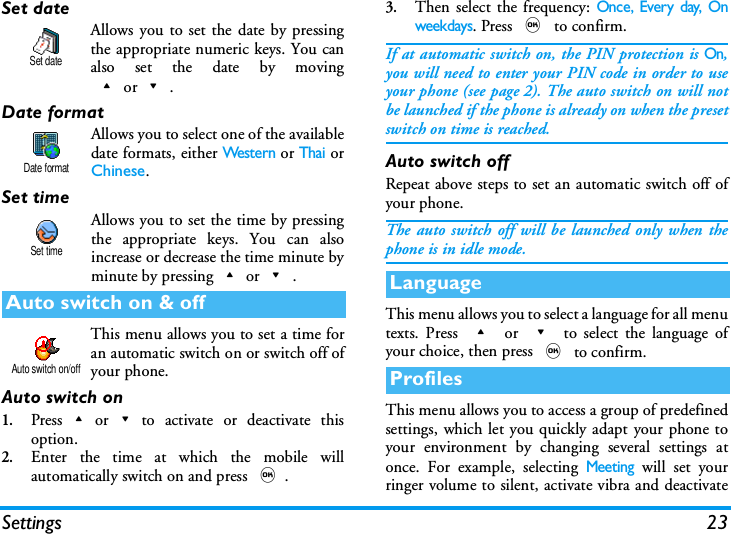

Settings 23Set dateAllows you to set the date by pressingthe appropriate numeric keys. You canalso set the date by moving+or-.Date formatAllows you to select one of the availabledate formats, either Wes te r n or Thai orChinese.Set timeAllows you to set the time by pressingthe appropriate keys. You can alsoincrease or decrease the time minute byminute by pressing+or-.This menu allows you to set a time foran automatic switch on or switch off ofyour phone.Auto switch on1.Press+or-to activate or deactivate thisoption.2.Enter the time at which the mobile willautomatically switch on and press ,.3.Then select the frequency: Once, Every day, Onweekdays. Press , to confirm.If at automatic switch on, the PIN protection is On,you will need to enter your PIN code in order to useyour phone (see page 2). The auto switch on will notbe launched if the phone is already on when the presetswitch on time is reached.Auto switch offRepeat above steps to set an automatic switch off ofyour phone.The auto switch off will be launched only when thephone is in idle mode.This menu allows you to select a language for all menutexts. Press + or - to select the language ofyour choice, then press , to confirm. This menu allows you to access a group of predefinedsettings, which let you quickly adapt your phone toyour environment by changing several settings atonce. For example, selecting Meeting will set yourringer volume to silent, activate vibra and deactivateAuto switch on & offSet dateDate formatSet timeAuto switch on/offLanguageProfiles

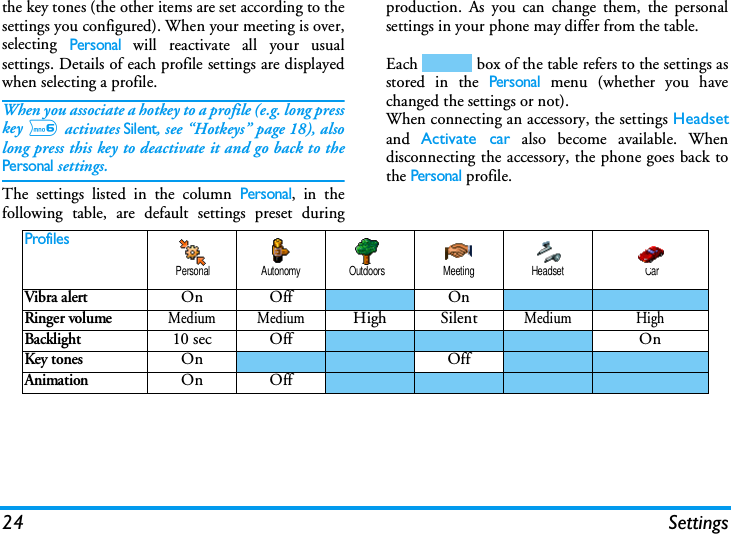

24 Settingsthe key tones (the other items are set according to thesettings you configured). When your meeting is over,selecting Personal will reactivate all your usualsettings. Details of each profile settings are displayedwhen selecting a profile.When you associate a hotkey to a profile (e.g. long presskey 6 activates Silent, see “Hotkeys” page 18), alsolong press this key to deactivate it and go back to thePersonal settings.The settings listed in the column Personal, in thefollowing table, are default settings preset duringproduction. As you can change them, the personalsettings in your phone may differ from the table.Each box of the table refers to the settings asstored in the Personal menu (whether you havechanged the settings or not).When connecting an accessory, the settings Headsetand Activate car also become available. Whendisconnecting the accessory, the phone goes back tothe Personal profile.ProfilesVibra alertOn Off OnRinger volumeMedium MediumHigh SilentMedium HighBacklight10 sec Off OnKey tonesOn OffAnimationOn OffPersonal Autonomy Outdoors Meeting Headset Car

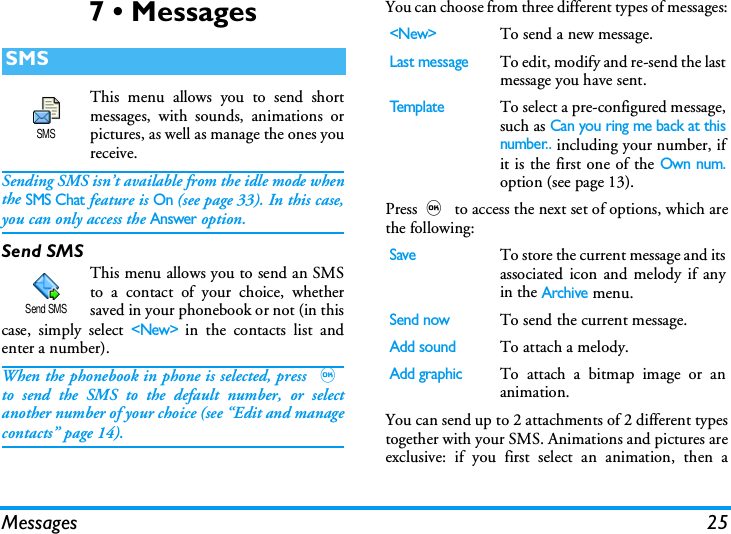

Messages 257 • MessagesThis menu allows you to send shortmessages, with sounds, animations orpictures, as well as manage the ones youreceive.Sending SMS isn’t available from the idle mode whenthe SMS Chat feature is On (see page 33). In this case,you can only access the Answer option.Send SMSThis menu allows you to send an SMSto a contact of your choice, whethersaved in your phonebook or not (in thiscase, simply select <New> in the contacts list andenter a number).When the phonebook in phone is selected, press ,to send the SMS to the default number, or selectanother number of your choice (see “Edit and managecontacts” page 14).You can choose from three different types of messages:Press, to access the next set of options, which arethe following:You can send up to 2 attachments of 2 different typestogether with your SMS. Animations and pictures areexclusive: if you first select an animation, then aSMSSMSSend SMS<New>To send a new message.Last messageTo edit, modify and re-send the lastmessage you have sent.Te m p l a t eTo select a pre-configured message,such as Can you ring me back at thisnumber.. including your number, ifit is the first one of the Own num.option (see page 13).SaveTo store the current message and itsassociated icon and melody if anyin the Archive menu.Send nowTo send the current message.Add soundTo attach a melody.Add graphicTo attach a bitmap image or ananimation.

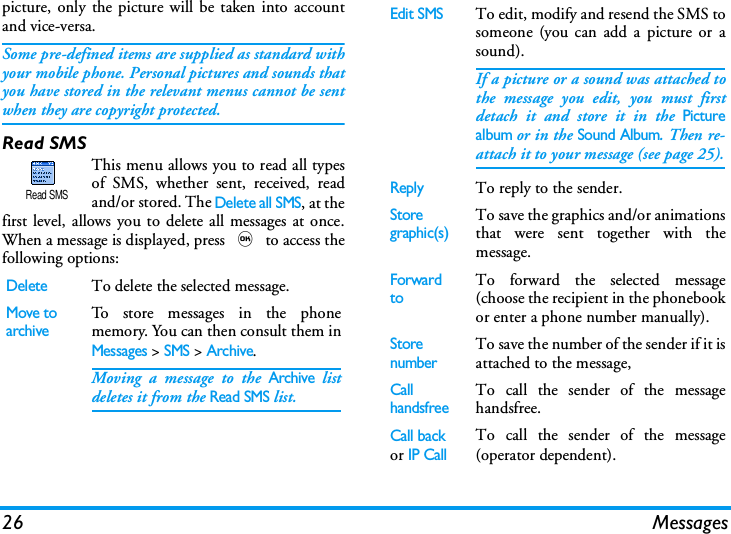

26 Messagespicture, only the picture will be taken into accountand vice-versa.Some pre-defined items are supplied as standard withyour mobile phone. Personal pictures and sounds thatyou have stored in the relevant menus cannot be sentwhen they are copyright protected.Read SMSThis menu allows you to read all typesof SMS, whether sent, received, readand/or stored. The Delete all SMS, at thefirst level, allows you to delete all messages at once.When a message is displayed, press , to access thefollowing options:DeleteTo delete the selected message.Move toarchiveTo store messages in the phonememory. You can then consult them inMessages > SMS > Archive.Moving a message to the Archive listdeletes it from the Read SMS list.Read SMSEdit SMSTo edit, modify and resend the SMS tosomeone (you can add a picture or asound).If a picture or a sound was attached tothe message you edit, you must firstdetach it and store it in the Picturealbum or in the Sound Album. Then re-attach it to your message (see page 25).ReplyTo reply to the sender.Storegraphic(s)To save the graphics and/or animationsthat were sent together with themessage.Forward toTo forward the selected message(choose the recipient in the phonebookor enter a phone number manually).StorenumberTo save the number of the sender if it isattached to the message,Call handsfreeTo call the sender of the messagehandsfree.Call back or IP Call To call the sender of the message(operator dependent).

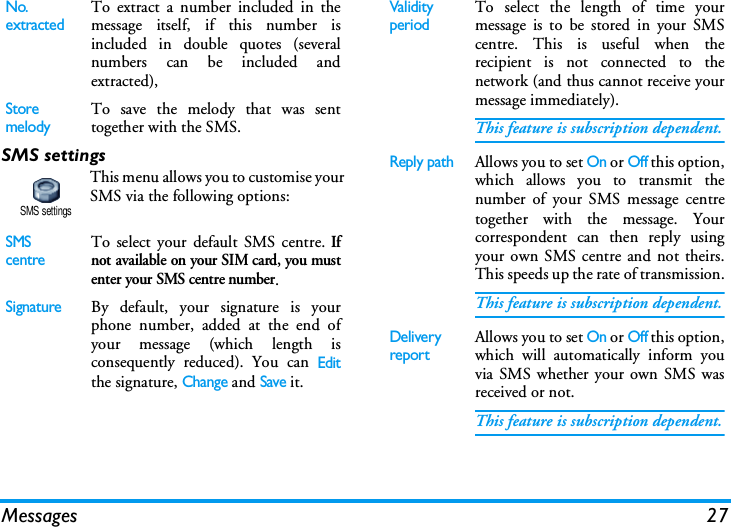

Messages 27SMS settingsThis menu allows you to customise yourSMS via the following options:No. extractedTo extract a number included in themessage itself, if this number isincluded in double quotes (severalnumbers can be included andextracted),StoremelodyTo save the melody that was senttogether with the SMS.SMS centreTo select your default SMS centre. Ifnot available on your SIM card, you mustenter your SMS centre number.SignatureBy default, your signature is yourphone number, added at the end ofyour message (which length isconsequently reduced). You can Editthe signature, Change and Save it.SMS settingsValidi ty periodTo select the length of time yourmessage is to be stored in your SMScentre. This is useful when therecipient is not connected to thenetwork (and thus cannot receive yourmessage immediately).This feature is subscription dependent.Reply pathAllows you to set On or Off this option,which allows you to transmit thenumber of your SMS message centretogether with the message. Yourcorrespondent can then reply usingyour own SMS centre and not theirs.This speeds up the rate of transmission.This feature is subscription dependent.Delivery reportAllows you to set On or Off this option,which will automatically inform youvia SMS whether your own SMS wasreceived or not.This feature is subscription dependent.

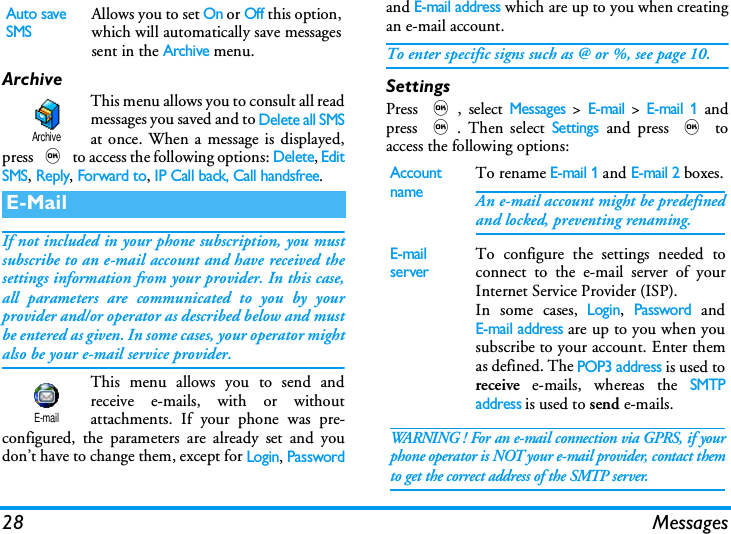

28 MessagesArchiveThis menu allows you to consult all readmessages you saved and to Delete all SMSat once. When a message is displayed,press , to access the following options: Delete, EditSMS, Reply, Forward to, IP Call back, Call handsfree.If not included in your phone subscription, you mustsubscribe to an e-mail account and have received thesettings information from your provider. In this case,all parameters are communicated to you by yourprovider and/or operator as described below and mustbe entered as given. In some cases, your operator mightalso be your e-mail service provider.This menu allows you to send andreceive e-mails, with or withoutattachments. If your phone was pre-configured, the parameters are already set and youdon’t have to change them, except for Login, Passwordand E-mail address which are up to you when creatingan e-mail account.To enter specific signs such as @ or %, see page 10.SettingsPress ,, select Messages > E-mail > E-mail 1 andpress ,. Then select Settings and press , toaccess the following options:Auto save SMSAllows you to set On or Off this option,which will automatically save messagessent in the Archive menu.E-MailArchiveE-mailAccount nameTo rename E-mail 1 and E-mail 2 boxes.An e-mail account might be predefinedand locked, preventing renaming.E-mail serverTo configure the settings needed toconnect to the e-mail server of yourInternet Service Provider (ISP).In some cases, Login, Password andE-mail address are up to you when yousubscribe to your account. Enter themas defined. The POP3 address is used toreceive e-mails, whereas the SMTPaddress is used to send e-mails. WARNING ! For an e-mail connection via GPRS, if yourphone operator is NOT your e-mail provider, contact themto get the correct address of the SMTP server.

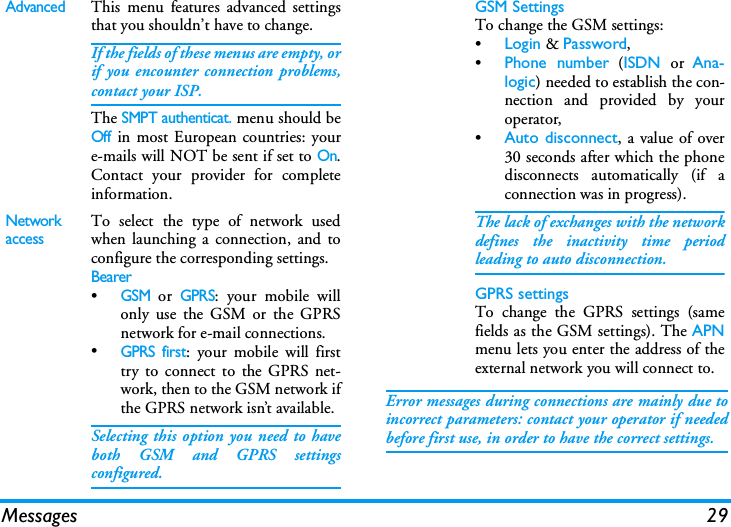

Messages 29Error messages during connections are mainly due toincorrect parameters: contact your operator if neededbefore first use, in order to have the correct settings.AdvancedThis menu features advanced settingsthat you shouldn’t have to change.If the fields of these menus are empty, orif you encounter connection problems,contact your ISP.The SMPT authenticat. menu should beOff in most European countries: youre-mails will NOT be sent if set to On.Contact your provider for completeinformation.Network accessTo select the type of network usedwhen launching a connection, and toconfigure the corresponding settings.Bearer•GSM or GPRS: your mobile willonly use the GSM or the GPRSnetwork for e-mail connections.•GPRS first: your mobile will firsttry to connect to the GPRS net-work, then to the GSM network ifthe GPRS network isn’t available.Selecting this option you need to haveboth GSM and GPRS settingsconfigured.GSM SettingsTo change the GSM settings:•Login & Password,•Phone number (ISDN or Ana-logic) needed to establish the con-nection and provided by youroperator,•Auto disconnect, a value of over30 seconds after which the phonedisconnects automatically (if aconnection was in progress).The lack of exchanges with the networkdefines the inactivity time periodleading to auto disconnection.GPRS settingsTo change the GPRS settings (samefields as the GSM settings). The APNmenu lets you enter the address of theexternal network you will connect to.

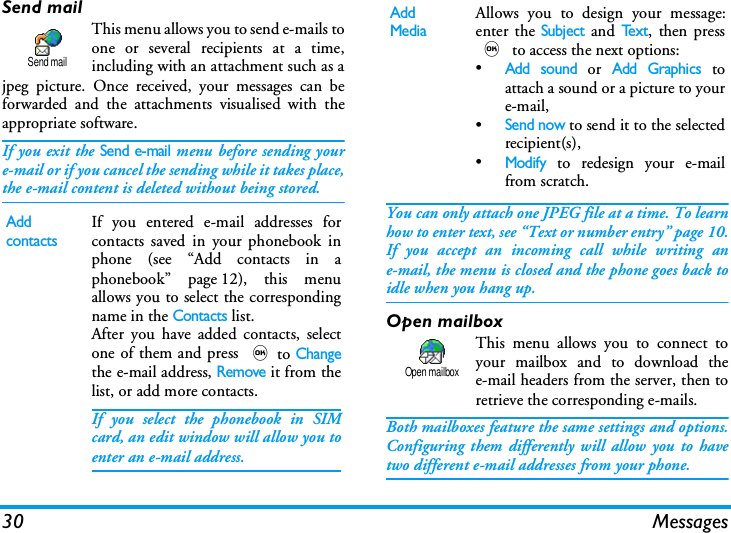

30 MessagesSend mailThis menu allows you to send e-mails toone or several recipients at a time,including with an attachment such as ajpeg picture. Once received, your messages can beforwarded and the attachments visualised with theappropriate software.If you exit the Send e-mail menu before sending youre-mail or if you cancel the sending while it takes place,the e-mail content is deleted without being stored.You can only attach one JPEG file at a time. To learnhow to enter text, see “Text or number entry” page 10.If you accept an incoming call while writing ane-mail, the menu is closed and the phone goes back toidle when you hang up.Open mailboxThis menu allows you to connect toyour mailbox and to download thee-mail headers from the server, then toretrieve the corresponding e-mails.Both mailboxes feature the same settings and options.Configuring them differently will allow you to havetwo different e-mail addresses from your phone.Add contactsIf you entered e-mail addresses forcontacts saved in your phonebook inphone (see “Add contacts in aphonebook” page 12), this menuallows you to select the correspondingname in the Contacts list.After you have added contacts, selectone of them and press ,to Changethe e-mail address, Remove it from thelist, or add more contacts.If you select the phonebook in SIMcard, an edit window will allow you toenter an e-mail address.Send mailAdd MediaAllows you to design your message:enter the Subject and Te x t, then press, to access the next options:•Add sound or Add Graphics toattach a sound or a picture to youre-mail,•Send now to send it to the selectedrecipient(s),•Modify to redesign your e-mailfrom scratch.Open mailbox

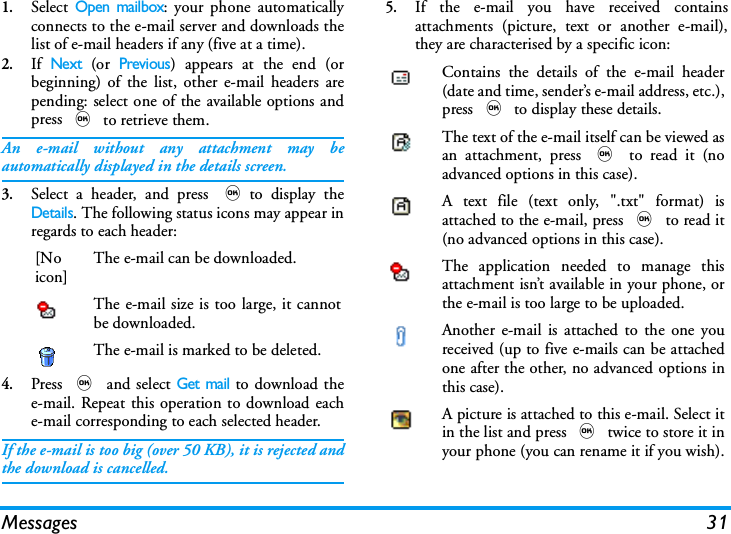

Messages 311.Select Open mailbox: your phone automaticallyconnects to the e-mail server and downloads thelist of e-mail headers if any (five at a time).2.If Next (or Previous) appears at the end (orbeginning) of the list, other e-mail headers arepending: select one of the available options andpress , to retrieve them.An e-mail without any attachment may beautomatically displayed in the details screen.3.Select a header, and press ,to display theDetails. The following status icons may appear inregards to each header:4.Press , and select Get mail to download thee-mail. Repeat this operation to download eache-mail corresponding to each selected header.If the e-mail is too big (over 50 KB), it is rejected andthe download is cancelled.5.If the e-mail you have received containsattachments (picture, text or another e-mail),they are characterised by a specific icon:[Noicon]The e-mail can be downloaded.The e-mail size is too large, it cannotbe downloaded.The e-mail is marked to be deleted.Contains the details of the e-mail header(date and time, sender’s e-mail address, etc.),press , to display these details.The text of the e-mail itself can be viewed asan attachment, press , to read it (noadvanced options in this case).A text file (text only, ".txt" format) isattached to the e-mail, press , to read it(no advanced options in this case).The application needed to manage thisattachment isn’t available in your phone, orthe e-mail is too large to be uploaded.Another e-mail is attached to the one youreceived (up to five e-mails can be attachedone after the other, no advanced options inthis case).A picture is attached to this e-mail. Select itin the list and press , twice to store it inyour phone (you can rename it if you wish).

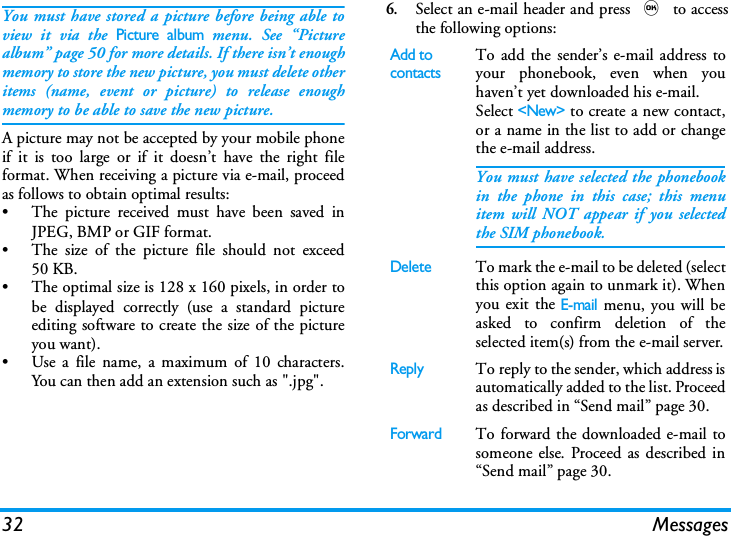

32 MessagesYou must have stored a picture before being able toview it via the Picture album menu. See “Picturealbum” page 50 for more details. If there isn’t enoughmemory to store the new picture, you must delete otheritems (name, event or picture) to release enoughmemory to be able to save the new picture.A picture may not be accepted by your mobile phoneif it is too large or if it doesn’t have the right fileformat. When receiving a picture via e-mail, proceedas follows to obtain optimal results:• The picture received must have been saved inJPEG, BMP or GIF format.• The size of the picture file should not exceed50 KB.• The optimal size is 128 x 160 pixels, in order tobe displayed correctly (use a standard pictureediting software to create the size of the pictureyou want).• Use a file name, a maximum of 10 characters.You can then add an extension such as ".jpg".6.Select an e-mail header and press , to accessthe following options:Add to contactsTo add the sender’s e-mail address toyour phonebook, even when youhaven’t yet downloaded his e-mail.Select <New> to create a new contact,or a name in the list to add or changethe e-mail address.You must have selected the phonebookin the phone in this case; this menuitem will NOT appear if you selectedthe SIM phonebook.DeleteTo mark the e-mail to be deleted (selectthis option again to unmark it). Whenyou exit the E-mail menu, you will beasked to confirm deletion of theselected item(s) from the e-mail server.ReplyTo reply to the sender, which address isautomatically added to the list. Proceedas described in “Send mail” page 30.ForwardTo forward the downloaded e-mail tosomeone else. Proceed as described in“Send mail” page 30.

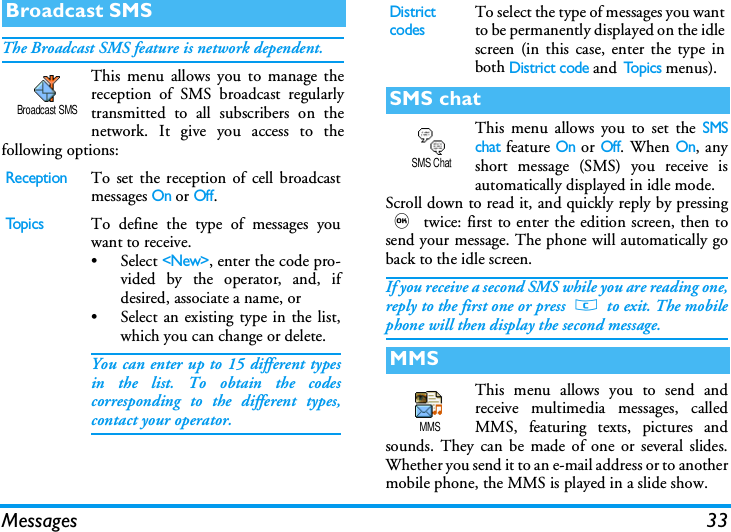

Messages 33The Broadcast SMS feature is network dependent.This menu allows you to manage thereception of SMS broadcast regularlytransmitted to all subscribers on thenetwork. It give you access to thefollowing options:This menu allows you to set the SMSchat feature On or Off. When On, anyshort message (SMS) you receive isautomatically displayed in idle mode.Scroll down to read it, and quickly reply by pressing, twice: first to enter the edition screen, then tosend your message. The phone will automatically goback to the idle screen.If you receive a second SMS while you are reading one,reply to the first one or press c to exit. The mobilephone will then display the second message.This menu allows you to send andreceive multimedia messages, calledMMS, featuring texts, pictures andsounds. They can be made of one or several slides.Whether you send it to an e-mail address or to anothermobile phone, the MMS is played in a slide show.Broadcast SMSReceptionTo set the reception of cell broadcastmessages On or Off.To p i c sTo define the type of messages youwant to receive.• Select <New>, enter the code pro-vided by the operator, and, ifdesired, associate a name, or• Select an existing type in the list,which you can change or delete.You can enter up to 15 different typesin the list. To obtain the codescorresponding to the different types,contact your operator.Broadcast SMSDistrict codesTo select the type of messages you wantto be permanently displayed on the idlescreen (in this case, enter the type inboth District code and To p i c s menus).SMS chatMMSSMS ChatMMS

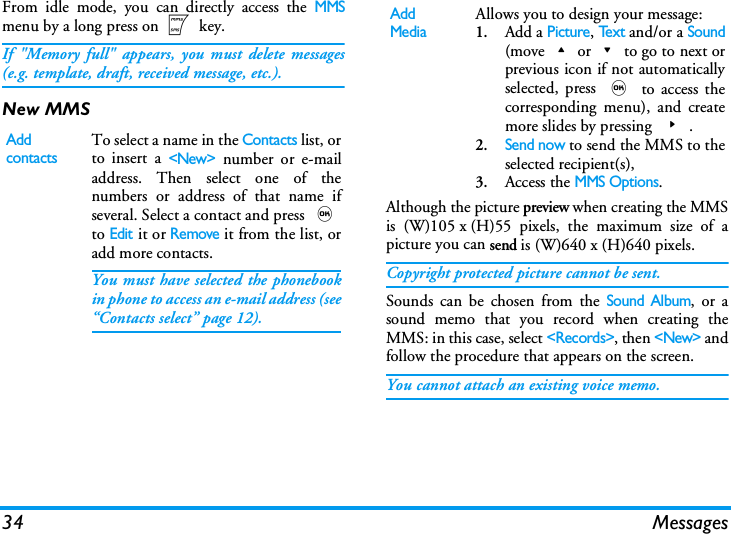

34 MessagesFrom idle mode, you can directly access the MMSmenu by a long press on m key. If "Memory full" appears, you must delete messages(e.g. template, draft, received message, etc.).New MMSAlthough the picture preview when creating the MMSis (W)105 x (H)55 pixels, the maximum size of apicture you can send is (W)640 x (H)640 pixels.Copyright protected picture cannot be sent.Sounds can be chosen from the Sound Album, or asound memo that you record when creating theMMS: in this case, select <Records>, then <New> andfollow the procedure that appears on the screen.You cannot attach an existing voice memo.Add contactsTo select a name in the Contacts list, orto insert a <New> number or e-mailaddress. Then select one of thenumbers or address of that name ifseveral. Select a contact and press ,to Edit it or Remove it from the list, oradd more contacts.You must have selected the phonebookin phone to access an e-mail address (see“Contacts select” page 12).Add MediaAllows you to design your message:1.Add a Picture, Te x t and/or a Sound(move+or-to go to next orprevious icon if not automaticallyselected, press , to access thecorresponding menu), and createmore slides by pressing >.2.Send now to send the MMS to theselected recipient(s),3.Access the MMS Options.

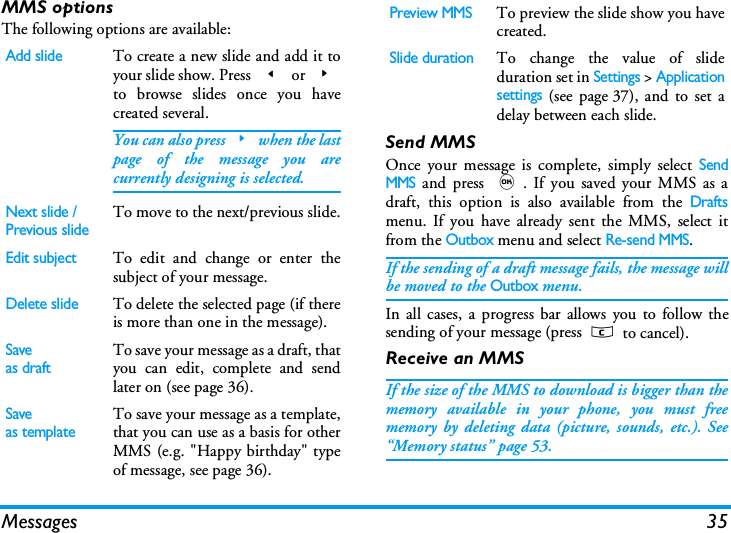

Messages 35MMS optionsThe following options are available:Send MMSOnce your message is complete, simply select SendMMS and press ,. If you saved your MMS as adraft, this option is also available from the Draftsmenu. If you have already sent the MMS, select itfrom the Outbox menu and select Re-send MMS.If the sending of a draft message fails, the message willbe moved to the Outbox menu.In all cases, a progress bar allows you to follow thesending of your message (press c to cancel).Receive an MMSIf the size of the MMS to download is bigger than thememory available in your phone, you must freememory by deleting data (picture, sounds, etc.). See“Memory status” page 53.Add slideTo create a new slide and add it toyour slide show. Press < or >to browse slides once you havecreated several.You can also press>when the lastpage of the message you arecurrently designing is selected.Next slide /Previous slideTo move to the next/previous slide.Edit subjectTo edit and change or enter thesubject of your message.Delete slideTo delete the selected page (if thereis more than one in the message).Saveas draftTo save your message as a draft, thatyou can edit, complete and sendlater on (see page 36).Saveas templateTo save your message as a template,that you can use as a basis for otherMMS (e.g. "Happy birthday" typeof message, see page 36).Preview MMSTo preview the slide show you havecreated.Slide durationTo change the value of slideduration set in Settings > Applicationsettings (see page 37), and to set adelay between each slide.

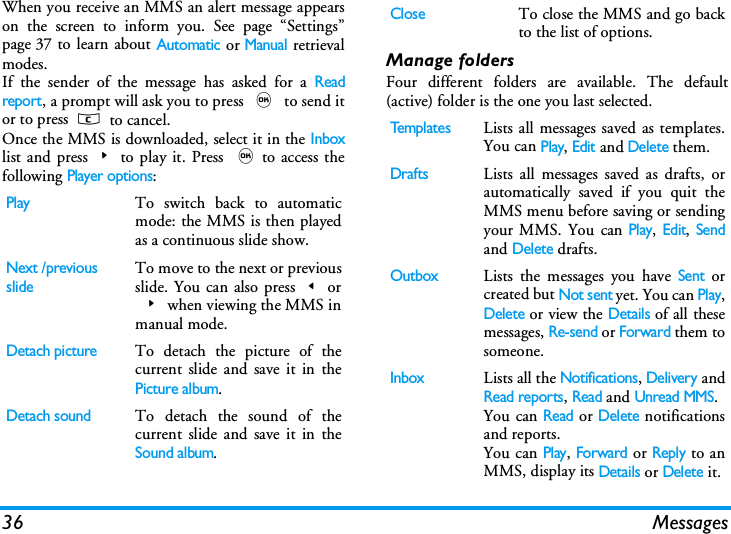

36 MessagesWhen you receive an MMS an alert message appearson the screen to inform you. See page “Settings”page 37 to learn about Automatic or Manual retrievalmodes. If the sender of the message has asked for a Readreport, a prompt will ask you to press , to send itor to press c to cancel.Once the MMS is downloaded, select it in the Inboxlist and press>to play it. Press ,to access thefollowing Player options:Manage foldersFour different folders are available. The default(active) folder is the one you last selected.PlayTo switch back to automaticmode: the MMS is then playedas a continuous slide show.Next /previousslideTo move to the next or previousslide. You can also press<or>when viewing the MMS inmanual mode.Detach pictureTo detach the picture of thecurrent slide and save it in thePicture album.Detach soundTo detach the sound of thecurrent slide and save it in theSound album.CloseTo close the MMS and go backto the list of options.Te m p l a t e sLists all messages saved as templates.You can Play, Edit and Delete them.DraftsLists all messages saved as drafts, orautomatically saved if you quit theMMS menu before saving or sendingyour MMS. You can Play, Edit, Sendand Delete drafts.OutboxLists the messages you have Sent orcreated but Not sent yet. You can Play,Delete or view the Details of all thesemessages, Re-send or Forward them tosomeone.InboxLists all the Notifications, Delivery andRead reports, Read and Unread MMS.You can Read or Delete notificationsand reports.You can Play, Forward or Reply to anMMS, display its Details or Delete it.

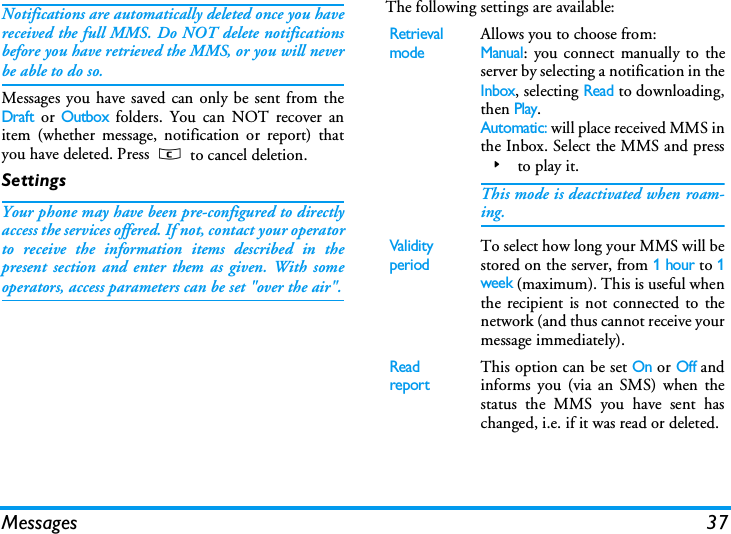

Messages 37Notifications are automatically deleted once you havereceived the full MMS. Do NOT delete notificationsbefore you have retrieved the MMS, or you will neverbe able to do so.Messages you have saved can only be sent from theDraft or Outbox folders. You can NOT recover anitem (whether message, notification or report) thatyou have deleted. Press c to cancel deletion.SettingsYour phone may have been pre-configured to directlyaccess the services offered. If not, contact your operatorto receive the information items described in thepresent section and enter them as given. With someoperators, access parameters can be set "over the air".The following settings are available:Retrieval modeAllows you to choose from:Manual: you connect manually to theserver by selecting a notification in theInbox, selecting Read to downloading,then Play.Automatic: will place received MMS inthe Inbox. Select the MMS and press> to play it.This mode is deactivated when roam-ing.Validi ty periodTo select how long your MMS will bestored on the server, from 1 hour to 1week (maximum). This is useful whenthe recipient is not connected to thenetwork (and thus cannot receive yourmessage immediately).Read reportThis option can be set On or Off andinforms you (via an SMS) when thestatus the MMS you have sent haschanged, i.e. if it was read or deleted.

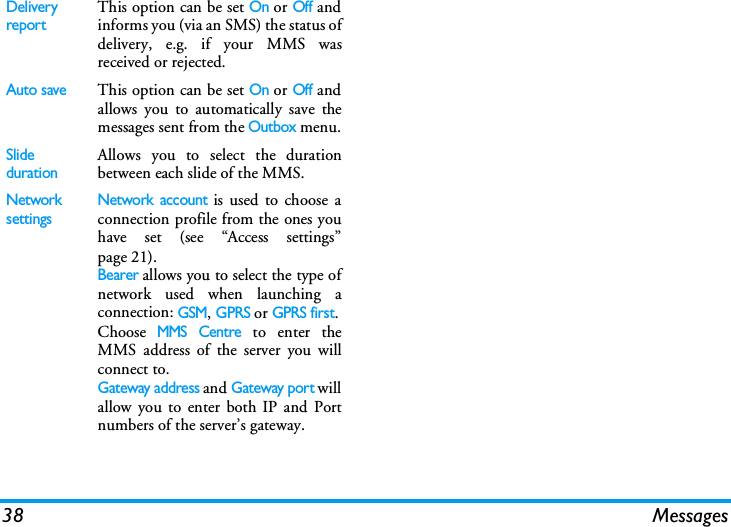

38 MessagesDelivery reportThis option can be set On or Off andinforms you (via an SMS) the status ofdelivery, e.g. if your MMS wasreceived or rejected.Auto saveThis option can be set On or Off andallows you to automatically save themessages sent from the Outbox menu.Slide durationAllows you to select the durationbetween each slide of the MMS.Network settingsNetwork account is used to choose aconnection profile from the ones youhave set (see “Access settings”page 21).Bearer allows you to select the type ofnetwork used when launching aconnection: GSM, GPRS or GPRS first.Choose MMS Centre to enter theMMS address of the server you willconnect to.Gateway address and Gateway port willallow you to enter both IP and Portnumbers of the server’s gateway.

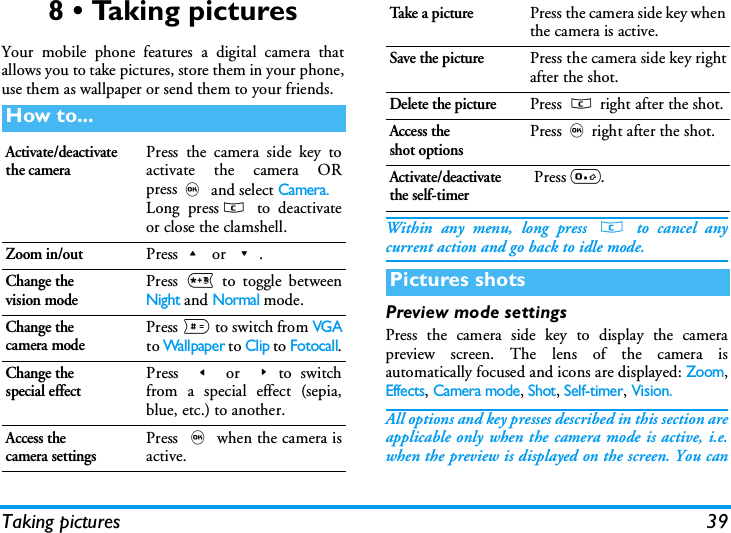

Taking pictures 398 • Taking picturesYour mobile phone features a digital camera thatallows you to take pictures, store them in your phone,use them as wallpaper or send them to your friends.Within any menu, long press c to cancel anycurrent action and go back to idle mode.Preview mode settingsPress the camera side key to display the camerapreview screen. The lens of the camera isautomatically focused and icons are displayed: Zoom,Effects, Camera mode, Shot, Self-timer, Vision.All options and key presses described in this section areapplicable only when the camera mode is active, i.e.when the preview is displayed on the screen. You canHow to...Activate/deactivate the cameraPress the camera side key toactivate the camera ORpress, and select Camera.Long pressc to deactivateor close the clamshell.Zoom in/outPress+ or -.Change thevision modePress * to toggle betweenNight and Normal mode.Change thecamera modePress # to switch from VGAto Wallpaper to Clip to Fotocall.Change thespecial effectPress < or >to switchfrom a special effect (sepia,blue, etc.) to another.Access thecamera settingsPress , when the camera isactive.Ta ke a p i c t u r ePress the camera side key whenthe camera is active.Save the picturePress the camera side key rightafter the shot.Delete the picturePress c right after the shot.Access theshot optionsPress,right after the shot.Activate/deactivate the self-timer Press 0.Pictures shots

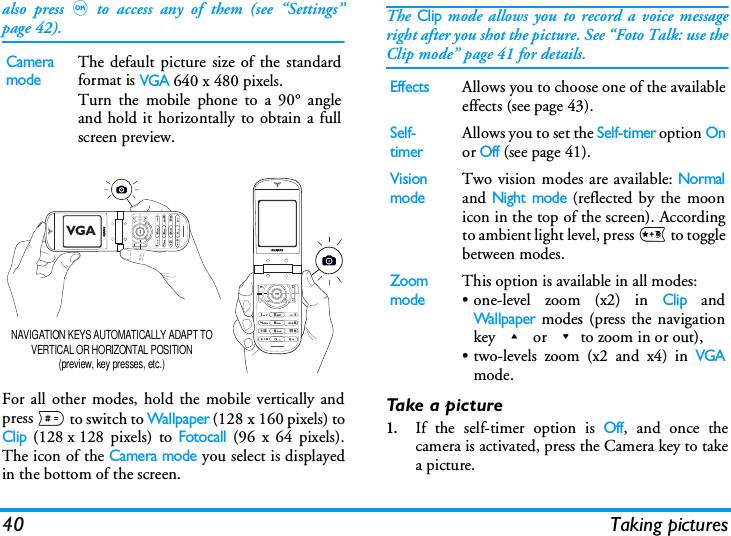

40 Taking picturesalso press,to access any of them (see “Settings”page 42).For all other modes, hold the mobile vertically andpress # to switch to Wallpaper (128 x 160 pixels) toClip (128 x 128 pixels) to Fotocall (96 x 64 pixels).The icon of the Camera mode you select is displayedin the bottom of the screen. The Clip mode allows you to record a voice messageright after you shot the picture. See “Foto Talk: use theClip mode” page 41 for details.Take a picture1.If the self-timer option is Off, and once thecamera is activated, press the Camera key to takea picture.Camera modeThe default picture size of the standardformat is VGA 640 x 480 pixels.Turn the mobile phone to a 90° angleand hold it horizontally to obtain a fullscreen preview.NAVIGATION KEYS AUTOMATICALLY ADAPT TO VERTICAL OR HORIZONTAL POSITION (preview, key presses, etc.)VGAEffectsAllows you to choose one of the availableeffects (see page 43).Self-timerAllows you to set the Self-timer option Onor Off (see page 41).Vision modeTwo vision modes are available: Normaland Night mode (reflected by the moonicon in the top of the screen). Accordingto ambient light level, press * to togglebetween modes.Zoom modeThis option is available in all modes: • one-level zoom (x2) in Clip andWallpaper modes (press the navigationkey + or -to zoom in or out),• two-levels zoom (x2 and x4) in VGAmode.

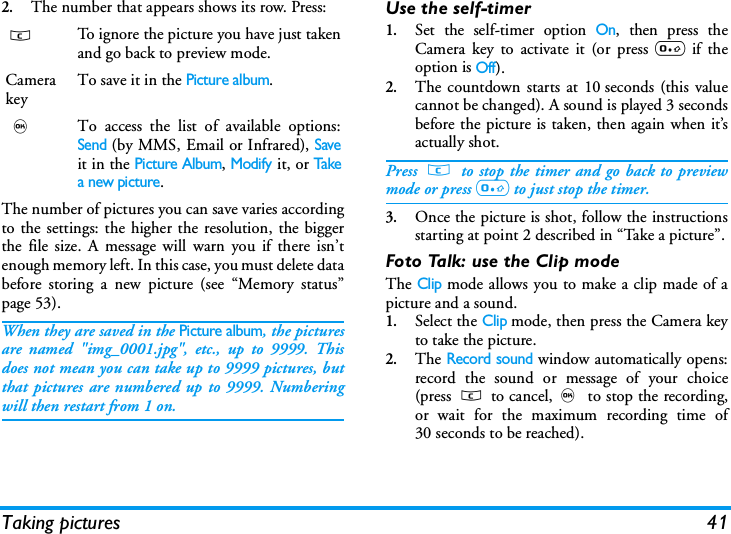

Taking pictures 412.The number that appears shows its row. Press:The number of pictures you can save varies accordingto the settings: the higher the resolution, the biggerthe file size. A message will warn you if there isn’tenough memory left. In this case, you must delete databefore storing a new picture (see “Memory status”page 53).When they are saved in the Picture album, the picturesare named "img_0001.jpg", etc., up to 9999. Thisdoes not mean you can take up to 9999 pictures, butthat pictures are numbered up to 9999. Numberingwill then restart from 1 on.Use the self-timer1.Set the self-timer option On, then press theCamera key to activate it (or press 0 if theoption is Off).2.The countdown starts at 10 seconds (this valuecannot be changed). A sound is played 3 secondsbefore the picture is taken, then again when it’sactually shot.Press c to stop the timer and go back to previewmode or press 0 to just stop the timer.3.Once the picture is shot, follow the instructionsstarting at point 2 described in “Take a picture”.Foto Talk: use the Clip modeThe Clip mode allows you to make a clip made of apicture and a sound.1.Select the Clip mode, then press the Camera keyto take the picture.2.The Record sound window automatically opens:record the sound or message of your choice(press c to cancel,, to stop the recording,or wait for the maximum recording time of30 seconds to be reached).cTo ignore the picture you have just takenand go back to preview mode.Camerakey To save it in the Picture album.,To access the list of available options:Send (by MMS, Email or Infrared), Saveit in the Picture Album, Modify it, or Takea new picture.

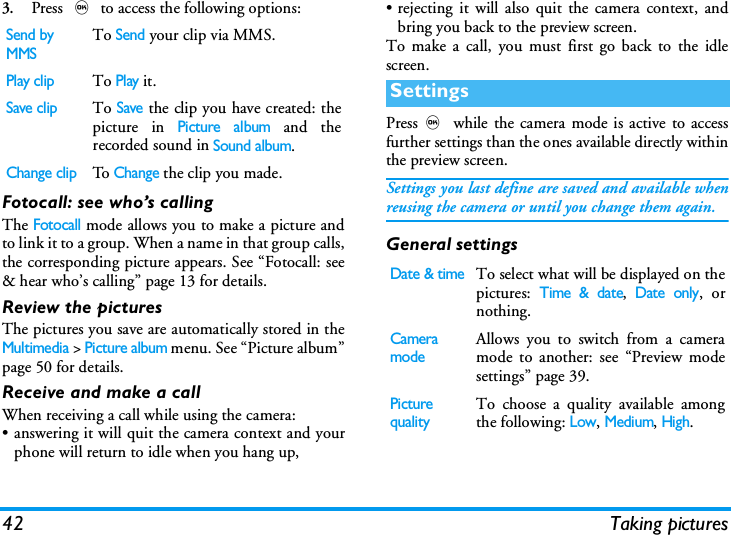

42 Taking pictures3.Press , to access the following options:Fotocall: see who’s callingThe Fotocall mode allows you to make a picture andto link it to a group. When a name in that group calls,the corresponding picture appears. See “Fotocall: see& hear who’s calling” page 13 for details.Review the picturesThe pictures you save are automatically stored in theMultimedia > Picture album menu. See “Picture album”page 50 for details.Receive and make a callWhen receiving a call while using the camera:• answering it will quit the camera context and yourphone will return to idle when you hang up,• rejecting it will also quit the camera context, andbring you back to the preview screen.To make a call, you must first go back to the idlescreen.Press, while the camera mode is active to accessfurther settings than the ones available directly withinthe preview screen.Settings you last define are saved and available whenreusing the camera or until you change them again.General settingsSend by MMSTo Send your clip via MMS.Play clipTo Play it.Save clipTo Save the clip you have created: thepicture in Picture album and therecorded sound in Sound album.Change clipTo Change the clip you made.SettingsDate & timeTo select what will be displayed on thepictures: Time & date, Date only, ornothing.Camera modeAllows you to switch from a cameramode to another: see “Preview modesettings” page 39.Picture qualityTo choose a quality available amongthe following: Low, Medium, High.

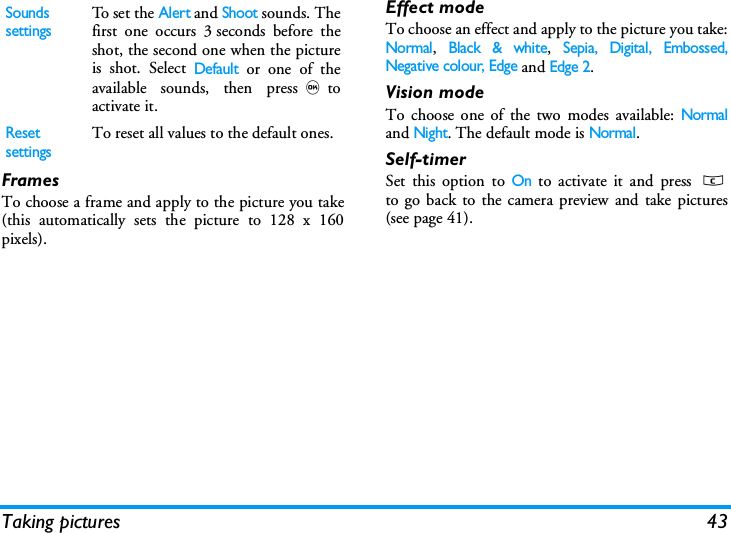

Taking pictures 43FramesTo choose a frame and apply to the picture you take(this automatically sets the picture to 128 x 160pixels).Effect modeTo choose an effect and apply to the picture you take:Normal, Black & white, Sepia, Digital, Embossed,Negative colour, Edge and Edge 2.Vision modeTo choose one of the two modes available: Normaland Night. The default mode is Normal.Self-timerSet this option to On to activate it and press cto go back to the camera preview and take pictures(see page 41).Sounds settingsTo set the Alert and Shoot sounds. Thefirst one occurs 3 seconds before theshot, the second one when the pictureis shot. Select Default or one of theavailable sounds, then press,toactivate it.Reset settingsTo reset all values to the default ones.

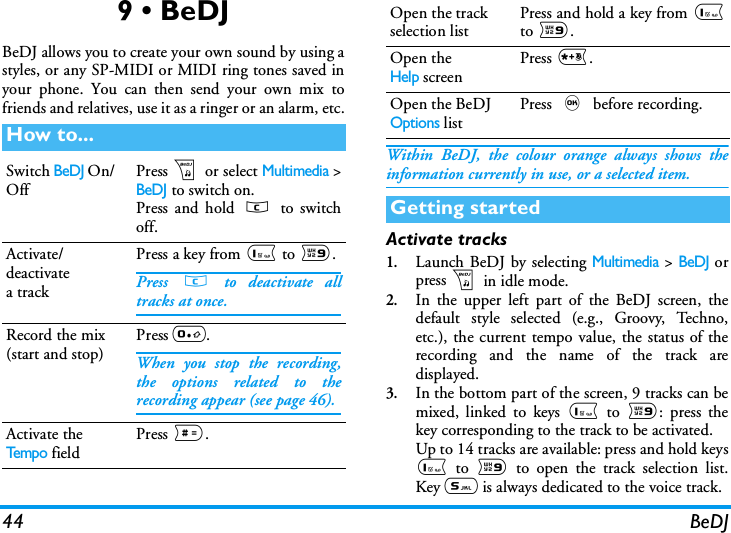

44 BeDJ9 • BeDJBeDJ allows you to create your own sound by using astyles, or any SP-MIDI or MIDI ring tones saved inyour phone. You can then send your own mix tofriends and relatives, use it as a ringer or an alarm, etc.Within BeDJ, the colour orange always shows theinformation currently in use, or a selected item.Activate tracks1.Launch BeDJ by selecting Multimedia > BeDJ orpressb in idle mode.2.In the upper left part of the BeDJ screen, thedefault style selected (e.g., Groovy, Techno,etc.), the current tempo value, the status of therecording and the name of the track aredisplayed.3.In the bottom part of the screen, 9 tracks can bemixed, linked to keys 1 to 9: press thekey corresponding to the track to be activated.Up to 14 tracks are available: press and hold keys1 to 9 to open the track selection list.Key 5 is always dedicated to the voice track.How to...Switch BeDJ On/OffPressb or select Multimedia >BeDJ to switch on.Press and hold c to switchoff.Activate/deactivatea trackPress a key from 1 to 9.Press c to deactivate alltracks at once.Record the mix(start and stop)Press 0.When you stop the recording,the options related to therecording appear (see page 46).Activate theTe m p o fieldPress #.Open the trackselection listPress and hold a key from 1to 9.Open theHelp screenPress *.Open the BeDJ Options listPress , before recording.Getting started

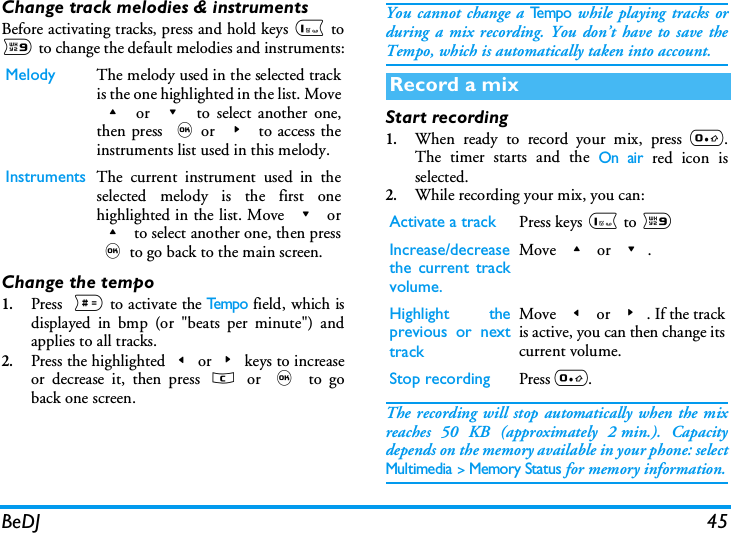

BeDJ 45Change track melodies & instrumentsBefore activating tracks, press and hold keys 1 to9 to change the default melodies and instruments:Change the tempo1.Press # to activate the Te m p o field, which isdisplayed in bmp (or "beats per minute") andapplies to all tracks.2.Press the highlighted<or>keys to increaseor decrease it, then press c or , to goback one screen.You cannot change a Te m p o while playing tracks orduring a mix recording. You don’t have to save theTempo, which is automatically taken into account. Start recording1.When ready to record your mix, press 0.The timer starts and the On air red icon isselected.2.While recording your mix, you can:The recording will stop automatically when the mixreaches 50 KB (approximately 2 min.). Capacitydepends on the memory available in your phone: selectMultimedia > Memory Status for memory information.Melody The melody used in the selected trackis the one highlighted in the list. Move+ or - to select another one,then press ,or > to access theinstruments list used in this melody.Instruments The current instrument used in theselected melody is the first onehighlighted in the list. Move - or+ to select another one, then press,to go back to the main screen.Record a mixActivate a track Press keys 1 to 9Increase/decreasethe current trackvolume.Move + or -.Highlight theprevious or nexttrackMove < or >. If the trackis active, you can then change itscurrent volume.Stop recording Press 0.

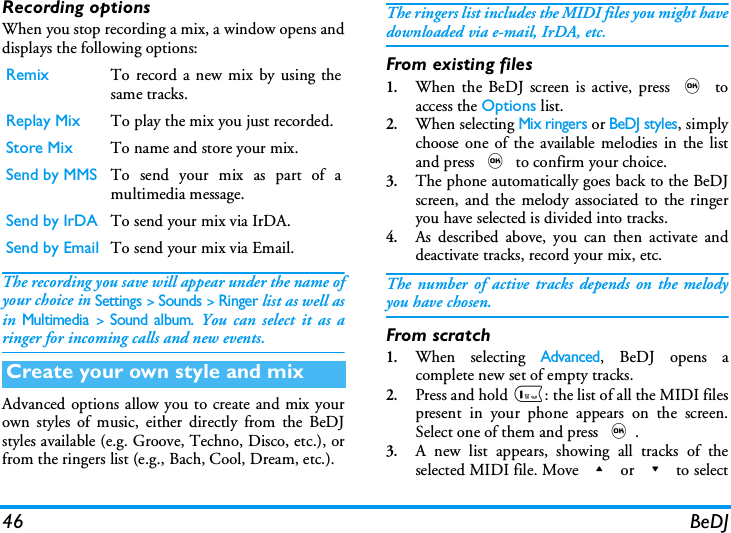

46 BeDJRecording optionsWhen you stop recording a mix, a window opens anddisplays the following options:The recording you save will appear under the name ofyour choice in Settings > Sounds > Ringer list as well asin Multimedia > Sound album. You can select it as aringer for incoming calls and new events.Advanced options allow you to create and mix yourown styles of music, either directly from the BeDJstyles available (e.g. Groove, Techno, Disco, etc.), orfrom the ringers list (e.g., Bach, Cool, Dream, etc.).The ringers list includes the MIDI files you might havedownloaded via e-mail, IrDA, etc.From existing files1.When the BeDJ screen is active, press , toaccess the Options list.2.When selecting Mix ringers or BeDJ styles, simplychoose one of the available melodies in the listand press , to confirm your choice.3.The phone automatically goes back to the BeDJscreen, and the melody associated to the ringeryou have selected is divided into tracks.4.As described above, you can then activate anddeactivate tracks, record your mix, etc.The number of active tracks depends on the melodyyou have chosen.From scratch1.When selecting Advanced, BeDJ opens acomplete new set of empty tracks.2.Press and hold 1: the list of all the MIDI filespresent in your phone appears on the screen.Select one of them and press ,.3.A new list appears, showing all tracks of theselected MIDI file. Move + or - to selectRemix To record a new mix by using thesame tracks.Replay Mix To play the mix you just recorded.Store Mix To name and store your mix.Send by MMS To send your mix as part of amultimedia message.Send by IrDA To send your mix via IrDA. Send by Email To send your mix via Email.Create your own style and mix

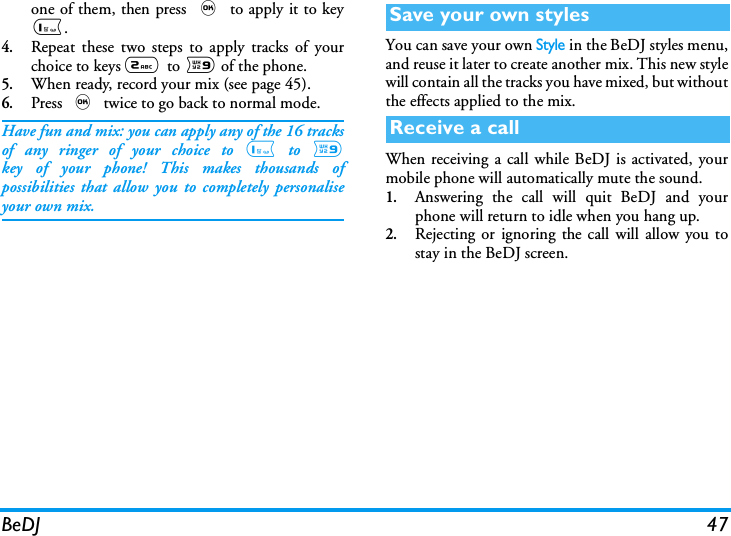

BeDJ 47one of them, then press , to apply it to key1.4.Repeat these two steps to apply tracks of yourchoice to keys 2 to 9 of the phone.5.When ready, record your mix (see page 45).6.Press , twice to go back to normal mode.Have fun and mix: you can apply any of the 16 tracksof any ringer of your choice to 1 to 9key of your phone! This makes thousands ofpossibilities that allow you to completely personaliseyour own mix.You can save your own Style in the BeDJ styles menu,and reuse it later to create another mix. This new stylewill contain all the tracks you have mixed, but withoutthe effects applied to the mix.When receiving a call while BeDJ is activated, yourmobile phone will automatically mute the sound.1.Answering the call will quit BeDJ and yourphone will return to idle when you hang up.2.Rejecting or ignoring the call will allow you tostay in the BeDJ screen.Save your own stylesReceive a call

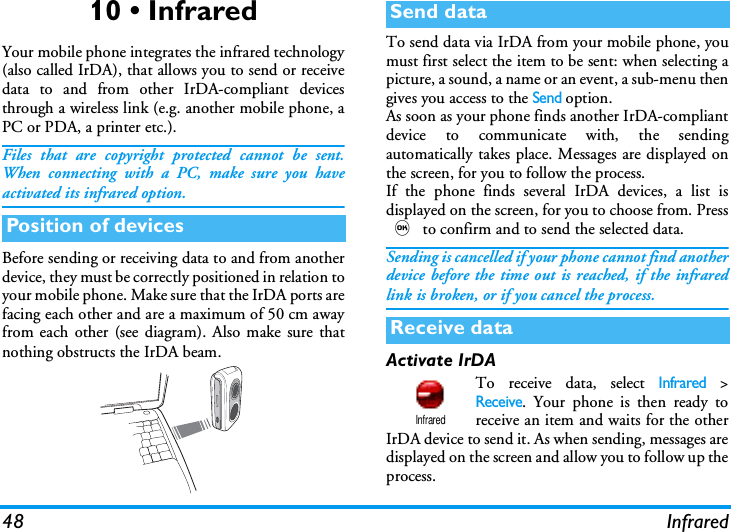

48 Infrared10 • InfraredYour mobile phone integrates the infrared technology(also called IrDA), that allows you to send or receivedata to and from other IrDA-compliant devicesthrough a wireless link (e.g. another mobile phone, aPC or PDA, a printer etc.).Files that are copyright protected cannot be sent.When connecting with a PC, make sure you haveactivated its infrared option.Before sending or receiving data to and from anotherdevice, they must be correctly positioned in relation toyour mobile phone. Make sure that the IrDA ports arefacing each other and are a maximum of 50 cm awayfrom each other (see diagram). Also make sure thatnothing obstructs the IrDA beam.To send data via IrDA from your mobile phone, youmust first select the item to be sent: when selecting apicture, a sound, a name or an event, a sub-menu thengives you access to the Send option.As soon as your phone finds another IrDA-compliantdevice to communicate with, the sendingautomatically takes place. Messages are displayed onthe screen, for you to follow the process.If the phone finds several IrDA devices, a list isdisplayed on the screen, for you to choose from. Press, to confirm and to send the selected data.Sending is cancelled if your phone cannot find anotherdevice before the time out is reached, if the infraredlink is broken, or if you cancel the process.Activate IrDATo receive data, select Infrared >Receive. Your phone is then ready toreceive an item and waits for the otherIrDA device to send it. As when sending, messages aredisplayed on the screen and allow you to follow up theprocess.Position of devicesSend dataReceive dataInfrared

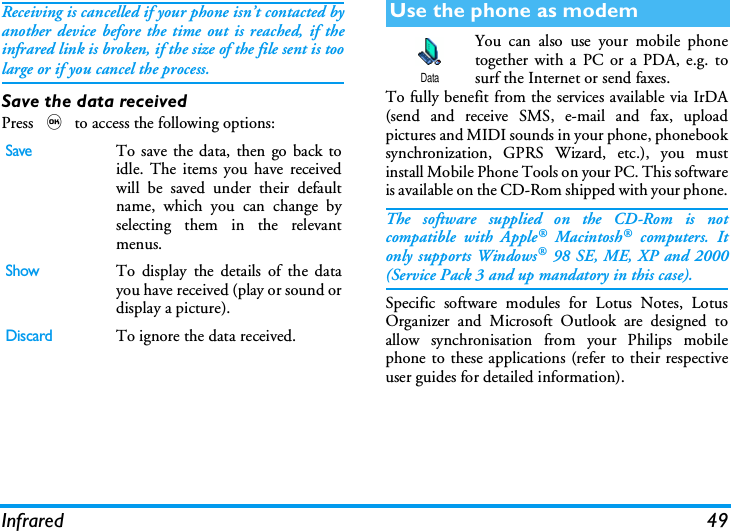

Infrared 49Receiving is cancelled if your phone isn’t contacted byanother device before the time out is reached, if theinfrared link is broken, if the size of the file sent is toolarge or if you cancel the process.Save the data receivedPress , to access the following options:You can also use your mobile phonetogether with a PC or a PDA, e.g. tosurf the Internet or send faxes.To fully benefit from the services available via IrDA(send and receive SMS, e-mail and fax, uploadpictures and MIDI sounds in your phone, phonebooksynchronization, GPRS Wizard, etc.), you mustinstall Mobile Phone Tools on your PC. This softwareis available on the CD-Rom shipped with your phone.The software supplied on the CD-Rom is notcompatible with Apple® Macintosh® computers. Itonly supports Windows® 98 SE, ME, XP and 2000(Service Pack 3 and up mandatory in this case).Specific software modules for Lotus Notes, LotusOrganizer and Microsoft Outlook are designed toallow synchronisation from your Philips mobilephone to these applications (refer to their respectiveuser guides for detailed information).SaveTo save the data, then go back toidle. The items you have receivedwill be saved under their defaultname, which you can change byselecting them in the relevantmenus.ShowTo display the details of the datayou have received (play or sound ordisplay a picture).DiscardTo ignore the data received.Use the phone as modemData

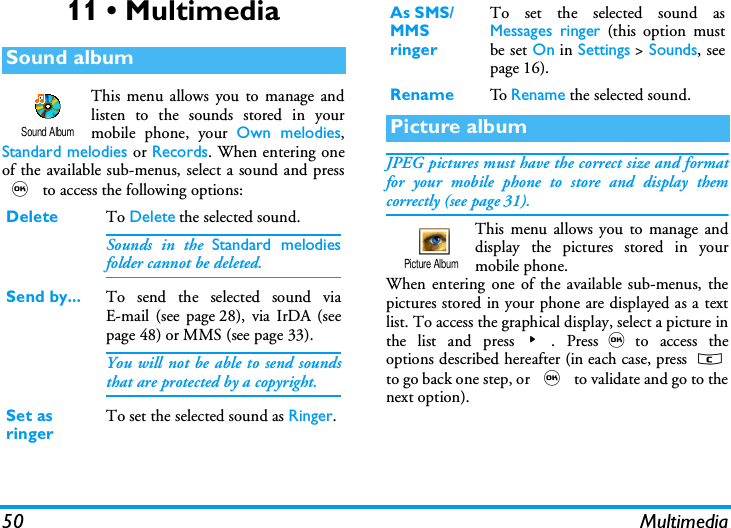

50 Multimedia11 • MultimediaThis menu allows you to manage andlisten to the sounds stored in yourmobile phone, your Own melodies,Standard melodies or Records. When entering oneof the available sub-menus, select a sound and press, to access the following options:JPEG pictures must have the correct size and formatfor your mobile phone to store and display themcorrectly (see page 31).This menu allows you to manage anddisplay the pictures stored in yourmobile phone.When entering one of the available sub-menus, thepictures stored in your phone are displayed as a textlist. To access the graphical display, select a picture inthe list and press>. Press,to access theoptions described hereafter (in each case, press cto go back one step, or , to validate and go to thenext option).Sound albumDelete To Delete the selected sound.Sounds in the Standard melodiesfolder cannot be deleted.Send by... To send the selected sound viaE-mail (see page 28), via IrDA (seepage 48) or MMS (see page 33).You will not be able to send soundsthat are protected by a copyright.Set as ringerTo set the selected sound as Ringer.Sound AlbumAs SMS/MMS ringerTo set the selected sound asMessages ringer (this option mustbe set On in Settings > Sounds, seepage 16).Rename To Rename the selected sound.Picture albumPicture Album

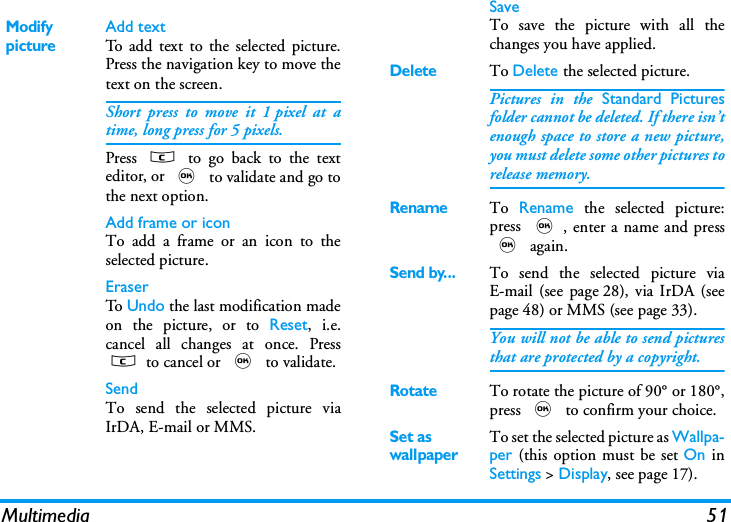

Multimedia 51Modify pictureAdd textTo add text to the selected picture.Press the navigation key to move thetext on the screen.Short press to move it 1 pixel at atime, long press for 5 pixels.Press c to go back to the texteditor, or , to validate and go tothe next option.Add frame or iconTo add a frame or an icon to theselected picture.EraserTo Undo the last modification madeon the picture, or to Reset, i.e.cancel all changes at once. Pressc to cancel or , to validate.SendTo send the selected picture viaIrDA, E-mail or MMS.SaveTo save the picture with all thechanges you have applied.DeleteTo Delete the selected picture.Pictures in the Standard Picturesfolder cannot be deleted. If there isn’tenough space to store a new picture,you must delete some other pictures torelease memory.RenameTo Rename the selected picture:press ,, enter a name and press, again.Send by...To send the selected picture viaE-mail (see page 28), via IrDA (seepage 48) or MMS (see page 33).You will not be able to send picturesthat are protected by a copyright.RotateTo rotate the picture of 90° or 180°,press , to confirm your choice.Set as wallpaperTo set the selected picture as Wallpa-per (this option must be set On inSettings > Display, see page 17).

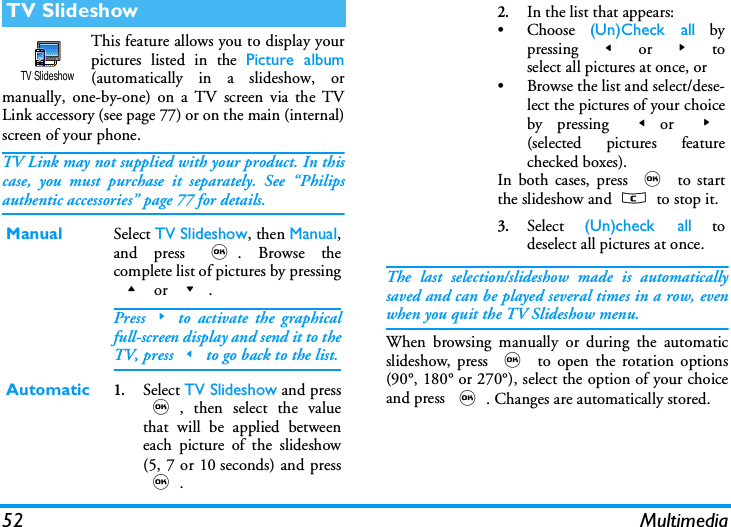

52 MultimediaThis feature allows you to display yourpictures listed in the Picture album(automatically in a slideshow, ormanually, one-by-one) on a TV screen via the TVLink accessory (see page 77) or on the main (internal)screen of your phone.TV Link may not supplied with your product. In thiscase, you must purchase it separately. See “Philipsauthentic accessories” page 77 for details.The last selection/slideshow made is automaticallysaved and can be played several times in a row, evenwhen you quit the TV Slideshow menu.When browsing manually or during the automaticslideshow, press , to open the rotation options(90°, 180° or 270°), select the option of your choiceand press ,. Changes are automatically stored.TV SlideshowManual Select TV Slideshow, then Manual,and press ,. Browse thecomplete list of pictures by pressing+ or -.Press>to activate the graphicalfull-screen display and send it to theTV, press<to go back to the list.Automatic1.Select TV Slideshow and press,, then select the valuethat will be applied betweeneach picture of the slideshow(5, 7 or 10 seconds) and press,.TV Slideshow2.In the list that appears:• Choose (Un)Check all bypressing < or > toselect all pictures at once, or• Browse the list and select/dese-lect the pictures of your choiceby pressing <or >(selected pictures featurechecked boxes).In both cases, press , to startthe slideshow and c to stop it.3.Select (Un)check all todeselect all pictures at once.

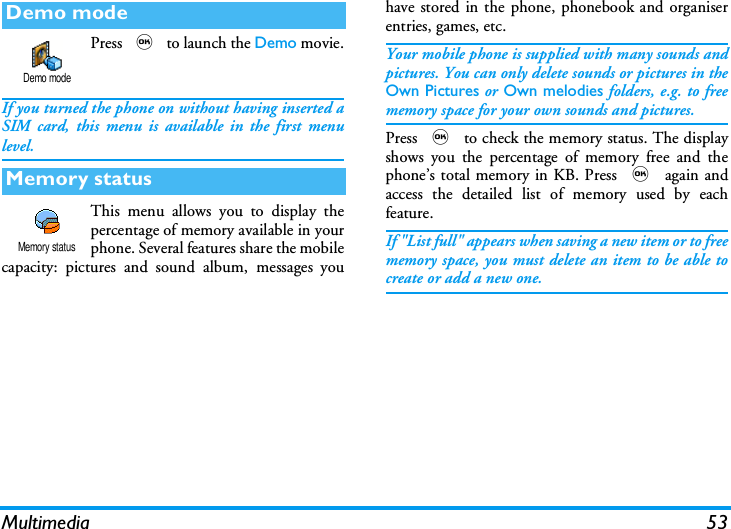

Multimedia 53Press , to launch the Demo movie.If you turned the phone on without having inserted aSIM card, this menu is available in the first menulevel.This menu allows you to display thepercentage of memory available in yourphone. Several features share the mobilecapacity: pictures and sound album, messages youhave stored in the phone, phonebook and organiserentries, games, etc.Your mobile phone is supplied with many sounds andpictures. You can only delete sounds or pictures in theOwn Pictures or Own melodies folders, e.g. to freememory space for your own sounds and pictures.Press , to check the memory status. The displayshows you the percentage of memory free and thephone’s total memory in KB. Press , again andaccess the detailed list of memory used by eachfeature.If "List full" appears when saving a new item or to freememory space, you must delete an item to be able tocreate or add a new one.Demo modeMemory statusDemo modeMemory status

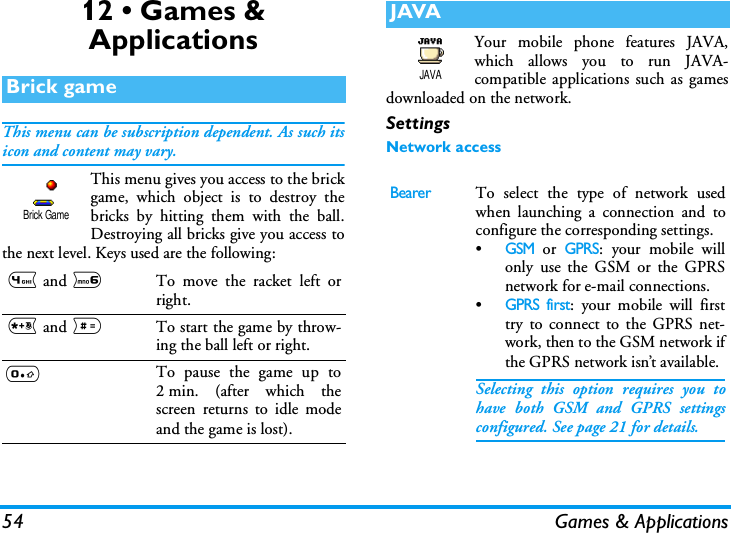

54 Games & Applications12 • Games & ApplicationsThis menu can be subscription dependent. As such itsicon and content may vary.This menu gives you access to the brickgame, which object is to destroy thebricks by hitting them with the ball.Destroying all bricks give you access tothe next level. Keys used are the following:Your mobile phone features JAVA,which allows you to run JAVA-compatible applications such as gamesdownloaded on the network.SettingsNetwork accessBrick game4 and 6To move the racket left orright.* and #To start the game by throw-ing the ball left or right.0To pause the game up to2 min. (after which thescreen returns to idle modeand the game is lost).Brick GameJAVABearerTo select the type of network usedwhen launching a connection and toconfigure the corresponding settings.•GSM or GPRS: your mobile willonly use the GSM or the GPRSnetwork for e-mail connections.•GPRS first: your mobile will firsttry to connect to the GPRS net-work, then to the GSM network ifthe GPRS network isn’t available.Selecting this option requires you tohave both GSM and GPRS settingsconfigured. See page 21 for details.JAVA

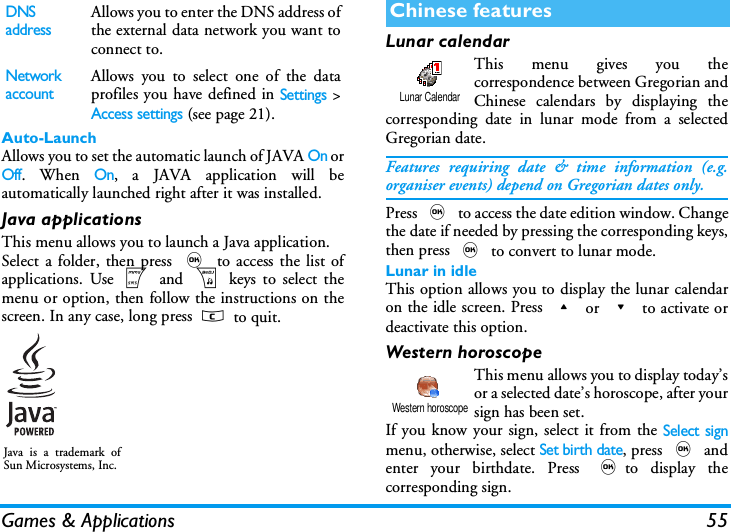

Games & Applications 55Auto-LaunchAllows you to set the automatic launch of JAVA On orOff. When On, a JAVA application will beautomatically launched right after it was installed.Java applicationsThis menu allows you to launch a Java application.Select a folder, then press , to access the list ofapplications. Use m and b keys to select themenu or option, then follow the instructions on thescreen. In any case, long press c to quit.Lunar calendarThis menu gives you thecorrespondence between Gregorian andChinese calendars by displaying thecorresponding date in lunar mode from a selectedGregorian date.Features requiring date & time information (e.g.organiser events) depend on Gregorian dates only.Press , to access the date edition window. Changethe date if needed by pressing the corresponding keys,then press , to convert to lunar mode.Lunar in idleThis option allows you to display the lunar calendaron the idle screen. Press + or - to activate ordeactivate this option.Western horoscopeThis menu allows you to display today’sor a selected date’s horoscope, after yoursign has been set.If you know your sign, select it from the Select signmenu, otherwise, select Set birth date, press , andenter your birthdate. Press ,to display thecorresponding sign. DNS addressAllows you to enter the DNS address ofthe external data network you want toconnect to.Network accountAllows you to select one of the dataprofiles you have defined in Settings >Access settings (see page 21).Java is a trademark ofSun Microsystems, Inc.Chinese featuresLunar CalendarWestern horoscope

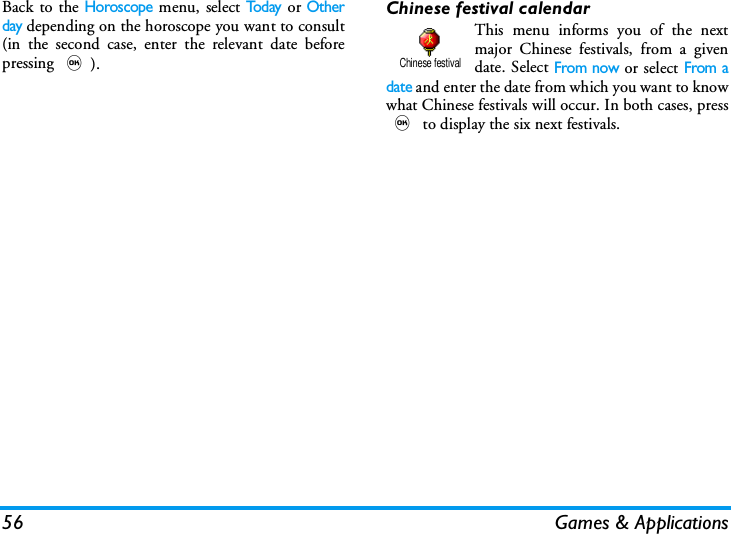

56 Games & ApplicationsBack to the Horoscope menu, select Tod ay or Otherday depending on the horoscope you want to consult(in the second case, enter the relevant date beforepressing ,).Chinese festival calendarThis menu informs you of the nextmajor Chinese festivals, from a givendate. Select From now or select From adate and enter the date from which you want to knowwhat Chinese festivals will occur. In both cases, press, to display the six next festivals.Chinese festival

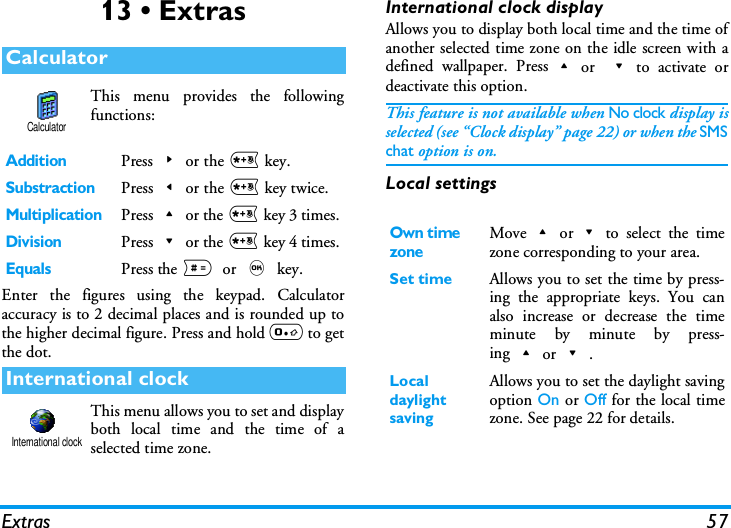

Extras 5713 • ExtrasThis menu provides the followingfunctions:Enter the figures using the keypad. Calculatoraccuracy is to 2 decimal places and is rounded up tothe higher decimal figure. Press and hold 0 to getthe dot.This menu allows you to set and displayboth local time and the time of aselected time zone.International clock displayAllows you to display both local time and the time ofanother selected time zone on the idle screen with adefined wallpaper. Press+or -to activate ordeactivate this option.This feature is not available when No clock display isselected (see “Clock display” page 22) or when the SMSchat option is on.Local settingsCalculatorAdditionPress>or the * key.SubstractionPress<or the * key twice.MultiplicationPress+or the * key 3 times.DivisionPress-or the * key 4 times.EqualsPress the #or , key.International clockCalculatorInternational clockOwn time zoneMove+or-to select the timezone corresponding to your area.Set time Allows you to set the time by press-ing the appropriate keys. You canalso increase or decrease the timeminute by minute by press-ing+or-.Local daylight savingAllows you to set the daylight savingoption On or Off for the local timezone. See page 22 for details.

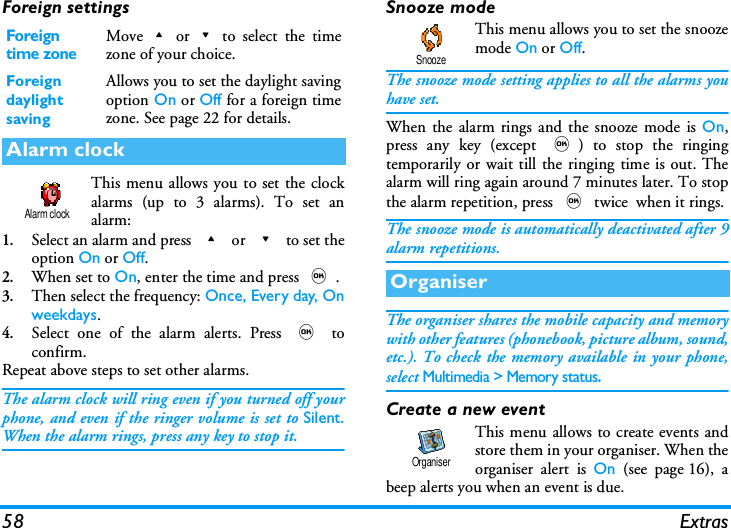

58 ExtrasForeign settingsThis menu allows you to set the clockalarms (up to 3 alarms). To set analarm:1.Select an alarm and press + or - to set theoption On or Off.2.When set to On, enter the time and press ,.3.Then select the frequency: Once, Every day, Onweekdays. 4.Select one of the alarm alerts. Press , toconfirm.Repeat above steps to set other alarms.The alarm clock will ring even if you turned off yourphone, and even if the ringer volume is set to Silent.When the alarm rings, press any key to stop it.Snooze modeThis menu allows you to set the snoozemode On or Off.The snooze mode setting applies to all the alarms youhave set.When the alarm rings and the snooze mode is On,press any key (except ,) to stop the ringingtemporarily or wait till the ringing time is out. Thealarm will ring again around 7 minutes later. To stopthe alarm repetition, press , twice when it rings.The snooze mode is automatically deactivated after 9alarm repetitions.The organiser shares the mobile capacity and memorywith other features (phonebook, picture album, sound,etc.). To check the memory available in your phone,select Multimedia > Memory status.Create a new eventThis menu allows to create events andstore them in your organiser. When theorganiser alert is On (see page 16), abeep alerts you when an event is due.Foreign time zoneMove+or-to select the timezone of your choice.Foreign daylight savingAllows you to set the daylight savingoption On or Off for a foreign timezone. See page 22 for details.Alarm clockAlarm clockOrganiserSnoozeOrganiser

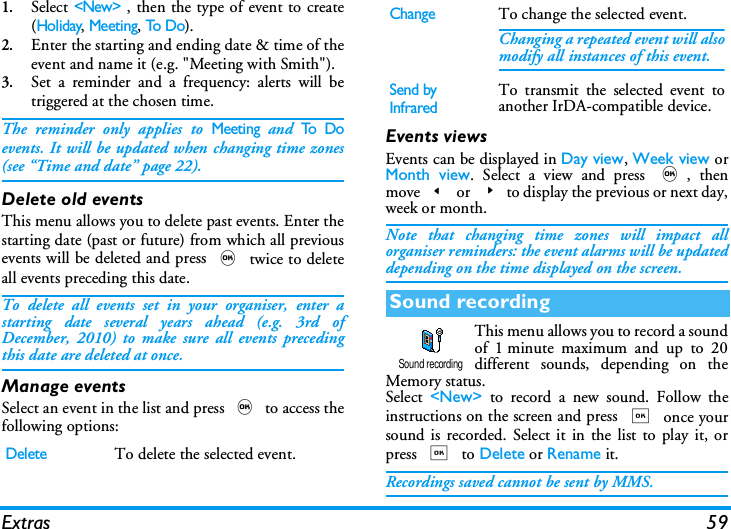

Extras 591.Select <New> , then the type of event to create(Holiday, Meeting, To D o).2.Enter the starting and ending date & time of theevent and name it (e.g. "Meeting with Smith").3.Set a reminder and a frequency: alerts will betriggered at the chosen time.The reminder only applies to Meeting and To D oevents. It will be updated when changing time zones(see “Time and date” page 22).Delete old eventsThis menu allows you to delete past events. Enter thestarting date (past or future) from which all previousevents will be deleted and press , twice to deleteall events preceding this date.To delete all events set in your organiser, enter astarting date several years ahead (e.g. 3rd ofDecember, 2010) to make sure all events precedingthis date are deleted at once.Manage eventsSelect an event in the list and press , to access thefollowing options:Events viewsEvents can be displayed in Day view, Week view orMonth view. Select a view and press ,, thenmove< or >to display the previous or next day,week or month.Note that changing time zones will impact allorganiser reminders: the event alarms will be updateddepending on the time displayed on the screen.This menu allows you to record a soundof 1 minute maximum and up to 20different sounds, depending on theMemory status. Select <New> to record a new sound. Follow theinstructions on the screen and press , once yoursound is recorded. Select it in the list to play it, orpress , to Delete or Rename it.Recordings saved cannot be sent by MMS.DeleteTo delete the selected event.ChangeTo change the selected event.Changing a repeated event will alsomodify all instances of this event.Send by InfraredTo transmit the selected event toanother IrDA-compatible device.Sound recordingSound recording

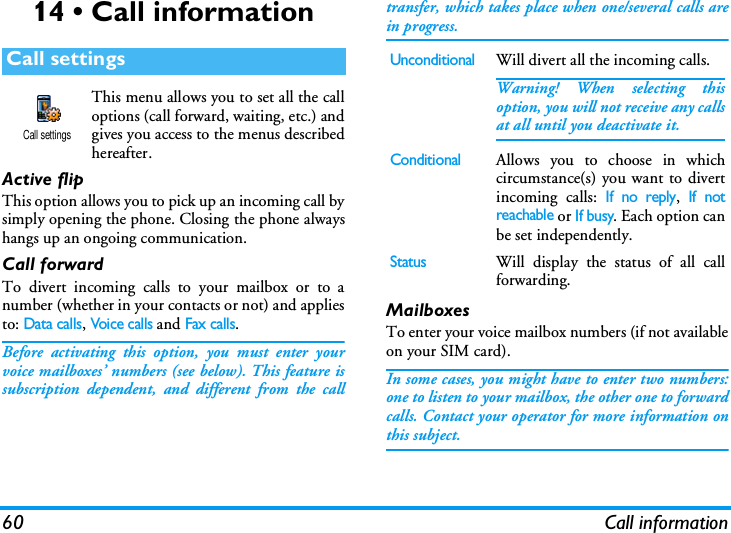

60 Call information14 • Call informationThis menu allows you to set all the calloptions (call forward, waiting, etc.) andgives you access to the menus describedhereafter.Active flipThis option allows you to pick up an incoming call bysimply opening the phone. Closing the phone alwayshangs up an ongoing communication.Call forwardTo divert incoming calls to your mailbox or to anumber (whether in your contacts or not) and appliesto: Data calls, Voice calls and Fax calls.Before activating this option, you must enter yourvoice mailboxes’ numbers (see below). This feature issubscription dependent, and different from the calltransfer, which takes place when one/several calls arein progress.MailboxesTo enter your voice mailbox numbers (if not availableon your SIM card).In some cases, you might have to enter two numbers:one to listen to your mailbox, the other one to forwardcalls. Contact your operator for more information onthis subject.Call settingsCall settingsUnconditionalWill divert all the incoming calls.Warning! When selecting thisoption, you will not receive any callsat all until you deactivate it.ConditionalAllows you to choose in whichcircumstance(s) you want to divertincoming calls: If no reply, If notreachable or If busy. Each option canbe set independently.StatusWill display the status of all callforwarding.
Call information 61Auto redialTo set the auto redial On or Off. When On if theperson you are calling is busy, your phoneautomatically redials this number until a successfulconnection is made or until the maximum number ofattempts is reached (10). The phone beeps at thebeginning of each attempt and emits a special beep ifthe connection is successful.The time between redials increases with each attempt.Any key answerTo accept a call by pressing any key, except ), usedto reject a call.Call waitingCaller IDTo Show or Hide your identity to your correspondent.The Status option will inform you if this function isactivated or not.IP PrefixTo set the prefix provided by your operator (up to 10digits can be stored) in order to make IP calls.This function is subscription and network dependent.Contact your operator for configuration parameters.This menu provides you with the list ofoutgoing and incoming calls, attemptsat auto redialling and call details. Thecalls (made, missed and received) are displayed inchronological order with the most recent on top.With GSM callApplies to All calls, Voice calls, Faxcalls and Data calls. When thisoption is active, you hear a beep ifsomeone tries to call you whilealready on a call. Select the Statusoption to find out whether theGSM call waiting is active or not. This function is subscriptiondependent. Contact your operator.With GPRS callAllows you to Activate or Deactivatethe call waiting for voice incomingcalls while a GPRS connection isongoing.Call listCall List

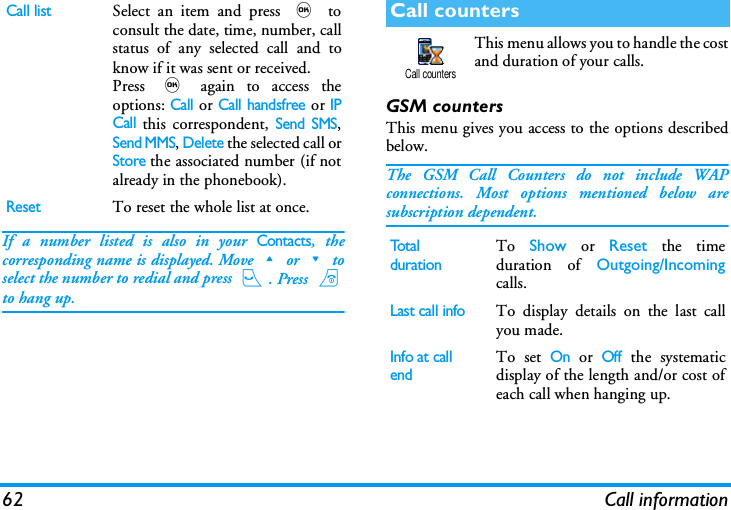

62 Call informationIf a number listed is also in your Contacts, thecorresponding name is displayed. Move+or-toselect the number to redial and press (. Press )to hang up.This menu allows you to handle the costand duration of your calls.GSM countersThis menu gives you access to the options describedbelow.The GSM Call Counters do not include WAPconnections. Most options mentioned below aresubscription dependent.Call listSelect an item and press , toconsult the date, time, number, callstatus of any selected call and toknow if it was sent or received.Press , again to access theoptions: Call or Call handsfree or IPCall this correspondent, Send SMS,Send MMS, Delete the selected call orStore the associated number (if notalready in the phonebook).ResetTo reset the whole list at once.Call countersTotal durationTo Show or Reset the timeduration of Outgoing/Incomingcalls.Last call infoTo display details on the last callyou made.Info at call endTo set On or Off the systematicdisplay of the length and/or cost ofeach call when hanging up.Call counters

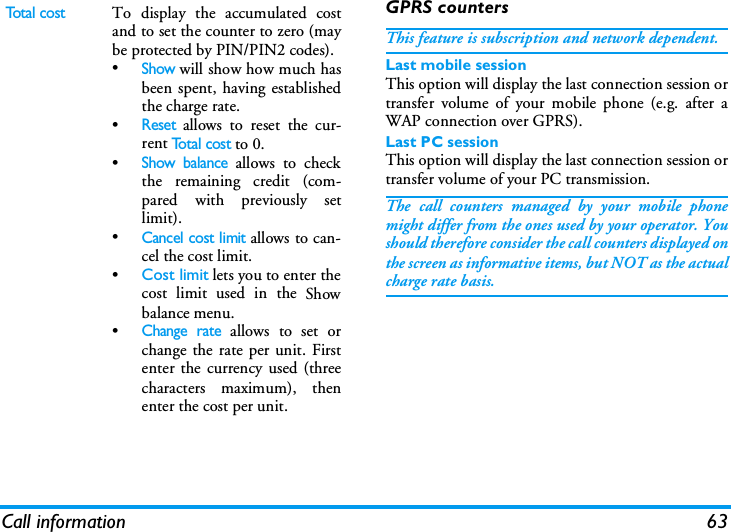

Call information 63GPRS countersThis feature is subscription and network dependent.Last mobile sessionThis option will display the last connection session ortransfer volume of your mobile phone (e.g. after aWAP connection over GPRS).Last PC sessionThis option will display the last connection session ortransfer volume of your PC transmission.The call counters managed by your mobile phonemight differ from the ones used by your operator. Youshould therefore consider the call counters displayed onthe screen as informative items, but NOT as the actualcharge rate basis.Total costTo display the accumulated costand to set the counter to zero (maybe protected by PIN/PIN2 codes).•Show will show how much hasbeen spent, having establishedthe charge rate.•Reset allows to reset the cur-rent To t a l c o s t to 0.•Show balance allows to checkthe remaining credit (com-pared with previously setlimit).•Cancel cost limit allows to can-cel the cost limit.•Cost limit lets you to enter thecost limit used in the Showbalance menu.•Change rate allows to set orchange the rate per unit. Firstenter the currency used (threecharacters maximum), thenenter the cost per unit.

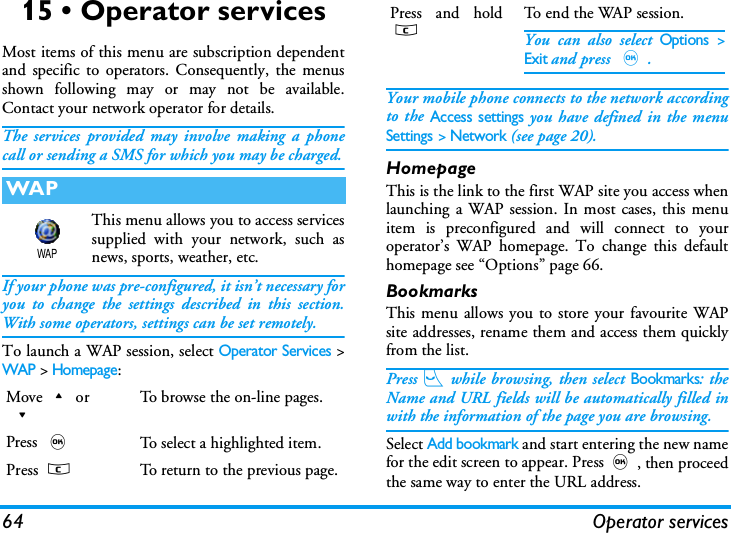

64 Operator services15 • Operator servicesMost items of this menu are subscription dependentand specific to operators. Consequently, the menusshown following may or may not be available.Contact your network operator for details.The services provided may involve making a phonecall or sending a SMS for which you may be charged.This menu allows you to access servicessupplied with your network, such asnews, sports, weather, etc.If your phone was pre-configured, it isn’t necessary foryou to change the settings described in this section.With some operators, settings can be set remotely.To launch a WAP session, select Operator Services >WAP > Homepage:Your mobile phone connects to the network accordingto the Access settings you have defined in the menuSettings > Network (see page 20).HomepageThis is the link to the first WAP site you access whenlaunching a WAP session. In most cases, this menuitem is preconfigured and will connect to youroperator’s WAP homepage. To change this defaulthomepage see “Options” page 66.BookmarksThis menu allows you to store your favourite WAPsite addresses, rename them and access them quicklyfrom the list.Press(while browsing, then select Bookmarks: theName and URL fields will be automatically filled inwith the information of the page you are browsing.Select Add bookmark and start entering the new namefor the edit screen to appear. Press,, then proceedthe same way to enter the URL address.WAPMove+or-To browse the on-line pages.Press ,To select a highlighted item.Press cTo return to the previous page.WAPPress and holdcTo end the WAP session.You can also select Options >Exit and press ,.

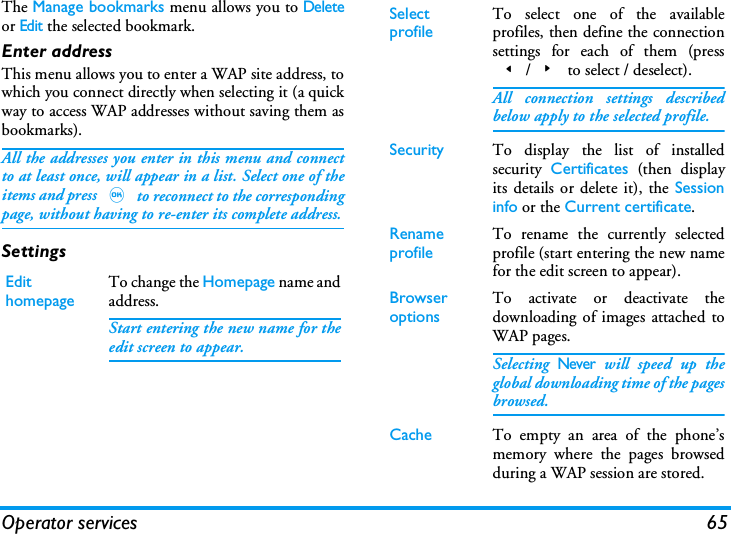

Operator services 65The Manage bookmarks menu allows you to Deleteor Edit the selected bookmark.Enter addressThis menu allows you to enter a WAP site address, towhich you connect directly when selecting it (a quickway to access WAP addresses without saving them asbookmarks).All the addresses you enter in this menu and connectto at least once, will appear in a list. Select one of theitems and press , to reconnect to the correspondingpage, without having to re-enter its complete address.SettingsEdit homepageTo change the Homepage name andaddress.Start entering the new name for theedit screen to appear.Select profileTo select one of the availableprofiles, then define the connectionsettings for each of them (press</> to select / deselect).All connection settings describedbelow apply to the selected profile.Security To display the list of installedsecurity Certificates (then displayits details or delete it), the Sessioninfo or the Current certificate.Rename profileTo rename the currently selectedprofile (start entering the new namefor the edit screen to appear).Browser optionsTo activate or deactivate thedownloading of images attached toWAP pages.Selecting Never will speed up theglobal downloading time of the pagesbrowsed.Cache To empty an area of the phone’smemory where the pages browsedduring a WAP session are stored.

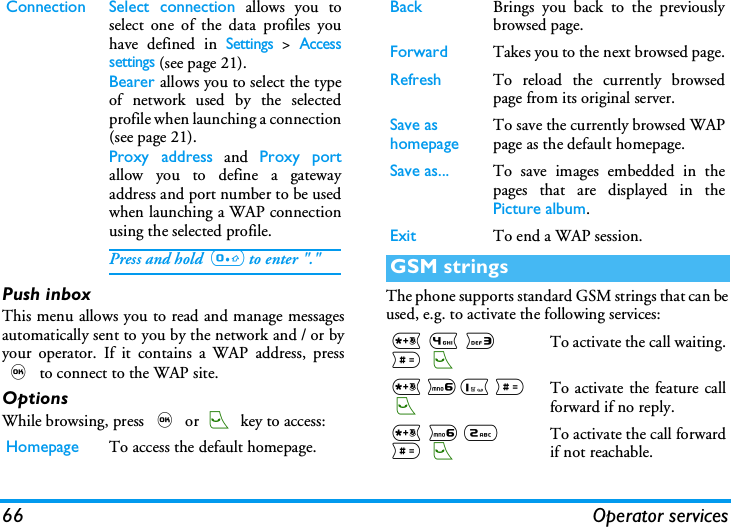

66 Operator servicesPush inboxThis menu allows you to read and manage messagesautomatically sent to you by the network and / or byyour operator. If it contains a WAP address, press, to connect to the WAP site.OptionsWhile browsing, press , or ( key to access:The phone supports standard GSM strings that can beused, e.g. to activate the following services:Connection Select connection allows you toselect one of the data profiles youhave defined in Settings > Accesssettings (see page 21).Bearer allows you to select the typeof network used by the selectedprofile when launching a connection(see page 21).Proxy address and Proxy portallow you to define a gatewayaddress and port number to be usedwhen launching a WAP connectionusing the selected profile.Press and hold 0 to enter "."Homepage To access the default homepage.Back Brings you back to the previouslybrowsed page.Forward Takes you to the next browsed page.Refresh To reload the currently browsedpage from its original server.Save as homepageTo save the currently browsed WAPpage as the default homepage.Save as... To save images embedded in thepages that are displayed in thePicture album.Exit To end a WAP session.GSM strings* 4 3 # (To activate the call waiting.* 61 # (To activate the feature callforward if no reply.* 6 2 # (To activate the call forwardif not reachable.

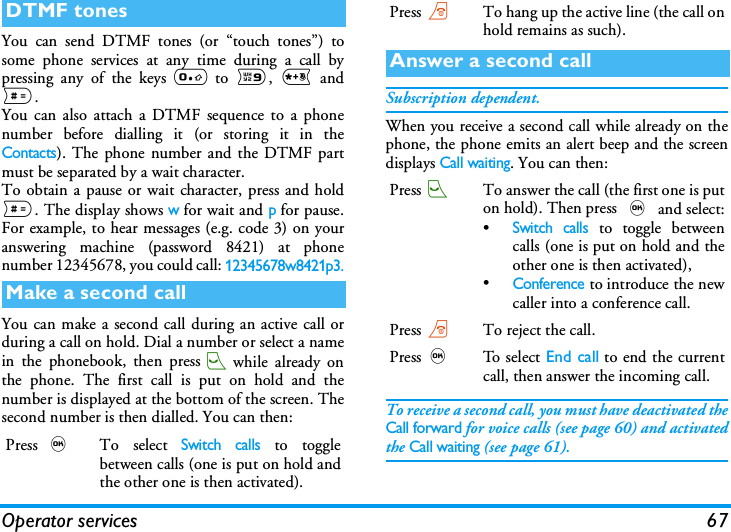

Operator services 67You can send DTMF tones (or “touch tones”) tosome phone services at any time during a call bypressing any of the keys 0 to 9, * and#.You can also attach a DTMF sequence to a phonenumber before dialling it (or storing it in theContacts). The phone number and the DTMF partmust be separated by a wait character.To obtain a pause or wait character, press and hold#. The display shows w for wait and p for pause.For example, to hear messages (e.g. code 3) on youranswering machine (password 8421) at phonenumber 12345678, you could call: 12345678w8421p3.You can make a second call during an active call orduring a call on hold. Dial a number or select a namein the phonebook, then press(while already onthe phone. The first call is put on hold and thenumber is displayed at the bottom of the screen. Thesecond number is then dialled. You can then:Subscription dependent.When you receive a second call while already on thephone, the phone emits an alert beep and the screendisplays Call waiting. You can then:To receive a second call, you must have deactivated theCall forward for voice calls (see page 60) and activatedthe Call waiting (see page 61).DTMF tonesMake a second callPress ,To select Switch calls to togglebetween calls (one is put on hold andthe other one is then activated).Press)To hang up the active line (the call onhold remains as such).Answer a second callPress(To answer the call (the first one is puton hold). Then press , and select:•Switch calls to toggle betweencalls (one is put on hold and theother one is then activated),•Conference to introduce the newcaller into a conference call.Press)To reject the call.Press,To s e l ec t End call to end the currentcall, then answer the incoming call.

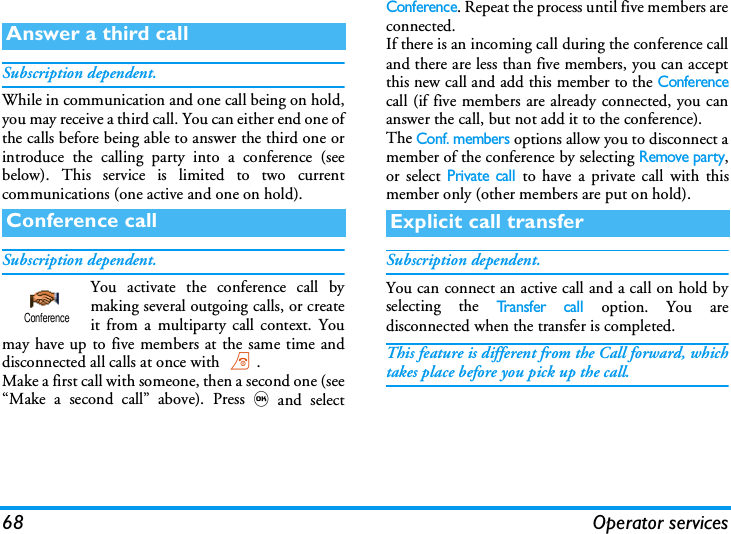

68 Operator servicesSubscription dependent.While in communication and one call being on hold,you may receive a third call. You can either end one ofthe calls before being able to answer the third one orintroduce the calling party into a conference (seebelow). This service is limited to two currentcommunications (one active and one on hold).Subscription dependent.You activate the conference call bymaking several outgoing calls, or createit from a multiparty call context. Youmay have up to five members at the same time anddisconnected all calls at once with ).Make a first call with someone, then a second one (see“Make a second call” above). Press,and selectConference. Repeat the process until five members areconnected.If there is an incoming call during the conference calland there are less than five members, you can acceptthis new call and add this member to the Conferencecall (if five members are already connected, you cananswer the call, but not add it to the conference).The Conf. members options allow you to disconnect amember of the conference by selecting Remove party,or select Private call to have a private call with thismember only (other members are put on hold).Subscription dependent.You can connect an active call and a call on hold byselecting the Tr a n s f e r c a l l option. You aredisconnected when the transfer is completed.This feature is different from the Call forward, whichtakes place before you pick up the call.Answer a third callConference callConferenceExplicit call transfer

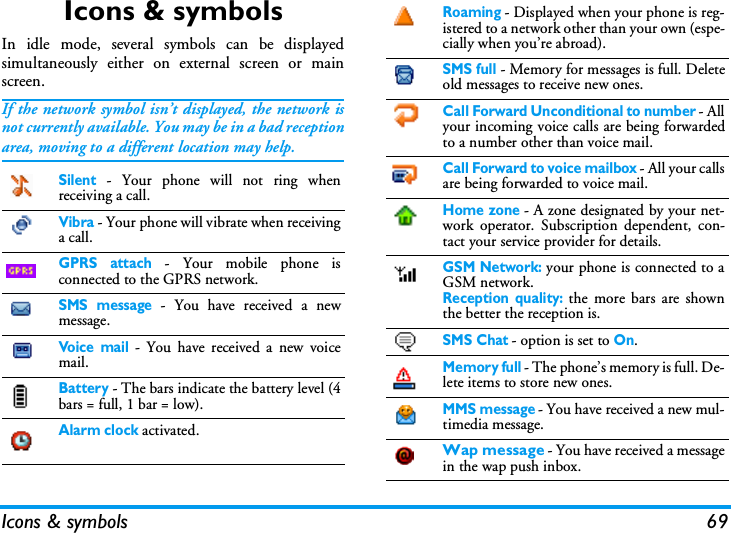

Icons & symbols 69Icons & symbolsIn idle mode, several symbols can be displayedsimultaneously either on external screen or mainscreen.If the network symbol isn’t displayed, the network isnot currently available. You may be in a bad receptionarea, moving to a different location may help.Silent - Your phone will not ring whenreceiving a call.Vibra - Your phone will vibrate when receivinga call.GPRS attach - Your mobile phone isconnected to the GPRS network.SMS message - You have received a newmessage. Vo ice ma i l - You have received a new voicemail.Battery - The bars indicate the battery level (4bars = full, 1 bar = low).Alarm clock activated.Roaming - Displayed when your phone is reg-istered to a network other than your own (espe-cially when you’re abroad).SMS full - Memory for messages is full. Deleteold messages to receive new ones.Call Forward Unconditional to number - Allyour incoming voice calls are being forwardedto a number other than voice mail.Call Forward to voice mailbox - All your callsare being forwarded to voice mail.Home zone - A zone designated by your net-work operator. Subscription dependent, con-tact your service provider for details.GSM Network: your phone is connected to aGSM network.Reception quality: the more bars are shownthe better the reception is.SMS Chat - option is set to On.Memory full - The phone’s memory is full. De-lete items to store new ones.MMS message - You have received a new mul-timedia message.Wap message - You have received a messagein the wap push inbox.

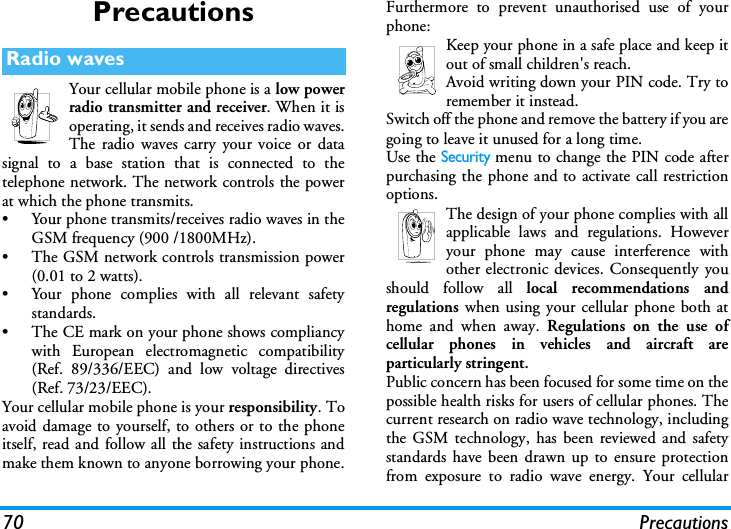

70 PrecautionsPrecautionsYour cellular mobile phone is a low powerradio transmitter and receiver. When it isoperating, it sends and receives radio waves.The radio waves carry your voice or datasignal to a base station that is connected to thetelephone network. The network controls the powerat which the phone transmits.• Your phone transmits/receives radio waves in theGSM frequency (900 /1800MHz).• The GSM network controls transmission power(0.01 to 2 watts).• Your phone complies with all relevant safetystandards.• The CE mark on your phone shows compliancywith European electromagnetic compatibility(Ref. 89/336/EEC) and low voltage directives(Ref. 73/23/EEC).Your cellular mobile phone is your responsibility. Toavoid damage to yourself, to others or to the phoneitself, read and follow all the safety instructions andmake them known to anyone borrowing your phone.Furthermore to prevent unauthorised use of yourphone:Keep your phone in a safe place and keep itout of small children's reach.Avoid writing down your PIN code. Try toremember it instead. Switch off the phone and remove the battery if you aregoing to leave it unused for a long time.Use the Security menu to change the PIN code afterpurchasing the phone and to activate call restrictionoptions.The design of your phone complies with allapplicable laws and regulations. Howeveryour phone may cause interference withother electronic devices. Consequently youshould follow all local recommendations andregulations when using your cellular phone both athome and when away. Regulations on the use ofcellular phones in vehicles and aircraft areparticularly stringent.Public concern has been focused for some time on thepossible health risks for users of cellular phones. Thecurrent research on radio wave technology, includingthe GSM technology, has been reviewed and safetystandards have been drawn up to ensure protectionfrom exposure to radio wave energy. Your cellularRadio waves

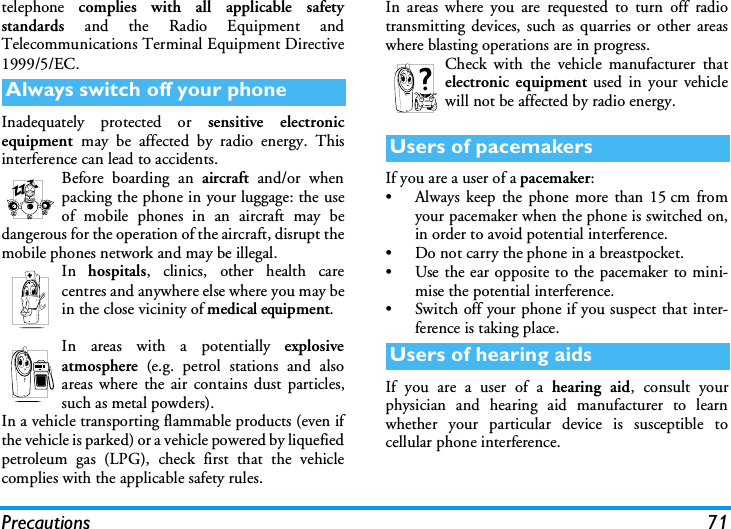

Precautions 71telephone complies with all applicable safetystandards and the Radio Equipment andTelecommunications Terminal Equipment Directive1999/5/EC.Inadequately protected or sensitive electronicequipment may be affected by radio energy. Thisinterference can lead to accidents.Before boarding an aircraft and/or whenpacking the phone in your luggage: the useof mobile phones in an aircraft may bedangerous for the operation of the aircraft, disrupt themobile phones network and may be illegal.In hospitals, clinics, other health carecentres and anywhere else where you may bein the close vicinity of medical equipment.In areas with a potentially explosiveatmosphere (e.g. petrol stations and alsoareas where the air contains dust particles,such as metal powders).In a vehicle transporting flammable products (even ifthe vehicle is parked) or a vehicle powered by liquefiedpetroleum gas (LPG), check first that the vehiclecomplies with the applicable safety rules.In areas where you are requested to turn off radiotransmitting devices, such as quarries or other areaswhere blasting operations are in progress.Check with the vehicle manufacturer thatelectronic equipment used in your vehiclewill not be affected by radio energy.If you are a user of a pacemaker:• Always keep the phone more than 15 cm fromyour pacemaker when the phone is switched on,in order to avoid potential interference.• Do not carry the phone in a breastpocket.• Use the ear opposite to the pacemaker to mini-mise the potential interference.• Switch off your phone if you suspect that inter-ference is taking place.If you are a user of a hearing aid, consult yourphysician and hearing aid manufacturer to learnwhether your particular device is susceptible tocellular phone interference.Always switch off your phoneUsers of pacemakersUsers of hearing aids

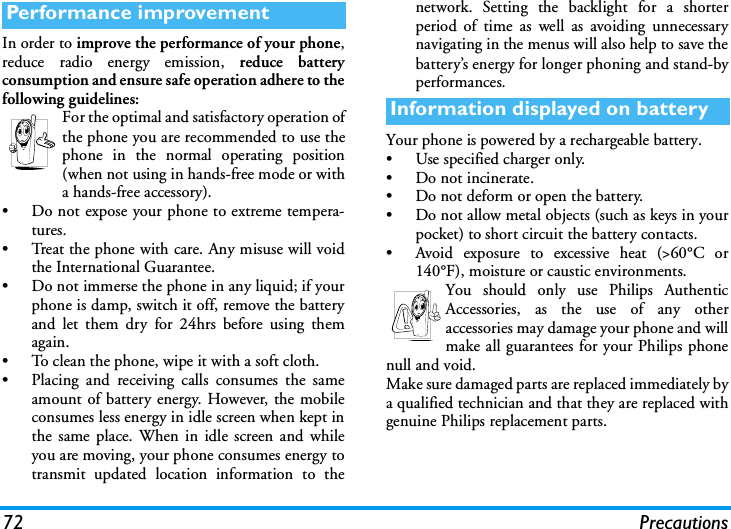

72 PrecautionsIn order to improve the performance of your phone,reduce radio energy emission, reduce batteryconsumption and ensure safe operation adhere to thefollowing guidelines:For the optimal and satisfactory operation ofthe phone you are recommended to use thephone in the normal operating position(when not using in hands-free mode or witha hands-free accessory).• Do not expose your phone to extreme tempera-tures.• Treat the phone with care. Any misuse will voidthe International Guarantee.• Do not immerse the phone in any liquid; if yourphone is damp, switch it off, remove the batteryand let them dry for 24hrs before using themagain.• To clean the phone, wipe it with a soft cloth.• Placing and receiving calls consumes the sameamount of battery energy. However, the mobileconsumes less energy in idle screen when kept inthe same place. When in idle screen and whileyou are moving, your phone consumes energy totransmit updated location information to thenetwork. Setting the backlight for a shorterperiod of time as well as avoiding unnecessarynavigating in the menus will also help to save thebattery’s energy for longer phoning and stand-byperformances.Your phone is powered by a rechargeable battery.• Use specified charger only.• Do not incinerate.• Do not deform or open the battery.• Do not allow metal objects (such as keys in yourpocket) to short circuit the battery contacts.• Avoid exposure to excessive heat (>60°C or140°F), moisture or caustic environments.You should only use Philips AuthenticAccessories, as the use of any otheraccessories may damage your phone and willmake all guarantees for your Philips phonenull and void.Make sure damaged parts are replaced immediately bya qualified technician and that they are replaced withgenuine Philips replacement parts.Performance improvementInformation displayed on battery

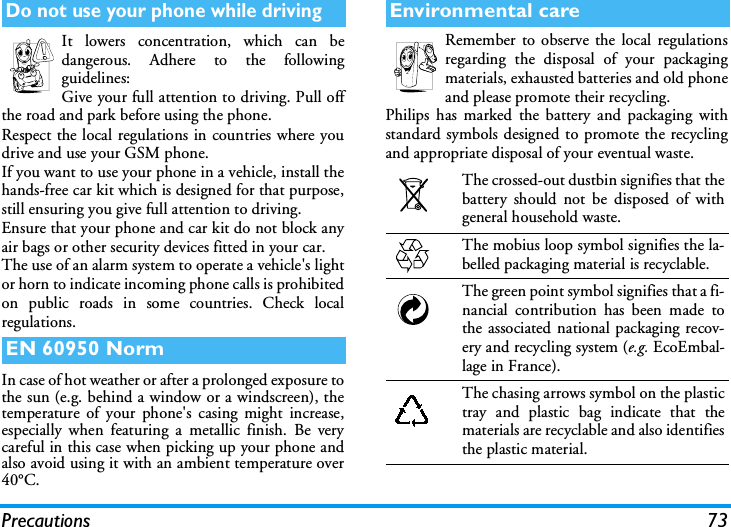

Precautions 73It lowers concentration, which can bedangerous. Adhere to the followingguidelines:Give your full attention to driving. Pull offthe road and park before using the phone.Respect the local regulations in countries where youdrive and use your GSM phone.If you want to use your phone in a vehicle, install thehands-free car kit which is designed for that purpose,still ensuring you give full attention to driving.Ensure that your phone and car kit do not block anyair bags or other security devices fitted in your car.The use of an alarm system to operate a vehicle's lightor horn to indicate incoming phone calls is prohibitedon public roads in some countries. Check localregulations.In case of hot weather or after a prolonged exposure tothe sun (e.g. behind a window or a windscreen), thetemperature of your phone's casing might increase,especially when featuring a metallic finish. Be verycareful in this case when picking up your phone andalso avoid using it with an ambient temperature over40°C.Remember to observe the local regulationsregarding the disposal of your packagingmaterials, exhausted batteries and old phoneand please promote their recycling.Philips has marked the battery and packaging withstandard symbols designed to promote the recyclingand appropriate disposal of your eventual waste.Do not use your phone while drivingEN 60950 NormEnvironmental careThe crossed-out dustbin signifies that thebattery should not be disposed of withgeneral household waste.The mobius loop symbol signifies the la-belled packaging material is recyclable.The green point symbol signifies that a fi-nancial contribution has been made tothe associated national packaging recov-ery and recycling system (e.g. EcoEmbal-lage in France).The chasing arrows symbol on the plastictray and plastic bag indicate that thematerials are recyclable and also identifiesthe plastic material.

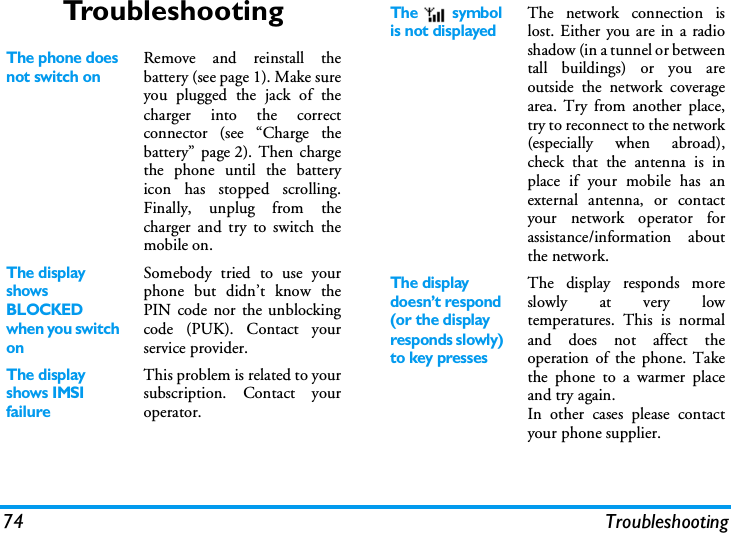

74 TroubleshootingTroubleshootingThe phone does not switch onRemove and reinstall thebattery (see page 1). Make sureyou plugged the jack of thecharger into the correctconnector (see “Charge thebattery” page 2). Then chargethe phone until the batteryicon has stopped scrolling.Finally, unplug from thecharger and try to switch themobile on.The display shows BLOCKED when you switch onSomebody tried to use yourphone but didn’t know thePIN code nor the unblockingcode (PUK). Contact yourservice provider.The display shows IMSI failureThis problem is related to yoursubscription. Contact youroperator.The symbol is not displayedThe network connection islost. Either you are in a radioshadow (in a tunnel or betweentall buildings) or you areoutside the network coveragearea. Try from another place,try to reconnect to the network(especially when abroad),check that the antenna is inplace if your mobile has anexternal antenna, or contactyour network operator forassistance/information aboutthe network.The display doesn’t respond (or the display responds slowly) to key pressesThe display responds moreslowly at very lowtemperatures. This is normaland does not affect theoperation of the phone. Takethe phone to a warmer placeand try again. In other cases please contactyour phone supplier.

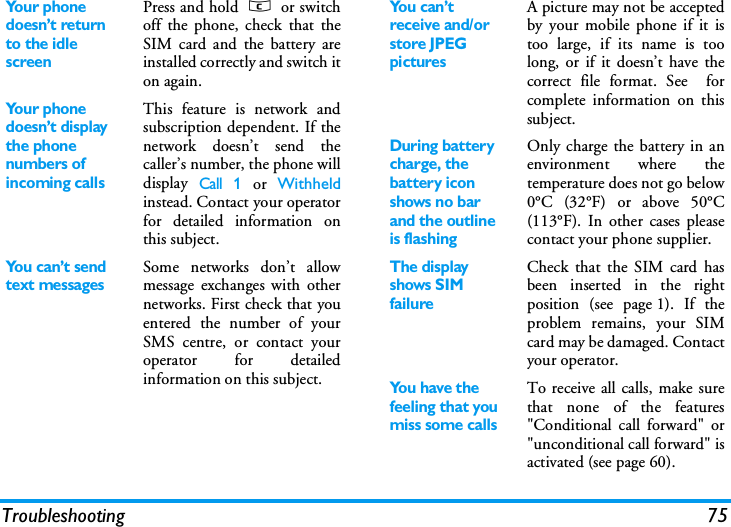

Troubleshooting 75Your phone doesn’t return to the idle screenPress and hold c or switchoff the phone, check that theSIM card and the battery areinstalled correctly and switch iton again.Your phone doesn’t display the phone numbers of incoming callsThis feature is network andsubscription dependent. If thenetwork doesn’t send thecaller’s number, the phone willdisplay Call 1 or Withheldinstead. Contact your operatorfor detailed information onthis subject.You can’t send text messagesSome networks don’t allowmessage exchanges with othernetworks. First check that youentered the number of yourSMS centre, or contact youroperator for detailedinformation on this subject.Yo u c a n ’ t receive and/or store JPEG picturesA picture may not be acceptedby your mobile phone if it istoo large, if its name is toolong, or if it doesn’t have thecorrect file format. See forcomplete information on thissubject.During battery charge, the battery icon shows no bar and the outline is flashingOnly charge the battery in anenvironment where thetemperature does not go below0°C (32°F) or above 50°C(113°F). In other cases pleasecontact your phone supplier.The display shows SIM failureCheck that the SIM card hasbeen inserted in the rightposition (see page 1). If theproblem remains, your SIMcard may be damaged. Contactyour operator.You have the feeling that you miss some callsTo receive all calls, make surethat none of the features"Conditional call forward" or"unconditional call forward" isactivated (see page 60).

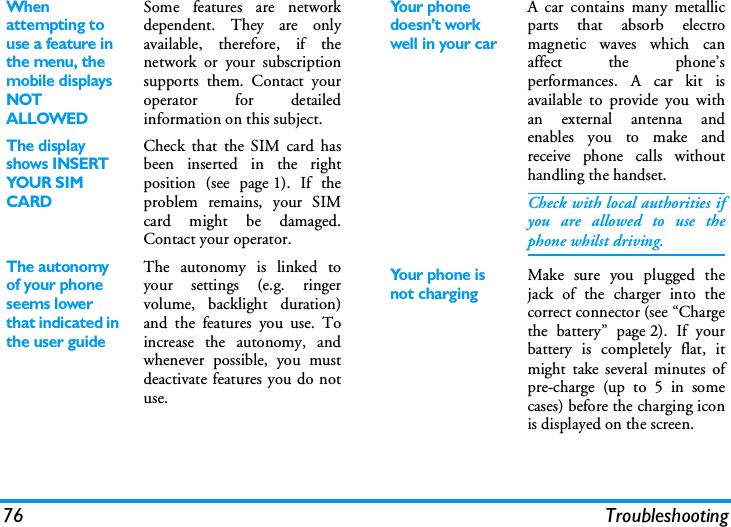

76 TroubleshootingWhen attempting to use a feature in the menu, the mobile displays NOT ALLOWEDSome features are networkdependent. They are onlyavailable, therefore, if thenetwork or your subscriptionsupports them. Contact youroperator for detailedinformation on this subject.The display shows INSERT YOUR S IM CARDCheck that the SIM card hasbeen inserted in the rightposition (see page 1). If theproblem remains, your SIMcard might be damaged.Contact your operator.The autonomy of your phone seems lower that indicated in the user guideThe autonomy is linked toyour settings (e.g. ringervolume, backlight duration)and the features you use. Toincrease the autonomy, andwhenever possible, you mustdeactivate features you do notuse.Your phone doesn’t work well in your carA car contains many metallicparts that absorb electromagnetic waves which canaffect the phone’sperformances. A car kit isavailable to provide you withan external antenna andenables you to make andreceive phone calls withouthandling the handset.Check with local authorities ifyou are allowed to use thephone whilst driving.Your phone is not chargingMake sure you plugged thejack of the charger into thecorrect connector (see “Chargethe battery” page 2). If yourbattery is completely flat, itmight take several minutes ofpre-charge (up to 5 in somecases) before the charging iconis displayed on the screen.

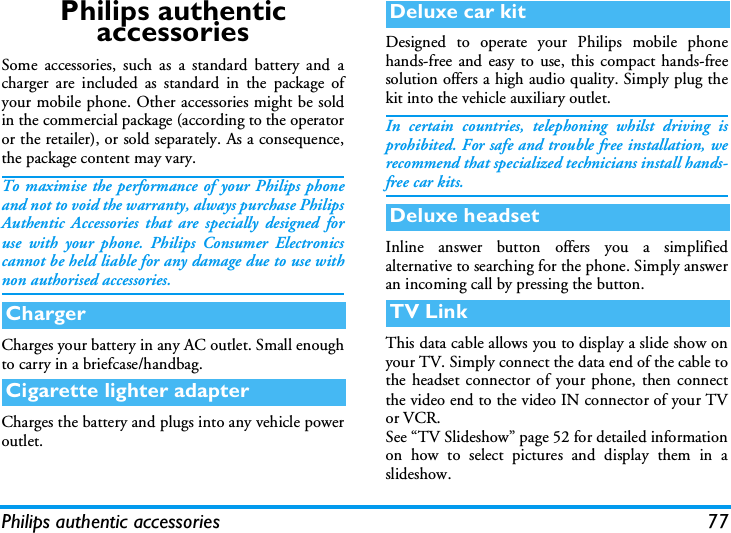

Philips authentic accessories 77Philips authentic accessoriesSome accessories, such as a standard battery and acharger are included as standard in the package ofyour mobile phone. Other accessories might be soldin the commercial package (according to the operatoror the retailer), or sold separately. As a consequence,the package content may vary.To maximise the performance of your Philips phoneand not to void the warranty, always purchase PhilipsAuthentic Accessories that are specially designed foruse with your phone. Philips Consumer Electronicscannot be held liable for any damage due to use withnon authorised accessories. Charges your battery in any AC outlet. Small enoughto carry in a briefcase/handbag.Charges the battery and plugs into any vehicle poweroutlet.Designed to operate your Philips mobile phonehands-free and easy to use, this compact hands-freesolution offers a high audio quality. Simply plug thekit into the vehicle auxiliary outlet.In certain countries, telephoning whilst driving isprohibited. For safe and trouble free installation, werecommend that specialized technicians install hands-free car kits.Inline answer button offers you a simplifiedalternative to searching for the phone. Simply answeran incoming call by pressing the button. This data cable allows you to display a slide show onyour TV. Simply connect the data end of the cable tothe headset connector of your phone, then connectthe video end to the video IN connector of your TVor VCR.See “TV Slideshow” page 52 for detailed informationon how to select pictures and display them in aslideshow.ChargerCigarette lighter adapterDeluxe car kitDeluxe headsetTV Link

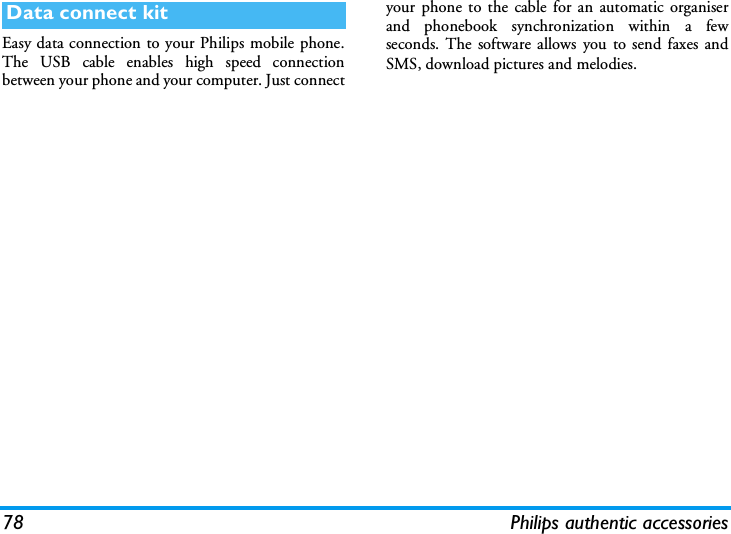

78 Philips authentic accessoriesEasy data connection to your Philips mobile phone.The USB cable enables high speed connectionbetween your phone and your computer. Just connectyour phone to the cable for an automatic organiserand phonebook synchronization within a fewseconds. The software allows you to send faxes andSMS, download pictures and melodies.Data connect kit
