Avantech Mobile CT9A9G GSM 900/1800/1900 Mobile Phone User Manual Philips9 9d

Avantech Mobile GSM 900/1800/1900 Mobile Phone Philips9 9d

User Manual

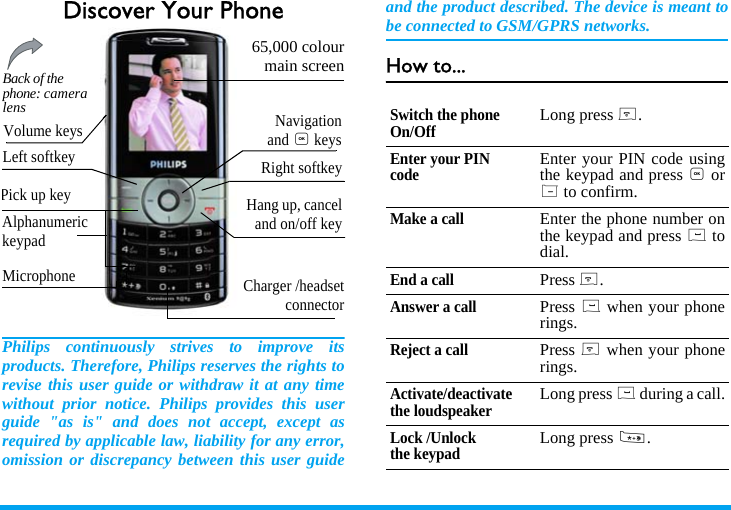

Discover Your PhonePhilips continuously strives to improve itsproducts. Therefore, Philips reserves the rights torevise this user guide or withdraw it at any timewithout prior notice. Philips provides this userguide "as is" and does not accept, except asrequired by applicable law, liability for any error,omission or discrepancy between this user guideand the product described. The device is meant tobe connected to GSM/GPRS networks.How to...Alphanumeric keypadMicrophone65,000 colourmain screenPick up key Hang up, canceland on/off keyBack of the phone: camera lens Charger /headsetconnectorLeft softkey Right softkeyNavigationand , keysVolume keysSwitch the phone On/OffLong press ).Enter your PIN codeEnter your PIN code usingthe keypad and press , orL to confirm.Make a callEnter the phone number onthe keypad and press ( todial.End a callPress ).Answer a callPress ( when your phonerings.Reject a callPress ) when your phonerings.Activate/deactivate the loudspeakerLong press ( during a call.Lock /Unlock the keypadLong press *.

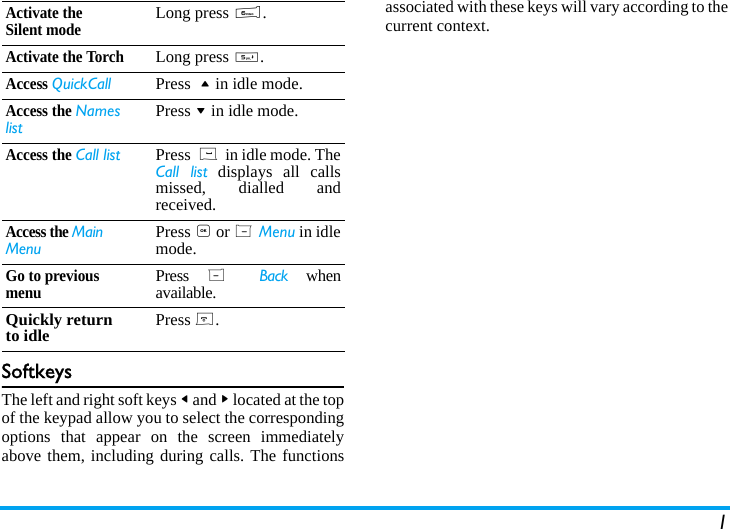

1SoftkeysThe left and right soft keys < and > located at the topof the keypad allow you to select the correspondingoptions that appear on the screen immediatelyabove them, including during calls. The functionsassociated with these keys will vary according to thecurrent context.Activate the Silent modeLong press 6.Activate the TorchLong press 5.Access QuickCall Press + in idle mode.Access the Names listPress - in idle mode.Access the Call list Press ( in idle mode. TheCall list displays all callsmissed, dialled andreceived.Access the Main MenuPress , or L Menu in idlemode.Go to previous menuPress R Back whenavailable.Quickly returnto idle Press ).

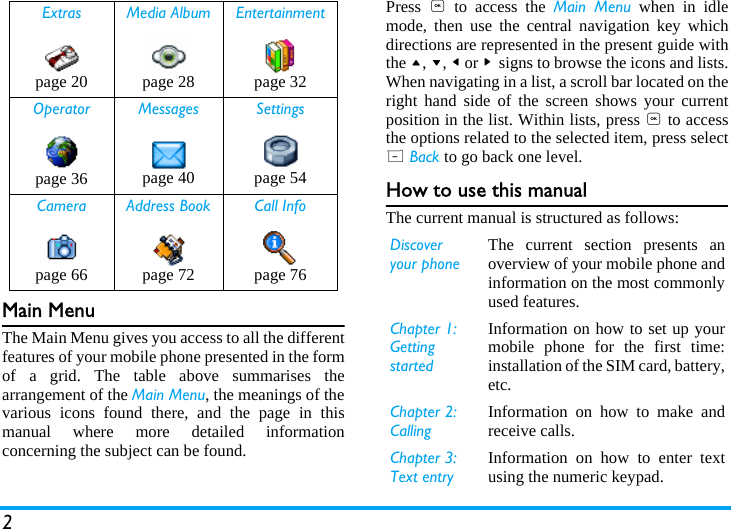

2Main MenuThe Main Menu gives you access to all the differentfeatures of your mobile phone presented in the formof a grid. The table above summarises thearrangement of the Main Menu, the meanings of thevarious icons found there, and the page in thismanual where more detailed informationconcerning the subject can be found.Press , to access the Main Menu when in idlemode, then use the central navigation key whichdirections are represented in the present guide withthe +, -, < or > signs to browse the icons and lists.When navigating in a list, a scroll bar located on theright hand side of the screen shows your currentposition in the list. Within lists, press , to accessthe options related to the selected item, press selectR Back to go back one level.How to use this manualThe current manual is structured as follows:Extras Media Album Entertainmentpage 20 page 28 page 32Operator Messages Settingspage 36 page 40 page 54Camera Address Book Call Infopage 66 page 72 page 76Discover your phoneThe current section presents anoverview of your mobile phone andinformation on the most commonlyused features.Chapter 1: Getting startedInformation on how to set up yourmobile phone for the first time:installation of the SIM card, battery,etc.Chapter 2: CallingInformation on how to make andreceive calls.Chapter 3: Text entryInformation on how to enter textusing the numeric keypad.

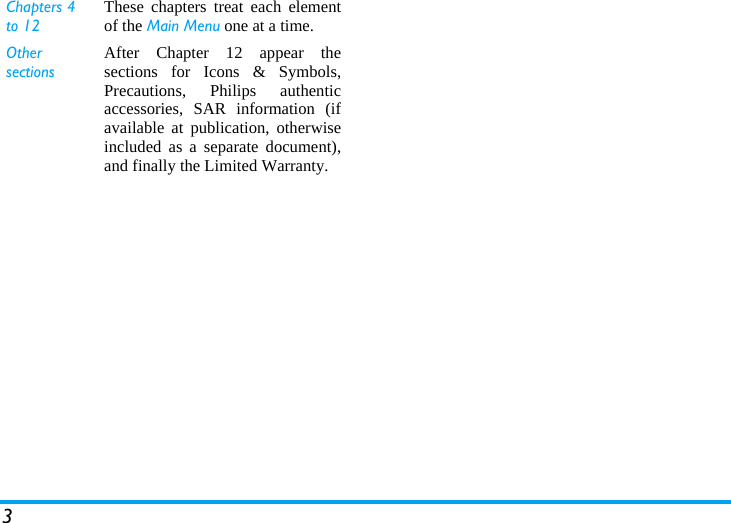

3Chapters 4 to 12These chapters treat each elementof the Main Menu one at a time.Other sectionsAfter Chapter 12 appear thesections for Icons & Symbols,Precautions, Philips authenticaccessories, SAR information (ifavailable at publication, otherwiseincluded as a separate document),and finally the Limited Warranty.

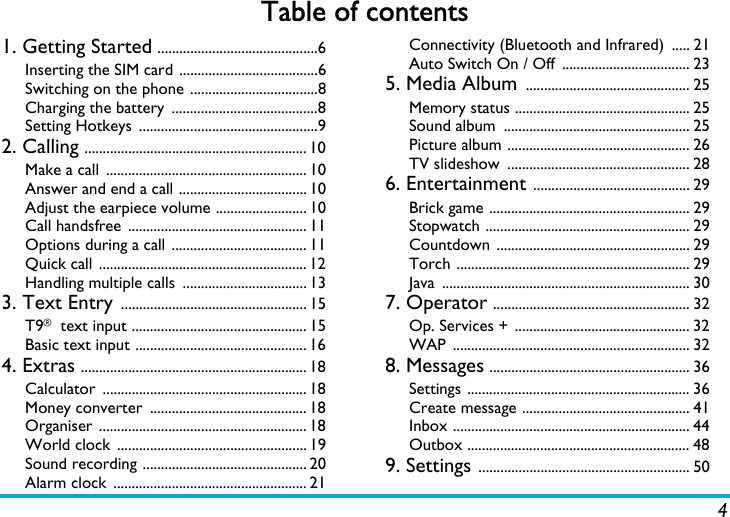

4Table of contents1. Getting Started ............................................6Inserting the SIM card ......................................6Switching on the phone ...................................8Charging the battery ........................................8Setting Hotkeys .................................................92. Calling ............................................................. 10Make a call ....................................................... 10Answer and end a call ................................... 10Adjust the earpiece volume ......................... 10Call handsfree ................................................. 11Options during a call ..................................... 11Quick call ......................................................... 12Handling multiple calls .................................. 133. Text Entry ................................................... 15T9® text input ................................................ 15Basic text input ............................................... 164. Extras .............................................................. 18Calculator ........................................................ 18Money converter ........................................... 18Organiser ......................................................... 18World clock .................................................... 19Sound recording ............................................. 20Alarm clock ..................................................... 21Connectivity (Bluetooth and Infrared) ..... 21Auto Switch On / Off ................................... 235. Media Album ............................................. 25Memory status ................................................ 25Sound album ................................................... 25Picture album .................................................. 26TV slideshow .................................................. 286. Entertainment ........................................... 29Brick game ....................................................... 29Stopwatch ........................................................ 29Countdown ..................................................... 29Torch ................................................................ 29Java .................................................................... 307. Operator ...................................................... 32Op. Services + ................................................ 32WAP ................................................................. 328. Messages ....................................................... 36Settings ............................................................. 36Create message .............................................. 41Inbox ................................................................. 44Outbox ............................................................. 489. Settings .......................................................... 50

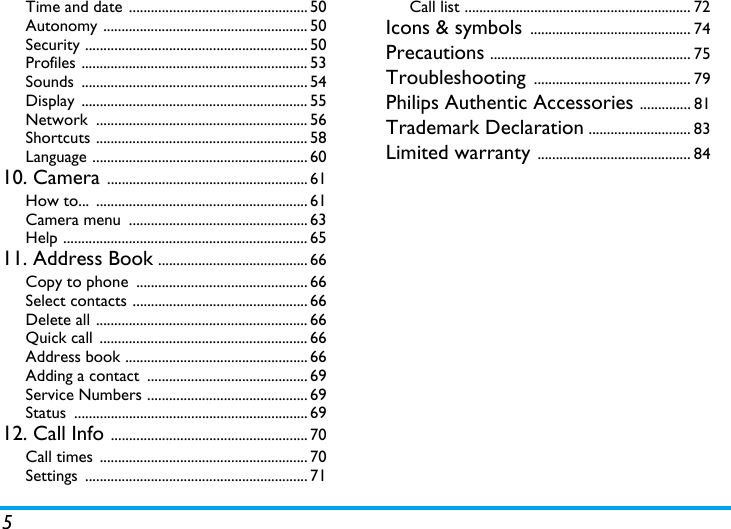

5Time and date ................................................. 50Autonomy ........................................................ 50Security ............................................................. 50Profiles .............................................................. 53Sounds .............................................................. 54Display .............................................................. 55Network .......................................................... 56Shortcuts .......................................................... 58Language ........................................................... 6010. Camera ....................................................... 61How to... .......................................................... 61Camera menu ................................................. 63Help ................................................................... 6511. Address Book ......................................... 66Copy to phone ............................................... 66Select contacts ................................................ 66Delete all .......................................................... 66Quick call ......................................................... 66Address book .................................................. 66Adding a contact ............................................ 69Service Numbers ............................................ 69Status ................................................................ 6912. Call Info ...................................................... 70Call times ......................................................... 70Settings ............................................................. 71Call list .............................................................. 72Icons & symbols ............................................ 74Precautions ....................................................... 75Troubleshooting ........................................... 79Philips Authentic Accessories .............. 81Trademark Declaration ............................ 83Limited warranty .......................................... 84

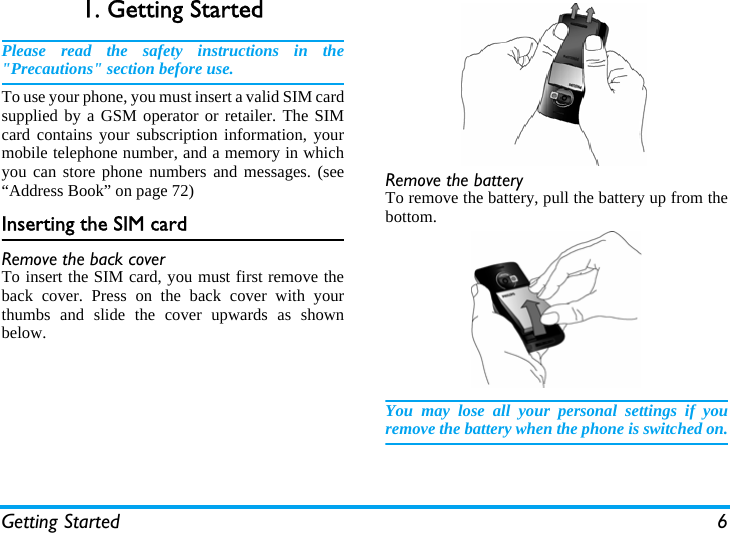

Getting Started 61. Getting StartedPlease read the safety instructions in the"Precautions" section before use.To use your phone, you must insert a valid SIM cardsupplied by a GSM operator or retailer. The SIMcard contains your subscription information, yourmobile telephone number, and a memory in whichyou can store phone numbers and messages. (see“Address Book” on page 72) Inserting the SIM cardRemove the back coverTo insert the SIM card, you must first remove theback cover. Press on the back cover with yourthumbs and slide the cover upwards as shownbelow.Remove the batteryTo remove the battery, pull the battery up from thebottom.You may lose all your personal settings if youremove the battery when the phone is switched on.

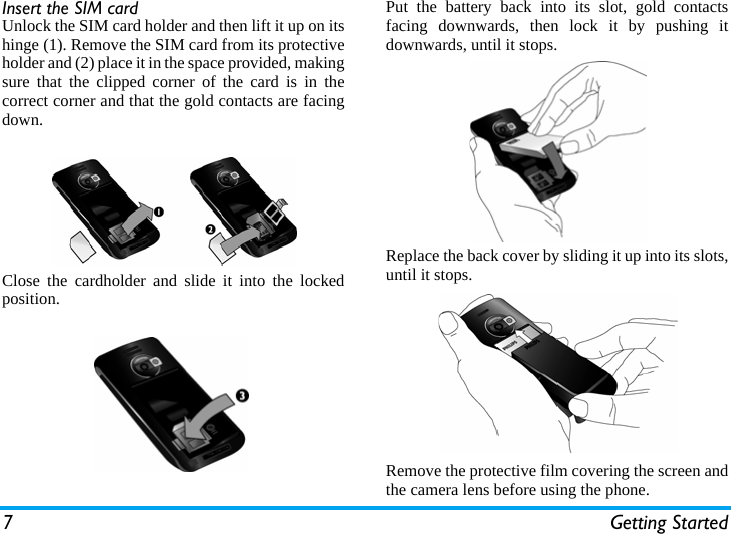

7 Getting StartedInsert the SIM cardUnlock the SIM card holder and then lift it up on itshinge (1). Remove the SIM card from its protectiveholder and (2) place it in the space provided, makingsure that the clipped corner of the card is in thecorrect corner and that the gold contacts are facingdown.Close the cardholder and slide it into the lockedposition.Put the battery back into its slot, gold contactsfacing downwards, then lock it by pushing itdownwards, until it stops.Replace the back cover by sliding it up into its slots,until it stops.Remove the protective film covering the screen andthe camera lens before using the phone.

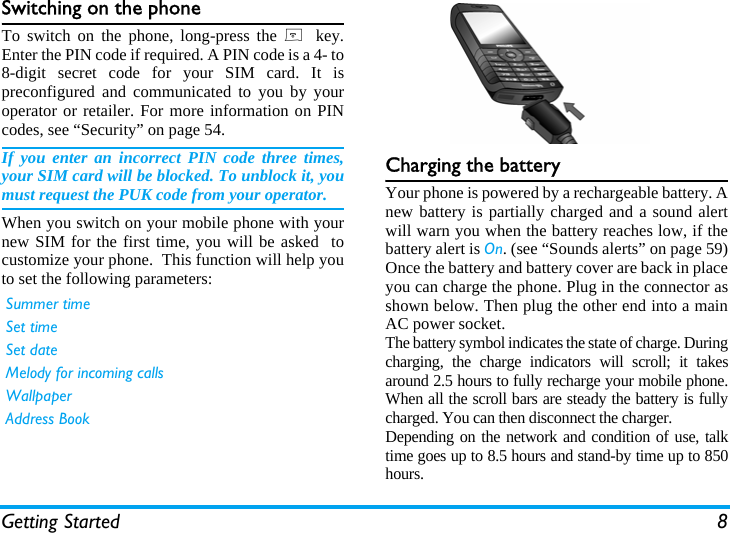

Getting Started 8Switching on the phoneTo switch on the phone, long-press the ) key.Enter the PIN code if required. A PIN code is a 4- to8-digit secret code for your SIM card. It ispreconfigured and communicated to you by youroperator or retailer. For more information on PINcodes, see “Security” on page 54.If you enter an incorrect PIN code three times,your SIM card will be blocked. To unblock it, youmust request the PUK code from your operator.When you switch on your mobile phone with yournew SIM for the first time, you will be asked tocustomize your phone. This function will help youto set the following parameters:Charging the batteryYour phone is powered by a rechargeable battery. Anew battery is partially charged and a sound alertwill warn you when the battery reaches low, if thebattery alert is On. (see “Sounds alerts” on page 59)Once the battery and battery cover are back in placeyou can charge the phone. Plug in the connector asshown below. Then plug the other end into a mainAC power socket.The battery symbol indicates the state of charge. Duringcharging, the charge indicators will scroll; it takesaround 2.5 hours to fully recharge your mobile phone.When all the scroll bars are steady the battery is fullycharged. You can then disconnect the charger.Depending on the network and condition of use, talktime goes up to 8.5 hours and stand-by time up to 850hours.Summer timeSet timeSet dateMelody for incoming callsWallpaperAddress Book

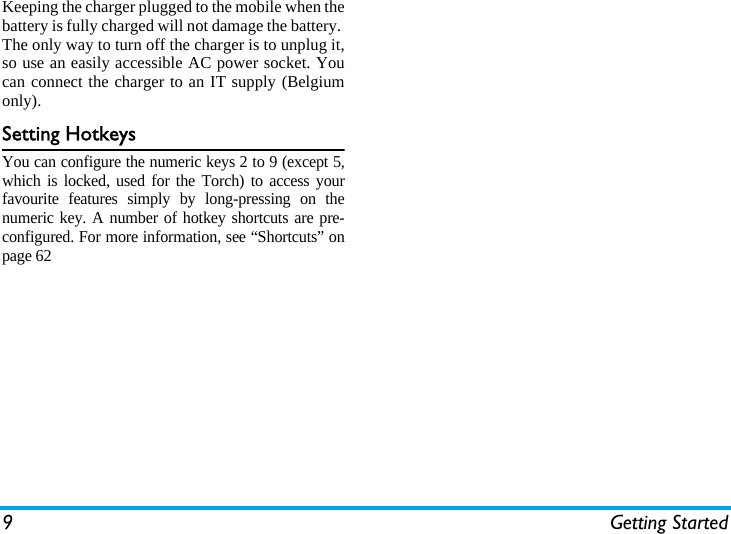

9 Getting StartedKeeping the charger plugged to the mobile when thebattery is fully charged will not damage the battery. The only way to turn off the charger is to unplug it,so use an easily accessible AC power socket. Youcan connect the charger to an IT supply (Belgiumonly).Setting HotkeysYou can configure the numeric keys 2 to 9 (except 5,which is locked, used for the Torch) to access yourfavourite features simply by long-pressing on thenumeric key. A number of hotkey shortcuts are pre-configured. For more information, see “Shortcuts” onpage 62

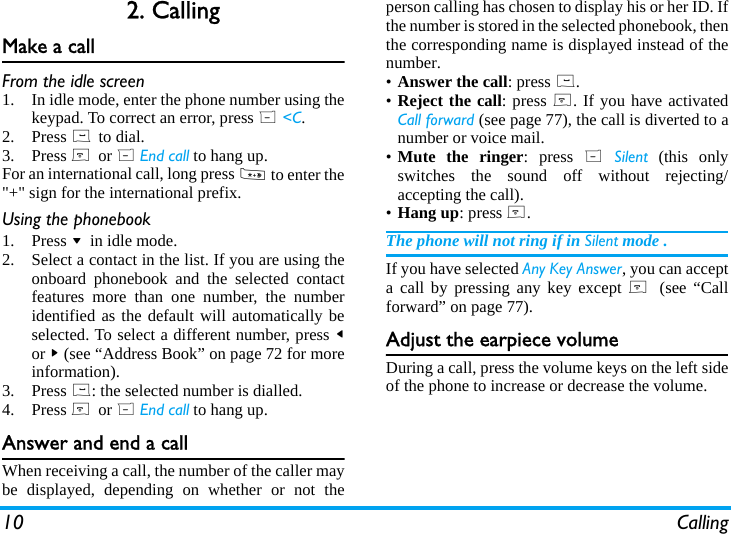

10 Calling2. CallingMake a callFrom the idle screen1. In idle mode, enter the phone number using thekeypad. To correct an error, press R <C.2. Press ( to dial.3. Press ) or R End call to hang up.For an international call, long press * to enter the"+" sign for the international prefix.Using the phonebook1. Press - in idle mode.2. Select a contact in the list. If you are using theonboard phonebook and the selected contactfeatures more than one number, the numberidentified as the default will automatically beselected. To select a different number, press <or > (see “Address Book” on page 72 for moreinformation).3. Press (: the selected number is dialled.4. Press ) or R End call to hang up.Answer and end a callWhen receiving a call, the number of the caller maybe displayed, depending on whether or not theperson calling has chosen to display his or her ID. Ifthe number is stored in the selected phonebook, thenthe corresponding name is displayed instead of thenumber.•Answer the call: press (.•Reject the call: press ). If you have activatedCall forward (see page 77), the call is diverted to anumber or voice mail.•Mute the ringer: press R Silent (this onlyswitches the sound off without rejecting/accepting the call).•Hang up: press ).The phone will not ring if in Silent mode .If you have selected Any Key Answer, you can accepta call by pressing any key except ) (see “Callforward” on page 77).Adjust the earpiece volumeDuring a call, press the volume keys on the left sideof the phone to increase or decrease the volume.

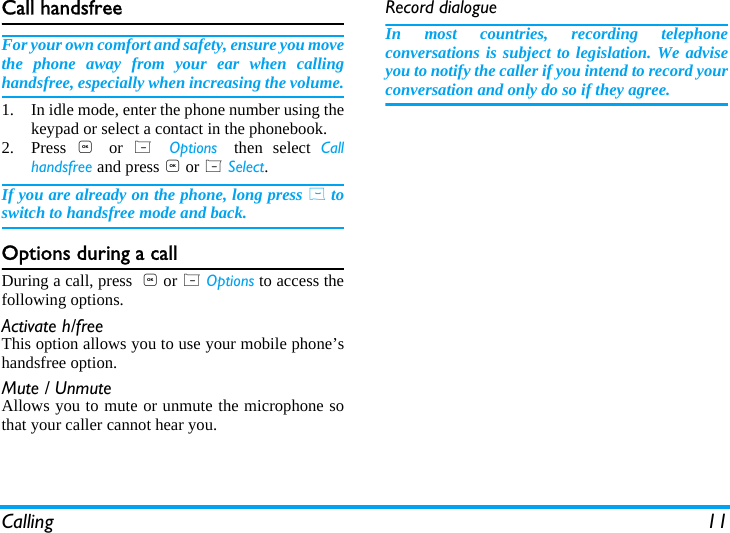

Calling 11Call handsfreeFor your own comfort and safety, ensure you movethe phone away from your ear when callinghandsfree, especially when increasing the volume.1. In idle mode, enter the phone number using thekeypad or select a contact in the phonebook.2. Press , or L Options then select Callhandsfree and press , or L Select.If you are already on the phone, long press ( toswitch to handsfree mode and back.Options during a callDuring a call, press , or L Options to access thefollowing options.Activate h/freeThis option allows you to use your mobile phone’shandsfree option.Mute / UnmuteAllows you to mute or unmute the microphone sothat your caller cannot hear you.Record dialogueIn most countries, recording telephoneconversations is subject to legislation. We adviseyou to notify the caller if you intend to record yourconversation and only do so if they agree.

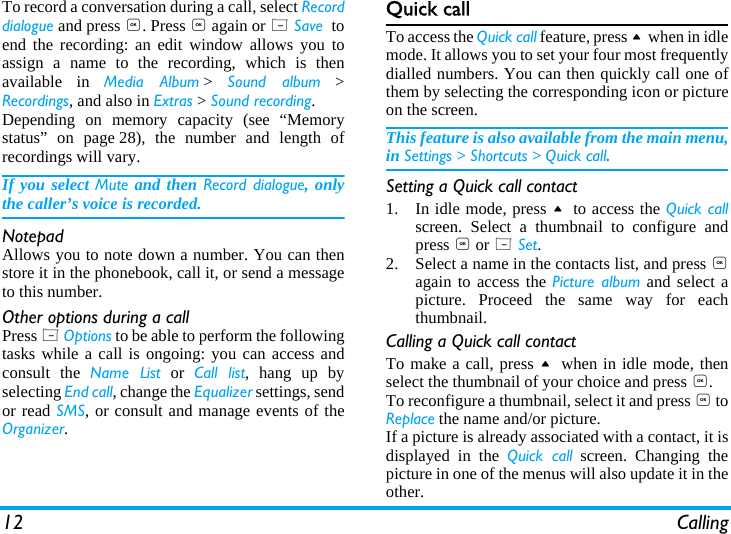

12 CallingTo record a conversation during a call, select Recorddialogue and press ,. Press , again or L Save toend the recording: an edit window allows you toassign a name to the recording, which is thenavailable in Media Album > Sound album >Recordings, and also in Extras > Sound recording.Depending on memory capacity (see “Memorystatus” on page 28), the number and length ofrecordings will vary.If you select Mute and then Record dialogue, onlythe caller’s voice is recorded.NotepadAllows you to note down a number. You can thenstore it in the phonebook, call it, or send a messageto this number.Other options during a callPress L Options to be able to perform the followingtasks while a call is ongoing: you can access andconsult the Name List or Call list, hang up byselecting End call, change the Equalizer settings, sendor read SMS, or consult and manage events of theOrganizer.Quick callTo access the Quick call feature, press + when in idlemode. It allows you to set your four most frequentlydialled numbers. You can then quickly call one ofthem by selecting the corresponding icon or pictureon the screen.This feature is also available from the main menu,in Settings > Shortcuts > Quick call.Setting a Quick call contact1. In idle mode, press + to access the Quick callscreen. Select a thumbnail to configure andpress , or L Set.2. Select a name in the contacts list, and press ,again to access the Picture album and select apicture. Proceed the same way for eachthumbnail.Calling a Quick call contactTo make a call, press + when in idle mode, thenselect the thumbnail of your choice and press ,.To reconfigure a thumbnail, select it and press , toReplace the name and/or picture.If a picture is already associated with a contact, it isdisplayed in the Quick call screen. Changing thepicture in one of the menus will also update it in theother.

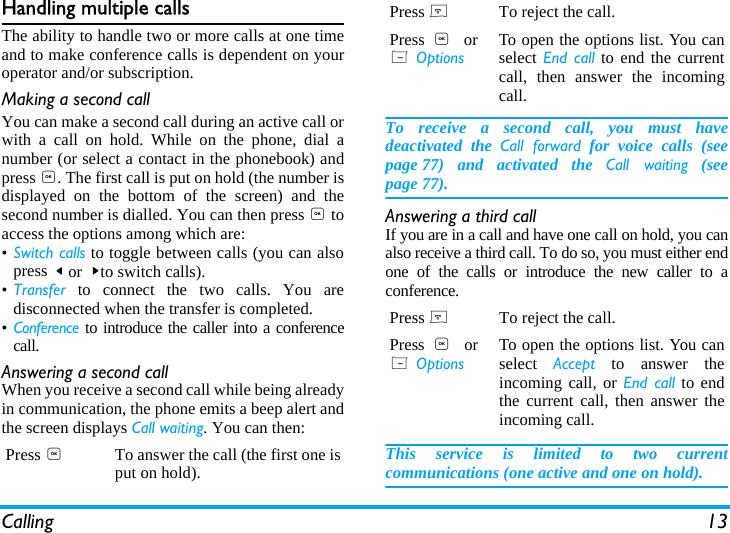

Calling 13Handling multiple callsThe ability to handle two or more calls at one timeand to make conference calls is dependent on youroperator and/or subscription.Making a second callYou can make a second call during an active call orwith a call on hold. While on the phone, dial anumber (or select a contact in the phonebook) andpress ,. The first call is put on hold (the number isdisplayed on the bottom of the screen) and thesecond number is dialled. You can then press , toaccess the options among which are:•Switch calls to toggle between calls (you can alsopress < or >to switch calls).•Transfer to connect the two calls. You aredisconnected when the transfer is completed.•Conference to introduce the caller into a conferencecall.Answering a second callWhen you receive a second call while being alreadyin communication, the phone emits a beep alert andthe screen displays Call waiting. You can then:To receive a second call, you must havedeactivated the Call forward for voice calls (seepage 77) and activated the Call waiting (seepage 77).Answering a third callIf you are in a call and have one call on hold, you canalso receive a third call. To do so, you must either endone of the calls or introduce the new caller to aconference.This service is limited to two currentcommunications (one active and one on hold).Press ,To answer the call (the first one isput on hold).Press )To reject the call.Press , orL OptionsTo open the options list. You canselect End call to end the currentcall, then answer the incomingcall.Press )To reject the call.Press , orL OptionsTo open the options list. You canselect Accept to answer theincoming call, or End call to endthe current call, then answer theincoming call.

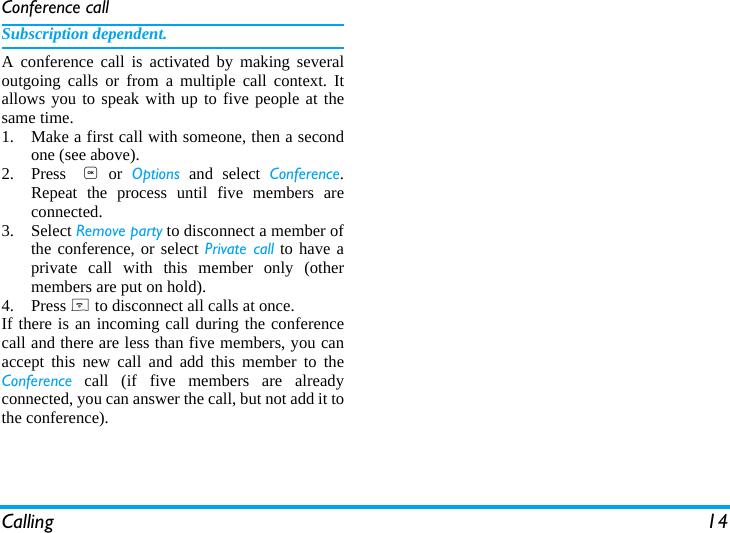

Calling 14Conference callSubscription dependent.A conference call is activated by making severaloutgoing calls or from a multiple call context. Itallows you to speak with up to five people at thesame time. 1. Make a first call with someone, then a secondone (see above).2. Press , or Options and select Conference.Repeat the process until five members areconnected. 3. Select Remove party to disconnect a member ofthe conference, or select Private call to have aprivate call with this member only (othermembers are put on hold).4. Press ) to disconnect all calls at once.If there is an incoming call during the conferencecall and there are less than five members, you canaccept this new call and add this member to theConference call (if five members are alreadyconnected, you can answer the call, but not add it tothe conference).

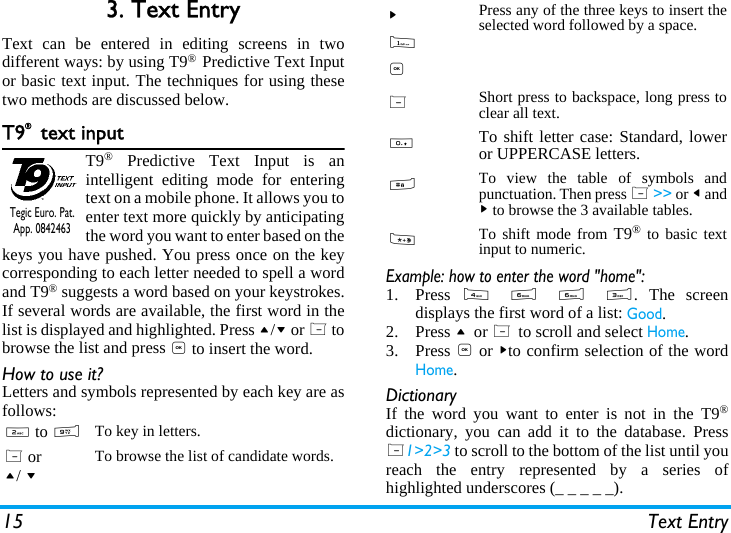

15 Text Entry3. Text EntryText can be entered in editing screens in twodifferent ways: by using T9® Predictive Text Inputor basic text input. The techniques for using thesetwo methods are discussed below.T9® text inputT9® Predictive Text Input is anintelligent editing mode for enteringtext on a mobile phone. It allows you toenter text more quickly by anticipatingthe word you want to enter based on thekeys you have pushed. You press once on the keycorresponding to each letter needed to spell a wordand T9® suggests a word based on your keystrokes.If several words are available, the first word in thelist is displayed and highlighted. Press +/- or L tobrowse the list and press , to insert the word.How to use it?Letters and symbols represented by each key are asfollows:Example: how to enter the word "home":1. Press 4 6 6 3. The screendisplays the first word of a list: Good.2. Press + or L to scroll and select Home.3. Press , or >to confirm selection of the wordHome.DictionaryIf the word you want to enter is not in the T9®dictionary, you can add it to the database. PressL1>2>3 to scroll to the bottom of the list until youreach the entry represented by a series ofhighlighted underscores (_ _ _ _ _).2 to 9To key in letters.L or+/ -To browse the list of candidate words.Tegic Euro. Pat. App. 0842463>1,Press any of the three keys to insert theselected word followed by a space.LShort press to backspace, long press toclear all text.0To shift letter case: Standard, loweror UPPERCASE letters.#To view the table of symbols andpunctuation. Then press L >> or < and> to browse the 3 available tables.*To shift mode from T9® to basic textinput to numeric.

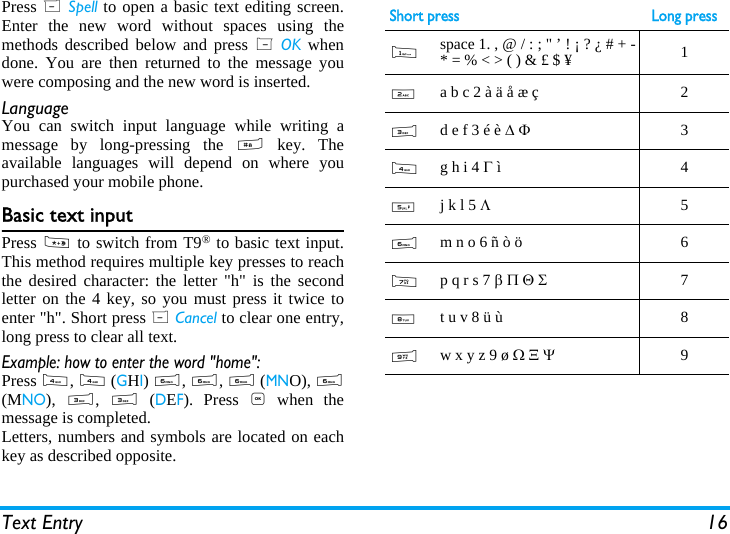

Text Entry 16Press R Spell to open a basic text editing screen.Enter the new word without spaces using themethods described below and press L OK whendone. You are then returned to the message youwere composing and the new word is inserted.LanguageYou can switch input language while writing amessage by long-pressing the # key. Theavailable languages will depend on where youpurchased your mobile phone.Basic text inputPress * to switch from T9® to basic text input.This method requires multiple key presses to reachthe desired character: the letter "h" is the secondletter on the 4 key, so you must press it twice toenter "h". Short press R Cancel to clear one entry,long press to clear all text. Example: how to enter the word "home":Press 4, 4 (GHI) 6, 6, 6 (MNO), 6(MNO), 3, 3 (DEF). Press , when themessage is completed.Letters, numbers and symbols are located on eachkey as described opposite.Short press Long press1space 1. , @ / : ; " ’ ! ¡ ? ¿ # + -* = % < > ( ) & £ $ ¥ 12a b c 2 à ä å æ ç 23d e f 3 é è ∆ Φ34g h i 4 Γ ì45j k l 5 Λ56m n o 6 ñ ò ö 67p q r s 7 β Π Θ Σ78t u v 8 ü ù 89w x y z 9 ø Ω Ξ Ψ9

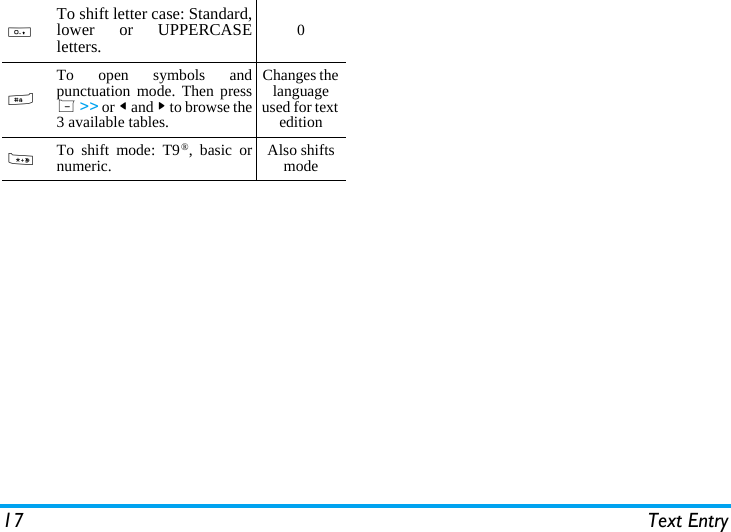

17 Text Entry0To shift letter case: Standard,lower or UPPERCASEletters. 0#To open symbols andpunctuation mode. Then pressL >> or < and > to browse the3 available tables.Changes the language used for text edition*To shift mode: T9®, basic ornumeric. Also shifts mode

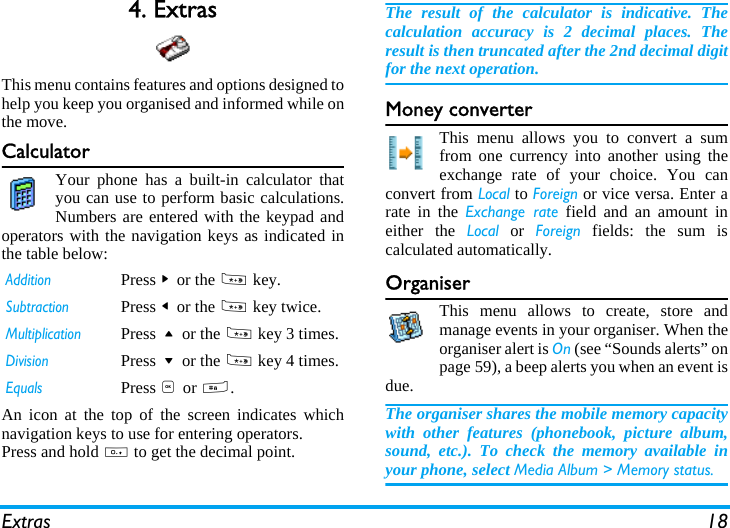

Extras 184. ExtrasThis menu contains features and options designed tohelp you keep you organised and informed while onthe move.CalculatorYour phone has a built-in calculator thatyou can use to perform basic calculations.Numbers are entered with the keypad andoperators with the navigation keys as indicated inthe table below:An icon at the top of the screen indicates whichnavigation keys to use for entering operators.Press and hold 0 to get the decimal point. The result of the calculator is indicative. Thecalculation accuracy is 2 decimal places. Theresult is then truncated after the 2nd decimal digitfor the next operation.Money converterThis menu allows you to convert a sumfrom one currency into another using theexchange rate of your choice. You canconvert from Local to Foreign or vice versa. Enter arate in the Exchange rate field and an amount ineither the Local or Foreign fields: the sum iscalculated automatically.OrganiserThis menu allows to create, store andmanage events in your organiser. When theorganiser alert is On (see “Sounds alerts” onpage 59), a beep alerts you when an event isdue.The organiser shares the mobile memory capacitywith other features (phonebook, picture album,sound, etc.). To check the memory available inyour phone, select Media Album > Memory status.AdditionPress > or the * key.SubtractionPress < or the * key twice.MultiplicationPress + or the * key 3 times.DivisionPress - or the * key 4 times.EqualsPress , or #.

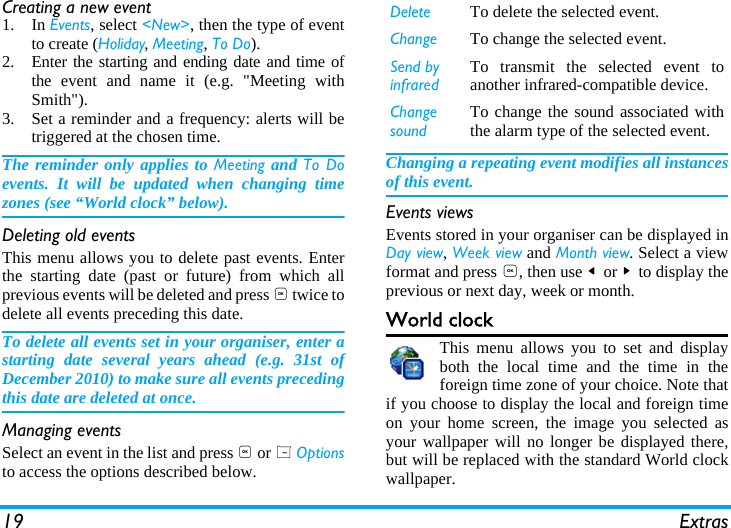

19 ExtrasCreating a new event1. In Events, select <New>, then the type of eventto create (Holiday, Meeting, To Do).2. Enter the starting and ending date and time ofthe event and name it (e.g. "Meeting withSmith").3. Set a reminder and a frequency: alerts will betriggered at the chosen time.The reminder only applies to Meeting and To Doevents. It will be updated when changing timezones (see “World clock” below).Deleting old eventsThis menu allows you to delete past events. Enterthe starting date (past or future) from which allprevious events will be deleted and press , twice todelete all events preceding this date.To delete all events set in your organiser, enter astarting date several years ahead (e.g. 31st ofDecember 2010) to make sure all events precedingthis date are deleted at once.Managing eventsSelect an event in the list and press , or L Optionsto access the options described below.Changing a repeating event modifies all instancesof this event.Events viewsEvents stored in your organiser can be displayed inDay view, Week view and Month view. Select a viewformat and press ,, then use < or > to display theprevious or next day, week or month.World clockThis menu allows you to set and displayboth the local time and the time in theforeign time zone of your choice. Note thatif you choose to display the local and foreign timeon your home screen, the image you selected asyour wallpaper will no longer be displayed there,but will be replaced with the standard World clockwallpaper.Delete To delete the selected event.Change To change the selected event.Send by infraredTo transmit the selected event toanother infrared-compatible device.Change soundTo change the sound associated withthe alarm type of the selected event.

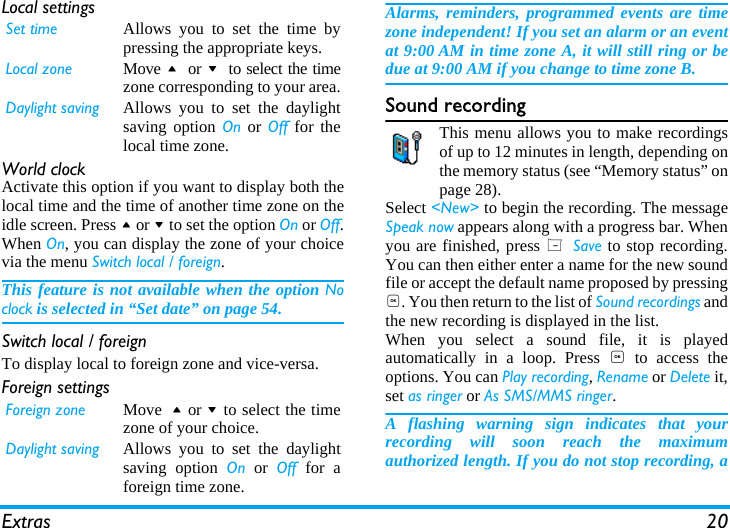

Extras 20Local settingsWorld clockActivate this option if you want to display both thelocal time and the time of another time zone on theidle screen. Press + or - to set the option On or Off.When On, you can display the zone of your choicevia the menu Switch local / foreign. This feature is not available when the option Noclock is selected in “Set date” on page 54.Switch local / foreignTo display local to foreign zone and vice-versa.Foreign settingsAlarms, reminders, programmed events are timezone independent! If you set an alarm or an eventat 9:00 AM in time zone A, it will still ring or bedue at 9:00 AM if you change to time zone B.Sound recordingThis menu allows you to make recordingsof up to 12 minutes in length, depending onthe memory status (see “Memory status” onpage 28).Select <New> to begin the recording. The messageSpeak now appears along with a progress bar. Whenyou are finished, press L Save to stop recording.You can then either enter a name for the new soundfile or accept the default name proposed by pressing,. You then return to the list of Sound recordings andthe new recording is displayed in the list.When you select a sound file, it is playedautomatically in a loop. Press , to access theoptions. You can Play recording, Rename or Delete it,set as ringer or As SMS/MMS ringer. A flashing warning sign indicates that yourrecording will soon reach the maximumauthorized length. If you do not stop recording, aSet time Allows you to set the time bypressing the appropriate keys.Local zone Move + or - to select the timezone corresponding to your area.Daylight saving Allows you to set the daylightsaving option On or Off for thelocal time zone.Foreign zone Move + or - to select the timezone of your choice.Daylight saving Allows you to set the daylightsaving option On or Off for aforeign time zone.

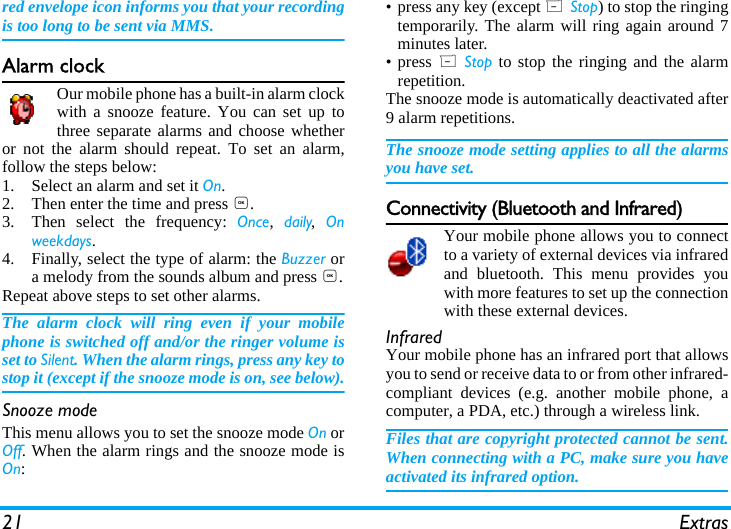

21 Extrasred envelope icon informs you that your recordingis too long to be sent via MMS.Alarm clockOur mobile phone has a built-in alarm clockwith a snooze feature. You can set up tothree separate alarms and choose whetheror not the alarm should repeat. To set an alarm,follow the steps below:1. Select an alarm and set it On.2. Then enter the time and press ,.3. Then select the frequency: Once, daily, Onweekdays.4. Finally, select the type of alarm: the Buzzer ora melody from the sounds album and press ,.Repeat above steps to set other alarms.The alarm clock will ring even if your mobilephone is switched off and/or the ringer volume isset to Silent. When the alarm rings, press any key tostop it (except if the snooze mode is on, see below).Snooze modeThis menu allows you to set the snooze mode On orOff. When the alarm rings and the snooze mode isOn:• press any key (except R Stop) to stop the ringingtemporarily. The alarm will ring again around 7minutes later.• press R Stop to stop the ringing and the alarmrepetition.The snooze mode is automatically deactivated after9 alarm repetitions.The snooze mode setting applies to all the alarmsyou have set.Connectivity (Bluetooth and Infrared)Your mobile phone allows you to connectto a variety of external devices via infraredand bluetooth. This menu provides youwith more features to set up the connectionwith these external devices. InfraredYour mobile phone has an infrared port that allowsyou to send or receive data to or from other infrared-compliant devices (e.g. another mobile phone, acomputer, a PDA, etc.) through a wireless link.Files that are copyright protected cannot be sent.When connecting with a PC, make sure you haveactivated its infrared option.

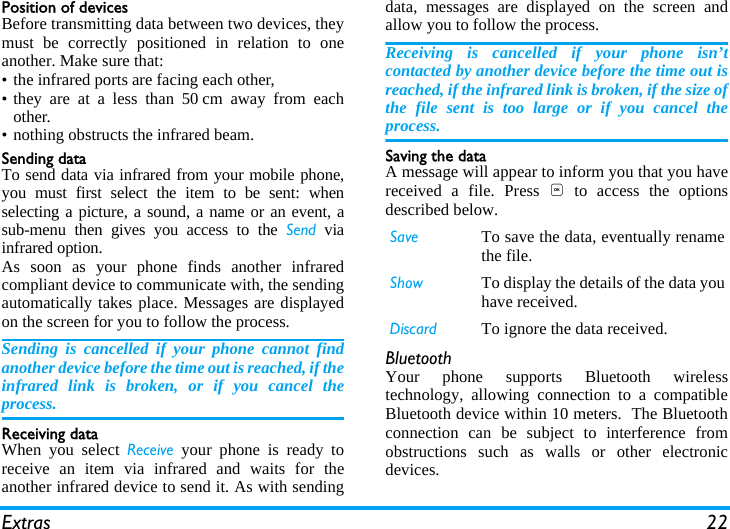

Extras 22Position of devicesBefore transmitting data between two devices, theymust be correctly positioned in relation to oneanother. Make sure that:• the infrared ports are facing each other,• they are at a less than 50 cm away from eachother.• nothing obstructs the infrared beam.Sending dataTo send data via infrared from your mobile phone,you must first select the item to be sent: whenselecting a picture, a sound, a name or an event, asub-menu then gives you access to the Send viainfrared option.As soon as your phone finds another infraredcompliant device to communicate with, the sendingautomatically takes place. Messages are displayedon the screen for you to follow the process.Sending is cancelled if your phone cannot findanother device before the time out is reached, if theinfrared link is broken, or if you cancel theprocess.Receiving dataWhen you select Receive your phone is ready toreceive an item via infrared and waits for theanother infrared device to send it. As with sendingdata, messages are displayed on the screen andallow you to follow the process.Receiving is cancelled if your phone isn’tcontacted by another device before the time out isreached, if the infrared link is broken, if the size ofthe file sent is too large or if you cancel theprocess.Saving the dataA message will appear to inform you that you havereceived a file. Press , to access the optionsdescribed below.BluetoothYour phone supports Bluetooth wirelesstechnology, allowing connection to a compatibleBluetooth device within 10 meters. The Bluetoothconnection can be subject to interference fromobstructions such as walls or other electronicdevices.Save To save the data, eventually renamethe file.Show To display the details of the data youhave received.Discard To ignore the data received.

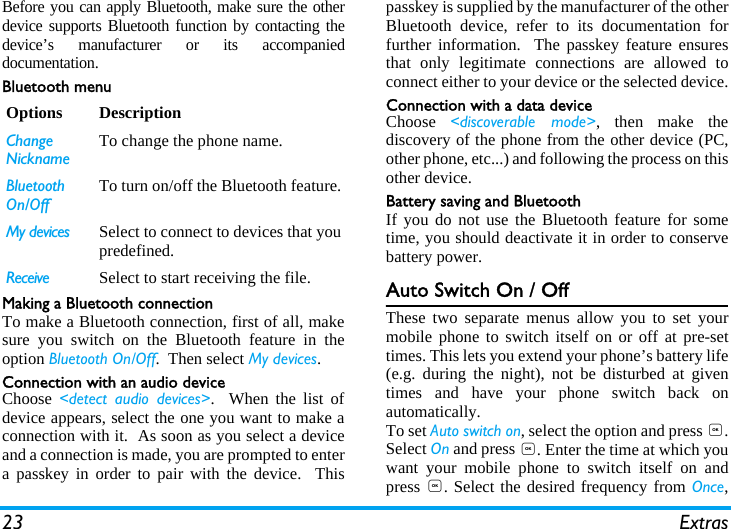

23 ExtrasBefore you can apply Bluetooth, make sure the otherdevice supports Bluetooth function by contacting thedevice’s manufacturer or its accompanieddocumentation.Bluetooth menuMaking a Bluetooth connectionTo make a Bluetooth connection, first of all, makesure you switch on the Bluetooth feature in theoption Bluetooth On/Off. Then select My devices. Connection with an audio deviceChoose <detect audio devices>. When the list ofdevice appears, select the one you want to make aconnection with it. As soon as you select a deviceand a connection is made, you are prompted to entera passkey in order to pair with the device. Thispasskey is supplied by the manufacturer of the otherBluetooth device, refer to its documentation forfurther information. The passkey feature ensuresthat only legitimate connections are allowed toconnect either to your device or the selected device.Connection with a data deviceChoose <discoverable mode>, then make thediscovery of the phone from the other device (PC,other phone, etc...) and following the process on thisother device.Battery saving and BluetoothIf you do not use the Bluetooth feature for sometime, you should deactivate it in order to conservebattery power.Auto Switch On / OffThese two separate menus allow you to set yourmobile phone to switch itself on or off at pre-settimes. This lets you extend your phone’s battery life(e.g. during the night), not be disturbed at giventimes and have your phone switch back onautomatically.To set Auto switch on, select the option and press ,.Select On and press ,. Enter the time at which youwant your mobile phone to switch itself on andpress ,. Select the desired frequency from Once,Options DescriptionChange NicknameTo change the phone name. Bluetooth On/OffTo turn on/off the Bluetooth feature.My devices Select to connect to devices that youpredefined.Receive Select to start receiving the file.

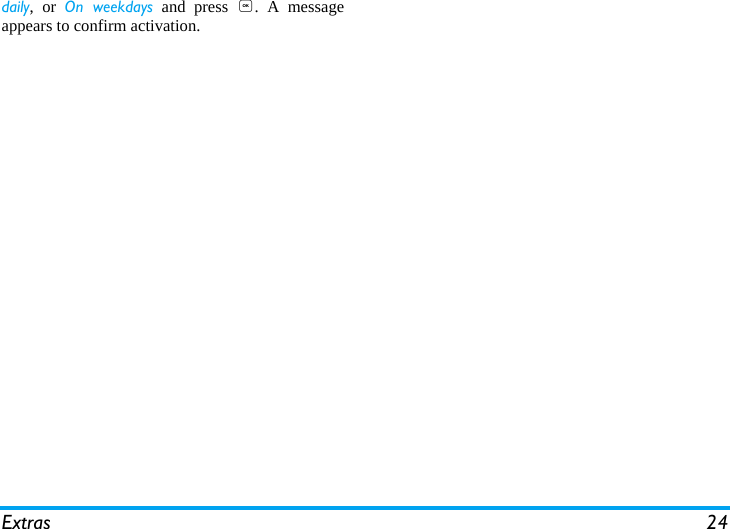

Extras 24daily, or On weekdays and press ,. A messageappears to confirm activation.

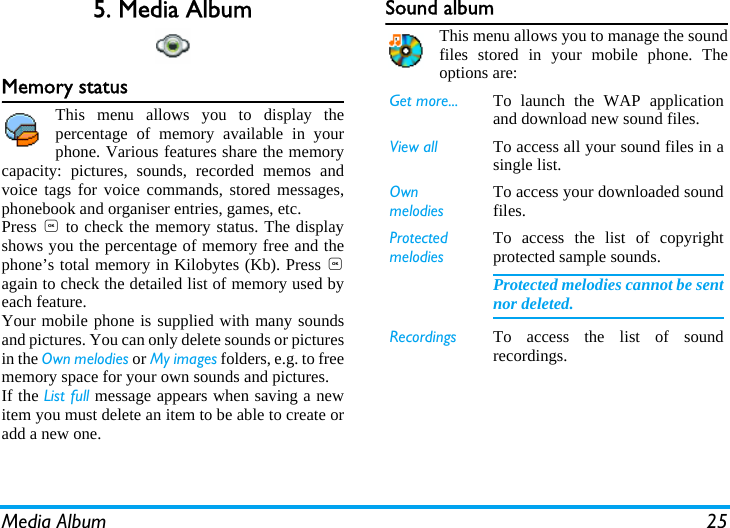

Media Album 255. Media AlbumMemory statusThis menu allows you to display thepercentage of memory available in yourphone. Various features share the memorycapacity: pictures, sounds, recorded memos andvoice tags for voice commands, stored messages,phonebook and organiser entries, games, etc.Press , to check the memory status. The displayshows you the percentage of memory free and thephone’s total memory in Kilobytes (Kb). Press ,again to check the detailed list of memory used byeach feature.Your mobile phone is supplied with many soundsand pictures. You can only delete sounds or picturesin the Own melodies or My images folders, e.g. to freememory space for your own sounds and pictures.If the List full message appears when saving a newitem you must delete an item to be able to create oradd a new one.Sound albumThis menu allows you to manage the soundfiles stored in your mobile phone. Theoptions are:Get more... To launch the WAP applicationand download new sound files.View all To access all your sound files in asingle list.Own melodiesTo access your downloaded soundfiles. Protected melodiesTo access the list of copyrightprotected sample sounds.Protected melodies cannot be sentnor deleted.Recordings To access the list of soundrecordings.

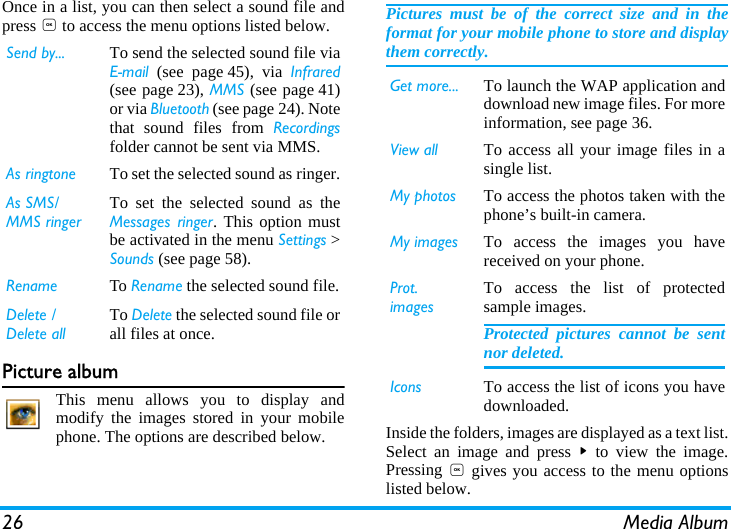

26 Media AlbumOnce in a list, you can then select a sound file andpress , to access the menu options listed below.Picture albumThis menu allows you to display andmodify the images stored in your mobilephone. The options are described below.Pictures must be of the correct size and in theformat for your mobile phone to store and displaythem correctly. Inside the folders, images are displayed as a text list.Select an image and press > to view the image.Pressing , gives you access to the menu optionslisted below.Send by... To send the selected sound file viaEmail (see page 45), via Infrared(see page 23), MMS (see page 41)or via Bluetooth (see page 24). Notethat sound files from Recordingsfolder cannot be sent via MMS.As ringtone To set the selected sound as ringer.As SMS/MMS ringerTo set the selected sound as theMessages ringer. This option mustbe activated in the menu Settings >Sounds (see page 58). Rename To Rename the selected sound file.Delete / Delete allTo Delete the selected sound file orall files at once.Get more... To launch the WAP application anddownload new image files. For moreinformation, see page 36.View all To access all your image files in asingle list.My photos To access the photos taken with thephone’s built-in camera.My images To access the images you havereceived on your phone.Prot. imagesTo access the list of protectedsample images.Protected pictures cannot be sentnor deleted.Icons To access the list of icons you havedownloaded.

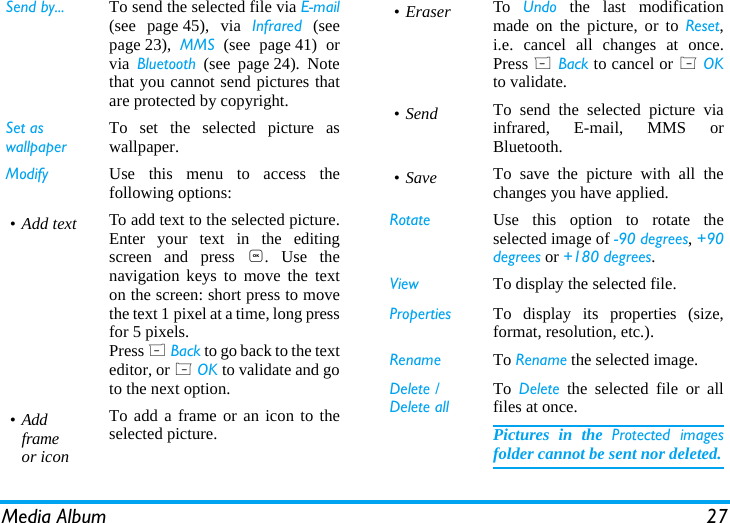

Media Album 27Send by... To send the selected file via Email(see page 45), via Infrared (seepage 23), MMS (see page 41) orvia Bluetooth (see page 24). Notethat you cannot send pictures thatare protected by copyright.Set as wallpaperTo set the selected picture aswallpaper.Modify Use this menu to access thefollowing options:• Add text To add text to the selected picture.Enter your text in the editingscreen and press ,. Use thenavigation keys to move the texton the screen: short press to movethe text 1 pixel at a time, long pressfor 5 pixels.Press R Back to go back to the texteditor, or L OK to validate and goto the next option.•Addframeor iconTo add a frame or an icon to theselected picture.• Eraser To Undo the last modificationmade on the picture, or to Reset,i.e. cancel all changes at once.Press R Back to cancel or L OKto validate.•Send To send the selected picture viainfrared, E-mail, MMS orBluetooth.•Save To save the picture with all thechanges you have applied.Rotate Use this option to rotate theselected image of -90 degrees, +90degrees or +180 degrees.View To display the selected file.Properties To display its properties (size,format, resolution, etc.).Rename To Rename the selected image.Delete / Delete allTo Delete the selected file or allfiles at once.Pictures in the Protected imagesfolder cannot be sent nor deleted.

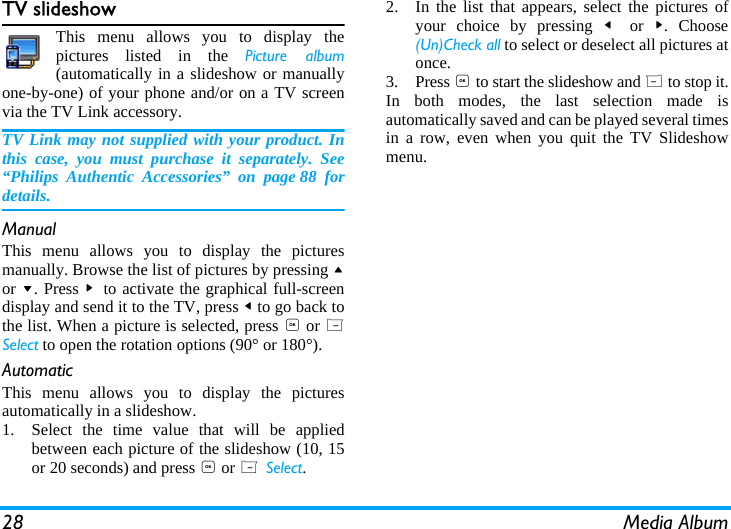

28 Media AlbumTV slideshowThis menu allows you to display thepictures listed in the Picture album(automatically in a slideshow or manuallyone-by-one) of your phone and/or on a TV screenvia the TV Link accessory.TV Link may not supplied with your product. Inthis case, you must purchase it separately. See“Philips Authentic Accessories” on page 88 fordetails.ManualThis menu allows you to display the picturesmanually. Browse the list of pictures by pressing +or -. Press > to activate the graphical full-screendisplay and send it to the TV, press < to go back tothe list. When a picture is selected, press , or LSelect to open the rotation options (90° or 180°).AutomaticThis menu allows you to display the picturesautomatically in a slideshow.1. Select the time value that will be appliedbetween each picture of the slideshow (10, 15or 20 seconds) and press , or L Select.2. In the list that appears, select the pictures ofyour choice by pressing < or >. Choose(Un)Check all to select or deselect all pictures atonce.3. Press , to start the slideshow and R to stop it.In both modes, the last selection made isautomatically saved and can be played several timesin a row, even when you quit the TV Slideshowmenu.

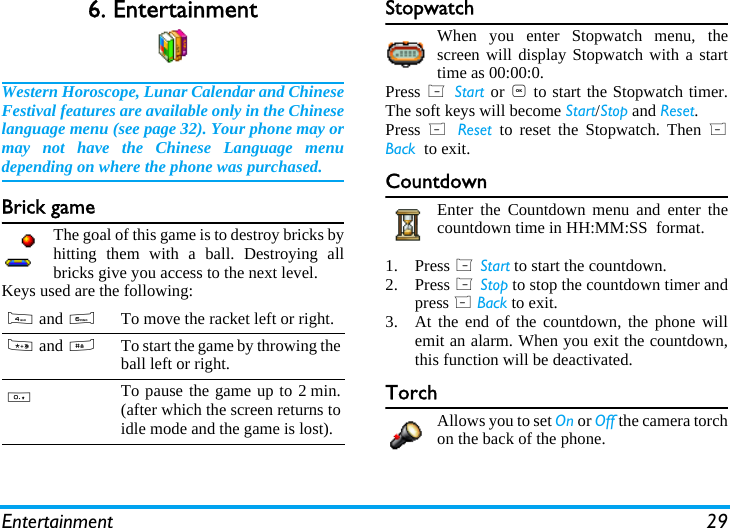

Entertainment 296. EntertainmentWestern Horoscope, Lunar Calendar and ChineseFestival features are available only in the Chineselanguage menu (see page 32). Your phone may ormay not have the Chinese Language menudepending on where the phone was purchased.Brick gameThe goal of this game is to destroy bricks byhitting them with a ball. Destroying allbricks give you access to the next level.Keys used are the following:StopwatchWhen you enter Stopwatch menu, thescreen will display Stopwatch with a starttime as 00:00:0. Press L Start or , to start the Stopwatch timer.The soft keys will become Start/Stop and Reset.Press R Reset to reset the Stopwatch. Then RBack to exit.CountdownEnter the Countdown menu and enter thecountdown time in HH:MM:SS format. 1. Press L Start to start the countdown.2. Press L Stop to stop the countdown timer andpress R Back to exit.3. At the end of the countdown, the phone willemit an alarm. When you exit the countdown,this function will be deactivated.TorchAllows you to set On or Off the camera torchon the back of the phone.4 and 6To move the racket left or right.* and #To start the game by throwing theball left or right.0To pause the game up to 2 min.(after which the screen returns toidle mode and the game is lost).

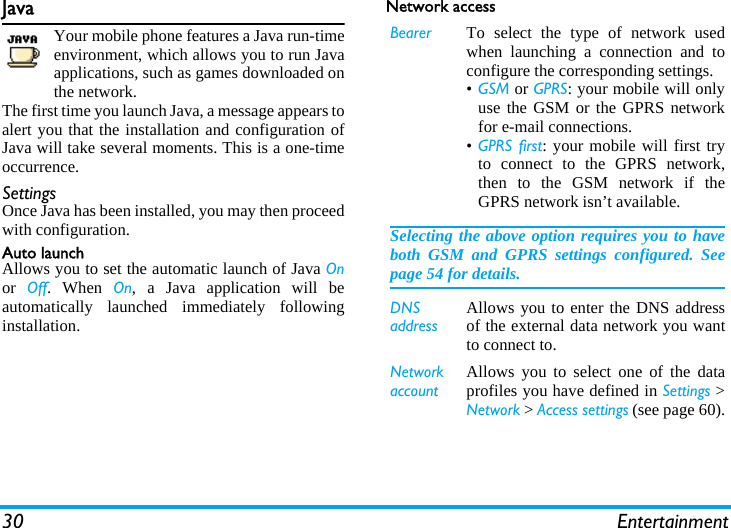

30 EntertainmentJavaYour mobile phone features a Java run-timeenvironment, which allows you to run Javaapplications, such as games downloaded onthe network.The first time you launch Java, a message appears toalert you that the installation and configuration ofJava will take several moments. This is a one-timeoccurrence.SettingsOnce Java has been installed, you may then proceedwith configuration.Auto launchAllows you to set the automatic launch of Java Onor Off. When On, a Java application will beautomatically launched immediately followinginstallation.Network accessBearer To select the type of network usedwhen launching a connection and toconfigure the corresponding settings.•GSM or GPRS: your mobile will onlyuse the GSM or the GPRS networkfor e-mail connections.•GPRS first: your mobile will first tryto connect to the GPRS network,then to the GSM network if theGPRS network isn’t available.Selecting the above option requires you to haveboth GSM and GPRS settings configured. Seepage 54 for details.DNS addressAllows you to enter the DNS addressof the external data network you wantto connect to.Network accountAllows you to select one of the dataprofiles you have defined in Settings >Network > Access settings (see page 60).
Entertainment 31NetworkThis menu gives you access to operator-specificsettings, including DNS and proxy addresses. Whenavailable, all items of this menu are pre-configured,so that you shouldn’t have to change them.Java applications1. The first time you select this menu, press LOK for initialization to start. This will takeseveral minutes.2. Back to the JAVA window, you can either:- press , to access the content of the Defaultfolder, then press L Menu and Select to playthe listed games,- or press L Menu, to access the optionsallowing you to create and manage newfolders.3. Select Install to install on your mobile phonethe JAVA games you have downloaded: youmust always proceed with installation first, tobe able to play a game.4. Press Exit to quit the Java application, or pressL Menu to access the list of availableoptions.Your mobile phone may display messages about"MIDlets". MIDlets are JAVA applications orgames.

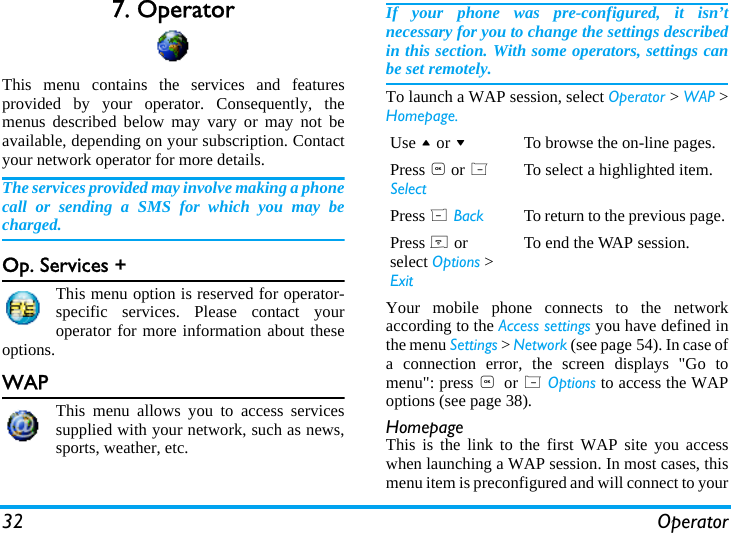

32 Operator7. OperatorThis menu contains the services and featuresprovided by your operator. Consequently, themenus described below may vary or may not beavailable, depending on your subscription. Contactyour network operator for more details.The services provided may involve making a phonecall or sending a SMS for which you may becharged.Op. Services +This menu option is reserved for operator-specific services. Please contact youroperator for more information about theseoptions.WAPThis menu allows you to access servicessupplied with your network, such as news,sports, weather, etc.If your phone was pre-configured, it isn’tnecessary for you to change the settings describedin this section. With some operators, settings canbe set remotely.To launch a WAP session, select Operator > WAP >Homepage.Your mobile phone connects to the networkaccording to the Access settings you have defined inthe menu Settings > Network (see page 54). In case ofa connection error, the screen displays "Go tomenu": press , or L Options to access the WAPoptions (see page 38).HomepageThis is the link to the first WAP site you accesswhen launching a WAP session. In most cases, thismenu item is preconfigured and will connect to yourUse + or -To browse the on-line pages.Press , or L SelectTo select a highlighted item.Press R Back To return to the previous page.Press ) or select Options > ExitTo end the WAP session.

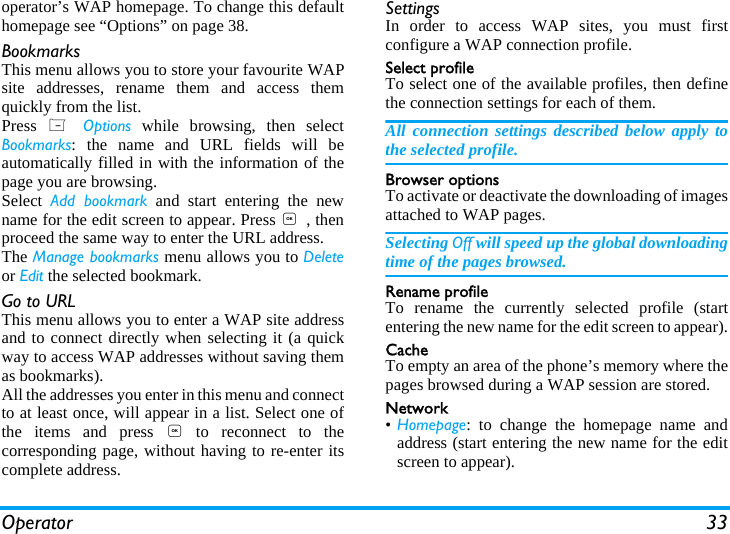

Operator 33operator’s WAP homepage. To change this defaulthomepage see “Options” on page 38.BookmarksThis menu allows you to store your favourite WAPsite addresses, rename them and access themquickly from the list.Press L Options while browsing, then selectBookmarks: the name and URL fields will beautomatically filled in with the information of thepage you are browsing.Select Add bookmark and start entering the newname for the edit screen to appear. Press , , thenproceed the same way to enter the URL address.The Manage bookmarks menu allows you to Deleteor Edit the selected bookmark.Go to URLThis menu allows you to enter a WAP site addressand to connect directly when selecting it (a quickway to access WAP addresses without saving themas bookmarks).All the addresses you enter in this menu and connectto at least once, will appear in a list. Select one ofthe items and press , to reconnect to thecorresponding page, without having to re-enter itscomplete address.SettingsIn order to access WAP sites, you must firstconfigure a WAP connection profile.Select profileTo select one of the available profiles, then definethe connection settings for each of them.All connection settings described below apply tothe selected profile.Browser optionsTo activate or deactivate the downloading of imagesattached to WAP pages.Selecting Off will speed up the global downloadingtime of the pages browsed.Rename profileTo rename the currently selected profile (startentering the new name for the edit screen to appear).CacheTo empty an area of the phone’s memory where thepages browsed during a WAP session are stored.Network•Homepage: to change the homepage name andaddress (start entering the new name for the editscreen to appear).

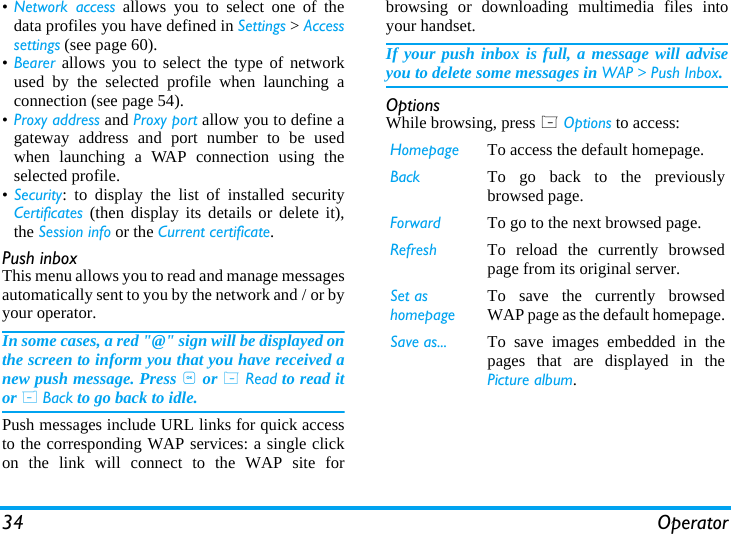

34 Operator•Network access allows you to select one of thedata profiles you have defined in Settings > Accesssettings (see page 60).•Bearer allows you to select the type of networkused by the selected profile when launching aconnection (see page 54).•Proxy address and Proxy port allow you to define agateway address and port number to be usedwhen launching a WAP connection using theselected profile.•Security: to display the list of installed securityCertificates (then display its details or delete it),the Session info or the Current certificate.Push inboxThis menu allows you to read and manage messagesautomatically sent to you by the network and / or byyour operator. In some cases, a red "@" sign will be displayed onthe screen to inform you that you have received anew push message. Press , or L Read to read itor R Back to go back to idle. Push messages include URL links for quick accessto the corresponding WAP services: a single clickon the link will connect to the WAP site forbrowsing or downloading multimedia files intoyour handset.If your push inbox is full, a message will adviseyou to delete some messages in WAP > Push Inbox.OptionsWhile browsing, press L Options to access:Homepage To access the default homepage.Back To go back to the previouslybrowsed page.Forward To go to the next browsed page.Refresh To reload the currently browsedpage from its original server.Set as homepageTo save the currently browsedWAP page as the default homepage.Save as... To save images embedded in thepages that are displayed in thePicture album.

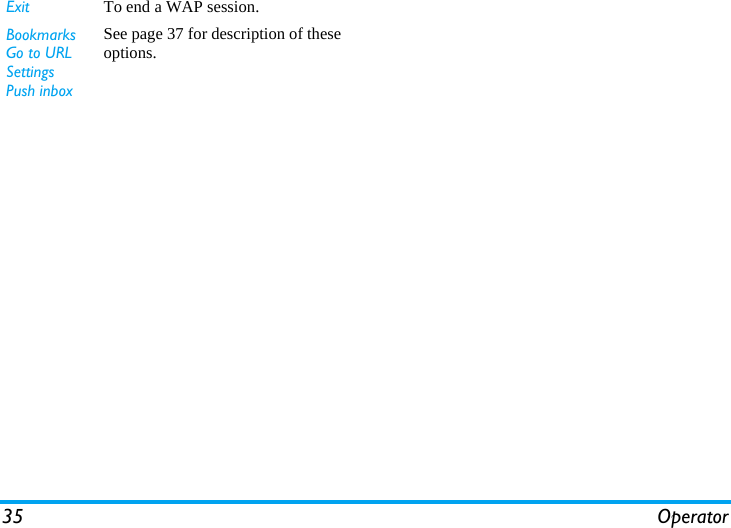

35 OperatorExit To end a WAP session.BookmarksGo to URLSettingsPush inboxSee page 37 for description of theseoptions.

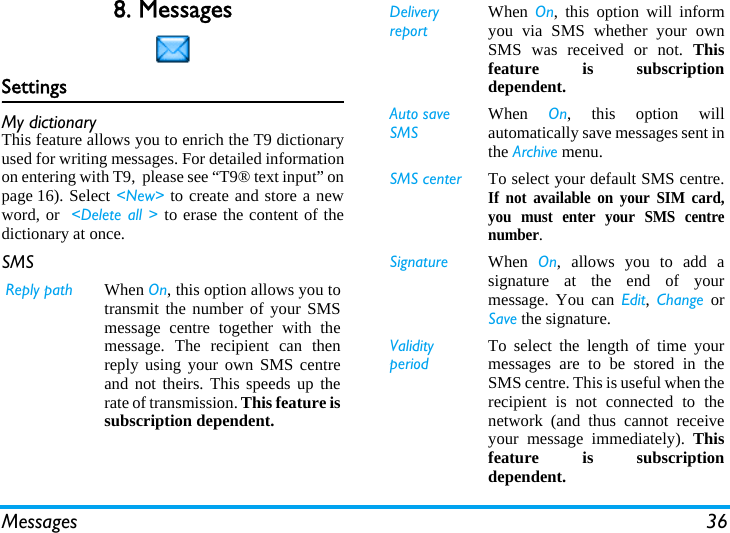

Messages 368. MessagesSettingsMy dictionaryThis feature allows you to enrich the T9 dictionaryused for writing messages. For detailed informationon entering with T9, please see “T9® text input” onpage 16). Select <New> to create and store a newword, or <Delete all > to erase the content of thedictionary at once.SMS Reply path When On, this option allows you totransmit the number of your SMSmessage centre together with themessage. The recipient can thenreply using your own SMS centreand not theirs. This speeds up therate of transmission. This feature issubscription dependent.DeliveryreportWhen On, this option will informyou via SMS whether your ownSMS was received or not. Thisfeature is subscriptiondependent.Auto save SMSWhen On, this option willautomatically save messages sent inthe Archive menu.SMS center To select your default SMS centre.If not available on your SIM card,you must enter your SMS centrenumber.Signature When On, allows you to add asignature at the end of yourmessage. You can Edit, Change orSave the signature.Validity periodTo select the length of time yourmessages are to be stored in theSMS centre. This is useful when therecipient is not connected to thenetwork (and thus cannot receiveyour message immediately). Thisfeature is subscriptiondependent.

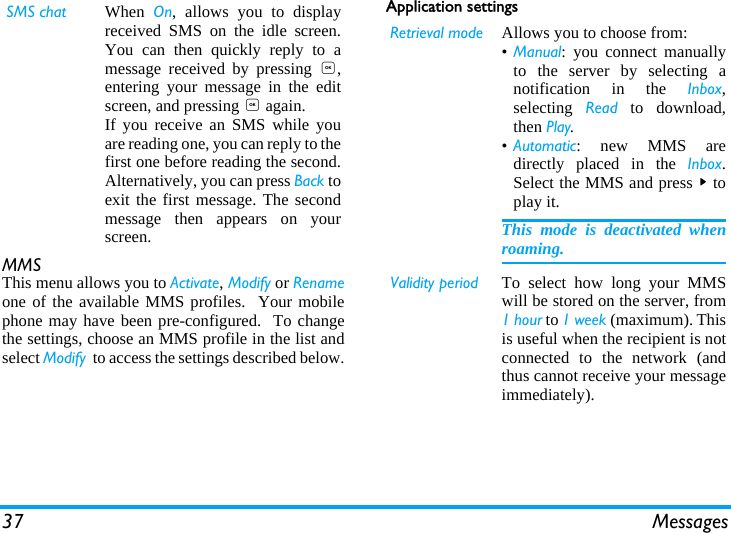

37 MessagesMMSThis menu allows you to Activate, Modify or Renameone of the available MMS profiles. Your mobilephone may have been pre-configured. To changethe settings, choose an MMS profile in the list andselect Modify to access the settings described below.Application settingsSMS chat When On, allows you to displayreceived SMS on the idle screen.You can then quickly reply to amessage received by pressing ,,entering your message in the editscreen, and pressing , again.If you receive an SMS while youare reading one, you can reply to thefirst one before reading the second.Alternatively, you can press Back toexit the first message. The secondmessage then appears on yourscreen.Retrieval mode Allows you to choose from:•Manual: you connect manuallyto the server by selecting anotification in the Inbox,selecting Read to download,then Play.•Automatic: new MMS aredirectly placed in the Inbox.Select the MMS and press > toplay it.This mode is deactivated whenroaming.Validity period To select how long your MMSwill be stored on the server, from1 hour to 1 week (maximum). Thisis useful when the recipient is notconnected to the network (andthus cannot receive your messageimmediately).

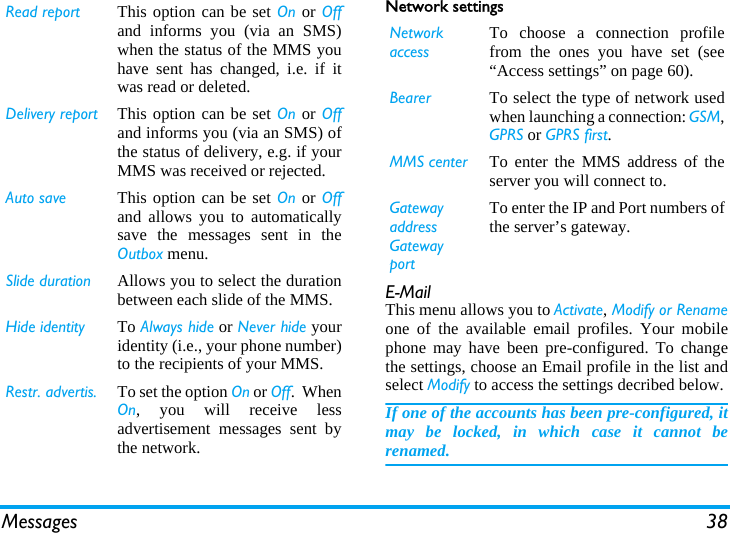

Messages 38Network settingsE-MailThis menu allows you to Activate, Modify or Renameone of the available email profiles. Your mobilephone may have been pre-configured. To changethe settings, choose an Email profile in the list andselect Modify to access the settings decribed below. If one of the accounts has been pre-configured, itmay be locked, in which case it cannot berenamed.Read report This option can be set On or Offand informs you (via an SMS)when the status of the MMS youhave sent has changed, i.e. if itwas read or deleted.Delivery report This option can be set On or Offand informs you (via an SMS) ofthe status of delivery, e.g. if yourMMS was received or rejected.Auto save This option can be set On or Offand allows you to automaticallysave the messages sent in theOutbox menu.Slide duration Allows you to select the durationbetween each slide of the MMS.Hide identity To Always hide or Never hide youridentity (i.e., your phone number)to the recipients of your MMS.Restr. advertis. To set the option On or Off. WhenOn, you will receive lessadvertisement messages sent bythe network.Network accessTo choose a connection profilefrom the ones you have set (see“Access settings” on page 60).Bearer To select the type of network usedwhen launching a connection: GSM,GPRS or GPRS first.MMS center To enter the MMS address of theserver you will connect to.Gatewayaddress GatewayportTo enter the IP and Port numbers ofthe server’s gateway.

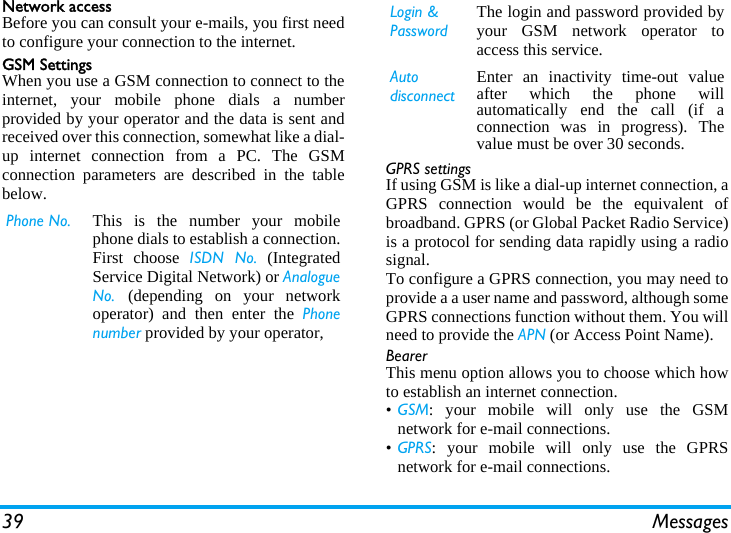

39 MessagesNetwork accessBefore you can consult your e-mails, you first needto configure your connection to the internet.GSM SettingsWhen you use a GSM connection to connect to theinternet, your mobile phone dials a numberprovided by your operator and the data is sent andreceived over this connection, somewhat like a dial-up internet connection from a PC. The GSMconnection parameters are described in the tablebelow.GPRS settingsIf using GSM is like a dial-up internet connection, aGPRS connection would be the equivalent ofbroadband. GPRS (or Global Packet Radio Service)is a protocol for sending data rapidly using a radiosignal.To configure a GPRS connection, you may need toprovide a a user name and password, although someGPRS connections function without them. You willneed to provide the APN (or Access Point Name).BearerThis menu option allows you to choose which howto establish an internet connection.•GSM: your mobile will only use the GSMnetwork for e-mail connections.•GPRS: your mobile will only use the GPRSnetwork for e-mail connections.Phone No. This is the number your mobilephone dials to establish a connection.First choose ISDN No. (IntegratedService Digital Network) or AnalogueNo. (depending on your networkoperator) and then enter the Phonenumber provided by your operator,Login & PasswordThe login and password provided byyour GSM network operator toaccess this service.Auto disconnectEnter an inactivity time-out valueafter which the phone willautomatically end the call (if aconnection was in progress). Thevalue must be over 30 seconds.

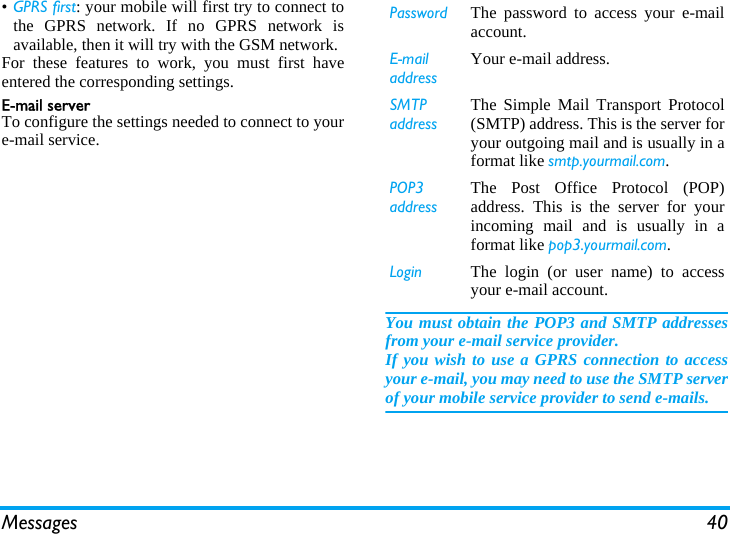

Messages 40•GPRS first: your mobile will first try to connect tothe GPRS network. If no GPRS network isavailable, then it will try with the GSM network. For these features to work, you must first haveentered the corresponding settings.Email serverTo configure the settings needed to connect to youre-mail service.You must obtain the POP3 and SMTP addressesfrom your e-mail service provider.If you wish to use a GPRS connection to accessyour e-mail, you may need to use the SMTP serverof your mobile service provider to send e-mails.Password The password to access your e-mailaccount.E-mail addressYour e-mail address.SMTP addressThe Simple Mail Transport Protocol(SMTP) address. This is the server foryour outgoing mail and is usually in aformat like smtp.yourmail.com.POP3 addressThe Post Office Protocol (POP)address. This is the server for yourincoming mail and is usually in aformat like pop3.yourmail.com.Login The login (or user name) to accessyour e-mail account.

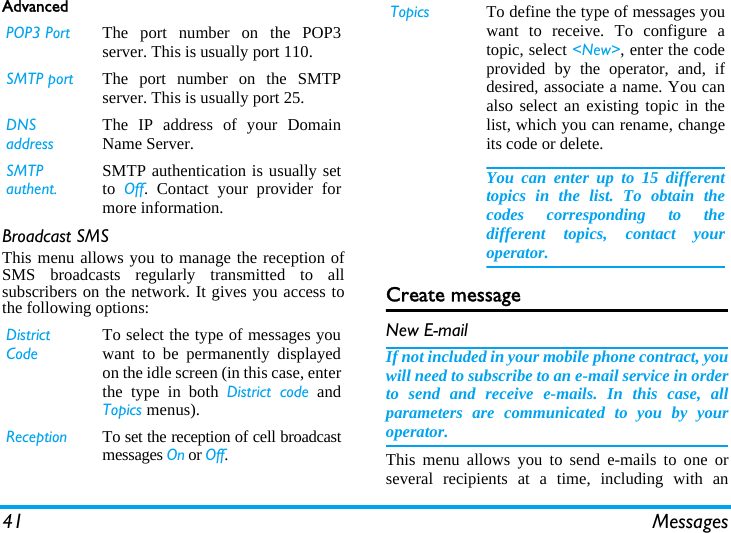

41 MessagesAdvancedBroadcast SMSThis menu allows you to manage the reception ofSMS broadcasts regularly transmitted to allsubscribers on the network. It gives you access tothe following options: Create messageNew E-mailIf not included in your mobile phone contract, youwill need to subscribe to an e-mail service in orderto send and receive e-mails. In this case, allparameters are communicated to you by youroperator.This menu allows you to send e-mails to one orseveral recipients at a time, including with anPOP3 Port The port number on the POP3server. This is usually port 110.SMTP port The port number on the SMTPserver. This is usually port 25.DNS addressThe IP address of your DomainName Server.SMTP authent.SMTP authentication is usually setto Off. Contact your provider formore information.District CodeTo select the type of messages youwant to be permanently displayedon the idle screen (in this case, enterthe type in both District code andTopics menus).Reception To set the reception of cell broadcastmessages On or Off.Topics To define the type of messages youwant to receive. To configure atopic, select <New>, enter the codeprovided by the operator, and, ifdesired, associate a name. You canalso select an existing topic in thelist, which you can rename, changeits code or delete.You can enter up to 15 differenttopics in the list. To obtain thecodes corresponding to thedifferent topics, contact youroperator.

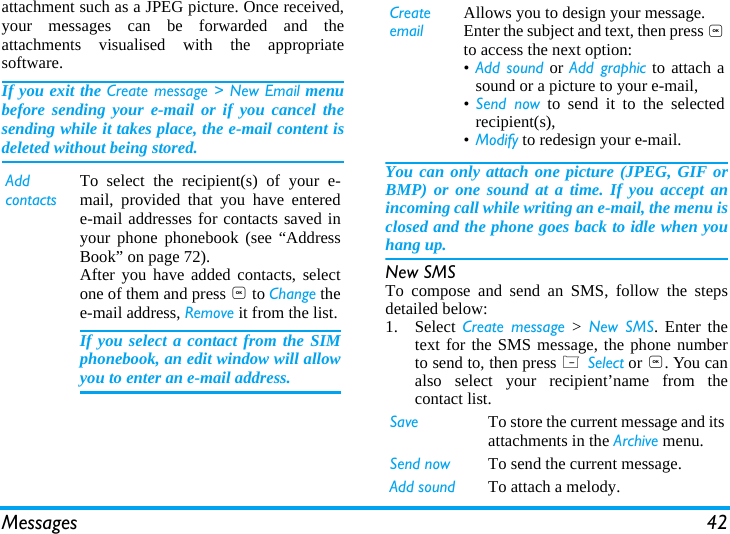

Messages 42attachment such as a JPEG picture. Once received,your messages can be forwarded and theattachments visualised with the appropriatesoftware.If you exit the Create message > New Email menubefore sending your e-mail or if you cancel thesending while it takes place, the e-mail content isdeleted without being stored.You can only attach one picture (JPEG, GIF orBMP) or one sound at a time. If you accept anincoming call while writing an e-mail, the menu isclosed and the phone goes back to idle when youhang up.New SMSTo compose and send an SMS, follow the stepsdetailed below:1. Select Create message > New SMS. Enter thetext for the SMS message, the phone numberto send to, then press L Select or ,. You canalso select your recipient’name from thecontact list.Add contactsTo select the recipient(s) of your e-mail, provided that you have enterede-mail addresses for contacts saved inyour phone phonebook (see “AddressBook” on page 72).After you have added contacts, selectone of them and press , to Change thee-mail address, Remove it from the list.If you select a contact from the SIMphonebook, an edit window will allowyou to enter an e-mail address.Create emailAllows you to design your message. Enter the subject and text, then press ,to access the next option:•Add sound or Add graphic to attach asound or a picture to your e-mail,•Send now to send it to the selectedrecipient(s),•Modify to redesign your e-mail.Save To store the current message and itsattachments in the Archive menu.Send now To send the current message.Add sound To attach a melody.

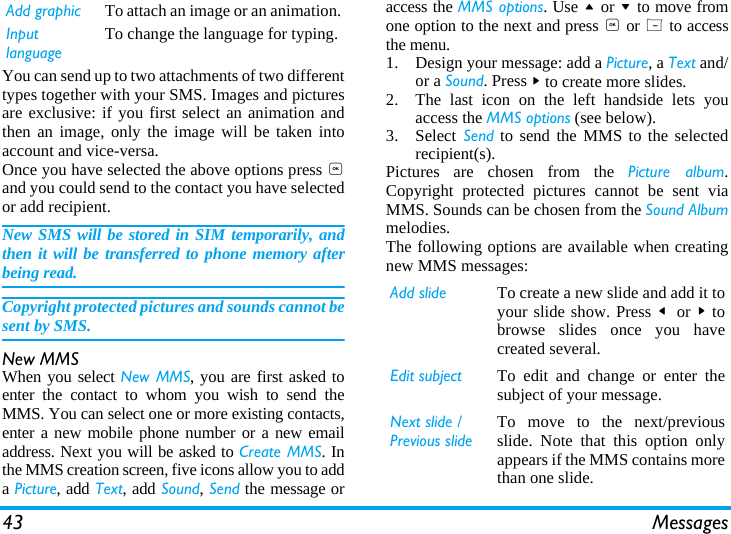

43 MessagesYou can send up to two attachments of two differenttypes together with your SMS. Images and picturesare exclusive: if you first select an animation andthen an image, only the image will be taken intoaccount and vice-versa.Once you have selected the above options press ,and you could send to the contact you have selectedor add recipient.New SMS will be stored in SIM temporarily, andthen it will be transferred to phone memory afterbeing read.Copyright protected pictures and sounds cannot besent by SMS.New MMSWhen you select New MMS, you are first asked toenter the contact to whom you wish to send theMMS. You can select one or more existing contacts,enter a new mobile phone number or a new emailaddress. Next you will be asked to Create MMS. Inthe MMS creation screen, five icons allow you to adda Picture, add Text, add Sound, Send the message oraccess the MMS options. Use + or - to move fromone option to the next and press , or L to accessthe menu.1. Design your message: add a Picture, a Text and/or a Sound. Press > to create more slides.2. The last icon on the left handside lets youaccess the MMS options (see below).3. Select Send to send the MMS to the selectedrecipient(s).Pictures are chosen from the Picture album.Copyright protected pictures cannot be sent viaMMS. Sounds can be chosen from the Sound Albummelodies.The following options are available when creatingnew MMS messages: Add graphic To attach an image or an animation.Input languageTo change the language for typing.Add slide To create a new slide and add it toyour slide show. Press < or > tobrowse slides once you havecreated several.Edit subject To edit and change or enter thesubject of your message.Next slide /Previous slideTo move to the next/previousslide. Note that this option onlyappears if the MMS contains morethan one slide.

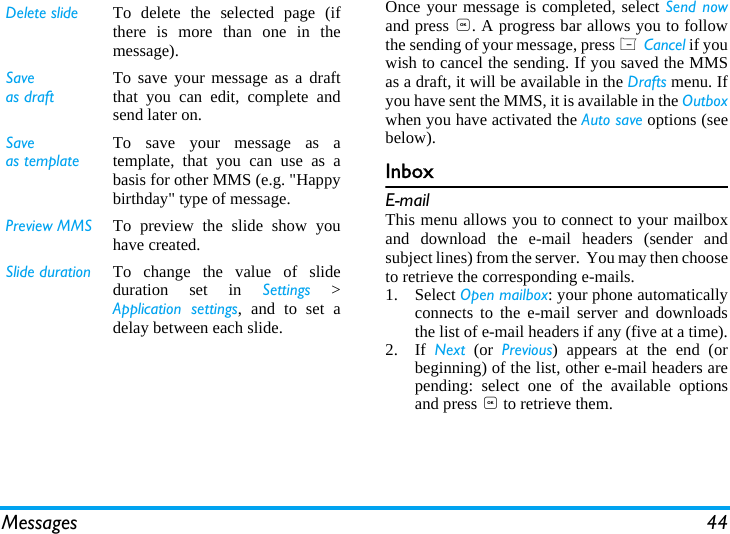

Messages 44Once your message is completed, select Send nowand press ,. A progress bar allows you to followthe sending of your message, press L Cancel if youwish to cancel the sending. If you saved the MMSas a draft, it will be available in the Drafts menu. Ifyou have sent the MMS, it is available in the Outboxwhen you have activated the Auto save options (seebelow).InboxE-mailThis menu allows you to connect to your mailboxand download the e-mail headers (sender andsubject lines) from the server. You may then chooseto retrieve the corresponding e-mails.1. Select Open mailbox: your phone automaticallyconnects to the e-mail server and downloadsthe list of e-mail headers if any (five at a time).2. If Next (or Previous) appears at the end (orbeginning) of the list, other e-mail headers arepending: select one of the available optionsand press , to retrieve them.Delete slide To delete the selected page (ifthere is more than one in themessage).Saveas draftTo save your message as a draftthat you can edit, complete andsend later on.Saveas templateTo save your message as atemplate, that you can use as abasis for other MMS (e.g. "Happybirthday" type of message.Preview MMS To preview the slide show youhave created.Slide duration To change the value of slideduration set in Settings >Application settings, and to set adelay between each slide.
45 Messages3. Select a header, and press , to display theDetails. The following status icons may appearto each header:4. If there is no icon next to the header, you canpress , and select Get mail to download thee-mail. Repeat this operation to download eache-mail corresponding to each selected header.If the e-mail you have received containsattachments (an image, a text file, or anothere-mail), they are identified by a specific icon:You must download and save a picture before youcan view it in the Picture album. If there isn’t enoughmemory to store the new picture, you must deleteother items (images, sounds, messages, etc.) to freeup memory to save the new picture.An image file may not be accepted by your mobilephone if it isn’t in the correct format. Images mustbe in JPEG, BMP or GIF format.The optimal image size is 128 x 160 pixels (thedimensions of the screen). If you are transferringimages from your home computer, you can use animage editing program to create images of thecorrect size.The e-mail size is too large (over 50 Kb),it cannot be downloaded.The e-mail is marked to be deleted (seepage 50).Contains the details of the e-mail header(date and time, sender’s e-mail address,etc.), press , to display these details.The text of the e-mail itself can be viewedas an attachment, press , to read it (noadvanced options in this case).A text file (text only, ".txt" format) isattached to the e-mail, press , to read it(no advanced options in this case).The application needed to manage thisattachment isn’t available in your phone,or the e-mail is too large to be uploaded.Another e-mail is attached to the one youreceived. Up to five e-mails can beattached, although there will be noadvanced options.A picture is attached to this e-mail. Selectit in the list and press , twice to store itin your phone (you can rename it if youwish).

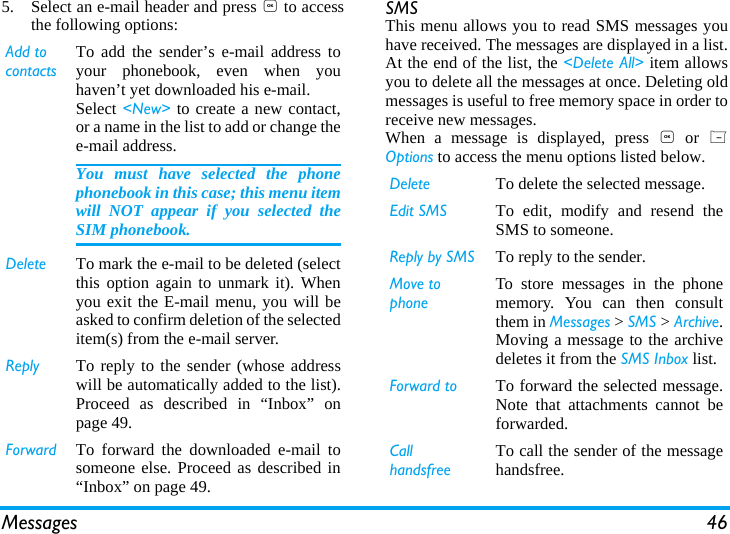

Messages 465. Select an e-mail header and press , to accessthe following options: SMS This menu allows you to read SMS messages youhave received. The messages are displayed in a list.At the end of the list, the <Delete All> item allowsyou to delete all the messages at once. Deleting oldmessages is useful to free memory space in order toreceive new messages.When a message is displayed, press , or LOptions to access the menu options listed below.Add to contactsTo add the sender’s e-mail address toyour phonebook, even when youhaven’t yet downloaded his e-mail.Select <New> to create a new contact,or a name in the list to add or change thee-mail address.You must have selected the phonephonebook in this case; this menu itemwill NOT appear if you selected theSIM phonebook.Delete To mark the e-mail to be deleted (selectthis option again to unmark it). Whenyou exit the E-mail menu, you will beasked to confirm deletion of the selecteditem(s) from the e-mail server.Reply To reply to the sender (whose addresswill be automatically added to the list).Proceed as described in “Inbox” onpage 49.Forward To forward the downloaded e-mail tosomeone else. Proceed as described in“Inbox” on page 49.Delete To delete the selected message.Edit SMS To edit, modify and resend theSMS to someone.Reply by SMS To reply to the sender.Move to phoneTo store messages in the phonememory. You can then consultthem in Messages > SMS > Archive.Moving a message to the archivedeletes it from the SMS Inbox list.Forward to To forward the selected message.Note that attachments cannot beforwarded.Call handsfreeTo call the sender of the messagehandsfree.

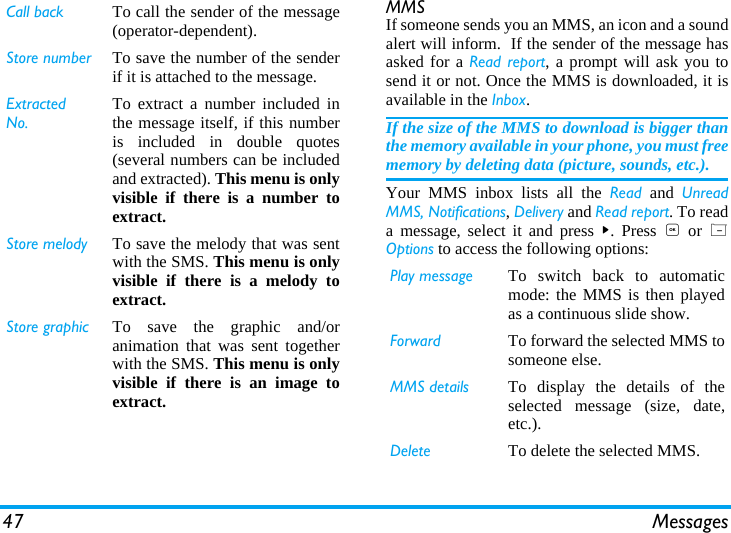

47 MessagesMMS If someone sends you an MMS, an icon and a soundalert will inform. If the sender of the message hasasked for a Read report, a prompt will ask you tosend it or not. Once the MMS is downloaded, it isavailable in the Inbox.If the size of the MMS to download is bigger thanthe memory available in your phone, you must freememory by deleting data (picture, sounds, etc.). Your MMS inbox lists all the Read and UnreadMMS, Notifications, Delivery and Read report. To reada message, select it and press >. Press , or LOptions to access the following options:Call back To call the sender of the message(operator-dependent).Store number To save the number of the senderif it is attached to the message.Extracted No.To extract a number included inthe message itself, if this numberis included in double quotes(several numbers can be includedand extracted). This menu is onlyvisible if there is a number toextract.Store melody To save the melody that was sentwith the SMS. This menu is onlyvisible if there is a melody toextract.Store graphic To save the graphic and/oranimation that was sent togetherwith the SMS. This menu is onlyvisible if there is an image toextract.Play message To switch back to automaticmode: the MMS is then playedas a continuous slide show.Forward To forward the selected MMS tosomeone else.MMS details To display the details of theselected message (size, date,etc.).Delete To delete the selected MMS.

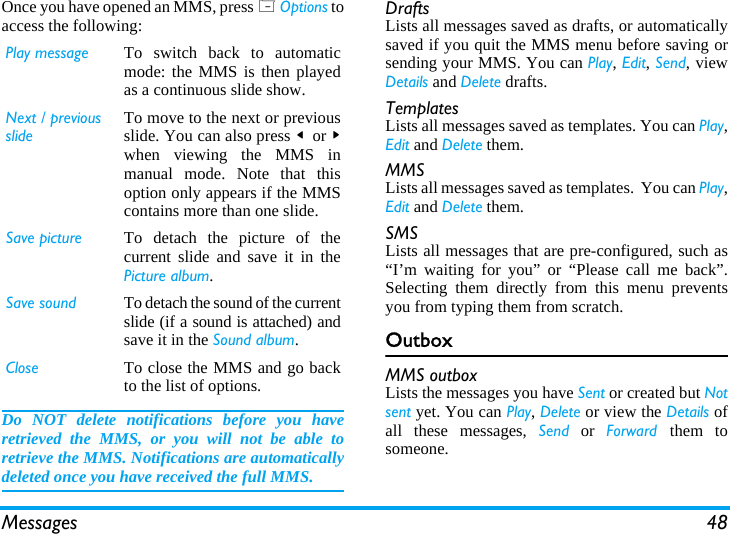

Messages 48Once you have opened an MMS, press L Options toaccess the following:Do NOT delete notifications before you haveretrieved the MMS, or you will not be able toretrieve the MMS. Notifications are automaticallydeleted once you have received the full MMS.DraftsLists all messages saved as drafts, or automaticallysaved if you quit the MMS menu before saving orsending your MMS. You can Play, Edit, Send, viewDetails and Delete drafts.TemplatesLists all messages saved as templates. You can Play,Edit and Delete them.MMSLists all messages saved as templates. You can Play,Edit and Delete them.SMSLists all messages that are pre-configured, such as“I’m waiting for you” or “Please call me back”.Selecting them directly from this menu preventsyou from typing them from scratch.OutboxMMS outboxLists the messages you have Sent or created but Notsent yet. You can Play, Delete or view the Details ofall these messages, Send or Forward them tosomeone.Play message To switch back to automaticmode: the MMS is then playedas a continuous slide show.Next / previousslideTo move to the next or previousslide. You can also press < or >when viewing the MMS inmanual mode. Note that thisoption only appears if the MMScontains more than one slide.Save picture To detach the picture of thecurrent slide and save it in thePicture album.Save sound To detach the sound of the currentslide (if a sound is attached) andsave it in the Sound album.Close To close the MMS and go backto the list of options.

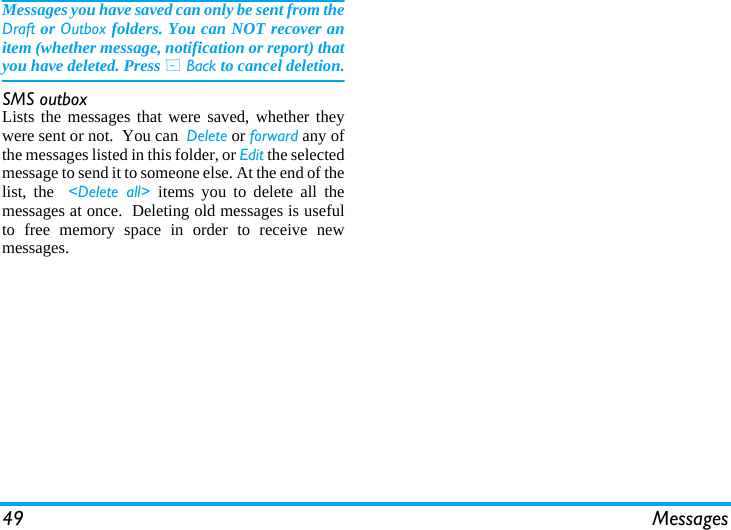

49 MessagesMessages you have saved can only be sent from theDraft or Outbox folders. You can NOT recover anitem (whether message, notification or report) thatyou have deleted. Press R Back to cancel deletion.SMS outboxLists the messages that were saved, whether theywere sent or not. You can Delete or forward any ofthe messages listed in this folder, or Edit the selectedmessage to send it to someone else. At the end of thelist, the <Delete all> items you to delete all themessages at once. Deleting old messages is usefulto free memory space in order to receive newmessages.

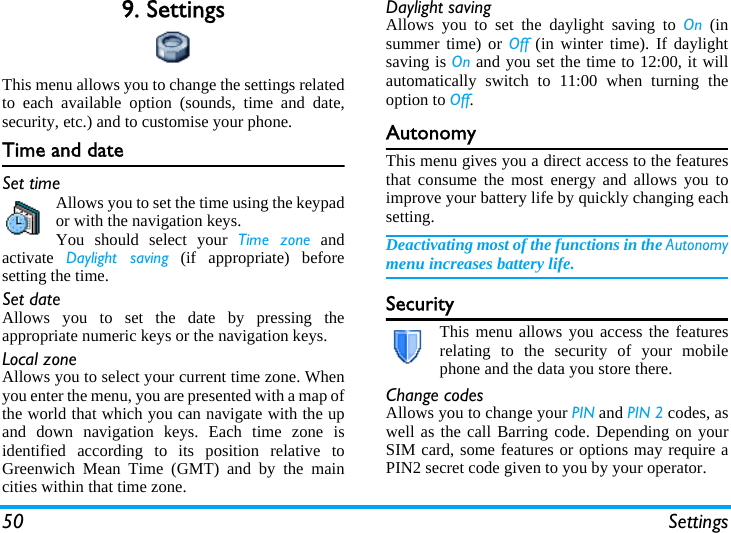

50 Settings9. SettingsThis menu allows you to change the settings relatedto each available option (sounds, time and date,security, etc.) and to customise your phone.Time and dateSet timeAllows you to set the time using the keypador with the navigation keys.You should select your Time zone andactivate Daylight saving (if appropriate) beforesetting the time.Set dateAllows you to set the date by pressing theappropriate numeric keys or the navigation keys.Local zoneAllows you to select your current time zone. Whenyou enter the menu, you are presented with a map ofthe world that which you can navigate with the upand down navigation keys. Each time zone isidentified according to its position relative toGreenwich Mean Time (GMT) and by the maincities within that time zone.Daylight savingAllows you to set the daylight saving to On (insummer time) or Off (in winter time). If daylightsaving is On and you set the time to 12:00, it willautomatically switch to 11:00 when turning theoption to Off.AutonomyThis menu gives you a direct access to the featuresthat consume the most energy and allows you toimprove your battery life by quickly changing eachsetting.Deactivating most of the functions in the Autonomymenu increases battery life.SecurityThis menu allows you access the featuresrelating to the security of your mobilephone and the data you store there.Change codesAllows you to change your PIN and PIN 2 codes, aswell as the call Barring code. Depending on yourSIM card, some features or options may require aPIN2 secret code given to you by your operator.

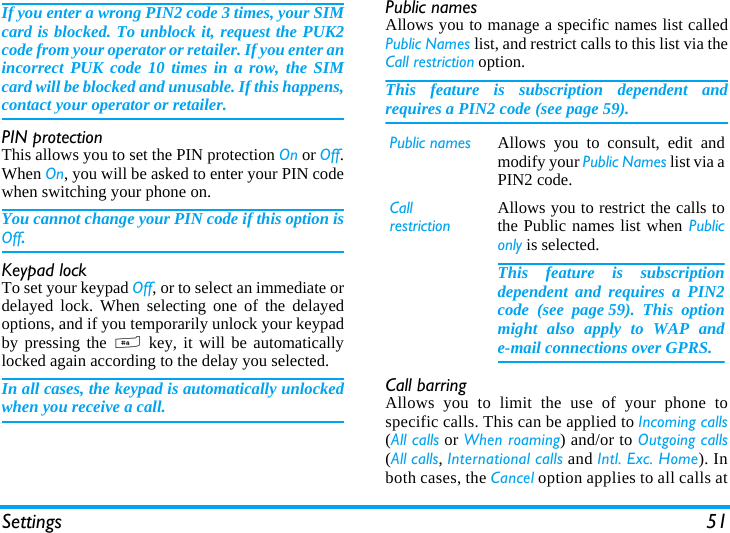

Settings 51If you enter a wrong PIN2 code 3 times, your SIMcard is blocked. To unblock it, request the PUK2code from your operator or retailer. If you enter anincorrect PUK code 10 times in a row, the SIMcard will be blocked and unusable. If this happens,contact your operator or retailer.PIN protectionThis allows you to set the PIN protection On or Off.When On, you will be asked to enter your PIN codewhen switching your phone on.You cannot change your PIN code if this option isOff.Keypad lockTo set your keypad Off, or to select an immediate ordelayed lock. When selecting one of the delayedoptions, and if you temporarily unlock your keypadby pressing the # key, it will be automaticallylocked again according to the delay you selected.In all cases, the keypad is automatically unlockedwhen you receive a call.Public namesAllows you to manage a specific names list calledPublic Names list, and restrict calls to this list via theCall restriction option.This feature is subscription dependent andrequires a PIN2 code (see page 59).Call barringAllows you to limit the use of your phone tospecific calls. This can be applied to Incoming calls(All calls or When roaming) and/or to Outgoing calls(All calls, International calls and Intl. Exc. Home). Inboth cases, the Cancel option applies to all calls atPublic names Allows you to consult, edit andmodify your Public Names list via aPIN2 code.CallrestrictionAllows you to restrict the calls tothe Public names list when Publiconly is selected.This feature is subscriptiondependent and requires a PIN2code (see page 59). This optionmight also apply to WAP ande-mail connections over GPRS.

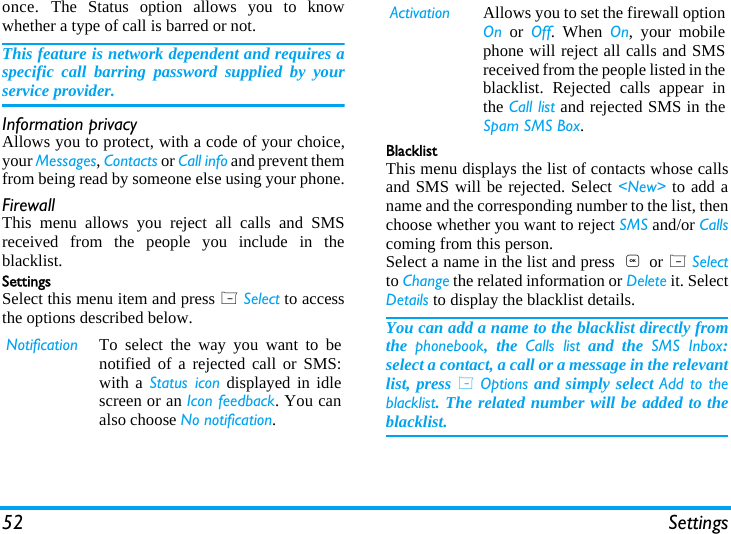

52 Settingsonce. The Status option allows you to knowwhether a type of call is barred or not.This feature is network dependent and requires aspecific call barring password supplied by yourservice provider.Information privacyAllows you to protect, with a code of your choice,your Messages, Contacts or Call info and prevent themfrom being read by someone else using your phone.FirewallThis menu allows you reject all calls and SMSreceived from the people you include in theblacklist.SettingsSelect this menu item and press L Select to accessthe options described below.BlacklistThis menu displays the list of contacts whose callsand SMS will be rejected. Select <New> to add aname and the corresponding number to the list, thenchoose whether you want to reject SMS and/or Callscoming from this person.Select a name in the list and press , or L Selectto Change the related information or Delete it. SelectDetails to display the blacklist details.You can add a name to the blacklist directly fromthe phonebook, the Calls list and the SMS Inbox:select a contact, a call or a message in the relevantlist, press L Options and simply select Add to theblacklist. The related number will be added to theblacklist.Notification To select the way you want to benotified of a rejected call or SMS:with a Status icon displayed in idlescreen or an Icon feedback. You canalso choose No notification.Activation Allows you to set the firewall optionOn or Off. When On, your mobilephone will reject all calls and SMSreceived from the people listed in theblacklist. Rejected calls appear inthe Call list and rejected SMS in theSpam SMS Box.

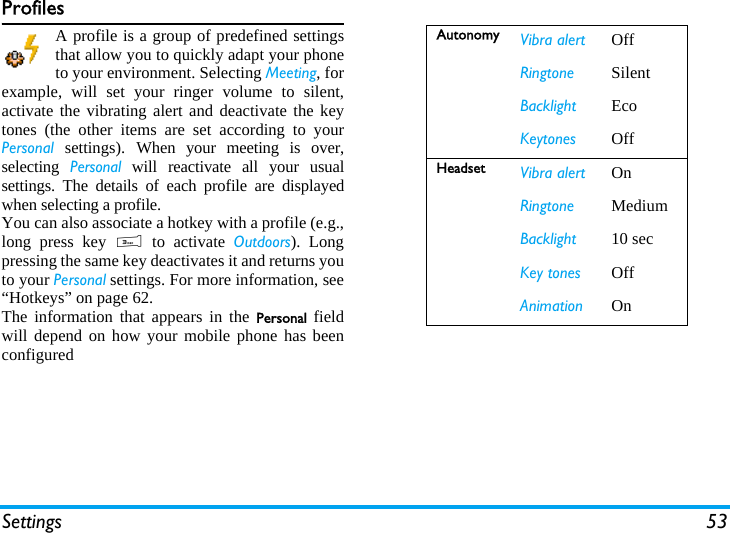

Settings 53ProfilesA profile is a group of predefined settingsthat allow you to quickly adapt your phoneto your environment. Selecting Meeting, forexample, will set your ringer volume to silent,activate the vibrating alert and deactivate the keytones (the other items are set according to yourPersonal settings). When your meeting is over,selecting Personal will reactivate all your usualsettings. The details of each profile are displayedwhen selecting a profile.You can also associate a hotkey with a profile (e.g.,long press key 3 to activate Outdoors). Longpressing the same key deactivates it and returns youto your Personal settings. For more information, see“Hotkeys” on page 62. The information that appears in the Personal fieldwill depend on how your mobile phone has beenconfiguredAutonomy Vibra alert OffRingtone SilentBacklight EcoKeytones OffHeadset Vibra alert OnRingtone MediumBacklight 10 secKey tones OffAnimation On

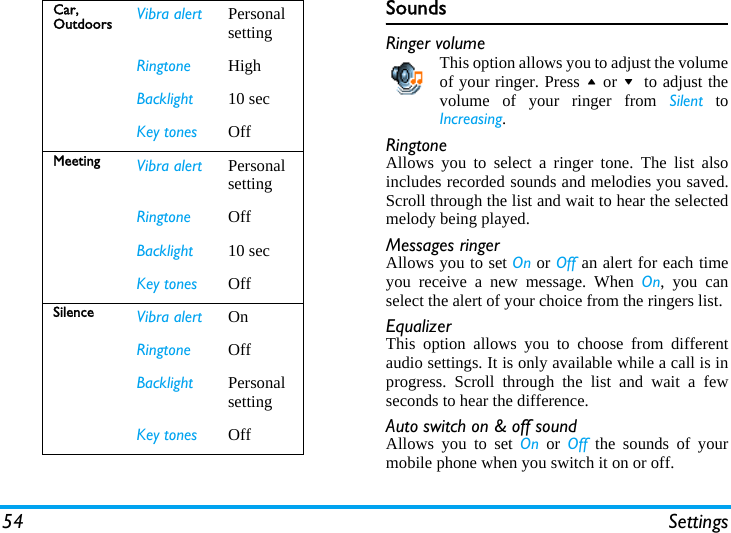

54 SettingsSoundsRinger volumeThis option allows you to adjust the volumeof your ringer. Press + or - to adjust thevolume of your ringer from Silent toIncreasing.RingtoneAllows you to select a ringer tone. The list alsoincludes recorded sounds and melodies you saved.Scroll through the list and wait to hear the selectedmelody being played.Messages ringerAllows you to set On or Off an alert for each timeyou receive a new message. When On, you canselect the alert of your choice from the ringers list.EqualizerThis option allows you to choose from differentaudio settings. It is only available while a call is inprogress. Scroll through the list and wait a fewseconds to hear the difference.Auto switch on & off soundAllows you to set On or Off the sounds of yourmobile phone when you switch it on or off.Car, Outdoors Vibra alert PersonalsettingRingtone HighBacklight 10 secKey tones OffMeeting Vibra alert PersonalsettingRingtone OffBacklight 10 secKey tones OffSilence Vibra alert OnRingtone OffBacklight PersonalsettingKey tones Off

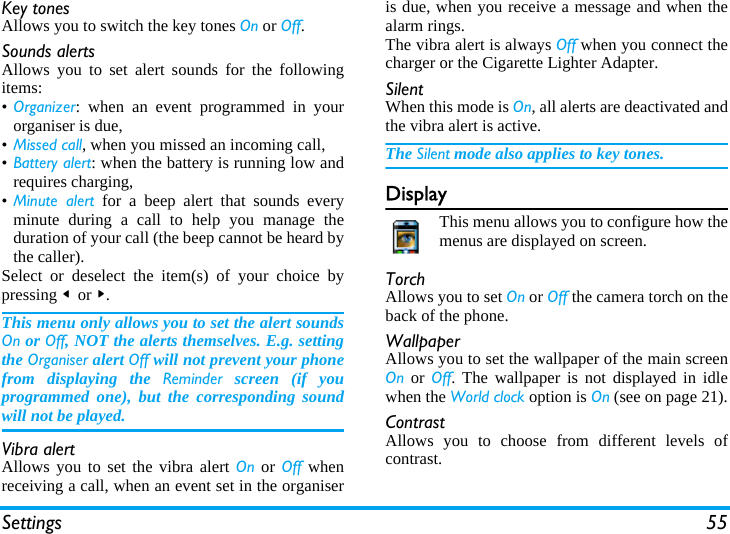

Settings 55Key tonesAllows you to switch the key tones On or Off.Sounds alertsAllows you to set alert sounds for the followingitems:•Organizer: when an event programmed in yourorganiser is due,•Missed call, when you missed an incoming call,•Battery alert: when the battery is running low andrequires charging,•Minute alert for a beep alert that sounds everyminute during a call to help you manage theduration of your call (the beep cannot be heard bythe caller).Select or deselect the item(s) of your choice bypressing < or >.This menu only allows you to set the alert soundsOn or Off, NOT the alerts themselves. E.g. settingthe Organiser alert Off will not prevent your phonefrom displaying the Reminder screen (if youprogrammed one), but the corresponding soundwill not be played.Vibra alertAllows you to set the vibra alert On or Off whenreceiving a call, when an event set in the organiseris due, when you receive a message and when thealarm rings.The vibra alert is always Off when you connect thecharger or the Cigarette Lighter Adapter.SilentWhen this mode is On, all alerts are deactivated andthe vibra alert is active.The Silent mode also applies to key tones.DisplayThis menu allows you to configure how themenus are displayed on screen.TorchAllows you to set On or Off the camera torch on theback of the phone.WallpaperAllows you to set the wallpaper of the main screenOn or Off. The wallpaper is not displayed in idlewhen the World clock option is On (see on page 21).ContrastAllows you to choose from different levels ofcontrast.

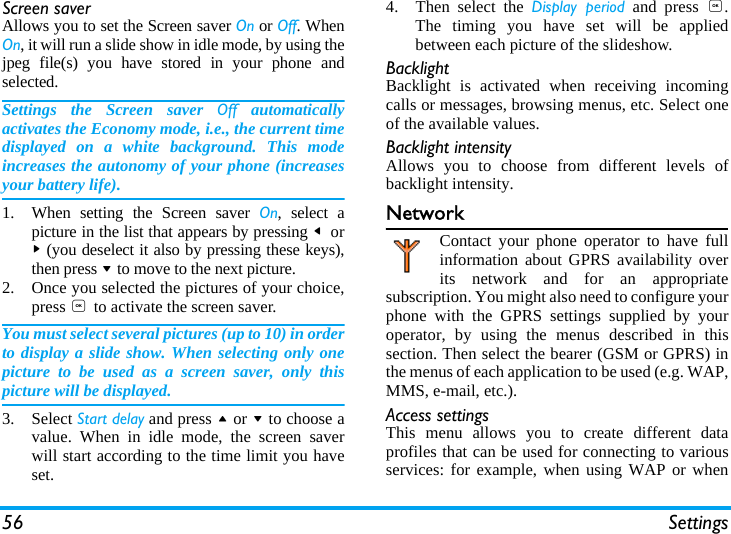

56 SettingsScreen saverAllows you to set the Screen saver On or Off. WhenOn, it will run a slide show in idle mode, by using thejpeg file(s) you have stored in your phone andselected.Settings the Screen saver Off automaticallyactivates the Economy mode, i.e., the current timedisplayed on a white background. This modeincreases the autonomy of your phone (increasesyour battery life).1. When setting the Screen saver On, select apicture in the list that appears by pressing < or> (you deselect it also by pressing these keys),then press - to move to the next picture.2. Once you selected the pictures of your choice,press , to activate the screen saver.You must select several pictures (up to 10) in orderto display a slide show. When selecting only onepicture to be used as a screen saver, only thispicture will be displayed.3. Select Start delay and press + or - to choose avalue. When in idle mode, the screen saverwill start according to the time limit you haveset.4. Then select the Display period and press ,.The timing you have set will be appliedbetween each picture of the slideshow.BacklightBacklight is activated when receiving incomingcalls or messages, browsing menus, etc. Select oneof the available values.Backlight intensityAllows you to choose from different levels ofbacklight intensity.NetworkContact your phone operator to have fullinformation about GPRS availability overits network and for an appropriatesubscription. You might also need to configure yourphone with the GPRS settings supplied by youroperator, by using the menus described in thissection. Then select the bearer (GSM or GPRS) inthe menus of each application to be used (e.g. WAP,MMS, e-mail, etc.).Access settingsThis menu allows you to create different dataprofiles that can be used for connecting to variousservices: for example, when using WAP or when

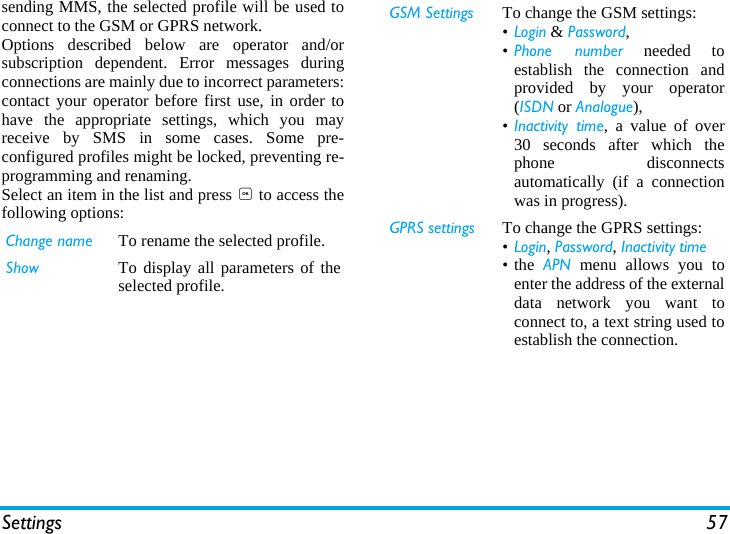

Settings 57sending MMS, the selected profile will be used toconnect to the GSM or GPRS network.Options described below are operator and/orsubscription dependent. Error messages duringconnections are mainly due to incorrect parameters:contact your operator before first use, in order tohave the appropriate settings, which you mayreceive by SMS in some cases. Some pre-configured profiles might be locked, preventing re-programming and renaming.Select an item in the list and press , to access thefollowing options:Change name To rename the selected profile.Show To display all parameters of theselected profile.GSM Settings To change the GSM settings:•Login & Password,•Phone number needed toestablish the connection andprovided by your operator(ISDN or Analogue),•Inactivity time, a value of over30 seconds after which thephone disconnectsautomatically (if a connectionwas in progress).GPRS settings To change the GPRS settings:•Login, Password, Inactivity time•the APN menu allows you toenter the address of the externaldata network you want toconnect to, a text string used toestablish the connection.

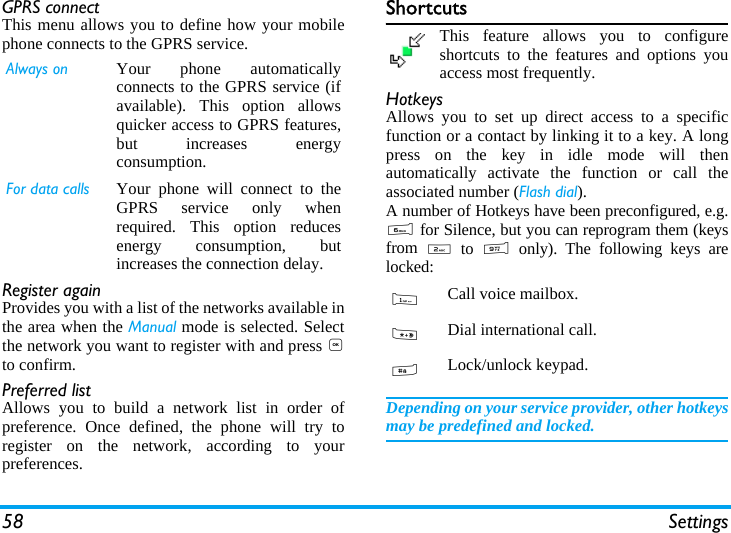

58 SettingsGPRS connectThis menu allows you to define how your mobilephone connects to the GPRS service.Register againProvides you with a list of the networks available inthe area when the Manual mode is selected. Selectthe network you want to register with and press ,to confirm.Preferred listAllows you to build a network list in order ofpreference. Once defined, the phone will try toregister on the network, according to yourpreferences.ShortcutsThis feature allows you to configureshortcuts to the features and options youaccess most frequently.HotkeysAllows you to set up direct access to a specificfunction or a contact by linking it to a key. A longpress on the key in idle mode will thenautomatically activate the function or call theassociated number (Flash dial).A number of Hotkeys have been preconfigured, e.g.6 for Silence, but you can reprogram them (keysfrom 2 to 9 only). The following keys arelocked:Depending on your service provider, other hotkeysmay be predefined and locked.Always on Your phone automaticallyconnects to the GPRS service (ifavailable). This option allowsquicker access to GPRS features,but increases energyconsumption.For data calls Your phone will connect to theGPRS service only whenrequired. This option reducesenergy consumption, butincreases the connection delay.1Call voice mailbox.*Dial international call.#Lock/unlock keypad.

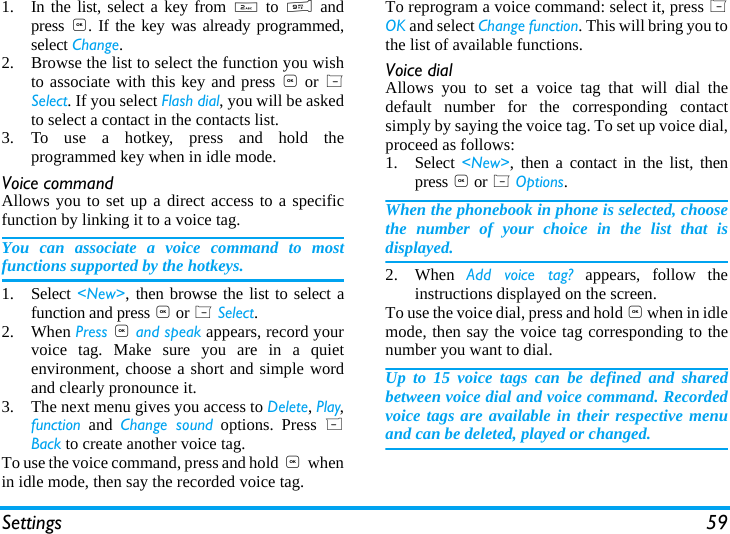

Settings 591. In the list, select a key from 2 to 9 andpress ,. If the key was already programmed,select Change.2. Browse the list to select the function you wishto associate with this key and press , or LSelect. If you select Flash dial, you will be askedto select a contact in the contacts list.3. To use a hotkey, press and hold theprogrammed key when in idle mode.Voice commandAllows you to set up a direct access to a specificfunction by linking it to a voice tag.You can associate a voice command to mostfunctions supported by the hotkeys.1. Select <New>, then browse the list to select afunction and press , or L Select.2. When Press , and speak appears, record yourvoice tag. Make sure you are in a quietenvironment, choose a short and simple wordand clearly pronounce it.3. The next menu gives you access to Delete, Play,function and Change sound options. Press RBack to create another voice tag.To use the voice command, press and hold , whenin idle mode, then say the recorded voice tag.To reprogram a voice command: select it, press LOK and select Change function. This will bring you tothe list of available functions.Voice dialAllows you to set a voice tag that will dial thedefault number for the corresponding contactsimply by saying the voice tag. To set up voice dial,proceed as follows:1. Select <New>, then a contact in the list, thenpress , or L Options.When the phonebook in phone is selected, choosethe number of your choice in the list that isdisplayed.2. When Add voice tag? appears, follow theinstructions displayed on the screen. To use the voice dial, press and hold , when in idlemode, then say the voice tag corresponding to thenumber you want to dial.Up to 15 voice tags can be defined and sharedbetween voice dial and voice command. Recordedvoice tags are available in their respective menuand can be deleted, played or changed.

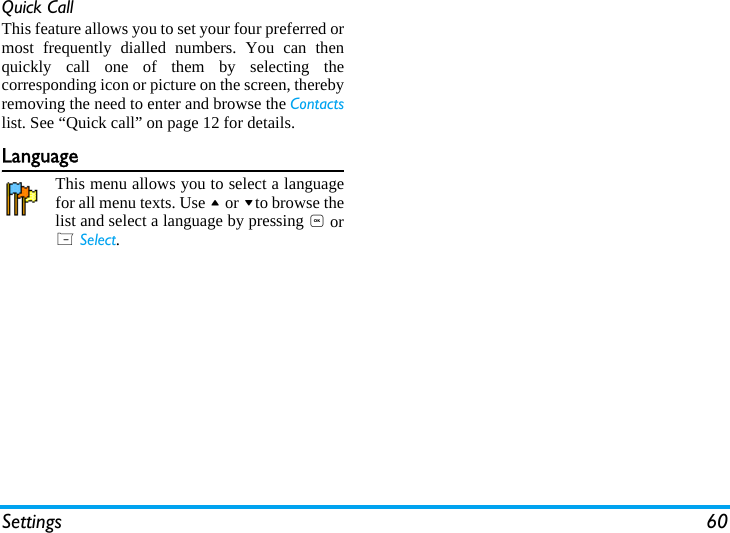

Settings 60Quick CallThis feature allows you to set your four preferred ormost frequently dialled numbers. You can thenquickly call one of them by selecting thecorresponding icon or picture on the screen, therebyremoving the need to enter and browse the Contactslist. See “Quick call” on page 12 for details.LanguageThis menu allows you to select a languagefor all menu texts. Use + or -to browse thelist and select a language by pressing , orL Select.

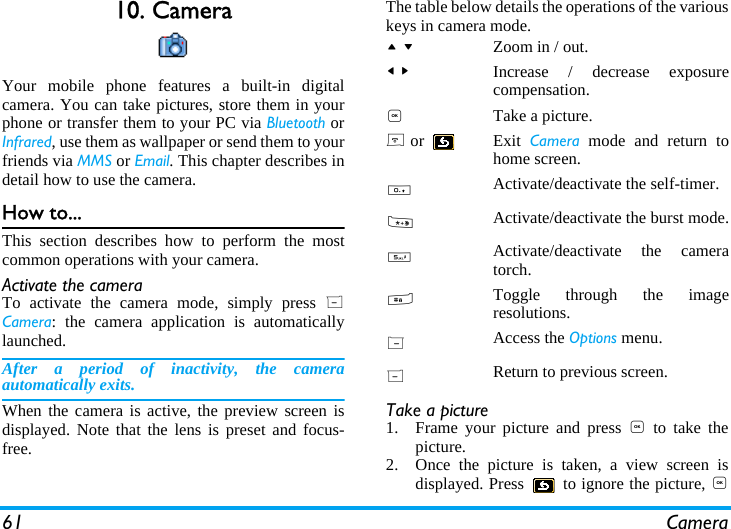

61 Camera10. CameraYour mobile phone features a built-in digitalcamera. You can take pictures, store them in yourphone or transfer them to your PC via Bluetooth orInfrared, use them as wallpaper or send them to yourfriends via MMS or Email. This chapter describes indetail how to use the camera.How to...This section describes how to perform the mostcommon operations with your camera.Activate the camera To activate the camera mode, simply press RCamera: the camera application is automaticallylaunched.After a period of inactivity, the cameraautomatically exits.When the camera is active, the preview screen isdisplayed. Note that the lens is preset and focus-free.The table below details the operations of the variouskeys in camera mode.Take a picture1. Frame your picture and press , to take thepicture.2. Once the picture is taken, a view screen isdisplayed. Press to ignore the picture, ,+ -Zoom in / out.< >Increase / decrease exposurecompensation.,Take a picture.) or Exit Camera mode and return tohome screen.0Activate/deactivate the self-timer.*Activate/deactivate the burst mode.5Activate/deactivate the cameratorch.#Toggle through the imageresolutions.LAccess the Options menu.RReturn to previous screen.

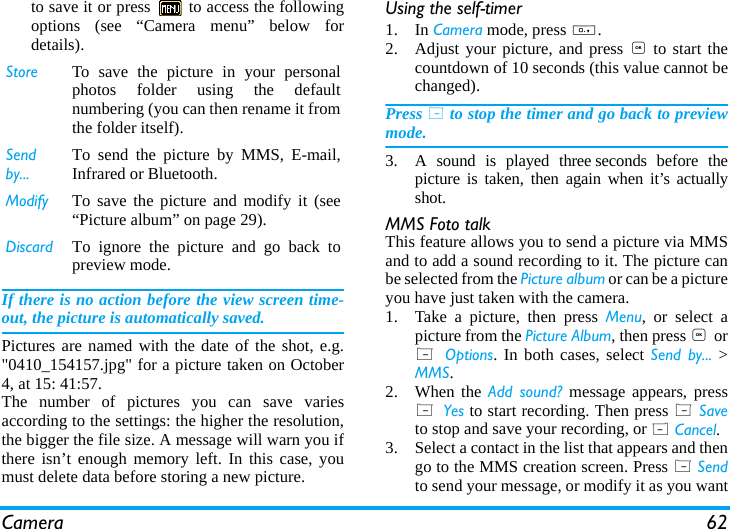

Camera 62to save it or press to access the followingoptions (see “Camera menu” below fordetails).If there is no action before the view screen time-out, the picture is automatically saved.Pictures are named with the date of the shot, e.g."0410_154157.jpg" for a picture taken on October4, at 15: 41:57.The number of pictures you can save variesaccording to the settings: the higher the resolution,the bigger the file size. A message will warn you ifthere isn’t enough memory left. In this case, youmust delete data before storing a new picture.Using the self-timer1. In Camera mode, press 0.2. Adjust your picture, and press , to start thecountdown of 10 seconds (this value cannot bechanged).Press L to stop the timer and go back to previewmode.3. A sound is played three seconds before thepicture is taken, then again when it’s actuallyshot.MMS Foto talkThis feature allows you to send a picture via MMSand to add a sound recording to it. The picture canbe selected from the Picture album or can be a pictureyou have just taken with the camera.1. Take a picture, then press Menu, or select apicture from the Picture Album, then press , orL Options. In both cases, select Send by... >MMS.2. When the Add sound? message appears, pressL Yes to start recording. Then press L Saveto stop and save your recording, or R Cancel.3. Select a contact in the list that appears and thengo to the MMS creation screen. Press L Sendto send your message, or modify it as you wantStore To save the picture in your personalphotos folder using the defaultnumbering (you can then rename it fromthe folder itself).Send by...To send the picture by MMS, E-mail,Infrared or Bluetooth.Modify To save the picture and modify it (see“Picture album” on page 29).Discard To ignore the picture and go back topreview mode.

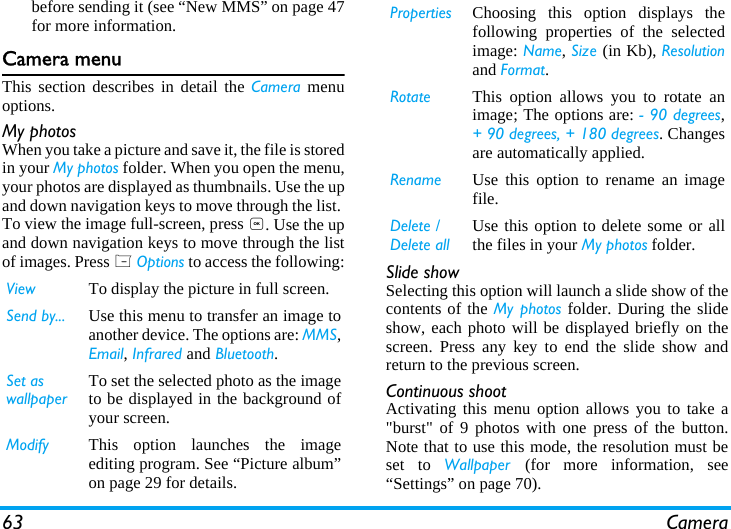

63 Camerabefore sending it (see “New MMS” on page 47for more information.Camera menuThis section describes in detail the Camera menuoptions.My photosWhen you take a picture and save it, the file is storedin your My photos folder. When you open the menu,your photos are displayed as thumbnails. Use the upand down navigation keys to move through the list. To view the image full-screen, press ,. Use the upand down navigation keys to move through the listof images. Press L Options to access the following: Slide showSelecting this option will launch a slide show of thecontents of the My photos folder. During the slideshow, each photo will be displayed briefly on thescreen. Press any key to end the slide show andreturn to the previous screen.Continuous shootActivating this menu option allows you to take a"burst" of 9 photos with one press of the button.Note that to use this mode, the resolution must beset to Wallpaper (for more information, see“Settings” on page 70).View To display the picture in full screen.Send by... Use this menu to transfer an image toanother device. The options are: MMS,Email, Infrared and Bluetooth.Set as wallpaperTo set the selected photo as the imageto be displayed in the background ofyour screen.Modify This option launches the imageediting program. See “Picture album”on page 29 for details.Properties Choosing this option displays thefollowing properties of the selectedimage: Name, Size (in Kb), Resolutionand Format.Rotate This option allows you to rotate animage; The options are: - 90 degrees,+ 90 degrees, + 180 degrees. Changesare automatically applied.Rename Use this option to rename an imagefile.Delete / Delete allUse this option to delete some or allthe files in your My photos folder.

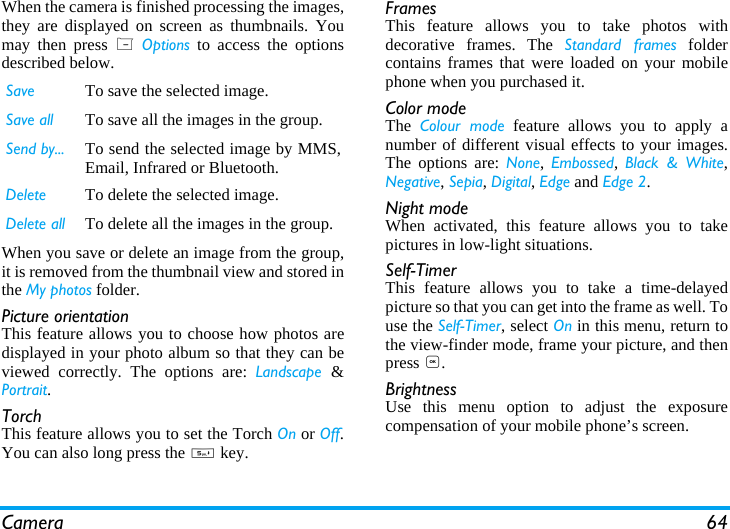

Camera 64When the camera is finished processing the images,they are displayed on screen as thumbnails. Youmay then press L Options to access the optionsdescribed below.When you save or delete an image from the group,it is removed from the thumbnail view and stored inthe My photos folder.Picture orientationThis feature allows you to choose how photos aredisplayed in your photo album so that they can beviewed correctly. The options are: Landscape &Portrait.TorchThis feature allows you to set the Torch On or Off.You can also long press the 5 key.FramesThis feature allows you to take photos withdecorative frames. The Standard frames foldercontains frames that were loaded on your mobilephone when you purchased it.Color modeThe Colour mode feature allows you to apply anumber of different visual effects to your images.The options are: None, Embossed, Black & White,Negative, Sepia, Digital, Edge and Edge 2.Night modeWhen activated, this feature allows you to takepictures in low-light situations.Self-TimerThis feature allows you to take a time-delayedpicture so that you can get into the frame as well. Touse the Self-Timer, select On in this menu, return tothe view-finder mode, frame your picture, and thenpress ,.BrightnessUse this menu option to adjust the exposurecompensation of your mobile phone’s screen.Save To save the selected image.Save all To save all the images in the group.Send by... To send the selected image by MMS,Email, Infrared or Bluetooth.Delete To delete the selected image.Delete all To delete all the images in the group.

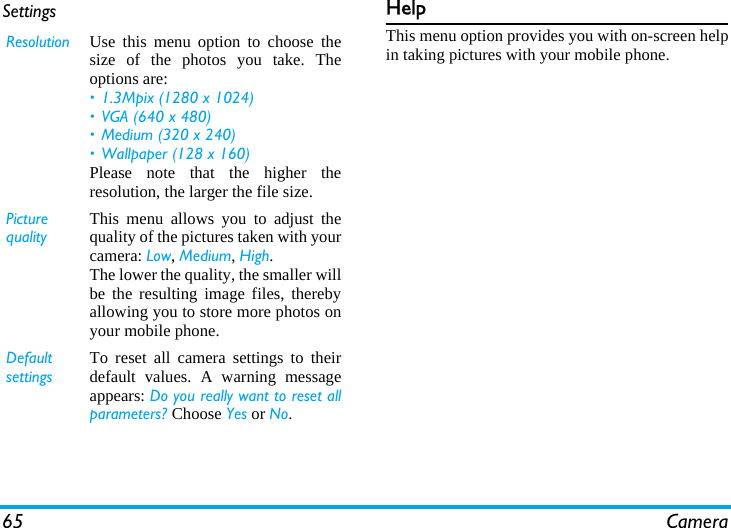

65 CameraSettings HelpThis menu option provides you with on-screen helpin taking pictures with your mobile phone.Resolution Use this menu option to choose thesize of the photos you take. Theoptions are:• 1.3Mpix (1280 x 1024)• VGA (640 x 480)• Medium (320 x 240) • Wallpaper (128 x 160)Please note that the higher theresolution, the larger the file size.Picture qualityThis menu allows you to adjust thequality of the pictures taken with yourcamera: Low, Medium, High.The lower the quality, the smaller willbe the resulting image files, therebyallowing you to store more photos onyour mobile phone.Default settingsTo reset all camera settings to theirdefault values. A warning messageappears: Do you really want to reset allparameters? Choose Yes or No.

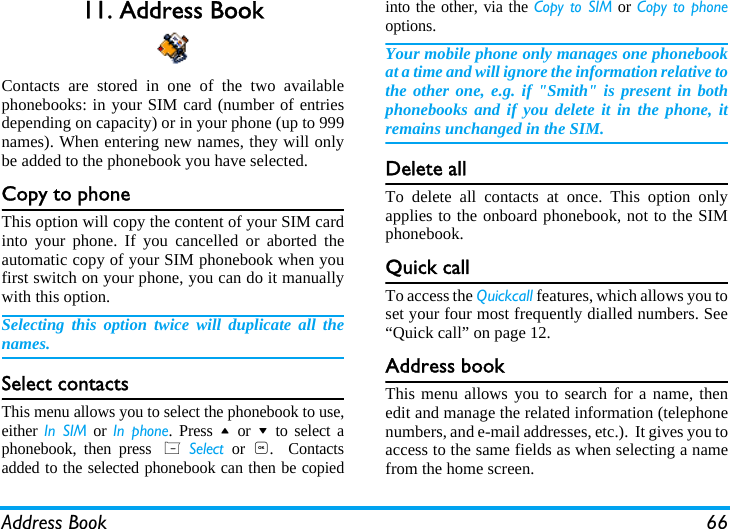

Address Book 6611. Address BookContacts are stored in one of the two availablephonebooks: in your SIM card (number of entriesdepending on capacity) or in your phone (up to 999names). When entering new names, they will onlybe added to the phonebook you have selected.Copy to phoneThis option will copy the content of your SIM cardinto your phone. If you cancelled or aborted theautomatic copy of your SIM phonebook when youfirst switch on your phone, you can do it manuallywith this option.Selecting this option twice will duplicate all thenames.Select contactsThis menu allows you to select the phonebook to use,either In SIM or In phone. Press + or - to select aphonebook, then press L Select or ,. Contactsadded to the selected phonebook can then be copiedinto the other, via the Copy to SIM or Copy to phoneoptions.Your mobile phone only manages one phonebookat a time and will ignore the information relative tothe other one, e.g. if "Smith" is present in bothphonebooks and if you delete it in the phone, itremains unchanged in the SIM.Delete allTo delete all contacts at once. This option onlyapplies to the onboard phonebook, not to the SIMphonebook.Quick callTo access the Quickcall features, which allows you toset your four most frequently dialled numbers. See“Quick call” on page 12.Address bookThis menu allows you to search for a name, thenedit and manage the related information (telephonenumbers, and e-mail addresses, etc.). It gives you toaccess to the same fields as when selecting a namefrom the home screen.

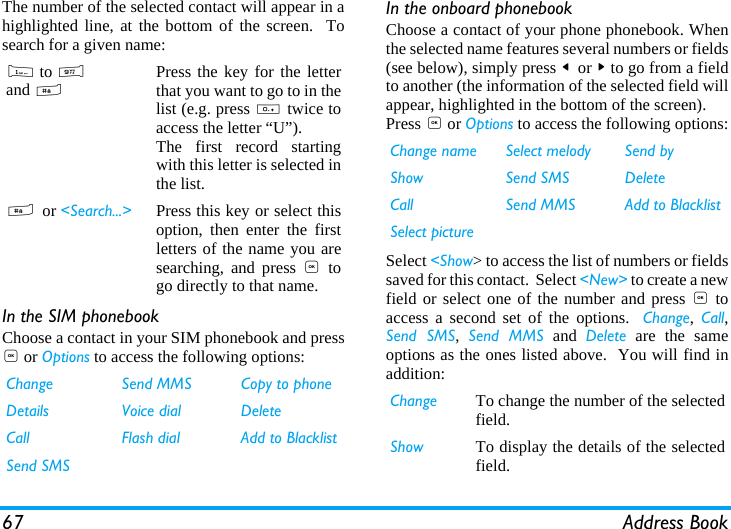

67 Address BookThe number of the selected contact will appear in ahighlighted line, at the bottom of the screen. Tosearch for a given name:In the SIM phonebookChoose a contact in your SIM phonebook and press, or Options to access the following options:In the onboard phonebookChoose a contact of your phone phonebook. Whenthe selected name features several numbers or fields(see below), simply press < or > to go from a fieldto another (the information of the selected field willappear, highlighted in the bottom of the screen).Press , or Options to access the following options:Select <Show> to access the list of numbers or fieldssaved for this contact. Select <New> to create a newfield or select one of the number and press , toaccess a second set of the options. Change, Call,Send SMS, Send MMS and Delete are the sameoptions as the ones listed above. You will find inaddition:1 to 9 and # Press the key for the letterthat you want to go to in thelist (e.g. press 0 twice toaccess the letter “U”).The first record startingwith this letter is selected inthe list.# or <Search...> Press this key or select thisoption, then enter the firstletters of the name you aresearching, and press , togo directly to that name.Change Send MMS Copy to phoneDetails Voice dial DeleteCall Flash dial Add to BlacklistSend SMSChange name Select melody Send byShow Send SMS DeleteCall Send MMS Add to BlacklistSelect pictureChange To change the number of the selectedfield.Show To display the details of the selectedfield.

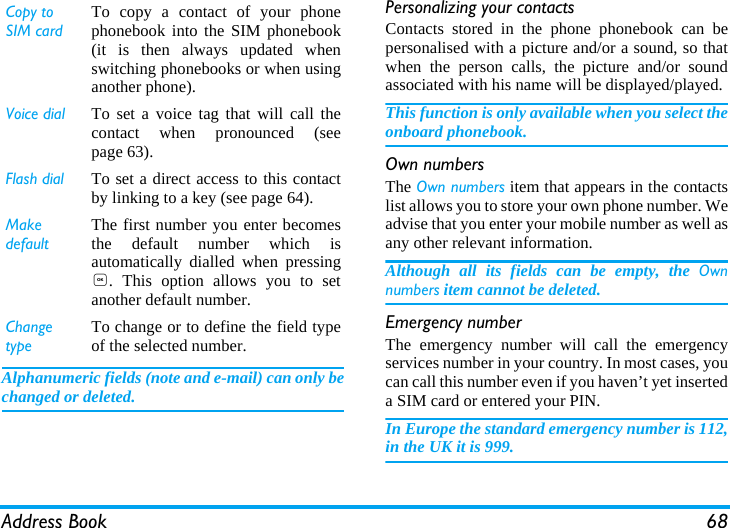

Address Book 68Alphanumeric fields (note and e-mail) can only bechanged or deleted.Personalizing your contactsContacts stored in the phone phonebook can bepersonalised with a picture and/or a sound, so thatwhen the person calls, the picture and/or soundassociated with his name will be displayed/played.This function is only available when you select theonboard phonebook.Own numbersThe Own numbers item that appears in the contactslist allows you to store your own phone number. Weadvise that you enter your mobile number as well asany other relevant information.Although all its fields can be empty, the Ownnumbers item cannot be deleted.Emergency numberThe emergency number will call the emergencyservices number in your country. In most cases, youcan call this number even if you haven’t yet inserteda SIM card or entered your PIN.In Europe the standard emergency number is 112,in the UK it is 999.Copy to SIM cardTo copy a contact of your phonephonebook into the SIM phonebook(it is then always updated whenswitching phonebooks or when usinganother phone).Voice dial To set a voice tag that will call thecontact when pronounced (seepage 63).Flash dial To set a direct access to this contactby linking to a key (see page 64).Make defaultThe first number you enter becomesthe default number which isautomatically dialled when pressing,. This option allows you to setanother default number.Change typeTo change or to define the field typeof the selected number.

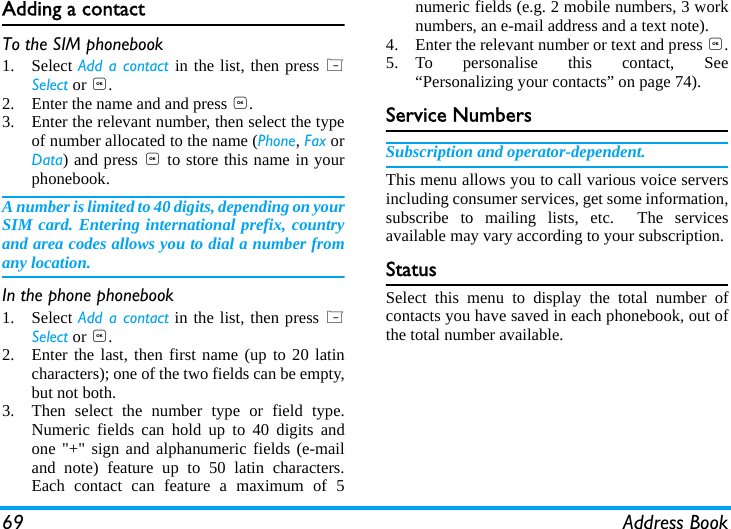

69 Address BookAdding a contact To the SIM phonebook1. Select Add a contact in the list, then press LSelect or ,.2. Enter the name and and press ,.3. Enter the relevant number, then select the typeof number allocated to the name (Phone, Fax orData) and press , to store this name in yourphonebook.A number is limited to 40 digits, depending on yourSIM card. Entering international prefix, countryand area codes allows you to dial a number fromany location.In the phone phonebook1. Select Add a contact in the list, then press LSelect or ,.2. Enter the last, then first name (up to 20 latincharacters); one of the two fields can be empty,but not both.3. Then select the number type or field type.Numeric fields can hold up to 40 digits andone "+" sign and alphanumeric fields (e-mailand note) feature up to 50 latin characters.Each contact can feature a maximum of 5numeric fields (e.g. 2 mobile numbers, 3 worknumbers, an e-mail address and a text note).4. Enter the relevant number or text and press ,.5. To personalise this contact, See“Personalizing your contacts” on page 74).Service NumbersSubscription and operator-dependent.This menu allows you to call various voice serversincluding consumer services, get some information,subscribe to mailing lists, etc. The servicesavailable may vary according to your subscription.StatusSelect this menu to display the total number ofcontacts you have saved in each phonebook, out ofthe total number available.

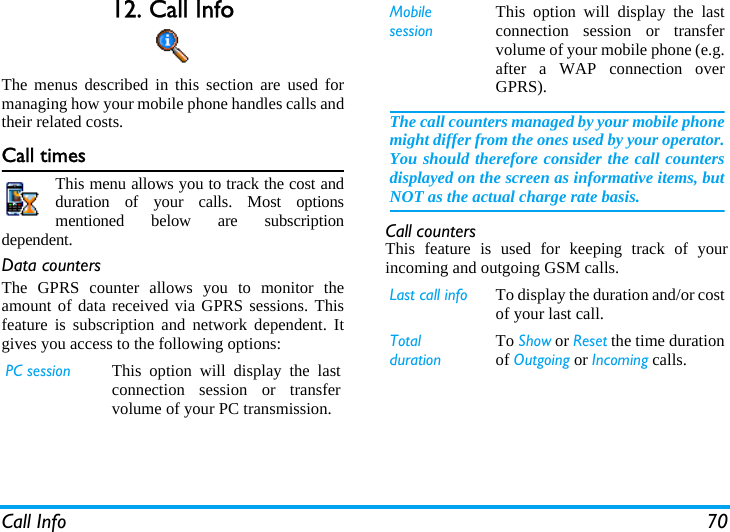

Call Info 7012. Call InfoThe menus described in this section are used formanaging how your mobile phone handles calls andtheir related costs.Call timesThis menu allows you to track the cost andduration of your calls. Most optionsmentioned below are subscriptiondependent.Data countersThe GPRS counter allows you to monitor theamount of data received via GPRS sessions. Thisfeature is subscription and network dependent. Itgives you access to the following options:Call countersThis feature is used for keeping track of yourincoming and outgoing GSM calls.PC session This option will display the lastconnection session or transfervolume of your PC transmission.MobilesessionThis option will display the lastconnection session or transfervolume of your mobile phone (e.g.after a WAP connection overGPRS).The call counters managed by your mobile phonemight differ from the ones used by your operator.You should therefore consider the call countersdisplayed on the screen as informative items, butNOT as the actual charge rate basis.Last call info To display the duration and/or costof your last call.TotaldurationTo Show or Reset the time durationof Outgoing or Incoming calls.

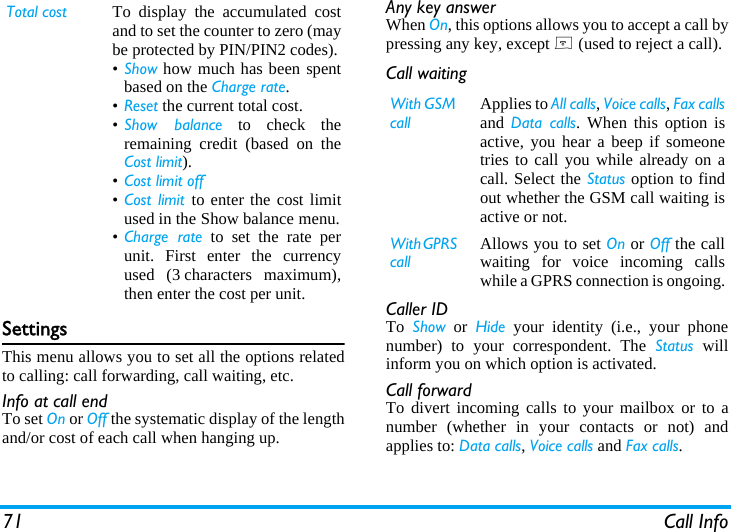

71 Call InfoSettingsThis menu allows you to set all the options relatedto calling: call forwarding, call waiting, etc.Info at call endTo set On or Off the systematic display of the lengthand/or cost of each call when hanging up.Any key answerWhen On, this options allows you to accept a call bypressing any key, except ) (used to reject a call).Call waitingCaller IDTo Show or Hide your identity (i.e., your phonenumber) to your correspondent. The Status willinform you on which option is activated.Call forwardTo divert incoming calls to your mailbox or to anumber (whether in your contacts or not) andapplies to: Data calls, Voice calls and Fax calls.Total cost To display the accumulated costand to set the counter to zero (maybe protected by PIN/PIN2 codes).•Show how much has been spentbased on the Charge rate.•Reset the current total cost.•Show balance to check theremaining credit (based on theCost limit).•Cost limit off•Cost limit to enter the cost limitused in the Show balance menu.•Charge rate to set the rate perunit. First enter the currencyused (3 characters maximum),then enter the cost per unit.With GSM callApplies to All calls, Voice calls, Fax callsand Data calls. When this option isactive, you hear a beep if someonetries to call you while already on acall. Select the Status option to findout whether the GSM call waiting isactive or not.With GPRS callAllows you to set On or Off the callwaiting for voice incoming callswhile a GPRS connection is ongoing.

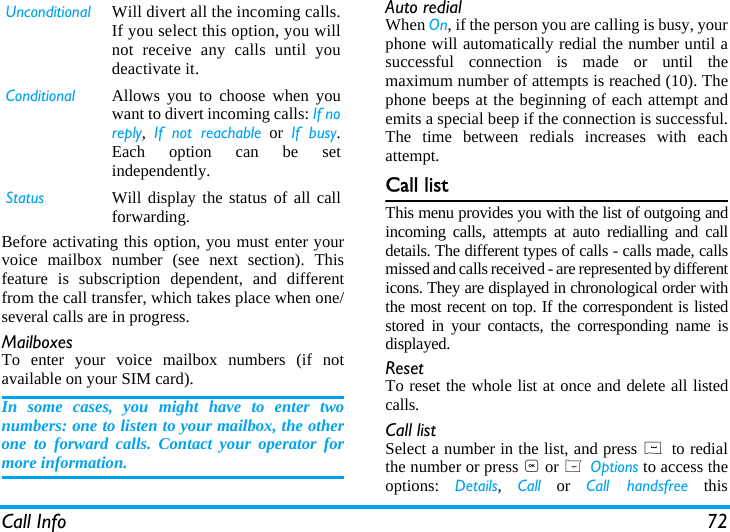

Call Info 72Before activating this option, you must enter yourvoice mailbox number (see next section). Thisfeature is subscription dependent, and differentfrom the call transfer, which takes place when one/several calls are in progress.MailboxesTo enter your voice mailbox numbers (if notavailable on your SIM card).In some cases, you might have to enter twonumbers: one to listen to your mailbox, the otherone to forward calls. Contact your operator formore information.Auto redialWhen On, if the person you are calling is busy, yourphone will automatically redial the number until asuccessful connection is made or until themaximum number of attempts is reached (10). Thephone beeps at the beginning of each attempt andemits a special beep if the connection is successful.The time between redials increases with eachattempt.Call listThis menu provides you with the list of outgoing andincoming calls, attempts at auto redialling and calldetails. The different types of calls - calls made, callsmissed and calls received - are represented by differenticons. They are displayed in chronological order withthe most recent on top. If the correspondent is listedstored in your contacts, the corresponding name isdisplayed.ResetTo reset the whole list at once and delete all listedcalls.Call listSelect a number in the list, and press ( to redialthe number or press , or L Options to access theoptions: Details, Call or Call handsfree thisUnconditional Will divert all the incoming calls.If you select this option, you willnot receive any calls until youdeactivate it.Conditional Allows you to choose when youwant to divert incoming calls: If noreply, If not reachable or If busy.Each option can be setindependently.Status Will display the status of all callforwarding.

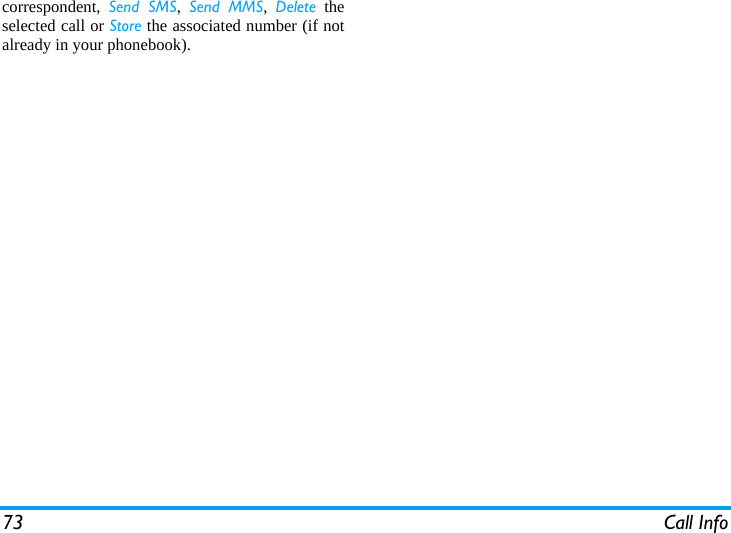

73 Call Infocorrespondent, Send SMS, Send MMS, Delete theselected call or Store the associated number (if notalready in your phonebook).

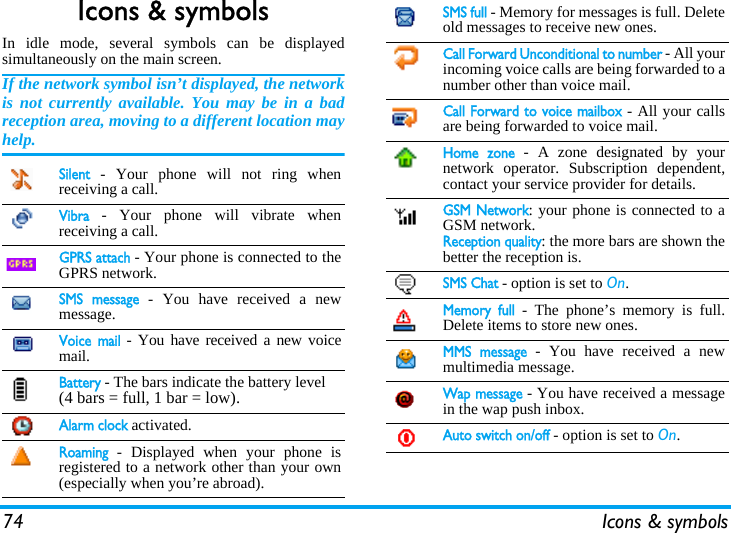

74 Icons & symbolsIcons & symbolsIn idle mode, several symbols can be displayedsimultaneously on the main screen.If the network symbol isn’t displayed, the networkis not currently available. You may be in a badreception area, moving to a different location mayhelp.Silent - Your phone will not ring whenreceiving a call.Vibra - Your phone will vibrate whenreceiving a call.GPRS attach - Your phone is connected to theGPRS network.SMS message - You have received a newmessage. Voice mail - You have received a new voicemail.Battery - The bars indicate the battery level (4 bars = full, 1 bar = low).Alarm clock activated.Roaming - Displayed when your phone isregistered to a network other than your own(especially when you’re abroad).SMS full - Memory for messages is full. Deleteold messages to receive new ones.Call Forward Unconditional to number - All yourincoming voice calls are being forwarded to anumber other than voice mail.Call Forward to voice mailbox - All your callsare being forwarded to voice mail.Home zone - A zone designated by yournetwork operator. Subscription dependent,contact your service provider for details.GSM Network: your phone is connected to aGSM network.Reception quality: the more bars are shown thebetter the reception is.SMS Chat - option is set to On.Memory full - The phone’s memory is full.Delete items to store new ones.MMS message - You have received a newmultimedia message.Wap message - You have received a messagein the wap push inbox.Auto switch on/off - option is set to On.

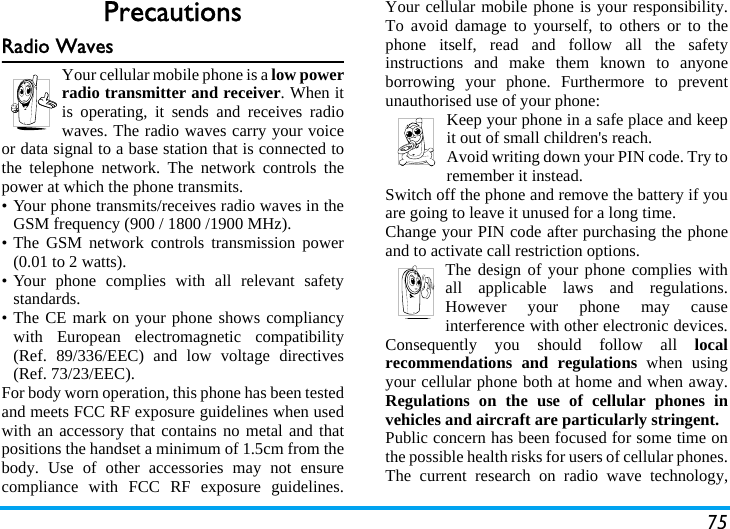

75PrecautionsRadio WavesYour cellular mobile phone is a low powerradio transmitter and receiver. When itis operating, it sends and receives radiowaves. The radio waves carry your voiceor data signal to a base station that is connected tothe telephone network. The network controls thepower at which the phone transmits.• Your phone transmits/receives radio waves in theGSM frequency (900 / 1800 /1900 MHz).• The GSM network controls transmission power(0.01 to 2 watts).• Your phone complies with all relevant safetystandards.• The CE mark on your phone shows compliancywith European electromagnetic compatibility(Ref. 89/336/EEC) and low voltage directives(Ref. 73/23/EEC).For body worn operation, this phone has been testedand meets FCC RF exposure guidelines when usedwith an accessory that contains no metal and thatpositions the handset a minimum of 1.5cm from thebody. Use of other accessories may not ensurecompliance with FCC RF exposure guidelines.Your cellular mobile phone is your responsibility.To avoid damage to yourself, to others or to thephone itself, read and follow all the safetyinstructions and make them known to anyoneborrowing your phone. Furthermore to preventunauthorised use of your phone:Keep your phone in a safe place and keepit out of small children's reach.Avoid writing down your PIN code. Try toremember it instead. Switch off the phone and remove the battery if youare going to leave it unused for a long time.Change your PIN code after purchasing the phoneand to activate call restriction options.The design of your phone complies withall applicable laws and regulations.However your phone may causeinterference with other electronic devices.Consequently you should follow all localrecommendations and regulations when usingyour cellular phone both at home and when away.Regulations on the use of cellular phones invehicles and aircraft are particularly stringent.Public concern has been focused for some time onthe possible health risks for users of cellular phones.The current research on radio wave technology,

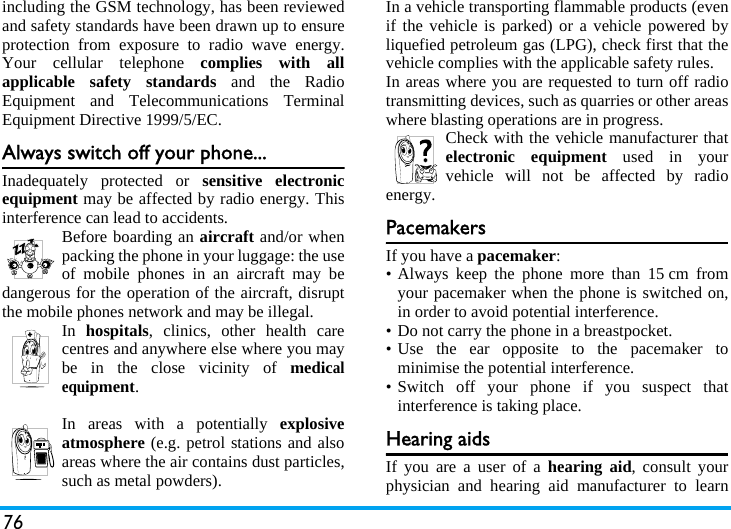

76including the GSM technology, has been reviewedand safety standards have been drawn up to ensureprotection from exposure to radio wave energy.Your cellular telephone complies with allapplicable safety standards and the RadioEquipment and Telecommunications TerminalEquipment Directive 1999/5/EC.Always switch off your phone...Inadequately protected or sensitive electronicequipment may be affected by radio energy. Thisinterference can lead to accidents.Before boarding an aircraft and/or whenpacking the phone in your luggage: the useof mobile phones in an aircraft may bedangerous for the operation of the aircraft, disruptthe mobile phones network and may be illegal.In hospitals, clinics, other health carecentres and anywhere else where you maybe in the close vicinity of medicalequipment.In areas with a potentially explosiveatmosphere (e.g. petrol stations and alsoareas where the air contains dust particles,such as metal powders).In a vehicle transporting flammable products (evenif the vehicle is parked) or a vehicle powered byliquefied petroleum gas (LPG), check first that thevehicle complies with the applicable safety rules.In areas where you are requested to turn off radiotransmitting devices, such as quarries or other areaswhere blasting operations are in progress.Check with the vehicle manufacturer thatelectronic equipment used in yourvehicle will not be affected by radioenergy.PacemakersIf you have a pacemaker:• Always keep the phone more than 15 cm fromyour pacemaker when the phone is switched on,in order to avoid potential interference.• Do not carry the phone in a breastpocket.• Use the ear opposite to the pacemaker tominimise the potential interference.• Switch off your phone if you suspect thatinterference is taking place.Hearing aidsIf you are a user of a hearing aid, consult yourphysician and hearing aid manufacturer to learn

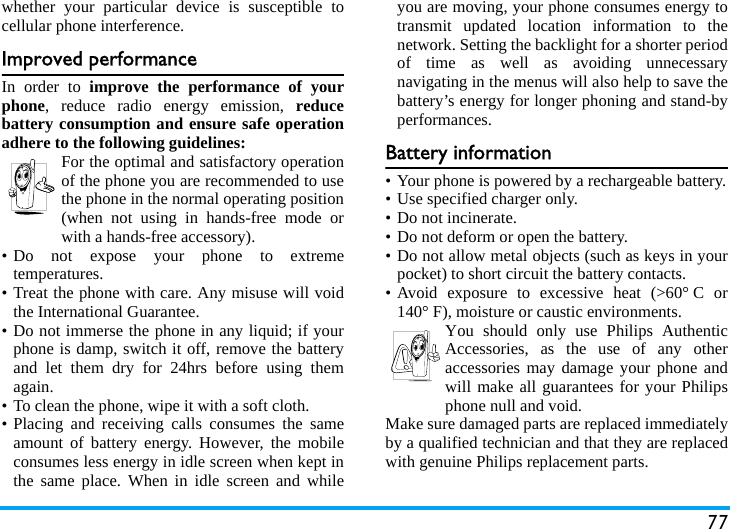

77whether your particular device is susceptible tocellular phone interference.Improved performanceIn order to improve the performance of yourphone, reduce radio energy emission, reducebattery consumption and ensure safe operationadhere to the following guidelines:For the optimal and satisfactory operationof the phone you are recommended to usethe phone in the normal operating position(when not using in hands-free mode orwith a hands-free accessory).• Do not expose your phone to extremetemperatures.• Treat the phone with care. Any misuse will voidthe International Guarantee.• Do not immerse the phone in any liquid; if yourphone is damp, switch it off, remove the batteryand let them dry for 24hrs before using themagain.• To clean the phone, wipe it with a soft cloth.• Placing and receiving calls consumes the sameamount of battery energy. However, the mobileconsumes less energy in idle screen when kept inthe same place. When in idle screen and whileyou are moving, your phone consumes energy totransmit updated location information to thenetwork. Setting the backlight for a shorter periodof time as well as avoiding unnecessarynavigating in the menus will also help to save thebattery’s energy for longer phoning and stand-byperformances.Battery information• Your phone is powered by a rechargeable battery.• Use specified charger only.• Do not incinerate.• Do not deform or open the battery.• Do not allow metal objects (such as keys in yourpocket) to short circuit the battery contacts.• Avoid exposure to excessive heat (>60° C or140° F), moisture or caustic environments.You should only use Philips AuthenticAccessories, as the use of any otheraccessories may damage your phone andwill make all guarantees for your Philipsphone null and void.Make sure damaged parts are replaced immediatelyby a qualified technician and that they are replacedwith genuine Philips replacement parts.

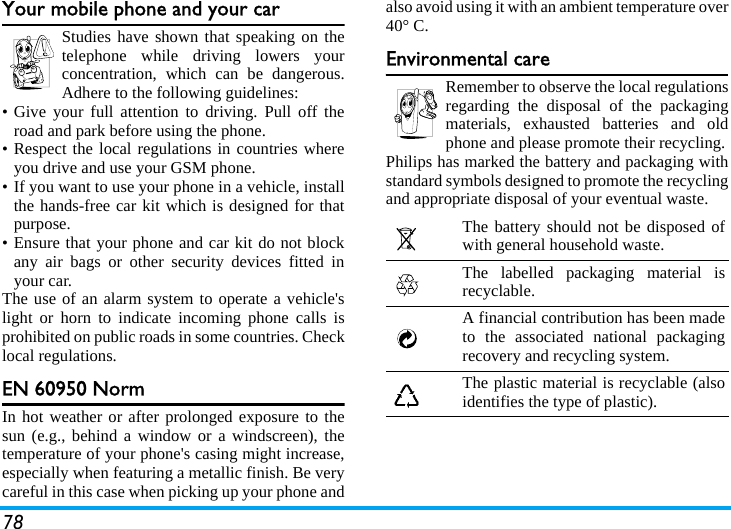

78Your mobile phone and your carStudies have shown that speaking on thetelephone while driving lowers yourconcentration, which can be dangerous.Adhere to the following guidelines:• Give your full attention to driving. Pull off theroad and park before using the phone.• Respect the local regulations in countries whereyou drive and use your GSM phone.• If you want to use your phone in a vehicle, installthe hands-free car kit which is designed for thatpurpose.• Ensure that your phone and car kit do not blockany air bags or other security devices fitted inyour car.The use of an alarm system to operate a vehicle'slight or horn to indicate incoming phone calls isprohibited on public roads in some countries. Checklocal regulations.EN 60950 NormIn hot weather or after prolonged exposure to thesun (e.g., behind a window or a windscreen), thetemperature of your phone's casing might increase,especially when featuring a metallic finish. Be verycareful in this case when picking up your phone andalso avoid using it with an ambient temperature over40° C.Environmental careRemember to observe the local regulationsregarding the disposal of the packagingmaterials, exhausted batteries and oldphone and please promote their recycling.Philips has marked the battery and packaging withstandard symbols designed to promote the recyclingand appropriate disposal of your eventual waste.The battery should not be disposed ofwith general household waste.The labelled packaging material isrecyclable.A financial contribution has been madeto the associated national packagingrecovery and recycling system.The plastic material is recyclable (alsoidentifies the type of plastic).

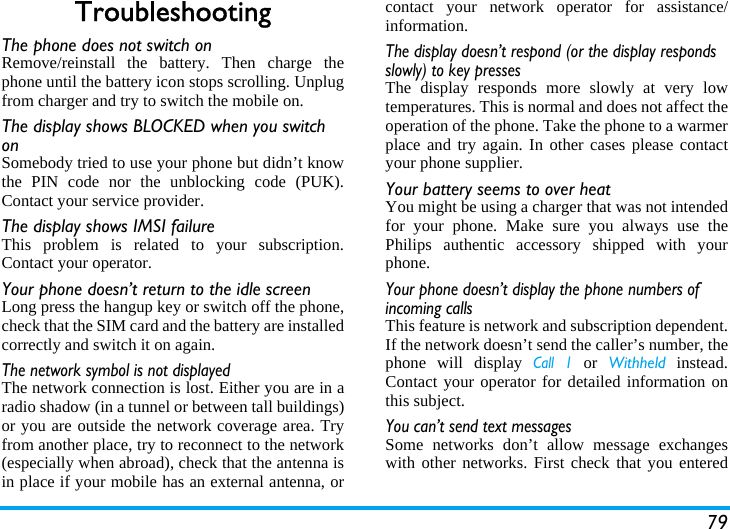

79TroubleshootingThe phone does not switch onRemove/reinstall the battery. Then charge thephone until the battery icon stops scrolling. Unplugfrom charger and try to switch the mobile on.The display shows BLOCKED when you switch onSomebody tried to use your phone but didn’t knowthe PIN code nor the unblocking code (PUK).Contact your service provider.The display shows IMSI failureThis problem is related to your subscription.Contact your operator.Your phone doesn’t return to the idle screenLong press the hangup key or switch off the phone,check that the SIM card and the battery are installedcorrectly and switch it on again.The network symbol is not displayedThe network connection is lost. Either you are in aradio shadow (in a tunnel or between tall buildings)or you are outside the network coverage area. Tryfrom another place, try to reconnect to the network(especially when abroad), check that the antenna isin place if your mobile has an external antenna, orcontact your network operator for assistance/information.The display doesn’t respond (or the display responds slowly) to key pressesThe display responds more slowly at very lowtemperatures. This is normal and does not affect theoperation of the phone. Take the phone to a warmerplace and try again. In other cases please contactyour phone supplier.Your battery seems to over heatYou might be using a charger that was not intendedfor your phone. Make sure you always use thePhilips authentic accessory shipped with yourphone.Your phone doesn’t display the phone numbers of incoming callsThis feature is network and subscription dependent.If the network doesn’t send the caller’s number, thephone will display Call 1 or Withheld instead.Contact your operator for detailed information onthis subject.You can’t send text messagesSome networks don’t allow message exchangeswith other networks. First check that you entered

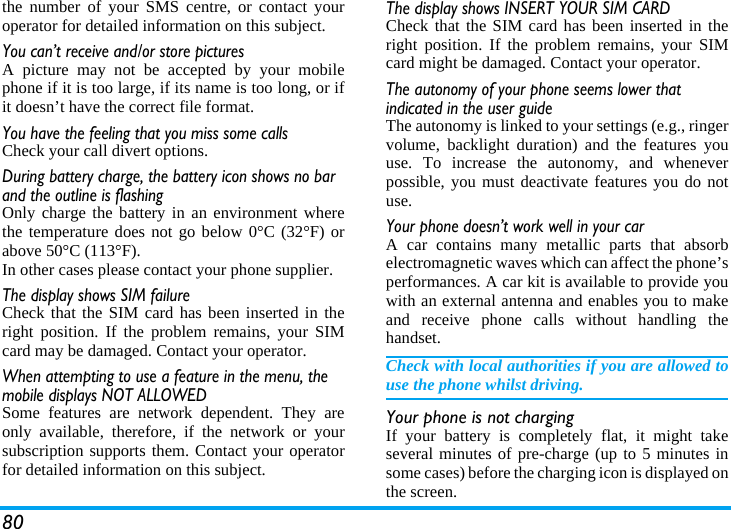

80the number of your SMS centre, or contact youroperator for detailed information on this subject.You can’t receive and/or store picturesA picture may not be accepted by your mobilephone if it is too large, if its name is too long, or ifit doesn’t have the correct file format.You have the feeling that you miss some callsCheck your call divert options.During battery charge, the battery icon shows no bar and the outline is flashingOnly charge the battery in an environment wherethe temperature does not go below 0°C (32°F) orabove 50°C (113°F).In other cases please contact your phone supplier.The display shows SIM failureCheck that the SIM card has been inserted in theright position. If the problem remains, your SIMcard may be damaged. Contact your operator.When attempting to use a feature in the menu, the mobile displays NOT ALLOWEDSome features are network dependent. They areonly available, therefore, if the network or yoursubscription supports them. Contact your operatorfor detailed information on this subject.The display shows INSERT YOUR SIM CARDCheck that the SIM card has been inserted in theright position. If the problem remains, your SIMcard might be damaged. Contact your operator.The autonomy of your phone seems lower that indicated in the user guideThe autonomy is linked to your settings (e.g., ringervolume, backlight duration) and the features youuse. To increase the autonomy, and wheneverpossible, you must deactivate features you do notuse.Your phone doesn’t work well in your carA car contains many metallic parts that absorbelectromagnetic waves which can affect the phone’sperformances. A car kit is available to provide youwith an external antenna and enables you to makeand receive phone calls without handling thehandset.Check with local authorities if you are allowed touse the phone whilst driving.Your phone is not chargingIf your battery is completely flat, it might takeseveral minutes of pre-charge (up to 5 minutes insome cases) before the charging icon is displayed onthe screen.

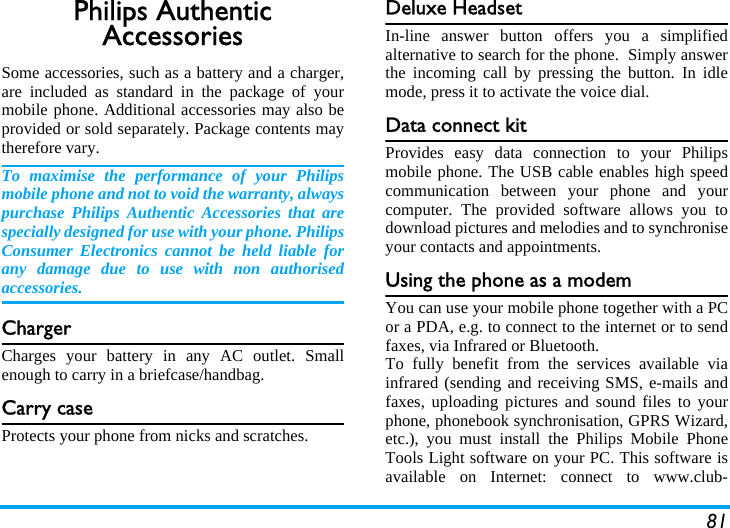

81Philips Authentic AccessoriesSome accessories, such as a battery and a charger,are included as standard in the package of yourmobile phone. Additional accessories may also beprovided or sold separately. Package contents maytherefore vary.To maximise the performance of your Philipsmobile phone and not to void the warranty, alwayspurchase Philips Authentic Accessories that arespecially designed for use with your phone. PhilipsConsumer Electronics cannot be held liable forany damage due to use with non authorisedaccessories.ChargerCharges your battery in any AC outlet. Smallenough to carry in a briefcase/handbag.Carry caseProtects your phone from nicks and scratches.Deluxe HeadsetIn-line answer button offers you a simplifiedalternative to search for the phone. Simply answerthe incoming call by pressing the button. In idlemode, press it to activate the voice dial.Data connect kitProvides easy data connection to your Philipsmobile phone. The USB cable enables high speedcommunication between your phone and yourcomputer. The provided software allows you todownload pictures and melodies and to synchroniseyour contacts and appointments.Using the phone as a modemYou can use your mobile phone together with a PCor a PDA, e.g. to connect to the internet or to sendfaxes, via Infrared or Bluetooth.To fully benefit from the services available viainfrared (sending and receiving SMS, e-mails andfaxes, uploading pictures and sound files to yourphone, phonebook synchronisation, GPRS Wizard,etc.), you must install the Philips Mobile PhoneTools Light software on your PC. This software isavailable on Internet: connect to www.club-

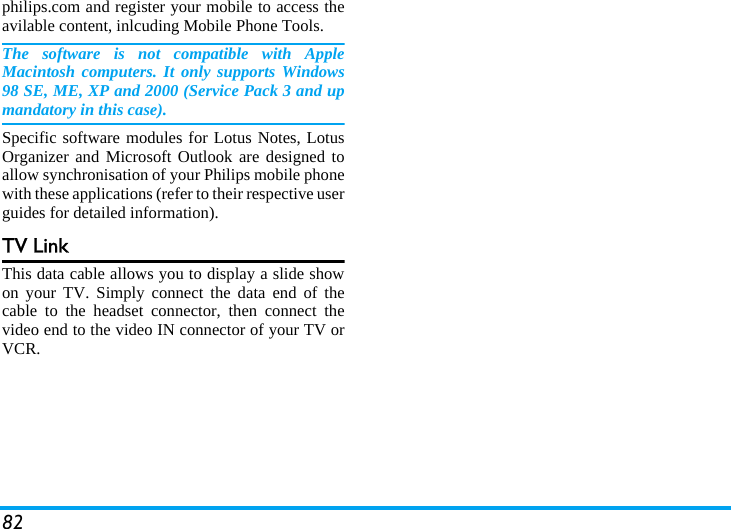

82philips.com and register your mobile to access theavilable content, inlcuding Mobile Phone Tools.The software is not compatible with AppleMacintosh computers. It only supports Windows98 SE, ME, XP and 2000 (Service Pack 3 and upmandatory in this case).Specific software modules for Lotus Notes, LotusOrganizer and Microsoft Outlook are designed toallow synchronisation of your Philips mobile phonewith these applications (refer to their respective userguides for detailed information).TV LinkThis data cable allows you to display a slide showon your TV. Simply connect the data end of thecable to the headset connector, then connect thevideo end to the video IN connector of your TV orVCR.

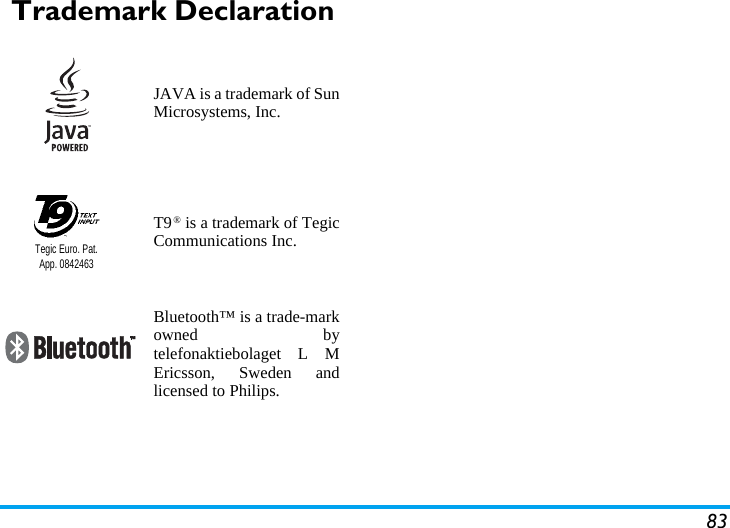

83Trademark DeclarationJAVA is a trademark of SunMicrosystems, Inc.T9® is a trademark of TegicCommunications Inc.Bluetooth™ is a trade-markowned bytelefonaktiebolaget L MEricsson, Sweden andlicensed to Philips.Tegic Euro. Pat. App. 0842463

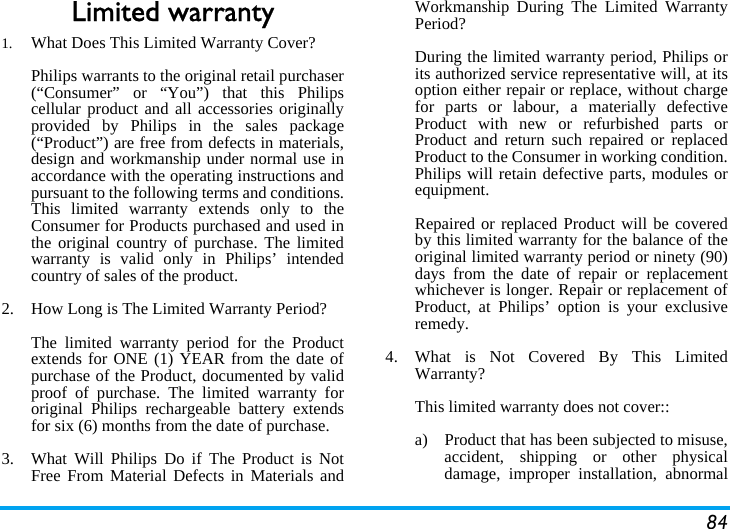

84Limited warranty1. What Does This Limited Warranty Cover?Philips warrants to the original retail purchaser(“Consumer” or “You”) that this Philipscellular product and all accessories originallyprovided by Philips in the sales package(“Product”) are free from defects in materials,design and workmanship under normal use inaccordance with the operating instructions andpursuant to the following terms and conditions.This limited warranty extends only to theConsumer for Products purchased and used inthe original country of purchase. The limitedwarranty is valid only in Philips’ intendedcountry of sales of the product.2. How Long is The Limited Warranty Period?The limited warranty period for the Productextends for ONE (1) YEAR from the date ofpurchase of the Product, documented by validproof of purchase. The limited warranty fororiginal Philips rechargeable battery extendsfor six (6) months from the date of purchase.3. What Will Philips Do if The Product is NotFree From Material Defects in Materials andWorkmanship During The Limited WarrantyPeriod?During the limited warranty period, Philips orits authorized service representative will, at itsoption either repair or replace, without chargefor parts or labour, a materially defectiveProduct with new or refurbished parts orProduct and return such repaired or replacedProduct to the Consumer in working condition.Philips will retain defective parts, modules orequipment.Repaired or replaced Product will be coveredby this limited warranty for the balance of theoriginal limited warranty period or ninety (90)days from the date of repair or replacementwhichever is longer. Repair or replacement ofProduct, at Philips’ option is your exclusiveremedy.4. What is Not Covered By This LimitedWarranty?This limited warranty does not cover::a) Product that has been subjected to misuse,accident, shipping or other physicaldamage, improper installation, abnormal

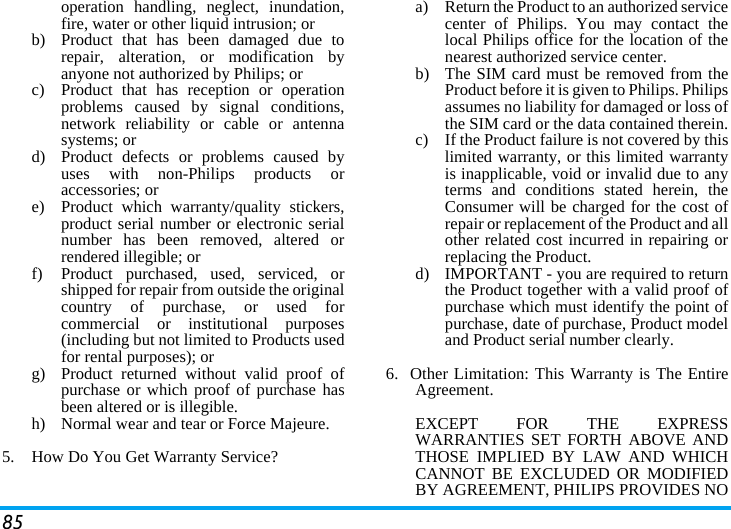

85operation handling, neglect, inundation,fire, water or other liquid intrusion; orb) Product that has been damaged due torepair, alteration, or modification byanyone not authorized by Philips; orc) Product that has reception or operationproblems caused by signal conditions,network reliability or cable or antennasystems; ord) Product defects or problems caused byuses with non-Philips products oraccessories; or e) Product which warranty/quality stickers,product serial number or electronic serialnumber has been removed, altered orrendered illegible; or f) Product purchased, used, serviced, orshipped for repair from outside the originalcountry of purchase, or used forcommercial or institutional purposes(including but not limited to Products usedfor rental purposes); or g) Product returned without valid proof ofpurchase or which proof of purchase hasbeen altered or is illegible.h) Normal wear and tear or Force Majeure.5. How Do You Get Warranty Service?a) Return the Product to an authorized servicecenter of Philips. You may contact thelocal Philips office for the location of thenearest authorized service center.b) The SIM card must be removed from theProduct before it is given to Philips. Philipsassumes no liability for damaged or loss ofthe SIM card or the data contained therein.c) If the Product failure is not covered by thislimited warranty, or this limited warrantyis inapplicable, void or invalid due to anyterms and conditions stated herein, theConsumer will be charged for the cost ofrepair or replacement of the Product and allother related cost incurred in repairing orreplacing the Product.d) IMPORTANT - you are required to returnthe Product together with a valid proof ofpurchase which must identify the point ofpurchase, date of purchase, Product modeland Product serial number clearly.6. Other Limitation: This Warranty is The EntireAgreement.EXCEPT FOR THE EXPRESSWARRANTIES SET FORTH ABOVE ANDTHOSE IMPLIED BY LAW AND WHICHCANNOT BE EXCLUDED OR MODIFIEDBY AGREEMENT, PHILIPS PROVIDES NO

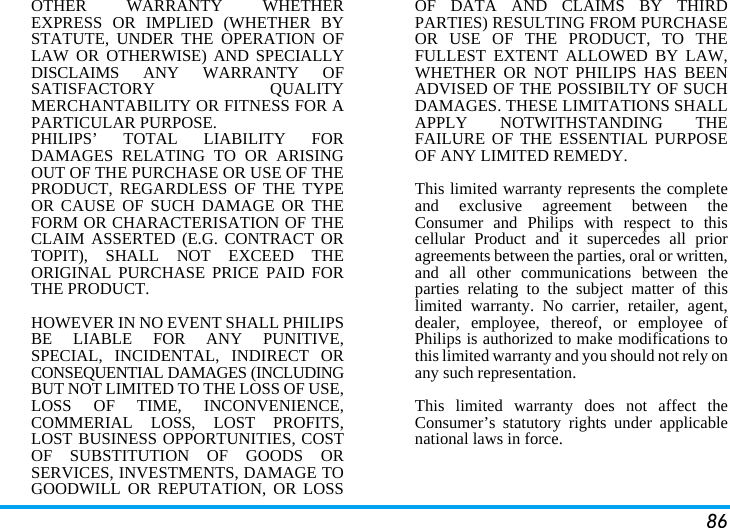

86OTHER WARRANTY WHETHEREXPRESS OR IMPLIED (WHETHER BYSTATUTE, UNDER THE OPERATION OFLAW OR OTHERWISE) AND SPECIALLYDISCLAIMS ANY WARRANTY OFSATISFACTORY QUALITYMERCHANTABILITY OR FITNESS FOR APARTICULAR PURPOSE.PHILIPS’ TOTAL LIABILITY FORDAMAGES RELATING TO OR ARISINGOUT OF THE PURCHASE OR USE OF THEPRODUCT, REGARDLESS OF THE TYPEOR CAUSE OF SUCH DAMAGE OR THEFORM OR CHARACTERISATION OF THECLAIM ASSERTED (E.G. CONTRACT ORTOPIT), SHALL NOT EXCEED THEORIGINAL PURCHASE PRICE PAID FORTHE PRODUCT.HOWEVER IN NO EVENT SHALL PHILIPSBE LIABLE FOR ANY PUNITIVE,SPECIAL, INCIDENTAL, INDIRECT ORCONSEQUENTIAL DAMAGES (INCLUDINGBUT NOT LIMITED TO THE LOSS OF USE,LOSS OF TIME, INCONVENIENCE,COMMERIAL LOSS, LOST PROFITS,LOST BUSINESS OPPORTUNITIES, COSTOF SUBSTITUTION OF GOODS ORSERVICES, INVESTMENTS, DAMAGE TOGOODWILL OR REPUTATION, OR LOSSOF DATA AND CLAIMS BY THIRDPARTIES) RESULTING FROM PURCHASEOR USE OF THE PRODUCT, TO THEFULLEST EXTENT ALLOWED BY LAW,WHETHER OR NOT PHILIPS HAS BEENADVISED OF THE POSSIBILTY OF SUCHDAMAGES. THESE LIMITATIONS SHALLAPPLY NOTWITHSTANDING THEFAILURE OF THE ESSENTIAL PURPOSEOF ANY LIMITED REMEDY.This limited warranty represents the completeand exclusive agreement between theConsumer and Philips with respect to thiscellular Product and it supercedes all prioragreements between the parties, oral or written,and all other communications between theparties relating to the subject matter of thislimited warranty. No carrier, retailer, agent,dealer, employee, thereof, or employee ofPhilips is authorized to make modifications tothis limited warranty and you should not rely onany such representation.This limited warranty does not affect theConsumer’s statutory rights under applicablenational laws in force.
