NTP#: 411-1333-928
Draft 01.01 July 2000
BTR 24-01MO GHz
Quick Reference Guide

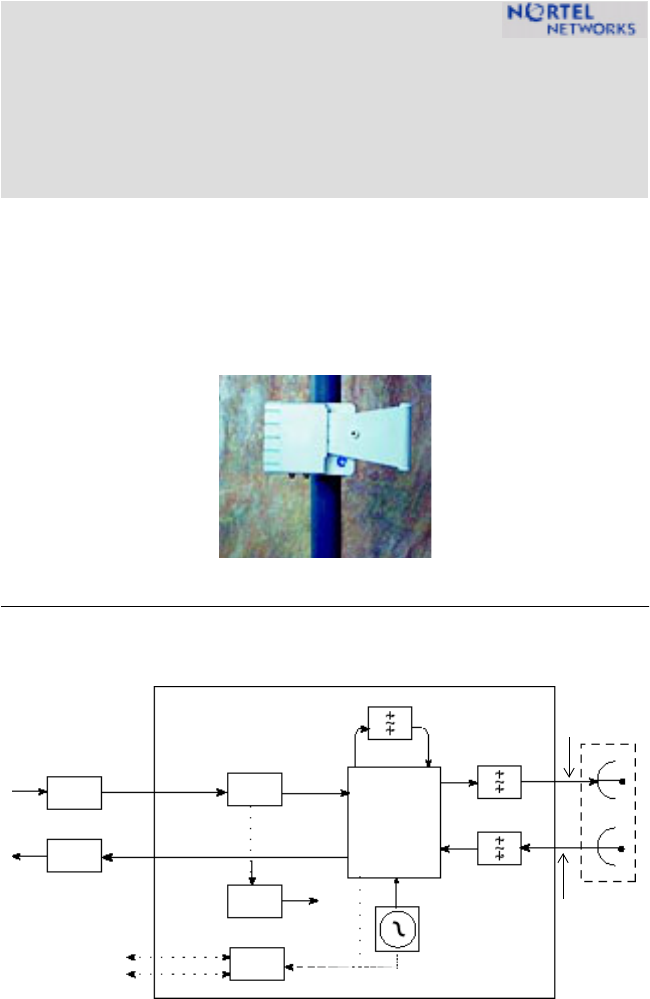

Product Overview
The BTR 24-01MO (NTVG11BC) outdoor transceiver is a state-of-the-art broad-
band microwave transceiver designed to operate at various frequency bands
downstream. It is a combined broadband transmitter and receiver deployed in
Nortel Networks Reunion point-to-multipoint system. It is compatible with
Reunion’s Release 1.2, 1.3 and 1.4 equipment.
Figure 1: BTR 24-01MO Block Diagram
LO
Rx IF Output
DC/DC
Telemetry
Tx IF/DC Input
DC Extractor
Transceiver
Lightening
Section
Protector
Lightening
Protector
Telemetry
Signals
Rx RF Input
(Test Point ‘B’)
(Test Point ‘A’)
Tx RF Output
Modem
(Baseband)
Converter
DC/
RF DC
-48V
RF
DC Supplies
BTR 24-01MO Transceiver
![](/img.php?id=134661&img=bg2.png)
411-1333-928 Draft 01.01 July 2000
2
BTR 24-01MO Specification
Table 1: BTR 24-01MO Technical Specifications
TX IF Input RF Output
Frequency Range 24-01MO 450-650 MHz 24.25-24.45 GHz
Output Level (P1 dB) ≥27.0 dBm, -40° to +30° C
≥26.5 dBm, +31° to +55° C
Output Level (IP3) >35 dBm, -40° to +30° C
>34.5 dBm, 30° to +55° C
Input Impedance 50 Ohms
Input/Output Connector N-Type Female WR-42 (non-standard hole
pattern)
Input/Output VSWR 1.9:1, maximum
(10 dB return loss)
2.3:1, max (or 8 dB)
Gain (not including antenna) 33 dBm, minimum
Gain vs. Temperature ±2.0/-3.0 dB, (-40° to +55° C)
Gain Flatness ±2.0 dB over bandwidth
LO leakage <-43 dBm (outband)
Frequency Stability <±2 ppm, (-40° to +55° C)
Antenna BTR
Frequency 24.25-26.50 GHz
Bore-sight Gain (Azimuth) 15.75±1.25 dBi, 90° Horn
18.9 ±1.25 dBi, 45°
23.8 ±1.3 dBi, 15°
Wave-guide Interface WR-42 (non-standard hole pattern)
Size (Length x Height x Width) 10" x 9" x 2" (90°)
Polarization Vertical or Horizontal
Sectorized Angle Available 15°, 45°, and 90°
Cross-Polarization Discrimination 26 dB Minimum
![](/img.php?id=134661&img=bg3.png)
BTR 24-01MO GHz Quick Reference Guide
3
RX RF Input IF Output
Frequency Range 24-01MO 25.05-25.25 GHz 150-350 MHz
Input/Output Connector WR-42 (non- standard
hole pattern)
N-Type female
Input P1 dB -18 dBm
Output Impedance 50 Ohms
Input/Output VSWR 2.3:1, max (or 8 dB return
loss)
2.1:1, maximum (or 9 dB
return loss)
Gain (not including antenna) 28.0 dB ±1.0 dB
Gain Flatness ±2.0 dB over bandwidth
Gain Stability +2.0/-3.0 dB over temperature
Frequency Stability <±4 ppm, (-40° to +55° C)
Noise Figure 7.0 dB, -40° to +55° C
Power Requirements BTR
Input Voltage -48 VDC (diplexed with TX cable)
Inrush Current 4.5 A, maximum
Input Power 66 Watts, maximum
Environmental BTR
Humidity 100% condensing
Altitude 10,000 feet (3,000 meters)
Operating Wind Resistance 50m/second on all surfaces
Operating Temperature -40° to +55°C
Storage Temperature Range -45° to +70°C (packaged)
Solar Loading ETS 300 019 class 4.1 1120W/m2, 50°C max.
Mechanical BTR
Size (Length x Height x Width) 19.1" x 10.3" x 5.8" (47.75 x 26 x 14.5 cm)
Weight without brackets 40 lbs. (17.8 KG)
![](/img.php?id=134661&img=bg4.png)
Information is subject to change without notice.
Nortel Networks reserves the right to make
changes in design or components as progress in
engineering and manufacturing may warrant.
© 2000 Nortel Networks
Converted Frequency Formula
Use the following formula to calculate the converted frequency:
TX: ƒRF OUT (GHz) = 24.9 - ƒIF IN (GHz)
RX: ƒIF OUT (GHz) = ƒRF IN (GHz) - 24.9
Note: The antenna has an option of a hydrophobic coating that can help to
reduce ice build-up effect.
Note: Vent holes are covered with a GoretexTM patch.
Note: The transceiver mounts to a vertical pole of 2.5” to 4.5” outside diame-
ter. It has a range of motion of 90° over and -60° under horizon. The bases of
the antenna mount can rotate ±180°.
Technical Assistance Contact Information
In case additional technical assistance is required, or the transceiver unit is
damaged upon receipt, contact Nortel Networks.
Nortel Networks Broadband Wireless Access (BWA) provides 24-hour customer
service and technical support to ensure your service operation is trouble-free.
If you have questions or need technical support, contact Nortel Networks
Broadband Wireless Access at the following telephone numbers:
• In the USA and Canada, call 972-BWA-ETAS/972-292-3827
