Avaya Canada UMTS1900MONO UMTS 1900 Mono iBTS User Manual essai03
Avaya Canada Corporation UMTS 1900 Mono iBTS essai03
Exhibit 8 User Manual
UMT/DCL/DD/0002
411–8111–905
Wireless Service Provider Solutions
UMTS
Product Fundamentals
About the Univity iBTS
UMT/DCL/DD/0002 03.08/EN Draft September 2003
411–8111–905
Wireless Service Provider Solutions
UMTS
Product Fundamentals
About the Univity iBTS
Document number: UMT/DCL/DD/0002
411–8111–905
Document issue: 03.08/EN
Document status: Draft
Product release: UMTS03
Date: September 2003
Copyright © 2000-2003 Nortel Networks , All Rights Reserved
Printed in France
NORTEL NETWORKS CONFIDENTIAL
The information contained herein is the property of Nortel Networks and is strictly confidential. Except as
expressly authorized in writing by Nortel Networks, the holder shall keep all information contained herein
confidential, shall disclose the information only to its employees with a need to know, and shall protect the
information, in whole or in part, from disclosure and dissemination to third parties with the same degree of
care it uses to protect its own confidential information, but with no less than reasonable care. Except as
expressly authorized in writing by Nortel Networks, the holder is granted no rights to use the information
contained herein.
Information is subject to change without notice. Nortel Networks reserves the right to make changes in design or components as
progress in engineering and manufacturing may warrant.
Nortel Networks, the Nortel Networks logo, the Globemark, Univity iBTS, Univity RNC, Passport, and Unified Networks are
trademarks of Nortel Networks. Bussmann is a trademark of Bussmann. All other brand and product names are trademarks or
registered trademarks of their respective holders.
PUBLICATION HISTORY
SYSTEM RELEASE UMTS03
September 2003
Issue 03.08/EN Draft
Update for OAM V3.1/RAN V3.1 Customer Readiness
Introduction of UMTS 1900 Univity iBTSs Mono and Indoor Compact
August 2003
Issue 03.07/EN Preliminary
Update after internal review
July 2003
Issue 03.06/EN Draft
Update for OAM V3.1/RAN V3.1 Customer Readiness
Introduction of UMTS 1900 iBTSs Indoor 2 and Outdoor
July 2003
Issue 03.05/EN Preliminary
Update after FCC Regulatory information validation
June 2003
Issue 03.04/EN Draft
FCC Regulatory Information enhancement: addition of North-American rules
May 2003
Issue 03.03/EN Preliminary
Update after Internal Review
April 2003
Issue 03.02/EN Draft
Update for OAM V3.1/RAN V3.1
April 2003
Issue 03.01/EN Standard
Minor update
Document version change (UTRAN V2.1 belong to UMTS V3.0b system release)
SYSTEM RELEASE UMTS02
January 2003
Nortel Networks Confidential Publication history i
Copyright © 2000-2003 Nortel Networks About the Univity iBTS
Issue 02.08/EN Standard
Editorial Update to introduce the iBTS Indoor 2
November 2002
Issue 02.07/EN Standard
Update for UMTS V2.1 UTRAN
September 2002
Issue 02.06/EN Preliminary
Update for UMTS V2.0d UTRAN
July 2002
Issue 02.05/EN Preliminary
Minor update
July 2002
Issue 02.04/EN Preliminary
Update after internal review
June 2002
Issue 02.03/EN Draft
Update for UMTS V2.0c UTRAN
May 2002
Issue 02.02/EN Preliminary
Update after internal review
March 2002
Issue 02.01/EN Draft
• introduction of the STSR2 configuration
• introduction of the new iBTS Street
• drop and insert feature description
SYSTEM RELEASE UMTS01
February 2002
Issue 01.08/EN Preliminary
Update after review
January 2002
Issue 01.07/EN Draft
Update according the product release change.
Nortel Networks Confidential Publication history ii
UMT/DCL/DD/0002 03.08/EN Draft September 2003 Copyright © 2000-2003 Nortel Networks
411–8111–905
October 2001
Issue 01.06/EN Preliminary
Update after review
September 2001
Issue 01.05/EN Draft
The following changes were made throughout the document:
• modify modules organization throughout the document
• update the iBTS features according to the system release change
• update the configuration rules
• add the TMA description
• update the PFM description
• update the ac plinth description
• update the batteries description
• modify software section
July 2001
Issue 01.04/EN Preliminary
Update after review
June 2001
Issue 01.03/EN Draft
The following changes were made throughout the document:
• update the iBTS description and configuration according to the system release
• update the hardware description
• add information about physical interfaces, cabling, functional architecture, and
software
• add and update the ancillary modules
• add the configuration description
• delete the dimensioning section
January 2001
Issue 01.02/EN Preliminary
Update after review
December 2000
Issue 01.01/EN Draft
Creation
Nortel Networks Confidential Publication history iii
Copyright © 2000-2003 Nortel Networks About the Univity iBTS
About this publication 1
What is in new about the Univity iBTS 3
Univity iBTS regulatory information 4
UTRAN introduction of the UMTS03 solution 9
Univity iBTS basic characteristics 13
Univity iBTS introduction 14
Univity iBTS key features 23
Univity iBTS mechanical characteristics 24
Univity iBTS architecture and configuration 30
Univity iBTS architecture 31
Univity iBTS RF configuration 35
Univity iBTS interfaces 48
Uu interface physical description 49
Iub interface physical description 50
Univity iBTS hardware 51
Univity iBTS hardware presentation 52
Univity iBTS digital shelf 74
Univity iBTS digital shelf description 75
CEM (Channel Element Module) 82
iCEM (internet Channel Element Module) 89
CCM (Core Control Module) 94
iCCM (internet Core Control Module) 98
TRM (Transceiver Receiver Module) 103
iTRM (internet Transceiver Receiver Module) 112
GPSAM/cGPSAM (GPS and Alarm Module) 116
Univity iBTS RF block 120
Nortel Networks Confidential Table of contents iv
UMT/DCL/DD/0002 03.08/EN Draft September 2003 Copyright © 2000-2003 Nortel Networks
411–8111–905
Univity iBTS Radio Frequency (RF) Description 121
MCPA (Multi Carrier Power Amplifier) 125
Tx Splitter 130
DDM (Dual Duplexer Module) 133
Univity iBTS cabinet other modules 139
MCA (Manufacturing, Commissioning, and Alarm) module 140
Mono Control Board 145
Single Power Control Module (SPCM) 147
TMA (Tower Masterhead Amplifier) 149
Interconnection module of the Univity iBTS 156
Alarm protection module 161
PCM protection module (iBTS Outdoor) 165
PCM protection module (iBTS Indoor 2) 167
PFM (Power Filter Module) (Univity iBTS Indoor 2100) 170
User ICO of the iBTS Outdoor 171
User ICO of the Univity iBTS Street 2100 172
Univity iBTS cooling system 173
Cooling system of the Univity iBTS Outdoor 174
Fan tray of the Univity iBTS Indoor 2100 177
Cooling system of the Univity iBTS Street 2100 179
Cooling system of the Univity iBTS Indoor 2 182
Cooling system of the Univity iBTS Indoor 1900 Compact 185
Univity iBTS power system 189
Power supply of the Univity iBTS Outdoor 190
Power supply of the Univity iBTS Indoor 2100 192
ac plinth (Univity iBTS Indoor 700 2100) 195
Nortel Networks Confidential Table of contents v
Copyright © 2000-2003 Nortel Networks About the Univity iBTS
Power supply of the Univity iBTS Street 2100 199
dc power system shelf of the Univity iBTS 201
dc distribution module of the Univity iBTS Outdoor 204
dc distribution module of the Univity iBTS Street 2100 206
dc distribution system of the Univity iBTS Indoor 2 208
dc distribution system of the Univity iBTS Mono 211
dc distribution system of the Univity iBTS Indoor 1900 Compact 214
Rectifier of the Univity iBTS 217
Single Power Control Module (SPCM) 219
Batteries of the Univity iBTS Outdoor 221
Batteries of the Univity iBTS Indoor 700 222
External battery cabinet 223
Univity iBTS software 226
Univity iBTS software overview 227
CEM software 231
TRM software 233
CCM software 235
Univity iBTS services and features 238
Introduction of the Univity iBTS services and features 239
Multi CEM management 242
Resource allocation management 243
Pool management 246
Multi PCM management 247
Multi PCM features 248
Multi PCM feature interactions 251
Impact of the multi PCM feature on the network 252
Nortel Networks Confidential Table of contents vi
UMT/DCL/DD/0002 03.08/EN Draft September 2003 Copyright © 2000-2003 Nortel Networks
411–8111–905

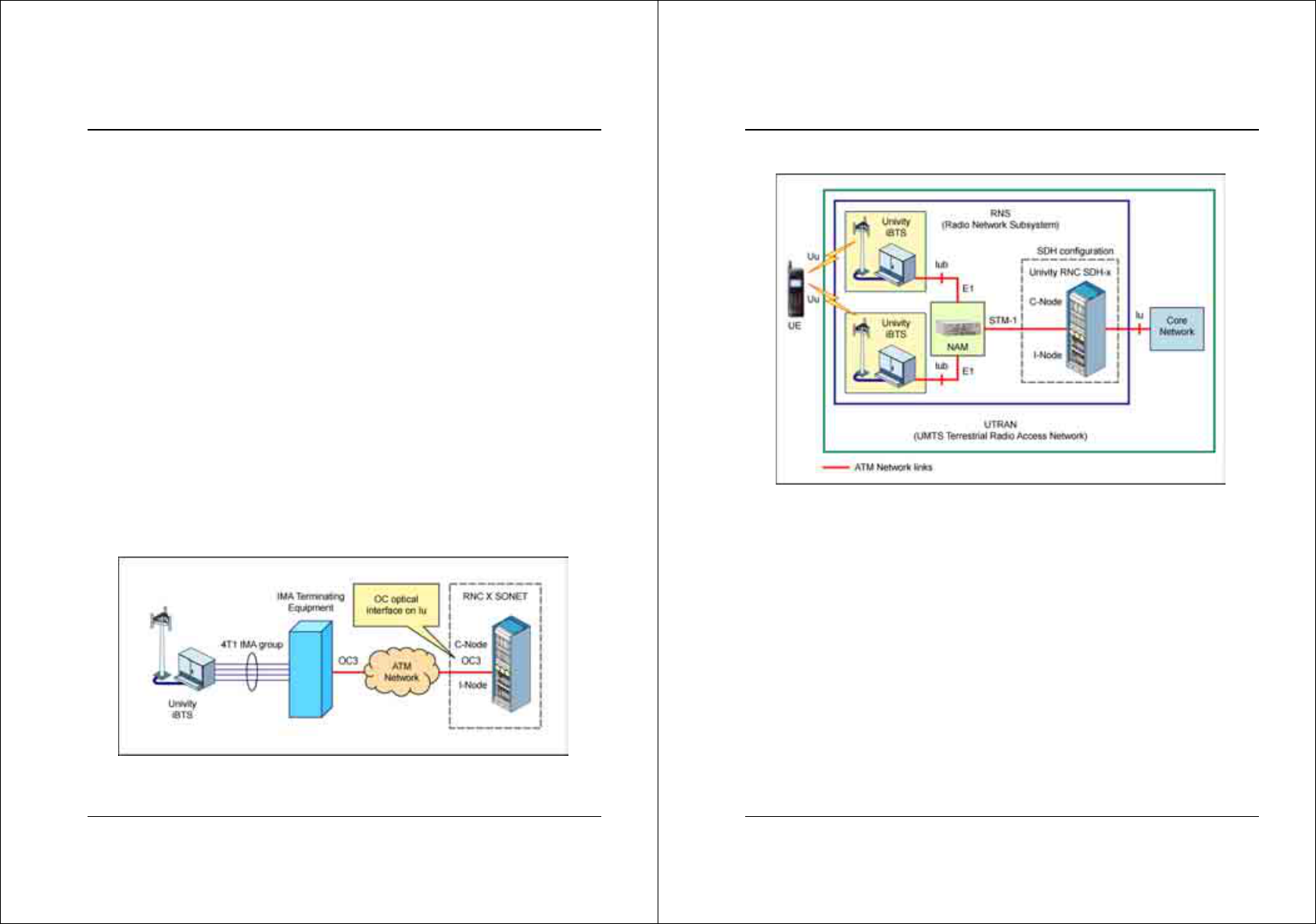

Figure 1 - UTRAN architecture example of the UMTS03 solution (1900 MHz SONET) 10

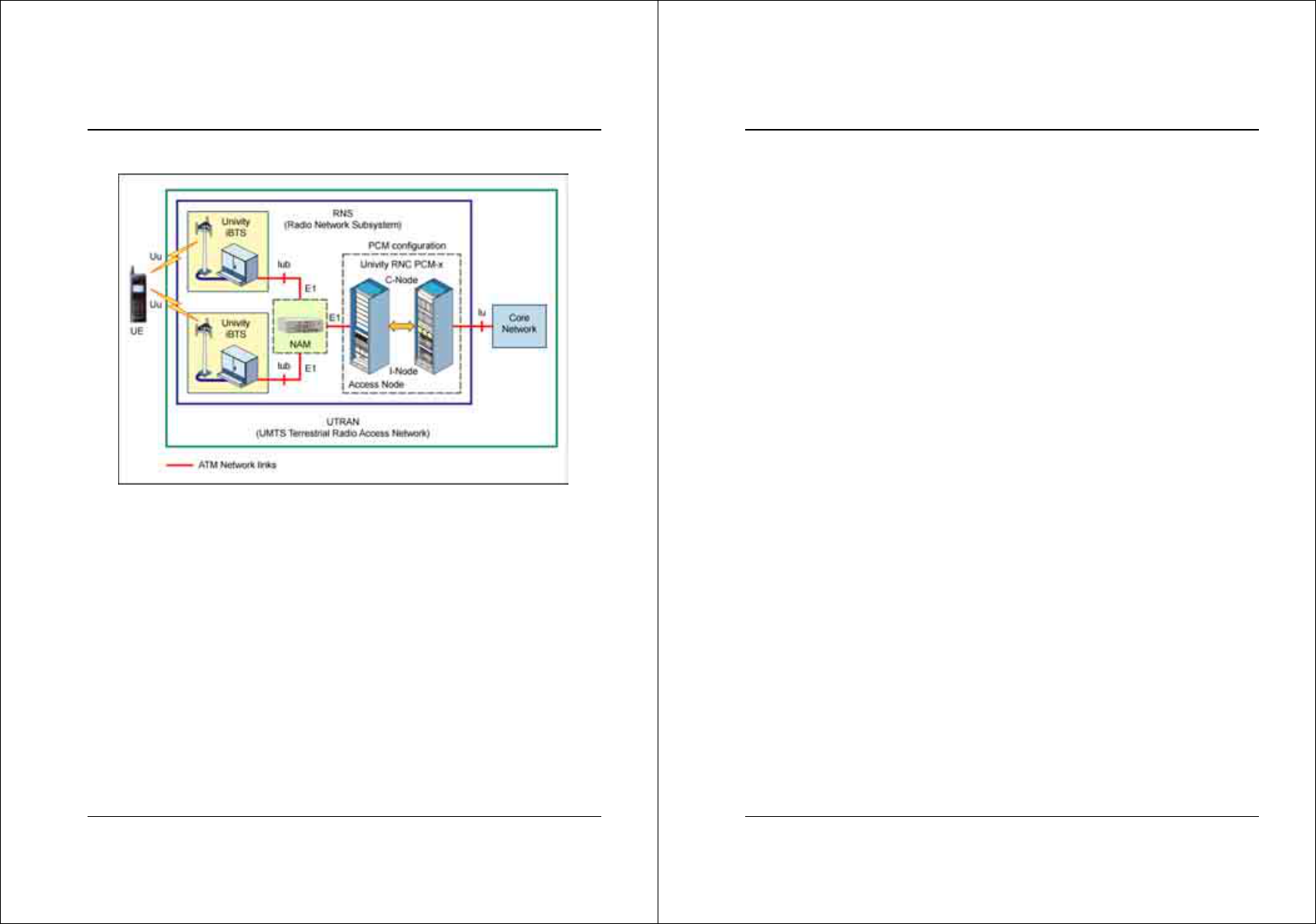

Figure 2 - UTRAN architecture example of the UMTS03 solution (2100 MHz SDH) 11
Figure 3 - UTRAN architecture example of the UMTS03 solution (2100 MHz PCM) 12

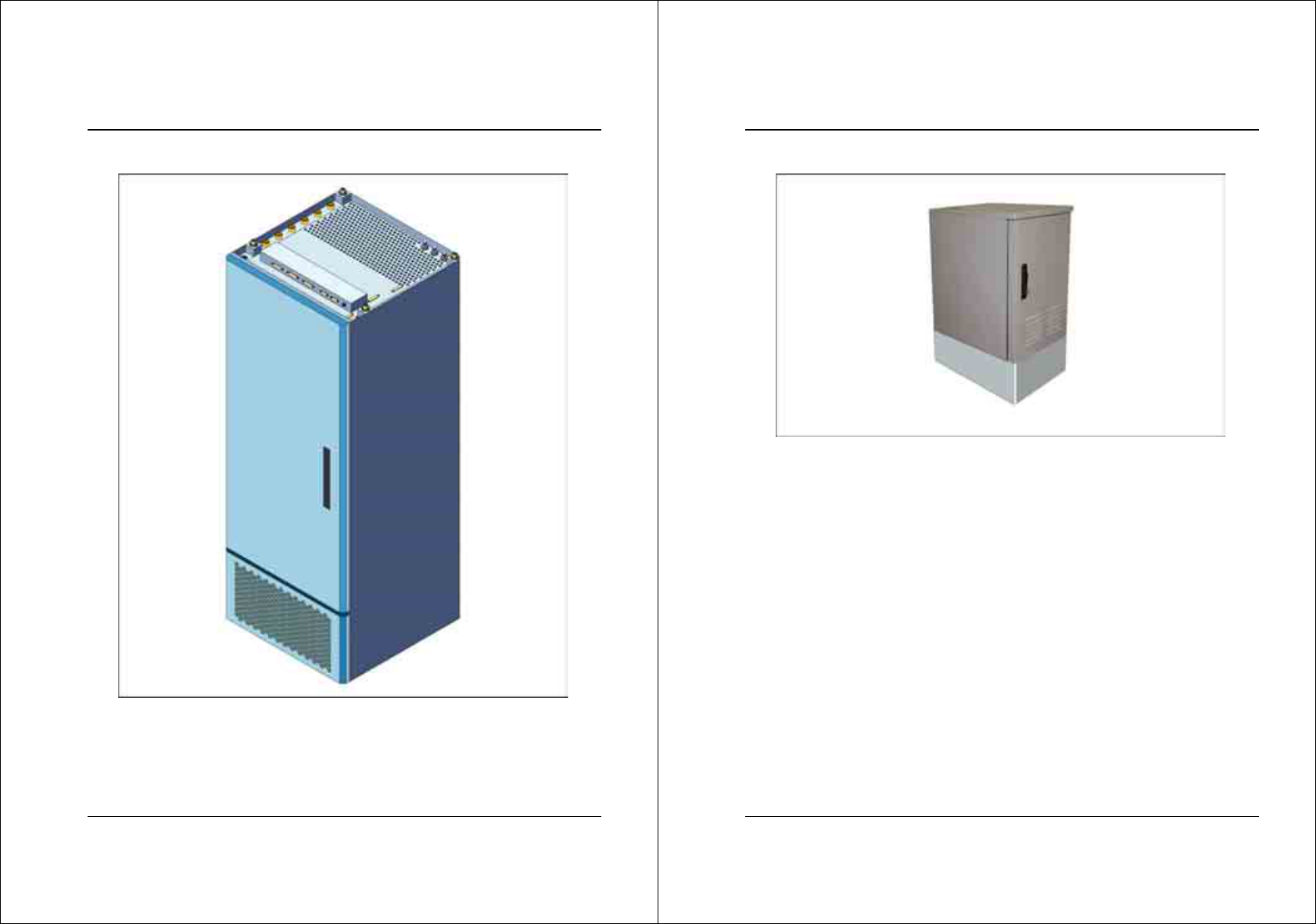

Figure 4 - Univity iBTS Outdoor outside view 17
Figure 5 - Univity iBTS Indoor 2100 outside view 18

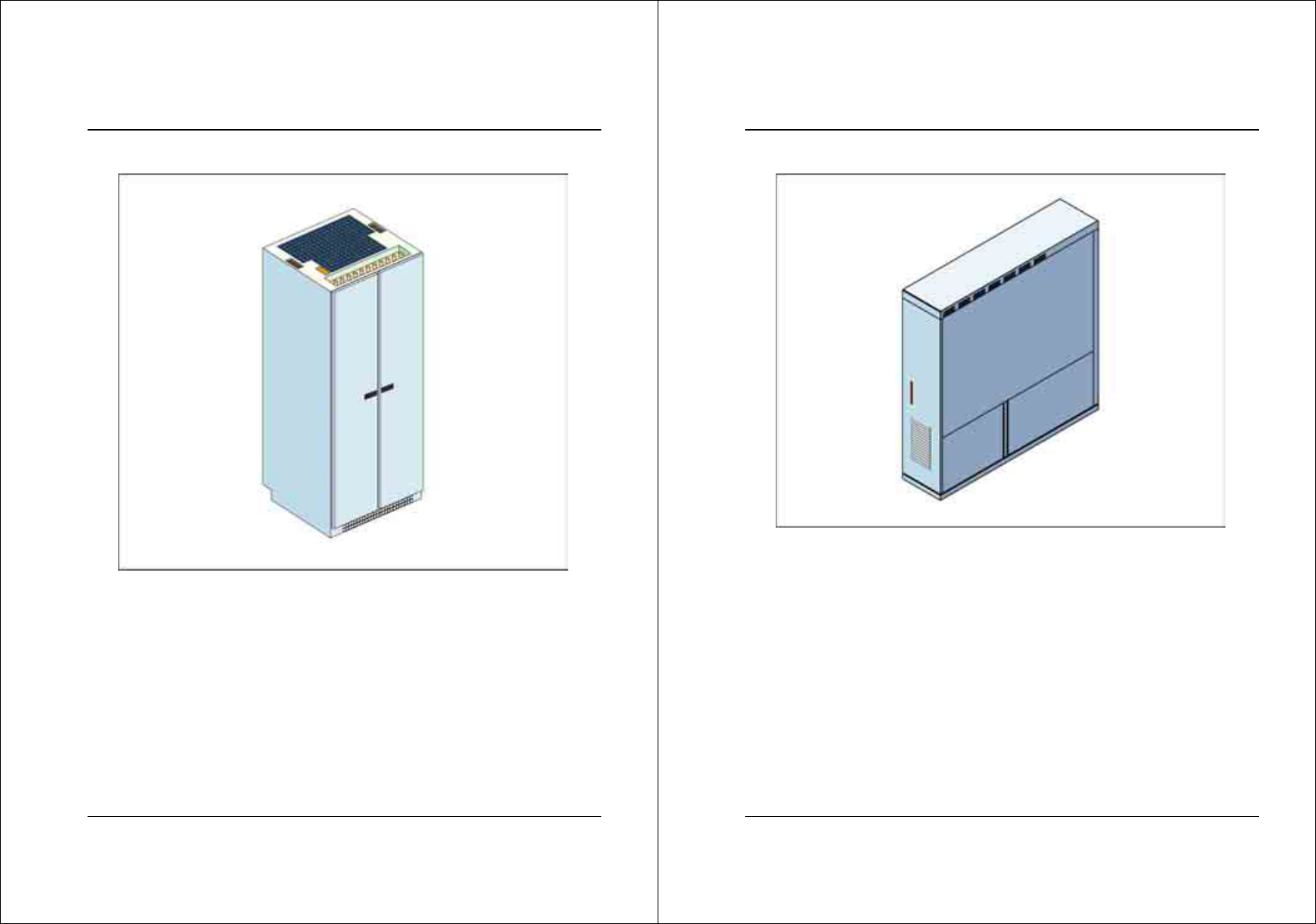

Figure 6 - Univity iBTS Street 2100 outside view 19
Figure 7 - Univity iBTS Indoor 2 outside view 20

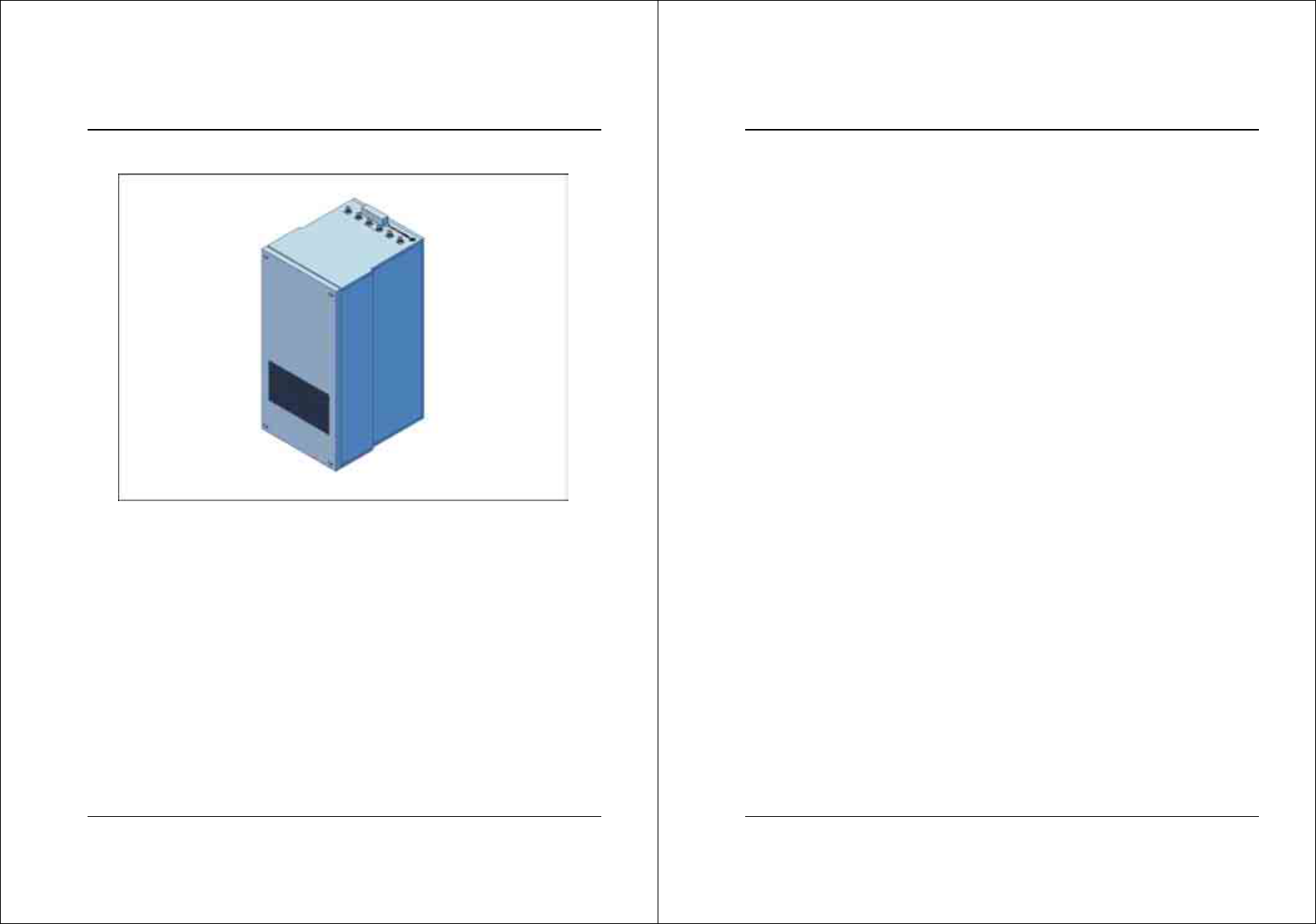

Figure 8 - Univity iBTS Mono outside view 21
Figure 9 - Univity iBTS Indoor 1900 Compact outside view 22
Figure 10 - Univity iBTS functional architecture 32
Figure 11 - Univity iBTS hardware architecture 33
Figure 12 - Univity iBTS Mono configuration 37
Figure 13 - Univity iBTS Indoor 1900 Compact with O1 configuration (functional diagram) 40
Figure 14 - Univity iBTS Outdoor 2100, Univity iBTS Indoor 600, Univity iBTS Indoor 700,
or Univity iBTS Indoor 2 2100 with OTSR1 configuration (functional diagram) 41
Figure 15 - Univity iBTS Street 2100 with OTSR1 configuration (functional diagram) 42
Figure 16 - iBTS Outdoor, iBTS Indoor 600, iBTS Indoor 700, or iBTS Indoor 2 with
STSR1 configuration without TRM/iTRM redundancy (functional diagram) 43
Figure 17 - Univity iBTS Street 2100 with STSR1 configuration (functional diagram) 44
Figure 18 - Univity iBTS Indoor 1900 Compact with STSR1 configuration (functional
diagram) 45
Figure 19 - Univity iBTS Outdoor, Univity iBTS Indoor 600, Univity iBTS Indoor 700,
Univity iBTS Indoor 2, or Univity iBTS Indoor 1900 compact with STSR2 (functional
diagram)
46
Figure 20 - Inside view (Univity iBTS Outdoor 2100) 53
Figure 21 - Inside view (Univity iBTS Indoor 600) 55
Figure 22 - Inside view (Univity iBTS Indoor 700) 56
Figure 23 - Bulkhead top view (Univity iBTS Indoor 600) 57
Figure 24 - Bulkhead top view (Univity iBTS Indoor 700) 58
Figure 25 - Inside view (Univity iBTS Street 2100) 60
Figure 26 - Cabinet layout (Univity iBTS Street 2100) 61
Figure 27 - Internal cabling top view (Univity iBTS Street 2100) 62
Figure 28 - Inside view (Univity iBTS Indoor 2) 63
Figure 29 - Cabinet Layout (Univity iBTS Indoor 2) 64
Figure 30 - Bulkhead top view (Univity iBTS Indoor 2) 65
Figure 31 - Inside view (Univity iBTS Mono 2100) 67
Figure 32 - Cabinet layout (Univity iBTS Mono 2100) 68
Figure 33 - Bulkhead below view (Univity iBTS Mono 2100) 69
Figure 34 - Inside view (Univity iBTS Indoor 1900 Compact 71
Figure 35 - Cabinet layout (Univity iBTS Indoor 1900 Compact) 72
Figure 36 - Bulkhead top view (Univity iBTS Indoor 1900 Compact) 73
Figure 37 - Digital shelf description 76
Figure 38 - Front view of the digital shelf (Univity iBTS Outdoor and Univity iBTS Indoor 77
Nortel Networks Confidential List of figures vii
Copyright © 2000-2003 Nortel Networks About the Univity iBTS
700)
Figure 39 - Front view of the digital shelf (Univity iBTS Indoor 600) 78
Figure 40 - Front view of digital shelf (Univity iBTS Street 2100) 78
Figure 41 - Front view of digital shelf (Univity iBTS Indoor 2) 79
Figure 42 - Front view of digital shelf (Univity iBTS Mono) 80
Figure 43 - Front view of digital shelf (Univity iBTS Indoor 1900 Compact) 80
Figure 44 - Overview of the CEM physical architecture 83
Figure 45 - Detailed view of the CEM hardware 85
Figure 46 - Interconnection of the mini backplane 86
Figure 47 - Front view of the CEM 87
Figure 48 - iCEM 64 functional architecture 89
Figure 49 - Front view of the iCEM 64 91
Figure 50 - Front view of the iCEM 128 92
Figure 51 - Front view of the CCM 95
Figure 52 - Interfaces of the CCM 97
Figure 53 - iCCM functional architecture 99
Figure 54 - Front view of the iCCM 101
Figure 55 - Functional block diagram of the TRM 104
Figure 56 - Block diagram of the dTRM 105
Figure 57 - Block diagram of the rTRM transmitted part 106
Figure 58 - Block diagram of the rTRM received part 107
Figure 59 - Front view of the TRM 108
Figure 60 - iTRM radio architecture (Direct Modulation) 112
Figure 61 - iTRM radio architecture (Direct Demodulation) 113
Figure 62 - Front view of the iTRM 114
Figure 63 - GPSAM alarm and inventory diagram 117
Figure 64 - Front view of the GPSAM 118
Figure 65 - RF block general description 122
Figure 66 - Front view of the MCPA (Univity iBTS Outdoor, Univity iBTS Indoor 2100, and
Univity iBTS Indoor 2) 123
Figure 67 - Front view of the MCPA (Univity iBTS Street 2100) 123
Figure 68 - Functional description of an MCPA 126
Figure 69 - MCPA functional block diagram 127
Figure 70 - Front view of the MCPA module 128
Figure 71 - Tx Splitter functional block 131
Figure 72 - Tx Splitter hardware description 132
Figure 73 - DDM block diagram 134
Figure 74 - Front view of DDM (iBTS Outdoor, iBTS Indoor, and iBTS Indoor 2) 135
Figure 75 - Front view of DDM (iBTS Street and iBTS Mono) 136
Figure 76 - Front view of DDM-2 (iBTS Outdoor, iBTS Indoor, and iBTS Indoor 2) 137
Figure 77 - Front view of the MCA module (Univity iBTS Outdoor) 140
Figure 78 - Front view of the MCA module (Univity iBTS Indoor 2100) 141
Nortel Networks Confidential List of figures viii
UMT/DCL/DD/0002 03.08/EN Draft September 2003 Copyright © 2000-2003 Nortel Networks
411–8111–905
Figure 79 - Front view of the MCA module (Univity iBTS Street 2100) 142
Figure 80 - Front view of the MCA module (Univity iBTS Mono) 143
Figure 81 - Front view of MCA module 144
Figure 82 - Front view of the MCA module (Univity iBTS Indoor 2) 144
Figure 83 - Front view of Control board (iBTS Mono) 146
Figure 84 - Front view of the SPCM 147
Figure 85 - Double TMA 2100 insertion in the system 150
Figure 86 - single TMA 1900 insertion in the system 151
Figure 87 - TMA 2100 block diagram 152
Figure 88 - TMA 1900 block diagram 153
Figure 89 - Front view of single TMA 1900 module 154
Figure 90 - Front view of double TMA 2100 module 154
Figure 91 - Front view of ICO module (iBTS Outdoor) 158
Figure 92 - Front view of ICO module (Univity iBTS Indoor) 158
Figure 93 - Front view of CICO module (Univity iBTS Street 2100/Univity iBTS Indoor
1900 Compact) 159
Figure 94 - Front view of ICO module (Univity iBTS Indoor 2) 160
Figure 95 - Front view of ICO module (Univity iBTS Mono) 160
Figure 96 - Front view of the alarm protection module (iBTS Outdoor) 161
Figure 97 - Front view of the alarm protection module (iBTS Indoor) 162
Figure 98 - Alarm protection cabling (iBTS Outdoor) 163
Figure 99 - Alarm protection cabling (iBTS Indoor 600) 164
Figure 100 - Front view of the PCM protection module (iBTS Outdoor) 165
Figure 101 - PCM lightning protection cabling (iBTS Outdoor) 166
Figure 102 - Front view of the LPPCM (iBTS Indoor 2) 168
Figure 103 - LPPCM cabling (iBTS Indoor 2) 169
Figure 104 - Front view of the PFM 170
Figure 105 - Front view of User ICO module (iBTS Outdoor) 171
Figure 106 - Front view of User ICO module (iBTS Street) 172
Figure 107 - iDACS operation principle 175
Figure 108 - iBTS Indoor cooling unit 177
Figure 109 - iBTS Street air paths 180
Figure 110 - ICU front view 184
Figure 111 - Univity iBTS Indoor 1900 Compact airflow 186
Figure 112 - CICU detailed front view 188
Figure 113 - Distribution of the ac voltage within the Univity iBTS Outdoor 190
Figure 114 - Front view of the ac filtering box (Univity iBTS Outdoor) 191
Figure 115 - BIP functional diagram 193
Figure 116 - Front view of the BIP (Univity iBTS Indoor 2100) 194
Figure 117 - Outside view of the ac plinth 195
Figure 118 - Inside view of the ac plinth 196
Figure 119 - ac plinth cabling (Univity iBTS Indoor 700 2100) 198
Nortel Networks Confidential List of figures ix
Copyright © 2000-2003 Nortel Networks About the Univity iBTS
Figure 120 - ac voltage distribution within the Univity iBTS Street 2100 199
Figure 121 - Front view of the dc power system shelf (Univity iBTS Outdoor) 202
Figure 122 - Front view of the dc power system shelf in the ac plinth (Univity iBTS Indoor
2100) 202
Figure 123 - Front view of the dc power system shelf (Univity iBTS Street 2100) 203
Figure 124 - dc distribution rack of the Univity iBTS Outdoor 204
Figure 125 - Front view of the dc distribution (Univity iBTS Outdoor) 205
Figure 126 - Distribution scheme of the dc current within the Univity iBTS Street 2100 207
Figure 127 - Univity iBTS Indoor 2 dc electrical distribution system 209
Figure 128 - Univity iBTS Indoor 2 dc distribution scheme 210
Figure 129 - electrical distribution scheme of Univity iBTS Mono (mode 1) 212
Figure 130 - electrical distribution scheme of Univity iBTS Mono (mode 2) 213
Figure 131 - Univity iBTS Indoor 1900 Compact distribution system 215
Figure 132 - Univity iBTS Indoor 1900 dc distribution scheme 216
Figure 133 - Front view of the rectifier module 218
Figure 134 - Front view of the SPCM 219
Figure 135 - Inside view of the external battery cabinet 224
Figure 136 - iBTS protocol stacks 229
Figure 137 - iBTS function mapping 230
Figure 138 - Call processing on the CEM 232
Figure 139 - TRM software architecture 233
Figure 140 - Call processing on the TRM 234
Figure 141 - OAM software architecture on the CCM 236
Figure 142 - Call processing on the CCM 237
Figure 143 - Data flow of the uplink path 240
Figure 144 - Data flow of the downlink path 241
Figure 145 - CEM physical model 243
Figure 146 - iBTS external connection 248
Figure 147 - Transmission between iBTS and Univity RNC by using the IMA over PCM 250
Nortel Networks Confidential List of figures x
UMT/DCL/DD/0002 03.08/EN Draft September 2003 Copyright © 2000-2003 Nortel Networks
411–8111–905
Table 1 - Univity iBTS cabinets 16
Table 2 - The digital shelf modules supported by the iBTS cabinets 76
Table 3 - DDM LEDs status 137
Table 4 - TMA LED Status 137
Table 5 - VSWR LEDs Status (Main/Diversity) 138
Nortel Networks Confidential List of tables xi
Copyright © 2000-2003 Nortel Networks About the Univity iBTS
About this publication
This publication deals with the Nortel Network Univity Internet Base Transceiver Station (iBTS) which
is part of the UMTS network.
Applicability
This publication is applicable to the UMTS03 system release.
Audience
This publication is for operations and maintenance personnel, and other users who want more
knowledge of the iBTS.
Prerequisites
It is recommended that readers also become familiar with the following documents:
•About the UMTS Network (UMT/DCL/DD/0001 or 411-8111-101)
•Univity iBTS Fault Analysis (UMT/DCL/DD/0006 or 411-8111-506)
•Univity iBTS Hardware Maintenance Guide (UMT/DCL/DD/0005 or 411-8111-505)
•About the Univity RNC (UMT/DCL/DD/0003 or 411-8111-906)
How this document is organized
In a continuous effort to improve our documentation, we are preparing its delivery through the web.
This leads to a new global organization of the Nortel Networks technical publications.
The information will be broken down into modules, with each module containing elementary
information such as the procedure to replace a particular equipment, or the description of a particular
component.
The modules are designed in order to deliver just enough information to provide the user with the
solution required to perform his current task.
These modules will usually be delivered on CD-ROMs or through the web. The user will access this
information by browsing, navigating from one module to another, or by using a search engine.
In its current version, this NTP has been written as a series of modules. The modules are arranged
one after the other in logical order. The table of contents helps you to access the right module. Be
careful, while screening the table of contents, since all the modules will be displayed with the same
level of importance.
This publication consists of the following sets of modules:
• The first part describes what is new in the About the Univity iBTS publication.
• The second part provides the Univity iBTS regulatory information.
• The third part gives the UTRAN overview of the UMTS03 solution.
• The fourth part describes the Univity iBTS configuration and architecture.
• The fifth part describes the Univity iBTS interfaces
• The sixth part describes the Univity iBTS hardware
• the seventh part describes the Univity iBTS software
Nortel Networks Confidential 1
UMT/DCL/DD/0002 03.08/EN Draft September 2003 Copyright © 2000-2003 Nortel Networks
411–8111–905
• the last part describes the Univity iBTS services and features
Vocabulary conventions
Lists of terms used in the publication are in: Terminology (UMT/DCL/DD/0004 or 411-8111-804)
Safety regulation
In order to guarantee the safety of personnel and equipment it must be taken into account of the
following aspects general personnel safety instructions and equipment safety instructions.
Caution message indicate the risk of impact on equipment.
CAUTION
Impact on equipment
Nortel Networks Confidential 2
UMT/DCL/DD/0002 03.08/EN Draft September 2003 Copyright © 2000-2003 Nortel Networks
411–8111–905
What is in new about the Univity iBTS
This following list details the main changes in this publication between system release UMTS03 and
UMTS02 releases:
• new structure of information
• update for UTRAN overview of the UMTS03 solution
• update of RF block information
• Introduction of Univity iBTS Mono 1900
• Introduction of Univity iBTS Indoor 1900 Compact
Nortel Networks Confidential 3
Copyright © 2000-2003 Nortel Networks About the Univity iBTS
Univity iBTS regulatory information
This part which provides the regulatory information concerning the Univity iBTS is split into the
following items:
• European regulatory requirement compliance
• North American regulatory requirement compliance
• Compliances for other regions/countries
• Operation conditions
• Cable specifications
• Product labelling
European regulatory requirement compliance
As a radio product, the Nortel Networks UMTS iBTS falls under the requirement of the RTTE (Radio
and Telecom Terminal Equipment) European directive 1999/5/EEC. The RTTE directive covers
essential requirements in the field of:
• protection of the Health and Safety of the user and any other person, including the objectives with
respect to safety requirements contained in the Low Voltage directive (73/23/EEC)
• the protection requirements with respect to EMC contained in Directive 89/336/EEC.
The equipment generates, uses, and can radiate radio frequency energy. If not installed and
used in accordance with the instruction manual, the equipment may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference.
The EMC requirements have been selected to ensure an adequate level of compatibility for
apparatus at residential, commercial, and light industrial environments. The levels however, do
not cover extreme cases which may occur in any location but with a low probability of occurrence.
In particular, it may not cover those cases where a potential source of interference which is
producing individually repeated transient phenomena, or continuous phenomena, is permanently
present, for example a radar or broadcast site in the near vicinity. In such a case it may be
necessary to either limit the source of interference, or use special protection applied, to the
interfered part, or both.
Note: For operation or maintenance inside Nortel Networks systems, the antistatic wrist shall
always be used to maintain the integrity of the product.
• effective use of the Radio spectrum allocated to terrestrial/space radio communication and orbital
resources so as to avoid harmful interference. The routes and standards used to demonstrate
compliance with there essential requirements are outlined in the following paragraphs.
—iBTS EMC
Compliance with the essential requirements of EMC has been demonstrated using
EN301489-1 & -23 standard
—iBTS radio compliance
Compliance with the essential requirements of effective use of the radio spectrum has been
demonstrated using EN301908-1 & -3 standard.
Nortel Networks Confidential 4
UMT/DCL/DD/0002 03.08/EN Draft September 2003 Copyright © 2000-2003 Nortel Networks
411–8111–905
—iBTS safety
Compliance with the essential requirements of Safety has been demonstrated using EN
60950 Standard.
—iBTS health protection
Compliance with the essential requirement of health requirement has been demonstrated
using EN50385.
North American regulatory requirements compliance
The Nortel Networks UMTS iBTS has been qualified according to North American market
requirements for the Outdoor, Indoor 2 and Mono versions.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• reorient or relocate the receiving antenna
• increase the separation between the equipment and receiver
• connect the equipment into an outlet on a circuit different from that to which the receiver is
connected
• consult the dealer or an experienced radio/TV technician for help
iBTS safety
Nortel Network iBTS complies with UL60950 and CAN/CSA C22.2 No. 60950-00 Safety
Standards. The CSA mark is applied on the iBTS and demonstrates compliance with both US
and Canadian Standards.
iBTS EMC and radio compliance
Nortel Network iBTS complies with 47CFR Part 15 class B and 47 CFR Part 24 for EMC and
radio emission limits according to US regulatory requirements as indicated on the regulatory label
iBTS interconnection compliance
The UMTS Univity iBTS complies with 47 CFR Part 68 of the FCC rules and the requirements
adopted by the ACTA.
On the top right of this equipment is a label that contains, among other information, a product
identifier in the following format:
•US : AB6XDNANUMTSIND for the Univity iBTS Indoor 2
•US : AB6XDNANUMTSOUT for the Univity iBTS Outdoor
•US : AB6XDNANUMTSMONO for the Univity iBTS Mono
If requested, the following information must be provided to the telephone company:
Nortel Networks Confidential 5
Copyright © 2000-2003 Nortel Networks About the Univity iBTS
• FCC Registered Number: AB6
• Facility Interface Code (FIC): 04DU9.BN, 04DU9.DN, 04DU9.1KN, and 04DU9.1SN
• Service Order Code (SOC): 6.0F
A FCC part 68 and ACTA compliant cable is provided with the Univity iBTS equipment, with no
connector at network interface side. The Univity iBTS equipment operates with a 1.544 Mbps
digital channel. See Installation Instructions for details.
If the Univity UMTS iBTS equipment causes harm to the phone network, the telephone company
will notify you in advance that temporary discontinuance of service may be required. But if
advance notice is not practical, the telephone company will notify the customer as soon as
possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is
necessary
The telephone company may make changes to its facilities, equipment, operations or procedures
that could affect the operation of the equipment. If this happens the telephone company will
provide advance notice so you can make the necessary modifications to maintain uninterrupted
services.
If trouble is experienced with Univity UMTS iBTS equipment, for repair or warranty information,
please contact Toy-Brent LoranceNortel NetworksPhone: 972-685-2270Fax: 972-684-7601Nortel
Networks 1334 Enterprise Drive, West Chester PA, 19380.
If the equipment is causing harm to the telephone network, the telephone company may request
that you disconnect the equipment until the problem is resolved.
All repairs should be handled by authorized Nortel Networks Service Personnel.
Univity iBTS data equipment
The following table shows which jacks are associated with which modes of operation.
Operation Mode USOC Jack
Programmable & Test RJ45S
Univity iBTS systems
Facility Interface Codes (FIC), Services Order Codes (SOC), USOC Jack Codes, and Ringer
Equivalence Number (REN) are shown in the table below for each port where applicable.
Port FIC SOC USOC Jack REN
CCM T1 board 04DU9.BN 6.0F N/A N/A
CCM T1 board 04DU9.DN 6.0F N/A N/A
CCM T1 board 04DU9.1KN 6.0F N/A N/A
CCM T1 board 04DU9.1SN 6.0F N/A N/A
iCCM T1 board 04DU9.BN 6.0F N/A N/A
iCCM T1 board 04DU9.DN 6.0F N/A N/A
iCCM T1 board 04DU9.1KN 6.0F N/A N/A
iCCM T1 board 04DU9.1SN 6.0F N/A N/A
iBTS RF health protection
Nortel Networks Confidential 6
UMT/DCL/DD/0002 03.08/EN Draft September 2003 Copyright © 2000-2003 Nortel Networks
411–8111–905
Compliance with the North American requirements is demonstrated through calculation according
to FCC OET bulletin 65.
Compliances for other regions/countries
For countries outside Europe and the Americas, the requirements of European countries usually
apply.
It is not possible to list all the applicable approvals / compliances as they will be dependent on the
markets and products considered.
Note: Please contact your local Nortel Networks representative for more information.
Operational conditions
The aforementioned standards compliance of the products are based on the following operating
conditions (called normal operation):
• doors shall be closed and/or covers shall be in place
• external cables shall be of the same type as specified by Nortel Networks
• no modification of any mechanical or electrical characteristics of the product shall be made
Any change or modification made to the product without written approval from Nortel Networks
releases Nortel Networks from subsequent responsibility regarding the standards compliance.
Cable specifications
The compliance to the aforementioned standards has been verified using cables as specified by
Nortel Networks. The continuing compliance of the product relies upon use of the correct cabling
scheme as well as use of identical type cables as specified by Nortel Networks. Refer to the
installation guides for details on cable specifications.
Product labeling
The label may be located inside or outside the product, provided that the operation and/or
maintenance personnel have the information when working on the product.
iBTS labeling for American Countries
To indicate compliance with the CSA and UL Safety requirements, the Nortel Networks UMTS
iBTS bears the following mark in a conspicuous location.
On the regulatory label, compliance to 47 CFR Part 15, 24 and 68 is stated along with:
• FCC ID, FCC Registration Number
Nortel Networks Confidential 7
Copyright © 2000-2003 Nortel Networks About the Univity iBTS
• Manufacturers name
• Equipment designation
• Nominal voltage operating range and maximum rated current.
iBTS labelling for European Countries
To indicate compliance with the European RTTE Directive, the Nortel Networks UMTS iBTS
bears the following information in a conspicuous location:
• Manufacturers name
• Equipment designation
• Nominal voltage operating range and maximum rated current
Labeling for other regions / countries
Labeling for other regions and countries is performed as appropriate and required by the local
regulatory framework.
Nortel Networks Confidential 8
UMT/DCL/DD/0002 03.08/EN Draft September 2003 Copyright © 2000-2003 Nortel Networks
411–8111–905
UTRAN introduction of the UMTS03 solution
The Nortel Networks UTRAN is based on:
• the Univity RNC
• the Univity iBTS
• the NAM, optionally for transmission purpose
Univity RNC
The Univity RNC is the Nortel Networks Univity UMTS RNC. It is the 3GPP-compliant UMTS RNC
developed by Nortel Networks.
The Univity RNC allows mobility between UMTS and GSM networks.
The main functions of the Univity RNC are to control and manage the following:
• the Radio Access Network (RAN)
• the signaling between the different Core Network (CN) components and the Radio Network
System (RNS)
• the Node Bs and their corresponding radio resources
The Univity RNC is connected to:
• Univity iBTSs through the Iub interface
• another Univity RNC through the Iur interface.
In fact an RNC can be connected to several other RNCs via Iur.
• the Core Network through the Iu interface
Most of the Univity RNC interfaces provide the ability to build multi-vendor solutions. The main part of
the Univity RNC is built upon the Passport technology.
The Univity RNC supports the UMTS 1900 MHz and the UMTS 2100 MHz frequencies.
Univity RNC configurations for UMTS 1900 MHz in North America
The RNC supports UMTS 1900 MHz configurations to provide the SONET/OC-3 transmission
interfaces. The SONET/OC-3 mode is supported for the Iu, Iub, Iur interfaces.
Univity RNC configurations for UMTS 2100 MHz
The RNC supports UMTS 2100 MHz configurations to provide the SDH/STM-1 transmission
interfaces. The SDH/STM-1 mode is supported for the Iu, Iub, Iur interfaces.
Univity iBTS
The Univity iBTS is the 3GPP-compliant UMTS Node B developed by Nortel Networks. The generic
term iBTS is used to designate the Univity UMTS Internet Base Transceiver Station.
The Univity iBTS supports the following functions:
• network interface management
— Iub towards the Univity RNC
— Uu towards the UE
Nortel Networks Confidential 9
Copyright © 2000-2003 Nortel Networks About the Univity iBTS
• radio access and modem (modulation/demodulation, frequency up/down-conversion,
amplification)
• call processing (channel setup and management for both common and dedicated channels, cell
management, power control, handover and measurement)
• configuration and supervision
• synchronization
• performance monitoring
NAM
The NAM improves the switching/routing capabilities of the Univity iBTS.
It provides the following features:
• Hub
The NAM can implement a hubbing function for the Node Bs. It allows to minimize the number of
T1/E1 links, between Node Bs and a RNC.
• Cell aggregation
It concentrates the traffic of different Node Bs before transmission on the Iub interface.
• Fractional E1 to achieve Drop&Insert UMTS-UMTS and GSM-UMTS.
The NAM is built on the Passport 7420 equipment.
UTRAN architecture examples of the UMTS03 solution
UTRAN architecture examples of the UMTS03 solution are shown in the following figures. They are
split into:
• UMTS 1900 MHz: for a SONET configuration
• UMTS 2100 MHz: for a SDH and a PCM configuration
Figure 1 UTRAN architecture example of the UMTS03 solution (1900 MHz —SONET)
Nortel Networks Confidential 10
UMT/DCL/DD/0002 03.08/EN Draft September 2003 Copyright © 2000-2003 Nortel Networks
411–8111–905
Figure 2 UTRAN architecture example of the UMTS03 solution (2100 MHz —SDH)
Nortel Networks Confidential 11
Copyright © 2000-2003 Nortel Networks About the Univity iBTS
Figure 3 UTRAN architecture example of the UMTS03 solution (2100 MHz —PCM)
Nortel Networks Confidential 12
UMT/DCL/DD/0002 03.08/EN Draft September 2003 Copyright © 2000-2003 Nortel Networks
411–8111–905
Univity iBTS basic characteristics
This part describing the basic characteristics of the Univity iBTS is split into the following:
• Univity iBTS introduction
• Univity iBTS key features
Nortel Networks Confidential 13
Copyright © 2000-2003 Nortel Networks About the Univity iBTS
Univity iBTS introduction
A NodeB supports Frequency Division Duplex (FDD) mode, Time Division Duplex (TDD) mode or
dual-mode operation.
The 3GPP-compliant UMTS base station developed by Nortel Networks is named Univity iBTS. The
Univity iBTS supports only the FDD mode and it provides Outdoor and indoor deployment to cover
different customer requirements.
This section provides an overview of Nortel Network Univity iBTS.
The Univity iBTS is responsible for radio transmission/reception in one or more cells to/from the UE
(User Equipment).
The iBTS provides:
• the means of communication between a User Equipment (UE) and a network via Transport
Channels
• physical layer channels which are necessary to synchronize the downlink and also to perform cell
selection/reselection and hand over preparation
• measurement information to the Univity RNC for radio resource management (hand over, power
control)
The Univity iBTS provides up to eight E1/T1 with IMA (Inversion Multiplexing ATM) or to Drop and
Insert a fractional E1/T1.
Univity iBTS interfaces
The iBTS provides the following interfaces:
• Uu interface (UMTS User interface): this interface is used between the iBTS (internet Base
Transceiver Station) and the UE (User Equipment). It is dependent on the technology used on
the radio (for example, it can be W-CDMA or TD/CDMA)
• Iub interface (Interface UMTS iBTS): this interface lies between the Univity RNC and the iBTS. It
allows to connect Univity RNCs (internet Radio Network Controller).
Univity iBTS cabinets
Nortel Networks provides the following iBTS cabinet types:
• Univity iBTS Outdoor 2100
The iBTS Outdoor 2100 is a single cabinet closed by two doors.
The iBTS Outdoor 2100 is designed to optimize deployment in rural area, suburban area, urban
area, highway, and rooftop.
• Univity iBTS Outdoor 1900
The iBTS Outdoor 1900 is a single cabinet closed by two doors.
The iBTS Outdoor 1900 is only the 1900 MHz version of the Univity iBTS Outdoor, which makes
it compatible with the North-American standard.
• Univity iBTSs Indoor 2100
The Univity iBTS Indoor is a single 600mm-wide cabinet (Univity iBTS Indoor 600) or a single
700mm-wide cabinet (Univity iBTS Indoor 700) closed by two doors. It is installed inside if an air
Nortel Networks Confidential 14
UMT/DCL/DD/0002 03.08/EN Draft September 2003 Copyright © 2000-2003 Nortel Networks
411–8111–905
exchanger is provided.
The Univity iBTS Indoor 2100 is also designed to optimize deployment in rural area, sub-urban
area, urban area, highway, and rooftop.
• Univity iBTS Street 2100
The Univity iBTS Street 2100 is a single cabinet closed by two doors.
The Univity iBTS Street 2100 is designed to optimize deployment in city, urban, and sub-urban
areas: city street corner, public sidewalks, parking areas, and motorways.
• Univity iBTS Indoor 2 2100
The Univity iBTS Indoor 2 2100 is a single cabinet closed by one door. It is designed for ease of
manufacture, transportation, installation, system assembly, repair and testing.
The iBTS Indoor 2 2100 is installed inside if an air exchanger is provided.
The iBTS Indoor 2 2100 is an evolution of iBTS Indoor 600 to improve mechanical, acoustic
performances, and the cost reduction on the equipment.
• Univity iBTS Indoor 2 1900
The Univity iBTS Indoor 2 1900 is a single cabinet closed by one door. It is designed for ease of
manufacture, transportation, installation, system assembly, repair and testing.
The iBTS Indoor 2 1900 is installed inside if an air exchanger is provided.
The Univity iBTS Indoor 2 1900 is a new version of the Univity iBTS Indoor 2 2100, which makes
it compatible with the North-American standard. There is no specific evolution, excepted the
support of the module needed for the 1900 MHz frequency.
The Univity iBTS Indoor 2 1900 is deployed in North-American countries.
• Univity iBTS Mono 2100
the Univity iBTS Mono 2100 is a single cabinet closed by one door.
The Univity iBTS Mono 2100 is designed to be installed on walls or poles. It is also designed to
provide minimum visual impact while maintaining the highest Radio Frequency (RF) performance
for a mono carrier UMTS product. Its compact dimensions allow easy and flexible installation in
outdoor areas.
• Univity iBTS Mono 1900
The Univity iBTS Mono 1900 is a new version of the Univity iBTS Mono 2100, which makes it
compatible with the North-American standard. There is no specific evolution, excepted the
support of the module needed for the 1900 MHz frequency.
The Univity iBTS Mono 1900 is deployed in North-American countries.
• Univity iBTS Indoor 1900 Compact
the Univity iBTS Indoor 1900 Compact is a single cabinet closed by one door.
The Univity iBTS Compact provides the an attractive solution for restricted site space, particularly
in urban and sub-urban environments. It can fit in standard racks or even on tabletops.
The Univity iBTS Indoor 1900 Compact is only developed for US market.
The Macro iBTS term is used to indicate the set of iBTS cabinets (Univity iBTS Outdoor, Univity iBTS
Nortel Networks Confidential 15
Copyright © 2000-2003 Nortel Networks About the Univity iBTS
Indoor 700, Univity iBTS Indoor 600, and Univity iBTS Indoor 2).
The Macro iBTS is modular in design for easy network growth and flexibility, to manage diverse
traffic demands. Common modules are used to grow the iBTS to increase capacity as required. The
increase in capacity is provided via the simple addition of modules, as opposed to the addition entire
of cabinets.
The following table lists the Univity iBTS cabinets according to the UMTS standard (UMTS 2100 and
UMTS 1900).

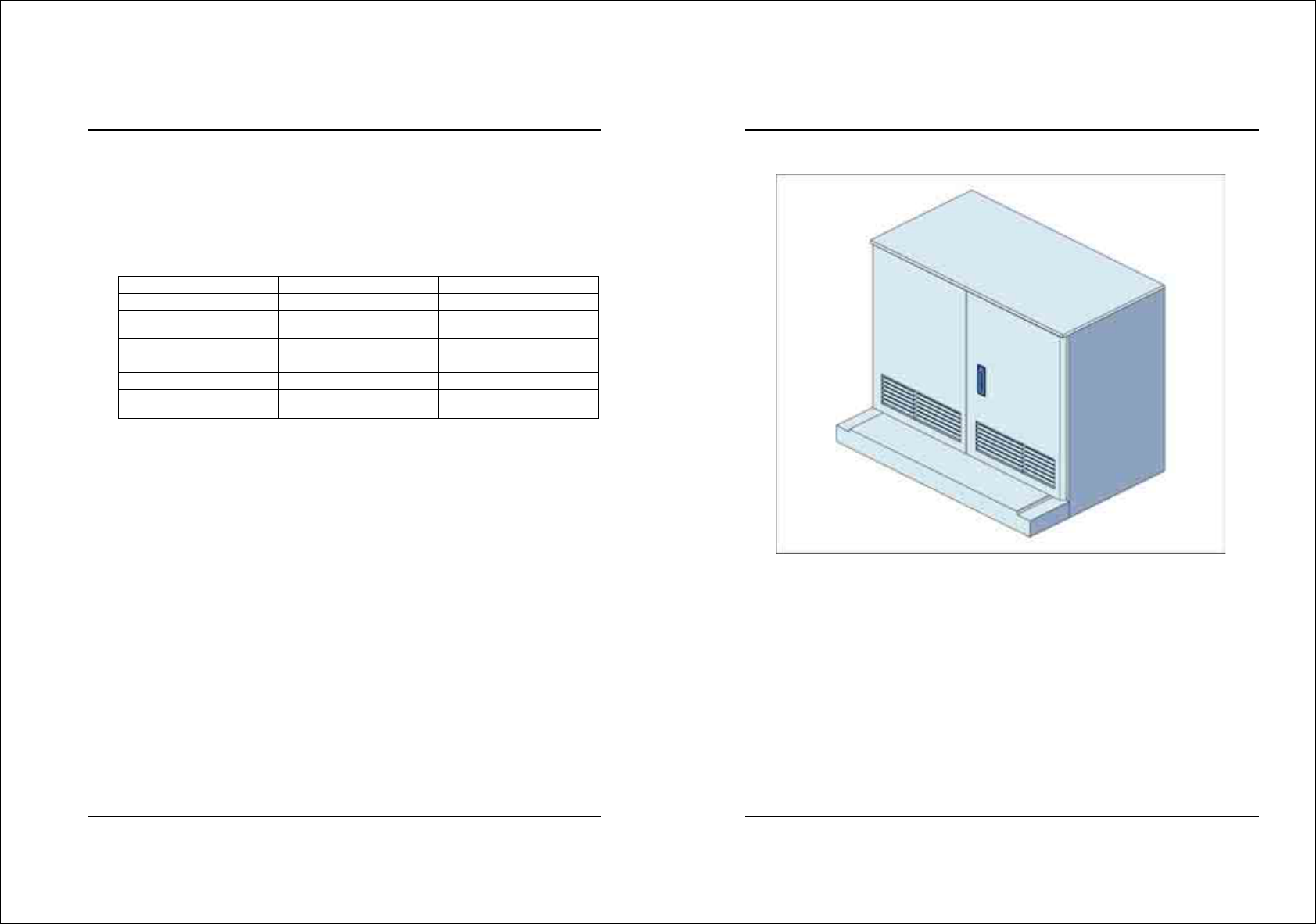

Table 1 Univity iBTS cabinets
Types UMTS 2100 UMTS 1900
Univity iBTS Outdoor X X
Univity iBTS Indoor 2100
(600/700) X NA
Univity iBTS Indoor 2 X X
Univity iBTS Mono X X
Univity iBTS Street 2100 X NA
Univity iBTS Indoor 1900 Com-
pact NA X
The following figure shows the iBTS types provide by Nortel Networks:
Nortel Networks Confidential 16
UMT/DCL/DD/0002 03.08/EN Draft September 2003 Copyright © 2000-2003 Nortel Networks
411–8111–905
Figure 4 Univity iBTS Outdoor outside view
Nortel Networks Confidential 17
Copyright © 2000-2003 Nortel Networks About the Univity iBTS
Figure 5 Univity iBTS Indoor 2100 outside view
Nortel Networks Confidential 18
UMT/DCL/DD/0002 03.08/EN Draft September 2003 Copyright © 2000-2003 Nortel Networks
411–8111–905
Figure 6 Univity iBTS Street 2100 outside view
Nortel Networks Confidential 19
Copyright © 2000-2003 Nortel Networks About the Univity iBTS
Figure 7 Univity iBTS Indoor 2 outside view
Nortel Networks Confidential 20
UMT/DCL/DD/0002 03.08/EN Draft September 2003 Copyright © 2000-2003 Nortel Networks
411–8111–905
Figure 8 Univity iBTS Mono outside view
Nortel Networks Confidential 21
Copyright © 2000-2003 Nortel Networks About the Univity iBTS
Figure 9 Univity iBTS Indoor 1900 Compact outside view
Univity iBTS modules
In the first generation, Nortel Networks delivers the modules-alpha. These modules are supported by
all the iBTSs (Macro iBTS, Univity iBTS Mono, Univity iBTS Indoor 1900 Compact, and Univity iBTS
Street 2100).
In the second generation (UMTS03 system release), Nortel Networks delivers the iModules (called
also modules-beta). These modules are supported by all the iBTSs (Macro iBTS, Univity iBTS Mono,
Univity iBTS Indoor 1900 Compact, and Univity iBTS Street 2100) and are compatible with existing
ones. These new modules are transparent to you as they do not provide a capacity change (except
for the iCEM).
Nortel Networks Confidential 22
UMT/DCL/DD/0002 03.08/EN Draft September 2003 Copyright © 2000-2003 Nortel Networks
411–8111–905
Univity iBTS key features
This section describes the general features of the iBTS.
iBTS features
The iBTS includes the following features:
• outdoor operation
• indoor operation
• ac operation (iBTS Outdoor, iBTS Street, and iBTS Indoor 700) or dc operation (iBTS Indoor 600,
iBTS Indoor 2, iBTS Mono, and iBTS Indoor 1900 Compact)
• digital system support of up to three carriers
• front access only
• plug and play
• PCM internal protection
• multiple CEM
• multiple PCM
• no need for an extra site cabinet for user space and batteries
• best-in-class in term of volume and size
• easy installation and commissioning
• maintenance facilities: modular design, hardware and software diagnostics for fault isolation
mechanism and fast reconfiguration
• most commonly shared modules between the iBTS different types
• software upgrade with minimum service downtime
• a flexible product: possible growth from low to high capacity without any additional cabinets
• drop and insert
• STSR1 configuration
• STSR2 configuration
• OTSR1 configuration
• OTOR1 configuration
• Network Access Module (NAM)
• iCEM, iCCM, and iTRM modules
• iCCM redundancy
Nortel Networks Confidential 23
Copyright © 2000-2003 Nortel Networks About the Univity iBTS
Univity iBTS mechanical characteristics
This section details the characteristics (frequency bands, physical, electrical, thermal and acoustic) of
the iBTS cabinet types.
Univity iBTS Outdoor
The characteristics of the Univity iBTS Outdoor are the following:
• frequency bands 2100 MHz:
— 21102170 MHz for downlink
— 19201980 MHz for uplink
• frequency bands 1900 MHz:
— 19301990 MHz for downlink
— 18501910 MHz for uplink
• optimized size versus capacity ratio:
— footprint: 0.95 m²
— cabinet size is the following:
– width (W): 1350 mm
– depth (D): 700 mm
– height (H): 1300 mm
— Volume: 1240 l
• ac Power:
— Single/Split: 20 A/phase
— three phase: 10 A/phase (balanced)
• operation Temperature Range: -40 to +50 degree Celsius
• weight:
— fully equipped: 520 kg
— empty: 180 kg
• acoustic: about 44 dBA at 5 feet
Univity iBTS Indoor 600
The characteristics of the Univity iBTS Indoor 600 are the following:
• frequency bands 2100 MHz:
— 21102170 MHz for downlink
— 19201980 MHz for uplink
• optimized size versus capacity ratio:
— footprint: 0.615 m²
— cabinet size is the following:
Nortel Networks Confidential 24
UMT/DCL/DD/0002 03.08/EN Draft September 2003 Copyright © 2000-2003 Nortel Networks
411–8111–905
– width (W): 600 mm
– depth (D): 600 mm
– height (H): 1600 mm
— volume: 576 L
• dc Power: -48 V dc
• operation Temperature Range: -5 to +50 degree Celsius
• weight:
— fully equipped: 560 kg
— empty: 105 kg
Univity iBTS Indoor 700 without ac Power Plinth
The characteristics of the Univity iBTS Indoor 700 are the following:
• frequency bands 2100 MHz:
— 21102170 MHz for downlink
— 19201980 MHz for uplink
• Optimized size versus capacity ratio:
— footprint: 0.7525 m²
— cabinet size is the following:
– width (W): 700 mm
– depth (D): 600 mm
– height (H): 1600 mm
— volume: 672 l
• dc Power: -48 V dc
• operation Temperature Range: -5 to +50 degree Celsius
• weight:
— fully equipped: 325.5 kg
— empty: 128.5 kg
Univity iBTS Indoor 700 with ac power plinth
The characteristics of the Univity iBTS Indoor 700 with ac Power Plinth are the following:
• frequency bands 2100 MHz:
— 21102170 MHz for downlink
— 19201980 MHz for uplink
• optimized size versus capacity ratio:
— footprint: 0.7525 m²
Nortel Networks Confidential 25
Copyright © 2000-2003 Nortel Networks About the Univity iBTS
— cabinet size is the following:
– Width (W): 700 mm
– Depth (D): 600 mm
– Height (H): 2000 mm
— Volume: 672 l
• dc Power: -5 V dc and +24 V dc
• ac Power:
— Single/Split: 20 A/phase
— three phase: 10 A/phase (balanced)
• operation Temperature Range: -5 to +50 degree Celsius
• weight:
— fully equipped: 513.5 kg
— empty: 128.5 kg
— ac Plinth: 170 kg
Univity iBTS Street 2100
The characteristics of the Univity iBTS Street are the following:
• frequency bands 2100 MHz:
— 21102170 MHz for downlink
— 19201980 MHz for uplink
• optimized size versus capacity ratio:
— footprint: 0.52 m²
— cabinet size is the following:
– width (W): 1480 mm
– depth (D): 350 mm
– height (H): 1500 mm
— volume: 761.25 l
• ac power is following:
— Single/Split: 120/240 V ac
— three phase: 120/208 V ac or 240/416 V ac
• operation Temperature Range: -40 to +45 degree Celsius
• weight:
— fully equipped: 323 kg
— empty: 180 kg
• acoustic: about 47 dBA between -20 and +40 degree Celsius
Nortel Networks Confidential 26
UMT/DCL/DD/0002 03.08/EN Draft September 2003 Copyright © 2000-2003 Nortel Networks
411–8111–905
Univity iBTS Indoor 2
The characteristics of the Univity iBTS Indoor 2 are the following:
• frequency bands 2100 MHz:
— 21102170 MHz for downlink
— 19201980 MHz for uplink
• frequency bands 1900 MHz:
— 19301990 MHz for downlink
— 18501910 MHz for uplink
• optimized size versus capacity ratio:
— cabinet size is the following:
– width (W): 600 mm
– depth (D): 600 mm
– height (H): 1650 mm
— volume: 594 L
• dc Power: -48 V dc (2100)
• dc Power: + 24 V dc (1900)
• operation Temperature Range: -5 to +70 degree Celsius
• weight:
— empty: 140 kg
Univity iBTS Mono
The characteristics of the Univity iBTS Mono are the following:
• frequency bands 2100 MHz:
— 21102170 MHz for downlink
— 19201980 MHz for uplink
• frequency bands 1900 MHz:
— 19301990 MHz for downlink
— 18501910 MHz for uplink
• optimized size versus capacity ratio:
— cabinet size is the following:
– width (W): 450 mm
– depth (D): 570 mm
– height (H): 650 mm
— volume: 167 L
• dc power: -48 V dc
Nortel Networks Confidential 27
Copyright © 2000-2003 Nortel Networks About the Univity iBTS
• single phase: 220 V ac
• operation Temperature Range: -20 to +45 degree Celsius
• weight < 90 kg
• single configuration: 1 sector and 1 carrier
• receive diversity
The iBTS Mono does not support the following:
• external alarms
• battery backup
• CCM redundancy
• Tx diversity
• +24Vdc
The iBTS Mono supports the following options:
• Tower Mounted Amplifiers (TMA)
• Lightening protection
• Fractional E1/T1 which is shared with GSM BTS
Univity iBTS Indoor 1900 Compact
The characteristics of the Univity iBTS Indoor 1900 Compact are the following:
• frequency bands 1900 MHz:
— 19301990 MHz for downlink
— 18501910 MHz for uplink
• optimized size versus capacity ratio:
— cabinet size is the following:
– width (W): 483 mm
– depth (D): 650 mm
– height (H): 900 mm
— volume: 282 L
• dc power: -48 V dc
• single/split phase: 120/240 V ac
• operation Temperature Range: -5 to +45 degree Celsius
• weight < 63kg
• the configurations supported are the following:
— O1 configuration
— OTSR1 configuration with MCPAs 45W
— STSR1/STSR2 configuration with MCPAs 45W
Nortel Networks Confidential 28
UMT/DCL/DD/0002 03.08/EN Draft September 2003 Copyright © 2000-2003 Nortel Networks
411–8111–905
• receive diversity
The Univity iBTS Indoor 1900 Compact does not support the following:
• external or internal battery
• O2 configuration
• CCM redundancy
• Tx diversity
The Univity iBTS Indoor 1900 Compact supports the following options:
• Tower Mounted Amplifiers (TMA)
• Lightening protection
• Fractional E1/T1 which is shared with GSM BTS
• +24 Vdc
Nortel Networks Confidential 29
Copyright © 2000-2003 Nortel Networks About the Univity iBTS
