Solution & Interoperability Test Lab Application Notes

1 of 12

Jabra_14201_32

Avaya Solution & Interoperability Test Lab

Application Notes for Configuring GN Netcom Jabra Link

14201-32 EHS Headset Adapter with Avaya 1100 Series IP

Deskphones – Issue 1.0

Abstract

These Application Notes describe a solution comprised of Avaya 1100 Series IP Deskphones

and GN Netcom’s Jabra Link 14201-32 EHS Headset Adapter.

Information in these Application Notes has been obtained through DevConnect compliance

testing and additional technical discussions. Testing was conducted via the DevConnect

Program at the Avaya Solution and Interoperability Test Lab.

KP; Reviewed;

SPOC 4/3/2012

Solution & Interoperability Test Lab Application Notes

2 of 12

Jabra_14201_32

1. Introduction

These Application Notes describe the configuration steps required for GN Netcom Jabra PRO

900, PRO 9400 and GO 6400 series wireless headset attached to Jabra LINK 14201-32 EHS

adapter to successfully interoperate with Avaya 1100 Series IP Deskphones. The Avaya 1100

Series IP Deskphones used for compliance test are 1120E, 1140E, 1150E and 1165E which have

a USB headset port.

The GN Netcom Jabra PRO 920, PRO 9400 and GO 6400 series are wireless headsets for use in

an office environment and away from the desk. It uses the electronic hook-switch (EHS) adapter

LINK 14201-32 attached to the Avaya 1100 Series IP Deskphones. The base connects to the

headset via DECT technology. The GN Netcom Jabra PRO 920, PRO 9470 and GO 6470

wireless headset models were used for the compliance test and support desk phone, PC soft

phone and Mobile phone.

2. General Test Approach and Test Results

The compliance testing of Jabra LINK 14201-32 EHS adapter interoperating with 1100 Series IP

Deskphones was manually performed. No performance testing was done and the test listed in the

Section 2.1 was executed and verified.

2.1. Interoperability Compliance Testing

The compliance testing included the following test scenarios listed below.

 Verification of two-way audio path for local and PSTN calls.

 Verification of the wireless headset’s mute button.

 Verification of the wireless headset’s volume control.

 Verification of the wireless headset’s Multi Function button (MFB) for answering and

terminating call remotely.

 Verification of the 14201-32 adapter’s ability to recover from interruption to the Avaya

IP phone.

 Verification of the 14201-32 adapter’s ability to recover from interruption of headset

interface, and those active calls are preserved after reconnection.

Avaya’s formal testing and Declaration of Conformity is provided only on the headsets/handsets

that carry the Avaya brand or logo. Avaya may conduct testing of non-Avaya headset/handset to

determine interoperability with Avaya phones. However, Avaya does not conduct the testing of

non-Avaya headsets/handsets for: Acoustic Pressure, Safety, Hearing Aid Compliance, EMC

regulations, or any other tests to ensure conformity with safety, audio quality, long-term

reliability or any regulation requirements. As a result, Avaya makes no representations whether a

particular non-Avaya headset will work with Avaya’s telephones or with a different generation

of the same Avaya telephone.

KP; Reviewed;

SPOC 4/3/2012

Solution & Interoperability Test Lab Application Notes

3 of 12

Jabra_14201_32

Since there is no industry standard for handset interfaces, different manufacturers utilize

different handset/headset interfaces with their telephones. Therefore, any claim made by a

headset vendor that its product is compatible with Avaya telephones does not equate to a

guarantee that the headset will provide adequate safety protection or audio quality.

2.2. Test Results

The objectives outlined in the Section 2.1 were verified. All test cases were passed with

following observation:

 When disconnecting the USB cable of the LINK 14201-32 adapter from the 1150E IP

Deskphone, during a call, the current call is dropped. This is expected behavior due as the

1150E model only supports headset and doesn’t support handset. This issue was not

observed on the 1120E, 1140E and 1165E models which support both headset and

handset.

2.3. Support

For technical support for the Jabra 14201-32 adapter, and Jabra products in general, please refer

to www.jabra.com. On the Jabra website, the support hotline numbers to specific country will be

found.

KP; Reviewed;

SPOC 4/3/2012

Solution & Interoperability Test Lab Application Notes

4 of 12

Jabra_14201_32

3. Reference Configuration

Figure 1 illustrates the test configuration used during the compliance testing between the 1100

Series IP Deskphone and the Jabra LINK 14201-32 EHS Adapter.

Figure 1: Reference Configuration Diagram

KP; Reviewed;

SPOC 4/3/2012

Solution & Interoperability Test Lab Application Notes

5 of 12

Jabra_14201_32

4. Equipment and Software Validated

The following equipment and software was used during the lab testing:

Equipment

Software Version

Avaya Communication Server 1000E

Call Server (CPPM): 7.50 Q

Signaling Server (CPPM): 7.50 Q

With Deplist 1

Avaya IP 1120E

Avaya IP 1140E

Avaya IP 1150E

Avaya IP 1165E

0624C8J

0625C8J

0627C8J

0626C8J

Avaya IP 2004

0602B76

Avaya IP Soft phone 2050

3.4

Jabra GO 6470 Wireless Headset

4.5.17

Jabra PRO 9470 Wireless Headset

2.1.7.5

Jabra PRO 920 Wireless Headset

Jabra LINK 14201-32 EHS Adapter

5. Configure Avaya Communication Server 1000

These Application Notes assume that Communication Server 1000 is configured and operational.

There are no additional settings required to be configured for the connection of the Jabra wireless

headset and Jabra LINK 32 cable adapter to the Avaya telephones. The compliance tests with the

Jabra 14201-32 adapter were carried out with the default server settings for audio parameters.

This section describes the step to provision the 1100 Series IP Deskphones in Call Server via

overlay command. For detailed information on how to configure and administer the

Communication Server 1000, please refer to Section 10.

KP; Reviewed;

SPOC 4/3/2012

Solution & Interoperability Test Lab Application Notes

6 of 12

Jabra_14201_32

Use the overlay command LD 11 to add a new extension for IP phone in the Call Server as

shown in figure below. Enter the type of IP deskphone in the Type field, TN number in the TN

field, a name in the DES field, customer ID in the CUS field, zone number in Zone field, an

extension in the KEY 0 and keep other fields as default. When prompted to input another key,

press Enter on the keyboard to complete creating the new extension.

Figure 2: Sample of Adding extension in Call Server

KP; Reviewed;

SPOC 4/3/2012

Solution & Interoperability Test Lab Application Notes

7 of 12

Jabra_14201_32

6. Configure Avaya 1100 Series IP Deskphone

This section shows how to configure an 1100 Series IP Deskphone to work with a USB headset.

For more information on how to configure an 1100 Series IP Deskphone please refer to Section

10.

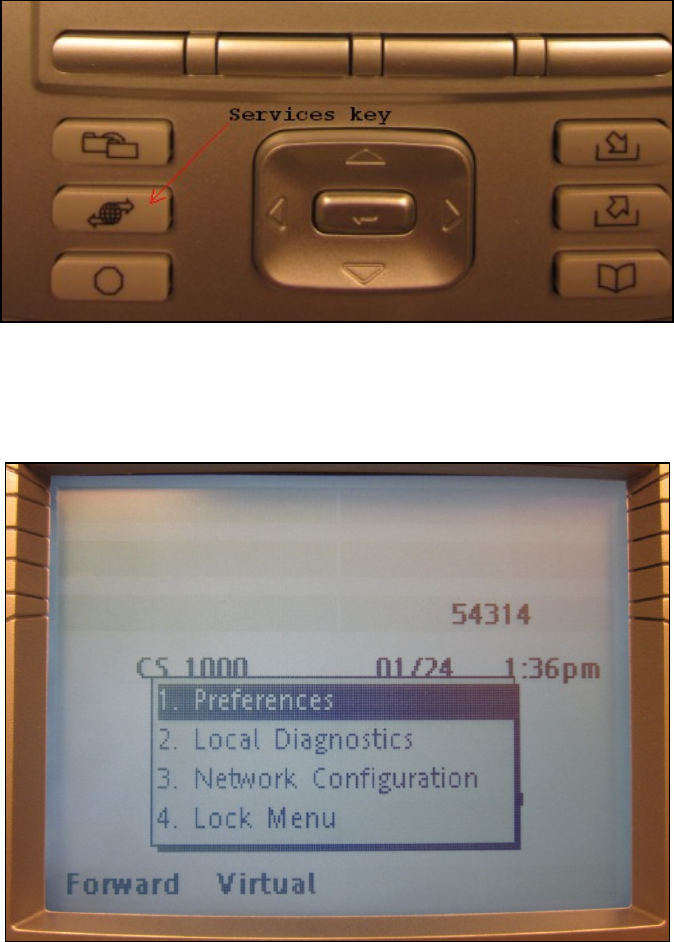

Press the Services key twice quickly and successively on the 1100 Series IP Deskphone.

Figure 3: Services key of 1100 Series IP Deskphone

The Services menu displays, select Preferences.

Figure 4: Services Menu

KP; Reviewed;

SPOC 4/3/2012

Solution & Interoperability Test Lab Application Notes

8 of 12

Jabra_14201_32

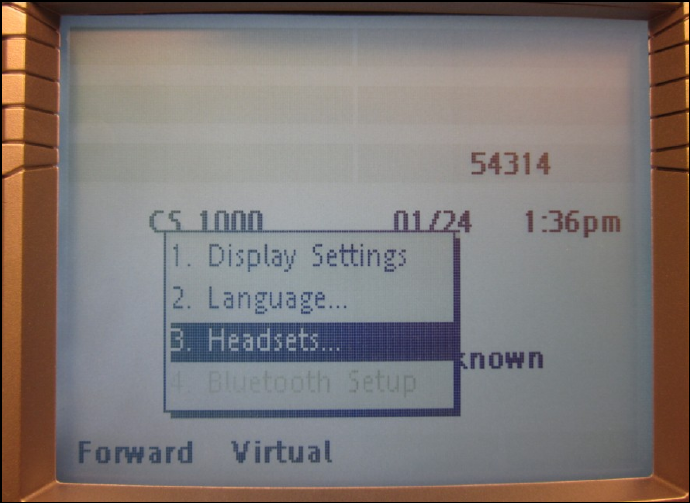

The Preferences menu displays, select Headsets.

Figure 5: Preference Menu

KP; Reviewed;

SPOC 4/3/2012

Solution & Interoperability Test Lab Application Notes

9 of 12

Jabra_14201_32

The Headsets setting displays, in Active Headset Device menu select USB and keep other fields

at default.

Figure 6: Headset Settings

7. Configure Jabra LINK 14201-32 EHS Adapter

During the compliance test, the Jabra LINK 14201-32 headset adapter was used for the

connection of the Jabra PRO 9470, PRO 920 and GO 6470 headsets to the 1100 Series IP

Deskphones.

7.1. Settings

Connect the 1100 Series IP Deskphone to a network that is able to register to a Communication

Server 1000 system.

Follow the manual guide that is included with the headset to set the PRO 9470, PRO 920 and GO

6740 headset base unit to DHSG mode and set “Clear dial tone switch” to “A” position, for

more information please refer to headset manual.

7.2. Cable Setup

Plug the USB cable of the LINK 14201-32 adapter into the 1100 Series IP Deskphone. At the

other end of the LINK 32 cable, there are two RJ11 plugs, connect the AUX plug marked with a

KP; Reviewed;

SPOC 4/3/2012

Solution & Interoperability Test Lab Application Notes

10 of 12

Jabra_14201_32

red collar to the AUX socket and the telephony plug marked with a blue collar to the telephony

socket on base unit of wireless headset.

8. Verification Steps

 Pick up and put the wireless headset on. The light on headset key of the 1100 Series IP

Deskphone should now be ON, the status on the LCD screen (PRO 9470 and GO 6470

have LCD screen) of the headset base unit should change from on-hook to off-hook, and

the dial tone should be heard on the wireless headset.

 From the 1100 Series IP Deskphone coupled with the LINK 14201-32 adapter and

headset, dial an extension of another Avaya IP Deskphone and answer the call on that

phone.

 Check audio path on the wireless headset and the handset of the other phone is

established.

 End the call above by pressing the Multifunction button on the wireless headset. The

LED of the headset button on the 1100 Series IP Deskphone should be OFF and the status

on LCD screen should change from off-hook to on-hook.

9. Conclusion

These Application Notes describe the configuration steps required for GN Netcom Jabra PRO

900, PRO 9400, GO 6470 series wireless headset attached to GN Netcom Jabra LINK 14201-32

EHS Adapter to successfully interoperate with Avaya 1100 Series IP Deskphones. All of the

executed test cases passed and met the objectives outlined in the Section 2.1, with test results

and observation outlined in Section 2.2. The GN Netcom Jabra Link 14201-32 EHS Adapter is

considered to be in compliance with Avaya 1100 Series IP Deskphone.

10. Additional References

Product documentation for the Avaya Communication Server 1000 products may be found at:

https://support.avaya.com/css/Products/

[1] Avaya Communication Server 1000 Documents:

Avaya Communication Installation and Commissioning, Doc# NN43041-310, Issue

05.04, Date May 2011.

Avaya Communication Server 1000 Unified Communications Management Common

Services Fundamentals, Doc # NN43001-116, Issue 05.11, Date June 2011.

Avaya Communication Server 1000 Co-resident Call Server and Signaling Server

Fundamentals, Doc # NN43001-509, Issue 03.02, Date June 2011.

Avaya Communication Server 1000 Element Manager System Reference -

Administration, Doc# NN43001-632, Issue 05.09, Date July 2011.

Avaya Communication Server 1000 IP Deskphones Fundamentals, Release 7.5, Doc #

NN43001-368, Issue 07.10, Date Jan 2012

Avaya Communication Server 1000 IP Deskphones Fundamentals, Doc# NN43001-

368, Issue 07.12, Date Sept 2011.

KP; Reviewed;

SPOC 4/3/2012

Solution & Interoperability Test Lab Application Notes

11 of 12

Jabra_14201_32

Product documentation for GN Netcom Jabra LINK 14201-20 EHS adapter product may be

found at: http:// www.jabra.com

[2] Jabra Headset PRO 9400 Series Documents:

Jabra PRO 920, PRO 9470, and GO 6470 Quick Start Guide
