Avaya 1140E IP Deskphone
with SIP Software User
Guide
Avaya Communication Server 1000
Document Status: Standard
Document Version: 06.04
Part Code: NN43113-101
Date: October 2010
© 2010 Avaya Inc. All Rights Reserved.
Notices
While reasonable efforts have been made to ensure that the information in this document is complete and accurate at the time of
printing, Avaya assumes no liability for any errors. Avaya reserves the right to make changes and corrections to the information
in this document without the obligation to notify any person or organization of such changes.
Documentation disclaimer
Avaya shall not be responsible for any modifications, additions, or deletions to the original published version of this
documentation unless such modifications, additions, or deletions were performed by Avaya. End User agree to indemnify and
hold harmless Avaya, Avaya’s agents, servants and employees against all claims, lawsuits, demands and judgments arising out
of, or in connection with, subsequent modifications, additions or deletions to this documentation, to the extent made by End
User.
Link disclaimer
Avaya is not responsible for the contents or reliability of any linked Web sites referenced within this site or documentation(s)
provided by Avaya. Avaya is not responsible for the accuracy of any information, statement or content provided on these sites
and does not necessarily endorse the products, services, or information described or offered within them. Avaya does not
guarantee that these links will work all the time and has no control over the availability of the linked pages.
Warranty
Avaya provides a limited warranty on this product. Refer to your sales agreement to establish the terms of the limited warranty.
In addition, Avaya’s standard warranty language, as well as information regarding support for this product, while under
warranty, is available to Avaya customers and other parties through the Avaya Support Web site: http://www.avaya.com/
support
Please note that if you acquired the product from an authorized reseller, the warranty is provided to you by said reseller and not
by Avaya.
Licenses
THE SOFTWARE LICENSE TERMS AVAILABLE ON THE AVAYA WEBSITE, HTTP://SUPPORT.AVAYA.COM/
LICENSEINFO/ ARE APPLICABLE TO ANYONE WHO DOWNLOADS, USES AND/OR INSTALLS AVAYA
SOFTWARE, PURCHASED FROM AVAYA INC., ANY AVAYA AFFILIATE, OR AN AUTHORIZED AVAYA RESELLER
(AS APPLICABLE) UNDER A COMMERCIAL AGREEMENT WITH AVAYA OR AN AUTHORIZED AVAYA
RESELLER. UNLESS OTHERWISE AGREED TO BY AVAYA IN WRITING, AVAYA DOES NOT EXTEND THIS
LICENSE IF THE SOFTWARE WAS OBTAINED FROM ANYONE OTHER THAN AVAYA, AN AVAYA AFFILIATE OR
AN AVAYA AUTHORIZED RESELLER, AND AVAYA RESERVES THE RIGHT TO TAKE LEGAL ACTION AGAINST
YOU AND ANYONE ELSE USING OR SELLING THE SOFTWARE WITHOUT A LICENSE. BY INSTALLING,
DOWNLOADING OR USING THE SOFTWARE, OR AUTHORIZING OTHERS TO DO SO, YOU, ON BEHALF OF
YOURSELF AND THE ENTITY FOR WHOM YOU ARE INSTALLING, DOWNLOADING OR USING THE SOFTWARE
(HEREINAFTER REFERRED TO INTERCHANGEABLY AS "YOU" AND "END USER"), AGREE TO THESE TERMS
AND CONDITIONS AND CREATE A BINDING CONTRACT BETWEEN YOU AND AVAYA INC. OR THE
APPLICA BLE AVAYA AF FILI ATE ("AVAYA").
Copyright
Except where expressly stated otherwise, no use should be made of the Documentation(s) and Product(s) provided by Avaya.
All content in this documentation(s) and the product(s) provided by Avaya including the selection, arrangement and design of
the content is owned either by Avaya or its licensors and is protected by copyright and other intellectual property laws
including the sui generis rights relating to the protection of databases. You may not modify, copy, reproduce, republish, upload,
post, transmit or distribute in any way any content, in whole or in part, including any code and software. Unauthorized
reproduction, transmission, dissemination, storage, and or use without the express written consent of Avaya can be a criminal,
as well as a civil offense under the applicable law.
Third Party Components
Certain software programs or portions thereof included in the Product may contain software distributed under third party
agreements ("Third Party Components"), which may contain terms that expand or limit rights to use certain portions of the
Product ("Third Party Terms"). Information regarding distributed Linux OS source code (for those Products that have
distributed the Linux OS source code), and identifying the copyright holders of the Third Party Components and the Third
Party Terms that apply to them is available on the Avaya Support Web site: http://support.avaya.com/Copyright.
Trademarks
The trademarks, logos and service marks ("Marks") displayed in this site, the documentation(s) and product(s) provided by
Avaya are the registered or unregistered Marks of Avaya, its affiliates, or other third parties. Users are not permitted to use
such Marks without prior written consent from Avaya or such third party which may own the Mark. Nothing contained in this
site, the documentation(s) and product(s) should be construed as granting, by implication, estoppel, or otherwise, any license
or right in and to the Marks without the express written permission of Avaya or the applicable third party. Avaya is a registered
trademark of Avaya Inc. All non-Avaya trademarks are the property of their respective owners.
Downloading documents
For the most current versions of documentation, see the Avaya Support. Web site: http://www.avaya.com/support
Contact Avaya Support
Avaya provides a telephone number for you to use to report problems or to ask questions about your product. The support
telephone number is 1-800-242-2121 in the United States. For additional support telephone numbers, see the Avaya Web site:
http://www.avaya.com/support
Revision history
3
Revision history
October 2010
Standard 06.04. This document is up-issued to include changes
related to rebranding.
September 2010
Standard 06.03. This document is up-issued to include
information about the Multi-Level Precedence and Preemption
service.
August 2010
Standard 06.01. This document is up-issued to support SIP
Software Release 3.2.
March 2010
Standard 05.01. This document is up-issued to support SIP
Software for Release 3.0.
July 2009
Standard 04.01. This document is up-issued to support SIP
Firmware for IP Phone 1140E Release 2.2.
September 2008
Standard 03.09. This document is up-issued to support
corrections to graphics and technical information.
June 2008
Standard 03.08. This document is up-issued to support SIP
Firmware for IP Phone 1140E Release 2.0
July 2007
Standard 02.03. This document is up-issued to support SIP
Firmware for IP Phone 1140E Maintenance Release 1.1.
Revision history
4
January 2007
Standard 01.02
Contents
5
Contents
Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Basic features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
IP Deskphone controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Avaya 1140E IP Deskphone display . . . . . . . . . . . . . . . . . . . 24
Cleaning the IP Deskphone
LCD display screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Context-sensitive soft keys . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Idle display screen after dial pad input . . . . . . . . . . . . . . 32
In-call context-sensitive soft keys . . . . . . . . . . . . . . . . . . . 33
Navigation keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Using a USB Mouse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Available Avaya 1140E IP Deskphone
call features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Security features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Secure connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Regulatory and safety information . . . . . . . . . . . . . . . . . . . 49
Other . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
DenAn regulatory notice for Japan . . . . . . . . . . . . . . . . . . . . . 52
Using your IP Deskphone . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Before you begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Connecting the components . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Removing the stand cover . . . . . . . . . . . . . . . . . . . . . . . . 56
Connecting the AC power adapter (optional) . . . . . . . . . . 57
Connecting the handset . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Connecting the headset (optional) . . . . . . . . . . . . . . . . . . 59
Selecting the headset tuning parameter . . . . . . . . . . . . . 59
Contents
6
Connecting the LAN ethernet cable . . . . . . . . . . . . . . . . . 60
Installing additional cables . . . . . . . . . . . . . . . . . . . . . . . . 61
Wall-mounting the IP Deskphone (optional) . . . . . . . . . . . 61
Entering text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Entering text using the IP Deskphone dialpad . . . . . . . . . 65
Enabling and disabling the # Ends Dialing feature . . . . . . 67
Configuring the dialpad to alphanumeric dialing . . . . . . . 69
Entering text using the USB keyboard . . . . . . . . . . . . . . . 70
Accessing the IP Deskphone . . . . . . . . . . . . . . . . . . . . . . . 72
Logging on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Automatic login . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Configuring the domain . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Password protection for domains . . . . . . . . . . . . . . . . . . . 74
Selecting a language . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Logging on to your Avaya 1140E IP Deskphone . . . . . . . 76
Configuring the duration of the login . . . . . . . . . . . . . . . . 80
Logging on multiple user accounts . . . . . . . . . . . . . . . . . . 81
Timed logoff . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Timed logoff while IP Deskphone is idle . . . . . . . . . . . . . 81
Timed logoff while on a call . . . . . . . . . . . . . . . . . . . . . . . 81
Selecting a location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
User Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Overwriting your personal Address Book . . . . . . . . . . . . . 84
Confirmation logon screen . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Logging off from the IP Deskphone . . . . . . . . . . . . . . . . . . . . 85
Logging off multiple user accounts . . . . . . . . . . . . . . . . . . 86
Making an emergency call . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Location information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Configuring the Avaya 1140E IP Deskphone . . . . . . . . . . . 90
Adjusting the display screen contrast . . . . . . . . . . . . . . . . . . 90
Creating the idle screen text display . . . . . . . . . . . . . . . . . . . . 91
Contents
7
Configuring the Backlight Screensaver . . . . . . . . . . . . . . . . . 92
Configuring Menu Auto back-out . . . . . . . . . . . . . . . . . . . . . . 93
Selecting a ring pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Adjusting the volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Adjusting the ring volume . . . . . . . . . . . . . . . . . . . . . . . . . 96
Adjusting the volume of the Handset, headset,
and Handsfree mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Selecting a language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Selecting the date and time format . . . . . . . . . . . . . . . . . . . . 102
USB headset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Headset menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Presence of USB headset . . . . . . . . . . . . . . . . . . . . . . . 111
Audio format selection . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Generic USB headset . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Avaya USB headset adapter with HID . . . . . . . . . . . . . . 114
Third–party USB headsets with HID . . . . . . . . . . . . . . . 118
Analog Terminator Adapter for analog
(500/2500-type) telephone or fax machine . . . . . . . . . . 123
Configuring Bluetooth wireless technology headset . . . . . . . 126
Making a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Making a call using off-hook dialing . . . . . . . . . . . . . . . . . . . 138
Making a call using on-hook dialing . . . . . . . . . . . . . . . . . . . 140
Using handsfree calling . . . . . . . . . . . . . . . . . . . . . . . . . 140
Using Call Subjects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Managing Call Subjects . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Adding a Call Subject . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Deleting a Call Subject . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Editing a Call Subject . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Receiving a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Caller identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Contents
8
Answering an incoming call . . . . . . . . . . . . . . . . . . . . . . . . . 151
Redirecting an incoming call . . . . . . . . . . . . . . . . . . . . . . . . . 152
Declining an incoming call . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Creating a new Call Decline Reason . . . . . . . . . . . . . . . 155
Managing Call Decline Reasons . . . . . . . . . . . . . . . . . . 157
Ignoring an incoming call . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Receiving intercom calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Receiving paging calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
The Address Book . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Viewing the Address Book . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Initiating a call from the Address Book . . . . . . . . . . . . . . . . . 163
Adding a contact to your Address Book . . . . . . . . . . . . . . . . 165
Editing a contact in your Address Book . . . . . . . . . . . . . . . . 166
Copying information to the Address Book . . . . . . . . . . . . . . 170
Searching for a contact in the Address Book . . . . . . . . . . . . 172
Using the Search feature in the Address Book . . . . . . . 173
Using the Search feature . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Using Local Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Using Global Search . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
Call Inbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Accessing the Call Inbox . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Managing calls in the Call Inbox while not on a call . . . . 181
Viewing the details of a call in the Call Inbox . . . . . . . . . 183
Managing missed calls . . . . . . . . . . . . . . . . . . . . . . . . . . 184
Missed Calls Notification . . . . . . . . . . . . . . . . . . . . . . . . 186
Initiating a call from the Call Inbox . . . . . . . . . . . . . . . . . 188
Deleting calls in your Call Inbox . . . . . . . . . . . . . . . . . . . 190
Accessing the calls in your Call Inbox during a call . . . . 190
Contents
9
Call Outbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
Accessing the Call Outbox . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Managing calls in the Call Outbox while not on a call . . 193
Initiating a call from the Call Outbox . . . . . . . . . . . . . . . 194
Deleting calls from your Call Outbox . . . . . . . . . . . . . . . 195
Viewing the details of a call in the Call Outbox . . . . . . . 196
Accessing the calls in your Call Outbox during a call . . . 197
Instant Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
Configuring Instant Messaging . . . . . . . . . . . . . . . . . . . . . . . 199
Configuring IM automatic pop-up . . . . . . . . . . . . . . . . . . 199
Configuring Instant Messaging pop-ups . . . . . . . . . . . . . 201
Configuring IM audible alert . . . . . . . . . . . . . . . . . . . . . . 201
Composing an Instant Message . . . . . . . . . . . . . . . . . . . . . . 202
Instant Message Inbox/Outbox . . . . . . . . . . . . . . . . . . . . . . . 204
Accessing Instant Messages . . . . . . . . . . . . . . . . . . . . . 204
Viewing the content of an Instant Message . . . . . . . . . . . . . 206
Replying to an Instant Message . . . . . . . . . . . . . . . . . . . 206
Initiating a call from an Instant Message . . . . . . . . . . . . 207
Deleting an Instant Message . . . . . . . . . . . . . . . . . . . . . 208
While on an active call . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Making a new call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Initiating a call using the active call
context-sensitive soft key menu . . . . . . . . . . . . . . . . . . . 211
Call Waiting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Placing a call On Hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Multiple calls On Hold . . . . . . . . . . . . . . . . . . . . . . . . . . 213
Using 3-way calling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Configuring a conference call . . . . . . . . . . . . . . . . . . . . . . . . 223
Ad hoc conferencing when connecting to the Call Server . . 224
Edit Domain page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Contents
10
Transferring a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
Using the Park Call feature . . . . . . . . . . . . . . . . . . . . . . . . . . 232
Using Park Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
Retrieving a Parked Call . . . . . . . . . . . . . . . . . . . . . . . . 233
Additional features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235
Using the Friends feature . . . . . . . . . . . . . . . . . . . . . . . . . . . 235
Accessing your Friends list . . . . . . . . . . . . . . . . . . . . . . 236
Editing information of a friend . . . . . . . . . . . . . . . . . . . . 239
Feature keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 243
Feature key programming . . . . . . . . . . . . . . . . . . . . . . . . . . 244
Remove a programmed feature key . . . . . . . . . . . . . . . . 257
Feature key autoprogramming . . . . . . . . . . . . . . . . . . . . . . . 259
Creating a feature key using the Copy key . . . . . . . . . . 264
Using Call Forward . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 266
Configuring Do Not Disturb . . . . . . . . . . . . . . . . . . . . . . . . . . 270
Configuring a Presence state . . . . . . . . . . . . . . . . . . . . . . . . 271
Adding a new Presence state message . . . . . . . . . . . . . 274
Configuring Privacy settings . . . . . . . . . . . . . . . . . . . . . . . . . 275
Incoming call privacy . . . . . . . . . . . . . . . . . . . . . . . . . . . 275
Outgoing call privacy . . . . . . . . . . . . . . . . . . . . . . . . . . . 277
Multiple Appearance Directory Number . . . . . . . . . . . . . . . . 277
Audio Codecs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 280
Audio Codec Selection . . . . . . . . . . . . . . . . . . . . . . . . . . 280
Audio Codec Ordering . . . . . . . . . . . . . . . . . . . . . . . . . . 280
PC Client softphone interworking with the
IP Deskphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 281
Answer-Mode Settings . . . . . . . . . . . . . . . . . . . . . . . . . . 281
Automatic remote firmware updates . . . . . . . . . . . . . . . . . . . 283
Multiuser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 284
Initial login . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 285
Contents
11
Additional logins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 285
Automatic login . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 286
Logging out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 287
Primary account logout . . . . . . . . . . . . . . . . . . . . . . . . . 287
Secondary account logout . . . . . . . . . . . . . . . . . . . . . . . 288
Server failover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 288
Cable unplugged . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 288
Upgrade impacts to user profiles . . . . . . . . . . . . . . . . . . . . . 289
Line keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 290
Making a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 292
Receiving a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 293
Being in a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 293
Instant Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 294
Menu features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 295
Modifying settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 295
Per-account call notification options . . . . . . . . . . . . . . . . 295
IM Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 295
Voice Mail settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 296
Remembering settings after logout . . . . . . . . . . . . . . . . 296
Programmable keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 296
Inbox, outbox, IM log . . . . . . . . . . . . . . . . . . . . . . . . . . . 297
Address books . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 298
User status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 298
Do Not Disturb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 299
Call Forwarding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300
Presence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 301
Notifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 302
Account Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 303
Advanced features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 304
Accessing the services menu . . . . . . . . . . . . . . . . . . . . . . . . 305
Contents
12
Checking for updates . . . . . . . . . . . . . . . . . . . . . . . . . . . 306
Switching the proxy . . . . . . . . . . . . . . . . . . . . . . . . . . . . 307
Resetting the IP Deskphone . . . . . . . . . . . . . . . . . . . . . 310
Erasing the user data . . . . . . . . . . . . . . . . . . . . . . . . . . . 311
Network menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 316
USB flash drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 317
Presence of USB flash drive . . . . . . . . . . . . . . . . . . . . . 318
Feature characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . 318
Enabling or disabling the USB Port . . . . . . . . . . . . . . . . 318
Customizable Banner for login . . . . . . . . . . . . . . . . . . . . . . . 320
Phone Information - Details screen . . . . . . . . . . . . . . . . . . . 321
Screensaver/screen lock . . . . . . . . . . . . . . . . . . . . . . . . . . . 322
Background image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 329
Selecting an image screen . . . . . . . . . . . . . . . . . . . . . . . 330
Service Package Group Support . . . . . . . . . . . . . . . . . . . . . 331
Speed Dial List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 340
Speed Dial List screen . . . . . . . . . . . . . . . . . . . . . . . . . . 341
Auto retrieve flag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 342
USB Flash memory device support . . . . . . . . . . . . . . . . . . . 343
Notes on File Manager . . . . . . . . . . . . . . . . . . . . . . . . . . 349
Visual indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 352
Display screen icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 352
Visual Alerter/Message Waiting Indicators . . . . . . . . . . . . . . 354
Multi-Level Precedence and Preemption . . . . . . . . . . . . . 357
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 357
Other MLPP service features . . . . . . . . . . . . . . . . . . . . . 358
Making a call with MLPP . . . . . . . . . . . . . . . . . . . . . . . . . . . 359
Making an MLPP call by going off-hook . . . . . . . . . . . . . 359
Making an MLPP call using Inbox/Outbox, Address Book, and
Friends List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 363
Contents
13
Making an MLPP call from a received Instant Message 364
Making a call by using a programmed speed dial key . . 366
Incoming calls with precedence . . . . . . . . . . . . . . . . . . . . . . 367
Call transfer with precedence . . . . . . . . . . . . . . . . . . . . . . . . 368
Multiple calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 369
Preemption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 370
Call Origination Busy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 375
Re-authorization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 378
Feature interactions with MLPP . . . . . . . . . . . . . . . . . . . . . . 378
Quick reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 381
Fixed keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 381
Commonly used functions . . . . . . . . . . . . . . . . . . . . . . . . . . 383
Context-sensitive soft keys . . . . . . . . . . . . . . . . . . . . . . . . . . 386
Display screen icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 390
Third party terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 393
Third Party Terms for Avaya 11xx 12xx sw release 3.0 thru 4.0
(Aug - Nov 2010) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 393
GNU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 394
Zlib . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 401
Libpng . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 401
Kern_random . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 404
Wchar functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 405
Libjpeg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 406
T-Rex . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 407
Terms you should know . . . . . . . . . . . . . . . . . . . . . . . . . . 409
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 415
Contents
14
Welcome
15
Welcome
Your Avaya 1140E IP Deskphone brings voice and data to your desktop.
The IP Deskphone connects directly to a Local Area Network (LAN)
through an Ethernet connection. The SIP IP Deskphone communicates
using Session Initiated Protocol (SIP) after the firmware (FW) is upgraded
to a SIP-enabled version.
In this guide, user-defined feature key labels appear beside the keys and
context-sensitive soft keys labels appear directly above the keys. Figure 1
shows the user-defined feature keys and context-sensitive soft keys.
Figure 1: User-defined feature keys and context-sensitive soft
keys
Basic features
Your Avaya 1140E IP Deskphone supports the following features:
• six user-defined feature keys with labels and indicators
Note: The IP Deskphone designates Key 1 as Feature Key 1 and
reserves it as the line key for the IP Deskphone.
• four context-sensitive soft keys
User-defined
feature keys
Context-sensitive
Feature Key
soft keys
Line 1 (Reserved)
Welcome
16
• graphical, high-resolution LCD display, backlit, with adjustable
contrast
• high-quality speaker IP Deskphone
• volume control keys for adjusting the ringer, speaker, handset, and
headset volume
• six specialized feature keys:
—Quit
— Directory
— Inbox
— Outbox
— Services
—Copy
• six call-processing fixed keys:
—Mute
— Handsfree
— Goodbye
— Instant Message Log
— Headset
—Hold
• gigabit Ethernet ports
• built-in gigabit Ethernet switch for shared PC access
• headset jack with an On/Off key
• USB port to support a keyboard or mouse
Note: Powered downstream 1.1-compliant USB hubs are supported,
including USB 2.0 hubs, if they offer USB 1.1 backwards compliancy.
• automatic Dynamic Host Configuration Protocol (DHCP) network
configuration
• hearing aid compatibility
• wireless headset support using a Bluetooth® 1.2
wireless technology compliant Audio Gateway
(headset Profile, Bluetooth Power Class 2).
Welcome
17
• intercom/paging support
• secure digits when accessing voice mail during a call
• logging off the IP Deskphone without entering a password
• dialing a call from the Inbox
• the capacity to attach up to three Expansion Modules for
IP Deskphones 1100 Series, adding up to 54 programmable feature
keys
Welcome
18
IP Deskphone controls
Figure 2 shows the Avaya 1140E IP Deskphone.
Figure 2: Avaya 1140E IP Deskphone
Welcome
19
This section describes the controls on your IP Deskphone. Your IP
Deskphone can have fixed keys with icons or with labels. This document
presents both versions of the fixed key.
The keys on either side of the LCD display
area are User-defined feature keys, with
labels on the LCD. The system administrator
can reserve some keys for specific functions
during tasks and for advanced configuration.
You can define these keys for specific
functions, such as Call Forward.
Note: The key on the lower right is
reserved as your default line key.
Context-sensitive soft keys are located
below the display area. The LCD label above
each key changes based on the active
feature.
Use the Volume control buttons to adjust
the volume of the ringer, handset, headset,
speaker, and the Handsfree feature. Press
the top button to increase the volume, and
press the bottom button to decrease the
volume.
Press the Mute key to listen to the call
without transmitting. Press the Mute key
again to return to two-way conversation. The
Mute key applies to handsfree, handset, and
headset microphones.
Note: When you enable mute, a red
LED on the Mute key remains lit.
Welcome
20
Press the Handsfree key to activate the
built-in speaker and microphone of the IP
Deskphone.
Note: The Handsfree LED indicator on
the Handsfree key lights to indicate
when handsfree is active.
Use the Navigation Key Cluster to scroll
through menus and lists that appear on the
LCD display screen or for text entry. The
outer part of this key cluster rocks for up,
down, left, and right movements. For more
information, see “Navigation keys” on
page 43.
Use the Enter key, at the center of the
Navigation Key Cluster, to select menu
items or to confirm changes.
Note: The Enter key has the same
function as the context-sensitive soft
keys Select and Set.
Press the Goodbye/Release key to
terminate an active call. When multiple calls
are active, press the Goodbye/Release key
to end the highlighted call.
Use the Goodbye/Release to close menu
navigation or cancel user tasks.
Press the Expand key to access the Instant
Messaging Log.
Welcome
21
Press the Headset key to answer a call
using the headset or to switch a call from the
handset or handsfree to the headset.
Note: The headset LED indicator on the
Headset key lights to indicate that the
headset is in use.
Press the Hold key to put an active call on
hold. Press the Hold fixed key to return to a
call on hold.
You can have several calls in a hold state.
Use the Dialpad to enter numbers and text.
To navigate to an item in a menu, press the
corresponding number on the dialpad to
activate the item or continue navigate the list
of items.
When you receive a voice message, the red
Visual Alerter/Message Waiting Indicator
lights. Also, when the ringer sounds, this
indicator flashes.
When you receive an instant message (IM),
the blue Visual Alerter/Feature Status
Indicator lights.
Press the Copy key to copy contact
information from one source such as the
Address Book to a destination such as a
feature key.
Welcome
22
Press the Services key to access the
following features:
1. Search—search in the local directory
(personal Address Book) and the global
directory (network Address Book for
names and phone numbers)
2. Login—log in to your IP Deskphone only
when the call server supports multiple
user logins.
3. Logout—log out of your IP Deskphone.
4. Check For Updates—check for the latest
software update for the
IP Deskphone.Retrieve Parked Call
(This feature is not available on all call
servers.)
5. Reset Phone—reset your IP Deskphone.
6. File Manager—manage the
IP Deskphone file system and USB
Devices attached to the IP Deskphone.
7. Logging System—enable or disable the
logging process.
8. Phone Information—view information
about the hardware and software on
your IP Deskphone, including user and
location information.
Press the Services key twice quickly to
access the Network menu.
Press the Quit key to cancel the current
operation or to exit the menu.
Note: Pressing the Quit key does not
affect the status of active calls.
Welcome
23
Press the Inbox key to access your call
inbox.
The call inbox stores all incoming calls on an
active IP Deskphone.
Note: This key does not function to
send Instant Messages.
Press the Outbox key to view a record of all
outgoing calls.
Note: This key does not function as a
shift key.
Press the Directory key to access the
Address Book and the Friends list.
Note: You can access the Address
Book while on a call and start a new call
with a highlighted contact.
Welcome
24
Avaya 1140E IP Deskphone display
Your IP Deskphone has three display areas:
• The upper display area provides line and feature key status.
• The middle display area contains single-line information for items
such as caller number, caller name, menu items, feature prompt
strings, user-entered digits, date and time information, and phone
information.
• The lower display area provides context-sensitive soft key label
information.
Figure 3: IP Deskphone LCD screen
Upper display area
User-defined
feature key labels
Middle display area
Date/Time display
Call party information
Menu information
Directories information
Lower Display Area
Context-sensitive key
labels
Welcome
25
Cleaning the IP Deskphone
LCD display screen
To clean the LCD display screen, gently wipe with a soft, dry cloth.
CAUTION
Do not use any liquids or powders on the
IP Deskphone. Using anything other than
a soft, dry cloth can contaminate
IP Deskphone components and cause
premature failure.
Welcome
26
Context-sensitive soft keys
Your IP Deskphone has four context-sensitive soft keys beneath the LCD
screen. The context-sensitive soft keys access different features and
menus depending on the state of the IP Deskphone and the menu you
access.
Figure 4 on page 26 shows the context-sensitive soft keys while the IP
Deskphone is in the idle state.
Figure 4: Context-sensitive soft keys when the IP Deskphone
is in the idle state
Table 1 on page 26 lists the context-sensitive soft keys that you can use
to access menu items.
Table 1: Menu items accessed through context-sensitive soft
keys (Part 1 of 7)
Item Function
Redial or NewCall
Press the Redial context-sensitive
soft key to redial the last dialed num-
ber.
If there is no stored redial number, the
NewCall context-sensitive soft key
appears and has the same effect as
pressing the primary user line key
(dial prompt).
Welcome
27
abc or 123
Press the abc context-sensitive soft
key to toggle between alpha and
numeric input modes.
• To type letters, the abc context-
sensitive soft key must be
displayed.
• To type numbers, press the abc
context-sensitive soft key to
display the 123 context-sensitive
soft key on the menu list.
Msgs Press the Msgs context-sensitive soft
key to access the following features:
1. Voice Mail—use to call your Voice
Mail number.
2. Instant Messaging—use to
access the Instant Messaging
Inbox/Outbox.
3. Missed Call Notification—use to
access your Missed Call details.
Table 1: Menu items accessed through context-sensitive soft
keys (Part 2 of 7)
Item Function
Welcome
28
More… Press the More… context-sensitive
soft key to select a new menu list of
context-sensitive soft keys (three
menu lists are available).
When you press the More… context-
sensitive soft key, a different selection
of context-sensitive soft keys
appears.
• If you press the More… context-
sensitive soft key once from the
first menu list, you access the
following context-sensitive soft
keys:
[CallFwd] [DND] [Retrve] [More…]
• If you press the More… context-
sensitive soft key from the first
menu list twice, you access the
following context-sensitive soft
keys:
[ScrnSvr] [Presnce] [Prefs]
[More…]
• If you press the More… context-
sensitive soft key from the first
menu list three times, you return
to the first menu list with the
following context-sensitive soft
keys.
[Redial] [abc] [Msgs] [More…]
When you press the More… context-sensitive soft key for the first
time, the following context-sensitive soft keys appear on the menu
list.
Table 1: Menu items accessed through context-sensitive soft
keys (Part 3 of 7)
Item Function
Welcome
29
CallFwd Press the CallFwd context-sensitive
soft key to forward all calls to a
specified address.
DND Press the DND context-sensitive soft
key to block all calls.
Retrve Press the Retrve context-sensitive
soft key to retrieve parked calls (local
and server calls only).
More… Press the More… context-sensitive
soft key to select a new menu list of
context-sensitive soft keys.
The next available menu list contains
the following context-sensitive soft
keys:
[ScrnSvr] [Presnce] [Prefs]
[More…]
When you press the More… context-sensitive soft key for the second
time, the following context-sensitive soft keys appear on the menu
list.
ScrnSvr Press the ScrnSvr context-sensitive
soft key to activate the screensaver
(only if the screensaver feature is
enabled).
Table 1: Menu items accessed through context-sensitive soft
keys (Part 4 of 7)
Item Function
Welcome
30
Presnce Press the Presnce context-sensitive
soft key to configure the presence
status for your IP Deskphone.
Prefs Press the Prefs context-sensitive soft
key to display the Preferences menu.
The menu items include the following:
1. Display—use to adjust the display
settings of the LCD screen.
2. Audio—use to adjust tones and
volume settings, access the
Codecs menu to configure a USB
headset.
3. Feature Options—use to
configure the following:
— Feature keys
— Call Decline Reasons
— Call Ignore Action
— Call Subject
— Call Fwd Notification
— Missed Call Notification.
Table 1: Menu items accessed through context-sensitive soft
keys (Part 5 of 7)
Item Function
Welcome
31
Prefs 4. Language—use to change the
interface language.
5. Misc Options—use to access the
following options:
— Alpha Dialing
— Search Method
— Incoming Privacy
— Outgoing Privacy
— # Ends Dialing
— Hold Mode: Private
—Time
6. Network—use to access the
following:
—Server Settings
— Device Settings
— Diagnostics
— Disable screensaver
— Licensing
— Lock
7. USB Locks—use to lock or unlock
the following USB devices:
— USB Mouse
— USB Keyboard
— USB Headset
— USB flash drive
Table 1: Menu items accessed through context-sensitive soft
keys (Part 6 of 7)
Item Function
Welcome
32
Idle display screen after dial pad input
After you enter information using the dial pad (there is no dial tone or
preceding line selection), the context-sensitive soft keys displayed on the
idle screen appear as shown in Figure 7 on page 47.
Figure 5: Idle display screen after dial pad input
Prefs 8. User Settings - use to modify the
following:
— Call Settings
— IM Settings
— Voice Mail Settings
— Change Location
More… Press the More... context-sensitive
soft key to return to the first menu list
of context-sensitive soft keys.
The next available menu list contains
the following context-sensitive soft
keys:
[Redial] [abc] [Msgs] [More...]
Table 1: Menu items accessed through context-sensitive soft
keys (Part 7 of 7)
Item Function
Welcome
33
Table 2 on page 33 lists the context-sensitive soft keys that you can use
to access menu items after dial pad input.
In-call context-sensitive soft keys
When a call is active, use the context-sensitive soft keys to access the
menu items shown in Figure 6 on page 34.
Table 2: Menu items accessed after dial pad input through
context-sensitive soft keys
Item Function
Send Press the Send context-sensitive soft
key to dial out the user input using the
primary login of the IP Deskphone.
User input is run against the dialing plan.
abc or 123 Press the abc or 123 context-sensitive
soft key to toggle between alpha and
numeric input mode.
Subject Press the Subject context-sensitive soft
key to set a subject line to your outgoing
call before pressing the Send context-
sensitive soft key.
Exit Press the Exit context-sensitive soft key
to clear the user input and return to the
initial idle screen that displays the
following context-sensitive soft keys:
[Redial] [abc] [Msgs] [More...].
See “Figure 4 on page 26 shows the
context-sensitive soft keys while the IP
Deskphone is in the idle state.” on
page 26.
Welcome
34
Figure 6: In-call context-sensitive soft keys
Table 3 on page 34 lists the context-sensitive soft keys you can use to
access menu items during an in-call session.
Table 3: Menu items accessed during an in-call session
through context-sensitive soft keys (Part 1 of 10)
Item Function
Conf Press the Conf context-sensitive
soft key to obtain a dial tone to
place another call during an active
call or to make a conference call.
The Conf context-sensitive soft key
behaves like the NewCall context-
sensitive soft key.
Trnsfer Press the Trnsfer context-sensitive
soft key to transfer the current call
to another location or to another
contact.
Welcome
35
Audio Press the Audio context-sensitive
soft key to access the following
features:
Tones
• Ring Pattern
— Select test patterns from 1
to 8
• Alerting Volume
— Set Desired volume
Table 3: Menu items accessed during an in-call session
through context-sensitive soft keys (Part 2 of 10)
Item Function
Welcome
36
Audio Voice
• Set the volume for the
following:
— Handset Volume
— Headset Volume
— Handsfree Volume
Codecs
Select the Audio Codecs:
• G722 (wideband codec)
• PCMU (standard u-law)
• G729 (729 codec)
• PCMA (standard a-law)
Headset Selection
Select the active headset device:
• Wired, USB (if wired, then
select type 1, 2 or 3)
• Enable HID Commands
(enable or disable)
• MHA Headset Type:
• MHA Back Light (enable or
disable)
Table 3: Menu items accessed during an in-call session
through context-sensitive soft keys (Part 3 of 10)
Item Function
Welcome
37
Bluetooth Setup
• Enable Bluetooth (enable or
disable)
• To unpair Device select UnPair.
If Bluetooth is enabled, select:
• Search devices (IP Deskphone
searches the bluetooth devices
and lists the discovered devices
in the Found field.
• To set an Active device select
Set.
• To pair with a found device
select Pair.
• To unpair Device select UnPair.
Note: You can change the
audio settings to improve audio
quality based on the available
band width. If the Internet
bandwidth is low, you can
improve the audio quality by
changing the audio setting to
low.
• Monitor Audio Quality—used to
view details about the audio
quality of an active call.
OR
Table 3: Menu items accessed during an in-call session
through context-sensitive soft keys (Part 4 of 10)
Item Function
Welcome
38
Activate The Activate context-sensitive soft
key appears when the call is not
active. The most common usage of
this key is when the call displayed
onscreen is a call that was parked
against the user (or a call that the
user placed on hold).
Note: The Activate context-
sensitive soft key never
appears at the same time as
the Audio context-sensitive
soft key.
More… Press the More… context-sensitive
soft key to select a new menu list of
context-sensitive soft keys (three
menu lists are available).
When you press the More…
context-sensitive soft key, a
different selection of context-
sensitive soft keys appears.
Table 3: Menu items accessed during an in-call session
through context-sensitive soft keys (Part 5 of 10)
Item Function
Welcome
39
More… • If you press the More…
context-sensitive soft key once
from the first menu list, you
access the following context-
sensitive soft keys:
[NewCall] [Park] [Retrve]
[More.…]
• If you press the More…
context-sensitive soft key from
the first menu list twice, you
access the following context-
sensitive soft keys:
[Prefs] [ ] [ ] [More…
• If you press the More…
context-sensitive soft key from
the first menu list three times,
you return to the first menu list
with the following context-
sensitive soft keys.
[Conf] [Trnsfer] [Audio] [More…
When you press the More… context-sensitive soft key for the first
time, the following context-sensitive soft keys appear on the menu
list.
NewCall Press the NewCall context-
sensitive soft key to obtain a dial
tone to place another call during an
active call or to a make a
conference call.
The NewCall context-sensitive soft
key behaves like the Conf context-
sensitive soft key.
Table 3: Menu items accessed during an in-call session
through context-sensitive soft keys (Part 6 of 10)
Item Function
Welcome
40
Park Press the Park context-sensitive
soft key to park the current call to
the server or another user (not
available for all call servers).
Retrve Press the Retrve context-sensitive
soft key to retrieve parked calls
(local and server parked calls only).
More… Press the More… context-sensitive
soft key to select a new menu list of
context-sensitive soft keys.
The next available menu list
contains the following context-
sensitive soft keys:
[Prefs] [ ] [ ] [More…]
When you press the More… context-sensitive soft key for the
second time, the following context-sensitive soft keys appear on
the menu list.
Prefs Press the Prefs context-sensitive
soft key to display the Preferences
menu.
The menu items include the
following:
1. Display—use to adjust the
display settings of the LCD
screen.
Table 3: Menu items accessed during an in-call session
through context-sensitive soft keys (Part 7 of 10)
Item Function
Welcome
41
Prefs 2. Audio—use to adjust tones and
volume settings, to configure a
USB headset, and to access
the Bluetooth wireless
technology setup.
3. Feature Options—use to
configure the following:
— Feature keys
— Call Decline Reasons
— Call Ignore Action
— Call Subjects
— Call Fwd Notification
— Answer Mode Settings
appear when the Auto
Answer Mode is enabled
on the IP Deskphone.
4. Language—use to change the
interface language.
5. Misc Options—use to access
the following options:
— Alpha Dialing
— Search Method
— Incoming Privacy
— Outgoing Privacy
— # Ends Dialing
— Hold Mode: Private
—Time
Table 3: Menu items accessed during an in-call session
through context-sensitive soft keys (Part 8 of 10)
Item Function
Welcome
42
Prefs 6. Network—use to access the
following:
—Server Settings
— Device Settings
— Diagnostics
— Disable screensaver
— Licensing
—Lock
7. USB Locks—use to lock or
unlock the following USB
devices:
— USB Mouse
— USB Keyboard
— USB Headset
— USB flash drive
8. User Settings—use to modify
the following:
— Call Settings
— IM Settings
— Voice Mail Settings
— Change Location
Table 3: Menu items accessed during an in-call session
through context-sensitive soft keys (Part 9 of 10)
Item Function
Welcome
43
Navigation keys
This section provides information about keys you can use to navigate
within the menus of your Avaya 1140E IP Deskphone.
Note: Menu items are sorted by number.
You can select menu items in one of the following ways:
• Press the corresponding number on the dialpad and then press the
Select soft key.
• Use the navigation key to scroll through the menu to highlight the item
you want to select and then press the Select soft key.
More… Press the More… context-sensitive
soft key to return to the first menu
list of context-sensitive soft keys.
The next available menu list
contains the following context-
sensitive soft keys:
[Conf] [Trnsfer] [Audio]
[More…]
Unlock The Unlock context-sensitive soft
key appears if you answer a call
when the IP Deskphone is locked
with a password protected
screensaver.
Table 3: Menu items accessed during an in-call session
through context-sensitive soft keys (Part 10 of 10)
Item Function
Welcome
44
Table 4 on page 44 describes the navigation keys and their functions.
Table 4: Navigation keys and functions (Part 1 of 2)
Key Function
Navigation Key Cluster Press the Left or Right arrows on the
Navigation Key Cluster to:
• Scroll long lines of text when you
view caller ID.
Note: The IP Deskphone
automatically scrolls long lines of
text from right to left for entries
such as in your address book or
your Call Inbox. When your Search
Method is set to Index Search, you
can increase the speed of the
scrolling by repeatedly pressing
the right navigation key or
decrease the scrolling speed by
repeatedly pressing the left
navigation key. For more
information, see “Searching for a
contact in the Address Book” on
page 172.
• Change the slide adjustment from
left to right when you adjust such
things as contrast or volume.
Navigation Key Cluster Press the right side of the Navigation
Key Cluster to:
• Create a space when you enter
and edit text.
• View the details of the selected call
log entry in the Inbox and the
Outbox.
Welcome
45
Using a USB Mouse
The Avaya 1140E IP Deskphone is equipped with a USB port in which
you can connect a USB mouse. You can use the USB mouse to activate
context-sensitive soft key items and menu items.
Use your mouse to click a context-sensitive soft key label of the LCD
screen to activate that item. When a menu is open, double-click on a
Navigation Key Cluster Press the left side of the Navigation
Key Cluster to:
• Move cursor to the left when you
enter and edit text.
• Leave the detail view of the Inbox
or Outbox and return to the main
Inbox or Outbox. Operates like the
Back context-sensitive soft key.
Press the up or down arrows on the
Navigation Key Cluster to:
• Erase a character (backspace)
when you enter and edit text.
• Highlight items in a list, such as
Address Book entries or items in
your Call Inbox.
• Scroll lists and message contents
when you view IMs.
• Move the cursor from line to line
when entering and editing text or
data.
Note: To scroll through a list of
items, you can press and hold the
up or down key.
Table 4: Navigation keys and functions (Part 2 of 2)
Key Function
Welcome
46
menu item to activate it or click on the item to highlight it. For example,
you can click the View context-sensitive soft key label to open that menu.
Double-click the word Inbox in the menu list; you can then double-click a
name in the Inbox list to initiate a call, or click the item to highlight the
name.
To access the Network menu, right-click anywhere on the display.
Note: USB mouse support is available for the IP Deskphone but
does not extend to added Expansion Modules.
Available Avaya 1140E IP Deskphone
call features
The Avaya 1140E IP Deskphone is designed to be supported by various
call servers. The specific call server in which the IP Deskphone is
connected to determines whether certain features are available to your IP
Deskphone. Call features must be assigned to your IP Deskphone and
must be supported by call server software.
Note 1: Not all feature are available. To determine which features are
available or to activate features, contact your system administrator or
service provider.
Note 2: Not all service providers support the entry of a SIP address
to initiate a call, for example, jim@companya.com. Some service
providers require that you enter a Directory Number (DN) to initiate a
call, for example, 555-5555. Contact your system administrator to
determine whether your call server supports SIP address dialing.
Security features
Before you can use your Avaya 1140E IP Deskphone, an ID and
password must be assigned to your IP Deskphone. This security measure
ensures that, after you log off, calls cannot be made from your IP
Deskphone and features such as Address Book, Instant Message logs,
and Call Outbox are inaccessible. Your ID and password also prevent
unauthorized access to your user profile.
Welcome
47
Secure connection
Call security is identified by the presence of a security icon (padlock)
that is displayed on the IP Deskphone screen.
After the IP Deskphone is registered with the SIP Proxy, you can view the
security icon when:
• the IP Deskphone is idle
• you are on an active call
Figure 7 on page 66 is an example of a secure connection when the
IP Deskphone is idle. The security icon is visible on the IP Deskphone
screen.
Figure 7: Example of a secure connection when the
IP Deskphone is idle
Figure 8 on page 70 is an example of a secure connection when you are
on an active call. The security icon is visible on the IP Deskphone screen.
Welcome
48
Figure 8: Example of a secure connection during an active call
Regulatory and safety information
49
Regulatory and safety
information
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/ TV technician for help.
Note: The user should not make changes or modifications not
expressly approved by Avaya. Any such changes could void the user
authority to operate the equipment
This Class B digital apparatus complies with Canadian ICES-003. Cet
appareil numérique de la classe B est conforme à la norme NMB-003 du
Canada.
Warnings:
• This is a Class B product. In a domestic environment this product can
cause radio interference in which case the user must take adequate
measures.
• Operation is subject to the following two conditions: (1) this device
may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired
operation of the device."
• Privacy of communications may not be ensured when using this
IP Deskphone.
Regulatory and safety information
50
• This equipment complies with FCC radiation exposure limits set forth
for an uncontrolled environment. This equipment should be installed
and operated with a minimum distance of 20cm between the radiator
and your body (excluding the handset). This transmitter must not be
collocated or operated in conjunction with any other antenna or
transmitter.
To prevent radio interference to the licensed service, this device must be
operated indoors only and should be kept away from windows to provide
maximum shielding.
Table 5 lists EMC compliance for various jurisdictions.
Table 5: EMC compliance (Part 1 of 2)
Jurisdiction Standard Description
United
States FCC CFR 47 Part
15 Class B Emissions: FCC Rules for
Radio Frequency Devices (see Notes
1 and 2)
Canada ICES-003 Class B Emissions: Interference-
Causing Equipment Standard: Digital
Apparatus
Australia/
New
Zealand
AS/NZ CISPR22
CISPR 22 Class B Emissions: Information
technology equipment - Radio
disturbance
Regulatory and safety information
51
Table 6 lists Safety compliance for various jurisdictions.
European
Community EN 55022 Class B Emissions: Information
technology equipment - Radio
disturbance
EN 55024 Information technology equipment -
Immunity characteristics
Limits and methods of measurement
EN 61000-3-2 Limits for harmonic current emissions
(equipment input current <= 16 A per
phase)
EN 61000-3-3 Limitation of voltage fluctuations and
flicker in low-voltage supply systems
for equipment with rated current <= 16
A
Japan VCCI Regulations for voluntary control
measures.
Table 6: Safety compliance
Jurisdiction Standard Description
United States UL 60950-1 Safety of Information Technology Equipment
Canada CSA 60950-1-30 Safety of Information Technology Equipment
European
Community
EN 60950-1 ITE equipment - Safety - Part 1: General
requirements
Australia/New
Zealand
AS/NZS
60950.1:2003
Safety of Information Technology Equipment
Table 5: EMC compliance (Part 2 of 2)
Jurisdiction Standard Description
Regulatory and safety information
52
Other
US/Canada: Hearing Aid Compatibility (HAC) as per FCC Part 68
This equipment complies with the CE Marking requirements.
EU Countries: This device complies with the essential requirements and
other relevant provisions of Directive 1999/5/EC. A copy of the
Declaration may be obtained from http://support.avaya.com/css/
appmanager/public/support.
Australia: AS/ACIF S004: Voice Frequency Performance Requirements
for Customer Equipment
DenAn regulatory notice for Japan
Using your IP Deskphone
53
Using your IP Deskphone
After you familiarize yourself with the IP Deskphone features, you can
start to use the IP Deskphone.
Getting Started
This section provides information about how to use the IP Deskphone.
Carefully read each section before you operate the new IP Deskphone.
The following sections describe details about the IP Deskphone:
•“Before you begin” on page 54
•“Connecting the components” on page 54
•“Entering text” on page 64
•“Accessing the IP Deskphone” on page 72
•“Configuring the Avaya 1140E IP Deskphone” on page 90
Using your IP Deskphone
54
Before you begin
Connecting the components
Figure 9 on page 55 shows the connections on the Avaya 1140E IP
Deskphone.
CAUTION
Damage to Equipment
Do not plug your Avaya 1140E IP
Deskphone into a regular telephone jack.
This can result in severe damage to the
IP Deskphone. Consult your system
administrator to ensure that you plug your
IP Deskphone into a 10/100/1000 BaseT
Ethernet jack.
CAUTION
Your IP Deskphone is designed for use in
an indoor environment only.
CAUTION
Do not plug your IP Deskphone into an
Integrated Service Digital Network (ISDN)
connection. Severe damage to the
IP Deskphone can result.
Using your IP Deskphone
55
Figure 9: IP Deskphone connections
Install your IP Deskphone by completing the following procedures in the
order listed:
•“Removing the stand cover” on page 56
•“Connecting the AC power adapter (optional)” on page 57
•“Connecting the handset” on page 58
•“Connecting the headset (optional)” on page 59
•“Connecting the LAN ethernet cable” on page 60
•“Installing additional cables” on page 61
WARNING Ensure that the protective rubber cap on the
Expansion Module port is in place when the port is not in use.
Connection of anything other than the proper Expansion
Module connector to this port can cause damage to the IP
Deskphone.
Accessory Expansion
Module port PC Ethernet port
LAN Ethernet port
Tilt Lever
Link lamp
AC Adapter jack
Headset jack
Handset jack
USB
Connector
Using your IP Deskphone
56
•“Wall-mounting the IP Deskphone (optional)” on page 61
Figure 10: Wall-mount lever
Removing the stand cover
To access the cable routing tracks and attach cables, you must remove
the stand cover. Pull upward on the center catch as indicated in the
following figure, and remove the stand cover. The cable routing tracks are
now accessible.
WARNING Your Avaya 1140E IP Deskphone is shipped with
the base locked in position. To avoid damaging your IP
Deskphone, press the wall-mount lever, located under the
Handsfree key as indicated in the previous figure, to release
the base and pull it away from the IP Deskphone.
Wall-mount lever
Using your IP Deskphone
57
Figure 11: Remove the stand cover
Connecting the AC power adapter (optional)
Your IP Deskphone supports AC power and Power over Ethernet (PoE)
options, including IEEE 802.3af standard power. For AC power, use the
Avaya AC adapter only. You can order the optional Avaya AC adapter
(N0023000) separately.
To connect the AC adapter to the AC adapter jack in the bottom of the IP
Deskphone use the following procedure:
WARNING
Use only the approved Avaya AC Adapter (model
#N0023000) with your IP Deskphone.
Tilt Lever
Button
Handset
cord exit
Center
Catch
Using your IP Deskphone
58
1. Form a small bend in the cable.
2. Thread the adapter cord through the channels in the stand.
To use PoE, your connected LAN must support PoE. A PoE-enabled LAN
delivers power to your IP Deskphone over the CAT-5 network cable and
an AC adapter is not required.
To use gigabit Ethernet, you must connect to the LAN through CAT-5e (or
later) cables.
Connecting the handset
Use the following procedure to connect the handset to the IP Deskphone.
1. Connect the end of the handset cable with a short straight section to
the handset.
2. Connect the end of the handset cable with the long straight section,
into the RJ-9 handset jack marked with the + symbol on the back of
the IP Deskphone.
3. Form a small bend in the cable.
4. Thread the handset cord through the channels in the stand so that it
exits behind the handset on the right side, using the handset cord exit
in the stand base marked with the + symbol as shown in Figure 11 on
page 57.
WARNING
If you are connected to a PoE connection do not use the
AC power adapter
Using your IP Deskphone
59
Connecting the headset (optional)
Perform the following procedure to connect the optional headset to the IP
Deskphone.
1. On the back of the IP Deskphone, plug the headset connector into the
RJ-9 headset jack marked with the ) symbol.
2. Thread the headset cord, along with the handset cord, through the
channels in the stand so that the headset cord exits the channel
marked with the ) symbol
Selecting the headset tuning parameter
You can select a headset from the following list of supported headsets.
• Type 1: Monaural and Binaural headset
— Monaural headset: Plantronics Model number: H251N (Part
number: 64338-01) with cable Model Number: A10 (Part Number:
66268-02)
— Binaural headset: Plantronics Model number: H261N (Part
number: 64339-01) with cable Model Number: A10 (Part Number:
66268-02)
• Type 2: Monaural and Binaural headset
— Monaural headset: Plantronics Model number: HW251N (Part
number: 75100-06) with cable Model Number: A10 (Part Number:
66268-02)
— Binaural headset: Plantronics Model number: HW261N (Part
number: 75101-06) with cable Model Number: A10 (Part Number:
66268-02)
• Type 3: Binaural headset
— Binaural headset: GN Netcom Model number: GN 4800 (Part
number: 48492-09)
After you select a headset, the corresponding tuning parameters are
applied automatically.
Using your IP Deskphone
60
Perform the following procedure to select a headset.
1. Press Prefs.
2. Select Audio.
3. Select Headset Type.
Connecting the LAN ethernet cable
Note: Your IP Deskphone supports both AC power and PoE options,
including IEEE 802.3 standard power. To use local AC power, you can
order the optional AC adapter separately. To use PoE, where power is
delivered over the CAT5 cable, the LAN must support PoE, and you
do not need an AC adapter.
To enable full functionality of your IP Deskphone, connect your
IP Deskphone to your LAN using a CAT5e Ethernet cable. If your network
is equipped with PoE, you can power your IP Deskphone through the
LAN port.
To connect your IP Deskphone to your LAN use the following procedure:
1. Connect one end of the supplied Ethernet cable to the back of your
IP Deskphone by using the RJ-45 connector marked with the %
symbol.
2. Thread the network cable through the channel marked with the %
symbol.
3. Connect the other end of the cable to your LAN Ethernet connection.
To connect your PC through your IP Deskphone use the following
procedure:
1. Connect one end of the PC Ethernet cable to your IP Deskphone
using the RJ-45 connector marked with the % symbol.
2. Thread the cable through the channel marked with the ( symbol.
3. Connect the other end of the cable to the LAN connector on the back
of your PC.
Using your IP Deskphone
61
Installing additional cables
If applicable, you can plug an optional USB device such as a USB mouse
or a USB keyboard into your IP Deskphone. Connect the USB cable to
the USB port on the back of the IP Deskphone.
Figure 12: Cable routing tracks and mounting holes
Wall-mounting the IP Deskphone (optional)
You can mount your Avaya 1140E IP Deskphone on a wall either by:
(method A) using the mounting holes on the bottom of the IP Deskphone
stand or (method B) using a traditional-style wall-mount box with an RJ-
45 connector and 15 centimeter (cm) (6-inch) RJ-45 cord (not provided).
Complete steps 1-7, as needed, before you wall-mount your IP
Deskphone:
Method A
Method B
Using your IP Deskphone
62
Method A:
1. Press the wall-mount lever, and pull the IP Deskphone away from the
stand, as shown in Figure 13 on page 63.
2. Use the stand cover (the part you removed in “Removing the stand
cover” on page 56), to mark the wall-mount holes by pressing the
bottom of the stand cover firmly against the wall in the location where
you wish to install the IP Deskphone. Four small pins on the bottom of
the stand cover make marks on the wall.
3. Use the marks as a guideline for installing the wall-mount screws (not
provided). Install the screws so that they protrude 3 millimeters (mm)
(1/8 inch) from the wall.
4. Install the IP Deskphone stand mounting holes over the screw heads
as indicated in Figure 12 on page 61 (Method A). You need to
remove the IP Deskphone from the wall to adjust the lower screws.
5. When the lower screws are snug, install the IP Deskphone on the
mounting screws, and then tighten the top screws.
Using your IP Deskphone
63
Figure 13: Rotate the IP Deskphone into the wall mount
position.
Method B:
1. Attach the 15-cm (6-inch) CAT5e cable.
2. Position the stand over the mounting rivets, and slide the IP
Deskphone down the wall so that the rivets fit into the slots on the
stand, indicated in Figure 12 on page 61 (Method B).
3. Replace the stand cover. Ensure that all cables are neatly routed and
press the stand cover into place until you hear a click.
4. Put the IP Deskphone in the wall-mount position (optional). If you
wall-mount your IP Deskphone, put it in the wall-mount position by
holding the Tilt Lever and pressing the IP Deskphone towards the
base until the IP Deskphone is parallel with the base. Release the Tilt
Lever and continue to push the IP Deskphone towards the base until
you hear an audible click. Ensure the IP Deskphone is securely
locked in position.
Tilt lever Wall-mount lever
Using your IP Deskphone
64
Attention: To add an Expansion Module for Avaya 1100 Series
IP Deskphones, see Expansion Module for Avaya 1100 Series
IP Deskphones (SIP Firmware) User Guide (NN43110-301).
Entering text
You use can use combinations of the letters and numbers on the dialpad
of your IP Deskphone to, for example, spell names or words in Instant
Messages (IMs), enter SIP addresses, create Address Book entries, and
to designate feature key labels.
To make a call, you can dial an alphanumeric SIP address; for example,
jdoe2@domain.com.You can enter and edit text on your IP Deskphone
using the following methods:
Note: Some service providers support only the use of a Directory
Number (DN) such as 555-5555 to initiate a call to another IP
Deskphone. Contact your system administrator or service provider to
determine if alphanumeric dialing is supported. Alphanumeric dialing
consists of string of text that contain letters and numbers that make
up, for example, a SIP address.
Using your IP Deskphone
65
You can use the following methods to enter and edit text on your IP
Deskphone:
•“Entering text using the IP Deskphone dialpad” on page 65
•“Entering text using the USB keyboard” on page 70
Entering text using the IP Deskphone dialpad
For applications that offer text input, when you use the dialpad to enter
text the system activates the abc/123 context-sensitive soft key.
You can toggle between numeric and alphabetic input as follows:
• When the context-sensitive soft key label is abc, you can enter
alphabetic text.
• When the context-sensitive soft key label is 123, you can enter
numbers.
Figure 14: Context-sensitive soft key abc/123
For example, if you want to enter the lower case letter a, press the abc/
123 context-sensitive soft key to toggle to alphabetic input. Then press
the number 2 key once. If you want to enter the upper case letter C, press
the number 2 key six times. You can cycle through the letters (and the
numeral) by pressing the number button repeatedly.
To create names or words that contain two adjacent letters that appear on
the same button, for example, the word press, you can do the following:
1. To enter the first character, press the dialpad key 6.
2. Pause briefly.
Using your IP Deskphone
66
• To enter the next letter, press the dialpad key 6 twice to cycle to the
letter r.
When entering alphanumeric information, the 1 key on the dialpad
represents the characters in Table 7 on page 66. To enter a special
character, press the dialpad number 1 to cycle through the characters
until you reach the one you need. For example, to enter a question mark
(?), press the number 1 key eight times.
Table 7: Alphanumeric characters for dialpad key 1
(Part 1 of 2)
Character Name
@at
.period
-dash
_underscore
&ampersand
‘apostrophe
^carat
?question mark
!exclamation point
(left parentheses
)right parentheses
,comma
\backslash
/forward slash
:colon
Using your IP Deskphone
67
Note: No letters are associated with the 0 key.
Enabling and disabling the # Ends Dialing feature
You can enable the IP Deskphone to use the octothorpe (#) symbol to
immediately dial the address or phone number.
To enable the # Ends Dialing feature:
;semi-colon
~tilde
=equal
+plus
1numeral 1
Prefs 1. Press the Prefs context-sensitive soft
key, and then select Misc Options.
Highlight # Ends Dialing and press the
Change context-sensitive soft key.
2. Choose one of the following:
— Press the On context-sensitive soft
key to turn on # Ends Dialing.
— Press the Back context-sensitive
soft key to keep existing
configurations and return to the
Preferences menu.
Table 7: Alphanumeric characters for dialpad key 1
(Part 2 of 2)
Character Name
or
On Back
Using your IP Deskphone
68
To disable the # Ends Dialing feature:
Prefs 1. To turn off # Ends Dialing, press the
Prefs context-sensitive soft key, and
then select Misc Options. Highlight #
Ends Dialing and press the Change
context-sensitive soft key.
2. Choose one of the following:
— Press the Off context-sensitive soft
key to turn off # Ends Dialing.
— Press the Back context-sensitive
soft key to keep existing
configurations and return to the
Preferences menu.
or
Off Back
Using your IP Deskphone
69
Configuring the dialpad to alphanumeric dialing
To eliminate the need to press the abc/123 context-sensitive soft key
when you enter text, you can set the IP Deskphone dialpad default to
alphabetic mode.
To configure the dialpad to alphabetic mode as the default:
To disable alphabetic mode and set numeric mode as the default:
Prefs 1. Press the Prefs context-sensitive soft
key, and then select Misc Options.
Highlight Alpha Dialing, and then press
the Change context-sensitive soft key.
2. Choose one of the following:
— Press the On context-sensitive soft
key to turn on alphanumeric dialing.
— Press the Back context-sensitive
soft key to keep existing
configurations and return to the
Preferences menu.
Prefs 1. Press the Prefs context-sensitive soft
key, and then select Misc Options.
Highlight Alpha Dialing, and then press
the Change context-sensitive soft key.
or
On Back
Using your IP Deskphone
70
Entering text using the USB keyboard
You can connect a USB keyboard to the USB port of your IP Deskphone
to enter text and numbers, access some features, and duplicate some
functions.
For example, to dial a directory number, you can use the keyboard
number pad to enter digits and the asterisk (*) and octothorpe (#)
characters and you can use the alphabetic keys to enter text.
Table 8 on page 70 describes the associations between the USB
keyboard function keys and the IP Deskphone fixed keys.
2. Choose one of the following:
— Press the Off context-sensitive soft
key to turn on alphanumeric dialing.
— Press the Back context-sensitive
soft key to keep existing
configurations and return to the
Preferences menu.
Table 8: USB keyboard functions (Part 1 of 2)
USB
Keyboard Key IP Deskphone Fixed Key
Esc Quit
F1 Services
F2 Expand
F3 Inbox
F4 Outbox
F5 Address Book
F6 Copy
F7 Volume Down
or
Off Back
Using your IP Deskphone
71
F8 Volume Up
F9 Mute
F10 Hold
F11 Headset
F12 Handsfree
Break Goodbye (Release)
Backspace Left arrow of Navigation Cluster
Arrow Left Left arrow of Navigation Cluster
Arrow Right Right arrow of Navigation
Cluster
Arrow Up Up arrow of Navigation Cluster
Arrow Down Down arrow of Navigation
Cluster
Enter Enter
Table 8: USB keyboard functions (Part 2 of 2)
USB
Keyboard Key IP Deskphone Fixed Key
Accessing the IP Deskphone
72
Accessing the IP Deskphone
You require a log on ID and a password to log on to a server with your IP
Deskphone.
Logging on
Whenever you log on to your IP Deskphone you must do the following:
• confirm your logon ID
• enter your password
• select the duration of this session
Release 2.2 supports admin password protection for login prompt that
appears when you power up the IP Deskphone or after you log off.
Figure 15 on page 72shows the User Password protection for domains.
Figure 15: User login screen
When you log on to your IP Deskphone you must confirm your logon ID,
enter your password, and select the duration of this session. However,
Accessing the IP Deskphone
73
the first time you use your IP Deskphone, you need to complete some of
the following procedures:
•“Automatic login” on page 73
•“Configuring the domain” on page 73
•“Selecting a language” on page 75
•“Logging on to your Avaya 1140E IP Deskphone” on page 76
•“Configuring the duration of the login” on page 80
•“Selecting a location” on page 82
•“User Profile” on page 83
•“Overwriting your personal Address Book” on page 84
Note: The system automatically logs you back on after a power
outage or firmware upgrade. The system administrator configures this
feature on a network-wide basis.
Automatic login
Before you first receive your IP Deskphone, your system administrator
can configure your IP Deskphone with your user logon and password. If
this is the case, after you plug in the IP Deskphone you can use it without
further configuration.
Note: If the IP Deskphone is configured with automatic logon, you
can not use the log off function, and you need a password to access
some features and functions. Contact your system administrator or
service provider for further information.
Configuring the domain
Before the log on process, if you need to change the domain or confirm
that the domain you log on to is correct, press the Domain context-
sensitive soft key from the logon prompt. The current domain appears on
the IP Deskphone LCD screen. You can edit the domain that is listed or
press the Domain context-sensitive soft key to access a list of available
domains to which you can choose to connect.
Note: You must enter the admin password to edit domains.
Accessing the IP Deskphone
74
Note: Check with your system administrator before editing or
changing domains.
To change the domain:
Password protection for domains
This feature supports admin password protection for editing of the domain
and is not required for switching domains. If you log on using the
Domain
1. Press the Domain context-sensitive soft
key to change the current domain.
Note: You must enter an admin
password before you can edit the
domain in which the IP Deskphone
connects.
2. Press the Up/Down navigation key to
highlight the new domain you want to
use.
Select
Back
3. Choose one of the following:
— Press the Select context-sensitive
soft key to change the domain to the
highlighted domain from the list. The
IP Deskphone returns to the Current
Domain page, and the new domain
appears.
— Press the Back context-sensitive
soft key to keep existing
configurations and return to the
previous menu.
Accessing the IP Deskphone
75
administrator password, you can use the editing domain option for both
the Current Domain state and Domain List state.
After you press back on the edit page or on the password prompt, the idle
display appears. You must enter the admin password to reenter the
editing domain.
Password check to switch domains
When no one is logged on, a domain soft key appears. When you press
the domain soft key, the current domain page appears without a
password query.
Password protection for editing domain
When you press Edit for a domain, the admin password prompt appears.
The editing domain page appears after you enter the correct admin
password. If you do not enter the correct password, the message
“incorrect password” appears with a prompt to retry.
Password request in server settings mode
When you edit the domain from the server settings under the Network
menu, you are prompted to enter the admin password. After you enter the
password, the Domain page appears. When you press the Edit context-
sensitive soft key, there is no prompt for the admin password because
you have already entered the admin password to load the Server Settings
menu.
Selecting a language
Your IP Deskphone has the capacity to operate using other languages,
such as French. The system administrator can provision the
IP Deskphone with up to five languages. If the IP Deskphone is
provisioned with other languages, you can choose an available language
during the login process by pressing the Lang context-sensitive soft key
on the User Login page.
Accessing the IP Deskphone
76
To change the language:
Logging on to your Avaya 1140E IP Deskphone
You need to log on to your Avaya 1140E IP Deskphone when you first
install and restart your IP Deskphone and anytime you log off or reboot.
Note: When you log on to the IP Deskphone for the first time, the
system prompts you for a location. For more information, see
“Selecting a location” on page 82.
Change
Back
1. Choose one of the following:
— Press the Change context-sensitive
soft key to change the current
language.
— Press the Back context-sensitive
soft key to keep existing language
and return to the User Login
screen.
2. Press the Up/Down navigation key to
highlight the new language you want to
use.
Select
Back
3. Choose one of the following:
— Press the Select context-sensitive
soft key to change the language to
the highlighted language from the
list. The IP Deskphone returns to the
User Login screen and uses the
selected language.
— Press the Back context-sensitive
soft key to keep the existing
language and return to the User
Login screen.
Accessing the IP Deskphone
77
Note: The IP Deskphone retains the previous user logon ID, which
appears after the ID prompt whenever the IP Deskphone reboots.
If Authentication is enabled by your system adminstrator, you can enter
your authentication ID independent of your user ID. The authentication ID
is used when the server challenges the IP Deskphone.
To logon to the Avaya 1140E IP Deskphone:
abc 1. Press the abc/123 context-sensitive soft
key to toggle between alphabetic or
numeric input.
2. Use the dialpad to enter your user ID
login at the prompt.
Note: Use the left navigation key to
backspace and remove a previous user
ID.
Accessing the IP Deskphone
78
abc
3. Press the Login context-sensitive soft
key.
If Authentication is enabled by your
system administration, you are
presented with the Authentication ID
screen. The authentication ID is
autofilled with your user ID.
If Authentication is not enabled, a new
screen appears and prompts you for
your password.
a. Press the abc/123 context-sensitive
soft key to toggle between alphanumeric
or numeric input.
b. Use the dialpad to enter your
authentication ID login at the prompt.
c. Press the Login context-sensitive soft
key.
A new screen appears and prompts you
for your user password.
Login
Login
Login
Accessing the IP Deskphone
79
4. Enter your password by using the
dialpad.
Note 1: When you enter your password,
the last character entered appears.
However, all previous characters are
hidden.
Note 2: When you enter your password
and you use the navigation key to
backspace, you erase all the characters
and must completely reenter your
password again.
5. Press the Next context-sensitive soft
key.
Cancel Note: You can cancel the login process
by pressing one of the following keys:
—Cancel
— Goodbye
—Quit
Next
Accessing the IP Deskphone
80
Configuring the duration of the login
After you enter your logon ID and password the Duration screen
appears. You can enter the maximum length of time of the session. If you
choose to use the default duration Permanent, you remain logged on to
the IP Deskphone until you log off.
To configure the login duration:
Next
Timed
1. Choose one of the following:
—Press the Next context-sensitive soft
key to set the logon duration to
Permanent. A login confirmation
screen appears.
— Press the Timed context-sensitive
soft key to open a screen to set a
maximum time to remain logged in.
Note: If you press the Timed context-
sensitive soft key, you must then set the
duration of the login.
Period 2. Press the Period context-sensitive soft
key to toggle the logon duration entries
between hours or days.
Next
3. Do one of the following:
— Use the dialpad to enter the number
of hours or days you want to remain
logged on and press the Next
context-sensitive soft key.
Accessing the IP Deskphone
81
Logging on multiple user accounts
The IP Deskphone has a multiuser feature that allows multiple SIP user
accounts to be active on the IP Deskphone at the same time. For more
information about logging on multiple users, see “Multiuser” on page 284.
Timed logoff
When you determine a logon time other than permanent, the IP
Deskphone reminds you of your expiry time.
Timed logoff while IP Deskphone is idle
When the login time expires and the IP Deskphone is idle (not on a call),
you can do one of the following at the prompt:
• Press the Yes context-sensitive soft key to log off immediately.
•Press the No context-sensitive soft key to switch to Permanent logon.
• Press the Quit or Release/Goodbye key to logout immediately.
If you do not respond, the prompt times out in 45 seconds and the IP
Deskphone logs off.
If you answer a call during the logout prompt, the logon switches to
permanent login.
Timed logoff while on a call
When the login time expires while you are on a call, you can do one of the
following at the prompt:
• Press the Yes context-sensitive soft key to log off immediately.
Back
Cancel
— Press the Back context-sensitive
soft key to return to the permanent
logon screen.
— Press the Cancel context-sensitive
soft key to return to the first logon
screen.
Accessing the IP Deskphone
82
•Press the No context-sensitive soft key to switch to Permanent logon.
• Press the Quit key to dismiss the log out prompt and switch to
permanent login.
• Press the Release/Goodbye key to dismiss the logout prompt and
switch to permanent login.
Note: If you press the Release/Goodbye key to dismiss the logout
prompt, you also terminate the call.
If you do not respond, the prompt times out in 45 seconds and the IP
Deskphone switches to permanent login.
Selecting a location
When you first login to the IP Deskphone, the system prompts you for a
location. The location you select is saved in your User Profile.
Depending on your service provider, the Enhanced Emergency Service
uses the location you select or the Directory Number (DN) on the call
server, when handling emergency calls. The configuration of the call
server determines how emergency service calls are handled by your
IP Deskphone.
Note 1: During an emergency call, you cannot log out from the IP
Deskphone or release or disconnect the call. The IP Deskphone
remains connected to the emergency service until the emergency
service operator disconnects it.
Note 2: If the login time expires during an emergency call, a prompt
does not appears and the IP Deskphone automatically switches to
permanent login.
Note 3: When you set your user profile for the first time, you must
confirm that the selected location is correct. You can view your
location by accessing the Phone Information screen. For more
information, see “Viewing the IP Deskphone information” on
page 304.)
Accessing the IP Deskphone
83
User Profile
Your User Profile contains your specific settings and data. You are
prompted to create a User Profile the first time you log on to your Avaya
1140E IP Deskphone. If you delete your User Profile, the IP Deskphone
reboots, and you must log on and create a new User Profile. When you
log on to your IP Deskphone, your specific settings and data are
automatically available for you.
The information stored in your user profile includes:
• Independent volume adjustments for handset, headset, and
handsfree
• Alerting Volume adjustment
• Idle Screen display text
• Display Contrast and Backlight Screen Saver settings
• Voice Mail settings (number and mailbox ID)
• User location (from a server-provided list)
• Time, Date, and Zone format settings
• Call Subjects
• Call Decline reasons
• Instant Messaging settings and Instant Message Inbox/Outbox
• Default dialing (alpha/numeric)
• Call Ignore action (local/network)
• Search method (Name, First character, Index)
• User Presence selection
• Dialing pattern default (alpha/numeric)
• Address Book entries
• Call Inbox and Call Outbox entries
• Programmable keys configuration
• # Ends dialing configuration
Accessing the IP Deskphone
84
Overwriting your personal Address Book
When an address book exists on a call server, such as an address book
for a specific company, you can update your personal Address Book with
an address book from the call server. The system administrator
configures the system to enable this feature. If a new address book is
available on the call server, the IP Deskphone prompts you to download
the latest address book.
Confirmation logon screen
When you complete the logon process, the logon confirmation screen
appears as shown in Figure 16 on page 85. Press the OK context-
sensitive soft key to complete the logon process.
If the login is unsuccessful, a login error message Failed to login
user, Authentication required appears. Press the OK context-
sensitive soft key to return to the first logon screen. The most common
cause for logon failure is the incorrect entry of your password.
Note: In case of login failures, the IP Deskphone displays the
message “Failed to login user” and then automatically returns to the
login screen.
Accessing the IP Deskphone
85
Figure 16: Logon confirmation screen
Logging off from the IP Deskphone
To log off from the IP Deskphone:
1. Press the Services fixed key, and then
select Logout from the menu.
abc 2. Press the abc/123 context-sensitive soft
key to toggle between alphabetic or
numeric input.
Accessing the IP Deskphone
86
Logging off multiple user accounts
The IP Deskphone has a multiuser feature that allows multiple SIP user
accounts to be active on the IP Deskphone at the same time. By logging
off of the primary account, all other accounts log off automatically. By
logging off of a secondary account, you remove the selected secondary
account from the autologin list. For more information about logging off
when the IP Deskphone has multiple users, see “Logging out” on
page 287.
Making an emergency call
You can use the IP Deskphone to make an emergency call to the Public
Safety Answering Point (PSAP) from any accessible screen without
logging on.
When you pick up the handset, press the handsfree button or headset
button without logging on, a message “Emergency calls only” appears,
and the IP Deskphone can only be used to make an emergency call. All
context-sensitive soft keys and feature keys are blank and unusable
except for the second context-sensitive soft key which allows you to
switch between numeric and alphabetic characters. If you hang up before
the connection is established, the IP Deskphone returns to the initial
3. Use the dialpad to enter your password
at the prompt.
4. Choose one of the following:
— Press the Logout context-sensitive
soft key to complete the logout
process. The IP Deskphone returns
to the User Login screen.
— Press the Back context-sensitive
soft key to remain logged on and
return to the Services menu.
or
Logout Back
Accessing the IP Deskphone
87
state. After the connection is established, the call can be disconnected
only by an operator. If you hang up after the connection has been made,
the IP Deskphone switches to loudspeaker. If the loudspeaker is already
on, and you press the hang up button, nothing happens. The call is not
disconnected.
When you make an emergency call, the location of the IP Deskphone is
forwarded to the PSAP.
Note: When the IP Deskphone is waiting for the user to log on or it is
blocked by a screen saver, you can still make an emergency call. If
you pick up the handset, a message "Emergency calls only" appears
and the IP Deskphone can be used for making only emergency calls.
To make an emergency call:
Send
1. Choose one of the following:
— Pick up the handset.
— Press the handsfree button.
— Press the headset button.
Note: Hang up or switch off the handset
to return to normal state.
2. Dial the emergency number that is
provided by your dialing plan.
3. Press the Send context-sensitive soft
key.
Note: If you try to dial the number that
does not match the dialing plan, a
message appears to inform you that the
number is incorrect.
Accessing the IP Deskphone
88
Location information
When you make an emergency call, the IP Deskphone provides the
PSAP with the location information of the IP Deskphone. The
IP Deskphone receives the location information when the IP Deskphone
is first plugged in to the network and then stores it.
To view your location, press the Services hard key, choose Phone
Information, and then press the E911 context-sensitive soft key.
Figure 17 on page 88 displays the Phone Information menu.
Figure 17: Phone information menu
Figure 18 on page 89 displays the location information.
Accessing the IP Deskphone
89
Figure 18: Phone location display
You can obtain location information only if it has been configured on your
system.
Configuring the Avaya 1140E IP Deskphone
90
Configuring the Avaya 1140E IP
Deskphone
You can adjust a few settings of the Avaya 1140E IP Deskphone to
conform to the environment where you want to use the phone. These
settings are saved to your User Profile. This chapter describes some of
the settings that you can customize on your IP Deskphone.
•“Adjusting the display screen contrast” on page 90
•“Creating the idle screen text display” on page 91
•“Configuring the Backlight Screensaver” on page 92
•“Configuring Menu Auto back-out” on page 93
•“Selecting a ring pattern” on page 95
•“Adjusting the volume” on page 96
•“Selecting a language” on page 101
•“Selecting the date and time format” on page 102
•“USB headset” on page 105
Adjusting the display screen contrast
Note: Adjusting the display screen contrast of the IP Deskphone also
adjusts the Expansion Module contrast, if you have an Expansion
Module connected to your IP Deskphone.
To adjust the display screen contrast:
Prefs 1. Press the Prefs context-sensitive soft
key, select Display, Display Settings
and then select Contrast.
Configuring the Avaya 1140E IP Deskphone
91
Creating the idle screen text display
You can create a text to display on the screen, while the phone is idle.
To create the idle screen display text:
2. Press the Left/Right navigation key to
increase or decrease the display
contrast level.
3. Choose one of the following:
— Press the Apply context-sensitive
soft key to save the changes and
return to the Display menu.
— Press the Cancel context-sensitive
soft key to keep the existing
configurations and return to the
Display menu.
Prefs 1. Press the Prefs context-sensitive soft
key, select Display, and select Idle
Screen Text Display.
abc 2. Press the abc/123 context-sensitive soft
key to toggle between alphabetic or
numeric input.
3. Use the dialpad to enter the display text
you want to appear on the idle screen
display of the IP Deskphone.
or
Apply Cancel
Configuring the Avaya 1140E IP Deskphone
92
Configuring the Backlight Screensaver
To configure the amount of time the LCD screen remains backlit:
4. Choose one of the following:
— Press the Save context-sensitive
soft key to save the idle screen text
display.
— Press the Back context-sensitive
soft key to keep the existing screen
display text and return to the
Display menu.
Prefs 1. Press the Prefs context-sensitive soft
key, select Display, Display Settings
and then select Backlight Screensaver
from the menu.
2. Press the Left/Right navigation key to
increase or decrease the length of time
you want the idle screen to remain
backlit.
3. Choose one of the following:
— Press the Apply context-sensitive
soft key to configure the length of
time for the phone to remain backlit
and return to the Display menu.
— Press the Cancel context-sensitive
soft key to keep the existing
configurations and return to the
Display menu.
or
Save Back
or
Apply Cancel
Configuring the Avaya 1140E IP Deskphone
93
Configuring Menu Auto back-out
You can use the Menu Auto back-out feature to configure the time interval
required for the IP Deskphone to go back to the idle screen when the
IP Deskphone is left inactive.
To configure Menu Auto back-out:
Prefs 1. Press the Prefs context-sensitive soft
key, choose Display, and then Menu
Auto back-out.
2. Choose one of the following:
— Press the Select context-sensitive
soft key.
— Press the Back context-sensitive
soft key to return to the previous
menu.
or
Select Back
Configuring the Avaya 1140E IP Deskphone
94
Note: When you enter the Auto back-out menu, the current
configuration for the Menu Auto back-out time is pre-selected
(highlighted) on the list.
When you press the Select context-sensitive soft key, the time interval is
flagged to commit to the configured preferences (done after the idle
screen is displayed), and is used for menu auto back-outs from that point
forward.
3. Press the Up/Down navigation key to
scroll through the screen and choose the
required time interval.
Choose one of the following values:
— Never
—10 min
—5 min
—2 min
—1 min
—30 sec
—15 sec
Note: The Never option turns off Menu
Auto back-out.
4. Choose one of the following:
— Press the Select context-sensitive
soft key to configure the Auto back-
out time to the selected (highlighted)
value and return to the Display
menu.
— Press the Back context-sensitive
soft key to dismiss the Auto back-out
time menu and return to the Display
menu.
or
Select Back
Configuring the Avaya 1140E IP Deskphone
95
Selecting a ring pattern
You can use the ring pattern feature to select the ring pattern for an
incoming call.
To select the ring pattern for an incoming call:
Prefs 1. Press the Prefs context-sensitive soft
key, select Audio, select Tones, and
then select Ring Pattern.
2. Press the Up/Down navigation key to
scroll through and highlight the different
ring patterns displayed on the LCD
screen.
Select
Test
Back
3. Choose one of the following:
— Press the Select context-sensitive
soft key to configure the ring pattern
and return to the Tones menu.
—Press the Test context-sensitive soft
key to briefly play the selected ring
pattern.
— Press the Back context-sensitive
soft key to keep the existing
configurations and return to the
previous menu.
Configuring the Avaya 1140E IP Deskphone
96
Adjusting the volume
You can adjust the volume of the IP Deskphone for the following:
• Ring Volume
• Handset Volume
• Headset Volume
• Handsfree Volume
A sliding scale appears on the LCD screen display when you adjust the
volume. Figure 19 on page 96 shows how to adjust the volume.
Figure 19: Adjusting the volume
Adjusting the ring volume
You can adjust the ring volume for an incoming call.
To adjust the ring volume for an incoming call:
Prefs 1. Press the Prefs context-sensitive soft
key, select Audio, select Tones, and
then select Alerting Volume.
Configuring the Avaya 1140E IP Deskphone
97
2. To adjust the ring volume of an incoming
call do one of the following:
— Press the Left/Right navigation key.
— Press the Volume fixed keys to
increase or decrease the volume.
3. Choose one of the following:
— Press the Set context-sensitive soft
key to configure the selected volume
and return to the Tones menu.
— Press the Back context-sensitive
soft key to keep the existing
configurations and return to the
Tones menu.
or
Set Back
Configuring the Avaya 1140E IP Deskphone
98
Adjusting the volume of the Handset, headset,
and Handsfree mode
You can adjust the volume for the handset, headset, and the handsfree
speaker of the IP Deskphone.
To adjust the volume of the handset:
Prefs 1. Press the Prefs context-sensitive soft
key, select Audio, select Voice, and
then select Handset.
2. To adjust the handset volume use one of
the following methods:
— Press the Left/Right navigation key
to increase or decrease the volume
of the handset.
— Press the Volume + fixed key to
increase the handset volume or
press the Volume - fixed key to
decrease the handset volume.
Note: To adjust the volume during a call,
use only the Volume + and
Volume - fixed keys.
3. Choose one of the following:
— Press the Set context-sensitive soft
key to configure the selected volume
and return to the Voice menu.
— Press the Back context-sensitive
soft key to keep existing
configurations and return to the
Voice menu.
or
Set Back
Configuring the Avaya 1140E IP Deskphone
99
You can adjust the headset volume on the IP Deskphone.
To adjust the headset volume:
You can adjust the handsfree mode volume on the IP Deskphone.
Prefs 1. Press the Prefs context-sensitive soft
key, select Audio, select Voice, and
then select Headset.
2. To adjust the handset volume use one of
the following methods:
— Press the Left/Right navigation key
to increase or decrease the volume
of the handset.
— Press the Volume + fixed key to
increase the handset volume or
press the Volume - fixed key to
decrease the handset volume.
Note: To adjust the volume during a call,
use only the Volume + and
Volume - fixed keys.
3. Choose one of the following:
— Press the Set context-sensitive soft
key to configure the selected volume
and return to the Voice menu.
— Press the Back context-sensitive
soft key to keep the existing
configurations and return to the
Voice menu.
or
Set Back
Configuring the Avaya 1140E IP Deskphone
100
To adjust the handsfree mode volume:
Prefs 1. Press the Prefs context-sensitive soft
key, select Audio, select Voice, and
then select Handsfree.
2. To adjust the handsfree volume use one
of the following methods:
— Press the Left/Right navigation key
to increase or decrease the volume
of the handset.
— Press the Volume + fixed key to
increase the handset volume or
press the Volume - fixed key to
decrease the handset volume.
Note: To adjust the volume during a call,
use only the Volume + and
Volume - fixed keys.
3. Choose one of the following:
— Press the Set context-sensitive soft
key to configure the selected volume
and return to the Voice menu.
— Press the Back context-sensitive
soft key to keep the existing
configurations and return to the
Voice menu.
or
Set Back
Configuring the Avaya 1140E IP Deskphone
101
Selecting a language
The display is available in multiple languages. A maximum of five
languages are accessible through the IP Deskphone. The system
administrator determines which languages are available for your IP
Deskphone.
To select a language:
Prefs 1. Press the Prefs context-sensitive soft
key, and then select Language. The
current language displays.
Change 2. Press the Change context-sensitive soft
key to change the language.
3. Press the Up/Down navigation key to
scroll and highlight the desired language
(for example, German [Deutsche]).
4. Choose one of the following:
— Press the Select context-sensitive
soft key to save the desired
language and return to the previous
screen.
— Press the Back context-sensitive
soft key to keep the existing
configurations and return to the
Preferences menu.
or
Select Back
Configuring the Avaya 1140E IP Deskphone
102
Selecting the date and time format
Several date and time formats are available. Formats are based on the
12-hour and 24-hour clocks.
To select a date format:
Prefs 1. Press the Prefs context-sensitive soft
key, select Misc Options, and then
select Time.
Change 2. Press the Change context-sensitive soft
key.
3. Press the Up/Down navigation key to
highlight Date Format in the menu.
Change 4. Press the Change context-sensitive soft
key to change the Date Format.
5. Press the Up/Down navigation key to
scroll and highlight either a month/day
(MM/DD) or a day/month (DD/MM)
format.
Configuring the Avaya 1140E IP Deskphone
103
You can select a time zone for your IP Deskphone.
To select a time zone:
6. Choose one of the following:
— Press the Select context-sensitive
soft key to save the format and
return to the Time Format menu.
— Press the Back context-sensitive
soft key to keep the existing
configurations and return to the
Time Format menu.
Prefs 1. Press the Prefs context-sensitive soft
key, select Misc Options, and then
select Time.
Change 2. Press the Change context-sensitive soft
key.
3. Press the Up/Down navigation key to
highlight Timezone in the menu.
Change 4. Press the Change context-sensitive soft
key to change the Date Format.
or
Select Back
Configuring the Avaya 1140E IP Deskphone
104
You can select the time zone format for your IP Deskphone.
To select a time format:
5. Press the Up/Down navigation key to
scroll through and highlight the time
zones.
Note: Time zones are listed based on
GMT format, for example:
— GMT -11:00 Samoa
— GMT -10:00 Hawaii
6. Choose one of the following:
— Press the Select context-sensitive
soft key to save the time zone
selection and return to the Time
Format menu.
— Press the Back context-sensitive
soft key to keep the existing
configurations and return to the
Time Format menu.
Prefs 1. Press the Prefs context-sensitive soft
key, select Misc Options, and then
select Time.
Change 2. Press the Change context-sensitive soft
key.
or
Select Back
Configuring the Avaya 1140E IP Deskphone
105
USB headset
You can attach only one USB headset to the IP Deskphone. (If you add
an additional USB headset, the IP Deskphone ignores it without any
message.) When you connect the USB headset to the USB port of the
IP Deskphone, the IP Deskphone configures the headset to work with it.
Table 9 on page 106 lists the types of USB headsets that work with the IP
Deskphone.
3. Press the Up/Down navigation key to
highlight Time Format in the menu.
Change 4. Press the Change context-sensitive soft
key change the date format.
5. Press the Up/Down navigation key to
scroll and highlight a time format:
— 12-hour
— 24-hour
—French
6. Choose one of the following:
— Press the Select context-sensitive
soft key to save the time format and
return to the Time Format menu.
— Press the Back context-sensitive
soft key to keep the existing
configurations and return to the
Time Format menu.
or
Select Back
Configuring the Avaya 1140E IP Deskphone
106
Table 9: Supported USB headset types
Headset menu
The USB Audio feature adds the USB headset as an alternative headset
in addition to the wired and the Bluetooth headset. You can add a
headset to your preferences by clicking on the Prefs context-sensitive
soft key, and then choosing Audio. The Audio option allows you to select
and configure the preferred headset. Figure 20 on page 107 displays the
Audio menu with the Headset Selection menu item.
Headset type Frequency
Avaya Enhanced USB
headset adapter 8 KHz
Avaya Mobile USB
headset adapter 8 KHz
Plantronics CS50/
CS60 Wireless USB
headsets
8-48 KHz Continuous
Spectrum
GN Netcom 9300
series wired and
wireless USB
headsets
16 KHz
Algo Analog Terminal
Adapter 8 KHz
Configuring the Avaya 1140E IP Deskphone
107
Figure 20: Preferences menu with headset menu item
On the IP Deskphone, after you select the Prefs, Audio, and Headset
Selection menu items, use the headset screen to select the desired
headset and corresponding functional parameters. Figure 21 on page 108
displays the headset screen.
Configuring the Avaya 1140E IP Deskphone
108
Figure 21: Headset screen
Configuring the Avaya 1140E IP Deskphone
109
Table 10 on page 109 describes the configuration options on the headset
screen.
Table 10: Configuration options on the headset screen
(Part 1 of 3)
Option Function
Active Headset Device Select the active headset device;
either USB, Wired, or Bluetooth.
Note: The headset can be
selected before it is paired
(Bluetooth) or attached
(wired or USB).
Items below the Active Headset
Device field are dimmed, if either
USB headset is not selected or if
the attached headset is not one
of the Human Interface Device
(HID) supported headset types.
Wired Headset Type Select the type of wired headset
you required.
• Headset Type 1 (Generic
narrow band)
• Headset Type 2 (Wideband)
• Headset Type 3 (Wideband)
Configuring the Avaya 1140E IP Deskphone
110
Enable HID Commands Enable HID Commands only if
USB headset is selected.
The checkbox is used to enable
the HID commands of supported
headsets to allow the
IP Deskphone to run in generic
mode 1 operation, supporting
both USB audio and HID
commands. The configuration is
ignored for non-supported USB
headsets.
MHA Headset Type Choose an MHS Headset Type
only if Avaya headset adapter is
detected.
This list contains the different
wired headset types that can be
attached to the Avaya Enhanced
or Mobile Adapters for loss plan
adjustment. The command is
ignored for other types of USB
headsets. This item is dimmed if
the attached headset is not one
of the Avaya headset types.
Table 10: Configuration options on the headset screen
(Part 2 of 3)
Option Function
Configuring the Avaya 1140E IP Deskphone
111
The changes in the menu take effect immediately if the device is
attached. The active voice path switches to the selected headset if you
are on an active call. If you press the Apply context-sensitive soft key,
then the changes are applied, the settings are made permanent by
storing the values in persistent storage, and they are applied every time
the IP Deskphone starts up. However, all changes made are ignored and
restored if you press the Back context-sensitive soft key.
Presence of USB headset
On the System menu, choose Phone Information, and then select USB
to verify the presence of the USB headset attached to the IP Deskphone.
When you select the USB menu, the attached USB headset is displayed
along with other USB devices. The name of the USB device directly
appears from the USB devices themselves. The product description has
no explicit USB headset indications for the attached USB headset. The
following figure displays the headset setting screen.
MHA Back Light Enable the MHA Back Light (only
if Avaya headset adapter is
detected).
The checkbox is used to enable
or disable the back light
equipped in Avaya Enhanced or
Mobile headsets. The command
is ignored for other types of USB
headsets. This item is dimmed if
the attached headset is not one
of the Avaya headset types.
Table 10: Configuration options on the headset screen
(Part 3 of 3)
Option Function
Configuring the Avaya 1140E IP Deskphone
112
Figure 22: Presence of USB headset screen
Audio format selection
After the IP Deskphone receives the endpoint configurations, it searches
the records to select an audio format that matches the IP Deskphone
requirements. If no match is found, then the default audio format is used.
After you select the format, the IP Deskphone sends a command to the
device to select the corresponding endpoints for audio transfers.
The IP Deskphone supports both 8KHz and 16KHz audio. You can select
the 16KHz audio, if the headset supports it. The IP Deskphone is a mono
device with only one voice channel. For stereo USB headsets detected,
the IP Deskphone replicates one channel voice data to both left and right
channels of the headsets to simulate stereo output.The following table
lists the audio format requirements supported by the IP Deskphone.
Table 11: Supported USB audio formats
Audio Parameters Values
Audio Format PCM only
Configuring the Avaya 1140E IP Deskphone
113
After you select the format and the Set Interface command is sent, the
USB headset runs in Generic Mode 1 operation (both audio and HID) or
Mode 2 operation (audio only). If the headset runs in Mode 1 operation,
the IP Deskphone configures the task or callback to communicate with
the USB HID control events between the IP Deskphone and the headset.
You can insert the headset during an active call. The IP Deskphone
synchronizes the headset state machine of the IP Deskphone to the
current state of the headset to ensure the LED match status.
During the call, if the audio negotiated between the two parties is set to
8KHz audio and the IP Deskphone is setup for 16KHz USB headset
audio, the IP Deskphone performs the transcoding between 8KHz audio
to 16KHz audio. Likewise, if the audio negotiated between the two parties
is set to 16KHz audio and the headset supports only 8KHz audio, the
IP Deskphone performs the transcoding between 16KHz audio to 8KHz
audio.
Generic USB headset
When a generic USB headset (or supported headset with HID command
disabled) is attached to the IP Deskphone and selected, it behaves like a
wired headset. All call controls, on hook, off hook, mute, volume up, and
volume down are performed using the keys on the IP Deskphone. The
IP Deskphone does not use the User interface elements on the headset,
including LEDs if present. When the USB headset is selected, the voice
path to or from the USB headset is used in an active call.
Subframe size 2
Bit Resolution 16 bits
Frequency Type Continuous (0) or Discrete (> 0)
Sample Frequency If Continuous, default to 16 KHz. If
Discrete, 8 KHz, 16KHz or 8KHz
multiple. Preference is given to
16KHz audio, if supported
Audio Channel Mono (1) or Stereo (2)
Audio Parameters Values
Configuring the Avaya 1140E IP Deskphone
114
Avaya USB headset adapter with HID
When you enable the HID support for Avaya USB Mobile or Enhanced
adapter, then the IP Deskphone makes use of the UI elements on the
adapter. Both type of USB headsets are stimulus devices, as the
IP Deskphone can have complete control of the LEDs. Table 12 on
page 114 lists the features of the Avaya USB headset adapter.
Table 12: Avaya USB headset adapter with HID support
Feature Description
Key Event Key press on the adapter generates events
only with a state maintained and actions
taken by the IP Deskphone. There is a one-
to-one mapping on most of the keys on the
adapter to the keys on the IP Deskphone
(the Avaya Enhanced Adapter has a Avaya
logo key which does not exist on the
IP Deskphone). Table 13 on page 117
illustrates the mappings:
Key press events on the adapter are sent to
the IP Deskphone through the USB. When
the IP Deskphone receives these events, it
maps them to the corresponding key events
as if the keys on the IP Deskphone are
pressed.
Configuring the Avaya 1140E IP Deskphone
115
LED There are two LEDs on the adapters, one for
the mute status and the other for message
waiting. These two LEDs are also mapped
to the corresponding LEDs on the
IP Deskphone. The IP Deskphone
synchronizes the LEDs status with that of
the IP Deskphone: the Mute LED for mute
indication and the Message Waiting LED for
message waiting and incoming call (flash)
indications. The Avaya USB Enhanced
Adapter has an extra port to connect an
external alerter. If there is an external alerter
attached, the external alerter is kept
synchronized with the Message Waiting
LED.
Attached Indicator When a Avaya USB Mobile or Enhanced
headset is connected to the IP Deskphone,
after enumeration, the IP Deskphone
flashes the LEDs on the headset for a short
duration to indicate the headset is ready to
use.
Back Light Both adapters have a back light to allow
easy identification of the adapters. If the
back light is enabled in the headset screen,
the back light of the adapter turns on after
enumeration.
Message Waiting If there is voice message waiting on the
IP Deskphone, the IP Deskphone turns on
the red message waiting LED on the
IP Deskphone and on the adapter. The
IP Deskphone turns off the red message
waiting LED if there is no voice message
waiting.
Feature Description
Configuring the Avaya 1140E IP Deskphone
116
External Alerter The Avaya USB Enhanced Adapter has a
port to allow an External Alerter (large LED
indicator) to attach to the adapter. The
IP Deskphone uses HID commands to keep
the External Alerter synchronized with the
red Message Waiting LED on the
IP Deskphone and on the adapter.
Incoming Call When there is an incoming call, the
IP Deskphone sends an alerting event to the
adapter. The red Message Waiting LED
flashes to indicate there is an incoming call
on the IP Deskphone.
Caller ID Information Not applicable.
Call Answer You can answer an incoming call by
pressing the headset key on the
IP Deskphone or the Off Hook (Green) key
on the adapter. After a call is answered,
audio data flows between the IP Deskphone
and the headset adapter through the USB.
Outgoing Call You can make an outgoing call by either
pressing the headset key on the
IP Deskphone, or the Off Hook (Green) key
on the adapter. When off hook, the
IP Deskphone streams dial tone to the
headset. The telephone number must be
dialed using the key pad of the
IP Deskphone. After a call is answered,
audio data flows between the IP Deskphone
and the headset adapter through the USB.
Call Release You can release an incoming call or an
outgoing call by pressing either the On Hook
(Red) key on the adapter, or the Release
(Goodbye) key on the IP Deskphone. After a
call is released, audio data between the
IP Deskphone and the headset stops.
Feature Description
Configuring the Avaya 1140E IP Deskphone
117
Table 13 on page 117 lists the Avaya USB adapter key mappings.
Table 13: Avaya USB adapter key mappings
The Blue key is mapped to the Expand key on the IP Deskphone.
Therefore, pressing the Blue key invokes the Instant Messaging screen.
Call Mute Pressing the Mute key on the adapter is
equivalent to pressing the Mute key on the
IP Deskphone. After processing the mute
event, the voice path from the IP Deskphone
to the far end is muted. Both the Mute LED
on the IP Deskphone and the LED on the
adapter are lit to indicate the call is muted.
When unmuted, the voice path resumes and
both LEDs go off.
Volume Up/Down Pressing the Volume Up/Down key on the
adapter is equivalent to pressing the Volume
Up/Down key on the IP Deskphone. After
processing the Volume Up/Down events,
the system volume changes and affects the
volume on the attached headset.
Audio Processing Same as the wired headset. Audio quality is
restricted to narrow band with mono voice
channel only.
Keys on adapter Keys on the IP Deskphone
Blue Key Expand Key
Green Key Headset Key
Red Key Release Key
Mute Key Mute Key
Volume Up/Down Volume Up/Down
Feature Description
Configuring the Avaya 1140E IP Deskphone
118
Third–party USB headsets with HID
Both USB Audio and USB HID commands are supported. The two
classes of third-party USB headsets are as follows:
• Plantronics CS50/CS60 Wireless USB headsets
• GN Netcom 9300 series wired and wireless USB headsets
The HID support of third-party USB headsets performs differently from the
Avaya headset. The headsets are independent devices with an internal
state machine to control LED operations and headset behavior.
Configuring the Avaya 1140E IP Deskphone
119
Table 14 on page 119 lists the features of a third–party USB headset with
HID support.
Table 14: Third-party USB headset with HID support features
(Part 1 of 5) (Part 1 of 5)
Feature Description
Key Events Both types of headsets have equivalent
mechanisms to generate the following
key events:
•On Hook
• Off Hook
•Mute
• Volume Up/Down
The headsets send the corresponding
HID commands to the IP Deskphone to
synchronize call processing operations.
When the IP Deskphone receives these
commands, the IP Deskphone maps
them to the corresponding key events
(except the Volume Up/Down keys) as if
the keys on the IP Deskphone are
pressed.
If the corresponding keys on the
IP Deskphone are used instead, the
IP Deskphone sends the HID
commands to the headsets to allow the
headsets to update their internal state
machine.
LEDs Both types of headsets have LEDs on
the base station for status indication.
These LEDs are controlled by the
headset base stations themselves
according to their internal state
machines. The IP Deskphone has no
direct control of these LEDs.
Configuring the Avaya 1140E IP Deskphone
120
Attached Indicator Both types of headsets can have
attached indications independent of the
IP Deskphone operations.
The GN Netcom (Jabra) 9350 headset
can take over 3 seconds to complete the
enumeration process after the headset
is attached to the IP Deskphone. During
enumeration, the LEDs at the bottom of
the base station flash. The enumeration
process is complete only when there is a
blink at the headset piece and the base
LEDs become solid.
Back Light Not applicable
Message Waiting Not applicable
External Alerter Not applicable
Incoming Call When there is an incoming call, the
IP Deskphone sends an alerting event to
the headset. Each type of headset has
different incoming call indications.
Caller ID Information Not applicable
Table 14: Third-party USB headset with HID support features
(Part 2 of 5) (Part 2 of 5)
Feature Description
Configuring the Avaya 1140E IP Deskphone
121
Call Answer You can answer an incoming call by
pressing the headset key on the
IP Deskphone or the Off Hook
equivalent key on the headset. The
IP Deskphone coordinates the key
events from both sources and performs
the necessary call processing
operations. Call connected indications, if
available, are autonomous within the
headset to match its internal state. After
a call is answered, audio data flows
between the IP Deskphone and the
headset through the USB.
Outgoing Call You can make an outgoing call by either
pressing the headset key on the
IP Deskphone or the Off Hook
equivalent key on the headset. When off
hook, the IP Deskphone streams dial
tone to the headset. This class of
headset has no dial pad and the
telephone number must be dialed using
the key pad of the IP Deskphone. After
the call is connected, voice data streams
between the IP Deskphone and the
headset.
Table 14: Third-party USB headset with HID support features
(Part 3 of 5) (Part 3 of 5)
Feature Description
Configuring the Avaya 1140E IP Deskphone
122
Call Release You can release an incoming call or an
outgoing call by pressing either the
Release (Goodbye) key on the
IP Deskphone or the On Hook
equivalent key on the headset. After a
call is released, audio data stops
between the IP Deskphone and the
headset.
If you are using the Plantronics headset,
to release a call, press and hold the
answer/release toggle button for more
than two seconds.
Call Mute The mute key event is handled
independently on the headset. The
corresponding HID command is sent to
the IP Deskphone to synchronize
IP Deskphone status. Mute status
indication on the headset is also
independent. When muted, the headset
streams blank audio to the
IP Deskphone and the IP Deskphone
also mutes the audio to the far end
(double muted).
Volume Up/Down This class of headsets manages volume
changes locally whenever Volume Up/
Down keys are pressed. Pressing the
Volume Up/Down keys on the headset
has no effect on system volume. The
IP Deskphone ignores volume events
from the headsets to avoid double
volume changes. On the other hand,
volume changes on the IP Deskphone
change the system setting and indirectly
affects the volume level on the headset.
Table 14: Third-party USB headset with HID support features
(Part 4 of 5) (Part 4 of 5)
Feature Description
Configuring the Avaya 1140E IP Deskphone
123
Analog Terminator Adapter for analog
(500/2500-type) telephone or fax machine
SIP Software Release 3.x supports the Analog Terminator Adapter (ATA)
which is connected using the USB port. An analog (500/2500-type)
telephone or fax machine can be connected to the ATA to convert the
IP Deskphone to an analog system. The ATA is treated as an USB
headset device by the IP Deskphone.
SIP Software 3.x supports On hook/Off hook and dial pad key events for
HID support to allow the attached device to make outgoing calls directly
without using the key pad on the IP Deskphone. If Calling Line ID (CLID)
of the far-end is available, then the information is sent to the attached
analog device. An analog (500/2500-type) telephone or fax machine that
supports Calling Line ID displays the information on the screen.
Audio Processing Same as the wired headset. Both
headsets support Wideband audio. The
IP Deskphone selects to use 16KHz
audio to match the audio characteristics
of the headset.
Table 14: Third-party USB headset with HID support features
(Part5of5) (Part5of5)
Feature Description
Configuring the Avaya 1140E IP Deskphone
124
Table 15 on page 124 displays the characteristics of ATA.
Table 15: Summary of ATA characteristics (Part 1 of 3)
Feature Description
Key Events In addition to On hook, Off hook
events, dial pad digit events from the
attached analog device are also
supported. Key press events on the
adapter are sent to the IP Deskphone
through the USB. After the
IP Deskphone receives these events, it
maps them to the corresponding key
events as if the keys on the
IP Deskphone are pressed.
LEDs Not applicable.
Attached Indicator Not applicable.
Back Light Not applicable.
Message Waiting Not applicable.
External Alerter Not applicable.
Incoming Call When there is an incoming call, the
IP Deskphone sends an alerting event
to the adapter. The adapter produces
the ring tones for the attached analog
device to indicate there is an incoming
call on the IP Deskphone.
Caller ID Information Caller ID, if available, is also sent to
the adapter. The adapter sends the
CLID to the attached analog device for
display.
Configuring the Avaya 1140E IP Deskphone
125
Call Answer You can answer an incoming call by
pressing the headset key on the
IP Deskphone or the Off Hook key on
the attached analog device. After a call
is answered, the adapter converts the
digital voice data to analog and sends
it to the attached analog device.
Outgoing Call You can make an outgoing call by
either using the headset key on the
IP Deskphone or the Off Hook key on
the attached analog device. When off
hook, the IP Deskphone streams dial
tone to the adapter. The telephone
number can be dialed using the key
pad of the IP Deskphone or the key
pad of the analog device. After a call is
answered, the adapter converts the
digital voice data to analog and sends
it to the attached analog device.
Call Release You can release an incoming call or an
outgoing call by either pressing the
Release (Goodbye) key on the
IP Deskphone or On Hook key on the
analog device.
Call Mute The analog device may have a mute
key to stop voice transmission;
however, the Mute key event on the
analog device is not supported.
Volume Up/Down The Volume Up/Down key on the
analog device, if available, is
independent of the IP Deskphone
operation.
Table 15: Summary of ATA characteristics (Part 2 of 3)
Feature Description
Configuring the Avaya 1140E IP Deskphone
126
Configuring Bluetooth wireless technology
headset
Your IP Deskphone is equipped with a wireless audio gateway system to
support Bluetooth wireless technology enabled headsets.
To open the Bluetooth Setup dialog box:
The IP Deskphone with SIP Software supports the Plantronics Voyager
510S Bluetooth wireless technology headset.
If the Bluetooth Setup menu appears dimmed or fails to open when you
double-press the Headset key, the feature is not enabled on your
IP Deskphone. Before you can use a Bluetooth wireless technology
headset with your IP Deskphone, the system administrator must activate
the feature. Contact your administrator to inquire if Bluetooth wireless
technology functionality is available for your use.
Avaya recommends that you do not pair more than one headset of the
same model because they have identical names in the Paired list.
Audio Processing Same as the wired headset. Audio
quality is restricted to narrow band with
mono voice channel only.
1. Do one of the following:
— Double-press the Headset key
quickly.
— Press the Prefs context-sensitive
soft key, select Audio, and then
select Bluetooth Setup from the
menu.
Table 15: Summary of ATA characteristics (Part 3 of 3)
Feature Description
Configuring the Avaya 1140E IP Deskphone
127
Note: Avaya recommends that you do not pair more than one
headset of the same model because they have identical names in the
Paired list.
To pair a wireless headset with your IP Deskphone:
1. Double-press the Headset key to open
the Bluetooth Setup dialog box.
The Enable Bluetooth check box is
highlighted.
If the Bluetooth Setup menu fails to open
when you double-press the Headset
key, the Bluetooth wireless technology
feature is not enabled on your
IP Deskphone. Contact your
administrator.
2. Press the Enter key to activate the
Bluetooth wireless technology.
A check mark appears to indicate that
the feature is activated. The message BT
Enabled appears at the bottom of the
display.
3. Put your Bluetooth wireless technology
headset in its pairing or search mode.
The procedure for doing this can be
different for each headset. Refer to the
documentation that accompanies your
headset or contact the vendor.
4. Ensure that your headset is in Pairing or
Search Mode.
Configuring the Avaya 1140E IP Deskphone
128
5. Press the Right navigation key twice,
and highlight the Search button,
displayed next to the Search Devices
item.
6. Press the Enter key.
The message Searching…. appears. It
can take up to two minutes for the
search to complete.
If the search is successful, the message
Search Completed Found
Device(s) appears, and a list of
devices that support Bluetooth wireless
technology appears in the Found list.
7. If the search is successful, proceed to
step 9.
8. If the search is not successful, the
message Search completed. No
device found appears. If this
happens, or if the headset times out and
exits the search/pairing mode, power off
the headset, and repeat steps 4 to 8.
If pairing is still unsuccessful, pair the
IP Deskphone to another wireless
headset, or contact the headset vendor.
Configuring the Avaya 1140E IP Deskphone
129
9. When the name of your headset appears
in the Found box, press the Stop
context-sensitive soft key or wait for the
search to finish.
When the search is complete, the
message Search Completed Found
Device(s) appears.
10. If the name of your headset appears in
the Found box, proceed to step 15.
If your headset is not displayed in the
Found box, select your headset from the
list.
11. Press the Right navigation key one or
more times to highlight the Found box.
Press the Enter key to start the edit
mode.
12. Press the Down navigation key to open
the Found list. Press the Up/Down
navigation key to scroll and highlight
your headset.
13. Press the Enter key to select the
headset and close the list. Press the
Enter key to exit edit mode.
14. Press the Right navigation key one or
more times to highlight the Pair button
(next to the Pair Device item) and press
the Enter key.
A dialog box appears, with the prompt
Enter PIN#.
Stop
Configuring the Avaya 1140E IP Deskphone
130
15. Use the telephone dialpad to enter the
PIN for the wireless headset and press
the Enter key.
Check your headset documentation to
find the headset PIN or passkey. Often,
the PIN or passkey is 0000.
16. If the headset is successfully paired with
your IP Deskphone, proceed to step 17.
To verify that the pairing is successful,
ensure that the headset appears in the
list next to the Paired item. If pairing is
successful, the message Pair
completed also appears at the bottom
of the screen.
If the headset is not successfully paired
with your IP Deskphone, an error
message appears at the bottom of the
screen. If an error message appears:
— Confirm that the wireless headset is
still in search/pair mode.
— If the headset timed out and exited
search/pairing mode, put the
headset in pairing mode, as
discussed in step 4, and repeat step
15.
— Check that you are using the correct
PIN and repeat step 15.
Configuring the Avaya 1140E IP Deskphone
131
17. If the name of your headset appears in
the Paired box, proceed to step 18.
If more than one device is paired, and
the one you wish to use is not shown in
the Paired box, navigate to the one you
want, as follows:
— Press the Right navigation key one
or more times to highlight the
Paired: box. Press the Enter key to
start the edit mode.
— Press the Up/Down navigation key
to open the list. Press the Up/Down
navigations key to scroll in the
Paired list and highlight your
headset.
— Press the Enter key to select the
headset and close the list. Press the
Enter key to exit edit mode.
Configuring the Avaya 1140E IP Deskphone
132
Dual pairing headsets
Take special care when using a dual pairing type of Bluetooth wireless
technology headset. This type of headset can be paired to the base of the
headset, as well as to the IP Deskphone. If the headset is paired to both,
and the IP Deskphone is the second device, then following applies:
Press the Headset key:
• If a single tone sounds, the headset is connected to the base.
• If a double beep sounds, the headset is connected to the IP
Deskphone.
18. If only one headset is paired, proceed to
step 18.
If more than one wireless headset is
paired, the first headset paired is
automatically made the active device. To
make a different headset active, do the
following:
— Press the Right navigation key one
or more times to highlight the Set
button (next to the Set Active Device
item).
— Press the Enter context-sensitive
soft key.
The message "Set active: “device
name” appears meaning that the
headset named is now the active
headset and is used when you press the
headset key.
19. Press the Exit context-sensitive soft key
to exit to the main display. Changes are
saved automatically.
Exit
Configuring the Avaya 1140E IP Deskphone
133
• If the base is powered off, the headset is only paired to the IP
Deskphone, and you can press the telephone key to connect to the IP
Deskphone.
Note: Unless you need to dual pair a headset, operating the headset
with the IP Deskphone is simpler if the headset is only used with its
charging-only base. You should power off the desktop telephone
base, if it is not in use.
Interaction with wired headsets
If you connect a Bluetooth wireless technology headset and a wired
headset to the same Avaya 1140E IP Deskphone, the two interact as
follows:
• If a wireless headset is not paired, the wired headset works as
normal. Likewise, if a wireless headset is paired with a wired headset,
but the wireless headset is not in range, the wired headset works as
normal.
• If the Use BT headset checkbox is selected, the wireless headset is
used as the IP Deskphone headset.
The Bluetooth wireless technology headset can work only if it is within
range of the IP Deskphone. As the wireless headset approaches the edge
of its wireless range, the audio quality degrades, and radio interference
noise increases. When the wireless headset is in connecting range, the
Headset key controls the wireless headset, even if a wired headset is
attached. If a wireless headset moves out of connecting range, a special
beep sounds in the headset to indicate that the connection is lost.
When you do not want to use your Bluetooth technology headset
If a Bluetooth wireless technology headset is connected, and you want to
use the wired headset, you can switch between the two. It is not
necessary to unpair or disable the wireless headset.
You can switch between a wired and wireless headset and back again
when the IP Deskphone is idle or during an active call.
Configuring the Avaya 1140E IP Deskphone
134
To switch between a wired headset and a wireless headset:
To unpair a wireless headset:
1. Double-press the Headset key to open
the Bluetooth Setup dialog.
2. Press the Left/Right navigation key to
select the Use BT Headset item.
3. Press the Enter key to toggle this option
on or off.
A check mark indicates that the wireless
headset is used. Clear the check mark to
use a wired headset. This option is on
(o) by default.
1. Double-press the Headset key to open
the Bluetooth Setup dialog box.
2. Press the Right navigation key to select
the Paired item.
3. If the name of your headset appears in
the Paired box, proceed to step 11.
Configuring the Avaya 1140E IP Deskphone
135
4. If more than one device is paired, and
your headset is not already displayed in
the Paired box, press the Right
navigation key one or more times to
highlight the Paired box.
5. Press the Enter key to open edit mode.
6. Press the Up/Down navigation key to
open the list.
7. Press the Up/Down navigation key to
scroll through the list and highlight your
headset.
8. Press the Enter key to select the
headset and close the box.
9. Press the Enter key to exit edit mode.
10. Press the Right navigation key one or
more times to highlight the UnPair
button (next to the UnPair Device item).
Configuring the Avaya 1140E IP Deskphone
136
Your Bluetooth wireless technology headset is no longer paired with your
IP Deskphone, and you can use the wired headset. To use the wireless
headset again, you must perform the pairing and activation procedure.
11. Press the Enter key.
Your Bluetooth wireless technology
headset is unpaired and removed from
the Paired item list.
Making a call
137
Making a call
This section describes the methods you can use to make a call. You can
make a call from your IP Deskphone using one of the following:
•“Making a call using off-hook dialing” on page 138
•“Making a call using on-hook dialing” on page 140
You can also initiate a call while using one of the following features:
•“The Address Book” on page 162
•“Call Inbox” on page 180
•“Call Outbox” on page 192
•“Instant Messaging” on page 199
When an outgoing call fails to connect to the destination, one of the
following messages appears:
• Declined, Temporarily unavailable
• Declined, Cannot find user
• Declined, User has declined call
• Declined, <user supplied reason> (for example, In a meeting.)
Making a call
138
Making a call using off-hook dialing
To make a call using off-hook dialing:
1. Make a call by using one of the following
off-hook dialing methods:
— Press the Line feature key
— Lift the handset
— Press the Headset fixed key
— Press the Handsfree fixed key
The IP Deskphone produces a dial tone.
abc
2. You can make a call using one of the
following methods:
— Enter the phone number or SIP
address by using the dialpad.
Note: The abc/123 context-sensitive
soft key toggles between alphabetic and
numeric input.
Making a call
139
Redial
VMail
Alex
— Press the Redial context-sensitive
soft key to dial the last dialed
number.
Note: The Redial context-sensitive soft
key only appears if a number or address
was previously entered.
— Press the Msgs context-sensitive
soft key and then select Voice Mail
from the Messages menu to access
your voice mail.
— Press the Speed dial feature key
that you programed to call with a
commonly used or important phone
number or SIP address.
Note: You can program a feature key to
use as a shortcut to dial a number or a
SIP address. For more information, see
“To program a Speed Dial feature key:”
on page 250.
Send 3. Press the Send context-sensitive soft
key to immediately initiate the call.
Note: The IP Deskphone automatically
initiates a call shortly after you enter the
SIP address or phone number.
Making a call
140
Making a call using on-hook dialing
You can make a call by using on-hook dialing. Enter the SIP address or
the phone number before going off-hook.
Note: When you use this method, you cannot toggle between
alphabetic or numeric input.
To make a call using on-hook dialing:
Using handsfree calling
While on an active call, you can switch between the handset and
handsfree mode.
1. Dial the number or SIP address.
Chad
2. Continue the call by using one of the
following methods:
— Press the line feature key.
— Press the headset fixed key.
— Press the Handsfree fixed key.
3. To terminate the call, choose one of the
following:
— Replace the handset into the cradle.
— Press the Goodbye key.
Making a call
141
To end a handsfree call:
To mute a handsfree call:
To switch from the handsfree to handset mode:
To switch from the handset mode to handsfree mode:
Press the Goodbye key
1. Press the Mute key.
The LED indicator lights.
2. Press the Mute key again to return to a
two-way handsfree conversation.
Lift the handset.
1. Press the Handsfree key.
The LED indicator lights with a solid red
light.
2. Replace the handset.
Making a call
142
To use a headset:
To switch from handsfree to headset:
Using Call Subjects
You have the option of sending a Call Subject when you initiate a call to a
contact. Use this feature to indicate to the contact the reason for the call.
The IP Deskphone contact displays a message, such as Weekly
report call or Daily status when they receive the call. You can
select a subject from a list you create. For more information, see
“Managing Call Subjects” on page 146, or you can create a new subject.
Note: The Call Subject feature is not available for all call servers.
Contact your system administrator or service provider to determine if
this feature is available to you.
Whenever you initiate a call by using off-hook dialing, the Subject
context-sensitive soft key appears as an option to use. You can select a
Call Subject from a list or create a new Call Subject to send.
1. Connect the headset to the headset jack
or the handset jack.
2. Press the Headset key.
The LED indicator lights.
3. Press the Goodbye key or press the
button on the wireless headset, if
equipped, to release a call.
1. Press the Headset key.
The LED indicator lights.
Making a call
143
To enter a call subject from a list:
Subject 1. Press the Subject context-sensitive soft
key to send a Call Subject with the call
you are making.
A list of Call Subjects appears on the
LCD screen.
Select
New
2. Choose one of the following:
— Press the Up/Down navigation key
to highlight the Call Subject you
want to use and press the Select
context-sensitive soft key.
The IP Deskphone sends the Call
Subject to the contact you are
calling.
—Press the New context-sensitive soft
key to create a new Call Subject that
is not on the list.
abc 3. Press the abc/123 context-sensitive soft
key to toggle between alphabetic and
numeric characters.
4. Use the dialpad to enter the Call Subject.
Making a call
144
To create a new call subject while initiating a call:
Save
Clear
Back
5. Choose one of the following:
— Press the Save context-sensitive
soft key to continue.
— Press the Clear context-sensitive
soft key to clear the text.
— Press the Back context-sensitive
soft key to return to the previous
menu.
Note: When you select a subject from
this list, it appears on the screen before
you send the call. If you want to change
that subject press the Subject context-
sensitive soft key to return to the Call
Subject menu. You now have the option
to select No to a Call Subject.
Subject 1. Press the Subject context-sensitive soft
key to send a Call Subject with the call
you are making.
New 2. Press the New context-sensitive soft key
to create a new Call Subject.
abc 3. Press the abc/123 context-sensitive soft
key to toggle between alphabetic and
numeric characters.
4. Use the dialpad to enter the new Call
Subject for the contact.
Making a call
145
Save
Clear
Back
5. Choose one of the following:
— Press the Save context-sensitive
soft key to save the new Call Subject
and use it with the call.
— Press the Clear context-sensitive
key to clear the text.
— Press the Back context-sensitive
soft key to return to the previous
menu without sending the new Call
Subject.
Note: The IP Deskphone saves the new
Call Subject to the list of Call Subjects
for later use.
Making a call
146
Managing Call Subjects
You can create a list of Call Subjects to have ready to use when you
initiate a phone call. The number of Call Subjects that are stored on the IP
Deskphone depends on how the IP Deskphone was initially configured.
You can modify, delete, and add Call Subjects while the IP Deskphone is
in the idle state.
Adding a Call Subject
You can add a Call Subject while the IP Deskphone is idle.
To add a Call Subject while the IP Deskphone is idle:
Prefs 1. Press the Prefs context-sensitive soft
key, select Feature Options, and then
select Call Subject from the menu.
Add 2. Press the Add context-sensitive soft key
to create new Call Subject.
Note: If the Call Subject list is full, then
the option to add a new Call Subject is
not available. In this situation, you need
to delete a Call Subject before you can
add the new Call Subject.
abc 3. Press the abc/123 context-sensitive soft
key to toggle between alphabetic and
numeric characters.
4. Use the dialpad to enter the new Call
Subject.
Making a call
147
Deleting a Call Subject
You can delete a Call Subject while the IP Deskphone is idle.
To delete a Call Subject while the IP Deskphone is idle:
5. Choose one of the following:
— Press the Save context-sensitive
soft key to add the new Call Subject.
— Press the Back context-sensitive
soft key to return to the previous
menu without adding a new Call
Subject.
Prefs 1. Press the Prefs context-sensitive soft
key, select Feature Options, and then
select Call Subject from the menu.
2. Press the Up/Down navigation key to
scroll through and highlight the Call
Subject to delete.
Delete 3. Press the Delete context-sensitive soft
key to delete the selected Call Subject.
A confirmation screen appears with the
question, Delete call subject?
or
Save Back
Making a call
148
Editing a Call Subject
You can edit a Call Subject while the IP Deskphone is idle.
To edit a Call Subject while the IP Deskphone is idle:
4. Choose one of the following:
— Press the Ok context-sensitive soft
key to confirm the deletion of the
Call Subject.
— Press the Back context-sensitive
soft key to not delete the Call
Subject and return to the previous
menu.
Prefs 1. Press the Prefs context-sensitive soft
key, select Feature Options, and then
select Call Subject from the menu.
2. Press the Up/Down navigation key to
scroll through and highlight the Call
Subject to edit.
Edit 3. Press the Edit context-sensitive soft key
to edit the selected Call Subject.
abc 4. Press the abc/123 context-sensitive soft
key to toggle between alphabetic and
numeric characters.
or
Ok Back
Making a call
149
5. Use the dialpad to edit the Call Subject.
6. Choose one of the following:
— Press the Save context-sensitive
soft key to confirm the changes.
— Press the Back context-sensitive
soft key to return to the previous
menu without editing the Call
Subject.
or
Save Back
Receiving a call
150
Receiving a call
When you receive a call, you are typically notified by the alerting ring, and
the incoming caller identification appears on the LCD screen. The
incoming call forces the screen to exit active menu activities and takes
precedence over a pop-up Instant Message (IM).
Caller identification
When you receive an incoming SIP call, the Caller ID information appears
on the LCD screen. When you receive a call from a contact that is entered
in the IP Deskphone Address Book, the caller information appears as it is
in the Address Book. See Figure 23 on page 151.
You can restrict the information displayed for incoming calls or for calls
you make. For more information, see “Configuring Privacy settings” on
page 275.
When you receive an incoming call you can do one of the following:
• Answer an incoming call. See “Answering an incoming call” on
page 151.
• Redirect an incoming call. See “Redirecting an incoming call” on
page 152.
• Decline an incoming call. See “Declining an incoming call” on
page 154.
• Ignore an incoming call. See “Ignoring an incoming call” on
page 159.
• Receive an intercom call. See “Receiving intercom calls” on
page 160.
• Receive paging calls. See “Receiving paging calls” on page 161.
Receiving a call
151
Figure 23: Incoming call screen
Answering an incoming call
When you can answer an incoming call, you can choose one of four
methods.
To answer an incoming call:
Answer 1. Choose one of the following:
— Press the Answer context-sensitive
soft key that activates a Handsfree
call.
— Lift the handset.
— Press the Headset fixed key.
— Press the Handsfree fixed key.
Receiving a call
152
Redirecting an incoming call
When you receive a call, you can choose to redirect the call to another
destination without answering the call.
To redirect a call, press the Redrct context-sensitive soft key. To enter a
SIP address or phone number where you want the call redirected, use
one of the following methods:
• Enter the SIP address or phone number by using the dialpad.
• Select a contact from the Address Book, Call Inbox, or Call Outbox.
To redirect an incoming call by using the dialpad:
Redrct 1. Press the Redrct context-sensitive soft
key to redirect an incoming call.
The LCD screen prompts you to enter an
address to which you want the call
directed.
2. Use the Dialpad to enter a phone
number or SIP address.
Note: Do not use the # key to end
dialing when you redirect a call. The call
returns a busy signal and does not
connect.
Receiving a call
153
To redirect a call by using the Address Book, Call Inbox, or Call
Outbox:
Redrct
Clear
Back
3. To redirect the call to the address you
enter, choose one of the following:
— Press the Redrct context-sensitive
soft key.
— Press the Clear context-sensitive
soft key to clear the entry.
— Press the Back context-sensitive
soft key to return to the Incoming
Call screen without redirecting the
call.
Redrct 1. Press the Redrct context-sensitive soft
key to redirect an incoming call.
2. To select a SIP address to redirect the
call, do one of the following:
— Press the Directory fixed key to
choose a SIP address from the
Address Book.
— Press the Msg/Inbox fixed key to
choose a SIP address from the Call
Inbox.
— Press the Shift/Outbox fixed key to
choose a SIP address from the Call
Outbox.
Receiving a call
154
Declining an incoming call
You can decline an incoming call by pressing the Decline context-
sensitive soft key. You can decline a call with or without giving a reason.
You can create custom decline reasons, and you have the option of
selecting one. If you do not choose a custom decline reason, the IP
Deskphone sends the default message: User has declined call.
Note: The Call Decline feature is not available for all call servers.
Contact your system administrator or service provider to determine if
this feature is available to you.
The treatment that an incoming call receives when Call Decline is invoked
depends upon the call server. In a SIP environment the caller receives a
call declined message, and they no longer hear ring back. In a non-SIP
environment, the caller can continuously hear a ring back.
3. Press the Up/Down navigation key to
highlight a SIP address contact.
4. Choose one of the following:
— Press the Select context-sensitive
soft key to select the highlighted SIP
address.
— Press the Back context-sensitive
soft key to return to the previous
screen.
Redrct 5. Press the Redrct context-sensitive soft
key to redirect the incoming call to the
selected address.
or
Select Back
Receiving a call
155
To decline an incoming call:
Creating a new Call Decline Reason
You can create an new Call Decline Reason.
Decline 1. Press the Decline context-sensitive soft
key to decline an incoming call.
New
2. Choose one of the following:
— Press the Up/Down navigation key
to highlight a Decline Call Reason.
—Press the New context-sensitive soft
key to create a new decline reason
to send. For more information, see
“Creating a new Call Decline
Reason” on page 155.
Note: Highlight None to use the default
system message User has declined
call.
Send
Back
3. Choose one of the following:
— Press the Send context-sensitive
soft key to send the selected decline
reason to the caller.
— Press the Back context-sensitive
soft key to abort the call decline and
return to the incoming call screen.
Receiving a call
156
To create a New Decline Reason during an incoming call:
Decline 1. Press the Decline context-sensitive soft
key to decline an incoming call.
New 2. Press the New context-sensitive soft key
to create a new custom decline reason.
abc 3. Press the abc/123 context-sensitive soft
key to toggle between alphabetic and
numeric characters.
4. Use the Dialpad to enter a new Call
Decline Reason.
Send
Back
5. Choose one of the following:
— Press the Send context-sensitive
soft key to send the new custom
decline reason to the caller.
Note: The IP Deskphone adds the new
reason to the list of Decline Call
Reasons for future use.
— Press the Back context-sensitive
soft key to return to the initial Decline
Call screen.
Receiving a call
157
Managing Call Decline Reasons
You can create Call Decline Reasons that you can access when you want
to decline an incoming call. Also, you can edit and delete Call Decline
Reasons from the list of Call Decline Reasons you create.
To create a Call Decline Reason:
Prefs 1. Press the Prefs context-sensitive soft
key, select Feature Options, and then
choose Call Decline Reasons from the
menu.
Add 2. Press the Add context-sensitive soft key
to add a new Call Decline Reason to the
list of available Call Decline Reasons.
3. Use the dialpad to enter the new Call
Decline Reason for the contact.
Save
Back
4. Choose one of the following:
— Press the Save context-sensitive
soft key to save the new Call Decline
Reason.
— Press the Back context-sensitive
soft key to return to the previous
menu without saving the new Call
Decline Reason.
Note: The IP Deskphone saves the new
Call Decline Reason to the list of Call
Decline Reasons for later use.
Receiving a call
158
To delete a Call Decline Reason:
To edit a Call Decline Reason:
1. Press the Up/Down navigation key to
scroll through and highlight the Call
Decline Reason to delete.
Delete 2. Press the Delete context-sensitive soft
key to delete the selected Call Decline
Reason.
A confirmation screen appears with the
question Delete Decline Reason?
3. Choose one of the following:
— Press the Ok context-sensitive soft
key to confirm the deletion of the
Call Decline Reason.
— Press the Back context-sensitive
soft key to return to the previous
menu without deleting the Call
Decline Reason.
1. Press the Up/Down navigation key to
scroll through and highlight the Call
Decline Reason to edit.
Edit 2. Press the Edit context-sensitive soft key
to edit the selected Call Decline Reason.
or
Ok Back
Receiving a call
159
Ignoring an incoming call
You can terminate an incoming call alert without answering the call or
sending a Decline Call reason by pressing the Ignore context-sensitive
soft key or by pressing the Goodbye fixed key. The caller continues to
hear the ringing tone but is unaware that you are ignoring the call.
You can set the Call Ignore feature to either Local or Network. When Call
Ignore is set to Local, only that IP Deskphone is affected, and it stops
ringing when you press the Ignore context-sensitive soft key. When Call
Ignore is set to Network and you press the Ignore context-sensitive soft
key, the IP Deskphone stops ringing, and a message is sent to the
network indicating that you are busy at all SIP IP Deskphones you are
logged on to, and that server should stop trying to contact you.
To set the Ignore feature to Local or Network press the Prefs context-
sensitive soft key, select Feature Options, and then select Call Ignore
Action from the menu. Press the Change context-sensitive key to
abc 3. Press the abc/123 context-sensitive soft
key to toggle between alphabetic and
numeric characters.
4. Use the dialpad to edit the Call Decline
Reason.
5. Choose one of the following:
— Press the Save context-sensitive
soft key to confirm the changes.
— Press the Back context-sensitive
soft key to return to the previous
menu without editing the Call
Decline Reason.
or
Save Back
Receiving a call
160
change the Call Ignore setting to either Call Ignore: Local, or Call Ignore:
Network.
Note: When you are on active call and you receive an incoming call,
do not press the Goodbye fixed key to ignore an incoming call. If you
press the Goodbye fixed key, the current call disconnects. Press the
Ignore context-sensitive soft key to ignore the incoming call.
To ignore an incoming call:
Receiving intercom calls
Your IP Deskphone can be part of an intercom group. After you receive a
call from the intercom group, the following occurs:
• You receive a call notification and the IP Deskphone rings; the
display is similar to the display of a normal call.
Prefs 1. Press the Prefs context-sensitive soft
key, select Feature Options, and then
select Call Ignore Action from the
menu.
Change 2. Press the Change context-sensitive key
to change the Call Ignore setting to
either Call Ignore: Local or Call Ignore:
Network
Ignore
3. To terminate an incoming call alert and
ignore the incoming call, do one of the
following:
— Press the Ignore context-sensitive
soft key to terminate an incoming
call.
— Press the Goodbye fixed key when
you are not on an active call.
Receiving a call
161
• The IP Deskphone auto-answers the intercom call on handsfree after
the configured number of seconds pass by.
• The IP Deskphone auto-answers only if you do not answer the call
within the configured time limit.
• If you are on an active call, the IP Deskphone does not auto-answer
the incoming intercom call.
Receiving paging calls
Your IP Deskphone can be part of a paging group. After you receive a call
from the paging group, the following happens:
• The display on the screen includes a <<Paging>> tag, the From
header, and optional subject.
• The IP Deskphone establishes a one-way speech path between the
IP Deskphone and the caller; that is, you can only hear the call, you
cannot respond.
• The IP Deskphone does not display context-sensitive soft keys.
• The IP Deskphone blocks all key events, such as line keys and digit
keys, except for the Volume up and down keys, the Mute on and off
key, and the Release key (Goodbye key).
• If you are on an active call, the IP Deskphone does not auto-answer
the page call.
• While the page call is active, Do Not Disturb (DND) is enabled on the
IP Deskphone; the IP Deskphone does not accept other incoming
calls until the page call ends.
• If you are in the process of making an outgoing call and a page call
comes in, the IP Deskphone ends the outgoing call and auto-answers
the page call.
The Address Book
162
The Address Book
The Address Book is a personal directory of contacts from which you can
make a phone call or send an Instant Message (IM).You can access the
Address Book while on a call and start a new call from the highlighted
contact. You can use the Address Book for the following:
•“Viewing the Address Book” on page 162
•“Initiating a call from the Address Book” on page 163
•“Adding a contact to your Address Book” on page 165
•“Editing a contact in your Address Book” on page 166
•“Copying information to the Address Book” on page 170
•“Searching for a contact in the Address Book” on page 172
Viewing the Address Book
To access the Address Book, press the Directory fixed key or press the
View context-sensitive soft key, and then select Address Book from the
menu. See Figure 24 on page 162.
Figure 24: The Address Book
To view information about a contact use the navigation button to highlight
a name, and then press the View context-sensitive soft key. The name,
SIP address, and designation of contact or not as Friend appears. See
Figure 25 on page 163.
The Address Book
163
When you view the details of a contact, you can:
• Send an IM. For more information, see “Composing an Instant
Message” on page 202.
• Edit the contact information. For more information, see “Editing a
contact in your Address Book” on page 166.
Figure 25: Contact details
Initiating a call from the Address Book
You can initiate a call directly from your IP Deskphone Address Book.
Note: If your service provider requires that a Directory Number (DN)
be used to initiate a call, the Address Book entry must have the DN to
initiate a call.
First, go off-hook by using one of the methods described in the section
“Making a call using off-hook dialing” on page 138. If needed, you can
add a Call Subject. For more information, see “Using Call Subjects” on
page 142.
You can also access the Address Book while on an active call and initiate
a new call. The IP Deskphone automatically places the active call on hold
when you initiate a new call.
The Address Book
164
To initiate a call to a contact stored in the Address Book:
1. Press the Directory fixed key to select a
contact from the Address Book to call.
2. Press the Up/Down navigation key to
highlight a contact on the list.
VIew 3. Press the View context-sensitive soft
key to make a call to the contact.
4. Choose one of the following:
— Press the Call context-sensitive soft
key to make a call to the contact.
— Press the Back context-sensitive
soft key to return to the off-hook
screen.
or
Call Back
The Address Book
165
Adding a contact to your Address Book
You can add a new contacts to the Address Book of the IP Deskphone.
To add a contact to your Address Book:
Add
1. Choose one of the following:
— Press the Directory fixed key.
—Press the Add context-sensitive soft
key, select Address Book from the
menu, and then press the New
context-sensitive soft key.
abc 2. Press the abc/123 context-sensitive soft
key to toggle between alphabetic and
numeric characters.
Next
Back
3. Choose one of the following:
— Use the dialpad to enter a name for
the new contact and press the Next
context-sensitive soft key to
continue.
— Press the Back context-sensitive
soft key to return to the previous
menu.
4. Use the dialpad to enter a phone number
or SIP address (URI) for the new
contact.
The Address Book
166
Editing a contact in your Address Book
You can edit a contact in your Address Book.
To edit a contact in your Address Book:
Yes
No
Back
5. Do one of the following to complete the
entry:
— Press the Yes context-sensitive soft
key to add the contact to a group
and then select the group for the
contact to be added.
— Press the No context-sensitive soft
key if you do not want to add the
contact to a group, and return to the
address menu screen.
— Press the Back context-sensitive
soft key to return to the previous
menu.
Ok 6. Press the Ok context-sensitive soft key
to complete the entry and return to the
Address Book menu.
1. Press the Directory fixed key.
The Address Book
167
View
2. Press the Up/Down navigation key to
highlight the contact you want to edit,
and then press the View context-
sensitive soft key.
Edit 3. Press the Edit context-sensitive soft key
to edit the contact information.
abc 4. Press the abc/123 context-sensitive soft
key to toggle between alphabetic and
numeric characters.
5. Use the dialpad to enter the new name
for the contact.
Next
Back
6. Choose one of the following:
—Press the Next context-sensitive soft
key to continue.
— Press the Back context-sensitive
soft key to return to the previous
menu.
Note: If you only need to change the SIP
address or phone number for the
contact, press the Next context-sensitive
soft key without making changes to the
name.
The Address Book
168
7. Use the dialpad to enter a new phone
number or new SIP address (URI) for the
contact.
Next
Back
8. Choose one of the following:
—Press the Next context-sensitive soft
key to continue.
— Press the Back context-sensitive
soft key to return to the previous
menu.
Yes
No
Back
9. Do one of the following to complete the
entry:
— Press the Yes context-sensitive soft
key to designate the contact as a
friend and return to the address
menu screen.
— Press the No context-sensitive soft
key if you do not want a contact
designated as a friend and return to
the address menu screen.
Note: If the contact is already
designated as a friend then the question
Remove from friends? appears.
Press the Yes context-sensitive soft key
to remove the contact from your friends
list or press the No context-sensitive soft
key to keep the contact on your friends
list.
— Press the Back context-sensitive
soft key to return to the previous
menu.
The Address Book
169
To delete a contact from your Address Book:
Ok 10. Press the Ok context-sensitive soft key
to complete the entry and return to the
previous menu.
View
1. Press the Up/Down navigation key to
highlight the contact you want to delete
and press the View context-sensitive
soft key.
Edit 2. Press the Edit context-sensitive soft key
to access the contact information.
Delete 3. Press the Delete context-sensitive soft
key to completely delete the contact from
the Address Book.
Ok
Back
4. Choose one of the following:
— Press the Ok context-sensitive soft
key to confirm.
— Press the Back context-sensitive
soft key to return to the previous
menu.
Ok 5. Press the Ok context-sensitive soft key
to complete the procedure and return to
the Address Book.
The Address Book
170
Copying information to the Address Book
To copy information from the Call Inbox or the Call Outbox screen to the
Address Book use the Copy fixed key.
Note: If you press the Copy fixed key while in idle mode the
message, No content selected for copying appears on the
screen. This message does not appear when an IM pop-up appears.
To copy a contact to the Address Book:
1. Press the Up/Down navigation key to
highlight the contact in the Call Inbox or
Call Outbox that you want to add to your
Address Book and press the Copy fixed
key.
A new screen appears offering the
following destinations for the contact
information:
— 1. Address Book
— 2. Speed Dial Key
— 3. Send IM Key
— 4. Call Forward Key
Select
2. Press the Up/Down navigation key to
highlight the Address Book and press
the Select context-sensitive soft key.
The Address Book
171
abc 3. Press the abc/123 context-sensitive soft
key to toggle between alphabetic and
numeric characters.
4. Use the dialpad to enter a name for the
new entry.
Next
Back
5. Choose one of the following:
—Press the Next context-sensitive soft
key to continue.
— Press the Back context-sensitive
soft key to return to the previous
menu.
Note: If you do not need to change the
name for the contact, press the Next
context-sensitive soft key.
6. Use the dialpad to enter a new phone
number or new SIP address for the
contact.
Next
Back
7. Choose one of the following:
—Press the Next context-sensitive soft
key to continue.
— Press the Back context-sensitive
soft key to return to the previous
menu.
Note: If you do not need to change the
name for the contact, press the Next
context-sensitive soft key.
The Address Book
172
Searching for a contact in the Address Book
When you access the IP Deskphone Address Book you can perform a
search for a contact using one of the following methods:
• Index Search (performs a search based on the index number you
enter)
Yes
No
Back
8. Do one of the following to complete the
entry:
— Press the Yes context-sensitive soft
key to add the contact to a group
and then select the group for the
contact to be added.
— Press the No context-sensitive soft
key if you do not want a contact
designated as a friend and return to
the address menu screen.
— Press the Back context-sensitive
soft key to return to the previous
menu.
Yes
No
9. Choose one of the following:
— Press the Yes context-sensitive soft
key to designate the contact as a
friend.
— Press the No context-sensitive soft
key if you do not want to designate
the contact as a friend and return to
the address menu screen.
Ok 10. Press the Ok context-sensitive soft key
to complete the entry and return to the
previous menu.
The Address Book
173
• 1st Character Search (performs a search based on the first character
you enter)
• Name Search (performs a search based on the name you enter)
To change the method the IP Deskphone uses to search.
Using the Search feature in the Address Book
To search for a contact while accessing your personal Address Book, use
the dialpad to enter the search information. For example:
• Index Search—to search for a contact by using the Index Search
method, enter the index number. When entering an index number
larger than 9, you must enter the next digit quickly to move to that
item on the list. For example, if the address you need is item 28 on
the list, you must enter the digit 8 quickly after entering the digit 2.
Prefs 1. Press the Prefs context-sensitive soft
key, select Misc Options, and then
highlight Search Method from the
menu.
Change 2. Press the Change context-sensitive soft
key.
3. Press the Up/Down navigation key to
highlight the Search Method you want to
use as the default when you search for a
contact:
— 1. Index Search
— 2. 1st Character Search
—3. Name Search
Select 4. Press the Select context-sensitive soft
key to select a search method, and then
return to the previous menu.
The Address Book
174
• 1st Character Search—to search for a contact whose name begins
with the letter d, using the dialpad, press the d (3) key on the dialpad.
The first entry in the Address Book that begins with the letter d
appears.
• Name Search—to search for a specific name in your personal
Address Book, enter the name by using the dialpad.
Using the Search feature
You can search for a contact that is in your IP Deskphone Address Book
(Local Search) or for a contact in a directory that is stored on the call
server (Global Search). You can save a contact name and SIP address
found on the call server to your personal Address Book stored in your IP
Deskphone.
Using Local Search
You can search for a contact that is stored in your Address Book.
To search for a contact stored in your Address Book:
1. Press the Services fixed key, select
Search, and then select Local Search
from the menu.
Select
2. Press the Up/Down navigation key and
then press the Select context-sensitive
soft key to choose a search criteria:
— 1. User Name
—2. Name
— 3. Phone Number
The Address Book
175
abc 3. Press the abc/123 context-sensitive soft
key to toggle between alphabetic and
numeric characters.
4. Use the dialpad to enter the search
information for the contact.
Search
Back
5. Choose one of the following:
— Press the Search context-sensitive
soft key.
— Press the Back context-sensitive
soft key to return to the previous
menu.
Note: When the search is unsuccessful,
the following message appears:
No entries found for <search
criteria>
Call
Search
Exit
6. When a search result is successful, you
can do one of the following:
— Press the Up/Down navigation key
to highlight a contact, from the
search result and press the Call
context-sensitive soft key to initiate a
call.
— Press the Search context-sensitive
soft key to start a new search.
— Press the Exit context-sensitive soft
key to return to the idle screen.
The Address Book
176
Search
Exit
7. When a search result is not successful,
you can do one of the following:
— Press the Search context-sensitive
soft key to return to the search menu
and begin a new search.
—Press the Exit context-sensitive soft
key to return to the idle screen.
The Address Book
177
Using Global Search
You can perform a global search for a contact.
To perform a Global Search for a contact:
1. Press the Services fixed key, select
Search, and then select Global Search
from the menu.
Select
2. Press the Up/Down navigation key and
then press the Select context-sensitive
soft key to choose a search criteria:
— 1. User Name
—2. Name
— 3. First Name
— 4. Last Name
— 5. Phone Number
abc 3. Press the abc/123 context-sensitive soft
key to toggle between alphabetic and
numeric characters.
4. Use the dialpad to enter the search
information for the contact.
The Address Book
178
Ok
Back
5. Choose one of the following:
— Press the Ok context-sensitive soft
key.
— Press the Back context-sensitive
soft key to return to the previous
menu.
Note: When the search is unsuccessful,
the following message appears:
No entries found for <search
criteria>
Call
Save
6. When a search result is successful you
can do one of the following:
— Press the Up/Down navigation key
to highlight a contact from the
search result and press the Call
context-sensitive soft key to initiate a
call.
— Press the Save context-sensitive
soft key to save the caller
information to the Address Book.
A confirmation screen appears. You can
edit the name you save in the Address
book. Press the Save context-sensitive
soft key to accept the entry. Press the
Yes context-sensitive soft key or the No
context-sensitive soft key to designate
whether the new entry is a friend. The IP
Deskphone saves the entry to the
Address Book and returns you to the
Inbox screen.
The Address Book
179
Search
Back
7. Choose one of the following:
— Press the Search context-sensitive
soft key to start a new search.
— Press the Back context-sensitive
soft key to return to the previous
screen.
New
Back
8. When a search result is not successful,
you can do one of the following:
—Press the New context-sensitive soft
key to return to the search menu and
begin a new search.
— Press the Back context-sensitive
soft key to return to the previous
screen.
Call Inbox
180
Call Inbox
While your IP Deskphone is active, all incoming calls are saved in your
Call Inbox. You can view the following details about each call:
• Call status (Missed)
• Name of the caller
• SIP address
• Time of the call
• Number of consecutive calls each caller made to you
• Call Subject (if the caller sends a Call Subject)
You can set the filter on your Call Inbox to display all incoming calls or
missed calls. You can access your Call Inbox while the IP Deskphone is
idle or while you are on a call. Figure 26 on page 180 shows the Call
Inbox while the IP Deskphone is idle.
Figure 26: Call Inbox while IP Deskphone is idle
Call Inbox
181
Accessing the Call Inbox
You can access the Call Inbox and initiate a call when the IP Deskphone
is:
• Idle. For more information, see “Managing calls in the Call Inbox while
not on a call” on page 181.
• Active. For more information, see “Accessing the calls in your Call
Inbox during a call” on page 190.
Managing calls in the Call Inbox while not on a call
You can manage calls in the Call Inbox while you are not on a call.
To manage calls in the Call Inbox while not on a call:
1. Press the Msg/Inbox fixed key.
2. Press the Up/Down navigation key to
highlight a call from the list of calls in
your Call Inbox.
Note: You can initiate a call to the
highlighted caller. For more information,
see “Initiating a call from the Call Inbox”
on page 188.
Call Inbox
182
Enter
Missed
All
3. Do one of the following:
— To place a call to the selected
address using the primary login of
the IP Deskphone, press the Enter
key.
— To view the details of a highlighted
call, press the Right navigation key.
See “Viewing the details of a call in
the Call Inbox” on page 183.
— To leave the detail view and return to
the main inbox screen, press the
Left navigation key.
— Press the Missed context-sensitive
soft key to toggle the view filter from
the All context-sensitive soft key to
the Missed context-sensitive soft
key. See “Managing missed calls” on
page 184.
—The All context-sensitive soft key is
displayed when the view mode is on
Missed, and displays all the calls in
the Call Inbox.
Delete
Exit
— Press the Delete context-sensitive
soft key to delete the highlighted call
or all calls in your Call Inbox. See
“Deleting calls in your Call Inbox” on
page 190.
— Press the Exit context-sensitive soft
key to exit the Call Inbox.
Call Inbox
183
Table 16 on page 183 provides a list of additional user interactions for the
main inbox screen.
Viewing the details of a call in the Call Inbox
You can view the details of a call in the Call Inbox.
Table 16: Additional user interactions
Item Function
Use the Enter key to place a call to the
selected address using the primary login
of the IP Deskphone.
The Enter key has the same behavior as
the Call context-sensitive soft key.
Use the Dial pad to select an item by
index.
To place a call to the address of the
selected call log entry from the primary
logged in user of the IP Deskphone, do
one of the following:
— Lift the handset.
— Press the Headset fixed key.
— Press the Handsfree fixed key.
Press the Line key to place a call to the
address of the selected call log entry
from the user logged in on the selected
line key.
Call Inbox
184
To view details of a call in the Call Inbox:
Managing missed calls
When you do not answer incoming calls, the number of new calls appears
on the IP Deskphone LCD screen. For example, if you miss three calls
the following message appears: 3 new calls.
Note: When you view a missed call in your Call Inbox, the new call
message no longer appears on the LCD screen. The new calls are
stored as missed calls.
Enter
Prev
Next
Back
1. When you view the details of a call in the
Call Inbox, you can do the following:
— Initiate a call to the caller displayed
on the screen. For more information,
see “Initiating a call from the Call
Inbox” on page 188.
— Press the Enter context-sensitive
soft key to place a call to the
selected address using the primary
login of the IP Deskphone.
— Press the Prev context-sensitive soft
key to select and display he details
of the previous entry in the call log.
—Press the Next context-sensitive soft
key to select and display the details
of the next entry in the call log.
— Press the Back context-sensitive
soft key to leave the detail view and
return to the main inbox screen.
Call Inbox
185
To view missed calls:
Msg/Inbox 1. Press the Msg/Inbox fixed key and then
press the Missed context-sensitive soft
key.
2. Press the Up/Down navigation key to
highlight a call from the list of missed
calls.
3. Press the Right context-sensitive soft
key to view the details of the missed call.
Note: You manage the missed call the
same as any call that is in your Call
Inbox. For more information, see
“Viewing the details of a call in the Call
Inbox” on page 183 and “Initiating a call
from the Call Inbox” on page 188.
All 4. To view all the calls in the Call Inbox,
press the All context-sensitive soft key.
Delete 5. To delete the highlighted missed call or
all missed calls, press the Delete
context-sensitive soft key. For more
information, see “Deleting calls in your
Call Inbox” on page 190.
Note: The IP Deskphone deletes only
the missed calls from the Call Inbox.
Call Inbox
186
Missed Calls Notification
You can change the call log behavior so that the message
xx new calls is cleared by entering the Inbox without having to select
each missed call.
Figure 27 on page 186 displays the Message options screen.
Figure 27: Messages screen
Changing the Missed Calls Notification behavior:
Exit 6. To exit the Inbox and return to the idle IP
Deskphone screen, press the Exit
context-sensitive soft key.
Msgs 1. Press the Msgs context-sensitive soft
key.
2. Press the Up/Down navigation key to
highlight Missed Calls Notification.
Call Inbox
187
Select 3. Choose one of the following:
— Press the Select context-sensitive
soft key.
— Press the Back context-sensitive
soft key to abort the changing of the
configurations and return to the
Message Options screen.
If you press the Select context-sensitive
soft key, one of the following messages
appears (based on the current setting of
the option):
— Press Manual to change
Missed Call Notification
Message clearing mode
— Press Auto to change
Missed Call Notification
Message clearing mode
Auto
Manual
4. Choose one of the following:
— Press the Auto context-sensitive
soft key to change the clearing mode
for the xx new calls missed call
message for the IP Deskphone.
Note: Auto means that the message is
cleared from the idle screen as soon as
you enter the Inbox.
— Press the Manual context-sensitive
soft key to change the clearing mode
for the xx new calls missed call
message for the IP Deskphone.
Note: Manual means that the message
is cleared from the idle screen only after
you look at the call detail for every newly
missed call in the Inbox.
Call Inbox
188
Initiating a call from the Call Inbox
When you receive a call that is missed or answered, the calling number is
listed in the Inbox. You can select the number, and then dial from the
Inbox, or you can edit the number in the Inbox.
To initiate a call from the Call Inbox, press the Msg/Inbox fixed key and
select Inbox from the menu.
Note 1: If your service provider requires that a Directory Number
(DN) be used to initiate a call, the Call Inbox entry must have the DN
to initiate a call.
Note 2: While you are on a call, you can initiate a new call from the
Call Inbox. For more information, see “Accessing the calls in your Call
Inbox during a call” on page 190.
To initiate a call from the Call Inbox:
1. Press the Msg/Inbox fixed key.
2. Press the Up/Down navigation key to
highlight a call from the list of calls in
your Call Inbox.
3. To view details of the call, press the
Right navigation key.
Call Inbox
189
Edit
Call
4. To place a call to the selected address,
do one of the following:
— Lift the handset.
— Press the Headset fixed key.
— Press the Handsfree fixed key.
or
Press the Edit context-sensitive soft key
Then press the Send context-sensitive
soft key.
Call Inbox
190
Deleting calls in your Call Inbox
When you delete calls from the Call Inbox, both missed calls and
answered calls are deleted. When you view the missed calls and select
delete, only the missed calls are deleted.
To delete calls from your Call Inbox:
Accessing the calls in your Call Inbox during a call
You can access the calls in your Call Inbox while you are in an active call.
1. Press the Up/Down navigation key to
highlight a call from the list of calls in
your Call Inbox.
Delete 2. Press the Delete context-sensitive soft
key.
Yes
AllUsr
All
No
3. Select one of the following context-
sensitive soft keys:
— Press the Yes context-sensitive soft
key to delete the highlighted call.
— Press the AllUsr context-sensitive
soft key to delete all the calls from
the selected caller.
— Press the All context-sensitive soft
key to clear all calls from the Call
Inbox.
— Press the No context-sensitive soft
key to return to the Inbox.
Call Inbox
191
To access the calls in your Call Inbox during a call:
1. Press the Up/Down navigation key to
highlight a call from the list of calls in
your Call Inbox.
Select
Back
2. Choose one of the following:
— Press the Select context-sensitive
soft key to initiate a call to the
highlighted caller.
Note: This places the current call on
hold, if it is not already on hold.
— Press the Back context-sensitive
soft key to return to the in-call
screen.
Call Outbox
192
Call Outbox
The Call Outbox keeps a record of all outgoing calls made from your
Avaya 1140E IP Deskphone. You can add the contact details of the calls
in your outbox to your Address Book. You can access the following details
about the outgoing calls:
•Name
•Address
• Time of the call
• Number of Calls
• Call Subject (when used for a call)
Figure 28 on page 192 shows details of the Call Outbox screen while the
IP Deskphone is idle.
Figure 28: Call Outbox while IP Deskphone is idle
Call Outbox
193
Accessing the Call Outbox
You can access the Call Outbox and initiate a call when the IP
Deskphone is:
• Idle. For more information, see “Initiating a call from the Call Outbox”
on page 194.
• Active. For more information, see “Accessing the calls in your Call
Outbox during a call” on page 197.
Managing calls in the Call Outbox while not on a
call
You can manage calls in the Call Outbox while you are not in an active
call.
To manage calls in the Call Outbox while not on a call:
1. Press the Outbox fixed key.
2. Press the Up/Down navigation key to
highlight a call from the list of calls in
your Call Outbox.
3. Choose one of the following:
— To view details of the selected call,
press the Right navigation key. See
“Viewing the details of a call in the
Call Inbox” on page 183.
— To leave the detail view and return to
the main inbox screen, press the
Left navigation key.
Call Outbox
194
Initiating a call from the Call Outbox
Note: If your service provider requires that a Directory Number (DN)
be used to initiate a call, the Call Outbox entry must have a DN to
initiate a call.
To initiate a call from the Call Outbox:
Delete 4. Press the Delete context-sensitive soft
key to delete the highlighted call. For
more information, see “Deleting calls
from your Call Outbox” on page 195.
Exit 5. Press the Exit context-sensitive soft key
to return to the idle screen.
1. Press the Outbox fixed key.
2. Press the Up/Down navigation key to
highlight a call from the list of calls in
your Call Outbox.
3. To view details of the selected call, press
the Right navigation key. See “Viewing
the details of a call in the Call Outbox” on
page 196.
Call Outbox
195
Deleting calls from your Call Outbox
You can delete calls from your Call Outbox.
To delete calls from your Call Outbox:
4. You can initiate a call from the
highlighted call of the Call Outbox list or
from the details of a caller screen, by
doing one of the following:
— Lift the handset.
— Press the Headset fixed key.
— Press the Handsfree fixed key.
Call 5. Press the Call context-sensitive soft key.
1. Press the Up/Down navigation key to
highlight a call from the list of calls in
your Call Outbox.
Delete 2. Press the Delete context-sensitive soft
key.
Call Outbox
196
Viewing the details of a call in the Call Outbox
You can view details of a call in the Call Outbox.
Yes
AllUsr
All
No
3. Select one of the following context-
sensitive soft keys:
— Press the Yes context-sensitive soft
key to delete the highlighted call.
— Press the AllUsr context-sensitive
soft key to delete all the calls from
the selected caller.
— Press the All context-sensitive soft
key to clear all calls from the Call
Outbox.
— Press the No context-sensitive soft
key to return to the Outbox.
Call Outbox
197
To view details of a call in the Call Outbox:
Accessing the calls in your Call Outbox during a call
You can access the calls in your Call Outbox during an active call.
To access the calls in your Call Outbox during a call:
Call
Prev
Next
Back
1. To view details of the selected call, press
the Right navigation key
2. When you view the details of a call in the
Call Outbox you can do one of the
following:
— Initiate a call to the caller displayed
on the screen. See “To initiate a call
from the Call Outbox:” on page 194.
— View a previous caller in the Call
Outbox list by pressing the Prev
context-sensitive soft key and return
to the Outbox screen.
— View the next caller in the Call
Outbox list by pressing the Next
context-sensitive soft key and return
to the Outbox screen.
— Press the Back context-sensitive
soft key to return to the Outbox.
1. To access the calls in your Call Outbox
during a call, press the Call Outbox key
Call Outbox
198
2. Press the Up/Down navigation key to
highlight a call from the list of calls in
your Call Outbox.
Select
Back
3. Choose one of the following:
— Press the Select context-sensitive
soft key to initiate a call to the
highlighted caller.
Note: This places the current call on
hold, if it is not already on hold.
— Press the Back context-sensitive
soft key to return to the Incall
screen.
Instant Messaging
199
Instant Messaging
You can use your Avaya 1140E IP Deskphone to send and receive an
Instant Message (IM). You can access and respond to an IM while on a
call. The blue LED (Feature Status Indicator) at the top left of the IP
Deskphone lights accompanied by a beep when a new IM arrives.
Configuring Instant Messaging
You can configure your IP Deskphone settings to manage an incoming
IM.
• Enable or disable the automatic pop-up of a new IM.
• Enable or disable an audible alert on a new IM.
Configuring IM automatic pop-up
You can configure the IP Deskphone to automatically display an incoming
new IM as a pop-up. The IM pops up when the IP Deskphone is idle or
while on a call. You can disable the IM pop-up feature.
Note: An IM pop-up does not occur if you are navigating the IM
screens or navigating the menu structure in general. When this
exception occurs, the IM goes directly to the IM Inbox, and the blue
LED activates.
Figure 29 on page 200 shows the IM pop-screen on the IP Deskphone.
Instant Messaging
200
Figure 29: Instant Message pop-up
When an IM pop-up appears you can do the following:
• Press the View context-sensitive soft key to view the complete details
of the IM.
• Press the Prev context-sensitive soft key to skip to a previous IM (if
applicable).
• Press the Next context-sensitive soft key to skip to the next IM (if
applicable).
• Press the Exit context-sensitive soft key, the Goodbye fixed key, or
Quit fixed key to exit the IM pop-up screen and return to the idle
screen when you are not on a call or to the In Call screen if the pop-
up occurred during a call.
Instant Messaging
201
Configuring Instant Messaging pop-ups
You can configure Instant Messaging pop-ups.
To enable or disable automatic pop-up of a new IM:
Configuring IM audible alert
You can configure the IP Deskphone to audibly alert you when a new IM
arrives. The IP Deskphone audibly alerts you when the IP Deskphone is
idle or while on a call. You can also choose to disable the audible alert of
the IM feature.
Prefs 1. Press the Prefs context-sensitive soft
key, select User Settings, IM Settings,
IM Display: On/Off from the menu.
2. Press the Up/Down navigation key to
select the user (if multiple users are
logged into the same deskphone).
Select 3. Press the Select context-sensitive soft
key.
On
Back
4. Choose one of the following:
— Press the On/Off context-sensitive
soft key to toggle between enabling
IM pop-ups or disabling IM pop-ups.
— Press the Back context-sensitive
soft key to return to the previous
menu.
Instant Messaging
202
To enable or disable the audible alerts of a new IM:
Composing an Instant Message
When you compose an IM, enter the address of the recipient and then
enter the message. When you reply to an Instant Message, the IP
Deskphone automatically enters the address. For more information, see
“Replying to an Instant Message” on page 206. You can also send an IM
directly from the Address Book. For more information, see “Viewing the
Address Book” on page 162.
Prefs
• Press the Prefs context-sensitive soft
key, select Message Options, select IM
Settings, and then select IM Audible
Alert: On/Off from the menu.
Select 5. Press the Select context-sensitive soft
key.
On
Back
6. Choose one of the following:
— Press the On/Off context-sensitive
soft key to toggle between enabling
IM audible alerts or disabling IM
audible alerts.
— Press the Back context-sensitive
soft key to return to the previous
menu.
Instant Messaging
203
To compose and send an Instant Message:
Msgs
Send IM
1. Do one of the following:
— Press the Msgs context-sensitive
soft key, select Instant Messaging,
and press the New IM context-
sensitive soft key
— Access the list of IMs by pressing
the Expand fixed key.
— To compose an IM from the IP
Deskphone Address Book, select an
address and press the Send IM
context-sensitive soft key.
abc 2. Press the abc/123 context-sensitive soft
key to toggle between numeric and
alphabetic input.
3. Use the dialpad to enter the address of
the contact.
Next
Back
4. Choose one of the following:
—Press the Next context-sensitive soft
key to continue.
— Press the Back context-sensitive
soft key to return to the previous
menu.
5. Use the dialpad to enter the content of
the message.
Instant Messaging
204
Instant Message Inbox/Outbox
The IM Inbox contains a list of all incoming and outgoing Instant
Messages. You can filter the IM list to track a series of correspondence to
a contact. The lit blue LED indicates the arrival of a new IM. An icon
indicates the status of the IMs in your Instant Message Inbox/Outbox as
follows:
Accessing Instant Messages
You can access and view the contents of the Instant Message Inbox/
Outbox.
Send
Back
6. Choose one of the following:
— Press the Send context-sensitive
soft key to send the IM to the
contact.
— Press the Back context-sensitive
soft key to return to the previous
menu without sending the new IM.
Unread
Read
Replied to
Sent No icon
Instant Messaging
205
To access and view the contents of the Instant Message Inbox/
Outbox:
Msgs 1. Choose one of the following:
— Press the Msgs context-sensitive
soft key, and then select Instant
Messaging from the menu.
— Press the Expand fixed key.
User
2. Press the Up/Down navigation key to
highlight an IM from the list of Instant
Messages in your IM Inbox/Outbox.
Note: When you want to view only IMs
from a specific contact, press the User
context-sensitive soft key to filter all IMs
based on the lM that you highlight. The
LCD screen shows the list of all IMs from
that contact.
View
New IM
Back
3. Choose one of the following:
— Press the View context-sensitive
soft key to view the details of the
sender, followed by the message
content. For more information, see
“Viewing the content of an Instant
Message” on page 206.
— Press the New IM context-sensitive
soft key to compose a new IM. For
more information, see “Composing
an Instant Message” on page 202.
— Press the Back context-sensitive
soft key to return to the idle screen.
Instant Messaging
206
Viewing the content of an Instant Message
When you view the content of an Instant Message, you can do the
following:
• Reply to the Instant Message. See “Replying to an Instant Message”
on page 206.
• Initiate a Call to the contact. See “Initiating a call from an Instant
Message” on page 207.
• Delete the Instant Message. See “Deleting an Instant Message” on
page 208.
Replying to an Instant Message
You can reply to an Instant Message.
To reply to an Instant Message:
Reply 1. Press the Reply context-sensitive soft
key to send an IM in response to the IM
you are viewing.
abc 2. Press the abc/123 context-sensitive soft
key to toggle between numeric and
alphabetic input.
3. Enter the message you want to send as
a reply.
Instant Messaging
207
Initiating a call from an Instant Message
To initiate a call from the IM Inbox, press the Expand fixed key or press
the Msgs context-sensitive soft key, and then select Instant Messaging
from the menu.
Note: If your service provider requires that a Directory Number (DN)
be used to initiate a call, you cannot initiate a call from an Instant
Message.
To initiate a call from an Instant Message:
Send
Back
4. Choose one of the following:
— Press the Send context-sensitive
soft key to send the IM when it is
complete.
— Press the Back context-sensitive
soft key to return to the previous
menu and not send the IM.
Msgs 1. Choose one of the following:
— Press the Msgs context-sensitive
soft key, and then select Instant
Messaging from the menu.
— Press the Expand fixed key.
2. Press the Up/Down navigation key to
highlight an IM from the list of Instant
Messages.
Instant Messaging
208
Deleting an Instant Message
To delete a single IM, all the IMs from one contact, or all the IMs in your
IM Inbox complete the necessary steps in the following procedure.
View 3. Press the View context-sensitive soft
key to access the IM.
Call 4. To initiate a call to the contact who sent
you an IM, press the Call context-
sensitive soft key.
The IP Deskphone goes off-hook and
initiates the call.
Msgs 1. Choose one of the following:
— Press the Msgs context-sensitive
soft key, and then select Instant
Messaging from the menu.
— Press the Expand fixed key.
View 2. Press the View context-sensitive soft
key.
Instant Messaging
209
Delete
Back
3. Select one of the following context-
sensitive soft keys:
— Press the Delete context-sensitive
soft key to clear all IMs from the IM
Inbox/Outbox.
— Press the Back context-sensitive
soft key to return to the previous
screen.
While on an active call
210
While on an active call
You can use the following features during an active call:
•“Making a new call” on page 210
•“Placing a call On Hold” on page 212
•“Using 3-way calling” on page 221
•“Transferring a call” on page 228
•“Using Park Call” on page 232
You can use the Action context-sensitive soft key to perform the
following actions with an active call:
1. New Call—to begin a new call while other calls are on hold.
2. Release Call—to release (hang-up) the selected call.
3. Transfer Call—to transfer the call to another phone number or SIP
address.
4. Park Call—to park a call on the call server or to a specific user. You
can access the call from any IP Deskphone and to keep your phone
line clear. (Not available for all service providers.)
Making a new call
You can initiate a new call during a current call. If you do not place the
current call on hold first, the IP Deskphone automatically places the
current call on hold when you initiate a new call. You can initiate a new
call by using any of the following methods:
•“Initiating a call using the active call context-sensitive soft key menu”
on page 211
•“Initiating a call from the Address Book” on page 163
•“Initiating a call from the Call Inbox” on page 188
•“Initiating a call from the Call Outbox” on page 194
While on an active call
211
Initiating a call using the active call
context-sensitive soft key menu
You can initiate a call using the active call context-sensitive soft key
menu.
To initiate a call using the active call context-sensitive soft key
menu:
Call Waiting
While you are on an active call and you receive an incoming call. You are
notified of an incoming call by a message on the LCD screen and a
notifying beep. Answering the new call places the active call on hold you
Conf
More…
NewCall
1. Choose one of the following:
— Press the Conf context-sensitive
soft key while on a call.
— While on a call, press the More…
context-sensitive soft key, and then
the NewCall context-sensitive soft
key.
The IP Deskphone produces a dial tone.
Back
2. Choose one of the following:
— Use the dial pad to dial the number
or SIP address.
Note: This places the current call on
hold, if it is not already on hold, and you
can continue to initiate the call as
normally.
— Press the Back context-sensitive
soft key to return to the in-call
screen.
While on an active call
212
can also redirect the new call, decline the new call, transfer the new call,
or ignore the new call. For more information, see “Receiving a call” on
page 150.
Placing a call On Hold
Use the Hold feature when you are talking to one contact and want to
perform another action, such as answer a new incoming call, transfer a
call, or initiate a new call. You can have a number of calls on hold at the
same time.
To place a call on hold:
Figure 30 on page 213 shows the IP Deskphone display area when a call
is placed on hold.
1. Press the Hold fixed key.
The LCD on hold icon flashes beside the
line on hold.
While on an active call
213
Figure 30: Call On Hold
To retrieve a call on hold:
Multiple calls On Hold
When you have more than one call on hold, use the navigation key to
highlight a call on the LCD screen. You can perform an action with that
call by using the context-sensitive soft keys on the In-call menu list. The
context-sensitive soft keys displayed vary depending on the type of call
that is currently selected. For example, a held call has the Activate
context-sensitive soft key instead of the Audio context-sensitive soft key.
When you highlight a call that is not active, you can retrieve the call from
on hold and make it active by pressing the Activate context-sensitive soft
chad 1. To retrieve a call on hold do one of the
following:
— Press the Line feature key beside
the flashing LCD indicator.
— Press the Hold fixed key.
While on an active call
214
key. You can also join the call with the active call to create a 3-way calling
session. See “Using 3-way calling” on page 221.
Multiple calls In-call mode
When the IP Deskphone has multiple calls connected at the same time,
you can access the menu items shown in Figure 31 on page 214.
Figure 31: Multiple calls In-call display screen with context-
sensitive soft key menu list
The Join context-sensitive soft key appears when there are multiple calls
on the IP Deskphone that can be joined for a conference call or 3-way
calling.
Context-sensitive soft keys for the multiple calls In-call display
screen
Join Press the Join context-sensitive soft key to
join the eligible calls.
NewCall Press NewCall context-sensitive soft key to
obtain a dial tone to place another call. The
NewCall context-sensitive soft key is used to
make a conference call. This key behaves
like the Conf context-sensitive soft key.
While on an active call
215
Audio/Actvate Press the Audio context-sensitive soft key to
change the audio settings or the current
active call.
The Actvate context-sensitive soft key
appears when the highlighted call is not the
selected call.
Press the Actvate context-sensitive soft key
to place the current call on hold and activate
the call you want to connect to.
This context-sensitive soft key is also used
to retrieve calls parked against the user.
Note: The Actvate context-sensitive
soft key never appears at the same time
as the Audio context-sensitive soft key
While on an active call
216
more… Press the more… context-sensitive soft key
to select a new menu list of context-sensitive
soft keys.
When you press the more… context-
sensitive soft key, a different selection of
context-sensitive soft keys appears.
• If you press the more… context-
sensitive soft key once from the first
menu list, you access the following
context-sensitive soft keys:
[Trnsfer] [RlsCall] [Park] [more...]
• If you press the more… context-
sensitive soft key from the first menu list
twice, you access the following context-
sensitive soft keys:
[Retrve] [Conf] [Prefs] [more…]
• If you press the more… context-
sensitive soft key from the first menu list
three times, you return to the first menu
list with the following context-sensitive
soft keys.
[Join] [NewCall] [Audio] [more…]
When you press the more.… context-sensitive soft key for the first time,
the following context-sensitive soft keys appear on the menu list.
Trnsfer Press the Trnsfer context-sensitive soft key
to transfer the current call.
RlsCall Press the RlsCall context-sensitive soft key
to release or hang up the highlighted call.
While on an active call
217
Park Press the Park context-sensitive soft key to
park the current call.
more… Press the more… context-sensitive soft key
to select a new menu list of context-sensitive
soft keys.
The next available menu list contains the
following context-sensitive soft keys:
[Retrve] [Conf] [Prefs] [more…]
When you press the more… context-sensitive soft key for the second
time, the following context-sensitive soft keys appear on the menu list.
Retrve Press the Retrve context-sensitive soft key
to retrieve a parked call (by token). See
“Retrieving a Parked Call” on page 233.
Conf Press the Conf context-sensitive soft key to
place another call, which can be used for a
conference call. This context-sensitive soft
key has the same behavior as the NewCall
context-sensitive soft key.
While on an active call
218
Prefs Press the Prefs context-sensitive soft key to
display the Preferences menu.
The menu items include the following:
1. Display—use to adjust the display
settings of the LCD screen.
2. Audio—use to adjust tones and volume
settings, to configure a USB headset,
and to access the Bluetooth wireless
technology setup.
3. Feature Options—use to configure the
following:
— Feature keys
— Call Decline Reasons
— Call Ignore Action
— Call Subjects
— Call Fwd Notification
— Answer Mode Settings appear when
the Auto Answer Mode is enabled on
the IP Deskphone.
4. Language—use to change the interface
language.
5. Misc Options—use to access the
following options:
— Alpha Dialing
— Search Method
— Incoming Privacy
— Outgoing Privacy
— # Ends Dialing
— Hold Mode: Private
—Time
While on an active call
219
Prefs 6. Network—use to access the following:
— Server Settings
— Device Settings
— Diagnostics
— Disable screensaver
—Licensing
—Lock
7. USB Locks—use to lock or unlock the
following USB devices:
— USB Mouse
— USB Keyboard
— USB Headset
— USB flash drive
8. User Settings—use to modify the
following:
— Call Settings
—IM Settings
— Voice Mail Settings
— Change Location
more… Press the more… context-sensitive soft key
to return to the first menu list of context-
sensitive soft keys.
The next available menu list contains the
following context-sensitive soft keys:
[Join] [NewCall] [Audio] [more…]
While on an active call
220
To access a call on hold when multiple calls are on hold:
To make a call on hold the active call:
1. Press the Up/Down navigation key to
highlight a call on hold.
Chad
2. To retrieve the highlighted call on hold
do one of the following:
— Press the Line feature key beside
the flashing LCD indicator.
— Press the Hold fixed key to retrieve
a call on hold.
1. Press the Up/Down navigation key to
highlight a call on hold.
Actvate 2. Press the Activate context-sensitive soft
key to make the highlighted call on hold
the active call.
This removes the call from on hold and
automatically places the previous call on
hold.
While on an active call
221
Using 3-way calling
When you have more than one call and you want to join the incoming
calls into one call, you can use 3-way calling or create a conference call.
Note: Your system administrator or service provider must enable 3-
way calling and conference calls for your Avaya 1140E IP
Deskphone. Contact your service provider or system administrator to
determine if this feature is available.
The 3-way Call feature joins two calls on your IP Deskphone into one 3-
way call. You and the other two callers can speak together. When you join
more than two calls into one call, you must use the conference call
feature. Your IP Deskphone manages the 3-way call, and the server
manages a conference call. For more information, see “Configuring a
conference call” on page 223.
To activate the 3-way Call feature:
Figure 33 on page 225 shows the IP Deskphone display screen when a
3-way call is in progress.
Join 1. Press the Join context-sensitive soft key
with either call, and then select 3-way
Call from the menu.
The IP Deskphone joins the two calls
and creates a new call that appears on
the LCD screen as [3-way Call]. For
more information, see Figure 32: “3-way
Call” on page 222.
While on an active call
222
Figure 32: 3-way Call
Note 1: If you receive a new call during a 3-way call, you can answer
the new call as usual. The IP Deskphone automatically puts the 3-
way call on hold. If you want to join the new caller to a 3-way call, you
must initiate a conference call with the server and join all callers to the
conference call.
Note 2: If the host of a 3-way call presses the hold button, all callers
in the 3-way call are put on hold.
Note 3: If the host of a 3-way call presses the Goodbye fixed key or
selects Release Call from the Action menu, all calls in the 3-way call
are terminated.
While on an active call
223
Configuring a conference call
When you want to invite three or more callers to a call, you can configure
a conference call using the IP Deskphone. The call server handles
conference calls. You can join incoming calls to the conference call, or
you can join calls that you initiate.
Note: Your system administrator or service provider must enable 3-
way calling and conference calls for your IP Deskphone. Contact your
service provider or system administrator to determine if this feature is
available.
To configure a conference call while on an active call with more than
one other caller:
When you receive a new call while on a conference call, you can answer,
ignore, decline, or forward the call as you would any call. You can also
initiate a new call while on a conference call in the normal way and return
to the conference call after you complete the call. The conference call
continues while you are on the other call.
Note: If you press the Goodbye key or select Release from the
Action menu while on the conference call you leave the conference
call. The conference call continues with the other callers.
1. Press the Up/Down navigation key to
highlight one of the calls,
Join 2. Press the Join context-sensitive soft key
and select Conference from the menu.
The calls are joined together as a
conference call on the call server.
While on an active call
224
To join a call to an existing conference call:
Ad hoc conferencing when connecting to the
Call Server
This feature allows you to make ad hoc conference calls when you
connect to the Call Server.
Note: Your system administrator must enable ad hoc conferencing
before you connect to the Call Server.
Press Server settings, and then Domain settings to open the Domain
screen. Figure 33 on page 225 shows the view details of the current
domain.
1. Press the Up/Down navigation key to
highlight the call you want to join to the
conference.
Join 2. Press the Join context-sensitive soft key
to join the highlighted call to the
conference.
While on an active call
225
Figure 33: Current Domain page
The context-sensitive soft keys available for viewing the conference
details of the current domain are as follows:
•Domains: Allows you to select the domain.
•Edit: Allows you to edit the conference details.
•PgDwn: Allows you to move to the next screen containing conference
parameters.
•Done: Allows you to confirm the details.
Figure 34 on page 226 shows the Domain page with conference
parameters, including the conference URI and the maximum number of
ports available for ad hoc conferencing.
While on an active call
226
Figure 34: Domain page with conference parameters
The context-sensitive soft keys available on the conference parameters
page are as follows:
•Domains: Allows you to select the domain.
•Edit: Opens the Edit Domain page that allows you to edit the
conference details.
•Pgup: Allows you to return to the previous page.
•Done: Allows you to confirm the details.
Edit Domain page
The Edit Domain page displays the domain properties. It appears in the
format <conferenceURI> : <Max Ad hoc Ports>.
Note: An admin password is required to access the Edit Domain
page.
Figure 35 on page 227 displays the Edit Domain screen with the
conference details.
While on an active call
227
Figure 35: Edit Domain screen
To edit the conference properties and maximum number of ports, press
the Edit context-sensitive soft key to display the Domain Conference Edit
screen.
Figure 36 on page 227 provides an example of the Domain Conference
Edit screen.
Figure 36: Domain Conference Edit screen
The context-sensitive soft keys available for the Domain Conference Edit
screen are as follows:
While on an active call
228
•Save—to save the updated value to the system configuration file.
•Abc (/123)—to toggle the input mode to digits (or alphabets).
•Clear—to clear the character behind the cursor.
•Back—to return to the previous screen.
Note: For these configuration changes to take effect, you must
manually log off and log on.
Transferring a call
Note 1: When more than one call is on hold, the call you want to
transfer must be the active call. For more information, see “To make a
call on hold the active call:” on page 220.
Note 2: The IP Deskphone does not automatically place the call you
want to transfer on hold. To prevent the caller from hearing the
transfer process, place the caller on hold and then complete the
transfer process.
To transfer a call to another IP Deskphone:
1. Press the Up/Down navigation key to
highlight Transfer Call from the menu.
Trnsfer 2. Press the Trnsfer context-sensitive soft
key while on a call to access the Trnsfer
menu.
abc 3. Press the abc/123 context-sensitive soft
key to toggle between numeric and
alphabetic input.
While on an active call
229
Select
4. Choose one of the following:
— Enter the phone number or SIP
address to which you are
transferring the call.
— Select a contact from the Address
Book, Call Inbox, or Call Outbox by
pressing the corresponding fixed
key.
Highlight a contact from the list and
then press the Select context-
sensitive soft key.
Transfr
Clear
Back
5. Choose one of the following:
— Press the Transfr context-sensitive
soft key to connect the calling party.
— To erase the address you enter,
press the Clear context-sensitive
soft key.
— To return to the previous screen,
press the Back context-sensitive
soft key.
While on an active call
230
To transfer a call to Voice Mail:
Yes
No
Back
The IP Deskphone prompts you with the
following question, Consult with
party?
6. Select one of the following context-
sensitive soft keys:
— Press the Yes context-sensitive soft
key to consult with the contact to
which you are transferring the call
before completing the transfer.
— Press the No context-sensitive soft
key to transfer the call without
consulting the contact to whom you
want to transfer the call.
— Press the Back context-sensitive
soft key to return to the previous
screen.
Transfer 1. Press the Trnsfer context-sensitive soft
key while on a call to access the
Transfer menu.
abc 2. Press the abc/123 context-sensitive soft
key to toggle between numeric and
alphabetic input.
3. Enter the Voice Mail ID, extension, or
external number by using the dialpad.
While on an active call
231
Note 1: The Transfer to Voice Mail feature is not available for all call
servers. Contact your system administrator or service provider to
determine if this feature is available to you.
Note 2: The Transfer to Voice Mail feature during a conference call is
dependent on the call server and cannot be allowed. If the secure
digits feature is enabled, and you connect to Voice Mail during an
active call, the screen displays the last pressed key only, and the
remaining digits appear as ‘*’.
You can press Hide or Unhide to hide or display the pressed keys.
Note: The Transfer to Voice Mail feature is available only when
configured by your system administrator.
toVM
Back
4. Choose one of the following:
— Press the toVM context-sensitive
soft key to connect the calling party
to Voice Mail.
— To return to the previous screen,
press the Back context-sensitive
soft key.
While on an active call
232
Using the Park Call feature
You can use the Park Call feature to temporarily park a call to the call
server or to a specific user. You or another user can retrieve the parked
call from another IP Deskphone. Using Park Call does not tie up a line,
since it is held on the call server.
Note 1: The Park Call feature is not available for all call servers.
Contact your system administrator or service provider to determine if
this feature is available to you.
Note 2: The behavior of the Park Call feature varies depending on
the call server. This can affect the information appearing on the
IP Deskphone.
Note 3: When you park a call to the server, the server returns a
retrieval code. You must enter the code to retrieve the call from park.
Using Park Call
The IP Deskphone prompts you with, Press Park for server or
User to park to a user.
To park a call to the server during a call:
To park a call to a specific user
1. Press the Action context-sensitive soft
and select Park Call from the menu.
2. Press the Park context-sensitive soft key
to park the call to the server.
1. Press the User context-sensitive soft
key to park the call to a User.
Action
Park
User
While on an active call
233
Retrieving a Parked Call
You must have the retrieval code to retrieve a parked call from the server.
You can retrieve a parked call while the IP Deskphone is in the idle state
or while on a call.
To retrieve a parked call from the server
abc 2. Press the abc/123 context-sensitive soft
key to toggle between alphabetic and
numeric characters.
3. Use the Dialpad to enter the user name
to whom you are parking the call.
Park
Clear
Back
4. You can do one of the following:
— Press the Park context-sensitive soft
key to park the call to the user and
return to the previous menu.
— Press the Clear context-sensitive
soft key to erase the input field.
— Press the Back context-sensitive
soft key to return to the previous
screen.
Servcs 1. Press the Servcs context-sensitive soft
key and select Retrieve Parked Call
from the menu.
While on an active call
234
2. Use the Dialpad to enter the retrieval
code of the parked call.
Retrve
Clear
Back
3. You can do one of the following:
— Press the Retrve context-sensitive
soft key to retrieve the parked call.
— Press the Clear context-sensitive
soft key to erase the input field.
— Press the Back context-sensitive
soft key to return to the previous
screen.
Additional features
235
Additional features
You can use the following additional features:
•“Using the Friends feature” on page 235
•“Feature keys” on page 243
•“Using Call Forward” on page 266
•“Configuring Do Not Disturb” on page 270
•“Configuring a Presence state” on page 271
•“Configuring Privacy settings” on page 275
Using the Friends feature
You can designate a contact you have frequent interaction with as a
friend. Access your friends list in the Address Book to:
• Check the presence status of a friend. See “To check the online
status of a friend on your list:” on page 236.
• Initiate a call to a friend. See “To initiate a call to a friend on the
Friends list:” on page 237.
• Send an IM to a friend. See “To send an IM to a friend on the Friends
list:” on page 238.
• Edit the information about a friend. See “To edit your Friends list:” on
page 239.
Additional features
236
Figure 37: Presence status of a friend
Accessing your Friends list
To check the online status of a friend on your list:
Filter
Select
1. Choose one of the following:
— Press the Directory fixed key.
— Press the Filter context-sensitive
soft key, and select Friends from
the menu.
— Press the Select context-sensitive
key.
Additional features
237
To initiate a call to a friend on the Friends list:
Status
All
Edit
2. Do one of the following:
— Press the Status context-sensitive
soft key to view the current presence
status of the friend.
— Press the All context-sensitive soft
key to view the contents of the
Address book, including contacts
designated as friends and regular
contacts.
—Press the Edit context-sensitive soft
key to make changes to the
information entered for a friend or to
delete the contact from the friends
list.
Exit 3. Press the Exit context-sensitive soft key
to return to the idle screen.
Filter
Select
1. Choose one of the following:
— Press the Directory fixed key.
— Press the Filter context-sensitive
soft key, and select Friends from
the menu.
— Press the Select context-sensitive
key.
Status 2. Press the Status context-sensitive soft
key to view the information about the
friend.
Additional features
238
To send an IM to a friend on the Friends list:
Call 3. Press the Call context-sensitive soft key
to initiate a call to the friend.
The IP Deskphone uses the SIP address
or phone number from your personal
Address Book to make the call.
Filter
Select
1. Choose one of the following:
— Press the Directory fixed key.
— Press the Filter context-sensitive
soft key, and select Friends from
the menu.
— Press the Select context-sensitive
key.
Status 2. Press the Status context-sensitive soft
key to view the information about the
friend.
SendIM 3. Press the SendIM context-sensitive soft
key to send an IM to the friend.
The IP Deskphone uses the SIP address
for the contact from your personal
Address Book.
abc 4. Press the abc/123 context-sensitive soft
key to toggle between numeric and
alphabetic input.
Additional features
239
Editing information of a friend
You can edit information of a friend on the Friends list.
To edit your Friends list:
5. Use the dialpad to enter the text of the
message.
Send
Back
6. Choose one of the following:
— Press the Send context-sensitive
soft key to send the IM.
— Press the Back context-sensitive
soft key to return to the previous
menu.
Filter
Select
1. Choose one of the following:
— Press the Directory fixed key.
— Press the Filter context-sensitive
soft key, and select Friends from
the menu.
— Press the Select context-sensitive
key.
Additional features
240
Edit
2. Press the Up/Down navigation key to
highlight the friend you want to edit and
press the Edit context-sensitive soft key.
abc 3. Press the abc/123 context-sensitive soft
key to toggle between alphabetic and
numeric characters.
4. Use the dialpad to enter the new name
for the contact.
Next
Back
5. Choose one of the following:
—Press the Next context-sensitive soft
key to continue.
— Press the Back context-sensitive
soft key to return to the previous
menu.
Delete To remove a contact from the Friends list,
press the Delete context-sensitive soft key.
This completely removes the contact from
your personal Address Book.
Additional features
241
6. Use the dialpad to enter the new
address for the contact.
Next
Back
7. Choose one of the following:
—Press the Next context-sensitive soft
key to complete the process.
— Press the Back context-sensitive
soft key to return to the previous
menu.
Yes
No
Back
8. Choose one of the following:
— Press the Yes context-sensitive soft
key, select the group and press the
Select context-sensitive soft key to
add contact to the group.
— Press the No context-sensitive soft
key to return to the previous menu
without adding contact to the group.
— Press the Back context-sensitive
soft key to return to the previous
menu.
Ok 9. Press the Ok context-sensitive key to
return to the friends list.
Additional features
242
To delete a contact from your Friends list:
Filter
Select
1. Choose one of the following:
— Press the Directory fixed key.
— Press the Filter context-sensitive
soft key, and select Friends from
the menu.
— Press the Select context-sensitive
key.
Edit
2. Press the Up/Down navigation key to
highlight the friend you want to delete
and press the Edit context-sensitive soft
key.
Delete 3. Press the Delete context-sensitive key.
This completely removes the contact
from your personal Address Book.
Ok
Back
4. Choose one of the following:
— Press the Ok context-sensitive soft
key to continue.
— Press the Back context-sensitive
soft key to return to the previous
menu.
Additional features
243
Feature keys
Use the Feature key option to configure the feature keys on IP
Deskphone and the Expansion Module for Avaya 1100 Series
IP Deskphones.
Programmed keys are stored in the user profile. Each user can maintain a
list of programmed feature keys. You can designate a feature key to act
as a short cut for any of the following features:
• Speed Dial
• Call Forward
• Do Not Disturb
• Send IM
• Presence
The IP Deskphone designates the feature key on the bottom right of the
four feature keys as Feature Key 1 and reserves it as the line key for the
IP Deskphone. Figure 38 on page 243 shows the Feature keys.
Figure 38: Feature keys
Additional features
244
You can program the feature keys one at a time, or you can automatically
program empty feature keys from your Friends list or Address Book. For
information about how to autoprogram feature keys see, “Feature key
autoprogramming” on page 259.
Figure 39 on page 244 shows the feature key numbering for 3 Expansion
Modules for Avaya 1100 Series IP Deskphones.
Figure 39: Feature key numbering
Feature key programming
You can program feature keys.
To access the Program Key screen:
Prefs 1. Press the Prefs context-sensitive soft
key, select Feature Options, and select
Feature Keys from the menu.
The Program Key screen opens as
shown in “Feature keys” on page 243.
Additional features
245
The Program Key screen provides the following context-sensitive soft
keys:
•View— to access the feature key detail screen.
•Edit —to edit the setting or modification of the selected
programmable key.
•Bulk—to access the autoprogramming and auto removal feature.
•Back—to return to the previous screen.
To view feature key details
Figure 40 on page 246 shows the feature key details.
1. To select a feature key to view, do one of
the following:
— Press the Up/Down navigation key
to highlight the feature key to view
and press the View context-
sensitive soft key.
—Press the Feature key that you want
to view and press the View context-
sensitive soft key.
— Use the dialpad to select the
Feature key that you want to view
and press the View context-
sensitive soft key.
The Program Key screen opens as
shown in Figure 40 on page 246.
Back 2. Press the Back context-sensitive soft
key to return to the previous screen.
Additional features
246
Figure 40: Feature key details
The Program Key screen displays the following:
• Key—programmed feature key number
• Label—label used for the feature key
• Service—services programmed to the feature key, such as:
— Speed Dial
— Call Forward
— Do Not Disturb
— Send IM
— Presence
• User—current user to whom the programmed feature key is
associated
• Address—SIP address for the feature key when programmed for
Speed Dial, Call Forward, and Send IM.
Additional features
247
Note 1: If you to try to view a feature key that is not programmed the
IP Deskphone displays the message: Program Key Not
Available (Key is empty).
Note 2: If you try to view a feature key that is designated as a line
key, the IP Deskphone displays the message: Program Key Not
Available (Key is a line key).
To edit a feature key
Figure 41 on page 248 shows the edit feature key screen.
1. To select a feature key to edit, do one of
the following:
— Press the Up/Down navigation key
to scroll through the feature keys to
highlight the one you want to edit
and then press the Edit context-
sensitive soft key.
—Press the Feature key that you want
to edit and then press the Edit
context-sensitive soft key.
— Use the dialpad to select the
Feature key that you want to view
and then press the Edit context-
sensitive soft key.
The Program Key screen opens as
shown in Figure 41 on page 248.
Back 2. Press the Back context-sensitive soft
key to return to the previous screen.
Additional features
248
Figure 41: Edit feature key screen
To modify a feature key:
Modify 1. Press the Modify context-sensitive soft.
The Select Service screen opens.
2. Press the Up/Down navigation key to
highlight one of the following feature key
services:
— Speed Dial
— Call Forward
— Do Not Disturb
— Send IM
— Presence
Additional features
249
Select
Back
3. Choose one of the following:
— Press the Select context-sensitive
soft key to choose a service.
The next screen in the process
opens.
— Press the Back context-sensitive
soft key to return to the previous
menu.
abc 4. Press the abc/123 context-sensitive soft
key to toggle between numeric and
alphabetic input.
5. Use the dialpad to enter the label for the
feature key.
Additional features
250
The following procedure continues from Step 6 on page 250.
To program a Speed Dial feature key:
Next
Back
6. Choose one of the following:
—Press the Next context-sensitive soft
key to continue. Continue to input
information based on the following
services:
Speed dial. See “To program a Speed
Dial feature key:” on page 250.
Call Forward. See “The following
procedure continues from Step 6 on
page 250.” on page 252.
Do not Disturb. See “To program a Call
Forward feature key:” on page 252.
Send IM. See “To program a Send IM
feature key:” on page 254.
Presence. See “To program a Presence
feature key:” on page 255.
— Press the Back context-sensitive
soft key to return to the previous
menu.
Select 1. Press the Select context-sensitive soft
key.
2. Select Speed Dial.
Select 3. Press the Select context-sensitive soft
key.
Additional features
251
4. Use the dial pad to enter a key label.
Next 5. Press the Next context-sensitive soft key
to continue.
6. Use the dial pad to enter an address.
Next 7. Press the Next context-sensitive soft key
to continue.
8. Use the dial pad to enter a Call Subject
associated with the Speed Dial contact.
You can leave this blank if you do not
want to include a Call Subject.
Ok
Cancel
9. Choose one of the following:
— Press the Ok context-sensitive soft
key to confirm the entry and move to
the next step.
— Press the Cancel context-sensitive
soft key to return to the previous
step.
Additional features
252
The following procedure continues from Step 6 on page 250.
To program a Call Forward feature key:
Yes
No
10. Choose one of the following:
— Press the Yes context-sensitive soft
key to activate auto-retrieve of held
call on hang up of speed dial.
— Press the No context-sensitive soft
key to return to the previous step.
1. Select Call Forward.
2. Use the dial pad to enter a key label.
Next 3. Press the Next context-sensitive soft key
to continue.
4. Select a User.
Select 1. Press the Select context-sensitive soft
key.
2. Use the dial pad to enter the address.
Additional features
253
The following procedure continues from Step 6 on page 250.
To program a Do Not Disturb feature key:
Finish
Clear
Back
3. Choose one of the following:
— Press the Finish context-sensitive
soft key to confirm the entry and
complete the procedure.
— Press the Clear context-sensitive
soft key to erase the entry.
— Press the Back context-sensitive
soft key to return to the previous
menu.
1. Select Do not disturb.
Select 2. Press the Select context-sensitive soft
key.
3. Use the dial pad to enter a key label.
4. Select a User.
Select 1. Press the Select context-sensitive soft
key.
Additional features
254
The following procedure continues from Step 6 on page 250.
To program a Send IM feature key:
Finish
Back
2. Choose one of the following:
— Press the Finish context-sensitive
soft key to confirm the entry and
complete the procedure.
— Press the Back context-sensitive
soft key to return to the previous
menu.
1. Select Send IM.
Select 2. Press the Select context-sensitive soft
key.
3. Use the dial pad to enter a key label.
Next 4. Press the Next context-sensitive soft
key.
5. Use the dial pad to enter an address.
Additional features
255
The following procedure continues from Step 6 on page 250.
To program a Presence feature key:
Finish 6. Press the Finish context-sensitive soft
key to continue.
1. Press the Up/Down navigation key to
highlight one of the following:
— Connected
— Unavailable
Select
Back
2. Choose one of the following:
— Press the Select context-sensitive
soft key to select Presence.
— Press the Back context-sensitive
soft key to return to the previous
step.
Additional features
256
3. You can choose a more detailed
message for other users to see or you
can select None if you do not want to
give additional information.
4. If you chose Connected in step 1, press
the Up/Down navigation key to highlight
one of the following details:
—None
—Away
— Out to Lunch
— Be Right Back
If you chose Unavailable in step 1,
press the Up/Down navigation key to
highlight one of the following details:
—None
—Busy
— On vacation
— Offline
Note: You can create your own
Presence message to appear on screen,
which become available when you
program a feature key as a shortcut. For
more information, see “Adding a new
Presence state message” on page 274.
Additional features
257
Remove a programmed feature key
You can remove a feature key by using one of the following methods:
1. Edit context-sensitive soft keys. See “To remove a feature key using
the Edit context-sensitive soft key:” on page 258.
• Bulk context-sensitive soft keys. See “To remove all programmed
feature keys by using the Bulk context-sensitive soft key:” on
page 261.
Finish
Back
5. Choose one of the following:
— Press the Finish context-sensitive
soft key to select the Presence detail
and finish the procedure.
— Press the Back context-sensitive
soft key to return to the previous
step.
Additional features
258
To remove a feature key using the Edit context-sensitive soft key:
1. To select a feature key to remove, do
one of the following:
— Press the Up/Down navigation key
to scroll through the feature keys to
highlight one to remove and press
the Edit context-sensitive soft key.
— Press the feature key that you want
to remove and then press the Edit
context-sensitive soft key.
The Program Key screen opens as
shown in Figure 41 on page 248.
Back 2. Press the Back context-sensitive soft
key to return to the previous screen.
Remove 3. Press the Remove context-sensitive
soft.
The IP Deskphone displays Confirm
Remove key?
Additional features
259
Feature key autoprogramming
The feature key autoprogramming provides the user with the ability to
cause the IP Deskphone to detect all unused programmable keys, and to
automatically fill them as Speed Dial keys, Send IM keys, or Call
Forwarding keys using the user Friends list or the user Address Book.
The feature key autoprogramming also provides the user with the ability
to remove all programmed feature keys from the IP Deskphone.
Autoprogramming does not overwrite feature keys already programmed
and when the IP Deskphone detects if a feature key is already configured
with Speed Dial, Send IM, or Call Forward for contact, it does not create a
new instance.
Note: The autoprogramming feature options are dependent on your
service provider and IP Deskphone configuration. If you attempt to
use the autoprogram feature (Bulk context-sensitive soft key) for a
feature that is not available to you, the IP Deskphone displays the
message:
This feature is disabled. Contact your provider.
Yes
No
4. Choose one of the following:
— Press the Yes context-sensitive soft
key to confirm the removal of the
feature key.
— Press the No context-sensitive soft
key to return to the previous screen
without removing the feature key.
Additional features
260
To autoprogram feature keys:
Prefs 1. Press the Prefs context-sensitive soft
key, select Feature Options, and select
Feature Keys from the menu.
The Program Key screen opens as
shown in, Figure 38 on page 243.
Bulk
Back
2. Choose one of the following:
—Press the Bulk context-sensitive soft
key.
— Press the Back context-sensitive
soft key to return to the previous
step.
3. Select Feature key creation.
Select
4. Press the Up/Down navigation key to
highlight one of the following services
that you want to autoprogram:
1. Speed Dial
2. Send IM
3. Call Forward
Select
Back
5. Choose one of the following:
— Press the Select context-sensitive
soft key to autoprogram the feature
keys with the selected service.
— Press the Back context-sensitive
soft key to return to the previous
step.
Additional features
261
To remove all programmed feature keys by using the Bulk context-
sensitive soft key:
Bulk
Back
6. Choose one of the following:
—Press the Bulk context-sensitive soft
key.
— Press the Back context-sensitive
soft key to return to the previous
step.
Select
7. Press the Up/Down navigation key to
highlight 2. Feature key removal and
press the Select context-sensitive soft.
The Program Key screen opens listing
all the feature keys.
All 8. Press the All context-sensitive soft key
to remove all the programmed feature
keys.
Yes
No
9. Choose one of the following:
— Press the Yes context-sensitive soft
key to confirm the removal of all the
feature keys.
— Press the No context-sensitive soft
key to return to the previous screen
without removing the feature keys.
Additional features
262
To remove individual programmed feature keys using the Bulk
context-sensitive soft key:
Back
10. To select a single feature key to remove,
do one of the following:
— Press the Up/Down navigation key
to scroll through the feature keys
and highlight the feature key to
remove and press the Remove
context-sensitive soft key.
—Press the Feature key that you want
to remove and press the Remove
context-sensitive soft key.
— Use the dialpad to select the
Feature key that you want to view
and press the Remove context-
sensitive soft key.
or
Press the Back context-sensitive soft key to
return to the previous menu.
Bulk
Back
11. Choose one of the following:
—Press the Bulk context-sensitive soft
key.
— Press the Back context-sensitive
soft key to return to the previous
step.
Additional features
263
Select
12. Press the Up/Down navigation key to
highlight 2. Feature key removal and
press the Select context-sensitive soft.
The Program Key screen opens listing
all the feature keys.
All 13. Press the All context-sensitive soft key
to remove all the programmed feature
keys.
Yes
Or
No
14. Choose one of the following:
— Press the Yes context-sensitive soft
key to confirm the removal of all the
feature keys.
— Press the No context-sensitive soft
key to return to the previous screen
without removing the feature keys.
Additional features
264
Creating a feature key using the Copy key
You can create a feature key for Speed Dial, Call Forward, or Send IM by
pressing the Copy fixed key when you are viewing any of the following:
• a highlighted entry in an Address Book list
• a highlighted entry of your Call Inbox or Call Outbox
To designate a feature key by using the Copy key:
Back
15. To select a single feature key to remove
do one of the following:
— Press the Up/Down navigation key
to scroll through the feature keys to
highlight one and press the Remove
context-sensitive soft key.
—Press the Feature key that you want
to remove and then press the
Remove context-sensitive soft key.
— Use the dialpad to select the
Feature key that you want to view
and then press the Remove context-
sensitive soft key.
or
Press the Back context-sensitive soft
key to return to the previous menu.
1. Open your Address Book, Call Inbox, or
Call Outbox, highlight the entry you want
to use for the feature key, and then
press the Copy key.
Attention:
Additional features
265
2. Press the Up/Down navigation key to
highlight Speed Dial, Call Forward, or
Send IM from the menu.
Note: Presence and Do Not Disturb are
not programmable by using the Copy
key.
Select 3. Press the Select context-sensitive soft
key.
Set
4. Choose one of the following:
— Press the Up/Down navigation key
to highlight the feature key to which
to copy the information to and press
Set.
—Press the Feature key that you want
to use for the service selected.
5. Use the dialpad to enter the label for the
feature key.
Additional features
266
Using Call Forward
Use the Call Forward feature to direct incoming calls to an alternate
destination. You can continue to make calls from the IP Deskphone but all
incoming calls are redirected to the new destination.
When you forward a call to another IP Deskphone, the IP Deskphone
receives the call displays the name and SIP address (if present) of the
caller, the name and SIP address (if present) of the original called party,
and any subject message included with the call. This ensures that the
user who receives the forwarded call knows that the call is forwarded from
you, who the call is from, and any subject message that is included.
Note: Not all service providers display forwarded calls as described.
Contact your system administrator or service provider for more
information about Call Forward.
Next
Back
6. Press the Next context-sensitive soft key
to continue. Continue to input
information based on the selected
service:
—“To program a Speed Dial feature
key:” on page 250
—“To program a Call Forward feature
key:” on page 252
—“To program a Send IM feature key:”
on page 254
—“To program a Presence feature
key:” on page 255
or
Press the Back context-sensitive soft
key to return to the previous menu.
Additional features
267
Figure 42 on page 267 shows the incoming call display for an incoming
call.
Figure 42: Incoming call display for a forwarded call
When the address or subject line is long, you can scroll by using the left
and right navigation keys.
Table 17 on page 267 describes the Privacy setting and the display for a
forwarded call on the IP Deskphone.
Table 17: Privacy setting and IP Deskphone display for Call
Forward (Part 1 of 2)
Privacy setting IP Deskphone display
None From: Robert (robert@companyb.com)
To: Alice (alice@companya.com)
Subject: Calling to discuss budget.
Additional features
268
When you forward your calls to another user or IP Deskphone, you have
the option to program the IP Deskphone to remind you that incoming calls
can be forwarded. This notification is an audible signal you hear when you
go off hook and a change to the ring pattern when a call is incoming.
To activate or deactivate this notification:
All From: Anonymous
To: Alice (alice@companya.com)
Subject: Calling to discuss budget.
Address From: Robert
To: Alice (alice@companya.com)
Subject: Calling to discuss budget.
Name From: robert@companyb.com
To: Alice (alice@companya.com)
Subject: Calling to discuss budget.
Prefs 1. Press the Prefs context-sensitive soft
key, select Feature Options, and select
Call Fwd Notification from the menu.
On
Off
1. Choose one of the following:
— Press the On context-sensitive soft
key to activate Call Forward
Notification
— If the Call Forward Notification is
activated you press the Off context-
sensitive soft key to deactivate the
feature.
Table 17: Privacy setting and IP Deskphone display for Call
Forward (Part 2 of 2)
Privacy setting IP Deskphone display
Additional features
269
Note: If the IP Deskphone is ringing or is in Do Not Disturb mode,
you cannot forward the call.
To forward your calls or change the number where calls are
forwarded:
CallFwd 1. Press the CallFwd context-sensitive soft
key.
2. Enter the phone number or SIP address
where you want to forward your calls.
Forwrd
Clear
Back
3. Choose one of the following:
— Press the Forwrd context-sensitive
soft key to accept the number and
return to the Home screen.
— Press the Clear context-sensitive
soft key to clear the input line.
— Press the Back context-sensitive
soft key to cancel the input and
return to the Home screen.
Additional features
270
To deactivate Call Forward:
Configuring Do Not Disturb
Use Do Not Disturb to automatically block all incoming calls. When you
activate this feature, the calling party receives a busy signal.
To enable Do Not Disturb:
Disable
Back
1. Choose one of the following:
— Press the Disable context-sensitive
soft key to deactivate Call Forward
and return to the Home screen.
— Press the Back context-sensitive
soft key to cancel deactivating the
Call Forward and return to the Home
screen.
DND 1. Press the DND context-sensitive soft key
on the idle display (press the More…
context-sensitive soft key until DND
appears).
Enable
Back
2. Choose one of the following:
— Press the Enable context-sensitive
soft key to configure the
IP Deskphone to Do Not Disturb.
— Press the Back context-sensitive
soft key to return to the previous
menu.
Additional features
271
To disable Do Not Disturb:
Configuring a Presence state
Configure a presence state to enable other users to see information about
your availability. You can select from a list of pre-made messages or
create a new message to display for your presence state.
To select a Presence state:
Ok 3. Press the Ok context-sensitive soft key
to return to the Services menu.
Disable
Back
1. Choose one of the following:
— Press the Disable context-sensitive
soft key to configure the phone to Do
Not Disturb.
— Press the Back context-sensitive
soft key to return to the previous
menu.
Ok 2. Press the Ok context-sensitive soft key
to return to the Services menu.
Presnce 1. Press the Presnce context-sensitive soft
key (press the More… context-sensitive
soft until Presnce appears).
Additional features
272
Change
Back
2. Choose one of the following:
— Press the Change context-sensitive
soft key to change your current
presence state.
Press the Back context-sensitive soft key to
return to the Home screen.
3. Press the Up/Down navigation key to
highlight either:
— Connected
— Unavailable
Select
Back
4. Choose one of the following:
— Press the Select context-sensitive
soft key to continue to the next
screen.
— Press the Back context-sensitive
soft key to return to the previous
step.
Additional features
273
You can choose a more detailed message
for other users to see, or you can select
None if you do not want to provide additional
information.
5. If you chose Connected in step 2, press
the Up/Down navigation key to highlight
one of the following details:
—None
—Away
— Out to Lunch
— Be Right Back
If you chose Unavailable in step 2,
press the Up/Down navigation key to
highlight one of the following details:
—None
—Busy
— On vacation
— Offline
Note: You can create your own
Presence messages to appear on
screen, which become available when
you program a feature key as a shortcut.
Additional features
274
Adding a new Presence state message
You can add a new Presence state message.
To add a new Presence state message:
Select
Add
Back
6. Choose one of the following:
— Press the Select context-sensitive
soft key to select the Presence detail
and move to the confirmation
screen.
— Press the Add context-sensitive soft
key to enter a custom note. For more
information, see “Adding a new
Presence state message” on
page 274.
— Press the Back context-sensitive
soft key to return to the previous
step.
OK 7. Press the OK context-sensitive soft key
to confirm the Presence state selection.
Presnce 1. Press the Presnce context-sensitive soft
key (press the More.… context-sensitive
soft key until Presnce appears).
Change 2. Press the Change context-sensitive soft
key.
3. Select Connected or Unavailable from
the menu.
Additional features
275
Configuring Privacy settings
You can restrict caller information coming to the IP Deskphone or caller
information leaving the IP Deskphone. You can restrict the name, SIP
address, or both from appearing on the screen.
Incoming call privacy
You can restrict the information for incoming calls to your IP Deskphone
by configuring the Incoming Call Privacy setting.
Add 4. Press the Add context-sensitive soft
key.
abc 5. Press the abc/123 context-sensitive soft
key to toggle between alphabetic and
numeric characters.
6. Use the Dialpad to enter a new
Presence state message.
Ok
Back
7. Choose one of the following:
— Press the Ok context-sensitive soft
key to confirm the entry and
complete the procedure.
— Press the Back context-sensitive
soft key to return to the previous
step.
Additional features
276
To configure Incoming Call Privacy:
Prefs 1. Press the Prefs context-sensitive soft
key, select Misc Options, and then
Incoming Privacy from the menu.
Change
Back
2. Choose one of the following:
— Press the Change context-sensitive
soft key to change the Incoming
Privacy restriction to the highlighted
restriction.
— Press the Back context-sensitive
soft key to return to the previous
menu without implementing any
changes.
3. Press the Up/Down navigation key to
highlight one of the following:
— None (no restriction)
— Name (restricts only the name)
— Address (restricts only the address)
— All (restricts name and number)
Additional features
277
Outgoing call privacy
You can restrict the information for outgoing calls from your IP
Deskphone by configuring the Outgoing Call Privacy setting.
To configure Outgoing Call Privacy:
Multiple Appearance Directory Number
Multiple Appearance Directory Number (MADN), also known as Bridge
Line Appearance, and using Single Call Appearance (SCA) allows
multiple IP Deskphones to appear as a single line to the caller. Any of the
IP Deskphones with an active MADN feature can initiate or answer a call,
Prefs 1. Press the Prefs context-sensitive soft
key, select Misc Options, and then
Outgoing Privacy from the menu.
Change
Back
2. Choose one of the following:
— Press the Change context-sensitive
soft key to change the Outgoing
Privacy restriction to the highlighted
restriction.
— Press the Back context-sensitive
soft key to return to the previous
menu without implementing any
changes.
3. Press the Up/Down navigation key to
highlight one of the following:
— None (no restriction)
— Name (restricts only the name)
— Address (restricts only the address)
— All (restricts name and number)
Additional features
278
but only one call can be active at a time. However, other clients that are
part of the same MADN line can join the active call by going off hook.
You can prevent others from joining the call by using the MADN feature to
make the call private. To make the call private you dial a special code
(Vertical Service Code) so that the call server knows that the call is
private. To dial a Vertical Service Code on an IP Deskphone, you must
first initiate a new call by pressing the Action context-sensitive soft key,
select New Call/Conference, and then dial the Vertical Service Code that
is provided by your system administrator or service provider.
Note: The MADN feature is only available when you connect to a call
server that supports it. Your system administrator manages the
MADN feature and enables the MADN feature on your IP Deskphone
if required.
When multiple IP Deskphones are configured with a MADN SCA feature,
they share one single Directory Number (DN) that is available to the user.
An incoming call to this DN or to any SIP address of the users of the
MADN SCA group causes all the IP Deskphones to ring. Also, any user of
the MADN SCA group can join a call initiated from any of the IP
Deskphones of that group.
Any user that joins a call with the MADN SCA feature can put the call on
hold and prevent other users within the MADN SCA group from joining.
Additional features
279
Figure 43: MADN SCA shared line not active
Figure 44: MADN SCA shared line active
Additional features
280
Audio Codecs
This feature allows you to specify a codec to which you can switch to
during an active call. You can use the Preferences menu to modify the
order of preference of the codecs between calls.
You can select an audio codec by name during a call, or while the
handset is idle. The Audio Codecs feature also gives you control over the
audio configuration that is used for inbound and outbound calls.
To change the codec while on the call, select Audio, Change codec, and
then press OK.
The following context-sensitive soft keys are available on the Audio
Codes page:
•Ok—to view the Audio Codec Selection screen.
•Back—to return to the previous screen.
Audio Codec Selection
The Audio Codec Selection allows you to select a codec to use during
inbound and outbound calls.
The following context-sensitive soft keys are available for selecting the
audio codes:
•Select: The IP Deskphone attempts to renegotiate the codec for the
current call to use the selected codec.
•Back: Allows you to return to the Audio Codec screen.
Audio Codec Ordering
The Audio Codec Ordering allows you to modify the order of preference of
codecs to use during inbound and outbound calls.
The following context-sensitive soft keys are available for the audio codec
ordering page:
•Save—to save the current order as the new preferred codec order.
•MoveUp—to move the highlighted codec up in the list.
Additional features
281
•MoveDwn—to move the highlighted codec down in the list.
•Back—to return to the Audio Codec screen.
The Audio Codec Ordering screen allows you to modify the order of
preference of the codecs. You can reorder the preferences, and the
changes to the ordering are saved.
PC Client softphone interworking with the
IP Deskphone
This feature allows you to access the functionality of the IP Deskphone
using a PC Client softphone. The Click-to-Answer function allows you to
answer an incoming call to the IP Deskphone by clicking a button on your
PC Client running on your PC. The call continues as if you answered it
using the Answer context-sensitive soft key on the IP Deskphone.
This feature allows you to control a call coming to the IP Deskphone using
a softphone client on the PC. The call data is actually sent and received
by the IP Deskphone. This feature does not support the Copy context-
sensitive soft key.
Answer-Mode Settings
For an IP Deskphone to automatically be answered on your PC Client
softphone, you must pre-grant authorization to the user or user groups
who are making the request for an automatic answer.
Press Prefs, Feature Options, and then select Answer-Mode Settings
to request an automatic answer to the callers.
The following options are available for the Answer-Mode Settings page:
•Allow Mode—to select a mode. The options for the Allow Mode are
as follows:
— Disabled
— Friends
— Directory (includes all Friends)
— Public (includes all users)
Additional features
282
•Allow Address—to edit the list of address.
The following context-sensitive soft keys are available for the Answer-
Mode Settings page:
•Change—to open the Allow Mode Settings page if option 1 is
selected. Allows you to open the Allow Domain page shown if option
2 is selected.
•Back—to return to the Feature Options page.
Allow-Mode Settings
The Allow-Mode Settings screen allows you to enable or disable the
feature, and to allow automatic requests for Friends, Directory, or Public
users.
The following context-sensitive soft keys are available for the Allow mode
settings page:
•Select—to enable the current selection.
•Back—to return to the previous screen.
Allow Domain setting
The Allow Addresses screen allows you to preauthorize requests to
automatically answer to a list of user-entered domains, and SIP
addresses.
Select Prefs, Feature Options, Answer-Mode Settings, and then press
Allow addresses to view the Allow Addresses screen.
The screen displays the following instructions:
Domain or SIP address
[Typing cursor]
The following options are available for the Allow Addresses page:
•Save—to save the entered domain and SIP address into the list and
displays the list.
•abc/123—to change between alphanumeric and numeric entry.
•Clear—to erase all entered characters.
Additional features
283
•Back—to return to the previous screen.
The Allow Addresses screen displays the domains and SIP addresses in
a list. If the list is long, you can scroll down the screen until you have
reached the last entry.
The following context-sensitive soft keys are available for the Allow
Addresses page:
•Add—to add the entry content.
•Edit—to select the current entry and edit the entry.
•Delete—to delete the selected domain from the list.
•Back—to return to the Answer-Mode Settings screen.
Automatic remote firmware updates
Note: Your system administrator must enable Remote check for
update for this feature to work.
Your IP Deskphone may be configured to perform automatic firmware
updates. If this feature is configured, the IP Deskphone displays when a
firmware update is scheduled to occur, and Yes and No context-sensitive
soft keys are displayed. If the IP Deskphone is idle and no key is pressed,
the firmware update begins in one minute.
If you press Yes, the firmware download begins.
If you are using your IP Deskphone (this includes on hold, on a
conference call, or when your IP Deskphone is ringing) and you press No,
the call is not disconnected and the firmware update does not occur. The
IP Deskphone displays the firmware download prompt again in three
minutes a total of three times.
If, after the third notification, you press No or no key is pressed, the
firmware update does not occur. Your IP Deskphone attempts the
firmware download process again in two hours.
Note: If you allow the update to proceed and the server is down, the
IP Deskphone does not ask for updates again.
Multiuser
284
Multiuser
The Multiuser feature allows multiple SIP user accounts to be active on
the IP Deskphone at the same time. This allows a single IP Deskphone to
be shared among multiple users each with their own account, allowing
each user to receive calls without logging off other users.
You can have multiple user accounts (for example, a work account and a
personal account) active at the same time on the same IP Deskphone.
You can use the following features during a call:
•“Initial login” on page 285
•“Logging out” on page 287
•“Server failover” on page 288
•“Upgrade impacts to user profiles” on page 289
•“Line keys” on page 290
•“Making a call” on page 292
•“Receiving a call” on page 293
•“Being in a call” on page 293
•“Instant Messages” on page 294
•“Menu features” on page 295
•“Modifying settings” on page 295
•“Programmable keys” on page 296
•“Address books” on page 298
•“User status” on page 298
•“Notifications” on page 302
•“Account Selection” on page 303
Multiuser
285
Initial login
For an initial login, you must enter a user name and password and specify
your login to either be permanent or to expire. You can also specify which
SIP domain you want to access. The Domain key allows you to select a
domain from the configured list but you cannot modify the domains. You
can change the language used at the login screen. Figure 45 on page 285
shows the primary login screen.
Figure 45: Primary Login screen
After you are logged in, the IP Deskphone displays the Idle screen. You
can configure up to five profiles. If the limit is exceeded, then the least
recently used profile is automatically deleted.
Additional logins
The Login command in the System menu allows you to register
additional accounts. You cannot change the language in a secondary
login. Figure 46 on page 286 shows the secondary login screens.
Multiuser
286
Figure 46: Secondary Login screens
You can specify the Line Key to which the new account is associated. By
default, the first unused key is selected. If the configured limit is reached
on concurrent logins, then the selected login command displays an error
message. The initial login message login in process displays during the
login operation.
During the login process, the IP Deskphone can receive calls for user
accounts that are already registered; however, other features are not
available until the login process is complete.
No profile selection prompt is displayed for the secondary account and no
profile is created.
Automatic login
If you were logged in when the IP Deskphone was switched off, the
IP Deskphone automatically logs you back in upon startup. If multiple
users were logged in, then they are all logged back in one after the other.
If the automatic login feature is disabled, then the automatic login does
not occur.
It is possible to provision the IP Deskphone with user credentials for
automatic login even on the initial startup. With the addition of multiuser
support, it is also possible to provision multiple accounts in the same way.
For more information about different autologin scenarios, see “Primary
account logout” on page 287.
Multiuser
287
Logging out
The logout command prompts you to select an account, asks for
confirmation, then proceeds to log out the account. Logging out an
account frees the corresponding Line key. Logging out does not require a
password. For more information about logging out, see ““Logging off from
the IP Deskphone” on page 85.
Figure 47 on page 287 shows the logout screens.
Figure 47: Logout screens
Primary account logout
Logging out of the primary account causes all other accounts to log out
automatically and the IP Deskphone to display the login screen. The
secondary accounts are logged back in automatically when a new primary
account is registered or the same primary account is re-registered.
If the IP Deskphone is restarted after logging out of the primary account, it
returns to the login screen. Logging in a new primary account leads to
automatic login of secondary accounts.
The list of programmed feature keys is part of the IP Deskphone profile.
As a result, logging out of one primary account and logging in on a
different account could change the set of feature keys. If a secondary
account was assigned to a key that is also in the set of feature keys, the
secondary account takes precedence: it is logged in, and the feature key
acts as a Line key. If the account is logged out manually, the programmed
feature key becomes available.
Multiuser
288
Secondary account logout
You can log out of a secondary account by selecting the secondary
account in the Logout Select User screen. This causes the secondary
account to be removed from the autologin list. If you restart the
IP Deskphone, the secondary account is not logged back in.
Server failover
If the connection to your account proxy is lost, then the IP Deskphone
notifies your account and periodically attempts to reconnect. Some
features remain accessible for other accounts (for example, incoming
calls), but other features are not available until connection is re-
established or you cancel the reconnection. Cancelling the call has the
same effect as logging out. If you are the primary account, the
IP Deskphone returns to the initial login screen. If you are logged in on a
secondary account, that secondary account is removed from the list of
secondary accounts that are logged in on automatic login.
If more than one account loses connection, the IP Deskphone attempts to
reconnect to account in sequence. The first account to lose connection
retries until it re-registers or you cancel the attempt, after which a
reconnect attempt begins for the next account. Canceling the
reconnection attempt of the primary account immediately abandons
attempts for all other accounts, logs out secondary accounts that are still
connected, and returns the IP Deskphone to the login screen.
A single login queue is used for automatic logins and failover. This means
that if automatic logins are still pending when an account cannot connect,
a reconnection attempt for that account only begins after all automatic
logins have completed or are cancelled.
Cable unplugged
If the IP Deskphone detects that the network cables are unplugged while
accounts were logged in, then the IP Deskphone assumes that all
accounts have lost their connection to the server. When you reconnect
the cable, the IP Deskphone proceeds to re-register all accounts starting
with the primary account.
Multiuser
289
Upgrade impacts to user profiles
In previous releases of the IP Deskphone software, user profiles were
associated to user names rather than accounts; one user profile could be
associated with multiple user names. After the IP Deskphone is upgraded
to SIP Release 3.x software, the IP Deskphone may contain user profiles
with old user name associations.
When a primary account with no associated profile is registered, the
IP Deskphone looks for an old user profile associated with that user
name. If an old user profile associated with that user name is found, the
user profile becomes permanently associated with that account and is no
longer associated to a list of user names.
Example:
• An IP Deskphone with SIP Software Release 2.x has the following
user accounts logged in and logged out.
— user1@domain1.com
— user2@domain1.com
— user1@domain2.com
A user profile is created for the first account and is reused for the second
account. The third account reuses the same profile, as it has the same
user name as the first account.
• The IP Deskphone is upgraded to SIP Software Release 3.x.
— A user logs to the primary account “user3@domain1.com”. No
profile is found for that account; a new profile is created
automatically.
— The user logs out, then logs to the primary account
“user2@domain1.com”. No profile is found for that account, but a
Release 2.x user profile is found to be associated to the user
name “user2”. The profile becomes associated to
“user2@domain1.com”. The profile is loaded and user2 now has
access to the call logs and most preferences available before the
upgrade.
— User2 logs out, then logs in “user1@domain1.com”. User1 had a
profile before the upgrade, but that profile has now been
Multiuser
290
associated to the user2 account; therefore a new profile is
created.
Not all the information in old profiles is preserved. The preference settings
(for example, voice mail ID) are discarded in the upgrade.
Line keys
Each registered user is associated to a separate line key. Each line key
displays the name of the registered account and some basic state
information for that account.
The primary account is always associated to the first (bottom-right) line
key of the IP Deskphone. If you are a secondary user, the order of the
next available line key is from bottom to top and right to left on the
IP Deskphone, followed by the keys on the Expansion Module from
bottom to top and right to left. You can select a different available line key
for secondary accounts during the login process.
Figure 48 on page 291 shows the IP Deskphone with an Expansion
Module for Avaya 1100 Series IP Deskphones and multiple accounts.
Multiuser
291
Figure 48: IIP Deskphone with Expansion Module and
multiple accounts
Pressing a line key either brings up a dialing prompt, initiates a call to a
pre-selected target, or answers an incoming call. For more information
see ““Making a call” on page 292.
At select account prompts (such as the Logout screen and User Settings
screen), pressing a line key highlights the corresponding account.
Each line key reflects the state of its account.
• If there is a call for the account, a phone icon shows the state of the
call whether it is on hold, or ringing.
• If there is more than one call, the state of the most active call is
displayed. Missed incoming calls and new voice mail messages for
the account are indicated with an icon. This supplements the NN
missed calls message on the idle screen and the red LED, which
cannot provide per-account information.
Multiuser
292
MADN, Do Not Disturb, and Call Forwarding features also affect the
appropriate line key icon of the account.
Making a call
You can place a call using any of the registered user accounts. The
selected user account determines which proxy is used, which domain
name is used for the call target if none was specified, who the target sees
is calling, and what service package-dependent features are available.
The ways to initiate an outgoing call fall into two categories:
• always using the primary user’s account
• using a different, explicitly selected account. The usual way to select
an alternate account is to press the line key of that account to obtain
a dialing prompt.
If you initiate dialing by pressing digits from the Idle screen, the primary
account is used after you lift the handset, press the Headset key or press
the handsfree key. The same applies if you initiate a call from the inbox,
outbox or Instant Messages screen.
Similarly, the primary account is used when a dial prompt is first obtained
after you lift the handset, press the handset key, or press the Headset
key, and the call is initiated by pressing digits from the Idle screen or by
pressing the Send context-sensitive soft key.
If you initiate a call by pressing a line key, the user account associated
with that line key is used when the call is initiated.
If you initiate a call from the Address Book or Friends list, the account that
is selected to display the list, is the same account that establishes the
call. For more information, see ““Receiving a call” on page 293 and
““Menu features” on page 295.
In all cases, if you initiate the call by pressing a line key, then the account
associated with that particular line key takes precedence.
For example, pressing Line Key 1 to obtain a dial prompt, dialing, then
pressing Line Key 2 initiates the call using the account associated with
Multiuser
293
Line Key 2. However, there are cases where pressing a Line Key does
not initiate dialing (for example, Address Book in Select mode).
While the outgoing call is ringing, the selected account is displayed on
screen on a From: line.
Receiving a call
When you receive an incoming call, the displayed information shows
which account the call is intended to reach. The line key of the
corresponding account displays an incoming call icon. The call can be
answered by:
• pressing the Answer context-sensitive soft key
• taking the handset off hook
• pressing the Headset or Handsfree key
• pressing the appropriate line key of the account
Note: You cannot use a different account to answer the call.
If the IP Deskphone receives multiple calls at the same time, a list (sorted
by the most recent incoming call first) of all active and incoming calls
appears. After you select a specific call in the list, you can either answer
the call or process the call.
If the calls are for different accounts, then the line keys associated with
the accounts receiving the incoming calls display an incoming-call icon.
An incoming-call icon provides visual feedback. You can answer the call
by pressing the line key directly without having to select the call. This
automatically puts other active calls on hold.
Being in a call
When a single call is active, the screen displays the local account in use
and the remote user. If multiple calls are active, each call appears on a
single line. The local account for the active call appears on the context
line. Each line key reflects the most active call state of its account.
Multiuser
294
The active call is affected by operations such as transfer or call parking.
One exception is the New Call action, which uses the primary account by
default; this can be overridden by pressing another line key to initiate the
call.
Joining calls into a specific conference always uses the conference server
of the primary account. Accounts which cannot access the server cannot
join the server.
After you create a ad-hoc conference, you can join additional calls into the
same conference. You cannot create more than one ad-hoc conference
at a time.
Three-way calls can join any two calls, regardless of the account. The
service package of the account to which a call is associated determines
which operations (for example, Call Park) are available on that call. After
you have established a 3-way call, the join functionality becomes
unavailable until the 3-way call is terminated.

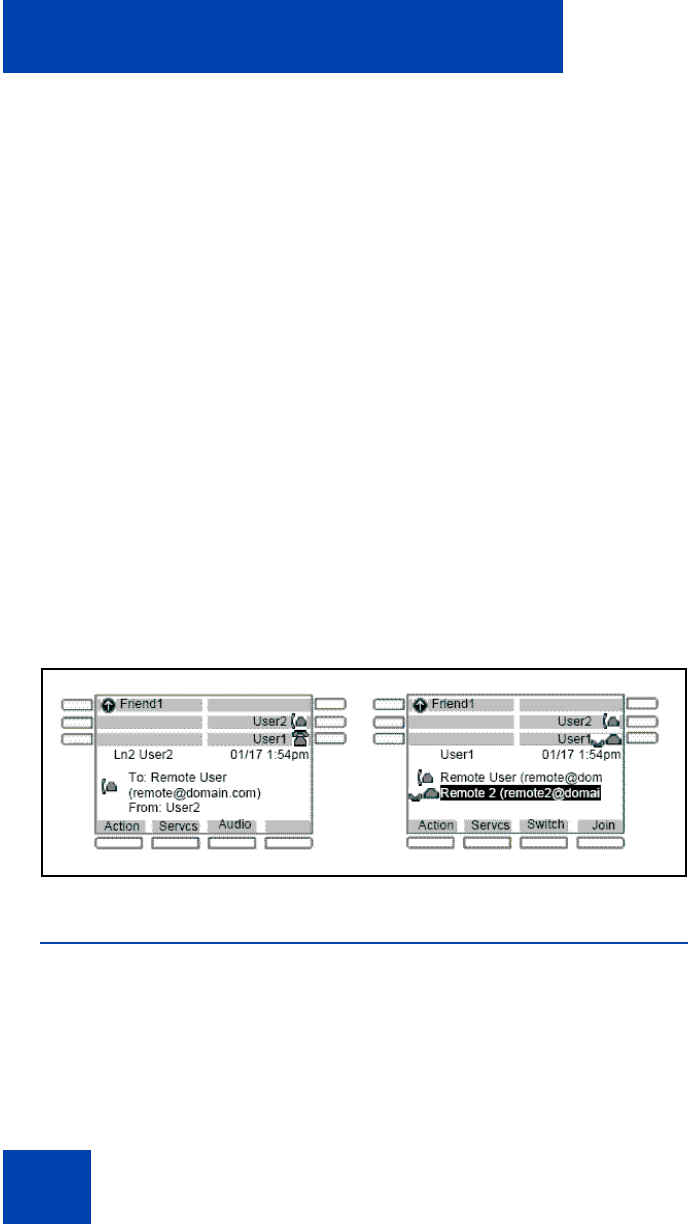

Figure 49 on page 294 shows two examples of the IP Deskphone with
one call and multiple calls.
Figure 49: IP Deskphone with one and multiple calls
Instant Messages
Only the primary account can send or receive instant messages.
Incoming messages for secondary accounts are rejected; they are not
displayed on screen, and are not added to the instant message logs.
Multiuser
295
Menu features
The IP Deskphone menu displays are customized to match the service
package of the active account that is accessing the menu. In most cases,
menus are accessed from the Idle screen and the primary account is
active. For example, you can only use the Retrve context-sensitive soft
key to retrieve a parked call if call parking is allowed by the service
package of the primary account.
Similarly, accessing the Address Book, either through the corresponding
hard key or through the View menu, usually displays the Address Book of
the primary account. However, accessing the Address Book in select
mode (for example, while dialing, or selecting an item for a speed dial
key) accesses the address book of the latest user account used on the
address-input screen.
Modifying settings
A number of preferences, in particular Voice Mail and IM settings, are per-
account. The main Preferences menu includes an User Settings entry.
Selecting this entry prompts you to select a registered account. After
selecting an account, a menu appears that lets you modify the settings of
that account.
Per-account call notification options
The Call Settings entry in the User Settings menu provides a number of
configuration options relating to how incoming calls for a particular
account are treated:
• what kind of audio alert should be used (ring tone, beep, nothing)
• whether the red LED should blink
• whether the call should be added to the Incoming Calls log
IM Settings
IM Settings is located under User Settings. Any change in settings on
the primary account takes effect immediately. You can also modify
settings for a secondary account, but they do not take effect until that
account registers as the primary account.
Multiuser
296
Voice Mail settings
Voice Mail Settings is located under User Settings. You can program
different voice mail addresses and IDs for each account. To access the
voice mail of a secondary account, press the line key of the secondary
account to obtain a dial prompt, and then press the VMail context-
sensitive soft key.
Waiting messages are reported in two ways:
• The red LED is lit if any account has a waiting message.
• A special icon (a shaded envelope) is displayed on the line key of
each account with a waiting message (unless the account is in a call).
Remembering settings after logout
For each profile, up to 24 sets of per-account settings are always
remembered. If you have configured settings for an account, after the
account is logged out, the settings are restored when the account is
logged back in as either a primary or secondary account.
When an account is logged in without settings saved in the profile, a new
set of default settings is created for it. If there are already 24 sets of per-
account settings in the profile, one setting for which the account is not
currently registered is discarded, and the new setting is saved.
Programmable keys
A line key associated with a registered account cannot be used for
programmable features. The Program Key screen lists all the line keys.
All line keys associated with an account are displayed as such, and
selecting them displays an error message.
The Do Not Disturb, Call Forward, and Presence keys are associated to a
specific user account when they are created, and determine which
account’s status to affect. For more information see, ““User status” on
page 298.
By default, you can press a Speed Dial programmed key to initiate a call
using the primary account. If a line key is pressed to obtain a dialing
prompt and then a speed dial key is pressed, the account of the line key is
Multiuser
297
used. When accounts are registered on different domains, you can only
program and use speed dial keys with targets that are reachable on the
domain of the secondary account. It is possible to program and use speed
dial keys with targets that are only reachable on the domain of a
secondary account. The Speed Dial keys always uses the primary
account to determine the presence state of the target.
Instant Message keys always use the primary account, because IM
support is disabled for secondary accounts.
Inbox, outbox, IM log
There is a single inbox, a single outbox and a single instant message log
for each profile. The detailed view of the call log entry indicates the local
account associated to each entry; that is, the source of outgoing calls and
the target of received calls.
Figure 50 on page 297 shows the Inbox in call details view.
Figure 50: Inbox: call details view
Call logs and IM logs provide many ways of initiating a call to the address
identified by the selected entry, such as lifting the handset. In most cases,
the primary account is used. However, if you press a line key to initiate
the call, the call uses the account associated with the line key.
If call logs and IM logs are invoked in selection mode; you cannot initiate
a call directly. In this case, the Select context-sensitive soft key populates
a dial prompt or other input field with the selected target. The operation
already in progress determines which account to use. (For example, if
you press the line key to obtain a dial prompt, press the Inbox key to
Multiuser
298
select a target, press Select, then press Send, then the line key that was
originally pressed determines the account.)
Address books
Each profile contains a local address book, which is independent from all
network address books.
Accessing the Address Book in view mode (by pressing the Directory
hard key from the Idle screen) displays the address book of the primary
account. If the primary account does not have a network address book,
then the local address book is accessed.
Accessing the Address Book in selection mode always accesses the
address book of the current account. For example, after obtaining a dial
prompt by pressing Line Key 2, pressing the Directory key accesses the
address book of the account associated to Line Key 2. The network-
based directory of the appropriate account is accessed only if it is
available; otherwise, the local address book is used.
The network-based address book of secondary users can only be
accessed in selection mode. You cannot modify an address book of a
secondary account on the IP Deskphone. However, modifications made
remotely to the address book, such as using a different client or the
Personal Agent, are reflected on the IP Deskphone. The local address
book is shared by all accounts that do not have a network-based address
book.
You can modify the local address book only if the primary account has no
network-based address book. Changes to the network-based address
book of the primary account are not reflected in the local address book.
The Friends view always accesses and modifies the address book of the
primary account (local or network-based). There is no selection mode for
the Friends view. You can only monitor and view the presence
information of Friends of the primary account in Friends view.
User status
This section describes the features associated with the User status.
Multiuser
299
Do Not Disturb
Selecting the Do Not Disturb command from the Services menu
prompts you to specify which account should be placed in DND mode.
The option all allows you to place all accounts in DND mode. Selecting an
option requests you to confirm the operation before proceeding. The
option all is highlighted by default.
Activating DND for a specific account automatically causes calls to that
account to be rejected with a busy indication; however, calls to other
accounts can be received. When DND mode is active for an account, the
line key of the particular account periodically displays a DND indicator on
its label.
The following scenarios apply to DND:
• If you select a single account and the account is already in DND
mode, then you are asked if you want to disable DND rather than
asked if you want to enable DND.
• If you select a single account and the account has Call Forwarding
active, then an error message appears indicating that DND cannot be
activated.
• If you select the option all and if at least one account is not in DND
mode, then the DND mode is activated for all accounts. If any
account is in Call Forward mode, Call Forward is disabled.
• If you select the option all when all accounts are in DND mode, DND
mode is deactivated for all accounts.
When using a programmed DND feature key, the account that is
impacted by the DND feature key is determined when the feature key is
configured. When the DND feature key is pressed, the DND feature
behavior is the same as previously described, except no confirmation
prompt is displayed. The operation is performed immediately, and a
message indicating what was done is displayed.
DND mode for each account is persistent. If you restart the
IP Deskphone, or log out and log in, the account maintains the original
state.
Multiuser
300
Call Forwarding
Selecting the Call Forward command from the Services menu prompts
you to specify which account must be placed in Call Forward mode. The
option forward all places all accounts in Call Forward mode in one
operation and the option forward none deactivates Call Forward for all
accounts at once.
The following scenarios apply to Call Forward:
• If you activate Call Forward for a specific account, then all calls to the
selected account are redirected automatically to the specified
address. The target address of the account must be reachable from
the domain. Calls to other accounts are still received. The line key
label periodically indicates that Call Forward mode is active.
• If you select a single account with neither Call Forward nor DND
active, then you are prompted to specify a forwarding target. Call
Forward is then enabled. If DND is already active, a message
indicating Call Forward cannot be activated displays. If Call Forward
mode is already active, then you are prompted whether to deactivate
it.
• If you select the forward all option, then all accounts are configured
in Call Forward mode using the provided target. DND mode is
deactivated for all accounts. If accounts are already in Call Forward
mode for a different target, they are updated to use the new target.
• If you select the forward none option, the Call Forward feature is
deactivated for all accounts for which it is currently active.
After a single-account CFwd programmed key is pressed:
• If the account is already forwarding calls to the programmed target,
call forwarding is deactivated.
• If call forwarding is not already activated, then the account is
configured to forward calls to the given target, disabling DND if
necessary, and overriding any other call forward target that might be
active for the account.
After a forward all programmed key is pressed:
• If all accounts are already configured to forward calls to the key's
target, then Call Forward is disabled for all accounts.
Multiuser
301
• If not, Call Forward is activated for all accounts using the key's target.
For both single and all keys, you can treat the key as a toggle. If no Call
Forward or DND operations are selected, pressing the key switches one
or all accounts between forwarding to the key's target and not forwarding
states.
The Call Forward mode and target for each account is persistent. If you
restart the IP Deskphone or logout and login, the Call Forward state is
retained.
Presence
Selecting the Presence command from the Services menu prompts you
to specify which presence state of the account should be modified. The
option all lets you configure all accounts to the same presence in one
operation.
If you select a single account, then the current state of the account is
displayed and you are prompted whether it should be changed. You are
then prompted to enter the new presence state. The new presence state
is applied after it is confirmed.
If the option is selected, no current state is displayed, and you are
immediately prompted to select the new state. The new state is then
applied to all registered accounts.
When using a programmed Presence feature key, the account that is
impacted by the Presence feature key is determined after the feature key
is configured.
After a single-account Presence programmed key is pressed:
• If the account is already configured to the programmed presence
state, then the account is configured back to the Connected
presence state.
• If not, the account is configured to the programmed presence state.
After the all accounts Presence programmed key is pressed:
• If all accounts are already configured to the programmed presence
state, then all accounts are configured to the Connected state.
Multiuser
302
• If not, all accounts are configured to the programmed presence state.
As with Call Forwarding keys, this allows Presence keys to be used as
toggles.
However the presence states are not entirely under your control. Some
states are applied automatically (for example, On The Phone). All states
are applied by sending a message to the SIP proxy, which can choose
not to accept the change. As a result, it is possible for a set all presence
operation to not result in all accounts being configured to the programmed
presence. In such a case, pressing the key again would again attempt to
apply the programmed presence; therefore it is more effective to program
a separate Presence key to configure all accounts to the Connected
state.
Events that update presence states automatically occur on a per-account
basis. For example, the On The Phone state is applied to any account for
which at least one call is active.
Account presence is not retained after logging out or rebooting.
Notifications
The system displays messages spontaneously on the screen to report
events that are not initiated by you. This includes such events as failure to
retrieve a service package and availability of a new Location list.
These spontaneous notifications do not indicate which account is affected
by the event. In such cases, the affected account is indicated by the
message itself.
Figure 51 on page 303 shows per account notification on the IP
Deskphone.
Multiuser
303
Figure 51: Per-account notifications
It is possible for the same event to occur for multiple accounts at the
same time. In this case, they are displayed one after the other.
Account Selection
There are a number of scenarios where you are prompted to select an
account (for example, logout, per-account settings, programming keys).
These scenarios fall into two categories:
1. Prompts where exactly one account must be selected
2. Prompts where an “all” or “none” option is available
In the first case, if you have logged in only one account, then the prompt
is not displayed. The single account is selected automatically, and the
next screen is immediately displayed. Otherwise, the primary account is
always at the top of the list, and is highlighted when the prompt is first
displayed. In all cases, pressing the line key of an account highlights the
corresponding item in the account list. If no selection is made in a certain
amount of time, then the operation is cancelled.
Advanced features
304
Advanced features
The following chapter describes the following advanced features:
•“Viewing the IP Deskphone information” on page 304
•“Accessing the services menu” on page 305
•“Network menu” on page 316
•“USB flash drive” on page 317
•“Customizable Banner for login” on page 320
•“Phone Information - Details screen” on page 321
•“Screensaver/screen lock” on page 322
•“Selecting an image to be viewed as a slideshow” on page 329
•“Service Package Group Support” on page 331
•“Speed Dial List” on page 340
•“USB Flash memory device support” on page 343
Viewing the IP Deskphone information
You can view phone information for the IP Deskphone.
To view the Phone Information for the IP Deskphone:
You can view the following information:
• Load Ver
• Software
• E.M Software
• Presence
1. Press the Services hard key and select
Phone Information from the menu.
Advanced features
305
•FeatActv
• Srv Pkg Location
Press the Details context-sensitive soft key to show:
• Primary User
• Primary Domain
•MAC
•IP
• License server
— Status
Press the Back context-sensitive soft key to go back to the Phone
Information Screen.
Note: You cannot make any changes to the setting from this menu.
To view information about the USB port press the USB context-sensitive
soft key after you access the Phone Information screen. To view
information about E911 press the E911 context-sensitive soft key after
you access the Phone Information screen.
Accessing the services menu
Some of the system features require your user password. You must
consult with the system administrator or service provider before you can
access some of the features.
The IP Deskphone displays the following menu:
1. Search—use to perform local/global search.
2. Login—use when the call server supports multiple user logons only.
1. Press the Services hard key.
Advanced features
306
3. Logout— use to logoff the IP Deskphone. For more information, see
“Logging off from the IP Deskphone” on page 85.
4. Check for Updates—use to check for the latest firmware update for
the IP Deskphone. For more information, see “Checking for updates”
on page 306.
5. Reset Phone— use to perform a reset of the IP Deskphone. For more
information, see “Resetting the IP Deskphone” on page 310.
6. File Manager—For more information, see “Erasing the user data” on
page 311.
7. Logging System—use to enable/disable SIP logging.
8. Phone Information—use to view deskphone details. For more
information, see “Viewing the IP Deskphone information” on
page 304.
Checking for updates
You can check for the latest firmware update for your IP Deskphone.
To check for the latest firmware update:
1. Press the Services fixed key.
2. Select Check For Updates.
Select 3. Press the Select context-sensitive soft
key.
Advanced features
307
Switching the proxy
When you switch proxy, you change the domain to which the IP
Deskphone connects.
To switch the proxy:
Yes
No
4. Choose one of the following:
— Press the Yes context-sensitive soft
key check for the latest firmware
update for your IP Deskphone.
— Press the No context-sensitive soft
key to return to the previous menu
without checking for an update.
Note: While the IP Deskphone checks
for an update, it activates Do Not Disturb
(DND).
1. Press the Services fixed key.
2. Select Check For Updates.
Select 3. Press the Select context-sensitive soft
key.
abc 4. Press the abc/123 context-sensitive soft
key to toggle between alphabetic or
numeric input.
Advanced features
308
5. Use the dialpad to enter your password.
Ok
Back
6. Choose one of the following:
— Press the Ok context-sensitive soft
key.
— Press the Back context-sensitive
soft key to return to the previous
menu.
Yes
No
The IP Deskphone prompts you with
Switch to alternate proxy server?
7. Choose one of the following:
— Press the Yes context-sensitive soft
key to proceed.
— Press the No context-sensitive soft
key to return to the System menu.
Domain
The IP Deskphone logs you out from the
current domain and returns you to the User
Login screen.
8. Press the Domain context-sensitive soft
key.
Advanced features
309
9. Choose one of the following:
— Press the Domains context-
sensitive soft key to change the
current domain.
— Press the Done context-sensitive
soft key to keep the existing
configurations and return to the User
Login screen.
10. Press the Up/Down navigation key to
highlight the new domain you want to
use.
Select
Back
11. Choose one of the following:
— Press the Select context-sensitive
soft key to change the domain to the
highlighted domain from the list.
The IP Deskphone returns to the
Current Domain display screen,
and the new domain appears.
— Press the Back context-sensitive
soft key to keep the existing
configurations and return to the
Display menu.
Done 12. Press the Done context-sensitive soft
key to confirm the new Domain and
return to the User Login screen.
13. Log on as usual.
or
Domains Done
Advanced features
310
Resetting the IP Deskphone
You can use this feature to reset the phone without unplugging the power
cable.
To reset the IP Deskphone:
1. Press the Services fixed key, and then
select Reset Phone.
Select 2. Press the Select context-sensitive soft
key.
abc 3. Press the abc/123 context-sensitive soft
key to toggle between alphabetic or
numeric input.
4. Use the dialpad to enter your password.
Ok
Back
5. Choose one of the following:
— Press the Ok context-sensitive soft
key.
— Press the Back context-sensitive
soft key to return to the previous
menu.
Advanced features
311
Erasing the user data
The IP Deskphone stores user files that you eventually want to delete.
These files include:
1. Profiles—user profile settings
2. Sounds—downloaded tones or audio alerts
3. Languages—downloaded language files
4. System file—IP Deskphone system configuration file (Deleting this
file returns the IP Deskphone to the factory default configuration
settings.)
You can delete some or all of these files. The deletion of files is often
necessary when the IP Deskphone is redeployed to a different user.
To delete user data files:
Yes
No
The IP Deskphone prompts you with Reset
Phone?.
6. Choose one of the following:
— Press the Yes context-sensitive soft
key to proceed.
— Press the No context-sensitive soft
key to return to the System menu.
1. Press the Services fixed key.
2. Select File Manager.
Note: You must enter your login
password to access the File Manager
menu.
Advanced features
312
abc 3. Press the abc/123 context-sensitive soft
key to toggle between alphabetic or
numeric input.
4. Use the dialpad to enter your password.
Ok
Back
5. Choose one of the following:
— Press the Ok context-sensitive soft
key.
— Press the Back context-sensitive
soft key to return to the previous
menu.
6. Press the Up/Down navigation key to
highlight one of the following:
— Profiles
— Sounds
— Languages
— System file
— All files
Advanced features
313
To delete a user profile:
Select
Delete
Exit
Back
7. Choose one of the following:
— To enter the selected folder, press
the Select context-sensitive soft
key.
— To delete contents of the selected
folder, press the Delete context-
sensitive soft key.
Note: Folders cannot be deleted
because they are on the IP Deskphone.
— If you are at the root folder of the
flash disk, press the Exit context-
sensitive soft key to return to the
previous menu.
— If you are already inside the folder,
press the Back context-sensitive
soft key to return to the previous
menu.
1. Press the Up/Down navigation key to
highlight the user profile you want to
delete.
Delete
Back
2. Choose one of the following:
— Press the Delete context-sensitive
soft key to delete the highlighted
user profile from the list.
— Press the Back context-sensitive
soft key to return to the previous
menu.
Advanced features
314
To delete a sound file:
To delete a language file:
3. Log off or restart the IP Deskphone to
complete the process.
1. Press the Up/Down navigation key to
highlight the sound file you want to
delete.
Delete
Back
2. Choose one of the following:
— Press the Delete context-sensitive
soft key to delete the highlighted
sound file from the list.
— Press the Back context-sensitive
soft key to return to the previous
menu.
1. Press the Up/Down navigation key to
highlight the language file you want to
delete.
Advanced features
315
To delete a log file:
Delete
Back
2. Choose one of the following:
— Press the Delete context-sensitive
soft key to delete the highlighted
language file from the list.
— Press the Back context-sensitive
soft key to return to the previous
menu.
1. Press the Up/Down navigation key to
highlight the log file you want to delete.
Delete
Back
2. Choose one of the following:
— Press the Delete context-sensitive
soft key to delete the highlighted
language file from the list.
— Press the Back context-sensitive
soft key to return to the previous
menu.
Advanced features
316
To delete the system file without deleting the user profile:
To delete all files:
Network menu
Primarily, the system administrator is the only person authorized to
access the network menu and to use an administration password to
access the items. For more information on how to access the network
menu items, see SIP Software for Avaya 1100 Series IP Deskphones -
Administration (NN43170-600).
Next
Back
1. Choose one of the following:
—Press the Next context-sensitive soft
key to delete the system file.
— Press the Back context-sensitive
soft key to return to the previous
menu.
2. Log out or restart the IP Deskphone to
complete the process.
Next
Back
1. Choose one of the following:
—Press the Next context-sensitive soft
key to delete the system file and
user profiles.
— Press the Back context-sensitive
soft key to return to the previous
menu.
2. Log out or restart the IP Deskphone to
complete the process.
Advanced features
317
The following Network menu items are available:
• Server Settings—to select and edit domains
• Device Settings—to configure the network settings
• Diagnostics—to run a trace route or send a ping to diagnose the
network connection
— IP Set and DHCP information
— Network Diagnostics tools
— Ethernet Statistics
— IP Network Statistics
— USB Devices
— Advanced Diag Tools
—Test Key
• Lock Menu—to access to the Network Menu
To access the Network menu:
USB flash drive
A standard USB flash drive can be used for the following:
• To extend the hardware storage in the IP Deskphone.
Prefs
1. Choose one of the following:
— Press the Services fixed key twice
quickly.
— Press the Prefs context-sensitive
soft key, and then select Network
from the menu.
Note: You need to enter an
administration password to access the
Network menu items.
Advanced features
318
• To support file transfer between the PCs and the IP Deskphone to
upload specific files or preferences into the IP Deskphone.
• To backup data stored in the IP Deskphone.
Presence of USB flash drive
Navigate through the menus Services, Phone Information, USB to
verify the presence of the USB flash drive attached to the IP Deskphone.
After you select the USB menu, the attached USB flash drive is displayed
along with other USB devices. The name of the USB device directly
appears from the USB device itself. There is no explicit USB flash drive
indication.
Feature characteristics
USB flash drives with 8GB or less are supported. A file browsing facility is
available.
Most USB flash drives have an LED to indicate file operation in progress.
After you attach the USB flash drive to the IP Deskphone, the
IP Deskphone registers and mounts the USB file system. Mounting the
file system causes the LED to flicker. If you disable USB device support,
then the IP Deskphone does not mount the USB file system and the LED
does not light.
There is no explicit safe removal. The USB flash drive can be removed
safely when the LED indicator on the memory stick is off.
Enabling or disabling the USB Port
In the Services, Phone Information, USB Devices screen, if the value
of Enable USB Port is No then the USB information does not display any
USB devices connected. The screen displays the information that the
USB port is disabled, as shown in Figure 52 on page 319.
Advanced features
319
Figure 52: USB devices: USB port disabled screen
If the USB port is not disabled, then the USB menu displays information
on all USB devices attached, even if the device is locked. An unsupported
device is enumerated if it is attached to the IP Deskphone. To ensure you
know about the USB lock status, the USB device information is followed
by status information about supported USB devices. If the USB
configurations do not match the USB device status because of the restart
requirement, a warning that the USB Update requires reboot appears
on the screen.
Figure 53 on page 320 displays a sample USB information menu with the
USB port enabled and selected device locked:
Advanced features
320
Figure 53: USB devices: Phone information screen
Customizable Banner for login
If a login banner with login banner text is configured, the IP Deskphone
displays the banner text on the screen as the user logs on.
Changing the IP Deskphone configured language does not change the
banner text language. The banner appears only for the primary user of an
IP Deskphone. In a multiuser configuration, even when the banner text is
enabled, the banner does not appear to the secondary user logins.
Figure 54 on page 321 displays the login banner screen.
Advanced features
321
Figure 54: Login banner screen
You can dismiss the banner screen. While you dismiss the banner
screen, the IP Deskphone switches to DND mode until the banner is
dismissed. Outgoing or incoming calls are not allowed other than
emergency calls until you dismiss the banner.
You can see pop-up messages or prompts on the bottom of the banner
screen after you dismiss the login banner.
Phone Information - Details screen
The Phone Information details screen displays the Primary user, Primary
domain, MAC address, and IP address of the IP Deskphone. The
contents of this screen include user and IP Deskphone identifiable
information that may need to be protected (per US Federal/DoD
requirements/guidelines).
Attention: To hide information that is protected, the administrator can
disable the Details context-sensitive soft key on the main Phone
Information screen.
If the Details context-sensitive soft key is disabled, you cannot view
details on the Phone Information details screen.
If the Details context-sensitive soft key is enabled, you can view the
Phone Information Details screen. In the Services menu, select Phone
Information and then press the Details context-sensitive soft key.
Figure 55 on page 322 displays the Phone Information Details screen.
Advanced features
322
Figure 55: Phone Information Details screen
The Phone information details list the following:
•Primary User: Primary Logged in User name.
•Primary Domain: Primary login domain.
•MAC: Device MAC address.
•IP: IP Deskphone IP Address
•Device Licensing/Token usage information: License or token
usage information for the IP Deskphone. It is an optional item in the
phone information.
To dismiss the details screen and return to the previous display, press the
Back context-sensitive soft key.
Screensaver/screen lock
You can lock the display of the IP Deskphone using a timed Screensaver/
Lock.
When the screensaver is active, it clears the programmed keys of the
plugged-in Expansion Module. If you have logged into the IP Deskphone,
then you are not logged out, but the line key label clears and makes the
IP Deskphone inactive.
The ScrnSvr context-sensitive soft key is located on the idle screen. This
key is available only if the screensaver is enabled, and is accessed by
pressing the More… context-sensitive soft key until ScrnSvr appears.
Pressing the ScrnSvr context-sensitive soft key causes the current
Advanced features
323
screensaver timer to turn off, and activates the previously-selected
screensaver.
Figure 56 on page 323 displays the menu with the option of selecting the
display screensaver.
Figure 56: Display screensaver screen
Select the Display Screensaver menu item to display the screensaver
settings screen.
The screensaver settings screen allows you to enable or disable your
screensaver/lock. You can also configure various settings such as the
delay before the screensaver starts, the background image to use, and
the banner text to display when the screensaver/lock is active.
Figure 57 on page 323 displays the screensaver settings screen.
Figure 57: Screensaver settings screen
Advanced features
324
The following are the items on the displayed list:
•Mode—to enable or disable the screensaver and choose if the
screensaver is to be password protected.
•Delay—to set the time delay before the screensaver is invoked.
•Image—to select the background image to display when the
screensaver is active.
•Text—to set the text that appears on screen when the screensaver is
active.
The following are the options available for the screensaver settings menu:
•Select—to select the currently highlighted setting.
•Back—to dismiss the screensaver setting.
Selecting the screensaver setting screen
The screensaver mode settings screen allows you to enable or disable
the screensaver/lock.
Choose Prefs, Display and then select Display Screensaver to display
the screensaver settings screen.
Figure 58 on page 324 shows the screensaver mode setting screen.
Figure 58: Screensaver mode setting screen
The screensaver mode setting lists the following items:
•Disable—to the disable the screensaver.
Advanced features
325
•Enable (no password)—to enable the screensaver with a password
free mode.
•Enable (with password)—to enable the screensaver with a
password mode.
The following are the options available for the screensaver settings menu:
•Select—to select the currently highlighted setting.
•Back—to dismiss the screensaver mode menu.
Note: Some options may not appear, depending on configuration.
Disabling the Screensaver displays a message confirming your selection.
Figure 59 on page 325 displays the screensaver disable message
screen.
Figure 59: Screensaver disabled message
Enabling the screensaver in no password mode displays a message
confirming your selection.
Figure 60 on page 326 displays the screensaver enable message screen.
Advanced features
326
Figure 60: Screensaver enabled message
Note: If the device configuration does not allow the use of a
password free screensaver, this menu option is unavailable to you.
Enabling the screensaver in password protected mode prompts you to
enter the password before logging in.
The screen lets you launch the user-defined password definition screen if
it is enabled in the configuration.
The text on screen displays Enter user password to activate screensaver
followed by a user input prompt.
Figure 61 on page 326 displays the screensaver password screen.
Figure 61: Screensaver password screen
Advanced features
327
The options, which are available for the Enable (with password) mode are
as follows:
•Ok—Screensaver enabled message appears if the password is valid.
Invalid password message appears if the password is invalid.
•123/abc—to toggle input mode between numeric or alphabet.
•Set—context-sensitive soft key appears only if the feature allows the
configuring of user-defined passwords. This key invokes a password
definition screen that allows you to configure a password.
•Back—to dismiss the Enable (with password) mode menu.
If the option to use a user-defined password is allowed, the interface
(screen) to configure the password, is accessed through the Set context-
sensitive soft key on that screen. If a user-defined password is not
allowed, then the Set context-sensitive soft key is not visible, and you can
use only the primary user login password to enable the password–
protected screensaver.
After the screensaver is activated, if the IP Deskphone is idle for the
defined delay/time interval, the screensaver takes control of the
IP Deskphone. Figure 62 on page 327 displays the screen with locked
screen.
Figure 62: Screensaver locked screen
The following option is available for the Enable (with password) mode:
•Unlock—if the screensaver is not password protected, this key press
(or any other) cancels the screensaver. If the screensaver is in a
password–protected mode, pressing the Unlock context-sensitive
Advanced features
328
soft key invokes a password input screen. The password must be
correctly entered to cancel the screensaver.
If you enable the screensaver with no password mode:
• Any user interaction, key presses, mouse movement, or incoming call
cancels the screensaver (without requiring a user password). This
includes pressing the Unlock context-sensitive soft key.
• Incoming IMs do not cancel the screensaver.
• The programmed keys of attached Expansion Module(s) are cleared
until the screensaver is deactivated. If you have logged on to the
IP Deskphone, you are not logged out, but the line key labels clear
and are inactive until the screensaver is deactivated.
If you reboot the IP Deskphone when there is an active screensaver:
• If you have enabled autologin, then the screensaver remains active
after the IP Deskphone reboots and completes the login.
• If you have not enabled autologin, then the screensaver setting
remains enabled, but not active, after you log back into the
IP Deskphone manually.
If you enable the screensaver with a password protected mode:
• User interaction, key presses, and mouse movements do not cancel
the screensaver.
• An incoming call displays showing caller ID and allows you to answer
the call. You cannot make outgoing calls except an emergency call,
and cannot view IMs or the Friends list until you unlock the
IP Deskphone. An Unlock context-sensitive soft key appears on the
screen. You can unlock the IP Deskphone after answering the call.
• Pressing the Unlock context-sensitive soft key prompts you to enter
the password for the screensaver. The primary user line key is
displayed (but not active) during the password prompt to give an
indication about whose password is in use.
• Picking up the handset and dialing digits activates the line function
display for emergency calls only. If you try to place an outgoing call, a
message is displayed and the screensaver starts again.
• If you make an emergency call while the screensaver is active, the
call is placed using the primary user.
Advanced features
329
• The Network menu is accessible to administrators (double press of
the services key) even when the screensaver is active.
• If user-defined passwords are allowed, a mechanism to disable the
screensaver (allowing the administrator to reset the user-defined
password) is accessible through the network menu. This mechanism
also invokes remotely from the IP Deskphone console through an
SSH connection.
• All expansion modules are cleared of programmed keys until the
screensaver is deactivated.
• If you reboot the IP Deskphone when there is an active screensaver:
— If autologin is enabled, then the screensaver remains active after
the IP Deskphone reboots and completes the login.
— If autologin is not enabled, then the screensaver setting remains
enabled but not active after you log back into the IP Deskphone
manually.
Selecting an image to be viewed as a slideshow
You can display all of the screensaver images that have been uploaded to
your IP Deskphone in a slideshow format. These files are loaded on the
IP Deskphone using the USB flash drive. Images for the 1140E IP
Deskphone cannot exceed 512 MB. The images must be resized before
they are loaded onto the IP Deskphone. The image size for the 1140E IP
Deskphone is 320x 160.
Images can be displayed as a slideshow. Choose Prefs, Display,
Display Screensaver, Images and then select Slideshow.
Background image
The IP Deskphone displays background images on the screen. From the
preferences menu, you can browse the stored images on the file system
and select an image for the user interface.
Figure 63 on page 330 displays the background image menu.
Advanced features
330
Figure 63: Display menu
Selection of the menu item takes you to a new display list that contains all
the available image files on the Flash File System.
Selecting an image screen
Select an image from a list of images currently stored on the Flash File
System of the device.
1. To select background image, press the Prefs context-sensitive soft
key, choose Display, and then Background Image.
Figure 64 on page 330 displays the filenames of all image files currently
stored on the Flash File System of the IP Deskphone.
Figure 64: File names containing image files
2. The following are the options available for the background selection
screen.
•Select—to select the currently highlighted image.
•Back—to dismiss the Image selection screen.
Advanced features
331
After you select the background image you want to use, the confirmation
screen appears.
Figure 65 on page 331 displays the selected image in the background
and the message to press OK to keep the selected image.
Figure 65: Background confirmation screen
Note: If the selected image is not effective, you need to cancel the
selection.
3. The following are the options available for the background
confirmation screen.
•OK—to configure the selected image as background image.
•Cancel—to cancel the selection. Also, the selected image is
disregarded and returns to Images list screen if the screen time-outs
after 15 seconds.
Service Package Group Support
The Service Package Group Support can help you program feature keys
on an expansion module. You can view the group support feature in the
feature key programming user interface and in the Friends list interface of
the Address book.
You can use to the Service Package Group Support to help you do the
following:
• to bulk-create feature keys, such as Speed Dial keys, based on one
of your existing Directory Address Book groups. See “To bulk-create
Advanced features
332
feature keys based on an existing directory Address book group:” on
page 332. To view existing groups in your address book if you
selected Groups as the source data for the bulk key creation, see “To
view existing groups in your address Book if you selected Groups:” on
page 334.
• to view the existing groups you have in your Address Book. See “To
view existing groups in your address Book if you selected Groups:” on
page 334.
• to add a new contact to your Address Book. See “To add a new
contact to your Address Book” on page 337
To bulk-create feature keys based on an existing directory Address
book group:
Prefs 1. From the Idle screen, press the Prefs
context-sensitive soft key (press the
More… context-sensitive soft key until
you see Prefs).
2. Press the Up/Down navigation key to
highlight Feature Options, then choose
Feature keys.
The main feature key programming
screen appears.
Bulk 3. Press the Bulk context-sensitive soft
key.
The Program Key Bulk commands
screen appears
4. Press the Up/Down navigation key to
highlight Feature key creation.
Advanced features
333
Select 5. Press the Select context-sensitive soft
key.
The Create keys screen appears.
6. Press the Up/Down navigation key to
highlight the type of programmed keys
you want to create by bulk command.
You can choose one of the following
options:
— Speed Dial
— Send IM
— Call Forward
Select
Back
7. Choose one of the following:
— Press the Select context-sensitive
soft key.
If you press the Select context-sensitive
soft key, the Select Source screen
appears.
— Press the Back context-sensitive
soft key to dismiss the screen.
8. Press the Up/Down navigation key to
highlight the source data for the bulk key
creation.
You can choose one of the following
options:
— Friends
— Groups (if you have existing groups
in your address book)
— Address book
Advanced features
334
You can view existing groups in your address book if you selected Groups
as the source data for the bulk key creation.
To view existing groups in your address Book if you selected
Groups:
Select
Back
9. Press the Select context-sensitive soft
key.
— If you choose Friends, the bulk key
creation process begins.
— If you choose Address Book, the
bulk key creation process begins.
— If you choose Groups, the Select
Group screen appears and prompts
you to select the specific group you
want to use for key creation.
or
Press the Back context-sensitive soft
key to dismiss the screen.
1. Press the Up/Down navigation key to
highlight the source data (group) for the
bulk key creation.
Advanced features
335
Note: After you select from one of your existing groups, the bulk
creation of the keys happens automatically.
Viewing the existing groups you have in your Address Book
Select
Back
2. Choose one of the following:
— Press the Select context-sensitive
soft key to begin the bulk key
creation process for the selected
group.
— Press the Back context-sensitive
soft key to dismiss the screen and
return to the screen where you can
select the source data for bulk key
creation.
1. When the IP Deskphone is in the idle
mode, press the Directory fixed key to
access your Address Book.
Filter 2. Press the Filter context-sensitive soft
key to filter the list of entries displayed in
your Address Book.
The Select Filter screen appears and
displays all the existing groups in your
address book, as well as the Friends
filter.
3. Press the Up/Down navigation key to
highlight the required filter.
Advanced features
336
Select
Back
4. Choose one of the following:
— Press the Select context-sensitive
soft key to choose the group you
want to view (for example, if you
choose personal, only address book
entries that are part of the group
personal are displayed).
You are presented with the list of
contacts currently part of the group you
selected.
— Press the Back context-sensitive
soft key to return to the dismiss the
screen and return to the main
address book screen.
5. Press the Up/Down navigation key to
highlight the required entry.
View
All
Edit
Back
6. Choose one of the following options:
— Press the View context-sensitive
soft key to display the address book
entry details for the selected entry.
— Press the All context-sensitive soft
key to return to the main address
book screen (no filtering)
—Press the Edit context-sensitive soft
key to modify or delete an entry.
— Press the Back context-sensitive
soft key to dismiss the screen and
return to the filter selection screen.
Advanced features
337
To add a new contact to your Address Book
After the screen displays the details of the selected address book entry,
you can do the following:
SendIM
Edit
Back
— Press the SendIM context-sensitive
soft key to display the address book
entry details for the selected entry.
—Press the Edit context-sensitive soft
key to modify the displayed address
book entry.
— Press the Back context-sensitive
soft key to dismiss the screen and
return to the main address book
screen.
1. When the IP Deskphone is in the idle
mode, press the Directory fixed key to
access your Address Book.
Add 2. Press the Add context-sensitive soft
key.
Next
Back
3. Choose one of the following:
— Use the dialpad to enter a name for
the new contact and press the Next
context-sensitive soft key to
continue.
— Press the Back context-sensitive
soft key to return to the previous
menu.
Advanced features
338
Next
Back
4. Choose one of the following:
— Use the dialpad to enter a phone
number or SIP address (URI) for the
new contact. Press the Next
context-sensitive soft key to
continue.
— Press the Back context-sensitive
soft key to return to the previous
menu.
Yes
No
Back
5. Do one of the following to complete the
entry:
— Press the Yes context-sensitive soft
key to add the new entry to an
address book group.
— Press the No context-sensitive soft
key to add the entry to the address
book without adding it to a group.
— Press the Back context-sensitive
soft key to return to the previous
menu.
If you choose to add the new contact to a
group, a list of all your existing groups is
displayed, and the screen prompts you
to select a group.
6. Press the Up/Down navigation key to
highlight the required entry.
Advanced features
339
To add a new group:
Select
Edit
Add
Back
7. Choose one of the following options:
— Press the Select context-sensitive
soft key to assign your new address
book entry to the group that you
selected.
—Press the Edit context-sensitive soft
key to modify the name of an
existing group.
—Press the Add context-sensitive soft
key to add a new group (invokes the
add group screen).
— Press the Back context-sensitive
soft key to dismiss the screen and
return to the previous screen.
Add 1. From the Select Group screen, press the
Add context-sensitive soft key.
Ok
Back
2. Choose one of the following:
— Use the dialpad to enter the group
name, and then press the Ok
context-sensitive soft key.
Note: If the name of the new group
already exits, an error screen appears.
— Press the Back context-sensitive
soft key to return to the previous
menu.
Advanced features
340
Speed Dial List
When configuring the provision, a feature key can be used as a Speed
Dial List. You cannot modify or delete the feature key used by the Speed
Dial List. Also, you cannot modify the content of the Speed Dial List.
Invocation of the speed dial list is similar to other feature key invocation.
The speed dial list key causes a full screen list to appear and offers you a
chance to automatically dial one of the offered choices.
The contents of the Speed Dial List varies based on the current call state
of the IP Deskphone and the type of speed dial list entry configured.
Note: Only entries in the Speed Dial List can be context sensitive
and not all speed dial keys/ individual feature keys.
A Speed Dial key or one included in a Speed Dial List can cause a call
that it placed on hold (when invoked) to be un-held automatically (when
call completes) based on a new value that must be configured when a
Speed Dial key is created or configured.
Figure 66 on page 340 displays the feature key used by the speed dial
list.
Figure 66: Main feature key screen
A feature key provisioned for use as a Speed Dial List has a similar
appearance to all other programmed feature keys on the idle screen (or
in-call screen). The label used for the selected key is provided through
provisioning.
Advanced features
341
The following is the icon for the Speed Dial List key.
After you press the feature key provisioned as a Speed Dial List, the list of
Speed Dials configured appears on the screen and the you can select an
item from that list to invoke a Speed Dial.
If the speed dial list is empty, or results in being empty due to context
sensitive hiding of contents, an error message displays stating There are
no Speed Dials currently available.
Speed Dial List screen
You can select the provisioned speed dial list entries from the speed dial
list screen. Figure 67 on page 341 displays the speed dial list screen with
the list entries.
Figure 67: Speed dial list screen
The Speed Dial List screen displays all the speed dial list entries
provisioned. The displayed list items are based on the provisioned list as
well as the current Idle/Mid-call state of the IP Deskphone. After you
invoke the speed dial list while the IP Deskphone is idle, only Speed Dial
List entries that are configured to IDLE are displayed. Similarly, only items
marked as MID CALL are displayed if the Speed Dial List is invoked while
the IP Deskphone is in a call.
The following are the options available for the Speed Dial List screen.
•Dial—invokes the selected speed dial.
Advanced features
342
•Exit— screen dismisses without invoking a Speed Dial List entry.
Auto retrieve flag
The Auto retrieve behavior is added to regular speed dial keys instead of
speed dial list entries. To make sure that this flag is configured for
programmed speed dial keys the screen in Figure 68 on page 342
appears as the last step in Speed Dial Key creation.
Figure 68: Auto Retrieve enable screen
Auto Retrieve screen allows you to configure the auto retrieve behavior
for the Speed Dial.
The following are the options available for the Auto Retrieve enable
screen.
•Yes—to enable Speed Dial with Auto-Retrieve behavior.
•No—to disable Speed Dial with Auto-Retrieve behavior.
•Back—to dismiss the screen and sent you back to previous key
programming screen.
If you enable the auto-retrieve behavior on a Speed Dial key or Speed
Dial list entry that is invoked and place a call on hold to invoke the current
key/entry, the IP Deskphone attempts to un-hold the call after the key or
entry call completes.
For example:
• A is talking to B when A invokes their Speed Dial List and selects an
entry.
Advanced features
343
• Selection/invocation of a Speed Dial List entry places the A-B call on
hold and place another outgoing call to URI specified in the Speed
Dial List entry, let's say C.
• When the A-C call completes, if the auto retrieve flag is enabled for
the Speed Dial, then the IP Deskphone attempts to take call A-B off
hold. This may not always happen if the IP Deskphone receives
another call during the A-C call, or if the A-B call state is changed
while A-C is active.
USB Flash memory device support
The IP Deskphone supports the browsing of files on a USB Flash memory
device. A simple file browser allows you to select an image file (or other
type of file) and upload onto the IP Deskphone file system. The file
manager also allows you to browse and copy certain files from the IP
Deskphone file system onto a USB flash drive.
After you select the File Manager menu by choosing Services menu, you
can navigate to the IP Deskphone file system and any USB drives
attached. From there, you can either copy a file from the IP Deskphone
onto their USB drive or from the USB drive to the IP Deskphone.
After you select a File manager, and there are no USB drives plugged into
the IP Deskphone, the root screen of the IP Deskphone file system
screen the screen that appears.
Figure 69 on page 343 displays the root screen of the IP Deskphone file
system.
Figure 69: Root screen
Advanced features
344
The following are the options available for the Root screen:
•Select—use to enter the selected folder.
•Delete—prompts you to delete contents of selected folder (folders
are not deleted because they are on the IP Deskphone).
•Exit—If you are at the root folder of the flash disk, the screen is
dismissed and you are sent back to previous menu. If you are already
inside a folder, then the Back context-sensitive soft key acts the
same as the .. item and moves up one level in the directory structure.
After you select a File manager, and if the USB drives are plugged into
the IP Deskphone, the screen that appears next is the Select Device
screen. This screen lists the IP Deskphone, and USB drives that are
available. After you select one of the items, the contents of that device
(folders and files appears), and .. allows you to navigate back to the
select drive screen.
Figure 70 on page 344 displays the select device screen.
Figure 70: File manager select device screen
The following are the options available for the Select Device screen:
•Select—to enter the selected device.
•Exit—to dismiss the file manager and returns to the Services menu.
After you select the device you want to navigate, one of the following
screens in Figure 71 on page 345 appears:
Advanced features
345
Figure 71: File manager device browsing screen
Advanced features
346
The file manager browsing screen provides the following options:
Note: The context-sensitive soft keys change based on the selected
item on the screen.
•Select—to enter into the selected folder.
•Back—to return to the previous screen
•Delete:
— If you select a file, it prompts for deletion and deletes files. If you
do not respond to the deletion prompt in 15 seconds, deletion is
cancelled.
— If you select a folder on IP Deskphone, it prompts for deletion of
all contents of the folder but not the folder.
— If you select a folder on USB device, it prompts for deletion of
folder and all its contents. If you do not respond to the deletion
prompt in 15 seconds, deletion is cancelled.
•Send—appears only after you select a file.
— If you select a file on a USB device and press Send, you can
send or copy the selected file to the IP Deskphone. Based on the
file extension, the destination folder gets selected automatically
(for example: PNG files are sent directly to Images folder on the
IP Deskphone).
— If you select a file on the IP Deskphone and press Send, an error
message appears if there is no USB drive that is currently
plugged into the IP Deskphone. Sending files from the
IP Deskphone to another location on the IP Deskphone is not
allowed.
— If you select a file on the IP Deskphone and press Send, you are
directed to the USB folder you want to send the file to [Select
Destination Screen] while a USB drive is plugged in on the
IP Deskphone.
•Back—to dismiss the current screen and returns you to the device
selection screen.
File Manager Select Destination prompt screen
The File Manager Select Destination prompt screen allows you to select
the folder you wish to send or copy the previously selected file into.
Advanced features
347
Figure 72 on page 347 displays the message to select the destination
folder.
Figure 72: Select destination
The following are the options available for the Select Destination screen.
•OK—to enter in to the selected folder.
•Back—to return to the previous screen.
After you have confirmed to send a file from the IP Deskphone to the USB
drive, the Select Destination screen appears, as shown in Figure 73 on
page 348.
Advanced features
348
Figure 73: File Manager Select Destination screen
Note: The context-sensitive soft keys change based on the selected
item on the screen.
Select—to enter the selected folder.
Done—to configure the current location as the destination for the send
and initiates copy operation.
Back—to return to the previous screen.
Advanced features
349
Notes on File Manager
General notes for File Manager are as follows:
• Selection of the .. item (or Back context-sensitive soft key) moves
you one level up which results in going off the device and onto the
select device screen in some cases. In the case of the current
selection being a sub folder, the selection of .. or the Back context-
sensitive soft key has the identical behavior of moving up one level.
• Selection of a file causes the selected file to copy on to the
IP Deskphone flash file system, or to invoke a specific handler for the
selected file (configured after this screen is invoked by other
mechanisms). Specific example of this is a device configuration file
which causes the IP Deskphone to update with selected file rather
than to copy the file to a folder.
• Based on the extension of the selected file, validation routines runs to
verify the file size, the free space available on the FFS, including
restrictions that can be defined for safe usage (example limit of XX
images or ring tones on the IP Deskphone [based on model]).
• Files having unknown extension must not be available for any action.
The IP Deskphone attempts to perform actions of file types and
extensions it recognizes.
Scenarios for the use of the USB screens are as follows:
Scenario 1 - If you want to copy an image file from the USB drive into
the IP Deskphone:
• Log on to the device and plug the USB flash drive into the
IP Deskphone USB port.
• Press the Services hard key and choose File Manager.
• Select Flash Disk device. The contents of the device are displayed.
• Select the file you wish to copy and then press Send.
• You are prompted to select the device you wish to send the selected
file.
• Select the IP Deskphone as the destination device.
• The file is validated based on the file extension and the passing of the
validation routines and a handler is called for the file. In this case, the
Advanced features
350
image file copies the images directory of the flash file system on the
IP Deskphone.
• A success message appears on the screen displaying that the file is
copied to the IP Deskphone successfully. Figure 74 on page 350
displays a sample success message.
Figure 74: Sample Success message for File Manager
Operation
Note: After a file is selected, there can be multiple reasons why the
handling cannot complete. The file size may exceed allowed limits,
there may not be enough space on disk, a file with the same name
may already exist, or actions on the selected file type may not be
allowed (configuration flag).
Error conditions display a message on the screen, and any action that
may take some time to complete displays the In progress… message on
the screen as shown in Figure 75 on page 350.
Figure 75: Sample Failure message for File Manager
Operation
Advanced features
351
Scenario 2 - If you want to copy the ring tone from the IP Deskphone
into the USB drive:
• Log into the device and plug the USB flash drive into the USB port of
the IP Deskphone.
• Press the Services hard key and choose File Manager.
• Select the IP Deskphone from the select device screen.
• The contents of their IP Deskphone are displayed. Navigate to
Sounds folder.
• Select the file you require and press the Send context-sensitive soft
key.
• You are prompted to select the destination folder on the plugged in
USB drive.
• Navigate to the folder MyRings and press the Done context-sensitive
soft key to start the operation.
• The file is then validated (some files are not allowed to copy) and sent
to the selected destination appears on the screen displaying that the
file is copied on the IP Deskphone.
If file copying cannot complete due to insufficient space on the USB
device, or due to the selected file type not being enabled in the File
Manager (device configuration), then an error message is displayed on
the screen.
An error message displays on the screen due to insufficient space on the
USB device, or the selected file type not being enabled in the File
Manager (device configuration).
Visual indicators
352
Visual indicators
The IP Deskphone uses visual indicators or cues to indicate incoming
calls and messages. The display icons on the IP Deskphone also indicate
the current call state, the status of Inbox calls, and Instant Messages
(IMs), and the Presence state of contacts designated as Friend.
Display screen icons
Table 18 on page 352 lists the display icons of the IP Deskphone.
Table 18: Display screen icons (Part 1 of 3)
Component Icon
Call State
On hook
Incoming/Outgoing call (phone
ringing)
On the phone
On hold
Missed call
Feature button icons
Visual indicators
353
Do Not Disturb
Call Forward
Speed Dial list
Send IM
Instant Messaging
New, Unread
Read
Replied to
Inbox
Incoming Call Answered
Incoming Call Missed, New
Table 18: Display screen icons (Part 2 of 3)
Component Icon
Visual indicators
354
Visual Alerter/Message Waiting Indicators
The red LED light at the top right of the IP Deskphone lights to indicate
incoming calls or when a caller leaves you voice mail. The blue LED light
at the top left of the IP Deskphone lights to indicate when you receive a
new Instant Message or when unread Instant Messages are present in
your Instant Message Inbox.
Incoming Call Missed, Reviewed
Presence
Terminated
Connected Inactive
Unavailable Busy or Offline
Active Available
On the Phone
Unknown
Table 18: Display screen icons (Part 3 of 3)
Component Icon
Visual indicators
355
Table 19 on page 355 lists the visual indicator and the LED status.
Table 19: Visual Alerter/Message Waiting Indicator
LED Visual indicator LED status
Red LED Voice mail left by caller Steady red light until
message is reviewed.
Incoming call (phone
ringing) Fast blinking red light.
Blue LED
New Instant Message
received Steady blue light until
message is reviewed.
New Instant Message
received when other
unread Instant
Messages are in the
Inbox
Single flash and returns to
steady blue light.
Instant Message pop-up
appears and a new
Instant Message
received
Steady blue light until the
Instant Message is
reviewed or you press the
Exit context-sensitive soft
key.
Visual indicators
356
Multi-Level Precedence and Preemption
357
Multi-Level Precedence and
Preemption
Overview
The Multi-Level Precedence and Preemption (MLPP) service functionality
allows you to place calls at varying levels of precedence; that is, you can
specify the precedence level of each call you place.
Higher precedence calls preempt those lower in precedence when a user
has no free call appearances.
You can only initiate a call with a precedence level equal to or below the
authorized precedence level that is configured for you. Any call you make
automatically defaults to Routine, unless you choose a higher
precedence. During call processing, this precedence level is used to
assure preferential call completion of higher precedence calls within the
same MLPP service domain, even if that means preempting lower
precedence calls. Once you set the precedence level for a call, the
precedence level for that call cannot be changed.
The precedence levels are:
•Routine
•Priority
• Immediate
•Flash
• Flash-Override
WARNING
Emergency 911 calls are preempted when there are no
available call appearances and there is an incoming
above-Routine precedence call.
Multi-Level Precedence and Preemption
358
Other MLPP service features
The MLPP service also includes the following features:
• Call Origination Busy
• Re-authorization
• Speakerphone exclusive to 911 Emergency
Call Origination Busy
The Call Origination Busy feature prevents incoming calls from disrupting
your outbound call address entry sequence. If enabled, this means that if
you are placing an outbound call either by lifting the receiver and entering
digits or your phone is on-hook and you are entering digits, you cannot be
disturbed by any incoming call.
Re-authorization
With the re-authorization feature, you are asked to re-enter your
password if your user password changes (changed by administrator)
while you are logged in to your IP Deskphone. Previously, you would
have had no indication that your password had been changed and would
have constantly seen error messages when trying to place a call. The Re-
authorization feature lets you enter your new password without having to
log out of your IP Deskphone.
Speakerphone exclusive to 911 Emergency
If this feature is enabled, speakerphone is allowed only for making 911
Emergency calls or receiving calls from the 911 Emergency operator. The
speakerphone restriction is applicable to both the Handsfree key and line
keys. As well, when this feature is enabled, the Answer soft key is not
displayed for an incoming call and you cannot answer a call by pressing
the Handsfree key or line key, except for calls from the Emergency 911
operator. To answer any other call, you must go off-hook.
During an active call, you cannot go handsfree by pressing the Handsfree
key.
Multi-Level Precedence and Preemption
359
Making a call with MLPP
If your IP Deskphone is configured for MLPP, the display screen is
enhanced for making and receiving precedence calls. There are several
ways to make outgoing calls from your IP Deskphone with MLPP, as
follows:
• Make a call by going off-hook.
• Make a call by using an entry in the inbox or outbox call logs.
• Make a call from the personal and global Address Book, or from your
Friends list.
• Make a call from a received Instant Message.
• Make a call from a programmed key.
The precedence level is not saved in any of the calling methods in the
preceding list. For example, if you make a precedence call by going off-
hook, and then call the party back using the Redial key, the precedence is
not applied unless you select a precedence from the Redial menu. If a
precedence level is not specified when dialing, the call is a Routine
precedence call.
Precedence ringback tone
When you make a precedence call, you hear a ringback tone, indicating
that you have made a precedence call.
Making an MLPP call by going off-hook
There are three ways to go off-hook in order to make a call.
1. Handsfree key. Press the Handsfree key to go off-hook on the
primary line (the green line button) and produce a dial tone.
2. Line keys. Press any provisioned line key to go off-hook and produce
a dial tone.
3. Handset. Pick up the handset to go off-hook on the primary line and
produce a dial tone.
Once off-hook, the display prompts you for the destination address
information.The icon on the display screen indicates the line is off-hook
Multi-Level Precedence and Preemption
360
and you can select the precedence of the call by pressing the Prec soft
key.
Note: You can press the Good-bye key at any time to disconnect from
the call.
1. Go off-hook and press the Options soft key.
See Figure 76.
Figure 76: Options soft key
The Options menu is displayed. See Figure 77, "Options menu", on page
361.
Multi-Level Precedence and Preemption
361

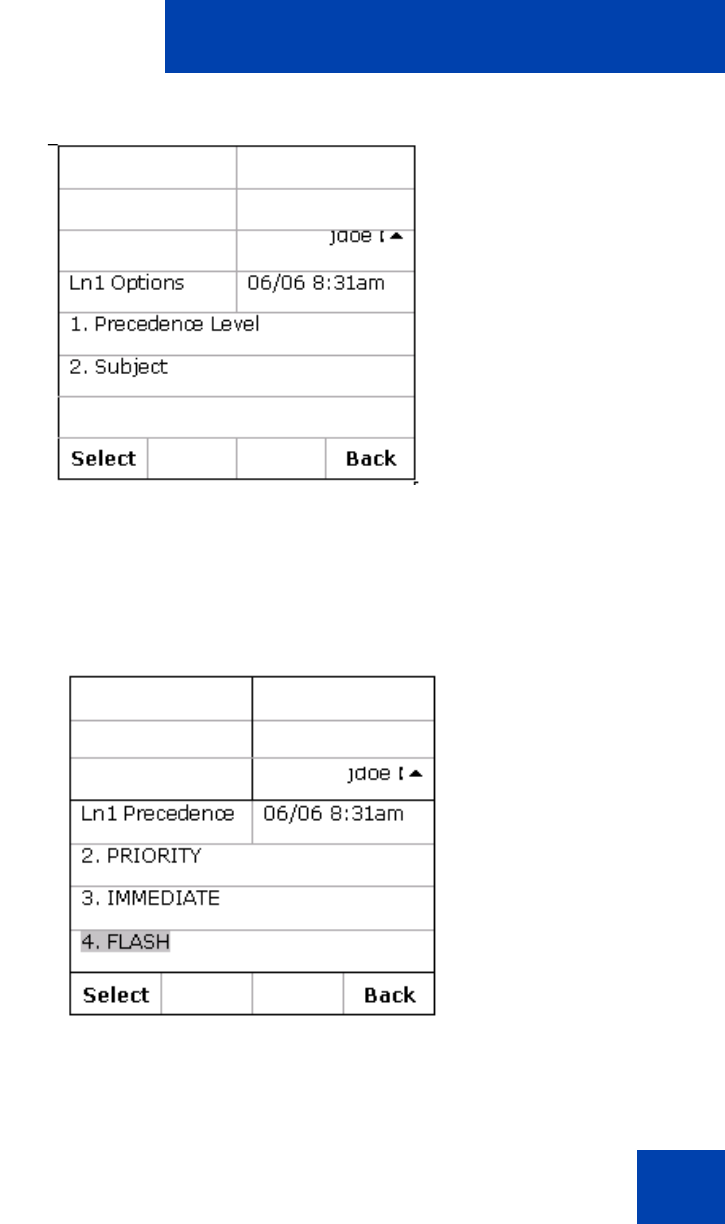

Figure 77: Options menu
2. Use the up and down navigation keys to select Precedence Level
and then press the Select soft key.
The Precedence Level screen is displayed. An example is shown in
Figure 78.
Figure 78: Precedence Level menu example
Multi-Level Precedence and Preemption
362
3. Use the up and down navigation keys to select the desired
precedence level and then press the Select soft key.
4. Dial the destination of the call and press the Send soft key.
See Figure 79.
Figure 79: Off-hook screen with dialed destination and
precedence
Alternatively, press the Redial soft key to call the last dialed
destination.
Note: The Redial soft key only appears if a number or address was
previously entered
When either Send or Redial is pressed, the IP Deskphone places the
call and displays the outgoing call. An example is shown in Figure 80,
"Outgoing call", on page 363
Multi-Level Precedence and Preemption
363
Figure 80: Outgoing call
Making an MLPP call using Inbox/Outbox, Address
Book, and Friends List
You can place a call from multiple areas of the IP Deskphone interface.
including the Inbox/Outbox, Call Logs, Address book, and Friends list.
1. Press the Inbox or Outbox key, or the Directory key to access your
Address Book or Friends list, to choose from a list of previously-
stored numbers.
2. Once in the application-specific menu, select the desired entry using
the navigational up and down keys.
3. After the number is highlighted, press the Select soft key.
4. Go off-hook.
The IP Deskphone displays the off-hook screen containing the
selected entry and the option to select the precedence.
5. Press the Prec soft key and navigate to the desired precedence.
6. Press the Select soft key.
7. Press the Send soft key to initiate the call.
Multi-Level Precedence and Preemption
364
Making an MLPP call from a received Instant
Message
1. Navigate to the Instant Message (IM) inbox by pressing the Msgs
context-sensitive soft key; then select Instant Messaging from the
menu.
Alternatively, press the Expand fixed key.
2. Press the navigational up and down keys to highlight an IM from the
list of Instant Messages in your IM Inbox/Outbox.
3. Press the View soft key to display the selected IM.
See Figure 81.
Figure 81: IM selection screen
The selected IM is displayed. See Figure 82 on page 365.
Multi-Level Precedence and Preemption
365

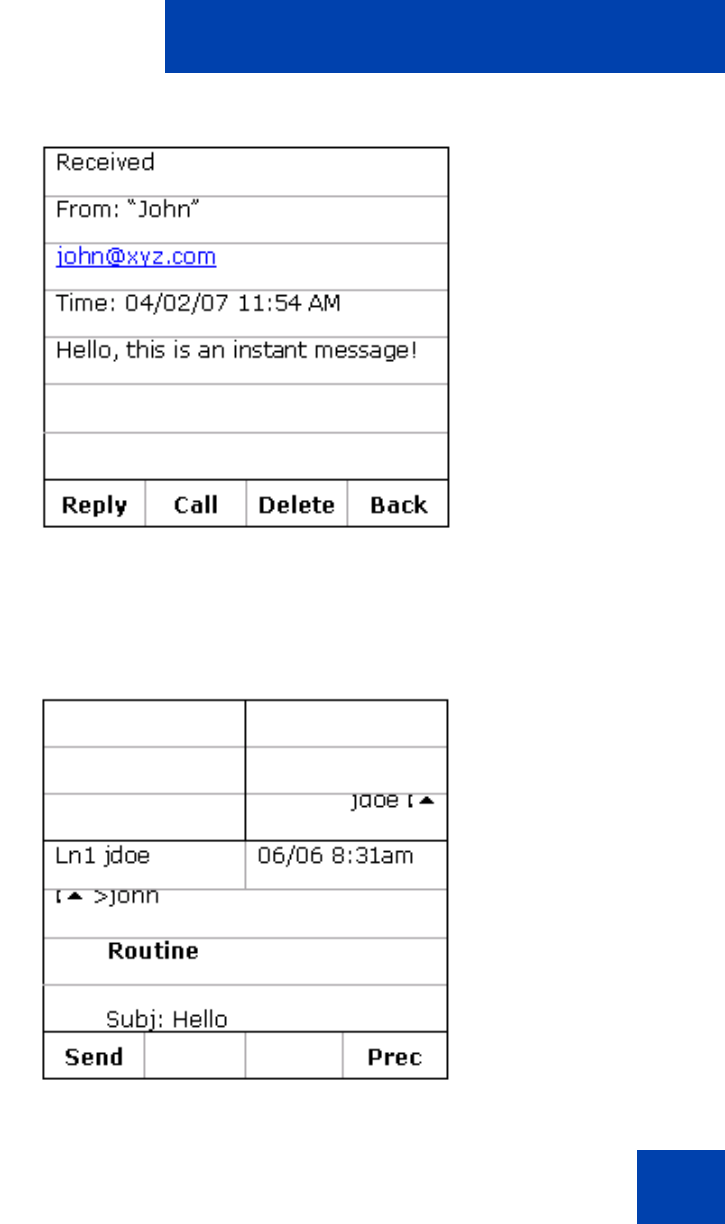

Figure 82: IM display
4. Press the Call soft key.
The IP Deskphone displays the off-hook screen containing the
address in the idle screen and the precedence option. See Figure 83.
Figure 83: IM screen with precedence option
Multi-Level Precedence and Preemption
366
5. Press the Prec soft key and navigate to the desired precedence.
6. Press the Select soft key to select the desired precedence.
7. Press the Send soft key to initiate the call.
Making a call by using a programmed speed dial
key
1. Press the pre-programmed speed dial key.
2. Go off-hook.
The IP Deskphone displays the off-hook screen containing the
address assigned to the speed dial key. See Figure 84.
Figure 84: Off-hook speed dial screen
3. Press the Prec soft key and navigate to the desired precedence.
4. Press the Select soft key to select the desired precedence.
5. Press the Send soft key to initiate the call.
Multi-Level Precedence and Preemption
367
Incoming calls with precedence
Four types of incoming calls with precedence can be displayed.
1. Precedence call without subject
2. Precedence call with subject
3. Redirected precedence call without subject
4. Redirected precedence call with subject
Note: When there is a call with an incoming precedence level higher
than Routine, the Redirect and Decline soft keys are not displayed.
Precedence alerting tone
A precedence alerting tone is played to alert you that a precedence call
with a precedence level higher than Routine is arriving. This tone is
delivered through the Handsfree speaker. This tone is played if there is no
active call or if a call is on hold.
Precedence Call Waiting tone
When a call with a precedence level higher than Routine is received, and
you are busy with another call, the precedence Call Waiting tone is played
instead of the normal Call Waiting tone. This tone is delivered through the
Handsfree speaker.
Incoming precedence call display
The first line of the IP Deskphone displays the caller's information (From)
with the ringing phone icon.
The second line displays the precedence level.
The third line displays the person who is being called (callee). If the
incoming call has a subject, the third line displays the subject alternating
with the person who is being called. The display cycles between the two
every six seconds. An example is shown in Figure 85 on page 368.
Multi-Level Precedence and Preemption
368
Figure 85: Incoming precedence call with subject
Incoming redirected precedence call display
The first line of the IP Deskphone always displays the caller's information
(From) with the ringing phone icon.
The second line displays the precedence level.
The third line displays the original person who was being called (original
callee). If the incoming call has a subject, the third line displays the
subject alternating with the original person who was being called. The
display cycles between the two every six seconds.
Call transfer with precedence
Direct transfer and transfer to voicemail
For a direct transfer or transfer to voicemail, the precedence level of the
transferred call is re-used and the precedence selection screen is not
shown.
Multi-Level Precedence and Preemption
369
Consultative transfer
When doing a consultative call transfer, the Call Server does not know if
the precedence of the transferred call can be re-used. Therefore you can
only use a precedence level that you are authorized to use.
You may want to transfer the call with a precedence level higher than the
authorized level of the caller being transferred. You can specify the
precedence to use when making the consultative call. To enable this, the
precedence selection screen is displayed after you select a consultative
transfer. For information on making a consultative transfer, see
“Transferring a call” on page 228.
You can only choose a precedence level that you are authorized to use.
The default value is Routine.
In a consultative transfer, the precedence level of the transferred call is
the higher level of the initial call and the consultative call. For example,
Person A calls Person B with a precedence level of Immediate. During the
call, Person B performs a consultative transfer to Person C with a
precedence level of Flash during the consultation. When the call is finally
transferred, the transferred call has a precedence level of Flash, even if
the call initially had a precedence level of Immediate.
Multiple calls
When there are multiple calls on the IP Deskphone, each call is displayed
as a single line on the screen.
If the line is wider than the screen capacity, scroll left and right to see
more information.
If there are multiple incoming calls, calls are displayed on the IP
Deskphone in the order of precedence from highest to lowest. If the calls
have the same precedence, then the calls are displayed in order of the
age of the call, from oldest to newest.
A maximum of two calls are presented at one time.
When a call is displayed, the related tone is played as well.
Multi-Level Precedence and Preemption
370
Example:
There are 4 incoming calls in the following order and you have not gone
off-hook:
1. Caller A, Flash (oldest or first coming)
2. Caller B, Routine (next oldest or second coming)
3. Caller C, Routine (third oldest or third coming)
4. Caller D, Priority (newest or just coming)
The calls are presented in the following order.
1. The call from Caller A is displayed first, since it has the highest
precedence of all incoming calls.
2. If Caller A’s call is answered, then the call from Caller D is displayed
using the other free call appearance, since it has the second-highest
precedence of B,C, and D.
3. If Caller D’s call is answered, then the call from Caller B is displayed,
since it is the most recent (if Call A has ended. If not, Caller B hears a
Busy signal, since call appearances are limited to two.)
4. If Caller B’s call is answered, then the call from Caller C is displayed
(if Caller D has hung up).
Preemption
Only two simultaneous calls can be presented. If your IP Deskphone
reaches the maximum call limit and you receive a higher precedence call,
then one of the existing calls is preempted in order to present the higher-
precedence incoming call. An incoming call with a precedence level less
than or equal to the already-received call precedence levels is not
presented.
Note: Emergency 911 calls can be preempted when there are no
available call appearances and there is an incoming above-Routine
precedence call.
IM sessions cannot be preempted because they do not count as a call
appearance.
Multi-Level Precedence and Preemption
371
Order of call preemption
The following is the order of call preemption:
1. the lowest precedence call
2. If there are multiple calls on the same precedence level, then the
following order is used
a. any outgoing call that is unanswered
b. the oldest incoming call that is unanswered
c. the oldest held call
Preemption scenarios and behavior
The following table describes the IP Deskphone behaviors that occur
when receiving a call of higher precedence than the presented current
calls and no call appearances are available.
Table 20: When a preemption call is received
Call state Preemption behavior
While on an active call 1. Preemption tone is played through the
Handsfree speaker.
2. The active call is removed.
3. The preemption acknowledgment screen
is displayed. See Figure 86, "Preemption
acknowledgement screen", on page 373.
4. When the preemption call is
acknowledged by pressing OK, the
preemption tone is ended and the new
preemption precedence call is displayed.
Multi-Level Precedence and Preemption
372
While a call is on hold 1. Preemption tone is played through the
Handsfree speaker for three seconds.
2. The preempting call presents with the
appropriate ringing.
3. The new preemption precedence call
screen is displayed.
An incoming call is
ringing 1. The preempting call presents with the
appropriate ringing.
2. The new preemption precedence call
screen is displayed.
An outgoing call is
ringing 1. The preemption tone plays continuously
in the Handsfree speaker for few
seconds.
2. The outgoing call is removed.
3. The preemption acknowledgment screen
is displayed. See Figure 86, "Preemption
acknowledgement screen", on page 373.
4. 4.When the preemption is
acknowledged, or after three seconds
elapse:
a. Preemption tone stops.
b. The new preemption precedence
call screen is displayed.
c. The preempting call presents with
the appropriate ringing.
Table 20: When a preemption call is received
Call state Preemption behavior
Multi-Level Precedence and Preemption
373
Figure 86: Preemption acknowledgement screen
External preemption
The IP Deskphone supports preemption from external sources.
Multi-Level Precedence and Preemption
374
The following table describes the IP Deskphone behaviors that occur
when receiving a call from an external source with higher precedence
than the presented current calls and no call appearances are available.
Table 21: When a preemption call is received from an
external source
Call state Preemption behavior
While on an active
call/music on hold 1. Preemption tone is played through the
handsfree speaker.
2. The active call is removed.
3. The preemption acknowledgment screen
is displayed. See Figure 86, "Preemption
acknowledgement screen", on page 373.
4. When the preemption call is
acknowledged by pressing OK or after 5
minutes, the preemption tone is ended
and the new preemption precedence call
is displayed.
While a call is on hold
(remote or local) 1. Preemption tone is played through the
handsfree speaker.
2. The new preemption precedence call
screen is displayed.
3. 3.When preemption is acknowledged (or
after 3 seconds), the preemption tone
stops.
An incoming call is
ringing 1. The incoming call is removed.
Multi-Level Precedence and Preemption
375
Call Origination Busy
When Call Origination Busy is enabled, incoming calls are prevented from
disturbing you when you are in the process of making an outbound call.
When your IP Deskphone is on-hook or off-hook and you enter the first
digit or character, then any call that comes in during the entry sequence is
not presented to you.
Incoming calls are shown when you cancel the outbound call by pressing
Goodbye, or when you place the receiver on-hook and the IP Deskphone
goes back to the idle state.
If you place an outbound call, and that outbound call rings or receives a
busy signal, any incoming call that was not presented is then presented.
Note: The outgoing call cannot be preempted by any call until the
outgoing call rings or receives a busy signal.
The following sections describe Call Origination Busy behavior in various
scenarios.
An outgoing call is
ringing 1. The preemption tone plays continuously
in the Handsfree speaker for few
seconds.
2. The preemption acknowledgment screen
is displayed. See Figure 86, "Preemption
acknowledgement screen", on page 373.
3. When the preemption is acknowledged
or after three seconds elapse, the
preemption tone stops.
Table 21: When a preemption call is received from an
external source
Call state Preemption behavior
Multi-Level Precedence and Preemption
376
Incoming call while dialling outbound number + one free call
appearance line
When you enter the first digit or character to make a new call, then any
call that comes in during this time is not presented. The incoming call
hears ringback tone.
Your dial pad entry sequence is not interrupted. The incoming call is
shown to you when:
• you complete dialing your call and ring or busy signal is heard. The
incoming call is presented if the incoming call has not hung up. You
can decide to answer the call.
• you decide to cancel dialling by pressing Goodbye or hanging up. The
incoming call is presented if the incoming call has not hung up. You
can decide to answer the call.
Incoming call while dialing outbound number + held call with priority
higher then incoming call
When you enter the first digit or character to make a new call, then any
call that comes in during this time is not presented.
Your dial pad entry sequence is not interrupted. Since the incoming call is
of lower precedence than the held call and you are entering digits for
another call, the incoming call is sent a busy response. The caller sees a
User is Busy message. See Figure 87.
Figure 87: User is Busy message
Note: The held call and the process of placing the second call are
counted as two consumed call appearances.
Multi-Level Precedence and Preemption
377
Incoming call while dialing outbound number + held call with priority
lower then incoming call
When you enter the first digit or character to make a new call, then any
call that comes in during this time is not presented.
If the held call is lower in precedence than the incoming call, the held call
can be preempted and a notification is shown on screen for both local and
remote users. You receive notification that the your held call has been
preempted. See Figure 88.
After three seconds, or after you press the OK soft key on the preemption
screen, you are then taken back to the previous screen where you were
entering the address for your outgoing call. Your previously entered digits
are not discarded.
Figure 88: Notification of preemption of held call
This temporary disturbance is allowed because the held call was known
to you and you need to know that the call on hold has been preempted.
The incoming call that preempted the held call is shown when:
• you complete dialing the call and a ring or busy signal is heard. It may
be possible that the outgoing call can be preempted but only after ring
or busy signal is heard. The incoming call is presented if the incoming
call has not hung up. You can decide to answer the new incoming call
Multi-Level Precedence and Preemption
378
• you decide to cancel dialing and the IP Deskphone goes back to the
idle screen again. This allows the incoming call to be presented if the
incoming call has not hung up.You can decide to answer the new
incoming call.
Re-authorization
While you are logged in to your IP Deskphone, the administrator may
change your password. Consequently, any call or network request placed
by you is responded to with an error message.
If you are trying to place a call when the Re-authorization feature is
enabled and your password has been changed by the administrator, then
you can enter your new password, when prompted, without having to log
out of your IP Deskphone.
If you enter the new password correctly, the call is placed and your
password is updated on the IP Deskphone.
If you enter an incorrect password, then an error message is displayed,
you hear a busy tone, and the IP Deskphone returns to the idle state.
Feature interactions with MLPP
Table 22 lists feature interactions with MLPP.
Table 22: Feature interactions with MLPP
Call Parking Not available when MLPP is enabled.
Call Transfer - Direct Available, but precedence of call must be
maintained.
Call Transfer -
Consultative Available. A consultation call can have its own
precedence level. The transferred call uses the
greater precedence level of the initial call and
the consultative call.
Multi-Level Precedence and Preemption
379
Conference call (Ad-
hoc conference) Available. The precedence level of the
conference is the greatest of all the joined calls.
Call Waiting
Disabled Not available when MLPP is enabled.
Multiuser When MLPP is enabled, only one user can be
logged on to the IP Deskphone.
If an MLPP user is logged on to the IP
Deskphone, other user logons are blocked.
If a non-MLPP user is logged on and a MLPP
user attempts to log on, then when the IP
Deskphone detects the new user is an MLPP
user, the MLPP user is automatically logged
off. The MLPP user cannot log on until the
other user is logged off.
Speakerphone Available only for 911 calls when the
Speakerphone Exclusive to 911 Emergency
feature is enabled.
Table 22: Feature interactions with MLPP
Multi-Level Precedence and Preemption
380
Quick reference
381
Quick reference
This section provides a quick reference guide for the
Avaya 1140E IP Deskphone. See the following sections for more
information:
•“Fixed keys” on page 381
•“Commonly used functions” on page 383
•“Context-sensitive soft keys” on page 386
•“Display screen icons” on page 390
Fixed keys
The Avaya 1140E IP Deskphone is available with either icon fixed keys or
English text fixed keys. Both types are presented below.
Short-cut and navigation function keys
Copy information from the Address Book,
Inbox, Outbox, and IM log and to Feature
keys and Address Book entries.
Access Search, Login, Logout, Check For
Updates, Reset Phone, File Manager,
Logging System, and Phone Information.
Press twice quickly to access the Network
menu.
Quit or exit from a menu.
Access your inbox to view all calls or
missed calls and to return a call.
Quick reference
382
Access your outbox to view all calls made
and to place a call to a previously called
contact.
Access your address book to view, add or
edit entries including your designated
friends You can also send Instant
Messages (IMs) or initiate a call.
Use the Enter key to select highlighted
menu items and to set preferences. The
Enter key duplicates the function of the
phone and select context-sensitive soft
keys.
Telephone feature keys
Use to increase the volume of the
handset, headphones, phone speaker
(handsfree) and alerting volume (phone
ringing).
Use to decrease the volume of the
handset, headphones, phone speaker
(handsfree) and alerting volume (phone
ringing).
Use mute to listen to the call without
transmitting. The red LED on the Mute key
lights when the Mute feature is enabled.
Activates the built in speaker and
microphone. The red LED on the
Handsfree key lights when the Handsfree
feature is enabled.
Quick reference
383
Note: The abc/123 context-sensitive soft key toggles between
alphabetic and numeric input. When the context-sensitive soft
key label is abc, you can enter alphabetic text and when the con-
text-sensitive soft ley label is 123, you can enter numbers.
Commonly used functions
Procedures for the most commonly used functions are provided below.
Use to release a call (hang up) and to exit
a menu when not on an active call.
Access Instant Message log to view and
send IMs
Activates your IP Deskphone headset
when connected. The red LED of the
Headset key lights when you use a
headset.
Use to place a call on hold or to retrieve a
call on hold.
Login
1. Enter your User ID and press the Login key.
2. Enter your password and press the Next key.
3. To permanently login, press the Next key.
To login for a period of time, press the Timed key, enter the dura-
tion of your login, and press the Next key.
Logout
Quick reference
384
1. Press the Services hard key and then select Logout.
2. Press the abc/123 context-sensitive soft key to toggle between
alphabet and numeric input.
3. Press Logout context-sensitive key.
Making a call
• Lift the Handset or press the Headset key, Handsfree key or the
Line key and enter the SIP address or phone number and press
send. Or, press the Redial key to call the previously entered SIP
address or phone number.
• Press the Directory hard key, select Friends, select an entry, press
Status, and then press the Call key.
• Press the Services hard key, select Search, select an entry in the
Address Book, and then press the Call key.Lift the Handset or press the
Headset key, Handsfree key or the Line feature key and dial from the
Address Book or Inbox/Outbox as follows:
– 1. Press the Address Book or Inbox or Outbox key.
– 2. Navigate to the required entry.
– 3. Press the Select key to connect.
Answering a call
Perform one of the following to answer a call:
• Press the Handsfree key
• Press the Headset key
• Press the Line key
• Press the Answer key
• Pick up the Handset.
If you choose not to answer the call, you can press one of the following
keys:
–Redrct—Redirects the call to another party or number.
–Decline—Rejects the call and provides the caller with fast busy
and no option to go to voice mail. You can provide a reason for
declining the call.
Ignore—Stops call ringing
Making an emergency call
Quick reference
385
To make an emergency call, logging on is not required. Choose one of
the following options:
• Lift the Handset and dial the emergency number.
• Press the Handsfree key and dial the emergency number.
• Press the Headset key and dial the emergency number.
Quick reference
386
Context-sensitive soft keys
The following context-sensitive key menus are provided below:
•“Idle phone display” on page 386
•“Active call display” on page 389
Idle phone display
Initiating a conference call
1. During a call, press the Conf Context-sensitive soft key.
2. Enter the SIP address or phone number or select an entry from the
Address Book, Inbox, or Outbox and complete the call.
3. Press the Join key, select Conference and press the OK key to
create a conference call. You can continue to add more callers to
the conference call by repeating the above steps.
Sending an Instant Message (IM)
Press the Expand key or press Msgs > Instant Messaging to access the
Instant Messaging menu.
1. Press New IM.
2. Enter the address or do the following:
– Press the Address Book key, Inbox key, or the Outbox key.
– Use the navigation keys to scroll to the required entry.
– Press the Select key.
3. Enter the message and press Send IM.
Redial abc Msgs More...
More… context-sensitive soft key menu (first)
CallFWD DND Retrve More...
Quick reference
387
When you press the More… context-sensitive soft key for the third time,
you return to the first menu list.
A description of the context-sensitive soft keys available with the phone is
idle is provided below.
More… context-sensitive soft key menu (second)
ScrnSvr Presnce Prefs More...
Redial or NewCall
Redial the last dialed number.
• If there is no stored redial number, NewCall appears and has the
same effect as pressing the primary user line key (dial prompt).
abc or 123
Toggle between alpha and numeric input modes.
• To type letters, abc must be displayed.
• To type numbers, press abc to display 123 on the menu list.
Msgs
Display the Messages menu.
1.Voice Mail—Use to access your Voice Mail. The IP Deskphone con-
nects to the server to retrieve your Voice Mail.
2. Instant Messaging—Use to access your IM box. From the IM box
you can:
• View received Instant Messages
• Delete Instant Messages
• Send Instant Messages.
CallFwd
Forward all calls to a specified address.
DND
Block all calls.
Quick reference
388
Retrve
Retrieve parked calls (local and server parked calls only).
ScrnSvr
Activate the screensaver (only if the screensaver feature is enabled).
Presnce
Configure the presence status for your IP Deskphone.
Prefs
Display the Preferences menu.
1. Display—Adjust screen display settings.
2. Audio—Adjust tones and volume settings, configure a USB headset,
and access the Bluetooth wireless technology setup.
3. Feature Options—Program feature keys, call decline reasons, call
ignore actions, and call subjects, call fwd notification.
4. Language—Change language.
5. Misc Options—Set alpha dialing, search method, privacy settings, #
Ends dialing, location, and time.
6. Network—Access Server Settings, Device Settings,
Diagnostics and Lock.
7. USB Locks—Enable or disable USB devices.
8. User Settings—Modify call settings, IM settings, voice mail setting,
and remembering settings.
More
Select a new menu list.
• When you press More..., a different selection of Context-sensitive
soft keys appears.
– Press once to switch to: [CallFwd] [DND] [Retrve].
– Press twice to switch to: [ScrnSvr] [Presnce] [Prefs].
– Press three time to switch back to the main menu list: [Redial]
[abc] [Msgs].
Quick reference
389
Active call display
When you press the More… context-sensitive soft key for the third time,
you return to the first menu list.
A description of the context-sensitive soft keys available with the phone is
idle is provided below.
Conf Trans Audio More...
More… context-sensitive soft key menu (first)
NewCall Park Retrve More...
More… context-sensitive soft key menu (second)
Prefs More...
Conf
Obtain a dial tone to place another call during an active call.
• Use to make a conference call.
• Behaves like the NewCall Context-sensitive soft key.
Trnsfer
• Transfer the current call to another location or contact.
Audio
1. Change audio setting—Use to change the audio settings based on
the available bandwidth.
2. Monitor audio quality—Diagnostic tool to monitor the audio quality.
NewCall
Quick reference
390
Display screen icons
The table below provides a list of the following display screen icons:
•Call state—Icons to indicate the Call state of your phone.
•Instant Messaging—Icons displayed when you view your instant
message log. The icon appears beside each IM to indicate the status.
•Inbox—Icons to indicate the status of each incoming calls in your
Inbox.
• Presence—Icons to indicate the presence state of those address
book entries you designate as Friend.
Obtain a dial tone to place another call during an active call.
• Use to make a conference call.
• Behaves like the Conf Context-sensitive soft key.
Park
Park the current call to the server or another user (not available for all
call servers).Retrve
Retrve
Retrieve parked calls (local and server parked calls only).
Prefs
See “Idle phone display” on page 386.
More…
Select a new menu list.
• When you press More..., a different selection of Context-sensitive
soft keys appears.
– Press once to switch to: [NewCall] [Park] [Retrve].
– Press twice to switch to: [Prefs] [ ] [ ].
– Press three time to switch back to the main menu list: [Conf]
[Trnsfer] [Audio].
Call state Icon
Quick reference
391
On hook
On the phone
On hold
Call Forward
Do Not Disturb
Outgoing call, Incoming call (ringing)
Missed call
Instant messaging Icon
New, unread
Read
Replied to
Send IM
Inbox Icon
Quick reference
392
Incoming Call Answered
Incoming Call, Missed, New
Incoming Call, Missed, Reviewed
Presence Icon
Terminated
Connected Inactive (only available if auto
presence is activated)
Unavailable Busy, or Offline
Active Available (only available if auto
presence is activated)
On the Phone (only available if auto pres-
ence is activated)
Unknown
Third party terms
393
Third party terms
Third Party Terms for Avaya 11xx 12xx sw
release 3.0 thru 4.0 (Aug - Nov 2010)
Certain portions of the product ("Open Source Components") are licensed
under open source license agreements that require Avaya to make the
source code for such Open Source Components available in source code
format to its licensees, or that require Avaya to disclose the license terms
for such Open Source Components. For a period of three years from your
date of purchase of a product containing any of the software listed below
from Avaya Inc., any Avaya affiliate or an authorized Avaya reseller, we
will provide upon request a complete machine readable copy of the
source code for such Open Source Component on a medium customarily
used for software interchange for a charge no more than our cost of
physically performing source distribution. To get access to the source
code, you may contact Avaya at (408) 577-7666.
The Open Source Components are provided "AS IS". ANY EXPRESS OR
IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL
THE COPYRIGHT HOLDERS OR THE CONTRIBUTORS OF THE
OPEN SOURCE COMPONENTS BE LIABLE FOR ANY DIRECT,
INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR
CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,
PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF
USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION)
HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING
NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE
USE OF THE PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF
SUCH DAMAGE.
The following component is licensed under Public Domain:
DateTime
* PUBLIC DOMAIN NOTICE
Third party terms
394
* National Center for Biotechnology Information
*
* This software/database is a "United States Government Work" under
the terms of the United States Copyright Act. It was written as part of the
author's official duties as a United States Government employee and thus
cannot be copyrighted. This software/database is freely available to the
public for use. The National Library of Medicine and the U.S. Government
have not placed any restriction on its use or reproduction.
*
* Although all reasonable efforts have been taken to ensure the
accuracy and reliability of the software and data, the NLM and the U.S.
Government do not and cannot warrant the performance or results that
may be obtained by using this software or data. The NLM and the U.S.
Government disclaim all warranties, express or implied, including
warranties of performance, merchantability or fitness for any particular
purpose.
*
* Please cite the author in any work or product based on this material.
*
* =====================================================
*
* Authors: Anton Butanayev, Denis Vakatov, Vladimir Ivanov
END OF TERMS AND CONDITIONS
GNU
The following component is licensed under the GNU General Public
V2 license:
libstdc++ Copyright (C) 1989, 1997, 1998, 1999 Free Software
Foundation, Inc.
GNU General Public V2 License
GNU GENERAL PUBLIC LICENSE Version 2, June 1991 Copyright (C)
1989, 1991 Free Software Foundation, Inc. 59 Temple Place - Suite 330,
Boston, MA 02111-1307, USA Everyone is permitted to copy and
distribute verbatim copies of this license document, but changing it is not
Third party terms
395
allowed. Preamble The licenses for most software are designed to take
away your freedom to share and change it. By contrast, the GNU General
Public License is intended to guarantee your freedom to share and
change free software--to make sure the software is free for all its users.
This General Public License applies to most of the Free Software
Foundation\'s software and to any other program whose authors commit
to using it. (Some other Free Software Foundation software is covered by
the GNU Library General Public License instead.) You can apply it to your
programs, too. When we speak of free software, we are referring to
freedom, not price. Our General Public Licenses are designed to make
sure that you have the freedom to distribute copies of free software (and
charge for this service if you wish), that you receive source code or can
get it if you want it, that you can change the software or use pieces of it in
new free programs; and that you know you can do these things. To
protect your rights, we need to make restrictions that forbid anyone to
deny you these rights or to ask you to surrender the rights. These
restrictions translate to certain responsibilities for you if you distribute
copies of the software, or if you modify it. For example, if you distribute
copies of such a program, whether gratis or for a fee, you must give the
recipients all the rights that you have. You must make sure that they, too,
receive or can get the source code. And you must show them these terms
so they know their rights. We protect your rights with two steps: (1)
copyright the software, and (2) offer you this license which gives you legal
permission to copy, distribute and/or modify the software. Also, for each
author\'s protection and ours, we want to make certain that everyone
understands that there is no warranty for this free software. If the software
is modified by someone else and passed on, we want its recipients to
know that what they have is not the original, so that any problems
introduced by others will not reflect on the original authors\' reputations.
Finally, any free program is threatened constantly by software patents.
We wish to avoid the danger that redistributors of a free program will
individually obtain patent licenses, in effect making the program
proprietary. To prevent this, we have made it clear that any patent must
be licensed for everyone\'s free use or not licensed at all. The precise
terms and conditions for copying, distribution and modification follow.
TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND
MODIFICATION 0. This License applies to any program or other work
which contains a notice placed by the copyright holder saying it may be
distributed under the terms of this General Public License. The
\"Program\", below, refers to any such program or work, and a \"work
based on the Program\" means either the Program or any derivative work
under copyright law: that is to say, a work containing the Program or a
Third party terms
396
portion of it, either verbatim or with modifications and/or translated into
another language. (Hereinafter, translation is included without limitation in
the term \"modification\".) Each licensee is addressed as \"you\". Activities
other than copying, distribution and modification are not covered by this
License; they are outside its scope. The act of running the Program is not
restricted, and the output from the Program is covered only if its contents
constitute a work based on the Program (independent of having been
made by running the Program). Whether that is true depends on what the
Program does. 1. You may copy and distribute verbatim copies of the
Program\'s source code as you receive it, in any medium, provided that
you conspicuously and appropriately publish on each copy an appropriate
copyright notice and disclaimer of warranty; keep intact all the notices that
refer to this License and to the absence of any warranty; and give any
other recipients of the Program a copy of this License along with the
Program. You may charge a fee for the physical act of transferring a copy,
and you may at your option offer warranty protection in exchange for a
fee. 2. You may modify your copy or copies of the Program or any portion
of it, thus forming a work based on the Program, and copy and distribute
such modifications or work under the terms of Section 1 above, provided
that you also meet all of these conditions: * a) You must cause the
modified files to carry prominent notices stating that you changed the files
and the date of any change. * b) You must cause any work that you
distribute or publish, that in whole or in part contains or is derived from the
Program or any part thereof, to be licensed as a whole at no charge to all
third parties under the terms of this License. * c) If the modified program
normally reads commands interactively when run, you must cause it,
when started running for such interactive use in the most ordinary way, to
print or display an announcement including an appropriate copyright
notice and a notice that there is no warranty (or else, saying that you
provide a warranty) and that users may redistribute the program under
these conditions, and telling the user how to view a copy of this License.
(Exception: if the Program itself is interactive but does not normally print
such an announcement, your work based on the Program is not required
to print an announcement.) These requirements apply to the modified
work as a whole. If identifiable sections of that work are not derived from
the Program, and can be reasonably considered independent and
separate works in themselves, then this License, and its terms, do not
apply to those sections when you distribute them as separate works. But
when you distribute the same sections as part of a whole which is a work
based on the Program, the distribution of the whole must be on the terms
of this License, whose permissions for other licensees extend to the
entire whole, and thus to each and every part regardless of who wrote it.
Third party terms
397
Thus, it is not the intent of this section to claim rights or contest your rights
to work written entirely by you; rather, the intent is to exercise the right to
control the distribution of derivative or collective works based on the
Program. In addition, mere aggregation of another work not based on the
Program with the Program (or with a work based on the Program) on a
volume of a storage or distribution medium does not bring the other work
under the scope of this License. 3. You may copy and distribute the
Program (or a work based on it, under Section 2) in object code or
executable form under the terms of Sections 1 and 2 above provided that
you also do one of the following: * a) Accompany it with the complete
corresponding machine-readable source code, which must be distributed
under the terms of Sections 1 and 2 above on a medium customarily used
for software interchange; or, * b) Accompany it with a written offer, valid
for at least three years, to give any third party, for a charge no more than
your cost of physically performing source distribution, a complete
machine-readable copy of the corresponding source code, to be
distributed under the terms of Sections 1 and 2 above on a medium
customarily used for software interchange; or, * c) Accompany it with the
information you received as to the offer to distribute corresponding source
code. (This alternative is allowed only for noncommercial distribution and
only if you received the program in object code or executable form with
such an offer, in accord with Subsection b above.) The source code for a
work means the preferred form of the work for making modifications to it.
For an executable work, complete source code means all the source code
for all modules it contains, plus any associated interface definition files,
plus the scripts used to control compilation and installation of the
executable. However, as a special exception, the source code distributed
need not include anything that is normally distributed (in either source or
binary form) with the major components (compiler, kernel, and so on) of
the operating system on which the executable runs, unless that
component itself accompanies the executable. If distribution of
executable or object code is made by offering access to copy from a
designated place, then offering equivalent access to copy the source
code from the same place counts as distribution of the source code, even
though third parties are not compelled to copy the source along with the
object code. 4. You may not copy, modify, sublicense, or distribute the
Program except as expressly provided under this License. Any attempt
otherwise to copy, modify, sublicense or distribute the Program is void,
and will automatically terminate your rights under this License. However,
parties who have received copies, or rights, from you under this License
will not have their licenses terminated so long as such parties remain in
full compliance. 5. You are not required to accept this License, since you
Third party terms
398
have not signed it. However, nothing else grants you permission to modify
or distribute the Program or its derivative works. These actions are
prohibited by law if you do not accept this License. Therefore, by
modifying or distributing the Program (or any work based on the
Program), you indicate your acceptance of this License to do so, and all
its terms and conditions for copying, distributing or modifying the Program
or works based on it. 6. Each time you redistribute the Program (or any
work based on the Program), the recipient automatically receives a
license from the original licensor to copy, distribute or modify the Program
subject to these terms and conditions. You may not impose any further
restrictions on the recipients\' exercise of the rights granted herein. You
are not responsible for enforcing compliance by third parties to this
License. 7. If, as a consequence of a court judgment or allegation of
patent infringement or for any other reason (not limited to patent issues),
conditions are imposed on you (whether by court order, agreement or
otherwise) that contradict the conditions of this License, they do not
excuse you from the conditions of this License. If you cannot distribute so
as to satisfy simultaneously your obligations under this License and any
other pertinent obligations, then as a consequence you may not distribute
the Program at all. For example, if a patent license would not permit
royalty-free redistribution of the Program by all those who receive copies
directly or indirectly through you, then the only way you could satisfy both
it and this License would be to refrain entirely from distribution of the
Program. If any portion of this section is held invalid or unenforceable
under any particular circumstance, the balance of the section is intended
to apply and the section as a whole is intended to apply in other
circumstances. It is not the purpose of this section to induce you to
infringe any patents or other property right claims or to contest validity of
any such claims; this section has the sole purpose of protecting the
integrity of the free software distribution system, which is implemented by
public license practices. Many people have made generous contributions
to the wide range of software distributed through that system in reliance
on consistent application of that system; it is up to the author/donor to
decide if he or she is willing to distribute software through any other
system and a licensee cannot impose that choice. This section is
intended to make thoroughly clear what is believed to be a consequence
of the rest of this License. 8. If the distribution and/or use of the Program
is restricted in certain countries either by patents or by copyrighted
interfaces, the original copyright holder who places the Program under
this License may add an explicit geographical distribution limitation
excluding those countries, so that distribution is permitted only in or
among countries not thus excluded. In such case, this License
Third party terms
399
incorporates the limitation as if written in the body of this License. 9. The
Free Software Foundation may publish revised and/or new versions of the
General Public License from time to time. Such new versions will be
similar in spirit to the present version, but may differ in detail to address
new problems or concerns. Each version is given a distinguishing version
number. If the Program specifies a version number of this License which
applies to it and \"any later version\", you have the option of following the
terms and conditions either of that version or of any later version
published by the Free Software Foundation. If the Program does not
specify a version number of this License, you may choose any version
ever published by the Free Software Foundation. 10. If you wish to
incorporate parts of the Program into other free programs whose
distribution conditions are different, write to the author to ask for
permission. For software which is copyrighted by the Free Software
Foundation, write to the Free Software Foundation; we sometimes make
exceptions for this. Our decision will be guided by the two goals of
preserving the free status of all derivatives of our free software and of
promoting the sharing and reuse of software generally. NO WARRANTY
11. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE,
THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT
PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE
STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER
PARTIES PROVIDE THE PROGRAM \"AS IS\" WITHOUT WARRANTY
OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT
NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF
THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE
DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY
SERVICING, REPAIR OR CORRECTION. 12. IN NO EVENT UNLESS
REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL
ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY
MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED
ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY
GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES
ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM
(INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING
RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR
THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE
WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR
OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES. END OF TERMS AND CONDITIONS How to Apply These
Third party terms
400
Terms to Your New Programs If you develop a new program, and you
want it to be of the greatest possible use to the public, the best way to
achieve this is to make it free software which everyone can redistribute
and change under these terms. To do so, attach the following notices to
the program. It is safest to attach them to the start of each source file to
most effectively convey the exclusion of warranty; and each file should
have at least the \"copyright\" line and a pointer to where the full notice is
found. one line to give the program\'s name and an idea of what it does.
Copyright (C) yyyy name of author This program is free software; you can
redistribute it and/or modify it under the terms of the GNU General Public
License as published by the Free Software Foundation; either version 2 of
the License, or (at your option) any later version. This program is
distributed in the hope that it will be useful, but WITHOUT ANY
WARRANTY; without even the implied warranty of MERCHANTABILITY
or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General
Public License for more details. You should have received a copy of the
GNU General Public License along with this program; if not, write to the
Free Software Foundation, Inc., 59 Temple Place - Suite 330, Boston, MA
02111-1307, USA. Also add information on how to contact you by
electronic and paper mail. If the program is interactive, make it output a
short notice like this when it starts in an interactive mode: Gnomovision
version 69, Copyright (C) year name of author Gnomovision comes with
ABSOLUTELY NO WARRANTY; for details type `show w\'. This is free
software, and you are welcome to redistribute it under certain conditions;
type `show c\' for details. The hypothetical commands `show w\' and
`show c\' should show the appropriate parts of the General Public
License. Of course, the commands you use may be called something
other than `show w\' and `show c\'; they could even be mouse-clicks or
menu items--whatever suits your program. You should also get your
employer (if you work as a programmer) or your school, if any, to sign a
\"copyright disclaimer\" for the program, if necessary. Here is a sample;
alter the names: Yoyodyne, Inc., hereby disclaims all copyright interest in
the program `Gnomovision\' (which makes passes at compilers) written
by James Hacker. signature of Ty Coon, 1 April 1989 Ty Coon, President
of Vice This General Public License does not permit incorporating your
program into proprietary programs. If your program is a subroutine library,
you may consider it more useful to permit linking proprietary applications
with the library. If this is what you want to do, use the GNU Lesser
General Public License instead of this License.
END OF TERMS AND CONDITIONS
Third party terms
401
Zlib
The following component is licensed under zlib license:
Zlib 1.2.1
Zlib License
/* zlib.h -- interface of the 'zlib' general purpose compression library
version 1.2.4, March 14th, 2010
Copyright (C) 1995-2010 Jean-loup Gailly and Mark
This software is provided 'as-is', without any express or implied warranty.
In no event will the authors be held liable for any damages arising from
the use of this software. Permission is granted to anyone to use this
software for any purpose, including commercial applications, and to alter
it and redistribute it freely, subject to the following restrictions:
1. The origin of this software must not be misrepresented; you must not
claim that you wrote the original software. If you use this software in a
product, an acknowledgment in the product documentation would be
appreciated but is not required.
2. Altered source versions must be plainly marked as such, and must not
be misrepresented as being the original software.
3. This notice may not be removed or altered from any source distribution.
Jean-loup Gailly
Mark Adler
END OF TERMS AND CONDITIONS
Libpng
The following component is licensed under libpng license:
Libpng 1.2.37 - June 4, 2009
Libpng License
This copy of the libpng notices is provided for your convenience. In case
of any discrepancy between this copy and the notices in the file png.h that
is included in the libpng distribution, the latter shall prevail.
Third party terms
402
COPYRIGHT NOTICE, DISCLAIMER, and LICENSE:
If you modify libpng you may insert additional notices immediately
following this sentence.
libpng versions 1.2.6, August 15, 2004, through 1.2.34, December 18,
2008, are Copyright (c) 2004, 2006-2008 Glenn Randers-Pehrson, and
are distributed according to the same disclaimer and license as libpng-
1.2.5 with the following individual added to the list of Contributing Authors
Cosmin Truta
libpng versions 1.0.7, July 1, 2000, through 1.2.5 - October 3, 2002, are
Copyright (c) 2000-2002 Glenn Randers-Pehrson, and are distributed
according to the same disclaimer and license as libpng-1.0.6 with the
following individuals added to the list of Contributing Authors
Simon-Pierre Cadieux
Eric S. Raymond
Gilles Vollant
and with the following additions to the disclaimer:
There is no warranty against interference with your enjoyment of the
library or against infringement. There is no warranty that our efforts or the
library will fulfill any of your particular purposes or needs. This library is
provided with all faults, and the entire risk of satisfactory quality,
performance, accuracy, and effort is with the user.
libpng versions 0.97, January 1998, through 1.0.6, March 20, 2000, are
Copyright (c) 1998, 1999 Glenn Randers-Pehrson, and are distributed
according to the same disclaimer and license as libpng-0.96, with the
following individuals added to the list of Contributing Authors:
Tom Lane
Glenn Randers-Pehrson
Willem van Schaik
libpng versions 0.89, June 1996, through 0.96, May 1997, are Copyright
(c) 1996, 1997 Andreas Dilger
Distributed according to the same disclaimer and license as libpng-0.88,
with the following individuals added to the list of Contributing Authors:
John Bowler
Kevin Bracey
Sam Bushell
Magnus Holmgren
Third party terms
403
Greg Roelofs
Tom Tanner
libpng versions 0.5, May 1995, through 0.88, January 1996, are
Copyright (c) 1995, 1996 Guy Eric Schalnat, Group 42, Inc.
For the purposes of this copyright and license, "Contributing Authors" is
defined as the following set of individuals:
Andreas Dilger
Dave Martindale
Guy Eric Schalnat
Paul Schmidt
Tim Wegner
The PNG Reference Library is supplied "AS IS". The Contributing
Authors and Group 42, Inc. disclaim all warranties, expressed or implied,
including, without limitation, the warranties of merchantability and of
fitness for any purpose. The Contributing Authors and Group 42, Inc.
assume no liability for direct, indirect, incidental, special, exemplary, or
consequential damages, which may result from the use of the PNG
Reference Library, even if advised of the possibility of such damage.
Permission is hereby granted to use, copy, modify, and distribute this
source code, or portions hereof, for any purpose, without fee, subject to
the following restrictions:
1. The origin of this source code must not be misrepresented.
2. Altered versions must be plainly marked as such and must not be
misrepresented as being the original source.
3. This Copyright notice may not be removed or altered from any source
or altered source distribution.
The Contributing Authors and Group 42, Inc. specifically permit, without
fee, and encourage the use of this source code as a component to
supporting the PNG file format in commercial products. If you use this
source code in a product, acknowledgment is not required but would be
appreciated.
A "png_get_copyright" function is available, for convenient use in "about"
boxes and the like:
printf("%s",png_get_copyright(NULL));
Also, the PNG logo (in PNG format, of course) is supplied in the files
"pngbar.png" and "pngbar.jpg (88x31) and "pngnow.png" (98x31).
Third party terms
404
Libpng is OSI Certified Open Source Software. OSI Certified Open
Source is a certification mark of the Open Source Initiative.
Glenn Randers-Pehrson
glennrp at users.sourceforge.net
December 18, 2008
END OF TERMS AND CONDITIONS
Kern_random
The following component is licensed under kern_random license:
Kern_random Copyright Theodore Ts'o, 1994, 1995. All rights reserved.
Kern-random License
.\" This code is derived from software contributed to Berkeley by Chris
Torek. Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions are met:
.\" 1. Redistributions of source code must retain the above copyright
notice, this list of conditions and the following disclaimer.
.\" 2. Redistributions in binary form must reproduce the above copyright
notice, this list of conditions and the following disclaimer in the
documentation and/or other materials provided with the distribution.
.\" 3. All advertising materials mentioning features or use of this software
must display the following acknowledgement:
.\"This product includes software developed by the University of
California, Berkeley and its contributors.
.\" 4. Neither the name of the University nor the names of its contributors
may be used to endorse or promote products derived from this software
without specific prior written permission.
.\"
.\" THIS SOFTWARE IS PROVIDED BY THE REGENTS AND
CONTRIBUTORS ``AS IS'' AND ANY EXPRESS OR IMPLIED
WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL
THE REGENTS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR
CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,
PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF
USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION)
Third party terms
405
HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING
NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE
USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
OF SUCH DAMAGE.
.\"
END OF TERMS AND CONDITIONS
Wchar functions
The following component is licensed under wchar functions license:
Wchar functions
Wchar functions License
.\" Copyright (c) 1990, 1991, 1993
.\"The Regents of the University of California. All rights reserved.
.\"
Copyright (c) <YEAR>, <OWNER>
All rights reserved.
Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions are met:
Redistributions of source code must retain the above copyright notice,
this list of conditions and the following disclaimer.
Redistributions in binary form must reproduce the above copyright notice,
this list of conditions and the following disclaimer in the documentation
and/or other materials provided with the distribution.
Neither the name of the <ORGANIZATION> nor the names of its
contributors may be used to endorse or promote products derived from
this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND
CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED
WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL
THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR
ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR
CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,
PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF
Third party terms
406
USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION)
HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING
NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE
USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
OF SUCH DAMAGE
END OF TERMS AND CONDITIONS
Libjpeg
The following component is licensed under libjpeg license:
Libjpeg
Libpeg License
This software is copyright (C) 1991-1998, Thomas G. Lane.
All Rights Reserved except as specified below.
Permission is hereby granted to use, copy, modify, and distribute this
software (or portions thereof) for any purpose, without fee, subject to
these conditions:
(1) If any part of the source code for this software is distributed, then this
README file must be included, with this copyright and no-warranty notice
unaltered; and any additions, deletions, or changes to the original files
must be clearly indicated in accompanying documentation.
(2) If only executable code is distributed, then the accompanying
documentation must state that "this software is based in part on the work
of the Independent JPEG Group".
(3) Permission for use of this software is granted only if the user accepts
full responsibility for any undesirable consequences; the authors accept
NO LIABILITY for damages of any kind.
These conditions apply to any software derived from or based on the IJG
code, not just to the unmodified library. If you use our work, you ought to
acknowledge us.
Permission is NOT granted for the use of any IJG author's name or
company name in advertising or publicity relating to this software or
products derived from it. This software may be referred to only as "the
Independent JPEG Group's software".
Third party terms
407
We specifically permit and encourage the use of this software as the
basis of commercial products, provided that all warranty or liability claims
are assumed by the product vendor.
END OF TERMS AND CONDITIONS
T-Rex
The following component is licensed under the T-Rex license:
T-Rex
T-Rex License
Copyright (C) 2003-2004 Alberto Demichelis
This software is provided 'as-is', without any express or implied warranty.
In no event will the authors be held liable for any damages arising from
the use of this software.
Permission is granted to anyone to use this software for any purpose,
including commercial applications, and to alter it and redistribute it freely,
subject to the following restrictions:
1. The origin of this software must not be misrepresented;you must not
claim that you wrote the original software.If you use this software in a
product, an acknowledgment in the product documentation would be
appreciated but is not required.
2. Altered source versions must be plainly marked as such, and must not
be misrepresented as being the original software.
3. This notice may not be removed or altered from any source distribution.
END OF TERMS AND CONDITIONS
Third party terms
408
Terms you should know
409
Terms you should know
3-way Call
The 3-way Call feature joins two calls on your IP Deskphone into
one 3-way call. You and the other two callers can speak together.
Alphanumeric Dialing
Alphanumeric dialing refers to the spelling of names or words by
entering alphabetic characters collocated with the numbers on
the numeric dialpad of your Avaya 1140E IP Deskphone.
Call Decline
This is a feature that you can use to decline a call, which includes
an option to send a reason for declining the call.
Call Forward
This is a feature that you can use to transfer incoming calls to a
predefined telephone number or SIP address.
Call Server
This is the equipment operated by your service provider that
manages the calls to and from your IP Deskphone.
Call Subject
This is a feature that you can use to send a message to the
person you are contacting as they receive the call from you. A
Call Subject appears on the display screen if the receiving
telephone has a display screen and is capable of displaying Call
Subjects.
Category 5 (Cat5)
This is a cable and its associated connecting hardware capable
of transmitting at speeds up to 100 MHz used by 10BaseT,
100BaseT4, and100BaseTX.
Terms you should know
410
Category 5e (Cat5e)
Most Cat5 cable manufactured after 1996 also supports
1000BaseT (GigE) installations, and is designated Cat 5e.
Normally, Cat5e cable has four pairs of copper wire.
Category 6 (Cat6)
This is a cable and its associated connecting hardware capable
of transmitting at speeds up to 200 MHz. Designed specifically to
support 1000BaseT (GigE), this cable is also compatible with
10BaseT, 100BaseT4, and 100BaseTX installations. Normally,
this cable normally has four pairs of copper wire.
Copy Key
This is a fixed key used to copy entries to your Address Book,
Speed Dial Key, Send IM Key, and Call Forward key.
Date/Time display
The Avaya 1140E IP Deskphone shows the current date and time
when the telephone is in an idle state.
Directory Number (DN)
This is a telephone number you enter to initiate a call, for
example, (555) 555-5555.
Domain
This is the Internet Protocol address to which the IP Deskphone
connects when you logon.
Do Not Disturb
This is a feature you activate to block all incoming calls.
Terms you should know
411
Enter key
The center key of the Navigation Cluster key is used to select
menu items and to confirm changes. The Enter key duplicates the
function of the context-sensitive soft keys Select, and Set.
Expansion Module
The Expansion Module is a hardware accessory that connects to
the IP Deskphone and provides additional line appearances and
feature keys. A maximum of three modules are supported. The
Avaya 1120E/1121E IP Deskphone and
Avaya 1140E IP Deskphone can have up to 54 additional line/
feature keys with three Expansion Modules.
Feature Status Indicator
This refer to an LCD or an LED signal that indicates a data
message, contact, or feature status by a flash, wink, steady on, or
off.
Fixed keys
These are the hard-labeled keys of the IP Deskphone that have a
specific function.
Goodbye key
This is the fixed key used to end an active call or exit an active
menu.
Handsfree key
This is the fixed key used to activate Handsfree.
Hold key
This is the fixed key used to place an active call on hold.
IM (Instant Message)
You can use IMs to send a text message to a specific user. The
user must be logged on to receive the IM.
Terms you should know
412
Indicator
This is an LCD or an LED signal that indicates the status of a
feature by the flash, blink, steady on, or off.
Message/Inbox
This is a fixed key on your Avaya 1140E IP Deskphone that
connects to your Call Inbox.
Multiple Appearance Directory Number (MADN)
When multiple phones are configured with a MADN Single Call
Appearance (SCA), they appear as a single Directory Number
(DN).
Mute
This is a fixed key used to listen to a call without transmitting.
Navigation keys
These are keys used to scroll through menus and lists that
appear on the LCD display screen.
Off-Hook
The term off-hook is applied when (a) the end user lifts up the
handset, (b) the end user presses a line key, (c) the call is
automatically answered at the telephone, or (d) a line is
automatically selected for an outgoing call.
Parked Call
This is an active call you park on the server or to another user
that can be retrieved from another telephone.
Presence
This is a feature that you can use to set a presence state to be
displayed to other users.
Terms you should know
413
Quit key
This is a fixed key you use to exit an active menu.
Ringback/ring tone
This is a sound indicating that a call you make is ringing at its
destination.
Shift/Outbox
This is a fixed key you can use to connect to your Call Outbox.
Session Initiation Protocol (SIP)
Session Initiation Protocol is an telephony signaling protocol for
initiating interactive communication sessions between users.
SIP Address
This is an IP address that is assigned to a user, such as
bob@ABC123.com that is used to send IMs and to initiate calls.
Context-sensitive soft keys
This is a set of four programmed keys directly beneath the
display area. You use these keys to access and select menu
items.
Speed Dial
A user-defined feature key that you press to dial a
preprogrammed SIP address or telephone number.
User interface
This consists of screen displays that interact with the end user as
a result of an action or event.
User Profile
Your User Profile that contains your specific settings and data
saved and available when you log on to the IP Deskphone.
Terms you should know
414
Visual Alerter/Message Waiting indicator
This is an LCD or an LED signal that flashes to indicate that a message is
waiting or when the ringer is on.
Index
415
Index
Symbols
# Ends Dialing 67
Numerics
3-way calling 221
A
Action key 34, 211
Active Call features 210
Address Book 84, 162
Advance system features 304
Alphanumeric dialing 69
Answering a call 151
Audio key 35
B
Backlight Screensaver 92
Bluetooth wireless technology 124
C
Call Forward 266
Call Forward feature key program-
ming 252
Call Inbox 180
Call Origination Busy 358, 375
Call Outbox 192
Call Parking with MLPP 378
Call Subjects 142
Call Transfer - Consultative with
MLPP 378
Call Transfer - Direct with MLPP
378
Call transfer with precedence 368
Call Waiting Disabled with MLPP
379
Caller identification 150
Conference call (Ad-hoc confer-
ence) with MLPP 379
Conference calls 223
Configuring the phone 90
Connecting the components 53
Consultative transfer with MLPP
369
Context-sensitive soft keys 19, 26
Copy key 21, 170, 264
D
Date format 102
Declining a call 154
Directory key 23
Display screen contrast 90
Display screen icons 352
Do Not Disturb 270
Do Not Disturb feature key pro-
gramming 253
Domain 73
E
Emergency 911 357
Enter key 20
Entering Text 64
Erasing user data 311
Expand key 20
Expansion Module 17, 55, 64, 90,
Index
416
411
Expansion Module for Avaya 1100
Series IP Deskphones 243
External preemption 373
F
Feature interactions with MLPP
378
Feature key auto-programming
259
Feature key options 243
Feature key programming 244
Feature keys 19
Feature Status Indicator 199
Flash 357
Flash-Override 357
Friends feature 235
Friends list 236
G
Global Search 177
Goodbye key 20
H
Handsfree (Speaker) key 20
Handsfree calling 140
Headset key 21
Hold key 21, 212
I
Ignoring a call 159
Immediate 357
Inbox key 23
Incoming call privacy 275
Incoming calls with precedence
367
Instant Message composing 202
Instant Message Inbox/Outbox 204
L
Language display 101
Language selection 75
Local Search 174
Logging in 72
Logging out 85
Login duration 80
M
Making a call 137
Making a call by using a pro-
grammed speed dial key 366
Making a call with MLPP 359
Making an MLPP call by going off-
hook 359
Making an MLPP call from a re-
ceived Instant Message 364
Making an MLPP call using Inbox/
Outbox, Address Book, and
Friends List 363
Missed Calls 184
MLPP 357
MLPP, Feature interactions with
378
Msgs (Messages) key 27
Multi-Level Precedence and Pre-
emption 357
Multiple Appearance Directory
Number (MADN) 277
Multiuser 379
Mute key 19
Index
417
N
Navigation key 20, 44
Network Menu 316
O
Off-hook dialing 138
On hold 212
On-hook dialing 140
Outbox key 23
Outgoing call privacy 277
P
Park Call 232
Park Call retrieval 233
Prec soft key 360, 363, 366
Precedence alerting tone 367
precedence call display 367
precedence call display, redirected
call 368
Precedence Call Waiting tone 367
Precedence Level 361
Preemption 370
Prefs (Preferences) key 29, 32, 38,
40, 43, 216, 217, 219
Presence feature key program-
ming 255
Priority 357
Privacy settings 275
Proxy (Domain) 307
Q
Quit key 22
R
Re-authorization 358, 378
Redirecting a call 152
Release key 20
Resetting the phone 310
Ring patterns 95
Routine 357
S
Search function 174
Security features 46
Send IM feature key programming
254
Servcs (Services) key 34, 39, 40
Services key 22
SIP (Session Initiated Protocol) 15
Speakerphone exclusive to 911
Emergency 358
Speakerphone with MLPP 379
Speed Dial feature key 266
Speed Dial feature key program-
ming 250
T
Terms 381, 409
Transferring a call 228
Transfr (Transfer) key 229
U
Updates 306
USB keyboard 70
USB Mouse 45
User profile 83
Index
418
V
Visual Alerter 21, 354
Visual indicators 352
Voice Mail 27, 230
Volume adjustment 96
Volume control 19
