Avaya Configuring Ipx Services Users Manual V 12.20,

2015-06-01

: Avaya Avaya-Configuring-Ipx-Services-Users-Manual-735197 avaya-configuring-ipx-services-users-manual-735197 avaya pdf

Open the PDF directly: View PDF PDF.
Page Count: 360 [warning: Documents this large are best viewed by clicking the View PDF Link!]

Part No. 117369-B Rev. 00
June 1998
BayRS Version 12.20
Site Manager Software Version 6.20
BCC Version 4.00
Configuring IPX Services
ii 117369-B Rev. 00
4401 Great America Parkway 8 Federal Street
Santa Clara, CA 95054 Billerica, MA 01821
Copyright © 1997 Bay Networks, Inc.
All rights reserved. Printed in the USA. June 1998.
The information in this document is subject to change without notice. The statements, configurations, technical data,
and recommendations in this document are believed to be accurate and reliable, but are presented without express or
implied warranty. Users must take full responsibility for their applications of any products specified in this document.
The information in this document is proprietary to Bay Networks, Inc.
The software described in this document is furnished under a license agreement and may only be used in accordance
with the terms of that license. A summary of the Software License is included in this document.
Trademarks
ACE, AFN, AN, BCN, BLN, BN, BNX, CN, FN, FRE, GAME, LN, and Bay Networks are registered trademarks and
Advanced Remote Node, ANH, ARN, ASN, Bay•SIS, BayStack, and the Bay Networks logo are trademarks of Bay
Networks, Inc.
All other trademarks and registered trademarks are the property of their respective owners.
Restricted Rights Legend
Use, duplication, or disclosure by the United States Government is subject to restrictions as set forth in subparagraph
(c)(1)(ii) of the Rights in Technical Data and Computer Software clause at DFARS 252.227-7013.
Notwithstanding any other license agreement that may pertain to, or accompany the delivery of, this computer
software, the rights of the United States Government regarding its use, reproduction, and disclosure are as set forth in
the Commercial Computer Software-Restricted Rights clause at FAR 52.227-19.
Statement of Conditions
In the interest of improving internal design, operational function, and/or reliability, Bay Networks, Inc. reserves the
right to make changes to the products described in this document without notice.
Bay Networks, Inc. does not assume any liability that may occur due to the use or application of the product(s) or
circuit layout(s) described herein.
Portions of the code in this software product are Copyright © 1988, Regents of the University of California. All rights
reserved. Redistribution and use in source and binary forms of such portions are permitted, provided that the above
copyright notice and this paragraph are duplicated in all such forms and that any documentation, advertising materials,
and other materials related to such distribution and use acknowledge that such portions of the software were developed
by the University of California, Berkeley. The name of the University may not be used to endorse or promote products
derived from such portions of the software without specific prior written permission.
SUCH PORTIONS OF THE SOFTWARE ARE PROVIDED “AS IS” AND WITHOUT ANY EXPRESS OR
IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
In addition, the program and information contained herein are licensed only pursuant to a license agreement that
contains restrictions on use and disclosure (that may incorporate by reference certain limitations and notices imposed
by third parties).
117369-B Rev. 00 iii
Bay Networks, Inc. Software License Agreement
NOTICE: Please carefully read this license agreement before copying or using the accompanying software or
installing the hardware unit with pre-enabled software (each of which is referred to as “Software” in this Agreement).
BY COPYING OR USING THE SOFTWARE, YOU ACCEPT ALL OF THE TERMS AND CONDITIONS OF
THIS LICENSE AGREEMENT. THE TERMS EXPRESSED IN THIS AGREEMENT ARE THE ONLY TERMS
UNDER WHICH BAY NETWORKS WILL PERMIT YOU TO USE THE SOFTWARE. If you do not accept these
terms and conditions, return the product, unused and in the original shipping container, within 30 days of purchase to
obtain a credit for the full purchase price
1. License Grant. Bay Networks, Inc. (“Bay Networks”) grants the end user of the Software (“Licensee”) a personal,
nonexclusive, nontransferable license: a) to use the Software either on a single computer or, if applicable, on a single
authorized device identified by host ID, for which it was originally acquired; b) to copy the Software solely for backup
purposes in support of authorized use of the Software; and c) to use and copy the associated user manual solely in
support of authorized use of the Software by Licensee. This license applies to the Software only and does not extend
to Bay Networks Agent software or other Bay Networks software products. Bay Networks Agent software or other
Bay Networks software products are licensed for use under the terms of the applicable Bay Networks, Inc. Software
License Agreement that accompanies such software and upon payment by the end user of the applicable license fees
for such software.
2. Restrictions on use; reservation of rights. The Software and user manuals are protected under copyright laws.
Bay Networks and/or its licensors retain all title and ownership in both the Software and user manuals, including any
revisions made by Bay Networks or its licensors. The copyright notice must be reproduced and included with any
copy of any portion of the Software or user manuals. Licensee may not modify, translate, decompile, disassemble, use
for any competitive analysis, reverse engineer, distribute, or create derivative works from the Software or user manuals
or any copy, in whole or in part. Except as expressly provided in this Agreement, Licensee may not copy or transfer
the Software or user manuals, in whole or in part. The Software and user manuals embody Bay Networks’ and its
licensors’ confidential and proprietary intellectual property. Licensee shall not sublicense, assign, or otherwise
disclose to any third party the Software, or any information about the operation, design, performance, or
implementation of the Software and user manuals that is confidential to Bay Networks and its licensors; however,
Licensee may grant permission to its consultants, subcontractors, and agents to use the Software at Licensee’s facility,
provided they have agreed to use the Software only in accordance with the terms of this license.
3. Limited warranty. Bay Networks warrants each item of Software, as delivered by Bay Networks and properly
installed and operated on Bay Networks hardware or other equipment it is originally licensed for, to function
substantially as described in its accompanying user manual during its warranty period, which begins on the date
Software is first shipped to Licensee. If any item of Software fails to so function during its warranty period, as the sole
remedy Bay Networks will at its discretion provide a suitable fix, patch, or workaround for the problem that may be
included in a future Software release. Bay Networks further warrants to Licensee that the media on which the
Software is provided will be free from defects in materials and workmanship under normal use for a period of 90 days
from the date Software is first shipped to Licensee. Bay Networks will replace defective media at no charge if it is
returned to Bay Networks during the warranty period along with proof of the date of shipment. This warranty does not
apply if the media has been damaged as a result of accident, misuse, or abuse. The Licensee assumes all responsibility
for selection of the Software to achieve Licensee’s intended results and for the installation, use, and results obtained
from the Software. Bay Networks does not warrant a) that the functions contained in the software will meet the
Licensee’s requirements, b) that the Software will operate in the hardware or software combinations that the Licensee
may select, c) that the operation of the Software will be uninterrupted or error free, or d) that all defects in the
operation of the Software will be corrected. Bay Networks is not obligated to remedy any Software defect that cannot
be reproduced with the latest Software release. These warranties do not apply to the Software if it has been (i) altered,
except by Bay Networks or in accordance with its instructions; (ii) used in conjunction with another vendor’s product,
resulting in the defect; or (iii) damaged by improper environment, abuse, misuse, accident, or negligence. THE
FOREGOING WARRANTIES AND LIMITATIONS ARE EXCLUSIVE REMEDIES AND ARE IN LIEU OF ALL
OTHER WARRANTIES EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION ANY WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Licensee is responsible for the security of
iv 117369-B Rev. 00
its own data and information and for maintaining adequate procedures apart from the Software to reconstruct lost or
altered files, data, or programs.
4. Limitation of liability. IN NO EVENT WILL BAY NETWORKS OR ITS LICENSORS BE LIABLE FOR ANY
COST OF SUBSTITUTE PROCUREMENT; SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL
DAMAGES; OR ANY DAMAGES RESULTING FROM INACCURATE OR LOST DATA OR LOSS OF USE OR
PROFITS ARISING OUT OF OR IN CONNECTION WITH THE PERFORMANCE OF THE SOFTWARE, EVEN
IF BAY NETWORKS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN NO EVENT
SHALL THE LIABILITY OF BAY NETWORKS RELATING TO THE SOFTWARE OR THIS AGREEMENT
EXCEED THE PRICE PAID TO BAY NETWORKS FOR THE SOFTWARE LICENSE.
5. Government Licensees. This provision applies to all Software and documentation acquired directly or indirectly by
or on behalf of the United States Government. The Software and documentation are commercial products, licensed on
the open market at market prices, and were developed entirely at private expense and without the use of any U.S.
Government funds. The license to the U.S. Government is granted only with restricted rights, and use, duplication, or
disclosure by the U.S. Government is subject to the restrictions set forth in subparagraph (c)(1) of the Commercial
Computer Software––Restricted Rights clause of FAR 52.227-19 and the limitations set out in this license for civilian
agencies, and subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause of DFARS
252.227-7013, for agencies of the Department of Defense or their successors, whichever is applicable.
6. Use of Software in the European Community. This provision applies to all Software acquired for use within the
European Community. If Licensee uses the Software within a country in the European Community, the Software
Directive enacted by the Council of European Communities Directive dated 14 May, 1991, will apply to the
examination of the Software to facilitate interoperability. Licensee agrees to notify Bay Networks of any such
intended examination of the Software and may procure support and assistance from Bay Networks.
7. Term and termination. This license is effective until terminated; however, all of the restrictions with respect to
Bay Networks’ copyright in the Software and user manuals will cease being effective at the date of expiration of the
Bay Networks copyright; those restrictions relating to use and disclosure of Bay Networks’ confidential information
shall continue in effect. Licensee may terminate this license at any time. The license will automatically terminate if
Licensee fails to comply with any of the terms and conditions of the license. Upon termination for any reason,
Licensee will immediately destroy or return to Bay Networks the Software, user manuals, and all copies. Bay
Networks is not liable to Licensee for damages in any form solely by reason of the termination of this license.
8. Export and Re-export. Licensee agrees not to export, directly or indirectly, the Software or related technical data
or information without first obtaining any required export licenses or other governmental approvals. Without limiting
the foregoing, Licensee, on behalf of itself and its subsidiaries and affiliates, agrees that it will not, without first
obtaining all export licenses and approvals required by the U.S. Government: (i) export, re-export, transfer, or divert
any such Software or technical data, or any direct product thereof, to any country to which such exports or re-exports
are restricted or embargoed under United States export control laws and regulations, or to any national or resident of
such restricted or embargoed countries; or (ii) provide the Software or related technical data or information to any
military end user or for any military end use, including the design, development, or production of any chemical,
nuclear, or biological weapons.
9. General. If any provision of this Agreement is held to be invalid or unenforceable by a court of competent
jurisdiction, the remainder of the provisions of this Agreement shall remain in full force and effect. This Agreement
will be governed by the laws of the state of California.
Should you have any questions concerning this Agreement, contact Bay Networks, Inc., 4401 Great America Parkway,
P.O. Box 58185, Santa Clara, California 95054-8185.
LICENSEE ACKNOWLEDGES THAT LICENSEE HAS READ THIS AGREEMENT, UNDERSTANDS IT, AND
AGREES TO BE BOUND BY ITS TERMS AND CONDITIONS. LICENSEE FURTHER AGREES THAT THIS
AGREEMENT IS THE ENTIRE AND EXCLUSIVE AGREEMENT BETWEEN BAY NETWORKS AND
LICENSEE, WHICH SUPERSEDES ALL PRIOR ORAL AND WRITTEN AGREEMENTS AND
COMMUNICATIONS BETWEEN THE PARTIES PERTAINING TO THE SUBJECT MATTER OF THIS
AGREEMENT. NO DIFFERENT OR ADDITIONAL TERMS WILL BE ENFORCEABLE AGAINST BAY
NETWORKS UNLESS BAY NETWORKS GIVES ITS EXPRESS WRITTEN CONSENT, INCLUDING AN
EXPRESS WAIVER OF THE TERMS OF THIS AGREEMENT.
117369-B Rev. 00 v
Contents
About This Guide
Before You Begin ...........................................................................................................xviii
Conventions ...................................................................................................................xviii
Acronyms .........................................................................................................................xix
Bay Networks Technical Publications ..............................................................................xxi
Bay Networks Customer Service .....................................................................................xxi
How to Get Help .............................................................................................................xxii
Bay Networks Educational Services ...............................................................................xxii
Chapter 1
Starting IPX Services
Starting the Configuration Tools .....................................................................................1-1
Starting IPX ....................................................................................................................1-2
Using the BCC .........................................................................................................1-2
Using Site Manager ..................................................................................................1-5
Chapter 2
IPX Concepts
Compatibility with Previous Versions of Bay Networks Software ....................................2-1
About the IPX Protocol ...................................................................................................2-2
Network-Level Services ..................................................................................................2-3
Supported LAN Circuits, WAN Circuits, and Frame Formats .........................................2-3
Types of IPX Configurations ...........................................................................................2-5
For More Information About IPX .....................................................................................2-5
vi 117369-B Rev. 00
Chapter 3
Customizing IPX for LAN Media
Assigning a Unique Network Number .............................................................................3-2
Enabling RIP and SAP on an Interface ...........................................................................3-3
Choosing a Frame Encapsulation Type ..........................................................................3-6
Specifying Multiple Interfaces per Circuit ........................................................................3-8
Configuring a Multiple-Host Router ..............................................................................3-11
Configuring a Single-Host Router .................................................................................3-11
IPX Host ID Numbers ...................................................................................................3-12
Setting a Host ID Number for IPX on a Token Ring Circuit ....................................3-13
Token Ring MAC Address Selection ................................................................3-15
Customizing IPX ...........................................................................................................3-15
Chapter 4
Customizing IPX for WAN Media
IPX over WAN Media ......................................................................................................4-1
Using IPXCP and IPXWAN ......................................................................................4-2
Running IPXWAN over PPP .....................................................................................4-2
Running IPXWAN over Frame Relay Permanent Virtual Circuits .............................4-3
Negotiating an IPXWAN Connection ........................................................................4-3
Configuring an IPX Service to Run over a WAN .............................................................4-4
Assigning a Unique Network Number .............................................................................4-4
Enabling RIP on an Interface ..........................................................................................4-6
Enabling SAP on an Interface .........................................................................................4-7
Identifying a Circuit .........................................................................................................4-8
Entering an IPX Host ID Number for IPX over ATM ........................................................4-8
Enabling IPXWAN for an Interface .........................................................................4-12
Assigning a Primary Network Number ...................................................................4-14
Entering a Router Name ........................................................................................4-15
Indicating the Protocol Negotiated for an Interface ................................................4-17
Sample IPXCP and IPXWAN Configurations ...............................................................4-18
IPXCP Link Negotiation ................................................................................................4-19
IPXWAN Link Negotiation .............................................................................................4-19
IPXWAN and IPXCP Link Configurations .....................................................................4-20
Configuration 1 (IPXWAN with IPXCP on Both Interfaces) ...........................................4-20
Configuration Guidelines -- Configuration 1 ...........................................................4-21
117369-B Rev. 00 vii
Configuration 2 (IPXWAN on Both Interfaces) ..............................................................4-21
Configuration Guidelines -- Configuration 2 ...........................................................4-21
Configuration 3 (Only IPXCP on Both Interfaces) .........................................................4-22
Configuration Guidelines -- Configuration 3 ...........................................................4-22
Configuration 4 .............................................................................................................4-22
Customizing IPX ...........................................................................................................4-22
Chapter 5
Customizing IPX
Customizing IPX Global Operation .................................................................................5-2
Setting the Maximum Number of Paths ....................................................................5-2
Filtering Log Messages ............................................................................................5-3
Specifying the Maximum Number of Equal Cost Paths ............................................5-5
Specifying the Maximum Number of Destinations ...................................................5-6
Entering the Maximum Number of Services ............................................................5-8
Specifying the Granularity for Aging RIP and SAP Information ..............................5-10
Specifying the Aging Pending Frequency ...............................................................5-11
Enabling IPX Default Routing .................................................................................5-13
Multipath Routing and Load sharing ......................................................................5-14
Multipath Routing .............................................................................................5-15
Load Redistribution and Rerouting ..................................................................5-17
Multipath Route Precedence/Priority ...............................................................5-17
Multipath Configurations ..................................................................................5-17
Multiline Circuits ..............................................................................................5-17
Selecting the GNS Response Mode ......................................................................5-20
Specifying the Table Fill Notify Value .....................................................................5-21
Specifying the Size of the Network Table ...............................................................5-22
Specifying the MIB Reply Slot ................................................................................5-22
Customizing an IPX Interface .......................................................................................5-22
Enabling IPX Routing on an Interface ....................................................................5-23
Entering a Symbolic Name for an Interface ............................................................5-24
Assigning a Host Number to an Interface ..............................................................5-25
Enabling Source Routing for an Interface on a Token Ring Circuit ........................5-27
Entering a Broadcast Address ...............................................................................5-28
Entering a Multicast Address .................................................................................5-29
Responding to IPX Watchdog Packets ...................................................................5-31
viii 117369-B Rev. 00
Setting the Delay Time ...........................................................................................5-32
Specifying Throughput ...........................................................................................5-33
Setting the Stabilization Timer Delay .....................................................................5-34
Handling Packets Associated with Upper-Layer Protocols ...........................................5-35
The Routing Information Protocol (RIP) .......................................................................5-36
Enabling RIP on the Router ...................................................................................5-38
Choosing the Routing Method ................................................................................5-39
Setting a Cost for an Interface .........................................................................5-41
Specifying the Maximum Number of Hops ......................................................5-43
Indicating the Number of Next-Hop Hosts .......................................................5-44
Enabling RIP Listen and Supply Functions ............................................................5-46
Determining the Pace of RIP Packets ....................................................................5-47
Configurable RIP Timers ........................................................................................5-48
Adjusting the RIP Packet Size ................................................................................5-51
Enabling Multicast Transmission of RIP Packets ....................................................5-52
Configurable Split Horizon .....................................................................................5-54
Fully Meshed Networks ...................................................................................5-54
Non-Fully Meshed Networks ...........................................................................5-55
Updating Routers about a Failed Route .................................................................5-58
Advertising Default Routes in RIP Packets ............................................................5-59
Accepting Default Route Information .....................................................................5-60
Customizing SAP Parameters ......................................................................................5-61
NetWare Directory Services (NDS) and SAP ..................................................5-62
SAP and the NetWare Bindery (NetWare 3.
x
and Earlier) ..............................5-63
Configurable SAP Timers .......................................................................................5-64
SAP via Default Route ...........................................................................................5-66
Enabling SAP Listen and Supply Functions ...........................................................5-67
Determining the Pace of SAP Packets ...................................................................5-69
Adjusting the SAP Packet Size ...............................................................................5-71
Responding to SAP Nearest Server Requests ......................................................5-72
Using a Multicast Address ......................................................................................5-73
Saving the Service Name ......................................................................................5-74
Transmitting and Receiving SAP Updates over the Same Interface ......................5-75
Updating Routers about a Failed Service ..............................................................5-76
Using Static Services ...................................................................................................5-77
117369-B Rev. 00 ix
Enabling Static Services ........................................................................................5-81
Specifying the Network Address of a Service ........................................................5-83
Specifying the Address of the Host that Provides a Service ..................................5-84
Assigning a Symbolic Name to Your Service .........................................................5-85
Entering the Service Type Number ........................................................................5-86
Entering the Socket Address of a Service ..............................................................5-88
Entering the Hop Count .........................................................................................5-89
Customizing NetBIOS Static Routing ...........................................................................5-90
Activating the Static Route Record in the NetBIOS Routing Table .........................5-91
Entering the Name of the NetBIOS Target Server .................................................5-93
Entering the Target Network Address ....................................................................5-94
Directing a NetBIOS Packet Using Nonstandard Static Routing ............................5-96
Directing a NetBIOS Packet Using Standard Static Routing ..................................5-97
NetBIOS Broadcast Filters .....................................................................................5-98
Configuring an Adjacent Host for an Interface ............................................................5-102
Making the Adjacent Host Record Active .............................................................5-102
Entering the ID of the Adjacent Host ....................................................................5-104
Entering a WAN Address .....................................................................................5-106
Creating a Frame Relay SVC to an Adjacent Host .....................................................5-108
Dial Services ..............................................................................................................5-111
Using Dial-on-Demand Service ............................................................................5-112
Using Static Routing with Dial-on-Demand ..........................................................5-113
Tips for Using Dial-on-Demand with IPX ..............................................................5-114
Local IPX Watchdog Acknowledgment ................................................................5-114
Local SPX Keepalive Acknowledgment ................................................................5-116
Dial Optimized Routing ...............................................................................................5-116
Getting Optimum Performance Using IPX Dial Optimized Routing ......................5-117
Default IPX Dial Optimized Routing Filters ...........................................................5-118
Configuring the Routing Update Delay Timer ......................................................5-119
RIP/SAP Triggered Updates .................................................................................5-119
Determining the Frequency of Scheduled Updates .............................................5-120
Configuring RIP and SAP Broadcast Timers .......................................................5-121
Using Static Routes ....................................................................................................5-124
Specifying the Target Network Address ...............................................................5-126
Entering the Next-Hop Host .................................................................................5-127
x117369-B Rev. 00
Entering the Hop Count .......................................................................................5-129
Setting the Timer Ticks ........................................................................................5-130
Using Route Filters .....................................................................................................5-131
Using SAP Filters .......................................................................................................5-133
Using SAP Filters at the Server Level ..................................................................5-136
Using SAP Filters at the Network Level ...............................................................5-138
Using Wildcards and Pattern Matching with SAP Filters ......................................5-140
Using Wildcards with SAP Filters .........................................................................5-140
Using Pattern Matching with SAP Filters .............................................................5-142
An Example of Using SAP Filters ..................................................................5-146
Service Name Filters ..................................................................................................5-147
Enabling an IPX Service Name Filter ...................................................................5-147
Entering the Target Service Name .......................................................................5-149
Entering the Target Service Type .........................................................................5-151
Setting the Filter Priority .......................................................................................5-152
Applying Filters to Inbound or Outbound Packets ................................................5-153
Specifying the Protocol ........................................................................................5-154
Specifying How to Process SAP Advertisements ................................................5-156
Specifying a Cost .................................................................................................5-157
Source Route Bridge End Station Support .................................................................5-159
IPX Ping Support ........................................................................................................5-163
Role of Bay Networks Routers in a Client/Server Connection .............................5-163
Example: Client/Server Connection via Bay Networks Router .............................5-165
Deleting IPX from the Router ......................................................................................5-167
Appendix A
Site Manager IPX Parameters
IPX Configuration Parameters ....................................................................................... A-1
IPXWAN Configuration Parameters ............................................................................... A-7
IPX Global Parameters .................................................................................................. A-9
IPX Advanced Global Parameters ............................................................................... A-13
IPX Interface Parameters ............................................................................................. A-22
IPX Change Circuit Parameters ................................................................................... A-30
IPX RIP Circuit Parameters ......................................................................................... A-35
IPX SAP Circuit Parameters ........................................................................................ A-41
IPX NetBIOS Static Route Configuration Parameters ................................................. A-46
117369-B Rev. 00 xi
IPX NetBIOS Static Route Parameters ........................................................................ A-48
Adjacent Hosts Configuration Parameters ................................................................... A-50
IPX Adjacent Hosts Parameters .................................................................................. A-53
IPX Static Route Configuration Parameters ................................................................ A-56
IPX Static Route Parameter Descriptions .................................................................... A-59
IPX Static Service Configuration Parameters .............................................................. A-61
IPX Static Service Parameters .................................................................................... A-64
Route Filter Configuration Parameters ........................................................................ A-67
IPX Route Filter Parameters ........................................................................................ A-69
Service Network Filter Configuration Parameters ........................................................ A-74
IPX Service Network Filter Parameters ....................................................................... A-77
IPX Service Name Filter Configuration Parameters .................................................... A-82
IPX Service Name Filter Parameters ........................................................................... A-84
Appendix B
BCC show Commands for IPX
Sample Output ............................................................................................................... B-1
Online Help for show Commands .................................................................................. B-1
Commands for IPX ........................................................................................................ B-2
show ipx ......................................................................................................................... B-3
summary ................................................................................................................. B-3
adjacent-hosts ......................................................................................................... B-4
forwards ................................................................................................................... B-4
hosts ........................................................................................................................ B-4
interfaces ................................................................................................................. B-5
rips .......................................................................................................................... B-5
route-filters .............................................................................................................. B-6
routes ...................................................................................................................... B-6
saps ......................................................................................................................... B-7
server-name-filters .................................................................................................. B-7
server-network-filters .............................................................................................. B-8
services ................................................................................................................... B-8
static-netbios-routes ................................................................................................ B-9
static-routes ............................................................................................................. B-9
static-services ....................................................................................................... B-10
stats ....................................................................................................................... B-10
xii 117369-B Rev. 00
Appendix C
Common Service Types and Identifiers
Appendix D
Sample IPX Configuration
Configuration Particulars ............................................................................................... D-2
Router 1 .................................................................................................................. D-2
Router 2 .................................................................................................................. D-3
Index
117369-B Rev. 00 xiii
Figures
Figure 3-1. Multiple IPX Interfaces per Physical Circuit .............................................3-9
Figure 3-2. Frames Received at a Logical Interface .................................................3-12
Figure 3-3. Frames Issued from a Logical Interface .................................................3-13
Figure 4-1. Frames Received at a Logical Interface ...................................................4-9
Figure 4-2. Frames Issued from a Logical Interface .................................................4-10
Figure 4-3. IPXCP and IPXWAN Configurations ......................................................4-18
Figure 5-1. IPX Multipath ..........................................................................................5-15
Figure 5-2. IPX Multipath Routing -- Equal Least-Cost Routes ................................5-16
Figure 5-3. IPX Configurable RIP Interface Cost ......................................................5-42
Figure 5-4. IPX Configurable RIP Timers .................................................................5-49
Figure 5-5. Split Horizon Enabled in a Fully Meshed Network .................................5-55
Figure 5-6. Split Horizon Disabled in a Non-Fully Meshed Network ........................5-56
Figure 5-7. Static Service Network Configuration ....................................................5-80
Figure 5-8. IPX SAP Filters Prohibiting SAP Broadcasts .........................................5-81
Figure 5-9. NetBIOS Static Routes ..........................................................................5-91
Figure 5-10. NetBIOS Packet Filtering .....................................................................5-100
Figure 5-11. NetBIOS Packet Flow ...........................................................................5-101
Figure 5-12. NetBIOS Broadcast Filtering ................................................................5-102
Figure 5-13. Dial-on-Demand Service ......................................................................5-113
Figure 5-14. IPX Static Routes .................................................................................5-125
Figure 5-15. SAP Filtering ........................................................................................5-135
Figure 5-16. IPX Routers Source Routing across a Token Ring Network ................5-161
Figure 5-17. Sample IPX Network ............................................................................5-166
Figure A-1. IPX Configuration window ....................................................................... A-2
Figure A-2. IPXWAN Configuration Window .............................................................. A-7
Figure A-3. Edit IPX Global Parameters Window ...................................................... A-9
Figure A-4. IPX Advanced Global Parameters Window ........................................... A-13
Figure A-5. IPX Interfaces Window .......................................................................... A-22
Figure A-6. IPX Change Circuit Window .................................................................. A-31
xiv 117369-B Rev. 00
Figure A-7. IPX RIP Circuit Window ........................................................................ A-35
Figure A-8. IPX SAP Circuit Window ....................................................................... A-41
Figure A-9. IPX NetBIOS Static Route Configuration Window ................................ A-46
Figure A-10. IPX NetBIOS Static Routes Window ..................................................... A-48
Figure A-11. IPX Adjacent Hosts Configuration Window ........................................... A-50
Figure A-12. IPX Adjacent Hosts Window ................................................................. A-53
Figure A-13. IPX Static Route Configuration Window ............................................... A-56
Figure A-14. IPX Static Routes Window .................................................................... A-59
Figure A-15. IPX Static Service Configuration Window ............................................. A-61
Figure A-16. IPX Static Services Window ................................................................. A-64
Figure A-17. IPX Route Filter Configuration Window ................................................ A-67
Figure A-18. IPX Route Filters Window ..................................................................... A-69
Figure A-19. IPX Service Network Filter Configuration Window ................................ A-74
Figure A-20. IPX Service Network Filters Window .................................................... A-77
Figure A-21. IPX Service Name Filter Configuration Window ................................... A-82
Figure A-22. IPX Service Name Filters Window ........................................................ A-84
Figure D-1. Sample IPX Configuration ....................................................................... D-2
117369-B Rev. 00 xv
Tables
Table 2-1. LAN Circuit and Frame Support for IPX Interfaces ..................................2-4
Table 2-2. WAN Circuit and Frame Support for IPX Interfaces .................................2-4
Table 4-1. Configuration Table for IPX over WAN Media .......................................4-20
Table 5-1. Characters in SAP Pattern-Matching Filters .......................................5-142
Table 5-2. Concatenation Rules and Operators ...................................................5-144
Table B-1. IPX Show Commands ............................................................................. B-2
Table C-1. Service Types and Identifiers ................................................................. C-1
117369-B Rev. 00 xvii
About This Guide
If you are responsible for configuring IPX, you need to read this guide.
You can now use the Bay Command Console (BCC™) to configure this protocol
on a router. In this guide, you will find instructions for using both the BCC and
Site Manager. There are a few parameters which you cannot yet configure with
the BCC, and, in these cases, you must use Site Manager.
If you want to Go to
Start IPX on a router and get it running with default settings for
parameters. Chapter 1
Learn about the IPX protocol and special aspects of the Bay Networks
implementation of IPX. Chapter 2
Enable IPX over LAN media. Chapter 3
Enable IPX over WAN media. Chapter 4
Customize IPX operation to suit your needs. Chapter 5
Obtain information about Site Manager parameters. (This is the same
information you obtain using Site Manager online Help.) Appendix A
Obtain a description of BCC show scripts. Appendix B
Obtain a listing of the common service types and identifiers. Appendix C
View a sample IPX configuration. Appendix D
Configuring IPX Services
xviii 117369-B Rev. 00
Before You Begin
Before using this guide, you must complete the following procedures. For a new
router:
• Install the router (refer to the installation manual that came with your router).
• Connect the router to the network and create a pilot configuration file (refer to
Quick-Starting Routers, Configuring BayStack Remote Access, or Connecting
ASN Routers to a Network).
Make sure that you are running the latest version of Bay Networks® Site Manager
and router software. For instructions, refer to Upgrading Routers from Version
7–11.xx to Version 12.00.
Conventions
angle brackets (< >) Indicate that you choose the text to enter based on the
description inside the brackets. Do not type the
brackets when entering the command.
Example: if command syntax is ping
<ip_address>
,
you enter ping 192.32.10.12
bold text Indicates text that you need to enter, command names,
and buttons in menu paths.
Example: Enter wfsm &
Example: Use the dinfo command.
Example: ATM DXI > Interfaces > PVCs identifies the
PVCs button in the window that appears when you
select the Interfaces option from the ATM DXI menu.
italic text Indicates variable values in command syntax
descriptions, new terms, file and directory names, and
book titles.
quotation marks (“ ”) Indicate the title of a chapter or section within a book.
screen text Indicates data that appears on the screen.
Example: Set Bay Networks Trap Monitor Filters
About This Guide
117369-B Rev. 00 xix
separator ( > ) Separates menu and option names in instructions and
internal pin-to-pin wire connections.
Example: Protocols > AppleTalk identifies the
AppleTalk option in the Protocols menu.
Example: Pin 7 > 19 > 20
vertical line (|) Indicates that you enter only one of the parts of the
command. The vertical line separates choices. Do not
type the vertical line when entering the command.
Example: If the command syntax is
show at routes | nets, you enter either
show at routes or show at nets, but not both.
Acronyms
AUI Attachment Unit Interface
ARE All-Routes Explorer (frame)
ATM asynchronous transfer mode
BootP Bootstrap Protocol
BRI Basic Rate Interface
CCITT International Telegraph and Telephone Consultative Committee
(now ITU-T)
CSMA/CD carrier sense multiple access with collision detection
DLCI data link control layer (Layer 2 of SNA)
DLCMI Data Link Control Management Interface
GNS get nearest server
GUI graphical user interface
HDLC high-level data link control
IP Internet Protocol
IPX Internet Packet Exchange Service
IPXCP Internetwork Packet Exchange Control
ISDN Integrated Services Digital Network
ISO International Organization for Standardization
ITU-T International Telecommunication Union–Telecommunications
(formerly CCITT)
LAN local area network
Configuring IPX Services
xx 117369-B Rev. 00
LSAP link service access point
MAC media access control
MAU media access unit
MDI-X Media-Dependent Interface with Crossover
MIB management information base
NBMA nonbroadcast multi-access
NCP Network Control Protocol
NDS NetWare Directory Services
NIC Network Information Center or network interface card
OSI Open Systems Interconnection
OSPF Open Shortest Path First (Protocol)
PDN Public Data Network
PNN primary network number
PPP Point-to-Point Protocol
PROM programmable read-only memory
RIF routing information field
RIP Routing Information Protocol
SAP Service Advertisement Protocol
SMDS switched multimegabit data service
SNAP Subnetwork Access Protocol
SNMP Simple Network Management Protocol
SPX Sequenced Packet Exchange
SRE specific route explore
STP shielded twisted pair
TCP/IP Transmission Control Protocol/Internet Protocol
TFTP Trivial File Transfer Protocol
TPE twisted pair Ethernet
UTP unshielded twisted pair
WAN wide area network
XNS Xerox Networking System
About This Guide
117369-B Rev. 00 xxi
Bay Networks Technical Publications
You can now print technical manuals and release notes free, directly from the
Internet. Go to support.baynetworks.com/library/tpubs. Find the Bay Networks
products for which you need documentation. Then locate the specific category
and model or version for your hardware or software product. Using Adobe
Acrobat Reader, you can open the manuals and release notes, search for the
sections you need, and print them on most standard printers. You can download
Acrobat Reader free from the Adobe Systems Web site, www.adobe.com.
Documentation sets and CDs are available through your local Bay Networks sales
office or account representative.
Bay Networks Customer Service
You can purchase a support contract from your Bay Networks distributor or
authorized reseller, or directly from Bay Networks Services. For information
about, or to purchase a Bay Networks service contract, either call your local Bay
Networks field sales office or one of the following numbers:
Information about customer service is also available on the World Wide Web at
support.baynetworks.com.
Region Telephone number Fax number
United States and
Canada 800-2LANWAN; then enter Express Routing
Code (ERC) 290, when prompted, to
purchase or renew a service contract
978-916-8880 (direct)
978-916-3514
Europe 33-4-92-96-69-66 33-4-92-96-69-96
Asia/Pacific 61-2-9927-8888 61-2-9927-8899
Latin America 561-988-7661 561-988-7550
Configuring IPX Services
xxii 117369-B Rev. 00
How to Get Help
If you purchased a service contract for your Bay Networks product from a
distributor or authorized reseller, contact the technical support staff for that
distributor or reseller for assistance.
If you purchased a Bay Networks service program, call one of the following Bay
Networks Technical Solutions Centers:
Bay Networks Educational Services
Through Bay Networks Educational Services, you can attend classes and purchase
CDs, videos, and computer-based training programs about Bay Networks
products. Training programs can take place at your site or at a Bay Networks
location. For more information about training programs, call one of the following
numbers:
Technical Solutions Center Telephone number Fax number
Billerica, MA 800-2LANWAN 978-916-3514
Santa Clara, CA 800-2LANWAN 408-495-1188
Valbonne, France 33-4-92-96-69-68 33-4-92-96-69-98
Sydney, Australia 61-2-9927-8800 61-2-9927-8811
Tokyo, Japan 81-3-5402-0180 81-3-5402-0173
Region Telephone number
United States and Canada 800-2LANWAN; then enter Express Routing Code (ERC)
282 when prompted
978-916-3460 (direct)
Europe, Middle East, and
Africa 33-4-92-96-15-83
Asia/Pacific 61-2-9927-8822
Tokyo and Japan 81-3-5402-7041
117369-B Rev. 00 1-1
Chapter 1
Starting IPX Services
IPX is the network-layer routing protocol used in the NetWare environment. The
primary tasks of IPX are addressing, routing, and switching information packets
from one location to another on a network.
If you are already familiar with IPX and want to get the protocol up and running
quickly, follow the steps below to start IPX using Bay Networks default settings.
You supply only the necessary configuration settings and accept all other default
settings.
For conceptual information on IPX, refer to Chapter 2. For information on
customizing the way IPX runs on the router to meet your needs, refer to
Chapters 3 through 5. For information on changing the default settings, refer to
Appendix B.
Starting the Configuration Tools
Before configuring IPX services, refer to the following user guides for
instructions on how to start and use the Bay Networks configuration tool of your
choice.
These guides also describe generally how to create and modify a device
configuration.
Configuration Tool User Guide
Bay Command Console (BCC™)
Using the Bay Command Console
Site Manager
Configuring and Managing Routers with Site Manager
Configuring IPX Services
1-2 117369-B Rev. 00
Starting IPX
IPX can operate over LAN or WAN media. This section describes how to get IPX
and, optionally, IPXWAN services up and running on a circuit. We assume that
you have read Configuring and Managing Routers with Site Manager.
Using the BCC
1. Decide where you want IPX to operate.
IPX can run:
• Globally on the router
• On an individual interface
• Over a WAN protocol
2. Start IPX with supplied default values.
• Globally on the router:
To start IPX globally on the router, navigate to the box level prompt and
enter:
box# ipx
• On an interface:
a. Configure a physical interface on an available slot/connector.
To configure a physical interface on a slot and connector, navigate to
the top-level box prompt and enter:
interface_type
slot
slot_number
connector
connector_number
interface_type is the name of a link module on the router.
slot_number is the number of the slot on which the link module is
located.
connector_number is the number of a connector on the link module.
After you configure a physical interface, the BCC returns a prompt
that specifies your current working location. For example, the
following command configures an Ethernet interface on slot 1,
connector 2:
box# ethernet slot 1 connector 2
ethernet/1/2#
Starting IPX Services
117369-B Rev. 00 1-3
b. Configure an IPX interface on the physical interface.
To configure an IPX interface on a physical interface, navigate to the
prompt for the physical interface and enter:
ipx address
address
address is any valid address in hexadecimal notation.
For example:
ethernet/2/4# ipx 19d7e712
ipx/19d7e712#
c. Over a WAN protocol.
To configure IPX over a WAN protocol, navigate to the box prompt,
configure a WAN protocol and then configure IPXWAN by entering:
ipxwan address
ipxwan_address
router-name
name
primary-network
address
negotiated-protocol
protocol
ipxwan_address is the address, in hexadecimal notation, of the
IPXWAN interface.
name is the symbolic name of the router.
address is the address, in hexadecimal notation, of the primary
network.
protocol is one of the following:
wan-rip
unnumbered-rip
wan-unnumbered-rip
Configuring IPX Services
1-4 117369-B Rev. 00
3. Use IPX.
After you supply the required settings to configure IPX globally, on a LAN
interface, or on a WAN interface, IPX is completely configured with supplied
default values. You can use IPX with the current default settings or you can
customize IPX to meet your needs.
To determine which IPX interface attributes that you can configure and what
their current values are, enter the info command. For example, on a LAN
interface, if you enter the info command you will get the following results:
ipx/19d7e712# info
state enabled
encapsulation lsap
address 0000f7f7
circuit-name {}
host-address 0x
broadcast-address 0x
multicast-address 0x
cost 0
netbios-accept disabled
netbios-deliver disabled
delay 0
throughput 0
stabilization-timer 0
svcbroadcast disabled
To determine what other services you can enable under IPX, enter the help
tree command and the BCC will display available services. For example, if
you configure IPX on a LAN interface and enter the help tree command, you
will get the following results:
ipx/19d7e712# help tree
The configuration tree below this context is:
rip
sap
static-route
adjacent-host
static-service
route-filter
server-network-filter
server-name-filter
Starting IPX Services
117369-B Rev. 00 1-5
Each service under IPX has configurable attributes. To determine what these
arrtibutes are, enter the service name followed by a question mark. The BCC
supplies returns any information required to configure the service, as well as a
list of configurable attributes. For example, to determine what settings you
must supply to configure a static route, enter the static-route ? command and
you will get the following results:
ipx/19d7e712# static-route ?
Usage: "static-route target-network <value> next-hop-host <value>"
Or: "static-route <target-network>/<next-hop-host>"
Parameters of static-route:
hops on target-network
next-hop-host state ticks
You must use this command for each service available under IPX.
Using Site Manager
To start IPX using Site Manager, follow these steps:
1. Select Configuration Manager in local, remote, or dynamic mode from
the Tools menu.
The Configuration Manager window appears.
2. Open a configuration file if local or remote mode is selected.
3. Select the circuit you want to configure.
If this is a local mode configuration, specify router hardware.
4. Select a protocol.
If you are running IPX over a WAN, select a WAN protocol (usually PPP or
frame relay).
Note: Selecting frame relay, PPP, or SMDS on a WAN circuit automatically
enables protocol prioritization.
Configuring IPX Services
1-6 117369-B Rev. 00
5. Select IPX or RIP/SAP (which automatically selects IPX as well) from the
Select Protocols window.
If you selected RIP/SAP from the Select Protocols window, the router enables
both RIP and SAP services using their default values. To change any of these
default values, refer to Appendix B.
The IPX Configuration window appears.
6. Complete the IPX Configuration window.
If you are configuring a LAN or WAN circuit, you must supply the following
information:
•A configured network number.
A configured network number is any valid IPX network address in
hexadecimal notation.
If you are configuring this interface as Unnumbered RIP, supply the value
zero for the configured network number.
If you are trying to establish a connection to a Series 5 Bay Networks
router, or a router that does not implement IPXWAN or PPP, then you
must enter a nonzero network address (for example, the network address
of the link).
If you are configuring an IPX interface that will enable IPXWAN
services, do not supply a configured network number.
If you are using Site Manager, you can specify the configured network
number by configuring the Configured Network Number (hex) parameter
described on page A-2.
•The encapsulation method.
By default, IPX supplies an encapsulation method that is media
dependent. The encapsulation method supports communication on a
specific logical link. Check to make sure that the supplied encapsulation
method matches the one the clients and servers on the same logical
network use, and is appropriate for the physical circuit, as follows:
-- Ethernet circuits support Ethernet, LSAP, Novell, and SNAP frames.
-- Token ring circuits support LSAP and SNAP frames.
-- Synchronous circuits (V.35, RS-232/V.24, RS-422/423, X.21, T1/E1)
support SNAP, PPP, and X.25 Point-to-Point (Ethernet) frames.
Starting IPX Services
117369-B Rev. 00 1-7
-- FDDI circuits support LSAP and SNAP frames.
-- HSSI circuits support PPP and SNAP frames.
-- ISDN circuits support PPP frames.
If you are using Site Manager, you can specify the encapsulation method
by configuring the Configured Encaps parameter described on page A-4.
If you are configuring an IPXWAN circuit, you must also supply the
following information:
•A common network number.
The common network number is a network number that you assign to the
WAN circuit. If this router is the master during the IPXWAN negotiation
and RIP is selected as the routing protocol, then the common network
number is used as the IPX network number for the circuit.
There is no default for the common network number. You must supply an
IPX common network number in hexadecimal format. Valid common
network numbers range from 0x00000000 to 0xFFFFFFFD. Do not use
the value 0xFFFFFFFE or 0xFFFFFFFF as network numbers. These
values are reserved for system use.
If you are using Site Manager, you can specify the common network
number by configuring the Common Network Number parameter
described on page A-5.
•A negotiated protocol.
The negotiated protocol specifies the protocol that the router supports for
the exchange of routing information over this WAN circuit. You can
specify either RIP or Unnumbered RIP as the negotiated protocol. For a
description of RIP, refer to Chapter 5.
If you are using Site Manager, you can specify the negotiated protocol by
configuring the Negotiated Protocol(s) parameter described on page A-6.
7. Click on OK.
If you did not enable IPXWAN services, IPX is now completely configured
using the information you supplied and all other supplied default values. You
can now use IPX. If you want to change any of the supplied defaults to
fine-tune the way IPX works, refer to Appendix A.
Configuring IPX Services
1-8 117369-B Rev. 00
If you enabled IPXWAN services in the IPX Configuration window, the
IPXWAN Configuration window appears. You must supply the following
information:
•A router name.
The router name is any symbolic name that you choose for the router. You
must choose a name that is unique among those assigned to IPX file
servers and routers anywhere in the IPX internetwork. Any IPXWAN
(RFC1634-compliant) interface in the node uses this name to identify
itself to the IPX router or server at the opposite end of the WAN data link.
If you are using Site Manager, you can specify the router name by
configuring the Router Name parameter described on page A-7.
•A primary network number.
A primary network number is a unique string of up to 8 hexadecimal
characters that specifies an IPX network number for IPXWAN link
negotiation on all slots. You can enter any unused value between
0x00000001 and 0xFFFFFFFD.
The value you enter for the primary network number determines whether
the local or remote router on the WAN circuit serves as the IPX Link
Master. The node with the highest primary network number becomes the
IPX Link Master.
If you are using Site Manager, specify the primary network number using
the Primary Net Number (hex) parameter described on page A-8.
8. Click on OK.
117369-B Rev. 00 2-1
Chapter 2
IPX Concepts
This chapter describes some IPX concepts you will need to know before you begin
configuring an interface on a circuit. This chapter provides an overview of the IPX
protocol, the network-level services provided by a Bay Networks router running
IPX, the types of LAN and WAN circuits IPX supports, and some basic types of
IPX configurations.
Compatibility with Previous Versions of Bay Networks Software
This guide describes only BayRS Version 12.20.
Site Manager 6.20 and BayRS Version 12.20 are backward compatible with
earlier versions of the router code. You can boot an IPX configuration that
operates with an earlier version (for example, 11.xx) on a router that has Version
12.20 software, and the software will update the configuration. You can then go
into dynamic mode (or save the updated configuration and go into remote mode)
and edit any of the new parameters. When you save the edited configuration, you
are saving a Version 12.20 file.
In local mode, Site Manager will run IPX configurations from an earlier version
using the management information base (MIB) for that version instead of the MIB
for Version 12.20. If you choose to continue using a router configuration that you
configured under a software version earlier than 12.20 without updating it, you
will not get the Version 12.20 features, and you must use the Version 11.xx guide
Configuring IPX Services instead of this guide.
Configuring IPX Services
2-2 117369-B Rev. 00
About the IPX Protocol
The Internet Packet Exchange protocol is the Novell, Inc., adaptation of the Xerox
Networking System (XNS) protocol. IPX has the following characteristics:
•It is a connectionless datagram delivery protocol. Connectionless means that
it does not need a channel established for packet delivery. A datagram is a unit
of data that contains all the addressing information required for it to be
delivered to its destination. The path or route that one datagram follows to
reach a destination is independent of the path or route that another datagram
may follow to reach the same destination.
• It does not guarantee the delivery of packets. Higher-level protocols assume
the responsibility for reliability. The higher-level protocols that IPX uses are
SPX and NCP.
• It uses the Internet Data Packet (IDP) format.
IPX is the network-layer routing protocol used in the NetWare environment. The
primary tasks of IPX are addressing, routing, and switching information packets
from one location to another on a network. The network interface card (NIC) in a
client provides network node addressing. IPX defines the internetwork and
intranode addressing as follows:
• Network numbers form the basis of the IPX internetwork addressing scheme
for sending packets between network segments. Every network segment of an
internetwork is assigned a unique network address by which routers forward
packets to their final destination network. A network number in the NetWare
environment consists of 8 hexadecimal characters. In the following example,
0x indicates that this is a hexadecimal number, and n is any hexadecimal
character.
0xnnnnnnnn
• Socket numbers are the basis for an IPX intranode address; that is, the address
of an individual entity within a node. They allow a process (for example, RIP
or SAP) to distinguish itself to IPX. To be able to communicate on the
network, the process must request a socket number. Any packets IPX receives
addressed to that socket are then passed on to the process within the node.
IPX Concepts
117369-B Rev. 00 2-3
Network-Level Services
A Bay Networks router running IPX provides the following network-level
support:
• Dynamic routing of IPX packets
• Multiple IPX interfaces per circuit
• IPX over WAN media
• IPXWAN and IPXCP
• Routing Information Protocol (RIP and Unnumbered RIP)
• Service Advertising Protocol (SAP)
• Static Route support
• Default Route support
• Adjacent Host support
• Dial-on-Demand support
Dynamic routing occurs normally on any IPX interface; brief descriptions of the
other supported capabilities follow.
Supported LAN Circuits, WAN Circuits, and Frame Formats
IPX supports various combinations of physical circuits and data link layer frame
formats. You can choose the ones that are appropriate for the types of clients and
applications on your network.
Configuring IPX Services
2-4 117369-B Rev. 00
Table 2-1 shows the types of LAN circuits and frame formats supported by Bay
Networks routers running IPX.
Table 2-2 shows the relationships between different WAN circuits,WAN
protocols, and frame formats supported by Bay Networks routers running IPX.
Table 2-1. LAN Circuit and Frame Support for IPX Interfaces
Circuit Type Frame Type --
Novell Terminology Frame Type --
Bay Networks Terminology
Ethernet ETHERNET_II
ETHERNET_802.2
ETHERNET_802.3
ETHERNET_SNAP
ETHERNET
LSAP
NOVELL
SNAP
Token ring TOKEN-RING
TOKEN-RING_SNAP LSAP
SNAP
FDDI N/A LSAP
SNAP
Table 2-2. WAN Circuit and Frame Support for IPX Interfaces
Circuit Type WAN Protocol Frame Format --
Bay Networks Terminology
Synchronous:
--V.35
--RS-232/V.24
--RS-422/423
--X.21
--T1/Fractional T1
--E1/Fractional E1
ATM
Frame Relay
PPP
SMDS
X.25 Point-to-Point
X.25 PDN
Bay Networks Point-to-Point
SNAP
SNAP
PPP
SNAP
ETHERNET
RFC 1356
ETHERNET
HSSI ATM
Frame Relay
PPP
SMDS
Bay Networks Point-to-Point
SNAP
SNAP
PPP
SNAP
ETHERNET
ISDN PPP PPP
IPX Concepts
117369-B Rev. 00 2-5
You can use these tables when you select an encapsulation method on the IPX
Configuration window. For more information about the encapsulation method,
refer to “Configured Encaps” on page A-4.
Types of IPX Configurations
The basic types of IPX configurations are:
• Standard, with two possible configurations:
-- Multiple-Host Router. This common configuration supports one IPX
interface per circuit; each interface has a unique IPX host number.
-- Single-Host Router. This configuration supports one IPX interface per
circuit; every interface shares the same global (“boxwide”) IPX host
number.
• Special, also with two possible configurations:
-- Multiple Interfaces per Circuit. This special configuration supports as
many IPX interfaces per circuit as there are frame encapsulation types for
the given circuit type.
-- Multiple Circuits per Segment. This special configuration supports either
concurrent bridging and IPX routing or IPX multiline.
For More Information About IPX
The following documents provide technical details about IPX protocol
implementation.
RFC 1634: Novell IPX over Various WAN Media (IPXWAN). (Supersedes
RFC 1551 and RFC 1362.)
RFC 1552: The PPP Internetwork Packet Exchange Control Protocol (IPXCP).
Novell, Inc. Advanced NetWare, V.2.0 Internet Packet Exchange Protocol (IPX)
with Asynchronous Event Scheduler. March 19, 1986.
Novell, Inc. IPX Router Specification. October 1993.
Chappell, Laura and Dan E. Hawkes. Novell’s Guide to NetWare LAN Analysis,
Novell Press/Sybex. 1994
117369-B Rev. 00 3-1
Chapter 3
Customizing IPX for LAN Media
You can use IPX services over either a LAN or a WAN. This chapter relates
specifically to using IPX over a LAN. For information specific to using IPX over a
WAN, see Chapter 4. For information about customizing IPX features for both a
LAN and a WAN, see Chapter 5.
When you configure an IPX service to run over a LAN, make sure you have
supplied the appropriate settings in the IPX configuration for:
• IPX network number assigned to the IPX circuit
•RIP
•SAP
• The encapsulation method used for each circuit type
• Circuit identifier value (Sit manager only)
To configure multiple IPX interfaces on a circuit, as well as a multiple-host router,
you must also:
• Enable IPX globally on the router.
• Enable multiple host addressing.
• Supply a host number.
Configuring IPX Services
3-2 117369-B Rev. 00
Assigning a Unique Network Number
When you initially add an IPX interface to the router configuration, enter a
network number for the IPX network segment associated with that interface. The
network number must be unique among all other network numbers assigned
throughout the IPX internetwork.
Using the BCC
You can specify a network number only when you first configure an IPX
interface. To configure an IPX interface, navigate to the circuit prompt (for
example, box; ethernet 2/1) and enter:
ipx address
address
address is the address, in hexadecimal notation, of the ipx interface.
For example, to specify the address as 0x00065656, enter:
ipx/00045678# ipx address 0x00065656
Note: You cannot change the network number using the BCC after you have
configured IPX on an interface.
Customizing IPX for LAN Media
117369-B Rev. 00 3-3
Using Site Manager
To specify a network number for the IPX network segment associated with an
interface, complete the following tasks:
Enabling RIP and SAP on an Interface
The Configuration Manager sets the default for this parameter based on your
selection in the Select Protocols window. If you selected RIP/SAP, both RIP and
SAP are enabled. You can disable both RIP and SAP using the IPX Configuration
window. You can also disable and reenable just RIP or just SAP using the RIP
Circuit window or the SAP Circuit window, both of which are available via the
IPX Interfaces window.
Using the BCC
To enable RIP, you must first configure RIP on an IPX interface. By default, RIP
is enabled when you first configure it on an interface. To configure RIP on an IPX
interface, navigate to the IPX interface prompt (for example, box; ethernet 2/1;
ipx 00023456) and enter:
rip
If you already configured RIP on an interface, you can change its current state. To
disable RIP on an interface, navigate to the RIP prompt (for example, box;
ethernet 2/1; ipx 00023456; rip 00023456) and enter:
state disabled
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Interfaces. The IPX Interfaces window opens.
4. Set the Configured Network Number
(hex) parameter. Click on Help or see the
parameter description on page A-2.
5. Click on OK. You return to the Configuration Manager
window.
Configuring IPX Services
3-4 117369-B Rev. 00
To enable RIP, navigate to the RIP prompt (for example, box; ethernet 2/1; ipx
00023456; rip 00023456) and enter:
state enabled
To enable SAP, you must first configure SAP on an IPX interface. By default,
SAP is enabled when you first configure it on an interface. To configure SAP on
an IPX interface, navigate to the IPX interface prompt (for example, box;
ethernet 2/1; ipx 00023456) and enter:
sap
If you already configured RIP on an interface, you can change its current state. To
disable RIP on an interface, navigate to the RIP prompt (for example, box;
ethernet 2/1; ipx 00023456; sap 00023456) and enter:
state disabled
To enable RIP, navigate to the RIP prompt (for example, box; ethernet 2/1; ipx
00023456; sap 00023456) and enter:
state enabled
Using Site Manager
To enable or disable both RIP and SAP services at the same time, complete the
following tasks:
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Interfaces. The IPX Interfaces window opens.
4. Set the RIP/SAP parameter. Click on Help
or see the parameter description on
page A-3.
5. Click on OK. You return to the Configuration Manager
window.
Customizing IPX for LAN Media
117369-B Rev. 00 3-5
You can also enable or disable RIP or SAP services separately. To enable or
disable only RIP services, complete the following tasks:
To enable or disable SAP services only, complete the following tasks:
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Interfaces. The IPX Interfaces window opens.
4. Choose RIP
. The RIP Circuit window opens.
5. Set the Enable parameter. Click on Help
or see the parameter description on
page A-36.
6. Click on OK. You return to the Configuration Manager
window.
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Interfaces. The IPX Interfaces window opens.
4. Choose SAP. The SAP Circuit window opens.
5. Set the Enable parameter. Click on Help
or see the parameter description on
page A-41.
6. Click on OK. You return to the Configuration Manager
window.
Configuring IPX Services
3-6 117369-B Rev. 00
Choosing a Frame Encapsulation Type
When you add an IPX interface to the router configuration, you must specify the
type of frame encapsulation required for communication between all hosts on the
same IPX logical network within the overall IPX internetwork.
Choose the encapsulation method that matches the one the clients and servers on
the same logical network use and is appropriate for the physical circuit you are
configuring:
• Ethernet circuits support Ethernet, LSAP, Novell, and SNAP frames.
• Token ring circuits support LSAP and SNAP frames.
• Synchronous circuits (V.35, RS-232/V.24, RS-422/423, X.21, T1/E1) support
SNAP, PPP, and X.25 Point-to-Point (Ethernet) frames.
• FDDI circuits support LSAP and SNAP frames.
• HSSI circuits support PPP and SNAP frames.
• ISDN circuits support PPP frames.
Customizing IPX for LAN Media
117369-B Rev. 00 3-7
Using the BCC
To specify the encapsulation method, navigate to the IPX interface prompt (for
example, box; ethernet 2/1; ipx 00023456) and enter:
encapsulation
method
method is one of the following:
lsap
ethernet
novell
snap
ppp
For example, the following command uses lsap as the encapsulation type:
encapsulation lsap
Using Site Manager
To specify the encapsulation method, complete the following tasks:
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Interfaces. The IPX Interfaces window opens.
4. Set the Configured Encaps parameter.
Click on Help or see the parameter
description on page A-4.
5. Click on OK. You return to the Configuration Manager
window.
Configuring IPX Services
3-8 117369-B Rev. 00
Specifying Multiple Interfaces per Circuit
You can configure one or more IPX interfaces per physical circuit. The number of
IPX logical interfaces you can configure on a circuit equals the number of unique
frame formats available for that circuit type. (Refer to Table 2-1 for details on
circuit types and frame formats.)
For example, the Bay Networks router supports four unique frame formats that are
suitable for communication over an Ethernet LAN segment. This means that you
can configure four different encapsulations for four independent IPX interfaces on
a single Ethernet circuit (Ethernet, Novell, LSAP, and SNAP). Each interface and
encapsulation configured on a circuit supports a different logical network. To
differentiate between IPX interfaces configured on the same physical circuit, the
Bay Networks router uses the unique network address and frame format that you
assign to each interface.
By supporting multiple IPX interfaces on a single physical circuit, a Bay
Networks router can service clients on independent logical LANs that coexist on
the same physical LAN segment.
In Figure 3-1, each client on the right side of the router has a different logical
network address and uses a different encapsulation method. If all clients need to
access server 1, then only interface 2 of the router needs to support all the different
encapsulation methods and multiple logical network addresses for the
workstations. Interface 1 of the router needs to support only the SNAP
encapsulation method that server 1 supports.
Customizing IPX for LAN Media
117369-B Rev. 00 3-9
Figure 3-1. Multiple IPX Interfaces per Physical Circuit
Choose the following encapsulation methods that are appropriate for the type of
physical circuit you are configuring:
Note: NetWare users -- If you are upgrading client and server stations on
your network to Novell NetWare Version 4.x, you can use the
multiple-interface-per-circuit capability to gradually migrate stations on the
same network segment to NetWare Version 4.x (that is, from one logical
network to another, independent logical network).
For example, you can upgrade and migrate NetWare clients from a logical
network that supports only Novell (802.3) encapsulated frames to a logical
network that supports a more versatile LSAP (802.2 frame type).
0x000F123
0x00000110
0x00000111
Real
address Encapsulation
method
Encapsulation
method
SNAP
Novell
LSAP
Ethernet
SNAP
Server 1
Interface 1 Interface 2
0x00000112
0x00000113
IPX0001A
Configuring IPX Services
3-10 117369-B Rev. 00
• Ethernet circuits support Ethernet, LSAP (802.2), Novell (802.3), and SNAP
frames.
• Token ring circuits support LSAP and SNAP frames.
• FDDI circuits support LSAP and SNAP frames.
To enable or disable IPX routing on the router, see Chapter 1. To specify the
encapsulation method, see “Choosing a Frame Encapsulation Type” on page 3-6.
For more information about configuring a physical LAN circuit, refer to
Configuring and Managing Routers with Site Manager.
Using the BCC
To configure multiple interfaces on a single circuit, you must specify a unique
encapsulation type for each interface. To configure multiple interfaces, navigate to
the circuit prompt (for example, box; ethernet 2/1) and enter:
ipx address
address
; encapsulation
method
address is the address, in hexadecimal notation, of the ipx interface.
method is one of the following:
lsap
ethernet
novell
snap
ppp
For example, to configure two interfaces on a single circuit, enter:
ethernet 2/1# ipx 0x0001; encapsulation lsap
ethernet 2/1# ipx 0x0002; encapsulation ethernet
Customizing IPX for LAN Media
117369-B Rev. 00 3-11
Using Site Manager
Site Manager automatically assigns a circuit identifier to each circuit that you
create on an IPX router. You can assign a specific circuit identifier, if necessary.
To assign a circuit identifier, complete these tasks:
Configuring a Multiple-Host Router
A multiple-host router is a common configuration that supports one IPX interface
per circuit, and each interface has a unique IPX host number. For this
configuration, enable multiple host addressing.
The host number of each IPX interface is based on the MAC address of the
underlying circuit. For Ethernet or FDDI circuits, you can specify the
multiple-host address. See “Host Address (hex)” on page A-51.
Configuring a Single-Host Router
For this configuration, disable multiple-host addressing.
Every IPX interface in the router configuration uses the same global host number,
which is one of the following:
• A number derived from the router backplane
• A number that you enter
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Interfaces. The IPX Interface window opens.
4. Set the Circuit Index parameter. Click on
Help or see the parameter description on
page A-4.
5. Click on OK. You return to the Configuration Manager
window.
Configuring IPX Services
3-12 117369-B Rev. 00
You specify the source for the host number by entering a host number in
hexadecimal notation. (If you do not enter a number, the router derives the internal
serial number from the router backplane, and uses this number for the global host
number.)
IPX Host ID Numbers
On Bay Networks routers, the IPX host ID number maps to a physical data link
layer address (on a specific circuit or physical interface). An IPX logical interface
can listen at this address and capture frames transmitted by nodes compatible with
IPX on the local data link.
Figure 3-2 illustrates this concept in a Bay Networks router that has two IPX
logical interfaces, each one configured on a different physical circuit.
Figure 3-2. Frames Received at a Logical Interface
Nodes (IPX compatible) on the same logical network and locally attached
physical segment must use the host ID number of the IPX logical interface as a
data link layer destination address, through which any transmitted frames can
ultimately reach their target client or server applications.
Physical
interface
Logical
interface
Physical
interface
Logical
interface
ATM
circuit Clients
ATM
Local
clients/servers
Router
Ethernet
circuit
Incoming
frames
Incoming
cells
= Destination (Receive) address IPX0021A
IPX server
IPX server
Customizing IPX for LAN Media
117369-B Rev. 00 3-13
Because an IPX logical interface can receive and send data, the host ID also
identifies a source data link layer address from which the interface can send
frames to nodes compatible with IPX anywhere else in the same IPX
internetwork.
Figure 3-3 illustrates this concept in a Bay Networks router configured with two
IPX logical interfaces, each one on a different physical circuit type.
Figure 3-3. Frames Issued from a Logical Interface
Setting a Host ID Number for IPX on a Token Ring Circuit
In a configuration with IPX logical interfaces on a token ring circuit, the data link
layer address is a MAC-layer address.
In Bay Networks routers, you set the MAC-layer address for the circuit and the
host ID number for the IPX interface independently. However, the host ID number
for every IPX logical interface on a given token ring circuit must be identical to
the MAC address set for that circuit. Otherwise, the logical interface would send
frames that contained an incorrect source MAC address, or the interface would
listen for frames at the wrong MAC address.
Physical
interface
Logical
interface
Physical
interface
Logical
interface
ATM
circuit
Local
clients/servers
Router
Ethernet
circuit
Outgoing
frames
Outgoing
cells
= Source (Transmit) address
IPX0022A
Clients
ATM
IPX server
IPX server
Configuring IPX Services
3-14 117369-B Rev. 00
Using the BCC
To specify the host ID, navigate to the global IPX prompt (for example, box; ipx)
and enter:
host-address
address
address is the host address in hexadecimal format.
For example, to set the host ID to 0x09873452, enter:
ipx# host-address 0x000009873452
Using Site Manager
To specify the host ID, complete the following tasks:
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Global. The IPX Global Parameters window
opens.
4. Set the Router Host Number (hex)
parameter. Click on Help or see the
parameter description on page A-11.
5. Click on OK. You return to the Configuration Manager
window.
Customizing IPX for LAN Media
117369-B Rev. 00 3-15
Token Ring MAC Address Selection
For token ring circuits, you can select the means by which the router determines
the MAC address for a circuit to one of the following:
• PROM. (This is the default setting.) The circuit retrieves the MAC address
that is stored in a PROM on the supporting link module.
• BOXWIDE. The circuit generates a MAC address based on the serial number
of the backplane of the router.
• CNFG. You can configure a MAC address.
If you choose the CNFG, you must subsequently enter a valid MAC address
override setting. You must repeat this procedure on any token ring circuit for
which you choose CNFG (user configured) as the source for the MAC address
assigned to the individual physical circuit. For instructions on how to set the MAC
address and the MAC address override, see Configuring Ethernet, FDDI, and
Token Ring Services.
Customizing IPX
After selecting a circuit and providing the basic IPX settings, your circuit will be
operational. The default values supplied for the remaining settings will apply to
most environments. However, if you want to customize your IPX configuration,
refer to Chapter 5.
Caution: The IPX boxwide host address and the token ring MAC address
must agree when the multiple host addressing is disabled.
Caution: Changing the the way the router determines the MAC address to
accommodate IPX configuration requirements can affect other protocol
interfaces (for example, LNM Servers or IP) configured on the same circuit(s)
with IPX. If necessary, make adjustments to any such (non-IPX) interfaces
configured on the router.
117369-B Rev. 00 4-1
Chapter 4
Customizing IPX for WAN Media
You can use IPX services over either a LAN or a WAN. This chapter relates
specifically to customizing IPX for use over a WAN. For information specific to
using IPX over a LAN, see Chapter 3. For information about customizing IPX
features for both LANs and WANs, see Chapter 5.
IPX over WAN Media
You can establish an IPX connection over any of the WAN media types supported
by the Bay Networks IPX router (refer to Table 2-2). The choice of protocols
depends on the type of connection and what you want the protocol to do.
The WAN protocol PPP uses the IPXCP protocol (RFC 1552). IPXCP supports
the routing of IPX packets over wide area links that support only the
Point-to-Point Protocol. IPXCP is a data link protocol that is part of PPP. To
enable IPXCP, you must first configure the interface to support PPP. For
instructions on how to do this, refer to Configuring PPP Services.
For the ATM, SMDS, X.25 PDN, X.25 Point-to-Point, and Bay Networks
Point-to-Point protocols, once you choose the protocol, only one encapsulation
method is allowed for all WAN protocols.
For the Frame Relay and PPP WAN protocols, you can optionally run IPXWAN
(RFC 1634).
Note: Use IPXCP or IPXWAN when you want the routers to negotiate the
options required for communication over the WAN link. Alternatively, you can
explicitly specify the values for the WAN link without using either IPXCP or
IPXWAN, as long as you ensure that what you configure at each end of the
link is compatible.
Configuring IPX Services
4-2 117369-B Rev. 00
Using IPXCP and IPXWAN
Incorporating IPXWAN in the Bay Networks router provides the following
benefits:
• Adherence to RFCs 1362 and 1634 IPXWAN protocols developed by Novell
• A common link negotiation method for WAN media (Frame Relay and PPP)
• Interoperability with other routing vendors (for example, Novell)
• A standardized means for tick-based routing over WAN media
If you configure a local and a remote node to support both IPXCP and IPXWAN,
IPXCP always runs first. After the router completes IPXCP negotiation, it
discards all IPXCP-negotiated options, and IPXWAN runs. Refer to “Assigning a
Unique Network Number” on page 4-4 for more information about specifying
support for IPXCP and IPXWAN.
Running IPXWAN over PPP
IPX uses PPP when operating over point-to-point synchronous networks. With
PPP, establishing a connection means that the IPX Control Protocol (NCP)
(IPXCP) reaches the open state.
PPP lets either side of a connection stop forwarding IPX packets if one end sends
an IPXCP terminate request. When a router detects this, it immediately reflects
the lost connection in its routing information database.
Customizing IPX for WAN Media
117369-B Rev. 00 4-3
Running IPXWAN over Frame Relay Permanent Virtual Circuits
Each IPX packet is encapsulated in a Frame Relay frame. When an interface is
restarted, IPXWAN exchanges begin immediately over active, direct mode Frame
Relay PVCs (those that have remained active before and after restart).
• When a router detects that a direct mode Frame Relay PVC has gone from an
inactive to an active state, the connection is established; and IPXWAN packet
exchange over this newly activated connection begins.
• When an active PVC becomes inactive, the router reflects the lost connection
in its routing information database.
Negotiating an IPXWAN Connection
Establishing an IPXWAN connection involves negotiating which router will be the
server. Being the server does not include any special privileges; it indicates which
router is the requestor in the ensuing request/response exchanges. A router retains
its role -- server or client -- for the remainder of the IPXWAN exchanges. The
following options are determined after successful negotiation by the IPXWAN
protocol:
• WAN link delay used in tick-based routing across the WAN link
• Network number for the WAN link
• Routing protocol to be implemented over the WAN link
Note: For IPX, you can use Frame Relay’s direct, group, or hybrid mode. For
IPXWAN, only direct mode is valid. In Frame Relay, direct mode is a
point-to-point connection. Frame Relay group mode (or hybrid mode) involves
a point-to-multipoint connection.
Configuring IPX Services
4-4 117369-B Rev. 00
Configuring an IPX Service to Run over a WAN
When you configure IPX over WAN media, you can either configure IPX over a
WAN protocol or you can configure IPXWAN services. When configuring IPX
over WAN media, make sure you perform the following tasks:
• Supply a configured network number (required if IPXWAN is disabled)
• Supply appropriate settings for RIP
• Supply appropriate settings for SAP
• Supply a circuit index (Site Manager only)
• Supply the common network number (required for IPXWAN)
• Supply the negotiated protocols (required for IPXWAN)
In addition, you must also:
• Enable IPX globally on the router
• Enable multiple host addressing
• Supply the router name (required for IPXWAN)
• Supply the primary network number (required for IPXWAN)
If you are running IPX over an ATM network, you should set the Host Number on
the IPX Interfaces window.
Assigning a Unique Network Number
When you initially add an IPX interface to the router configuration, you must
enter the network number of the IPX network segment associated with that
interface. You should specify a network number of zero if you are configuring
interfaces with unnumbered point-to-point links, and if IPXWAN is not enabled.
When the router recognizes a network number of zero, it knows that a lower
protocol layer (IPXWAN or IPXCP) on the same circuit must negotiate with the
remote IPX host for the network number of the intervening WAN segment.
Customizing IPX for WAN Media
117369-B Rev. 00 4-5
Using the BCC
You can specify the network number only when you configure IPXWAN services.
Once you supply the network number, you cannot change it. To configure
IPXWAN services, see “Enabling IPXWAN for an Interface” on page 4-12.
To determine the current network number, navigate to the IPXWAN prompt (for
example, box; serial 3/1; ppp; ipxwan 00055555) and enter:
address ?
Using Site Manager
To specify the network number, complete the following tasks:
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Interfaces. The IPX Interfaces window opens.
4. Set the Configured Network Number
parameter. Click on Help or see the
parameter description on page A-2.
5. Click on OK. You return to the Configuration Manager
window.
Configuring IPX Services
4-6 117369-B Rev. 00
Enabling RIP on an Interface
The default for this parameter depends on the WAN protocol you are using.
Using the BCC
To enable RIP on an interface, you must first configure RIP on an IPX interface.
To configure RIP on an IPX interface, navigate to the IPX interface prompt (for
example, box; ethernet 2/1; ipx 00023456) and enter:
rip
If you already configured RIP on an interface, you can change its current state. To
disable RIP on an interface, navigate to the RIP prompt (for example, box;
ethernet 2/1; ipx 00023456; rip 00023456) and enter:
state disabled
To enable RIP, navigate to the RIP prompt (for example, box; ethernet 2/1; ipx
00023456; rip 00023456) and enter:
state enabled
Using Site Manager
To enable RIP on the router, complete these tasks:
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Interfaces. The IPX Interface window opens.
4. Choose RIP. The RIP Circuit window opens.
5. Set the Enable parameter. Click on Help
or see the parameter description on
page A-3.
6. Click on OK. You return to the Configuration Manager
window.
Customizing IPX for WAN Media
117369-B Rev. 00 4-7
Enabling SAP on an Interface
The default for this parameter depends on the WAN protocol you are using.
Using the BCC
To enable SAP on an interface, you must first configure SAP on an IPX interface.
To configure SAP on an IPX interface, navigate to the IPX interface prompt (for
example, box; ethernet 2/1; ipx 00023456) and enter:
sap
If you already configured RIP on an interface, you can change its current state. To
disable RIP on an interface, navigate to the RIP prompt (for example, box;
ethernet 2/1; ipx 00023456; sap 00023456) and enter:
state disabled
To enable RIP, navigate to the RIP prompt (for example, box; ethernet 2/1; ipx
00023456; sap 00023456) and enter:
state enabled
Using Site Manager
To enable SAP on the router, complete these tasks:
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Interfaces. The IPX Interface window opens.
4. Choose SAP. The SAP Circuit window opens.
5. Set the Enable parameter. Click on Help
or see the parameter description on
page A-3.
6. Click on OK. You return to the Configuration Manager
window.
Configuring IPX Services
4-8 117369-B Rev. 00
Identifying a Circuit
The Site Manager automatically assigns a circuit identifier to each circuit that you
create on an IPX router. You can assign a specific circuit identifier, if necessary.
You can assign circuit identifiers only by using Site Manager.
To assign a circuit identifier, complete these tasks:
Entering an IPX Host ID Number for IPX over ATM
On Bay Networks routers, the IPX host ID number maps to a physical data link
layer address (on a specific circuit or physical interface). An IPX logical interface
can listen at this address and capture frames transmitted by nodes compatible with
IPX on the local data link.
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Interfaces. The IPX Interface window opens.
4. Set the Circuit Index parameter. Click on
Help or see the parameter description on
page A-4.
5. Click on OK. You return to the Configuration Manager
window.
Customizing IPX for WAN Media
117369-B Rev. 00 4-9
Figure 4-1 illustrates this concept in a Bay Networks router that has two IPX
logical interfaces, each one configured on a different physical circuit.
Figure 4-1. Frames Received at a Logical Interface
Physical
interface
Logical
interface
Physical
interface
Logical
interface
ATM
circuit Clients
ATM
Local
clients/servers
Router
Ethernet
circuit
Incoming
frames
Incoming
cells
= Destination (Receive) address IPX0021A
IPX server
IPX server
Configuring IPX Services
4-10 117369-B Rev. 00
Figure 4-2 illustrates this concept in a Bay Networks router configured with two
IPX logical interfaces, each one on a different physical circuit type.
Figure 4-2. Frames Issued from a Logical Interface
To establish an IPX connection over an ATM network, you must assign a unique
host ID number to the ATM interface that is running IPX. To assign a number, you
can:
• Enter a value using the Host Number parameter.
• Specify that the global MAC address be used for the host ID by disabling the
Multiple Host Address Enable parameter.
Physical
interface
Logical
interface
Physical
interface
Logical
interface
ATM
circuit
Local
clients/servers
Router
Ethernet
circuit
Outgoing
frames
Outgoing
cells
= Source (Transmit) address
IPX0022A
Clients
ATM
IPX server
IPX server
Customizing IPX for WAN Media
117369-B Rev. 00 4-11
Using the BCC
To establish an IPX connection over an ATM network if you plan to use multiple
host addressing, navigate to the global IPX prompt (for example, box; ipx) and
enter:
host-address
number
number is a valid host address in hexadecimal format.
For example, the following command assigns the host address 0x0987 to the IPX
interface:
ipxwan 00055555# host-address 0x098
If you do not plan to use multiple host addressing and want to use the global MAC
address as the host number, navigate to the global IPX prompt (for example box;
ipx), and enter:
multiple-host enabled
For example:
ipx# multiple-host enabled
Configuring IPX Services
4-12 117369-B Rev. 00
Using Site Manager
To establish an IPX connection over an ATM network, complete these tasks:
Enabling IPXWAN for an Interface
If you want to run the IPXWAN protocol over a WAN, you should enable
IPXWAN on the IPX interface. Enabling IPXWAN provides a common link
negotiation method and a standard means for tick-based routing for WAN media.
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Global. The IPX Edit Global Parameters window
opens.
4. Set the the following parameters:
• Router Host Number
• Multiple Host Address Enable
Click on Help or see the parameter
descriptions on pages A-11 and A-10.
5. Click on OK. You return to the Configuration Manager
window.
Customizing IPX for WAN Media
117369-B Rev. 00 4-13
Using the BCC
To run IPXWAN over a WAN, configure a WAN (for example, box; serial 3/1;
ppp) and enter:
ipxwan address
ipxwan_address
router-name
name
primary-network
address
negotiated-protocol
protocol
ipxwan_address is the address, in hexadecimal notation, of the ipxwan interface.
name is the symbolic name of the router.
address is the address, in hexadecimal notation, of the primary network.
protocol is one of the following:
wan-rip
unnumbered-rip
wan_unnumbered-rips
When you first configure IPXWAN, by default IPXWAN services are enabled. To
change the IPXWAN state, navigate to the ipxwan prompt (for example, box;
serial 3/1; ppp; ipxwan 00055555) and enter:
state disabled
To disable ipxwan, navigate to the ipxwan prompt (for example, box; serial 3/1;
ppp; ipxwan 00055555) and enter enter:
ipxwan denabled
Configuring IPX Services
4-14 117369-B Rev. 00
Using Site Manager
To enable or disable IPXWAN, complete the following tasks:.
Assigning a Primary Network Number
Like Novell routers and servers, a Bay Networks router running the IPXWAN
protocol implements a global “internal network,” to which you must assign a
priimary network number. IPXWAN requires the primary network number to
determine whether the local or the remote router on a WAN link serves as the
master or slave during the IPXWAN negotiations. The router with the higher
primary network number serves as the master.
Using the BCC
You can specify the primary network number only when you configure IPXWAN
services. Once you supply the primary network number, you cannot change it. To
configure IPXWAN services, see “Enabling IPXWAN for an Interface” on page
4-12.
To determine the current primary network number, navigate to the IPXWAN
prompt (for example, box; serial 3/1; ppp; ipxwan 00055555) and enter:
primary-network ?
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Interfaces. The IPX Interfaces window opens.
4. Set the IPXWAN parameter. Click on Help
or see the parameter description on
page A-5.
5. Click on OK. You return to the Configuration Manager
window.
Customizing IPX for WAN Media
117369-B Rev. 00 4-15
Using Site Manager
To specify the primary network number, complete the following tasks:
Entering a Router Name
Every IPX router can have a router name. During IPXWAN negotiations, the local
and remote routers provide each other with their respective router names. Once the
link is established, the name lets a router know whom it is connected to. Router
names are particularly helpful for network management purposes. A symbolic
name, such as “printserv,” has more meaning than just a string of digits.
The router name can be up to 47 characters long and can contain the characters A
through Z, a through z, 0 through 9, and the special characters underscore (_),
hyphen (-), slash (/), and at (@) signs. Some valid names include:
• AAaabbBBxxXXXS/1234
• myrouter@first_floor
• Chicago_office
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Enable IPXWAN. The IPXWAN Configuration window
opens.
4. Set the Primary Network Number
parameter. Click on Help or see the
parameter description on page A-8.
5. Click on OK. You return to the Configuration Manager
window.
Configuring IPX Services
4-16 117369-B Rev. 00
Using the BCC
You can assign a router name to the remote route only when you configure
IPXWAN services. Once you supply the router name, you cannot change it. To
configure IPXWAN services, see “Enabling IPXWAN for an Interface” on page
4-12.
To determine the current network number, navigate to the IPXWAN prompt (for
example, box; serial 3/1; ppp; ipxwan 00055555) and enter:
router-name ?
Using Site Manager
To specify the router name, complete the following tasks:
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Enable IPXWAN. The IPXWAN Configuration window
opens.
4. Set the Router Name parameter. Click on
Help or see the parameter description on
page A-7.
5. Click on OK. You return to the Configuration Manager
window.
Customizing IPX for WAN Media
117369-B Rev. 00 4-17
Indicating the Protocol Negotiated for an Interface
When you specify an IPXWAN interface on a circuit, you must indicate the
protocol negotiated for this interface.
Using the BCC
You can determine the negotiated protocol only when you configure IPXWAN
services. Once you supply the negotiated protocol, you cannot change it. To
configure IPXWAN services, see “Enabling IPXWAN for an Interface” on page
4-12.
To determine the current network number, navigate to the IPXWAN prompt (for
example, box; serial 3/1; ppp; ipxwan 00055555) and enter:
negotiated-protocol ?
Using Site Manager
To specify the negotiated protocol, complete the following tasks:
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Interfaces. The IPX Interfaces window opens.
4. Set the Negotiated Protocol parameter.
Click on Help or see the parameter
description on page A-6.
5. Click on OK. You return to the Configuration Manager
window.
Configuring IPX Services
4-18 117369-B Rev. 00
Sample IPXCP and IPXWAN Configurations
Figure 4-3 shows a local router communicating with a remote router using IPXCP
over PPP, and the same local router communicating with a remote router using
IPXWAN over Frame Relay.
Figure 4-3. IPXCP and IPXWAN Configurations
Network number = 0x00000019
Network number = 00000003
Frame Relay
Local router
PNN = 00000012
CNN = 00000019 IPXWAN
primary
IPXWAN
secondary
IPXCP
interface IPXCP
interface
Remote router 1
Remote router 2
PNN = 00000007
CNN = 00000020
IPX0002A
Customizing IPX for WAN Media
117369-B Rev. 00 4-19
IPXCP Link Negotiation
In Figure 4-3, the local router and remote router 1, both configured for IPXCP,
negotiate a connection at the data link layer. Once the options are successfully
negotiated, the IPXCP interfaces in both the local router and remote router 1 must
agree on a unique network number. When you initially configure an IPXCP
interface, you assign an IPX network number to that interface. The routers select
the higher of the two IPX network numbers. See Configuring PPP Services for
instructions on configuring the IPX network number for an IPXCP interface.
IPXWAN Link Negotiation
The local router and remote router 2 are both configured for IPXWAN. When you
initially configure an IPXWAN interface, you assign a primary network number
(PNN) to the router. The router with the highest PNN becomes the master during
IPXWAN negotiations on that WAN link.
In Figure 4-3, the local router (PNN=00000012) is the master, and remote router 2
(PNN=00000007) is the slave. During the IPXWAN negotiations, both routers
negotiate their link options. If successful, the CNN configured for the interface on
the master becomes the IPX network number for the WAN link.
Once the IPXWAN negotiations are successful on the WAN link, each router
connected on the link can advertise information in its routing/forwarding tables.
Note: For PPP communication between a Bay Networks Version 7, 8, 9, 10, or
11 IPX router and a Bay Networks Version 5 IPX router (or any other vendor’s
router that does not support IPXCP negotiations), you must manually
configure the network number of the IPX interface on both routers.
Configuring IPX Services
4-20 117369-B Rev. 00
IPXWAN and IPXCP Link Configurations
Table 4-1 shows the various WAN protocol configurations likely to exist within
local and remote IPX router interfaces. Find the configuration that applies to your
situation and read the corresponding description.
Configuration 1 (IPXWAN with IPXCP on Both Interfaces)
In this configuration, IPXWAN defers to IPXCP for link negotiation:
• IPXWAN negotiation supersedes IPXCP negotiation, regardless of whether
IPXCP negotiation succeeds.
• If IPXWAN negotiates successfully, the IPX interface becomes active. If
IPXWAN negotiation fails, the IPX interface cannot become active.
Table 4-1. Configuration Table for IPX over WAN Media
Local IPX
Interface
Remote IPX Interface
IPXWAN with
IPXCP IPXWAN but
not IPXCP
PPP with
IPXCP; no
IPXWAN
PPP without
IPXCP; no
IPXWAN
IPXWAN with
IPXCP Configuration 1 Configuration 2 Configuration 3 Configuration 4*
IPXWAN but
not IPXCP Configuration 2 Configuration 2 Configuration 4 Configuration 4
PPP with
IPXCP; no
IPXWAN
Configuration 3 Configuration 4 Configuration 3 Configuration 4
PPP without
IPXCP; no
IPXWAN
Configuration 4*Configuration 4 Configuration 4 Configuration 4
* Bay Networks 11.00 to Bay Networks Series 5.
x
IPX Router Compatibility
Customizing IPX for WAN Media
117369-B Rev. 00 4-21
Configuration Guidelines -- Configuration 1
• IPXCP -- Use the value zero for the IPX network number when configuring
the local and remote Point-to-Point Protocol interface.
• IPXWAN -- Use a unique router name and Primary Network Number in the
IPX Global Parameters window when configuring the local routers.
You must enable IPXWAN on the interface. To enable IPXWAN, see “Enabling
IPXWAN for an Interface” on page 4-12.
Configuration 2 (IPXWAN on Both Interfaces)
In this configuration, IPXWAN exclusively negotiates an IPX network number for
the link. If IPXWAN negotiates successfully, the IPX interface becomes active. If
IPXWAN negotiation fails, the IPX interface cannot become active.
Configuration Guidelines -- Configuration 2
• IPXCP -- No configuration requirements.
• IPXWAN -- Use a unique router name and PNN in the IPX Global Parameters
window when configuring the local and remote routers.
You must enable IPXWAN on the interface.
To enable IPXWAN, see “Enabling IPXWAN for an Interface” on page 4-12.
You must also enter a unique common network number for the IPX interface you
just configured, except that the common network number can be zero when
Unnumbered RIP is configured on both interfaces.
Configuring IPX Services
4-22 117369-B Rev. 00
Configuration 3 (Only IPXCP on Both Interfaces)
In this configuration, IPXCP exclusively negotiates an IPX network number for
the link:
• If IPXCP successfully negotiates the number, the IPX interface becomes
active on the link.
• If IPXCP fails to negotiate a number, the IPX interface cannot become active.
Configuration Guidelines -- Configuration 3
• IPXCP -- Use any valid value for the IPX network number when configuring
the local or remote PPP interface.
• IPXWAN -- No configuration requirements.
Configuration 4
In this configuration, the lower layer has no means of negotiating an IPX network
number for the link. For this reason, you must manually configure the network
number of the local and remote IPX interfaces to the same value.
Customizing IPX
After selecting a circuit and configuring the associated WAN parameters, your
circuit will be operational. The default values set by the Site Manager for the
remaining parameters will apply to most environments. However, if you want to
configure a circuit in a particular way, refer to Chapter 5.
117369-B Rev. 00 5-1
Chapter 5
Customizing IPX
In most cases, after you add a circuit and supply the basic LAN or WAN settings
as shown in chapters 3 and 4, you can leave the remaining settings with the default
values and begin sending packets over the network.
You can customize IPX to fit your environment, using the information in the
following sections:
Topic Page
To determine the default set of IPX values that a circuit inherits from the global
IPX process. 5-2
To customize an IPX interface. 5-22
To learn about handling packets associated with upper-layer protocols. 5-35
To learn about and customize the routing information protocol (RIP). 5-36
To learn about and customize SAP. 5-61
To use static services. 5-77
To customize NetBIOS static routing. 5-90
To configure an adjacent host. 5-102
To learn about dial services. 5-111
To learn about and configure dial optimized routing. 5-116
To configure a static route. 5-124
To apply route filters. 5-131
To apply SAP filters. 5-133
To reduce network traffic by configuring service name filters. 5-147
To provide IPX ping support. 5-163
To delete IPX. 5-167
Configuring IPX Services
5-2 117369-B Rev. 00
Customizing IPX Global Operation
Any IPX interface you add to a physical circuit inherits a default IPX
configuration from the global/slotwide IPX process. Use the information in the
following sections to customize the default settings that affect all IPX interfaces.
Setting the Maximum Number of Paths
You can set the maximum number of paths allowed for a given network
destination and routing method from 1 to 1,023 paths. Multiple paths to a given
destination use more memory than single paths, but give you redundancy.
Specifying multiple paths allows you to do load balancing (see “Specifying the
Number of Maximum Path Splits” later in this chapter). Bay Networks
recommends that you set the maximum number of paths to the highest number of
paths that exist from the router to any destination network, regardless of the cost.
Using the BCC
To set the maximum number of paths, navigate to the global IPX prompt (for
example, box; ipx) and enter:
maximum-path
integer
integer is the an integer from 1 to 1,023.
For example, the following command sets the maximum path to 4:
ipx# maximum-path 4
Customizing IPX
117369-B Rev. 00 5-3
Using Site Manager
To set the maximum number of paths, complete these tasks:
Filtering Log Messages
You can filter specified types of log messages. For example, the default setting
(Trace) filters out trace messages. The types of log messages that you can filter
include:
•None
•Debug
•Info
•Trace
• Debug Info
• Debug Trace
• Info Trace
• Debug Info Trace
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Global. The Edit IPX Global Parameters window
opens.
4. Click on Advanced. The Edit IPX Advanced Global
Parameters window opens.
5. Set the Maximum Path (hex) parameter.
Click on Help or see the parameter
description on page A-15.
6. Click on OK. You return to the Configuration Manager
window.
Configuring IPX Services
5-4 117369-B Rev. 00
Do not change the default value of this parameter unless you are an expert IPX
user. Changing the value of this parameter produces significant boxwide effects
on memory allocation within the router, and these changes can significantly affect
router performance.
If you are qualified as an expert user, enter a filtering mode that yields a level of
performance most appropriate for network applications supported by this router.
Using the BCC
To filter specified types of log messages, navigate to the global IPX prompt (for
example, box; ipx) and enter:
log-filter
option
option is one of the following:
debug
info
trace
debug-info
debug-trace
info-trace
For example, the following command causes IPX to filter Info messages:
ipx# log-filter info
Customizing IPX
117369-B Rev. 00 5-5
Using Site Manager
To specify the filtering mode, complete the following tasks:
Specifying the Maximum Number of Equal Cost Paths
You can specify the maximum number of equal-cost paths over which IPX will do
load balancing to a particular destination. For example, if the maximum path splits
is non-zero, and there are five equal-cost routes to a destination, IPX will
distribute the packets over the five paths in a round-robin fashion.
Using the BCC
To set the maximum number of equal-cost paths, navigate to the global IPX
prompt (for example, box; ipx) and enter:
maximum-path
integer
integer is the number of equal-cost paths.
For example, the following command sets the maximum number of equal-cost
paths to 10:
ipx# maximum-path 10
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Global. The Edit IPX Global Parameters window
opens.
4. Click on Advanced. The Edit IPX Advanced Global
Parameters window opens.
5. Set the Log Filter parameter. Click on
Help or see the parameter description on
page A-15.
6. Click on OK. You return to the Configuration Manager
window.
Configuring IPX Services
5-6 117369-B Rev. 00
Using Site Manager
To specify whether the router will do load balancing to a particular destination,
complete the following tasks:
Specifying the Maximum Number of Destinations
You can specify the maximum number of destinations (networks) for the router to
learn. IPX uses this value to preallocate table sizes for forwarding and network
tables. If you use the default value, zero, IPX dynamically allocates the amount of
memory it needs for the tables.
Do not change the default unless you are an expert IPX user (for example, a Bay
Networks Technical Solutions Center engineer). Changing the value can
significantly affect router performance by affecting the memory usage by IPX and
the learning time of the router. If you are qualified as an expert user, enter a value
from 0 to 5000 destinations that yields a level of performance most appropriate for
network applications supported by this router.
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Global. The Edit IPX Global Parameters window
opens.
4. Click on Advanced. The Edit IPX Advanced Global
Parameters window opens.
5. Set the Maximum Path parameter. Click
on Help or see the parameter description
on page A-15.
6. Click on OK. You return to the Configuration Manager
window.
Customizing IPX
117369-B Rev. 00 5-7
Using the BCC
To set the maximum number of destinations, navigate to the global IPX prompt
(for example, box; ipx) and enter:
destination-count
integer
integer is the number of destinations.
For example, the following command sets the maximum number of destinations
to 15:
ipx# destination-count 15
Using Site Manage
To specify the maximum number of destinations for the router to learn, complete
the following tasks:
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Global. The Edit IPX Global Parameters window
opens.
4. Click on Advanced. The Edit IPX Advanced Global
Parameters window opens.
5. Set the Destination Count parameter.
Click on Help or see the parameter
description on page A-17.
6. Click on OK. You return to the Configuration Manager
window.
Configuring IPX Services
5-8 117369-B Rev. 00
Entering the Maximum Number of Services
You can specify the maximum number of services for the router to learn. IPX uses
this value to preallocate table sizes for service tables. If you use the default value,
zero, IPX automatically allocates the amount of memory it needs for the tables.
Do not change the default unless you are an expert IPX user (for example, a Bay
Networks Technical Solutions Center engineer). Changing the value can
significantly affect router performance by affecting the memory usage by IPX and
the learning time of the router. If you are qualified as an expert user, enter a value
from 1 to 5000 services that yields a level of performance most appropriate for
network applications supported by this router.
Using the BCC
To set the maximum number of services for the router to learn, navigate to the
global IPX prompt (for example, box; ipx) and enter:
service-count
integer
integer is the number of equal-cost paths.
For example, the following command sets the maximum number of services to 6:
ipx# service-count 6
Customizing IPX
117369-B Rev. 00 5-9
Using Site Manager
To specify the maximum number of services for the router to learn, complete the
following tasks:
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Global. The Edit IPX Global Parameters window
opens.
4. Click on Advanced. The Edit IPX Advanced Global
Parameters window opens.
5. Set the Service Count parameter. Click
on Help or see the parameter description
on page A-17.
6. Click on OK. You return to the Configuration Manager
window.
Configuring IPX Services
5-10 117369-B Rev. 00
Specifying the Granularity for Aging RIP and SAP Information
You can specify the granularity, in seconds, for aging RIP and SAP information.
IPX checks whether any routes have timed out every n seconds, where n is the
interval that this parameter specifies. By default, IPX checks for timed out routes
every 10 seconds. You can change this setting to a value from 1 to the maximum
positive integer (seconds).
Using the BCC
To set the granularity for aging RIP and SAP information, navigate to the global
IPX prompt (for example, box; ipx) and enter:
aging-frequency
integer
integer is the number of seconds from 1 to the maximum positive integer.
For example, the following command sets the granularity for aging RIP and SAP
information to 20:
ipx# aging-frequency 20
Note: Do not change the default value of this parameter unless you are an
expert IPX user (for example, a Bay Networks Technical Solutions Center
engineer). Changing the value of this parameter can significantly affect router
performance. If you are qualified as an expert user, enter a value that yields a
level of performance most appropriate for network applications supported by
this router.
Customizing IPX
117369-B Rev. 00 5-11
Using Site Manager
To specify the granularity for aging RIP and SAP information, complete the
following tasks:
Specifying the Aging Pending Frequency
You can specify the number of routes and services to age (process) before
pending. A higher number lets the aging process proceed more quickly.
Do not change the default value of 100 unless you are an expert IPX user (for
example, a Bay Networks Technical Solutions Center engineer). Changing the
value can significantly affect router performance. If you are qualified as an expert
user, enter a value (between 1 and the maximum number of routers and services)
that yields a level of performance most appropriate for network applications
supported by this router.
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Global. The Edit IPX Global Parameters window
opens.
4. Click on Advanced. The Edit IPX Advanced Global
Parameters window opens.
5. Set the Aging Frequency parameter.
Click on Help or see the parameter
description on page A-18.
6. Click on OK. You return to the Configuration Manager
window.
Configuring IPX Services
5-12 117369-B Rev. 00
Using the BCC
To set the number of routes and services to age before pending, navigate to the
global IPX prompt (for example, box; ipx) and enter:
pend-frequency
integer
integer is the number of routes and services from 1 to the maximum number of
routes and services.
For example, the following command sets the number of routes and services to
age to 100:
ipx# pend-frequency 20
Using Site Manage
To specify the number of routes and services to age before pending, complete the
following tasks:
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Global. The IPX Global Parameters window
opens.
4. Click on Advanced. The IPX Advanced Global Parameters
window opens.
5. Set the Aging Pending Frequency
parameter. Click on Help or see the
parameter description on page A-19.
6. Click on OK. You return to the Configuration Manager
window.
Customizing IPX
117369-B Rev. 00 5-13
Enabling IPX Default Routing
You can globally enable or disable the use of the default route 0xFFFFFFFE for
IPX routing.
Enabling default routing directs the router to use the default route (if one exists in
its routing table) when it receives an IPX packet that does not contain a known
IPX destination address within the IPX protocol header.
Disabling default routing forces the router to drop a packet whose destination
address is unknown, even if a default route exists.
Using the BCC
To enable the use of the default route, navigate to the global IPX prompt (for
example, box; ipx) and enter:
default-route enabled
To disable the use of the default route, navigate to the global IPX prompt (for
example, box; ipx) and enter:
default-route disabled
Configuring IPX Services
5-14 117369-B Rev. 00
Using Site Manager
To globally enable or disable the use of the default route for IPX routing,
complete the following tasks:
Multipath Routing and Load sharing
You can include multiple next-hop destinations as active routes to a destination
network. The IPX router can find out about multiple paths by either RIP packets
or statically configured routes.
The router can forward packets to the multiple next-hop nodes concurrently by
multiplexing frame transmissions over the multiple equal-cost paths in a cyclic
sequence. This is referred to as IPX multipath or IPX load sharing.
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Global. The IPX Global Parameters window
opens.
4. Click on Advanced. The IPX Advanced Global Parameters
window opens.
5. Set the Default Route parameter. Click on
Help or see the parameter description on
page A-19.
6. Click on OK. You return to the Configuration Manager
window.
Customizing IPX
117369-B Rev. 00 5-15
Multipath Routing
Multipath is a “round-robin” or cyclic multiplexing mechanism. When multiple
least-cost paths of equal tick delay and hop count exist between IPX source and
destination networks, standard RIP operation uses only one of these routes. The
multipath feature takes advantage of these multiple equal-cost routes and
distributes the packet load among them, balancing the IPX traffic across these
routes and maximizing internetwork performance. When you enable multipath
routing, the IPX router diverts individual, consecutive frames destined for the
same target network to separate IPX interfaces and their associated physical
circuits (Figure 5-1).
Figure 5-1. IPX Multipath
IPX
circuit
IPX
circuit
IPX
circui t
A
B
C
A
B
C
Router
Next hop
Outgoing
sequential frames
C B A
IPX0005A
Configuring IPX Services
5-16 117369-B Rev. 00
Because the IPX interfaces have duplex functionality, the router can also use
multipath to collect frames received from separate IPX interfaces. The router
operates this cyclic mechanism at a bandwidth significantly greater than a single
IPX interface and its supporting physical circuit can support. The result is that
IPX frames flow over multiple parallel LAN or WAN routes concurrently, in
effect, aggregating the bandwidth supported by the parallel routes. Each line
shares 1/nth of the total load (where n is the number of equal-cost parallel routes or
paths to the destination network).
By default, the maximum number of paths is set to 1. When you specify the
maximum number of paths, set the value to the highest number of paths, in the
range of 1 to 1,023, that exist from the router to any destination network,
regardless of cost. Any setting greater than 1 engages the multipath mechanism.
Figure 5-2 is an example of equal, least-cost, parallel routes used in IPX multipath
routing.
Figure 5-2. IPX Multipath Routing -- Equal Least-Cost Routes
Network A R1 R3
R2
R4
R5
IPX server
Network B
Tick Delay = 5 Tick Delay = 5
Tick Delay = 5 Tick Delay = 5
Tick Delay = 5 Tick Delay = 5
ES1
IPX0006A
Customizing IPX
117369-B Rev. 00 5-17
Because of the round-robin algorithm, IPX packets that belong to the same data
stream may require resequencing at their ultimate destination. Therefore,
higher-layer protocols such as SPX must be used in both source and destination
IPX routers to provide packet resequencing. To derive maximum benefit from this
feature, the source and destination nodes should support burst-mode operation.
Load Redistribution and Rerouting
If the router with multipath enabled detects a failure, it temporarily redistributes
the IPX traffic among the remaining active original least-cost routes. When the
router learns (through RIP packets) of the existence of an alternative least-cost
route, or when the failed route returns, IPX multipath returns to its original IPX
traffic distribution.
Multipath Route Precedence/Priority
The multipath mechanism generally uses the best path first. However, when two
equal-cost paths exist, multipath uses the following priority scheme for route
selection:
1. Direct routes (paths to other routers on a segment directly attached to the local
router)
2. Routes learned via RIP
3. Statically configured routes
Multipath Configurations
You can establish equal-cost multipath routes over LAN or WAN segments to
support IPX traffic between routers, and between routers and servers. The slower
the interconnecting LAN or WAN links, the more difference using multipath will
make in client/server throughput.
Multiline Circuits
The multiline circuits feature allows a single circuit to be composed of up to 16
individual synchronous network data paths. Multiline circuits support provides a
level of redundancy not available through conventional single-line circuit
configurations. The multiline circuits feature ensures routing circuit availability in
the event of a single data path failure.
Configuring IPX Services
5-18 117369-B Rev. 00
Equally important, the multiline circuits feature provides increased bandwidth
between two sites without the circuit management complexities associated with
multiple circuits. Once you have configured and enabled the circuit, the use of
multiple data paths to form a single circuit is transparent to both network
management and the end-user community.
Multiline circuits provide the following methods for transmitting traffic over their
data paths:
• Address-based data path selection
• Random data path selection
Address-based data path selection determines the path a packet traverses based on
its source and destination addresses. Once a path has been established for a given
address pair, subsequent packets will follow the same path. This ensures that
packets will be received in the order in which they were sent. This is essential for
protocols that cannot tolerate receiving packets out of order.
Random data path selection determines the path a packet traverses based on a
randomly assigned number that corresponds to a particular data path of the
multiline circuit. This algorithm avoids congestion by providing even distribution
across multiple data paths. Unlike address-based selection, random data path
selection does not guarantee the sequence of packets as they are received at their
destination. Consequently, random data path selection is intended for use with
protocols whose upper layers provide resequencing techniques.
The differences between multiline circuits and IPX multipath are the following:
• Multiline circuits operate across point-to-point links between two Bay
Networks routers, while IPX multipath operates across a random topology
(both LAN and WAN).
• Multiline is protocol-independent, while IPX multipath is IPX-based.
Note: For Bay Networks software Version 7.60 and later, support of multiline
circuits is compatible with the Version 5.x “Circuit Groups” feature, except
that Version 7.60 and later software does not support LAN media multiline
circuits grouping. Multiline circuits can be configured using only synchronous
interfaces data paths, including HSSI. All data paths must incorporate the
same encapsulation method, maximum transmission unit (MTU), and effective
bandwidth.
Customizing IPX
117369-B Rev. 00 5-19
• Multiline circuits require WAN links of equal bandwidth on which to
distribute IPX traffic, while IPX multipath supports links of varying speeds.
• Multiline circuits do not support the adoption of alternative links when WAN
links fail.
Using the BCC
To specify the maximum number of paths allowed for a given network destination
and routing method, navigate to the global IPX prompt (for example, box; ipx)
and enter:
maximum-path
integer
integer is the number, between 1 and 1023, of paths.
For example, the following command sets the number of paths to age to 999:
ipx# maximum-path 999
Using Site Manager
To specify the maximum number of paths allowed for a given network destination
and routing method, complete the following tasks:
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Global. The IPX Global Parameters window
opens.
4. Click on Advanced. The IPX Advanced Global Parameters
window opens.
5. Set the Maximum Path parameter. Click
on Help or see the parameter description
on page A-15.
6. Click on OK. You return to the Configuration Manager
window.
Configuring IPX Services
5-20 117369-B Rev. 00
Selecting the GNS Response Mode
You can specify which server the router will choose when responding to a
get_nearest_server request. By default, when a server responds to a
get_nearest_server request, the router sorts through all server names
alphabetically. You can either accept the default method or specify that the router
select the last server learned.
Using the BCC
To specify which server the router will choose when responding to a
get_nearest_server request, navigate to the global IPX prompt (for example, box;
ipx) and enter:
gns-response
option
option is one of the following:
alphabetical
lastlearned
For example, the following command specifies that the router responds to a
get_nearest_server request by selecting the last server learned:
ipx# gns-response lastlearned
Customizing IPX
117369-B Rev. 00 5-21
Using Site Manager
To specify which server the router will choose when responding to a
get_nearest_server request, complete the following tasks:
Specifying the Table Fill Notify Value
The table fill notify value causes the IPX router to notify you when the IPX
network table is filled. To specify the table fill notify value, navigate to the global
IPX prompt (for example; box; ipx) and enter:
table-fill-notify
integer
integer is any valid integer.
For example, to set the table fill notify value to 500, enter:
ipx# table-fill-notify 500
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Global. The Edit IPX Global Parameters window
opens.
4. Click on Advanced. The Edit IPX Advanced Global
Parameters window opens.
5. Set the GNS Response Mode parameter.
Click on Help or see the parameter
description on page A-21.
6. Click on OK. You return to the Configuration Manager
window.
Configuring IPX Services
5-22 117369-B Rev. 00
Specifying the Size of the Network Table
To specify the size of the network table, navigate to the global IPX prompt (for
example; box; ipx) and enter:
network-table-size
integer
integer is any valid integer.
For example, to set the size of the network table to 300, enter:
ipx# network-table-size 300
Specifying the MIB Reply Slot
To specify the slot where IPX sends MIB replies, navigate to the global IPX
prompt (for example; box; ipx) and enter:
mib-reply-slot
slot_no
slot_no is any valid integer.
For example, to set the MIB reply slot to slot 4, enter:
ipx# mib-reply-slot 4
Customizing an IPX Interface
Any IPX interface you add to a physical circuit inherits a default set of IPX values
from the global/slotwide IPX process. These interface values determine how IPX
behaves on individual router interfaces. You can customize the parameters that
belong to a specific interface by modifying the values of the IPX interface
settings.
Customizing IPX
117369-B Rev. 00 5-23
Enabling IPX Routing on an Interface
After you add an interface to a circuit, you can enable or disable IPX routing on
this interface. By default, IPX is enabled on an interface.
Enabling IPX on an interface initializes the IPX interface you added to a circuit or
reinitialize an existing disabled IPX interface. The actual operating state of an
interface, once enabled, depends on:
• The current state of the associated circuit
• The current state of the IPX global/slotwide protocol process
Disabling an IPX interfaces forces an IPX interface into the down (inoperative)
state.
Using the BCC
To enable IPX routing on an interface, navigate to the IPX interface prompt (for
example, box; ethernet 2/1; ipx 00023456) and enter:
ipx enabled
To disable IPX routing on an interface, navigate to the IPX interface prompt (for
example, box; ethernet 2/1; ipx 00023456) and enter:
ipx disabled
Configuring IPX Services
5-24 117369-B Rev. 00
Using Site Manager
To enable IPX routing on an interface, complete the following tasks:
Entering a Symbolic Name for an Interface
You can specify a symbolic name for an interface on a server. For example,
first_floor_printer.
See the documentation that came with your NetWare operating system for
guidelines on specifying a host, interface, router, or server name. It is a good idea
to make the name meaningful to users as well as to routers.
Using the BCC
To specify a symbolic name for an IPX interface on a server, navigate to the IPX
interface prompt (for example, box; ethernet 2/1; ipx 00023456) and enter:
circuit-name
name
name is any meaningful name for an IPX interface.
For example, the following command provides the name first_floor_printer to an
IPX interface:
ipx/00023456# circuit-name first_floor_printer
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Interfaces. The IPX Interfaces window opens.
4. Set the Enable parameter. Click on Help
or see the parameter description on
page A-23.
5. Click on OK. You return to the Configuration Manager
window.
Customizing IPX
117369-B Rev. 00 5-25
Using Site Manager
To specify a symbolic name for an IPX interface on a server, complete the
following tasks:
Assigning a Host Number to an Interface
You can assign a host number to an IPX interface after you enable multiple host
addressing.
If you enable multiple host addressing and want to accept the PROM-based
default setting for the MAC address, this IPX interface adopts a host number
based on the MAC address of the underlying circuit. In this case, a PROM on the
circuit supplies the number for the MAC address of the circuit and the host
number of the interface.
You can enter a host number for this interface when:
• Multiple host addressing is enabled.
• You do not want to accept the PROM-based (default) setting for the MAC
address.
• The circuit type supports only selective mode of operation (such as with
Ethernet circuits).
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Interfaces. The IPX Interfaces window opens.
4. Set the Name parameter. Click on Help or
see the parameter description on
page A-23.
5. Click on OK. You return to the Configuration Manager
window.
Configuring IPX Services
5-26 117369-B Rev. 00
If you enter a host number, the circuit adopts that value as the MAC address at
which this interface can receive frames. (The MAC address configured at the
circuit/line level remains effective for all other interfaces configured on the same
circuit.)
Using the BCC
To assign a host number to an IPX interface, navigate to the IPX interface prompt
(for example, box; ethernet 2/1; ipx 00023456) and enter:
host-address
number
number is a valid host address in hexadecimal format.
For example, the following command assigns the host address 0x0987 to the IPX
interface:
ipx/00023456# host-address 0x0987
Using Site Manager
To assign a host number to an IPX interface, complete the following tasks:
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Interfaces. The IPX Interfaces window opens.
4. Set the Host Number parameter. Click on
Help or see the parameter description on
page A-25.
5. Click on OK. You return to the Configuration Manager
window.
Customizing IPX
117369-B Rev. 00 5-27
Enabling Source Routing for an Interface on a Token Ring Circuit
You can enable or disable source routing for an interface on a Token Ring circuit.
By default, source routing is disabled on a Token Ring circuit.
Enable source routing if this interface connects to a bridged token ring network.
Disable source routing if you do not want to use source routing over this interface.
Using the BCC
To enable source routing for an IPX interface on a token ring circuit, navigate to
the IPX interface prompt (for example, box; ethernet 2/1; ipx 00023456) and
enter:
end-station enabled
To disable source routing for an IPX interface on a token ring circuit, navigate to
the IPX interface prompt (for example, box; ethernet 2/1; ipx 00023456) and
enter:
end-station disabled
For example, the following command enables source routing on IPX interface
00023456:
ipx/00023456# end-station enabled
Configuring IPX Services
5-28 117369-B Rev. 00
Using Site Manager
To enable or disable source routing for an IPX interface on a token ring circuit,
complete the following tasks:
Entering a Broadcast Address
You can enter a WAN broadcast address for an IPX interface. The default value
(0xFFFFFFFFFFFF) causes the data link layer to issue a WAN broadcast packet
on all active virtual circuits. The value is not actually included in the MAC field
of the packet on the WAN. The packet instead contains a value that is appropriate
for the type of data link protocol.
You accept the default value, or enter a WAN broadcast address to send all
broadcast traffic through the IPX interface you are configuring. With the default
value, the IPX router sends all broadcast traffic through all logical connections
associated with the IPX interface you are configuring. Broadcast traffic includes
RIP and SAP broadcasts.
Note that Site Manager does not display the default value 0xFFFFFFFFFFFF.
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Interfaces. The IPX Interfaces window opens.
4. Set the TR End Station parameter. Click
on Help or see the parameter description
on page A-26.
5. Click on OK. You return to the Configuration Manager
window.
Customizing IPX
117369-B Rev. 00 5-29
Using the BCC
To enter a WAN broadcast address, navigate to the IPX interface prompt (for
example, box; ethernet 2/1; ipx 00023456) and enter:
broadcast-address
address
address is a valid WAN broadcast address in hexadecimal format.
For example, to assign the WAN broadcast address 0x01203406, enter:
ipx/00023456# broadcast-address 0x01203406
Using Site Manage
To enter a WAN broadcast address, complete the following tasks:
Entering a Multicast Address
You can enter a WAN multicast address for an IPX interface. The default value
(0xFFFFFFFFFFFF) causes the data link layer to issue a multicast packet on all
active virtual circuits. The value is not actually included in the MAC field of the
packet on the WAN. The packet instead contains a value that is appropriate for the
type of data link protocol.
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Interfaces. The IPX Interfaces window opens.
4. Set the FR Broadcast (hex) parameter.
Click on Help or see the parameter
description on page A-28.
5. Click on OK. You return to the Configuration Manager
window.
Configuring IPX Services
5-30 117369-B Rev. 00
You can accept the default value, or enter a WAN multicast address to send all
multicast traffic through the IPX interface you are configuring. With the default
value, the IPX router sends all multicast traffic through all logical connections
associated with the IPX interface you are configuring.
Note that Site Manager does not display the default value 0xFFFFFFFFFFFF.
Using the BCC
To enter a WAN multicast address, navigate to the IPX interface prompt (for
example, box; ethernet 2/1; ipx 00023456) and enter:
multicast-address
address
address is a valid WAN multicast address in hexadecimal format.
For example, to assign the WAN multicast address 0x01203405, enter:
ipx/00023456# multicast-address 0x01203405
Using Site Manager
To specify the WAN multicast address, complete the following tasks:
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Interfaces. The IPX Interfaces window opens.
4. Set the FR Multicast (hex) parameter.
Click on Help or see the parameter
description on page A-28.
5. Click on OK. You return to the Configuration Manager
window.
Customizing IPX
117369-B Rev. 00 5-31
Responding to IPX Watchdog Packets
You can enable or disable a router from responding locally to broadcast IPX
watchdog packets on behalf of clients that use dial-in connections. You should
enable local watchdog packet acknowledgment to reduce WAN costs by using
dial-on-demand routing. SPX Keep Alive Spoofing is enabled when Watchdog
Spoofing is enabled.
By default, IPX watchdog spoofing is disabled. Enabling local watchdog packet
acknowledgment can improve the efficiency of IPX wide area links.
Using the BCC
To enable a router from responding locally to watchdog packets, navigate to the
IPXWAN prompt (for example, box; serial 3/1; ppp; ipxwan 00055555#) and
enter:
watchdog-spoofing enabled
To disable a router from responding locally to watchdog packets, navigate to the
IPXWAN prompt (for example, box; serial 3/1; ppp; ipxwan 00055555#) and
enter:
watchdog-spoofing disabled
For example, to disable IPX watchdog spoofing, enter:
ipx/00023456# watchdog-spoofing disabled
Configuring IPX Services
5-32 117369-B Rev. 00
Using Site Manager
To enable or disable a router from responding locally to watchdog packets,
complete the following tasks:.
Setting the Delay Time
You can specify the length of time, from 0 through 2147483647 microseconds,
required to transmit 1 byte of data (excluding protocol headers) to a destination on
the other end of this IPX circuit, if the circuit is free of other traffic.
Using the BCC
To specify the amount of time to transmit 1 byte of data, navigate to the IPX
interface prompt (for example, box; ethernet 2/1; ipx 00023456) and enter:
delay
microseconds
microseconds is a value from 0 to 2147483647 microseconds.
For example, to specify that the router should take 10,000 microseconds to
transmit 1 byte of date, enter:
ipx/00023456# delay 10000
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Interfaces. The IPX Interfaces window opens.
4. Set the IPX Watchdog Spoofing
parameter. Click on Help or see the
parameter description on page A-29.
5. Click on OK. You return to the Configuration Manager
window.
Customizing IPX
117369-B Rev. 00 5-33
Using Site Manager
To specify the amount of time to transmit 1 byte of data, complete the following
tasks:
Specifying Throughput
You can specify the amount of data, from 0 to 2147483647 bits per second, that
can flow through an IPX circuit if the circuit is free of other traffic.
Using the BCC
To specify the data throughput, navigate to the IPX interface prompt (for example,
box; ethernet 2/1; ipx 00023456) and enter:
throughput
bits_per_second
bits_per_second is from 0 to 2147483647 bits per second.
For example, to specify the data throughput as 1,000,000 bits per second, enter:
ipx/00023456# throughput 1000000
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Interfaces. The IPX Interfaces window opens.
4. Set the Delay parameter. Click on Help or
see the parameter description on
page A-29.
5. Click on OK. You return to the Configuration Manager
window.
Configuring IPX Services
5-34 117369-B Rev. 00
Using Site Manager
To specify the data throughput, complete the following tasks:
Setting the Stabilization Timer Delay
You can set the amount of time, from 0 to 2147483647 seconds, that RIP/SAP
waits before sending out initial route information when the circuit first becomes
active. The more routes that you expect a router to handle or the more dynamic the
network is, the higher you should set this value to allow the router enough time to
assimilate incoming routes before it sends out an initial update on a circuit.
Using the BCC
To specify the RIP/SAP delay period, navigate to the IPX interface prompt (for
example, box; ethernet 2/1; ipx 00023456) and enter:
stabilization-timer
seconds
seconds is from 0 to 2147483647 seconds.
For example, to specify the RIP/SAP delay period as 100,000 seconds, enter:
ipx/00023456# stabilization-timer 100000
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Interfaces. The IPX Interfaces window opens.
4. Set the Throughput parameter. Click on
Help or see the parameter description on
page A-30.
5. Click on OK. You return to the Configuration Manager
window.
Customizing IPX
117369-B Rev. 00 5-35
Using Site Manager
To specify the RIP/SAP delay period, complete the following tasks:
Handling Packets Associated with Upper-Layer Protocols
The router encapsulates, within the data field of an IPX packet, any packets
associated with Novell’s upper-layer protocols. The structure of a packet, as well
as the source and destination socket numbers contained in that packet, identify the
protocol type associated with that packet; for example, Service Advertising
Protocol and Routing Information Protocol. The upper layer services are:
• SPX
• NCP
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Interfaces. The IPX Interfaces window opens.
4. Set the Stabilization Timer Delay (secs)
parameter. Click on Help or see the
parameter description on page A-29.
5. Click on OK. You return to the Configuration Manager
window.
Configuring IPX Services
5-36 117369-B Rev. 00
Bay Networks router software lets you select the basis on which an IPX router
makes its routing decisions -- on the number of ticks or the number of hops
required to reach a given destination network. The IPX routing software also
provides the following services over LAN and WAN media:
• Multipath routing and load sharing
• Split Horizon capability
• NetBIOS all-networks-broadcast packets (type 20 packets)
• Source routing and end station support
• IPX ping capability
The following sections describe how Bay Networks routers support these
services.
The Routing Information Protocol (RIP)
The Routing Information Protocol (RIP) enables workstations and routers to
exchange route information and to establish the route to each network with the
fewest hops and shortest delay.
Each IPX router maintains a route table. The route table contains the following
information about every network in the IPX network topology:
• The network address.
• The number of ticks (units of delay time) to that network. (A tick is equal to
1/18 second. The number of ticks to a network is the tick cost for that route.)
• The number of hops to that network. (A hop is an adjacent router; the number
of hops is equal to the number of adjacent routers that a packet must traverse
to reach another network segment.)
• The address of the next-hop node to which the local router forwards packets
on their way to another destination network.
Customizing IPX
117369-B Rev. 00 5-37
Routers maintain route tables by exchanging RIP request and response packets. A
RIP request packet specifies the destination network. A RIP request packet can
be:
• A general request broadcast by a router to retrieve the fastest route to all
known networks on an internetwork. The value 0xFFFFFFFF in the network
address field indicates that the packet is a general request.
• A specific request broadcast by a workstation or router to determine the
fastest route to a particular network. One or more network addresses
(excluding an address of all Fs) in the network address field indicates that the
packet is a specific request.
Routers issue RIP response packets. RIP response packets contain the network
number and the number of hops and ticks required to get to the network. A RIP
response can be one of the following types:
• A response to a request.
• An informational broadcast from a router issued at regular intervals (by
default, every 60 seconds).
• An informational broadcast when a change occurs in the routing table.
Examples of changes in the routing table are tick or hop changes, timing out
of routes, and the addition of routes to networks to the table.
• An informational broadcast when an interface initializes or performs an
orderly shutdown procedure.
Each RIP packet can contain up to 50 route updates. To reduce traffic, RIP
broadcasts are limited to a router’s immediate segments and are not forwarded by
receiving routers.
Note: The IPX router learns WAN addresses from RIP and SAP broadcasts
received over WANs (Frame Relay, SMDS, ATM). The router stores IPX
address/WAN address pairs for future use as next-hop destinations.
Configuring IPX Services
5-38 117369-B Rev. 00
Enabling RIP on the Router
You can enable or disable RIP on a circuit. By default RIP is not enabled on the
router.
If you enable RIP on a circuit, a route filter can still prohibit the interface from
updating its internal routing tables. See “Using IPX Route Filters,” later in this
chapter.
If you do not configure RIP for a WAN interface, you must configure adjacent
hosts for all transmission paths to nodes adjacent to Frame Relay, ATM, or SMDS
circuits when you configure an IPX interface. You must then configure static
routes that use the adjacent hosts to reach next-hop routers. Refer to the
descriptions of adjacent hosts and static routes in this chapter for more
information on these features.
Using the BCC
To enable RIP on an interface, you must first configure RIP on an IPX interface.
To configure RIP on an IPX interface, navigate to the IPX interface prompt (for
example, box; ethernet 2/1; ipx 00023456) and enter:
rip
If you already configured RIP on an interface, you can change its current state. To
enable RIP, navigate to the RIP prompt (for example, box; ethernet 2/1; ipx
00023456; rip 00023456) and enter:
state enabled
To disable RIP on an interface, navigate to the RIP prompt (for example, box;
ethernet 2/1; ipx 00023456; rip 00023456) and enter:
state disabled
Customizing IPX
117369-B Rev. 00 5-39
Using Site Manager
To enable RIP on the router, complete these tasks;
Choosing the Routing Method
You can specify a method for making IPX “best-route” decisions for all slots,
based on time delays (ticks) incurred or hops encountered for packet delivery.
The router can assess the time delay in one of the following ways:
•Number of RIP timer ticks -- the amount of time, expressed in ticks, that a
packet requires to reach another network segment. (Each RIP timer tick
equals about 1/18th of a second. The maximum configurable number of ticks
is 65,534 ticks, multiplied by 1/18th of a second = 3600 seconds, or 60
minutes.
•Number of hops -- the number of router hops a packet must traverse to reach a
network segment. The maximum number of hops is 15.
If you accept the default, Tick, and the router knows about two paths to a network,
and both paths have equal tick values, the router chooses the path with the
smallest number of hops.
If you select Hop, and the best route results in the same number of hops, the router
makes its decision based only on the number of hops between network segments.
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Interfaces. The IPX Interfaces window opens.
4. Choose RIP. The IPX RIP Circuit window opens.
5. Set the Enable parameter. Click on Help
or see the parameter description on
page A-36.
6. Click on OK. You return to the Configuration Manager
window.
Configuring IPX Services
5-40 117369-B Rev. 00
Bay Networks recommends using the default (tick-based) method. Note that every
node on the network must use the same routing method.
Using the BCC
To specify the routing method, navigate to the global IPX prompt (for example,
box; ipx) and enter:
routing-method
method
method is one of the following:
tick
hop
For example, to specify that IPX use tick-based routing, enter:
ipx# routing-method tick
Using Site Manage
To specify the routing method, complete the following tasks:
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Global. The Edit IPX Global Parameters window
opens.
4. Click on Advanced. The Edit IPX Global Advanced
Parameters window opens.
5. Set the Routing Method parameter. Click
on Help or see the parameter description
on page A-14.
6. Click on OK. You return to the Configuration Manager
window.
Customizing IPX
117369-B Rev. 00 5-41
Setting a Cost for an Interface
You can set the cost (number of ticks or hops) for an interface. The value you
enter depends on whether you selected hops or ticks for the RIP interface’s routing
method.
By configuring an interface’s cost you can select the route you want to use, rather
than letting the router select the route. For example, two routes go to the same
destination. Route A has a tick cost of 2; route B has a tick cost of 3. Because
route A has the lower tick cost, the router selects it as the “best route” to the
destination. If you want traffic to go over route B, you can set the tick cost of route
A to 4, which then forces traffic to go over route B.
Using configurable RIP interface tick values, IPX routing decisions can be based
on tick values that you define. This allows the implementation of tick-based
routing over non-IPX WAN links (for example, HDLC encapsulation), letting you
optimize IPX network performance.
In Figure 5-3, for example, traffic generated by end system 1 (ES1) on network A
is directed to the IPX Server ES2 on network B over interface 2 (route of least tick
delay, per RIP specification). However, other protocols such as IP, AppleTalk, and
OSI will most likely select this route as the least-cost path between network A and
network B, as well. Consequently, traffic congestion over this route may preclude
it from being the most efficient path between these two network segments.
By implementing the Configurable RIP Interface Tick parameter, interface 1 on
router 1 can be assigned a lower tick value than interface 2, so that IPX traffic is
routed through interface 1. This lets you maximize IPX internetwork performance
between networks A and B, even though it traverses two T1 lines instead of one.
Configuring IPX Services
5-42 117369-B Rev. 00
Figure 5-3. IPX Configurable RIP Interface Cost
You can set the cost (number of ticks or hops) for an interface. The cost is added
to route information learned on this interface through RIP and is included in
subsequent RIP packets sent to other interfaces. IPX disposes of the packet when
its hop count passes a value that is one less than the maximum number of hops.
The cost value must be the same across the network.
The cost is added to route information learned on this interface through RIP and is
included in subsequent RIP packets sent to other interfaces. IPX disposes of the
packet when its hop count passes a value that is one less than the value of the
maximum number of hops. This value must be the same across the network.
For all non-WAN and HSSI interfaces, the default value translates into a tick cost
of 1 in the routing table. For all WAN interfaces, the default value translates into a
tick cost of 6 in the routing table.
Note: Do not change the default value of this parameter unless you are an
expert IPX user (for example, a Bay Networks Technical Solutions Center
engineer). Changing the value of this parameter can significantly affect router
performance. If you are qualified as an expert user, enter a value that yields a
level of performance most appropriate for network applications supported by
this router.
Network A Network B
ES 1 ES 2
R1 R3
R2
IPX server
Interface 3
Tick Delay = 6
Interface 2
Tick Delay = 12
Interface 1
Tick Delay = 3
IPX0003A
Customizing IPX
117369-B Rev. 00 5-43
Using the BCC
To specify the routing cost for an interface, navigate to the IPX interface prompt
(or example, box; ethernet 2/1; ipx 00023456) and enter:
cost
integer
integer is 0 to one less than the number of maximum hops for hop-based routing
or 0 to the maximum positive integer for tick-based routing.
For example, to set the cost to 120, enter:
ipx/00023456# cost 120
Using Site Manager
To specify the routing cost for an interface, complete the following tasks:
Specifying the Maximum Number of Hops
You can specify the maximum number of hops an IPX packet may take to reach
its destination. By default, 16 is the maximum number of hops for an IPX packet
to reach a destination. You can set this value from 1 to 255. In the case of RIP,
every node in the network should use the same Maximum Hops parameter value.
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Global. The Edit IPX Global Parameters window
opens.
4. Click on Advanced. The Edit IPX Advanced Global
Parameters window opens.
5. Set the Cost parameter. Click on Help or
see the parameter description on
page A-24.
6. Click on OK. You return to the Configuration Manager
window.
Configuring IPX Services
5-44 117369-B Rev. 00
Using the BCC
To specify the maximum number of hops, navigate to the global IPX prompt (for
example, box; ipx) and enter:
hops
hop_count
hop_count is the number of hops from 1 to 255 hops.
For example, to specify the maximum number of hops as 20, enter:
ipx# hops 20
Using Site Manager
To specify the maximum number of hops for an IPX packet to reach its
destination, complete the following tasks:
Indicating the Number of Next-Hop Hosts
You can enter the maximum next-hop hosts for the router to learn. IPX uses this
value to preallocate table sizes for host tables. By default, the router learns a
maximum of 1 next-hop hosts. You can set this value from 1 to 5000 next-hop
hosts.
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Global. The Edit IPX Global Parameters window
opens.
4. Click on Advanced. The Edit IPX Advanced Global
Parameters window opens.
5. Set the Maximum Hops parameter. Click
on Help or see the parameter description
on page A-16.
6. Click on OK. You return to the Configuration Manager
window.
Customizing IPX
117369-B Rev. 00 5-45
Do not change the default value of this parameter unless you are an expert IPX
user (for example, a Bay Networks Technical Solutions Center engineer).
Changing the value of this parameter can significantly affect the memory use by
IPX, but it can also speed learning time for the router. If you are qualified as an
expert user, enter a value that yields a level of performance most appropriate for
network applications supported by this router.
Using the BCC
To specify the number of next-hop hosts, navigate to the global IPX prompt (for
example, box; ipx) and enter:
host-count
hosts
hosts is the number of hops from 1 to 255 hops.
For example, to specify the maximum number of hops as 20, enter:
ipx# host-count 20
Using Site Manager
To specify the number of next-hop hosts for the router to learn, complete the
following tasks:
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Global. The Edit IPX Global Parameters window
opens.
4. Click on Advanced. The Edit IPX Advanced Global
Parameters window opens.
5. Set the Host Count parameter. Click on
Help or see the parameter description on
page A-18.
6. Click on OK. You return to the Configuration Manager
window.
Configuring IPX Services
5-46 117369-B Rev. 00
Enabling RIP Listen and Supply Functions
The IPX router lets you determine whether the IPX router learns routes received
in RIP updates from neighboring routers, transmits RIP periodic and triggered
updates to routers in adjacent networks, or does both.
By default, the IPX router learns routes ands transmits updates to routers in
adjacent networks.
Using the BCC
To specify that IPX transmits periodic or triggered updates, navigate to the IPX
RIP interface prompt (for example, box; ethernet 2/1; ipx 00023456; rip
00023456#) and enter:
supply enabled
To specify that IPX does not transmit periodic or triggered updates, navigate to the
IPX RIP interface prompt (for example, box; ethernet 2/1; ipx 00023456; rip
00023456#) and enter:
supply disabled
For example, to specify that IPX interface transmit triggered updates, enter:
rip/00023456# supply enabled
To specify that IPX transmits learns routes received in RIP updates from
neighboring routers, navigate to the IPX RIP interface prompt (for example, box;
ethernet 2/1; ipx 00023456; rip 00023456#) and enter:
listen enabled
To specify that IPX does not learn routes received in RIP updates from
neighboring routers, navigate to the IPX RIP interface prompt (for example, box;
ethernet 2/1; ipx 00023456; rip 00023456#) and enter:
listen disabled
For example, to specify that the IPX interface learns routes received in RIP
updates from neighboring routers, enter:
rip/00023456# listen enabled
Customizing IPX
117369-B Rev. 00 5-47
Using Site Manager
To specify whether IPX transmits and/or receives periodic or triggered RIP
updates, complete the following tasks:
Determining the Pace of RIP Packets
The RIP pace determines the frequency, in packets per second, at which RIP sends
out packets on a circuit. By default, RIP sends 18 packets per second on a circuit.
You can specify a RIP pace of 0 to 1000 packets per second. If you enter a value
of zero, there is no limit on the pace.
Using the BCC
To specify the RIP pace, navigate to the IPX RIP interface prompt (for example,
box; ethernet 2/1; ipx 00023456; rip 00023456) and enter:
pace
packets_per_second
packets_per_second is the number of packets, from 0 to 1000, that RIP sends per
second.
For example, to set the IPX RIP interface pace to 20 packets per seconds, enter:
pace 20
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Interfaces. The IPX Interfaces window opens.
4. Choose RIP. The IPX RIP Circuit window opens.
5. Set the Mode parameter. Click on Help or
see the parameter description on
page A-36.
6. Click on OK. You return to the Configuration Manager
window.
Configuring IPX Services
5-48 117369-B Rev. 00
Using Site Manager
Configurable RIP Timers
You can extend the standard 60-second IPX periodic RIP advertisement interval. I
By default, the timeout time is three times the standard 60-second RIP
advertisement update interval, or 180 seconds.
Configuring RIP timers can reduce IPX RIP overhead and enhance bandwidth
availability. Furthermore, you can eliminate periodic RIP advertisements by
setting the configurable RIP timer to zero; thus, only RIP updates triggered by
changes in the internetwork topology will be propagated.
To ensure proper RIP operation, all configurable RIP timers must be set at equal
advertisement intervals on all router interfaces attached to common IPX network
segments.
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Interfaces. The IPX Interfaces window opens.
4. Choose RIP. The IPX RIP Circuit window opens.
5. Set the Pace parameter. Click on Help or
see the parameter description on
page A-37.
6. Click on OK. You return to the Configuration Manager
window.
Note: While you can set configurable RIP timers on any Bay Networks router
interface, do not use them on LAN interfaces, because IPX servers do not
allow configuration of update timers (with internal routers). As a result, IPX
servers will by default purge RIP entries after 180 seconds if they have not
received any updates within this 180-second period.
Customizing IPX
117369-B Rev. 00 5-49
For example, in Figure 5-4, if router R1 is configured to issue periodic RIP
advertisements every 240 seconds over interface 1 and router R2 is configured to
issue advertisements per the IPX standard (every 60 seconds) over interface 2,
then router R2 will purge RIP entries learned through Interface 2 every 180
seconds and reinstate them 60 seconds later when it receives a periodic RIP
advertisement from router R1. More critically, router R2 will issue triggered RIP
updates through interface 3, propagating these unnecessary changes throughout
the internetwork behind router R2.
Setting the configurable RIP timers at 240 seconds on both interface 1 on router
R1 and interface 2 on router R2 ensures proper RIP operation, because RIP entries
are not purged unless an update for a particular entry is not received within a
720-second interval (3 * 240 seconds).
Figure 5-4. IPX Configurable RIP Timers
Taking into account the fact that IPX Server ES1 (with an internal router) on
network B expects periodic RIP advertisements every 60 seconds, router R2
continues to issue RIP advertisements out its LAN interface (interface 3) per the
IPX specification, reconciling the fact that periodic RIP advertisements through
interface 1 are received every 240 seconds.
Should you decide to disable the periodic transmission of RIP updates, RIP
immediate (one-time) update packets still propagate through the network, in
compliance with Novell standards.
The combination of the update interval and age multiplier should be the same for
all systems on a network segment.
Network A Network B
ES 1
IPX server
R1 R2
Interface 1
RIP Update
every 240 seconds
Interface 2
RIP Update
every 240 seconds
Interface 3
RIP Update
every 60 seconds
IPX0004A
Configuring IPX Services
5-50 117369-B Rev. 00
Note that increasing the value of the age multiplier can cause routes to take longer
to age out; decreasing it could cause the router to age routes prematurely, if
routing updates are missed.
Using the BCC
To configure RIP timers, you must configure the RIP update interval and age
multiplier for information received in RIP periodic updates.
To specify a value for the RIP update interval, navigate to the RIP prompt (for
example, box; ethernet 2/1; ipx 00023456; rip 00023456) and enter:
update-interval
seconds
seconds is from 0 to 2678400 seconds.
For example, to set the update interval to 10,000, enter:
rip/00023456# update-interval 10000
To specify an age multiplier, navigate to the RIP prompt (for example, box;
ethernet 2/1; ipx 00023456; rip 00023456) and enter:
age-multiplier
integer
integer is from 1 to 6.
For example, to set the age multiplier to 4, enter:
rip/00023456# age-multiplier 4
Customizing IPX
117369-B Rev. 00 5-51
Using Site Manager
Adjusting the RIP Packet Size
By default the size of a RIP update packet is 432 bytes. You should leave the RIP
packet size at the default level unless you have a specific reason for specifying a
different size packet. If you must change the packet size, the packet size plus the
IPX header (30 bytes) cannot exceed the MTU of the link.
Using the BCC
To specify the the RIP update packet size, navigate to the IPX RIP interface
prompt (for example, box; ethernet 2/1; ipx 00023456; rip 00023456) and enter:
packet-size
bytes
bytes is the size of the RIP poacket in bytes.
For example, to set the IPX RIP update packet size to 500, enter:
rip/00023456# packet-size 500
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Interfaces. The IPX Interfaces window opens.
4. Choose RIP. The IPX RIP Circuit window opens.
5. Set the following parameters:
• Update Interval
•Age Multiplier
Click on Help or see the parameter
descriptions on page A-37.
6. Click on OK. You return to the Configuration Manager
window.
Configuring IPX Services
5-52 117369-B Rev. 00
Using Site Manager
Enabling Multicast Transmission of RIP Packets
By default, the IPX router broadcasts RIP packets. If you enable this feature, you
should specify the multicast address.
The multicast address causes the data link layer to issue a multicast packet on all
active virtual circuits. The multicast address value is not actually included in the
MAC field of the packet on the WAN. The packet instead contains a value that is
appropriate for the type of data link protocol.
You can use the default multicast address (0xFFFFFFFFFFFF), which causes the
IPX router to send all multicast traffic through all logical connections associated
with the IPX interface you are configuring. You can also specify a WAN multicast
address to send all multicast traffic through the IPX interface you are configuring.
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Interfaces. The IPX Interfaces window opens.
4. Choose RIP. The IPX RIP Circuit window opens.
5. Set the following Packet Size parameter.
Click on Help or see the parameter
description on page A-38.
6. Click on OK. You return to the Configuration Manager
window.
Customizing IPX
117369-B Rev. 00 5-53
Using the BCC
To use multicasting, first enable multicasting and then specify a WAN multicast
address.
To enable multicasting, navigate to the IPX RIP interface prompt (for example,
box; ethernet 2/1; ipx 00023456; rip 00023456) and enter:
use-multicast enabled
To specify a WAN multicast address, navigate to the IPX interface prompt (for
example, box; ethernet 2/1; ipx 00023456) and enter:
multicast-address
address
address is a WAN multicast address.
For example, to set the WAN multicast address to 0x00432567, enter:
multicast-address 0x00432567
To disable multicasting, navigate to the IPX RIP interface prompt (for example,
box; ethernet 2/1; ipx 00023456; rip 00023456) and enter:
use-multicast disabled
Configuring IPX Services
5-54 117369-B Rev. 00
Using Site Manager
To use multicasting, complete the following tasks:
Configurable Split Horizon
The Split Horizon algorithm is part of the Novell specification for the IPX
protocol. Its purpose is to prevent circular routes and reduce network traffic. The
Bay Networks implementation of Split Horizon excludes RIPs and SAPs learned
from a neighbor when forwarding RIP and SAP updates to that neighbor. Split
Horizon is enabled by default for each interface. You can enable or disable Split
Horizon when you configure an IPX RIP circuit.
Fully Meshed Networks
A fully meshed network is a WAN in which all nodes have a logically direct
connection to each other. Figure 5-5 shows a sample fully meshed network with
split horizon enabled.
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Interfaces. The IPX Interfaces window opens.
4. Choose RIP. The IPX RIP Circuit window opens.
5. Set the following parameters:
• FR Multicast (hex)
•Use Multicast
Click on Help or see the parameter
descriptions on pages A-28 and A-38.
6. Click on OK. You return to the Configuration Manager
window.
Customizing IPX
117369-B Rev. 00 5-55
Figure 5-5. Split Horizon Enabled in a Fully Meshed Network
Non-Fully Meshed Networks
A non-fully meshed network is a WAN in which one or more nodes do not have
logically direct connections to all other nodes. In a star or non-fully meshed frame
relay or X.25 PDN topology, you may need to disable Split Horizon on certain
interfaces so the routers can learn about other networks.
Caution: We advise you not to disable Split Horizon unless it is absolutely
necessary. Doing so can result in a significant increase in network traffic.
WAN
Split Horizon enabled on this
Interface to eliminate all
redundant RIP and SAP traffic.
Network
1
Network
3
Network
2
Router B Router C
Router A
IPX0007A
Configuring IPX Services
5-56 117369-B Rev. 00
Figure 5-6 shows a sample non-fully meshed network with Split Horizon
disabled.
Figure 5-6. Split Horizon Disabled in a Non-Fully Meshed Network
If you disable IPX Split Horizon, IPX sends all router services over non-fully
meshed frame relay and X.25 topologies. For example, as shown in Figure 5-6,
router A propagates RIP and SAP packets pertaining to router B to router C, and
vice versa. As a result, end stations on network 2 can learn about network 3, and
end stations on network 3 can learn about network 2.
When Split Horizon is enabled for an interface, routes learned on that interface are
not advertised out that interface.
Frame relay
Split Horizon disabled on this
interface so that Router B
can learn about Network 3 and
Router C can learn about
Network 2.
Network
1
Network
3
Network
2
Router B Router C
Router A
IPX0008A
Customizing IPX
117369-B Rev. 00 5-57
Using the BCC
To enable Split Horizon, navigate to the IPX RIP interface prompt (for example,
box; ethernet 2/1; ipx 00023456; rip 00023456) and enter:
split-horizon enabled
To disable Split Horizon, navigate to the IPX RIP interface prompt (for example,
box; ethernet 2/1; ipx 00023456; rip 00023456) and enter:
split-horizon disabled
Using Site Manager
To enable or disable Split Horizon, complete the following tasks:
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Interfaces. The IPX Interfaces window opens.
4. Choose RIP. The IPX RIP Circuit window opens.
5. Set the Split Horizon parameter. Click on
Help or see the parameter description on
page A-39.
6. Click on OK. You return to the Configuration Manager
window.
Configuring IPX Services
5-58 117369-B Rev. 00
Updating Routers about a Failed Route
By default, when a circuit goes down on a router, the router immediately
propagates this status change to other routers in the internetwork. This facilitates
network traffic by letting routers know immediately about new or failed routes.
When you disable the RIP Immediate Update parameter, other routers learn about
such changes only at the next periodic update interval.
Using the BCC
To determine that routers know immediately about new or failed routes, navigate
to the IPX RIP interface prompt (for example, box; ethernet 2/1; ipx 00023456;
rip 00023456) and enter:
triggered-update enabled
To determine that routers know about new or failed routes only at the next
periodic update interval, navigate to the IPX RIP interface prompt (for example,
box; ethernet 2/1; ipx 00023456; rip 00023456) and enter:
triggered-update disabled
For example, to cause the router to know about state changes immediately, enter:
triggered-update enabled
Customizing IPX
117369-B Rev. 00 5-59
Using Site Manager
Advertising Default Routes in RIP Packets
A RIP packet does not normally include a default route that exists in the routing
table. However, if a default route exists in the routing table, you can specify
whether to advertise the default route, 0xFFFFFFE, in RIP packets on a circuit.
Using the BCC
To advertise default routes in RIP packets, navigate to the RIP prompt (for
example, box; ethernet 2/1; ipx 00023456; rip 00023456) and enter:
triggered-update enabled
If you do not want to advertise default routes in RIP packets, navigate to the RIP
prompt (for example, box; ethernet 2/1; ipx 00023456; rip 00023456) and enter:
triggered-update disabled
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Interfaces. The IPX Interfaces window opens.
4. Choose RIP. The IPX RIP Circuit window opens.
5. Set the Immediate Update parameter.
Click on Help or see the parameter
description on page A-39.
6. Click on OK. You return to the Configuration Manager
window.
Configuring IPX Services
5-60 117369-B Rev. 00
Using Site Manager
To advertise default routes in RIP packets, complete the following tasks:
Accepting Default Route Information
When a router receives a RIP packet that advertises a default route, and if you
have configured the receiving RIP interface to accept the default route in RIP
packets, the router stores the default route in the routing table.
Using the BCC
To specify that a RIP interface accepts the default route in RIP packets, navigate
to the RIP prompt (for example, box; ethernet 2/1; ipx 00023456; rip 00023456)
and enter:
default-route-listen enabled
To specify that a RIP interface does not accept the default route in RIP packets,
navigate to the RIP prompt (for example, box; ethernet 2/1; ipx 00023456; rip
00023456) and enter:
default-route-listen disabled
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Interfaces. The IPX Interfaces window opens.
4. Choose RIP. The IPX RIP Circuit window opens.
5. Set the Default Route Supply parameter.
Click on Help or see the parameter
description on page A-40.
6. Click on OK. You return to the Configuration Manager
window.
Customizing IPX
117369-B Rev. 00 5-61
Using Site Manager
To specify whether a RIP interface accepts the default route in RIP packets,
complete the following tasks:
Customizing SAP Parameters
NetWare network services use the Service Advertising Protocol to inform clients
of their presence. NetWare services use the SAP identification broadcasting
services to tell clients their name, type, and IPX address. The IPX address in a
broadcast identifies a server’s location in terms of network, host, and socket.
You can specify whether you want to use SAP.
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Interfaces. The IPX Interfaces window opens.
4. Choose RIP. The IPX RIP Circuit window opens.
5. Set the Default Route Listen parameter.
Click on Help or see the parameter
description on page A-40.
6. Click on OK. You return to the Configuration Manager
window.
Configuring IPX Services
5-62 117369-B Rev. 00
Using the BCC
When you first configure SAP on an interface, it is automatically enabled. To
change SAP’s state, navigate to the IPX SAP prompt (for example, box; ethernet
2/1; ipx 00023456; sap 00023456) and enter:
state disabled
To enable SAP on an interface, navigate to the IPX SAP interface prompt (for
example, box; ethernet 2/1; ipx 00023456; sap 00023456) and enter:
state enabled
For example, to disable SAP on IPX interface 0x00023456, enter:
ipx/00023456# state disabled
Using Site Manager
To enable or disable SAP, complete the following tasks:
NetWare Directory Services (NDS) and SAP
Networks that implement NetWare 4.x use the NetWare Directory Services (NDS)
to advertise services. NDS is a globally distributed network database that replaces
the bindery used in NetWare versions earlier than 4.0. Workstations locate
services by querying an NDS server. NDS maintains information about all
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Interfaces. The IPX Interfaces window opens.
4. Choose SAP. The IPX SAP Circuit window opens.
5. Set the Enable parameter. Click on Help
or see the parameter description on
page A-41.
6. Click on OK. You return to the Configuration Manager
window.
Customizing IPX
117369-B Rev. 00 5-63
network resources (users, groups, servers, file volumes, printers, and so on) in a
hierarchical tree structure. Network resources can be organized in the tree
independent of their physical location. Thus, network users can access any
network resource they have rights to without having to know the exact location of
the resource.
With NDS, users no longer need to log in or attach to specific servers. Instead,
users can log in to the network and get access to all authorized network resources.
NDS is compatible with bindery-based versions of NetWare through the bindery
emulation feature of NDS.
The NDS server distributes the service information using direct unicast-based
protocols instead of using broadcast-based SAP. Therefore, the use of SAP in an
NDS network is greatly reduced. Even in a network that includes only NetWare
4.0 servers, however, clients still use SAP to locate the nearest NDS server at
startup.
SAP and the NetWare Bindery (NetWare 3.
x
and Earlier)
Novell IPX routers running NetWare versions earlier than 4.0 maintain a database
called a bindery. The bindery includes information such as server type, IPX
address, hop count, the interface to the server, a timer value for table entries, and a
list of clients. If an entry in a bindery reaches its configured maximum age
without being refreshed (timer resets to zero), the router deletes the entry from
that bindery.
Bay Networks routers implement a similar structure (a global services table) for
these services. Each time an IPX router receives a SAP packet, it compares the
packet’s contents to the contents of its SAP services table. If the SAP services
table already contains information about a specific service, the router simply
refreshes the age timer for that entry. If the SAP services table does not contain
information about the service, and a route exists to the service, the router adds a
new entry to the services table and advertises the new service to all connected
networks (except the one on which it was received).
Clients use SAP to request information about network services. Client
information requests are nearest-service queries, which seek information on the
closest service of a specified type. Every IPX server and IPX router on the
internetwork learns about all other IPX servers and services through the
propagation of bindery information or services table information.
Configuring IPX Services
5-64 117369-B Rev. 00
By default, each SAP packet can contain up to seven Service Advertising updates.
This number is configurable, but it’s constrained by the maximum transmission
unit of the outbound interface.
Configurable SAP Timers
Configurable SAP timers are similar in function to configurable RIP timers,
except that one pertains to SAP advertisements and the other to RIP
advertisements. You configure the update interval by determining the timeout
time, which consists of the frequency of SAP update transmissions and the
holding multiplier for information received in SAP periodic updates. By default,
the timeout time is three times the standard 60-second RIP advertisement update
interval, or 180 seconds.
Configuring SAP timers can reduce IPX SAP overhead and enhance bandwidth
availability. You can eliminate periodic SAP advertisements by setting
configurable SAP timers to zero; thus, only triggered SAP updates will be
propagated.
To ensure proper RIP operation, all configurable RIP timers must be set at equal
advertisement intervals on all Bay Networks router interfaces attached to common
IPX network segments.
Note: While you can set configurable SAP timers on any Bay Networks router
interface, do not use them on LAN interfaces, because IPX servers do not
currently support configurable SAP broadcast timers. As a result, IPX servers
will purge SAP entries after 180 seconds if they have not received any updates
within this time interval.
Customizing IPX
117369-B Rev. 00 5-65
Using the BCC
To configure SAP timers, you must configure the SAP update interval and age
multiplier for information received in SAP periodic updates.
To specify a value for the SAP update interval, navigate to the SAP prompt (for
example, box; ethernet 2/1; ipx 00023456; sap 00023456) and enter:
update-interval
seconds
seconds is from 0 to 2678400 seconds.
For example, to set the update interval to 10,000, enter:
sap/00023456# update-interval 10000
To specify an age multiplier, navigate to the SAP prompt (for example, box;
ethernet 2/1; ipx 00023456; sap 00023456) and enter:
age-multiplier
integer
integer is from 1 to 6.
For example, to set the age multiplier to 4, enter:
sap/00023456# age-multiplier 4
Configuring IPX Services
5-66 117369-B Rev. 00
Using Site Manager
To configure SAP timers, complete the following tasks:
SAP via Default Route
A SAP advertisement can be learned from an interface when the network number
advertised in the SAP advertisement is unreachable, if a default route is accessible
from that interface. This feature gives you the option of making SAP entries
available if the IPX default route is reachable.
If you enable SAP via default route, you enable IPX default routing globally for
SAP advertisements and cause the router to accept a service if a direct or default
router is known.
If you disable SAP via default route, the router accepts a service only if a direct
route to the server advertising the service is known.
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Interface. The IPX Interfaces window opens.
4. Choose SAP. The IPX SAP Circuit window opens.
5. Set the following parameters:
• Update Interval
• Age Multiplier
Click on Help or see the parameter
descriptions on page A-43.
6. Click on OK. You return to the Configuration Manager
window.
Customizing IPX
117369-B Rev. 00 5-67
Using the BCC
To enable SAP advertising via the default route, navigate to the global IPX prompt
(for example, box; ipx) and enter:
sap-via-default-route enabled
To disable SAP advertising via the default route, navigate to the global IPX
prompt (for example, box; ipx) and enter:
sap-via-default-route disabled
Using Site Manager
To enable or disable SAP advertising via the default route, complete the following
tasks:
Enabling SAP Listen and Supply Functions
The IPX router lets you enable the listen and supply modes for each IPX interface.
When you enable the listen mode, the IPX router listens to SAP Periodic and
Triggered updates from neighboring networks and conveys received SAP services
information to its internal SAP services table.
When you enable the supply function, the IPX router transmits all SAP Periodic
and Triggered updates to routers in neighboring networks.
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Interfaces. The IPX Interfaces window opens.
4. Choose SAP. The IPX SAP Circuit window opens.
5. Set the SAP Via Default Route
parameter. Click on Help or see the
parameter description on page A-20.
6. Click on OK. You return to the Configuration Manager
window.
Configuring IPX Services
5-68 117369-B Rev. 00
When you enable both the listen and supply mode, the IPX router performs both
the listen and supply mode functions described above.
The IPX router lets you determine whether the IPX router learns routes received
in SAP updates from neighboring routers conveys received SAP services
information to its internal SAP services table, transmits SAP periodic and
triggered updates to routers in adjacent networks, or does both.
By default, the IPX router learns routes ands transmits updates to routers in
adjacent networks.
Using the BCC
To specify that IPX transmits periodic or triggered updates, navigate to the IPX
SAP interface prompt (for example, box; ethernet 2/1; ipx 00023456; sap
00023456) and enter:
supply enabled
To specify that IPX does not transmit periodic or triggered updates, navigate to the
IPX SAP interface prompt (for example, box; ethernet 2/1; ipx 00023456; sap
00023456) and enter:
supply disabled
For example, to specify that IPX interface transmit triggered updates, enter:
rip/00023456# supply enabled
To specify that IPX transmits learns routes received in SAP updates from
neighboring routers, navigate to the IPX SAP interface prompt (for example, box;
ethernet 2/1; ipx 00023456; sap 00023456) and enter:
listen enabled
To specify that IPX does not learn routes received in SAP updates from
neighboring routers, navigate to the IPX SAP interface prompt (for example, box;
ethernet 2/1; ipx 00023456; sap 00023456) and enter:
listen disabled
For example, to specify that the IPX interface learns routes received in SAP
updates from neighboring routers, enter:
rip/00023456# listen enabled
Customizing IPX
117369-B Rev. 00 5-69
Using Site Manager
Determining the Pace of SAP Packets
The SAP pace determines the frequency, in packets per second, at which SAP
sends packets on a circuit. By default, SAP sends 18 packets per second on a
circuit.
You can specify a SAP pace of 0 to 1000 packets per second. If you enter a value
of zero, there is no limit on the pace.
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Interfaces. The IPX Interfaces window opens.
4. Choose SAP. The IPX SAP Circuit window opens.
5. Set the Mode parameter. Click on Help or
see the parameter description on
page A-42.
6. Click on OK. You return to the Configuration Manager
window.
Configuring IPX Services
5-70 117369-B Rev. 00
Using the BCC
To specify the RIP pace, navigate to the IPX SAP interface prompt (for example,
box; ethernet 2/1; ipx 00023456; sap 00023456) and enter:
pace
packets_per_second
packets_per_second is the number of packets, from 0 to 1000, that SAP sends per
second.
For example, to set the IPX SAP interface pace to 20 packets per seconds, enter:
pace 20
Using Site Manager
To specify the SAP pace, complete the following tasks:
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Interfaces. The IPX Interfaces window opens.
4. Choose SAP. The IPX SAP Circuit window opens.
5. Set the Pace parameter. Click on Help or
see the parameter description on
page A-42.
6. Click on OK. You return to the Configuration Manager
window.
Customizing IPX
117369-B Rev. 00 5-71
Adjusting the SAP Packet Size
By default the size of a SAP update packet is 480 bytes. You should leave the SAP
packet size at the default level unless you have a specific reason for specifying a
different size packet. If you must change the packet size, the packet size plus the
IPX header (30 bytes) cannot exceed the MTU of the link.
Using the BCC
To specify the the SAP update packet size, navigate to the IPX SAP interface
prompt (for example, box; ethernet 2/1; ipx 00023456; sap 00023456) and
enter:
packet-size
bytes
bytes is the size of the SAP packet in bytes.
For example, to set the IPX SAP update packet size to 500, enter:
packet-size 500
Using Site Manager
To specify the packet size, complete the following tasks:
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Interfaces. The IPX Interfaces window opens.
4. Choose SAP. The IPX SAP Circuit window opens.
5. Set the Packet Size parameter. Click on
Help or see the parameter description on
page A-44.
6. Click on OK. You return to the Configuration Manager
window.
Configuring IPX Services
5-72 117369-B Rev. 00
Responding to SAP Nearest Server Requests
You can specify whether you want the router to respond to SAP
get_nearest_server requests.
By default, the router responds to a SAP get_nearest_server request. If you have
disabled split horizon, you may want to change the setting so that the router does
not respond to SAP get_nearest_server requests.
Using the BCC
To specify that SAP responds to get_nearest_server requests, navigate to the IPX
SAP interface prompt (for example, box; ethernet 2/1; ipx 00023456; sap
00023456) and enter:
nearest-server-reply enabled
To specify that SAP does not respond to get_nearest_server requests, navigate to
the IPX SAP interface prompt (for example, box; ethernet 2/1; ipx 00023456;
sap 00023456) and enter:
nearest-server-reply disabled
Using Site Manager
To specify whether SAP responst to get_nearest_server requests, complete the
following tasks:
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Interfaces. The IPX Interfaces window opens.
4. Choose SAP. The IPX SAP Circuit window opens.
5. Set the Nearest Server Reply parameter.
Click on Help or see the parameter
description on page A-44.
6. Click on OK. You return to the Configuration Manager
window.
Customizing IPX
117369-B Rev. 00 5-73
Using a Multicast Address
By default, when you specify SAP on a router, the router uses a multicast address
to send out SAP packets. You can accept the default, or change the setting to
disallow multicast transmission of SAP packets.
Using the BCC
To allow multicast transmission of SAP packets, navigate to the IPX SAP
interface prompt (for example, box; ethernet 2/1; ipx 00023456; sap 00023456)
and enter:
multicast enabled
To disallow multicast transmission of SAP packets, navigate to the IPX SAP
interface prompt (for example, box; ethernet 2/1; ipx 00023456; sap 00023456)
and enter:
multicast disabled
Using Site Manager
To determine whether IPX allows multicast transmission of SAP packets,
complete the following tasks:
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Interfaces. The IPX Interfaces window opens.
4. Choose SAP. The IPX SAP Circuit window opens.
5. Set the Use Multicast parameter. Click on
Help or see the parameter description on
page A-44.
6. Click on OK. You return to the Configuration Manager
window.
Configuring IPX Services
5-74 117369-B Rev. 00
Saving the Service Name
By default, a router will save all 48 bytes in the service name field of SAP
packets. If you specify that a router should not save all 48 bytes in the service
name field, a router will ignore all characters after the null character when a
service field name is less than 48 bytes.
Using the BCC
To cause the router to save all 48 bytes in the service name field of SAP packets,
navigate to the IPX SAP interface prompt (for example, box; ethernet 2/1; ipx
00023456; sap 00023456) and enter:
save-full-name enabled
To cause the router to ignore all characters after the null character when a service
field name is less than 48 bytes, navigate to the IPX SAP interface prompt (for
example, box; ethernet 2/1; ipx 00023456; sap 00023456) and enter:
save-full-name disabled
Using Site Manager
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Interfaces. The IPX Interfaces window opens.
4. Choose SAP. The IPX SAP Circuit window opens.
5. Set the Save Full Name parameter. Click
on Help or see the parameter description
on page A-45.
6. Click on OK. You return to the Configuration Manager
window.
Customizing IPX
117369-B Rev. 00 5-75
Transmitting and Receiving SAP Updates over the Same Interface
The IPX router, by default, uses split horizon updates, which causes the router to
transmit SAP updates received from the interface over that same interface. By
using split horizon updates, then the router generates SAP updates to be
transmitted from an interface, the interface can exclude SAP servers learned on
that interface.
If you disable the split horizon updates, the router will transmit SAP updates
received from one interface, but will transmit them using routes on a different
interface.
Refer to the “Configurable Split Horizon” section on page 5-54 for more
information about Split Horizon.
Using the BCC
To cause the router to use split horizon updates, navigate to the IPX SAP
interface prompt (for example, box; ethernet 2/1; ipx 00023456; sap 00023456)
and enter:
split-horizon enabled
To specify that the router should not use split horizon updates, navigate to the IPX
SAP interface prompt (for example, box; ethernet 2/1; ipx 00023456; sap
00023456) and enter:
split-horizon disabled
Configuring IPX Services
5-76 117369-B Rev. 00
Using Site Manager
Updating Routers about a Failed Service
By default, the router performs immediate SAP updates so that when a change in
status occurs for a circuit, the router immediately propagates this status change to
other routers in the internetwork. This facilitates network traffic by letting routers
know immediately about new or failed routes. When you disable immediate SAP
updates, other routers learn about such changes only at the next periodic update
interval.
Using the BCC
To determine that routers know immediately about new or failed routes, navigate
to the IPX SAP interface prompt (for example, box; ethernet 2/1; ipx 00023456;
sap 00023456) and enter:
triggered-update enabled
To determine that routers know about new or failed routes only at the next
periodic update interval, navigate to the IPX SAP interface prompt (for example,
box; ethernet 2/1; ipx 00023456; sap 00023456) and enter:
triggered-update disabled
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Interfaces. The IPX Interfaces window opens.
4. Choose SAP. The IPX SAP Circuit window opens.
5. Set the Split Horizon parameter. Click on
Help or see the parameter description on
page A-45.
6. Click on OK. You return to the Configuration Manager
window.
Customizing IPX
117369-B Rev. 00 5-77
For example, to cause the router to know about state changes immediately, enter:
triggered-update enabled
Using Site Manager
To let routers know immediately about new or failed routes, complete the
following tasks:
Using Static Services
When you statically configure NetWare services, the router learns about a
NetWare service by means of the SAP information you enter using Site Manager.
You can manually configure NetWare static services for each interface on a Bay
Networks router.
When you configure static services on an interface, you can then use SAP filters
to eliminate the SAP announcements. The static service provides an alternative to
broadcast Service Advertisement Protocol (SAP) announcements across a WAN.
The static service eliminates WAN traffic (and hence, the use of WAN bandwidth)
associated with WAN SAP Announcements.
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Interfaces. The IPX Interfaces window opens.
4. Choose SAP. The IPX SAP Circuit window opens.
5. Set the Immediate Update parameter.
Click on Help or see the parameter
description on page A-46.
6. Click on OK. You return to the Configuration Manager
window.
Configuring IPX Services
5-78 117369-B Rev. 00
Alternatively, you can disable SAP entirely on an individual-interface basis or
disable just the SAP immediate update messages. For network topologies that
include slower-speed WAN links, reducing the amount of WAN bandwidth
otherwise needed for SAP announcements can be helpful. You can also reduce
traffic by setting the Update Interval parameter to zero, which indicates no
periodic SAP updates and no aging of SAP information resulting from periodic
updates. In this case, SAP immediate updates still propagate through the network.
You can also configure the interface to disable immediate updates by disabling the
Immediate Update parameter.
Using the BCC
To reduce traffic and disable immediate updates, you must configure the SAP
update interval and determine whether you want to use immediate SAP updates.
To specify a value for the SAP update interval, navigate to the SAP prompt (for
example, box; ethernet 2/1; ipx 00023456; sap 00023456) and enter:
update-interval
seconds
seconds is from 0 to 2678400 seconds.
For example, to set the update interval to 10,000, enter:
sap/00023456# update-interval 10000
To enable immediate updates, navigate to the SAP prompt (for example, box;
ethernet 2/1; ipx 00023456; sap 00023456) and enter:
triggered-update enabled
To disable immediate updates, navigate to the SAP prompt (for example, box;
ethernet 2/1; ipx 00023456; sap 00023456) and enter:
triggered-update disabled
Customizing IPX
117369-B Rev. 00 5-79
Using Site Manager
To reduce traffic and disable immediate updates, complete the following tasks:
A service sends an immediate update when one of the following conditions
occurs:
• A service first comes up.
• A service changes.
• A service is no longer available.
For more information about the Update Interval parameter, see “Configuring RIP
and SAP Broadcast Timers” in this chapter.
Figure 5-7 shows a sample network configured to use static SAP services. If you
want client 1 to have access only to file server 3, you configure file server 3 in the
static SAP Service table on router 2’s interface. Then, to suppress any SAP
broadcasts from router 1 and thus reduce bandwidth use, you can either turn off
the SAP supply or disable SAP.
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Interfaces. The IPX Interfaces window opens.
4. Choose SAP. The IPX SAP Circuit window opens.
5. Set the following parameters:
• Update Interval
• Immediate Update
Click on Help or see the parameter
descriptions on pages A-43 and A-39.
6. Click on OK. You return to the Configuration Manager
window.
Configuring IPX Services
5-80 117369-B Rev. 00
Figure 5-7. Static Service Network Configuration
Figure 5-8 shows another example, in which a SAP filter is configured on router
R1, prohibiting periodic SAP advertisements and triggered SAP updates from
being propagated over the wide area link. As a result, the services resident on
server A or server B are not visible to networks C and D. However, SAP services
resident on servers A and B are manually entered into router R2’s service table.
This way, these servers are visible to IPX end stations on networks C and D
(through periodic SAP advertisements, which are broadcast over router R2’s LAN
interfaces every 60 seconds, in conformance with IPX specifications). The key
benefit in this example is that SAP overhead is eliminated over the WAN link.
Client
1
R1 R2
File
server 1
File
server 2
File
server 3
SAP filter set to Suppress
File Server 3 configured
in static SERVICE table
IPX0012A
Customizing IPX
117369-B Rev. 00 5-81
Figure 5-8. IPX SAP Filters Prohibiting SAP Broadcasts
You add, edit, or delete static services through the IPX Static Services window.
For instructions, see “IPX Static Service Configuration Parameters” in
Appendix A. You can configure only services that have valid network addresses.
Valid network addresses are provided either by RIP or by statically configured
routes. If you try to enter any services that have invalid network addresses in the
router configuration, the router accepts the information, but the services are
unreachable.
Enabling Static Services
Enable a static service to restore client access to NetWare services configured
earlier on the IPX interface. Disable a static service to make NetWare services
configured earlier unavailable to clients.
Note: Broadcast mechanisms, such as periodic RIP and SAP advertisements,
can force dial-on-demand connections to be continuously established,
preventing user-defined dial-on-demand expiration time limits from being
reached. See the next section for more information.
Network A
Network B Network D
Network C
Server A
Server B
R1 R2
Drop outbound
SAP updates
pertaining to
Server A and Server B
SAP entries pertaining to Servers A and B
manually entered and broadcast
over attached LAN interface
IPX0013A
Configuring IPX Services
5-82 117369-B Rev. 00
Using the BCC
When you first configure a static service, by default it ie enabled. To change the
state of a static service to disabled, navigate to the IPX static service prompt (for
example, box; ethernet 2/1; ipx 00023456; static-service/00023456/printer/
0987) and enter:
state disabled
To enable a static service, navigate to the IPX static service prompt (for example,
box; ethernet 2/1; ipx 00023456; static-service/00023456/printer/0987) and
enter:
state enabled
For example, to disable the static service named printer, enter:
static-service/00023456/printer/0987# state disabled
Using Site Manager
To enable or disable a static service, complete the following tasks:
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Click on Static/Filter Tables. The IPX Static Interface Tables
Configuration window opens.
4. Click on Static Serv. The IPX Static Services window opens.
5. Set the Enable parameter. Click on Help
or see the parameter description on
page A-65.
6. Click on OK. You return to the Configuration Manager
window.
Customizing IPX
117369-B Rev. 00 5-83
Specifying the Network Address of a Service
When you are using a static service, the network address for the service must exist
as an entry in the IPX routing table. The router can learn the entry dynamically, or
you can configure the entry as a static route. If you configure the entry as a static
route, enter a network address of up to 8 hexadecimal characters.
Using the BCC
To specify the address for the static service, navigate to the IPX static service
prompt (for example, box; ethernet 2/1; ipx 00023456; static-service/
00023456/printer/0987) and enter:
target-network
address
address is the network address for the service in hexadecimal notation.
For example, to specify 0x980976 as the address for a static service, enter:
static-service/00023456/printer/0987# target-network 0x980976
Using Site Manager
To specify the address for the static service, complete the following tasks:
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Click on Static/Filter Tables. The IPX Static Interface Tables
Configuration window opens.
4. Click on Static Serv. The IPX Static Services window opens.
5. Set the Target Network (hex) parameter.
Click on Help or see the parameter
description on page A-65.
6. Click on OK. You return to the Configuration Manager
window.
Configuring IPX Services
5-84 117369-B Rev. 00
Specifying the Address of the Host that Provides a Service
You must specify the address of a remote IPX host (a NetWare server) that can
provide local clients with specific NetWare services, such as file, print, gateway,
or terminal server services. The remote IPX host address consists of a string of up
to 12 hexadecimal characters (6 bytes).
Using the BCC
To specify the address of a remote IPX host, navigate to the IPX static service
prompt (for example, box; ethernet 2/1; ipx 00023456; static-service/
00023456/printer/0987) and enter:
host-number
address
address is the address of a remote host in hexadecimal format.
For example, to specify 0x92416 as the address for a remote host, enter:
static-service/00023456/printer/0987# host-number 0x92416
Using Site Manager
To specify the address of a remote IPX host, complete the following tasks:
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Click on Static/Filter Tables. The IPX Static Interface Tables
Configuration window opens.
4. Click on Static Serv. The IPX Static Services window opens.
5. Set the Host Number (hex) parameter.
Click on Help or see the parameter
description on page A-65.
6. Click on OK. You return to the Configuration Manager
window.
Customizing IPX
117369-B Rev. 00 5-85
Assigning a Symbolic Name to Your Service
You must assign a symbolic name to the service you want to advertise. Use the
actual name of the server that the clients will attach to. Make this name
meaningful to the network administrator. The name must be unique among all
names assigned to IPX servers of the same type on the IPX internetwork.
See the documentation that came with your NetWare operating system for
guidelines on specifying a server name.
Using the BCC
When you first configure a static service, you must supply a symbolic name for a
service. To change the symbolic name for a service, navigate to the IPX static
service prompt (for example, box; ethernet 2/1; ipx 00023456; static-service/
00023456/printer/0987) and enter:
service-name
name
name is an alphanumeric string naming a remote service.
For example, to give the name gateway to the service you want to advertise, enter:
static-service/00023456/printer/0987# service-name gateway
Configuring IPX Services
5-86 117369-B Rev. 00
Using Site Manager
To assign a symbolic name to the service you want to advertise, complete the
following tasks:
Entering the Service Type Number
You must specify the Novell service type number in 4-digit hexadecimal format,
including leading zeros. This number specifies the type of service to advertise
from the associated IPX (LAN) interface. See Appendix C for a list of common
service types.
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Click on Static/Filter Tables. The IPX Static Interface Tables
Configuration window opens.
4. Click on Static Serv. The IPX Static Services window opens.
5. Set the Service Name parameter. Click on
Help or see the parameter description on
page A-61.
6. Click on OK. You return to the Configuration Manager
window.
Customizing IPX
117369-B Rev. 00 5-87
Using the BCC
To change the service type for a static service, navigate to the IPX static service
prompt (for example, box; ethernet 2/1; ipx 00023456; static-service
00023456/printer/0987) and enter:
service-type
type
type is a number in 4-digit hexadecimal format (including leading zeros).
For example, to specify the Novell service type number as 0x9876, enter:
static-service/00023456/printer/0987# service-type 0x9876
Using Site Manager
To specify the service type for a static service, complete the following tasks:
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Click on Static/Filter Tables. The IPX Static Interface Tables
Configuration window opens.
4. Click on Static Serv. The IPX Static Services window opens.
5. Set the Service Type (hex) parameter.
Click on Help or see the parameter
description on page A-62.
6. Click on OK. You return to the Configuration Manager
window.
Configuring IPX Services
5-88 117369-B Rev. 00
Entering the Socket Address of a Service
You must enter a socket address consisting of 4 hexadecimal characters when you
are using a static service. Valid socked addresses have a value between 0x0001
and 0xFFFE.
Using the BCC
To enter a socket address for a static service, navigate to the IPX static service
prompt (for example, box; ethernet 2/1; ipx 00023456; static-service/
00023456/printer/0987) and enter:
socket
address
address is a 4-digit hexadecimal socket address.
For example, to enter the socket address 0x1234, enter:
static-service/00023456/printer/0987# socket address 0x1234
Using Site Manager
To enter the socket address, complete the following tasks:.
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Click on Static/Filter Tables. The IPX Static Interface Tables
Configuration window opens.
4. Click on Static Serv. The IPX Static Services window opens.
5. Set the Socket parameter. Click on Help
or see the parameter description on
page A-66.
6. Click on OK. You return to the Configuration Manager
window.
Customizing IPX
117369-B Rev. 00 5-89
Entering the Hop Count
Enter the number of router hops that exist between a router and a specific remote
Novell server or service. The number of router hops must be in the range of 1 to
the number of maximum hops minus 1. The default number of hops is 1.
Using the BCC
To specify the number of hops, navigate to the IPX static service prompt (for
example, box; ethernet 2/1; ipx 00023456; static-service/00023456/printer/
0987) and enter:
hops
number_of_hops
number_of_hops is in the range of 1 to the maximum number of hops minus 1.
For example, to enter the maximum number of hops of 3, enter:
static-service/00023456/printer/0987# hops 3
Using Site Manager
To specify the number of hops, complete the following tasks:
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Click on Static/Filter Tables. The IPX Static Interface Tables
Configuration window opens.
4. Click on Static Serv. The IPX Static Services window opens.
5. Set the Hop Count parameter. Click on
Help or see the parameter description on
page A-66.
6. Click on OK. You return to the Configuration Manager
window.
Configuring IPX Services
5-90 117369-B Rev. 00
Customizing NetBIOS Static Routing
NetBIOS establishes sessions (logical connections) and allows for communication
between PCs. The Bay Networks NetBIOS static route function lets you map
NetBIOS names to IPX destination networks by configuring a NetBIOS static
route to a NetBIOS service name. The IPX router then converts the broadcast
NetBIOS packets to directed broadcast NetBIOS packets, which are usually
forwarded to all network interfaces on a single network. This reduces the amount
of network traffic due to NetBIOS query requests; that is, broadcasts issued by
NetBIOS clients seeking to find and establish sessions with specific NetBIOS
applications over an IPX internetwork.
Besides minimizing NetBIOS broadcast traffic, using NetBIOS static routes
allows a more precise logical partitioning of an IPX NetBIOS internetwork,
enhancing internetwork security.
The Bay Networks IPX router software lets you specify whether:
• You want to direct a NetBIOS broadcast (type 20) packet through a network
by configuring a static route only at the first router. Before the packet is
directed out an interface, the router software overwrites the IPX destination
address of the packet so that it can be routed to its destination. Because the
IPX specification states that the network address of broadcast packets must be
left unchanged, this option does not conform to Novell standards.
• You want the router to propagate a packet out all of its interfaces (in
conformance with Novell standards).
• You want to direct a packet to its destination by configuring a static route for
each hop in the network (in conformance with Novell standards).
In the NetWare environment, NetBIOS query requests are encapsulated within
IPX packets. When a Bay Networks router receives an IPX packet containing a
NetBIOS query request, it compares the NetBIOS name for which a connection is
being requested to a statically configured NetBIOS Name-to-IPX Destination
Network table. If the requested NetBIOS name matches a table entry, the Bay
Networks router forwards the query request packet out only one IPX interface
toward the destination network. If a match does not exist, the router propagates
the query request packet out of all IPX interfaces, in conformance with the IPX
specification.
Customizing IPX
117369-B Rev. 00 5-91
In Figure 5-9, for example, when end system ES2 wants to find and establish a
connection to a NetBIOS application on the IPX server ES2, it generates a query
request broadcast packet. Router R1 receives the broadcast packet, consults its
NetBIOS Name-to-IPX Destination Network table, finds that the NetBIOS
application being requested is mapped to network B, and routes the packet out
interface 1. Similarly, router R3 consults its NetBIOS Name-to-IPX Destination
Network table upon receiving the NetBIOS query request, and routes the packet
out its interface to network B.
Figure 5-9. NetBIOS Static Routes
Each IPX router interface supports up to 50 NetBIOS static routes. Each NetBIOS
static route specifies a NetBIOS resource name and a destination network where
the resource resides.
Activating the Static Route Record in the NetBIOS Routing Table
You can specify the state (active or inactive) of the static route record in the
NetBIOS routing table. If you are sending NetBIOS packets through a network,
you should enable this feature.
Network A Network B
ES1 ES2
R1 R3
R2
IPX server
Interface 3
Tick Delay = 6
Interface 2
Tick Delay = 12
Interface 1
Tick Delay = 3
IPX0015A
Configuring IPX Services
5-92 117369-B Rev. 00
Using the BCC
When you initially activate the static route record, you must supply the symbolic
name of the target server as well as the address of the target network. To initially
activate the static route record, navigate to the global IPX prompt (for example,
box; ipx) and enter:
static-netbios-route target-name
name
target-network
address
name is the symbolic name of the target server.
address is the address, in hexadecimal notation, of the target network.
To enable the static route record in the NetBIOS routing table, navigate to the
NetBIOS static route prompt (for example, box; ipx; static-netbios-route/
route6/00042567) and enter:
state enabled
To disable the static router record in the NetBIOS routing table, navigate to the
NetBIOS static route prompt (for example, box; ipx; static-netbios-route/
route6/00042567) and enter:
state disabled
Using Site Manager
To activate or deactivate the static route record, complete these tasks:
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose NetBIOS Static Routes. The IPX NetBIOS Static Routes window
opens.
4. Set the Enable parameter. Click on Help
or see the parameter description on
page A-49.
5. Click on OK. You return to the Configuration Manager
window.
Customizing IPX
117369-B Rev. 00 5-93
Entering the Name of the NetBIOS Target Server
When you send NetBIOS packet over a network, you must specify the name of the
NetBIOS target server, which can be up to 16 alphanumeric characters.
The name of a NetBIOS target server can include wildcard and pattern-matching
characters, any printable character, including $, #, and so on. To specify a
backslash, enter two backslashes (\\). You can also use the hexadecimal equivalent
(\xx) of any valid ASCII character. For example, you can specify \20 for space or
\21 for ! (note that \xx counts as one character).
For a list of the wildcards and pattern-matching characters, refer to Table 5-1 on
page 5-142.
Using the BCC
When you activate the NetBIOS static route record, you must specify the target
server name. To change the name of the NetBIOS target server, navigate to the
NetBIOS static route prompt (for example, box; ipx; static-netbios-route
route6/00042567) and enter:
target-name
name
name is the symbolic name of the target server.
For example, to specify that the name of the target server is route12, enter:
static-netbios-route/route6/00042567# target-name route12
Configuring IPX Services
5-94 117369-B Rev. 00
Using Site Manager
To specify the name of the NetBIOS target server, complete the following tasks:
Entering the Target Network Address
When you send NETBIOS packets over a network, you must specify the address
of a destination network that you want to receive NetBIOS broadcast packets
destined for the specified target server. You can specify a target network address
of up to 8 hexadecimal characters.
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose NetBIOS Static Routes. The IPX NetBIOS Static Routes window
opens.
4. Click on Add. The IPX NetBIOS Static Route
Configuration window opens.
5. Set the Target Server parameter. Click on
Help or see the parameter description on
page A-47.
6. Click on OK. You return to the Configuration Manager
window.
Note: The Configuration Manager does not let you reconfigure the Target
Server parameter for a static route. If you want to change this parameter, you
must delete the static route and add a new route. However, you can reconfigure
all other parameters associated with a static route.
Customizing IPX
117369-B Rev. 00 5-95
Using the BCC
When you activate the NetBIOS static route record, you must specify the address
of a destination network. To change the the destination network address, navigate
to the NetBIOS static route prompt (for example, box; ipx; static-netbios-route/
route6/00042567) and enter:
target-network
address
address is the address, in hexadecimal notation, of the target network.
For example, to specify that the name of the target server is 0x678098, enter:
static-netbios-route/route6/00042567# target-name 0x678098
Using Site Manager
To specify the address of a destination network to receive NetBIOS broadcast
packets, complete the following tasks:
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose NetBIOS Static Routes. The IPX NetBIOS Static Routes window
opens.
4. Click on Add. The IPX NetBIOS Static Route
Configuration window opens.
5. Set the Target Network parameter. Click
on Help or see the parameter description
on page A-47.
6. Click on OK. You return to the Configuration Manager
window.
Configuring IPX Services
5-96 117369-B Rev. 00
Directing a NetBIOS Packet Using Nonstandard Static Routing
You can direct a NetBIOS packet through a network by configuring a NetBIOS
static route in the first Bay Networks router to receive a NetBIOS broadcast
packet. To do this, you must disable Novell Certification Conformance for all
routers in the network.
To configure a router to propagate a packet out all of its interfaces -- which
conforms to Novell standards -- you set the Novell Certification Conformance
parameter on the Edit IPX Advanced Global Parameters window to Enable. You
must set this parameter to Enable for all routers on the network.
All NetBIOS packets sent from a client to the router must have a destination
network value of zero, unless the packet passes a static route in the router. The
router tests a packet against the static route table before it checks the packet’s
destination, thus allowing the router to accept packets that may not have a
destination network of zero.
When you configure a NetBIOS static route, the IPX router inserts the network
number configured in the static route into the destination network number of the
IPX packet.
When you configure NetBIOS static routes on an interface, the IPX router
compares all IPX NetBIOS broadcast packets received on the interface with the
boxwide NetBIOS static routes. If the NetBIOS destination name found in the
packet matches an entry in the routing table, the NetBIOS packet is routed to the
associated destination network. If no match is found, the IPX router treats the
packet as specified by the NetBIOS Accept and NetBIOS Deliver parameters.
Caution: This method of defining IPX NetBIOS static routes is a nonstandard
Bay Networks feature that may not be compatible with routers from other
vendors.
This method converts a NetBIOS broadcast packet to a NetBIOS directed
broadcast packet, thereby eliminating the loop checking and path tracing that
is usually done for NetBIOS broadcast packets. This may cause problems with
applications that rely on those mechanisms.
Customizing IPX
117369-B Rev. 00 5-97
Using the BCC
To enable Novell certification, navigate to the global IPX prompt (for example
box; ipx) and enter:
novell-certification-conformance enabled
To disable Novell certification, navigate to the global IPX prompt (for example
box; ipx) and enter:
novell-certification-conformance disabled
Using Site Manager
To enable or disable Novell certification conformance, complete the following
tasks:
Directing a NetBIOS Packet Using Standard Static Routing
If you want to configure NetBIOS static routes in conformance with Novell
standards, you must configure a static route for each hop in the network. After you
specify the static route to a NetBIOS name, the IPX router converts standard
NetBIOS broadcast packets to NetBIOS directed broadcast packets.
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Global. The IPX Global Parameters window
opens.
4. Click on Advanced. The IPX Advanced Global Parameters
window opens.
5. Set the Novell Certification
Conformance parameter. Click on Help
or see the parameter description on
page A-21.
6. Click on OK. You return to the Configuration Manager
window.
Configuring IPX Services
5-98 117369-B Rev. 00
• NetBIOS broadcast packets are sent to all accessible host IDs on all
accessible IPX networks.
• NetBIOS directed broadcast packets are sent to all host IDs on a single IPX
network.
NetBIOS Broadcast Filters
You can control the propagation of IPX NetBIOS broadcasts by configuring
NetBIOS broadcast filters on an interface. This feature ensures that visibility to
NetBIOS resources is limited only to networks that need to have access to certain
resources. This capability can enhance security and preserve bandwidth by
controlling the flow of NetBIOS traffic.
You can configure an interface to either accept or not accept NetBIOS broadcasts
from an attached network, and to deliver or not deliver NetBIOS broadcasts to a
network. By default, both of these parameters are disabled.
Using the BCC
To specify that an interface accepts NetBIOS broadcasts from an attached
network, navigate to the IPX interface prompt (for example, box; ethernet 2/1;
ipx 00023456) and enter:
netbios-accept enabled
To specify that an interface does not accept NetBIOS broadcasts from an attached
network, navigate to the IPX interface prompt (for example, box; ethernet 2/1;
ipx 00023456) and enter:
netbios-accept disabled
To specify that an interface delivers NetBIOS broadcasts from an attached
network, navigate to the IPX interface prompt (for example, box; ethernet 2/1;
ipx 00023456) and enter:
netbios-deliver enabled
To specify that an interface does not deliver NetBIOS broadcasts from an attached
network, navigate to the IPX interface prompt (for example, box; ethernet 2/1;
ipx 00023456) and enter:
netbios-deliver disabled
Customizing IPX
117369-B Rev. 00 5-99
Using Site Manager
To configure NetBIOS broadcast filters on an interface, complete these tasks:
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Interfaces. The IPX Interfaces window opens.
4. Set thefollowing paramters:
• NetBIOS Accept
• NetBIOS Deliver
•Maximum Path (hex) parameter.
Click on Help or see the parameter
descriptions on page A-27.
5. Click on OK. You return to the Configuration Manager
window.
Note: The description that follows assumes that the NetBIOS destination
name found in the packet does not match an entry in the NetBIOS Static
Routing table.
Configuring IPX Services
5-100 117369-B Rev. 00
When you enable an IPX interface to accept NetBIOS broadcasts, the IPX router
accepts NetBIOS broadcast packets received on that interface. For example, in
Figure 5-10, the IPX router accepts NetBIOS broadcast packets received only on
interfaces 1 and 2.
Figure 5-10. NetBIOS Packet Filtering
When you enable an IPX interface to accept NetBIOS broadcasts, the IPX router
delivers NetBIOS broadcast packets that are routed to that interface. For example,
in Figure 5-10, the IPX router delivers NetBIOS broadcast packets only to
interfaces 1 and 3. The arrows in Figure 5-11 show the flow of packets in this
same model.
Network 1 Network 2
Network 3 Network 4
IPX router
Interface 1
accept enabled
deliver enabled
Interface 2
accept enabled
deliver disabled
Interface 3
accept disabled
deliver enabled
Interface 4
Accept disabled
deliver disabled
IPX0016A
Customizing IPX
117369-B Rev. 00 5-101
Figure 5-11. NetBIOS Packet Flow
You must enable an IPX interface to accept or deliver NetBIOS boradcasts for
delivery of such packets to occur. For example, interface 1 can deliver only
packets from interface 2 to network 1, because interface 2 is the only other
interface that has been configured to accept NetBIOS broadcasts.
Thus, NetBIOS client applications on network 1 can initiate and establish sessions
with NetBIOS server applications only on network 3. NetBIOS client applications
on network 2 can initiate and establish sessions with NetBIOS server applications
only on networks 1 and 3. Client applications on networks 3 and 4 cannot initiate
any sessions with NetBIOS server applications via the IPX router.
Network 1
Network 3
Network 2
Network 4
IPX router
IPX0017A
Configuring IPX Services
5-102 117369-B Rev. 00
As another example, in Figure 5-12, NetBIOS broadcasts from the end system
ES1 on network A are accepted by router R1, but can be prohibited from network
C by disabling the interface of router R1 connected to network C from delivering
NetBIOS broadcasts. NetBIOS broadcasts will still be delivered on network B.
Figure 5-12. NetBIOS Broadcast Filtering
Configuring an Adjacent Host for an Interface
You can determine how the IPX router sends packets to a specific IPX host by
configuring an IPX adjacent host. You can configure the adjacent host only if you
are not using RIP on a circuit. Adjacent hosts typically use WAN media and do
not require RIP.
Making the Adjacent Host Record Active
You can set the state (active or inactive) of the adjacent host record in the IPX
routing tables.
Network B
Network C
Network A
ES1 ES 2
IPX server
Disable
"Deliver NetBIOS broadcasts
R1
IPX0018A
Customizing IPX
117369-B Rev. 00 5-103
Using the BCC
To make the adjacent host active, you must first configure an adjacent host on an
IPX interface. To configure an adjacent host, navigate to the IPX interface prompt
(for example, box; ethernet 2/1; ipx 00023456) and enter:
adjacent-host host-address
address
address is the address, in hexadecimal notation, of the adjacent host.
For example:
ipx/00023456# adjacent-host host-address 000012345678
To make the adjacent host active, navigate to the adjacent host prompt (for
example, box; ethernet 2/1; ipx 00023456; adjacent-host host-address
000012345678) and enter:
state enabled
To make the adjacent host inactive, navigate to the adjacent host prompt (for
example, box;ethernet 2/1; ipx 00023456; adjacent-host host-address
000012345678) and enter:
state disabled
For example:
adjacent-host/00023456/000012345678# state enabled
Configuring IPX Services
5-104 117369-B Rev. 00
Using Site Manager
To specify the state of the adjacent host, complete the following tasks:
Entering the ID of the Adjacent Host
If you are not using RIP on a circuit, supply the host ID of the adjacent host. You
can enter a host ID of up to 12 hexadecimal characters.
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Static/Filter Tables. The IPX Static Interface Tables
Configuration window opens.
4. Choose Adj. Hosts. The IPX Adjacent Hosts window opens.
5. Click on Add. The IPX Adjacent Host Configuration
window opens.
6. Set the Enable parameter. Click on Help
or see the parameter description on
page A-53.
7. Click on OK. You return to the Configuration Manager
window.
Customizing IPX
117369-B Rev. 00 5-105
Using the BCC
When you first configure an adjacent host, you must supply the host ID of the
adjacent host. To configure an adjacent host and specify its address, navigate to
the adjacent host prompt (for example, box; ethernet 2/1;ipx 00023456;
adjacent-host host-address 000012345678) and enter:
adjacent-host host-address
address
address is the address, in hexadecimal notation, of the adjacent host.
For example:
ipx/00023456# adjacent-host host-address 000012345678
Using Site Manager
To specify the host ID of the adjacent host, complete the following tasks:
Note: You cannot change the address of the adjacent host using the BCC.
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Static/Filter Tables. The IPX Static Interface Tables
Configuration window opens.
4. Choose Adj. Hosts. The IPX Adjacent Hosts window opens.
5. Click on Add. The IPX Adjacent Host Configuration
window opens.
6. Set the Host Address parameter. Click on
Help or see the parameter description on
page A-51.
7. Click on OK. You return to the Configuration Manager
window.
Configuring IPX Services
5-106 117369-B Rev. 00
Entering a WAN Address
If the interface you are configuring is on an ATM or SMDS network, supply a
WAN address of up to 16 hexadecimal characters. If the interface is on a frame
relay network, enter a WAN address or a decimal data link connection identifier
number.
Using the BCC
To specify a WAN address, navigate to the adjacent host prompt (for example,
box; ethernet 2/1; ipx 00023456; adjacent-host host-address 000012345678)
and enter:
wan-number
number
number is one of the following:
Number Interface
Up to 16-character hexadecimal number ATM or SMDS network
Decimal DLCI number Frame relay network
X.121 address X.25 switched virtual circuit
Logical channel number X.25 permanent virtual circuit
Customizing IPX
117369-B Rev. 00 5-107
Using Site Manager
To specify the WAN address, complete the following tasks:
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Static/Filter Tables. The IPX Static Interface Tables
Configuration window opens.
4. Choose Adj. Hosts. The IPX Adjacent Host window opens.
5. Click on Add. The IPX Adjacent Hosts Configuration
window opens.
6. Set the Adjacent Host Address
parameter. Click on Help or see the
parameter description on page A-51.
7. Click on OK. You return to the Configuration Manager
window.
Configuring IPX Services
5-108 117369-B Rev. 00
Creating a Frame Relay SVC to an Adjacent Host
You can create a frame relay SVC to an adjacent host. You must first enable frame
relay SVC broadcasts and then identify the SVC.
Using the BCC
To enable frame relay SVC broadcasts, navigate to the IPX interfaces prompt (for
example, box; framerelay 3/1; ipx 00023456) and enter:
svcbroadcast enabled
To disable frame relay SVC broadcasts, navigate to the IPX interfaces prompt (for
example, box; framerelay 3/1; ipx 00023456) and enter:
svcbroadcast disabled
To identify the SVC, you must supply:
• Hexadecimal address of the remote party
• Type of number used to establish an SVC to the adjacent host
• Type of adjacent host
To identify the remote party, navigate to the adjacent host prompt (for example,
box; ethernet 2/1; ipx 00023456; adjacent-host host-address 000012345678)
and enter:
host-subaddress
address
address is an 8-digit hexadecimal number.
For example, to set the subaddress to 0x67678934, enter:
adjacent-host/00023456/000012345678# host-subaddress 0x67678934
Customizing IPX
117369-B Rev. 00 5-109
To identify the type of number used to establish an SVC to the adjacent host,
navigate to the adjacent host prompt (for example, box; ethernet 2/1; ipx
00023456; adjacent-host host-address 000012345678) and enter:
type-of-number
option
option is one of the following:
international
unknown
For example, to set the type of number to international, enter:
adjacent-host/00023456/000012345678# type-of-number international
To identify the type of adjacent host, navigate to the adjacent host prompt (for
example, box; ethernet 2/1; ipx 00023456; adjacent-host host-address
000012345678) and enter:
type
host_type
host-type is one of the following:
fre164
default
frx121
frdlci
For example, to set the type to fre164, enter:
adjacent-host/00023456/000012345678# type fre164
Configuring IPX Services
5-110 117369-B Rev. 00
Using Site Manager
To create an SVC to an adjacent host, complete the following tasks:
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Interfaces. The IPX Interfaces window opens.
4. Set the FR SVC Broadcast parameter.
Click on Help or see the parameter
description on page A-51.
5. Click on OK. You return to the Configuration Manager
window.
6. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
7. Choose IPX. The IPX menu opens.
8. Choose Static/Filter Tables. The IPX Static Interface Tables
Configuration window opens.
9. Choose Adj. Hosts. The IPX Adjacent Host window opens.
10. Click on Add. The IPX Adjacent Hosts Configuration
window opens.
11. Set the following parameters:
• Remote Party Sub-Address
• Remote Party Type of Number
• Adjacent Host TYpe
Click on Help or see the parameter
description on page A-51.
12. Click on OK. You return to the Configuration Manager
window.
Customizing IPX
117369-B Rev. 00 5-111
Dial Services
A dial service provides access to a switched network by means of a dial-up line
(also called a switched line). Dial-up lines are active only as-needed -- that is,
when there is data to send across the network, or when a dial-up line acts as a
resource for a failed or congested leased line. Dial-up lines can be a cost-effective
alternative to leased lines and packet networks, which are permanent connections
and therefore available regardless of network traffic.
If you send a limited amount of data or your data transmission is intermittent,
dial-up lines can be less expensive than leased lines and they maximize network
performance and flexibility.
The Bay Networks router provides three types of dial services: dial-on-demand,
dial backup, and bandwidth-on-demand. Each dial service serves a different
purpose:
•Dial-on-demand service reduces your line costs by establishing a connection
between two devices only when there is data to send. You do not incur the
cost of a leased line that is active regardless of data traffic.
•Dial backup service provides a backup circuit when a leased circuit fails. The
backup circuit serves as an alternative path for data to reach the destination.
•Bandwidth-on-demand service provides up to 29 additional lines for a
congested leased line, a dial-on-demand line, or a leased multilink bundle.
This provides a total of 30 lines for communication. The additional lines
increase bandwidth for data traffic, improving communication and reducing
network delays.
For more information about dial services, refer to Configuring Dial Services.
Configuring IPX Services
5-112 117369-B Rev. 00
Using Dial-on-Demand Service
Dial-on-demand supports synchronous lines (RS232, V.35, RS422, and X.21) and
ISDN interfaces. When dial-on-demand is configured, the router activates a
dial-on-demand circuit for any one of the following reasons:
• The router has data to send across the circuit.
When the router has data to transmit, it automatically selects one of the
demand lines from the circuit’s associated demand pool. As long as data is
going across the line, the end-to-end connection remains active.
• You enabled a force dial. The router forces the establishment of a circuit.
You enabled the Force Dial parameter to immediately activate a line and
establish a connection. Using this parameter, you can force the connection to
come up, regardless of whether there is data activity.
The router brings down the circuit for any one of these reasons:
• The configured inactivity time expires.
• You scheduled the circuit to come down.
• You enabled a forced take down.
Figure 5-13 shows a dial-on-demand line connecting two routers. In this example,
when the router has data to transmit across a demand circuit, or when you
configure the router to bring up a demand circuit, the router instructs the dial
device to establish a connection.
Note: Do not configure IPX adjacent hosts with dial-on-demand circuits.
Customizing IPX
117369-B Rev. 00 5-113
Figure 5-13. Dial-on-Demand Service
Using Static Routing with Dial-on-Demand
As part of its standard operation, IPX sends update packets to maintain routing
tables and to gather information about network resources. For dial-on-demand, the
frequency of these update packets forces the dial-up connection to remain up
permanently, unless you configure a time of day to bring the connection down.
When you configure dial-on-demand circuits, you should disable broadcast
messages. The router then uses static routes to determine the location of the
destination network.
Dial
device
Dial
device
Dial
device
Dial
device
Dial
device
Los Angeles
Chicago
Dallas
New York
Demand
pool 1:
Slot 2
Back of
router
Data arrives at the New York router, but final destination is
Dallas. A port in the demand pool transmits the data.
IPX0014A
Configuring IPX Services
5-114 117369-B Rev. 00
Tips for Using Dial-on-Demand with IPX
The following suggestions may help improve overall system efficiency if you’re
using dial-on-demand with IPX:
• Turn off triggered updates.
• Set the periodic update interval to a large value -- the line will be called only
infrequently.
• Use service filtering and/or route filtering.
• Use static routes and static services.
• Use the default route.
• Enable local watchdog acknowledgment (“spoofing”).
• Use traffic filters and protocol prioritization to prohibit routing updates and
protocol-specific messages from keeping the circuit up unnecessarily (see
Configuring Traffic Filters and Protocol Prioritization for details).
Local IPX Watchdog Acknowledgment
In a NetWare network, NetWare servers broadcast “watchdog” packets to verify
that client nodes are still connected to the server. Watchdog packets are just
another form of a data packet.
To maintain the connection, the client must respond to this watchdog message
(essentially, responding to a poll). With a dial-up connection (that is, when you
want to establish periodic connectivity to a remote site using the dial-on-demand
feature), this polling mechanism could mean dialing the phone line just to keep
the server from bringing down the connection.
In addition, the bandwidth consumed by periodic RIP/SAP and watchdog
broadcast packets can represent a significant portion of the total dial cost when
charged on a per-packet basis. Depending on the network configuration and the
application, this excessive broadcast activity can reduce application access
performance.
To address this problem, Bay Networks routers can use local watchdog
acknowledgment to improve the efficiency of IPX wide area links. This feature,
also known as “watchdog spoofing,” lets Bay Networks routers locally respond to
broadcast IPX watchdog packets on behalf of clients connected over dial-in
connections.
Customizing IPX
117369-B Rev. 00 5-115
Without local watchdog acknowledgment, each time a server sends an IPX
watchdog packet to a logically connected client, the dial-on-demand link will be
established and remain up to support the communication between the client and
the server (that is, the watchdog packets).
Within an IPX network, servers rely on client watchdog acknowledgments to
verify that client sessions are still active with the server. The router closest to the
server responds on behalf of the client. As a result, NetWare servers may reach the
maximum client sessions supported by the server, although not all clients are truly
maintaining a session. This can happen if the client does not perform a standard
closure of the session; for example, if the client PC is rebooted. You can avoid this
potential problem by implementing NetWare’s auto logoff feature to ensure that
client sessions are released when they are no longer in use.
Using the BCC
To configure the router to use local watchdog acknowledgement, navigate to the
IPXWAN prompt (for example, box; serial 3/1; ppp; ipxwan 00055555) and
enter:
watchdog-spoofing enabled
To configure the router not to use local watchdog acknowledgement, navigate to
the IPXWAN prompt (for example, box; serial 3/1; ppp; ipxwan 00055555) and
enter:
watchdog-spoofing disabled
For example, to configure an IPXWAN interface to use local watchdog
acknowledgement, enter:
ipxwan/00055555# watchdog-spoofing enabled
Configuring IPX Services
5-116 117369-B Rev. 00
Using Site Manager
To configure the router to use local watchdog acknowledgment, complete the
following tasks:
Local SPX Keepalive Acknowledgment
In a NetWare network, SPX keepalive packets are periodically transmitted to
maintain SPX sessions between client and servers. To prevent these packets from
initiating calls on Dial-on-Demand circuits, the router will acknowledge these
SPX keepalive packets.
Dial Optimized Routing
Dial optimized routing lets you exchange IPX RIP/SAP routing updates only
when a connection is active for data transmission. By limiting when the router can
send updates, dial optimized routing reduces unnecessary connections and line
costs.
For each dial-on-demand circuit, you have the choice of enabling dial optimized
routing. If you enable dial optimized routing, the router establishes a demand
connection only for outbound data packets or through requests from the protocol.
The presence of IPX RIP/SAP packets alone will not trigger a dial connection. If
you disable optimized routing, any packet can initiate demand connections.
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Interfaces. The IPX Interfaces window opens.
4. Set the IPX Watchdog Spoofing
parameter. Click on Help or see the
parameter description on page A-29.
5. Click on OK. You return to the Configuration Manager
window.
Customizing IPX
117369-B Rev. 00 5-117
Once you have enabled dial optimized routing on a dial on demand circuit, the
only times the router sends routing updates independent of data are:
• The first time an IPX interface becomes active
• Triggered updates while the circuit is active
• Scheduled updates using a broadcast timer
You can use dial optimized routing for IPX only after you have enabled it on a
PPP dial-on-demand circuit. Refer to “Configuring Dial Services” for information
on how to enable dial optimized routing.
Getting Optimum Performance Using IPX Dial Optimized Routing
To use dial optimized routing optimally, Bay Networks recommends that you
follow the practices described below:
1. Set the Inactivity Mode parameter to Transmit Only.
Any other setting causes the inactivity mode to reset when the receive end
cannot filter serialization, watchdog, and keepalive packets for NORESET.
These packets could keep the demand line active for long periods of time.
2. Stop the router from clipping packets when an IPX DOR packet comes
up or changes state.
As IPX routes and services grow in number, IPX RIP and SAP packets may
be clipped when an IPX DOR circuit comes up or changes state. To stop the
clipping, reduce the value of the Pace parameter for RIP and SAP packets, or
change the RIP/SAP packet size for the IPX DOR circuit. You should reduce
the RIP/SAP Pace parameter for IPX DOR circuits to accommodate the
number of IPX routes and services in the network.
3. Reduce the frequency of bringing up the line for time synchronization
packets.
No default priority queuing filters exist for IPX diagnostics packets or packets
used in Netware Directory Services (NDS) time synchronization. You can
configure a priority queueing filter to keep IPX diagnostic packets from
bringing up a demand line. However, since the Bay Networks IPX ping packet
is a diagnostic packet, the filter will affect it as well.
NDS time synchronization packets are treated as data packets. You can
configure NetWare servers for larger polling intervals to reduce the frequency
of bringing up the line for time synchronization packets.
Configuring IPX Services
5-118 117369-B Rev. 00
Default IPX Dial Optimized Routing Filters
When you enable IPX on a dial-optimized routing circuit, several Priority
Queuing (PQ) filters are created, by default, to reduce call initiation by various
IPX packets. These filters prevent IPX watchdog packets, SPX keepalive packets,
and IPX serialization packets from initiating calls or resetting the inactivity timer
on IPX demand circuits.
Enabling or disabling dial optimized routing on an IPX circuit affects the amount
of time that RIP/SAP waits before sending out initial route information when the
dial-on-demand route first becomes enabled, and the frequency of RIP/SAP
updates.
Enabling or disabling dial optimized routing on an IPX circuit changes the default
values of the RIP/SAP delay period to 120 seconds and RIP/SAP update interval
to 3600 seconds. If you enable dial optimized routing after configuring IPX on a
circuit, you should go back and set the Stabilization Timer Delay to 120 seconds
and RIP/SAP Update Interval to 3600 seconds. If you disable dial optimized
routing, go back and change the RIP/SAP delay period and RIP/SAP update
interval to the original default value.
Using the BCC
To set the maximum number of paths, you must configure:
• RIP/SAP delay period
• Update interval for RIP and/or SAP
To set the RIP/SAP delay period to the default value of 120 seconds, navigate to
the IPX interface prompt (for example, box; ethernet 2/1; ipx 00023456) and
enter:
stabilization-timer 120
To change the RIP update interval period to 3600 seconds, navigate to the RIP
prompt (for example, box; ethernet 2/1; ipx 00023456; rip 00023456) and enter:
update-interval 3600
To change the update interval period to 3600 seconds, navigate to the SAP prompt
(for example, box; ethernet 2/1; ipx 00023456; sap 00023456) and enter:
update-interval 3600
Customizing IPX
117369-B Rev. 00 5-119
Using Site Manager
To change the update interval period, complete the following tasks:
Configuring the Routing Update Delay Timer
You can define the amount of time, from 0 to 2147483674 seconds, to delay the
sending of RIP/SAP updates on a circuit after the dial-on-demand circuit has been
enabled. Generally, the more routes that a router is expected to handle or the more
dynamic the network is, the higher the value you should set (from 0 to 60
seconds). This timer prevents the router from dialing the remote site multiple
times (each time after it collects a subset of routes).
For information on how to set the delay period, refer to “Setting the Stabilization
Timer Delay” on page 5-34.
RIP/SAP Triggered Updates
IPX sends triggered updates whenever a routing change occurs while the
dial-on-demand circuit is active. However, with dial optimized routing enabled,
triggered updates will not initiate a dial-on-demand connection. The updated
information will, however, be held in the routing table and forwarded the next
time the circuit comes up for data transmission or for a scheduled update.
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Interfaces. The IPX Interfaces window opens.
4. Choose RIP. The IPX RIP Circuit window opens.
5. Set the following parameters:
• Timer Delay
• Update Interval (sec)
Click on Help or see the parameter
descriptions on pages A-29, A-37, and
A-43.
6. Click on OK. You return to the Configuration Manager
window.
Configuring IPX Services
5-120 117369-B Rev. 00
Determining the Frequency of Scheduled Updates
By default, IPX sends out scheduled updates every 60 seconds. You can regulate
the frequency of broadcast updates.
The value you specify for the frequency of scheduled updates allows the router to
accumulate routes for the specified period of time. The higher the number you
specify, the longer the time available to accumulate routes and the less frequent
the transmissions. If you specify zero, the router will not send out any periodic
RIP updates over the IPX interface. However, RIP immediate (one-time) update
packets still propagate through the network, in compliance with Novell standards.
Using the BCC
To regulate the frequency of broadcasts, you must configure the RIP update
interval and decide whether you want to use IPX watchdog spoofing.
To adjust the frequency of RIP update packet transmissions, navigate to the RIP
prompt (for example, box; ethernet 2/1; ipx 00023456; rip 00023456) and enter:
update-interval
seconds
seconds is from 0 to 2678400 seconds.
To enable a router to respond locally to watchdog packets, navigate to the
IPXWAN prompt (for example, box; serial 3/1; ppp; ipxwan 00055555#) and
enter:
watchdog-spoofing enabled
To disable a router from responding locally to watchdog packets, navigate to the
IPXWAN prompt (for example, box; serial 3/1; ppp; ipxwan 00055555#) and
enter:
watchdog-spoofing disabled
Customizing IPX
117369-B Rev. 00 5-121
Using Site Manager
To regulate the frequency of broadcasts, complete the following tasks:
You must enable IPX watchdog spoofing or the router will continually dial the
circuit whenever watchdog packets are sent. When enabled, watchdog spoofing
enables a router to respond locally to IPX watchdog packets on behalf of clients.
Without these packets, endpoints have no way to tell if a peer has become
unreachable.
To enable or disable watchdog spoofing, see “Local IPX Watchdog
Acknowledgment” on page 5-114. Enabling local watchdog spoofing also enables
SPX keepalive spoofing.
Configuring RIP and SAP Broadcast Timers
A Bay Networks router running IPX lets you control the frequency of RIP and
SAP update packet transmissions over both local and wide area links. RIP and
SAP transmissions provide the following benefits:
• You spend less time manually configuring changes to static services and
service routes across your network.
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Interfaces. The IPX Interfaces window opens.
4. Choose RIP. The IPX RIP Circuit window opens.
5. Set the following parameters:
• Update Interval (sec)
• IPX Watchdog Spoofing
Click on Help or see the parameter
descriptions on pages A-37 and A-29.
6. Click on OK. You return to the Configuration Manager
window.
Configuring IPX Services
5-122 117369-B Rev. 00
• You reduce the cost of administering Bay Networks routers installed across
your network, compared to the cost of building static routes or static services
tables.
• You allow a router to respond to changes in services and routes offered on the
network.
• You enable users to have more accurate, up-to-date information on services
and service routes offered on the network.
However, periodic RIP and SAP transmissions mean:
• Less bandwidth is available for user data. Consequently, user data
transmissions take longer, thereby increasing WAN line costs.
• You sacrifice some level of manual control over services and routes made
available to network users. Your particular networking environment may
require a higher degree of manual control over information on services and
service routes offered to users on your network.
When you adjust the frequency of RIP and SAP update packet transmissions, the
higher the number you specify, the less frequent the transmissions. If you specify
zero, no periodic RIP or SAP updates are sent out the IPX interface of the router.
However, RIP and SAP immediate (one-time) update packets still propagate
through the network, in compliance with Novell standards. The default interval is
60 seconds.
Eliminating periodic RIP and SAP updates provides the following benefits:
• Reduced RIP and SAP overhead on your network
• Increased bandwidth available for user data
• Reduced WAN line costs for packet transmission
• Increased manual control over network services and routes
However, not having periodic RIP and SAP transmissions means:
• A slower response time of the network to changes in network services and
routes
• An increase in the time and cost of administering changes to services and
service routes made available through Bay networks routers on your network
Customizing IPX
117369-B Rev. 00 5-123
RIP and SAP timer settings should be the same on both sides of the WAN. Refer
to the sections “Configurable RIP Timers” and “Configurable SAP Timers” in this
chapter for more detailed information.
Using the BCC
To adjust the frequency of RIP update packet transmissions, navigate to the RIP
prompt (for example, box; ethernet 2/1; ipx 00023456; rip 00023456) and enter:
update-interval
seconds
seconds is from 0 to 2678400 seconds.
To adjust the frequency of SAP update packet transmissions, navigate to the SAP
prompt (for example, box; ethernet 2/1; ipx 00023456; sap 00023456) and
enter:
update-interval
seconds
seconds is from 0 to 2678400 seconds.
For example, to set the update interval to 10,000, enter:
rip/00023456# update-interval 10000
Using Site Manager
To adjust the frequency of RIP and SAP updates, complete the following tasks:
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Interfaces. The IPX Interfaces window opens.
4. Choose RIP. The IPX RIP Circuit window opens.
5. Set the Update Interval (sec) parameter.
Click on Help or see the parameter
description on page A-37.
6. Click on OK. You return to the Configuration Manager
window.
Configuring IPX Services
5-124 117369-B Rev. 00
Using Static Routes
A static route specifies a transmission path between networks.
The static route feature lets you manually define an IPX route to a destination
network. Static routes specify the next hop in the transmission path a datagram
must follow, based on the datagram’s destination address. You configure a static
route when you want to restrict the paths that packets can follow. A Bay Networks
router running IPX lets you configure static routes on each logical IPX interface.
Using static routes is most valuable over wide area links, where bandwidth is at a
premium. Static route support also enhances internetwork security because it can
be implemented so that traffic across specific IPX networks is restricted,
protecting sensitive internetwork resources.
Static route support for IPX can do the following:
• Direct all IPX traffic not destined for this network to an adjacent host. The
adjacent host may be the actual destination, or it may be the next hop to the
eventual destination network. See the following section on adjacent host
support for more information about adjacent hosts.
• Reduce routing traffic by disabling the RIP supply function on all or a subset
of attached interfaces that are configured with static routes.
• Provide security by eliminating all dynamic routing capabilities and all RIP
supply and listen activities over an IPX interface.
You should configure static routes and disable IPX RIP and SAP advertisements
when implementing dial-on-demand routing over a wide area link. IPX RIP and
SAP advertisements force dial-on-demand connections to be continuously
established, which prevents user-defined dial-on-demand expiration time limits
from being reached. Refer to the description of the dial-on-demand feature later in
this chapter for details on using this feature.
Unlike routes learned through RIP, static routes remain in the route tables until
you delete them. RIP routes have priority over static-learned routes if both routes
have the same cost.
If you do not have the RIP listen functions enabled, the local network will not
learn about new routes on the network, route changes, or deleted routes.
Customizing IPX
117369-B Rev. 00 5-125
Static route support lets you identify the next interface and next router in the path
toward a destination network. Once you configure a static route for an interface,
the router advertises that route in its usual RIP broadcasts.
For example, in Figure 5-14, to establish a static route between IPX network A
and IPX network B, through interface 1 on router R1, a static route must be
established from router R1 to router R2. The static route entry in router R1 directs
any traffic destined for network B through interface 1 to router R2. In turn, the
static entry in router R2 directs any traffic destined for network B through
interface 3 to router R3, and thus to network B.
Figure 5-14. IPX Static Routes
RIP routes have priority over static-learned routes with the same cost, so if the
connection between routers R1 and R3 has the same or greater cost, the packet
will travel over the static route from router R1 to router R2 to router R3. If a
connection used by the static route fails (and if router R1 has the listen function
enabled), router R1 will learn of an alternative route between network A and
network B and attempt to send the packet over that connection.
IPX server
Network B Network A
ES2
R1 R3
R2
Interface 1
Interface 6
Interface 5
Interface 4
Interface 3
Interface 2
To Network B
via Interface 3
and Router 3
To Network B
via Interface 1
and Router 2
IPX0009A
Configuring IPX Services
5-126 117369-B Rev. 00
IPX static routes are user-specified routing table entries. Static routes, like routes
learned through RIP, are maintained in the IPX routing table. Unlike routes
learned through RIP, however, static routes do not expire. Static routes remain in
the IPX routing table until they are reconfigured manually. Static routes are
removed if the interface they are configured on goes down.
Specifying the Target Network Address
If you are using the static route feature, you must specify the address of the
network to which you want to configure the static route. You can enter a network
address of up to 8 hexadecimal characters or specify that the router use the default
route 0xFFFFFFFE.
Using the BCC
When you first create a static route, you must supply a target network address. To
modify the network address, navigate to the IPX static route prompt (for example,
box; ethernet/2/1; ipx 00023456; static-route 00023456/00054321/
000000765432) and enter:
target-network
address
address is up to 8 hexadecimal characters.
For example, to specify 0x000076d5 as the target network address, enter:
static-route/00023456/00054321/000000765432# target-network 0x000076d5
Note: You can send packets over a static route if you have mapped an IPX
host address to a data link address in a Frame Relay, SMDS, or ATM network.
If RIP is disabled on a WAN interface, before you configure a static route to an
adjacent host, you must configure an adjacent host and edit the DLCI
parameter.
Customizing IPX
117369-B Rev. 00 5-127
Using Site Manager
To specify the network address, complete the following tasks:
Entering the Next-Hop Host
With the static route feature, you must specify the address of the next-hop host in
the static routing path. The next-hop host address consists of up to 12
hexadecimal characters. The next hop host is the host address of the down-stream
router’s IPX interface.
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Interfaces. The IPX Interfaces window opens.
4. Choose RIP. The IPX RIP Circuit window opens.
5. Set the Target Network (hex) parameter.
Click on Help or see the parameter
description on page A-56.
6. Click on OK. You return to the Configuration Manager
window.
Note: You cannot change the next-hop host address once you have configured
a static route.
Configuring IPX Services
5-128 117369-B Rev. 00
Using the BCC
When you first create a static route, you must supply a target network address. To
modify the network address, navigate to the IPX static route prompt (for example,
box; ethernet/2/1; ipx/00023456; static-route/00023456/00054321/
000000765432) and enter:
target-network
address
address is up to 8 hexadecimal characters.
For example, to specify 0x000076d5 as the target network address, enter:
static-route/00023456/00054321/000000765432# target-network 0x000076d5
Using Site Manager
To specify the address of the next-hop host, complete the following tasks:
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Static/Filter Tables. The IPX Static Interface Tables
Configuration window opens.
4. Choose Static Route. The IPX Static Routes window opens.
5. Click on Add. The IPX Static Route Configuration
window opens.
6. Set the Next Hop (hex) parameter. Click
on Help or see the parameter description
on page A-57.
7. Click on OK. You return to the Configuration Manager
window.
Customizing IPX
117369-B Rev. 00 5-129
Entering the Hop Count
The IPX router uses a hop count when determining the best route for a datagram
to follow. The hop count is also propagated through RIP. The default setting of 0
for static routes means “use the hop count associated with the interface.” You can
accept the default value, zero, or enter a value from 1 to one less than the
maximum number of hops.
Using the BCC
To specify the hop count, navigate to the IPX static route prompt (for example,
box; ethernet/2/1; ipx 00023456; static-route 00023456/00054321/
000000765432) and enter:
hops
count
count is from 0 to one less than the maximum number of hops.
For example, to specify a hop count of 18, enter:
hops 18
Using Site Manager
To specify the hop count, complete the following tasks:
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Static/Filter Tables. The IPX Static Interface Tables
Configuration window opens.
4. Choose Static Route. The IPX Static Routes window opens.
5. Click on Add. The IPX Static Route Configuration
window opens.
6. Set the Hop Count parameter. Click on
Help or see the parameter description on
page A-57.
7. Click on OK. You return to the Configuration Manager
window.
Configuring IPX Services
5-130 117369-B Rev. 00
Setting the Timer Ticks
With the static route feature, you specify the number of 1/18th-second timer ticks
required for an IPX datagram to traverse this static route. The IPX router uses tick
cost when determining the best route for a datagram to follow. The tick cost is also
propagated through RIP. The default setting of 0 for the tick cost of static routes
means “use the tick count associated with the interface.” you can accept the
default value, zero, or enter a value from 1 to the maximum positive integer.
Using the BCC
To specify the tick cost, navigate to the IPX static route prompt (for example,
box; ethernet/2/1; ipx 00023456; static-route 00023456/00054321/
000000765432) and enter:
ticks
cost
cost is from 0 to one less than the maximum positive integer.
For example, to specify a cost of 20, enter:
ticks 20
Customizing IPX
117369-B Rev. 00 5-131
Using Site Manager
To specify the number of timer ticks, complete the following tasks:
Using Route Filters
You can shield the view of networks from users on different network segments by
configuring route filters. Route filters give you greater control over the routing of
IPX packets from one area of an IPX internetwork to another. This helps
maximize the use of the available bandwidth throughout the IPX internetwork,
and helps improve network security by shielding a user’s view of other networks.
You can configure inbound or outbound route filters on a per-interface basis,
instructing the interface to advertise/accept or drop filtered RIP packets. The
action parameter that you define for the filter determines whether the router
advertises, accepts, or suppresses RIP packets from routers that match the filter
pattern.
IPX route filters uses the network number field in the IPX RIP packet. Network
filtering is based on a two-part definition: filter ID and a corresponding mask. A
route filter can be inbound, outbound, or both. You can define filters by network
address, or by a range of network addresses.
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Static/Filter Tables. The IPX Static Interface Tables
Configuration window opens.
4. Choose Static Route. The IPX Static Routes window opens.
5. Click on Add. The IPX Static Route Configuration
window opens.
6. Set the Ticks parameter. Click on Help or
see the parameter description on
page A-58.
7. Click on OK. You return to the Configuration Manager
window.
Configuring IPX Services
5-132 117369-B Rev. 00
The filter ID and the mask definition work together to determine which addresses
are filtered on the interface. The character F in the mask definition requires an
exact match with the corresponding character in the filter ID. The mask character
0 matches any hexadecimal character. You can combine the F and 0 characters in
any order in the mask to filter any combination of network and/or area addressing
schemes used within the IPX internetwork.
For example, suppose you want to filter the range of network addresses from
ABCD1200 to ABCD12FF. To do this, you would define:
• A filter ID of ABCD12FF
• A mask of FFFFFF00
In this example, the filter ID says, “This is the pattern to match.” The mask says,
“The first six characters of the address must match the filter ID, but the last two
characters are irrelevant.”
The IPX Route Filters window displays each route filter entry in the router
configuration, as follows:
<rule_number>, <priority>, <circuit_index>, <filter_ID>, <filter_mask>
Once you have configured route filters, you can easily drop all routes to allow one
or more specific routes. To drop all routes, apply a filter at a low priority. For
example, in the IPX Route Filters window, enter the value 0xFFFFFFFF for the
Target Network parameter, the value 0xFFFFFFFF for the Target Network Mask,
and set the Action parameter to Suppress.
Add the filters you want by specifying higher priorities to advertise specific
routes. For example, enter the value 0x3081be86 for the Target Network
parameter, the value 0xFFFFFFFF for the Target Network Mask parameter, and
set the Priority parameter to 1.
Customizing IPX
117369-B Rev. 00 5-133
Using SAP Filters
Briefly, a filter is a pattern for matching a service name or service network. The
router scans incoming and outgoing SAP packets to see whether certain fields in
the packet match the filter. (The type of filter -- service name or service network --
determines which fields the router examines.) When you set up the filter, you can
specify what the router does with the services in the packet when it finds a match.
You can create SAP filters on Bay Networks routers in your network to regulate
both incoming and outgoing SAP advertisements. You can use SAP filters to
control the size of resident SAP services tables and reduce bandwidth waste on
your network due to SAP broadcast overhead. You can also create SAP filters as a
security mechanism to limit a user’s view of services located elsewhere on the
network.
Each SAP filter consists of a service name or network number, a service type, a
priority, and a configurable action parameter. (You can also include wildcards or
patterns to be matched). As a result, you can tailor SAP filters to your site
requirements, improving network security by controlling access and preserving
bandwidth by limiting the SAP packet traffic.
On a given interface, you can configure a filter as inbound, outbound, or both.
•Inbound filters affect only incoming SAP advertisements. The filter
determines whether the Bay Networks router accepts or suppresses the service
information from certain servers, based upon the action that you specify.
•Outbound filters affect only outgoing SAP advertisements. The router either
advertises or suppresses SAP information, depending on whether it matches
the filter’s content, based upon the action that you specify.
•Both applies the same filter pattern to both incoming and outgoing SAP
advertisements.
Configuring IPX Services
5-134 117369-B Rev. 00
Using the BCC
To specify that a SAP filter accept incoming service information, navigate to the
route filter prompt (for example, box; ipx 00023456; route-filter 0x8888/
0x2121) and enter:
inbound enabled
To specify that a SAP filter suppress incoming service information, navigate to the
route filter prompt (for example, box; ipx 00023456; route-filter 0x8888/
0x2121) and enter:
inbound disabled
To specify that a SAP filter enable outgoing SAP advertisements, navigate to the
route filter prompt (for example, box; ipx 00023456; route-filter 0x8888/
0x2121) and enter:
outbound enabled
To specify that a SAP filter disable outgoing SAP advertisements, navigate to the
route filter prompt (for example, box; ipx/00023456; route-filter 0x8888/
0x2121) and enter:
outbound disabled
Customizing IPX
117369-B Rev. 00 5-135
Using Site Manager
To specify the filter mode, complete the following tasks:
Figure 5-15 shows an example of SAP outbound filtering.
Figure 5-15. SAP Filtering
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Static/Filter Tables. The IPX Static Interface Tables
Configuration window opens.
4. Choose Route Filter. The IPX Route Filters window opens.
5. Set the Mode parameter. Click on Help or
see the parameter description on
page A-71.
6. Click on OK. You return to the Configuration Manager
window.
Network A
Network B Network D
Network C
Server A
Server B
R1 R2
Server A
not visible to
Networks C and D
Drop outbound
SAP updates
pertaining to Server A
SAP update
pertaining only
to Server B
IPX0011A
Configuring IPX Services
5-136 117369-B Rev. 00
In this example, a SAP filter configured on router R1 prevents SAP
advertisements and updates pertaining to server A from being propagated over the
wide area link. As a result, server A is invisible to networks C and D. Information
pertaining to server B, however, continues to be propagated over the WAN link.
You can configure SAP filters using the following levels:
• Individual servers
• Nnetwork level
Using SAP Filters at the Server Level
You can filter SAP service information pertaining to individual servers by editing
server-level SAP filters.
At the service level, the filter matches a pattern that you specify (consisting of a
service name pattern and a service type). The filter’s Action parameter determines
the action (Accept/Advertise or Suppress).
Note: While SAP filters restrict a user’s view of network service information,
they do not prevent users from accessing services. If users have access to
resources contained on an IPX network, they can also access all services
within that network, regardless of whether a service has been filtered. The IPX
router always updates its own SAP services table according to inbound SAP
data.
Note: You cannot change a SAP filter’s actions once you have created a
service name filter.
Customizing IPX
117369-B Rev. 00 5-137
Using the BCC
To specify a SAP filter’s action, navigate to the route filter prompt (for example,
box; ipx/00023456; route-filter 0x8888/0x2121) and enter:
action
value
value is one of the following:
For example, to enable the filter to accept routes that match the filter’s criteria,
enter:
route-filter 0x8888/0x2121# action advertise
Using Site Manager
To specify a SAP filter’s action, complete the following tasks:
Action Meaning
Advertise Enables the filter to allow advertisement or acceptance of routes that
match the specified route filter criteria
Suppress Causes the IPX router to drop advertisements that match the specified
route filter criteria
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Static/Filter Tables. The IPX Static Interface Tables
Configuration window opens.
4. Choose Route Filter. The IPX Route Filters window opens.
5. Set the Action parameter. Click on Help
or see the parameter description on
page A-72.
6. Click on OK. You return to the Configuration Manager
window.
Configuring IPX Services
5-138 117369-B Rev. 00
Using SAP Filters at the Network Level
You can filter service information pertaining to entire networks by editing
network-level SAP filters.
At the network level, the filter matches a pattern that you specify (consisting of a
service network number and a service type). The filter’s action determines
whether the router advertises or suppresses routes that match the filter’s criteria.
Using the BCC
To determine the way a filter behaves at the service network level, you must
specify the name and type of filter and then configure the action of the filter.
To specify the name of the filter, navigate to the IPX static service prompt (for
example, box; ethernet 2/1; ipx 00023456; static-service 00023456/printer/
0987) and enter:
service-name
name
name is any valid alphanumeric server name, or one containing wildcard
characters or a pattern-matching regular expression.
For example, to set the server name to printer2, enter:
static-service/00023456/printer/0987# service-name printer2
To specify the type of the filter, navigate to the IPX static service prompt (for
example, box; ethernet 2/1; ipx 00023456; static-service 00023456/printer/
0987) and enter:
server-type
value
value is any Novell server type number in hexadecimal format.
For example, to set the server type to 0x2121, enter:
static-service/00023456/printer/0987# service-name 0x2121
Customizing IPX
117369-B Rev. 00 5-139
To configure a filter’s action, navigate to the route filter prompt (for example,
box; ipx/00023456; route-filter 0x8888/0x2121) and enter:
action type
type is one of the following:
Using Site Manager
To specify a filter’s action at the service network level, complete the following
tasks:
Action Meaning
Advertise Enables the filter to allow advertisement or acceptance of routes that
match the specified route filter criteria
Suppress Causes the IPX router to drop advertisements that match the specified
route filter criteria
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Static/Filter Tables. The IPX Static Interface Tables
Configuration window opens.
4. Choose Name Filter. The IPX Service Name Filters window
opens.
5. Set the following parameters:
•Action
• Target Server
•Target Service Type (hex)
Click on Help or see the parameter
descriptions on pages A-85 and A-87.
6. Click on OK. You return to the Configuration Manager
window.
Configuring IPX Services
5-140 117369-B Rev. 00
The IPX router with an outbound filter configured on an interface includes
information about a service in a SAP packet if either of the following is true:
• The router finds a match between an outbound filter’s contents and the service
in its SAP services table, and the filter action is Advertise/Accept.
• The router does not find an outbound filter that matches the service in its SAP
services table.
The IPX router excludes information about a service from a SAP packet only if it
finds a match between an inbound filter’s contents and the contents of its SAP
services table, and the filter action is Suppress.
Similarly, the IPX router accepts information about a service in a SAP packet if
either of the following is true:
• The router finds a match between an inbound filter’s contents and the service
in the SAP packet, and the filter action is Advertise/Accept.
• The router does not find an inbound filter that matches the service in the SAP
packet.
Using Wildcards and Pattern Matching with SAP Filters
Wildcards and pattern matching are shortcut techniques for setting up SAP filters.
Wildcards are characters that match zero or more instances of any valid character.
In other words, a wildcard in a filter matches any allowable character(s),
depending on which wildcard you specify. Pattern matching lets you selectively
filter by named entities. The following sections describe each of these techniques.
Using Wildcards with SAP Filters
Wildcards in SAP filters let you configure a single SAP filter to match a set of
services. When you use wildcards, you can configure the filter based on the
service name, which lets you configure a SAP filter based on the characters
represented in the service name field of an IPX SAP packet. The service name
field contains the 48-byte character string name that is assigned to a NetWare
server. The service name, in combination with the service type, uniquely identifies
a service on the internetwork. You can use a wildcard SAP filter configured using
the service name field to shield users’ view of services that reside on a group of
servers that use a common naming convention.
Customizing IPX
117369-B Rev. 00 5-141
The wildcard characters are:
* (Asterisk) matches any number of instances (zero or more) of the previous
character.
• (Period or dot) matches any single character.
For example, suppose an organization has ten servers within its network, each
providing a variety of different services. Five of the servers have names that begin
with the character p, while the other servers have names that start with a different
character. You could then define a single SAP filter p•* that would filter all SAP
information for all five servers whose server name begins with the character p.
Similarly, a SAP filter defined as p•int would match the server names print,
point, and paint, but not the server name poing, because the wildcard character •
matches only a single character in the same position in the string that makes up the
server name.
Configuring IPX Services
5-142 117369-B Rev. 00
Using Pattern Matching with SAP Filters
You can also filter SAP packets by, matching a filter pattern that you define as a
regular expression, using the characters shown in Table 5-1. The software
compares this regular expression against a service name and returns an indication
of whether it finds a match. Functionally, pattern matching on SAP filters is
similar to the UNIX grep command.
Table 5-1. Characters in SAP Pattern-Matching Filters
Filter Character Function
C Matches any character, except those listed below. An ordinary character (like a, b, 7, or
q) matches only itself.
\ (Backslash) The backslash (\) is the escape character. Use this to match a character that would
otherwise have special meaning to the software. The special characters that must be
preceded by a backslash to match themselves are:
\ (backslash)
. (period or dot)
[ (left bracket)
? (question mark)
* (asterisk)
{ (left brace)
( (left parenthesis)
) (right parenthesis)
| (vertical bar)
$ (currency symbol) Must be quoted only when it is the last character
to be matched.
Any other quoted character following a backslash matches itself.
For example, to match a backslash (\) in a string, include the following in the filter
expression: \\
. (Dot or period) Matches a single character
Example: SERVER.
Matches: SERVER1 and SERVERA
Does not match: SERVER12 or SERVER
(continued)
Customizing IPX
117369-B Rev. 00 5-143
You can also construct longer filters by combining (that is, concatenating) these
single-character regular expressions using the rules and operators listed in
Table 5-2. A filter made up of a concatenation of regular expressions matches a
concatenation of text strings, each of which is a match for a successive regular
expression in the search pattern.
[c...] As the rightmost element in a string, this element tells the filter to match
any one
of the
characters enclosed in the brackets.
To use a right bracket (]) as one of the characters to be matched, make it the first
character in the string.
The expression: [ ]abc]
matches any of the characters: ], a, b, or c.
[^c...] When a caret is the first character of the enclosed string, the filter expression matches
any character
except
those in the remainder of the string. For example, the expression
[^45678] matches any character except 4, 5, 6, 7, or 8.
To include a right bracket (]) in the string of filtered characters, place it directly after the
caret. For example, the expression [^] abc] matches every character except ], a, b, or c.
[l-r] The minus sign between two characters indicates a range of consecutive ASCII
characters to match. This bracketed string of characters is known as a
character class
.
For example, the range:
[0-9]
is equivalent to the string:
[0123456789]
The minus sign (-) is treated as an ordinary character if it occurs first (or first after an
initial ^ character) or last in a string.
Table 5-1. Characters in SAP Pattern-Matching Filters
(continued)
Filter Character Function
Configuring IPX Services
5-144 117369-B Rev. 00
Table 5-2. Concatenation Rules and Operators
Rule/Operator Interpretation
?
(Question Mark)
A single-character regular expression followed by a question mark (?) matches
zero or
exactly one
occurrence of that single-character regular expression.
For example, [a-z]? matches any string of either zero lowercase letters or exactly one
lowercase letter.
Example: SERVER?
Matches: SERVER1 and SERVER
Does not match: SERVER12 or SERVER123
*
(Asterisk)
A single-character regular expression followed by an asterisk (*) matches zero or more
occurrences of that single-character regular expression.
For example, [a-z]* matches any string of zero or more lowercase letters.
Example: SERVER*
Matches: SERVER123 and SERVER
Does not match: ADMIN123 or PS_SERVER
+
(Plus Sign)
A single-character regular expression followed by a plus sign (+) matches one or more
occurrences of that single-character regular expression.
For example, [a-z]+ matches any string with one or more lowercase letters.
Example: SERVER+
Matches: SERVER12 and SERVERA
Does not match: SERVER or ADMIN123
{m}
{m,}
{m,n}
(Where m and n
are integers)
A one-character regular expression followed by {m}, {m,}, or {m,n} is a regular expression
that matches a range of occurrences of the one-character regular expression. The
values m and n must be non-negative integers less than 255. The symbols in braces
mean the following:
{m} matches
exactly
m occurrences.
{m,} matches
at least
m occurrences.
{m,n} matches
any number
of occurrences between m and n.
Whenever a choice exists, the regular expression matches as many occurrences as
possible.
For example, the ? operator is equivalent to {0,1}, the * operator is equivalent to {0,},
and the + operator is equivalent to {1,}.
(continued)
Customizing IPX
117369-B Rev. 00 5-145
The server name filters take precedence over the service network filters. Both
service name and service network filters have an associated priority, with smaller
values denoting a higher priority. Matching is performed by first checking all
service name filters in order by priority. If a match isn’t found, then the service
network filters are checked in order by priority.
Use the following operators to construct regular expressions from more-than-single-character regular
expressions.
(...)
(Regular
expression(s)
enclosed in
parentheses)
A regular expression enclosed within parentheses matches whatever the unadorned
regular expression matches. You use parentheses to group a series of regular
expressions that you want to have treated as a single-character regular expression.
For example, the regular expression 0[Xx]? matches a 0 that may or may not be
followed by one X or x, while the regular expression (0[Xx])? matches nothing, the string
“0X,” or the string “0x.”
You can have up to nine such substrings in a regular expression, and you can nest
parentheses.
|
(Vertical Bar)
Two regular expressions separated by the vertical bar (|) match either a match for the
first or a match for the second. These two regular expressions are the longest that can
be created subject to parentheses grouping.
For example, these regular expressions are grouped as follows:
and|or = and | or
and*|o+r = and* | o+r
a(nd|o)r = a, plus either nd or o, plus r
Example: SERVER(8FS|1FS)
Matches: SERVER8FS and SERVER1FS
Does not match: SERVER or SERVER5FS
[ ]
(Square
Brackets)
Matches any single character in the bracketed set.
Example: SERVER[123]
Matches: SERVER1 and SERVER3
Does not match: SERVER123 or SERVER23
Table 5-2. Concatenation Rules and Operators
(continued)
Rule/Operator Interpretation
Configuring IPX Services
5-146 117369-B Rev. 00
For example, you may want to advertise from an IPX interface only one type of
service (type 4) belonging to a particular server (server 1). You can configure:
• A service name SAP filter with a target service name of server 1, a service
type of 4, and an action to advertise.
• A service network filter with a target network of 0xFFFFFFFF, a type of
0xFFFF, and an action to suppress. (This service network filter prevents all
other services from being advertised from the interface.)
Using similar specifications and an action to suppress, you could exclude from an
IPX interface a type of service from a particular server.
An Example of Using SAP Filters
The following example describes a situation in which you might want to configure
SAP filters. An office complex contains three buildings. The people in each
building use only the print services within their own building and have no need to
send files to printers outside their building. To free wasted bandwidth, you could
configure a SAP filter that suppresses print server advertisements on the interfaces
of the routers that connect the three buildings.
To suppress print server advertisements, configure a service network filter on the
interfaces of the routers that connect the three buildings and suppress the
advertisement of Server Type 0x0047 (print server) for all networks
(0xFFFFFFFF). Refer to Appendix A for a list of common server types.
The IPX Service Network window displays each service network filter entry in
the router configuration, as follows:
<filter/rule_no.>, <filter_priority>, <circuit_number>,
<target_network_number>, <target_network_mask>, <target_service_type>
Once you have configured SAP filters, you can easily drop all services to allow
one or more specific services. To drop all services, apply a filter at a low priority.
Note: The order in which you create SAP filters does not affect filter
precedence.
Customizing IPX
117369-B Rev. 00 5-147
Example
Using Site Manager, open the IPX Service Network Filters window, and for the
Target Network (hex) and Target Network Mask (hex) parameters, enter
0xFFFFFFFF (see page A-70). Then set the Action parameter to Suppress (see
page A-72).
Add the filters you want by specifying higher priorities to advertise specific
services.
Example
For the target network, enter the value 0x3081be86, for the target network mask,
enter the value 0xFFFFFFFF for the target service type, enter the value 0x0004,
and set the filter priority to 1 (see page A-75).
Service Name Filters
The service name filters function lets you reduce network traffic by configuring
service name filters.
Enabling an IPX Service Name Filter
If you are configuring service name filters, you must activate the service name
filter for each interface.
By default, the service name filter is active on an interface. You can disable the
service name filter if you do not want to use this feature.
Configuring IPX Services
5-148 117369-B Rev. 00
Using the BCC
To activate the service name filters feature, you must first configure a service
name filter. To configure a service name filter, navigate to the IPX interface
prompt (for example, (box; ethernet 2/1; ipx 0x00023456) and enter:
server-name-filter server-name
name
name is any valid alphanumeric server name.
For example, to set the server name to Hoboken, enter:
ipx/00023456# server-name-filter server-name Hoboken
To enable the service name filters feature, navigate to the service name filter
prompt, (for example, box; ethernet 2/1; ipx 0x00023456; server-name-filter
00023456/myname) and enter:
state enabled
To disable the service name filters feature, navigate to the service name filter
prompt, (for example, box; ethernet 2/1; ipx 0x00023456; server-name-filter
00023456/myname) and enter:
state disabled
Customizing IPX
117369-B Rev. 00 5-149
Using Site Manager
To activate the service name filters feature, complete the following tasks:
Entering the Target Service Name
Enter a the name of the server to which you are applying the server-level SAP
filter, or enter a filter containing a wildcard or a pattern (regular expression) to be
matched. The server name or filter pattern can consist of up to 48 alphanumeric
characters.
You can specify any valid alphanumeric server name, or one containing wildcard
characters or a pattern-matching regular expression. See “Using Wildcards with
SAP Filters” and “Using Pattern Matching with SAP Filters” for lists of these
characters.
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Static/Filter Tables. The IPX Static Interface Tables
Configuration window opens.
4. Choose Name Filter. The IPX Service Name Filters window
opens.
5. Set the Enable parameter. Click on Help
or see the parameter description on
page A-84.
6. Click on OK. You return to the Configuration Manager
window.
Configuring IPX Services
5-150 117369-B Rev. 00
Using the BCC
To specify the service name or filter type, navigate to the service name filter
prompt (for example, box; ethernet 2/1; ipx 0x00023456; server-name-filter
00023456/myname) and enter:
service_name
name
name is any valid alphanumeric server name.
For example, to set the server name to Hoboken, enter:
server-name-filter/00023456/myname# server-name Hoboken
Using Site Manager
To specify the service name or filter type, complete the following tasks:
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Static/Filter Tables. The IPX Static Interface Tables
Configuration window opens.
4. Choose Name Filter. The IPX Service Name Filters window
opens.
5. Set the Target Server parameter. Click on
Help or see the parameter description on
page A-85.
6. Click on OK. You return to the Configuration Manager
window.
Customizing IPX
117369-B Rev. 00 5-151
Entering the Target Service Type
If you are using a service name filter, you must specify the type of server that the
filter should recognize in its criteria for allowing certain SAP broadcasts to pass to
the locally attached network segment. To specify the server type, enter the server
type number in 4-digit hexadecimal format, making sure to include leading zeros.
For all types, enter a value of 0xFFFF. See Appendix C for a list of common
service types.
Using the BCC
To specify the type of server, navigate to the service name filter prompt (for
example, box; ethernet 2/1; ipx 0x00023456; server-name-filter 00023456/
myname) and enter:
type
server_type
server_type is any valid Novell server type in hexadecimal format.
For example, to set the server type to 0x0987, enter:
server-name-filter/00023456/myname# type 0x0987
Using Site Manager
To specify the type of server, complete the following tasks:
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Static/Filter Tables. The IPX Static Interface Tables
Configuration window opens.
4. Choose Name Filter. The IPX Service Name Filters window
opens.
5. Set the Target Service Type (hex)
parameter. Click on Help or see the
parameter description on page A-85.
6. Click on OK. You return to the Configuration Manager
window.
Configuring IPX Services
5-152 117369-B Rev. 00
Setting the Filter Priority
Enter a decimal value that indicates this filter’s priority relative to other filters of
the same type for this interface. You can specify a priority in the range of 0 to the
maximum positive integer. Lower values indicate higher priorities. The highest
priority is zero.
Using the BCC
To specify a filter’s priority, navigate to the service name filter prompt (for
example, box; ethernet 2/1; ipx 0x00023456; server-name-filter 00023456/
myname) and enter:
priority
value
value is a decimal value from 0 to the maximum positive integer.
For example, to set the priority to 12, enter:
server-name-filter/00023456/myname# priority 12
Using Site Manager
To specify a filter’s priority, complete the following tasks:
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Static/Filter Tables. The IPX Static Interface Tables
Configuration window opens.
4. Choose Name Filter. The IPX Service Name Filters window
opens.
5. Set the Filter Priority parameter. Click on
Help or see the parameter description on
page A-86.
6. Click on OK. You return to the Configuration Manager
window.
Customizing IPX
117369-B Rev. 00 5-153
Applying Filters to Inbound or Outbound Packets
You can apply the service name filter to inbound packets, outbound packets, or
both. By default, the filter is applied to SAP packets advertised by the specified
interface. If you want to apply the filter to SAP packets coming into this interface,
specify inbound. If you want to filter both incoming and outgoing packets, specify
both.
Using the BCC
To apply the service name filter to inbound packets, navigate to the service name
filter prompt (for example, box; ethernet 2/1; ipx 0x00023456;
server-name-filter 00023456/myname) and enter:
inbound enabled
If you do not want to apply the service name filter to inbound packets, navigate to
the service name filter prompt (for example, box; ethernet 2/1; ipx 0x00023456;
server-name-filter 00023456/myname) and enter:
inbound disabled
To apply the service name filter to outbound packets, navigate to the service name
filter prompt (for example, box; ethernet 2/1; ipx 0x00023456;
server-name-filter 00023456/myname) and enter:
outbound enabled
If you do not want to apply the service name filter to outbound packets, navigate
to the service name filter prompt (for example, box; ethernet 2/1; ipx
0x00023456; server-name-filter 00023456/myname) and enter:
outbound disabled
Configuring IPX Services
5-154 117369-B Rev. 00
Using Site Manager
To apply the service name filter, complete the following tasks:
Specifying the Protocol
When you send SAP updates, you can apply this outbound filter only to services
learned on the specified protocol. This feature does not apply to inbound services.
By default, the outbound filter applies to any protocol. You can accept the default,
any protocol, or specify that it apply to local, static, or SAP protocols.
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Static/Filter Tables. The IPX Static Interface Tables
Configuration window opens.
4. Choose Name Filter. The IPX Service Name Filters window
opens.
5. Set the Mode parameter. Click on Help or
see the parameter description on
page A-86.
6. Click on OK. You return to the Configuration Manager
window.
Customizing IPX
117369-B Rev. 00 5-155
Using the BCC
To apply an outbound filter to services learned on a specified protocol, navigate to
the service name filter prompt (for example, box; ethernet 2/1; ipx 0x00023456;
server-name-filter 00023456/myname) and enter:
protocol
protocol
protocol is one of the following:
any
local
static
sap
For example, to set the outbound filter to services learned on the SAP protocol,
enter:
server-name-filter/00023456/myname# protocol sap
Using Site Manager
To apply an outbound filter to services learned on a specified protocol, complete
the following tasks:
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Static/Filter Tables. The IPX Global Parameters window
opens.
4. Choose Name Filter. The IPX Service Name Filters window
opens.
5. Set the Protocol parameter. Click on Help
or see the parameter description on
page A-86.
6. Click on OK. You return to the Configuration Manager
window.
Configuring IPX Services
5-156 117369-B Rev. 00
Specifying How to Process SAP Advertisements
You can specify how the router should process any SAP advertisement that
matches the SAP filter criteria you established in the Target Service Name and
Target Service Type parameters.
By default, the filter allows advertisement or acceptance of services that match the
filter criteria you established in the Service Name and Service Type parameters.
You can accept the default or set the filter cause the IPX router to suppress, or
drop, SAP advertisements that match the SAP filter criteria you established in the
Service Name and Service Type parameters.
Using the BCC
To specify how the router should process SAP advertisements, navigate to the
service name filter prompt (for example, box; ethernet 2/1; ipx 0x00023456;
server-name-filter 00023456/myname) and enter:
action
value
value is one of the following:
For example, to enable the filter to accept routes that match the filter’s criteria,
enter:
server-name-filter/00023456/myname# action advertise
Action Meaning
Advertise Enables the filter to allow advertisement or acceptance of routes that
match the specified route filter criteria
Suppress Causes the IPX router to drop advertisements that match the specified
route filter criteria
Customizing IPX
117369-B Rev. 00 5-157
Using Site Manager
To specify how the router should process SAP advertisements, complete the
following tasks:
Specifying a Cost
If you are enabling the filter to allow advertisement or acceptance of services that
match the filter criteria you established when you specified a service name and a
service type, you can assign a cost (number of ticks or hops) for this interface.
The cost is included in subsequent SAP packets sent to other interfaces. IPX
disposes of the packet when its hop count passes a value that is one less than the
value of the maximum number of hops. This value must be the same across the
network.
If the filter is an inbound filter, the entered cost replaces the cost associated with
the server in the SAP advertisement, and the router uses this cost in its
calculations.
If this is an outbound filter, the entered cost replaces the server’s cost that is
advertised in SAP packets by this router.
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Static/Filter Tables. The IPX Static Interface Tables
Configuration window opens.
4. Choose Name Filter. The IPX Service Name Filters window
opens.
5. Set the Action parameter. Click on Help
or see the parameter description on
page A-87.
6. Click on OK. You return to the Configuration Manager
window.
Configuring IPX Services
5-158 117369-B Rev. 00
By default, the cost is set to 1. A zero cost indicates that the route’s actual cost
should be used.
Using the BCC
To assign a cost for a static service filter, navigate to the IPX static service prompt
(for example, box; ethernet 2/1; ipx 00023456; static-service/00023456/
printer/0987) and enter:
cost
integer
integer is 1 to one less than the number of maximum hops for hop-based routing,
or 1 to the maximum positive integer for tick-based routing.
For example, to set the cost to 120, enter:
static-service/00023456/printer/0987# cost 120
Note: Do not change the default value of this parameter unless you are an
expert IPX user (for example, a Bay Networks Technical Solutions Center
engineer). Changing the value of this parameter can significantly affect router
performance. If you are qualified as an expert user, enter a value that yields a
level of performance most appropriate for network applications supported by
this router.
Customizing IPX
117369-B Rev. 00 5-159
Using Site Manager
To assign a cost for a static service filter, complete the following tasks:
Source Route Bridge End Station Support
Source route bridge end station support enables routable traffic generated in a
source route bridge environment to be routed to workstations on remote LANs
over a multiprotocol backbone. The Bay Networks router running IPX lets you
configure source route end station support for token ring networks on each
interface. This allows bridging and routing to coexist in the same IBM source
route bridging environment. With end station support enabled, end stations that
support both source route bridging and IPX can use source routing to traverse
bridged networks.
In a source routing network, every end station supplies each frame it sends out
with route descriptors, so that it can be source routed across the network. Thus, for
routers running IPX to route packets across a source routing network, they must
act like end stations, supplying route descriptors within each packet before
sending it onto the network.
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Static/Filter Tables. The IPX Static Interface Tables
Configuration window opens.
4. Choose Name Filter. The IPX Service Name Filters window
opens.
5. Set the Cost parameter. Click on Help or
see the parameter description on
page A-88.
6. Click on OK. You return to the Configuration Manager
window.
Configuring IPX Services
5-160 117369-B Rev. 00
All traffic is source route bridged within the local token ring environment.
Routable traffic intended for a destination on a LAN interconnected through a
multiprotocol backbone is routed over the backbone by the Bay Networks node.
With end station support enabled, the Bay Networks router running IPX does the
following whenever it receives a packet and determines that the packet’s next hop
is across a source routing network:
• Sends out a Single Route Explorer (SRE) frame to discover a path to the
next-hop network
• Adds the necessary routing information field (RIF) information to the
packet’s MAC header
• Sends the packet to the network, where it is source routed toward the next hop
After the peer router receives the packet from the token ring network, it strips off
the RIF field and continues to route the packet toward the destination network
address, as shown in Figure 5-16.
Customizing IPX
117369-B Rev. 00 5-161
Figure 5-16. IPX Routers Source Routing across a Token Ring Network
The transition to network-layer routing outside the source route bridge
environment can improve overall network performance by reducing source route
bridge overhead on a WAN and can maximize network availability by rapidly
rerouting around a failed link.
ES2
ES1
Token
ring Token
ring Token
ring
WF2 WF1 LLC IPX DATA
WF2 WF1
WF2 WF1 LLC IPX DATA
LLC IPX DATA
0830 001A002B 0030
Bridge A Bridge B
IPX
router 1
IPX
router 2
Packet sent from ES1
Packet sent from router 1
Packet sent from router 2
IPX0019A
Configuring IPX Services
5-162 117369-B Rev. 00
Using the BCC
To configure source route end station support on each interface, configure IPX on
a token ring and navigate to the IPX interfaces prompt (for example, box;
tokenring 5/1; ipx 0x00034567) and enter:
end-station enabled
If you do not want source route end station support on each interface, configure
IPX on a token ring and navigate to the IPX interfaces prompt (for example, box;
tokenring 5/1; ipx 0x00034567) and enter:
end-station disabled
Using Site Manager
To configure source route end station support on each interface, complete the
following tasks:
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Interfaces. The IPX Interfaces window opens.
4. Set the TR End Station parameter. Click
on Help or see the parameter description
on page A-26.
5. Click on OK. You return to the Configuration Manager
window.
Customizing IPX
117369-B Rev. 00 5-163
IPX Ping Support
The Bay Networks Site Manager supports the IPX ping feature, which uses an
IPX diagnostic packet to ping NetWare servers to determine the accessibility --
that is, the status, “alive” or “not responding” -- of the following:
• A remote Bay Networks router
• A Novell IPX server (except as noted later)
• A Novell multiprotocol router
• A NetWare client
This feature can be particularly useful in troubleshooting large networks.
Using the IPX ping command, the router attempts to communicate with another
router running IPX, a server, or an IPX client, and determines whether the
destination node is functioning and reachable from the source node. The
“pinging” Bay Networks router sends an IPX diagnostic packet, called a
configuration request, and either the “pinged” router running IPX, the server, or
the IPX client responds with a configure response packet.
See Configuring and Managing Routers with Site Manager for instructions on
using the ping feature in IPX.
Role of Bay Networks Routers in a Client/Server Connection
This section describes how Bay Networks routers running IPX provide clients
access to servers on an IPX internetwork.
• Router builds SAP and RIP tables
The Bay networks router builds its routing and services tables by listening to
regularly scheduled SAP and RIP broadcasts from file servers. The broadcasts
include the services a server has to offer and routes to a server. If regular SAP
or RIP broadcasts from a file server stops, the local router ages out the entry
and removes it from its services or route table.
Note: In conformance with the Novell specification, a Bay Networks router
running IPX will respond to pings from NetWare servers but will not initiate
pings to those servers. Instead, the router running IPX will use diagnostic
packets to accomplish the ping function.
Configuring IPX Services
5-164 117369-B Rev. 00
• Client sends get_nearest_service/get_nearest_directory_server SAP request
A client sends this request to locate a file server. (Refer to the book, Novell’s
Guide to NetWare LAN Analysis, by Laura Chappell and Dan E. Hawkes, for
more information on this mechanism.)
• Router decisions
If the server resides on the same network as the client, the server receives the
request and responds. The local router does not respond because its services
table indicates that the service is available on the client’s network. In this
case, client-router communications stop until the client sends the next
get_nearest_service SAP request.
If the server does not reside on the same network, the router responds,
because its services table indicates that the service is not available on the
client’s network. The SAP response sent by the router contains the server
name, the internal address (if applicable), the service type, the socket number,
and the intervening network count of the nearest device offering the service.
Continue to the next bullet.
If the server does not reside on the same network and multiple servers of the
same service type are available, the router picks the server that is the fewest
ticks away. If two servers are the same number of ticks away, then the router
chooses the server that is the lowest number of hops away. If two servers are
the same number of ticks and hops away, then the router chooses based on the
alphanumeric order of the server names listed in the services table.
• Client’s RIP request
The client then broadcasts a RIP request packet to the local segment. This
packet requests the best path to the server’s network.
• Router’s RIP response
The router on the same network as the client refers to its route table and sends
a RIP response to the client. The RIP response identifies the network on
which the client resides. The RIP response also contains the server’s internal
network address and the intervening hop and tick count.
• Client’s NCP request
Customizing IPX
117369-B Rev. 00 5-165
The client sends a Network Core Protocol (NCP) create connection request to
the server. The request includes the router’s MAC address as the destination
address at the data link layer. Within the IPX header, the destination network
address is the internal address and the destination node address of the file
server. The client forwards the packet to the router.
• Router forwards packet
The router running IPX forwards the packet to the network identified by the
destination network address.
Example: Client/Server Connection via Bay Networks Router
In the example shown in Figure 5-17, client A sends a SAP request to locate a file
server. Here is what happens as a result of that request:
1. Because the server does not reside on LAN A (the same LAN as client A), the
Bay Networks IPX router, host 2, sends a SAP response to client A, informing
it that the file server, host 3 on token ring 6, is the nearest device offering the
requested service.
2. Client A then sends a RIP request to determine the best path to host 3.
3. The Bay Networks IPX router, host 2, sends a RIP response to client A that
includes the server’s internal network address and the intervening hop and
tick count from host 3 to client A.
4. Client A sends an NCP request packet to the Bay Networks IPX router, host 2.
5. The router then forwards the packet to host 3.
Configuring IPX Services
5-166 117369-B Rev. 00
Figure 5-17. Sample IPX Network
Token
Ring
Client
A
Client
B
Client
DClient
F
Client
E
Client
C
Print server
Host 1
File server
Host 3
Host server
Host 4
IPX router
Host 2
IPX router
Host 5
LAN A
LAN B
IPX0020A
Customizing IPX
117369-B Rev. 00 5-167
Deleting IPX from the Router
You can use the BCC or Site Manger to delete IPX from the router.
Using the BCC
To delete IPX from an interface, navigate to the IPX interface prompt (for
example, box; ipx 00023456) and enter:
delete
To delete IPX globally from the router, navigate to the global IPX prompt (for
example, box; ipx 00023456) and enter:
delete
Using Site Manager
To delete IPX from the router, complete the following tasks:
Site Manager Procedure
You do this System responds
1. In the Configuration Manager window,
choose Protocols.The Protocols menu opens.
2. Choose IPX. The IPX menu opens.
3. Choose Delete IPX. A confirmation window opens.
4. Click on OK. You return to the Configuration Manager
window.
Note: If you delete IPX, the connectors for those interfaces on which IPX was
the only protocol enabled are no longer highlighted in the Configuration
Manager window. Interfaces must be reconfigured for these connectors; see
Configuring and Managing Routers with Site Manager for instructions.
Configuring IPX Services
5-168 117369-B Rev. 00
117369-B Rev. 00 A-1
Appendix A
Site Manager IPX Parameters
This appendix explains all the IPX parameters and how to use them if you want to
customize an interface you have added to a router.
IPX Configuration Parameters
The IPX configuration parameters enable you to get IPX up and running quickly
by supplying only the necessary configuration information and accepting the
defaults supplied by Bay Networks for all other Site Manager parameters. You
access these parameters via the IPX Configuration window (Figure A-1). This
window may look different depending on the WAN protocol you choose in the
Select WAN Protocols window.
Configuring IPX Services
A-2 117369-B Rev. 00
Figure A-1. IPX Configuration window
Parameter: Configured Network Number (hex)
Path: Configuration Manager > Select Protocols > IPX > Interfaces
Default: None
Options: Any valid IPX network number in hexadecimal format
Function: Identifies the IPX network number that the user assigned to this IPX circuit.
This parameter is active only for circuits that are not configured as IPXWAN
interfaces or for those with the IPXWAN parameter explicitly disabled.
Instructions: Enter a valid IPX network number in hexadecimal notation.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.17.1.22
Site Manager IPX Parameters
117369-B Rev. 00 A-3
Note: The Configured Network Number parameter is active only for circuits
that are not configured as IPXWAN interfaces. The IPXWAN, Common
Network Number, and Negotiated Protocols parameters appear only when the
circuit is configured as an IPXWAN interface.
Parameter: RIP/SAP
Path: Configuration Manager > Select Protocols > IPX > Interfaces
Default: Depends on whether you enabled RIP/SAP in the Select Protocols window
Options: Yes | No
Function: Indicates whether you have RIP/SAP configured on an interface
Instructions: The Configuration Manager sets the default for this parameter based on your
selection in the Select Protocols window. If you selected RIP/SAP, both RIP and
SAP are enabled. You can disable both RIP and SAP using the IPX
Configuration window. You can also disable and reenable just RIP or just SAP
using the RIP Circuit window or the SAP Circuit window, which are available
via the IPX Interfaces window.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.32.1.1 (RIP)
1.3.6.1.4.1.18.3.5.5.33.1.1 (SAP)
Configuring IPX Services
A-4 117369-B Rev. 00
Parameter: Configured Encaps
Path: Configuration Manager > Select Protocols > IPX > Interfaces
Default: Circuit medium dependent
Options: Circuit medium dependent (see Instructions)
Possible values: Ethernet | LSAP | Novell | SNAP | PPP
Function: Specifies the encapsulation methods (such as Ethernet, PPP, Novell, LSAP, or
SNAP) available for each circuit type (such as Ethernet, token ring, or sync).
The encapsulation method supports communication on a specific logical
network.
Instructions: Select an encapsulation method that matches the one the clients and servers on
the same logical network use and is appropriate for the physical circuit, as
follows:
• Ethernet circuits support Ethernet, LSAP, Novell, and SNAP frames.
• Token ring circuits support LSAP and SNAP frames.
• Synchronous circuits (V.35, RS-232/V.24, RS-422/423, X.21, T1/E1) support
SNAP, PPP, and X.25 Point-to-Point (Ethernet) frames.
• FDDI circuits support LSAP and SNAP frames.
• HSSI circuits support PPP and SNAP frames.
• ISDN circuits support PPP frames.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.17.1.40
Parameter: Circuit Index
Path: Configuration Manager > Select Protocols > IPX > Interfaces
Default: System-assigned
Options: Any valid circuit identifier
Function: Uniquely identifies this circuit within this instance of IPX.
Instructions: Accept the default or enter a valid circuit identifier.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.17.1.6
Site Manager IPX Parameters
117369-B Rev. 00 A-5
Parameter: IPXWAN
Path: Configuration Manager > Select Protocols > IPX > Interfaces
Default: Enable
Options: Enable | Disable
Function: Enables or disables IPXWAN for this interface on this router. This parameter is
active only for circuits that are configured as IPXWAN interfaces.
Instructions: Select Enable to turn on IPXWAN negotiation for this interface.
Select Disable to turn on IPXWAN negotiation for this interface.
MIB Object ID: Not Applicable
Parameter: Common Network Number
Path: Configuration Manager > Select Protocols > IPX > Interfaces
Default: None
Options: Any valid IPX network number, 0x00000000 to 0xFFFFFFFD, in hexadecimal
format
Function: Specifies the IPX common network number assigned to this IPX circuit. This
parameter is active only for circuits that are configured as IPXWAN interfaces
that have the IPXWAN parameter enabled.
Instructions: Enter a valid IPX network number in hexadecimal format. Do not use the values
0xFFFFFFFE or 0xFFFFFFFF as network numbers. These values are reserved
for system use.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.17.1.24
Configuring IPX Services
A-6 117369-B Rev. 00
Parameter: Negotiated Protocol(s)
Path: Configuration Manager > Select Protocols > IPX > Interfaces
Default: Unnumbered RIP
Options: RIP | Unnumbered RIP
Function: Indicates the protocol negotiated for this interface. This parameter is active only
for circuits that are configured as IPXWAN interfaces and that have the
IPXWAN parameter enabled.
Instructions: Accept the default or click on Values to display the other choices. You can select
more than one option. Click on the options you prefer, then click on OK to
accept your choices. The parameter value appears as a hexadecimal number on
the IPX Change Circuit window. The values are as follows:
0x00000008 -- RIP
0x00000010 -- Unnumbered RIP
0x00000018 -- RIP and Unnumbered RIP
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.17.1.8
Site Manager IPX Parameters
117369-B Rev. 00 A-7
IPXWAN Configuration Parameters
The IPX configuration parameters enable you to get IPX using IPXWAN services
up and running quickly by supplying only the necessary configuration information
and accepting the defaults supplied by Bay Networks for all other Site Manager
parameters. You access these parameters via the IPXWAN Configuration window
(Figure A-2). This window appears after you enable IPXWAN services in the IPX
Configuration window.
Figure A-2. IPXWAN Configuration Window
Parameter: Router Name
Path: Configuration Manager > Select Protocols > IPX > Enable IPXWAN
Default: None
Options: Any valid NetWare router or server name
Function: Specifies a symbolic name for the router. Any IPXWAN (RFC1634-compliant)
interface in the node uses this name to identify itself to the IPX router or server
at the opposite end of the WAN data link.
The symbolic name for the router must be unique among those assigned to IPX
file servers and routers anywhere in the IPX internetwork.
Instructions: See the documentation that came with your NetWare operating system for
guidelines on specifying a router or server name. It is a good idea to make the
name meaningful to users as well as routers.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.15.1.9
Configuring IPX Services
A-8 117369-B Rev. 00
Parameter: Primary Net Number (hex)
Path: Configuration Manager > Select Protocols > IPX > Enable IPXWAN
Default: None
Options: The Primary Network Number (PNN) is a string of up to 8 hexadecimal
characters.
Function: Specifies an IPX network number for IPXWAN (RFC1634-compliant) link
negotiation on all slots. The value of the PNN determines whether the local or
remote WAN interface serves as IPX Link Master. The node with the highest
PNN value becomes the IPX Link Master.
The PNN should be unique among network numbers currently assigned.
Instructions: Enter a unique network number for each node requiring one or more IPXWAN
(RFC1634-compliant) interfaces. (This network number must be unique across
the IPX network. Do not enter a number that a server is using as an internal
network number, or a number that has been assigned on any segment in the
network.)
All unused values between 0x00000001 and 0xFFFFFFFD are valid values.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.15.1.5
Site Manager IPX Parameters
117369-B Rev. 00 A-9
IPX Global Parameters
The IPX global parameters determine the way IPX works on the router. You
access these parameters via the Edit IPX Global Parameters window (Figure A-3).

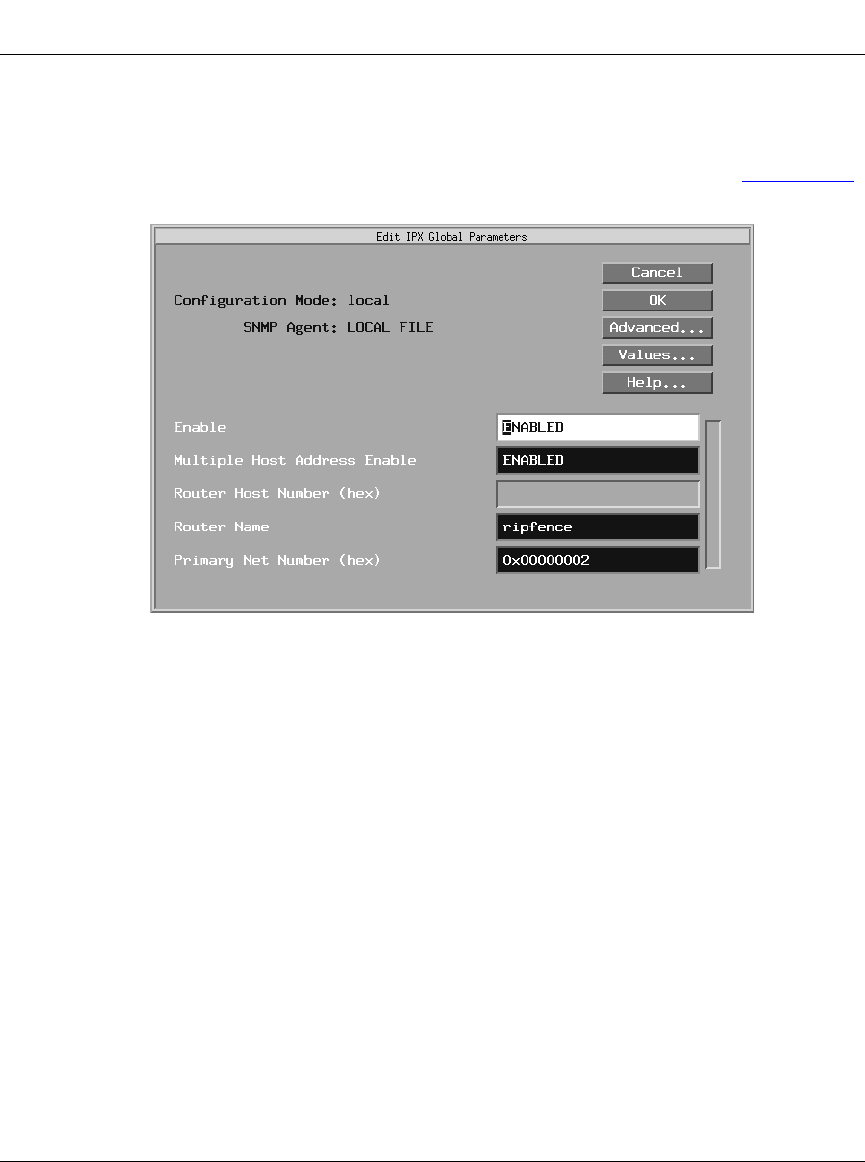

Figure A-3. Edit IPX Global Parameters Window
Configuring IPX Services
A-10 117369-B Rev. 00
Parameter: Enable
Path: Configuration Manager > Protocols > IPX > Global
Default: Enable
Options: Enable | Disable
Function: Globally enables or disables the system software mechanisms that allow users to
add IPX interfaces to the router configuration:
Disable -- Shuts down all IPX routing for the entire router.
Enable -- Initializes IPX routing for the entire router. Associated IPX interfaces
become active, depending on their respective Enable | Disable parameters and
on the state of each underlying circuit.
Instructions: Select Disable to disable every IPX interface on the router.
Select Enable to globally reinitialize all IPX interfaces on the router; each
interface maintains the most recent setting of its own interface Enable |Disable
parameter.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.15.1.2
Parameter: Multiple Host Address Enable
Path: Configuration Manager > Protocols > IPX > Global
Default: Enable
Options: Enable | Disable
Function: If you enable this parameter, an IPX interface can:
• Use the MAC address located in the PROM on the circuit associated with that
interface.
• Use a MAC address that you enter in the Host Number parameter field for that
interface. Interfaces on a token ring circuit adopt a host ID number based only
on the MAC address of the associated circuit.
Disabling this parameter causes all IPX interfaces to adopt a single host ID
number for the entire host, based either on the serial number of the router
backplane or on a number that you enter in the Host Number parameter field.
Instructions: Choose Enable or Disable, as appropriate for the type of configuration
(standard, multiple interfaces per circuit, or multiple circuits per physical
segment). See Chapter 2 for a description of each type of configuration.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.15.1.6
Site Manager IPX Parameters
117369-B Rev. 00 A-11
Parameter: Router Host Number (hex)
Path: Configuration Manager > Protocols > IPX > Global
Default: None
Options: Any valid host number
Function: The router either uses this value as a host address for all IPX interfaces, or, if
left empty, uses the backplane serial number as the host address for all interfaces
(circuits).
Instructions: If you disable the Multiple Host Address Enable parameter and enter a unique
host number, the Configuration Manager assigns this number to all IPX
interfaces you configure on the router.
If you disable the Multiple Host Address Enable parameter and do not enter a
router host ID number for this parameter, the Configuration Manager
automatically generates a unique 6-byte host ID number for all IPX interfaces.
The generated host ID is based on the serial number of the router’s backplane.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.15.1.7
Caution: The IPX boxwide host address and the token ring MAC address
must agree when the Multiple Host Address parameter is disabled.
Parameter: Router Name
Path: Configuration Manager > Protocols > IPX > Global
Default: None
Options: Any valid NetWare router or server name
Function: Specifies a symbolic name for the router. Any IPXWAN (RFC1634-compliant)
interface in the node uses this name to identify itself to the IPX router or server
at the opposite end of the WAN data link.
The symbolic name for the router must be unique among those assigned to IPX
file servers and routers anywhere in the IPX internetwork.
Instructions: See the documentation that came with your NetWare operating system for
guidelines on specifying a router or server name. It is a good idea to make the
name meaningful to users as well as routers.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.15.1.9
Configuring IPX Services
A-12 117369-B Rev. 00
Parameter: Primary Net Number (hex)
Path: Configuration Manager > Protocols > IPX > Global
Default: None
Options: The Primary Network Number (PNN) is a string of up to 8 hexadecimal
characters.
Function: Specifies an IPX network number for IPXWAN (RFC1634-compliant) link
negotiation on all slots. The value of the PNN determines whether the local or
remote WAN interface serves as IPX Link Master. The node with the highest
PNN value becomes the IPX Link Master.
The PNN should be unique among network numbers currently assigned.
Instructions: Enter a unique network number for each node requiring one or more IPXWAN
(RFC1634-compliant) interfaces. (This network number must be unique across
the IPX network. Do not enter a number that a server is using as an internal
network number, or a number that has been assigned on any segment in the
network.)
All unused values between 0x00000001 and 0xFFFFFFFD are valid values.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.15.1.5
Site Manager IPX Parameters
117369-B Rev. 00 A-13
IPX Advanced Global Parameters
IPX advanced global parameters enable you to fine tune the way IPX runs on the
router. You access these parameters via the Edit IPX Advanced Global Parameters
window (Figure A-4). To view all of the parameters in this window, you must
click on the scroll bar.
Figure A-4. IPX Advanced Global Parameters Window
Configuring IPX Services
A-14 117369-B Rev. 00
Parameter: Routing Method
Path: Configuration Manager > Protocols > IPX > Global > Advanced
Default: Tick
Options: Hop | Tick
Function: Specifies for all slots the method of making IPX “best-route” decisions by:
Ticks -- The amount of time, expressed in ticks, that a packet requires to reach
another network segment. (Each tick = 1/18th of a second.)
Hops -- The number of router hops a packet must traverse to reach another
network segment.
If you accept the default, Tick, and the router knows about two paths to a
network, and both paths have equal tick values, the router chooses the path with
the smallest number of hops.
If you select Hop, and the best route results in the same number of hops, the
router makes its decision based only on hops.
Instructions: Choose the method that results in the best routing performance. Usually, the
best route is the one with:
• The lowest number of ticks for a packet to reach a node on the destination
network
• The lowest number of hops (if multiple routes exist with equal numbers of
ticks for a packet to reach a node on the destination network)
If routes exist with equal numbers of ticks and hops, choose either method. We
recommend using the default (tick-based) method, because tick-based routing
takes into account actual link delay in determining the best path between IPX
networks. Thus, it provides a more accurate routing mechanism than simply
“hop count.”
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.16.1.3
Site Manager IPX Parameters
117369-B Rev. 00 A-15
Parameter: Maximum Path
Path: Configuration Manager > Protocols > IPX > Global > Advanced
Default: 1 (path)
Options: 1 to 1,023 (paths)
Function: Specifies the maximum number of paths allowed for a given network destination
and routing method.
Instructions: Set the Maximum Path parameter to the highest number of paths, in the range 1 to
1,023, that exist from the router to any destination network, regardless of cost.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.16.1.5
Parameter: Log Filter
Path: Configuration Manager > Protocols > IPX > Global > Advanced
Default: Trace
Options: None | Debug | Info | Trace | Debug Info | Debug Trace | Info Trace | Debug Info
Trace
Function: Filters out the specified type of log message. For example, the default setting
(Trace) filters out trace messages.
Instructions: Do not change the default value of this parameter unless you are an expert IPX
user. Changing the value of this parameter produces significant boxwide effects on
memory allocation within the router, and these changes can significantly affect
router performance. If you are qualified as an expert user, enter a filtering mode
that yields a level of performance most appropriate for network applications
supported by this router.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.16.1.4
Configuring IPX Services
A-16 117369-B Rev. 00
Parameter: Maximum Path Splits
Path: Configuration Manager > Protocols > IPX > Global > Advanced
Default: Enable
Options: Enable | Disable
Function: If enabled, IPX will do load balancing to a particular destination up to the number
of paths specified in the Maximum Path parameter (see above).
Instructions: Accept the default (Enable) to do load balancing on the number of equal cost
paths specified in the Maximum Path parameter. If you enable this parameter, IPX
uses up to Max Path equal cost paths that are equal to the lowest cost path. If you
disable this parameter, IPX uses only the lowest cost path to send data to a
destination network.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.16.1.6
Parameter: Maximum Hops
Path: Configuration Manager > Protocols > IPX > Global > Advanced
Default: 16
Options: 1 to 255 (hops)
Function: Specifies the maximum number of hops an IPX packet may take to reach its
destination.
Instructions: Accept the default (16) or specify an integer in the range 1 to 255. In the case of
RIP, every node in the network should use the same Maximum Hops parameter
value.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.16.1.7
Site Manager IPX Parameters
117369-B Rev. 00 A-17
Parameter: Destination Count
Path: Configuration Manager > Protocols > IPX > Global > Advanced
Default: 0
Options: 0 to 5000 (destinations)
Function: Specifies the maximum number of destinations (networks) that the user expects
the router to learn. IPX uses this value to preallocate table sizes for forwarding
and network tables. If you specify zero, the default value, IPX dynamically
allocates the amount of memory it needs for the tables. Changing this value can
greatly affect the memory use by IPX, but it can also speed learning time for the
router.
Instructions: Do not change the default value of this parameter unless you are an expert IPX
user (for example, a Bay Networks Technical Solutions Center engineer).
Changing the value of this parameter can significantly affect router performance.
If you are qualified as an expert user, enter a value that yields a level of
performance most appropriate for network applications supported by this router.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.16.1.17
Parameter: Service Count
Path: Configuration Manager > Protocols > IPX > Global > Advanced
Default: 1
Options: 1 to 5000 (services)
Function: Indicates the maximum number of services that the user expects the router to
learn. IPX uses this value to preallocate table sizes for service tables. If you
specify zero, the default value, IPX automatically allocates the amount of memory
it needs for the tables. Changing this value can greatly affect the memory use by
IPX, but it can also speed learning time for the router.
Instructions: Do not change the default value of this parameter unless you are an expert IPX
user (for example, a Bay Networks Technical Solutions Center engineer).
Changing the value of this parameter can significantly affect router performance.
If you are qualified as an expert user, enter a value that yields a level of
performance most appropriate for network applications supported by this router.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.16.1.19
Configuring IPX Services
A-18 117369-B Rev. 00
Parameter: Host Count
Path: Configuration Manager > Protocols > IPX > Global > Advanced
Default: 1
Options: 1 to 5000 (hosts)
Function: Indicates the maximum next-hop hosts that the user expects the router to learn.
IPX uses this value to preallocate table sizes for host tables. Changing this value
can greatly affect the memory use by IPX, but it can also speed learning time for
the router.
Instructions: Do not change the default value of this parameter unless you are an expert IPX
user (for example, a Bay Networks Technical Solutions Center engineer).
Changing the value of this parameter can significantly affect router performance.
If you are qualified as an expert user, enter a value that yields a level of
performance most appropriate for network applications supported by this router.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.16.1.21
Parameter: Aging Frequency
Path: Configuration Manager > Protocols > IPX > Global > Advanced
Default: 10
Options: 1 to the maximum positive integer (seconds)
Function: Specifies the granularity, in seconds, for aging RIP and SAP information. IPX
checks whether any routes have timed out every n seconds, where n is the interval
that this parameter specifies.
Instructions: Do not change the default value of this parameter unless you are an expert IPX
user (for example, a Bay Networks Technical Solutions Center engineer).
Changing the value of this parameter can significantly affect router performance.
If you are qualified as an expert user, enter a value that yields a level of
performance most appropriate for network applications supported by this router.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.16.1.23
Site Manager IPX Parameters
117369-B Rev. 00 A-19
Parameter: Aging Pending Frequency
Path: Configuration Manager > Protocols > IPX > Global > Advanced
Default: 100
Options: 1 to maximum positive integer (routes and services)
Function: Specifies the number of routes and services to age (process) before pending. A
higher number lets the aging process proceed more quickly.
Instructions: Do not change the default value of this parameter unless you are an expert IPX
user (for example, a Bay Networks Technical Solutions Center engineer).
Changing the value of this parameter can significantly affect router performance.
If you are qualified as an expert user, enter a value that yields a level of
performance most appropriate for network applications supported by this router.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.16.1.24
Parameter: Default Route
Path: Configuration Manager > Protocols > IPX > Global > Advanced
Default: Enable
Options: Enable | Disable
Function: Globally enables or disables the use of the default route 0xFFFFFFFE for IPX
routing.
Enable -- Directs the router to use the default route (if one exists in its routing
table) when it receives an IPX packet that does not contain a known IPX
destination address within the IPX protocol header.
Disable -- Forces the router to drop a packet whose destination address is
unknown, even if a default route exists.
Instructions: Select Enable to allow IPX default routing.
Select Disable to turn off default routing.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.16.1.25
Configuring IPX Services
A-20 117369-B Rev. 00
Parameter: SAP via Default Route
Path: Configuration Manager > Protocols > IPX > Global > Advanced
Default: Disable
Options: Enable | Disable
Function: Indicates whether a SAP advertisement can be learned from an interface if the
network number advertised in the SAP advertisement is unreachable, but a
default route is accessible from that interface.
Enable -- Directs the router to accept a service if a direct or default route to the
server is known.
Disable -- Accepts a service only if a direct route to the server advertising the
service is known.
This feature gives you the option of making SAP entries available if the IPX
default route is reachable.
Instructions: Select Enable to enable IPX default routing globally for SAP advertisements.
Select Disable to turn off default SAP advertisement routing.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.16.1.26
Note: Since it deviates from the IPX Default Route specification, enabling this
feature may cause the interface to be incompatible with other router
implementations.
Site Manager IPX Parameters
117369-B Rev. 00 A-21
Parameter: Novell Certification Conformance
Path: Configuration Manager > Protocols > IPX > Global > Advanced
Default: Enable
Options: Enable | Disable
Function: Indicates whether you want the router to conform to Novell NetWare standards by
propagating a NetBIOS type 20 packet out of all its interfaces.
Instructions: Accept the default, Enable, if you want the router to propagate NetBIOS type 20
packets out of all its interfaces (conforming to Novell standards). Select Disable if
you have NetBIOS static routes configured and you want the router to direct a
packet to its destination network. You must set the same option (Enable or
Disable) for all routers in the network.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.16.1.15
Parameter: GNS Response Mode
Path: Configuration Manager > Protocols > IPX > Global > Advanced
Default: Alphabetical
Options: Alphabetical | Last Learned
Function: Determines the server to choose when responding to a get_nearest_server
request.
Instructions: Accept the default to sort through all server names alphabetically.
Select Last Learned to choose the last server learned.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.16.1.29
Configuring IPX Services
A-22 117369-B Rev. 00
IPX Interface Parameters
IPX interface parameters determine how IPX behaves on individual router
interfaces. You access these parameters via the IPX Interfaces window
(Figure A-5). To view all of the parameters in this window, you must click on the
scroll bar.
Figure A-5. IPX Interfaces Window
Site Manager IPX Parameters
117369-B Rev. 00 A-23
Parameter: Enable
Path: Configuration Manager > Protocols > IPX > Interfaces
Default: Enable
Options: Enable | Disable
Function: Enables or disables IPX routing on this interface.
Enable -- Initializes the IPX interface you added to a circuit. You can also use
the Enable setting to reinitialize an existing disabled IPX interface. The actual
operating state of an interface, once enabled, depends on:
• The current state of the associated circuit
• The current state of the IPX global/slotwide protocol process
Disable -- Forces an IPX interface into the down (inoperative) state
Instructions: Select Enable if you previously set this parameter to Disable and now want to
reenable IPX routing on this interface.
Select Disable only if you want to disable IPX routing on this interface.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.17.1.2
Parameter: Name
Path: Configuration Manager > Protocols > IPX > Interfaces
Default: None
Options: Any valid IPX server name
Function: Specifies a symbolic name for the interface.
Instructions: See the documentation that came with your NetWare operating system for
guidelines on specifying a host, interface, router, or server name. It is a good idea
to make the name meaningful to users as well as to routers.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.17.1.7
Configuring IPX Services
A-24 117369-B Rev. 00
Parameter: Cost
Path: Configuration Manager > Protocols > IPX > Interfaces
Default: 0 (for hop- or tick-based routing)
Options: 0 to the maximum positive integer (if tick-based routing is enabled)
0 to one less than the value specified in the Maximum Hops parameter (if
hop-based routing is enabled)
Function: Sets the cost (number of ticks or hops) for this interface. The cost is added to
route information learned on this interface through RIP and is included in
subsequent RIP packets sent to other interfaces. IPX disposes of the packet
when its hop count passes a value that is one less than the value of the
Maximum Hops parameter. This value must be the same across the network.
For all non-WAN and HSSI interfaces, the default value translates into a tick
cost of 1 in the routing table. For all WAN interfaces, the default value translates
into a tick cost of 6 in the routing table.
Instructions: Do not change the default value of this parameter unless you are an expert IPX
user (for example, a Bay Networks Technical Solutions Center engineer).
Changing the value of this parameter can significantly affect router
performance. If you are qualified as an expert user, enter a value that yields a
level of performance most appropriate for network applications supported by
this router.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.17.1.38
Site Manager IPX Parameters
117369-B Rev. 00 A-25
Parameter: Host Number (hex)
Path: Configuration Manager > Protocols > IPX > Interfaces
Default: None
Options: Any valid IPX host ID number
Function: If you enable Multiple Host Address Enable and want to accept the
PROM-based default setting for the MAC Address Select circuit parameter, this
IPX interface adopts a host number based on the MAC address of the underlying
circuit. In this case, a PROM on the circuit supplies the number for the MAC
address of the circuit and the host number of the interface.
You can enter a host number for this interface when:
• Multiple Host Addressing is enabled.
• You do not want to accept the PROM-based (default) setting for MAC
Address Select.
• The circuit type supports only selective mode of operation (such as with
Ethernet circuits).
If you enter a host number, the circuit adopts that value as the MAC address at
which this interface can receive frames. (The MAC address configured at the
circuit/line level remains effective for all other interfaces configured on the
same circuit.)
You can enter a host number for this interface when the underlying circuit is
token ring; see the instructions that follow.
Site Manager does not let you enter an IPX host number for any IPX interface if
you first disable Multiple Host Address Enable in the IPX Global Parameters
window.
Instructions: Enter a value only if the circuit is not token ring and you want to assign a host
number that is unique within the IPX internetwork to this IPX interface.
To set the host number of an IPX interface on a token ring circuit, you must
change the MAC Address Select parameter for that circuit to CNFG
(user-configured) and enter a MAC Address Override value for the circuit. The
interface uses that value as its host number. This changes the circuit MAC
address for all protocols configured on that token ring circuit.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.17.1.25
Configuring IPX Services
A-26 117369-B Rev. 00
Parameter: Configured Encaps
Path: Configuration Manager > Protocols > IPX > Interfaces
Default: Circuit medium dependent
Options: Circuit medium dependent
Possible values: Ethernet | LSAP | Novell | SNAP | PPP
Function: Specifies the encapsulation methods (such as Ethernet, PPP, Novell, LSAP, or
SNAP) available for each circuit type (such as Ethernet, token ring, or sync).
The encapsulation method supports communication on a specific logical
network.
Instructions: Select an encapsulation method that matches the one the clients and servers on
the same logical network use and is appropriate for the physical circuit, as
follows:
Ethernet circuits support Ethernet, LSAP, Novell, and SNAP frames.
Token ring circuits support LSAP and SNAP frames.
Synchronous circuits (V.35, RS-232/V.24, RS-422/423, X.21, T1/E1) support
SNAP, PPP, and X.25 Point-to-Point (Ethernet) frames.
FDDI circuits support LSAP and SNAP frames.
HSSI circuits support PPP and SNAP Frames.
ISDN circuits support PPP frames.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.17.1.40
Parameter: TR End Station
Path: Configuration Manager > Protocols > IPX > Interfaces
Default: Disable
Options: Enable | Disable
Function: Enables or disables source routing on this interface. This parameter appears only
when you add an IPX interface on a token ring circuit.
Instructions: Select Enable if this interface connects to a bridged token ring network. Select
Disable only if you want to disable source routing over this interface.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.17.1.59
Site Manager IPX Parameters
117369-B Rev. 00 A-27
Parameter: NetBIOS Accept
Path: Configuration Manager > Protocols > IPX > Interfaces
Default: Disable
Options: Enable | Disable
Function: Enables or disables acceptance of all NetBIOS Type 20 (broadcast) packets
received by this interface from an external source.
Instructions: Select Enable if you want this interface to accept all NetBIOS broadcast packets
from an external source. Select Disable only if you want this interface to reject
all NetBIOS broadcast packets from an external source.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.17.1.60
Parameter: NetBIOS Deliver
Path: Configuration Manager > Protocols > IPX > Interfaces
Default: Disable
Options: Enable | Disable
Function: Enables or disables outbound delivery of all NetBIOS Type 20 (broadcast) packets
received by this interface from another interface.
Instructions: Select Enable if you want to reenable outbound delivery of NetBIOS broadcast
packets received internally. Select Disable only to drop NetBIOS broadcast
packets received internally.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.17.1.61
Configuring IPX Services
A-28 117369-B Rev. 00
Parameter: FR Broadcast (hex)
Path: Configuration Manager > Protocols > IPX > Interfaces
Default: 0xFFFFFFFFFFFF (not displayed)
Options: Default value or a user-specified WAN broadcast address
Function: Specifies a broadcast address for this IPX interface. (This parameter is available
for any WAN protocol and any media type.)
Instructions: The default value (0xFFFFFFFFFFFF) causes the data link layer to issue a
WAN broadcast packet on all active virtual circuits. The value is not actually
included in the MAC field of the packet on the WAN. The packet instead
contains a value that is appropriate for the type of data link protocol.
Leave blank to accept the default value or enter a WAN broadcast address to
send all broadcast traffic through the IPX interface you are configuring. With
the default value, the IPX router sends all broadcast traffic through all logical
connections associated with the IPX interface you are configuring. Broadcast
traffic includes RIP and SAP broadcasts.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.17.1.28
Parameter: FR Multicast (hex)
Path: Configuration Manager > Protocols > IPX > Interfaces
Default: 0xFFFFFFFFFFFF (not displayed)
Options: Default value or a user-specified WAN multicast address
Function: Specifies a multicast address for this IPX interface. (This parameter is available
for any WAN protocol and any media type.)
The default value (0xFFFFFFFFFFFF) causes the data link layer to issue a
multicast packet on all active virtual circuits. The value is not actually included
in the MAC field of the packet on the WAN. The packet instead contains a value
that is appropriate for the type of data link protocol.
Instructions: Leave blank to accept the default value or enter a WAN multicast address to
send all multicast traffic through the IPX interface you are configuring. With the
default value, the IPX router sends all multicast traffic through all logical
connections associated with the IPX interface you are configuring.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.17.1.30
Site Manager IPX Parameters
117369-B Rev. 00 A-29
Parameter: IPX Watchdog Spoofing
Path: Configuration Manager > Protocols > IPX > Interfaces
Default: Disable
Options: Enable | Disable
Function: Specifies whether a router can respond locally to broadcast IPX watchdog packets
on behalf of clients that use dial-in connections. When you enable this parameter
you also enable SPX Keep Alive Spoofing.
Instructions: Enable local watchdog packet acknowledgment to improve the efficiency of IPX
wide area links.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.17.1.64
Parameter: Delay
Path: Configuration Manager > Protocols > IPX > Interfaces
Default: 0
Options: 0 to 2147483647
Function: Specifies the length of time, in microseconds, required to transmit 1 byte of data
(excluding protocol headers) to a destination on the other end of this IPX circuit if
the circuit is free of other traffic.
Instructions: Enter a value between 0 and 2147483647.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.17.1.66
Parameter: Stabilization Timer Delay (secs)
Path: Configuration Manager > Protocols > IPX > Interfaces > RIP
Default: 0
Options: 0 to 2147483647
Function: Determines the amount of time, in seconds, that RIP/SAP waits before sending
out initial route information when the dial-on-demand route first becomes
enabled.
Instructions: The more routes that you expect a router to handle or the more dynamic the
network is, the higher you should set this value to allow the router enough time
to assimilate incoming routes before it sends out an initial update on a circuit.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.17.1.69
Configuring IPX Services
A-30 117369-B Rev. 00
IPX Change Circuit Parameters
IPX change circuit parameters modify the way IPX runs over a particular circuit.
You access these parameters via the IPX Change Circuit window (Figure A-6) for
each circuit that you have configured.
Parameter: Throughput
Path: Configuration Manager > Protocols > IPX > Interfaces
Default: 0
Options: 0 to 2147483647
Function: Specifies the amount of data, in bits per second, that can flow through an IPX
circuit if the circuit is free of other traffic.
Instructions: Enter a value between 0 and 2147483647.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.17.1.67
Parameter: FR SVC Broadcast
Path: Configuration Manager > Protocols > IPX > Interfaces
Default: Disable
Options: Enable | Disable
Function: Determines whether frame relay SVCs should be established for all adjacent hosts
before sending RIP and SAP updates.
Instructions: Select Enable to establish SVCs for all adjacent hosts before sending RIP and
SAP updates. Otherwise, select Disable.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.17.1.70
Site Manager IPX Parameters
117369-B Rev. 00 A-31
Figure A-6. IPX Change Circuit Window
Parameter: Configured Network Number (hex)
Path: Configuration Manager > Protocols > IPX > Interfaces > Circuit > Change
Default: None
Options: Any valid IPX network number in hexadecimal format
Function: Identifies the IPX network number that the user assigned to this IPX circuit.
This parameter is active only for circuits that are not configured as IPXWAN
interfaces or for those with the IPXWAN parameter explicitly disabled.
Instructions: Enter a valid IPX network number in hexadecimal notation.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.17.1.22
Note: The Configured Network Number parameter is active only for circuits
that are not configured as IPXWAN interfaces. The IPXWAN, Common
Network Number, and Negotiated Protocols parameters appear only when the
circuit is configured as an IPXWAN interface.
Configuring IPX Services
A-32 117369-B Rev. 00
Parameter: Configured Encaps
Path: Configuration Manager > Protocols > IPX > Interfaces > Circuit > Change
Default: Circuit medium dependent
Options: Circuit medium dependent
Possible values: Ethernet | LSAP | Novell | SNAP | PPP
Function: Specifies the encapsulation methods (such as Ethernet, PPP, Novell, LSAP, or
SNAP) available for each circuit type (such as Ethernet, token ring, or sync).
The encapsulation method supports communication on a specific logical
network.
Instructions: Select an encapsulation method that matches the one the clients and servers on
the same logical network use and is appropriate for the physical circuit, as
follows:
• Ethernet circuits support Ethernet, LSAP, Novell, and SNAP frames.
• Token ring circuits support LSAP and SNAP frames.
• Synchronous circuits (V.35, RS-232/V.24, RS-422/423, X.21, T1/E1) support
SNAP, PPP, and X.25 Point-to-Point (Ethernet) frames.
• FDDI circuits support LSAP and SNAP frames.
• HSSI circuits support PPP and SNAP frames.
• ISDN circuits support PPP frames.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.17.1.40
Parameter: Circuit Index
Path: Configuration Manager > Protocols > IPX > Interfaces > Circuit > Change
Default: System-assigned
Options: Any valid circuit identifier
Function: Uniquely identifies this circuit within this instance of IPX.
Instructions: Accept the default or enter a valid circuit identifier.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.17.1.6
Site Manager IPX Parameters
117369-B Rev. 00 A-33
Parameter: IPXWAN
Path: Configuration Manager > Protocols > IPX > Interfaces > Circuit > Change
Default: Enable
Options: Enable | Disable
Function: Enables or disables IPXWAN for this interface on this router. This parameter is
active only for circuits that are configured as IPXWAN interfaces.
Instructions: Select Enable to turn on IPXWAN negotiation for this interface.
Select Disable to turn on IPXWAN negotiation for this interface.
MIB Object ID: Not Applicable
Parameter: Common Network Number
Path: Configuration Manager > Protocols > IPX > Interfaces > Circuit > Change
Default: None
Options: Any valid IPX network number, 0x00000000 to 0xFFFFFFFD in hexadecimal
format
Function: Specifies the IPX common network number assigned to this IPX circuit. This
parameter is active only for circuits that are configured as IPXWAN interfaces
that have the IPXWAN parameter enabled.
Instructions: Enter a valid IPX network number in hexadecimal format. Do not use the values
0xFFFFFFFE or 0xFFFFFFFF as network numbers. These values are reserved
for system use.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.17.1.24
Configuring IPX Services
A-34 117369-B Rev. 00
Parameter: Negotiated Protocol(s)
Path: Configuration Manager > Protocols > IPX > Interfaces > Circuit > Change
Default: Unnumbered RIP
Options: RIP | Unnumbered RIP
Function: Indicates the protocol negotiated for this interface. This parameter is active only
for circuits that are configured as IPXWAN interfaces and that have the
IPXWAN parameter enabled.
Instructions: Accept the default or click on Values to display the other choices. You can select
more than one option. Click on the options you prefer, then click on OK to
accept your choices. The parameter value appears as a hexadecimal number on
the IPX Change Circuit window. The values are as follows:
0x00000008 -- RIP
0x00000010 -- Unnumbered RIP
0x00000018 -- RIP and Unnumbered RIP
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.17.1.8
Site Manager IPX Parameters
117369-B Rev. 00 A-35
IPX RIP Circuit Parameters
IPX RIP circuit parameters determine the way RIP behaves on a particular circuit.
You access these parameters via the IPX RIP Circuit window (Figure A-7). To
view all of the parameters in this window, you must click on the scroll bar.

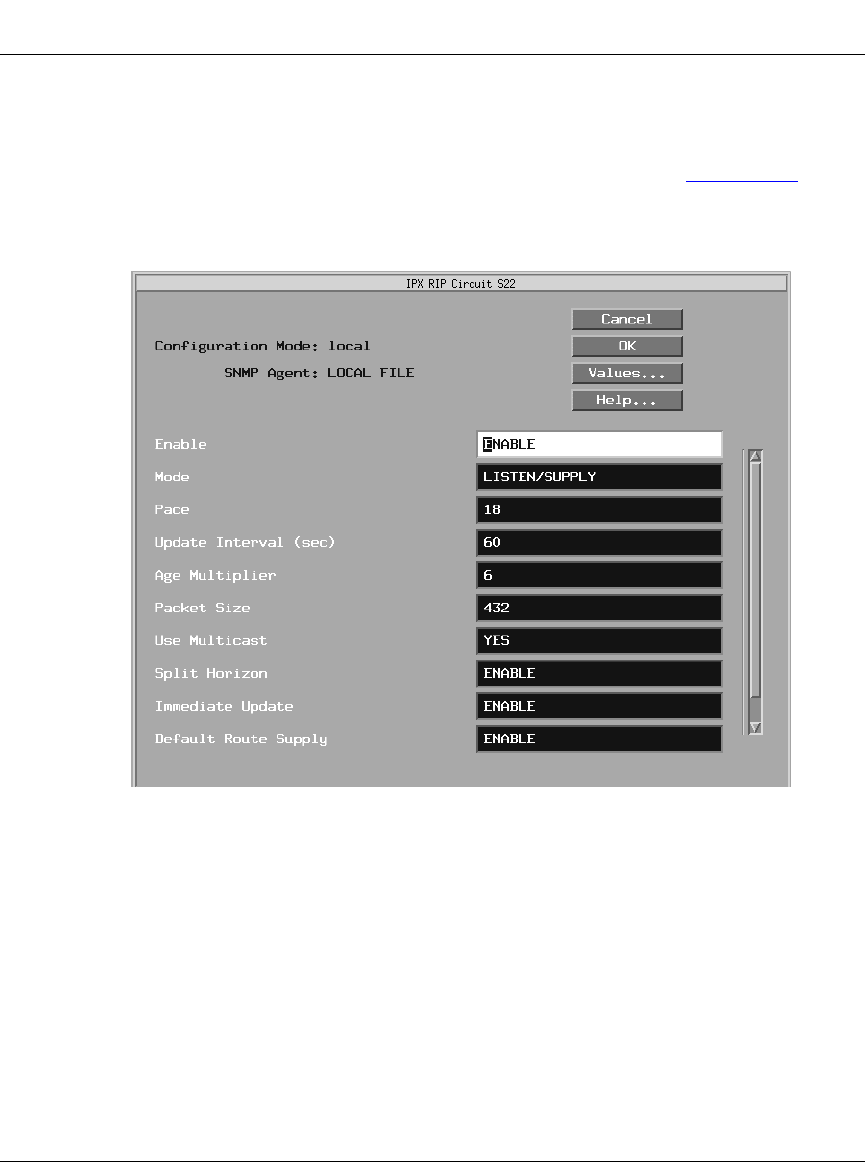

Figure A-7. IPX RIP Circuit Window
Configuring IPX Services
A-36 117369-B Rev. 00
Parameter: Enable
Path: Configuration Manager > Protocols > IPX > Interfaces > RIP
Default: Enable
Options: Enable | Disable
Function: Specifies whether RIP is enabled on this IPX circuit.
Instructions: Select Enable to enable RIP on this circuit.
Select Disable to disable RIP on this circuit.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.32.1.2
Note: If this parameter is set to Enable, a route filter can still prohibit the
interface from updating its internal routing tables. See the description of route
filtering in this chapter.
Parameter: Mode
Path: Configuration Manager > Protocols > IPX > Interfaces > RIP
Default: Listen/Supply
Options: Listen/Supply | Listen | Supply
Function: Specifies the mode for this circuit.
Instructions: Select one of the following values:
Listen/Supply -- specifies that this interface both listens for and supplies RIP
updates, as described in the following items.
Listen -- specifies that this interface listens to RIP Periodic and Triggered
updates from neighboring networks and conveys received routing information to
its internal routing table.
Supply -- specifies that the interface transmits all RIP Periodic and Triggered
updates to routers in neighboring networks.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.32.1.6
Site Manager IPX Parameters
117369-B Rev. 00 A-37
Parameter: Pace
Path: Configuration Manager > Protocols > IPX > Interfaces > RIP
Default: 18
Options: 0 to 1000
Function: Specifies the maximum pace (in packets per second) at which RIP packets can be
sent on this circuit. A value of zero means that there is no limit on the pace.
Instructions: Accept the default or specify an integer value up to 1000.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.32.1.7
Parameter: Update Interval (sec)
Path: Configuration Manager > Protocols > IPX > Interfaces > RIP
Default: 60
Options: 0 to 2678400
Function: Adjusts the frequency of RIP update packet transmissions, in seconds, for this
circuit.
Instructions: The higher the number you enter, the less frequent the transmissions. If you enter
zero, no periodic RIP updates are sent out over the IPX interface to the router.
However, RIP immediate (one-time) update packets still propagate through the
network, in compliance with Novell standards.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.32.1.8
Parameter: Age Multiplier
Path: Configuration Manager > Protocols > IPX > Interfaces > RIP
Default: 3
Options: 1 to 6 (increments)
Function: Specifies the holding multiplier as the number of update intervals for information
received in RIP periodic updates.
Instructions: Accept the default value or specify a value in the range 1 to 6. Increasing this
value can cause routes to take longer to age out. Decreasing it could cause the
router to age routes prematurely, if routing updates are missed. The combination
of the update interval and age multiplier should be the same for all systems on a
network segment.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.32.1.9
Configuring IPX Services
A-38 117369-B Rev. 00
Parameter: Packet Size
Path: Configuration Manager > Protocols > IPX > Interfaces > RIP
Default: 432
Options: Circuit-type dependent
Function: Specifies the maximum RIP packet size, in bytes, used on this circuit.
Instructions: Accept the default (432 bytes) unless you have a specific reason for specifying a
different size packet. The packet size plus the IPX header (30 bytes) cannot
exceed the MTU of the link.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.32.1.10
Parameter: Use Multicast
Path: Configuration Manager > Protocols > IPX > Interfaces > RIP
Default: Yes
Options: Yes | No
Function: Specifies whether to use a multicast address, configured with the Multicast
Address parameter, to send RIP packets.
Instructions: Accept the default to allow multicast transmission of RIP packets.
Select No to disable multicast transmission of RIP packets.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.32.1.14
Site Manager IPX Parameters
117369-B Rev. 00 A-39
Parameter: Split Horizon
Path: Configuration Manager > Protocols > IPX > Interfaces > RIP
Default: Enable
Options: Enable | Disable
Function: When generating RIP updates to be transmitted from an interface, the interface
can exclude RIP routes learned on that interface.
Instructions: Select Enable if you previously set this parameter to Disable and now do not
want the router to transmit RIP updates received from the interface over that
same interface.
Select Disable only if you want the router to transmit RIP updates received from
the interface over that same interface. Routes learned on that interface will be
included in the RIP updates generated for that interface.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.32.1.15
Parameter: Immediate Update
Path: Configuration Manager > Protocols > IPX > Interfaces > RIP
Default: Enable
Options: Enable | Disable
Function: When a change in status occurs for this circuit, immediately propagate that
information to other routers in the internetwork.
Instructions: Accept the default. Enabling this parameter facilitates network traffic by letting
routers know immediately about new or failed routes. When this parameter is
disabled, other routers learn about such changes only at the next periodic update
interval.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.32.1.17
Configuring IPX Services
A-40 117369-B Rev. 00
Parameter: Default Route Supply
Path: Configuration Manager > Protocols > IPX > Interfaces > RIP
Default: Disable
Options: Enable | Disable
Function: If a default route exists in the routing table, this parameter specifies whether to
advertise the default route, 0xFFFFFFE, in RIP packets.
Instructions: Select Enable to enable default route supply (that is, to advertise the default
route) on this circuit.
Select Disable to disable default route supply (that is, not advertise the default
route) on this circuit.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.32.1.18
Parameter: Default Route Listen
Path: Configuration Manager > Protocols > IPX > Interfaces > RIP
Default: Disable
Options: Enable | Disable
Function: Specifies whether to accept the default route, 0xFFFFFFE, in RIP packets
received on this circuit.
Instructions: Select Enable to accept the default route in RIP packets on this circuit.
Select Disable to reject the default route in RIP packets on this circuit.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.32.1.19
Site Manager IPX Parameters
117369-B Rev. 00 A-41
IPX SAP Circuit Parameters
IPX SAP circuit parameters determine the way SAP works on a particular circuit.
You access these parameters via the IPX SAP Circuit window (Figure A-8).
Figure A-8. IPX SAP Circuit Window
Parameter: Enable
Path: Configuration Manager > Protocols > IPX > Interfaces > SAP
Default: Enable
Options: Enable | Disable
Function: Specifies whether SAP is enabled on this IPX circuit.
Instructions: Select Enable to enable SAP on this circuit; select Disable to disable it.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.33.1.2
Note: If this parameter is set to Enable, a SAP filter can still prohibit the
interface from updating its internal SAP tables. See the description of SAP
filtering in Chapter 5.
Configuring IPX Services
A-42 117369-B Rev. 00
Parameter: Mode
Path: Configuration Manager > Protocols > IPX > Interfaces > SAP
Default: Listen/Supply
Options: Listen/Supply | Listen | Supply
Function: Specifies the mode for this circuit.
Instructions: Select one of the following values:
Listen/Supply -- specifies that this interface both listens for and supplies SAP
updates, as described in the following items.
Listen -- specifies that this interface listens to SAP Periodic and Triggered
updates from neighboring networks and conveys received SAP services
information to its internal SAP services table.
Supply -- specifies that the interface transmits all SAP Periodic and Triggered
updates to routers in neighboring networks.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.33.1.6
Parameter: Pace
Path: Configuration Manager > Protocols > IPX > Interfaces > SAP
Default: 18
Options: 0 to 1000
Function: Specifies the maximum pace (in packets per second) at which SAP packets can be
sent on this circuit. A value of zero means that there is no limit on the pace.
Instructions: Accept the default or specify an integer value up to 1000.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.33.1.7
Site Manager IPX Parameters
117369-B Rev. 00 A-43
Parameter: Update Interval (sec)
Path: Configuration Manager > Protocols > IPX > Interfaces > SAP
Default: 60
Options: 0 to 2678400
Function: Adjusts the frequency, in seconds, of SAP update packet transmissions for this
circuit.
Instructions: The higher the number you enter, the less frequent the transmissions. If you enter
zero, no periodic updates are sent out over the IPX interface to the router.
However, SAP immediate (one-time) updates still propagate through the network,
in compliance with Novell standards.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.33.1.8
Parameter: Age Multiplier
Path: Configuration Manager > Protocols > IPX > Interfaces > SAP
Default: 3
Options: 1 to 6 (increments)
Function: Specifies the holding multiplier, in update interval increments, for information
received in SAP periodic updates.
Instructions: Accept the default value or specify a value in the range 1 to 6. Increasing this
value can cause routes to take longer to age out. Decreasing it could cause the
router to age routes prematurely, if routing updates are missed. The combination
of the update interval and age multiplier should be the same for all systems on a
network segment.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.33.1.9
Configuring IPX Services
A-44 117369-B Rev. 00
Parameter: Packet Size
Path: Configuration Manager > Protocols > IPX > Interfaces > SAP
Default: 480
Options: Circuit-type dependent
Function: Specifies the maximum SAP packet size, in bytes, used on this circuit.
Instructions: Accept the default (480 bytes) unless you have a specific reason for specifying a
different size packet. The packet size plus the IPX header (30 bytes) cannot
exceed the MTU of the link.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.33.1.10
Parameter: Nearest Server Reply
Path: Configuration Manager Protocols > IPX > Interfaces > SAP
Default: Yes
Options: Yes | No
Function: Specifies whether to respond to SAP get_nearest_server requests.
Instructions: Accept the default to allow this router to respond to a SAP get_nearest_server
request. If you have disabled split horizon, you may want to set this parameter to
No.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.33.1.11
Parameter: Use Multicast
Path: Configuration Manager > Protocols > IPX > Interfaces > SAP
Default: Yes
Options: Yes | No
Function: Specifies whether to use a multicast address to send SAP packets.
Instructions: Accept the default to allow multicast transmission of SAP packets.
Select No to disable multicast transmission of SAP packets.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.33.1.16
Site Manager IPX Parameters
117369-B Rev. 00 A-45
Parameter: Save Full Name
Path: Configuration Manager > Protocols > IPX > Interfaces > SAP
Default: Yes
Options: Yes | No
Function: Determines whether the router will save all 48 bytes in the service name field of
SAP packets or ignore all characters after the null character when a service field
name is less than 48 bytes.
Instructions: Accept the default to save all 48 bytes in the service name field of SAP packets.
Select No to ignore all characters after the null character.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.33.1.20
Parameter: Split Horizon
Path: Configuration Manager > Protocols > IPX > Interfaces > SAP
Default: Enable
Options: Enable | Disable
Function: When generating SAP updates to be transmitted from an interface, the interface
can exclude SAP servers learned on that interface.
Instructions: Select Enable if you previously set this parameter to Disable and now do not want
the router to transmit SAP updates received from the interface over that same
interface.
Select Disable only if you want the router to transmit SAP updates received from
the interface over that same interface.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.33.1.17
Configuring IPX Services
A-46 117369-B Rev. 00
IPX NetBIOS Static Route Configuration Parameters
IPX NetBIOS static route configuration parameters establish a NetBIOS static
route.You access these parameters via the IPX NetBIOS static route configuration
window (Figure A-9).
Figure A-9. IPX NetBIOS Static Route Configuration Window
Parameter: Immediate Update
Path: Configuration Manager > Protocols > IPX > Interfaces > SAP
Default: Enable
Options: Enable | Disable
Function: When a change in status occurs for this circuit, immediately propagate that
information to other routers in the internetwork.
Instructions: Accept the default. Enabling this parameter facilitates network traffic by letting
routers know immediately about new or failed services. When this parameter is
disabled, other routers learn about such changes only at the next periodic update
interval.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.33.1.19
Site Manager IPX Parameters
117369-B Rev. 00 A-47
Parameter: Target Server
Path: Configuration Manager > Protocols > IPX > NetBIOS Static Routes > Add
Default: None
Options: The name of a NetBIOS target server, specified as a string of up to 16
alphanumeric characters (which can include wildcards and pattern-matching
characters). You can include any printable character, including $, #, and so on. To
specify a backslash, enter two backslashes (\\). You can also use the hexadecimal
equivalent (\xx) of any valid ASCII character. For example, you can specify \20
for space or \21 for ! (note that \xx counts as one character).
Function: Specifies the name of the NetBIOS server.
Instructions: Enter the name or part of the name of the NetBIOS server. The name can be up to
16 alphanumeric characters. For a list of the wildcards and pattern-matching
characters, refer to Table 5-1 on page 5-142.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.27.1.4
Note: You cannot change the Target Server parameter once you set it.
Parameter: Target Network (hex)
Path: Configuration Manager > Protocols > IPX > NetBIOS Static Routes > Add
Default: None
Options: Any valid network address in hexadecimal notation
Function: Specifies the address of a destination network that you want to receive NetBIOS
broadcast packets destined for the specified target server.
Instructions: Enter a network address of up to 8 hexadecimal characters.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.27.1.5
Note: The Configuration Manager does not let you reconfigure the Target
Server parameter for a static route. If you want to change this parameter, you
must delete the static route and add a new route. However, you can reconfigure
all other parameters associated with a static route.
Configuring IPX Services
A-48 117369-B Rev. 00
IPX NetBIOS Static Route Parameters
IPX NetBIOS static route parameters determine the location of a NetBIOS static
route.You access these parameters via the IPX NetBIOS static route configuration
window (Figure A-10).
Figure A-10. IPX NetBIOS Static Routes Window
Site Manager IPX Parameters
117369-B Rev. 00 A-49
Parameter: Enable
Path: Configuration Manager > Protocols > IPX > NetBIOS Static Routes
Default: Enable
Options: Enable | Disable
Function: Specifies the state (active or inactive) of the static route record in the NetBIOS
routing table.
Instructions: Select Disable to make the static route record inactive in the NetBIOS routing
table.
Select Enable to make the static route record active in the NetBIOS routing table.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.27.1.2
Parameter: Target Network (hex)
Path: Configuration Manager > Protocols > IPX > NetBIOS Static Routes
Default: None
Options: Any valid network address in hexadecimal notation
Function: Specifies the address of a destination network that you want to receive NetBIOS
broadcast packets destined for the specified target server.
Instructions: Enter a network address of up to 8 hexadecimal characters.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.27.1.5
Configuring IPX Services
A-50 117369-B Rev. 00
Adjacent Hosts Configuration Parameters
IPX adjacent hosts configuration parameters establish an adjacent host. You
access these parameters via the IPX Adjacent Hosts configuration window

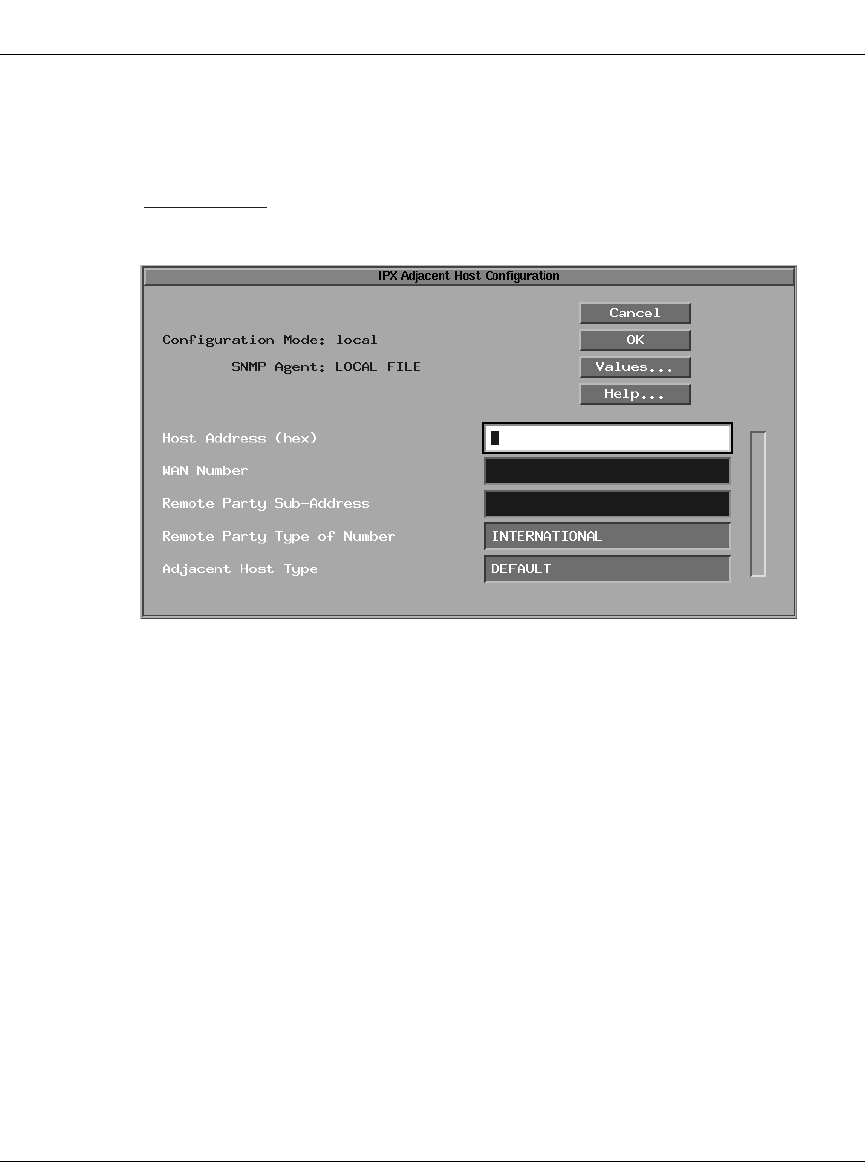

(Figure A-11).
Figure A-11. IPX Adjacent Hosts Configuration Window
Site Manager IPX Parameters
117369-B Rev. 00 A-51
Parameter: Host Address (hex)
Path: Configuration Manager > Protocols > IPX > Static/Filter Tables > Adj. Hosts >
Add
Default: None
Options: Valid host ID of the adjacent host
Function: Specifies the host ID of the adjacent host.
Instructions: Enter a host ID of up to 12 hexadecimal characters.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.26.1.5
Parameter: WAN Number
Path: Configuration Manager > Protocols > IPX > Static/Filter Tables > Adj. Hosts >
Add
Default: None
Options: WAN Address | Data Link Connection Identifier | X.25 PVC Logical Channel
Number
Function: Lets you enter a WAN address, DLCI, or X.25 PVC logical channel number. The
format depends on the underlying data link protocol type.
Instructions: Enter a WAN address of up to 16 hexadecimal characters if the interface is on an
ATM or SMDS network.
Enter a decimal DLCI number if the interface is on a frame relay network.
Enter an X.121 address if the interface is on an X.25 switched virtual circuit.
Enter a logical channel number if the interface is on an X.25 permanent virtual
circuit.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.26.1.6
Configuring IPX Services
A-52 117369-B Rev. 00
Parameter: Remote Party Sub-Address
Path: Configuration Manager > Protocols > IPX > Static/Filter Tables > Adj. Hosts >
Add
Default: None
Options: Eight-digit hexadecimal number
Function: Establishes a switched virtual circuit (SVC) connection to the adjacent host.
Instructions: Supply the address, in hexadecimal format, of the remote party.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.26.1.7
Parameter: Remote Party Type of Number
Path: Configuration Manager > Protocols > IPX > Static/Filter Tables > Adj. Hosts >
Add
Default: International
Options: Unknown | International
Function: Specifies the type of number used to establish a switched virtual circuit (SVC)
connection to the adjacent host.
Instructions: Accept the default. Otherwise, select Unknown.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.26.1.8
Parameter: Adjacent Host Type
Path: Configuration Manager > Protocols > IPX > Static/Filter Tables > Adj. Hosts >
Add
Default: Default
Options: Default | Frame Relay (E.164) | Frame Relay (X.121) | Frame Relay (DLCI)
Function: Specifies the type of static host used when establishing a switched virtual circuit
(SVC) connection to the adjacent host.
Instructions: Specify the type of static host.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.26.1.9
Site Manager IPX Parameters
117369-B Rev. 00 A-53
IPX Adjacent Hosts Parameters
IPX adjacent hosts parameters determine the location of an adjacent host. You
access these parameters via the IPX Adjacent Hosts window (Figure A-12).
Figure A-12. IPX Adjacent Hosts Window
Parameter: Enable
Path: Configuration Manager > Protocols > IPX > Static/Filter Tables > Adj. Hosts
Default: Enable
Options: Enable | Disable
Function: Sets the state (active or inactive) of the adjacent host record in the IPX routing
tables.
Instructions: Select Disable to make the adjacent host record inactive in the IPX host table.
Select Enable to make the adjacent host record active in the IPX host table.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.26.1.2
Configuring IPX Services
A-54 117369-B Rev. 00
Parameter: WAN Number
Path: Configuration Manager > Protocols > IPX > Static/Filter Tables > Adj. Hosts >
Add
Default: None
Options: WAN Address | Data Link Connection Identifier | X.25 PVC Logical Channel
Number
Function: Lets you enter a WAN address, DLCI, or X.25 PVC logical channel number. The
format depends on the underlying data link protocol type.
Instructions: Enter a WAN address of up to 16 hexadecimal characters if the interface is on an
ATM or SMDS network.
Enter a decimal DLCI number if the interface is on a frame relay network.
Enter an X.121 address if the interface is on an X.25 switched virtual circuit.
Enter a logical channel number if the interface is on an X.25 permanent virtual
circuit.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.26.1.6
Site Manager IPX Parameters
117369-B Rev. 00 A-55
Parameter: Remote Party Sub-Address
Path: Configuration Manager > Protocols > IPX > Static/Filter Tables > Adj. Hosts >
Add
Default: None
Options: Eight-digit hexadecimal number
Function: Establishes a switched virtual circuit (SVC) connection to the adjacent host.
Instructions: Supply the address, in hexadecimal format, of the remote party.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.26.1.7
Parameter: Remote Party Type of Number
Path: Configuration Manager > Protocols > IPX > Static/Filter Tables > Adj. Hosts >
Add
Default: International
Options: Unknown | International
Function: Specifies the type of number used to establish a switched virtual circuit (SVC)
connection to the adjacent host.
Instructions: Accept the default. Otherwise, select Unknown.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.26.1.8
Parameter: Adjacent Host Type
Path: Configuration Manager > Protocols > IPX > Static/Filter Tables > Adj. Hosts >
Add
Default: Default
Options: Default | Frame Relay (E.164) | Frame Relay (X.121) | Frame Relay (DLCI)
Function: Specifies the type of static host used when establishing a switched virtual circuit
(SVC) connection to the adjacent host.
Instructions: Specify the type of static host.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.26.1.9
Configuring IPX Services
A-56 117369-B Rev. 00
IPX Static Route Configuration Parameters
Figure A-13. IPX Static Route Configuration Window
Parameter: Target Network (hex)
Path: Configuration Manager > Protocols > IPX > Static/Filter Tables > Static Route >
Add
Default: None
Options: Any valid network address in hexadecimal notation
Function: Specifies the address of the network to which you want to configure the static
route.
Instructions: Enter a network address of up to 8 hexadecimal characters or click on Def. Route
to have the Configuration Manager fill in the default route 0xFFFFFFFE.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.19.1.5
Note: The Configuration Manager does not let you reconfigure the Target
Network parameter for a static route. If you want to change this parameter, you
must delete the static route and add a new route with the proper information.
However, you can reconfigure all other parameters associated with a static
route.
Site Manager IPX Parameters
117369-B Rev. 00 A-57
Parameter: Next Hop Host (hex)
Path: Configuration Manager > Protocols > IPX > Static/Filter Tables > Static Route >
Add
Default: None
Options: Any valid host address in hexadecimal notation
Function: Specifies the address of the next-hop host in the static routing path.
Instructions: Enter a host address of up to 12 hexadecimal characters.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.19.1.8
Parameter: Hop Count
Path: Configuration Manager > Protocols > IPX > Static/Filter Tables > Static Route >
Add
Default: 0
Options: 0 to the value of the Maximum Hops parameter, minus 1
Function: The IPX router uses Hop Count when determining the best route for a datagram to
follow. The hop count is also propagated through RIP. The default setting of 0 for
static routes means “use the hop count associated with the interface.”
Instructions: Accept the default (0) or enter a value from 1 to one less than the maximum
number of hops.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.19.1.7
Configuring IPX Services
A-58 117369-B Rev. 00
Parameter: Ticks
Path: Configuration Manager > Protocols > IPX > Static/Filter Tables >
Static Route > Add
Default: 0
Options: 0 to maximum positive integer
Function: Specifies the number of 1/18th-second timer ticks required for an IPX datagram to
traverse this static route. The IPX router uses tick cost when determining the best
route for a datagram to follow. The tick cost is also propagated through RIP. The
default setting of 0 for the tick cost of static routes means “use the tick count
associated with the interface.”
Instructions: Accept the default value (0) or enter a value from 1 to the maximum positive
integer.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.19.1.6
Site Manager IPX Parameters
117369-B Rev. 00 A-59
IPX Static Route Parameter Descriptions
Figure A-14. IPX Static Routes Window
Parameter: Enable
Path: Configuration Manager > Protocols > IPX > Static/Filter Tables > Static Route
Default: Enable
Options: Enable | Disable
Function: Specifies the state (active or inactive) of the static route record in the IPX routing
tables.
Instructions: Select Disable to make the static route record inactive in the IPX routing table.
Select Enable to make the static route record active in the IPX routing table.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.19.1.2
Configuring IPX Services
A-60 117369-B Rev. 00
Parameter: Hop Count
Path: Configuration Manager > Protocols > IPX > Static/Filter Tables > Static Route
Default: 0
Options: 0 to the value of the Maximum Hops parameter, minus 1
Function: The IPX router uses Hop Count when determining the best route for a datagram to
follow. The hop count is also propagated through RIP. The default setting of 0 for
static routes means “use the hop count associated with the interface.”
Instructions: Accept the default (0) or enter a value from 1 to one less than the maximum
number of hops.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.19.1.7
Parameter: Ticks
Path: Configuration Manager > Protocols > IPX > Static/Filter Tables > Static Route
Default: 0
Options: 0 to maximum positive integer
Function: Specifies the number of 1/18th-second timer ticks required for an IPX datagram to
traverse this static route. The IPX router uses tick cost when determining the best
route for a datagram to follow. The tick cost is also propagated through RIP. The
default setting of 0 for the tick cost of static routes means “use the tick count
associated with the interface.”
Instructions: Accept the default value (0) or enter a value from 1 to the maximum positive
integer.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.19.1.6
Parameter: Next Hop Host (hex)
Path: Configuration Manager > Protocols > IPX > Static/Filter Tables > Static Route
Default: None
Options: Any valid host address in hexadecimal notation
Function: Specifies the address of the next-hop host in the static routing path.
Instructions: Enter a next-hop host address of up to 12 hexadecimal characters. The next-hop
host address is the MAC address of the next hop on the way to your destination.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.19.1.8
Site Manager IPX Parameters
117369-B Rev. 00 A-61
IPX Static Service Configuration Parameters
This section describes all parameters shown in the IPX Static Service
Configuration window (Figure A-15).
Figure A-15. IPX Static Service Configuration Window
Parameter: Service Name
Path: Configuration Manager > Protocols > IPX > Static/Filter Tables >
Static Serv. > Add
Default: None
Options: Any valid Novell NetWare server name
Function: Assigns a symbolic name to the service you want to advertise.
Instructions: Use the actual name of the server that the clients will attach to. It helps if this is
a name meaningful to the network administrator. The name must be unique
among all names assigned to IPX servers of the same type on the IPX
internetwork.
See the documentation that came with your NetWare operating system for
guidelines on specifying a server name.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.23.1.5
Configuring IPX Services
A-62 117369-B Rev. 00
Parameter: Service Type (hex)
Path: Configuration Manager > Protocols > IPX > Static/Filter Tables > Static Serv. >
Add
Default: None
Options: Any valid Novell server type number in 4-digit hexadecimal format. (The
number must be a value between 0x0001 and 0xFFFE, inclusive.)
Function: Specifies the type of service to advertise from the associated IPX (LAN)
interface (for example, 0x0004 for fileserver, 0x0007 for printerserver).
Instructions: Enter the server type number in 4-digit hexadecimal format. Include leading
zeros.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.23.1.6
Parameter: Target Network (hex)
Path: Configuration Manager > Protocols > IPX > Static/Filter Tables > Static Serv. >
Add
Default: None
Options: Any valid IPX network address in hexadecimal notation
Function: Specifies the network address of this service.
Instructions: Enter a network address of up to 8 hexadecimal characters. The path to the
network you specify for this service must exist as an entry in the IPX routing
table. The entry can be learned dynamically by the router, or you can configure
the entry as a static route.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.23.1.7
Site Manager IPX Parameters
117369-B Rev. 00 A-63
Parameter: Host Number (hex)
Path: Configuration Manager > Protocols > IPX > Static/Filter Tables > Static Serv. >
Add
Default: None
Options: The address (host ID) of the service
Function: Specifies the address of a remote IPX host (a NetWare server) that can provide
local clients with specific NetWare services, such as file, print, gateway, or
terminal server services.
Instructions: Enter a string of up to 12 hexadecimal characters (6 bytes) as the address (host
ID) of the remote IPX host/server. (For example, most NetWare Server host IDs
are usually 0x000000000001.)
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.23.1.8
Parameter: Socket (hex)
Path: Configuration Manager > Protocols > IPX > Static/Filter Tables > Add
Default: None
Options: Any valid socket address. (The number must have a value between 0x0001 and
0xFFFE, inclusive.)
Function: Specifies the socket address of this service.
Instructions: Enter any valid socket address consisting of up to 4 hexadecimal characters (for
example, 0x0451).
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.23.1.9
Note: Refer to Appendix C for a list of common service types (current as of
the publication date of this manual).
Configuring IPX Services
A-64 117369-B Rev. 00
IPX Static Service Parameters
This section describes all parameters shown in the IPX Static Services window
(Figure A-16).
Figure A-16. IPX Static Services Window
Note: The Configuration Manager does not let you change the Service Name
or Type parameters you set when you add a static service. To establish new
values for these parameters for a particular static service, you must delete that
service and configure a new service. You can, however, reconfigure all other
parameters associated with a static service.
Site Manager IPX Parameters
117369-B Rev. 00 A-65
Parameter: Enable
Path: Configuration Manager > Protocols > IPX > Static/Filter Tables > Static Serv
Default: Enable
Options: Enable | Disable
Function: Enables or disables a static service previously added to a specific IPX interface.
Instructions: Select Enable to reenable a static service previously disabled. This restores
client access to NetWare services configured earlier on the IPX interface.
Disable a static service to make NetWare services configured earlier
unavailable to clients.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.23.1.2
Parameter: Network (hex)
Path: Configuration Manager > Protocols > IPX > Static/Filter Tables > Static Serv
Default: None
Options: Any valid IPX network address in hexadecimal notation
Function: Specifies the network address of this service.
Instructions: Enter a network address of up to 8 hexadecimal characters. The path to the
network you specify for this service must exist as an entry in the IPX routing
table. The entry can be learned dynamically by the router, or you can configure
the entry as a static route.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.23.1.7
Parameter: Host Number (hex)
Path: Configuration Manager > Protocols > IPX > Static/Filter Tables > Static Serv
Default: None
Options: The address (host ID) of the service
Function: Specifies the address of a remote IPX host (a NetWare server) that can provide
local clients with specific NetWare services, such as file, print, gateway, or
terminal server services.
Instructions: Enter a string of up to 12 hexadecimal characters (6 bytes) as the address (host
ID) of the remote IPX host/server.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.23.1.8
Configuring IPX Services
A-66 117369-B Rev. 00
Parameter: Socket (hex)
Path: Configuration Manager > Protocols > IPX > Static/Filter Tables > Static Serv
Default: None
Options: Any valid socket address. (The number must have a value between 0x0001 and
0xFFFE, inclusive.)
Function: Specifies the socket address of this service.
Instructions: Enter any valid socket address consisting of up to 4 hexadecimal characters.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.23.1.9
Parameter: Hop Count
Path: Configuration Manager > Protocols > IPX > Static/Filter Tables > Static Serv
Default: None
Options: Any valid number of hops, from 1 to the value of the Maximum Hops
parameter, minus 1
Function: Specifies the number of subsequent router hops required from this router to
reach a specific remote Novell server or service.
Instructions: Enter the number of router hops that exist between the router and the service
you want to advertise.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.12.1.10
Site Manager IPX Parameters
117369-B Rev. 00 A-67
Route Filter Configuration Parameters
This section describes all parameters shown in the IPX Route Filter Configuration
window (Figure A-17).
Figure A-17. IPX Route Filter Configuration Window
Parameter: Target Network (hex)
Path: Configuration Manager > Protocols > IPX > Static/Filter Table > Route Filter >
Add
Default: None
Options: Any valid NetWare address in hexadecimal format
Function: Identifies the network on which you want to apply the filter (the “filter ID” in
the previous example).
Instructions: Enter the address of the target network in hexadecimal format. Using a mask,
you can make this stand for a single ID or for a range of IDs with similar
addresses. You can select all IDs by entering the wildcard value 0xFFFFFFF.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.29.1.6
Configuring IPX Services
A-68 117369-B Rev. 00
Parameter: Target Network Mask (hex)
Path: Configuration Manager > Protocols > IPX > Static/Filter Table > Route Filter >
Add
Default: None
Options: 0x00000000 to 0xFFFFFFFF
Function: Specifies the mask that you want to apply.
Instructions: Enter 8 hexadecimal characters.
The character F in the mask definition requires an exact match with the
corresponding character in the filter ID.
The mask character 0 matches any alphanumeric character.
You can combine the F and 0 characters in any order in the mask to filter any
combination of network addressing schemes used within the IPX internetwork.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.29.1.7
Parameter: Filter Priority
Path: Configuration Manager > Protocols > IPX > Static/Filter Table > Route Filter >
Add
Default: None
Options: 0 to the maximum positive integer
Function: Specifies the priority of this filter in relation to other filters of the same type.
Instructions: Enter a decimal value that indicates this filter’s priority relative to other filters of
the same type for this interface. Lower values indicate higher priorities. (The
highest priority is 0.)
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.29.1.13
Site Manager IPX Parameters
117369-B Rev. 00 A-69
IPX Route Filter Parameters
This section describes how to set all the parameters shown on the IPX Route
Filters window (Figure A-18).

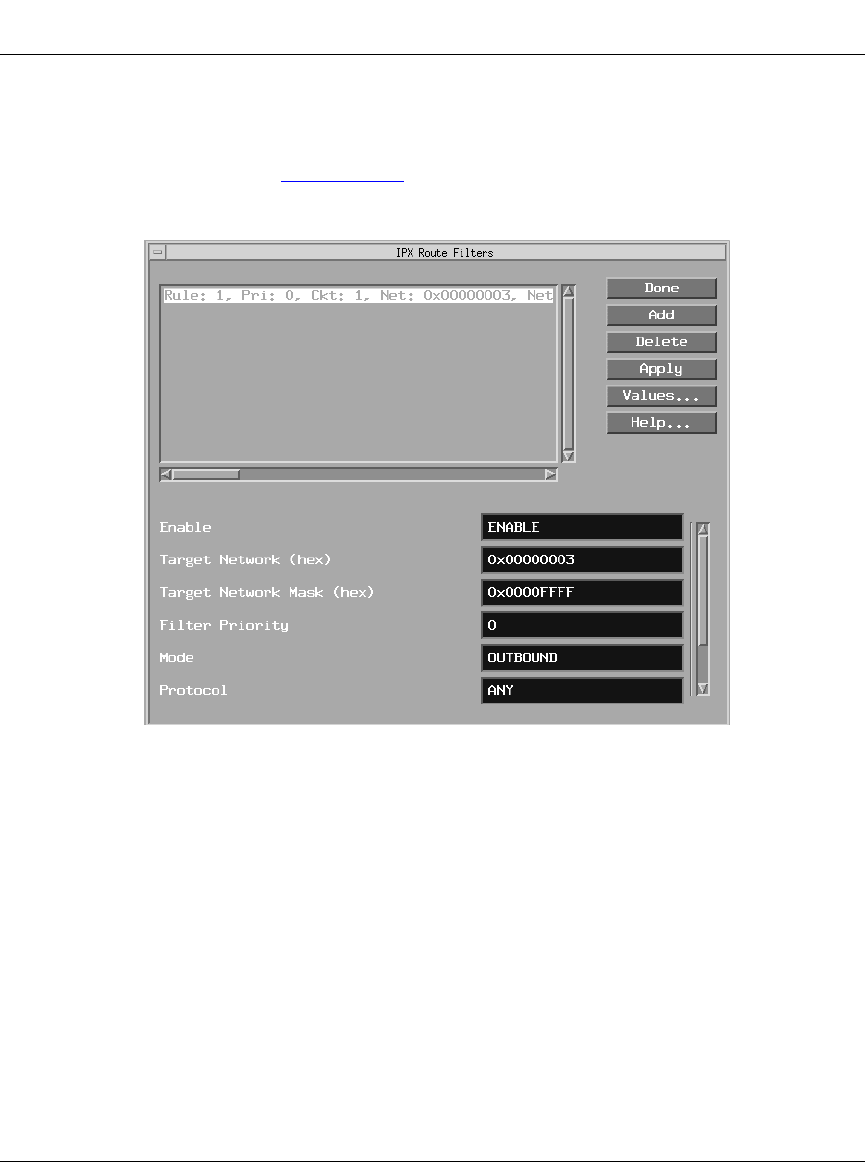

Figure A-18. IPX Route Filters Window
Parameter: Enable
Path: Configuration Manager > Protocols > IPX > Static/Filter Tables > Route Filter
Default: Enable
Options: Enable | Disable
Function: Enables or disables a route filter previously added to a specific IPX interface.
Instructions: Select Enable to enable a route filter.
Select Disable to disable a route filter.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.29.1.2
Configuring IPX Services
A-70 117369-B Rev. 00
Parameter: Target Network (hex)
Path: Configuration Manager > Protocols > IPX > Static/Filter Tables > Route Filter
Default: None
Options: Any valid NetWare address in hexadecimal format
Function: Identifies the network on which you want to apply the filter.
Instructions: Enter the address of the target network in hexadecimal format. Using a filter,
you can make this stand for a single ID or for a range of IDs with similar
addresses. You can select all IDs by entering the wildcard value 0xFFFFFFF.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.29.1.6
Parameter: Target Network Mask (hex)
Path: Configuration Manager > Protocols > IPX > Static/Filter Tables > Route Filter
Default: None
Options: 0x00000000 to 0xFFFFFFFF
Function: Specifies the mask that you want to apply.
Instructions: Enter 8 hexadecimal characters.
The character F in the mask definition requires an exact match with the
corresponding character in the filter ID.
The mask character 0 matches any alphanumeric character.
You can combine the F and 0 characters in any order in the mask to filter any
combination of network addressing schemes used within the IPX internetwork.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.29.1.7
Site Manager IPX Parameters
117369-B Rev. 00 A-71
Parameter: Filter Priority
Path: Configuration Manager > Protocols > IPX > Static/Filter Tables > Route Filter
Default: None
Options: 0 to the maximum positive integer
Function: Specifies the priority of this filter in relation to other filters of the same type.
Instructions: Enter a decimal value that indicates this filter’s priority relative to other filters of
the same type for this interface. Lower values indicate higher priorities. (The
highest priority is 0.)
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.29.1.13
Parameter: Mode
Path: Configuration Manager > Protocols > IPX > Static/Filter Tables > Route Filter
Default: Outbound
Options: Outbound | Inbound | Both
Function: Specifies whether you want to apply the filter to inbound packets, outbound
packets, or both.
Instructions: Specify Inbound if you want to apply the filter to RIP packets coming into this
interface.
Specify Both if you want to filter both inbound and outbound packets.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.29.1.8
Parameter: Protocol
Path: Configuration Manager > Protocols > IPX > Static/Filter Tables > Route Filter
Default: Any
Options: Any | Local | RIP | Static
Function: Applies this filter only to routes learned on the specified protocol when sending
RIP updates. This does not apply to Inbound routes.
Instructions: Specify the protocol on which you want to apply the filter.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.29.1.10
Configuring IPX Services
A-72 117369-B Rev. 00
Parameter: Action
Path: Configuration Manager > Protocols > IPX > Static/Filter Table > Route Filter
Default: Advertise/Accept
Options: Advertise/Accept | Suppress
Function: Specifies how to process any RIP advertisement that matches the route filter
criteria you established.
Instructions: Select Advertise/Accept to enable the filter to allow advertisement or
acceptance of routes that match the specified route filter criteria.
Select Suppress to configure the IPX router to drop RIP advertisements that
match the specified route filter criteria.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.29.1.9
Site Manager IPX Parameters
117369-B Rev. 00 A-73
Parameter: Cost
Path: Configuration Manager > Protocols > IPX > Static/Filter Table > Route Filter
Default: 1 (for hop- or tick-based routing)
Options: 1 to maximum positive integer (if tick-based routing is enabled)
1 to one less than the value specified in the Maximum Hops parameter (if
hop-based routing is enabled)
Function: Used only when the Action parameter is Advertise/Accept, this parameter
assigns a cost for routes matching this filter. A zero cost indicates that the
route’s actual cost should be used. This parameter sets the cost (number of ticks
or hops) for this interface. The cost is included in subsequent RIP packets sent
to other interfaces. IPX disposes of the packet when its hop count passes a value
that is one less than the value of the Maximum Hops parameter. This value must
be the same across the network.
Instructions: Do not change the default value of this parameter unless you are an expert IPX
user. Changing the value of this parameter can significantly affect router
performance. If you are qualified as an expert user, enter a value that yields a
level of performance most appropriate for network applications supported by
this router.
If the filter is an inbound filter, the entered cost replaces the cost associated with
the route in the RIP advertisement, and the router uses this cost in its
calculations.
If this is an outbound filter, the entered cost replaces the route’s cost that this
router advertises in RIP packets.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.29.1.11
Configuring IPX Services
A-74 117369-B Rev. 00
Service Network Filter Configuration Parameters
This section describes all parameters shown in the IPX Service Network Filter
Configuration window (Figure A-19).
Figure A-19. IPX Service Network Filter Configuration Window
Parameter: Target Network (hex)
Path: Configuration Manager > Protocols > IPX > Static/Filter Tables > Net Filter >
Add
Default: None
Options: Any valid network address in hexadecimal notation
Function: Specifies the network that you want to filter. The value 0xFFFFFFFF specifies
all networks.
Instructions: Enter a network address of up to 8 hexadecimal characters.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.30.1.6
Site Manager IPX Parameters
117369-B Rev. 00 A-75
Parameter: Target Network Mask (hex)
Path: Configuration Manager > Protocols > IPX > Static/Filter Tables > Net Filter >
Add
Default: None
Options: Any valid IPX network address in hexadecimal notation
Function: The mask, combined with the Target Network parameter value, determines
which networks will be filtered.
Instructions: Enter a network address or filter pattern of up to 8 hexadecimal characters. A
mask of 0xFFFFFFFF specifies an exact match with the network address
specified in the Target Network parameter. You can specify all networks by
entering a Target Network of 0xFFFFFFFF and a Target Network Mask of
0xFFFFFFFF.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.30.1.7
Parameter: Target Service Type (hex)
Path: Configuration Manager > Protocols > IPX > Static/Filter Tables > Net Filter >
Add
Default: None
Options: Any valid Novell server type number in 4-digit hexadecimal format
Function: Specifies the type of server that the filter should recognize in its criteria for
allowing certain SAP broadcasts to pass to the locally attached network
segment.
Instructions: Enter the server type number in 4-digit hexadecimal format. Include leading 0s.
For all types, enter a value of 0xFFFF. See Appendix A for a list of valid server
types.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.30.1.8
Configuring IPX Services
A-76 117369-B Rev. 00
Parameter: Filter Priority
Path: Configuration Manager > Protocols > IPX > Static/Filter Tables > Net Filter >
Add
Default: None
Options: 0 to the maximum positive integer
Function: Specifies the priority of this filter in relation to other filters of the same type.
Instructions: Enter a decimal value that indicates this filter’s priority relative to other filters of
the same type for this interface. Lower values indicate higher priorities. (The
highest priority is 0.)
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.30.1.14
Site Manager IPX Parameters
117369-B Rev. 00 A-77
IPX Service Network Filter Parameters
This section describes all parameters shown in the IPX Service Network Filters
window (Figure A-20).

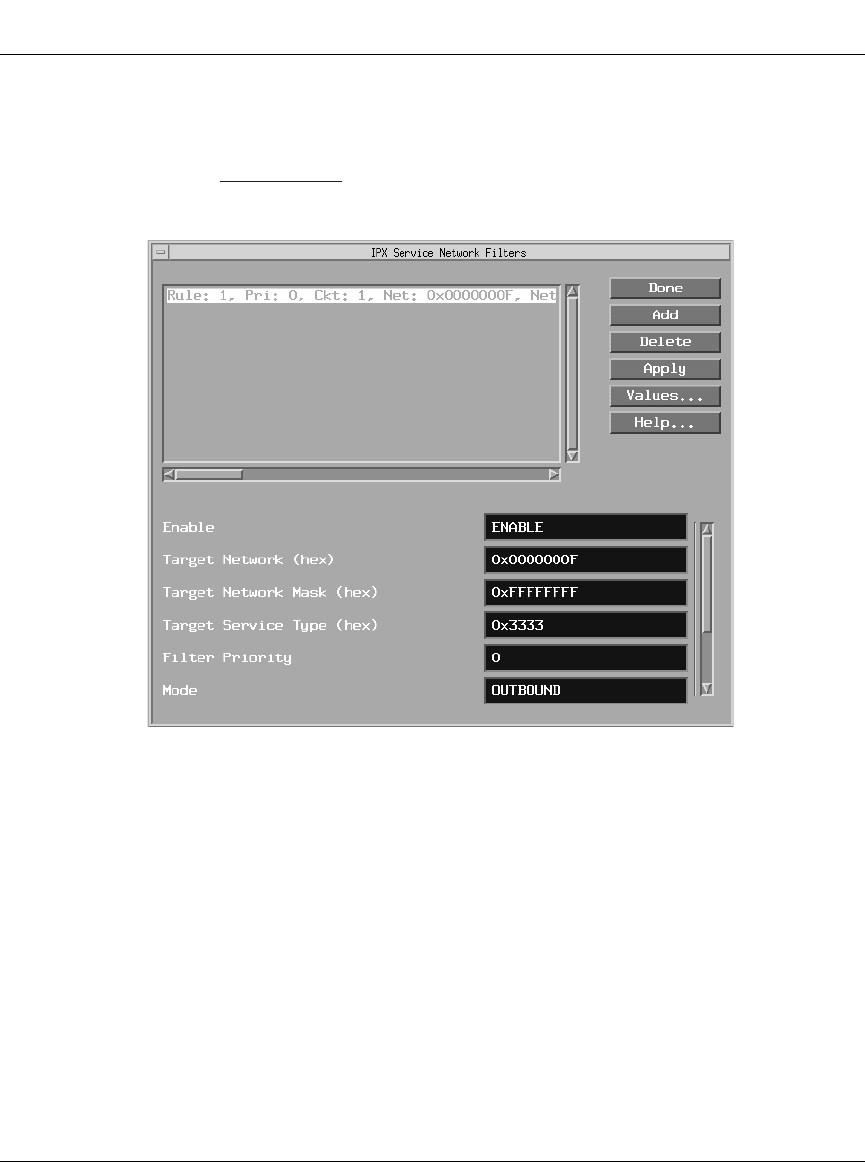

Figure A-20. IPX Service Network Filters Window
Configuring IPX Services
A-78 117369-B Rev. 00
Parameter: Enable
Path: Configuration Manager > Protocols > IPX > Static/Filter Tables > Net Filter
Default: Enable
Options: Enable | Disable
Function: Specifies whether the service network filter displayed is active on this interface.
Instructions: Select Enable to enable the service network filter.
Select Disable to disable the service network filter.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.30.1.2
Parameter: Target Network (hex)
Path: Configuration Manager > Protocols > IPX > Static/Filter Tables > Net Filter
Default: None
Options: Any valid NetWare address in hexadecimal notation
Function: Specifies the network on which you want to apply the service network filter.
Instructions: Enter the address of the target network in hexadecimal format. Using a mask,
you can make this stand for a single network or a range of networks with similar
addresses. You can specify all networks by entering a Target Network of
0xFFFFFFF and a Target Network Mask of 0xFFFFFFF.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.30.1.6
Parameter: Target Network Mask (hex)
Path: Configuration Manager > Protocols > IPX > Static/Filter Tables > Net Filter
Default: None
Options: Any valid IPX network address in hexadecimal notation
Function: The mask, combined with the Target Network parameter value, determines
which networks will be filtered.
Instructions: Enter a network address or filter pattern of up to 8 hexadecimal characters. A
mask of 0xFFFFFFFF specifies an exact match with the network address
specified in the Target Network parameter. You can specify all networks by
entering a Target Network of 0xFFFFFFFF and a Target Network Mask of
0xFFFFFFFF. A value of 0x0 is invalid.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.30.1.7
Site Manager IPX Parameters
117369-B Rev. 00 A-79
Parameter: Target Service Type (hex)
Path: Configuration Manager > Protocols > IPX > Static/Filter Tables > Net Filter
Default: None
Options: Any valid Novell server type number in 4-digit hexadecimal format
Function: Specifies the type of server that the filter should recognize in its criteria for
allowing certain SAP broadcasts to pass to the locally attached network
segment.
Instructions: Enter the server type number in 4-digit hexadecimal format. Include leading
zeros. For all types, enter a value of 0xFFFF. See Appendix A for a list of valid
server types.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.30.1.8
Parameter: Filter Priority
Path: Configuration Manager > Protocols > IPX > Static/Filter Tables > Net Filter
Default: None
Options: 0 to the maximum positive integer
Function: Specifies the priority of this filter in relation to other filters of the same type.
Instructions: Enter a decimal value that indicates this filter’s priority relative to other filters of
the same type for this interface. Lower values indicate higher priorities. (The
highest priority is 0.)
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.30.1.14
Parameter: Mode
Path: Configuration Manager > Protocols > IPX > Static/Filter Tables > Net Filter
Default: Outbound
Options: Outbound | Inbound | Both
Function: Specifies whether you want to apply the filter to inbound packets, outbound
packets, or both.
Instructions: Specify Inbound if you want to apply the filter to SAP packets coming into this
interface.
Specify Both if you want to filter both inbound and outbound packets.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.30.1.9
Configuring IPX Services
A-80 117369-B Rev. 00
Parameter: Protocol
Path: Configuration Manager > Protocols > IPX > Static/Filter Tables > Net Filter
Default: Any
Options: Any | Local | Static | SAP
Function: Applies this outbound filter only to services learned on the specified protocol
when sending SAP updates. This does not apply to inbound services.
Instructions: Specify the protocol on which you want to apply the filter.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.30.1.11
Parameter: Action
Path: Configuration Manager > Protocols > IPX > Static/Filter Tables > Net Filter
Default: Advertise/Accept
Options: Advertise/Accept | Suppress
Function: Specifies how to process any SAP advertisement that matches the SAP filter
criteria you established in the Target Network and Target Service Type
parameters.
Instructions: Select Advertise/Accept to enable the filter to allow advertisement or
acceptance of services that match the filter criteria you established in the Target
Network and Target Service Type parameters.
Select Suppress to configure the IPX router to drop SAP advertisements that
match the SAP filter criteria you established in the Target Network and Target
Service Type parameters.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.30.1.10
Site Manager IPX Parameters
117369-B Rev. 00 A-81
Parameter: Cost
Path: Configuration Manager > Protocols > IPX > Static/Filter Tables > Net Filter
Default: 1 (for hop- or tick-based routing)
Options: 1 to maximum positive integer (if tick-based routing is enabled)
1 to one less than the value specified in the Maximum Hops parameter (if
hop-based routing is enabled)
Function: Used only when the Action parameter is Advertise/Accept, this parameter
assigns a cost for routes matching this filter. A zero cost indicates that the
route’s actual cost should be used. This parameter sets the cost (number of ticks
or hops) for this interface. The cost is included in subsequent SAP packets sent
to other interfaces. IPX disposes of the packet when its hop count passes a value
that is one less than the value of the Maximum Hops parameter. This value must
be the same across the network.
Instructions: Do not change the default value of this parameter unless you are an expert IPX
user (for example, a Bay Networks Technical Solutions Center engineer).
Changing the value of this parameter can significantly affect router
performance. If you are qualified as an expert user, enter a value that yields a
level of performance most appropriate for network applications supported by
this router.
If the filter is an inbound filter, the entered cost replaces the cost associated with
the server in SAP advertisements sent from this router.
If this is an outbound filter, the entered cost replaces the server’s cost that is
advertised in SAP packets by this router.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.30.1.12
Configuring IPX Services
A-82 117369-B Rev. 00
IPX Service Name Filter Configuration Parameters
This section describes all parameters shown in the IPX Service Name Filter
Configuration window (Figure A-21).

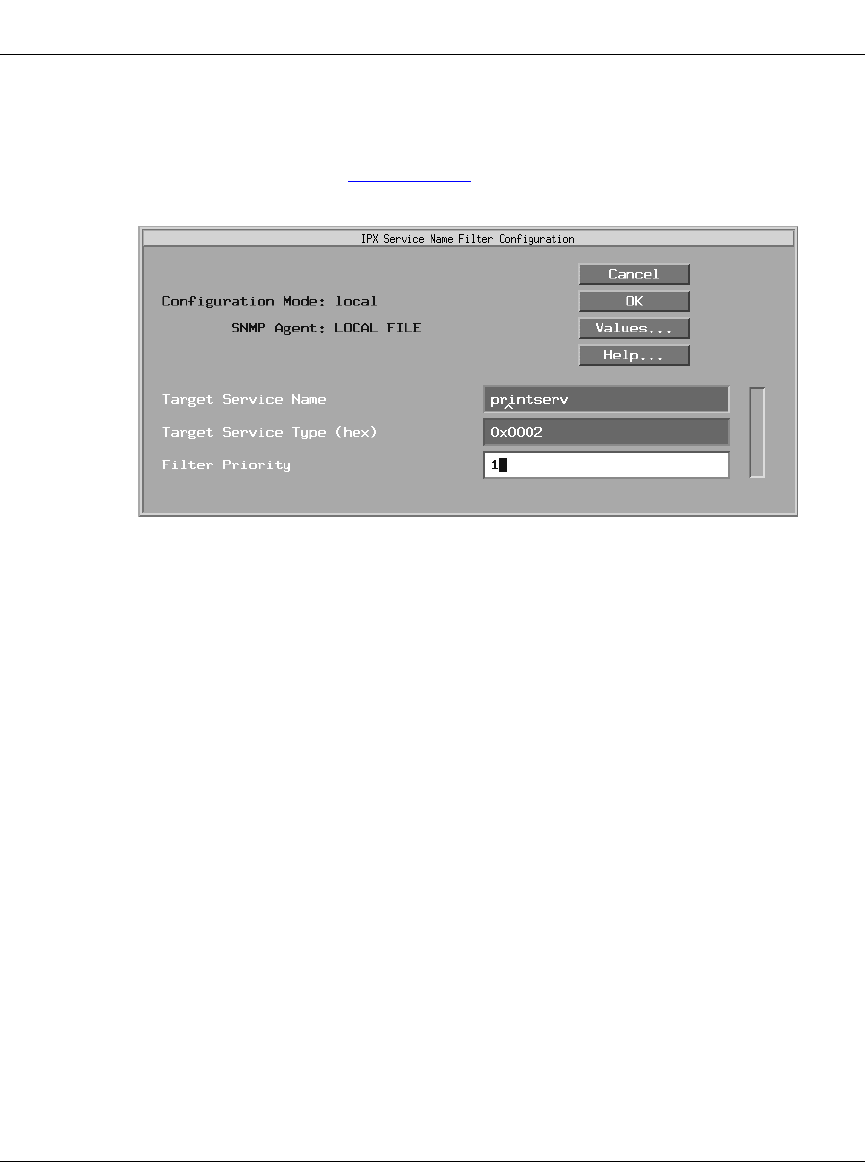

Figure A-21. IPX Service Name Filter Configuration Window
Parameter: Target Service Name
Path: Configuration Manager > Protocols > IPX > Static/Filter Tables > Service
Name Filters
Default: None
Options: Any valid alphanumeric server name or one containing wildcard characters or a
pattern-matching regular expression
Function: This is the filter that you want to apply. It can specify the name of the server to
which you are applying the service name filter, or it can be a filter containing a
wildcard or a pattern (regular expression) to be matched. (See “Using Wildcards
with SAP Filters” and “Using Pattern Matching with SAP Filters” for lists of
these characters.)
Instructions: Enter a service name or filter pattern consisting of up to 48 alphanumeric
characters, optionally including wildcards or a regular expression (pattern).
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.31.1.6
Site Manager IPX Parameters
117369-B Rev. 00 A-83
Parameter: Target Service Type (hex)
Path: Configuration Manager > Protocols > IPX > Static/Filter Tables > Service
Name Filters
Default: None
Options: Any valid Novell service type number in 4-digit hexadecimal format
Function: Specifies the type of service that the filter should recognize in its criteria for
allowing certain SAP broadcasts to pass to the locally attached network
segment.
Instructions: Enter the service type number in 4-digit hexadecimal format. Include leading
zeros. For all types, enter a value of FFFF. See Appendix A for a list of valid
service types.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.31.1.7
Parameter: Filter Priority
Path: Configuration Manager > Protocols > IPX > Static/Filter Tables > Service
Name Filters
Default: None
Options: 0 to the maximum positive integer
Function: Specifies the priority of this filter in relation to other filters of the same type.
Instructions: Enter a decimal value that indicates this filter’s priority relative to other filters of
the same type for this interface. Lower values indicate higher priorities. (The
highest priority is 0.)
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.31.1.13
Configuring IPX Services
A-84 117369-B Rev. 00
IPX Service Name Filter Parameters
This section describes how to set all parameters shown on the IPX Service Name
Filters window.
Figure A-22. IPX Service Name Filters Window
Parameter: Enable
Path: Configuration Manager > Protocols > IPX > Static/Filter Tables > Name Filter
Default: Enable
Options: Enable | Disable
Function: Specifies whether the service name filter displayed is active on this interface.
Instructions: Select Enable to enable the service name filter.
Select Disable to disable the service name filter.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.31.1.2
Site Manager IPX Parameters
117369-B Rev. 00 A-85
Parameter: Target Service Name
Path: Configuration Manager > Protocols > IPX > Static/Filter Tables > Name Filter
Default: None
Options: Any valid alphanumeric server name or one containing wildcard characters or a
pattern-matching regular expression. (See “Using Wildcards with SAP Filters”
and “Using Pattern Matching with SAP Filters” for lists of these characters.)
Function: This is the filter that you want to apply. It can specify the name of the server to
which you are applying the server-level SAP filter, or it can be a filter containing
a wildcard or a pattern (regular expression) to be matched.
Instructions: Enter a service name or filter pattern consisting of up to 48 alphanumeric
characters, optionally including wildcards or a regular expression (pattern).
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.31.1.6
Parameter: Target Service Type (hex)
Path: Configuration Manager > Protocols > IPX > Static/Filter Tables > Name Filter
Default: None
Options: Any valid Novell server type number in 4-digit hexadecimal format
Function: Specifies the type of server that the filter should recognize in its criteria for
allowing certain SAP broadcasts to pass to the locally attached network
segment.
Instructions: Enter the server type number in 4-digit hexadecimal format. Include leading 0s.
For all types, enter a value of 0xFFFF. See Appendix A for a list of valid service
types.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.31.1.7
Configuring IPX Services
A-86 117369-B Rev. 00
Parameter: Filter Priority
Path: Configuration Manager > Protocols > IPX > Static/Filter Tables > Name Filter
Default: None
Options: 0 to the maximum positive integer
Function: Specifies the priority of this filter in relation to other filters of the same type.
Instructions: Enter a decimal value that indicates this filter’s priority relative to other filters of
the same type for this interface. Lower values indicate higher priorities. (The
highest priority is 0.)
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.31.1.13
Parameter: Mode
Path: Configuration Manager > Protocols > IPX > Static/Filter Tables > Name Filter
Default: Outbound
Options: Outbound | Inbound | Both
Function: Specifies whether you want to apply the filter to inbound packets, outbound
packets, or both.
Instructions: Accept the default, Outbound, if you want to apply the filter to SAP packets
advertised by the specified interface.
Specify Inbound if you want to apply the filter to SAP packets coming into this
interface.
Specify Both if you want to filter both inbound and outbound packets.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.31.1.8
Parameter: Protocol
Path: Configuration Manager > Protocols > IPX > Static/Filter Tables > Name Filter
Default: Any
Options: Any | Local | Static | SAP
Function: Applies this outbound filter only to services learned on the specified protocol
when sending SAP updates. This does not apply to inbound services.
Instructions: Specify the protocol on which you want to apply the filter.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.31.1.10
Site Manager IPX Parameters
117369-B Rev. 00 A-87
Parameter: Action
Path: Configuration Manager > Protocols > IPX > Static/Filter Tables > Name Filter
Default: Advertise/Accept
Options: Advertise/Accept | Suppress
Function: Specifies how to process any SAP advertisement that matches the SAP filter
criteria you established in the Target Service Name and Target Service Type
parameters.
Instructions: Select Advertise/Accept to enable the filter to allow advertisement or
acceptance of services that match the filter criteria you established in the
Service Name and Service Type parameters.
Select Suppress to configure the IPX router to drop SAP advertisements that
match the SAP filter criteria you established in the Service Name and Service
Type parameters.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.31.1.9
Configuring IPX Services
A-88 117369-B Rev. 00
Parameter: Cost
Path: Configuration Manager > Protocols > IPX > Static/Filter Tables > Name Filter
Default: 1 (for hop- or tick-based routing)
Options: 1 to maximum positive integer (if tick-based routing is enabled)
1 to one less than the value specified in the Maximum Hops parameter (if
hop-based routing is enabled)
Function: Used only when the Action parameter is Advertise/Accept, this parameter
assigns a cost for routes matching this filter. A zero cost indicates that the
route’s actual cost should be used. This parameter sets the cost (number of ticks
or hops) for this interface. The cost is included in subsequent SAP packets sent
to other interfaces. IPX disposes of the packet when its hop count passes a value
that is one less than the value of the Maximum Hops parameter. This value must
be the same across the network.
Instructions: Do not change the default value of this parameter unless you are an expert IPX
user (for example, a Bay Networks Technical Solutions Center engineer).
Changing the value of this parameter can significantly affect router
performance. If you are qualified as an expert user, enter a value that yields a
level of performance most appropriate for network applications supported by
this router.
If the filter is an inbound filter, the entered cost replaces the cost associated with
the server in the SAP advertisement, and the router uses this cost in its
calculations.
If this is an outbound filter, the entered cost replaces the server’s cost that is
advertised in SAP packets by this router.
MIB Object ID: 1.3.6.1.4.1.18.3.5.5.31.1.11
117369-B Rev. 00 B-1
Appendix B
BCC show Commands for IPX
Use the BCC show command to display configuration and statistical information
about IPX services. See Using the Bay Command Console for information about
show scripts command syntax.
Sample Output
The show command displays information about the router’s IPX configuration.
For example, if you enter the command:
bcc> show ipx rip
You see this type of output:
IPX RIP Interface Record Configuration Information
Interface Configured Current Update Listen Supply Packet Packet
Packet
Name State State Interval Mode Mode In Out Bad
--------- ---------- ------- -------- ------- ------- ------- -------- ----
E21 enabled notpres 60 enabled enabled 0 0 0
Online Help for show Commands
You can display a list of available command options by entering show or show
<option>
without additional options or with a question mark as an option. For
example, entering show or show ipx ? at the BCC prompt displays the list of all
show or show ipx keyword (subcommand) options.
Configuring IPX Services
B-2 117369-B Rev. 00
Commands for IPX
The show ipx <
container
> command displays information about the router’s dial
backup configuration.
Table B-1 lists all the dial backup show ipx commands. The filter flags and filter
arguments are options that you can use with each keyword (also called
subcommands).
Table B-1. IPX show Commands
<container> <keyword> <arguments>
adjacent-hosts <none> <none>
forwards <none> <none>
hosts <none> <none>
interfaces -encaps
-host
-net
-name
<method>
<address>
<address>
<symbolic_name>
rips <none> <none>
route-filters -direction
-net
-proto
-action
-interface
<filter_direction>
<address>
<protocol>
<filter_action>
<name>
routes -dest
-net
-host
-type
<destination_network>
<address>
<address>
<destination_protocol>
saps <none> <none>
server-name-filters -direction
-net
-type
-interface
<filter_direction>
<address>
<filter_type>
<name>
server-network-filters -direction
-net
-type
-interface
<filter_direction>
<address>
<filter_type>
<name>
(continued)
BCC show Commands for IPX
117369-B Rev. 00 B-3
show ipx
summary
The show ipx summary command displays general information about IPX.
The output contains the following information:
services -nexthophost
-nexthopnet
-net
-type
<host_address>
<address>
<address>
<filter_type>
static-netbios-routes -net
-name
<target_net_address>
<target_name>
static-routes -nexthophost
-nexthopnet
-net
<host_address>
<nexthop_net_address>
<address>
static-services <none> <none>
stats <none> <none>
summary <none> <none>
Configured state Specifies if IPX is configured on the router.
Current state Specifies if IPX is enabled or disabled.
Multiple host address Specifies if multiple host addressing is enabled.
Routing method Identifies the routing method.
Maximum path The maximum number of paths allowed.
Maximum path splits Specifies if load balancing is enabled or disabled.
Log filter setting The types of log messages that IPX filters.
Number of routes The maximum number of destinations that the router will learn.
Number of services The maximum number of routes the router will learn.
Number of hosts The maximum number of next-hop hosts that the router will learn.
Number of IPX
interfaces The number of IPX interfaces configured.
Table B-1. IPX show Commands
(continued)
<container> <keyword> <arguments>
Configuring IPX Services
B-4 117369-B Rev. 00
adjacent-hosts
The show ipx adjacent-hosts command displays information for configured
adjacent hosts.
The output contains the following information:
forwards
The show ipx forwards command displays IPX forwarding table information.
The output contains the following information:
hosts
The show ipx hosts command displays IPX host table information.
The output contains the following information:
Interface Name The name of the IPX interface.
Configured State Specifies if IPX is configured on an adjacent host.
Current State Specifies if IPX is enabled or disabled.
Host Address The address of the adjacent host.
Network The network address.
Interface Name The name of the IPX interface.
Type The type of service.
Method The routing method.
Equal-Cost-Path The number of equal cost paths.
Host Address The IPX host address.
Nexthop Interface The address of the next-hop host.
Network The network address.
Method The encapsulation method.
BCC show Commands for IPX
117369-B Rev. 00 B-5
interfaces [-encaps
<method>
] [-host
<address>
] [-net
<address>
]
[-name
<symbolic_name>
]
The show ipx interfaces command displays IPX interface configuration
information.
The output contains the following information:
rips
The show ipx rips command displays IPX RIP interface record configuration
information.
The output contains the following information:
Interface Name The name of the IPX interface.
Configured State Specifies if IPX is configured on the router.
Current State Specifies if IPX is enabled or disabled.
Network Address The network address.
Host Address The IPX host address.
Encapsulation
Method The encapsulation method used for this interface.
Interface Name Identifies the name of the IPX RIP interface.
Configured State Specifies if IPX is configured on the router.
Current State Specifies if IPX is enabled or disabled.
Update Interval Specifies the frequency of RIP update packet transmissions.
Listen Mode Specifies if this interface receives periodic or triggered updates.
Supply Mode Specifies if this interface transmits periodic or triggered updates.
Packet In Number of packets received.
Packet Out Number of packets delivered.
Packet Bad Number of packets corrupted.
Configuring IPX Services
B-6 117369-B Rev. 00
route-filters [-direction
<filter_direction>
] [-net
<address>
] [-proto
<protocol>
] [-action
<filter_action>
] [-interface
<name>
]
The show ipx route-filters command displays IPX route filter information.
The output contains the following information:
routes
[-dest <destination_network>] [-net <address>] [-host <address>] [-type
<destination_protocol>]
The show ipx routes command displays IPX routing table information.
The output contains the following information:
Target Network The network where the route filter is active.
Network Mask The mask attached to the target network.
Current State Specifies if the route filter is enabled or disabled.
Interface Name Identifies the name of the IPX interface.
Priority The priority of this filter in relation to other filters of the same type.
Action Specifies how IPX processes any RIP advertisement that
matches the route filter criteria.
Direction Specifies whether the filter is applied to inbound packets,
outbound packets, or both.
Dest Network The target network.
Interface Name The name of the IPX interface.
Nexthop Network The address of the next-hop network.
Nexthop Host
Address The address of the next-hop host.
Type The type of route.
Age The granularity, in seconds, for aging RIP and SAP information.
Ticks The cost, in ticks, for this interface.
Hops The cost, in hops, for this interface.
BCC show Commands for IPX
117369-B Rev. 00 B-7
saps
The show ipx saps command displays IPX SAP interface record configuration
information.
The output contains the following information:
server-name-filters [-direction
<filter_direction>
] [-net
<address>
]
[-type
<filter_type>
] [-interface
<name>
]
The show ipx server-name-filters command displays IPX server name filter
information.
The output contains the following information:
Interface Name The name of the IPX SAP interface.
Configured State Specifies if SAP is configured on the router.
Current State Specifies if SAP is enabled or disabled.
Update Interval Specifies the frequency of RIP update packet transmissions.
Listen Mode Specifies if this interface receives periodic or triggered updates.
Supply Mode Specifies if this interface transmits periodic or triggered updates.
Packet In Number of packets received.
Packet Out Number of packets delivered.
Packet Bad Number of packets corrupted.
Server Name The name of the server.
Server Network The address of the server network.
Current State Specifies if the server name filters feature is enabled or disabled.
Interface Name The name of the IPX interface.
Prio The priority of this filter in relation to other filters of the same type.
Filter Type The type of filter.
Direction Specifies whether the filter applies to inbound packets, outbound
packets, or both.
Configuring IPX Services
B-8 117369-B Rev. 00
server-network-filters [-direction
<filter_direction>
] [-net
<address>
]
[-type
<filter_type>
] [-interface
<name>
]
The show ipx server-network-filters command displays IPX server network
filter information.
The output contains the following information:
services[-nexthophost
<host_address>
] [-nexthopnet
<address>
] [-net
<address>
] [-type
<filter_type>
]
The show ipx services command displays IPX service table information.
The output contains the following information:
Target Network The network where the server network filter is active.
Network Mask The mask attached to the target network.
Current State Specifies if the service network filter is enabled or disabled.
Interface Name Identifies the name of the IPX interface.
Prio The priority of this filter in relation to other filters of the same type.
Filter Type The type of filter.
Direction Specifies whether the filter applies to inbound packets, outbound
packets, or both.
Service Name Hops The cost, in hops, for routes matching this filter.
Interface Name The name of the IPX interface.
Type The Novell service type.
NextHop Network The address of the next-hop network.
NextHop Host
Address The address of the next-hop host.
Network The address of the network.
Age The granularity, in seconds, for aging RIP and SAP information.
BCC show Commands for IPX
117369-B Rev. 00 B-9
static-netbios-routes [-net
<target_net_address>
] [-name
<target_name>
]
The show ipx static-netbios-routes command displays IPX static NetBIOS
static route table information.
The output contains the following information:
static-routes [-nexthophost
<host_address>
] [-nexthopnet
<nxthop_net_address>
] [-net
<address>
]
The show ipx static-routes command displays IPX static route table
information.
The output contains the following information:
Target Name The name of the target server.
Target Network The address of the target network.
Current State Specifies if the static NetBIOS routes feature is enabled.
Static Network The address of the static network.
State The state of the NetBIOS static route.
Interface Name The name of the IPX interface.
NextHop Network The address of the next-hop network.
NextHop Host
Address The address of the next-hop host.
Ticks The cost, in ticks, for this interface.
Hops The cost, in hops, for this interface.
Configuring IPX Services
B-10 117369-B Rev. 00
static-services
The show ipx static-services command displays IPX static service table
information.
The output contains the following information:
stats
The show ipx stats command displays IPX statistical information.
The output contains the following information:
Serv. Name The symbolic name of the server.
Network The network address.
Host Address The host address.
Hops The cost, in hops, for this interface.
Interface Name Identifies the name of the IPX interface.
Nexthop Network The address of the next-hop network.
Type The type of service.
Sock The socket address of this service.
Name The name of the IPX interface.
Network The network address.
In Receive Number of packets received.
In Deliver Number of packets delivered.
Out Request Number of packet requests.
Forward Number of packets forwarded.
In Discard Number of packets received that were discarded.
Out Discard Number of packets sent that were discarded.
117369-B Rev. 00 C-1
Appendix C
Common Service Types and Identifiers
Table C-1. Service Types and Identifiers
Service Type Hexadecimal
Identifier
Wildcard FFFF
Unknown 0000
User 0001
User Group 0002
Print Queue 0003
NetWare File Server V3.
x
0004
Job Server 0005
Gateway 0006
Print Server 0007
Archive Queue 0008
Archive Server 0009
Job Queue 000A
Administration 000B
Diagnostics 0017
NetBIOS 0020
NAS SNA Gateway 0021
(continued)
Configuring IPX Services
C-2 117369-B Rev. 00
NACS 0023
Remote Bridge Server 0024
Bridge Server 0026
TCP/IP Gateway (Racal-Datacom) 0027
Eicon X.25 Point-to-Point GW 0028
Eicon 3270 Gateway 0029
(CHI) Corp 002A
Unknown 002C
Time Synchronization Server 002D
Archive Srvr Dynamic SAP/SMS TSA 002E
DI3270 Gateway 0045
Advertising Print Server 0047
TCP/IP Gateway (Racal-Datacom) 0048
Unknown 004A
Btrieve VAP 5.
x
004B
NetWare SQL VAP/NLM 004C
Xtree Network Version 004D
Btrieve VAP 4.
x
0050
QuickLink (Cubix) 0052
Print Queue User 0053
ARCserve VAP 0055
Eicon X.25 Multi-Point Gateway 0058
ARCserv 0064
ARCserve 3.0 0066
(continued)
Table C-1. Service Types and Identifiers
(continued)
Service Type Hexadecimal
Identifier
Common Service Types and Identifiers
117369-B Rev. 00 C-3
WANcopy Utility 0072
Cheyenne ARCserv 5.0 Intel 0077
TES-NetWare for VMS 007A
Emerald Backup/WATCOM Debugger 0092
TES-NetWare for VMS 0095
NetWare Access Server (NAS) 0098
SQL Server (Named Pipes) 009A
NetWare Access Server 009B
Portable NetWare/SunLink NVT 009E
Progress Database Server 009F
PowerChute APC UPS NLM 00A1
Compaq IDA Status Monitor 00AC
Unknown 0100
Intel LAN Protect Bindery 0102
Oracle Database Server 0103
NetWare 386, Remote Console 0107
Novell SNA Gateway 010F
HP Print Server 0112
CSA MUX 0114
CSA LCA 0115
CSA CM 0116
CSA SMA 0117
CSA DBA 0118
CSA NMA 0119
(continued)
Table C-1. Service Types and Identifiers
(continued)
Service Type Hexadecimal
Identifier
Configuring IPX Services
C-4 117369-B Rev. 00
CSA SSA 011A
CSA STATUS 011B
CSA APPC 011E
SNA TEST (SAA profile) 0126
CSA TRACE 012A
Unknown 012E
Communications Executive 0130
NFS Domain Server 0133
NetWare Naming Service (NNS) Profile 0135
NNS Queue/NW Print Queue 0137
NNS Domain Scheme Descriptor 0138
Intel LANSpool VAP 0141
Aladdin Knowledge 0142
Optical Drives 0143
IrmaLAN Gateway 0152
Named Pipe Server 0154
Intel PICKIT/CAS Talk Server 0168
Unknown (User) 0173
Compaq SNMP Agent 0174
Xtree Server 0180
Xtree 0189
NetWare Access Server 018A
GARP Gateway (Net Research) 01B0
BindView (LAN Support Group) 01B1
(continued)
Table C-1. Service Types and Identifiers
(continued)
Service Type Hexadecimal
Identifier
Common Service Types and Identifiers
117369-B Rev. 00 C-5
Intel LanDesk Manager 01BF
Unknown 01CA
Shiva Netmodem 01CB
LanRover 01CC
Castelle FAXPress Server 01D8
Castelle LANPress Print Server 01DA
Unknown 01E4
Legato 01F0
Legato 01F1
SQL Server 0200
NMA Agent (NMS; socket 0x2F90) 0233
LANZ Agent (Socket 0x401F; NetExp) 0237
LANZ Agent (Socket 0x4800) 0238
NMS Hub Management 0239
LANZ Agent (Socket 0x401F) 023A
NetWare SMS (Storage Management System) 023F
NetWare Connect 024E
NMS Console (name-stnMAC+IPX#) 026A
NW4 Time Sync Server (Socket 0x040) 026B
NW4 NDS Server 0278
NetWare for SAA Gateway 0304
Gallacticom BBS 030A
HP LaserJet (Quick Silver) 030C
Attachmate 3270 Gateway 0320
(continued)
Table C-1. Service Types and Identifiers
(continued)
Service Type Hexadecimal
Identifier
Configuring IPX Services
C-6 117369-B Rev. 00
Multi Server Director 0327
Intel NetPort II 0361
ECS Cheyenne ARCserv 5.0 Intel 0375
Cheyenne ARC Serv 5.0 Intel SE 0376
PowerChute Version 3.0 (new) 037E
ViruSafe Notify 037F
HP Bridge 0386
HP Hub 0387
NetWare SAA Gateway 0394
Lotus Notes (OS/2 version) 039B
Central Point Anti Virus NLM 03B7
ARCserve 4.0 (socket 0x 8600) 03C4
Intel LANSpool 3.5 03C7
Lexmark 4033 Print Server 03D5
NetWare SQL/Gupta NLM 03DE
UNIXWare 03E1
UNIXWare 03E4
NetWare File Server Version 4.
x
0400
NetSprint print server 0414
SiteLock Virus 0429
ARCserve 5.0 044C
Dell SCSI Array (SDA) Monitor 045B
SyBase 0474
SyBase 0475
(continued)
Table C-1. Service Types and Identifiers
(continued)
Service Type Hexadecimal
Identifier
Common Service Types and Identifiers
117369-B Rev. 00 C-7
Novix TCP/IP support NLM 04DC
SiteLock Checks 0520
Certus Anti Virus NLM (master) 0523
SiteLock Checks 0529
Delrina WinFax Pro network 0553
McAfee’s NetShield anti-virus 0580
SiteLock 0B29
SiteLock Applications 0C29
SofTrack for NW Version 3.
x
0C2C
LAI SiteLock 2380
Meeting Maker 238C
SofTrack for NW Version 4.
x
2C0C
SiteLock Server (Brightworks) 4808
SiteLock User 5555
Tapeware 6312
Rabbit 3270 Gateway 6F00
Intel NetPort (Print Server) 8002
WordPerfect Network Version 8008
Unknown 8069
Unknown 8746
McAfee’s NetShield anti-virus 9000
SQL Monitor (IPX) 9604
Unknown 9892
Unknown C00C
(continued)
Table C-1. Service Types and Identifiers
(continued)
Service Type Hexadecimal
Identifier
Configuring IPX Services
C-8 117369-B Rev. 00
SiteLock Metering VAP/NLM F11F
SiteLock F1FF
SQL Server (IPX) F503
Table C-1. Service Types and Identifiers
(continued)
Service Type Hexadecimal
Identifier
117369-B Rev. 00 D-1
Appendix D
Sample IPX Configuration
This appendix provides a sample IPX configuration. Depending on the interface
type and service requirements, the network uses different encapsulations.
Configurations are provided for Router 1 and Router 2 (Figure D-1). The network
configuration lists Router A and Router B but does not provide configurations for
them.
The following assumptions apply:
• The router uses the tick-based RIP method.
• The frame relay cloud is non-fully meshed and all PVCs are group mode. You
have set the management type to default.
• You have configured RIP for all interfaces.
• You have enabled Multiple Host Addressing under IPX Global.
• Default settings are in effect for all timer values.
Configuring IPX Services
D-2 117369-B Rev. 00
Figure D-1. Sample IPX Configuration
Configuration Particulars
Router 1
Edit the E21 circuit and add the IPX and RIP protocols. The IPX Configuration
window appears. Set the Configured Network Number parameter to 0x0000000A
and the Configured Encaps parameter to Novell.
CS C
C
S
S
C
CC
C
Token
Ring
Key
S=Server
C=Client
(802.2
encapsulation)
(802.2
encapsulation)
IPX Network
0x0000000A IPX Network
0x0000000B
IPX Network 0x0000000D
IPX Network
0x0000000E
E21
O31
S21
S22
S21
Frame Relay
(nonfully
meshed group)
Router
A
Router
B
Novell
4.X.
server
Novell
3.X.
server
IPX0023A
IPX
Network
0x0000000C
Sample IPX Configuration
117369-B Rev. 00 D-3
Edit the S21 circuit and set the WAN protocol to Standard. Add the IPX and RIP
protocols. The IPX Configuration window appears. Set the Configured Network
Number parameter to 0x0000000B.
Edit the S22 circuit and set the WAN protocol to Frame Relay. Add the IPX and
RIP protocols. The IPX Configuration window appears. Set the Configured
Network Number parameter to 0x0000000C and click on OK. Select
Protocols > IPX > Interfaces, and highlight the IPX Network parameter, which
should be set to 0x0000000C. Click on the RIP button and set the Split Horizon
parameter to Disable.
Router 2
Edit the E21 circuit and add the IPX and RIP protocols. The IPX Configuration
window appears. Set the Configured Network Number parameter to 0x0000000E.
Edit the S21 circuit and set the WAN protocol to Standard. Add the IPX and RIP
protocols. The IPX Configuration window appears. Set the Configured Network
Number parameter to 0x0000000B.
Edit the 031 circuit and set the ring speed to 16 MB. Add the IPX and RIP
protocols. The IPX Configuration window appears. Set the Configured Network
Number parameter to 0x0000000D and the Configured Encaps parameter to
SNAP.
Note: Turn off Split Horizon on the frame relay hub router if the spoke routers
are to learn routes from each other. However, leave Split Horizon enabled on
spoke routers.
117369-B Rev. 00 Index-1
A
accepting
default configuration parameter values, 1-8
accessing IPX parameters
using the Technician Interface, A-9
action
SAP filters, 5-136
adding
IPX route filters, A-67
service network filter, A-74
adjacent host, 2-3
configuration parameter descriptions, A-50
parameter descriptions, A-53
advanced global parameters
descriptions, A-22
editing, A-22
advertisement interval (RIP), 5-48
Age Multiplier
IPX RIP circuit parameter, A-37
IPX SAP circuit parameter, A-43
Aging Frequency
advanced global parameter, A-18
Aging Pending Frequency
advanced global parameter, A-19
ATM
circuits, 5-38
B
bandwidth, 5-122, 5-124
bandwidth-on-demand, 5-111
bindery
and SAP, 5-63
bridge
source route bridge end station support, 5-159
broadcast filter
NetBIOS, 5-98
C
change circuit parameters
editing, A-40
characters in SAP pattern matching filters, 5-142
circuits
LAN and WAN, 2-5
client/server connection
example, 5-165
role of Bay Networks router, 5-163
concatenation rules and operators
SAP pattern matching filters, 5-144
configurable RIP timers, 5-48
configurable SAP timers, 5-64
configurable split horizon, 5-54
Configured Encaps
IPX interface parameter, A-26
configuring
RIP and SAP broadcast timers, 5-121
service network filter parameters, 5-146, A-74
configuring IPX
on a Token Ring interface, 3-13
connection negotiation
IPXCP, 4-19
IPXWAN, 4-19
connectionless datagram protocol, 2-2
Cost
IPX interface parameter, A-25
tick, 5-36
Index
Index-2 117369-B Rev. 00
customer support
programs, xxi
Technical Solutions Centers, xxii
D
data link layer addresses, 3-12, 4-8
datagram, 2-2
default configuration parameter values
accepting or editing, 1-8
default route
support, 2-3
deleting
IPX from the router, 1-8
IPX route filters, A-74
service name filters, A-88
static routes, A-61
static services, A-67
deleting a service network filter, A-82
Destination Count
advanced global parameter, A-17
dial backup, 5-111
dial services
advantages of, 5-111
descriptions, 5-111
types of, 5-111
Dial-on-Demand, 2-3, 5-112
with static routing, 5-113, 5-124
with traffic filters, 5-114
dynamic routing, 2-3
E
editing
default configuration parameter values, 1-8
IPX change circuit parameters, A-40
IPX interface parameters, A-22
route filter configuration parameters, A-67
server name filter parameters, 5-147
static route parameters, A-59
static routes, A-56
static service parameters, A-64
editing IPX advanced global parameters, A-22
Enable
IPX interface parameter, A-23
encapsulation method, 3-8
encapsulation types. See frame encapsulation types
end station support, 5-36
end station support token ring
end station support, 5-159
F
filter
adding service network filters, A-74
deleting service name filters, A-88
editing service name filters, 5-147
NetBIOS broadcast, 5-98
SAP, 5-135
SAP filter concatenation rules and operators, 5-144
SAP filter pattern matching, 5-136
SAP filtering example, 5-146
SAP filters prohibiting SAP broadcasts, 5-81
SAP filters with pattern matching, 5-142
SAP pattern matching characters, 5-142
service name filter configuration parameters, A-82
service network filter parameters, 5-146, A-74,
A-77
traffic filters with dial-on-demand, 5-114
filters
SAP filters with wildcards, 5-140
frame encapsulation types, 3-8, 3-15
frame formats, 2-5
frame relay, 4-2, 4-3
circuits, 5-38
fully meshed network, 5-54
split horizon enabled, 5-55
G
global parameters
advanced, descriptions, A-22
advanced, editing, A-22
117369-B Rev. 00 Index-3
H
HDLC encapsulation, 5-41
hop
as basis for routing decision, 5-36
definition, A-14
RIP maximum, 5-39
hop count, A-14
host
Router Host Number parameter, A-11
Host Count
advanced global parameter, A-18
host ID numbers
on a token ring circuit, 3-13
Host Number
adjacent host parameter, A-51
IPX interface parameter, A-25
I
Immediate Update
IPX SAP circuit parameter, A-46
information broadcast
RIP, 5-37
interface parameters
editing, A-22
Internet Data Packet (IDP) format, 2-2
internetwork addressing, 2-2
intranode addressing, 2-2
IPX
background information, 2-5
deleting IPX from the router, 1-8
IPX advanced global parameters
descriptions, A-22
editing, A-22
IPX change circuit parameters, A-40
IPX interface parameters
editing, A-22
IPX over WAN media, 2-3
link configurations, 4-20
IPX parameters
accessing via Technician Interface, A-9
IPX ping, 5-36
IPX ping support, 5-163
IPX route filter parameters
descriptions, A-69
IPX service name filter
configuration parameter descriptions, A-82
parameter descriptions, A-84
IPX service network filter parameters
descriptions, A-77
IPX static service
configuration parameter descriptions, A-61
parameter descriptions, A-64
IPX watchdog acknowledgment, 5-114
IPX Watchdog Spoofing
IPX interface parameter, A-29
IPXCP, 2-3, 4-1
link configurations, 4-20
link negotiation, 4-19
sample configuration, 4-18
using, 4-2
IPXWAN, 2-3, 4-1
link configurations, 4-20
link negotiation, 4-19
sample configuration, 4-18
using, 4-2
IPXWAN connection
negotiating, 4-3
L
LAN
circuits, 2-5
logical, 3-8
physical, 3-8
link delay
WAN link, 4-3
link negotiation, 4-2
IPXCP, 4-19
IPXWAN, 4-19
load redistribution and rerouting, 5-17
load sharing, 5-14, 5-17, 5-36
Local IPX watchdog acknowledgment, 5-114
Log Filter
advanced global parameter, A-15
Index-4 117369-B Rev. 00
logical LAN, 3-8
logical network address, 3-8
M
Maximum Hops
advanced global parameter, A-16
Maximum Path
advanced global parameter, A-15
IPX advanced global parameter, 5-19, 5-20
Maximum Path Splits
advanced global parameter, A-16
Multicast Address
IPX interface parameter, A-28
multiline, 2-5
multiline circuits, 5-17
differences from multipath, 5-18
multipath configurations, 5-17
multipath routing, 5-14, 5-36, A-16
precedence/priority, 5-17
multiple circuits per segment, 2-5
multiple interfaces per circuit, 2-5
multiple IPX interfaces per circuit, 2-3
multiple-host router, 2-5, 3-11
N
Name
IPX interface parameter, A-23
NCP
Network Control Protocol, 4-2
NDS (NetWare Directory Services, 5-62
Nearest Server Reply
IPX SAP circuit parameter, A-44
negotiation
IPXCP link, 4-19
IPXWAN connection, 4-3
IPXWAN link, 4-19
NetBIOS
broadcast packet (type 20), 5-90
type 20 broadcast packets, 5-36
NetBIOS Accept
IPX interface parameter, A-27
NetBIOS broadcast filtering, 5-98
NetBIOS Deliver
IPX interface parameter, A-27
NetBIOS packet
filtering, 5-101
use with nonstandard static routing, 5-96
use with standard static routing, 5-97
NetBIOS packet flow, 5-102
NetBIOS static routes
configuration parameter descriptions, A-46
parameter descriptions, A-48
NetWare
bindery, 5-63
Directory Services (NDS), 5-62
Novell, 3-9
network
fully meshed, 5-54
non-fully meshed, 5-55
network address
logical, 3-8
Network Control Protocol (NCP), 4-2
network number, 4-3
primary, 4-12
network numbers
setting for IPXCP, 4-4
setting for IPXWAN, 4-4
network-level services, 2-3
non-fully meshed network, 5-55
split horizon disabled, 5-56
Novell
NetWare, 3-9
standards, 5-122
Novell Certification Conformance
advanced global parameter, A-21
Novell, Inc., 2-2
number of IPX interfaces per circuit, 3-15
P
Pace
IPX RIP circuit parameter, A-37
IPX SAP circuit parameter, A-42
117369-B Rev. 00 Index-5
Packet Size
IPX RIP circuit parameter, A-38
IPX SAP circuit parameter, A-44
pattern matching
concatenation rules and operators, 5-144
SAP filters, 5-136, 5-142
periodic RIP advertisement interval, 5-48, 5-64
Permanent Virtual Circuit (PVC), 4-3
physical LAN, 3-8
ping, 5-163
ping capability, 5-36
PNN (primary network number), 4-12
PPP (point-to-point protocol), 4-2
precedence/priority
multipath routing, 5-17
Primary Net Number
IPX global parameter, A-22
primary network number (PNN), 4-12
purging
RIP entries, 5-48
PVC (Permanent Virtual Circuit), 4-3
R
regular expression (RE), 5-142
request packet (RIP), 5-37
response packet (RIP), 5-37
RFC
IPX source documents, 2-5
RFC 1552, 2-5, 4-1
RFC 1634, 2-5, 4-1
RIF (Routing Information Field), 5-160
RIP, 5-35, 5-36
RIP (Routing Information Protocol), 2-3
maximum timer ticks, 5-39
update packet transmissions frequency, 5-121
RIP broadcast timers
configuring, 5-121
RIP information broadcast, 5-37
RIP request packet, 5-37
RIP response packet, 5-37
RIP timers
configurable, 5-48
route filter configuration parameters
editing, A-67
route filters
adding, A-67
deleting, A-74
dropping all routes, 5-132
parameter descriptions, A-69
router
deleting IPX from the router, 1-8
multiple-host, 2-5, 3-11
single-host, 2-5, 3-11
Router Host Number
IPX global parameter, A-11
router information broadcast, 5-37
Router Name
IPX global parameter, A-7, A-11
router name
valid characters in, 4-15
routes
dropping all, 5-132
Routing Information Field (RIF), 5-160
Routing Information Protocol (RIP), 2-3, 5-35, 5-36
routing table, 5-36, 5-37
running IPX over frame relay, 4-3
running IPX over PPP and frame relay, 4-2
S
SAP, 5-35
and NDS, 5-62
and the NetWare bindery, 5-63
SAP (Service Advertising Protocol), 2-3
SAP broadcast timers
configuring, 5-121
SAP filters, 5-144
example, 5-146
pattern matching, 5-136, 5-142
pattern matching characters, 5-142
prohibiting SAP broadcasts, 5-81
service network configuration parameters, A-74
wildcards and pattern matching, 5-140
Index-6 117369-B Rev. 00
SAP service
configuration parameters, A-61
deleting, A-67
SAP timer
configurable, 5-64
SAP update packet transmissions frequency, 5-121
server name filter parameters
editing, 5-147
Service Advertising Protocol (SAP), 2-3, 5-35
Service Count
advanced global parameter, A-17
service name filters
configuration parameter descriptions, A-82
deleting, A-88
parameter descriptions, A-84
service network filter
adding, A-74
configuration parameter descriptions, A-74
service network filter parameters
configuring, 5-146, A-74
descriptions, A-77
service network filters
dropping all services, 5-146
service types, C-1
services
dropping all, 5-146
show commands
command syntax, B-1
config, B-1
console, B-3
online Help for, B-3
wildcard search characters, B-3
Single Route Explorer (SRE) frame, 5-160
single-host router, 2-5, 3-11
Site Manager, 2-1
SMDS
circuits, 5-38
Socket
numbers, 2-2
source route bridge end station support, 5-159
source routing, 5-36
split horizon, 5-36
configuring, 5-54
disabled in a nonfully meshed network, 5-56
enabled in a fully meshed network, 5-55
SRE frame, 5-160
standard IPX configurations
multiple-host router, 3-11
single-host router, 3-11
static routes
configuration parameter descriptions, A-56
deleting, A-61
NetBIOS configuration parameters, A-46
nonstandard NetBIOS use, 5-96
parameter descriptions, A-59
parameter editing, A-59
support, 2-3
using, A-56
with Dial-on-Demand, 5-113
with standard NetBIOS routing, 5-97
static service configuration parameters
descriptions, A-61
static service parameters
editing, A-64
static services
deleting, A-67
parameter descriptions, A-64
SAP service network configuration, 5-80
T
Target Network
IPX NetBIOS static route parameter, A-47, A-49
Target Server
IPX NetBIOS static route parameter, A-47
Technical Solutions Centers, xxii
Technician Interface
accessing IPX parameters, A-9
tick
as basis for routing decision, 5-36
cost, 5-36
definition, 5-36, A-14
RIP timer maximum, 5-39
tick-based routing, 4-3
timeout
RIP entries, 5-48
117369-B Rev. 00 Index-7
timer
configurable SAP timers, 5-64
RIP (configurable), 5-48
RIP and SAP broadcast, 5-121
token ring
configuring host ID numbers, 3-13
token ring interface
configuring IPX on, 3-13
TR End Station
IPX interface parameter, A-26
traffic filters
with Dial-on-Demand, 5-114
type 20 broadcast packet
NetBIOS, 5-36, 5-90
U
Unnumbered RIP, 2-3
Update Interval
IPX RIP circuit parameter, A-37
IPX SAP circuit parameter, A-43
upper-layer protocol
handling packets associated with, 5-35
W
WA N
circuits, 2-5
link delay, 4-3
media, 4-2
watchdog acknowledgment, 5-114
watchdog spoofing parameter, A-29
wildcard search characters, used with show commands,
B-3
wildcards
with SAP filters, 5-140
X
Xerox Network System (XNS), 2-2
