Installing and Operating Passport ARN Routers
Contents
Figures
Tables
Preface
Chapter1 Installing the ARN
Chapter2 Starting the ARN
Chapter3 Operating the ARN
Chapter4 Installing a WAN Adapter Module
Appendix A Configuring the ARN for Netboot and DirectedNetboot
Appendix B Using Local Boot (the Quick-Start Procedure)
Appendix C ARN Technical Specifications
Appendix D Requirements for European Operation
Index

Part No. 114200-E Rev 00

October 2000

600 Technology Park Drive

Billerica, MA 01821-4130

Installing and Operating

Passport ARN Routers

ii 114200-E Rev 00

The information in this document is subject to change without notice. The statements, configurations, technical data,

and recommendations in this document are believed to be accurate and reliable, but are presented without express or

implied warranty. Users must take full responsibility for their applications of any products specified in this document.

The information in this document is proprietary to Nortel Networks NA Inc.

Trademarks

NORTEL NETWORKS is a trademark of Nortel Networks.

ACE, AFN, AN, BCN, BLN, BN, BNX, CN, FRE, LN, Optivity, and PPX, are registered trademarks and Advanced

Remote Node, ANH, ARN, ASN, BayRS, BaySecure, BayStack, BCC, BCNX, BLNX, EZ Install, EZ Internetwork,

EZ LAN, FN, IP AutoLearn, PathMan, RouterMan, SN, SPEX, Switch Node, and System 5000 are trademarks of

Nortel Networks.

Microsoft, MS, MS-DOS, Windows, and Windows NT are registered trademarks of Microsoft Corporation.

All other trademarks and registered trademarks are the property of their respective owners.

Statement of Conditions

In the interest of improving internal design, operational function, and/or reliability, Nortel Networks NA Inc. reserves

the right to make changes to the products described in this document without notice.

Nortel Networks NA Inc. does not assume any liability that may occur due to the use or application of the product(s)

or circuit layout(s) described herein.

USA Requirements Only

Federal Communications Commission (FCC) Compliance Notice: Radio Frequency Notice

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to

Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference

when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio

frequency energy. If it is not installed and used in accordance with the instruction manual, it may cause harmful

interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful

interference, in which case users will be required to take whatever measures may be necessary to correct the

interference at their own expense.

European Requirements Only

EN 55 022 Statement

This is to certify that the Nortel Networks ARN router is shielded against the generation of radio interference in

accordance with the application of Council Directive 89/336/EEC, Article 4a. Conformity is declared by the

application of EN 55 022 Class A (CISPR 22).

Warning: This is a Class A product. In a domestic environment, this product may cause radio interference, in which

case, the user may be required to take appropriate measures.

Achtung: Dieses ist ein Gerät der Funkstörgrenzwertklasse A. In Wohnbereichen können bei Betrieb dieses Gerätes

Rundfunkstörungen auftreten, in welchen Fällen der Benutzer für entsprechende Gegenmaßnahmen verantwortlich

ist.

Attention: Ceci est un produit de Classe A. Dans un environnement domestique, ce produit risque de créer des

interférences radioélectriques, il appartiendra alors à l’utilisateur de prendre les mesures spécifiques appropriées.

114200-E Rev 00 iii

EC Declaration of Conformity

This product conforms (or these products conform) to the provisions of Council Directive 89/336/EEC and

73/23/EEC.

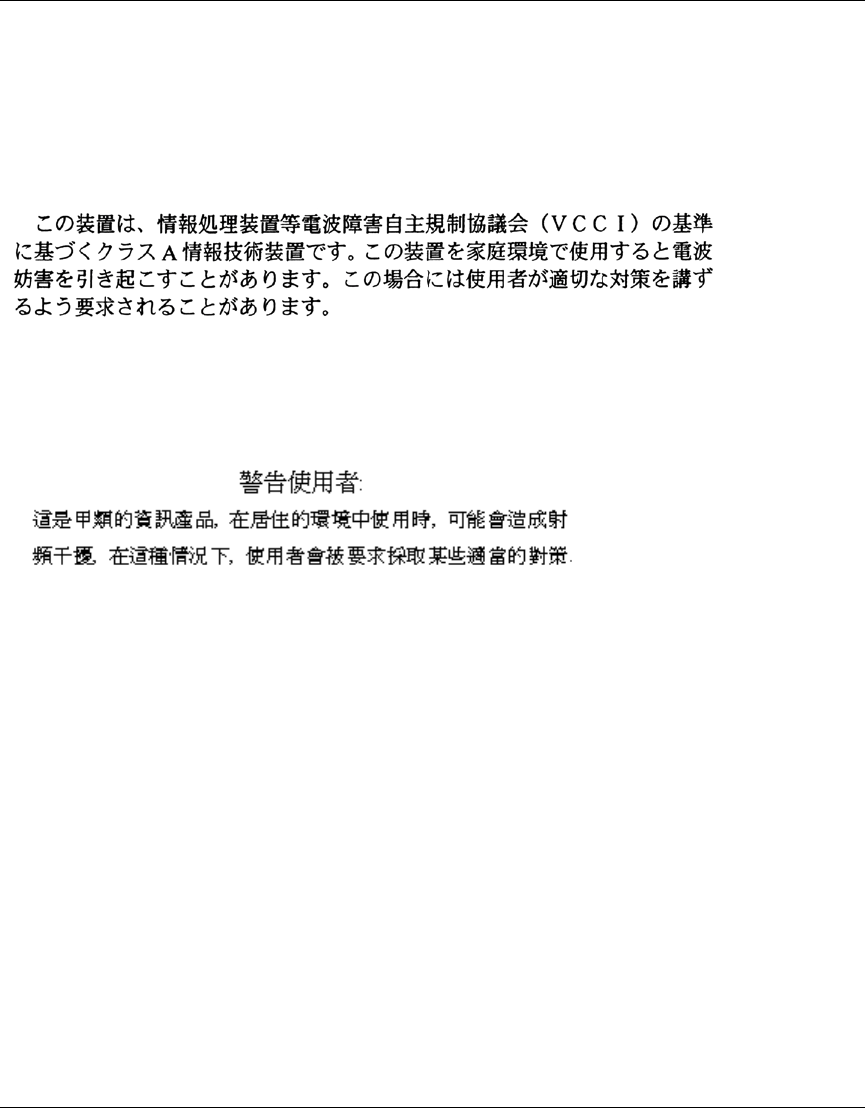

Japan/Nippon Requirements Only

Voluntary Control Council for Interference (VCCI) Statement

Taiwan Requirements

Bureau of Standards, Metrology and Inspection (BSMI) Statement

Canada Requirements Only

Canadian Department of Communications Radio Interference Regulations

This digital apparatus (ARN router) does not exceed the Class A limits for radio-noise emissions from digital

apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications.

Règlement sur le brouillage radioélectrique du ministère des Communications

Cet appareil numérique (ARN router) respecte les limites de bruits radioélectriques visant les appareils numériques de

classe A prescrites dans le Règlement sur le brouillage radioélectrique du ministère des Communications du Canada.

Canada CS-03 Rules and Regulations

Notice: The Industry Canada label identifies certified equipment. This certification means that the equipment meets

telecommunications network protective, operational and safety requirements as prescribed in the appropriate Terminal

Equipment Technical Requirements document(s). The Department does not guarantee the equipment will operate to

the user’s satisfaction.

Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local

telecommunications company. The equipment must also be installed using an acceptable method of connection. The

customer should be aware that compliance with the above conditions may not prevent the degradation of service in

some situations.

iv 114200-E Rev 00

Canada Requirements Only

(continued)

Repairs to certified equipment should be coordinated by a representative designated by the supplier. Any repairs or

alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications

company cause to request the user to disconnect the equipment.

Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines

and internal metallic water pipe system, if present, are connected together. This precaution may be particularly

important in rural areas.

Caution: Users should not attempt to make such connections themselves, but should contact the appropriate electric

inspection authority, or electrician, as appropriate.

Notice: For equipment using loopstart lines, please note that the Ringer Equivalence Number (REN) assigned to each

terminal device provides an indication of the maximum number of terminals allowed to be connected to a telephone

interface. The termination on an interface may consist of any combination of devices subject only to the requirement

that the sum of the Ringer Equivalence Numbers of all the devices does not exceed 5. The REN is located on the “FCC

Rules Part 68” label located on the bracket of the module, or on the back of the unit.

Canada CS-03 -- Règles et règlements

Av i s : L'étiquette d'Industrie Canada identifie le matériel homologué. Cette étiquette certifie que le matériel est

conforme aux normes de protection, d'exploitation et de sécurité des réseaux de télécommunications, comme le

prescrivent les documents concernant les exigences techniques relatives au matériel terminal. Le Ministère n'assure

toutefois pas que le matériel fonctionnera à la satisfaction de l'utilisateur.

Avant d'installer ce matériel, l'utilisateur doit s'assurer qu'il est permis de le raccorder aux installations de l'entreprise

locale de télécommunication. Le matériel doit également être installé en suivant une méthode acceptée de

raccordement. L'abonné ne doit pas oublier qu'il est possible que la conformité aux conditions énoncées ci-dessus

n'empêche pas la dégradation du service dans certaines situations.

Les réparations de matériel homologué doivent être coordonnées par un représentant désigné par le fournisseur.

L'entreprise de télécommunications peut demander à l'utilisateur de débrancher un appareil à la suite de réparations ou

de modifications effectuées par l'utilisateur ou à cause de mauvais fonctionnement.

Pour sa propre protection, l'utilisateur doit s'assurer que tous les fils de mise à la terre de la source d'énergie électrique,

des lignes téléphoniques et des canalisations d'eau métalliques, s'il y en a, sont raccordés ensemble. Cette précaution

est particulièrement importante dans les régions rurales.

Avertissement: L'utilisateur ne doit pas tenter de faire ces raccordements lui-même; il doit avoir recours à un service

d'inspection des installations électriques, ou à un électricien, selon le cas.

Av i s : Veuillez prendre note que pour tout appareillage supportant des lignes de type “loopstart,” l'indice d'équivalence

de la sonnerie (IES) assigné à chaque dispositif terminal indique le nombre maximal de terminaux qui peuvent être

raccordés à une interface. La terminaison d'une interface téléphonique peut consister en une combinaison de quelques

dispositifs, à la seule condition que la somme d'indices d'équivalence de la sonnerie de tous les dispositifs n'excède pas

5. Le REN figure sur l’étiquette “FCC Rules Part 68” située sur le support du module ou à l’arrière de l’unité.

114200-E Rev 00 v

FCC Part 68 Compliance Statement

This equipment complies with Part 68 of FCC Rules. All direct connections to telephone network lines must be made

using standard plugs and jacks compliant with FCC Part 68. Please note the following:

1. You are required to request service from the telephone company before you connect the unit to a network. When

you request service, you must provide the telephone company with the following data:

•When you request T1 Service, you must provide the telephone company with

-- The Facility Interface Code

Provide the telephone company with all the codes below:

- 04DU9-BN (1.544 MB, D4 framing format)

- 04DU9-DN (1.544 MB, D4 framing format with B8ZF coding)

- 04DU9-1KN (1.544 MB, ESF framing format)

- 04DU9-1SN (1.544 MB, ESF framing format with B8ZF coding)

- 04DU9-1ZN (1.544 MB, ANSI ESF and ZBTSI without line power)

The telephone company will select the code it has available.

-- The Service Order Code(s) (SOC): 6.0F

-- The required Universal Service Order Code (USOC) jack: RJ48C

•When you request Primary Rate ISDN Service, you must provide the telephone company with

-- The Facility Interface Code: 04DU9-1SN (1.544 MB, ESF framing format with B8ZF coding)

-- The Service Order Code(s) (SOC): 6.0F

-- The required Universal Service Order Code (USOC) jack: RJ48C

2. Your telephone company may make changes to its facilities, equipment, operations, or procedures that could

affect the proper functioning of your equipment. The telephone company will notify you in advance of such

changes to give you an opportunity to maintain uninterrupted telephone service.

3. If the unit causes harm to the telephone network, the telephone company may temporarily discontinue your

service. If possible, they will notify you in advance, but if advance notice is not practical, you will be notified

as soon as possible and will be informed of your right to file a complaint with the FCC.

4. If you experience trouble with the unit, please contact the Nortel Networks Technical Solutions Center in

your area for service or repairs. Repairs should be performed only by service personnel authorized by

Nortel Networks.

United States 1-800-2LANWAN

Valbonne, France 33-4-92-96-69-68

Sydney, Australia 61-2-9927-8800

Tokyo, Japan 81-3-5740-1700

5. You are required to notify the telephone company when you disconnect the unit from the network.

vi 114200-E Rev 00

Nortel Networks NA Inc. Software License Agreement

NOTICE: Please carefully read this license agreement before copying or using the accompanying software or

installing the hardware unit with pre-enabled software (each of which is referred to as “Software” in this Agreement).

BY COPYING OR USING THE SOFTWARE, YOU ACCEPT ALL OF THE TERMS AND CONDITIONS OF

THIS LICENSE AGREEMENT. THE TERMS EXPRESSED IN THIS AGREEMENT ARE THE ONLY TERMS

UNDER WHICH NORTEL NETWORKS WILL PERMIT YOU TO USE THE SOFTWARE. If you do not accept

these terms and conditions, return the product, unused and in the original shipping container, within 30 days of

purchase to obtain a credit for the full purchase price.

1. License grant. Nortel Networks NA Inc. (“Nortel Networks”) grants the end user of the Software (“Licensee”) a

personal, nonexclusive, nontransferable license: a) to use the Software either on a single computer or, if applicable, on

a single authorized device identified by host ID, for which it was originally acquired; b) to copy the Software solely

for backup purposes in support of authorized use of the Software; and c) to use and copy the associated user manual

solely in support of authorized use of the Software by Licensee. This license applies to the Software only and does not

extend to Nortel Networks Agent software or other Nortel Networks software products. Nortel Networks Agent

software or other Nortel Networks software products are licensed for use under the terms of the applicable Nortel

Networks NA Inc. Software License Agreement that accompanies such software and upon payment by the end user of

the applicable license fees for such software.

2. Restrictions on use; reservation of rights. The Software and user manuals are protected under copyright laws.

Nortel Networks and/or its licensors retain all title and ownership in both the Software and user manuals, including

any revisions made by Nortel Networks or its licensors. The copyright notice must be reproduced and included with

any copy of any portion of the Software or user manuals. Licensee may not modify, translate, decompile, disassemble,

use for any competitive analysis, reverse engineer, distribute, or create derivative works from the Software or user

manuals or any copy, in whole or in part. Except as expressly provided in this Agreement, Licensee may not copy or

transfer the Software or user manuals, in whole or in part. The Software and user manuals embody Nortel Networks’

and its licensors’ confidential and proprietary intellectual property. Licensee shall not sublicense, assign, or otherwise

disclose to any third party the Software, or any information about the operation, design, performance, or

implementation of the Software and user manuals that is confidential to Nortel Networks and its licensors; however,

Licensee may grant permission to its consultants, subcontractors, and agents to use the Software at Licensee’s facility,

provided they have agreed to use the Software only in accordance with the terms of this license.

3. Limited warranty. Nortel Networks warrants each item of Software, as delivered by Nortel Networks and properly

installed and operated on Nortel Networks hardware or other equipment it is originally licensed for, to function

substantially as described in its accompanying user manual during its warranty period, which begins on the date

Software is first shipped to Licensee. If any item of Software fails to so function during its warranty period, as the sole

remedy Nortel Networks will at its discretion provide a suitable fix, patch, or workaround for the problem that may be

included in a future Software release. Nortel Networks further warrants to Licensee that the media on which the

Software is provided will be free from defects in materials and workmanship under normal use for a period of 90 days

from the date Software is first shipped to Licensee. Nortel Networks will replace defective media at no charge if it is

returned to Nortel Networks during the warranty period along with proof of the date of shipment. This warranty does

not apply if the media has been damaged as a result of accident, misuse, or abuse. The Licensee assumes all

responsibility for selection of the Software to achieve Licensee’s intended results and for the installation, use, and

results obtained from the Software. Nortel Networks does not warrant a) that the functions contained in the software

will meet the Licensee’s requirements, b) that the Software will operate in the hardware or software combinations that

the Licensee may select, c) that the operation of the Software will be uninterrupted or error free, or d) that all defects

in the operation of the Software will be corrected. Nortel Networks is not obligated to remedy any Software defect that

cannot be reproduced with the latest Software release. These warranties do not apply to the Software if it has been

(i) altered, except by Nortel Networks or in accordance with its instructions; (ii) used in conjunction with another

vendor’s product, resulting in the defect; or (iii) damaged by improper environment, abuse, misuse, accident, or

negligence. THE FOREGOING WARRANTIES AND LIMITATIONS ARE EXCLUSIVE REMEDIES AND ARE

IN LIEU OF ALL OTHER WARRANTIES EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION ANY

WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Licensee is responsible

114200-E Rev 00 vii

for the security of its own data and information and for maintaining adequate procedures apart from the Software to

reconstruct lost or altered files, data, or programs.

4. Limitation of liability. IN NO EVENT WILL NORTEL NETWORKS OR ITS LICENSORS BE LIABLE FOR

ANY COST OF SUBSTITUTE PROCUREMENT; SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL

DAMAGES; OR ANY DAMAGES RESULTING FROM INACCURATE OR LOST DATA OR LOSS OF USE OR

PROFITS ARISING OUT OF OR IN CONNECTION WITH THE PERFORMANCE OF THE SOFTWARE, EVEN

IF NORTEL NETWORKS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN NO EVENT

SHALL THE LIABILITY OF NORTEL NETWORKS RELATING TO THE SOFTWARE OR THIS AGREEMENT

EXCEED THE PRICE PAID TO NORTEL NETWORKS FOR THE SOFTWARE LICENSE.

5. Government licensees. This provision applies to all Software and documentation acquired directly or indirectly by

or on behalf of the United States Government. The Software and documentation are commercial products, licensed on

the open market at market prices, and were developed entirely at private expense and without the use of any U.S.

Government funds. The license to the U.S. Government is granted only with restricted rights, and use, duplication, or

disclosure by the U.S. Government is subject to the restrictions set forth in subparagraph (c)(1) of the Commercial

Computer Software––Restricted Rights clause of FAR 52.227-19 and the limitations set out in this license for civilian

agencies, and subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause of DFARS

252.227-7013, for agencies of the Department of Defense or their successors, whichever is applicable.

6. Use of software in the European Community. This provision applies to all Software acquired for use within the

European Community. If Licensee uses the Software within a country in the European Community, the Software

Directive enacted by the Council of European Communities Directive dated 14 May, 1991, will apply to the

examination of the Software to facilitate interoperability. Licensee agrees to notify Nortel Networks of any such

intended examination of the Software and may procure support and assistance from Nortel Networks.

7. Term and termination. This license is effective until terminated; however, all of the restrictions with respect to

Nortel Networks’ copyright in the Software and user manuals will cease being effective at the date of expiration of the

Nortel Networks copyright; those restrictions relating to use and disclosure of Nortel Networks’ confidential

information shall continue in effect. Licensee may terminate this license at any time. The license will automatically

terminate if Licensee fails to comply with any of the terms and conditions of the license. Upon termination for any

reason, Licensee will immediately destroy or return to Nortel Networks the Software, user manuals, and all copies.

Nortel Networks is not liable to Licensee for damages in any form solely by reason of the termination of this license.

8. Export and re-export. Licensee agrees not to export, directly or indirectly, the Software or related technical data or

information without first obtaining any required export licenses or other governmental approvals. Without limiting the

foregoing, Licensee, on behalf of itself and its subsidiaries and affiliates, agrees that it will not, without first obtaining

all export licenses and approvals required by the U.S. Government: (i) export, re-export, transfer, or divert any such

Software or technical data, or any direct product thereof, to any country to which such exports or re-exports are

restricted or embargoed under United States export control laws and regulations, or to any national or resident of such

restricted or embargoed countries; or (ii) provide the Software or related technical data or information to any military

end user or for any military end use, including the design, development, or production of any chemical, nuclear, or

biological weapons.

9. General. If any provision of this Agreement is held to be invalid or unenforceable by a court of competent

jurisdiction, the remainder of the provisions of this Agreement shall remain in full force and effect. This Agreement

will be governed by the laws of the state of California.

Should you have any questions concerning this Agreement, contact Nortel Networks, 4401 Great America Parkway,

P.O. Box 58185, Santa Clara, California 95054-8185.

LICENSEE ACKNOWLEDGES THAT LICENSEE HAS READ THIS AGREEMENT, UNDERSTANDS IT, AND

AGREES TO BE BOUND BY ITS TERMS AND CONDITIONS. LICENSEE FURTHER AGREES THAT THIS

AGREEMENT IS THE ENTIRE AND EXCLUSIVE AGREEMENT BETWEEN NORTEL NETWORKS AND

LICENSEE, WHICH SUPERSEDES ALL PRIOR ORAL AND WRITTEN AGREEMENTS AND

COMMUNICATIONS BETWEEN THE PARTIES PERTAINING TO THE SUBJECT MATTER OF THIS

AGREEMENT. NO DIFFERENT OR ADDITIONAL TERMS WILL BE ENFORCEABLE AGAINST

NORTEL NETWORKS UNLESS NORTEL NETWORKS GIVES ITS EXPRESS WRITTEN CONSENT,

INCLUDING AN EXPRESS WAIVER OF THE TERMS OF THIS AGREEMENT.

114200-E Rev 00 ix

Contents

Preface

Before You Begin .............................................................................................................xix

Text Conventions ............................................................................................................. xx

Acronyms .........................................................................................................................xxi

Hard-Copy Technical Manuals ....................................................................................... xxiii

How to Get Help ............................................................................................................xxiv

Chapter 1

Installing the ARN

Preparing to Install the ARN ...........................................................................................1-1

Verifying Shipment Contents ....................................................................................1-2

Additional Equipment ...............................................................................................1-4

Cables ................................................................................................................1-4

Management Console .......................................................................................1-4

Mounting Hardware ...........................................................................................1-4

Verifying Site Requirements .....................................................................................1-5

Installing the ARN ...........................................................................................................1-5

Positioning the ARN on a Flat Surface .....................................................................1-5

Rack-Mounting the ARN ..........................................................................................1-6

Understanding the ARN Module Locations ....................................................................1-9

Connecting Communications Cables ............................................................................1-10

Connecting to an Ethernet Interface ......................................................................1-10

Connecting to the AUI ......................................................................................1-11

Connecting to the UTP Interface .....................................................................1-12

Connecting to the Fiber Interface ....................................................................1-13

Connecting to a Token Ring Interface ....................................................................1-13

Connecting to the STP Interface ......................................................................1-14

Connecting to the UTP Interface .....................................................................1-14

Connecting to a Serial Interface .............................................................................1-15

x114200-E Rev 00

Connecting to the ISDN Interface ..........................................................................1-17

Connecting to the 56/64K DSU/CSU Interface ......................................................1-18

Connecting to the FT1/T1 DSU/CSU Interface ......................................................1-18

Connecting to the E1/FE1 DSU/CSU Interface ......................................................1-19

Connecting to the Integrated V.34 Modem .............................................................1-20

Connecting to the X.25 PAD Interface ....................................................................1-21

Connecting a Management Console ............................................................................1-23

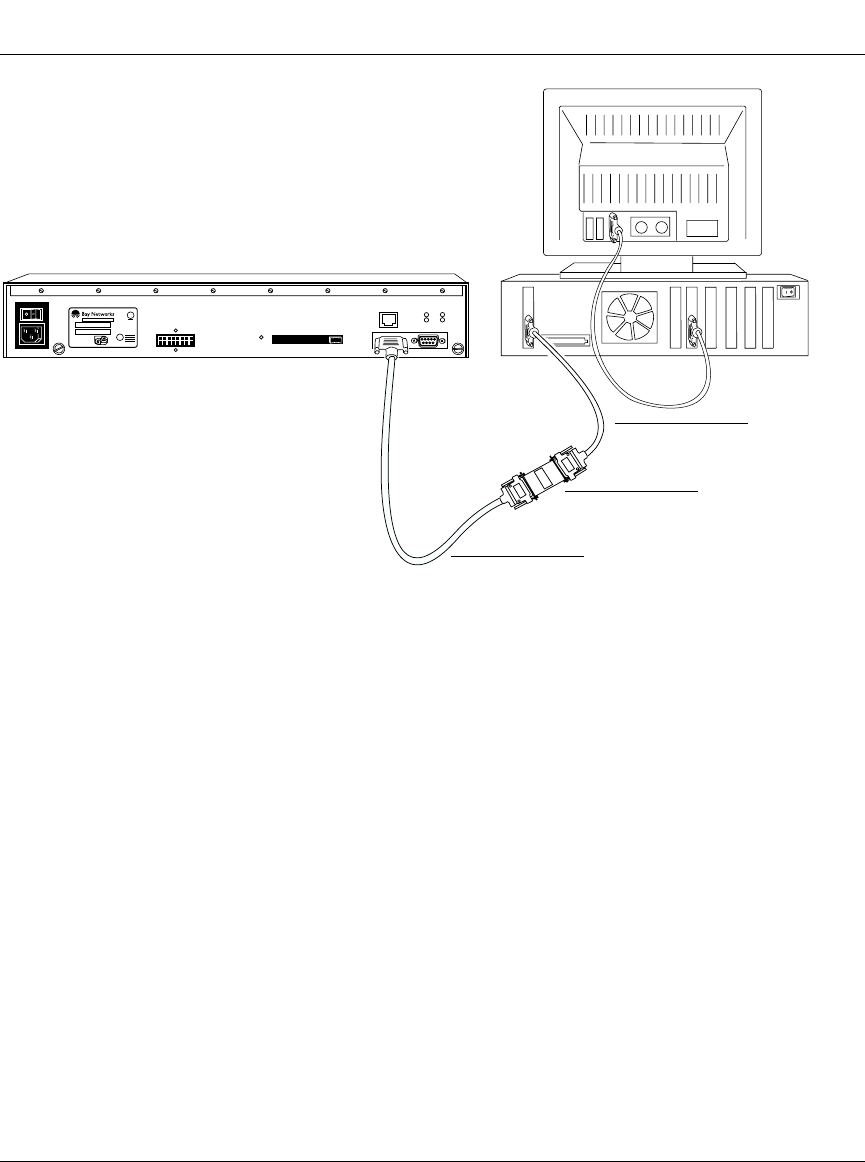

Connecting a PC Console ......................................................................................1-23

Connecting a Terminal Console .............................................................................1-25

Connecting a Console Modem ...............................................................................1-27

Connecting an External Console Modem ........................................................1-28

Connecting to an Integrated V.34 Console Modem Module ............................1-28

Connecting the Power Cable ........................................................................................1-29

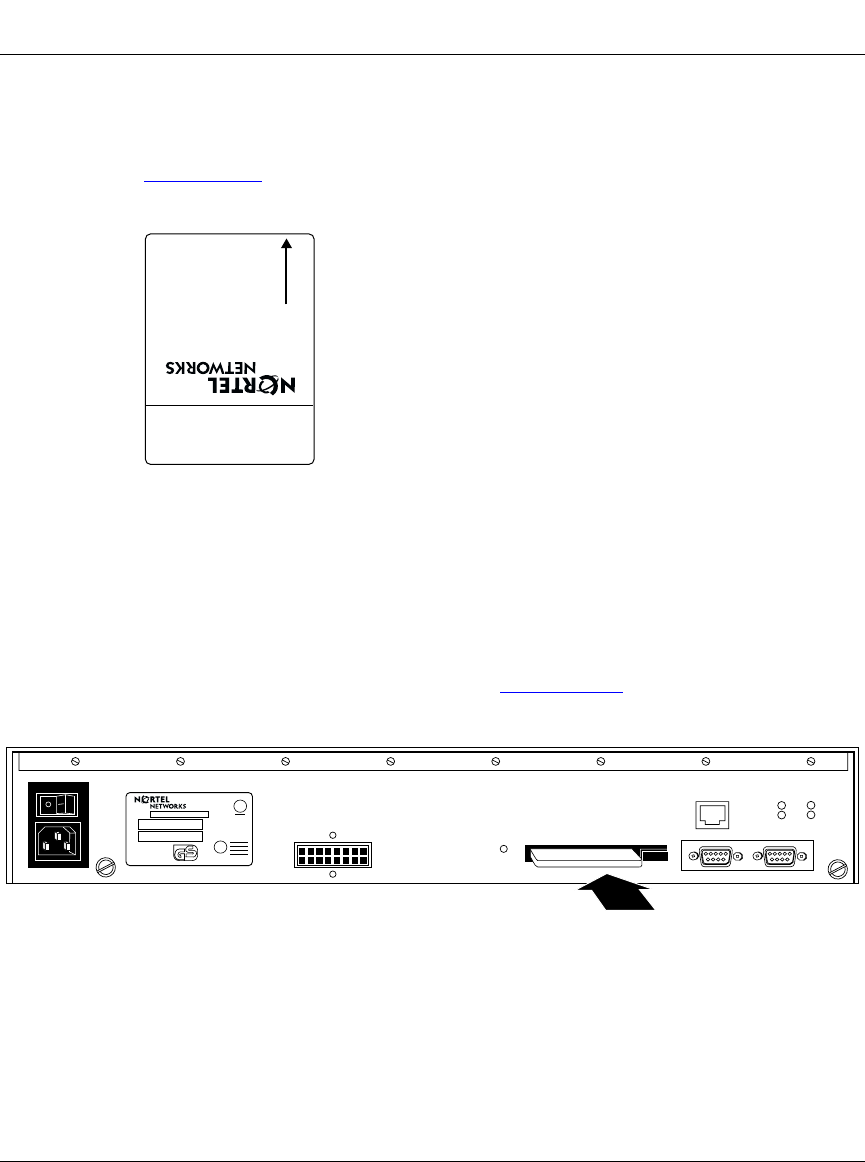

Installing the Flash Memory Card .................................................................................1-31

Where to Go Next .........................................................................................................1-32

Chapter 2

Starting the ARN

Understanding the Startup Process ...............................................................................2-1

Starting the ARN for the First Time ................................................................................2-4

Using EZ-Install ..............................................................................................................2-5

Using Netboot, Directed Netboot, or Local Boot .............................................................2-6

Interrupting the Boot Process ..................................................................................2-6

Logging in to the Command Line Software ..............................................................2-7

Continuing with Netboot ..........................................................................................2-8

Continuing with Directed Netboot ..........................................................................2-10

Continuing with Local Boot (the Quick-Start Procedure) .......................................2-13

Where to Go Next .........................................................................................................2-15

Chapter 3

Operating the ARN

Understanding the ARN LEDs ........................................................................................3-1

Base Module LEDs ..................................................................................................3-2

Diagnostic LEDs ................................................................................................3-2

Ethernet 10BASE-T LEDs .................................................................................3-3

Ethernet 10/100BASE-Tx LEDs ........................................................................3-4

114200-E Rev 00 xi

Ethernet 100BASE-Fx LEDs .............................................................................3-4

Token Ring LEDs ...............................................................................................3-4

Expansion Module LEDs ..........................................................................................3-5

Ethernet LEDs ...................................................................................................3-5

Token Ring LEDs ...............................................................................................3-5

Serial LEDs ........................................................................................................3-6

Adapter Module LEDs ..............................................................................................3-6

Serial LED .........................................................................................................3-6

ISDN BRI LEDs (S/T or U Interfaces) ................................................................3-7

56/64K DSU/CSU LEDs ....................................................................................3-7

FT1/T1 and FE1/E1 DSU/CSU LEDs ................................................................3-8

X.25 PAD LEDs ..................................................................................................3-8

V.34 Modem LEDs .............................................................................................3-8

Ensuring a Successful Installation ..................................................................................3-9

Powering On and Off ....................................................................................................3-11

Resetting the ARN ........................................................................................................3-12

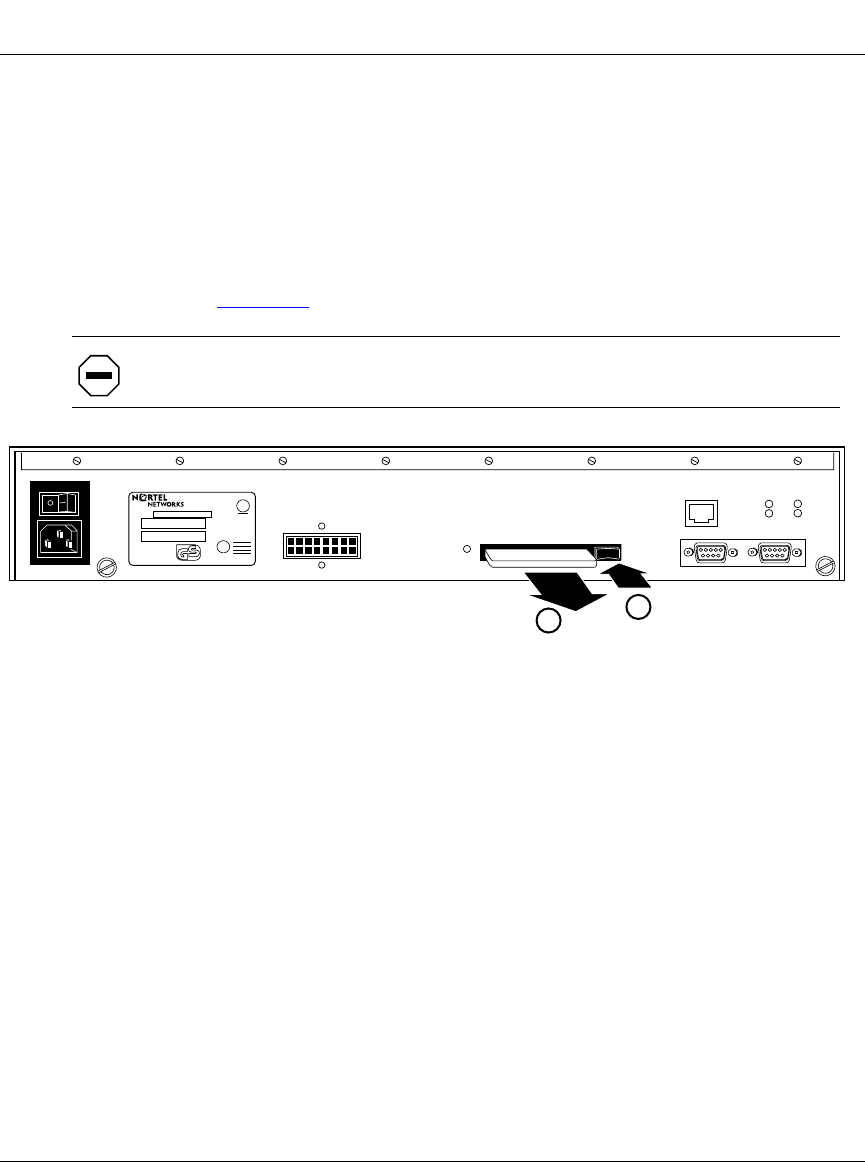

Removing a Flash Memory Card ..................................................................................3-13

Protecting Memory Card Files ......................................................................................3-14

Where to Go Next .........................................................................................................3-15

Chapter 4

Installing a WAN Adapter Module

Preparing for Installation .................................................................................................4-1

Downloading New Boot and Diagnostic Code .........................................................4-2

Powering Down ........................................................................................................4-2

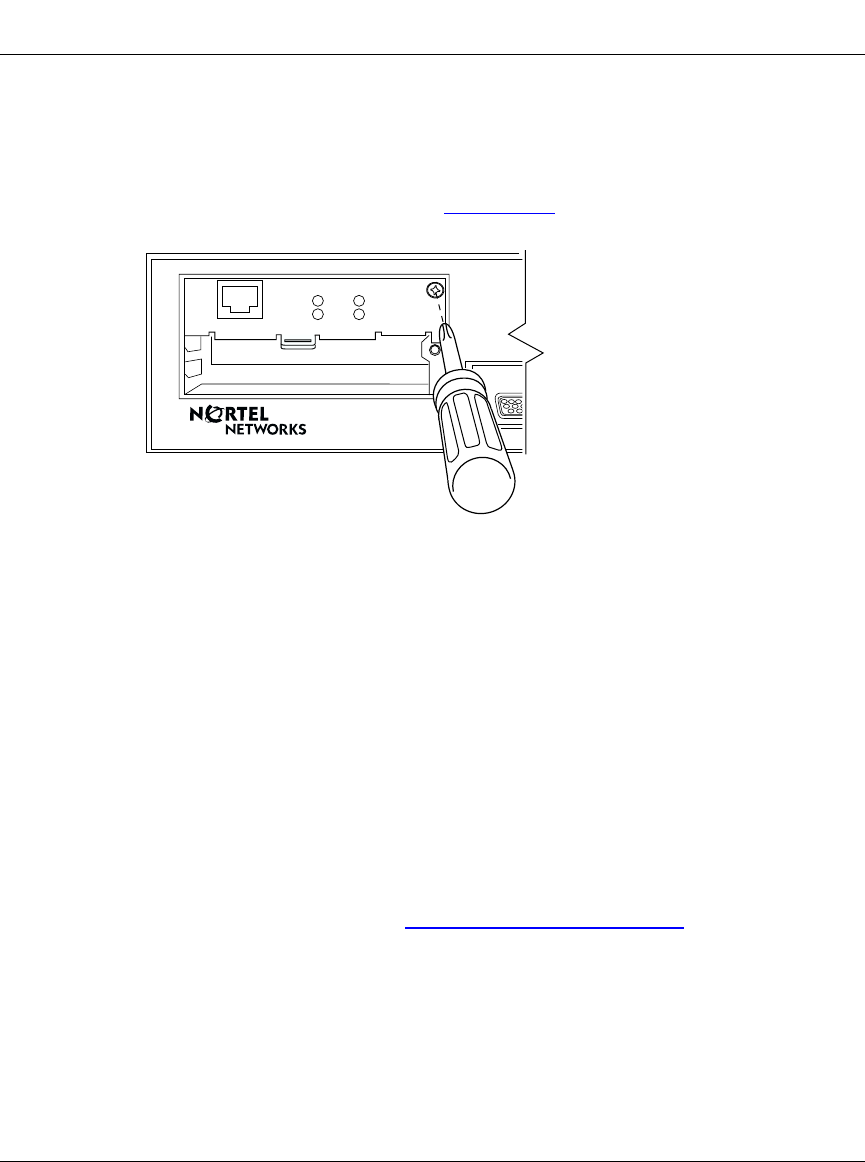

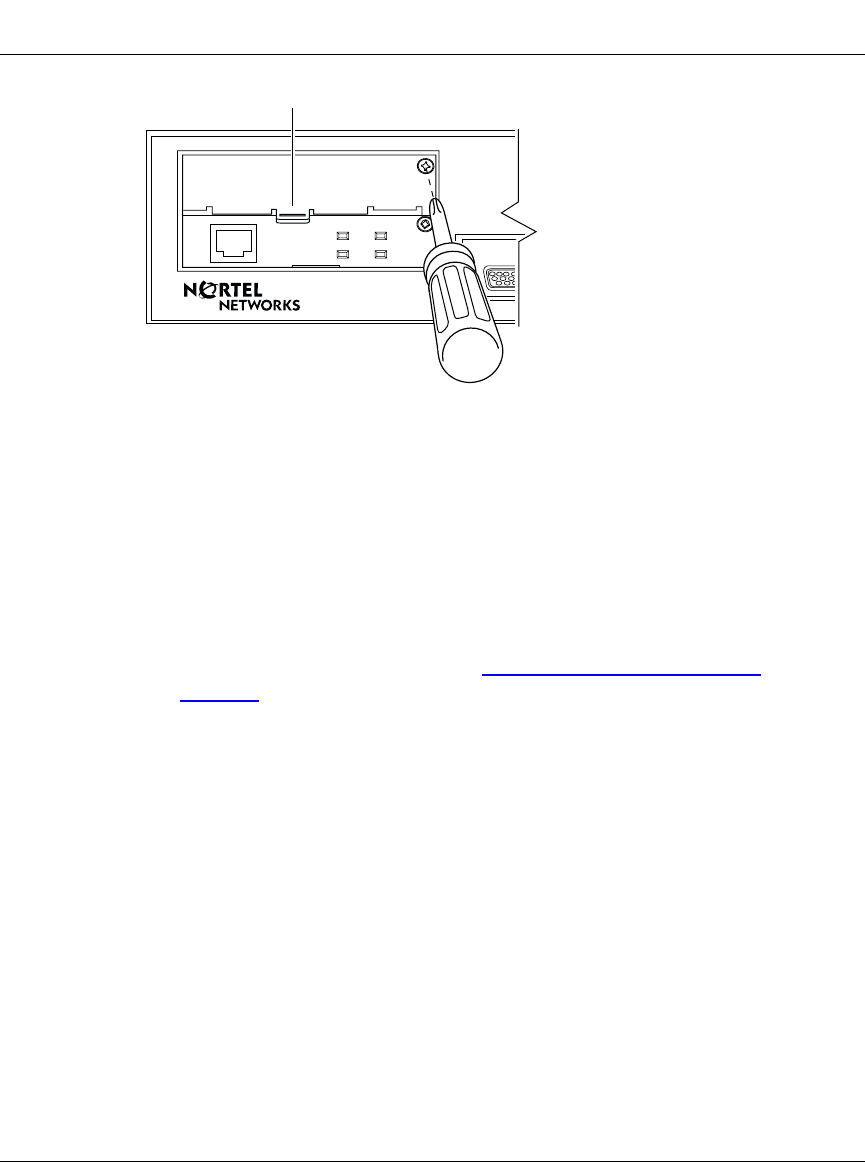

Removing the Filler Panel ........................................................................................4-3

Removing an Adapter Module ..................................................................................4-5

Installing an Adapter Module ..........................................................................................4-6

What to Do Next .............................................................................................................4-8

Appendix A

Configuring the ARN for Netboot and Directed Netboot

Using the ifconfig Command ......................................................................................... A-2

Configuring an IP Serial or 56/64K DSU/CSU Interface for Netbooting .................. A-2

Configuring an Ethernet Interface for Network Booting ........................................... A-4

Configuring a Token Ring Interface for Network Booting ........................................ A-5

xii 114200-E Rev 00

Enabling and Disabling Interfaces with ifconfig ....................................................... A-6

Examples of ifconfig Commands ............................................................................. A-6

Using the bconfig Command ......................................................................................... A-7

Format for the bconfig Command ........................................................................... A-7

Examples of bconfig Commands ............................................................................ A-8

Verifying Your Configuration ........................................................................................... A-8

Appendix B

Using Local Boot (the Quick-Start Procedure)

Before You Run Quick-Start ........................................................................................... B-2

Understanding Quick-Start Connector Names and Numbers ........................................ B-2

Filling Out the Worksheets ............................................................................................ B-3

Global Information Worksheet ................................................................................. B-5

Router Protocol Worksheets ................................................................................... B-8

Wide Area Protocol Worksheets ........................................................................... B-12

Running the Quick-Start Script .................................................................................... B-16

Appendix C

ARN Technical Specifications

Physical Specifications .................................................................................................. C-1

Electrical Specifications ................................................................................................. C-2

Environmental Specifications ........................................................................................ C-2

Hardware Communications Options .............................................................................. C-3

Ethernet Attachment Unit Interface (AUI) ................................................................ C-6

Ethernet 10BASE-T and 10/100BASE-Tx Interfaces .............................................. C-7

Token Ring STP Interface ....................................................................................... C-8

Token Ring UTP Interface ....................................................................................... C-9

Serial Interfaces ...................................................................................................... C-9

ISDN BRI U Interface ............................................................................................ C-11

ISDN BRI S/T Interface ......................................................................................... C-12

56/64K DSU/CSU Interface ................................................................................... C-13

FT1/T1 DSU/CSU Connections ............................................................................ C-13

X.25 PAD Connections .......................................................................................... C-15

RJ-11 Interface (for V.34 Modem) ......................................................................... C-16

Local Console Connections .................................................................................. C-16

Service Modem Connections ................................................................................ C-17

114200-E Rev 00 xiii

Appendix D

Requirements for European Operation

ARN Ethernet Base Model Safety Status ...................................................................... D-1

ARN 10/100BASE-T Ethernet Base Model Safety Status ............................................. D-2

ARN Token Ring Base Model Safety Status .................................................................. D-2

ARN Expansion Modules Safety Status ........................................................................ D-3

Synchronous Cabling Requirements ............................................................................. D-3

Serial Adapter Module Requirements .......................................................................... D-11

ISDN BRI Adapter Module Requirements ................................................................... D-12

Power Requirements for ISDN BRI and Serial Adapter Modules ................................ D-13

Clearance and Creepage Distances for ISDN BRI and Serial Adapter Modules ......... D-13

Index

114200-E Rev 00 xv

Figures

Figure 1-1. Accessories in the ARN Shipping Container ...........................................1-3

Figure 1-2. Options for Attaching Flange Brackets to Rack-Mount the ARN ..............1-7

Figure 1-3. Installing the ARN in an Electronic Enclosure Rack ................................1-8

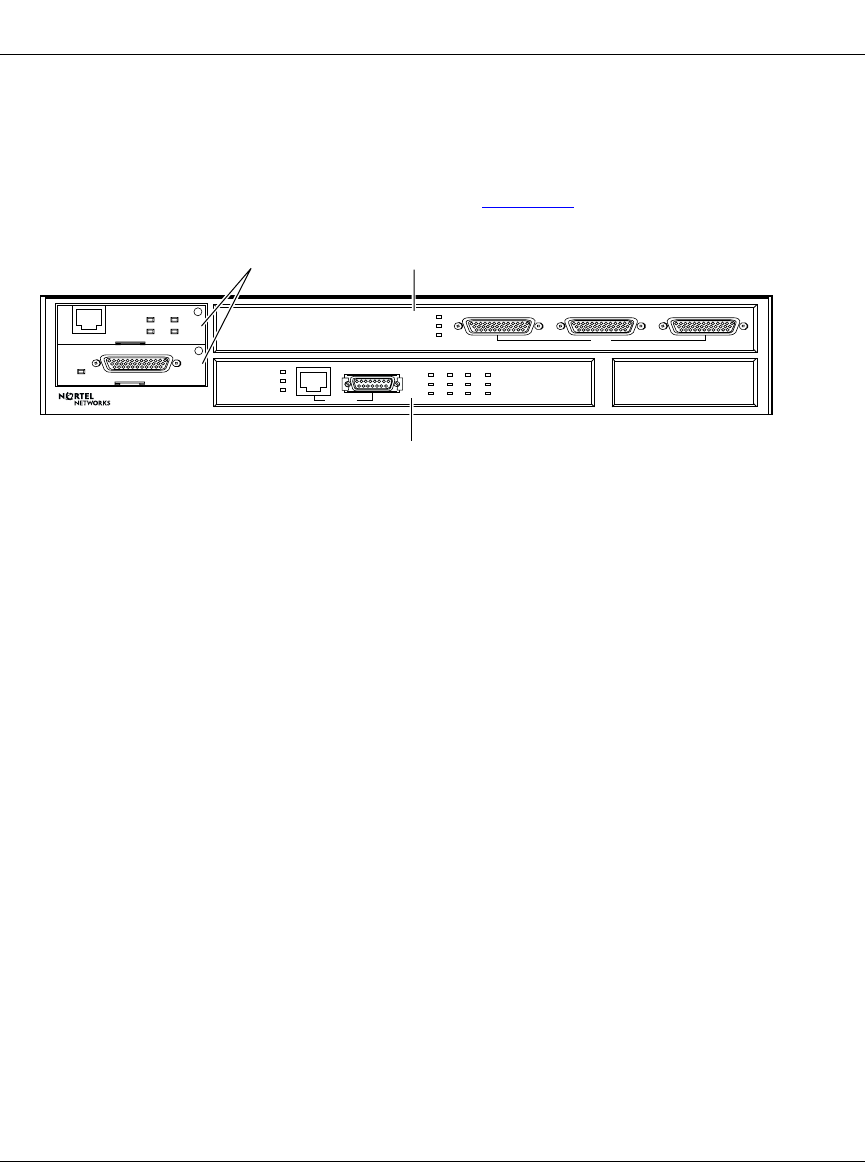

Figure 1-4. ARN Module Locations ............................................................................1-9

Figure 1-5. Connecting an AUI Cable .......................................................................1-11

Figure 1-6. Connecting an Ethernet 10BASE-T Cable .............................................1-12

Figure 1-7. Connecting an Ethernet 10/100BASE-Tx Cable ....................................1-12

Figure 1-8. Connecting an Ethernet 100BASE-Fx Cable .........................................1-13

Figure 1-9. Connecting a Token Ring STP Cable .....................................................1-14

Figure 1-10. Connecting a Token Ring UTP Cable ....................................................1-15

Figure 1-11. Connecting Serial Cables to an Expansion Module ...............................1-16

Figure 1-12. Connecting a Serial Cable to the Serial Adapter Module .......................1-16

Figure 1-13. Connecting the ISDN BRI Cable ............................................................1-17

Figure 1-14. Connecting the 56/64K DSU/CSU Cable ...............................................1-18

Figure 1-15. Connecting the FT1/T1 DSU/CSU Cable ...............................................1-19

Figure 1-16. Connecting the E1/FE1 Cable ...............................................................1-19

Figure 1-17. Connecting a Telephone Cable ..............................................................1-20

Figure 1-18. Connecting a Breakout Box to the X.25 PAD Interface ..........................1-22

Figure 1-19. Connecting the Console/Modem Cable .................................................1-24

Figure 1-20. Attaching the Null Modem Crossover Adapter .......................................1-24

Figure 1-21. Connecting a PC Console to an ARN ....................................................1-25

Figure 1-22. Connecting a Terminal Console to an ARN ...........................................1-26

Figure 1-23. Connecting an External Console Modem ..............................................1-28

Figure 1-24. Connecting to an Integrated Console Modem .......................................1-29

Figure 1-25. Connecting the Power Cable to the ARN ...............................................1-30

Figure 1-26. Flash Memory Card ...............................................................................1-31

Figure 1-27. Inserting the Flash Memory Card in the ARN Receptacle .....................1-31

Figure 2-1. Verifying Directed Netboot Configuration ...............................................2-12

Figure 3-1. ARN Base Module Diagnostic LEDs ........................................................3-2

xvi 114200-E Rev 00

Figure 3-2. ARN Power Switch .................................................................................3-11

Figure 3-3. ARN Reset Button ..................................................................................3-12

Figure 3-4. Removing an ARN Flash Memory Card ................................................3-13

Figure 3-5. Memory Card Read/Write Protect Switch ..............................................3-14

Figure 4-1. Location of Adapter Module Slots 1 and 2 ...............................................4-3

Figure 4-2. Removing the Filler Panel from Slot 1 ......................................................4-4

Figure 4-3. Removing the Adapter Module Screw .....................................................4-5

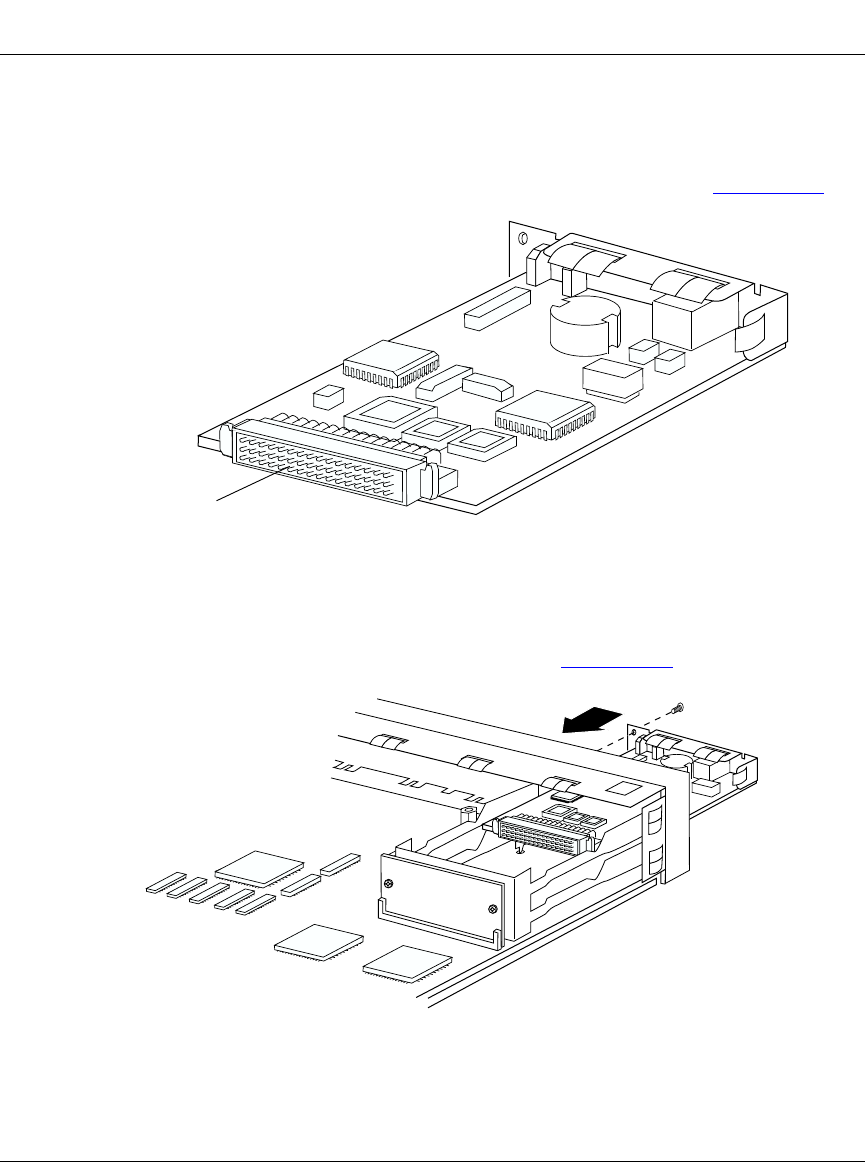

Figure 4-4. Adapter Module Ready for Installation .....................................................4-6

Figure 4-5. Inserting the Adapter Module ...................................................................4-6

Figure 4-6. Securing the Adapter Module to the Front Panel .....................................4-7

Figure B-1. ARN Module Locations ........................................................................... B-2

Figure B-2. Starting the IP Interface Test ................................................................. B-18

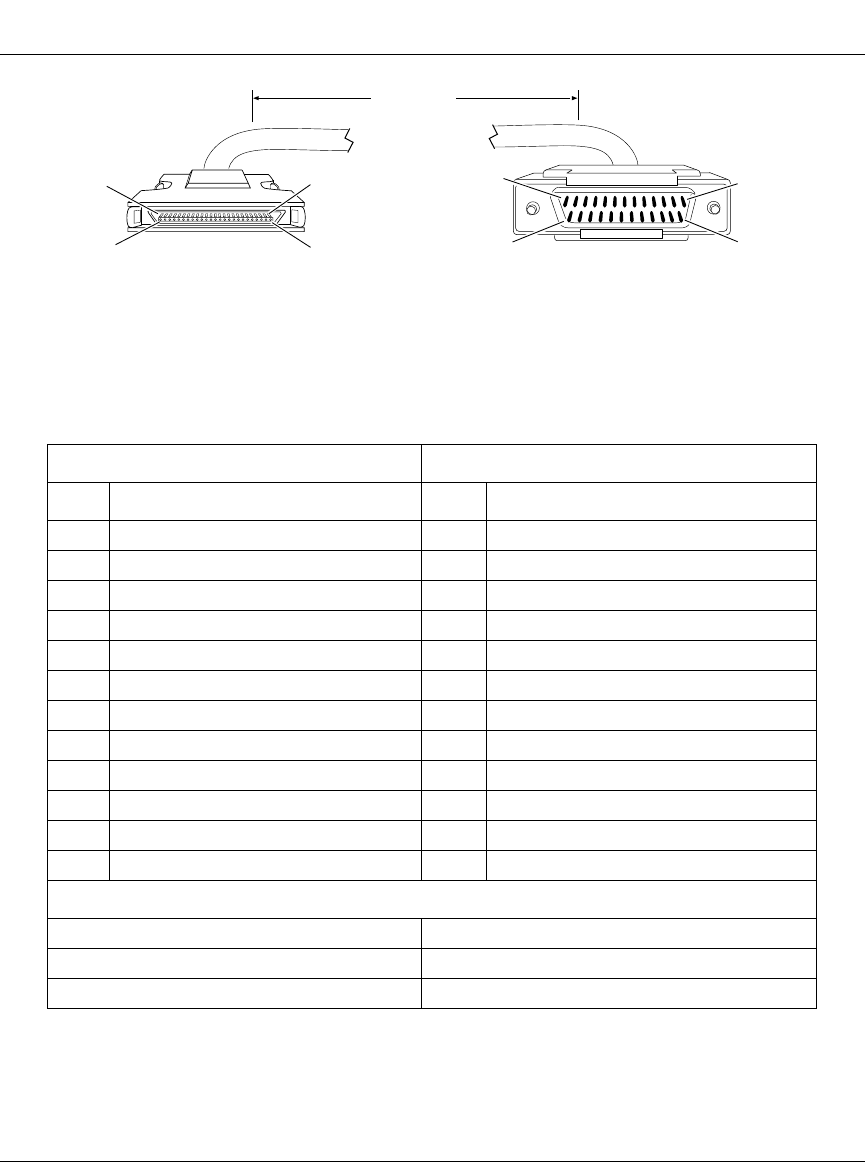

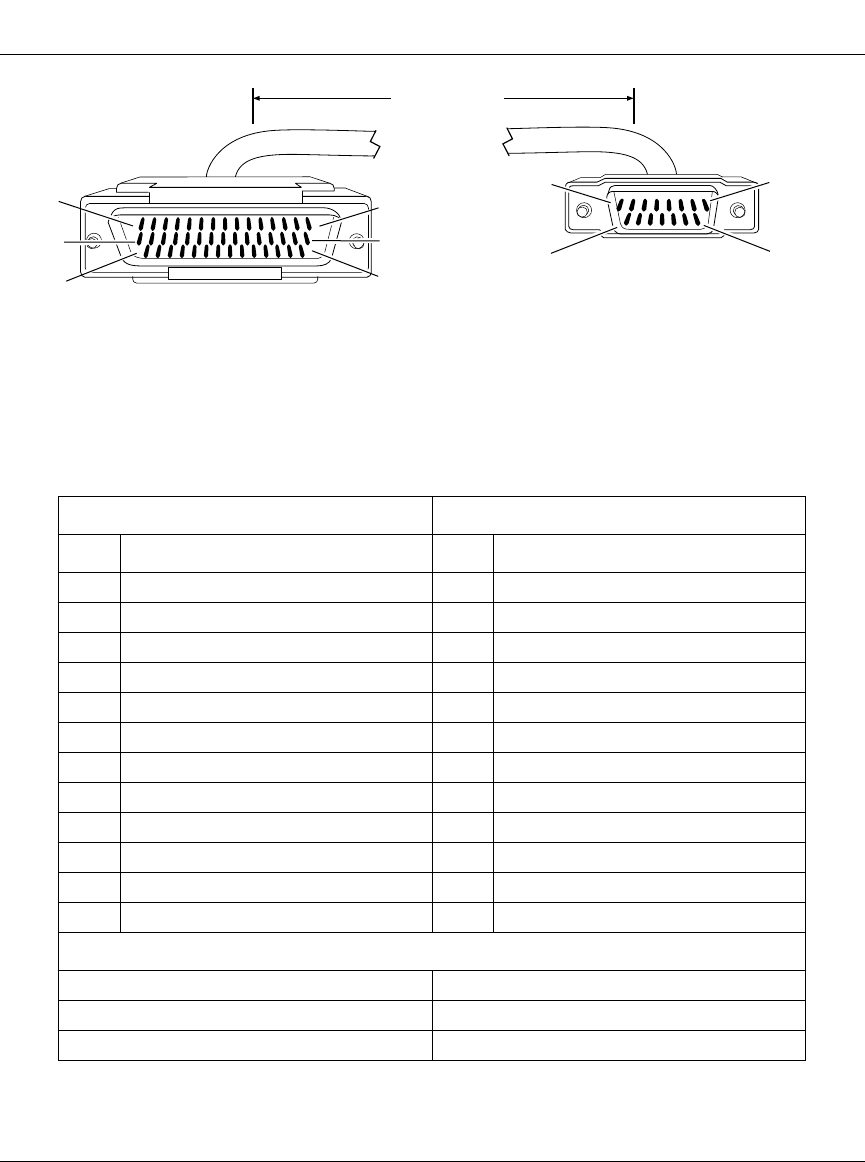

Figure D-1. Cable 7837 (V.28 Compliant) .................................................................. D-4

Figure D-2. Cable 7934 (V.28 Compliant) .................................................................. D-5

Figure D-3. Cable 7220 (V.35 Compliant) .................................................................. D-6

Figure D-4. Cable 7932 (V.35 Compliant) .................................................................. D-7

Figure D-5. Cable 7224 (X.21 Compliant) .................................................................. D-9

Figure D-6. Cable 7936 (X.21 Compliant) ................................................................ D-10

Figure D-7. Clearance and Creepage Distances for ISDN BRI and

Serial Adapter Modules ........................................................................ D-14

114200-E Rev 00 xvii

Tables

Table 1-1. Installation Space Requirements .............................................................1-5

Table 1-2. V.34 Front-Panel Modem Adapter Module Defaults ...............................1-21

Table 1-3. Console Parameters ..............................................................................1-26

Table 1-4. Console Modem Defaults .......................................................................1-27

Table 2-1. Summary of Initial Startup Options ..........................................................2-2

Table 2-2. Supported Boot Options by Interface .......................................................2-3

Table 3-1. Base Module Diagnostic LEDs ................................................................3-2

Table 3-2. Base Module Ethernet 10BASE-T LEDs .................................................3-3

Table 3-3. Base Module Ethernet 10/100BASE-Tx LEDs .........................................3-4

Table 3-4. Base Module Ethernet 100Base-Fx LEDs ...............................................3-4

Table 3-5. Base Module Token Ring LEDs ...............................................................3-4

Table 3-6. Expansion Module Ethernet LEDs ...........................................................3-5

Table 3-7. Expansion Module Token Ring LEDs .......................................................3-5

Table 3-8. Expansion Module Serial LEDs ...............................................................3-6

Table 3-9. Serial LED ................................................................................................3-6

Table 3-10. ISDN BRI LEDs ........................................................................................3-7

Table 3-11. 56/64K DSU/CSU LEDs ...........................................................................3-7

Table 3-12. FT1/T1 and FE1/E1 DSU/CSU LEDs ......................................................3-8

Table 3-13. X.25 PAD LEDs ........................................................................................3-8

Table 3-14. V.34 Modem LEDs ...................................................................................3-9

Table 3-15. Boot Status LEDs ...................................................................................3-10

Table A-1. COM Interface ifconfig Command Settings ............................................. A-3

Table A-2. Ethernet Interface ifconfig Command Settings ....................................... A-4

Table A-3. Token Ring Interface ifconfig Command Settings ................................... A-5

Table A-4. ifconfig Settings to Enable and Disable Netboot Interfaces .................... A-6

Table A-5. bconfig Command Settings ..................................................................... A-7

Table B-1. Quick-Start Connector Names and Numbers ......................................... B-3

Table B-2. Quick-Start Commands ........................................................................ B-17

Table C-1. ARN Wall Outlet Requirements ............................................................... C-2

xviii 114200-E Rev 00

Table C-2. Network Interfaces Available on ARNs ................................................... C-4

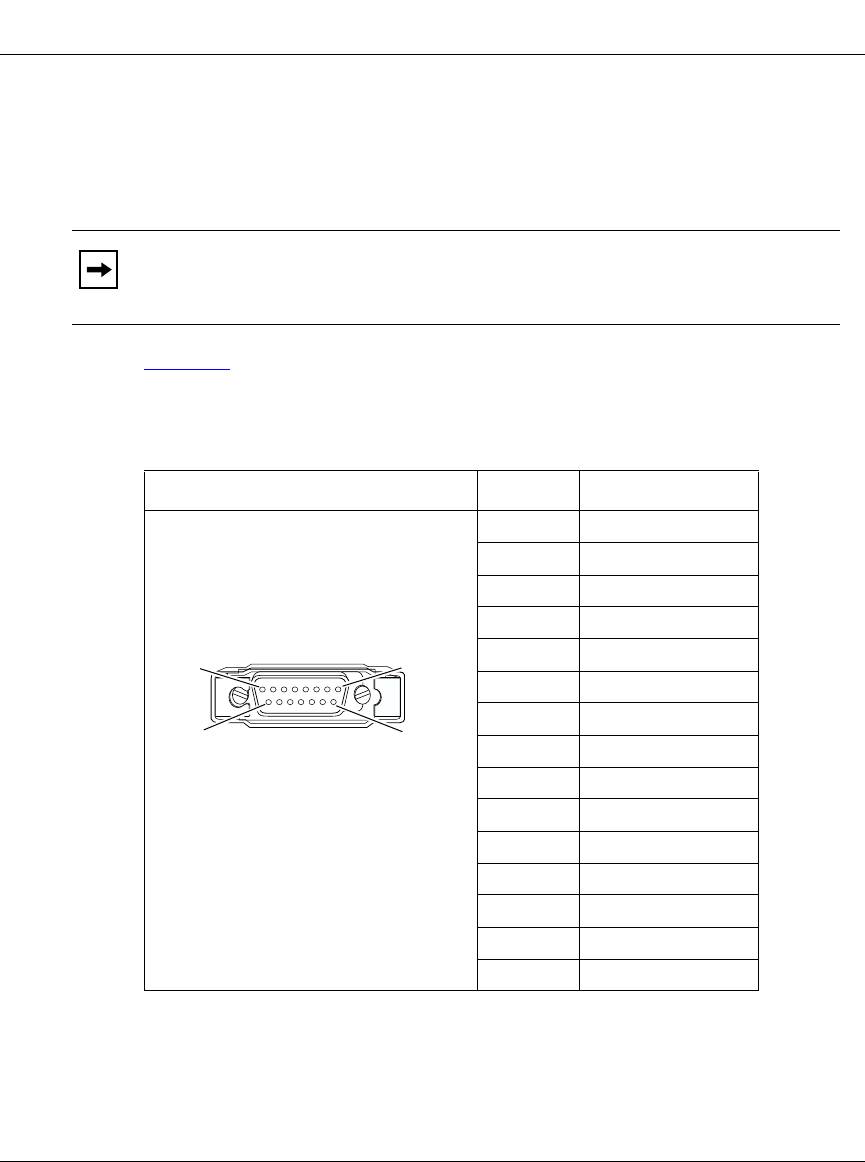

Table C-3. AUI Pin Assignments .............................................................................. C-6

Table C-4. 10BASE-T and 10/100BASE-Tx Interface Pin Assignments .................. C-7

Table C-5. Token Ring STP Interface Pin Assignments ........................................... C-8

Table C-6. Token Ring UTP Interface Pin Assignments ........................................... C-9

Table C-7. Serial Interface Pin Assignments .......................................................... C-10

Table C-8. ISDN BRI U Interface Pin Assignments ................................................ C-11

Table C-9. ISDN BRI S/T Interface Pin Assignments ............................................. C-12

Table C-10. 56/64K DSU/CSU Interface Pin Assignments ....................................... C-13

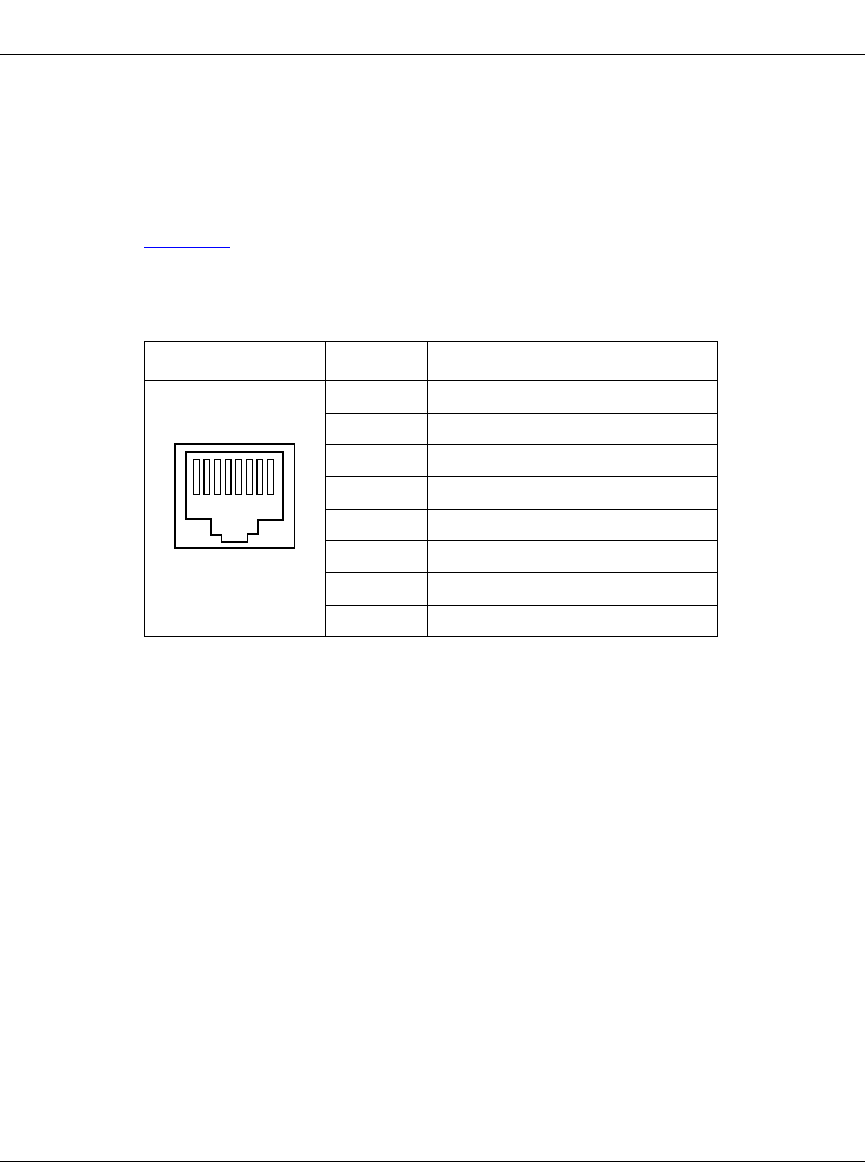

Table C-11. RJ-48C Connector Pinouts ................................................................... C-14

Table C-12. X.25 Breakout Box Interface Pin Assignments ..................................... C-15

Table C-13. V.34 Interface Pin Assignments ............................................................ C-16

Table C-14. Local Console Port DB-9 Pin Assignments ........................................... C-17

Table C-15. Service Modem Port DB-9 Pin Assignments ........................................ C-18

Table D-1. Safety Status (Order Nos. CV1001001, CV1001002, CV1001003,

CV1001004, CV1001005) ....................................................................... D-1

Table D-2. Safety Status (Order Nos. CV1001011, CV1001012, CV1001013,

CV1001014, CV1001015, CV1001016, CV1001017, CV1001018,

CV1001019, CV1001020) ....................................................................... D-2

Table D-3. Safety Status (Order Nos. CV1101001, CV1101002, CV1101003,

CV1101004, CV1101005) ....................................................................... D-2

Table D-4. Safety Status (Order Nos. CV0004011, CV0004012, CV0004013,

CV0004014, CV0004015, CV0004026, CV0004027) ............................. D-3

Table D-5. WAN Interface (Order No. 7837) ............................................................. D-4

Table D-6. WAN Interface (Order No. 7934) ............................................................. D-5

Table D-7. V.35 Interface (Order No. 7220) .............................................................. D-6

Table D-8. V.35 Interface (Order No. 7932) .............................................................. D-7

Table D-9. X.21 Interface (Order No. 7224) .............................................................. D-9

Table D-10. X.21 Interface (Order No. 7936) ............................................................ D-10

Table D-11. Safety Status (Order No. CV0004001) .................................................. D-11

Table D-12. ISDN BRI Safety Status (Order No. CV0004002) ................................. D-12

Table D-13. ISDN Connector Pinouts ....................................................................... D-12

Table D-14. ISDN BRI Power Requirements ............................................................ D-13

Table D-15. Clearance and Creepage Distances for ISDN BRI and

Serial Adapter Modules ........................................................................ D-14

114200-E Rev 00 xix

Preface

The Passport™ Advanced Remote Node™ (ARN™) router is part of the Nortel

Networks® line of communications products. The ARN provides two WAN

adapter slots to support a broad array of primary and backup connectivity options.

In addition, the ARN supports up to two LAN and five serial interfaces.

This guide describes installing, starting, and operating an ARN router.

Before You Begin

Before installing the ARN, ensure that all network wiring has been installed on

the premises using standard cable-system practices.

Before turning on the ARN for the first time, contact your network administrator

to determine which software configuration option to use.

Installing and Operating Passport ARN Routers

xx 114200-E Rev 00

Text Conventions

This guide uses the following text conventions:

angle brackets (< >) Indicate that you choose the text to enter based on the

description inside the brackets. Do not type the

brackets when entering the command.

Example: If the command syntax is:

ping <

ip_address

>, you enter:

ping 192.32.10.12

bold text Indicates command names and options and text that

you need to enter.

Example: Enter show ip {alerts | routes}.

Example: Use the dinfo command.

braces ({}) Indicate required elements in syntax descriptions

where there is more than one option. You must choose

only one of the options. Do not type the braces when

entering the command.

Example: If the command syntax is:

show ip {alerts | routes}, you must enter either:

show ip alerts or show ip routes, but not both.

brackets ([ ]) Indicate optional elements in syntax descriptions. Do

not type the brackets when entering the command.

Example: If the command syntax is:

show ip interfaces [-alerts], you can enter either:

show ip interfaces or show ip interfaces -alerts.

ellipsis points (. . . ) Indicate that you repeat the last element of the

command as needed.

Example: If the command syntax is:

ethernet/2/1 [<

parameter

value

>] . . . , you enter

ethernet/2/1 and as many parameter-value pairs as

needed.

Preface

114200-E Rev 00 xxi

Acronyms

This guide uses the following acronyms:

italic text Indicates file and directory names, new terms, book

titles, and variables in command syntax descriptions.

Where a variable is two or more words, the words are

connected by an underscore.

Example: If the command syntax is:

show at <

valid_route

is one variable and you substitute one value

for it.

screen text Indicates system output, for example, prompts and

system messages.

Example: Set Nortel Networks Trap Monitor

Filters

separator ( > ) Shows menu paths.

Example: Protocols > IP identifies the IP option on the

Protocols menu.

vertical line ( | ) Separates choices for command keywords and

arguments. Enter only one of the choices. Do not type

the vertical line when entering the command.

Example: If the command syntax is:

show ip {alerts | routes}, you enter either:

show ip alerts or show ip routes, but not both.

ANSI American National Standards Institute

ARN Advanced Remote Node

AUI Attachment Unit Interface

BootP Bootstrap Protocol

BRI Basic Rate Interface

Installing and Operating Passport ARN Routers

xxii 114200-E Rev 00

CCITT International Telegraph and Telephone Consultative

Committee (now ITU-T)

CHAP challenge handshake authentication protocol

CSMA/CD carrier sense multiple access with collision detection

CSU channel service unit

CTS clear to send

DCD data carrier detect

DCE data communications equipment

DCM Data Collection Module

DLCMI Data Link Control Management Interface

DSR data set ready

DSU data service unit

DTE data terminal equipment

DTR data terminal ready

EIA Electronic Industries Association

FDL facility data link

HDLC high-level data link control

IEEE Institute of Electrical and Electronic Engineers

IP Internet Protocol

ISDN Integrated Services Digital Network

ISO International Organization for Standardization

ITU-T International Telecommunications

Union–Telecommunications

LAN local area network

LED light-emitting diode

LQR link quality reporting

MAU media access unit

NBMA nonbroadcast multi-access

NEMA National Electrical Manufacturers Association

NVFS nonvolatile file system

Preface

114200-E Rev 00 xxiii

Hard-Copy Technical Manuals

You can print selected technical manuals and release notes free, directly from the

Internet. Go to the support.baynetworks.com/library/tpubs/ URL. Find the product

for which you need documentation. Then locate the specific category and model

or version for your hardware or software product. Use Adobe Acrobat Reader to

open the manuals and release notes, search for the sections you need, and print

them on most standard printers. Go to Adobe Systems at www.adobe.com to

download a free copy of Acrobat Reader.

You can purchase selected documentation sets, CDs, and technical publications

through the Internet at the www1.fatbrain.com/documentation/nortel/ URL.

OCU office channel unit

OSPF Open Shortest Path First (Protocol)

PAD packet assembler/disassembler

PAP password authentication protocol

PCMCIA Personal Computer Memory Card International

Association

PPP point to point protocol

PVC permanent virtual circuit

RIP Routing Information Protocol

RLSD received line signal detection

RMON remote monitoring

RTS request to send

SMDS switched multimegabit data service

SNMP Simple Network Management Protocol

STP shielded twisted-pair

SQE signal quality error

TCP/IP Transmission Control Protocol/Internet Protocol

TNV telecommunications network voltage

UTP unshielded twisted-pair

WAN wide area network

Installing and Operating Passport ARN Routers

xxiv 114200-E Rev 00

How to Get Help

If you purchased a service contract for your Nortel Networks product from a

distributor or authorized reseller, contact the technical support staff for that

distributor or reseller for assistance.

If you purchased a Nortel Networks service program, contact one of the following

Nortel Networks Technical Solutions Centers:

An Express Routing Code (ERC) is available for many Nortel Networks products

and services. When you use an ERC, your call is routed to a technical support

person who specializes in supporting that product or service. To locate an ERC for

your product or service, go to the www12.nortelnetworks.com/ URL and click

ERC at the bottom of the page.

Technical Solutions Center Telephone

EMEA (33) (4) 92-966-968

North America (800) 2LANWAN or (800) 252-6926

Asia Pacific (61) (2) 9927-8800

China (800) 810-5000

114200-E Rev 00 1-1

Chapter 1

Installing the ARN

This chapter describes how to install the Passport ARN router, as follows:

Preparing to Install the ARN

Verify the following before beginning the installation, as explained in the sections

that follow:

•Your shipment is complete and undamaged.

•You have the proper equipment and tools.

Topic Page

Preparing to install the ARN 1-1

Installing the ARN 1-5

Understanding the ARN module locations 1-9

Connecting communications cables 1-10

Connecting a management console 1-23

Connecting back-panel modem interfaces 1-27

Connecting the power cables 1-29

Installing the flash memory card 1-31

Where to go next 1-32

Note: The installation instructions in this chapter assume that wiring is

already installed on the premises using common cable system practices. Your

installation procedure may differ slightly, depending on your cable system.

Installing and Operating Passport ARN Routers

1-2 114200-E Rev 00

•Your installation site meets physical, electrical, and environmental

requirements.

•You have the communications devices and the cabling that you need to attach

to the ARN.

Verifying Shipment Contents

You should inspect all items for shipping damage. If you detect any damage, do

not install the ARN. Call the Nortel Networks Technical Solutions Center in your

area, as described in “How to Get Help.”

In addition to the ARN and this guide, your shipping container should contain

several other hardware accessory items. Verify that the items in the shipping

container match those on the packing list affixed to the shipping container.

Refer to the following checklist when verifying the contents of the shipping

container:

__ One power cable for connecting the ARN to a wall outlet.

__ One console/modem cable kit (Order No. 110310) for connecting an optional

local console or modem. The console/modem cable kit contains one 15-foot

AT standard molded serial cable (with DB-9 receptacle to DB-25 plug

connectors) and one null modem crossover adapter (with DB-25 to DB-25

receptacle connectors).

__ Two flange brackets, eight #6 Phillips screws, four #10 cagenut screws and

washers, and four cage nuts for rack-mounting the ARN.

___Four rubber feet for table-top operation.

Figure 1-1 illustrates the ARN hardware accessory items.

Installing the ARN

114200-E Rev 00 1-3

Figure 1-1. Accessories in the ARN Shipping Container

ARN0048B

Console/Modem Cable

(DB-9 Receptacle

to DB-25 Plug Cable)

DB-25 Receptacle

Null Modem Adapter

Power Cable

Two Flange Brackets

Eight #6 Phillips Screws

Four #10 Cagenut Screws and Washers

Four Cage Nuts

Four Rubber Feet

Installing and Operating Passport ARN Routers

1-4 114200-E Rev 00

Additional Equipment

To install the ARN, you may need some additional items that are not part of the

ARN accessory package. Before installing the ARN hardware, ensure that you

obtain all the cables, tools, and other equipment that you need.

Cables

Unless they were specifically ordered, the cables necessary for your network

configuration are not part of the ARN accessory package. If you do not have the

proper cables, contact your network administrator or see the Cable Guide.

Management Console

You can attach an optional computer terminal or PC as a console to the ARN to

monitor the results of startup diagnostics and perform manual boot configurations.

Or you can attach any AT-compatible modem to allow remote dial-in access to

diagnostics and configuration.

Mounting Hardware

To rack-mount the ARN, you need a Phillips screwdriver and an electronic

enclosure rack that meets the following specifications:

•Heavy-duty steel construction

•Electronic Industries Association (EIA) standard hole-spacing

•Width of 19 in. (48.26 cm) and depth of 24 in. (60.96 cm)

If the rack does not have threaded rail holes, you must use cage nuts (see

Figure 1-1) to use with the cagenut screws.

Note: To use the Netboot, Directed Netboot, or Local Boot options for booting

and configuring the ARN (see Chapter 3, “Operating the ARN”), you must

have a local terminal connected the first time the ARN powers up.

Installing the ARN

114200-E Rev 00 1-5

Verifying Site Requirements

The installation site must provide a certain amount of free space around the ARN

to dissipate heat, as detailed in Ta b le 1 -1.

In addition, the installation site must meet the electrical and environmental

specifications listed in Appendix C.

Installing the ARN

When you are ready to install the ARN in its final location, you have two options:

•Position the ARN on a flat, sturdy, horizontal surface.

•Mount the ARN in an electronic enclosure rack.

Positioning the ARN on a Flat Surface

When positioning the ARN on a flat surface, make sure that the surface is:

•Large enough for the ARN to operate properly (Table 1-1)

•Sturdy enough to support the combined weight of the ARN and any cables

that you connect

You should place the self-adhesive, rubber feet (shipped with the ARN) on the

bottom of the ARN chassis. These feet not only protect the surface on which you

position the ARN, they provide added friction against the weight of any cables

that you attach to the device.

Table 1-1. Installation Space Requirements

Width Depth (minimum) Depth (for servicing)

22.5 in. (57.2 cm) 15 in. (38.1 cm) 25 in. (63.5 cm)

Caution: You must use grounded electrical power outlets with the ARN.

Installing and Operating Passport ARN Routers

1-6 114200-E Rev 00

Rack-Mounting the ARN

For this procedure, you need:

•Two flange brackets and eight #6 Phillips screws (shipped with the ARN)

•A Phillips screwdriver

•An electronic enclosure rack. If the rack does not have threaded rail holes, you

must attach the four cage nuts shipped with the ARN.

•Four #10 cagenut screws and washers (shipped with the ARN)

To rack-mount the ARN:

1. Determine how you want the ARN to fit in the equipment rack.

Multiple holes in the flange brackets provide several options for

rack-mounting the ARN. How you attach the flange brackets determines how

far the router extends outside or remains inside the rack. Figure 1-2 shows

three of the most common locations for the brackets.

2. Attach a flange bracket to each side of the ARN.

a. Align four bracket holes with four holes in the ARN enclosure

(Figure 1-2).

b. Insert a #6 Phillips screw through each hole and into the ARN.

c. Tighten the four screws with a Phillips screwdriver.

Installing the ARN

114200-E Rev 00 1-7

Figure 1-2. Options for Attaching Flange Brackets to Rack-Mount the ARN

3. If the holes in the rack’s vertical supports are not threaded for cagenut

screws, insert a cage nut in four locations (Figure 1-3).

RLSD

ISDN BRI

withNT1

Screws

(4 places)

ARN0004B

RLSD

ISDN BRI

withNT1

Screws

(4 places)

Front panel

Installing and Operating Passport ARN Routers

1-8 114200-E Rev 00

Figure 1-3. Installing the ARN in an Electronic Enclosure Rack

4. Insert a cagenut screw through each bracket hole and into the

corresponding holes in the rack.

5. Tighten each cagenut screw with a Phillips screwdriver.

Rail without

Threaded Holes

Use Cage Nut

Cagenut Screw

(4 Places)

ARN0005A

COM3 COM4COM5

COM

RLSDRun

Boot

Fail

Pwr

RPS

Fan

Base

Adapter1

Adapter2

Expansion

DCM

PCMCIA

BayStackAdvanced Remote Node

RLSD3

RLSD4

RLSD5

Serial

ISDN BRI

withNT1

10BaseTAUI

Ethernet 1

10BaseT AUI

Ethernet 2

Installing the ARN

114200-E Rev 00 1-9

Understanding the ARN Module Locations

The ARN is designed to scale to your needs. In addition to either an Ethernet or

token ring base module, the ARN can contain an optional LAN expansion module

and up to two WAN adapter modules (Figure 1-4).

Figure 1-4. ARN Module Locations

The ARN is available in the following base module configurations:

•One Ethernet AUI and Ethernet 10BASE-T interface

•One Ethernet 10/100BASE-Tx interface

•One Ethernet 100BASE-Fx interface

•One Token Ring interface (STP only)

ARN expansion modules provide additional Ethernet (AUI and 10BASE-T), token

ring (STP and UTP), and serial interfaces. Each ARN WAN adapter module adds

one serial, ISDN BRI, V.34 modem, T1/FT1, E1/ET1, 56/64K DSU/CSU, or X.25

PAD interface.

The Ethernet base and expansion modules can also contain an optional data

collection module (DCM). This optional DCM gathers Ethernet statistics for a

remote monitoring (RMON) utility. A subset of these statistics is gathered with a

built-in RMON function on the Ethernet10/100BASE-Tx and -Fx interfaces. See

Configuring RMON and RMON2 on BayRS Routers for information about how to

enable and use each RMON data collection implementation.

ARN0006A

Adapter modules Expansion module

Base module

COM3 COM4 COM5

COM

RLSD Run

Boot

Fail

Pwr

RPS

Fan

Base

Adapter1

Adapter2

Expansion

DCM

PCMCIA

Advanced Remote Node

RLSD3

RLSD4

RLSD5

Serial

ISDN BRI

withNT1

10BaseT AUI

Ethernet 1

Installing and Operating Passport ARN Routers

1-10 114200-E Rev 00

Connecting Communications Cables

Gather the communications equipment and cabling that you will attach to the

ARN. If you do not have the proper cables, contact your network administrator or

see the Cable Guide.

Then, complete the steps in the applicable sections:

•“Connecting to an Ethernet Interface” on page 1-10

•“Connecting to a Token Ring Interface” on page 1-13

•“Connecting to a Serial Interface” on page 1-15

•“Connecting to the ISDN Interface” on page 1-17

•“Connecting to the 56/64K DSU/CSU Interface” on page 1-18

•“Connecting to the FT1/T1 DSU/CSU Interface” on page 1-18

•“Connecting to the E1/FE1 DSU/CSU Interface” on page 1-19

•“Connecting to the X.25 PAD Interface” on page 1-21

Connecting to an Ethernet Interface

You can connect an Ethernet cable to any ARN base or expansion module that

contains an Ethernet interface option.

Note: For cable interface descriptions, see Appendix C.

Note: On Ethernet modules that offer two interface types -- an attachment unit

interface (AUI) transceiver interface or a UTP interface -- you can only use one

interface at a time. For example, you can connect to either the AUI transceiver

interface or the 10BASE-T UTP interface on the base module, but you cannot

use both interfaces at the same time.

Installing the ARN

114200-E Rev 00 1-11

Connecting to the AUI

The AUI interface provides broadband, baseband, fiber, and shielded twisted pair

(STP) support, depending on the transceiver and cables you use.

To attach an Ethernet AUI transceiver (drop) cable to the AUI connector on an

Ethernet module:

1. Connect an Ethernet AUI drop cable to the interface labeled AUI

(Figure 1-5).

The cable must have a 15-position D-SUB receptacle.

Figure 1-5. Connecting an AUI Cable

2. Secure the AUI cable using the slide lock on the interface.

3. Connect the other end of the cable to an Ethernet transceiver.

Caution: Connecting the ARN AUI interface directly to the AUI interface on

an Ethernet station violates IEEE 802.3 standards. The AUI interface is

designed only for connection to a transceiver.

ARN0063A

COM3 COM4 COM5

COM

RLSD Run

Boot

Diag

Pwr

RPS

Fan

Base

Adapter1

Adapter2

Expansion

DCM

PCMCIA

Advanced Remote Node

RLSD3

RLSD4

RLSD5

Serial

ISDN BRI

withNT1

10BaseT AUI

Ethernet 1

10BaseT AUI

Ethernet 2

Expansion module AUI interface

Base module AUI interface

Ethernet

transceiver

Ethernet AUI drop cable

Installing and Operating Passport ARN Routers

1-12 114200-E Rev 00

Connecting to the UTP Interface

To connect an unshielded twisted-pair (UTP) cable to the base module or

expansion module Ethernet interface, insert the UTP jack into the RJ-45

receptacle connector, as shown in Figure 1-6 and Figure 1-7.

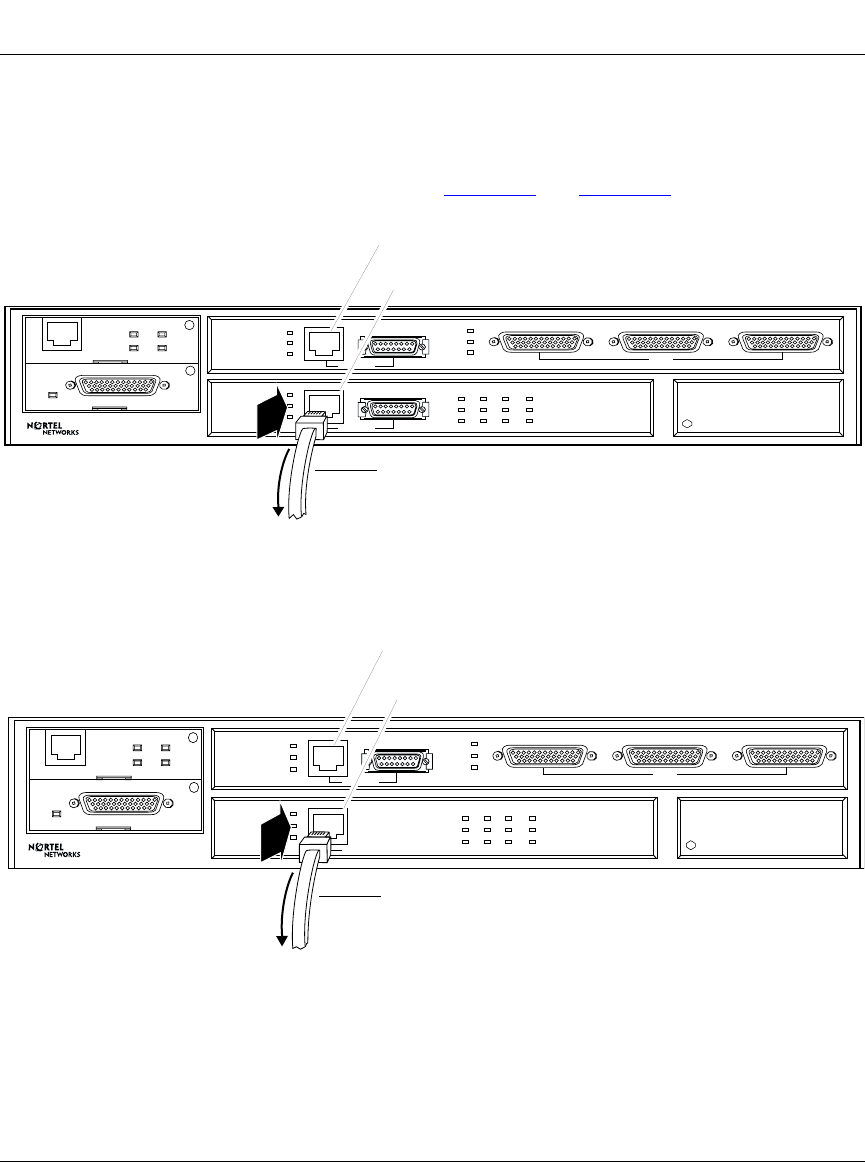

Figure 1-6. Connecting an Ethernet 10BASE-T Cable

Figure 1-7. Connecting an Ethernet 10/100BASE-Tx Cable

ARN0062A

COM3 COM4 COM5

COM

RLSD Run

Boot

Diag

Pwr

RPS

Fan

Base

Adapter1

Adapter2

Expansion

DCM

PCMCIA

Advanced Remote Node

RLSD3

RLSD4

RLSD5

Serial

ISDN BRI

withNT1

10BaseT AUI

Ethernet 1

10BaseT AUI

Ethernet 2

Expansion module 10BASE-T interface

Base module 10BASE-T interface

Ethernet

network

Ethernet 10BASE-T cables

ARN0062

COM3 COM4 COM5

COM

RLSD Run

Boot

Diag

Pwr

RPS

Fan

Base

Adapter1

Adapter2

Expansion

DCM

PCMCIA

Advanced Remote Node

RLSD3

RLSD4

RLSD5

Serial

ISDN BRI

withNT1

10/100 BaseTx

10BaseT AUI

Ethernet 2

Expansion module 10BASE-T interface

Base module 10/100 BASE-Tx interface

Ethernet

network

Ethernet 10/100 BASE-Tx cables

Installing the ARN

114200-E Rev 00 1-13

Connecting to the Fiber Interface

To connect a fiber cable to the base module or expansion module Ethernet

interface, insert the fiber cable jack into the interface as shown in Figure 1-8.

Figure 1-8. Connecting an Ethernet 100BASE-Fx Cable

Connecting to a Token Ring Interface

You can connect a token ring cable to any ARN base module or expansion module

that contains a token ring interface option. Each of these interface options offers

two token ring interface types: an STP interface or a UTP interface.

Note: You can use only one token ring interface on an ARN base or expansion

module at any time. For example, you can connect to either the STP interface

or the UTP interface on a base module, but you cannot use both interfaces at

the same time.

ARN0062C

COM3 COM4 COM5

COM

RLSD Run

Boot

Diag

Pwr

RPS

Fan

Base

Adapter1

Adapter2

Expansion

DCM

PCMCIA

Advanced Remote Node

RLSD3

RLSD4

RLSD5

Serial

ISDN BRI

withNT1

Link

100

100 BaseFX

Ethernet 1

10BaseT AUI

Ethernet 2

Expansion module 10BASE-T interface

Base module 100BASE-FX interface

Ethernet

network

Ethernet 100BASE-FX cables

Installing and Operating Passport ARN Routers

1-14 114200-E Rev 00

Connecting to the STP Interface

To connect a token ring shielded twisted pair (STP) cable to the base module or

expansion module token ring interface:

1. Attach the 9-pin D-SUB plug to the token ring STP interface (Figure 1-9).

Figure 1-9. Connecting a Token Ring STP Cable

2. Secure the token ring cable using the capture screws.

Connecting to the UTP Interface

To connect a token ring UTP cable to the expansion module token ring interface,

insert the RJ-45 connector into the UTP interface, as shown in Figure 1-10.

ARN0068

COM3 COM4 COM5

COM

RLSD Run

Boot

Fail

Pwr

RPS

Fan

Base

Adapter1

Adapter2

Expansion

DCM

PCMCIA

Advanced Remote Node

RLSD3

RLSD4

RLSD5

Serial

ISDN BRI

withNT1

STP

RCVR

NSRT

WFLT

Token Ring 1

Token Ring

network

Token Ring STP cable

STP

RCVR

NSRT

WFLT

Token Ring 2

Expansion module STP interface

Base module STP interface

UTP

Installing the ARN

114200-E Rev 00 1-15

Figure 1-10. Connecting a Token Ring UTP Cable

Connecting to a Serial Interface

You connect 44-pin serial cables to the connectors on ARN adapter and expansion

modules. Each serial interface supports multiple WAN protocols at a transmission

rate of 1200 b/s to 2.048 Mb/s.

To connect to the serial interface:

1. Locate the serial interface cable.

The serial interfaces automatically configure the desired electrical interface

when used with standard keyed cables. For information about cables available

from Nortel Networks, see the Cable Guide.

2. Connect the cable to an expansion module serial interface (Figure 1-11)

or an adapter module serial interface (Figure 1-12).

Note: The Cable Guide refers to serial cables that transmit synchronous data

as “synchronous” cables.

ARN0069A

COM3 COM4 COM5

COM

RLSD Run

Boot

Fail

Pwr

RPS

Fan

Base

Adapter1

Adapter2

Expansion

DCM

PCMCIA

Advanced Remote Node

RLSD3

RLSD4

RLSD5

Serial

ISDN BRI

withNT1

STP

RCVR

NSRT

WFLT

Token Ring 1

STP

RCVR

NSRT

WFLT

Token Ring 2

UTP

Token Ring

network

Token Ring UTP cables

Expansion module UTP interface

Installing and Operating Passport ARN Routers

1-16 114200-E Rev 00

Figure 1-11. Connecting Serial Cables to an Expansion Module

Connector numbering on expansion module serial interfaces begin with

COM3.

Figure 1-12. Connecting a Serial Cable to the Serial Adapter Module

COM3 COM4 COM5

COM

RLSD Run

Boot

Fail

Pwr

RPS

Fan

Base

Adapter1

Adapter2

Expansion

DCM

PCMCIA

BayStack Advanced Remote Node

RLSD3

RLSD4

RLSD5

Serial

ISDN BRI

withNT1

10BaseT AUI

Ethernet 1

10BaseT AUI

Ethernet 2

ARN0067A

RS-232,

RS-422,

RS-530,

V.28,

V.35,

or X.21

interface

RS-232,

RS-422,

RS-530,

V.28,

V.35,

or X.21

interface

COM

RLSD

ISDN BRI

with NT1

10BaseT

Ethernet 1

10BaseT

Ethernet 2

ARN0066A

Installing the ARN

114200-E Rev 00 1-17

Serial adapter modules, labeled COM, can be in position 1 or 2. These

interfaces are COM1 and COM2.

3. Secure the cable to the interface using the capture screws on the cable.

4. Connect the remote end of each cable to the appropriate communications

equipment.

Connecting to the ISDN Interface

You connect ISDN service to the connector on an installed ISDN BRI U or ISDN

BRI S/T adapter module. Modules with an S/T interface provide dialup

connection to the ISDN network through a terminal adapter. Modules with a U

interface allow you to connect directly to the ISDN network switch.

The BRI provides two B channels, and supports full D-channel signaling and

call setup/teardown as defined in 1988 CCITT (now ITU-T) Recommendation

Q.921 and Q.931. For more information, refer to Configuring Dial Services.

To connect ISDN BRI services:

1. Insert the ISDN cable into the ISDN BRI S/T or U interface (Figure 1-13).

Figure 1-13. Connecting the ISDN BRI Cable

2. Connect the other end of the cable to the ISDN communications device.

ISDN

network

ARN0064A

COM

RLSD

Serial

ISDN BRI

with NT1

Installing and Operating Passport ARN Routers

1-18 114200-E Rev 00

Connecting to the 56/64K DSU/CSU Interface

You connect 56/64K DSU/CSU service to the connector on an installed 56/64K

DSU/CSU adapter module.

To connect to the 56/64K DSU/CSU interface:

1. Insert the 56/64K DSU/CSU cable connector into the DSU/CSU interface

labeled DDS (Figure 1-14).

Figure 1-14. Connecting the 56/64K DSU/CSU Cable

2. Connect the other end of the cable to a digital line (for example, a digital

line wall jack that connects to an office channel unit [OCU]).

Connecting to the FT1/T1 DSU/CSU Interface

You connect FT1/T1 DSU/CSU service to the connector on an installed FT1/T1

DSU/CSU adapter module.

To connect to the FT1/T1 DSU/CSU interface:

1. Insert the RJ-48C cable connector into the FT1/T1 DSU/CSU interface

on the adapter module (Figure 1-15).

ARN0065A

256K/64K

DDS

TxD

RxD

Test

DSU/CSU

S/T

ISDN BRI

digital line

wall jack

Installing the ARN

114200-E Rev 00 1-19

Figure 1-15. Connecting the FT1/T1 DSU/CSU Cable

2. Connect the other end of the cable to a T1 communications device.

Connecting to the E1/FE1 DSU/CSU Interface

You connect E1/FE1 service to the connector on an installed E1/FE1 adapter

module.

To connect to the E1/FE1 interface:

1. Insert the RJ-48C cable connector into the E1/FE1 interface

(Figure 1-16).

Figure 1-16. Connecting the E1/FE1 Cable

2. Connect the other end of the cable to a FE1communications device.

ARN0065B

10BaseT

Ethernet 1

10BaseT

Ethernet 2

S/T

ISDN BRI

Compiles with FCC Rules Part 68

Reg. Number 4P8USA-31445-DE-N

Red Alm

FT1/T1

DSU/CSU

Yel Alm

Loop

Sync

T1device

ARN0090C

ARN front panel

E1/FE1

G.703

Installing and Operating Passport ARN Routers

1-20 114200-E Rev 00

Connecting to the Integrated V.34 Modem

You connect dial services to the connector on an installed V.34 Modem adapter

module.

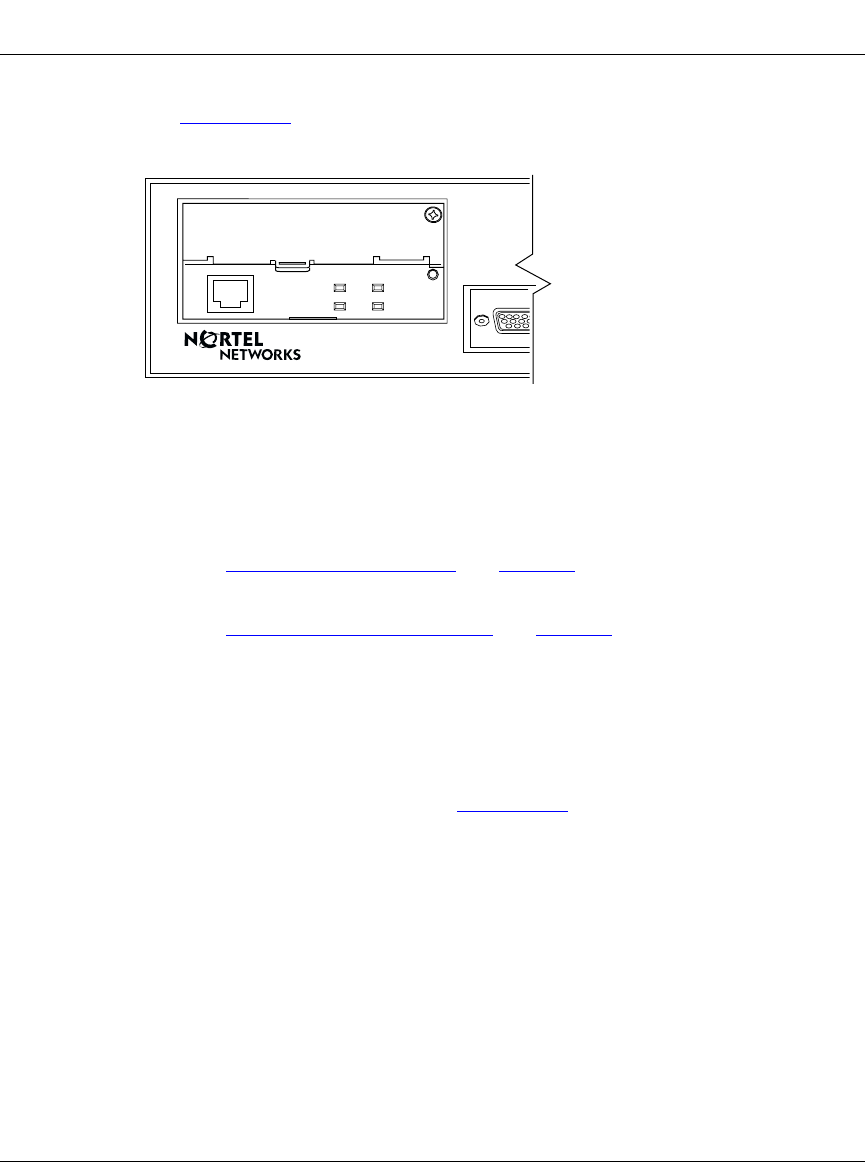

To connect a telephone cable to the integrated V.34 modem:

1. Connect the RJ-11 telephone cable to the V.34 modem interface

(Table 1-17).

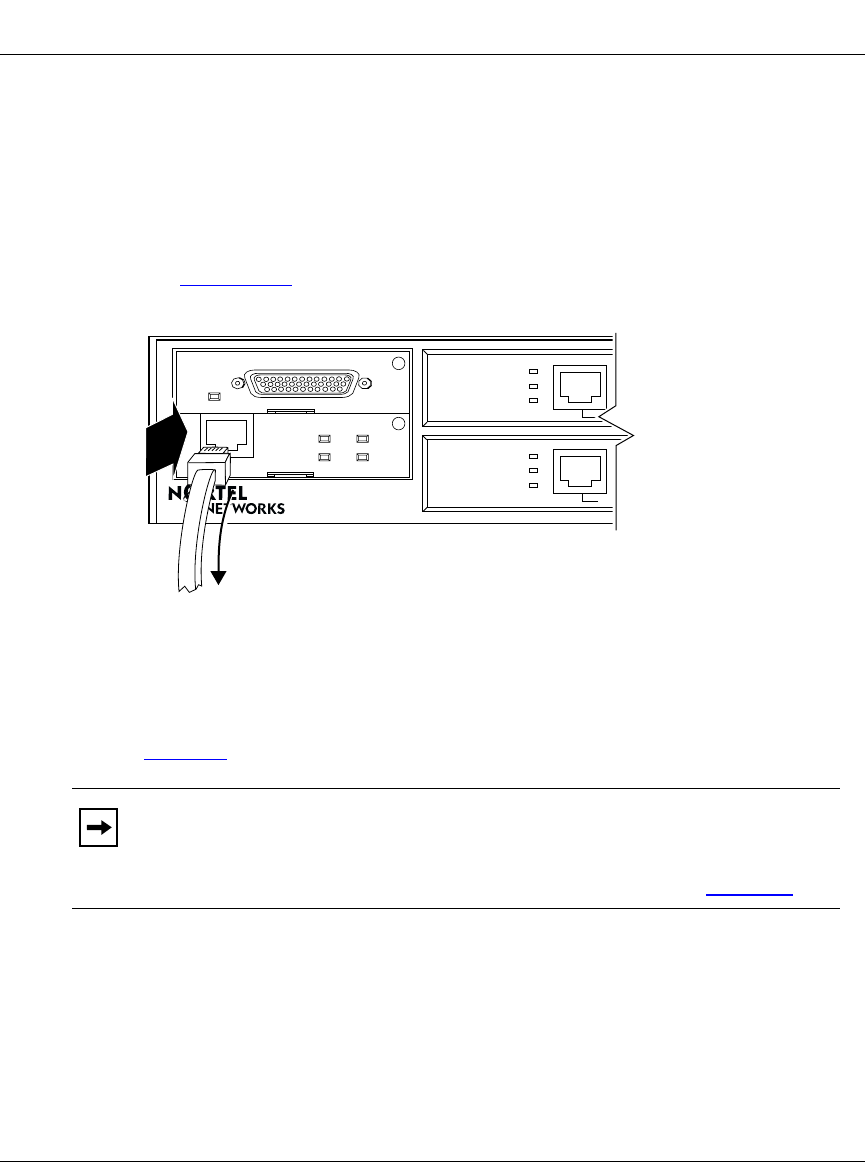

Figure 1-17. Connecting a Telephone Cable

2. Connect the other end of the cable to an analog telephone line.

Table 1-2 provides the default settings for the V.34 Modem adapter module.

Note: The default settings for the front-panel V.34 Modem adapter module

differ from the default settings for the back-panel V.34 Console Modem

module interface. For information about the back-panel V.34 Console Modem

and its default settings, see “Connecting a Console Modem” on page 1-27.

COM

Telco

RLSD

DTR

RLSD

Serial

V.34 Modem

Front-panel V.34 modem interface

ARN0071A

10BaseT

Ethernet 1

10BaseT

Ethernet 2

RJ-11 telephone

receptacle

Installing the ARN

114200-E Rev 00 1-21

Connecting to the X.25 PAD Interface

To support X.25 PAD applications, the ARN router requires the following

hardware:

•ARN X.25 PAD adapter module

•Breakout box

Table 1-2. V.34 Front-Panel Modem Adapter Module Defaults

Modem Signal/Parameter Default Value

Clear To Send (CTS) On

Data Terminal Ready (DTR) Depends on the modem type. Set the modem to

answer incoming calls when DTR is active.

Data Carrier Detect (DCD) or

received line signal detection

(RLSD)

On while carrier is present (the ARN uses DCD to

detect modem connect and disconnect).

Data Set Ready (DSR) On

Ready to Send (RTS) Ignore

Synchronous/Asynchronous Mode Asynchronous

AutoAnswer Set on

rings with DTR active (

must be greater

than 0).

Local Character Echo Off

Supervisory Functions Off

Baud Rate 28800

Data Bits 8

Stop Bits 1

Parity None

Installing and Operating Passport ARN Routers

1-22 114200-E Rev 00

To connect X.25 PAD services:

1. Position the X.25 breakout box above the ARN in one of the following

ways:

•Attach the rubber feet that came in the shipping container to the four

raised areas on the bottom of the breakout box chassis; then, place the box

on top of the ARN (Figure 1-18).

•Using the screw holes on the sides of the breakout box, install the box

above the ARN in a standard equipment rack. For information about

rack-mounting the ARN, see “Rack-Mounting the ARN” on page 1-6.

2. Connect the DB-60 cable on the breakout box to the X.25 PAD connector

on the installed module (Figure 1-18).

Figure 1-18. Connecting a Breakout Box to the X.25 PAD Interface

3. Connect the appropriate WAN cabling to each of the eight DB-25

interfaces on the breakout box that you will use.

For information on cables available from Nortel Networks, see the Cable

Guide.

ARN0088A

COM3 COM4 COM5

Serial

COM

RLSD Run

Boot

Fail

Pwr

RPS

Fan

Base

Adapter1

Adapter2

Expansion

DCM

PCMCIA

Advanced Remote Node

RLSD3

RLSD4

RLSD5

Serial

10BaseT AUI

Ethernet 1

10BaseT AUI

Ethernet 2

X.25 PAD

DB-60 cable DB-25 connector ports

Installing the ARN

114200-E Rev 00 1-23

Connecting a Management Console

You can use the back-panel console ports to connect one or both of the following

management devices:

•PC or terminal

•External modem or telephone connection to optional integrated V.34 modem

Using a local console, you can monitor the results of the ARN startup diagnostics

and set the boot configuration. Using an attached modem, you can enable remote

dial-in access for various management tasks.

Connecting a PC Console

To connect a PC to the ARN, you need a standard AT serial cable with a 25-pin

plug connector, plus these pieces from the ARN console/modem cable kit:

•Serial console/modem cable with 9-pin receptacle to 25-pin plug connectors

(Order No. 110307)

•Null modem crossover adapter with two 25-pin receptacle connectors

(Order No. 110308)

When you have the correct equipment, complete the following steps:

1. Configure the PC console, using the following parameters and

instructions in your PC documentation.

•Baud rate 9600

•8 data bits

•1 stop bit

•No parity

2. Turn o ff th e PC .

3. Insert the 9-pin receptacle end of the console cable into the ARN Console

interface (Figure 1-21).

Note: To use the Netboot, Directed Netboot, or Local Boot software

configuration options described in Chapter 2, “Starting the ARN” you must

connect a management console the first time you power up the ARN.

Installing and Operating Passport ARN Routers

1-24 114200-E Rev 00

Figure 1-19. Connecting the Console/Modem Cable

4. Attach the null modem crossover adapter to the other end of the console

cable (Figure 1-20).

Figure 1-20. Attaching the Null Modem Crossover Adapter

5. Connect the other end of the null modem crossover adapter to the 25-pin

plug connector on a standard AT serial cable.

6. Connect the complete cable unit to the communications interface at the

back of the PC (Figure 1-21).

Console Modem

Console/modem cable

ARN0083B

Null modem crossover adapter

Console cable connector

Screw receptacle

Rotate to tighten screw

AN0010A

Installing the ARN

114200-E Rev 00 1-25

Figure 1-21. Connecting a PC Console to an ARN

Connecting a Terminal Console

To connect a terminal console to the ARN, you need both of these pieces in the

ARN console/modem cable kit (Order No. 110310):

•Serial console/modem cable with 9-pin receptacle to 25-pin plug connectors

(Order No. 110307)

•Null modem crossover adapter with two 25-pin receptacle connectors

(Order No. 110308)

Console cable

Null modem adapter

PC cable

ARN0056A

Modem

100-240~

1.2A

50-60Hz

Redundant Power

Installing and Operating Passport ARN Routers

1-26 114200-E Rev 00

When you have the appropriate equipment, complete the following steps:

1. Turn on and configure the terminal, using the parameters in Tab l e 1- 3

and the terminal user guide.

2. Turn off the terminal.

3. Insert the 9-pin receptacle end of the console cable into the ARN Console

connector.

4. Attach the null modem crossover adapter to the 25-pin connector.

Insert the screw on the cable connector into the receptacle on the adapter

connector and tighten the screw (refer to Figure 1-20 on page 1-24).

5. Attach the 25-pin receptacle connector on the combined cable and

adapter to the console host connector (Figure 1-22).

Figure 1-22. Connecting a Terminal Console to an ARN

Table 1-3. Console Parameters

Parameter Value

Baud Rate 9600

Data Bits 8

Stop Bits 1

Parity None

COMM

20 mA PR KB

Console cable plus

null modem adapter

ARN0058A

100-240~

1.2A

50-60Hz

Console Modem

Redundant Power

Installing the ARN

114200-E Rev 00 1-27

Connecting a Console Modem

A modem provides a system administrator with remote access to the ARN. It is a

good idea to connect a modem in case the ARN experiences system problems.

To use a modem connection for a management console, you can connect an

external modem to the modem interface or you can connect a telephone line

directly to an optional V.34 Console Modem adapter module. Both ports are on

the ARN back panel.

Table 1-4 provides the default settings for both types of back-panel modem

interfaces.

Note: To use the Netboot, Directed Netboot, or Local Boot software

configuration options, you must connect a console the first time you power up

the ARN. Refer to Chapter 2, “Starting the ARN” for details.

Table 1-4. Console Modem Defaults

Modem Signal/Parameter Default Value

Clear To Send (CTS) On

Data Terminal Ready (DTR) Set to answer all incoming calls.

Data Carrier Detect (DCD) or

Received Line Signal Detection

(RLSD)

On while carrier is present (the ARN uses DCD to

detect modem connect and disconnect).

Data Set Ready (DSR) On

Ready to Send (RTS) Ignored

Synchronous/Asynchronous Mode Asynchronous

AutoAnswer Answer on 2 rings with DTR active.

Local Character Echo Off

Supervisory Functions Off

Baud Rate 9600

Data Bits 8

Stop Bits 1

Parity None

Installing and Operating Passport ARN Routers

1-28 114200-E Rev 00

Connecting an External Console Modem

To connect an external modem to the ARN back panel, you need an AT or Hayes

compatible modem and the modem cable (Order No. 110307) that came in the

ARN console/modem cable kit.

Complete the following steps:

1. Configure the modem, using the parameters in Table 1-4.

Refer to the modem user guide for instructions.

2. Turn off the modem.

3. Insert the 9-pin receptacle end of the modem cable into the ARN Console

interface (Figure 1-23).

4. Insert the 25-pin plug at the other end of the modem cable into the

modem RS-232 data communications interface.

Figure 1-23. Connecting an External Console Modem

Connecting to an Integrated V.34 Console Modem Module

If your ARN contains an optional V.34 Console Modem module, you can connect

the RJ-11 jack from the telephone line directly to the V.34 Console Modem

interface. Table 1-4 on page 1-27 provides the default parameter settings for the

V.34 Console Modem.

Note: Do not use the null modem crossover adapter (Order No. 110308) in the

ARN cable kit to connect to a modem.

PHONE

DWR (LEASE

3810

(LEASED)

3810

NMS DTE

DIAL

Modem cable

ARN0057A

Console

100-240~

1.2A

50-60Hz

Redundant Power

Installing the ARN

114200-E Rev 00 1-29

Figure 1-24. Connecting to an Integrated Console Modem

Connecting the Power Cable

To connect the power cable to the ARN, complete these steps:

1. Connect the power cable to the power connector on the left side of the

ARN back panel (Figure 1-25).

Danger: Be sure that the power switch on the ARN back panel is in the OFF

(0) position before you connect the power cable.

ARN0072A

Console

Modem

RJ-11 telephone

receptacle

Back-panel V.34 Modem Interface

Modem Tx

RLSD

DTR

Installing and Operating Passport ARN Routers

1-30 114200-E Rev 00

Figure 1-25. Connecting the Power Cable to the ARN

2. Connect the remote end of the power cable to a grounded outlet.

Note: For information about connecting a redundant power supply to the

ARN, refer to the documentation that came with your power supply.

ARN0017A

Power switch (off)

Redundant Power

100-240~

1.2A

50-60Hz

To redundant power supply

To power outlet

Installing the ARN

114200-E Rev 00 1-31

Installing the Flash Memory Card

Nortel Networks ships the router software on a PCMCIA flash memory card

(Figure 1-26). The flash memory card provides storage for the Nonvolatile File

System (NVFS) in the ARN.

Figure 1-26. Flash Memory Card

Before starting the ARN, install the flash memory card supplied with the router:

1. Position the card with the label facing up and the INSERT arrow

pointing toward the card receptacle.

2. Insert the card into the receptacle (Figure 1-27) and gently push the card

until it fits snugly into place.

Figure 1-27. Inserting the Flash Memory Card in the ARN Receptacle

INSERT

AN0060A

ARN0018A

Console Modem

Redundant Power

100-240~

1.2A

50-60Hz

Installing and Operating Passport ARN Routers

1-32 114200-E Rev 00

Where to Go Next

Use the following table to determine where you want to go next.

For information about Go to

Starting the ARN Chapter 2

Operating the ARN Chapter 3

Configuring the ARN for Netboot and

Directed Netboot

Appendix A

Using Local Boot (the Quick-Start Procedure) Appendix B

ARN Technical Specifications Appendix C

114200-E Rev 00 2-1

Chapter 2

Starting the ARN

This chapter describes how to start the Passport ARN router, as follows:

Understanding the Startup Process

To operate, the ARN requires two files: a software image and a configuration file.

Each time you start the ARN, it completes a process to load these files.

•The software image contains a group of executable files that support the

protocols that the network requires. The ARN uses the software image called

arn.exe. The process of obtaining and using this image is called booting.

•To bridge and route traffic, the ARN also needs a configuration file that is

tailored to the network. A configuration file is a binary system file that

contains hardware and software configuration data. The default configuration

file is named config.

Nortel Networks ships the executable and default configuration files on a

PCMCIA flash card, but the ARN can also obtain them over the network. Getting

a file over the network is called network booting, or netbooting. Getting a file

from the router file system, stored in flash memory, is local booting.

Topic Go to

Understanding the startup process 2-1

Starting the ARN for the first time 2-4

Using EZ-Install 2-5

Using Netboot, Directed Netboot, or Local Boot 2-6

Where to go next 2-15

Installing and Operating Passport ARN Routers

2-2 114200-E Rev 00

When you start the ARN for the first time, it completes an initial startup procedure

to boot and connect to the network using either a default configuration file or one

already customized and available on the network.

You use one of four boot options to complete the initial software startup. Table 2-1

summarizes the four options; the sections that follow provide steps for completing

each option.

Table 2-1. Summary of Initial Startup Options

Boot

Option

Source for

Image file

Source for

Configuration

File Description and Requirements

EZ-Install Local Network

(serial interface

only)

The default option. The ARN boots from local flash

memory, then obtains its configuration file from a remote

workstation that is configured as a Bootstrap Protocol

(BootP) server. The ARN saves the configuration to the

flash memory

This option requires a High-Level Data Link Control

(HDLC) or frame relay serial connection.

Netboot*

* The ARN supports netboot over serial, Ethernet, token ring, and 56/64K DSU/CSU interfaces only.

Local

Network

Local

Network

The ARN locates and obtains

at least one

startup file from

a remote workstation that is configured as a BootP server.

This option requires a communications connection over

an HDLC, frame relay, Ethernet, token ring, or DSU/CSU

interface, and a local console connection.

Directed

Netboot†

† The ARN supports directed netboot over serial, Ethernet, token ring, and 56/64K DSU/CSU interfaces only.

Local

Network

Local

Network

The ARN obtains

at least one

startup file from a remote

workstation that is configured as a Trivial File Transfer

Protocol (TFTP) server. You must specify the IP address

of the TFTP server and the complete path to the startup

files before booting.

This option requires a communications connection over

an HDLC, frame relay, Ethernet, token ring, or DSU/CSU

interface, and a local console connection.

Local Boot Local Local The ARN boots from a local software image and generic

startup configuration file. You create a customized

configuration file by running the Quick-Start script.

This option requires a local console connection and an

installed BayRS flash memory card. If you attempt to local

boot the ARN/DC without the flash memory card inserted,

the router does not operate.

Starting the ARN

114200-E Rev 00 2-3

You may not be able to use all methods described in this chapter to boot over some

interfaces on your router. For example, you cannot netboot over an FT1/T1

interface. In some cases, you may use one interface to boot your router and then

switch to a different interface (such as the FT1/T1 DSU/CSU) to establish your

initial IP network connection to the management workstation.

Table 2-2 lists supported boot options by interface type.

Table 2-2. Supported Boot Options by Interface

Interface Supported Not Supported

Ethernet EZ-Install, Netboot, Directed

Netboot, Local boot

Token Ring EZ-Install, Netboot, Directed

Netboot, Local boot

Serial (synchronous) EZ-Install, Netboot, Directed

Netboot, Local boot

56K/64K DSU/CSU EZ-Install, Netboot, Directed

Netboot, Local boot

ISDN S/T (leased line) EZ-Install, Local boot Netboot, Directed Netboot

FT1/T1 DSU/CSU EZ-Install, Local boot Netboot, Directed Netboot

FE1/E1 DSU/CSU EZ-Install, Local boot Netboot, Directed Netboot

ISDN U (switched line) None All

V.34 modem None All

Installing and Operating Passport ARN Routers

2-4 114200-E Rev 00

Starting the ARN for the First Time

The ARN factory defaults are set to find the image file and configuration file from

the following locations:

•Image file -- on the local PCMCIA flash memory card

•Configuration file -- over the network

These default settings work with the default EZ-Install procedure.

The first time you power on an ARN, the router steps through its diagnostic tests

and then attempts to boot over all of its serial (COM) interfaces using EZ-Install.

If your network administrator has configured the network for the EZ-Install

procedure, the router boots using its local image and obtains its configuration file

over the network. Your network administrator can then connect to the ARN and

manage it remotely. For more information, refer to the next section, “Using

EZ-Install.”

If your network administrator does not configure the network for EZ-Install, the

ARN cannot obtain its configuration file from the network, and the EZ-Install

procedure fails. The ARN then attempts to boot locally with the configuration file

that resides on its flash memory card. Refer to “Using Netboot, Directed Netboot,

or Local Boot” for more information.

If both the EZ-Install and local boot attempts fail, the EZ-Install and local boot

processes repeat until one of the following occurs:

•The ARN boots successfully.

•You interrupt the boot process to enter the ARN monitor.

•You turn off the ARN.

The following sections describe how to use each of the different boot options for

the ARN.

Note: Coordinate the initial startup of the ARN with your network

administrator. To determine which software configuration option is best for

your site and for instructions on setting up a boot server, the network

administrator can refer to Configuring Passport Remote Access.

Starting the ARN

114200-E Rev 00 2-5

Using EZ-Install

EZ-Install is the default installation option provided by Nortel Networks. This

option requires that your network administrator has set up the network so that you

can start the EZ-Install procedure. In addition, this option requires that you:

•Install a flash memory card.

For instructions, see “Installing the Flash Memory Card” on page 1-31.

•Connect at least one serial (COM) interface to the network.

For instructions, see “Connecting Communications Cables” on page 1-10.

To use EZ-Install:

1. Press the power switch on the ARN back panel to the ON position.

The ARN comes on and activates EZ-Install.

2. Ensure that the ARN boots correctly.

When the ARN boots, its LEDs flash in a particular order. For information on

checking the ARN front-panel LEDs to ensure that the installation was

successful, see “Understanding the ARN LEDs” on page 3-1.

Note: If your ARN does not have a COM interface, you must configure the

ARN using one of the other methods such as netboot or directed netboot over

an Ethernet or token ring interface. Or, you may local boot the ARN and run

the Quick-Start script. For more information, see “Using Netboot, Directed

Netboot, or Local Boot” on page 2-6.

Note: If you power on the ARN before the network administrator is ready,

restart the ARN by pressing the reset button on the rear panel. See Chapter 3,

“Operating the ARN” for more information on resetting the ARN.

Installing and Operating Passport ARN Routers

2-6 114200-E Rev 00

Using Netboot, Directed Netboot, or Local Boot

When you netboot or local boot the ARN, you must use a command line interface

that accesses the router software. To use a command line interface, you can:

•Wait for the ARN to local boot (that is, wait for the router to fail EZ-Install

and then attempt to boot using its local configuration file). After the ARN

boots locally, you can log in to the Technician Interface and redefine the boot

process.

•Interrupt the boot process using a break sequence and log in to the ARN

monitor to redefine the boot process.

Using the netboot, directed netboot, or local boot options requires that you:

•Connect any necessary communications cables to access the network.

•Connect a management console.

•Connect the ARN power cable.

•Install a flash memory card.

See Chapter 1, “Installing the ARN” for instructions on how to complete these

tasks.

Interrupting the Boot Process

Interrupting the boot process automatically starts the ARN monitor. Using the

ARN monitor allows you to bypass the EZ-Install procedure.

To interrupt the boot process:

1. Press the power switch on the ARN back panel to the On position.

As the router powers on, your console displays the ARN diagnostic tests.

After successfully completing these tests, the router begins the EZ-Install

procedure and attempts to boot over the network.

Note: Before you power on the ARN, make sure that you have installed the

router and connected the management console equipment you need (see

“Connecting a Management Console” on page 1-23).

Starting the ARN

114200-E Rev 00 2-7

2. While the router is running the EZ-Install procedure, issue a break

sequence from the management console.

The ARN monitor login prompt appears.

Logging in to the Command Line Software

Regardless of the command line software used (ARN monitor or Technician

Interface) the procedures to log in are identical.

To log in to the command line:

1. Type the following command (noting the use of an uppercase “M”) at the

Manager

The Technician Interface or ARN monitor command line prompt appears. You

are now using a command line interface to the router.

2. To use the netboot, directed netboot, or the local boot option, go to one of

the following sections that describes the procedure you want to use:

•“Continuing with Netboot” on page 2-8

•“Continuing with Directed Netboot” on page 2-10

•“Continuing with Local Boot (the Quick-Start Procedure)” on page 2-13

Note: Be sure to issue a break sequence before the boot process completes.

Break sequences can vary, depending on the console type. Some management

consoles have specific “Break” keys on their keyboards; other require a key

sequence to issue a break (for example, Cntrl-C or ~ #). For the break sequence

for your management console, see the PC/terminal documentation.

Installing and Operating Passport ARN Routers

2-8 114200-E Rev 00

Continuing with Netboot

To use the netboot option, you must have at least one serial, Ethernet, or token ring

interface connected to the network. Before you start the netboot procedure, ask

your network administrator to:

•Verify that the network is set up for the netboot procedure, as described in the

Configuring Remote Access for AN and Passport ARN Routers guide.

•Provide you with the parameter arguments to the interface configuration

command ifconfig you will use in Step 4.

The ifconfig command configures the parameters necessary to load the

software image file and configuration file from a remote server over the

network.

You can use the ARN monitor, Technician Interface, or Site Manager to perform

netboot. However, this guide assumes that you are using either the ARN monitor

or the Technician Interface.

To use the netboot option:

1. At the command line prompt, enter the ifconfig command provided to

you by your network administrator and press the Return key.

The following is a sample command:

ifconfig com1 9.0.0.2 255.0.0.0 9.0.0.3

For more information about the ifconfig command, see “Using the ifconfig

Command” on page A-2.

2. Enter the following command and press the Return key to verify the

configuration you specified in Step 1:

getcfg

Note: Continuing with the netboot option requires that you have already

logged in to either the ARN monitor or Technician Interface command line

software. For instructions, see “Logging in to the Command Line Software” on

page 2-7.

Note: Keep a record of the complete ifconfig command, because you need it

for future reference.

Starting the ARN

114200-E Rev 00 2-9

The getcfg command shows the source location, either local or network, of

the boot image file and the network configuration file. It also shows the

interface configuration settings that you specified using the ifconfig

command.

If getcfg displays the correct information, continue to the next step.

Otherwise, reenter the correct ifconfig command. If you need assistance,

contact your network administrator.

3. Enter the following command and press the Return key to boot the ARN:

boot

Your console displays messages indicating the progress of the netboot

procedure.

4. Ensure that the ARN boots correctly and successfully connects to the

network.

When the ARN boots, its LEDs flash in a particular order. To ensure that the

installation was successful, see “Ensuring a Successful Installation” on

page 3-9.

Contact your network administrator to verify that the ARN is now connected

to the network. Your network administrator can refer to Configuring Passport

Remote Access to troubleshoot any problems.

If you need additional assistance, contact your local Nortel Networks

Technical Solutions Center.

Note: If the ARN cannot find a software image file or a configuration file

using the netboot procedure, it attempts to local boot once. If both attempts

fail, the ARN continues to netboot and local boot until it boots successfully. If

the ARN remains in this loop, follow the steps in “Interrupting the Boot

Process” on page 2-6.

Note: After connecting the ARN to the network, you can replace the local

management console with a modem connection to enable remote dial-in

access.

Installing and Operating Passport ARN Routers

2-10 114200-E Rev 00

Continuing with Directed Netboot

You must have at least one serial, 56/64K DSU/CSU, Ethernet, or token ring

interface connected to the network to use the directed netboot option. Before you

start the directed netboot procedure, ask your network administrator to:

•Verify that the network is set up so that you can start the directed netboot

procedure.

•Provide you with the parameter arguments to the interface configuration

command ifconfig you will use in Step 1.

The ifconfig command configures the parameters necessary to load the

software image file and the configuration file from a remote server over the

network.

•Provide you with the boot configuration commands (bconfig) to use in

Step 2.

The bconfig command lets you specify the location of a startup file. To use

directed netboot, the location must include the following information:

-- The source (either local or network) of the image file and the

configuration file

-- The address of the TFTP server

-- The full directory path description locating the files on the TFTP server

You can use the ARN monitor, Technician Interface, or Site Manager to perform

directed netboot. However, this guide assumes that you are using either the ARN

monitor or the Technician Interface. To manage the ARN from a remote site, refer

to Configuring Remote Access for AN and Passport ARN Routers.

Note: Continuing with the netboot option requires that you have already

logged in to either the ARN monitor or Technician Interface command line

software. For instructions, see “Logging in to the Command Line Software” on

page 2-7.

Note: Keep a record of the complete commands; you need them for future

reference.

Starting the ARN

114200-E Rev 00 2-11

To use the directed netboot feature:

1. At the command line prompt, enter the ifconfig command provided to you

by your network administrator and press the Return key.

The following is a sample command:

ifconfig com1 9.0.0.2 255.0.0.0 9.0.0.3

For more information about the ifconfig command, see “Using the ifconfig

Command” on page A-2.

2. Enter the bconfig commands provided by your network administrator

and press the Return key.

You must enter one bconfig command to specify the location of the software

image, and another to specify the location of the configuration file.

The following are sample commands:

bconfig image network 192.32.5.8 /usr/arnstartup/arn.exe

bconfig config network 192.32.5.8 /usr/arnstartup/config

For more information about the bconfig command, see “Using the bconfig

Command” on page A-7.

3. Type the following command and press the Return key to verify the

configuration you specified in Step 3:

getcfg

The get configuration data command getcfg shows the location of the boot

image file and network configuration file, the interface configuration settings

that you specified using the ifconfig command, as well as the TFTP server

information and file paths that you specified using the bconfig commands.

Verify the interface configuration, as shown in Figure 2-1.

Installing and Operating Passport ARN Routers

2-12 114200-E Rev 00

Figure 2-1. Verifying Directed Netboot Configuration

If getcfg displays the correct information, continue to Step 4. Otherwise,

correct and reenter the ifconfig and bconfig commands. If you need

assistance, contact your network administrator.

4. Type the following command and press the Return key to boot the ARN:

boot

5. Ensure that the ARN boots correctly.

When the ARN boots, its LEDs flash in a particular order. To ensure that the

installation was successful, see “Ensuring a Successful Installation” on

“Ensuring a Successful Installation” on page 3-9.

Note: If the ARN cannot find a software image file or a configuration file

using the directed netboot procedure, it attempts to netboot once. If the netboot

procedure fails, the ARN tries to local boot once. If all three boot attempts fail,

the ARN continues to try directed netboot, netboot, and local boot until it

boots successfully. If the ARN remains in this loop, follow the steps in

“Interrupting the Boot Process” on page 2-6.

ARN0080A

$ getcfg

Boot Options

boot image = network

boot config = network

host IP address = 192.32.5.8

image pathname =

"/usr/arnstartup/krnl_arn.exe"

config pathname =

"/usr/arnstartup/config"

Netboot Parameters:

MAU1...None

XCVR2..None

COM1...IP=9.0.0.2, Mask=255.0.0.0, Next Hop=9.0.0.3

COM2...EZ-Install (disabled)

COM3...EZ-Install (disabled)

COM4...EZ-Install (disabled)

COM5...EZ-Install (disabled)

Starting the ARN

114200-E Rev 00 2-13

6. Ensure that the ARN is successfully connected to your network.

To verify that the ARN is now connected to the network, contact your network

administrator. To troubleshoot any problems, your network administrator can

refer to Configuring Passport Remote Access.

If you need additional assistance, contact your local Nortel Networks

Technical Solutions Center.

Continuing with Local Boot (the Quick-Start Procedure)

You can use either the ARN monitor or the Technician Interface to configure the

ARN to local boot. However, you must use the Technician Interface to run the

Quick-Start script.

To use the local boot feature:

1. At the command line prompt, type the following command and press the

Return key to configure the ARN to use its local config file:

bconfig config local

Note: After connecting the ARN to the network, you can replace the

management console connection with a modem connection to enable remote

dial-in access.

Note: Continuing with the netboot option requires that you have already

logged in to either the ARN monitor or Technician Interface command line

software. For instructions, see “Logging in to the Command Line Software” on

page 2-7.

Note: Before starting the local boot procedure, ask your network administrator

to assist you in completing the Quick-Start worksheets in Appendix B.

Note: Since the default setting for finding the software image is local; you do

not have to change this setting for the local boot option.

Installing and Operating Passport ARN Routers

2-14 114200-E Rev 00

2. Type the following command and press the Return key to boot the ARN:

boot

3. Ensure that the ARN boots correctly.

When the ARN boots, its LEDs flash in a particular order. To ensure that the

installation was successful, see “Ensuring a Successful Installation” on

page 3-9.

After the ARN boots using its local software image and configuration file, the

Technician Interface login prompt appears.

4. Type the following command (noting the use of an uppercase “M”) at the

Manager

The Technician Interface prompt ($) appears.

5. Enter the following command and press the Return key to run the

Quick-Start script:

run inst_arn.bat

The Quick-Start script begins running.

6. Using your completed Quick-Start worksheet from Appendix B, enter the

appropriate network information as the prompts appear.

The ARN uses this information to configure interfaces to the network.

For sample Quick-Start screen output and for information on using

Quick-Start commands, see Appendix B.

7. Choose whether you want to configure another module/port.

Note: If the ARN tries to local boot and cannot find a software image file or a

configuration file, it attempts to netboot once. If both attempts fail, the ARN

continues to local boot and netboot until it boots successfully. If the ARN

remains in this loop, follow the steps in “Interrupting the Boot Process” on

page 2-6.

Note: To check the contents of the router local file system on the installed

flash memory card, type dir and press the Return key. The arn.exe software

image, config file, and inst_arn.bat file should appear among the files listed.

Starting the ARN

114200-E Rev 00 2-15

Entering n stops the Quick-Start script and returns you to the Technician

interface prompt. Entering y allows you to configure another module/port.

When the install script completes, the ARN starts bridging and routing traffic.

8. Ensure that the ARN is successfully connected to your network.

To verify that the ARN is now connected to the network, contact your network

administrator. To troubleshoot any problems, your network administrator can

refer to Configuring Passport Remote Access.

If you need additional assistance, contact your local Nortel Networks

Technical Solutions Center.

Where to Go Next

Use the following table to determine where you want to go next.

Note: After connecting the ARN to the network, you can replace the

management console connection with a modem connection to enable remote

dial-in access.

For information about Go to

Operating the ARN Chapter 3

Configuring the ARN for Netboot and

Directed Netboot

Appendix A

Using Local Boot (the Quick-Start Procedure) Appendix B

ARN Technical Specifications Appendix C

114200-E Rev 00 3-1

Chapter 3

Operating the ARN

This chapter describes how to operate the Passport ARN router, as follows:

Understanding the ARN LEDs

Light-emitting diodes (LEDs) on the ARN provide information about how the

ARN is operating. The following sections describe the ARN LEDs:

•Base Module LEDs

•Expansion Module LEDs

•Adapter Module LEDs

Topic Page

Understanding LED descriptions 3-1

Ensuring a successful installation 3-9

Powering on and off the ARN 3-11

Resetting the ARN 3-12

Removing a flash memory card 3-13

Protecting memory card files 3-14

Where to go next 3-15

Note: For information about LEDs on the optional V.34 Modem Console

module on the ARN back panel, see Table 3-14 on page 3-9.

Installing and Operating Passport ARN Routers

3-2 114200-E Rev 00

Base Module LEDs

The base module includes diagnostic LEDs and LAN interface LEDs, visible on

the front panel of the ARN.

Diagnostic LEDs

The base module diagnostic LEDs (Figure 3-1) indicate the status of the ARN

itself. All of these LEDs light briefly when you turn on the ARN power switch.

Figure 3-1. ARN Base Module Diagnostic LEDs

Table 3-1 describes the base module diagnostic LEDs.

Table 3-1. Base Module Diagnostic LEDs

LED Meaning

Run Flashes for 1 to 3 minutes, indicating that diagnostic tests are running.

When it lights again and remains on, the ARN is operational.

Boot Lights for 1 to 3 minutes, indicating that diagnostic tests were

successful and the ARN is booting.

Fail Lights again and remains on when diagnostic failure occurs.

Pwr Lights and remains on when the ARN is on and receiving power.

(continued)

Run

Boot

Fail

Pwr

RPS

Fan

Base

Adapter1

Adapter2

Expansion

DCM

PCMCIA

ARN0059A

COM3 COM4 COM5

COM

RLSD Run

Boot

Diag

Pwr

RPS

Fan

Base

Adapter1

Adapter2

Expansion

DCM

PCMCIA

Advanced Remote Node

RLSD3

RLSD4

RLSD5

Serial

ISDN BRI

withNT1

10BaseT AUI

Ethernet 1

10BaseT AUI

Ethernet 2

Operating the ARN

114200-E Rev 00 3-3

Ethernet 10BASE-T LEDs

Table 3-2 describes the base module Ethernet 10BASE-T LEDs.

RPS Lights and remains on when the redundant power supply (optional) is

operating.

Fan Lights and remains on if one or more ARN cooling fans stop operating.

Base Lights and remains on when the base module is operating properly.

Flashes slowly to indicate that the module is running its diagnostic

tests. Flashes rapidly to indicate that the module failed its diagnostic

tests.

Adapter1 Lights and remains on when adapter module #1 is operating properly.

Flashes slowly to indicate that the module is running its diagnostic

tests. Flashes rapidly to indicate that the module failed its diagnostic

tests.

Adapter2 Lights and remains on when adapter module #2 is operating properly.

Flashes slowly to indicate that the module is running its diagnostic

tests. Flashes rapidly to indicate that the module failed its diagnostic

tests.

Expansion Lights and remains on when an expansion module is installed and

operating properly. Flashes slowly to indicate that the module is running

its diagnostic tests. Flashes rapidly to indicate that the module failed its

diagnostic tests.

DCM Lights and remains on when an RMON DCM is installed and operating

properly. Flashes slowly to indicate that the module is running its

diagnostic tests. Flashes rapidly to indicate that the module failed its

diagnostic tests.

PCMCIA Lights and remains on when the ARN contains a flash memory card in

its PCMCIA slot.

Table 3-2. Base Module Ethernet 10BASE-T LEDs

LED Meaning

Tx (Transmit) Lights when the Ethernet interface transmits data.

Rx (Receive) Lights when the Ethernet interface receives data.

Cl (Collision) Lights when the Ethernet interface detects a collision.

Table 3-1. Base Module Diagnostic LEDs

(continued)

LED Meaning

Installing and Operating Passport ARN Routers

3-4 114200-E Rev 00

Ethernet 10/100BASE-Tx LEDs

Table 3-3 describes the base module Ethernet 10/100BASE-Tx LEDs.

Ethernet 100BASE-Fx LEDs

Table 3-4 describes the base module Ethernet 100Base-Fx LEDs.

Token Ring LEDs

Table 3-5 describes the base module token ring LEDs.

Table 3-3. Base Module Ethernet 10/100BASE-Tx LEDs

LED Meaning

TX (Transmit) Lights when the Ethernet interface transmits data.

RX (Receive) Lights when the Ethernet interface receives data.

CL (Collision) Lights when the Ethernet interface detects a collision.

Link Lights when the Ethernet interface has an established link.

100 Lights when the Ethernet interface is running at 100Mbps. If not

lit, the interface is running at 10Mbps.

Table 3-4. Base Module Ethernet 100Base-Fx LEDs

LED Meaning

TX (Transmit) Lights when the Ethernet interface transmits data.

RX (Receive) Lights when the Ethernet interface receives data.

Link Lights when the Ethernet interface has an established link.

100 Lights when the Ethernet interface is running at 100Mbps.

Table 3-5. Base Module Token Ring LEDs

LED Meaning

RCVR (Receiver) Lights when the token ring interface is connected to the

network.

NSRT (Insert) Lights when you insert the ARN into the token ring network.

WFLT (Wire Fault) Lights when the token ring hardware detects a wire fault

condition.

Operating the ARN

114200-E Rev 00 3-5

Expansion Module LEDs

When the ARN has an installed expansion module, its interface LEDs are visible

on the front panel. For the location of the optional ARN expansion module, see

Figure 1-4 on page 1-9.

Ethernet LEDs

Table 3-6 describes the expansion module LEDs for the second Ethernet2

interface.

Token Ring LEDs

Table 3-7 describes the expansion module token ring LEDs.

Note: The ARN base module boots to a fully operational state before bringing

up expansion module interfaces.

Table 3-6. Expansion Module Ethernet LEDs

LED Meaning

Tx (Transmit) Lights when the Ethernet interface is transmitting data over

the network.

Rx (Receive) Lights when the Ethernet interface is receiving data from the

network.

Cl (Collision) Lights when the Ethernet interface detects a collision on the

network.

Table 3-7. Expansion Module Token Ring LEDs

LED Meaning

RCVR (Receiver) Lights when the token ring interface is connected to the

network.

NSRT (Insert) Lights when you insert the ARN into the token ring network.

WFLT (Wire Fault) Lights when the token ring hardware detects a wire fault

condition.

Installing and Operating Passport ARN Routers

3-6 114200-E Rev 00

Serial LEDs

Table 3-8 describes the expansion module serial interface LEDs.

Adapter Module LEDs

When the ARN/DC has an optional adapter module installed, its interface LEDs

are visible on the front panel. For the location of the two ARN/DC adapter module

slots, see Figure 1-4 on page 1-9.

Serial LED

Table 3-9 describes the serial adapter module LED.

Table 3-8. Expansion Module Serial LEDs

LED Meaning

RLSD3

(Received Line

Signal Detection 3)

Lights when Received Line Signal Detection is active on

COM 3.

RLSD4

(Received Line

Signal Detection 4)

Lights when Received Line Signal Detection is active on

COM 4.

RLSD5

(Received Line

Signal Detection 5)

Lights when Received Line Signal Detection is active on

COM 5.

Note: The ARN base module boots to a fully operational state before bringing

up adapter module interfaces.

Table 3-9. Serial LED

LED Meaning

RLSD Lights when Received Line Signal Detection is active on the

serial interface.

Operating the ARN

114200-E Rev 00 3-7

ISDN BRI LEDs (S/T or U Interfaces)

Table 3-10 describes the ISDN adapter module LEDs.

56/64K DSU/CSU LEDs

Table 3-11 describes the 56/64K DSU/CSU adapter module LEDs.

Table 3-10. ISDN BRI LEDs

LED Meaning

S/T Interface

Unlabeled LED Lights when the ARN is using the D-channel.

U Interface

(D-channel; 16-KB

Management Channel)

Lights when the ARN is using the D-channel.

(Data Detect)

Lights when the ISDN-BRI interface detects connection to an

external device (that is, a switch).

(B-Channel #1; 64-KB

Data Channel)

Lights when the ARN is using B-channel #1.

(B-Channel #2; 64-KB

Data Channel)

Lights when the ARN is using B-channel #2.

Table 3-11. 56/64K DSU/CSU LEDs

LED Meaning

TxD

(Transmit Data)

Lights when the 56/64K DSU/CSU interface transmits data

over the network.

RxD

(Receive Data)

Lights when the 56/64K DSU/CSU interface receives data

from the network.

(Carrier Detect)

Lights when the 56/64K DSU/CSU interface detects a

connection to another device.

Test Lights when the 56/64K DSU/CSU interface is in test or

loopback mode.

Installing and Operating Passport ARN Routers

3-8 114200-E Rev 00

FT1/T1 and FE1/E1 DSU/CSU LEDs

Table 3-12 describes the FT1/T1 and FE1/E1 DSU/CSU adapter module LEDs.

X.25 PAD LEDs

Table 3-13 describes the X.25 PAD adapter module LEDs.

V.34 Modem LEDs

Table 3-14 describes the front-panel V.34 modem adapter module LEDs.

Table 3-12. FT1/T1 and FE1/E1 DSU/CSU LEDs

LED Meaning

Red ALM Lights when the port is in a red alarm state.

Yellow ALM Lights when the DSU/CSU receives a yellow alarm signal

from the network.

Loop Lights when you set the interface to loopback mode.

Synch Lights when the port is synchronized with the T1/E1 network.

Table 3-13. X.25 PAD LEDs

LED Meaning

TxD

(Transmit Data)

Lights when the X.25 PAD interface transmits data over the

network.

RxD

(Receive Data)

Lights when the X.25 PAD interface receives data from the

network.

Note: The ARN back-panel supports an optional V.34 Console Modem

module. Table 3-14 also applies to these LEDs.

Operating the ARN

114200-E Rev 00 3-9

Ensuring a Successful Installation

After connecting the ARN to the network, you can ensure a successful installation

by checking the diagnostic LEDs on the front panel of the base module (refer to

Figure 3-1 on page 3-2).

When you power on the ARN, the following sequence of front panel LED activity

should occur:

•All base module LEDs light momentarily; this tests that the LEDs are

operational.

•The Run, Boot, and Fail LEDs count through a short, initial startup sequence.

•The Pwr (power) LED lights and remains on.

•The Run LED begins flashing and continues to flash until the ARN completes

all diagnostic tests.

•As the diagnostic procedure tests each module, the LED representing that

module flashes slowly. If the module passes its diagnostic test, the LED

remains on. If the module fails its diagnostic test, the Fail LED remains on

and the module LED flashes rapidly.

•After completing the diagnostic testing procedure, the boot process begins.

The Run and Boot LEDs indicate the boot status as shown in Table 3-15.

Table 3-14. V.34 Modem LEDs

LED Meaning

(Transmit)

Lights when the V.34 modem interface transmits data over the

network.

(Receive)

Lights when the V.34 modem interface receives data from the

network.

RLSD

(Received Line

Signal Detection)

Lights when the modem activates.

DTR

(Data Terminal Ready)

Lights when the V.34 modem interface is ready to transmit

data.

Installing and Operating Passport ARN Routers

3-10 114200-E Rev 00

•After the boot process completes, the Run LED lights and the Boot LED turns

off, indicating that the ARN is operational.

If the LEDs on the ARN light in this sequence, your installation is successful.

Contact your network administrator to verify that the ARN is now connected to

the network.

If the LEDs do not light in this sequence, your network administrator can refer to

Configuring Remote Access for AN and Passport ARN Routers to help

troubleshoot the problem.

If you need additional assistance, contact your local Nortel Networks Technical

Solutions Center.

Table 3-15. Boot Status LEDs

Boot Status Run LED Boot LED

Local Boot Off On

Netboot (attempting) Off Flashing

Netboot (downloading) Flashing On

Interrupted (using ARN monitor) Flashing Flashing

Note: If the ARN does not contain an expansion module, an adapter module, a

redundant power supply, a data collection module, or a flash card, the LEDs

associated with these components remain off.

Operating the ARN

114200-E Rev 00 3-11

Powering On and Off

The ARN power switch is located on the back panel (Figure 3-2).

Figure 3-2. ARN Power Switch

To power on an ARN, press the power switch to the ON position (1). Verify that

air is flowing by placing your hand next to the fan vents. If you cannot feel air

flowing from the vents, and either the Pwr and Fail LEDs do not light or the Fail

LED remains on, turn the power switch to the OFF position. Wait one minute and

then turn the power switch to the ON position.

If the ARN does not turn on, check the power cable connections. See “Connecting

the Power Cable” on page 1-29 for information. If the ARN will not power on,

contact the Nortel Networks Technical Solutions Center.

To power off the ARN, press the power switch to the OFF position (0).

Note: To ensure a complete power cycle, you should wait at least 4 seconds

between powering off the ARN and powering it back on.

Caution: Cycling power to the ARN too quickly could cause an error.

ARN0019A

Power switch

Console Modem

100-240~

1.2A

50-60Hz

Redundant Power

Installing and Operating Passport ARN Routers

3-12 114200-E Rev 00

Resetting the ARN

The Reset button is set inside the ARN back panel and resides next to the flash

card slot, as shown in Figure 3-3.

Figure 3-3. ARN Reset Button

To press the Reset button, insert a small pointed object (for example, a paper clip)

into the Reset button hole.

Yo u can use the Reset button to reboot the ARN hardware without cycling power,

as follows:

•To warm-boot the ARN (no diagnostic tests run), press the Reset button for

less than 5 seconds.

•To cold-boot the ARN (diagnostic tests run), press the Reset button for more

than 5 seconds.

Note: If you reset the ARN while it is running its diagnostic tests, the LEDs

remain in the state they were in when you pressed the Reset button. You must

cycle power on the ARN to reset the LEDs.

ARN0052A

Reset button

Console Modem

100-240~

1.2A

50-60Hz

Redundant Power

Operating the ARN

114200-E Rev 00 3-13

Removing a Flash Memory Card

To remove a memory card from an ARN:

1. Press the eject button next to the card receptacle on the back panel.

The card pops out slightly.

2. Pull the memory card out of the card receptacle.

See Figure 3-4.

Figure 3-4. Removing an ARN Flash Memory Card

To insert another memory card into the receptacle, refer to “Installing the Flash

Memory Card” on page 1-31.

When you remove a formatted memory card, the nonvolatile file system (NVFS)

automatically removes access to the card. When you insert and format a card or

insert an already formatted card, the NVFS automatically provides access.

Caution: Do not remove the flash memory card while the router is operating.

Removing the memory card interferes with current networking operations.

ARN0053A

Console Modem

100-240~

1.2A

50-60Hz

Redundant Power

Installing and Operating Passport ARN Routers

3-14 114200-E Rev 00

Protecting Memory Card Files

Nortel Networks ships each memory card with its read/write protect switch in the

unprotected position (Figure 3-5). After successfully loading the configuration file

and saving your configuration, you may want to write-protect the memory card for

backup purposes.

To change memory card protection, complete the following steps:

1. Remove the memory card as described on page 3-13.

2. Adjust the read-write protect switch, which is located on the edge

opposite the INSERT arrow of the memory card (Figure 3-5).

Figure 3-5. Memory Card Read/Write Protect Switch

3. Reinsert the memory card into the card receptacle (refer to Figure 1-27

on page 1-31).

Note: You typically do not operate the ARN with a write-protected memory

card. You should make a copy of your configuration on another memory card,

write-protect that card, and store it in a safe place.

Protected

Unprotected

Insert

6948

Operating the ARN

114200-E Rev 00 3-15

Where to Go Next

Use the following table to determine where you want to go next.

For information about Go to

Installing the ARN Chapter 2

Configuring the ARN for Netboot and

Directed Netboot

Appendix A

Using Local Boot (the Quick-Start Procedure) Appendix B

ARN Technical Specifications Appendix C

114200-E Rev 00 4-1

Chapter 4

Installing a WAN Adapter Module

This chapter describes how to install a wide area network (WAN) adapter module

in the ARN.

Preparing for Installation

Before installing the module, examine the contents of your adapter module

upgrade kit. If any parts appear damaged, call the Nortel Networks Technical

Solutions Center immediately.

Topic Page

Preparing for Installation 4-1

Installing an Adapter Module 4-6

What to Do Next 4-8

Note: This chapter provides generic instructions that apply to all ARN WAN

adapter modules. For specific information about the module you are installing,

this document refers to a module-specific Supplement, which ships in the

adapter module upgrade kit.

Installing and Operating Passport ARN Routers

4-2 114200-E Rev 00

Downloading New Boot and Diagnostic Code

When installating an adapter module as an upgrade to your existing hardware

configuration, you must verify that the ARN contains the minimum required

version of programmable read-only memory (PROM) code for the module you are

installing. BayRS release media includes the latest boot and diagnostic code at the

time it is shipped, but if your upgrade requires newer code, you must manually

download it to the router PROM.

To determine which version of boot and diagnostic code you need when installing

a particular adapter module, see see the module-specific Supplement that ships

with the module, and to the Document Change Notice or the Release Notes

distributed with your BayRS release. For instructions on how to upgrade the

PROM code in flash memory, refer to the Upgrading Routers guide.

Powering Down

Before installing a WAN adapter module:

1. Turn off the ARN.

Set the power switch to 0, off (refer to Figure 1-25 on page 1-30).

2. If present, turn off or disconnect the redundant power supply.

3. Attach an antistatic wrist strap.

You receive an antistatic wrist strap with the adapter module. See the

instructions included with the wrist strap.

The wrist strap directs static electricity from your body to the router chassis,

preventing discharge to sensitive electronic components.

Warning: You cannot hot-swap ARN WAN adapter modules.

Caution: Electrostatic discharge can damage hardware. You must wear the

antistatic wrist strap whenever you handle printed circuit boards.

Installing a WAN Adapter Module

114200-E Rev 00 4-3

4. Determine which of the two front-panel adapter module slots to use

(Figure 4-1).

Figure 4-1. Location of Adapter Module Slots 1 and 2

5. Remove the installed adapter module or the slot filler panel.

•To install the adapter module in an empty slot, go to

“Removing the Filler Panel” on page 4-3.

•To replace an installed adapter module, go to

“Removing an Adapter Module” on page 4-5.

Removing the Filler Panel

To remove the filler panel from an empty adapter module slot:

1. Using a Phillips screwdriver, remove the screw that secures the filler

panel in either slot 1 or slot 2 (Figure 4-2).

ARN0076A

ARN front panel

Telco Tx

RLSD

DTR

DSU/CSU

Installing and Operating Passport ARN Routers

4-4 114200-E Rev 00

Figure 4-2. Removing the Filler Panel from Slot 1

2. Grasp the metal tab on the filler panel and pull forward to remove the

panel.

3. Set the filler panel aside.

To operate the ARN without an adapter module in this slot, you must reinstall

the filler panel.

4. Skip the next section and go to “Installing an Adapter Module” on

page 4-6.

ARN0077A

Metal tab on filler panel

Telco Tx

RLSD

DTR

DSU/CSU

Installing a WAN Adapter Module

114200-E Rev 00 4-5

Removing an Adapter Module

To remove a WAN adapter module:

1. Using a Phillips screwdriver, remove the screw that secures the adapter

module you want to remove (Figure 4-3).

Figure 4-3. Removing the Adapter Module Screw

2. Pull the adapter module toward you to detach it from the base module

connector in the ARN chassis.

Grasp the adapter module’s metal tab, or insert a thin tool (such as a flathead

screwdriver) in the slot on the tab.

Be prepared to apply some force, but stop pulling immediately when the

adapter module is free from the base module connector.

3. Slide the adapter module all the way out of the slot.

4. Place the adapter module in an antistatic bag.

5. Go to the next section, “Installing an Adapter Module.”

ISDN

DSU/CSU

ARN0033A

Installing and Operating Passport ARN Routers

4-6 114200-E Rev 00

Installing an Adapter Module

To install a WAN adapter module:

1. Hold the adapter module with the components facing up (Figure 4-4).

Figure 4-4. Adapter Module Ready for Installation

2. Slide the adapter module into the slot, making sure that the slot guides

engage both sides of the adapter module (Figure 4-5).

Figure 4-5. Inserting the Adapter Module

ARN0038A

Base module connector

ARN0032A

Installing a WAN Adapter Module

114200-E Rev 00 4-7

3. Push the adapter module in until its connector pins align with the base

module connector socket in the ARN chassis.

4. Using a Phillips screwdriver, insert and tighten the screw (Figure 4-6).

Figure 4-6. Securing the Adapter Module to the Front Panel

5. Remove the antistatic wrist strap.

6. Connect the appropriate WAN cabling to the new interface.

For cabling information, see the module-specific Supplement and the Nortel

Networks Cable Guide.

7. Turn power on, and check the diagnostic LEDs on the front panel of the

base module.

See ““Ensuring a Successful Installation” on page 3-9.

If the module fails its diagnostic test, the Fail LED remains on and the module

LED flashes rapidly.

Note: See your module-specific Supplement for information about the LEDs

on the newly installed module. The new module’s LEDs will not indicate data

transfer until you have configured and enabled software services.

ISDN

DSU/CSU

ARN0033A

Installing and Operating Passport ARN Routers

4-8 114200-E Rev 00

What to Do Next

Before you can use the WAN adapter module after installation, you must start the

router on the network and modify its configuration file to include the new

interface.

See your module-specific Supplement for a list of software installation tasks and

related documentation.

Please note the following:

•BayRS recognizes the ARN WAN adapter module interfaces by their

front-panel slot number. For example, even if there is no adapter module

installed in slot 1, the interface in slot 2 is named COM2 or ISDN2.

•Configuring software for additional interfaces may increase the ARN memory

requirements.

114200-E Rev 00 A-1

Appendix A

Configuring the ARN for Netboot and

Directed Netboot

This appendix describes how to configure the Passport ARN router for Netboot

and Directed Netboot, as follows:

The ifconfig and bconfig commands configure the ARN for netboot and directed

netboot.

•Use the ifconfig command to configure the router initial IP interface to the

network. You need this information to complete the procedure in “Continuing

with Netboot” on page 2-8.

•Use the bconfig command to specify the location and name of the ARN

software image file and the configuration file. You need this information to

complete the procedure in “Continuing with Directed Netboot” on page 2-10.

To determine the appropriate ifconfig command and bconfig commands for the

ARN at your site, contact your network administrator. (Your network

administrator has information on these commands in Configuring Passport

Remote Access.)

Topic Page

Using the ifconfig command A-2

Using the bconfig command A-7

Verifying your configuration A-8

Installing and Operating Passport ARN Routers

A-2 114200-E Rev 00

Using the ifconfig Command

A router interface cannot communicate in an IP network without an IP address.

Because an ARN netboots over one of its serial, 56/64K DSU/CSU, Ethernet, or

token ring links, the netboot interface must have a valid IP address.

You use the interface configuration command ifconfig to do the following:

•Configure the router’s initial IP interface to the network. (The initial IP

interface should be a serial interface if you are using EZ-Install.) You also use

the same procedure to configure other serial interfaces for the netbooting

procedure.

•Configure Ethernet or token ring interfaces for the netbooting procedure.

•Enable or disable netbooting on an interface.

Configuring an IP Serial or 56/64K DSU/CSU Interface for Netbooting

Configure a serial or 56/64K DSU/CSU (COM) interface to the IP network using

the following interface configuration command:

ifconfig [<

synchronous_options>

]

[

<IP_address> <subnet_mask>

[

<next_hop_address>

]]

The

synchronous options

variable indicates some combination of the following

settings:

[-d | -r [56 | 64] | -fr [-annexd | -lmi | -annexa]| -int_clk]

Note: Make sure to separate command options with spaces.

Configuring the ARN for Netboot and Directed Netboot

114200-E Rev 00 A-3

Table A-1 describes the ifconfig command settings for configuring a COM

interface.

Table A-1. COM Interface ifconfig Command Settings

Setting Description

Default Setting

-d Resets the router IP interface settings to the default values. This

setting tries four WAN configurations in the following order until it finds

the correct type for the router connection to the network:

1. Nortel Networks HDLC encapsulation (also referred to as

Nortel Networks Standard Point-to-Point) with external clocking

2. Frame Relay Annex D

3. Frame Relay LMI

4. Frame Relay Annex A

56/64K CSU/DSU Settings

-r Configures 56/64K telco service for 56K DDS or 64K Clear Channel.

Use one of the following options: 56 or 64.

Frame Relay Settings

-fr Configures the router COM interface as a frame relay connection.

With this setting, use one of the following options to specify a DLCMI

setting: -annexd, -annexa, or -lmi.

-annexd

-annexa

-lmi

When one of these options is used with the -fr setting, it specifies a

DLCMI setting. Use the same setting as the network to which the

router’s frame relay interface is connected. The default setting for

frame relay is -annexd.

Internal Clocking Setting

-int_clk Sets the serial interface to internal clocking at 1.25 MB/s. If you do not

specify this setting, the router defaults to external clocking.

IP Connector Setting

Specifies the IP connector you are configuring. Use the format

com<

port #

IP Address Settings

<IP_address>

Specifies the IP address of the interface you set with

Provide this address in dotted decimal notation.

(continued)

Installing and Operating Passport ARN Routers

A-4 114200-E Rev 00

Configuring an Ethernet Interface for Network Booting

To configure any ARN Ethernet interface for network booting, use the following

command format:

ifconfig [-d]

[

<IP_address> <subnet_mask>

[

<next_hop_address>

]]

Table A-2 describes the ifconfig command settings for configuring the router’s

Ethernet interface.

<subnet_mask>

Specifies the IP subnet mask of the interface you set with

Provide this address in dotted decimal notation.

<next_hop_

address>

Specifies the IP address of the next-hop router. Provide this address

in dotted decimal notation. Specify this address only if there are

intermediate routers between the router and the BootP server.

Table A-2. Ethernet Interface ifconfig Command Settings

Setting Description

Default Setting

-d Resets the router IP interface settings to the default values. Resetting

an Ethernet interface makes it inactive in the network booting process.

(The output of the getcfg command shows the default as None.)

IP Connector Setting

Specifies the IP connector you are configuring. Use the format

xcvr<

port

#>.

IP Address Settings

<IP_address>

Specifies the IP address of the interface you set with

Provide this address in dotted decimal notation.

<subnet_mask>

Specifies the IP subnet mask of the interface you set with

Provide this address in dotted decimal notation.

<next_hop_

address>

Specifies the IP address of the next-hop router. Provide this address in

dotted decimal notation. Specify this address only if there are

intermediate routers between the router and the BootP server.

Table A-1. COM Interface ifconfig Command Settings

(continued)

Setting Description

Configuring the ARN for Netboot and Directed Netboot

114200-E Rev 00 A-5

Configuring a Token Ring Interface for Network Booting

To configure an ARN token ring interface for network booting, use the following

command format:

ifconfig [-d] [ -r<

speed

> ]

[

<IP_address> <subnet_mask>

[

<next_hop_address>

]]

Table A-3 describes the ifconfig command settings for configuring the router

token ring interface.

Table A-3. Token Ring Interface ifconfig Command Settings

Setting Description

Default Setting

-d Resets the router IP interface settings to the default values. Resetting

a token ring interface makes it inactive in the network booting process.

(The output of the getcfg command shows the default as None.)

IP Connector Setting

-r

<speed>

Specifies the speed of the token ring interface. Enter either 16 or 4

(Mb/s). The default is 16 Mb/s.

Specifies the IP connector you are configuring. Use the format

mau<

port

#>.

IP Address Settings

<IP_address>

Specifies the IP address of the interface you set with

Provide this address in dotted decimal notation.

<subnet_mask>

Specifies the IP subnet mask of the interface you set with

Provide this address in dotted decimal notation.

<next_hop_

address>

Specifies the IP address of the next-hop router. Provide this address in

dotted decimal notation. Specify this address only if there are

intermediate routers between the router and the BootP server.

Installing and Operating Passport ARN Routers

A-6 114200-E Rev 00

Enabling and Disabling Interfaces with ifconfig

To enable or disable an ARN interface for the network boot process, use the

following command formats:

ifconfig -disable

ifconfig -enable

Table A-4 describes the ifconfig command settings for enabling and disabling

interfaces for network booting.

Examples of ifconfig Commands

1. Configure the current interface for the default Netboot procedure.

ifconfig -d

2. Specify the IP address and subnet mask of the base module Ethernet interface.

ifconfig xcvr1 21.3.5.62 255.255.255.0

3. Specify the IP address and subnet mask of the expansion module Ethernet

interface.

ifconfig xcvr2 21.3.5.61 255.255.255.0

4. Configure the IP address and frame relay DLCMI of the third serial interface

on the expansion module.

ifconfig com3 21.3.5.62 -fr -annexa

5. Specify the IP address and subnet mask of the base module token ring

interface.

ifconfig mau1 21.3.4.77 255.255.255.0

Table A-4. ifconfig Settings to Enable and Disable Netboot Interfaces

Setting Description

interface>

Specifies the IP connector you are enabling or disabling for network

booting. Use one of the following formats:

xcvr

com

mau

Configuring the ARN for Netboot and Directed Netboot

114200-E Rev 00 A-7

Using the bconfig Command

You use the bconfig command to configure the boot option.

•To use netboot, you use the boot configuration command bconfig to specify

that the ARN software image file or configuration file resides on the network.

•To use directed netboot, you use the bconfig command to specify the IP

address of the server and the full pathname to the software image and

configuration file.

•To use local boot, you use the bconfig command to specify that the

configuration file and software image both reside on the local file system (that

is, the PCMCIA Flash card).

Format for the bconfig Command

To configure an interface for netboot, use the following format:

bconfig -d [image | config]

To configure an interface for directed netboot, use the following format:

bconfig [image | config] [local | network [

<TFTP_host> <TFTP_pathname>

]]

You must use the bconfig command twice: once to specify the location of the

software image, and again to specify the location of the configuration file.

Refer to Table A-5 for a complete description of the bconfig command.

Table A-5. bconfig Command Settings

Option Description

image Indicates the router’s software image.

config Indicates the router’s configuration file.

local Indicates that the specified file (image or config) resides in the router’s local file system.

network Indicates that the specified file (image or config) resides on a remote file system.

<TFTP_host>

Specifies the IP address of the TFTP server. If both the software image and configuration

file are on the network, both files must reside on the same host.

<TFTP_path>

Specifies the complete pathname of the remote software image or configuration file.

-d Reverts to the default values for the software image or configuration file and nullifies any

previously specified IP address and pathname for the file, thus disabling directed netboot.

Installing and Operating Passport ARN Routers

A-8 114200-E Rev 00

Examples of bconfig Commands

1. Configure the default netboot procedure. Use a local image file and look for

the configuration file over the network using BootP.

bconfig -d image (or

bconfig image local)

bconfig -d config (or

bconfig config network)

2. Use netboot for both the image file and the configuration file.

bconfig image network

bconfig config network

3. Use a local configuration file and use directed netboot for the software image

file.

bconfig image network 21.3.5.62 /usr/mykernel.exe

bconfig config local

4. Use a local software image file and use directed netboot for the configuration

file.

bconfig image local

bconfig config network 21.3.5.62 /usr/arnstartup/config

5. Use directed netboot for both the software image file and the configuration

file.

bconfig image network 21.3.5.62 /usr/mykernel.exe

bconfig config network 21.3.5.62 /usr/arnstartup/config

Verifying Your Configuration

You can use the get configuration command getcfg to verify:

•Whether the router is set to boot using a local or remote software image

•Whether the router is set to configure using a local or remote configuration

file

•The configuration of any serial, DSU/CSU, Ethernet, and token ring

connectors

To display the ARN startup options, enter the following command:

getcfg

Configuring the ARN for Netboot and Directed Netboot

114200-E Rev 00 A-9

The following sample response shows the settings for an ARN with one Ethernet,

one token ring, and five serial interfaces:

Boot Options

boot image=local

boot config=network

Netboot Parameters:

MAU1...None

XCVR2..None

COM1...EZ-Install

COM2...EZ-Install

COM3...EZ-Install

COM4...EZ-Install

COM5...EZ-Install

114200-E Rev 00 B-1

Appendix B

Using Local Boot (the Quick-Start Procedure)

This appendix describes how to complete a local boot by running the Quick-Start

script, as follows:

This appendix explains how to local boot the ARN and create an initial Internet

Protocol (IP) interface using the Quick-Start procedure to get the ARN router up

and running on the network. (You can also configure additional interfaces using

Quick-Start, but in most cases your initial IP interface connects you to the

management workstation, where the network administrator uses Site Manager or

some other management tool to fully customize your router’s configuration.)

To start the ARN on the network using Quick-Start, you run the inst_arn.bat script

and enter information at the prompts. The ARN automatically selects options for

some prompts, and you can accept default values for many of the other prompts.

Topic Page

Prepare to run Quick-Start B-2

Understand Quick-Start connector names and numbers B-2

Fill out Quick-Start sample worksheets B-3

Run the Quick-Start script B-16

Installing and Operating Passport ARN Routers

B-2 114200-E Rev 00

Before You Run Quick-Start

To aid you in answering Quick-Start prompts, some sample worksheets are

provided. Fill them out with assistance from your network administrator. The

worksheets contain options that appear at each prompt when configuring a serial

interface, and space for you to enter your own information. If you are configuring

an interface other than the serial interface, the prompts will differ from what is

shown in the sample worksheets. In that case, use the sample worksheets only as a

guide and review the actual Quick-Start prompts and options carefully before

replying.

Be sure to fill out the worksheets and read all sections of this appendix before you

run the Quick-Start script. The sections in this appendix, “Filling Out the

Worksheets” and “Running the Quick-Start Script,” provide additional

information about the Quick-Start script.

Understanding Quick-Start Connector Names and Numbers

The Quick-Start script assigns a name and number to each interface, depending on

its location on the ARN.

In addition to either an Ethernet or token ring base module, the ARN can contain

expansion modules and adapter modules (Figure B-1).

Figure B-1. ARN Module Locations

Note: Contact your network administrator for assistance in selecting

worksheet responses.

Using Local Boot (the Quick-Start Procedure)

114200-E Rev 00 B-3

Table B-1 provides the connector names and numbers you should use during the

Quick-Start procedure.

Filling Out the Worksheets

The inst_arn.bat script provides many options for configuring the ARN on a

network. Since typical remote access uses a serial interface over a wide area

connection, this sample describes only the options involved with a serial

configuration.

We suggest the following procedure when you fill out worksheets:

1. Fill out the Global Information Worksheet completely.

The sample worksheet lists options common to all serial interface

configurations.

2. After you record your protocol selections on the Global Information

Worksheet, fill out one Router Protocol worksheet.

Table B-1. Quick-Start Connector Names and Numbers

Module

Interface*

* The Quick-Start script does not support initial ISDN, X.25 PAD, or V.34 interface

configuration.

Base Expansion Adapter 1 Adapter 2

Ethernet XCVR1 XCVR2 N/A N/A

Token Ring MAU1 MAU2 N/A N/A

Serial N/A COM3, COM4,

or COM5

COM1 COM2

56/64K, FT1/T1, or

FE1/E1 DSU/CSU

N/A N/A COM1 COM2

Note: This section provides worksheets only for a serial interface

configuration over a wide area connection. It does not contain worksheets for

LAN configuration options. If configuring a LAN interface, read the

Quick-Start text and prompts carefully before responding, as they will differ

from the serial sample.

Installing and Operating Passport ARN Routers

B-4 114200-E Rev 00

This worksheet lists specific options for RIP, OSPF, or Static Route

configurations. For example, if you select RIP as your routing protocol, you

need to fill out only the worksheet pertaining to RIP.

3. Fill out one Wide Area Protocol worksheet.

This worksheet lists specific options for Nortel Networks (proprietary)

Point-to-Point Protocol (PPP), frame relay, Standard PPP, and switched

multimegabit data service (SMDS) configurations. For example, if you select

frame relay as your wide area protocol, you need to fill out only the frame

relay worksheet.

4. Run inst_arn.bat as described in “Running the Quick-Start Script” on

page B-16.

Or, a remote-site operator runs the installation script as described in this

guide.

5. When the router has an initial connection to the network, use the guide

Configuring Remote Access for AN and Passport ARN Routerse to

configure the router using Site Manager.

Using Local Boot (the Quick-Start Procedure)

114200-E Rev 00 B-5

Global Information Worksheet

This section contains the prompts and possible options relating to all ARN serial

configurations. Write your selection in the “Your Response” column.

Global Information Worksheet

Step Requested Information Options Your Response

1 Enter the module number [1]: The script lists the available

modules that you can use to

connect the router’s IP network

interface to Site Manager.

For example, the script might

offer the following options:

1. Token Ring on Base Module

2. Serial on Adapter Module 1

3. Ethernet Tri-Serial on

Expansion Module

Enter the number

that corresponds

to the module you

want to use.

2 Driver Type: If there is only one interface on

the module you chose, the script

automatically selects the driver

type for that interface and

bypasses this prompt. Otherwise,

the script displays a menu of

driver types. The actual menu

depends on the modules you

have installed.

Choose the

Synchronous

driver.

(continued)

Installing and Operating Passport ARN Routers

B-6 114200-E Rev 00

Enter connector number [1]: If there is only one connector on

the module you chose, the script

automatically assigns a

connector number and bypasses

this prompt. Otherwise, the script

lists the available connectors. For

example, for an ARN with five

serial connectors, the options are

1. COM1

2. COM2

3. COM3

4. COM4

5. COM5

Enter clock source number [2]: 1. Internal

2. External

Enter clock speed number [10]: This prompt appears only if you

chose an Internal clock source.

The script lists a range of values,

with 64K as the default.

Enter circuit name [S#]: The script displays a default

circuit name for the COM

interface you selected (for

example, S11 for COM1 and S12

for COM2).

Press the Return

key.

(continued)

Global Information Worksheet

(continued)

Step Requested Information Options Your Response

Using Local Boot (the Quick-Start Procedure)

114200-E Rev 00 B-7

3 Enter IP address in dotted

decimal notation:

Enter the IP address for the COM

interface.

Enter IP subnetwork mask in

dotted decimal notation:

Enter the subnetwork mask for

the COM interface IP address.

Is the router connected to

the same local area network

as the Site Manager

workstation?

(y/n) [n]:

y(es)

n(o)

Press the Return

key.

Enter routing protocol

number [1]:

1. RIP

2. OSPF

3. Static Route to Site Manager

(Complete the

worksheet for the

protocol you

select.)

Enter wide area protocol

number [1]:

1. Nortel Networks

Point-to-Point Protocol

(Proprietary)

2. Frame Relay

3. Point-to-Point Protocol (PPP)

Standard

4. Switched Multimegabit Data

Service (SMDS)

(Complete the

worksheet for the

protocol you

select.)

Do you wish to set

SNMP community

management?

(y/n) [n]:

y(es)

n(o)

Setting up SNMP community

management is optional.

4 Enter (TFTP) volume number

[1]:

The script automatically selects

“1” as the TFTP default volume.

None

5 Do you want to enable

FTP? (y/n) [n]:

y(es)

n(o)

Enabling FTP is optional.

Enter (FTP) volume number

[1]:

The script automatically selects

“1” as the FTP default volume.

(continued)

Global Information Worksheet

(continued)

Step Requested Information Options Your Response

Installing and Operating Passport ARN Routers

B-8 114200-E Rev 00

Router Protocol Worksheets

This section contains requested information and possible options relating to the

routing protocol choices on the Global Worksheet.

6 Do you want to enable TI

TELNET (y/n) [n]:

y(es)

n(o)

Enabling TELNET is optional.

7 Do you wish to save this

configuration to a file? (y/n) [y]

y(es)

n(o)

Press the Return

key.

Enter filename [

startup.cfg

]: We recommend using the default

filename.

Press the Return

key.

Do you wish to set up another

port/module? (y/n) [y]

y(es)

n(o)

Ty pe n and press

the Return key.

RIP Worksheet

Requested Information Options Your Response

RIP will listen to a specific route to the

network or subnet where Site Manager

is located. If you would also like RIP to

listen to the default route (0.0.0.0.)

then answer ‘y’ below. The default

route is useful when no specific route

is available in the RIP updates

received by this router.

Should RIP listen to the default route?

(y/n) [n]:

y(es)

n(o)

(continued)

Global Information Worksheet

(continued)

Step Requested Information Options Your Response

Using Local Boot (the Quick-Start Procedure)

114200-E Rev 00 B-9

Specify the version of RIP. The default

is to run RIP1. Rip2 runs RIP2 without

the automatic aggregation of subnets

that RIP1 provides. RIG2_AGGR

provices the automatic aggregation of

subnets for RIP2.

Enter Routing Protocol Number [1]:

1. RIP1

2. RIP2

3. RIP2_AGGR

OSPF Worksheet

Requested Information Options Your Response

Enter OSPF router ID in dotted

decimal notation:

Enter an IP address to uniquely

identify the router in the OSPF

domain. The router provides the IP

address of the COM port.

We suggest using the default IP

address.

Enter the OSPF area ID in dotted

decimal notation [0.0.0.0]:

Enter the area ID. This ID must

match the area ID of the router’s

neighbor.

Note: The backbone area ID is

always 0.0.0.0.

Enable Simple Password

authentication? (y/n) [n]:

y(es)

n(o)

Note: If you answer y(es), the

router requests a password.

Password:

______________

Follow default paths for unknown

subnets? (y/n) [n]:

y(es)

n(o)

(continued)

RIP Worksheet

(continued)

Requested Information Options Your Response

Installing and Operating Passport ARN Routers

B-10 114200-E Rev 00

Enter OSPF MTU size selection [1]: 1. Default

2. Ethernet size (Nortel Networks

Series 5 compatible)

3. User Defined MTU

Enter OSPF interface type selection

[1]:

1. Broadcast

2. NBMA

3. Point-to-Point

4. Point-to-Multipoint (Proprietary)

5. Point-to-Multipoint (Per OSPF

Standard)

Note: When using a wide area

protocol other than Nortel

Networks Proprietary PPP, you

should select NBMA.

Enter decimal value in seconds for

Hello Interval [10]:

Note: This value must match all other

interfaces in the OSPF area for

connection to take place.

The script suggests the following

intervals:

Broadcast -- 10 seconds

Point-to-Point -- 15 seconds

NBMA -- 20 seconds

Point-to-MultiPoint --10 seconds

Enter decimal value in seconds for

Router Dead Interval [40]:

Note: This value must match all other

interfaces in the OSPF area for

connection to take place.

The script suggests the following

intervals:

Broadcast -- 40 seconds

Point-to-Point -- 60 seconds

NBMA -- 80 seconds

Point-to-MultiPoint (STD) -- 40

seconds

Enter decimal value for Router Priority

[1]:

(For Broadcast, NBMA, or

Point-to-MultiPoint)

Enter a router priority value. The

lower the value (above zero), the

higher the priority.

Note: If you set the router priority

to zero (0), the router is not eligible

to become the designated router

on this network.

(continued)

OSPF Worksheet

(continued)

Requested Information Options Your Response

Using Local Boot (the Quick-Start Procedure)

114200-E Rev 00 B-11

Enter decimal value in seconds for Poll

Interval [120]:

(For NBMA only)

Enter the largest number of

seconds allowed between Hello

packets that the router sends to an

inactive NBMA neighbor.

The router suggests a 120-second

interval.

Enter IP address of neighbor in dotted

decimal notation or enter q to quit:

(For NBMA only)

Enter addresses for all NBMA

neighbors you want the router to

communicate with.

When you finish entering

addresses, enter q and press the

Return key.

Enter IP address of neighbor in dotted

decimal notation:

(For PPP only)

Enter addresses for the PPP

neighbor you want the router to

communicate with.

Static Route to Site Manager Worksheet

Requested Information Options Your Response

Destination Network [0.0.0.0]: Enter the gateway address of the

destination network. An address

of 0.0.0.0 specifies the default

route.

Destination Network Mask [0.0.0.0]: Enter the subnetwork mask of

the destination network. A mask

of 0.0.0.0 specifies the default

route.

Next-Hop Address: Enter a next-hop address. All

static routes require a next-hop

address in the same subnet as

the initial IP interface.

(continued)

OSPF Worksheet

(continued)

Requested Information Options Your Response

Installing and Operating Passport ARN Routers

B-12 114200-E Rev 00

Wide Area Protocol Worksheets

This section contains requested information and possible options relating to wide

area protocol choices on the Global Worksheet.

Follow the default route for unknown

subnets? (y/n) [n]:

y(es)

n(o)

The default route does not apply

for subnets unless you enter y at

this prompt.

Nortel Networks Proprietary PPP Worksheet

Requested Information Options Your Response

Enter BofL (Breath of Life) timer value

(1-60) [5]:

Enter the maximum amount of

time that can elapse between the

successful transmission of BofL

messages.

Enter Local Address

selection [3]:

1. DCE

2. DTE

3. EXPLICIT

Note: Reverse local and remote

address values when configuring

the device at the other end of the

circuit. (Exception: When

connecting to a Series 5 router

that uses DCE/DTE addressing,

use the SAME local address

value.)

(continued)

Static Route to Site Manager Worksheet

(continued)

Requested Information Options Your Response

Using Local Boot (the Quick-Start Procedure)

114200-E Rev 00 B-13

Enter Remote Address

selection [3]:

1. DCE

2. DTE

3. EXPLICIT

Note: Reverse local and remote

address values when configuring

the device at the other end of the

circuit. (Exception: When

connecting to a Series 5 router

that uses DCE/DTE addressing,

use the SAME local address

value.)

Frame Relay Worksheet

Requested Information Options Your Response

Enter Management type [3]: 1. DLCMI None

2. Rev 1 LMI

3. ANSI T1 617D

4. CCITT Annex A

5. LMI Switch

6. Annex D Switch

7. Annex A Switch

Enter addressing type [4]: 1. ADDR Q.921

2. ADDR Q.922 (MARCH ’90)

3. ADDR Q.922 (NOVEMBER

’90)

4. ADDR Q.922

Enter address field length [2]: 2. Two Bytes

3. Three Bytes

4. Four Bytes

Enter DLCI number [30]:

(For DLCMI None, LMI Switch, Annex

D Switch, and Annex A Switch only)

Enter the permanent virtual

channel (PVC) number.

Note: The valid range for the DLCI

number is between 16 and 1007.

Nortel Networks Proprietary PPP Worksheet

(continued)

Requested Information Options Your Response

Installing and Operating Passport ARN Routers

B-14 114200-E Rev 00

PPP Standard Worksheet

Requested Information Options Your Response

Enter Remote IP address in dotted

decimal notation:

Enter the IP address of the peer

connection.

Do you wish to turn on the PPP echo

function? (y/n) [n]:

y(es)

n(o)

Enable PAP (Password Authentication

Protocol)? (y/n) [n]:

y(es)

n(o)

Note: If you answer y(es), the

router requests a PAP ID and

password for this interface. If you

answer n(o), the router asks

whether you want to enable

CHAP.

Enable CHAP (Challenge Handshake

Authentication Protocol)? (y/n) [n]:

y(es)

n(o)

Note: If you answer y(es), the

router requests a CHAP secret

for this interface.

Does the Remote Peer have PAP

authentication enabled? (y/n) [n]:

y(es)

n(o)

Note: If you answer y(es), the

router requests the PAP ID and

password for the remote

interface.

Enable the LQR (Link Quality

Reporting) Protocol? (y/n) [n]:

y(es)

n(o)

Note: Link Quality Monitoring on

a Nortel Networks Series 5

router is not compatible with this

feature.

(continued)

Using Local Boot (the Quick-Start Procedure)

114200-E Rev 00 B-15

Enable use of the Remote Peer

router’s LQR Timer? (y/n) [y]:

(For LQR Protocol only)

y(es)

n(o)

Note: If the LQR timer is

enabled, the remote peer router

maintains its own LQR timer for

this interface. When the LQR

timer is disabled, the AN is

responsible for maintaining the

timer for this interface.

Number of seconds (1-120) [3]:

(For LQR Protocol only)

Enter the maximum number of

seconds between the

transmission of LQR packets.

Enter [inbound] success rate

percentage (1-100) [90]:

Enter the minimal acceptable

success rate (percentage) of

packets transmitted by the peer

router and received on this

interface over the last five LQR

reporting periods.

Enter [outbound] success rate

percentage (1-100) [90]:

Enter the minimal acceptable

success rate (percentage) of

packets transmitted by this

interface and received by the

peer router over the last five LQR

reporting periods.

PPP Standard Worksheet

(continued)

Requested Information Options Your Response

Installing and Operating Passport ARN Routers

B-16 114200-E Rev 00

Running the Quick-Start Script

The Quick-Start script is called inst_arn.bat and you run it as part of the Local

Boot process.

Begin local boot as follows:

1. At the Technician Interface login: prompt, enter Manager to log in.

2. Enter bconfig config local to configure the router to use the local config

file when booting.

For information about the bconfig command, see “Using the bconfig

Command” on page A-7.

3. Reboot the router by entering boot.

The Technician Interface login prompt appears.

4. Log in to the Technician Interface.

The Technician Interface mounts the local file system and displays a prompt

indicating the present working directory.

SMDS Worksheet

Requested Information Options Your Response

Enter 10-digit individual address: Enter the individual address

assigned to you by your SMDS

service provider.

Enter 10-digit group address: Enter the group address

assigned to you by your SMDS

service provider.

Enter 10-digit arp address: Enter the Address Resolution

Protocol (ARP) address

assigned to you by your SMDS

service provider.

Note: Before you run the Quick-Start script, make sure you have the

completed worksheets with you.

Using Local Boot (the Quick-Start Procedure)

114200-E Rev 00 B-17

5. Type the following command and press the Return key:

run inst_arn.bat

6. Follow the script online, using your worksheets when responding to its

prompts.

The list of commands in Table B-2 describe how to interact with the

Quick-Start script.

The script prompts you for the following information (in the order given):

a. The initial Global Worksheet information

b. Specific protocol information

c. Wide area protocol selection

d. Specific protocol information

e. The rest of the Global Worksheet information

After you enter all of the Global Worksheet protocol information, the script

displays a Configuration Summary and prompts you to save the configuration

to a file.

Table B-2. Quick-Start Commands

Task Action Details

Accept a default value Press Return Your console displays default values in

brackets; for example, [E11].

Repeat a step (for

example, if you make a

mistake)

Press Control-c

Press n

When prompted, “Terminate script y/n?”

press the n key. You return to the

beginning of the step so that you can

reenter the information.

Stop the Quick-Start

installation procedure

Press Control-c

Press y

When prompted, “Terminate script y/n?”

press the y key. The procedure is

terminated and you return to the

Technician Interface prompt.

To restart the Quick-Start/Power-Start

procedure, you must reboot the router by

entering boot.

Installing and Operating Passport ARN Routers

B-18 114200-E Rev 00

7. Name and save the configuration file.

The script begins to test the configuration on the new IP interface

(Figure B-2).

Figure B-2. Starting the IP Interface Test

8. To continue the IP configuration test, enter the IP address for the Site

Manager workstation.

To cancel the test, enter q.

9. Choose whether you want to configure another module/port.

If you enter n, (to stop configuring modules/ports), the Technician Interface

prompt appears. If you enter y, you return to Step 6 of this procedure.

10. When the Technician Interface prompt reappears, enter logout to exit the

Technician Interface.

When the router creates and tests the configuration, it starts using the

configuration information you entered. Refer to Configuring Passport Remote

Access to configure the router using Site Manager.

Testing local IP interface

ping -IP 192.32.00.000 -r5

IP ping: 192.32.00.000 is alive (size - 16 bytes)

This test attempts to ping the Site Manager workstation.

NOTE: If routing has not yet converged, an attempt

to ping the Site Manager workstation may fail. If

this happens, you may either enter a new IP address or

quit and wait a short period of time and try again from

the TI command line.

Type q<return> to cancel this test.

Enter IP address of Site Manager workstation:

114200-E Rev 00 C-1

Appendix C

ARN Technical Specifications

This appendix provides technical specifications and a product overview of the

ARN and its interface options, as follows:

Physical Specifications

The dimensions and weight of the ARN are as follows:

•Height: 2.8 in. (7.1 cm)

•Width: 17.25 in. (43.8 cm)

•Depth: 12.5 in. (31.8 cm)

•Weight: 15 lb (6.8 kg)

Your installation site must provide a certain amount of free space around the ARN

to dissipate heat. The space requirements for installing the ARN at your site are as

follows:

•Width: 22.5 in. (57.2 cm)

•Minimum depth: 15 in. (38.1 cm)

•Depth for servicing: 25 in. (63.5 cm)

Topic Page

Physical specifications C-1

Electrical specifications C-2

Environmental specifications C-2

Hardware communications options C-3

Installing and Operating Passport ARN Routers

C-2 114200-E Rev 00

If you are installing your ARN in an electronic equipment rack, make sure that the

rack meets the following specifications:

•Heavy-duty steel construction

•Electronic Industries Association (EIA) standard hole-spacing

•Width of 19 in. (48.26 cm)

•Depth of 24 in. (60.96 cm)

Electrical Specifications

Your installation site must meet the following power requirements:

•Proximity to wall receptacle: within 6 ft (1.8 m) of the ARN

•Voltage: 100 to 240 VAC

•Amperage: 0.5 to 1.0 A

Table C-1 lists the wall outlet requirements.

Environmental Specifications

The environmental requirements of the ARN are as follows:

•Altitude: 0 to 8,000 ft (0 to 2,438.4 m)

•Humidity: 10% to 90%, noncondensing

•Temperature: 32°F to 104°F (0°C to 40°C) stable

Table C-1. ARN Wall Outlet Requirements

Country Outlet Voltage

United States/

Canada

National Electrical Manufacturers

Association (NEMA) 5-15P standard outlet

100 to 120 V

Any other country Your ARN distributor informs you of the

outlet you need.

200 to 240 V

ARN Technical Specifications

114200-E Rev 00 C-3

Hardware Communications Options

The ARN is designed to scale to your needs. In addition to either an Ethernet or

token ring base module, you can add an optional expansion and up to two optional

adapter modules to the ARN.

The ARN is available in the following base module configurations:

•One Ethernet AUI and Ethernet 10BASE-T interface

•One Ethernet 10/100BASE-Tx interface

•One Ethernet 100BASE-Fx interface

•One Token Ring interface (STP only)

The ARN supports the following expansion modules:

•One Ethernet AUI and Ethernet 10BASE-T interface

•One token ring media access unit interface (STP and UTP option)

•Three serial interfaces

•One Ethernet AUI and Ethernet 10BASE-T interface and three serial

interfaces

•One token ring interface (STP and UTP option) and three serial interfaces

The ARN also supports up to two of the following adapter modules:

•One serial interface

•One ISDN BRI S/T interface

Note: The Ethernet AUI and 10BASE-T base and expansion modules can also

contain an optional data collection module (DCM). This optional DCM

gathers Ethernet statistics for a remote monitoring (RMON) utility. A subset of

these statistics is gathered with a built-in RMON function on the

Ethernet10/100BASE-Tx and -Fx interfaces. If your router has both types of

RMON data collection installed, you can run the built-in RMON function or

the optional DCM module, but not both at the same time. If you have one

configured, the other is shut off. Your network administrator can refer to

Configuring RMON and RMON2 on BayRS Routers for additional information

about how to enable and use each RMON data collection implementation.

Check also the Documentation Change Notice and Release Notes for related

information.

Installing and Operating Passport ARN Routers

C-4 114200-E Rev 00

•One ISDN BRI U interface

•One V.34 modem interface

•One 56/64K DSU/CSU interface

•One FE1/E1 DSU/CSU interface

•One FT1/T1 DSU/CSU interface

•One X.25 PAD interface

Table C-2 describes each interface.

Table C-2. Network Interfaces Available on ARNs

Network

Interface Description

Ethernet and

Second Ethernet

Supports the Ethernet and IEEE 802.3 standards that provide LAN connectivity. The

ARN can have up to two Ethernet interfaces: one on the base module and one on an

expansion module.

The Ethernet interface on the base module can be a 10BASE-T, a 10/100BASE-Tx, or a

100BASE-Fx. The 10BASE-T can also be used as an expansion module. There are two

ports available for each 10BASE-T: a 10BASE-T and an 802.3 AUI port; however, you

can use only one of these ports (10BASE-T or AUI) on each module at a time.

The 10BASE-T and 10/100BASE-Tx interfaces provide unshielded twisted-pair

support; the 10BASE-T AUI interface provides broadband, baseband, fiber, and

shielded twisted-pair support, depending on the transceiver and cabling you use. The

100BASE-Fx provides fiber support.

Token Ring and

Second Token

Ring

Supports the token ring and IEEE 802.5 standards that provide LAN connectivity. The

ARN can have up to two token ring interfaces: one on the base module and one on an

expansion module.

The token ring base module supports a 9-pin (DB-9) STP token ring interface. The

token ring expansion module supports both a 9-pin (DB-9) STP connector and a UTP

connector; however, you can use only one port (STP or UTP) on the expansion module

at a time.

Both token ring connector types support the 802.5 media access control (MAC)

token-passing protocol, the 802.2 Type 1 (connectionless) protocol, the 802.2 Type 2

(connection-oriented) protocol, and the 16-Mb/s Early Token Release (ETR) protocol

over the appropriate cabling.

(continued)

ARN Technical Specifications

114200-E Rev 00 C-5

Serial Provides WAN connectivity. ARN models can have up to five serial ports (three on an

expansion module and up to two adapter modules).

Each port can operate independently with RS-232, RS-422, RS-449, RS-530, V.28,

V.35, and X.21 cables. Serial capability allows internal or external clocking.

ISDN BRI Supports an S/T or U interface. The BRI provides two B channels, and supports full

D-channel signaling and call setup/tear-down as defined in 1988 CCITT (now ITU-T)

Q.921 and Q.931. For more information on ISDN, functional groups, or reference

points, refer to

Configuring Dial Services

The ISDN BRI option is available as an adapter module for any ARN model.

56/64K DSU/CSU Supports a 56/64K DSU/CSU interface.

FT1/T1 and

FE1/E1 DSU/CSU

Provides an interface to convert incoming packet data from an external T1 or E1 line

(using an RJ-48C connector). Because the interface integrates the Channel Service

Unit (CSU) function on each T1 or E1 port, it allows direct connection to the network. A

T1 port can transmit or receive a total of 24 DSO HDLC channels for each DS1 frame.

X.25 PAD Provides an X.25 PAD interface.

V.34 Modem Provides a V.34 modem interface.

Note: For the proper cables or cable pinouts to use for each interface type, see

the Cable Guide.

Table C-2. Network Interfaces Available on ARNs

(continued)

Network

Interface Description

Installing and Operating Passport ARN Routers

C-6 114200-E Rev 00

Ethernet Attachment Unit Interface (AUI)

The ARN Ethernet 10BASE-T base module, Ethernet expansion module, and

Ethernet/tri-serial expansion modules contain a 10BASE-T standard 802.3 AUI

DB-15 receptacle with a slide lock.

Table C-3 shows the pin assignments for the standard 15-pin AUI receptacle on

the ARN base or expansion module and identifies its pin locations.

Note: The AUI is designed only for connection to a transceiver. Connecting

the AUI directly to an AUI on an Ethernet station (without a transceiver)

violates IEEE 802.3 standards.

Table C-3. AUI Pin Assignments

Pin Assignment Pin No. Signal Name

1GND

2CI-A

3DO-A

4GND

5DI-A

6 +12 V DC Return

7 Not used

8 Not used

9CI-B

10 DO-B

11 GND

12 DI-B

13 +12 V DC

14 GND

15 GND

Pin 1

Pin 8

Pin 9

Pin 15

CAB0107A

ARN Technical Specifications

114200-E Rev 00 C-7

Ethernet 10BASE-T and 10/100BASE-Tx Interfaces

The Ethernet 10BASE-T and 10/100BASE-Tx interfaces provide UTP support.

Table C-4 identifies the pin locations and function assignments for these

interfaces.

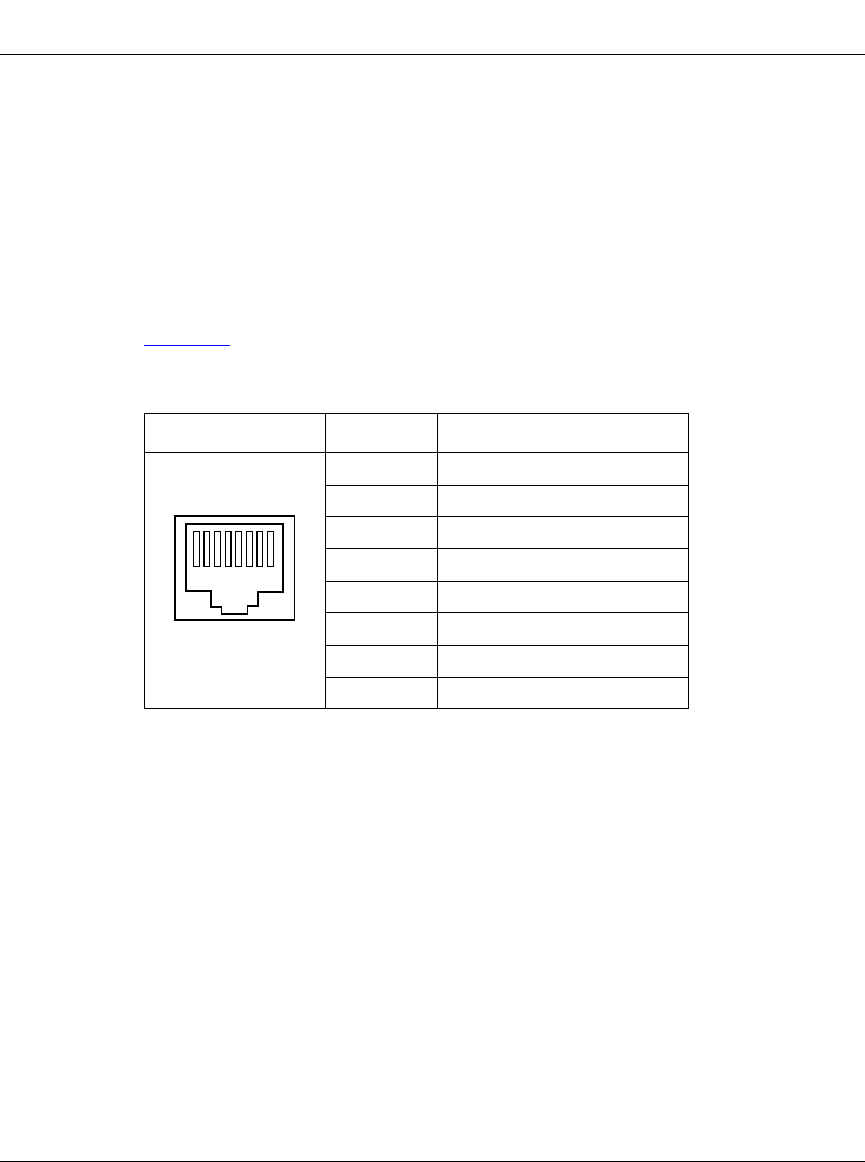

Table C-4. 10BASE-T and 10/100BASE-Tx Interface Pin Assignments

Pin Assignment Pin No. Signal (Function)

1 TD+ (Transmit to UTP wire)

2 TD- (Transmit to UTP wire)

3 RD+ (Receive from UTP wire)

4 Not used

5 Not used

6 RD- (Receive from UTP wire)

7 Not used

8 Not used

12345678

Installing and Operating Passport ARN Routers

C-8 114200-E Rev 00

Token Ring STP Interface

The token ring STP interface provides shielded twisted-pair support. The ARN

token ring base module, token ring expansion module, and token ring/tri-serial

expansion modules contain this standard 802.5 DB-9 receptacle.

Table C-5 shows the pin assignments for the standard 9-pin STP receptacle on the

ARN base or expansion module and identifies its pin locations.

Table C-5. Token Ring STP Interface Pin Assignments

Pin Assignment Pin No. Signal Name

1 RX+ (Receive from STP wire)

2GND

3GND

4GND

5 TX+ (Transmit to STP wire)

6 RX- (Receive from STP wire)

7GND

8GND

9 TX- (Transmit to STP wire)

Pin 5Pin 1

Pin 9Pin 6

ARN Technical Specifications

114200-E Rev 00 C-9

Token Ring UTP Interface

The token ring UTP interface provides unshielded twisted-pair support. The ARN

token ring expansion module and token ring/tri-serial expansion modules contain

this receptacle.

Table C-6 shows the RJ-45 pin assignments for the UTP interface and identifies

the pin locations.

Serial Interfaces

The ARN supports up to five serial interfaces. You can connect up to three, 44-pin

(DB-44) serial cables to an ARN that contains an optional Ethernet/tri-serial,

token ring/tri-serial, or tri-serial expansion module. You can connect one, 44-pin

serial cable to each serial adapter module (the ARN can support two).

The serial interfaces provide multiprotocol WAN connection, each operating

independently with RS-232, RS-422, RS-530, V.35, V.28, and X.21 electrical

interfaces at transmission rates from 1200 b/s to 2.048 Mb/s. When used with

standard keyed cables, the ports automatically configure to the desired electrical

interface.

You can use the following cables, described in the Cable Guide:

•V.35 connections (Order No. 7220)

•V.28 connections (Order No. 7837)

•X.21 connection (Order No. 7224)

Table C-6. Token Ring UTP Interface Pin Assignments

Pin Assignment Pin No. Signal (Function)

1 Not used

2 Not used

3 TX+ (Transmit to UTP wire)

4 RX+ (Receive from UTP wire)

5 RX- (Receive from UTP wire)

6 TX- (Transmit to UTP wire)

7 Not used

8 Not used

12345678

Installing and Operating Passport ARN Routers

C-10 114200-E Rev 00

•RS-422 connections (Order No. 7318)

•RS-232 connections (Order No. 7826)

•RS-530 connections (Order No. AE0018012)

Table C-7 shows the signal and pin assignments for these connectors.

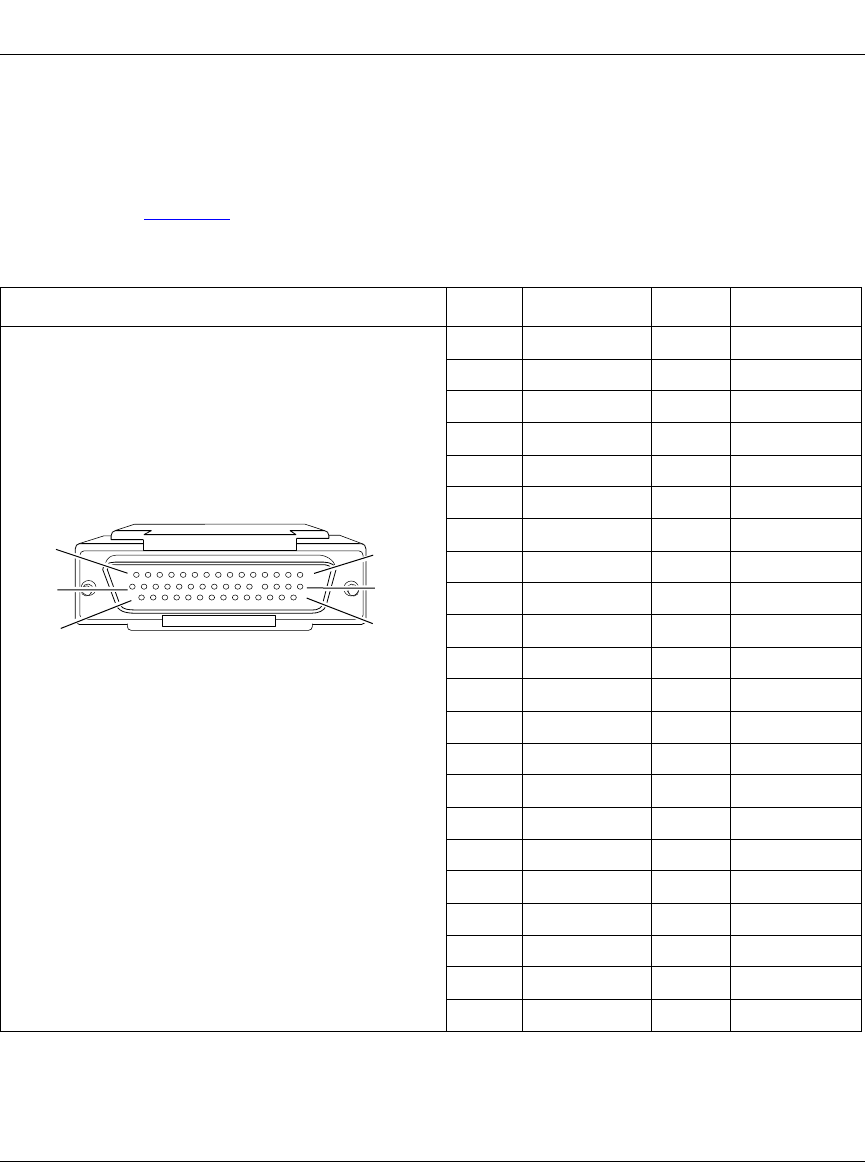

Table C-7. Serial Interface Pin Assignments

Pin Assignment Pin No. Signal Name Pin No. Signal Name

1 FGND 23 DCD-

2SD+ 24ST-

3 RD+ 25 RT-

4RTS+ 26TT-

5CTS+ 27NC

6DSR+ 28RTIN#B

7SGND 29CTSIN#

8 DTR+ 30 ST#

9 DCD+ 31 VST-

10 ST+ 32 VST+

11 RT+ 33 VRT-

12 TT+ 34 VRT+

13 RTIN# 35 VRD-

14 CTS# 36 VSD-

15 RTS# 37 VRD+

16 SD- 38 VSD+

17 RD- 39 VTT-

18 RTS- 40 VTT+

19 CTS- 41 UNBE

20 DSR- 42 V35D

21 NC 43 GND

22 DTR- 44 SNDC

Pin 1

Pin 16

Pin 31

Pin 15

Pin 30

Pin 44

CAB0108A

ARN Technical Specifications

114200-E Rev 00 C-11

ISDN BRI U Interface

The ARN supports the BRI standard for ISDN using an optional ISDN/BRI

adapter module. The integrated ISDN BRI functionality allows you to connect

directly to the ISDN network, through a U interface, as opposed to connecting

over a terminal adapter. This solution reduces equipment costs and simplifies

connection to an ISDN switch.

The BRI implementation supports two dial service applications: dial-on-demand

and dial backup. Configuring Dial Services describes these services and how to

configure them for connection to an ISDN network.

Table C-8 lists the ISDN interface pin assignments.

Table C-8. ISDN BRI U Interface Pin Assignments

Pin Assignment Pin No. Signal

1 Not used

2 Not used

3 Not used

4TIP

5RING

6 No used

7 Not used

8 Not used

12345678

Installing and Operating Passport ARN Routers

C-12 114200-E Rev 00

ISDN BRI S/T Interface

The ARN supports the BRI standard for ISDN using an optional ISDN/BRI

adapter module. The integrated ISDN BRI functionality allows you to connect to

the ISDN network over a terminal adapter through an S/T interface.

The BRI implementation supports two dial service applications: dial-on-demand

and dial backup. Configuring Dial Services describes these services and how to

configure them for connection to an ISDN network.

Table C-9 lists the ISDN interface pin assignments.

Table C-9. ISDN BRI S/T Interface Pin Assignments

Pin Assignment Pin No. Signal

1 Not used

2 Not used

3 Tx+ (Transmit to wire)

4 Rx+ (Receive from wire)

5 Rx- (Receive from wire)

6 Tx- (Transmit to wire)

7 Not used

8 Not used

12345678

ARN Technical Specifications

114200-E Rev 00 C-13

56/64K DSU/CSU Interface

The ARN supports direct synchronous access to either a 56K dataphone digital

service (DDS) or 64K Clear Channel dedicated services using an optional 56/64K

DSU/CSU adapter module. The 56/64K DSU/CSU interface uses an 8-pin RJ-45

connector as shown in Table C-10.

Table C-10 lists the 56/64K DSU/CSU interface pin assignments.

FT1/T1 DSU/CSU Connections

The ARN supports the conversion of data (HDLC protocol) from a T1 line using

an optional FT1/T1 DSU/CSU adapter module. The integrated DSU/CSU

functionality allows you to connect directly to the T1 network, as opposed to

connecting via an external adapter. This solution reduces equipment costs and

simplifies connection to a T1 carrier.

The ARN FT1/T1 DSU/CSU implementation supports dynamic reconfiguration,

Fractional T1 loopback, Facility Data Link (FDL) functions, and an integrated Bit

Error Rate Test (BERT) line tester. Configuring WAN Line Services describes

these services and how to configure them for connection to a T1 network.

Table C-10. 56/64K DSU/CSU Interface Pin Assignments

Pin Assignment Pin No. Signal

1 TD (Ring)

2TD (Tip)

3 Not used

4 Not used

5 Not used

6 Not used

7 RD (Tip)

8 RD (Ring)

12345678

Installing and Operating Passport ARN Routers

C-14 114200-E Rev 00

Table C-11 lists the ARN FT1/T1 DSU/CSU connector pinouts.

Table C-11. RJ-48C Connector Pinouts

Pin Assignment Pin No. Signal

1 Receive Data RING

2 Receive Data TIP

3 No Connect

4 Send Data RING

5 Send Data TIP

6 No Connect

7 No Connect

8 No Connect

12345678

ARN Technical Specifications

114200-E Rev 00 C-15

X.25 PAD Connections

The ARN provides X.25 PAD functions that enable the router to access X.25

services through the 8 ports of an attached breakout box. The PAD establishes and

maintains links with the packet switch network, assembles and disassembles

packets, communicates with the character terminal, and handles special control

processes for the character terminal.

You connect the X.25 ports using an RS-232-D serial connection as shown in

Table C-12.

Table C-12. X.25 Breakout Box Interface Pin Assignments

Pin Assignment Pin No.

Signal

(Function) Pin No.

Signal

(Function)

1 GND 13 Not Used

2 RxD 14 Not Used

3 TxD 15 Not Used

4 RTS 16 Not Used

5 CTS 17 Not Used

6 DSR 18 Not Used

7 GND 19 Not Used

8 DCD 20 DTR

9 Not Used 21 Not Used

10 Not Used 22 Not Used

11 Not Used 23 Not Used

12 Not Used 24 Not Used

25 Not Used

Pin 13 Pin 1

Pin 25 Pin 14

ARN0093A

Installing and Operating Passport ARN Routers

C-16 114200-E Rev 00

RJ-11 Interface (for V.34 Modem)

The ARN supports a V.34 modem connection using an optional V.34 modem

adapter module. The V.34 functionality allows you to connect directly to a phone

line, as opposed to connecting over an external modem. This solution reduces

equipment costs and simplifies connection to a wide area network.

Table C-13 lists the V.34 interface pin assignments.

Local Console Connections

The ARN back panel contains one console service interface, labeled Console; its

DB-9 plug connector provides an RS-232-D serial connection. You use this local

console port to connect the ARN to a PC or VT100 compatible console device for

direct console access.

The Passport ARN shipping package includes the console/modem kit

(Order No.110310) for connecting devices to the Console port.

•To connect a terminal to the Console port, use the complete console/modem

kit, including the cable (Order No.110307) with the null modem adapter

(Order No.110308).

•To connect a PC running Windows NT to the Console port, use the complete

console/modem kit, including the cable (Order No.110308) and the null

modem adapter (Order No.110307) plus a standard AT serial cable with one

DB-25 plug connector, supplied with the PC.

Table C-13. V.34 Interface Pin Assignments

Pin Assignment Pin No. Signal

1Not Used

2 No Connection

3TIP

4RING

5 No Connection

6Not Used

1 2 3 4 5 6

ARN Technical Specifications

114200-E Rev 00 C-17

The connector pin assignment described in Table C-1 4 shows signal and pin

assignments for the Console port.

Service Modem Connections

The ARN back panel contains one modem service interface, labeled Modem; its

DB-9 plug connector provides an RS-232-D serial connection. You use this local

console port to connect the ARN to any Hayes compatible modem for remote

dial-in access.

The Passport ARN shipping package includes the console/modem kit

(Order No.110310) for connecting devices to the Modem port. To connect a

modem, use the cable (Order No.110307 from the kit), a standard, 15-foot molded

AT serial cable with DB-9 receptacle to DB-25 plug connectors.

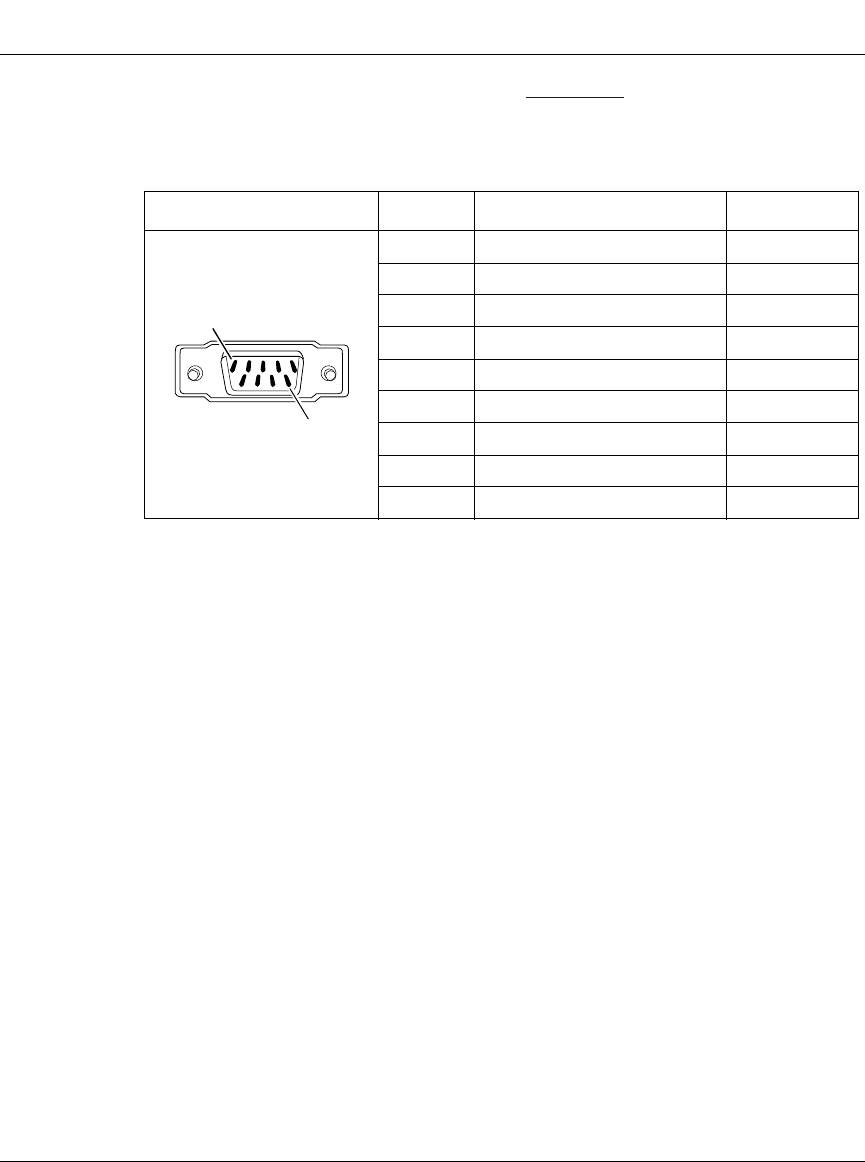

Table C-14. Local Console Port DB-9 Pin Assignments

Pin Assignment Pin No. Signal Name Direction

1 Not used N/A

2 TXD (Transmit data) To terminal

3 RXD (Receive data) From terminal

4 Not Used N/A

5Ground N/A

6DTR To terminal

7 Not Used N/A

8 Not Used N/A

9 Not Used N/A

Pin 1

Pin 9

Installing and Operating Passport ARN Routers

C-18 114200-E Rev 00

The connector pin assignment described in Table C-1 5 shows signal and pin

assignments for the modem port.

Table C-15. Service Modem Port DB-9 Pin Assignments

Pin Assignment Pin No. Signal Name Direction

1 DCD (Data carrier detect) From modem

2 TXD (Transmit data) To modem

3 RXD (Receive data) From modem

4 DSR (Data set ready) From modem

5 GND N/A

6 DTR (Data terminal ready) To modem

7 CTS (Clear to send) From modem

8 RTS (Request to send) To modem

9 Not used N/A

Pin 1

Pin 9

114200-E Rev 00 D-1

Appendix D

Requirements for European Operation

This appendix provides information required for operating the ARN in Europe,

cabling requirements for synchronous (serial) connection, and information about

using the serial adapter module (Order No. CV0004001) and ISDN BRI adapter

module (Order No. CV0004002) in Europe.

ARN Ethernet Base Model Safety Status

Table D-1 lists the safety status of interconnection points to the connection of

other equipment.

Table D-1. Safety Status (Order Nos. CV1001001, CV1001002,

CV1001003, CV1001004, CV1001005)

Port Location Port Description Type of Circuit

AUI Ethernet AUI Safety extra-low voltage

(SELV)

UTP Ethernet 10BASE-T SELV

Console V.28 SELV

Installing and Operating Passport ARN Routers

D-2 114200-E Rev 00

ARN 10/100BASE-T Ethernet Base Model Safety Status

Table D-2 lists the safety status of interconnection points to the connection of

other equipment.

ARN Token Ring Base Model Safety Status

Table D-3 lists the safety status of interconnection points to the connection of

other equipment.

Table D-2. Safety Status (Order Nos. CV1001011, CV1001012,

CV1001013, CV1001014, CV1001015, CV1001016, CV1001017,

CV1001018, CV1001019, CV1001020)

Port Location Port Description Type of Circuit

UTP Ethernet 10/100BASE-T SELV

Console V.28 SELV

Table D-3. Safety Status (Order Nos. CV1101001, CV1101002,

CV1101003, CV1101004, CV1101005)

Port Location Port Description Type of Circuit

MAU Token Ring SELV

Console V.28 SELV

Requirements for European Operation

114200-E Rev 00 D-3

ARN Expansion Modules Safety Status

ARN expansion modules are upgrade options that provide an additional

synchronous interface. These options can be installed in any ARN model.

Table D-4 lists the safety status of the interconnection point (COM3, COM4,

COM5, COM6, COM7, COM8, and COM9) provided by each of the expansion

modules (Order Nos. CV0004011, CV0004012, CV0004013, CV0004014,

CV0004015, CV0004026, and CV0004027) to the connection of other equipment.

Synchronous Cabling Requirements

Refer to Figures D-1 through D-6 and Tables D-5 through D-10 for serial interface

cabling information.

Note the following compliance requirements:

•V.28 compliance requires an Order No. 7837 or 7934 cable.

•V.35 compliance requires an Order No. 7220 or 7932 cable

•X.21 compliance requires an Order No. 7224 or 7936 cable.

Table D-4. Safety Status (Order Nos. CV0004011, CV0004012,

CV0004013, CV0004014, CV0004015, CV0004026,

CV0004027)

Port Location Port Description Type of Circuit

COM3, COM4, and COM5,

COM6, COM7, COM8, and

COM9

V.28, X.21, V.35 Telecommunications

network voltage (TNV) at

SELV levels

AUI Ethernet AUI SELV

10Base-T Ethernet 10BASE-T SELV

MAU Token Ring SELV

J2 Host Port SELV

10/100BASE-T Ethernet 10/100BASE-T SELV

JB1 Host Port SELV

Installing and Operating Passport ARN Routers

D-4 114200-E Rev 00

Figure D-1. Cable 7837 (V.28 Compliant)

Table D-5. WAN Interface (Order No. 7837)

Nortel Networks Termination Remote Termination

Pin Signal Pin Signal

1 Frame Ground 1 Frame Ground

2 Send Data+ 2 Send Data

3 Receive Data+ 3 Receive Data

4 Request to Send+ 4 Request to Send

5 Clear to Send+ 5 Clear to Send

6 Data Set Ready+ 6 Data Set Ready

8 Data Terminal Ready+ 20 Data Terminal Ready

9 Data Carrier Detect+ 8 Data Carrier Detect

10 Send Timing+ 15 Send Timing

11 Receive Timing+ 17 Receive Timing

12 Transmitter Signal Element Timing+ 24 Transmitter Signal Element Timing

7 Signal Ground 7 Signal Ground

Local Wire Connections

Pin 7 > 19 > 20 > 23

Pin 13 > 28

Pin 14 > 29

Pin 13

Pin 1

Pin 25

Pin 14

15 Feet

25-position D-Sub plug with M-3 jack screws

(ground shield connected to backshell)

44-position D-Sub plug with screw locks

(ground shield connected to backshell)

CAB0069B

Pin 15

Pin 30

Pin 44

Requirements for European Operation

114200-E Rev 00 D-5

Figure D-2. Cable 7934 (V.28 Compliant)

Table D-6. WAN Interface (Order No. 7934)

Nortel Networks Termination Remote Termination

Pin Signal Pin Signal

1 Frame Ground 1 Frame Ground

2 Send Data+ 2 Send Data

3 Receive Data+ 3 Receive Data

4 Request to Send+ 4 Request to Send

5 Clear to Send+ 5 Clear to Send

6 Data Set Ready+ 6 Data Set Ready

8 Data Terminal Ready+ 20 Data Terminal Ready

9 Data Carrier Detect+ 8 Data Carrier Detect

10 Send Timing+ 15 Send Timing

11 Receive Timing+ 17 Receive Timing

12 Terminal Timing+ 24 Terminal Timing

7 Signal Ground 7 Signal Ground

Local Wire Connections

Pin 7 > 30 > 31 > 34

Pin 13 > 38

Pin 14 > 39

15 ft

(4.57 m)

Pin 13

Pin 1

Pin 25

Pin 14

25-position D-sub plug with screw locks

(ground shield connected to backshell)

Pin 1 Pin 25

Pin 26 Pin 50

50-position 0.8-mm plug

(ground shield connected to internal shell)

CAB0073A

Installing and Operating Passport ARN Routers

D-6 114200-E Rev 00

Figure D-3. Cable 7220 (V.35 Compliant)

Table D-7. V.35 Interface (Order No. 7220)

Nortel Networks Termination Remote Termination

Pin Signal Pin Signal

38 VSD+ P Send Data A

36 VSD- S Send Data B

34 VRT+ V Receive Timing A

33 VRT- X Receive Timing B

32 VST+ Y Send Timing A

31 VST- AA Send Timing B

37 VRD+ R Receive Data A

35 VRD- T Receive Data B

6 Data Set Ready+ E Data Set Ready

8 Data Terminal Ready+ H Data Terminal Ready

4 Request to Send+ C Request to Send

5 Clear to Send+ D Clear to Send

40 VTT+ U Terminal Timing A

39 VTT- W Terminal Timing B

1 Frame Ground A Frame Ground

(continued)

15 Feet

Pin 1

Pin 16

Pin 31

Pin 15

Pin 30

Pin 44

44-position D-Sub plug with screw locks

(ground shield connected to backshell)

34-position V.35 plug with screw jack retainers

(ground shield connected to backshell)

CAB0043A

Requirements for European Operation

114200-E Rev 00 D-7

Figure D-4. Cable 7932 (V.35 Compliant)

9 Data Carrier Detect+ F Data Carrier Detect

19 Signal Ground B Signal Ground

Local Wire Connections

Pin 19 > 20 > 23 > 7

Pin 41 > 42 > 43

Pin 13 > 28

Pin 14 > 29

Table D-8. V.35 Interface (Order No. 7932)

Nortel Networks Termination Remote Termination

Pin Signal Pin Signal

44 VSD+ P Send Data A

19 VSD- S Send Data B

42 VRT+ V Receive Timing A

17 VRT- X Receive Timing B

41 VST+ Y Send Timing A

(continued)

Table D-7. V.35 Interface (Order No. 7220)

(continued)

Nortel Networks Termination Remote Termination

15 ft

(4.57 m)

34-position V.35 plug with screw jack retainers

(ground shield connected to backshell)

Pin 1 Pin 25

Pin 26 Pin 50

50-position 0.8-mm plug

(ground shield connected to internal shell)

CAB0070A

Installing and Operating Passport ARN Routers

D-8 114200-E Rev 00

16 VST- AA Send Timing B

43 VRD+ R Receive Data A

18 VRD- T Receive Data B

6 Data Set Ready+ E Data Set Ready

8 Data Terminal Ready+ H Data Terminal Ready

4 Request to Send+ C Request to Send

5 Clear to Send+ D Clear to Send

45 VTT+ U Terminal Timing A

20 VTT- W Terminal Timing B

1 Frame Ground A Frame Ground

9 Data Carrier Detect+ F Data Carrier Detect

30 Signal Ground B Signal Ground

Local Wire Connections

Pin 7 > 30 > 31 > 34

Pin 46 > 47 > 48

Pin 13 > 38

Pin 14 > 39

Table D-8. V.35 Interface (Order No. 7932)

(continued)

Nortel Networks Termination Remote Termination

Requirements for European Operation

114200-E Rev 00 D-9

Figure D-5. Cable 7224 (X.21 Compliant)

Table D-9. X.21 Interface (Order No. 7224)

Nortel Networks Termination Remote Termination

Pin Signal Pin Signal

2 Send Data+ 2 TD A

16 Send Data- 9 TD B

4 Request to Send+ 3 Control A

18 Request to Send- 10 Control B

3 Receive Data+ 4 RD A

17 Receive Data- 11 RD B

9 Data Carrier Detect+ 5 Indication A

23 Data Carrier Detect- 12 Indication B

10 Send Timing+ 6 Timing A

24 Send Timing- 13 Timing B

7 Signal Ground 8 Signal Ground

1 Frame Ground 1 Frame Ground

Local Wire Connections

Pin 41 > 43

Pin 28 > 30

Pin 14 > 15

Pin 1

Pin 16

Pin 31

Pin 15

Pin 30

Pin 44

15 Feet

Pin 8

Pin 1

Pin 15

Pin 9

15-position D-Sub plug with locking posts

(ground shield connected to backshell)

44-position D-Sub plug with screw locks

(ground shield connected to backshell)

CAB0068A

Installing and Operating Passport ARN Routers

D-10 114200-E Rev 00

Figure D-6. Cable 7936 (X.21 Compliant)

Table D-10. X.21 Interface (Order No. 7936)

Nortel Networks Termination Remote Termination

Pin Signal Pin Signal

2 Send Data+ 2 Transmitted Data A

27 Send Data- 9 Transmitted Data B

4 Request to Send+ 3 Control A

29 Request to Send- 10 Control B

3 Receive Data+ 4 Receive Data A

28 Receive Data- 11 Receive Data B

9 Data Carrier Detect+ 5 Indication A

34 Data Carrier Detect- 12 Indication B

10 Timing+ 6 Timing A

35 Timing- 13 Timing B

1 Frame Ground 1 Frame Ground

7 Signal Ground 8 Signal Ground

Local Wire Connections

Pin 46 > 48 (GRD)

Pin 38 > 40

Pin 14 > 15

15 ft

(4.57 m)

Pin 8

Pin 1

Pin 15

Pin 9

15-position D-sub plug with M-3 jack screws

(ground shield connected to backshell)

Pin 1 Pin 25

Pin 26 Pin 50

50-position 0.8-mm plug

(ground shield connected to internal shell)

CAB0074A

Requirements for European Operation

114200-E Rev 00 D-11

Serial Adapter Module Requirements

The serial adapter module (Order No. CV0004001) is approved only for

installation in a host, and with host attachments, which are either type approved

for such apparatus or, if supplied after 1st March 1989, are marked with or

supplied with a statement that the host is supplied under the terms of General

Approval Number NS/G/1234/J/100003.

Installation of the serial adapter module in any Passport ARN chassis (Order Nos.

CV1001001, CV1001002, CV1001003, CV1001004, CV1001005, CV1001011,

CV1001020, CV1101001, CV1101002, CV1101003, CV1101004, CV1101005)

complies with all requirements listed in this section. Installation of the serial

adapter upgrade module in any ARN complies with all requirements listed in this

section.

Table D-11 lists the safety status of interconnection points to the connection of

other equipment.

Table D-11. Safety Status (Order No. CV0004001)

Port Location Port Description Type of Circuit

COM V.28, X.21, V.35 TNV at SELV levels

P6 Host port SELV

Installing and Operating Passport ARN Routers

D-12 114200-E Rev 00

ISDN BRI Adapter Module Requirements

The ISDN BRI adapter module (Order No. CV0004002) is approved only for

installation in a host, and with host attachments, which are either type approved

for such apparatus or, if supplied after 1st March 1989, are marked with or

supplied with a statement that the host is supplied under the terms of BABT

General Approval Number NS/G/1234/J/100003.

Installation of the ISDN BRI module in any Passport ARN chassis (Order Nos.

CV1001001, CV1001002, CV1001003, CV1001004, CV1001005, CV1001011,

CV1001020, CV1101001, CV1101002, CV1101003, CV1101004, CV1101005)

complies with all requirements listed in this section. Installation of the ISDN BRI

upgrade module in any ARN complies with all requirements listed in this section.

Table D-12 lists the safety status of interconnection points to the connection of

other equipment.

Table D-13 lists the ISDN connector pinouts.

Table D-12. ISDN BRI Safety Status (Order No. CV0004002)

Port Location Port Description Type of Circuit

ISDN BRI ISDN TNV at SELV levels

P6 Host Port SELV

Table D-13. ISDN Connector Pinouts

Pin Signal

1 No connection

2 No connection

3Tx+

4Rx+

5Rx-

6Tx-

7 No connection

8 No connection

Requirements for European Operation

114200-E Rev 00 D-13

Power Requirements for ISDN BRI and Serial Adapter

Modules

The ISDN BRI and serial adapter modules obtain power from the host chassis and

have the power requirements shown in Table D-14.

The power drawn from the host chassis combined with that required for any other

cards and accessories must be within the power rating of the host chassis.

When you install an ISDN BRI or serial adapter module in an ARN, make sure

that you do not impair the integrity of the network protection from hazardous

voltages used or generated internally by the host chassis.

Clearance and Creepage Distances for ISDN BRI and Serial

Adapter Modules

The clearance and creepage distances (shown as X and Y, respectively, in

Figure D-7 and Table D-15) must be maintained between the card and:

•The host chassis in which it is installed

•Any adjacent cards installed in the host chassis

The exception to this rule is the edge connector, which resides in the host chassis

backplane, where no minimum distance applies.

Table D-14. ISDN BRI Power Requirements

Voltage Amperage

+5 V 1 A

+12 V 0.15 A

-12 V 0.15 A

Installing and Operating Passport ARN Routers

D-14 114200-E Rev 00

Figure D-7. Clearance and Creepage Distances for ISDN BRI and Serial

Adapter Modules

Table D-15. Clearance and Creepage Distances for ISDN BRI and Serial

Adapter Modules

Clearance (X) Creepage (Y)

Voltage used or generated by other parts

of the host or expansion card

2.0 mm 2.4 (3.8) mm Up to 50 V RMS or V DC

2.6 mm 3.0 (4.8) mm Up to 125 V RMS or V DC

4.0 mm 5.0 (8.0) mm Up to 250 V RMS or V DC

4.0 mm 6.4 (10.0) mm Up to 300 V RMS or V DC

SELV cards

Typical

host

chassis

Baseboard

ISDN Module

AN0060A

X Y

Requirements for European Operation

114200-E Rev 00 D-15

The creepage distances apply to the normal office environment. When the local

environment within the host chassis is subject to conductive pollution or dry

nonconductive pollution that could become conductive due to condensation, the

creepage distances shown in parentheses in Table D-15 apply.

The clearance and creepage distance between adjacent points should be checked

as follows:

•The clearance distance (X) is the shortest distance between two points

measured through the air.

•The creepage distance (Y) is the shortest distance between two points

measured across a surface.

If in doubt about calculating these distances, obtain advice from a competent

telecommunications safety engineer. Failure to install the ISDN BRI or serial

adapter module according to these instructions invalidates the conditions of the

BABT General Approval agreement.

114200-E Rev 00 Index-1

Numbers

10/100BASE-Tx

pin assignments, C-7

100BASE-Fx, 1-9

interface, connecting to, 1-13

10BASE-T

interface, connecting to, 1-12

7934, 50-pin to RS-232 cable, D-5

acronyms, xxi

adapter modules

connecting to

DSU/CSU interfaces, 1-18, 1-19, 1-21

ISDN interfaces, 1-17

serial interfaces, 1-17

V.34 interface, 1-20

DSU/CSU LEDs, 3-7, 3-8

interface options, 1-9, C-3

ISDN LEDs, 3-7

locating, 1-9

serial LED, 3-6

V.34 LEDs, 3-9

Adapter1 LED, 3-3

Adapter2 LED, 3-3

address settings, IP

DSU/CSU, A-3

Ethernet, A-4

serial, A-3

token ring, A-5

Annex A, frame relay, A-3

Annex D, frame relay, A-3

ARN

dimensions, C-1

installing, 1-5 to 1-8

in a rack, 1-6 to 1-8

on a flat surface, 1-5

interfaces, C-4

monitor

boot process and, 2-6

logging in to, 2-7

using, 2-6

operating, 3-1 to 3-10

power switch, using, 3-11

resetting, 3-12

space required to install, C-1

arn.exe file, 2-1

AUI

interface, connecting to, 1-11

pin assignments, C-6

back panel

LEDs, 3-8

V.34 interface, connecting to, 1-29

Base LED, 3-3

base module

diagnostic LEDs, 3-2, 3-3

Ethernet interface

10BASE-T, 1-9

AUI, 1-9

Ethernet LEDs, 3-3

fiber interface

Fiber interface, 1-9

interface options, 1-9, C-3

locating, 1-9

serial LEDs, 3-6

token ring interface, 1-9

token ring LEDs, 3-4

B-channel #1 (B1) LED, 3-7

Index

Index-2 114200-E Rev 00

B-channel #2 (B2) LED, 3-7

bconfig command

default netboot settings, A-8

described, 2-10

directed netboot, A-8

examples, A-8

format, A-7

local boot, A-8

using, A-7

boot

command

directed netboot, 2-12

local boot, 2-14, B-16

netboot, 2-9

getcfg command display, A-9

interrupting, 2-6

options, described, 2-2

Boot LED, 3-2

booting, 3-12

BootP server, 2-2

brackets, attaching, 1-6

break sequences, issuing, 2-7

cables

connecting

100BASE-Fx, 1-13

10BASE-T, 1-12

AUI, 1-11

back-panel modem, 1-28

DSU/CSU, 1-18, 1-19, 1-21

ISDN, 1-17

management console, 1-23 to 1-24

modem, 1-27

PC console, 1-23

power, 1-30

serial, 1-15

STP, 1-14

terminal console, 1-26

UTP, 1-14

V.34 adapter modules (RJ-11), 1-20

V.34 back-panel (RJ-11), 1-29

console/modem kit, 1-2

ordering, 1-4

serial, list of, C-9

synchronous. See serial

wiring, 1-1

carrier detect (CD) LED, 3-7, 3-8

clocking

serial interface, A-3

setting internal, A-3

cold boot, 3-12

collision (Cl) LED, 3-3, 3-5

collision detection, 3-5

command

bconfig, 2-10

defined, A-7

examples, A-8

local boot, B-16

boot, B-16

directed netboot, 2-12

local boot, 2-14

netboot, 2-9

dir, 2-14

getcfg

directed netboot, 2-11

netboot, 2-8

using, A-8

ifconfig

defined, 2-8

directed netboot, 2-11

netboot, 2-8

using, A-2 to A-6

run inst_arn.bat. See Quick-Start procedure

command line interface

choice of, 2-6

logging in to, 2-7

config file

defined, 2-1

local booting with, 2-13

using local, B-16

configuration file

default locations, 2-4

configuring

DSU/CSU interfaces, A-2

Ethernet interfaces, A-4

serial interfaces, A-2

token ring interfaces, A-5

114200-E Rev 00 Index-3

connecting

100BASE-Fx cables, 1-13

10BASE-T cables, 1-12

AUI cables, 1-11

communications cables, 1-10

DSU/CSU cables, 1-18, 1-19, 1-21

Ethernet cables, 1-10, 1-12, 1-13

ISDN cables, 1-17

management console cables, 1-23 to 1-24

modem cables

back panel, 1-28

front panel, 1-20

PC console cables, 1-23

power cables, 1-30

serial cables, 1-15

STP cables, 1-14

terminal console cables, 1-26

token ring

STP cables, 1-13

UTP cables, 1-14

V.34 cables (RJ-11), 1-20

connector settings

DSU/CSU, A-3

Ethernet, A-4

ring speed, A-5

serial, A-3

token ring, A-5

console

back-panel interface, C-16

cable

connecting, 1-23 to 1-24

supplied, 1-2

interface pin assignments, C-17

personal computer (PC), 1-23

terminal, connecting, 1-25

conventions, text, xx

CSU/DSU, LEDs, 3-7, 3-8

customer support, xxiv

data collection module (DCM) LED, 3-3

data detect (DD) LED, 3-7

data terminal ready (DTR) LED, 3-9

D-channel (D) LED, 3-7

default settings

DSU/CSU, A-3

Ethernet, A-4

serial, A-3

token ring, A-5

software sources, 2-4

diagnostic

failure, 3-2, 3-9

LEDs

list of, 3-3

locating, 3-2

diagnostics

failure, 4-7

dir command, 2-14

directed netboot

attaching a console for, 1-23

attaching a modem for, 1-27

bconfig command, A-8

configuring server location, A-7

described, 2-2

ifconfig command, A-6

requirements, 2-2, 2-6

using, 2-6, 2-10

DLCMI settings, A-3

DSU/CSU

cables, connecting, 1-18, 1-19, 1-21

interfaces

configuring, A-2

connecting to, 1-18, 1-19, 1-21

pin assignments, C-13

LEDs, 3-7, 3-8

electrical specifications, C-2

electronic enclosure rack

installing in, 1-6

specifications, 1-4, C-2

environmental specifications, C-2

Ethernet

base module LEDs, 3-3

interface types

10/100BASE-Tx, 1-9

10BASE-T, 1-9

Index-4 114200-E Rev 00

AUI, 1-9

base module, 1-9

expansion module, 1-9

interfaces

configuring, A-4

connecting to, 1-10, 1-12, 1-13

ifconfig settings, A-4

pin assignments

10/100BASE-Tx, C-7

AUI, C-6

European operating specifications, D-1 to D-15

Expansion LED, 3-3

expansion module

Ethernet interface

10BASE-T, 1-9

AUI, 1-9

Ethernet LEDs, 3-5

interface options, 1-9, C-3

locating, 1-9

serial interfaces, 1-16

serial LEDs, 3-6

token ring interface

STP, 1-9

UTP, 1-9

token ring LEDs, 3-5

EZ Install

described, 2-2

requirements, 2-2, 2-5

using, 2-5

Fail LED, 3-2

Fan LED, 3-3

feet, rubber, 1-5

file system, local, 2-14

flange brackets, attaching, 1-6

Flash card LED, 3-3

Flash memory

installing, 1-31

protecting, 3-14

removing, 3-13

frame relay

settings, A-3

worksheet for, B-13

getcfg command

described, 2-9

Ethernet, A-4

sample output, A-9

token ring, A-5

hardware

for rack-mounting, 1-6

module options, C-3

requirements, 1-4

Hayes modem, 1-28
