Chapter 1 — Introduction
Getting Started
Congratulations on your purchase of a Notebook computer! Your new notebook
features the most innovative advances in portable computing technology. It
combines state-of-the-art ergonomics with sophisticated architecture to provide
you with a personal computer that is compact, powerful, and easy to use.
Designed for a wide range of general, business, and personal productivity
applications, this notebook is an ideal choice for use in the office, at home, and
on the road.
For maximum expandability without compromising portability, the notebook
accommodates a number of modules, including a combo DVD+CD-RW optical
drive, two USB ports, one PCMCIA and one 4-in-1 card slot. The high capacity
hard disk drive provides you with plenty of storage space for multimedia files
and applications.
This Manual contains all the information you need to set up and use your new
notebook. It describes all the features of the notebook in an easy-to-read yet
thorough manner.
Introduction — Chapter 1
Inventory
This computer system is designed for years of productive and pleasurable
computing. Use this section to keep details of your purchase. This information
will be required should you need to make repairs to your notebook during the
warranty period. Update this section when you add new options.
DATE OF PURCHASE:
PLACE OF PURCHASE:
STORE NAME:
STORE ADDRESS:
TELEPHONE:
E-MAIL ADDRESS/WWW:
CONTACT PERSON:
MODEL NUMBER:
SERIAL NUMBER:
The serial number is on the label (with a bar code) on the bottom side of the
computer.
Chapter 1 — Introduction
Safety and Maintenance
You can use your computer under a wide range of environmental conditions.
However, to ensure long use and continued high performance, consider the
following factors when setting up your computer:
x Follow all warnings and instructions noted in this documentation and
in the Windows Help program.
x The first time you use your computer, we recommend that you
carefully read the Making Connections section of this manual and
initialize the battery to ensure optimum battery performance.
x Unplug the computer from the power outlet before cleaning. Use a
damp cloth for cleaning. Do not use aerosols, solvents, or strong
detergents.
x Do not use the computer near open water or other liquids. Never
spill liquid onto the computer.
x Do not place the computer in an unstable location where it might slip
or be knocked over. Serious damage could result from a fall.
x Slots and openings in the system cabinet are for ventilation
purposes. Do not block or cover these openings or the system could
overheat. Do not use or store the computer near a source of heat or
dust.
x On the base or rear panel of this notebook, there is a label with
information on the power requirements of this system. These
requirements must be followed. If you are unsure of your local power
supply, consult your dealer or local Power Company.
x Do not step on or place anything on the power cord.
x If you use the computer with an extension cord, ensure that the total
ampere ratings of all the devices sharing the extension do not
exceed the rating of the extension cord or the rating of the wall outlet.
x Never push foreign objects into the computer through any of the
slots or openings. Dangerous voltages are present, which could
cause electric shock or fire, or damage sensitive components.
Introduction — Chapter 1
x For best results, use a power strip with a built-in surge protector. Do
not use inferior extension cords as this may result in damage to your
computer.
x Set the computer on a flat, stable surface. To prevent damage to the
computer’s hard disk drive, avoid using the computer where it will be
exposed to strong vibration.
Checklists
After opening the package, carefully inspect the contents. If any of the items
are missing or appear damaged, contact your dealer. The shipping carton
should contain the following:
STANDARD
x Notebook computer
x Internal battery
x AC adapter with power cord
Caution: When purchasing any of the accessories
listed above, purchase only those accessories that
are approved for use with your computer. The above
accessories are proprietary items. Your system
vendor can obtain these approved accessories. If
you use items that are not approved for use with
this computer, you may cause your computer to
malfunction, or to emit or receive electro-magnetic
radiation in excess of local regulations. For non-
proprietary accessories such as PC cards or
printers, ensure that the accessory functions
properly in your computer before making the
purchase. Your system vendor may be able to
recommend reliable brands and models.
Chapter 1 — Introduction
Features
High Capacity Hard Disk Drive
The computer has a high capacity hard disk drive, to store your favorite
programs and large multimedia files.
Built-in Modem/LAN Capability
A built-in 56k modem and 10/100 Mbps Ethernet port allows you to access the
Internet or a local area network (LAN).
AveraBrite™ LCD Display
Your computer has an easy-to-view WXGA LCD panel with AveraBrite™
Built-in Stereo Speakers
The stereo speakers output sound from your multimedia applications.
Windows Media® Player Quick Launch
One button lets you play movies, or music by quickly launching Windows
Media® Player.
Introduction — Chapter 1
Where to Look For Information
About Your Computer
This User’s Manual describes the key elements of your computer. New users
can find a simple step-by-step orientation in the Quick Start section of this
chapter.
About Windows
Windows Online Help, found on the Start menu, offers extensive Windows
assistance. Tour Windows XP offers an online orientation for new Windows
users. Find it in: Start/Programs/Accessories
Chapter 1 — Introduction
Quick Start
Turning on the Computer for the First Time

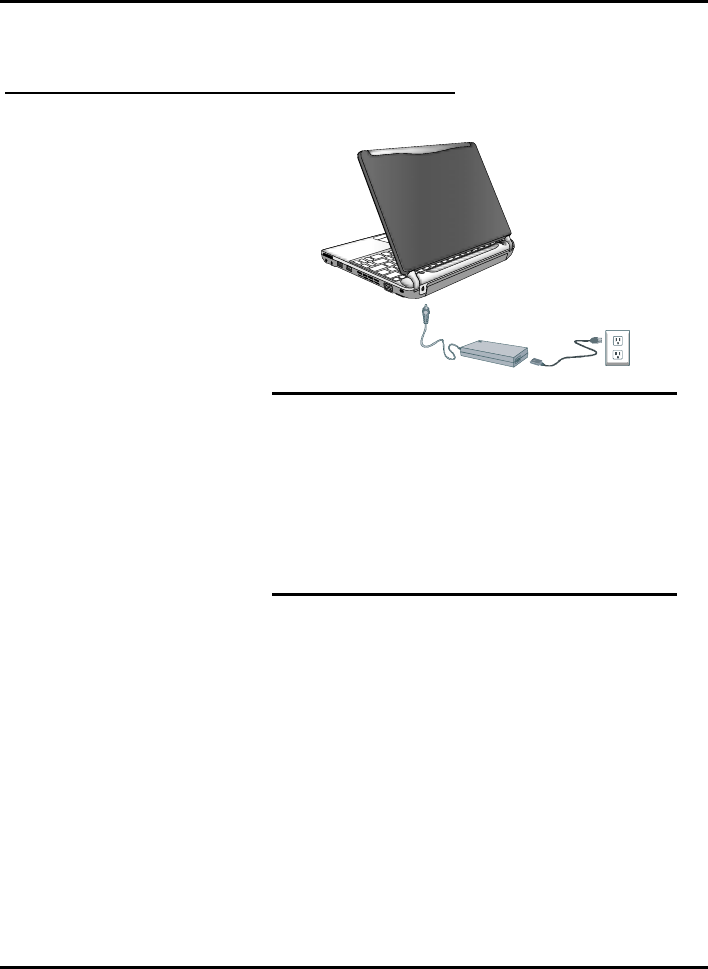

1. Connect the power cord
to the AC adapter.
2. Connect the AC adapter
to the DC power port on
the rear of your
computer.
3. Connect the AC adapter
power cord to an AC
outlet.
4. Open the LCD panel to
a comfortable viewing
angle.
5. Press the power button
to turn on the power.
Note: The battery is not fully charged.
Allow your battery to fully charge before
using it (i.e., before disconnecting AC
power). Calibrating the battery before use
is also highly recommended. Refer to
Chapter 5, Power Management, for further
information.

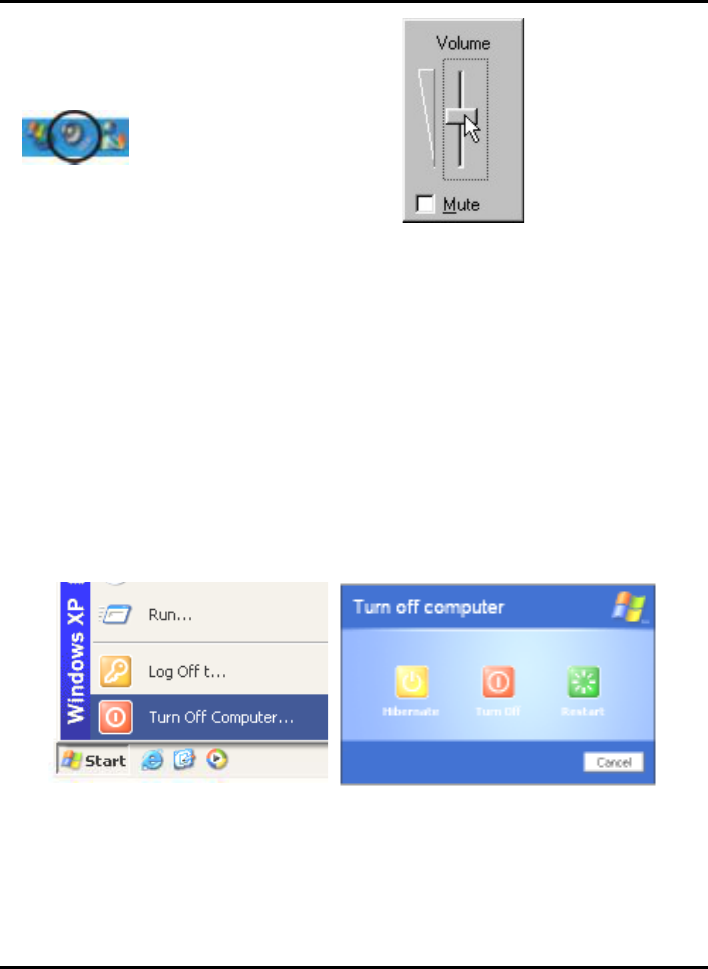

Adjusting the Volume
You can adjust the volume with hot key combination as below:
x Fn + F8 decreases the volume
x Fn + F9 increases the volume
x Fn + F10 Mute the volume
Introduction — Chapter 1
Alternatively, you can adjust
the volume with the Windows
volume control applet located
on the taskbar.
Adjusting the Brightness
Use the following hot key combinations to adjust the LCD panel brightness:
x Fn + F6 decreases the brightness
x Fn + F7 increases the brightness
Turning off Your Computer
Turning off the computer properly is important in maintaining your computer.
1. On the Start menu, click
Shut Down.
2. Click the red button in the Shut
Down Windows screen, and then
click OK.
If you are going to be away from the computer for a short period, there are
ways of conserving power without shutting down the system. See Chapter
5, Power Saving Modes, for details.
Chapter 1 — Introduction
Warning: Shutting off the computer improperly
may result in data loss.
Tips for New Owners
Take responsibility for backup
Back up files often. Users who need to manage large amounts of data may
wish to use backup devices such as a USB drive. If you use your notebook as
a networked workstation with system backup, talk to the system administrator
about backup procedures for your notebook.
Don't leave passwords anywhere on your notebook or carrying case
Be careful when placing your notebook on an airport security conveyor
belt
In most airports, security conveyor belts are safe for computers. If you are not
sure, ask the security staff. You should keep a close eye on your computer.
When you are in a hurry, make sure that you walk away with the correct
notebook computer!
Tape your business card to the notebook and accessories
In the workplace, notebooks and accessories may often look exactly alike,
leading to equipment mix-ups. Prevent such mix-ups by placing your name on
your equipment.
Never take the notebook anywhere without a carrying case
A broken screen or case can be costly to repair. Prevent accidents by carrying
the computer in a suitable carrying case.
Consider using a lock
For added security, consider purchasing a Kensington lock to put into the
Kensington lock hole on the right side of your computer (see Chapter 2, Left
View). Use the Kensington lock to secure the computer to a desk or table.
Introduction — Chapter 1
Note: Using a computer for extended periods of
time with a poor workstation setup and incorrect
work habits can cause health problems.
C
Ch
ha
ap
pt
te
er
r2
2
G
Ge
et
tt
ti
in
ng
gS
St
ta
ar
rt
te
ed
d
Chapter 2 — Getting Started
Hardware and Software
This chapter introduces the different components and controls of your
notebook computer, including the hardware components, the software, and
the audio and video systems.
Getting Started
Before you begin using your computer, read this chapter to familiarize
yourself with the main components installed in the system.
Getting Started — Chapter 2

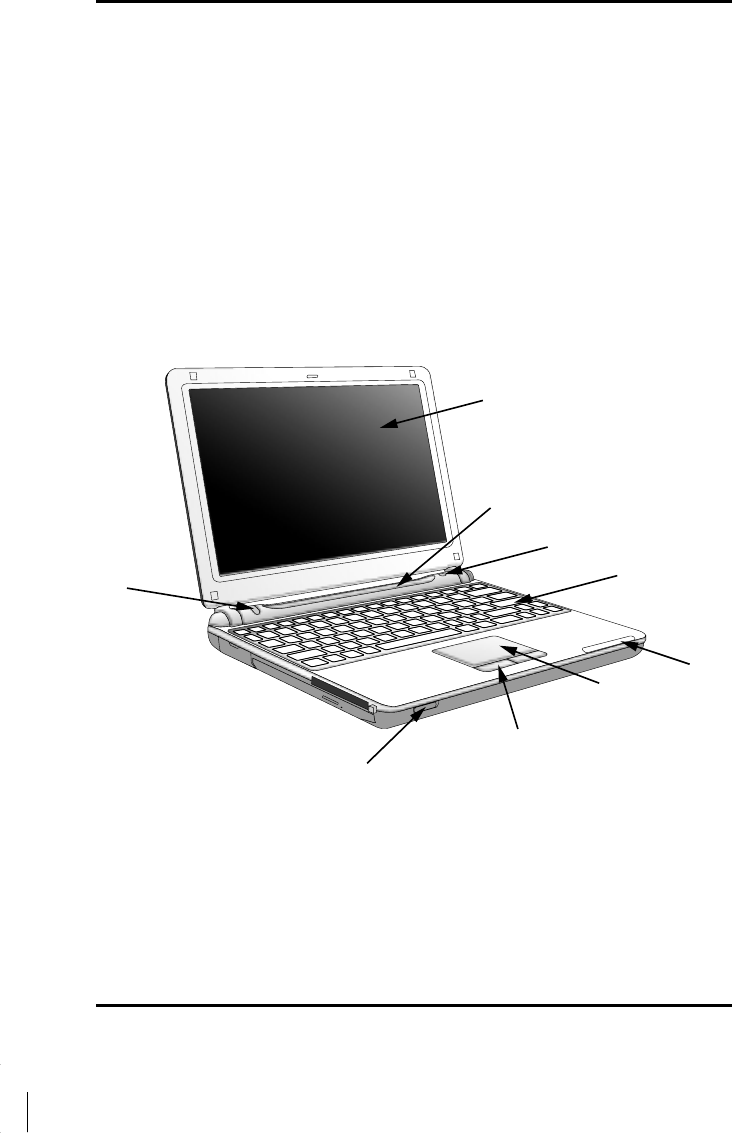

Front View
1. LCD panel
2. Speakers
3. Power button
4. Keyboard
5. Status indicators
6. Touchpad
7. Touchpad buttons
8. Wireless LAN switch
9. Windows Media® Player
Quick Launch Button
1
2
34
5
6
7
9
8
Chapter 2 — Getting Started

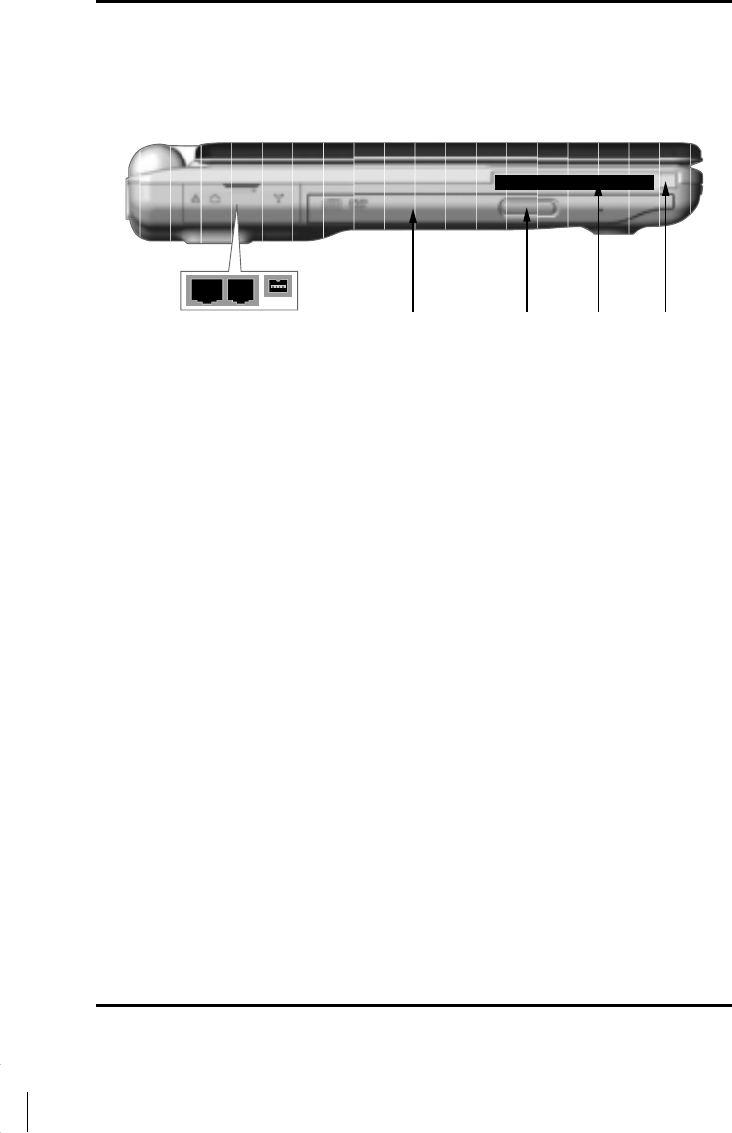

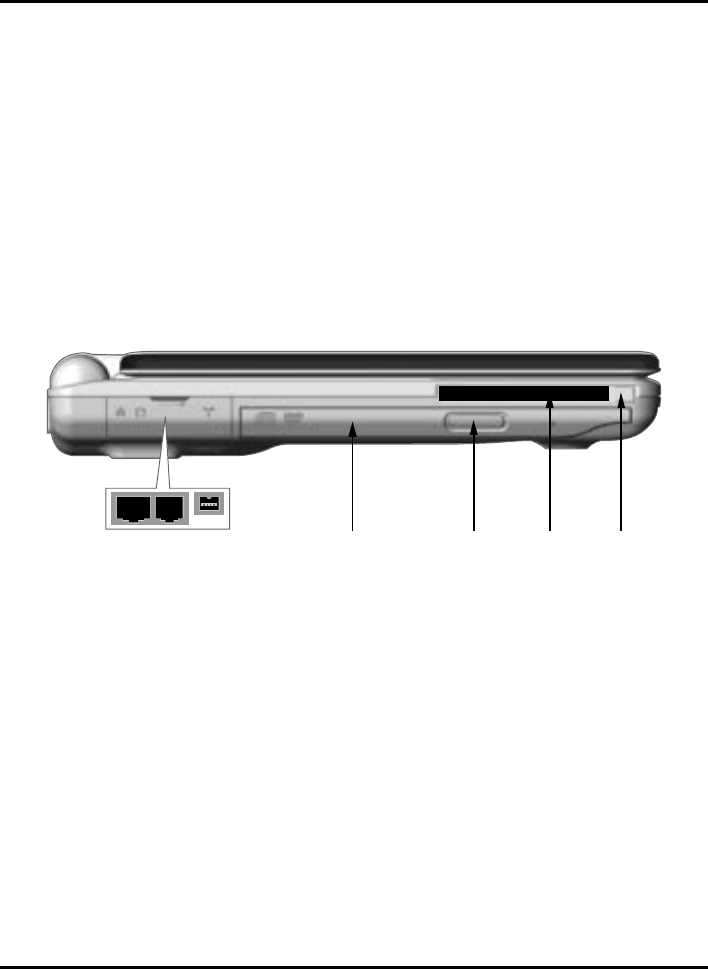

Left View
123 4 5 6 7
1. LAN RJ-45 jack
2. Fax/modem RJ-11 Jack
3. IEEE 1394 port
4. Optical drive Bezel
5. Optical drive button
6. PCMCIA card slot
7. PCMCIA card eject button
Getting Started — Chapter 2

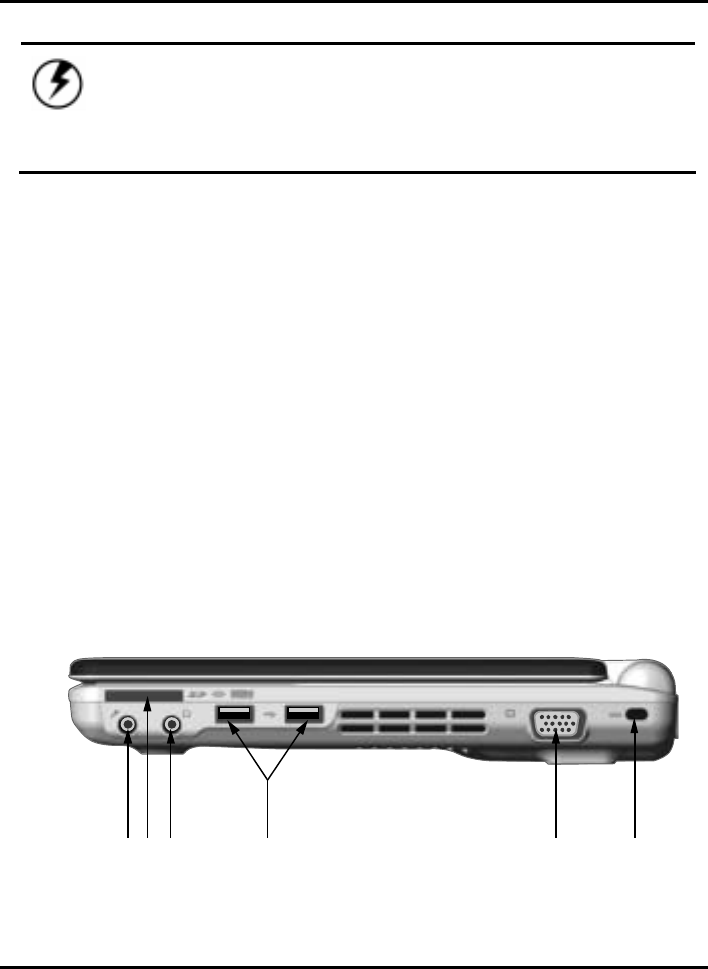

Right View

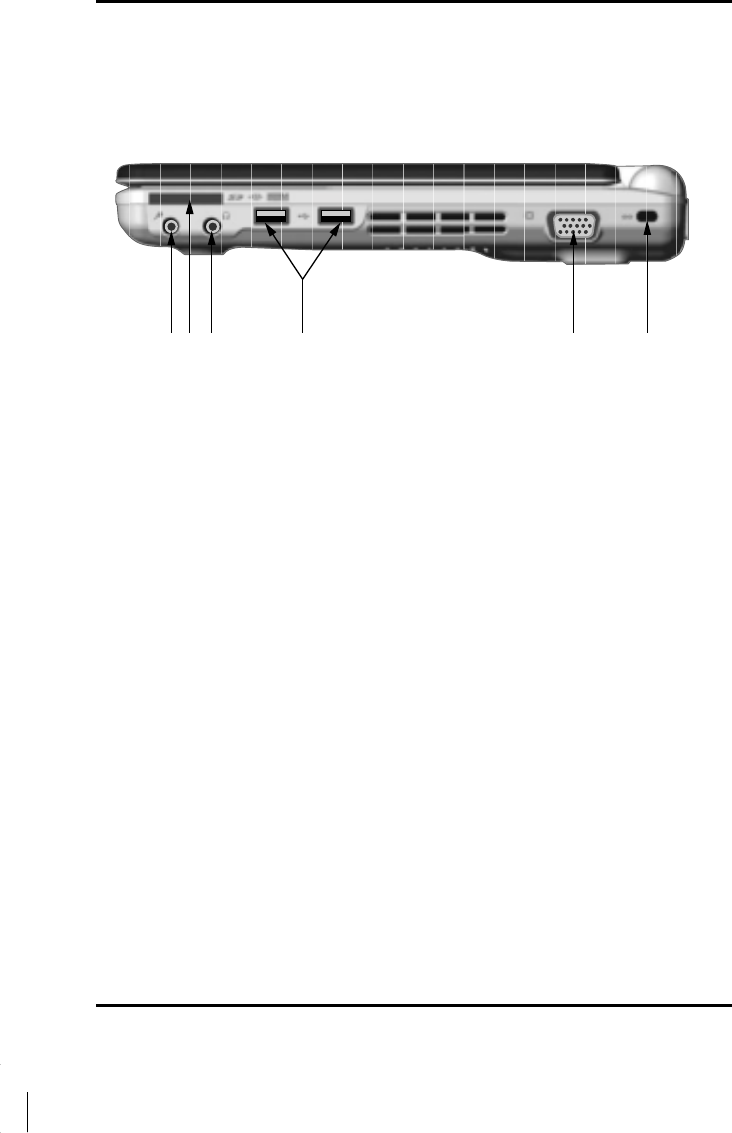

123 4 5 6
1. Microphone jack
2. MS/MMC/SD/MS Pro card slot
3. Ear phone jack
4. USB ports
5. VGA external video display port
6. Kensington lock hole
Chapter 2 — Getting Started

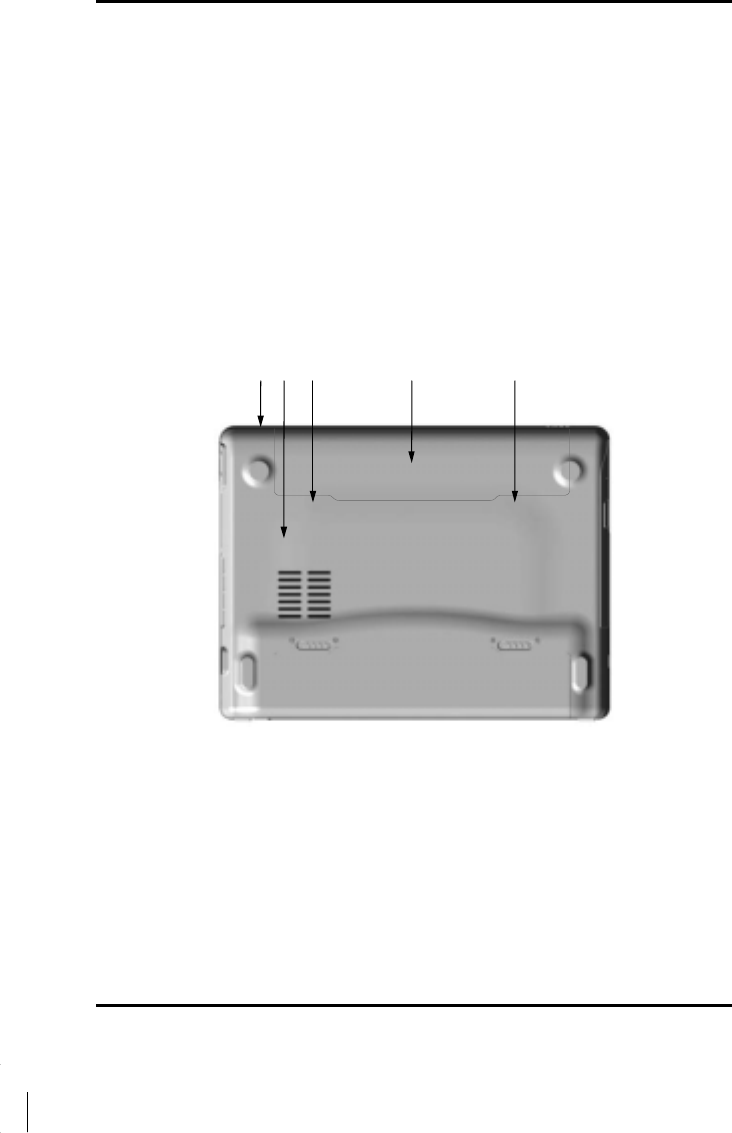

Bottom View
1. DC-IN jack
2. Ventilation slot
3. Battery release latch
4. Battery
5. Battery lock
12 3 54
Getting Started — Chapter 2

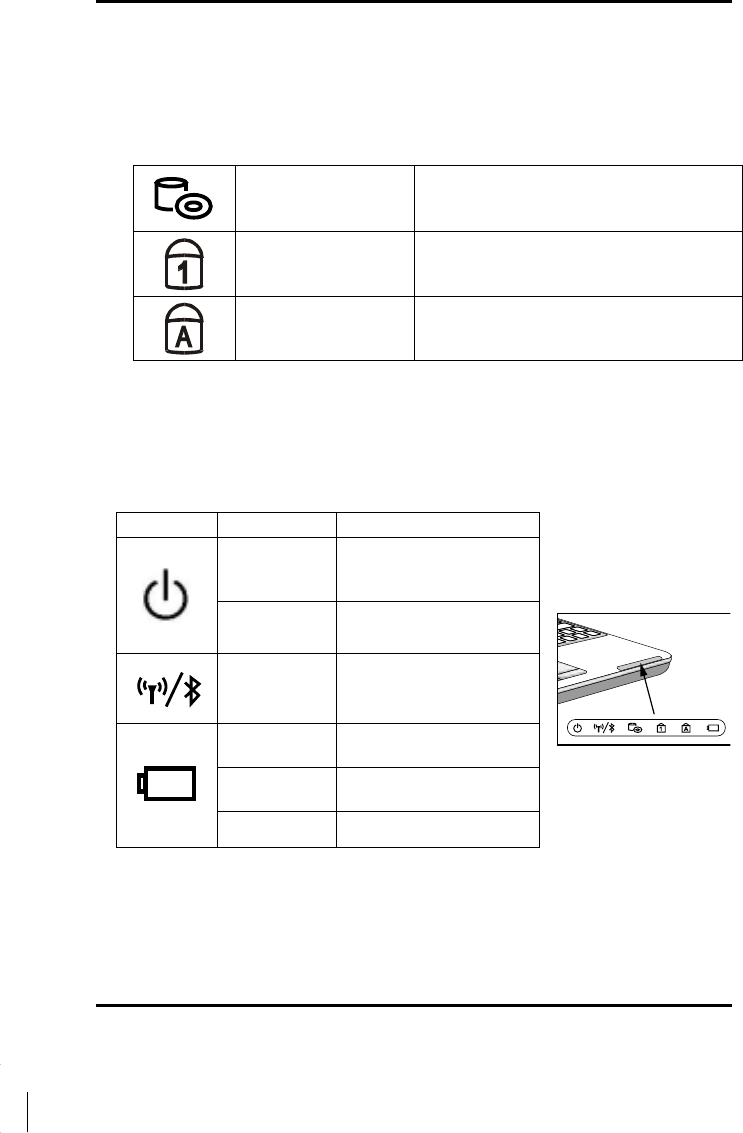

LED Status Indicators
The status indicators in the lower right corner of the keyboard light up when
a particular function of the computer is active. Each indicator is marked with
a symbol.
CD ROM Drive
The computer is reading information
from the DVD-ROM or the Combo
drive.
Number-Lock The keyboard is in Num-Lock mode.
Caps-Lock The keyboard is in Caps-Lock mode.
Power Indicators
The power indicators show which power source the system is using. The
power indicators remain active and viewable even when the LCD panel is
closed.
Icon Light Description
Blue Power is on and the
AC adapter is in use
Flash blue Power is in suspend
mode
Blue Wireless LAN is in
use
Green Power is on and the
battery is in use
Flashing
Green Battery is charging
Red Low battery
Function Keys
Hold the <Fn> key while pressing the numbered function key.
Chapter 2 — Getting Started

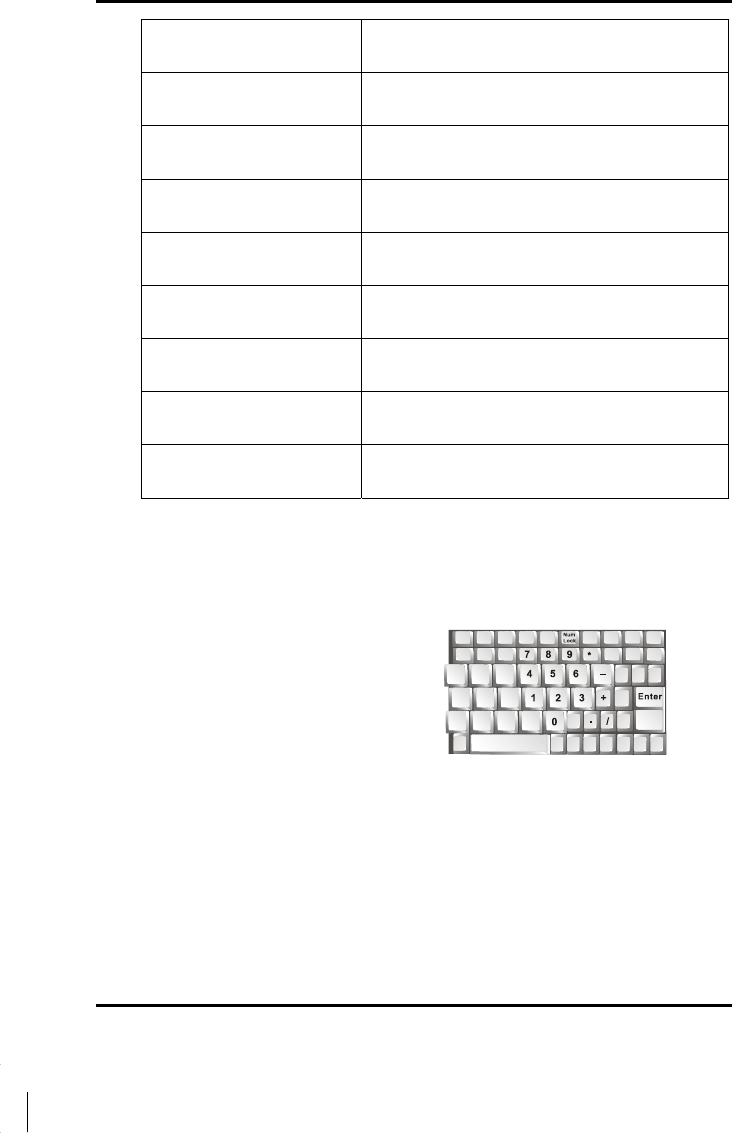

Function key Description
Fn + F3 Toggles display on/off
Fn + F4 Suspend to RAM/HDD
Fn + F5 Toggles between LCD/CRT displays
Fn + F6 Decreases LCD brightness
Fn + F7 Increases LCD brightness
Fn + F8 Decreases Volume
Fn + F9 Increases Volume
Fn + F10 Mute Volume
Numeric Keypad
The embedded numeric keypad
consists of ten keys that make
number intensive input more
convenient. Press <NumLock> to
enable or disable the numeric
keypad.
Getting Started — Chapter 2
Touchpad
The touchpad is a pressure sensitive pointing device that provides all the
features of a two-button mouse. Its primary function is to move the cursor
around the screen.
The instructions listed below describe how to use the touchpad.
1. First, place your fingers on the keyboard in the normal typing
position. The touchpad is easily accessible by moving either your
left or right thumb off the space bar and on to the touchpad.
2. Gently move your thumb across the pressure-sensitive touchpad in
the direction you want the cursor to move. The pad detects the
change in pressure and moves the cursor in the corresponding
direction.
3. The touchpad offers another method of making selections in a
software program. It is called double-tapping. This function
corresponds to double-clicking with a mouse. Once the cursor
has been moved to the object you want to select, lightly double-
tap the pressure sensitive touchpad. This double-tapping on the
touchpad will select the desired item and prompt the software to
perform the related operation.
4. The buttons located directly below the touchpad are the same in
function as those on a two-buttoned mouse. Clicking these buttons
makes selections, drags objects, or performs a variety of other
functions depending on the software. To select an object, first move
the pointer over the object you want to select, and then press the
left button one time. The functions of these buttons are software
specific.
Touchpad buttons
Touch
p
ad
Chapter 2 — Getting Started
5. Double-clicking is a common technique for selecting objects or
launching programs from icons. Once you have moved the
pointer over the object you wish to select, rapidly press the left
button two times. This action is commonly referred to as “double-
clicking” an object.
Dragging
There are two ways to drag:
x Move the pointer to the desired location then press down the left
button. While still holding down the left button, move the pointer
to the desired location. Release the button.
x Move the pointer to the desired location. Tap the touchpad twice
quickly as if you were double-clicking, however do not remove
your finger after the second tap. Move the cursor to the desired
location. Lift your finger to finish dragging.
Adjust the touchpad settings by selecting Settings/Control Panel/Printers
and Other Hardware/Mouse/Buttons. These settings allow you to change
the orientation of the touchpad from right-handed to left-handed, and fine
tune the pointer movement and timing of clicks.
Touchpad Precautions
The Touchpad is a pressure-sensitive device. If not properly cared for, it
can be easily damaged. Please take note of the following precautions.
x Make sure the touchpad does not come into contact with dirt,
liquids or grease.
x Do not touch the touchpad if your fingers are dirty.
x Do not rest heavy objects on the touchpad or the touchpad
buttons.
Scrolling Buttons
If you are scrolling through a document, you may find that using the
scrolling line is more restful to your hand than holding down a mouse button.
The scrolling line is located on the touchpad.
Getting Started — Chapter 2

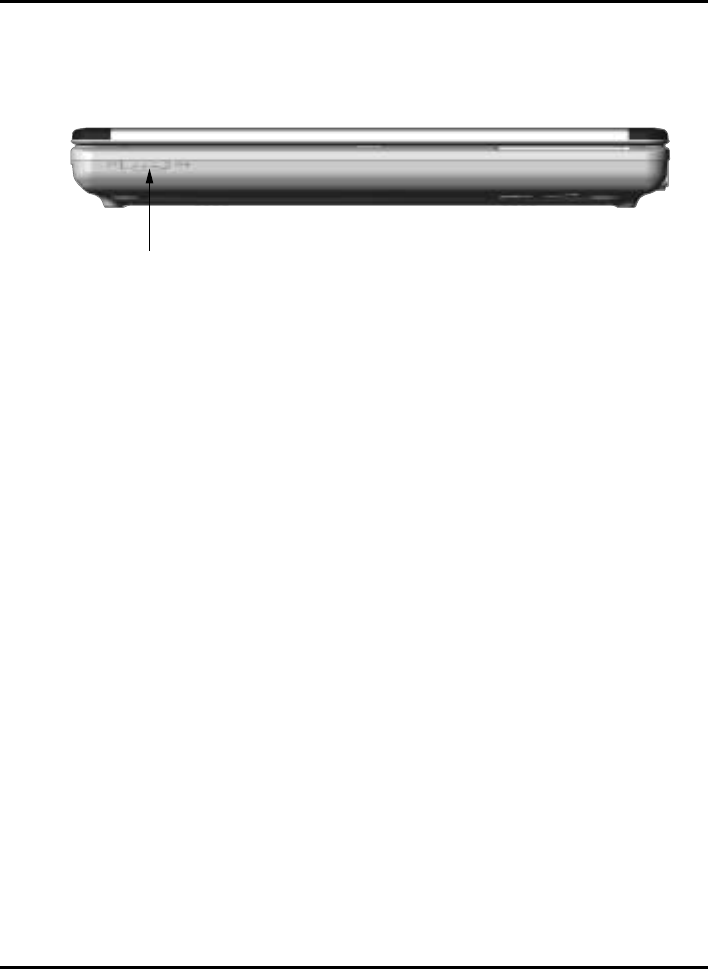

The Optical Drive
Your computer comes with a pre-installed Optical drive. The optical drive can
read both DVDs and CDs. Your notebook identifies the drive with the letter
following the hard drive letter. If your hard drive is C, then the optical drive
will be D.

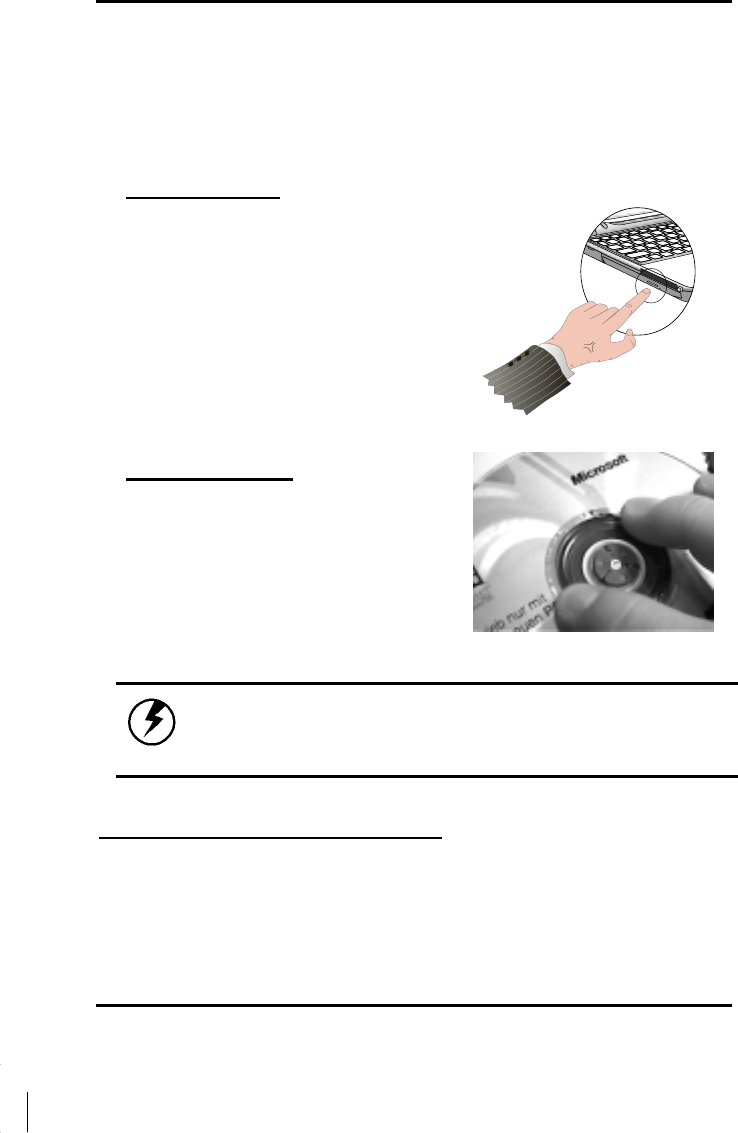

Inserting a Disc
1. Press the button on the front of
the drive to open the disc tray
and pull the tray open.
2. Place the disc on the tray, label
side up.
3. Place the disc on the central
spindle and press gently until the
disc clicks into place.
4. Slide the tray back until it clicks
shut.
Removing a Disk
1. Make sure the computer is not
accessing the optical drive.
2. Press the eject button and pull
the tray all the way out.
3. Pick up the disc by the edges
and remove the disc from the
tray. Push the tray into the
computer until it closes fully.
Warning: When the computer is reading from the
optical drive, the indicator light for the DVD-ROM
will flash on. Do not attempt to remove the disc
while the indicator light is active.
Precautions for Handling DVD/CDs
Keep these precautions in mind when handling DVD/CDs.
x Always hold the disc by the edges; avoid touching the surface of
the disc.
x Use a clean, dry, cloth to remove dust, smudges, or fingerprints.
Wipe from the center outward.
Chapter 2 — Getting Started
x Do not write on the surface of the disc.
x Extremes in temperature may damage discs. Store discs in a
cool dry place.
x Do not use benzene, thinners, or cleaners with detergent. Only
use optical cleaning kits.
x Do not bend or drop the discs.
x Do not place objects on top of discs.
Warning: Do not insert any
foreign objects into the
disc tray. Do not force
the tray to open or close
manually. When not in use,
keep the tray closed to
prevent dust or dirt from
entering the drive unit.

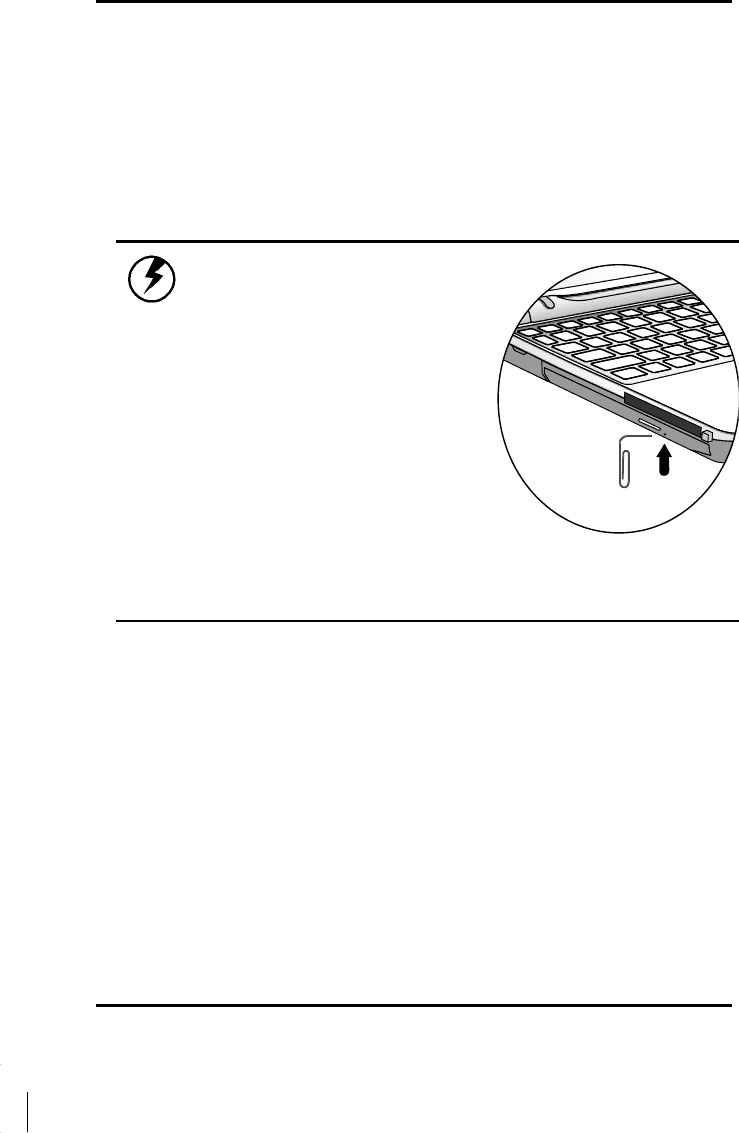

If you experience
difficulty when removing a
CD disc, stretch a paper
clip (or use a pin or a
thin metal rod) and insert
it into the emergency
eject hole located on the
bezel:
The CD disc tray should eject immediately. This
procedure can also be used to remove a CD from the
drive when the notebook is powered off.
Getting Started — Chapter 2
The PC Card Slot
The PC card slot can be used as an interface between your computer and
a variety of communications devices, such as network adapters,
fax/modems or provide additional data storage capacity. Your computer's
PC card slot supports PCMCIA Type II and 32-bit CardBus.
Installing a Card

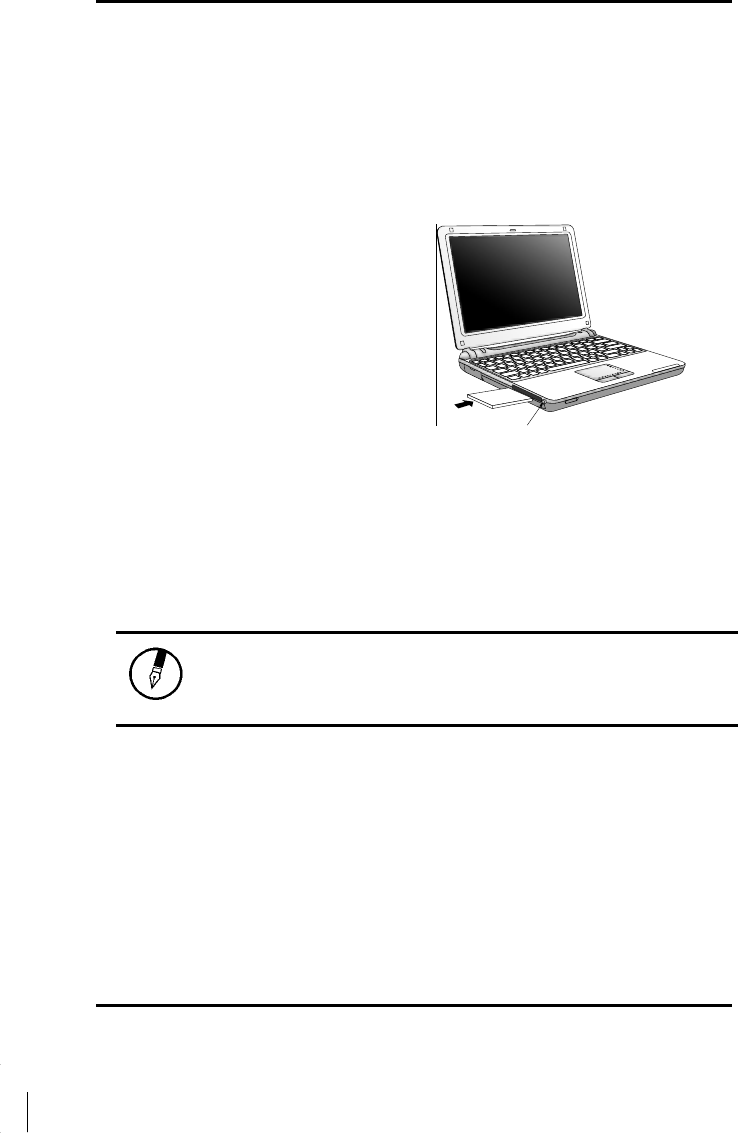

1. The top side of a PC card is
usually identified with a label.
Insert the card into the slot with
the label side up and the edge
with pinhole contacts going in
first.
2. Insert the card into the slot. You
will feel some resistance as the
card slides into the back of the
slot.
3. PC cards require drivers, or a program that allows the operating
system to use a specific device. Many drivers are included with
Windows, but if not, you will be prompted to install the driver
included with your card.
4. The computer will beep twice to indicate successful installation. A
single beep means that there was a problem recognizing the card.
Note: Please read the instructions included with
individual PC cards. Some cards may be inserted
with the power on, while others require that the
computer be turned off.
Removing a Card
1. Press the eject button on the card slot to release the eject button.
2. Press the eject button to release the card.
Slide the card into the slot.
Push the button to eject the card.
Chapter 2 — Getting Started
The Graphics System
Your computer has a high-performance graphics system, which can easily
handle the demands of today's multimedia computing.
Screen Controls
Brightness
Function keys can increase or decrease the brightness of the monitor.
x <Fn> + <F6> decreases the LCD panel brightness
x <Fn> + <F7> increases the LCD panel brightness
Resolution
1. Click My Computer/Control Panel/Appearance and
Themes/Display. Click the Settings tab. The dialog box indicates
the monitor resolution.
2. Use the slide bar to adjust the resolution. Normally, you should
use the resolution the LCD or monitor was designed for.
Note: Using a lower resolution than the screen was
designed for will reduce the area of the display.
Using the computer in DOS mode may produce the same
effect, because it uses a 640 by 480 resolution by
default.
High Resolution with an external monitor
Higher resolution modes may be used, as long as the monitor supports
them.
Connecting to an External Monitor
The notebook has a VGA monitor port to connect your computer to an
external monitor.
Using the VGA monitor port
1. Locate the 15-pin VGA monitor port on the right side of your
notebook and connect the video signal cable from the external
monitor (or the VGA adapter) to the monitor port.
2. Connect the power cable from the external monitor to a power
outlet and turn on the monitor.
Getting Started — Chapter 2
3. On your notebook, click the right touchpad button on the
Windows desktop to open the desktop menu. Click Properties to
open the Display Properties window.
4. In the Display Properties window, click Advanced in the Settings
tab. Click the Intel Extreme Graphics tab.
5. You are now able to select the appropriate options to change the
display to an external monitor.
6. Adjustments to screen resolution and color depth can also be
made in this dialog box.
Dual Displays
With Windows system, you may use an external monitor simultaneously
with your notebook’s LCD. You may also use the external monitor only and
disable the LCD or only use the LCD.
1. Open the Control
Panel.
2. Double-click
Display.
The Display Properties
window opens.
3. Click the
Settings tab.
4. Click the
Advanced
button.

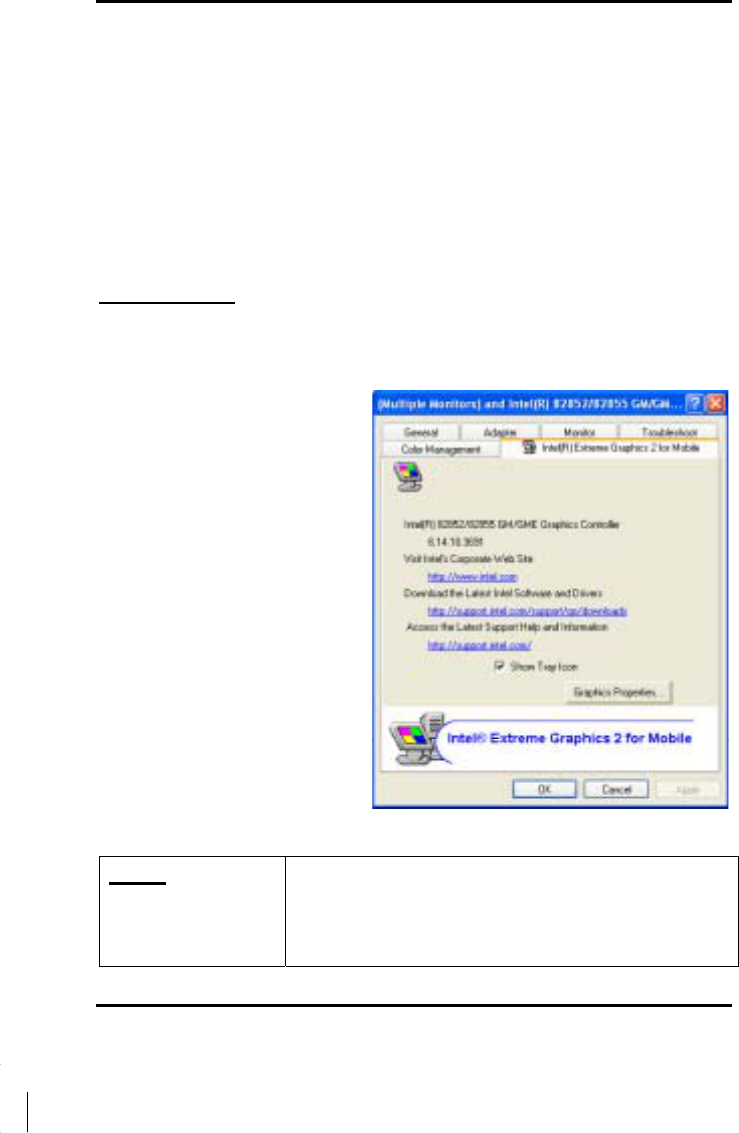

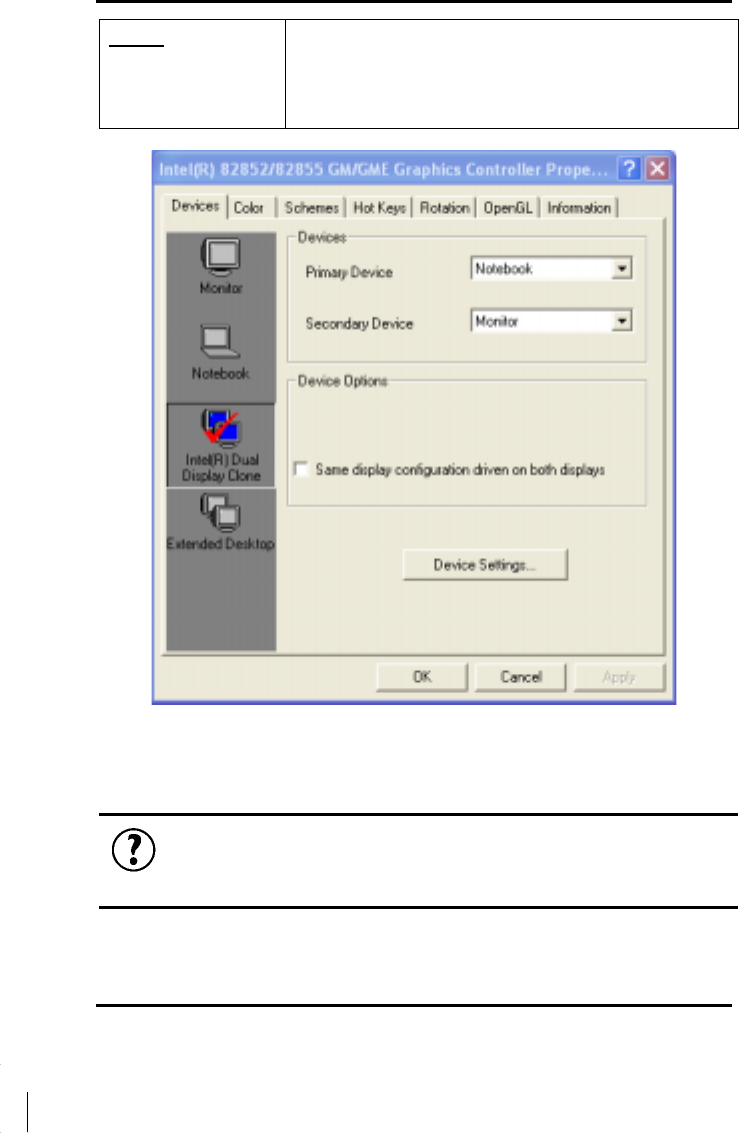

5. Choose Intel® Extreme
Graphics 2 for mobile
6. Click Graphic
Properties
These options are described below.
Single You can choose which device to apply as the
Primary display.
In Single mode, the video display hot key
combination is available—you can cycle the video
output by pressing the Fn + F5 keys.
Chapter 2 — Getting Started
Mirror In Mirror mode, the video display hot key
combination is available—you can cycle the video
output by pressing the Fn + F5 keys.
If the external CRT is connected, the display on the
LCD and the CRT is the same.
Tip: To ensure trouble-free video output, the first
time you use an external monitor, change the output in
the Display Properties dialog box. After successfully
switching modes, you may use the video function keys.
Getting Started — Chapter 2
Note: Light or dark dots may appear on the LCD due to
technical limitations of LCD manufacturing. This will
not effect normal operation of the LCD.
Communication Components
This system provides powerful communication functions, including a built-in
Fax/Modem and PCMCIA card slot.
Fax/Modem
A phone jack on the left side of the computer allows you to connect to the
Internet to send and receive data. When used with fax software, it can be
used as a fax. When using this function, first plug the phone cord into the
jack.
Information about the Wireless LAN button
Built-in Wireless Local Area Network
The built-in Wireless Local Area Network (WLAN) interface card can
provide a quick access without using cables for the connection to the
network equipments. The interface card adopts the IEEE 802.11 protocol
and uses the 2.4 GHz ISM electric wave frequency band as the
transmission interface to set up the communications between the host
computer and other computers.
The processing of communications through the WLAN interface card is the
same as that through an Ethernet interface card. The “Configuration Tool”
is a Window application program.
A
ttention:
When using the data communications function, please do
not plug the phone cord into the ISDN or PBX jack to
avoid an electrical surge that will cause the MDC
module to burn.
Chapter 2 — Getting Started
DGT Warning
Article 14
Without permission, any company, firm or user
shall not alter the frequency, increase the
power, or change the characteristics and
functions of the original design of the
certified lower power frequency electric
machinery.
Article 17
The application of low power frequency electric
machineries shall not affect the navigation
safety nor interfere a legal communication, if
an interference is found, the service will be
suspended until improvement is made and the
interference no longer exists.
The foregoing legal communication refers to the
wireless telecommunication operated according
to the telecommunications laws and regulations.
The low power frequency electric machinery
should be able to tolerate the interference of
the electric wave radiation electric
machineries and equipments for legal
communications or industrial and scientific
applications.
C
Ch
ha
ap
pt
te
er
r3
3
M
Ma
ak
ki
in
ng
g
C
Co
on
nn
ne
ec
ct
ti
io
on
ns
s
Chapter 3 — Making Connections
Making Connections
Your computer is equipped with a full array of ports and connectors, including
standard input/output (I/O) ports for quickly and easily adding peripheral
devices such as printers, keyboards, and mice. Refer to documentation
included with individual devices for details on connecting these devices to your
computer. Along with the standard ports found on most computers, your
computer also includes IEEE 1394 ports, modem and LAN ports, offering
advanced communications technology.
Left Side Connectors
123 4 5 6 7
1. LAN RJ-45 Jack
With the built-in Ethernet LAN combo, you can make LAN connections.
Connection speed is up to 100 Mbps.
2. Fax/modem RJ-11 Jack
The fax/modem can transmit data using the 56 Kbps V.90 protocol, and send
and receive faxes at 14.4 Kbps. In some countries, local regulations may not
permit the use of the fax/modem designed in this system. In this case, you may
use an add-on modem.
Making Connections — Chapter 3
Warning: Plug your modem into an analog telephone
jack only. Most homes use analog lines. Do
not use digital lines, such as the PBX and
ISDN systems found in many offices. Digital
lines may damage your modem.
3. FireWire / IEEE 1394 / 1394a Port
This is a high-speed serial data port. You may connect any FireWire
compatible device to this port.
4. Optical Drive
Your computer comes with a built-in Combo DVD+CD-RW Drive. You may
view DVDs and write to a CD-R or CD-RW disc.
5. Disk Eject Button
Press the eject button to eject the disk tray. The manual eject keyhole is
located next to it and allows you to manually eject a jammed disc.
6. PC Card Slot (Type II PCMCIA)
This slot is where a Type II PC Card is inserted.
7. PC Card Eject Button
Press the eject button to release the PC Card.
Right Side Connectors
123 4 5 6
Chapter 3 — Making Connections
1. Microphone-in Jack
Connect a microphone to this jack to record.
2. MS Pro/MS/MMC/SD 4-in-1 card reader slot
The 4-in-1 card reader slot is specially used for the device with a MS
Pro/MS/MMC/SD interface card. Insert the card into the 4-in-1 card reader slot
securely for device access.
3. Audio-out Jack
Connect a stereo headset or external speakers to this jack to listen to
multimedia.
4. USB 2.0 (Universal Serial Bus) Ports
The Universal Serial Bus (USB) is the latest standard for attaching monitors,
input devices, scanners, and other devices to a PC. USB devices can be
chained together on a single cable.
5. VGA Out (External Video) Port
The 15-pin VGA port can be used to connect your computer to an external
monitor. (See the Graphics System in chapter 2 for more information).
6. Kensington Lock
Your computer includes a Kensington lock slot for use with a Kensington lock.
You can secure your notebook with the Kensington lock to prevent theft. See
the documentation that comes with your Kensington lock for more information.
Making Connections — Chapter 3
Front Side Connectors
1
1. Wireless LAN On/Off Switch
Use the switch to disable or enable the Wireless LAN function.
C
Ch
ha
ap
pt
te
er
r4
4
P
Po
ow
we
er
r
M
Ma
an
na
ag
ge
em
me
en
nt
t
Chapter 4 — Power Management
Power Management
Battery Calibration
The first time you use a battery, you should calibrate it. The calibration process
empties and charges the battery one time. This allows the Windows battery
gauge to accurately monitor battery status. To calibrate a battery, follow these
steps:
1. Plug in the AC adapter.
2. Restart the computer and when the startup screen appears, press
F2 key to enter the BIOS Setup Utility.
3. In the BIOS Setup Utility, select Advance settings. , choose Battery
learning, then press enter.
Execute Battery Learning function?
[OK] [Cancel]
4. Press <OK> at the above Battery Auto Calibration dialog to begin
the battery calibration..
Battery Calibration takes from 4 to 8 hours, depending on how much power the
battery already contains.
Note: For optimum performance, we recommend
calibrating the battery every three months. Each
time you charge and discharge a battery, it loses
a tiny part of its storage capacity, so that over
time, it will store less than its potential
charge. Similarly, if you do not use the battery
for a few days, it will slowly self-discharge, and
when it is recharged, it will hold less than 100%
of the potential charge.
Power Management — Chapter 4
Monitoring Battery Power
There are two ways to
monitor how much power
the battery has left.

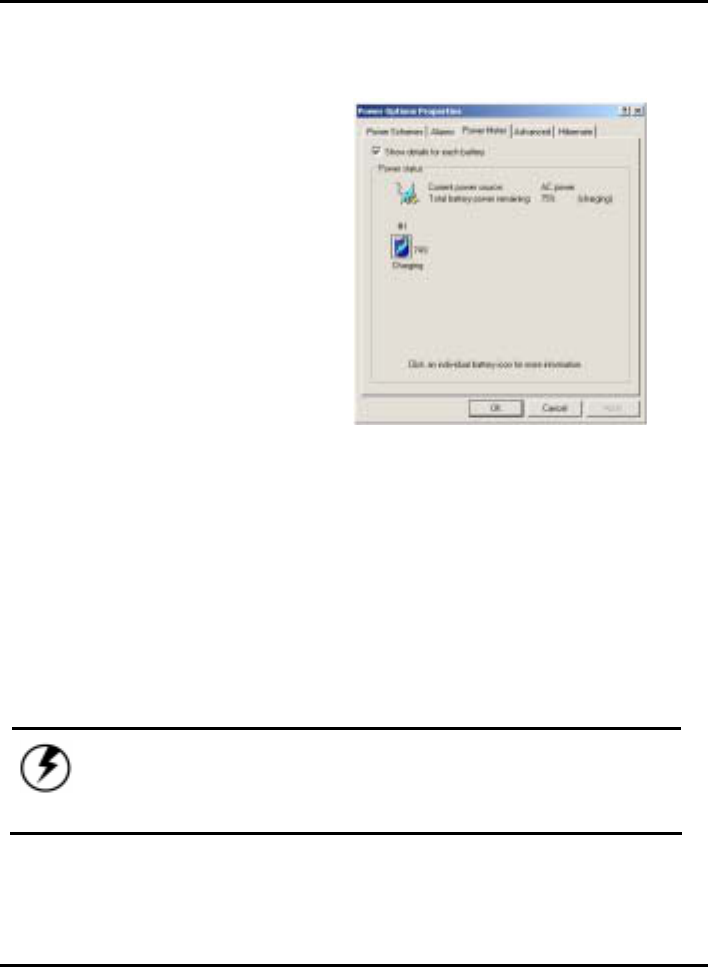

1. Click start/Control
Panel/Performance
and
Maintenance/Power
Options; then click
Power Meter.
2. Moving the cursor to
the battery icon on the
taskbar is the simplest
way to check on
battery power status.
If you do not see the battery icon, enable it in Start /Control
Panel/Performance and Maintenance/Power Options. Choose the
Advanced tab and click “Always show icon on the taskbar.”
Low Battery Alarms
How your computer responds to a low battery condition is set under
Start/Control Panel/Performance and Maintenance/Power Options/Alarms.
Two different power alarms can be enabled or disabled: the Low Battery Alarm,
and the Critical Battery Alarm. Use the slidebar to set the power level at which
the alarms are activated. Click on the Alarm Action button to choose whether
the alarm sounds, displays a message, or both.
Warning: When battery power is low, the Notebook
will display a warning on the screen. Take
immediate action, such as saving files or
connecting to the AC adapter, or data may be lost.
When the computer alerts you that the battery is low, immediately do one of
the following:
Chapter 4 — Power Management
•Connect the AC power adapter
•Save your work, turn off the computer and replace the discharged
battery with a charged battery (See Changing the Battery below).
Do not restart the computer until you have connected to an AC adapter, or
replaced the discharged battery with a charged battery.
Battery Charging
When you use the AC adapter to connect your Notebook to a power outlet, the
internal battery will automatically begin to recharge. While the battery is
charging, the Battery Charge icon on the Indicator panel will be active. When
the battery is fully charged, the Battery Charge icon will turn off.
If your computer is turned off or standby mode, a fully discharged battery will
take about 3 hours to recharge.
Power Saving Modes
Adjust the default power management settings in the Power Options/
Advanced dialog box. The Power Options Properties dialog box allows
you to set different actions to take when the computer is left idle for a
certain amount of time.
Suspend Mode
There are several possible settings for suspend mode, which can be selected
in the Power Options dialog box: You may have the notebook standby,
suspend, or you can power off the computer altogether.
Initiating Suspend Mode
There are four ways to initiate suspend mode. The settings can be adjusted in
the Power Options dialog box:
•The computer will automatically enter suspend mode when not used
for a set period of time.
•Selecting the Stand by button in the Shut Down Windows dialog box.
•Closing the screen cover (assuming no external monitor has been
connected).
Power Management — Chapter 4
•Pressing the power button (if enabled in power settings).
•Pressing the suspend function key <Fn> + <F4>.
Power Button Settings
The function of the power button can be set to Shutdown or Standby in the
Power Options Properties dialog box. However, holding the power button down
for more than four seconds will force a power off while operating under any
situation, resulting in the loss of any unsaved information.
Power Saving Tips
•Avoid operating the fax/modem, or audio and video applications
when using battery power. Operating a fax modem, video, or audio
equipment increases the computer's power requirements.
•Decreasing monitor brightness can also save power. Decrease
brightness by pushing <Fn> + <F6>. Increase it by pushing <Fn> +
<F7>.
Chapter 4 — Power Management
When to Replace the Battery
Over time, the battery's capacity gradually decreases. We recommend that
you replace your battery when you notice that it begins to store significantly
less charge.

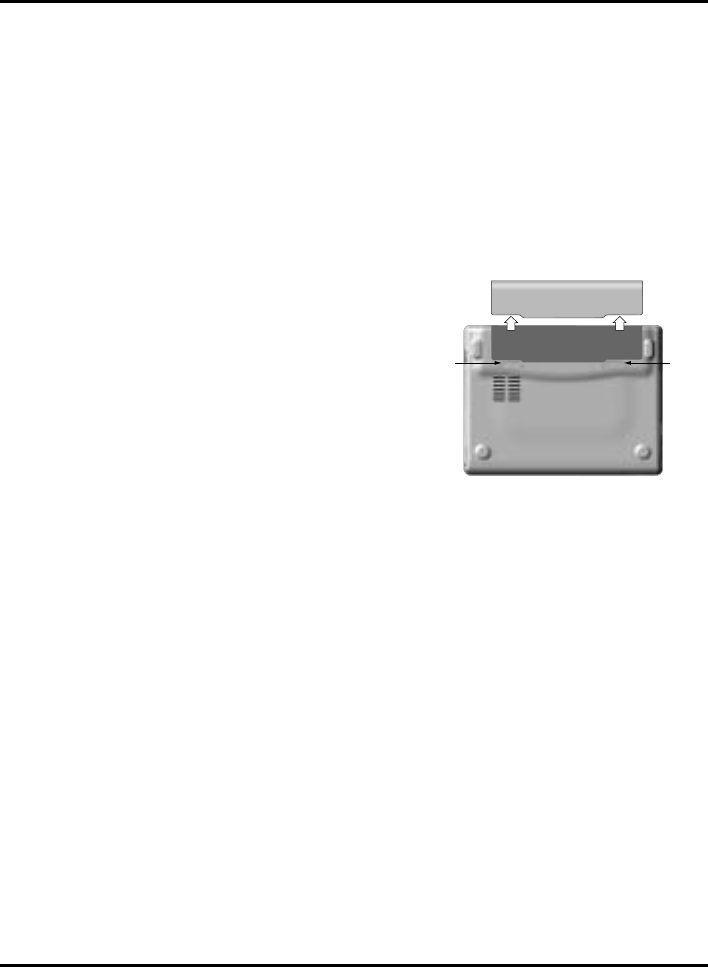

Changing the Battery
Change the main battery pack as
follows:
1. Turn off the computer.
2. Close the screen cover and turn the
computer over.
3. Unlock the side battery latch (2) by
sliding it to the right.
4. Slide the side battery latch (1) to the
left. Continue to hold it until the
battery is removed.
5. Make sure the replacement battery
is properly oriented. Insert the
battery into the battery compartment
and lock the latch (2) by sliding it to
the left.
12
33
Heat Considerations
The computer's processor has been specially designed to consume little power,
and generates very little heat. However, working in a hot environment, or
working for long periods may raise the temperature. Your computer takes the
following steps to lower the temperature:
1. The cooling fan will automatically turn on. You may feel air coming
from the vent.
2. If the temperature continues to rise, processor activity will be
reduced. You may notice a slight loss of performance when this
happens.
C
Ch
ha
ap
pt
te
er
r5
5
U
Us
si
in
ng
gt
th
he
eB
BI
IO
OS
S
S
Se
et
tu
up
pU
Ut
ti
il
li
it
ty
y
Chapter 5 — Using the BIOS Setup Utility
Using the BIOS Setup Utility
Your notebook has a BIOS setup utility which allows you to configure
important system settings, including settings for various optional functions
of the computer. This chapter explains how to use the BIOS setup utility.
BIOS Setup Menu
The BIOS setup Utility allows you to configure your computer’s basic
settings. When you turn your computer on, the system reads this
information to initialize the hardware so that it can operate correctly. Use
the BIOS setup utility to change your computer’s start-up configuration. For
example, you can change the security and power management routines of
your system.
Starting the BIOS Setup Utility
You can only enter the BIOS setup utility as the computer is booting, that is
between the time you turn on the computer and before the Windows
interface appears. If your computer is already on, shut down your
computer completely (power off) and restart it and then press the F2 key to
enter the setup utility.
Using the BIOS Setup Utility
Navigating and Entering Information in BIOS
Use the following keys to move between fields and to enter information:
Select Tab
Push the up and down arrow keys to move
among selections, then press Enter to make a
selection.
+- Change Option
Tab Select Field
F1 General Help
F10 Save and Exit
ESC
Press Esc to exit any section. If you wish to exit
the BIOS utility without saving changes, go to
the main menu, then press Esc.
Users are allowed to enter new values to replace the default settings in
certain fields, and the rest fields are specified by system default parameters
and cannot be modified by users. Reverse the attribute of the main options
and press the Enter key to enter into the submenu. Press the Esc key to
return to the previous configuration page.
Chapter 5 — Using the BIOS Setup Utility
The Main Menu
BIOS SETUP UTILITY
Main Advanced Boot Security Exit
System Overview
AMIBIOS
Version : R0.XX
Build Date: 01/01/04
Processor
Type :Intel® Pentium® M processor 1100MHz
Speed :1100MHz
System Memory
Size : 504MB
System Time [19:14:50]
System Date [Thu 01/01/2004]
Use [ENTER] , [TAB]
Or [SHIFT-TAB] to
select a field.
Use [+] or [-] to
Configure system Time
?? Select Screen
?? Select Item
+- Change Option
Tab Select Field
F1 General Help
F10 Save and Exit
ESC Exit
V02.53 ©Copyright 1985-2002, American Megatrends , Inc.
Fi
g
ure 6-1
Using the BIOS Setup Utility
Advanced Menu
BIOS SETUP UTILITY
Main Advanced Boot Security Exit
Advanced Setting
Legacy USB Support [Enable]
Battery Learning [Enter]
Start FAN Learning [Enter]
Battery Alarm Function [Disabled]
Select the amount of
system memory used by
the internal graphics
device..
?? Select Screen
?? Select Item
+- Change Option
F1 General Help
F10 Save and Exit
ESC Exit
V02.53 ©Copyright 1985-2002, American Megatrends , Inc.
Fi
g
ure 6-2
Chapter 5 — Using the BIOS Setup Utility
Boot menu
BIOS SETUP UTILITY
Main Advanced Boot Security Exit
1st Boot Device [CD-ROM]
2nd Boot Device [HDD]
3rd Boot Device [Network]
Specifies the boot
sequence from the
available devices.
A device enclosed in
Parenthesis has been
disabled in the
corresponding type
menu.
?? Select Screen
?? Select Item
+- Change Option
F1 General Help
F10 Save and Exit
ESC Exit
V02.53 ©Copyright 1985-2002, American Megatrends , Inc.
Fi
g
ure 6-3
Using the BIOS Setup Utility
Security menu
BIOS SETUP UTILITY
Main Advanced Boot Security Exit
Security Settings
Supervisor Password : Not Installed
User Password : Not Installed
Change Supervisor Password
Change User Password
Install or Change the
password.
?? Select Screen
?? Select Item
Enter Change
F1 General Help
F10 Save and Exit
ESC Exit
V02.53 ©Copyright 1985-2002, American Megatrends , Inc.
Fi
g
ure 6-4
Chapter 5 — Using the BIOS Setup Utility
Exit menu
BIOS SETUP UTILITY
Main Advanced Boot Security Exit
Exit Options
Save Changes and Exit
Discard changes and Exit
Discard Changes
Load Optimal Defaults
Exit system setup
after saving the changes.
F10 key can be used
for this operation.
?? Select Screen
?? Select Item
Enter Go To Sub Screen
F1 General Help
F10 Save and Exit
ESC Exit
V02.53 ©Copyright 1985-2002, American Megatrends, Inc.
Fi
g
ure 6-
5
Using the BIOS Setup Utility
Change User Password
With a User password, you can enter the Setup Utility and change or
remove the User password, but you cannot enter the Setup Utility and
change or remove the Supervisor password, nor enable diskette access if it
has been disabled.
Change Supervisor Password
A supervisor password must be set before a lower-level user password can
be set. After selecting Change Supervisor Password, press Enter. You
will be prompted for the new password, and then again to verify it. Type in
6 or fewer keystrokes. If you make an error, press Esc to start over.
Resetting the CMOS to Default Settings
The Exit tab provides the system parameters for you to reset the CMOS to
default settings. After you enter this page, select the Load Optimal
Defaults:
Select [OK] to reset the CMOS to default settings.
Exiting and Saving
Save Settings
and Exit
Select this option to save changes to the field
values, and restart the computer using the new
values. (Pressing F10 from any of the menu
screens also allows you to save settings and exit.)
Exit Without
Saving
Select this option to discard any changes you have
made to the field values, and restart the computer
using the old values.
Load Optimal Defaults?
[OK] [Cancel]
A
Ap
pp
pe
en
nd
di
ix
xA
A
F
Fr
re
eq
qu
ue
en
nt
tl
ly
y
A
As
sk
ke
ed
d
Q
Qu
ue
es
st
ti
io
on
ns
s
Appendix A
Frequently Asked Questions
Q: My screen times out too quickly. I have to constantly hit a key or
move the mouse in order to bring it back. How can I adjust the
screen time-out?
A: This is part of Windows Power Management. Access Power
Management by clicking on Start / Settings / Control Panel /
Performance and Maintenance / Power Options / Power Schemes.
Adjust the display time-out by selecting a time next to the Turn off
monitor option. You may also select different time-out values for
adapter and battery power states.
Q: I've heard that cleaning up and rearranging files on the hard drive
will improve the startup speed of my programs. How do I do this?
A: Hard disk maintenance can improve the startup speed of programs.
This maintenance includes deleting unnecessary files, and
defragmenting, which rearranges data into more efficient groupings.
Windows includes utilities for performing these maintenance tasks.
Run Disk Cleanup to remove unnecessary files, and Disk
Defragmenter to defragment the hard drive. For more information, go
to Start/All Programs/Accessories/System Tools
Q: What kind of external microphone can I use with my notebook
computer?
A: You will need to use a self-amplifying microphone.
Q: Because of a software problem, I was unable to shut down power
normally. I pressed the power button to force a power off, but it
didn't work. How can I force a power off?
A: Make sure you press the power button for at least 4 seconds. Normally,
this will force a power off.
Q: Why can’t I charge the battery of my portable computer after it
was out of use for some time?
Appendix A
A: After portable computers have not been used for a long time (more
than one month), the batteries will go into the low voltage protection
mode due to data back-ups and natural electrical discharge. At that
point, restoring normal voltage will require slow charging over a period
of several hours. Calibration can be performed after the battery has
returned to a normal condition.
Q: My computer alerts “CMOS Battery Low”, what can I do?
A: If you keep your computer in no power situation (unplug the computer
from the power outlet and remove battery at the same) over 45 days,
your data in CMOS will be lost.
Please reconfigure your CMOS by following steps:
1. Press F2 to enter the BIOS setup utility.
2. Select “Load Optional Defaults?”. When you see the following
prompt, choose <OK> and then press <Enter>.
Load Optional Defaults ?
[OK] [Cancel]
3. Select “Save Changes and Exit”. When you see the following
prompt, choose <OK> and then press <Enter> to restart your
computer.
Save configuration changes and exit setup?
[OK] [Cancel]
A
Ap
pp
pe
en
nd
di
ix
xB
B
S
St
ta
at
te
em
me
en
nt
ts
s
ENGLISH
Appendix B — Statements
68
Statements
Federal Communications Commission Statement
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and the receiver.
3. Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for
help.
Shielded interconnect cables and shielded AC power cable must be
employed with this equipment to insure compliance with the pertinent
RF emission limits governing this device. Changes or modifications not
expressly approved by the system's manufacturer could void the
user's authority to operate the equipment.
This Transmitter must not be co-located or operating in conjunction
with any other antenna or transmitter.
Declaration of Conformity
This device complies with part 15 of the FCC rules. Operation is
subject to the following conditions:
x This device may not cause harmful interference
x This device must accept any interference received, including
interference that may cause undesired operation.
Appendix B — Statements
About The Modem
This equipment complies with Part 68 of FCC rules. On the bottom of this
equipment is a label that contains, among other information, the FCC
registration number and ringer equivalence number (REN) for this equipment. If
requested, this information must be provided to the telephone company.
The modem jack of this equipment complies with Sub-part F of Part 68 of FCC
rules.
The REN is used to determine the quantity of devices that may be connected to
the telephone line. Excessive RENs on the telephone line may result in the
devices not ringing in response to an incoming call. In most, but not all areas,
the sum of the RENs should not exceed five (5.0). To be certain of the number
of devices that may be connected to the line, as determined by the total RENs
contact the telephone company to determine the maximum REN for the calling
areas.
If the terminal equipment causes harm to the telephone network, the telephone
company will notify you in advance that temporary discontinuance of service
may be required. However, if advance notice isn't practical, the telephone
company will notify the customer as soon as possible. Also, you will be advised
of your right to file a compliant with the FCC if you believe it necessary.
The telephone company may mark changes in its facilities, equipment,
operations, or procedures that could affect the operation of the equipment. If
this happens, the telephone company will provide advance notice in order for
you to make the necessary modifications in order to maintain uninterrupted
service.
If trouble is experienced with this equipment, please contact the manufacturer
for repair and (or) warranty information. If the trouble is causing harm to the
telephone network, the telephone company may request you remove the
equipment from the network until the problem is resolved.
The equipment cannot be used on public coin service provided by the
telephone company. Connection to Party Line Service is subject to state tariffs.
(Contact the state public utility commission, public service commission or
corporation commission for information.)
Appendix B — Statements
The Telephone Consumer Protection Act of 1991 marks it unlawful for any
person to use a computer or other electronic device, including fax machines, to
send any message unless such message clearly contains in a margin at the top
or bottom of each transmitted page or on the first page of the transmission, the
date and time it is sent and an identification of the business or other entity, or
other individual sending the message and the telephone number of the sending
machine or such business, other entity, or individual. (The telephone number
provided may not be a 900 number or any other number for which charges
exceed local or long-distance transmission charges.) To program this
information, refer to the manual of the communication software.
European Notice
Products with the CE Marking comply with both the EMC Directive
(89/336/EEC) and the Low Voltage Directive (73/23/EEC) issued by the
Commission of the European Community.
Compliance with these directives implies conformity to the following European
Norms:
EN 55022 ( CISPR 22 ) Radio Frequency Interference
EN 55024 ( EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5,
EN61000-4-6, EN61000-4-8,EN61000-4-11, EN61000-3-2, EN61000-3-
3 ) Generic Immunity Standard
EN 60950 ( IEC950 ) Product Safety
R&TTE (CE) MANUAL REGULATORY REQUIREMENT (WLAN -
IEEE 802.11b/g)
802.11b/g Restrictions:
European standards dictate maximum radiated transmit power of 100mW
EIRP and frequency range 2.400-2.4835GHz.
In France, the equipment must be restricted to the 2.4465-2.4835GHz
frequency range and must be restricted to indoor use."
CE Declaration of Conformity
Appendix B — Statements
Is herewith confirmed to comply with the requirements set out in the Council
Directive on the Approximation of the Laws of the Member States relating to
Electromagnetic Compatibility (89/336/EEC), Low- voltage Directive
(73/23/EEC) and the Amendment Directive (93/68/EEC), the procedures given
in European Council Directive 99/5/EC and 89/3360EEC.
The equipment was passed. The test was performed according to the following
European standards.
EN 300 328 V.1.4.1 (2003-04)
EN 301 489-1 V.1.4.1 (2002-04) / EN 301 489-17 V.1.2.1 (2002-04)
EN 50371:2002
EN 60950:2000
UL CAUTION
To reduce the risk of fire, use only No. 26 AWG or larger telecommunication
line cord.
IMPORTANT SAFETY INSTRUCTIONS
When using your telephone equipment, basic safety precautions should always
be followed to reduce the risk of fire, electric shock and injury to persons,
including the following:
Do not use this product near water, for example, near a bathtub, wash bowl,
kitchen sink or laundry tub, in a wet basement or near a swimming pool.
Avoid using a telephone (other than a cordless type) during an electrical storm.
There may be a remote risk of electric shock from lightning.
Do not use the telephone to report a gas leak in the vicinity of the leak.
Use only the power cord and batteries indicated in this manual. Do not dispose
of batteries in a fire. They may explode. Check with local codes for possible
special disposal instructions.
Canadian Department of Communications
This class B digital apparatus meets all requirements of the Canadian
Interference-causing Equipment Regulations.
Appendix B — Statements
About the Modem
The Industry Canada label identifies certified equipment. This certification
means that the equipment meets certain telecommunications network
protective, operational and safety requirements. The department does not
guarantee the equipment will operate to the user's satisfaction.
Before installing this equipment, users should ensure that it is permissible to be
connected to the facilities of the local telecommunications company.
The equipment must also be installed using an acceptable method of
connection. In some cases, the company's inside writing associated with a
single line individual service may be extended by means of a certified
connector assembly (telephone extension cord). The customer should be
aware that compliance with the above conditions may not prevent degradation
of service in some situations.
Repairs to certified equipment should be made by an authorized Canadian
maintenance facility designated by the supplier. Any repairs or alterations
made by the user to this equipment, or equipment malfunctions, may give the
telecommunications company cause to request the user to disconnect the
equipment.
Users should ensure for their own protection that the electrical ground
connections of the power utility, telephone lines and internal metallic water pipe
system, if present, are connected together. This precaution may be particularly
important in rural areas.
CAUTION Users should not attempt to make such connections
themselves, but should contact the appropriate electric
inspection authority, or electrician, as appropriate.
"The Load Number (LN) assigned to each terminal device denotes the
percentage of the total load to be connected to a telephone loop which is used
by the device. To prevent overloading, the termination on a loop may consist of
any combination of devise subject only to the requirement that the total of the
Load Numbers of all the devices does not exceed 100."
Appendix B — Statements
Battery Disposal
THIS PRODUCT CONTAINS A LITHIUM-ION OR NICKEL-METAL HYDRIDE BATTERY. IT MUST
BE DISPOSED OF PROPERLY. CONTACT LOCAL ENVIRONMENTAL AGENCIES FOR
INFORMATION ON RECYCLING AND DISPOSAL PLANS IN YOUR AREA.
CAUTION FOR ADAPTER
THIS NOTEBOOK COMPUTER IS FOR USE AN AVERATEC APPROVED
AC ADAPTER ONLY.
BATTERY CAUTION
DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED.
REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE
MANUFACTURER. DISPOSE OF USED BATTERIES ACCORDING TO THE MANUFACTURER'S
INSTRUCTIONS.
CLASS 1 LASER PRODUCT
LASERSCHUTZKLASSE 1 PRODUKT TO EN60825
CAUTION: THIS APPLIANCE CONTAINS A LASER SYSTEM AND IS
CLASSIFIED AS A "CLASS 1 LASER PRODUCT.” TO USE THIS
MODEL PROPERLY, READ THE INSTRUCTION MANUAL
CAREFULLY AND KEEP THIS MANUAL FOR FUTURE
REFERENCE. IN CASE OF ANY TROUBLE WITH THIS MODEL,
PLEASE CONTACT YOUR NEAREST "AUTHORIZED SERVICE
STATION.” TO PREVENT DIRECT EXPOSURE TO THE LASER
BEAM, DO NOT TRY TO OPEN THIS ENCLOSURE.
Rev 06/07/04
1-YEAR LIMITED WARRANTY
Applicable to new AVERATEC Notebooks
The limited warranty set forth in this warranty
card is provided by AVERATEC, Inc. with
respect to the AVERATEC brand notebook
computer. (Herein referred to as “Portable
Computer”) This warranty is valid for Averatec
Portable Computers purchased and used in the
United States and Canada. The Portable
Computer purchased is the only AVERATEC
brand computer to which this warranty card and
the limited warranty stated herein apply.
When purchased in new condition, your Portable
Computer is warranted against defects for one
(1) year from the date of purchase, with the
exception of the notebook battery. A six (6)
month limited warranty is provided for the
notebook battery. The warranty period cannot be
extended or altered for time the product is
returned for warranty repair.
A defective Portable Computer or a defective
part returned to AVERATEC, proven defective
through testing upon receipt, will be repaired or
exchanged for comparable parts or a
comparable Portable Computer and configured
to the original specifications.
KEEP A COPY OF YOUR ORIGINAL STORE
RECIEPT. Warranty service will only be provided
upon proof of purchase.
This limited warranty shall only apply if the
Portable Computer is used in conjunction with
compatible peripheral equipment and compatible
software. This limited warranty covers all defects
encountered in normal use of the Portable
Computer, and does not apply in the following
cases:
(1) Loss of or damage to, or inability to use, the
Portable Computer in whole or in part due to
abuse, mishandling, improper packaging by
the consumer, alteration, accident, electrical
current fluctuations, software bugs or
viruses, failure to follow operating,
maintenance or environmental instructions
prescribed in AVERATEC’S user’s manual,
or service performed by other than
AVERATEC.
(2) Defects resulting from software, interfacing,
parts or supplies not supplied by
AVERATEC which cause damage to the
Portable Computer or cause abnormally
frequent service calls or service problems.
(3) The Portable Computer has had its serial
number or dating altered or removed.
NO IMPLIED WARRANTY, INCLUDING ANY
IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE, APPLIES TO THE
PORTABLE COMPUTER AFTER THE
APPLICABLE PERIOD OF THE EXPRESS
LIMITED WARRANTY STATED ABOVE. NO
OTHER EXPRESS WARRANTY OR
GUARANTY, EXCEPT AS MENTIONED
ABOVE, GIVEN BY ANY PERSON OR ENTITY
WITH RESPECT TO THE PORTABLE
COMPUTER SHALL BIND AVERATEC.
AVERATEC SHALL NOT BE LIABLE FOR
LOSS OF REVENUES OR PROFITS,
EXPENSES FOR SUBSTITUTE EQUIPMENT
OR SERVICE, STORAGE CHARGES, LOSS
OR MISUSE OF, OR INABILITY TO USE THE
PORTABLE COMPUTER, REGARDLESS OF
THE LEGAL THEORY ON WHICH THE CLAIM
IS BASED, INCLUDING IF AVERATEC HAS
BEEN ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES. AVERATEC IS NEITHER
RESPONSIBLE NOR LIABLE IN ANY WAY
FOR ANY PERSONAL DATA ON THE
PERSONAL COMPUTER, OR FOR LOSS
THEREOF, AND WILL NOT ASSIST IN
BACKUP OR DATA RECOVERY. IN NO
EVENT SHALL DATA RECOVERY OF ANY
KIND AGAINST AVERATEC BE GREATER IN
AMOUNT THAN THE PURCHASE PRICE OF
THE PORTABLE COMPUTER SOLD BY
AVERATEC AND CAUSING THE ALLEGED
DAMAGE. WITHOUT LIMITING THE
FOREGOING, CONSUMER ASSUMES ALL
RISKS AND LIABILITY FOR LOSS, DAMAGE,
OR INJURY TO ONESELF OR THEIR
PROPERTY, OR TO OTHERS AND THEIR
PROPERTY ARISING OUT OF THE USE OR
MISUSE OF, OR INABILITY TO USE, THE
PORTABLE COMPUTER. THIS LIMITED
WARRANTY SHALL NOT EXTEND TO
ANYONE OTHER THAN THE ORIGINAL
PURCHASER OF THE PORTABLE
COMPUTER, OR THE PERSON FOR WHOM
IT WAS PURCHASED AS A GIFT, AND
STATES EXCLUSIVE REMEDY.
This limited warranty gives you specific legal
rights, and you may also have other rights, which
vary, from state to state.
Additional Information Available at:
PHONE: (877) 462-3462
WEB: www.averatec.com
Rev 03/15/05
SIX MONTH LIMITED WARRANTY
Applicable to new AVERATEC Batteries
The limited warranty set forth on this warranty card is provided by AVERATEC, Inc. with respect to the AVERATEC
brand Battery that you have purchased, when purchased and used with a AVERATEC brand notebook computer.
The Battery that you have purchased is the only AVERATEC brand product to which this warranty card and the
limited warranty stated herein apply.
Your Battery, when purchased in a new condition, is warranted against defects for six (6) months from the date of
purchase. The warranty period will not be extended or altered for any time for any time during which it is in for
warranty repair.
A defective Battery returned to AVERATEC and proven to be defective upon inspection will be repaired or exchanged
for a comparable part.
KEEP A COPY OF YOUR ORIGINAL STORE RECIEPT. Warranty service will only be provided upon proof of
purchase provided to AVERATEC.
This limited warranty shall only apply if the Battery is used in conjunction with compatible peripheral equipment and
compatible software. This limited warranty covers all defects encountered in normal use of the Accessory, and does
not apply in the following cases:
(1) Loss of or damage to, or inability to use, the Battery in whole or in part due to abuse, mishandling, improper
packaging by you, alteration, accident, electrical current fluctuations, software bugs or viruses, failure to
follow operating, maintenance or environmental instructions prescribed in AVERATEC’S user’s manual, or
service performed by other than AVERATEC.
(2) Defects resulting from software, interfacing, parts or supplies not supplied by AVERATEC which cause
damage to the Battery or cause abnormally frequent service calls or service problems.
(3) If the Battery has had its serial number or dating altered or removed.
NO IMPLIED WARRANTY, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR
A PARTICULAR PURPOSE, APPLIES TO THE BATTERY AFTER THE APPLICABLE PERIOD OF THE
EXPRESS LIMITED WARRANTY STATED ABOVE, AND NO OTHER EXPRESS WARRANTY OR GUARANTY,
EXCEPT AS MENTIONED ABOVE, GIVEN BY ANY PERSON OR ENTITY WITH RESPECT TO THE BATTERY
SHALL BIND AVERATEC.AVERATEC SHALL NOT BE LIABLE FOR LOSS OF REVENUES OR PROFITS,
EXPENSES FOR SUBSTITUTE EQUIPMENT OR SERVICE, STORAGE CHARGES, LOSS OR MISUSE OF, OR
INABILITY TO USE, THE BATTERY, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS
BASED, AND EVEN IF AVERATEC HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN NO
EVENT SHALL RECOVERY OF ANY KIND AGAINST AVERATEC BE GREATER IN AMOUNT THAN THE
PURCHASE PRICE OF THE BATTERY SOLD BY AVERATEC AND CAUSING THE ALLEGED DAMAGE.
WITHOUT LIMITING THE FOREGOING, YOU ASSUME ALL RISK AND LIABILITY FOR LOSS, DAMAGE, OR
INJURY TO YOU AND YOUR PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF USE OR
MISUSE OF, OR INABILITY TO USE, THE BATTERY NOT CAUSED DIRECTLY BY THE NEGLIGENCE OF
AVERATEC. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL
PURCHASER OF THE BATTERY, OR THE PERSON FOR WHOM IT WAS PURCHASED AS A GIFT, AND
STATES YOUR EXCLUSIVE REMEDY.
This limited warranty gives you specific legal rights, and you may also have other rights, which vary, from state to
state.
Additional Information Available at:
PHONE: (877) 462-3462
WEB: www.averatec.com
Rev 03/15/05
1-YEAR LIMITED WARRANTY
Applicable to new AVERATEC Accessories
The limited warranty set forth on this warranty card is provided by AVERATEC, Inc. with respect to the AVERATEC
brand Accessory that you have purchased, when purchased and used with a AVERATEC brand notebook computer.
The accessory that you have purchased is the only AVERATEC brand product to which this warranty card and the
limited warranty stated herein apply.
Your Accessory, when purchased in a new condition, is warranted against defects for one (1) year from the date of
purchase. The warranty period will not be extended or altered for any time for any time during which it is in for
warranty repair.
A defective Accessory returned to AVERATEC and proven to be defective upon inspection will be repaired or
exchanged for comparable part.
KEEP A COPY OF YOUR ORIGINAL STORE RECIEPT. Warranty service will only be provided upon proof of
purchase provided to AVERATEC.
This limited warranty shall only apply if the Accessory is used in conjunction with compatible peripheral equipment
and compatible software. This limited warranty covers all defects encountered in normal use of the Accessory, and
does not apply in the following cases:
(1) Loss of or damage to, or inability to use, the Accessory in whole or in part due to abuse, mishandling,
improper packaging by you, alteration, accident, electrical current fluctuations, software bugs or viruses,
failure to follow operating, maintenance or environmental instructions prescribed in AVERATEC’S user’s
manual, or service performed by other than AVERATEC.
(2) Defects resulting from software, interfacing, parts or supplies not supplied by AVERATEC which cause
damage to the Accessory or cause abnormally frequent service calls or service problems.
(3) If the Accessory has had its serial number or dating altered or removed.
NO IMPLIED WARRANTY, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR
A PARTICULAR PURPOSE, APPLIES TO THE ACCESSORY AFTER THE APPLICABLE PERIOD OF THE
EXPRESS LIMITED WARRANTY STATED ABOVE, AND NO OTHER EXPRESS WARRANTY OR GUARANTY,
EXCEPT AS MENTIONED ABOVE, GIVEN BY ANY PERSON OR ENTITY WITH RESPECT TO THE
ACCESSORY SHALL BIND AVERATEC.AVERATEC SHALL NOT BE LIABLE FOR LOSS OF REVENUES OR
PROFITS, EXPENSES FOR SUBSTITUTE EQUIPMENT OR SERVICE, STORAGE CHARGES, LOSS OR MISUSE
OF, OR INABILITY TO USE, THE ACCESSORY, REGARDLESS OF THE LEGAL THEORY ON WHICH THE
CLAIM IS BASED, AND EVEN IF AVERATEC HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
IN NO EVENT SHALL RECOVERY OF ANY KIND AGAINST AVERATEC BE GREATER IN AMOUNT THAN THE
PURCHASE PRICE OF THE ACCESSORY SOLD BY AVERATEC AND CAUSING THE ALLEGED DAMAGE.
WITHOUT LIMITING THE FOREGOING, YOU ASSUME ALL RISK AND LIABILITY FOR LOSS, DAMAGE, OR
INJURY TO YOU AND YOUR PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF USE OR
MISUSE OF, OR INABILITY TO USE, THE ACCESSORY NOT CAUSED DIRECTLY BY THE NEGLIGENCE OF
AVERATEC. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL
PURCHASER OF THE ACCESSORY, OR THE PERSON FOR WHOM IT WAS PURCHASED AS A GIFT, AND
STATES YOUR EXCLUSIVE REMEDY.
This limited warranty gives you specific legal rights, and you may also have other rights, which vary, from state to
state.
Additional Information Available at:
PHONE: (877) 462-3462
WEB: www.averatec.com
