Avery Dennison Deutschland GmbH RFID Label Printer 64XSPZME
Users Manual
03/05 Rev. 3.01-02 USER + SERVICE MANUAL
64-xx – 64-xx dispenser – TT4
Specifications
Device Types, Use......................................... 2
64-0x Basic ................................................ 2
64-0x Peripheral......................................... 2
64-0x Dispenser M ..................................... 2
64-0x Dispenser A...................................... 3
TT4............................................................. 3
Options....................................................... 3
Technical Specifications ................................ 5
Dimensions ................................................ 5
Performance data....................................... 6
Label material............................................. 8
Ribbon........................................................ 9
Connections, device data........................... 9
Ambient conditions..................................... 9
Interfaces ................................................... 9
Electronics................................................ 10
Operation features ................................... 10
Status messages / Test functions ............ 10
Test certificates ........................................ 10
Appendix...................................................... 11
Automatic ribbon economy....................... 11
Important distances to the print line ......... 12
TT4 Specifications.................................... 13
Index ............................................................ 14
03/05 Rev. 3.01-02 USER + SERVICE MANUAL Specifications
64-xx – 64-xx dispenser – TT4
2
Device Types, Use
64-0x Basic
The x in the printer name stands for 4, 5, 6 or 8. The higher this number is,
the wider label material can be used with this printer.
• Monotone printing of labelling materials for thermal and thermotransfer
processes
• Printing on different materials, e.g. cardboard or self-adhesive labels
• Processing roll and fan-folded material
• Print width:
-- 64-04 up to 106.6 mm
-- 64-05 up to 127.9 mm
-- 64-06 up to 159.9 mm
-- 64-08 up to 213.2 mm
• Resolution: 300 dpi
• Interfaces: RS 232, RS 422/485 (optional), USB, Centronics,
Ethernet (optional)
¯ The 64-0x Basic may not be used with peripheral devices!
64-0x Peripheral
• Basic equipment as 64-0x Basic
• The 64-0x Peripheral is additionally equipped with a motor driver and a
connector for peripheral devices. Thus it offers the possibility of driving a
cutter or a rewinder.
64-0x Dispenser M
• Basic equipment as 64-0x Peripheral
• Additional features: Dispensing edge and internal backing paper rewinder
• Dispensing of self-adhesive labels after printing; the backing paper is
wound up inside of the printer.
• „M“ stands for manual application of the labels, what means that the label is
taken off the dispensing edge and is applied to the product by hand. For
this reason, the dispensing edge provides a light barrier which triggers the
dispensing of the next label, if the current one is taken off.
¯ Alternatively, the dispensing can be triggered by a foot switch. The switch
must be connected to the optional single-start connector.
03/05 Rev. 3.01-02 USER + SERVICE MANUAL Specifications
64-xx – 64-xx dispenser – TT4
3
64-0x Dispenser A
• Basic equipment as 64-0x Peripheral
• Additional features: Dispensing edge and internal backing paper rewinder
• Dispensing of self-adhesive labels after printing; the backing paper is
wound up inside of the printer.
• “A” stands for automatic label application, what means, that the label is
applied by an applicator. The dispensing edge is longer than the type “M”
edge and has no light barrier.
TT4
• Label printer based on 64-04
• Monotone printing of labelling materials for thermal and thermotransfer
processes
• Print width up to 98.0 mm
• Automatic label material feed from 4 material sources: One roll material
unwinder and three compartments for leporello material. The compartments
are placed in a magazin below the printer.
Options
Internal Options ...should be factory-fitted or installed by a service engineer:
• Reflex sensor: Light barrier fork that apart from the transmission sensor,
also contains a reflex sensor.
• Fullsize sensor: Punch sensor which can be shifted across the full material
width.
¯ The fullsize sensor can not be used under one of the following conditions:
-- The printer is a 64-0x Dispenser (type A or M).
-- The printer is operated with the online verifier (see below) option.
• USI (Universal Signal Interface): can e.g. be used to control an applicator
or a scanner.
• Options board with an additional serial interface (COM 2) and a PS/2
keyboard connector.
• Antistatic kit: reduces electrostatic charge, which can especially arise of the
processing of plastic labels. Electrostatic discharge can damage or destroy
electronic circuits of the printer.
• Realtime clock
• RS 422/485 interface, instead of RS 232
• Single-Start option: Connector for a foot switch or another external signal,
which is supposed to start or stop the printer.
03/05 Rev. 3.01-02 USER + SERVICE MANUAL Specifications
64-xx – 64-xx dispenser – TT4
4
External Options …do not require any special alterations to the printer, however, the printer
must be prepared for the use of peripheral devices:
• Cutter: Optional high-performance, low-noise cutter with double-cut function
from 1 to 5 mm
• Rewinder: is mounted to the printer and rewinds the printed label materials
with the printed side facing inwards or outwards
• Online Verifier: The online verifier (OLV) checks printed bar code
immediately after printing it. If the bar code has not been printed or has not
been printed in a readable way, the OLV stopps the printer.
• Keyboard for standalone operation
• Foot switch for triggering the label dispenser (printer must be equipped with
single-start option)
03/05 Rev. 3.01-02 USER + SERVICE MANUAL Specifications
64-xx – 64-xx dispenser – TT4
5
Technical Specifications
Dimensions

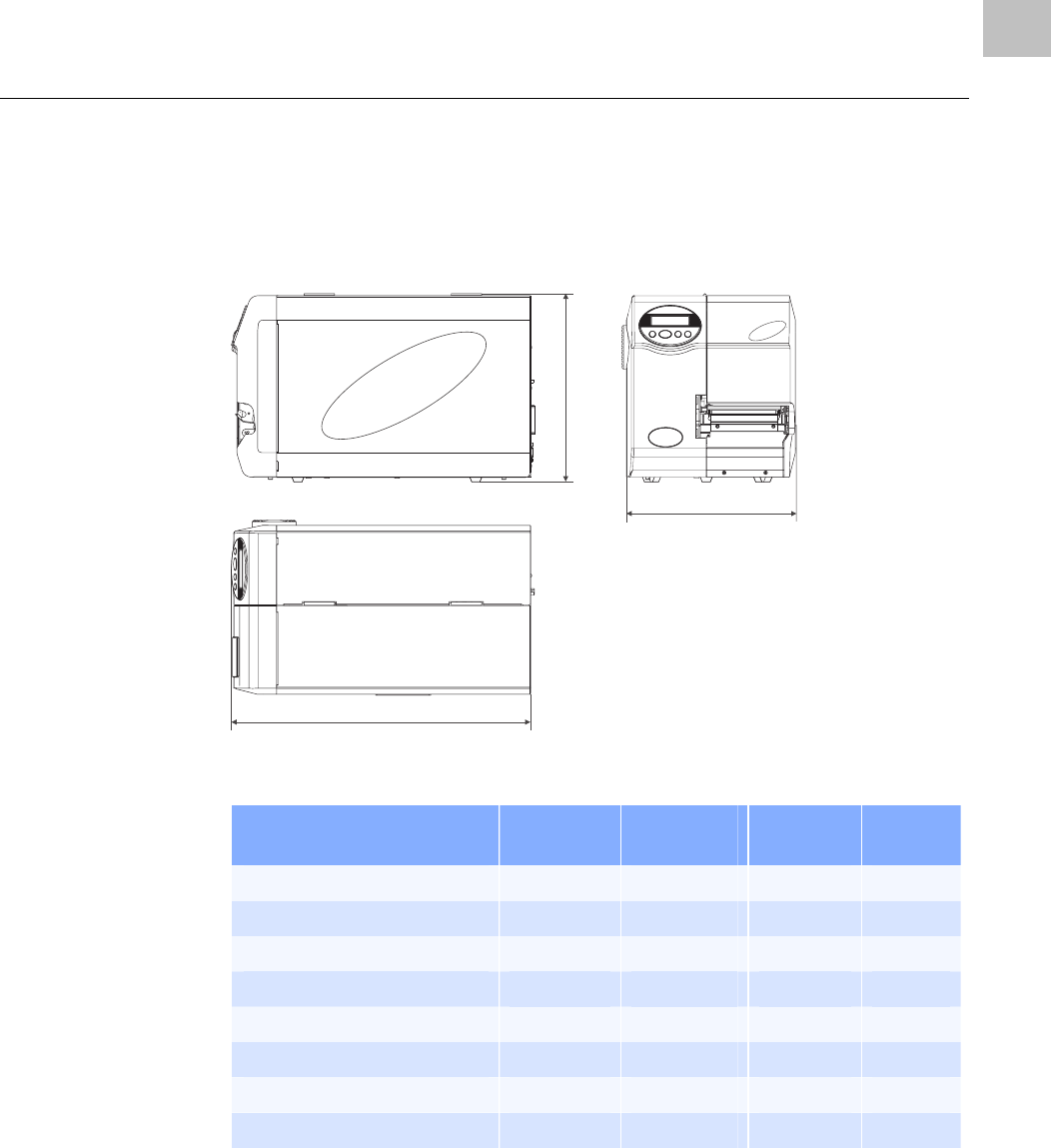

Fig. 1 Dimensions of the 64-xx series standard printers. Refer to the following
table for the values.
Printer W(idth) /
mm H(eight) /
mm D(epth) /
mm Weight
in kg
64-04/05 320 305 490 20.0
64-04/05 with cutter 320 305 540 21.5
64-06 350 305 490 21.5
64-06 with cutter 350 305 540 23.0
64-08 450 305 490 26.0
64-08 with cutter 450 305 540 27.5
TT4 280 600 490 35.0
TT4 with cutter 280 600 540 36.5
Tab. 1 Dimensions and weights of the 64-0x series printers. All width measures refer to
the housing without the approx. 5 mm wide motor cover.
¯ The dispenser versions of the printers have equal dimensions as the
standard types, respectively.
P Dimensioned drawings of the 64-0x with and without dispenser, cutter or
rewinder are contained in DXF format (Autocad) on the Documentation-CD
in folder \Massblaetter\.
B/W
H
T/D
Z0125.cdr
03/05 Rev. 3.01-02 USER + SERVICE MANUAL Specifications
64-xx – 64-xx dispenser – TT4
6
Performance data
Print technology Thermal direct printing, thermal transfer printing
Printhead "Corner Edge Type" print head, high-definition, fast, with integrated
temperature control
Resolution 12 dots/mm (300 dpi)
Print speed 64-04/05............................... 50 to 406 mm/s (4 to 16 ”/s)
64-06.................................... 50 to 359 mm/s (4 to 14 ”/s)
64-08.................................... 50 to 229 mm/s (4 to 9 ”/s)
TT4....................................... 50 to 300 mm/s (4 to 12 ”/s)
Unit interval 25,4 mm/s (1 “/s), respectively
Print speed
64-0x Dispenser
SYSTEM PARAMETERS
>Transport mode =
Printer Ribbon
autoecon.
„Dispenser
motor“ „Dual
motors“ „Printer
motor“
Off 12 "/s 12 "/s 16 "/s
64-04/05 Dispenser
On 8 "/s 12 "/s 16 "/s
Off 12 "/s 12 "/s 14 "/s
64-06 Dispenser
On 8 "/s 12 "/s 14 "/s
Off 10 "/s 10 "/s 9 "/s
64-08 Dispenser
On 8 "/s 10 "/s 9 "/s
Tab. 2 The maximum print speed of the dispenser printers depends on the setting of the
parameter "SYSTEM PARMETERS > Transport mode". The values are
recommendations, up to which proper functioning of the printer is guaranteed.
Print width (actual) 64-04.................................... 106.6 mm
64-05.................................... 127.9 mm
64-06.................................... 159.9 mm
64-08.................................... 213.2 mm
TT4....................................... 98.0 mm
Output mode 1:1 and 100 % printable, either with or without cut.
¯ Non-printable area:
1 mm from the front label edge (1st edge in feed direction) and
1 mm from the left band border (right border in feed direction).
03/05 Rev. 3.01-02 USER + SERVICE MANUAL Specifications
64-xx – 64-xx dispenser – TT4
7
Gap detection Self-initialising light transmission sensor, optional reflex sensor (at the
bottom side of the material).
Correction of gap displacement in feed direction is possible by modifying
the gap offset (parameter PRINT PARAMETERS > Punch offset),
¯ The trigger point of the reflex mark (that is the actual label beginning) is at
the dark-to-bright change of the reflex mark.
Light transmission sensor Reflex sensor
Setting range 2-17 mm 13-26 mm
Punch length
(in feed direction) 0.8-14 mm 4 mm
(recommended)
Punch width
(across the web) min. 4 mm 12 mm
(recommended)
Tab. 3 Punch dimensions and setting ranges.
Emulation Easy Plug, Line Printer, Hex Dump
Character sets 17 fonts including OCR-A and OCR-B,
3 scalable fonts,
Truetype fonts supported
Character
modification Scaling in X/Y direction up to factor 16,
Rotation 0, 90, 180, 270 degrees

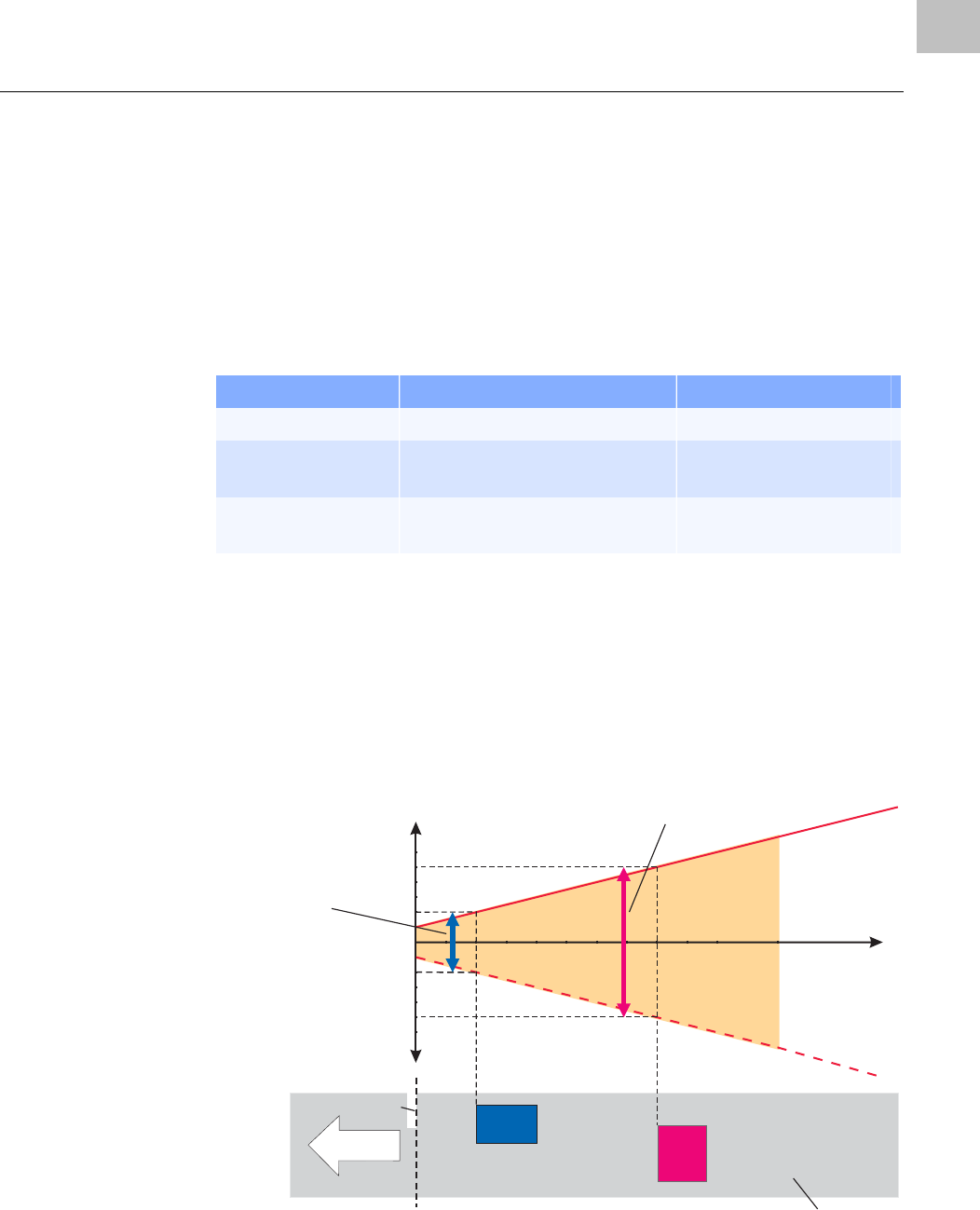

Fig. 2 Impression accuracy depends on the printing position.
+0,5
+1,0
+1,5
+2,0
mm
+3,0
Max. misalignment of the printing position
- 0,5
-1,0
-1,5
-2,0
-2,5
-3,0
50 100 150 200 mm 300 Distance
punch - printing position
Punch position
Printing
direction
0
Printing position 1 Printing position 2
Max. misalignment at
printing position 1
= 1,0 mm
Max. misalignment at
printing position 2
= 2,5 mm
Label
+1%
-1%
Punch
Z00521E.cdr
03/05 Rev. 3.01-02 USER + SERVICE MANUAL Specifications
64-xx – 64-xx dispenser – TT4
8
Bar codes EAN 8 and EAN 13 with Add-On 2 and 5, UPC-A, UPC-E, Code 39,
Code 39 Ratio 3:1 and Ratio 2,5:1, Code ITF, Codabar, Code 128,
Code 2/5, Code 2/5 1, Code 2/5 5, Code 2/5 Interleaved Ratio 1:3,
Code 2/5 Matrix Ratio 1:2,5; Code 2/5 Matrix Ratio 1:3; Code MSI,
Code EAN 128; Postcode (Guide and Identity Code), UPS Code 128
All bar codes scalable in 30 widths and the height
2dim. bar codes Data Matrix Code (coded according to ECC200), Maxi Code, PDF 417,
Codablock F
Label material
Material type 64-0x:
Self-adhesive, card and synthetic materials, suitable for printing in thermal
direct process and thermal transfer process. Use of roll material or
leporello possible.
TT4:
Card material, suitable for printing in thermal direct process and thermal
transfer process. Use of roll material and three different Leporello materials
without material change.
Material weight 64-04/05/06:......................... max. 240 g/m2
64-08:................................... max. 160 g/m2
TT4:...................................... max. 240 g/m2
Material width 64-04/05............................... 25.4 to 154 mm
64-04/05 Dispenser.............. 25.4 to 140 mm
64-06.................................... 30.2 to 185 mm
64-06 Dispenser................... 30.2 to 172 mm
64-08.................................... 100 to 254 mm
64-08 Dispenser................... 100 to 241 mm
TT4....................................... 25.4 to 99 mm
Label length 64-0x.................................... 5 to “max. print length”
64-0x Dispenser................... 10 to “max. print length”
The max. print length depends on the memory availability of the printer.
Label roll 64-xx:
Max. outer-Ø:....................... 210 mm
Inner-Ø:................................ 38/76/102 mm (1,5/3/4”)
TT4:
In addition to the roll, 3 Leporello compartments in the magazine.
Roll weight 64-04/05............................... max. 4250 g
64-06.................................... max. 7200 g
64-08.................................... max. 5000 g
TT4....................................... max. 4250 g
03/05 Rev. 3.01-02 USER + SERVICE MANUAL Specifications
64-xx – 64-xx dispenser – TT4
9
Ribbon
Ribbon roll Max. outer-Ø :...................... 90 mm
Inner core-Ø :....................... 25.4 mm (1")
Printer Ribbon width
64-04/05 30-132 mm
64-04/05 Dispenser 30-140 mm
64-06 30-164 mm
64-06 Dispenser 30-172 mm
64-08 40-217 mm
64-08 Dispenser 40-241 mm
TT4 30-97 mm
Tab. 4 Admissible ribbon width of the different printer types..
Connections, device data
Printer Mains
voltage Mains
frequency Power
consumption Max. input
current
64-04/05/06 115-240 V 50-60 Hz 250 W 3.2 A
64-08 100-240 V 50-60 Hz 450 W 3.2 A
Tab. 5 Connection data for 64-xx printers.
Ambient conditions
Operating temp. +5 to +35 °C
Storage temperature -20 to +70 °C
Humidity 45 to 75 %, non-condensing
Noise < 70 dB(A)
Protection Class IP 51
Interfaces
• Serial Interface
-- RS 232
-- RS 422/485 (instead of RS 232; selection via parameter menu; max.
Baud rate 115200)
-- Bidirectional mode possible
• Parallel Interface
-- Centronics
-- Bidirectional mode possible
• Optional: Ethernet interface 10/100 Base T
• Optional: Universal Signal Interface (USI)
• Optional: Second serial interface
• Optional: PS/2 keyboard connector
03/05 Rev. 3.01-02 USER + SERVICE MANUAL Specifications
64-xx – 64-xx dispenser – TT4
10
Electronics
Processor 64 Bit IDT MIPS
RAM 16 MB (extendable to max. 80 MB)
ROM 2 MB
Plugin cards 1 slot for CompactFlash T1 up to max. 64 MB
Realtime clock optional
Signal interface (USI board) optional
Operation features
Operation panel 4-key control panel with 32-figure, illuminated LCD display
Settings Definition of parameters using menu or Easy Plug commands
Status messages / Test functions
Test printouts Printouts for parameter settings, adding logo and font, line and bar code
library
Test functions Print tests with cut, test routines for memory and sensors, interface test
Error reports Display of error reports on the display,
continuation of print jobs without label loss
Warnings Ribbon low
Dot check Checks the printhead on defective dots – automatically or manually
Test certificates
TÜV GS TÜV GS test certificate: Tested safety (according to EN 60950:97)
The devices conform to CE-requirements and are marked with the CE
label. The manufacturer declares that the device conforms with the relevant
European guidelines.
EMC The EMC test was made according to the following norms:
EN 55022:2000 Class A
EN 55024:98+A1:01
EN 61000-3-2:2000
EN 61000-3-3:95+A1:01
EN 61000-6-2:01
¯ The norm EN 55022 prescribes the following warning note to be included in
the operation manual for devices of class A:
Warning! This is class A equipment. This equipment may cause radio
disturbances if it is used in a living area; in those cases can be demanded
of the manufacturer to carry out appropriate measures.
03/05 Rev. 3.01-02 USER + SERVICE MANUAL Specifications
64-xx – 64-xx dispenser – TT4
11
Appendix
Automatic ribbon economy
In regular print mode, ribbon is fed simultaneously with the label material.
The automatic ribbon economy (= „ribbon saving“) stops the feeding of the
ribbon if there are label areas of a certain size without imprinting. As a
result, ribbon is saved (see Fig. 3).

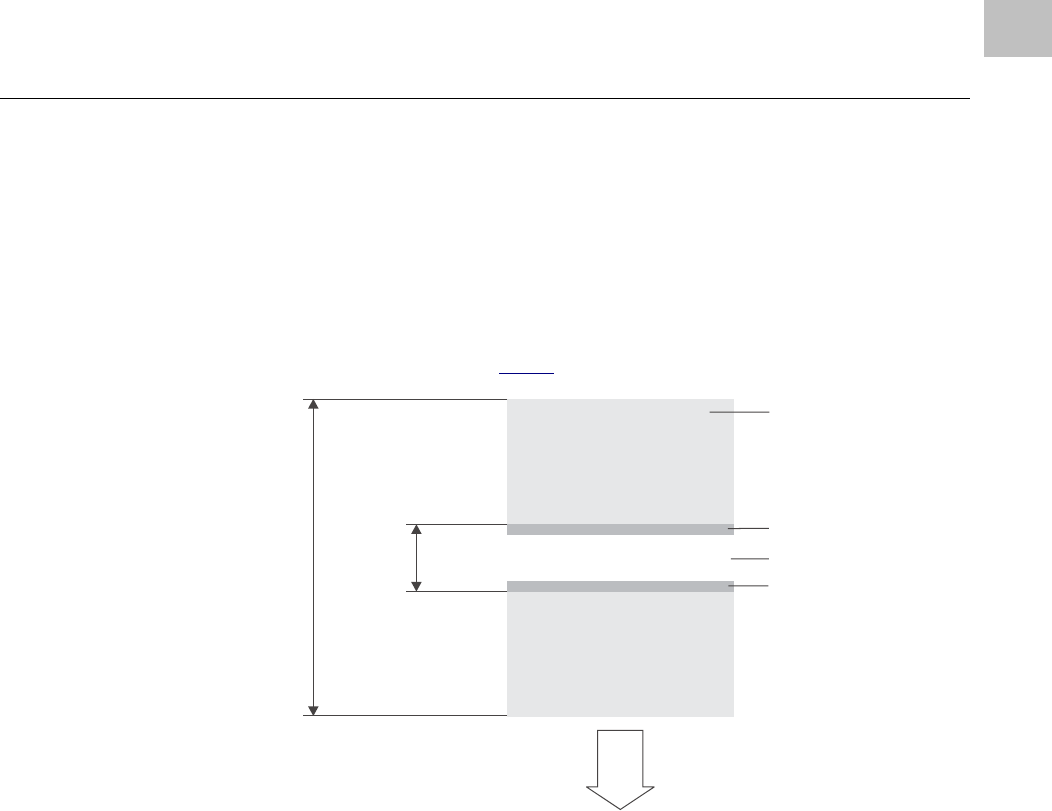

Fig. 3 Ribbon (Foil) consumption when printing labels with a small imprinting
area and activated automatic ribbon economy. Ribbon consumption is
slightly higher than the length of the imprinted area.
The effect of ribbon saving depends on the print speed. The reason for this
is the up and down movement of the printhead as well as the acceleration
and slowing-down of the ribbon. Generally said: With a high print speed,
less ribbon is saved as with a low print speed (see Tab. 6).
Cutting or dispensing applications can additionally deteriorate the effect of
ribbon saving.
Activating ribbon Activate the automatic ribbon economy by selecting parameter „SYSTEM
saving PARAMETERS/ Ribbon autoecon.“.
Set the minimum distance between two print areas from which on ribbon
saving should be activated with parameter „SYSTEM PARAMETERS/
Ribbon economy limit“.
P For detailed information refer to topic section „Info-printouts and Parame-
ters“.
Only „Real 1:1“ The ribbon saving can only applied in Real 1:1 mode. All printjobs must the-
refore be defined using the #IMR Easy Plug command.
P For detailed information refer to the Easy Plug Manual, topic section „Des-
cription of Commands“.
TextTextTe
Print head moves down
Printout
Print head moves up
Consumption
of foil
Label length
Z0091E.cdr
Feed direction
Label
03/05 Rev. 3.01-02 USER + SERVICE MANUAL Specifications
64-xx – 64-xx dispenser – TT4
12
¯ Set the label length exactly; differences between real and defined label
lengthe may disturb the automatic ribbon economy function!
¯ The print speed must equal the feed speed when using ribbon saving.
Otherwise, the ribbon saving function may not work properly.
Print speed
in
mm/s (Inch/s)
Minimum length of
unprinted area in
mm
Consumed ribbon
per saving action in
mm
51 (2) 3.7 1.2
76 (3) 4.6 1.9
102 (4) 5.9 3.1
127 (5) 7.4 4.4
152 (6) 8.9 5.9
178 (7) 11.1 7.6
203 (8) 14.1 9.5
229 (9) 17.6 11.3
254 (10) 21.3 13.6
279 (11) 25.3 15.9
205 (12) 30.0 18.5
330 (13) 34.5 21.2
356 (14) 39.9 24.2
381 (15) 45.6 27.3
406 (16) 51.3 30.5
Tab. 6 The amount (length) of consumed ribbon per saving action (lifting and lowering of
the printhead) increases with the print speed.
Important distances to the print line
Distance print line to mm
Punch sensor (light transmission) 16.0
Punch sensor (reflex) 16.0
Punch sensor (Full-Size) 67.8
Dispensing edge (long) 39.8
Dispensing edge (short) 24.2
Tab. 7 Important measures regarding the print line.
03/05 Rev. 3.01-02 USER + SERVICE MANUAL Specifications
64-xx – 64-xx dispenser – TT4
13
TT4 Specifications
Dimensions, Leporello
compartments TT4
Compartment Stack height Stack length
Standard Maximum
Top 80 mm 120 mm 280 mm
Middle 75 mm 100 mm 380 mm
Bottom 70 mm 100 mm 450 mm
Without comp. 245 mm 450 mm
Tab. 8 Adjustment range of the compartments and the maximum stack length for each
compartment of the TT4 magazine.
Scanner TT4 Scanner for barcodes pre-printed on reverse side
Scanning speed: 500 scans/s
Resolution: 0.15 mm
Readable barcodes: 22 different types
03/05 Rev. 3.01-02 USER + SERVICE MANUAL Specifications
64-xx – 64-xx dispenser – TT4
14
Index
2 2dim. bar codes
A
Ambient conditions......................................9
Antistatic kit.................................................3
Automatic ribbon economy........................11
B
Bar codes....................................................8
C
CE label.....................................................10
Character modification ................................7
Character sets.............................................7
Connections ................................................9
D
Dimensioned drawings................................5
Dot check ..................................................10
E ECC200, coding according to .....................8
EMC ..........................................................10
Emulation ....................................................7
Error reports..............................................10
F Foot switch ..................................................4
G
Gap detection..............................................7
guidelines..................................................10
L Label beginning at reflex mark ....................7
Label length.................................................8
Label roll......................................................8
M
Material
type...........................................................8
width.........................................................8
Material weight............................................8
N
Noise........................................................... 9
O
Online Verifier............................................. 4
Operation panel ........................................ 10
Options board ............................................. 3
Output mode............................................... 6
P Plugin cards.............................................. 10
Print head ................................................... 6
Print speed.................................................. 6
Print technology.......................................... 6
Print width................................................... 6
Protection class .......................................... 9
R
RAM.......................................................... 10
Realtime clock ............................................ 3
Reflex mark, trigger point............................ 7
Reflex sensor.............................................. 3
Resolution................................................... 6
Ribbon consumption................................. 11
Ribbon roll................................................... 9
Ribbon saving........................................... 11
Roll weight .................................................. 8
ROM ......................................................... 10
RS 422/485................................................. 3
S Settings..................................................... 10
Single-Start option ...................................... 3
T Test certificates......................................... 10
Test functions ........................................... 10
Test printouts............................................ 10
TT4 Scanner............................................. 13
U
USI.............................................................. 3
