Aviat Networks RDL3000RMG Advanced Broadband Wireless Infrastructure Solution User Manual 70 00184 04 01
Redline Communications Inc. Advanced Broadband Wireless Infrastructure Solution 70 00184 04 01

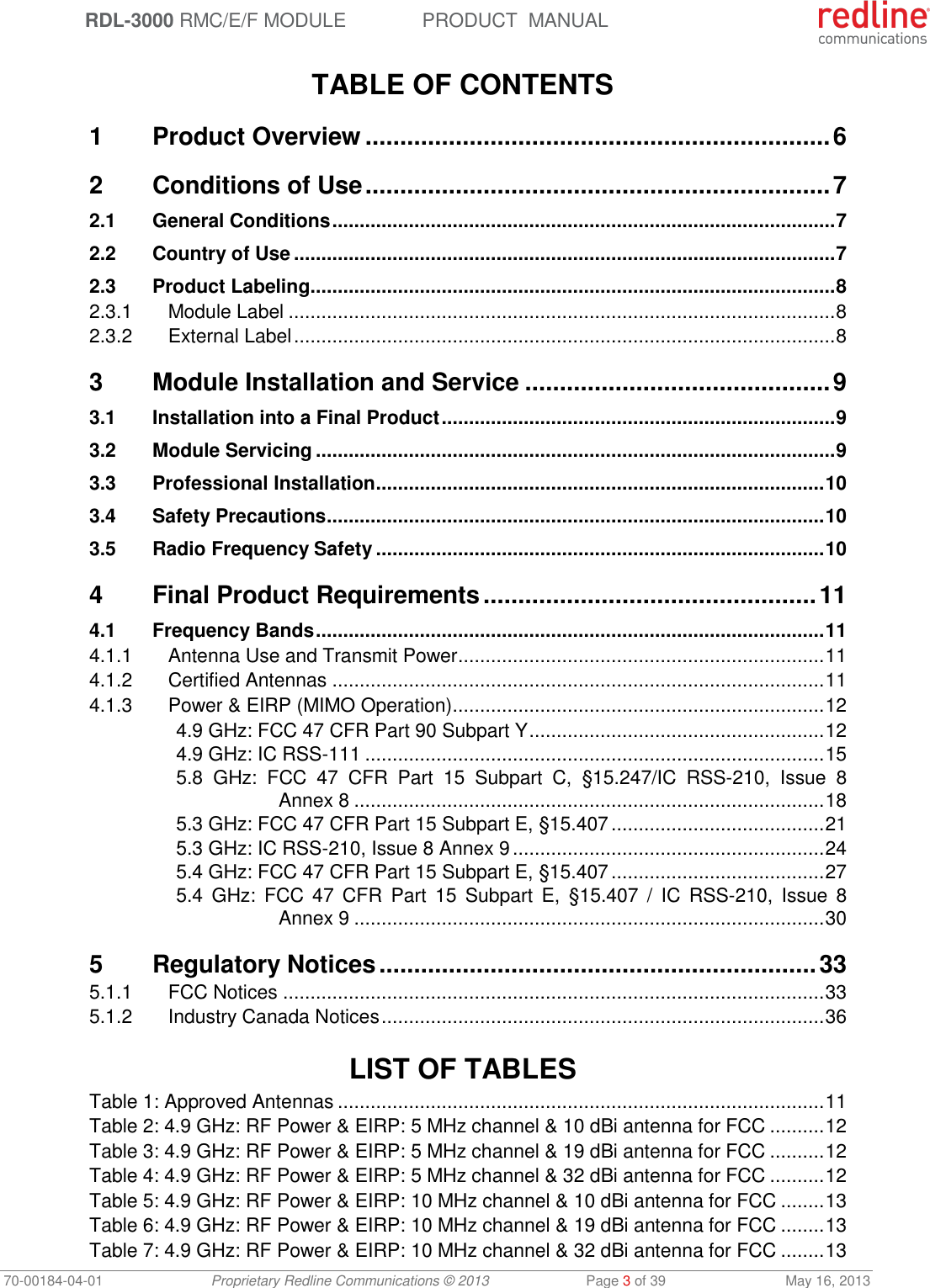

Contents
- 1. user manual
- 2. User manual
- 3. Users Manual
user manual

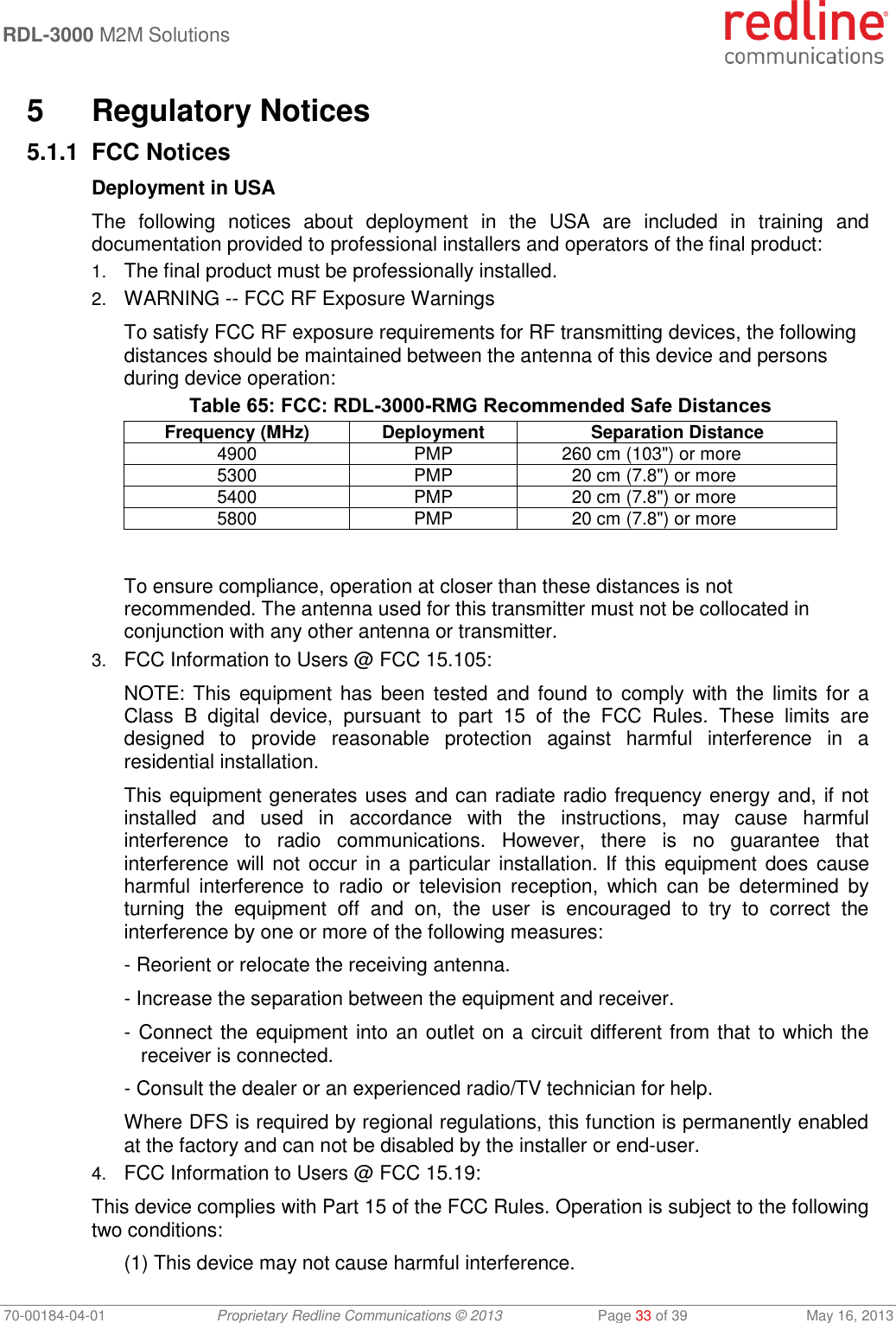

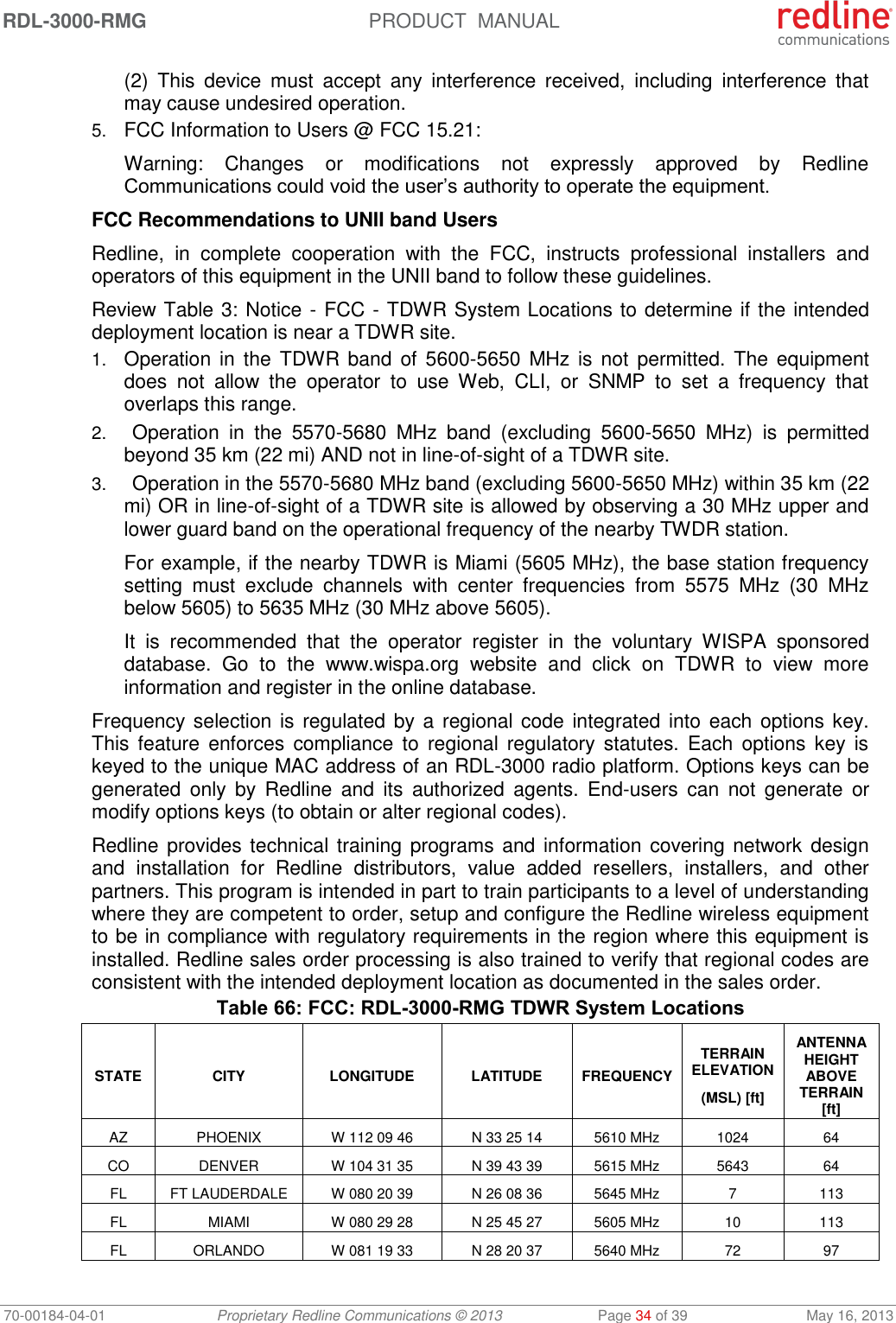

![RDL-3000-RMG PRODUCT MANUAL 70-00184-04-01 Proprietary Redline Communications © 2013 Page 34 of 39 May 16, 2013 (2) This device must accept any interference received, including interference that may cause undesired operation. 5. FCC Information to Users @ FCC 15.21: Warning: Changes or modifications not expressly approved by Redline Communications could void the user’s authority to operate the equipment. FCC Recommendations to UNII band Users Redline, in complete cooperation with the FCC, instructs professional installers and operators of this equipment in the UNII band to follow these guidelines. Review Table 3: Notice - FCC - TDWR System Locations to determine if the intended deployment location is near a TDWR site. 1. Operation in the TDWR band of 5600-5650 MHz is not permitted. The equipment does not allow the operator to use Web, CLI, or SNMP to set a frequency that overlaps this range. 2. Operation in the 5570-5680 MHz band (excluding 5600-5650 MHz) is permitted beyond 35 km (22 mi) AND not in line-of-sight of a TDWR site. 3. Operation in the 5570-5680 MHz band (excluding 5600-5650 MHz) within 35 km (22 mi) OR in line-of-sight of a TDWR site is allowed by observing a 30 MHz upper and lower guard band on the operational frequency of the nearby TWDR station. For example, if the nearby TDWR is Miami (5605 MHz), the base station frequency setting must exclude channels with center frequencies from 5575 MHz (30 MHz below 5605) to 5635 MHz (30 MHz above 5605). It is recommended that the operator register in the voluntary WISPA sponsored database. Go to the www.wispa.org website and click on TDWR to view more information and register in the online database. Frequency selection is regulated by a regional code integrated into each options key. This feature enforces compliance to regional regulatory statutes. Each options key is keyed to the unique MAC address of an RDL-3000 radio platform. Options keys can be generated only by Redline and its authorized agents. End-users can not generate or modify options keys (to obtain or alter regional codes). Redline provides technical training programs and information covering network design and installation for Redline distributors, value added resellers, installers, and other partners. This program is intended in part to train participants to a level of understanding where they are competent to order, setup and configure the Redline wireless equipment to be in compliance with regulatory requirements in the region where this equipment is installed. Redline sales order processing is also trained to verify that regional codes are consistent with the intended deployment location as documented in the sales order. Table 66: FCC: RDL-3000-RMG TDWR System Locations STATE CITY LONGITUDE LATITUDE FREQUENCY TERRAIN ELEVATION (MSL) [ft] ANTENNA HEIGHT ABOVE TERRAIN [ft] AZ PHOENIX W 112 09 46 N 33 25 14 5610 MHz 1024 64 CO DENVER W 104 31 35 N 39 43 39 5615 MHz 5643 64 FL FT LAUDERDALE W 080 20 39 N 26 08 36 5645 MHz 7 113 FL MIAMI W 080 29 28 N 25 45 27 5605 MHz 10 113 FL ORLANDO W 081 19 33 N 28 20 37 5640 MHz 72 97](https://usermanual.wiki/Aviat-Networks/RDL3000RMG.user-manual/User-Guide-1976355-Page-34.png)

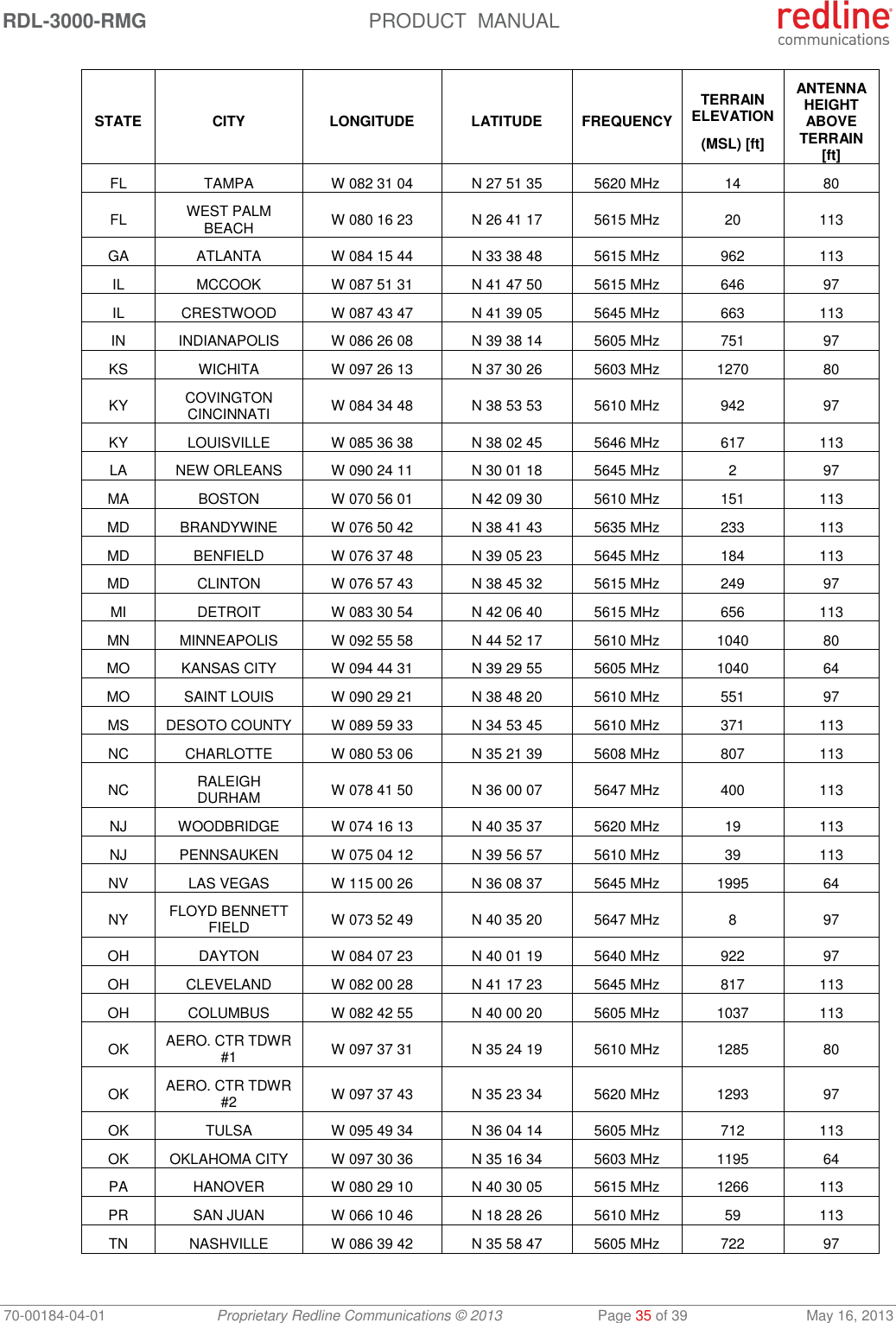

![RDL-3000-RMG PRODUCT MANUAL 70-00184-04-01 Proprietary Redline Communications © 2013 Page 35 of 39 May 16, 2013 STATE CITY LONGITUDE LATITUDE FREQUENCY TERRAIN ELEVATION (MSL) [ft] ANTENNA HEIGHT ABOVE TERRAIN [ft] FL TAMPA W 082 31 04 N 27 51 35 5620 MHz 14 80 FL WEST PALM BEACH W 080 16 23 N 26 41 17 5615 MHz 20 113 GA ATLANTA W 084 15 44 N 33 38 48 5615 MHz 962 113 IL MCCOOK W 087 51 31 N 41 47 50 5615 MHz 646 97 IL CRESTWOOD W 087 43 47 N 41 39 05 5645 MHz 663 113 IN INDIANAPOLIS W 086 26 08 N 39 38 14 5605 MHz 751 97 KS WICHITA W 097 26 13 N 37 30 26 5603 MHz 1270 80 KY COVINGTON CINCINNATI W 084 34 48 N 38 53 53 5610 MHz 942 97 KY LOUISVILLE W 085 36 38 N 38 02 45 5646 MHz 617 113 LA NEW ORLEANS W 090 24 11 N 30 01 18 5645 MHz 2 97 MA BOSTON W 070 56 01 N 42 09 30 5610 MHz 151 113 MD BRANDYWINE W 076 50 42 N 38 41 43 5635 MHz 233 113 MD BENFIELD W 076 37 48 N 39 05 23 5645 MHz 184 113 MD CLINTON W 076 57 43 N 38 45 32 5615 MHz 249 97 MI DETROIT W 083 30 54 N 42 06 40 5615 MHz 656 113 MN MINNEAPOLIS W 092 55 58 N 44 52 17 5610 MHz 1040 80 MO KANSAS CITY W 094 44 31 N 39 29 55 5605 MHz 1040 64 MO SAINT LOUIS W 090 29 21 N 38 48 20 5610 MHz 551 97 MS DESOTO COUNTY W 089 59 33 N 34 53 45 5610 MHz 371 113 NC CHARLOTTE W 080 53 06 N 35 21 39 5608 MHz 807 113 NC RALEIGH DURHAM W 078 41 50 N 36 00 07 5647 MHz 400 113 NJ WOODBRIDGE W 074 16 13 N 40 35 37 5620 MHz 19 113 NJ PENNSAUKEN W 075 04 12 N 39 56 57 5610 MHz 39 113 NV LAS VEGAS W 115 00 26 N 36 08 37 5645 MHz 1995 64 NY FLOYD BENNETT FIELD W 073 52 49 N 40 35 20 5647 MHz 8 97 OH DAYTON W 084 07 23 N 40 01 19 5640 MHz 922 97 OH CLEVELAND W 082 00 28 N 41 17 23 5645 MHz 817 113 OH COLUMBUS W 082 42 55 N 40 00 20 5605 MHz 1037 113 OK AERO. CTR TDWR #1 W 097 37 31 N 35 24 19 5610 MHz 1285 80 OK AERO. CTR TDWR #2 W 097 37 43 N 35 23 34 5620 MHz 1293 97 OK TULSA W 095 49 34 N 36 04 14 5605 MHz 712 113 OK OKLAHOMA CITY W 097 30 36 N 35 16 34 5603 MHz 1195 64 PA HANOVER W 080 29 10 N 40 30 05 5615 MHz 1266 113 PR SAN JUAN W 066 10 46 N 18 28 26 5610 MHz 59 113 TN NASHVILLE W 086 39 42 N 35 58 47 5605 MHz 722 97](https://usermanual.wiki/Aviat-Networks/RDL3000RMG.user-manual/User-Guide-1976355-Page-35.png)

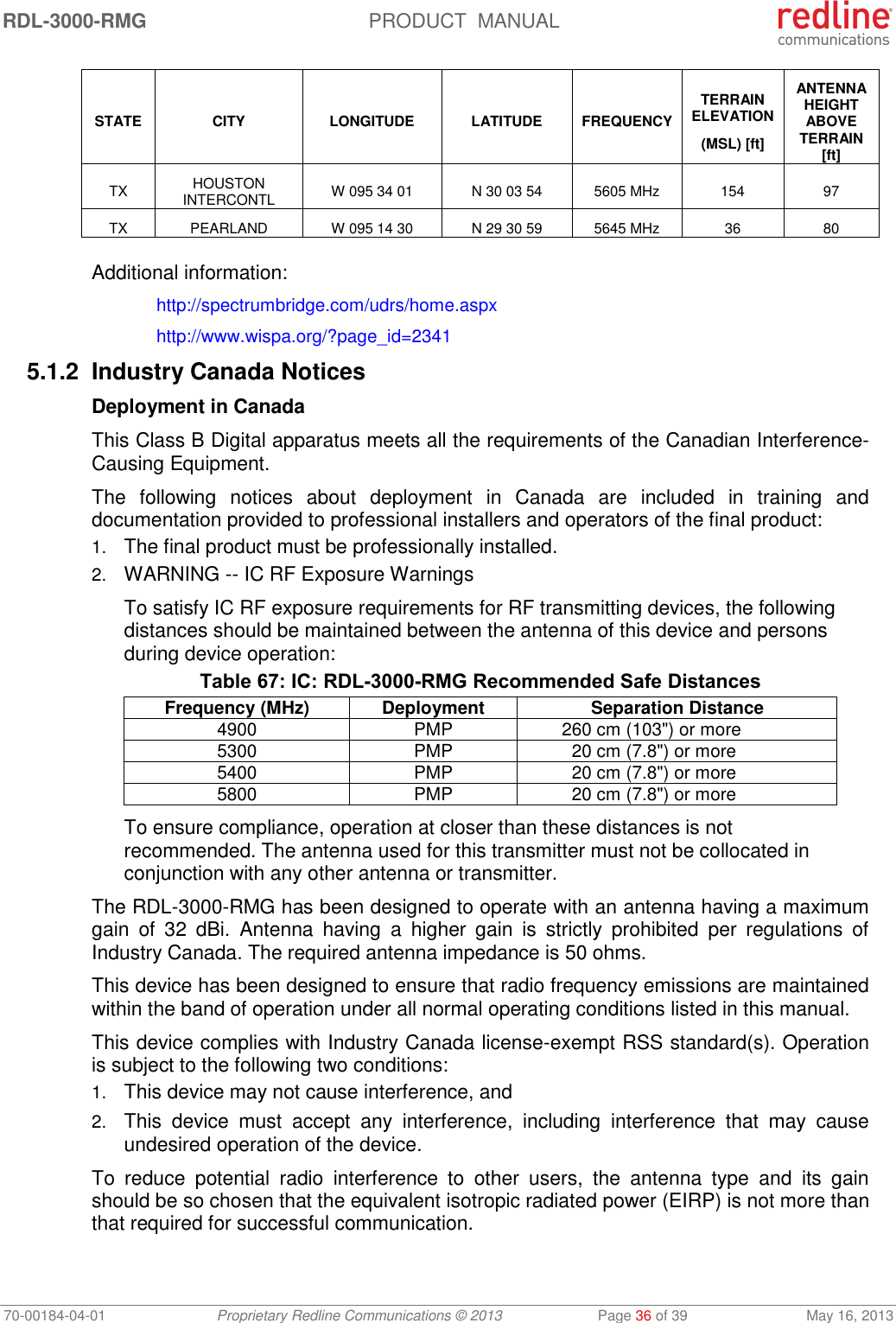

![RDL-3000-RMG PRODUCT MANUAL 70-00184-04-01 Proprietary Redline Communications © 2013 Page 36 of 39 May 16, 2013 STATE CITY LONGITUDE LATITUDE FREQUENCY TERRAIN ELEVATION (MSL) [ft] ANTENNA HEIGHT ABOVE TERRAIN [ft] TX HOUSTON INTERCONTL W 095 34 01 N 30 03 54 5605 MHz 154 97 TX PEARLAND W 095 14 30 N 29 30 59 5645 MHz 36 80 Additional information: http://spectrumbridge.com/udrs/home.aspx http://www.wispa.org/?page_id=2341 5.1.2 Industry Canada Notices Deployment in Canada This Class B Digital apparatus meets all the requirements of the Canadian Interference-Causing Equipment. The following notices about deployment in Canada are included in training and documentation provided to professional installers and operators of the final product: 1. The final product must be professionally installed. 2. WARNING -- IC RF Exposure Warnings To satisfy IC RF exposure requirements for RF transmitting devices, the following distances should be maintained between the antenna of this device and persons during device operation: Table 67: IC: RDL-3000-RMG Recommended Safe Distances Frequency (MHz) Deployment Separation Distance 4900 PMP 260 cm (103") or more 5300 PMP 20 cm (7.8") or more 5400 PMP 20 cm (7.8") or more 5800 PMP 20 cm (7.8") or more To ensure compliance, operation at closer than these distances is not recommended. The antenna used for this transmitter must not be collocated in conjunction with any other antenna or transmitter. The RDL-3000-RMG has been designed to operate with an antenna having a maximum gain of 32 dBi. Antenna having a higher gain is strictly prohibited per regulations of Industry Canada. The required antenna impedance is 50 ohms. This device has been designed to ensure that radio frequency emissions are maintained within the band of operation under all normal operating conditions listed in this manual. This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: 1. This device may not cause interference, and 2. This device must accept any interference, including interference that may cause undesired operation of the device. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropic radiated power (EIRP) is not more than that required for successful communication.](https://usermanual.wiki/Aviat-Networks/RDL3000RMG.user-manual/User-Guide-1976355-Page-36.png)
