Introduction
Safety and Regulatory Information
FCC ID: UAG-T3E
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this Device may not cause harmful interference and (2) this
Device must accept any interference received, including Interference that may cause
undesired operation.
CAUTION: Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
Warnings
• This product is for indoor use only.
• This product is only to be installed by factory trained Awarepoint personnel.
• Do not open the product as there are no user serviceable parts inside and this product
is powered at all times.
• Do not use unit if the case is cracked or worn.
Product Description
The Tag is a wireless device that is located so as to provide environmental
information such as the temperature of a refrigeration unit or the humidity of a space The
Tags transmits short messages periodically that include the ID of the device as well as
environmental sample data which are received by the Awarepoint sensors. The sensors relay
the ID and sample data messages to the bridges via the mesh network created by the plurality
of sensors. The bridge communicates with the tags on its wireless link via the sensors. The
bridges communicate with the Awarepoint server over an ethernet Interface. Tags, sensors
and bridges also periodically check the server for updated configuration information or
firmware updates. The tag works with other Awarepoint products as shown in the diagram
below.
600 W Broadway Ave., Suite 250
San Diego, CA 92101
Tel: (858) 345-5000
Fax: (619) 230-8886
Awarepoint Corporation
Confidential and Proprietary
AwarePoint
Receiver
Corporate LAN
AwarePoint
Bridge AwarePoint
Tag
AwarePoint
Server
PC Running
Management Console
PC Running
Dashboard
AwarePoint
Receiver
AwarePoint
Receiver
Figure 1: Awarepoint Tracking System
Product Illustration

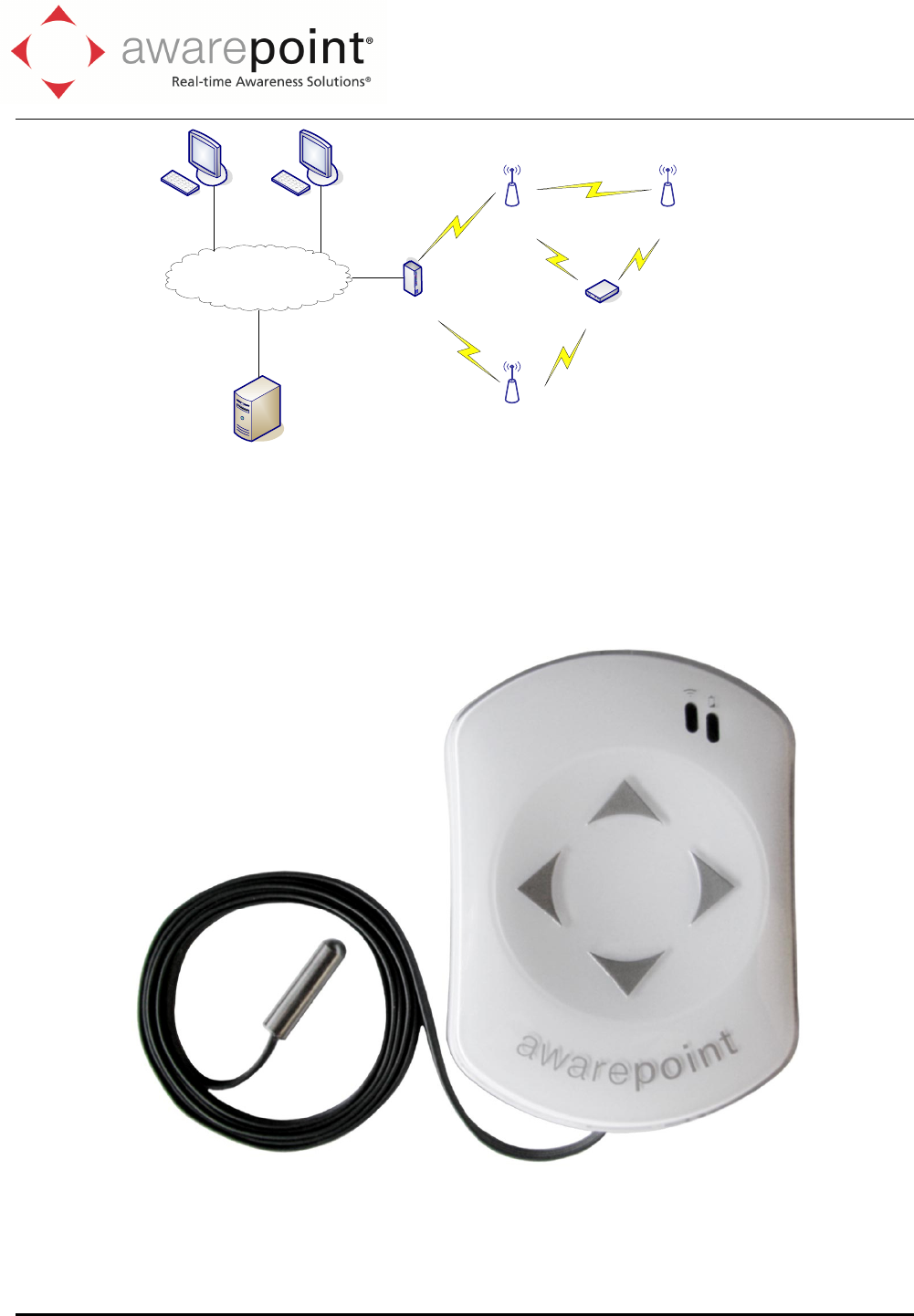

Figure 2: Tag, with temperature probe
600 W Broadway Ave., Suite 250
San Diego, CA 92101
Tel: (858) 345-5000
Fax: (619) 230-8886
Awarepoint Corporation
Confidential and Proprietary
Installation
Pre-Installation
Prior to installing the tag, the Awarepoint server, bridges, and sensors must be
correctly installed.
Attaching the tag to an asset
To attach a tag to an asset, you will need to know the asset’s type, and optionally
manufacturer, model, and serial number.
1. You can use zip ties or double sided tape to attach the tag to the asset.
2. In the system manager, create a new asset type if one does not exist already.
3. In the system manager, create a new asset with the specified manufacturer, model,
and unique ID.
4. Drag the tag’s MAC address onto the newly created asset.
5. Click Apply
