Users Manual

AXW-T800 / 800R

AXW-T1900 / 1900R

NTRODUCTION

World Best CDMA WLL Technology

Axesstel's CDMA2000 1x fixed wireless terminals allow users to "get connected" to

voice and data services with unprecedented ease. Powered by QUALCOMM's

MSM5105 processor, these terminals provide data service through USB and RS-232

interfaces at rates of up to 153 Kbps. With RJ-11 phone connections, the users can

enjoy rich features ranging from basic voice service to caller ID, call waiting, 3 way calling,

and analog fax. User-friendly design and 4 LED indicators make these terminals easy

to set up and use.

Convenience Features

CDMA-2000 1x (backward compatible to IS-95 A/B) Data service capability (153.6 Kbps max)

4 multi-colored LED indicators (Power, Signal Strength, Call Connection,and Voice Mail)

Multi-extension (2 RJ-11 ports)

RS-232C and USB Data via Special Connector

Dial-Tone and DTMF Generation

Desktop or Wall-Mountable

Call Waiting, Forwarding, Transfer

Three-way Calling

Caller ID (displayed on Call ID campatible analog phone)

Voice Mail

Optional Range-extending Patch Antenna

Optional Analog Fax (IS-707-A.7, A.4 backward compatible)

Features

AXW-T800 / 800R / 1900 / 1900R

Fixed Wireless Phone

ABLES OF CONTENTS

World Best CDMA WLL Technology

Safety Precautions ----------------- 3

Checking Parts ---------------------- 4

Terminal Information --------------- 5

Getting to know the terminal----- 8

Basic Operation

Power On/Off -------------------------12

Making Calls --------------------------12

Receiving Calls ----------------------13

Advanced Features

Adjusting voice volume-------------14

Setting alarm--------------------------14

Setting 1 minute----------------------14

Setting connection alert------------ 15

Setting voice privacy alert--------- 15

Setting caller ID mode-------------- 16

Setting autosend time---------------16

Setting DTMF length----------------16

Change the Lock Code ------------ 17

Restricting Outgoing Calls -------- 17

Restricting international calls------18

Restricting long distance calls----18

Terminal reset-------------------------19

Data service---------------------------19

FAX Service (Option)

Fax Set-Up ----------------------------22

Sending Fax Messages ----------- 22

Receiving Fax Messages --------- 23

Optional Features

Call Waiting ---------------------------26

Three-Way Calling ------------------26

Call Forwarding ----------------------26

Caller ID -------------------------------26

Voice Mail Service ------------------ 26

Miscellaneous

Menu Options Table ----------------28

Troubleshooting --------------------- 28

Specifications ------------------------ 29

AXW-T800 / 800R / 1900 / 1900R

Fixed Wireless Phone

AFETY PRECAUTIONS

World Best CDMA WLL Technology

1. Avoid placing the phone in a dusty location, or near a source of gas or fire.

2. Don not shake, hit or drop the phone.

3. To clean the outside of the phone, use only a soft, dry cloth. The chemicals in alcohol,

benzine or acetone can damage the surface of the phone.

4. Do not twist or pull the cables.

5. Do not disassemble the terminal.

6. DO NOT use the power adapter if:

- The power cord is damaged.

- The adaptor has been damaged in any way.

7. Use only the AXESSTEL provided adapter. Do not use the AXESSTEL adapter for any

other purpose.

8. Use only the AXESSTEL provided antenna. Do not use the antenna for any other purpose.

9. Frequency and length of use can affect the life of the self-charging battery. Contact your

customer service if the battery is not operating properly.

10. Use only the designated self-charging battery. Dispose of exhausted batteries properly.

Never discard a battery in or near fire or flame.

11. Do not use the terminal near water, for example, near a bathtub, sink, wet basement,

or swimming pool.

NOTE: The input voltage and the shape of the plug may vary from country to country.

AXW-T800 / 800R / 1900 / 1900R

Fixed Wireless Phone

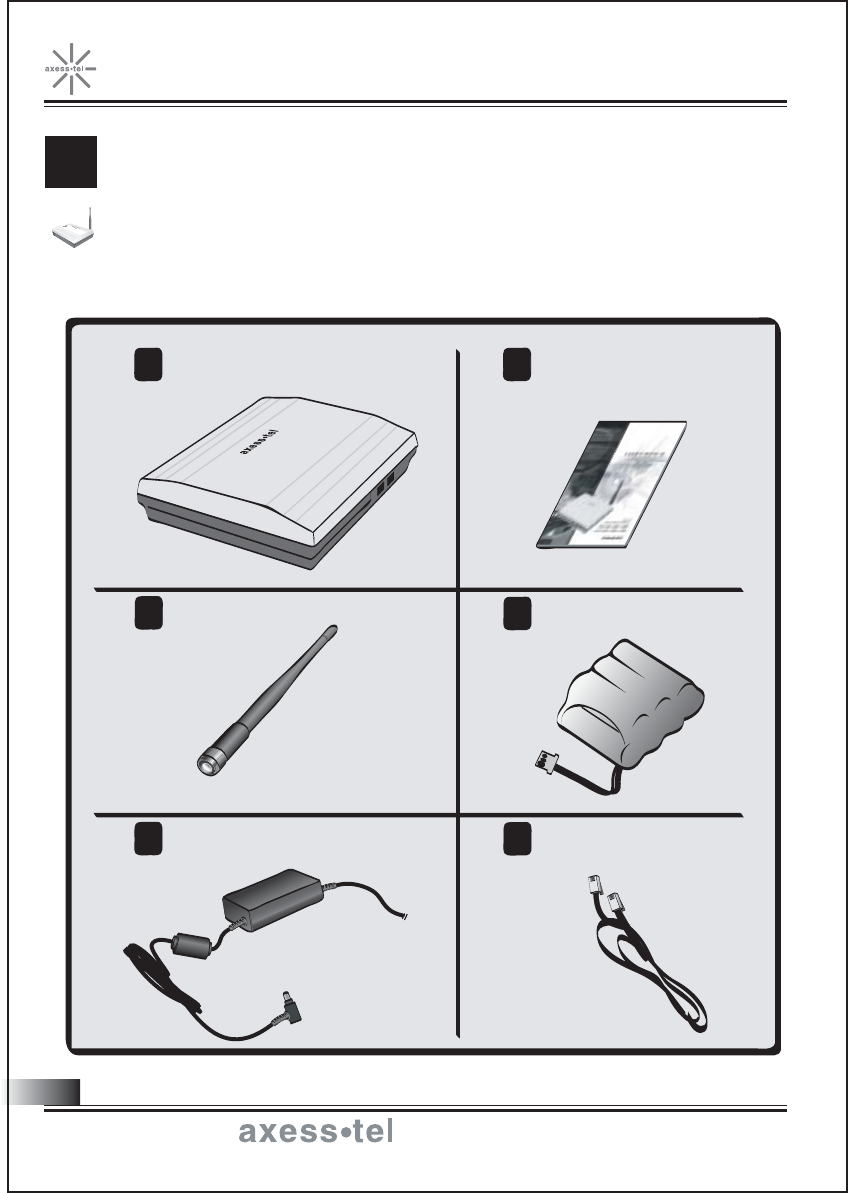

HECKING THE PARTS

World Best CDMA WLL Technology

After opening the package, check to make sure that you have all the parts shown

below. If any piece is missing or broken, please call your agent or customer service.

Items marked optional may be available only on select models.

Fixed Wireless Terminal Main Unit

Antenna

AC/DC Adapter and AC Cord

User's Manual

Backup Battery (Optional)

RJ-11 Phone Cord

AXW-T800 / 800R / 1900 / 1900R

Fixed Wireless Phone

World Best CDMA WLL Technology

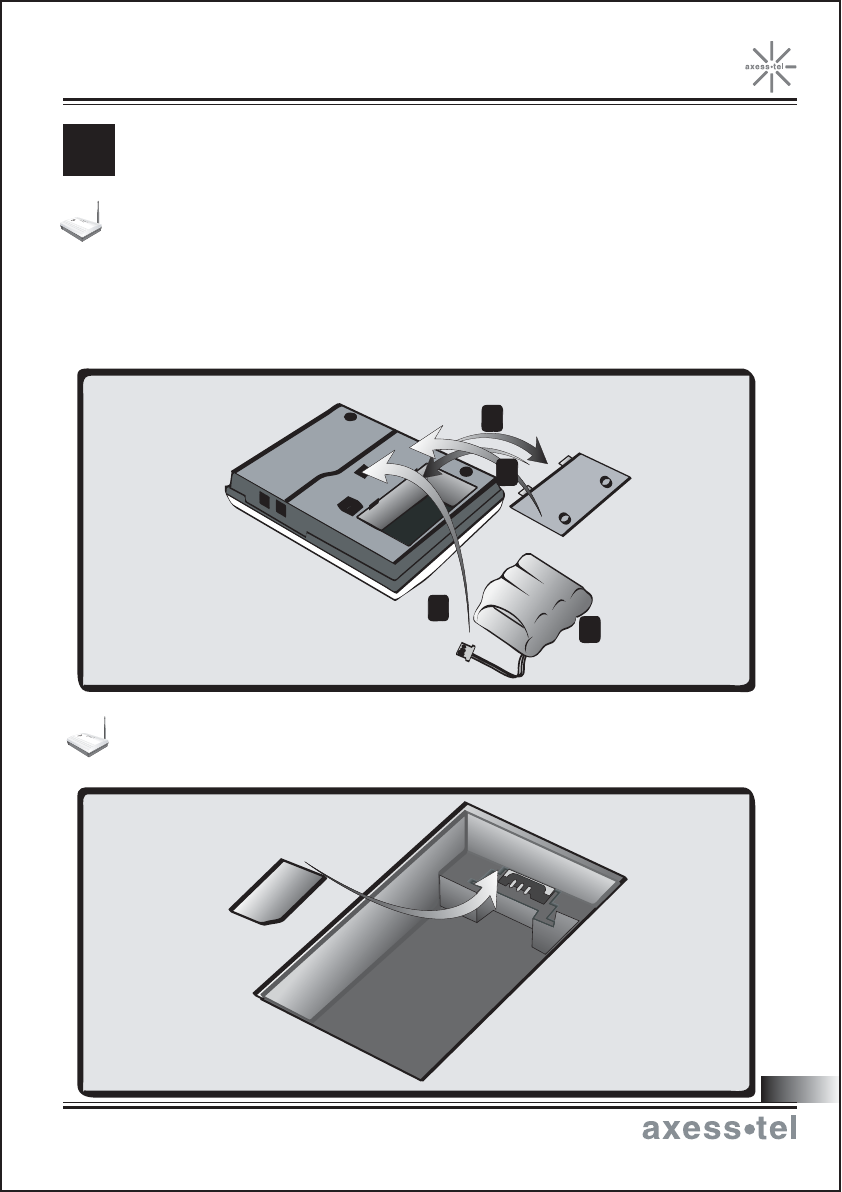

How to install internal battery (optional)

1. Open battery cover on the bottom side of the terminal.

2. Connect the DC power cable to terminal.

3. Insert the battery pack in the right position between the hold bars.

4. Close the battery cover.

Installing the RUIM Card (Optional for AXW-T450R/T800R/T1900R models only)

1. Put the RUIM card into the Socket as shown in the picture.

RUIM card

AXW-T800 / 800R / 1900 / 1900R

Fixed Wireless Phone

ERMINAL INFORMATION

World Best CDMA WLL Technology

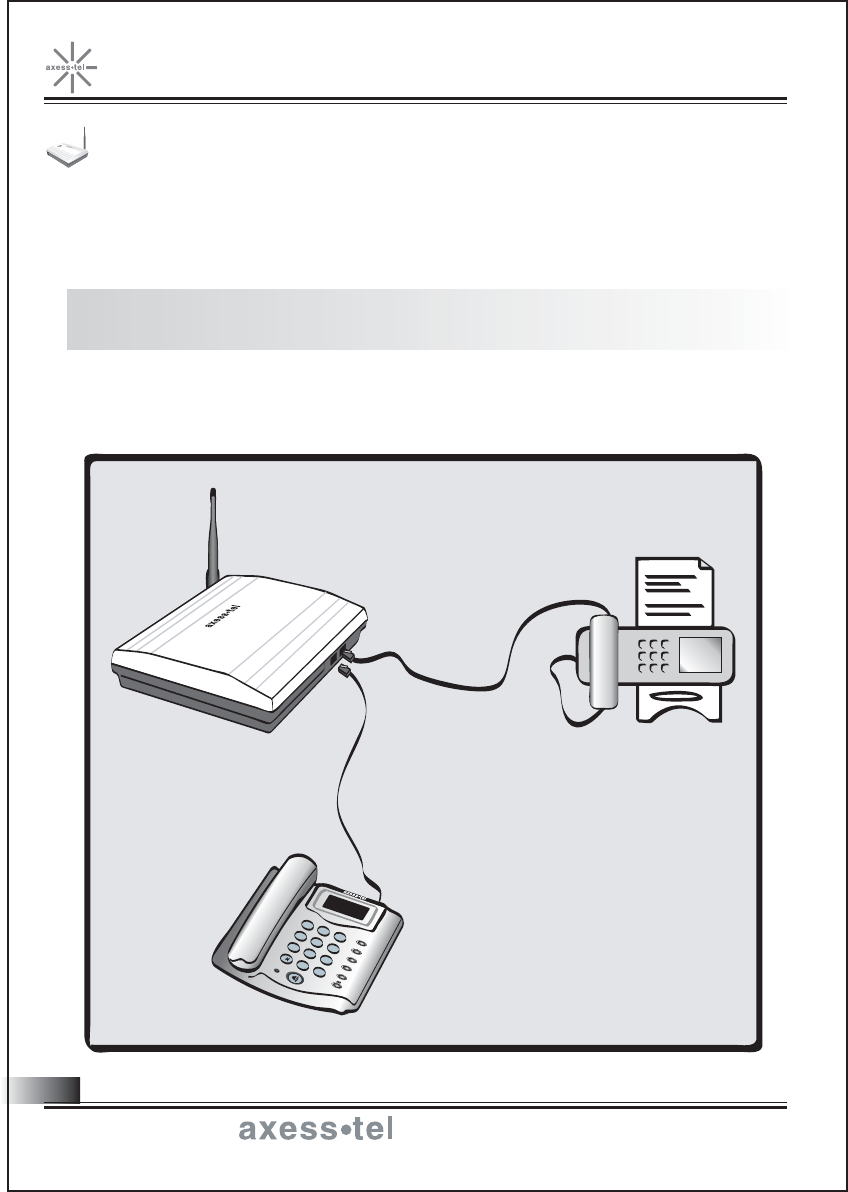

Desktop Installation

This FWT ACW-T800/T1900 operates by receiving electricity from an electrical outlet or internal

battery.

1. Connect the antenna on the back TNC connector of the terminal.

2. Connect a wire telephone to the terminal using an RJ-11 cord.

NOTE: Use the telephone compatible to FCC part 68 only. Non-compliant phones may not work

properly.

3. Plug the AC Adaptor jack into the DC 15V jack of the Terminal.

4. Plug the AC adaptor plug into an appropriate electrical outlet.

5. Connect an analog facsimile machine to one of the RJ-11 ports.

CLEAR

STORE

RECALL

POWER

MESSAGE

AXW-T800 / 800R / 1900 / 1900R

Fixed Wireless Phone

World Best CDMA WLL Technology

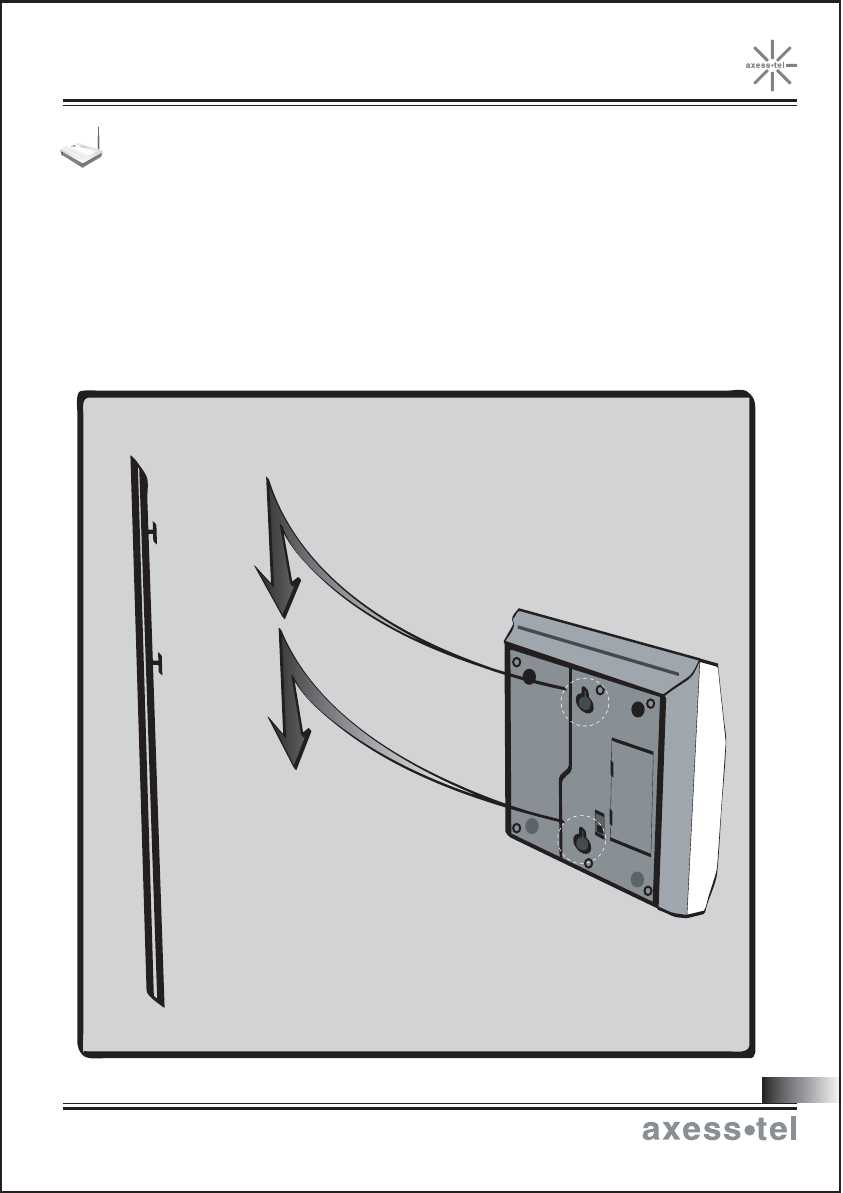

Wall Mount Installation

1. Mark two mounting hole locations to match the screw hole in the back of the terminal.

2. Drill two holes at the marked locations.

3. Tighten the screws until the head is about 5mm from the wall.

5. Plug in the power connector and route the cord in the groove, if needed.

6. Screw the antenna into antenna connector.

7. Hang the terminal on the screw using the two holes in the back.

8. Push the terminal down until the unit is firmly locked into place.

AXW-T800 / 800R / 1900 / 1900R

Fixed Wireless Phone

World Best CDMA WLL Technology

LED Color Meaning

Power Red Power is being supplied by AC adapter

Off No power / Power is being supplied by battery.

Signal Green Excellant Service Condition

Orange Good Service Condition

Red Voice through the line is not clear but a call is available.

Off No Service Condition

Blinking Incoming call

Battery

Off No battery is installed.

Voice Mail Green You have voice mail message. (If applicable)

Off Normal operation without any voice mail message.

LED indications

Type Condition Meaning

Normal dial Tone

No Service Tone

Outgoing call

restriction tone

Voice mail

tone

Confirmation

Error

Sound indications

continuous Terminal is in service area with adequate signal.

1.5sec on

800 msec off

Terminal cannot make or receive calls. (No signal)

800 msec on

200 msec off

Terminal is configured to block outgoing call but it

can receiving incoming calls.

beep-beep-

beep

You have voice mail message.

bee-bee-beep When using the menu with ** sequence, this

sound alerts successful entry.

howling beep When using the menu with ** sequence, this

sound alerts error entry.

Green If there is external power, chrged complete.

If there is external power, chrged .

Is not, full chrging.

Is not, medium chrging.

Orange

Red Low charged

AXW-T800 / 800R / 1900 / 1900R

Fixed Wireless Phone

ETTING TO KNOW THE TERMINAL

Basic Operation

Power On / Off

Making Calls

Receiving Calls

World Best CDMA WLL Technology

OWER ON / OFF

There is power switch on the bottom side of the terminal.

1. Turn on the terminal by moving switch to ON position.

2. Press the power switch more than 2 seconds to turn off the FWT.

NOTE: When you turn on the terminal, it automatically searches for service signal. When it

successfully acquires service signal, it generates dial tone on the handset.

Starting with RUIM (AXW-T450R/800R/1900R models only)

When the Pin Code of R-UIM Card is turned on, you may need to enter the Pin Code when ou

power on the terminal.

1. Lift the receiver of the analog telephone.

2. Using the numeric keypad of the analog phone, enter Pin Code.

Note 1: Pin code checking can be turned on/off. Please see page ___.

Note 2: You may enter pin code up to 3 times. After 3 times, you will need to re-start the terminal.

Note 3: Default pin code is provided by the service provider. Please contact your service provide

in case you do not remember the pin code.

AXW-T800 / 800R / 1900 / 1900R

Fixed Wireless Phone

World Best CDMA WLL Technology

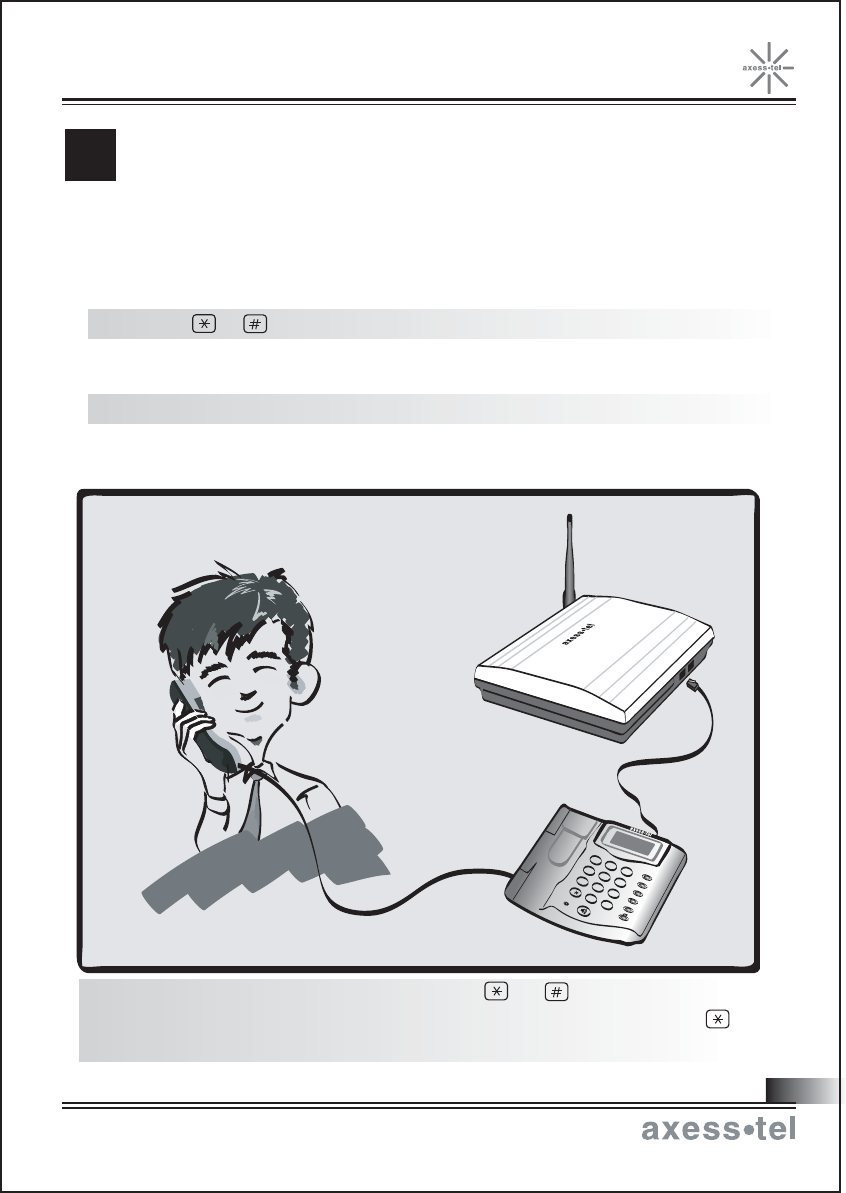

MAKING CALLS

1. Check to see that your terminal is turned on.

2. Pick up the handset of the phone.

3. If you hear the dial tone, dial the desired telephone number, using the numeric keypad.

4. Wait for about 4 seconds until the call is automatically made by the terminal.

Note: Press or button to make all right away after entering the dial number.

5. When the other person answers, begin conversation.

Note: If Connection Alert is turned on, a beep is heard when the other person answers your call.

6. To hang up, put the handset back on the phone.

Note 1: Dial number of maximum 32 digits, including and , can be entered.

Note 2: To make a call to the pre-programmed emergency number, press and hold

for about 2 seconds. An emergency call will be made automatically.

CLEAR

STORE

RECALL

POWER

MESSAGE

AXW-T800 / 800R / 1900 / 1900R

Fixed Wireless Phone

World Best CDMA WLL Technology

RECEIVING CALLS

The terminal signals the telephone(s) to ring when an incoming call is detected.

1. Pick up the telephone handset to answer the call.

2. To disconnect after finished, replace the handset on the phone..

Note 1: Make sure that the attached telephone ringer is enabled.

Note 2: When an incoming call comes in, when you are holding the receiver, press any key on

the numeric keypad of the phone to answer the call.

AXW-T800 / 800R / 1900 / 1900R

Fixed Wireless Phone

Advanced Feature

Adjusting voice volume

Setting alarm

Setting 1 minute alert

Setting connection alert

Setting caller ID mode

Setting autosend time

Setting DTMF length

Chang the lock code

Restricting outgoing calls

Restricting long distance calls

Restricting international calls

Terminal reset

World Best CDMA WLL Technology

ADJUSTING VOICE VOLUME

SETTING ALARM

SETTING 1 MINUTE ALERT

You can control the volume level of the terminal.

1. Pick up the handset.

2. Press .

3. Press to raise or to lower volume.

Note: Some telephones may have their own volume control. Use both the terminal and the

telephone volume controls to optimize the sound level.

Alarm feature can be set to ring at a set time. The phone connected to the terminal

will ring.

To set up alarm time.

1. Pick up the handset.

2. Press .

3. Enter time (24 hour time). For 2:30PM, enter .

To disable alarm

1. Pick up the handset.

2. Press .

When this feature is enabled, a discrete tone is generated at each one minute interval

on the receiver during conversation for both incoming and outgoing calls. This tone is to

help the user keep track of the phone usage.

To change the setting:

1. Pick up the handset.

2. Press .

3. Press to enable or press to disable.

AXW-T800 / 800R / 1900 / 1900R

Fixed Wireless Phone

World Best CDMA WLL Technology

ADJUSTING VOICE VOLUME

SETTING ALARM

SETTING 1 MINUTE ALERT

You can control the volume level of the terminal.

1. Pick up the handset.

2. Press .

3. Press to raise or to lower volume.

Note: Some telephones may have their own volume control. Use both the terminal and the

telephone volume controls to optimize the sound level.

Alarm feature can be set to ring at a set time. The phone connected to the terminal

will ring.

To set up alarm time.

1. Pick up the handset.

2. Press .

3. Enter time (24 hour time). For 2:30PM, enter .

To disable alarm

1. Pick up the handset.

2. Press .

When this feature is enabled, a discrete tone is generated at each one minute interval

on the receiver during conversation for both incoming and outgoing calls. This tone is to

help the user keep track of the phone usage.

To change the setting:

1. Pick up the handset.

2. Press .

3. Press to enable or press to disable.

AXW-T800 / 800R / 1900 / 1900R

Fixed Wireless Phone

World Best CDMA WLL Technology

SETTING CALLER ID MODE

SETTING AUTOSEND TIME

SETTING DTMF LENGTH

If your phone connected to the terminal is caller ID enabled, you can set the terminal

to display the caller identification number or name on the telephoneÕs LCD display.

1. Pick up the handset.

2. Press for disable the Caller ID feature.

3. Press for DTMF Standard Type.

4. Press for FSK (Bellcore) type.

NOTE: The default setting of Caller ID is DTMF type.

When finished entering dial number, the terminal waits a fixed time before

attempting to make a call. This Òauto sendÓ time can be changed.

1. Pick up the handset.

2. Press . Then press ~ or . 4~9 seconds or off.

3. Press .

For example, to set 5 seconds, press .

Note: Default autosend time is 4 seconds.

Some ARS (Automatic Response Service) requires long DTMF tone.

1. Pick up the handset.

2. Press .

3. Press for long DTMF and for short DTMF.

AXW-T800 / 800R / 1900 / 1900R

Fixed Wireless Phone

HANG THE LOCK CODE

ESTRICTING OUTGOING CALLS

World Best CDMA WLL Technology

The lock code prevents the terminal from being used by unauthorized person without

your permission. The default lock code is Ò Ó.

To change the lock code:

1. Pick up the handset.

2. Press .

3. Enter old 4 digit lock code followed by . For example . Beep sounds as

confirmation. If not correct, error tone will sound and the terminal returns to standby mode.

4. Enter new 4 digit lock code followed by . For example . Another beep

sounds as confirmation.

5. Re-enter 4 digit lock code followed by . For example . Another beep

sounds as confirmation. If not correct, error tone will sound and the terminal returns to

standby mode.

This feature can be used block outgoing calls from being made, but still wish to receive

incoming calls at any time.

1. Pick up the handset.

2. Press .

3. Enter 4 digit lock code.

4. Press to enable or to disable.

Note 1: Default lock code is " ". To change, see page 16.

Note 2: If someone tries to make a call when outgoing call restriction is enabled, the terminal

sounds beep and howler tone.

AXW-T800 / 800R / 1900 / 1900R

Fixed Wireless Phone

ESTRICTING LONG DISTANCE CALLS

ESTRICTING INTERNATIONAL CALLS

World Best CDMA WLL Technology

This feature can be used block long distance calls from being made, but still wish to

receive incoming calls and make local calls.

1. Pick up the handset.

2. Press .

3. Enter 4 digit lock code. If not correct, error tone will sound and the terminal returns to

standby mode.

4. Press to enable or to disable.

Note 1: Default lock code is " ". To change, see page 16.

Note 2: If someone tries to make a long distance call when outgoing call restriction is enabled,

the terminal sounds beep and howler tone.

This feature can be used block international calls only, but still wish to receive

incoming calls and make domestic and local calls.

1. Pick up the handset.

2. Press .

3. Enter 4 digit lock code. If not correct, error tone will sound and the terminal returns to

standby mode.

4. Press to enable or to disable.

Note 1: Default lock code is " ". To change, see page 16.

Note 2: If someone tries to make an international call when international call restriction is

enabled, the terminal sounds beep and howler tone.

AXW-T800 / 800R / 1900 / 1900R

Fixed Wireless Phone

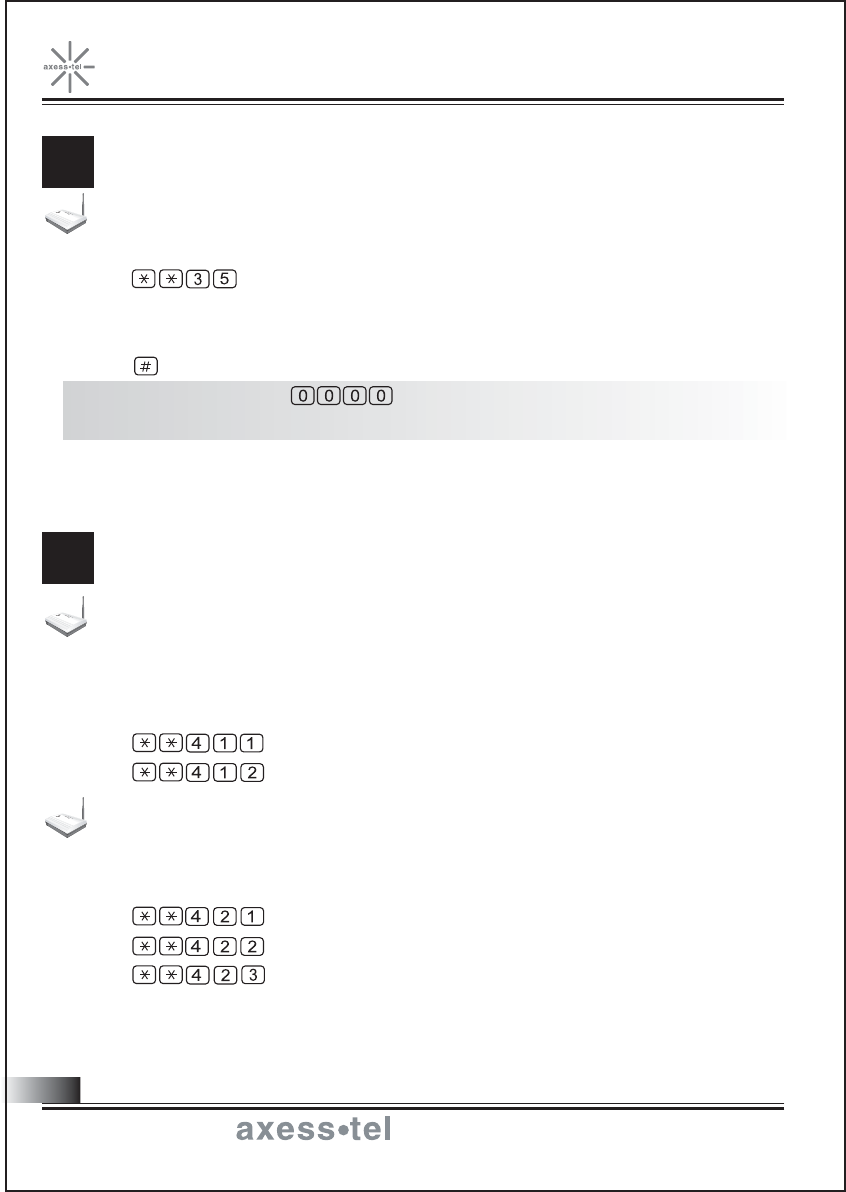

ERMINAL RESET

World Best CDMA WLL Technology

Resets the terminal back to the factory default state.

1. Pick up the handset.

2. Press .

3. Enter 4 digit lock code. If not correct, error tone will sound and the terminal returns to standby

mode.

4. Press to reset.

Note 1: Default lock code is " ". To change, see page 16.

Note 2: This feature is automatically set after 3 seconds with a confirmation tone.

Serial Cable & USB Cable

Depending on whether you use a serial cable with 9-pin RS-232 connector or a USB cable, the

terminal must be set to appropriate Port setting.

1. Pick up the handset.

2. Press to select Serial cable.

3. Press to select USB cable.

Data Port Speed

There are three speed options. Use appropriate speed setting for you use.

1. Pick up the handset

2. Press for high speed data service. (HDR 115.2Kbps)

3. Press for low speed data service. (ASYNC 19.2 Kbps)

4. Press for PC FAX. (19.2 Kbps)

ATA SERVICE T

AXW-T800 / 800R / 1900 / 1900R

Fixed Wireless Phone

World Best CDMA WLL Technology

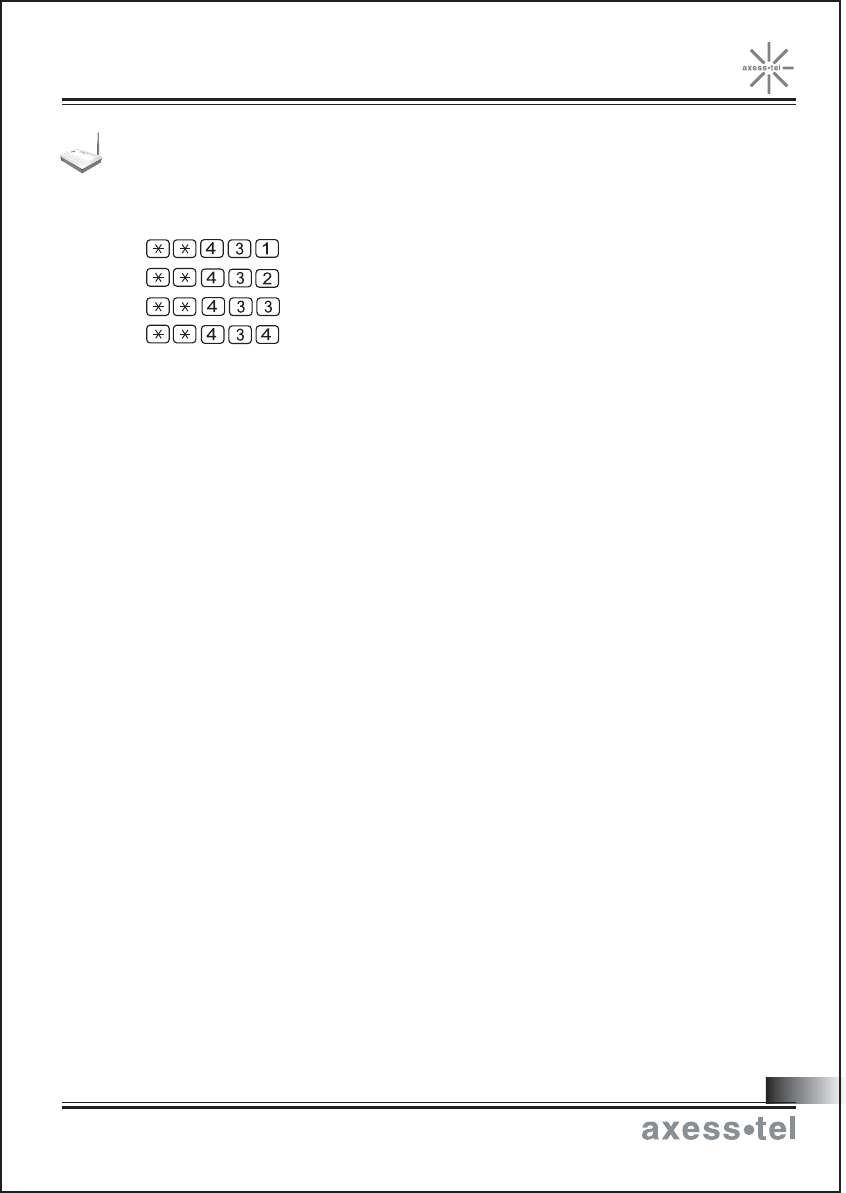

Receive setting

To receive an incoming Fax or Data call, the terminal must be configured correctly.

1. Pick up the handset

2. Press to set Voice and Analog Fax.

3. Press to set Received Data once.

4. Press to set Receive PC Fax once.

5. Press to set to Receive PC Fax always.

AXW-T800 / 800R / 1900 / 1900R

Fixed Wireless Phone

Analog FAX Service

Fax Set-Up

Sending Fax Message

Receiving Fax Messages

AX SET-UP

ENDING FAX MESSAGE

ECEIVING FAX MESSAGE

World Best CDMA WLL Technology

* The optional Fax module is required to send or receive fax with analog Fax machine.

Connect an analog Fax machine to the terminal with regular RJ-11 phone cord.

You can send and receive fax messages using a fax machine connected to the terminal.

Manual dialing method

1. Load documents to the fax machine.

2. Pick up the handset or press On-Hook button of the fax machine.

3. Press and wait for dial tone.

4. Dial destination fax number when you hear dial tone.

Use Pre-digit method to send fax without picking up the handset.

1. Load documents to the fax machine.

2. Pick up the handset or press On-Hook button of the fax machine.

3. Dial and destination fax number in sequence.

4. The terminal makes the call automatically.

You can set the terminal to receive Fax Once or Always.

1. Pick up the handset or press On-hook key of the fax machine.

2. Press to set Receive PC Fax Once.

3. Press to set to Receive PC Fax Always.

4. Wait for a confirmation dial tone. The terminal is ready to receive fax messages.

AXW-T800 / 800R / 1900 / 1900R

Fixed Wireless Phone

World Best CDMA WLL Technology

NOTE1: If you set the terminal to receive Fax always, the terminal will transfer every call to the fax

machine connected. If you set the terminal to receive fax once mode, the terminal will

transfer the first incoming call to the fax machine and set back to voice call mode

automatically.

To set the terminal to voice mode.

1. Pick up the handset or press On-Hook key.

2. Press

3. Wait for a confirmation dial tone.

AXW-T800 / 800R / 1900 / 1900R

Fixed Wireless Phone

Optional Features

Call Waiting

Three-Way Calling

Caller ID

Voice Mail Service

ALL WAITING

HREE-WAY CALLING

ALLER ID

OICE MAIL SERVICE

World Best CDMA WLL Technology

Call Waiting is a feature, which enables you to be alerted to a second incoming call while

you are on the first call of your telephone. Contact your service provider to activate or

deactivate Call Waiting.

1. You will hear a beep from the earpiece when a second call is incoming.

2. Press the hook shortly to answer to the second call.

3. Press the hook again to get back to the first call.

Three-Way Calling is a feature that enables you to set up a three-way conversation with

two other users. Contact your service provider to activate or deactivate Three-way Calling.

1. Place a call.

2. Press the hook shortly and place another call.

3. When the second call is answered, press the hook lightly to start a three-way call.

See Page 26: Setting Caller ID Mode

Voice Mail Service is a feature that allows the terminal to receive voice mail and forward

it to your telephone when you press a certain sequence of keypad number. Contact your

service provider to activate or deactivate Voice Mail Service.

AXW-T800 / 800R / 1900 / 1900R

Fixed Wireless Phone

Miscellaneous

Menu Options Table

Troubleshooting

Specifications

ENU OPTIONS TABLE

World Best CDMA WLL Technology

EXAMPLE REMAKE

Enter the menu item by pressing ** and the menu option.

1. Sound

2. General

3. Security

1. Voice Volume

Control

2. Setting Alarm , time(24hr),

3. Setting 1 Minute

Alert

4. Setting

Connection Alert

5. Voice privacy

Alert

1. Caller ID

2. Auto send time

3. DTMF Length

1. Changing Lock Code

2. Restricting Outgoing

Calls

3. Restricting

International Calls

4. Restricting Long

Distance Calls

5. Terminal Reset

(confirmation tone)

Old lock code, new lock

code, ,new lock code

again,

lock code, on or

off

If lock code is :

To change from " " to "

0. No Caller ID (no caller id)

(4 seconds)

1. DTMF Standard

2. FSK(Bellcore)

4~9 seconds, 0 OFF

Short / long

Off / On

Louder Lower (louder) a confirmatiom beep will

sound 3 seconds

Alarm(ringer) rings once

each day for 1 min

Alerts each minute during

conversation

Alerts when the call is

connection

Alerts for voice Privacy

When off, must press

or to make the call

Resets auto send time, alarm,

lock code, call restrictions

(outgoing, int'l, long), caller ID

type, voice privacy alert, conn

ection alert, and 1 minute alert.

(off)

(11:36 AM)

(2:10PM)

lock code, on or

off

lock code, on or

off

lock code,

If lock code is :

(dtmf)

(fsk)

(off)

(on)

(off)

(on)

(off)

(on)

(off)

(on)

(lower)

Off / On

(Short)

(Long)

4. Data

Service

1. Port Setting

2. Speed Setting

3. Receive Mode

1. Serial

2. USB

1. HDR (115.2K)

2. Async (19.2K)

3. PC FAX (19.2K)

1. Voice only

2. Data one time

3. Fax one time

4. Fax always

(Serial)

(USB)

(115.2K)

(19.2Kpbs pc fax)

(19.2Kpbs async data)

AXW-T800 / 800R / 1900 / 1900R

Fixed Wireless Phone

World Best CDMA WLL Technology

AXW-T800 / 800R / 1900 / 1900R

Fixed Wireless Phone

ROUBLESHOOTING

PECIFICATIONS

Troubleshoot the conventional wired telephone

In the event you are unable to place or receive telephone calls, first be sure that the connection

wire is properly connected to the RJ-11 phone port on the terminal and to the RJ-11 port of the

telephone. If unsure whether or not the telephone is operational, connect a telephone,

which is known to be operational to the terminal. If service is available with the operational

telephone, replace or repair your telephone equipment. If service is still not available, then

follow instructions under "Troubleshoot the Fixed Wireless Terminal".

Troubleshoot the Fixed Wireless Terminal

Check for the appropriate power indication on the LED. If no power, check the adaptor

(or External Power Supply) connection between the electrical outlet and the terminal.

Check for the appropriate Received Signal Strength Indication (RSSI), Power, and Message

Indication through the designated LED, respectively.

Frequency Range ACW-T800 TX: 824~849MHz RX: 869~894MHz

ACW-T1900 TX: 1850~1910 MHz RX: 1930~1990 MHz

Channel Bandwidth CDMA 1.25 MHz

Multi Connection 4 REN

RJ-11 Phone/Analog Fax Port 2

Power Supply (Adapter)

Input: AC 110~240V 50~60Hz

Output: DC 15V 1A

Temperature of operation

Relative humidity

-20 ~ +50 degrees C

5% ~ 95%

Temperature of storage -25 ~ +75 degrees C

Dimension 200x170x48.5 (mm)

Weight (without internal battery) 560g

Safety Information

1 . SAFETY INFORMATION FOR FIXED WIRELESS TERMINALS

.POTE NTIALLY EXPLOSIVE ATMOSPHERES

Turn your phone OFF when in any area with a potentially explosive atmosphere

and obey all signs and instructions. Sparks in such areas could cauls e an

explosion or fire resulting in bodily injury or even death.

INTERFERENCE TO MEDICAL DIVICES

Certain electronic equipment may be shielded against RF signal from you wireless

phone. (pacemakers, Hearing Aids, and so on) Turn your phone OFF in health care

facilities when any regulations posted in these areas instruct you to do so.

RF signals may affect improperly installed or inadequately shielded electronic

system in motor vehicles.

.EXPOSURE TO RF ENERGY

Use only the supplied or an approved replacement antenna.

Do not touch the antenna unnecessarily when the phone is in use.

Do not move the antenna close to, or touching any exposed part of the body when

making a call.

SAR INFORMATION

THIS MODEL PHONE MEETS THE GOVERNMENT’S

REQUIREMENTS FOR EXPOSURE TO RADIO WAVES.

Your wireless Terminal is a radio transmitter and receiver. It is designed and manufactured not to

exceed the emission limits for exposure to radiofrequency (RF) energy set by the Federal

Communications Commission of the U.S. Government. These limits are part of comprehensive

guidelines and establish permitted levels of RF energy for the general population. The

guidelines are based on standards that were developed by independent scientific organizations

through periodic and thorough evaluation of scientific studies. The standards include a

substantial safety margin designed to assure the safety of all persons, regardless of age and

health. The exposure standard for wireless mobile phones employs a unit of measurement

known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. *

Tests for SAR are conducted with the phone transmitting at its highest certified power level in all

tested frequency bands. Although the SAR is determined at the highest certified power level,

the actual SAR level of the phone while operating can be well below the maximum value. This is

because the phone is designed to operate at multiple power levels so as to use only the power

required to reach the network. In general, the closer you are to a wireless base station antenna,

the lower the power output. Before a phone model is available for sale to the public, it must be

tested and certified to the FCC that it does not exceed the limit established by the government

adopted requirement for safe exposure. The tests are performed in positions and locations (e.g.,

at the ear and worn on the body) as required by the FCC for each model. The highest SAR

value for this model when tested for use at the when worn on the body, as described in this user

guide, is 0.823 W/Kg. (Body-worn measurements differ among models, depending upon

available accessories and FCC requirements). While there may be differences between the

SAR levels of various and at various positions, they all meet the government requirement for

safe exposure. The FCC has granted an Equipment Authorization for this model with all

reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR

information on this model is on file with the FCC and can be found under the Display Grant

section of http://www.fcc.gov/ oet/fccid after searching on FCC ID: PH7AXWT800.

Additional information on Specific Absorption Rates (SAR) can be found on the Cellular

Telecommunications Industry Association (CTIA) web-site at http://www.wow-com.com.

* In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6

watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a sub-stantial

margin of safety to give additional protection for the public and to account for any variations in

measurements.

SAFETY INFORMATION FOR RF EXPOSURE

Body worn operation

This device was tested for typical body-worn operations with the back of the phone

kept 25 mm. from the body. To maintain compliance with FCC RF exposure

requirements, use only belt-clips, holsters or similar accessories that maintain a 25 mm.

separation distance between the user’s body and the back of the phone, including the

antenna. The use of belt-clips, holsters and similar accessories should not contain

metallic components in its assembly. The use of accessories that do not satisfy these

requirements may not comply with FCC RF exposure requirements, and should be

avoided.

FCC Compliance Information

This device complies with Part 15 of FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received.

Including interference that may cause undesired operation.

U.S.A.

U.S.FEDERAL COMMUNICATIONS COMMISSION

RADIO FREQUENCY INTERFERENCE STATEMENT

INFORMATION TO THE USER

NOTE : This equipment has been tested and found to comply with the limits for a Class B

digital device pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful Interference in

a residential installation This equipment generates, uses, and can radiate radio frequency

energy and, if Not installed and used in accordance with the instructions, may cause

harmful Interference to radio communications. However, there is no guarantee that

interference will not occur in a particular Installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

z Reorient or relocate the receiving antenna.

z Increase the separation between the equipment and receiver.

z Connect the equipment into an outlet of a circuit different from that to which

the receiver is connected.

z Consult the dealer or an experienced radio/TV technician for assistance.

Changes or modification not expressly approved by the party responsible for Compliance

could void the user’s authority to operate the equipment. Connecting of peripherals requires

the use of grounded shielded signal cables.

Axesstel AXWT800 WLL Terminal (CDMA) User Manual

Axesstel Inc WLL Terminal (CDMA) Users Manual

Users Manual

Navigation menu

Namespaces

Views

Navigation
