Axia Innovations VCM7601V01 WLAN USB module User Manual

Axia Innovations LTD. WLAN USB module

Contents

User Manual

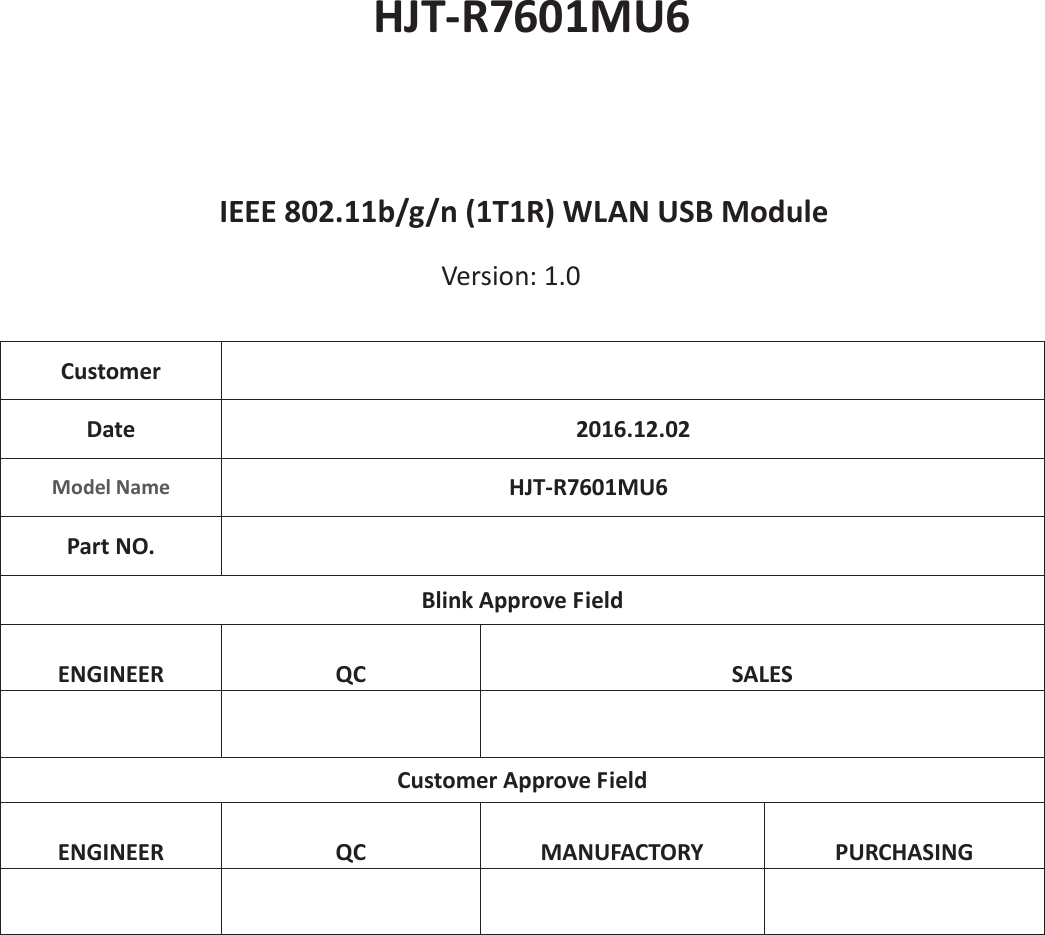

HJT-R7601MU6IEEE 802.11b/g/n (1T1R) WLAN USB Module Version: 1.0 Customer Date 2016.12.02 Model Name HJT-R7601MU6Part NO. Blink Approve Field ENGINEER QC SALES Customer Approve Field ENGINEER QC MANUFACTORY PURCHASING

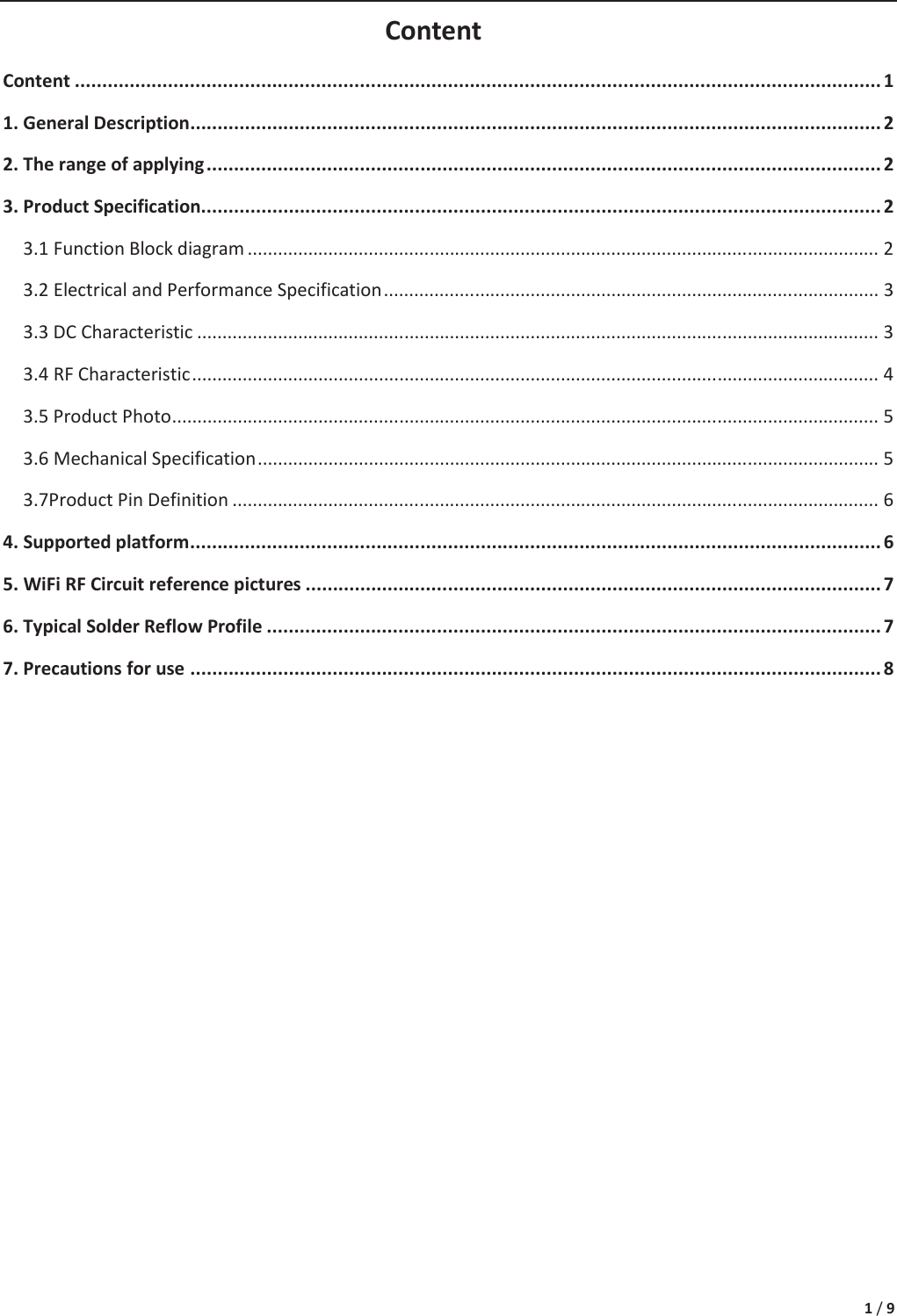

1 / 9 Content Content ................................................................................................................................................... 1 1. General Description .............................................................................................................................. 22. The range of applying ........................................................................................................................... 23. Product Specification ............................................................................................................................ 23.1 Function Block diagram ............................................................................................................................. 2 3.2 Electrical and Performance Specification .................................................................................................. 3 3.3 DC Characteristic ....................................................................................................................................... 3 3.4 RF Characteristic ........................................................................................................................................ 4 3.5 Product Photo ............................................................................................................................................ 5 3.6 Mechanical Specification ........................................................................................................................... 5 3.7Product Pin Definition ................................................................................................................................ 6 4. Supported platform .............................................................................................................................. 65. WiFi RF Circuit reference pictures ......................................................................................................... 76. Typical Solder Reflow Profile ................................................................................................................ 77. Precautions for use .............................................................................................................................. 8
2 / 9 1. General DescriptionHJT-R7601MU6 product accord with FCC CE is a highly integrated Wi-Fi single chip whichsupport 150 Mbps PHY rate. It fully complies with IEEE802.11n and IEEE802.11b/g standard,offering feature-rich wireless connectivity at high standard, and delivering reliable, cost-effectivethroughput from an extended distance. Optimized RF architecture and baseband algorithmsprovide superb performance and lower power consumption. Intelligent MAC design deploys ahigh efficient DMA engine and hardware data processing accelerators which offloads the hostprocessor.2. The range of applyingMID, networking camera, STB GPS, E-book, Hard disk player, Network Radios, PSP and otherdevice which need be supported by wireless networking.

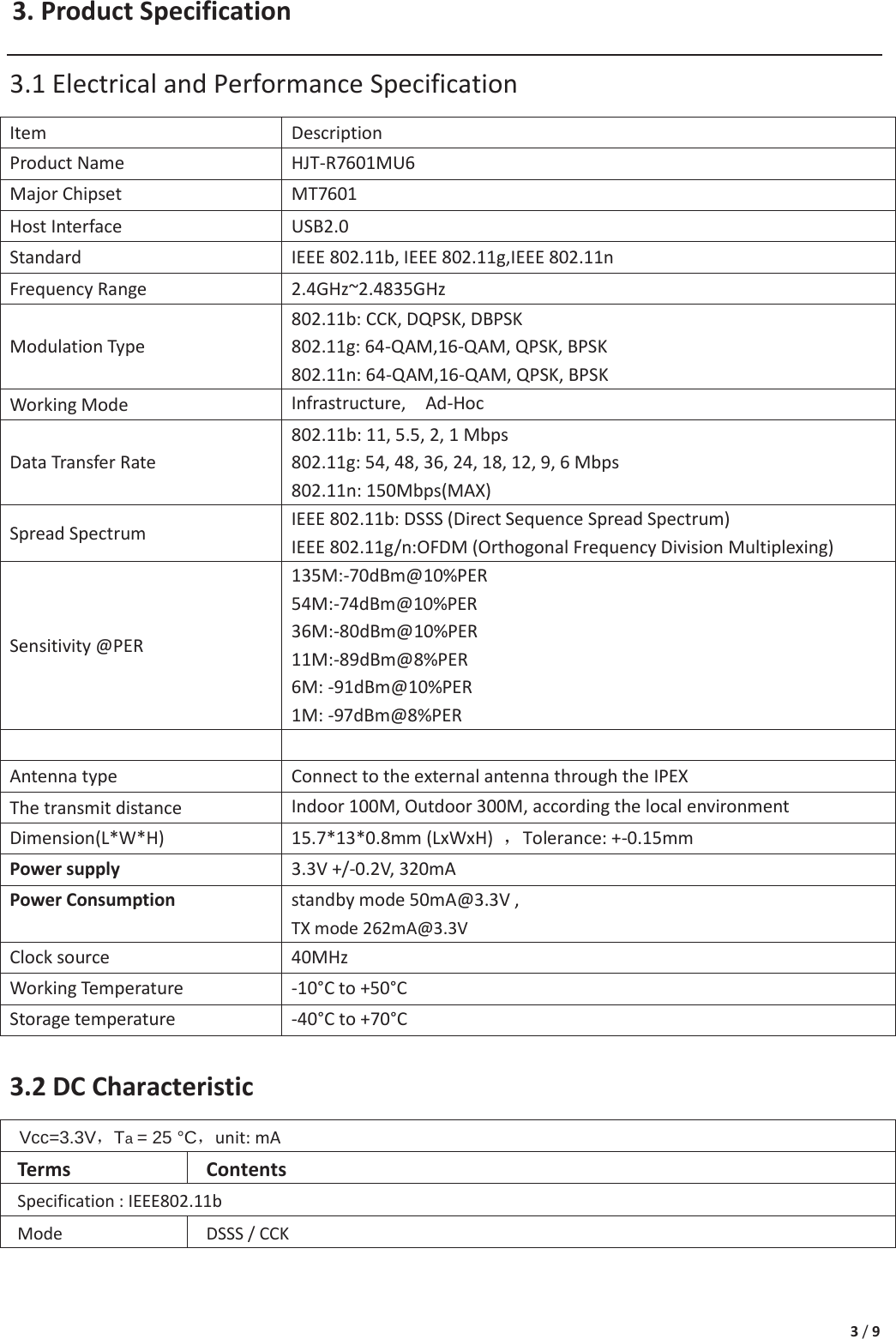

3 / 9 3.1 Electrical and Performance Specification Item Description Product Name HJT-R7601MU6Major Chipset MT7601 Host Interface USB2.0 Standard IEEE 802.11b, IEEE 802.11g,IEEE 802.11n Frequency Range 2.4GHz~2.4835GHz Modulation Type 802.11b: CCK, DQPSK, DBPSK 802.11g: 64-QAM,16-QAM, QPSK, BPSK 802.11n: 64-QAM,16-QAM, QPSK, BPSK Working Mode Infrastructure, Ad-Hoc Data Transfer Rate 802.11b: 11, 5.5, 2, 1 Mbps 802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps 802.11n: 150Mbps(MAX) Spread Spectrum IEEE 802.11b: DSSS (Direct Sequence Spread Spectrum) IEEE 802.11g/n:OFDM (Orthogonal Frequency Division Multiplexing) Sensitivity @PER 135M:-70dBm@10%PER 54M:-74dBm@10%PER 36M:-80dBm@10%PER 11M:-89dBm@8%PER 6M: -91dBm@10%PER 1M: -97dBm@8%PER Antenna type Connect to the external antenna through the IPEX The transmit distance Indoor 100M, Outdoor 300M, according the local environment Dimension(L*W*H) 15.7*13*0.8mm (LxWxH) ˈTolerance: +-0.15mm Power supply 3.3V +/-0.2V, 320mA Power Consumption standby mode 50mA@3.3V , TX mode 262mA@3.3V Clock source 40MHz Working Temperature -10°C to +50°C Storage temperature -40°C to +70°C 3.2 DC Characteristic Vcc=3.3VˈTa= 25 °Cˈunit: mA Terms Contents Specification : IEEE802.11b Mode DSSS / CCK 3. Product Specification

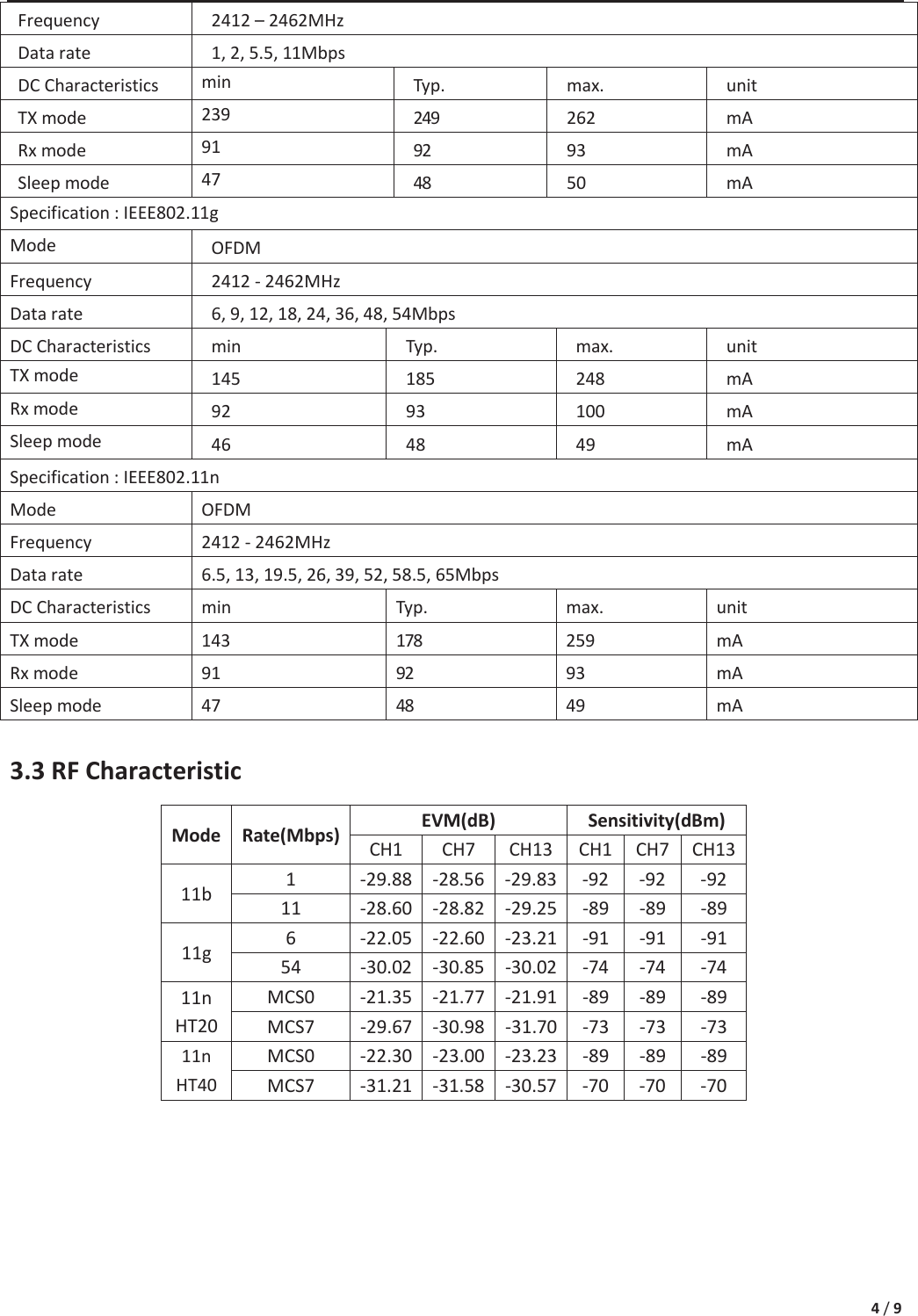

4 / 9 Frequency 2412 – 24ϲϮMHz Data rate 1, 2, 5.5, 11Mbps DC Characteristics minTyp. max. unit TX mode 239 249 262 mA Rx mode 91 92 93 mA Sleep mode 47 48 50 mA Specification : IEEE802.11gModeOFDM Frequency 2412 - 24ϲϮMHz Data rate 6, 9, 12, 18, 24, 36, 48, 54Mbps DC Characteristics min Typ. max. unit TX mode 145 185 248 mA Rx mode 92 93 100 mA Sleep mode46 48 49 mA Specification : IEEE802.11n Mode OFDM Frequency 2412 - 24ϲϮMHz Data rate 6.5, 13, 19.5, 26, 39, 52, 58.5, 65Mbps DC Characteristics min Typ. max. unit TX mode 143 178 259 mA Rx mode 91 92 93 mA Sleep mode 47 48 49 mA 3.3 RF Characteristic Mode Rate(Mbps) 11b 1 11 11g 6 54 11n HT20 MCS0 MCS7 11n HT40 MCS0 MCS7 EVM(dB) Sensitivity(dBm) CH1 CH7 CH13 CH1 CH7 CH13 -29.88 -28.56 -29.83 -92 -92 -92 -28.60 -28.82 -29.25 -89 -89 -89 -22.05 -22.60 -23.21 -91 -91 -91 -30.02 -30.85 -30.02 -74 -74 -74 -21.35 -21.77 -21.91 -89 -89 -89 -29.67 -30.98 -31.70 -73 -73 -73 -22.30 -23.00 -23.23 -89 -89 -89 -31.21 -31.58 -30.57 -70 -70 -70

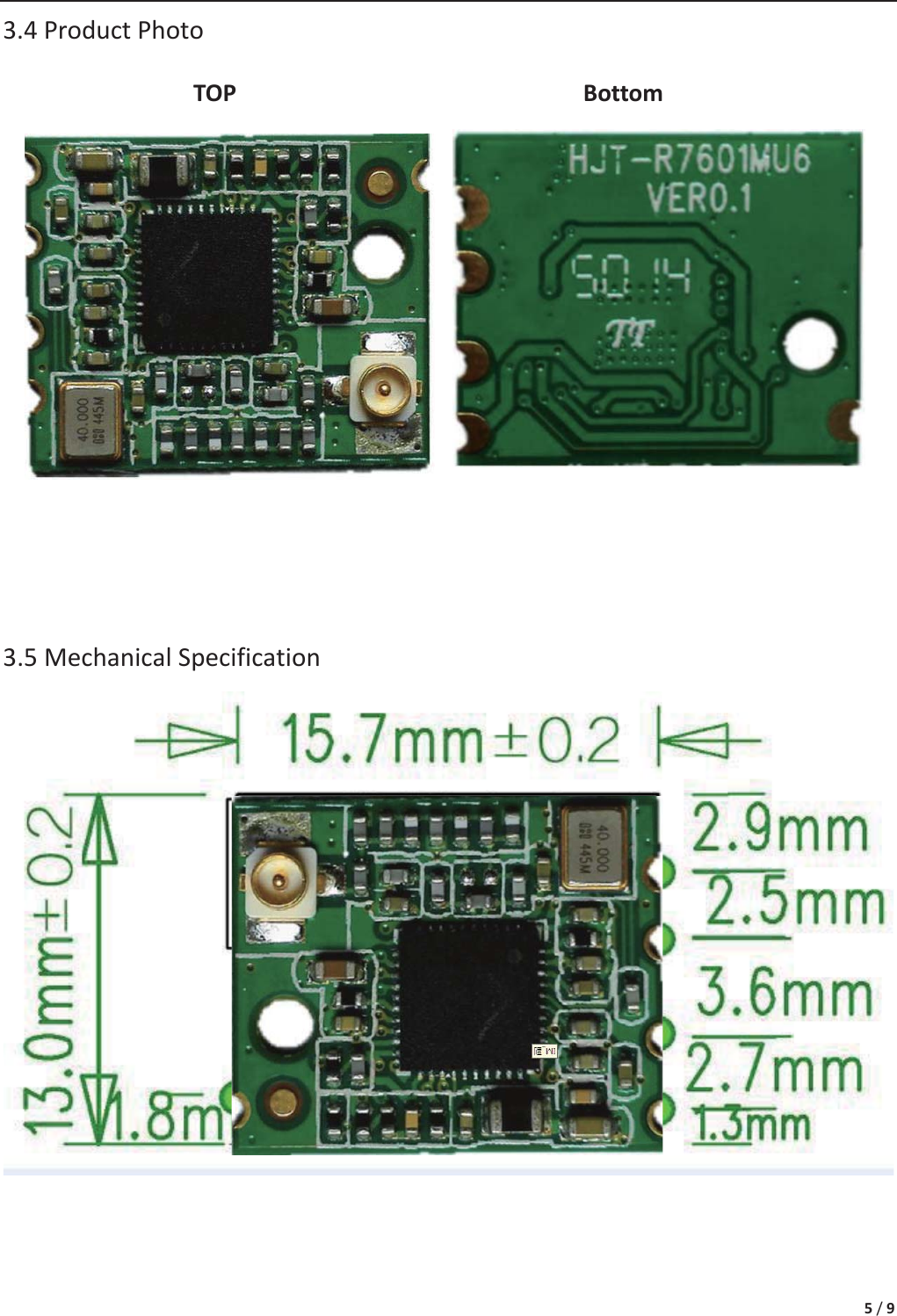

5 / 9 3.4 Product Photo TOP Bottom 3.5 Mechanical Specification
6 / 9 3.6Product Pin Definition 4. Supported platformOperating System CPU Framework Driver WIN2000/XP/VISTA/WIN7 X86 Platform Enable LINUX2.4/2.6 ARM, MIPSII Enable WINCE5.0/6.0 ARM ,MIPSII Enable Pin No˖ Function Description 1 DC :3.3V VDD3.3V for digital IO 2 UDM High-speed USB D- signal 3 UDP High-speed USB D+ signal 4 GND Ground 5 GND Ground
7 / 9 5. WiFi RF Circuit reference picturesNote: 1. Connect to the external antenna through the IPEX 2. The USB differential pair needs to keep 90 Ω impedance.6. Typical Solder Reflow Profile
8 / 9 7. Precautions for use1. Pls handle the module under ESD protection.2. Reflow soldering shall be done according to the solder reflow profile. Peak temperature245ć.3. Products require baking before mounting if humidity indicator cards reads >30% temp <30 degree C,humidity < 70% RH, over 96 hours.Baking condition: 125 degree C, 12 hoursBaking times: 1 time4. Storage Condition: Moisture barrier bag must be stored under 30 degree C, humidity under 85% RH. Thecalculated shelf life for the dry packed product shall be a 12 months from the bag seal date. Humidityindicator cards must be blue, <30%.Note:The module is limited to OEM installation ONLY;The OEM integrator is responsible for ensuring that the end-user has no manual instructions to remove or install module.If the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following:“Contains Transmitter Module FCC ID: XXXXXXXX”when the module is installed inside another device, the user manual of this device must contain below warning statements;1、This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference.(2) This device must accept any interference received, including interference that may cause undesired operation.That separate approval is required for all other operating configurations, including portable configurations with respect to Part 2.1093 and different antenna configurations. This product is mounted inside of the end product only by professional installers OEM. They use this module with changing the power and control signal setting by software of end product within the scope of this application. End user can not change this setting. The equipment complies with RF exposure limits. This module is limited to installation in mobile or fixed applications. The antenna used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Note: The Grantee is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. such modifications could void the user's authority to operate the equipment.
