Axon Labs Headband Transmitter Manual
Manual
Getting Started
Personal Sleep
Coach
Zeo is the world’s first personal sleep coach, designed to help
you learn about your own sleep. Zeo can help you discover
connections between how you live and how you sleep, and
learn personalized, customized strategies for getting the
restorative rest you need.
Zeo. The more you know, the better you sleep.
™
Set up is easy. Get started now!
Welcome to Zeo
Zeo is neither a medical device nor a medical program and is not intended for the
diagnosis or treatment of sleep disorders. If you suspect that you may have a sleep
disorder, consult your physician.

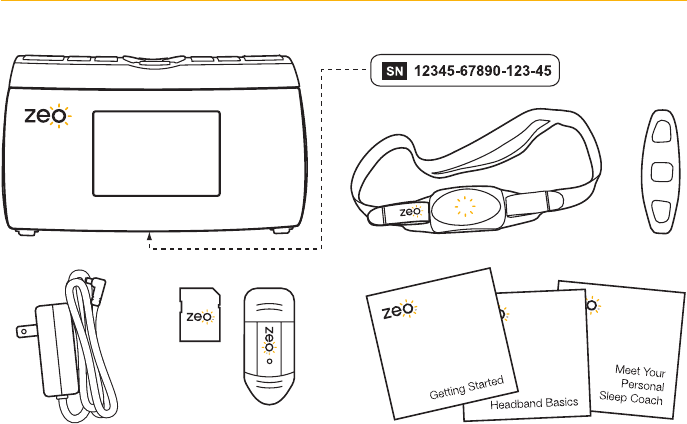

Your Zeo Includes
A. Zeo Bedside Display
B. myZeo serial number – for creating
a myZeo online account
C. Zeo Headband
D. Replacement headband sensor pad
E. Power adapter
F. SD memory card and card reader – for
uploading your sleep information to myZeo
G. Getting Started – a guide to help you start
using your Personal Sleep Coach
H. Headband Basics – a quick guide for
wearing the Zeo Headband
I. Meet Zeo – a reference with all you need
to know to get the most out of your
Zeo experience
E. F. G. H. I.
B.A.
C. D.
3
Setting Up Your Zeo
Power • Place the bedside display near your bed
• Connect the power adapter to the bedside
display, and plug it into a wall outlet
Set up • Use the setup screens to set the clock
time, date, wake time, and wake mode.
Press / to adjust the flashing
numbers. Use to move to the next
part of the setup process
Charge the
headband
• Place the headband into the cradle on the unit
• When positioned correctly, the battery charging
icon will appear as shown:
• If the battery icon does not appear, shift the
headband slightly in the cradle
• The battery takes up to two hours to charge
Blinking = charging Solid = charged
4
Set clock time • First hold and release so that the clock
time flashes
• To change the hour, press or
• To set minutes, press then press or
• To set year/month/day, press then press
or
• When finished, press or to
return to main screen
In general, you can
follow the arrows on the
screen to select an option
or navigate a menu.
Set alarm time • First hold and release so that alarm
hour flashes
• To change the hour, press or
• To set minutes, press then press or
• When finished, press or to
return to main screen
Activate and
deactivate alarm
• Press , then press
to confirm
Turn alarm off
when ringing
• Press , then press
Setting Time And Using The Alarm
Customizing Your Zeo Settings
Screen
brightness
• Press to increase brightness, or to decrease brightness
Wake music Zeo has five different wake tones designed to
help stir you awake gently and effectively.
• Press
, / to change music
Length of snooze Adjust the length of snooze time.
• Press
, then to navigate to +Zzz Time
screen. Then press / to change
Other settings The menu includes several other options. Press , then use to
navigate to the desired screen.
• Wake Mode – see next page for a full explanation
• Wake Window – see next page for a full explanation
• Sensor life – countdown until recommended sensor pad replacement
• Erase sleep data – erase all sleep data
6
Waking Up With Zeo
Zeo has two different alarm clock features:
Standard wake: Zeo acts just like a traditional alarm clock
Note: If you typically like to sleep until the minute your alarm rings or if you like to snooze, you
should choose standard wake.
SmartWake™: Zeo searches for a “natural awakening point” – a moment when you are at an
optimal point for waking. When SmartWake is on, the wake music will play as early as a half-hour
before your set wake-up time. Zeo will never wake you later than the set time.
Select wake mode • Press , then to navigate to the Wake
Mode screen. Press or to select
standard wake or SmartWake
Set wake window
(SmartWake only)
If you use SmartWake, you can also adjust the
amount of time before your set wake-up in
which Zeo should search for a “natural
awakening point.”
• Press , then to navigate to the “Wake
Window” screen. Press or to increase
or decrease the length of the window
7
myZeo
™ Personalized Online Program
With myZeo, you can:
Track your trends
Upload your sleep data to track your sleep over time.
Begin to connect your lifestyle and sleep
By adding information about your daily activities to your sleep
data, you can learn about the activities and patterns that may
affect your sleep.
Get personalized coaching
Everyone has different issues that affect their sleep. You can select
the myZeo coaching session that’s right for you.
And much more. Visit www.myzeo.com to explore all that the
Zeo Personal Sleep Coach has to offer.
myZeo helps you learn about the connections between how you
live and how you sleep, and coaches you to make changes to
help you get a better night’s sleep.
8
myZeo
™ Personalized Online Program

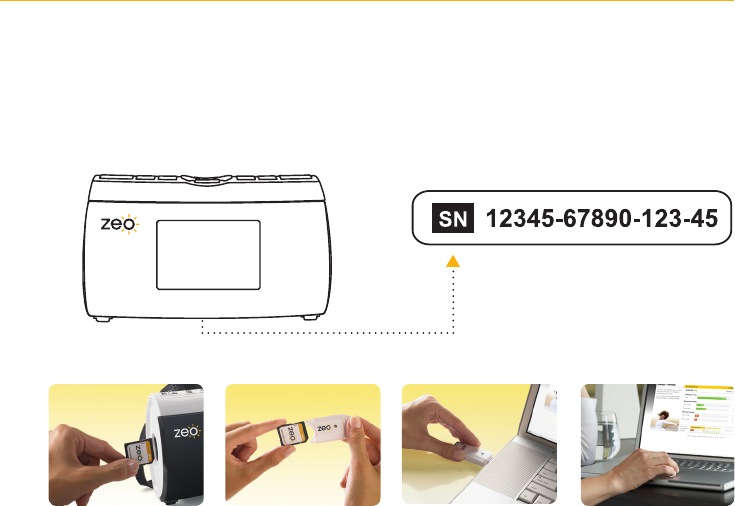

Get started today — visit www.myzeo.com and click “login.”
To set up an account, you will need the serial number located
on the bottom of your Zeo bedside display.
Serial Number
1. Gently push the SD
card to eject
2. Insert the card into
the reader
3. Insert the reader into
the USB port of your
computer
4. Sign in to myzeo.com
and click on “Upload
your Data Now”
The process is simple:
Remember to put the SD card back into the bedside display when you are
finished to make sure you continue to store your sleep data.
9
Safety and Regulatory Information
Important Safety Information
Warning
These are important safety messages in the product manual.
Make yourself familiar with these messages and follow the safety
instructions given in this manual. Failure to follow these safety
instructions could result in injury or damage.
To reduce the risk of electric shock, do not open bedside display
or headband. No user-serviceable parts inside. Refer servicing to
qualified personnel.
• Do not use Zeo on wet surfaces or where contact with or
immersion in water is a possibility.
• The headband, SD card, and card reader are potential choking
hazards. Keep away from children under 3 years old.
• Operate your Zeo only using power supplies produced by
Zeo, Inc. and using a proper power source.
• Never handle the plug or power cord with wet hands.
• Product is not to be used (placed on head) while charging.
• Zeo is not a medical device. If not used in a home, hotel or
other typical setting, Zeo must be connected to main power
through an isolation transformer conforming to the
Harmonized Standard EN60601-1-1.
Caution
• Read all safety and operating instructions before operating Zeo.
• Retain the safety and operating instructions for future reference.
• Follow all operating and use instructions.
• Always unsnap the plastic headband electronics pod before
washing the strap or sensor pad.
• Do not attempt to service Zeo yourself. Refer all non-routine
servicing to qualified service personnel.
• Misuse or abuse, including but not limited to improper
charging, immersion of electronics in water, dropping, and
mishandling may affect Zeo’s ability to operate properly and
may void the warranty.
• Zeo and its components are not toys and are not meant for
individuals under age 18.
A Note About Radio Frequency Energy
The Zeo headband, like other radio devices, emits radio
frequency electromagnetic energy. The level of energy emitted
by this device, however, is less than the electromagnetic energy
emitted by most other wireless devices such as mobile phones.
Zeo operates within the guidelines found in radio frequency
safety standards and recommendations. These standards
and recommendations reflect the consensus of the scientific
community and result from deliberations of panels and
committees of scientists who continually review and interpret the
extensive research literature. In some situations or environments,
the use of Zeo may be restricted by the proprietor of the building
or responsible representatives of the applicable organization.
Examples of such situations include the following:
• Using Zeo on board airplanes, or
• Using Zeo in any other environment where the risk of
interference with other devices or services is perceived
or identified as being harmful.
If you are uncertain of the policy that applies to the use of
wireless devices in a specic organization or environment (an
airport, for example), you are encouraged to ask for authorization
to use Zeo before you turn it on.
The wireless headband transmission can be turned off by
accessing the “Headband Wireless” screen in the settings menu.
Regulatory Notices
FCC Compliance Statement
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communi-
cations. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
10
Safety and Regulatory Information
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause
undesired operation. Changes or modifications not expressly
approved by Zeo Inc. could void your authority to operate
the equipment.
Power Requirements
This product should be used only with the manufacturer-
supplied power supply. Failure to use a power supply that was
shipped with your device will void FCC certification for Zeo as
well as the warranty.
AC Adapter: Input Voltage 100-240 VAC 50-60Hz 200mA.
Rated Output 5VDC 0.5A.
Caution: This equipment has been certified to the requirements
of the Canadian electrical code with regard to safety from
electrical shock and fire hazard. CSA has not investigated other
physiological effects.
Attention: Cet appareil est certifié selon les exigences du code
Canadien de l’électricité en ce qui a trait aux risques de choc
électrique et d’incendie. La CSA n’a pas étudié les effets
physiologiques possibles.
Waste Electrical & Electronic equipment (WEEE) Directive
This symbol on the product or on its packaging
indicates that the product must not be disposed
of with normal household waste.
RoHS
This symbol on the product or on its packaging
indicates that the product complies with the
European Union Directive 2002/95/EC on the
“Restriction of Hazardous Substances”.
FCC
Federal Communications Commission
CSA
Canadian Standards Association, a safety
standards and safety test/ certification organization.
Safety Symbol
Attention, consult accompanying documents.
11
One Year Limited Warranty
Zeo, Inc. warrants the Zeo Personal Sleep Coach electronic
device – specifically the bedside display and plastic headband
electronics pod – (the “Product”) against defects in materials
and workmanship under normal use for a period of ONE (1)
YEAR from the date of purchase by the original purchaser
(“Warranty Period”). Under this Limited Warranty, if a defect
arises and a valid claim is received by Zeo, Inc. within the
Warranty Period, at its option and to the extent permitted by
law, Zeo, Inc. will either (1) repair the Product at no charge,
using new or refurbished replacement parts, or (2) exchange
the Product for a new or refurbished product. In the event of a
defect, to the extent permitted by law, these are your sole and
exclusive remedies.
A replacement Product or part assumes the remaining warranty
of the original Product or ninety (90) days from the date of
replacement or repair, whichever is longer.
When a Product or part of the Product is exchanged as part of
warranty service, any replacement item becomes your property
and replaced item becomes Zeo, Inc.’s property. Parts provided
by Zeo, Inc. must be used in Products for which warranty
service is claimed. When a Product receives warranty service,
Zeo, Inc. at its option may supply to the consumer a new
sensor pad and headband strap in addition to repairing or
replacing the defect. Zeo, Inc. reserves the right to subcontract
the product warranty services to be provided hereunder to
qualified third parties.
Obtaining Warranty Service
Please contact Customer Service at www.myzeo.com/support
for specific instructions about how to obtain warranty service
for your device. You will need to provide your Product
serial number.
In general, you will need to deliver your Product, including all
components, postage paid, in either its original packaging or
in equally protective packaging to the address specified by
Customer Service. Before you deliver your Product for warranty
service, it is your responsibility to backup any data you may
have stored or preserved on your Product by uploading your
data to your myZeo account. It is possible that such data will
be lost or reformatted during service, and Zeo, Inc. will not be
responsible for any such damage or loss.
Limitations
This Limited Warranty does not apply to consumables in the
Product, specifically the memory card, card reader, sensor pad
and headband strap. This Limited Warranty does not apply to a
Product or part of the Product that has been altered or modified
by anyone who is not a representative of Zeo, Inc. In addition,
this Limited Warranty does not apply to damage caused by: (a)
use with non-Zeo, Inc. products; (b) theft, vandalism, accident,
abuse, misuse, flood, fire, earthquake, or other external causes;
(c) operating the Product outside the permitted or intended uses
described by Zeo, Inc., (d) improper voltage or power supply;
or (e) service (including upgrades and expansions) performed
by anyone who is not a representative of Zeo, Inc. This Limited
Warranty is not transferable.
TO THE EXTENT PERMITTED BY LAW, THE WARRANTY AND
REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND IN LIEU
OF ALL OTHER WARRANTIES AND REMEDIES, ORAL OR
WRITTEN, EXPRESS, IMPLIED OR STATUTORY. ZEO, INC.
MAKES NO OTHER REPRESENTATIONS OR WARRAN-
TIES, INCLUDING, BUT NOT LIMITED TO, WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE
AND WARRANTIES AGAINST HIDDEN OR LATENT DEFECTS. IF
WE CANNOT LAWFULLY DISCLAIM STATUTORY OR IMPLIED
WARRANTIES, THEN TO THE EXTENT PERMITTED BY LAW,
ALL SUCH WARRANTIES SHALL BE LIMITED IN DURATION TO
THE DURATION OF THIS EXPRESS LIMITED WARRANTY AND
TO REPAIR OR REPLACEMENT SERVICE AS DETERMINED BY
US IN OUR SOLE DISCRETION. SOME STATES DO NOT ALLOW
LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS,
SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. WE ARE
NOT RESPONSIBLE FOR DIRECT, SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH
OF WARRANTY OR UNDER ANY OTHER LEGAL THEORY. SOME
STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE
EXCLUSION OR LIMITATION MAY NOT APPLY TO YOU.
This limited warranty gives you specific legal rights, and you
may have other rights which vary from state to state.
For Service inquiries, please contact customer service
at www.myzeo.com/support
© 2008 Zeo, Inc. All Rights Reserved. Zeo, myZeo,
SoftWave, SmartWake, and the Zeo logo, are
trademarks of Zeo, Inc.
SD logo is a trademark of the SD Card Association.
Warranty and Service
070-0001 REV1.0
