INSTALLATION/OWNER’S MANUAL

DVD Multimedia Receiver with Bluetooth

featuring a 6.2" Touch Screen Display

AV615BHM

The DVD video display of the in-dash unit will not operate while the vehicle is moving. This is a safety feature

to prevent driver distraction. In-dash DVD video functions will only operate when vehicle is in Park and the

parking brake is engaged. It is illegal in most states for the driver to view video while the vehicle is in motion.

Safety Notes:

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other

intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology

must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise

authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Manufactured under license from Dolby Laboratories.

Dolby and the double-D symbol are registered trademarks of Dolby Laboratories.

The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Namsung is under

license.

Other trademarks and trade names are those of their respective owners.

9-11

12-14

15-19

20-21

22-23

24-25

Page

Warning Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Safety Information/Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Preparation/Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Control Locations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Remote Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

General Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

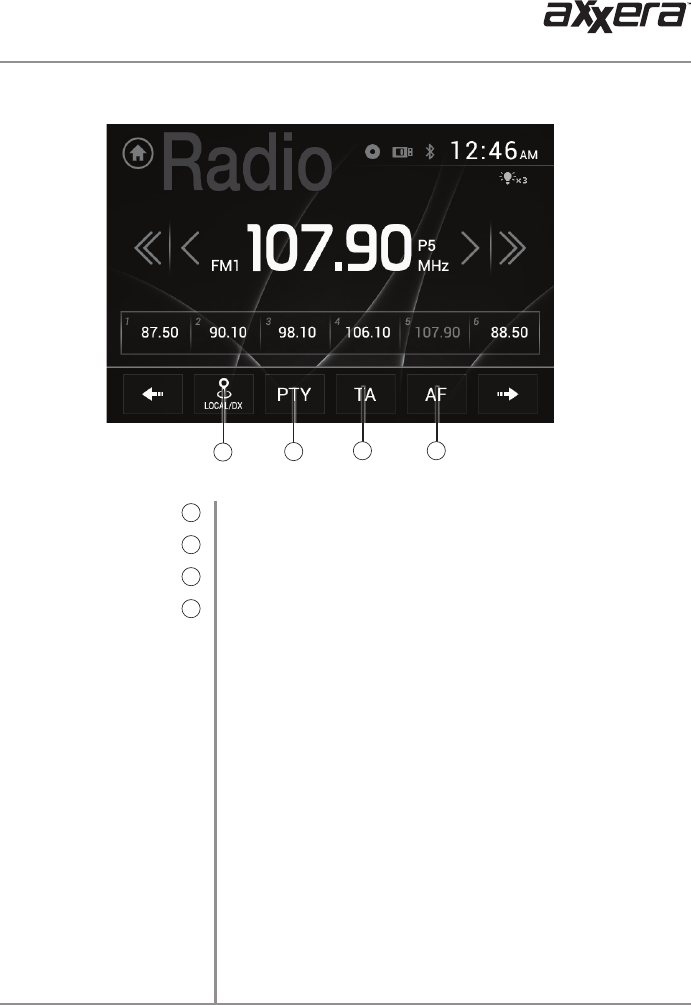

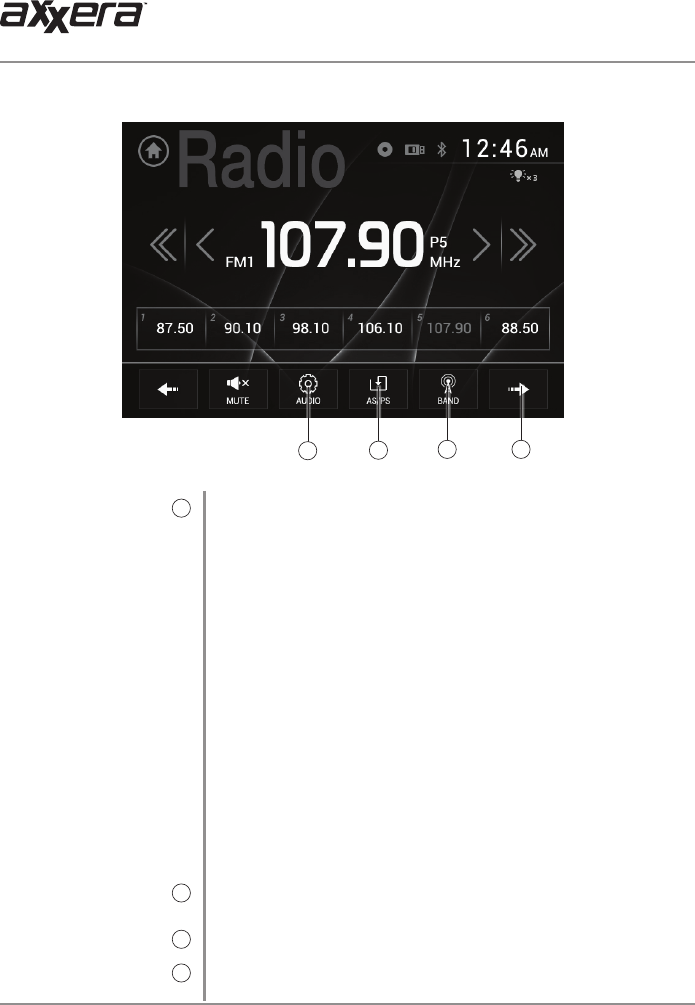

AM/FM Tuner Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

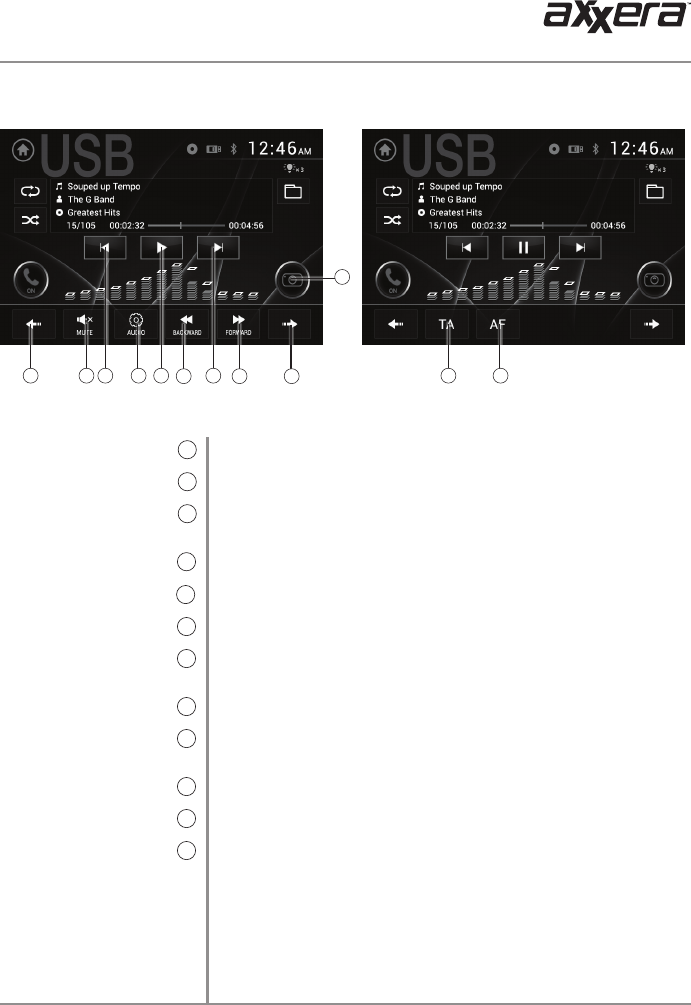

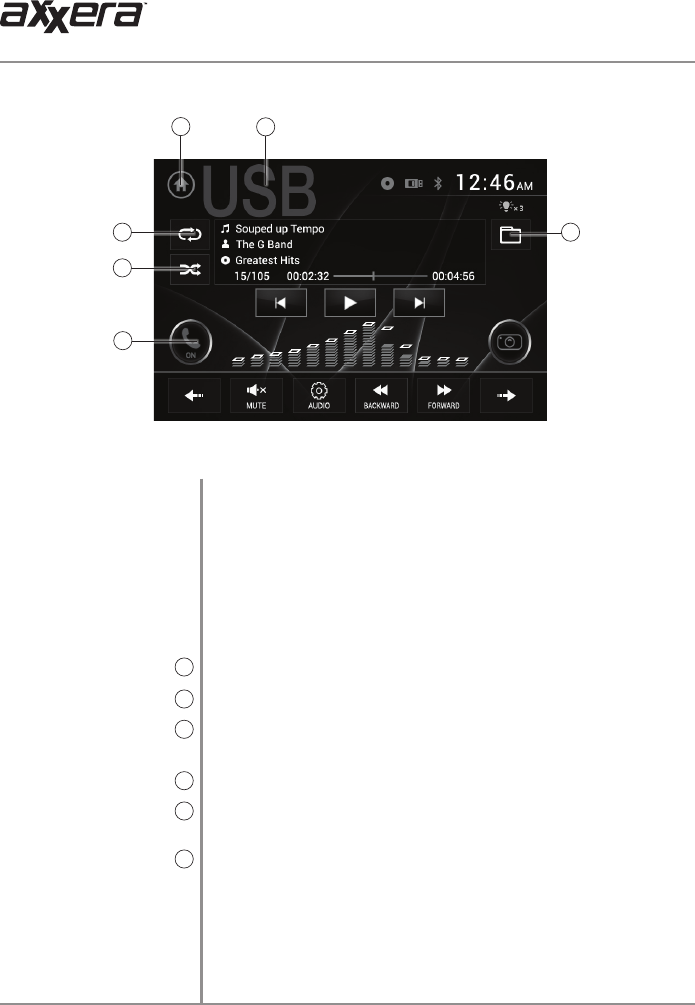

CD/USB Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

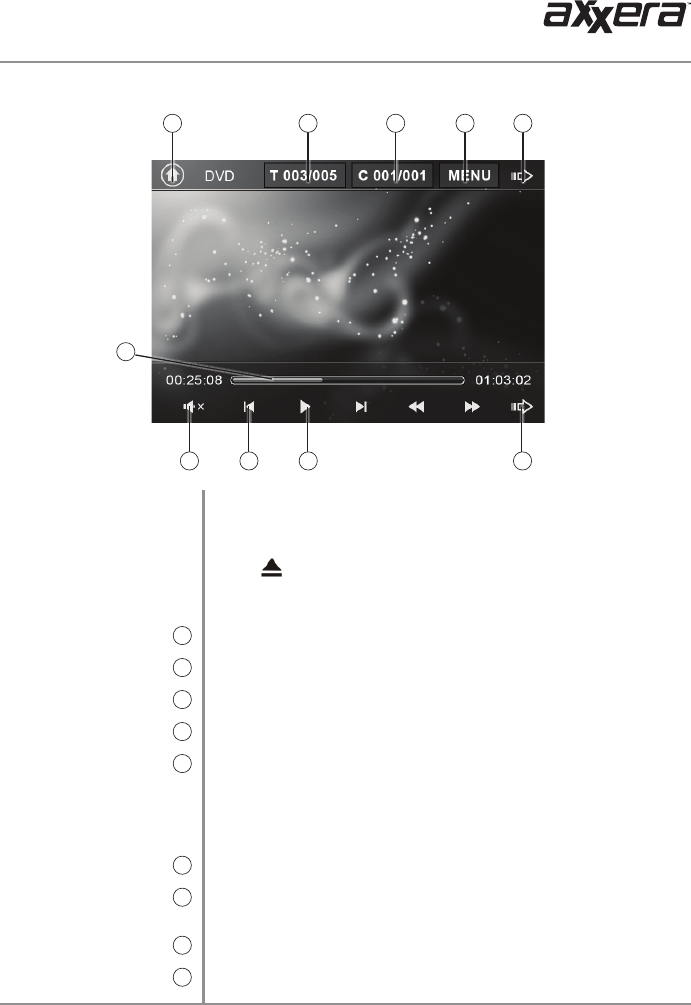

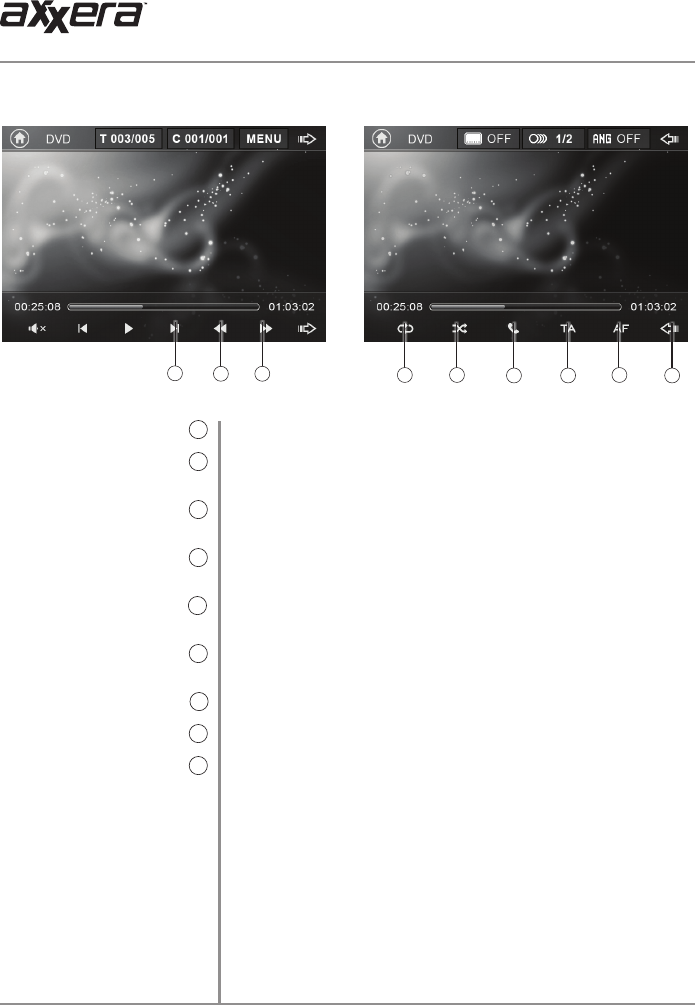

DVD Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DualMirror Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

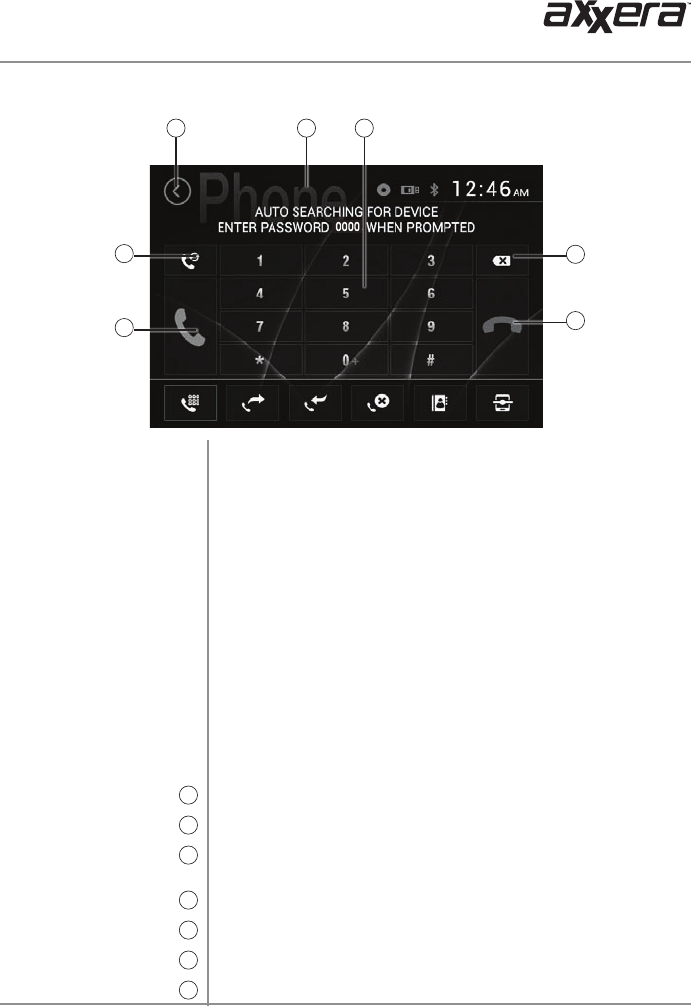

Bluetooth Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Auxiliary Inputs/Rear Camera Operation. . . . . . . . . . . . . . . . . . . . . . . . . .

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table of Contents

AV615BHM PREPARATION

Upon installation of this Monitor/DVD player (“unit”) into a vehicle, the driver of the

vehicle must not operate this unit by watching videos or playing video games while

driving. Failure to follow this instruction could lead to driver distraction which

could result in serious injury or death to the vehicle’s occupants or persons outside

the vehicle and/or property damage.

Several states prohibit the installation of monitors/DVD players if the screen is

visible from the driver’s seat. If you reside in a jurisdiction which has enacted such

a law, this unit must not be installed so that the screen is visible from the driver’s

seat. When installing this unit in the front console/dashboard, the unit must be

positioned so that it is facing the front passenger seat only. Failure to follow this

instruction could lead to driver distraction which could result in serious injury or

death to the vehicle’s occupants or persons outside the vehicle and/or property

damage.

This unit is designed so that it may be operated only when the vehicle is in “Park”

and the parking brake is fully engaged. To this end, this unit includes a parking

brake lock-out feature which prohibits the unit from operating if the vehicle is not

in “Park” and/or the parking brake is not fully engaged. When installing this unit,

the installer must connect the parking brake detect wire to the parking brake

mechanism in order to make the parking brake lock-out feature operable. DO NOT

simply ground the parking brake detect wire to a metal portion of the vehicle.

Failure to properly install the parking brake lock-out feature could lead to driver

distraction which could result in serious injury or death to the driver’s occupants or

persons outside the vehicle and/or property damage.

Once the parking brake lock-out feature is installed, the owner/user must not

attempt to disrupt/neutralize the parking brake lock-out feature by (a) partially

engaging the parking brake and/or (b) purchasing/using any device or unit designed

to send necessary brake signals to the unit. Failure to follow these instructions

could lead to driver distraction which could result in serious injury or death to the

driver’s occupants or persons outside the vehicle and/or property damage.

When operating this unit, keep the unit’s volume level low enough so that the

vehicle’s occupants can hear traffic-related sounds such as police and emergency

vehicles. Failure to follow this instruction could lead to driver distraction which

could result in serious injury or death to the vehicle’s occupants or persons outside

the vehicle and/or property damage.

WARNING

AV615BHM PREPARATION

AV615BHM OPERATION

Safety Information

Please read all instructions carefully before attempting to install or operate.

Due to its technical nature, it is highly recommended that your Axxera AV615BHM is installed by a professional

installer or an authorized dealer. This product is only for use in vehicles with 12VDC negative ground only.

To prevent damage or injury:

• Make sure to ground the unit securely to the vehicle chassis ground.

• Do not remove the top or bottom covers of the unit.

• Do not install the unit in a spot exposed to direct sunlight or excessive heat or the possibility of water splashing.

• Do not subject the unit to excessive shock.

• When replacing a fuse, only use a new one with the prescribed rating. Using a fuse with the wrong rating may

cause the unit to malfunction.

• To prevent short circuits when replacing a fuse, disconnect the wiring harness first.

• Use only the provided hardware and wire harness.

• You cannot view video while the vehicle is moving. Find a safe place to park and engage the parking brake.

• If you experience problems during installation, consult your nearest Axxera dealer.

• If the unit malfunctions, reset the unit as described on page 10 first. If the problem still persists, consult your

nearest Axxera dealer or call tech assistance @ 1-866-382-5476.

• To clean the monitor, wipe only with a dry silicone cloth or soft cloth. Do not use a stiff cloth, or volatile solvents

such as paint thinner and alcohol. They can scratch the surface of the panel and/or remove the printing.

• When the temperature of the unit falls (as in winter), the liquid crystal inside the screen will become darker than

usual. Normal brightness will return after using the monitor for a while.

• When extending the ignition, battery or ground cables, make sure to use automotive-grade cables or other cables

with an area of 0.75mm (AWG 18) or more to prevent voltage drops.

• Do not touch the liquid crystal fluid if the LCD is damaged or broken. The liquid crystal fluid may be hazardous to

your health or fatal. If the liquid crystal fluid from the LCD contacts your body or clothing, wash it off with soap

immediately.

FCC Compliance

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired operation.

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance

could void the user’s authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Before You Start

• Disconnect negative battery terminal. Consult a qualified technician for instructions.

• Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where

it would be subject to dust, dirt or excessive vibration.

AV615BHM INSTALLATION

Preparation

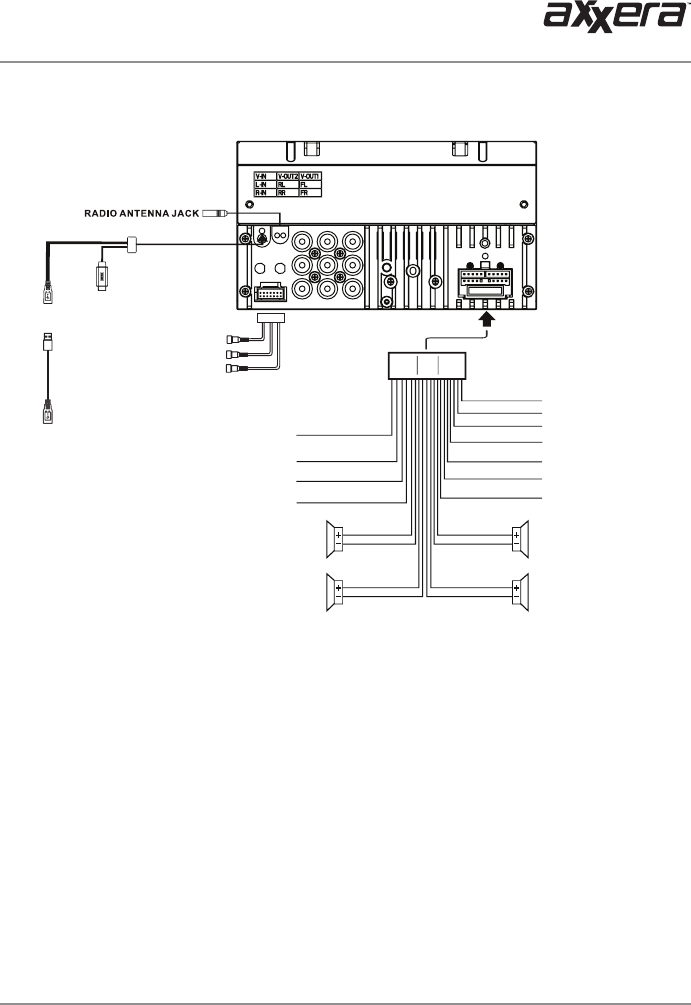

Wiring Diagram - Inputs/Outputs

AV615BHM INSTALLATION

Note:

When replacing a fuse, make sure to use the correct type and amperage. Using an incorrect fuse could cause

damage. The unit uses (1) 15 amp ATM mini style fuse located inside the in-line filter box.

Wiring Notes:

Subwoofer output

The Subwoofer preamp audio output (black jacket with green RCA) is active in all audio modes.

Rear camera input

A rear view camera (not included) can be used with the Camera input.

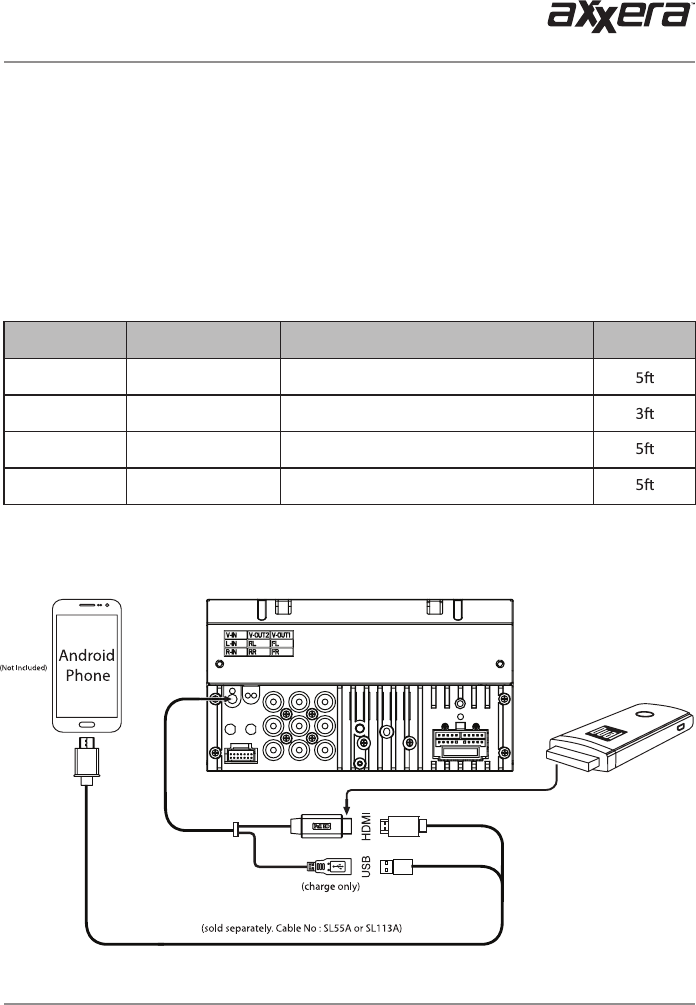

Connecting a device

DualMirror technology allows you to mirror the screen of select Android smartphones as well as iPhone, iPod and

iPad devices.

REAR CAMERA INPUT YELLOW

SUBWOOFER GREY

HDMI

Dual Mirror Input

SWC2 (BROWN/BLACK)-

SWC - GND (BLACK)

REVERSE

(B-) PARKING BRAKE

ILLUMINATION

REMOTE TURN - ON

SWC1 (BROWN)-

ORANGE

RED

ACC

B+

GROUND

POWERANTENNA

YELLOW

BLACK

BLUE

WHITE

GREEN

WHITE / BLACK

GREEN / BLACK

GREY

VILOET

GREY / BLACK

VIOLET / BLACK

ORANGE / BLACK

BLUE / BLACK

PINK

REAR RIGHT

CHANNEL SPEAKER

FRONTRIGHT

CHANNEL SPEAKER

FRONTLEFT

CHANNEL SPEAKER

CHANNELSPEAKER

REAR LEFT

USB Input

(Charging Only)

USB

Extension Cable

(Included)

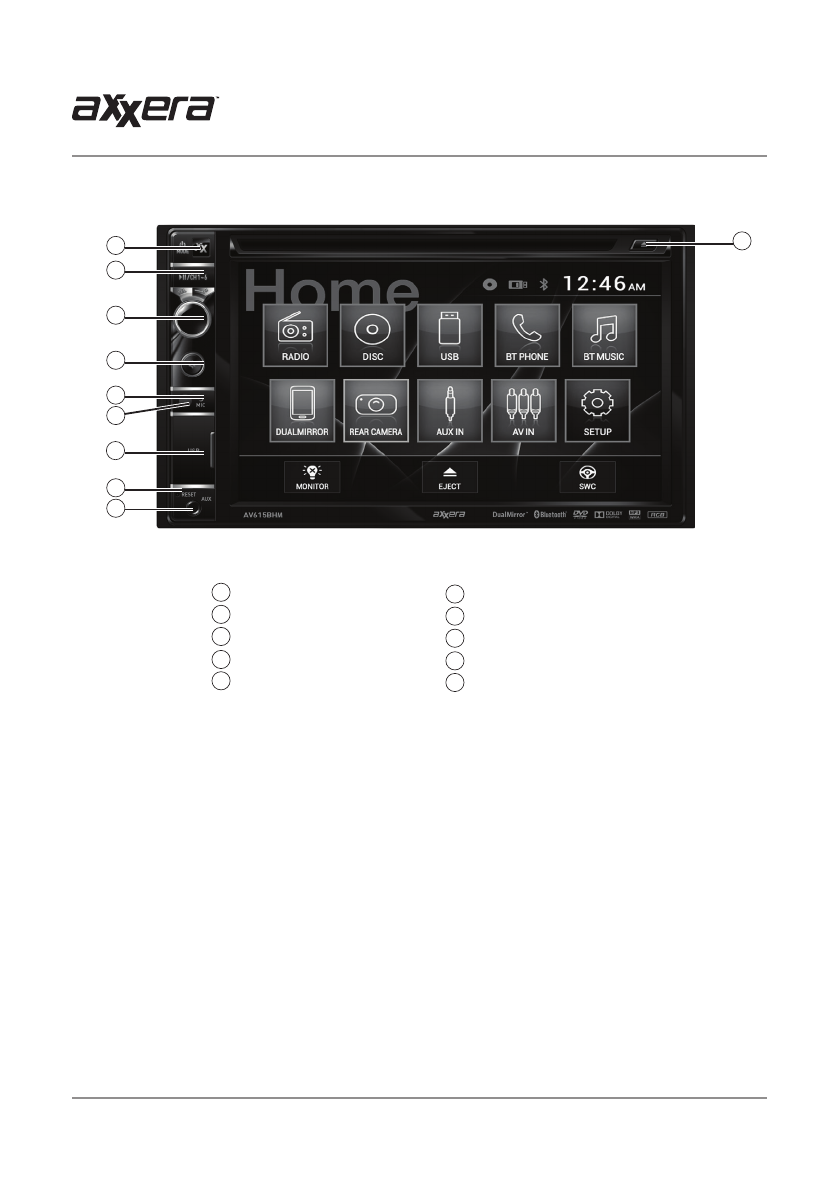

Control Locations

Power/Mode

Play/Pause/Channels 1-6

Select/Volume Up/Down

Mute

Microphone

IR Sensor

USB Port

Reset

Auxiliary Input

Eject

510

AV615BHM OPERATION

Power On/Off

Volume

Mute

Mode

Auxiliary Input

USB Port

Main Menu

Momentarily press to turn the unit on or off.

Rotate the volume knob to increase or decrease the volume level.

Momentarily press MUTE to silence the audio. Momentarily press

MUTE again to return to the previously selected volume. Rotating the

volume knob while the muted will also cancel the mute function.

Press MODE to step through all available input modes: Radio,

Disc (which includes DVD and CD playback), USB, Bluetooth Phone,

Bluetooth Music, DualMirror, Camera, Auxiliary Input and AV In. Modes

of operation are indicated on the display and/or the monitor. USB flash

drive must be connected to appear in the mode selection string.

Connect external audio/video devices to the 3.5mm auxiliary input on

the front panel.

Connect a USB device to the USB port on the front panel to play MP3/

WMA files or view AVI, MP4 video files or JPG photos.

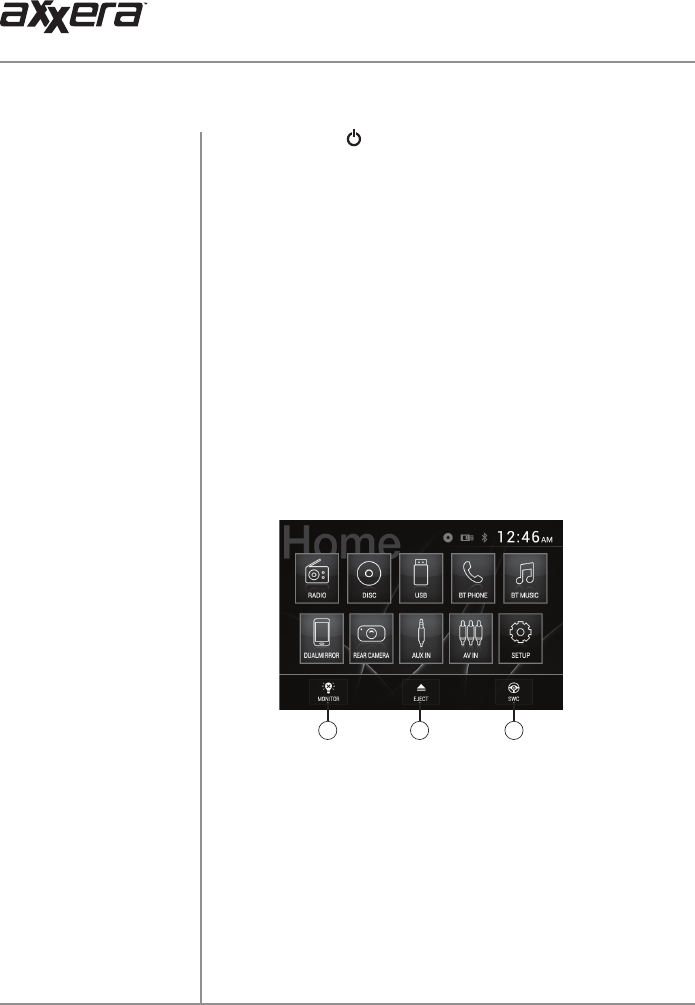

From any operational mode, press the house icon in the top left corner

to access the Main Menu screen.

1. Put the monitor into standby mode.

2. Eject the disc.

3. Set up steering wheel controls (view Steering Wheel Controls insert

included with the unit for details).

General Operation

1 2 3

AV615BHM OPERATION

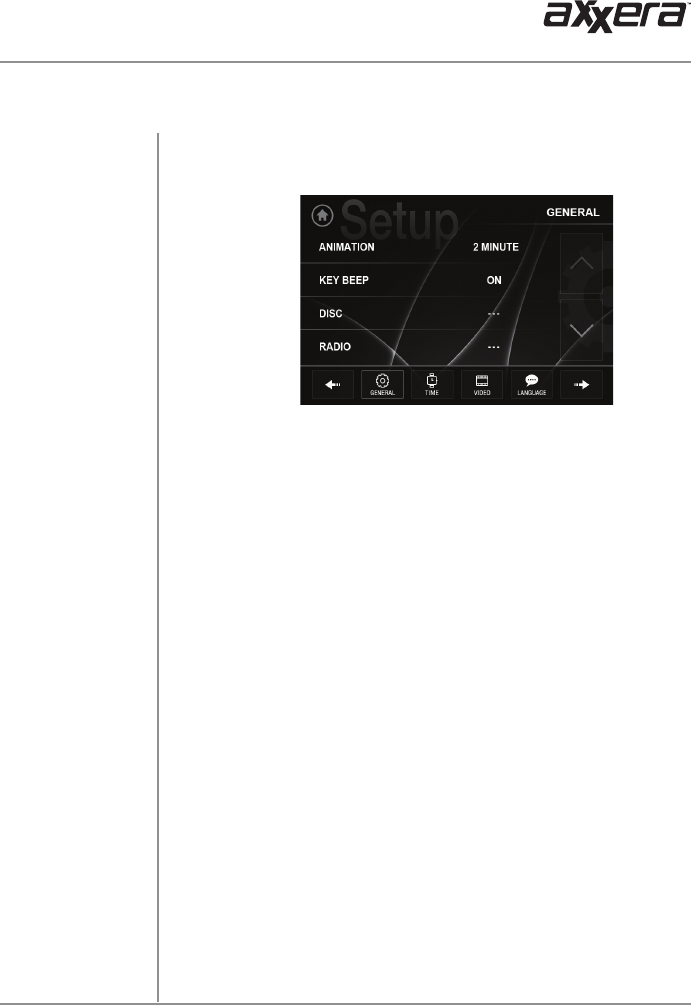

From the Main Menu screen, press SETUP in the bottom right corner to

access the Setup menu and select from six categories across the bottom:

General, Time, Video, Language, Illumination and Calibration.

General:

• Animation - Select Off, 10 second, 30 second, 1 minute, 90 second,

2 minute, 3 minute or 4 minute to set animation length.

• Key Beep - Select a OFF or ON to select whether or not the unit beeps

each time a key is pressed.

• Disc - Adjust the following disc options:

- Format - Select NTSC, PAL or AUTO.

- TV Type - Select 4:3PS, 4:3 LB or 16:9.

- Rating - Select desired rating.

• Radio - Adjust the following radio options:

- Select between STEREO or MONO operation.

- Select between LOCAL or DX (distance) tuning.

- Select between the following region settings: EUROPE, USA,

AMERICAN1, AMERICAN2 and OIRT.

- Select between RDS Regional ON or OFF.

- Select between RDS PI MUTE or SOUND.

- Select between RDS TA OFF or ON.

- Select between RDS AF OFF or ON.

• Wallpaper - Select from three different wallpaper options.

• Camera Icon - Turn the camera icon ON or OFF on the Source Menu.

• Bluetooth - Adjust the following Bluetooth options:

- Turn Bluetooth On or OFF.

- Turn Auto Answer feature On or OFF to determine whether

or not the unit will automatically answer incoming calls.

- Turn Auto Connect feature On or OFF to determine whether or

not the unit will automatically connect to available devices.

- Turn Auto Download feature On or OFF.

• Dimmer - Adjust the dimmer levels between 1 and 6, or turn the dimmer

OFF. Dimmer can also be adjusted by tapping the dimmer icon on the

LCD.

• Demo - Turn Demo mode OFF or ON.

• About - Select to view information about the unit.

General Operation

Setup Menu

AV615BHM OPERATION

General Operation

Time:

• Hour - Press < or > to adjust the hour down or up.

• Minute - Press < or > to adjust the minutes down or up.

• Format - Select between a 12HR or 24HR clock display.

• AM/PM - Select between AM and PM for current clock time.

Video:

• Color - Drag to adjust between -20 and 20.

• Brightness - Drag to adjust between -20 and 20.

• Contrast - Drag to adjust between -20 and 20.

• Tint - Drag to adjust between -20 and 20.

Language:

• English - Set the unit language to English.

RGB Illumination:

• Red/Green/Blue - Drag each level to manually adjust the unit's

illumination color.

• Color Selector - Use the color selector at the bottom of the

screen to select the unit's illumination color.

• Auto Color - Select this option to restore automatic color

settings.

Calibration:

• Calibrate the Screen - Press YES to calibration the touch

screen.

To resolve abnormal operation or if the unit is inoperable, use the

tip of a pen to press the RESET button (located in the bottom left

corner). The unit will reset the main processor to the default settings.

Setup Menu

Reset

AV615BHM OPERATION

Select the Radio icon from the Main Menu screen.

Press to return to Main Menu screen.

Displays current mode of operation.

Press << to tune radio to a lower frequency. Press < to tune the unit

down one step at a time.

Press >> to tune radio to a higher frequency. Press > to tune the unit

up one step at a time.

Press to access the Phone when Bluetooth is enabled. If Bluetooth is

turned off, pressing this button will turn it on.

Press to access the Camera when the camera function is enabled.

Press to see the previous screen of options.

Press to display the six preset stations stored in memory in the

current band. To store a preset station, tune unit to desired station,

then press and hold the desired preset button to store the current

station in that preset spot. Up to 18 FM and 12 AM stations can be

stored in memory. Momentarily press any preset station to play it

instantly. (Preset station display is pictured on the following page.)

Press to mute the unit's sound. Press again to unmute, or sound can

be restored by adjusting the volume knob of the front panel.

Radio Operation

Main Menu 1

Current Mode Indicator 2

Tune Frequency Down 3

Tune Frequency Up 4

Phone 5

Camera 6

Previous Options 7

Preset Stations 8

Mute 9

7 98

AM/FM/RDS Tuner Operation

AV615BHM OPERATION

AM/FM/RDS Tuner Operation

Press to adjust the following Audio options:

• EQ - Select from the preset EQ options: JAZZ, CLASSIC, POP,

ROCK, BEAT OR FLAT, or select USER to manually adjust Bass,

Middle and Treble options between -7 and 7.

• Fader/Balance - Drag to adjust Fader options between 10F

(front) and 10R (rear) and Balance options between 10L (left)

and 10R (right).

• Subwoofer/Loudness

- Adjust subwoofer volume from 1-12, or turn subwoofer OFF.

- Select between OFF, LOW or HIGH loudness levels.

• ASP

- Bass Center Frequency: 60Hz, 80Hz, 100Hz or 200Hz.

- Bass Q Value: 1.0, 1.25, 1.5 or 2.0.

- Middle Center Frequency: 500Hz, 1 kHz, 1.5kHz or 2.5kHz.

- Middle Q Value: 0.5, 0.75, 1.0 or 1.25.

- Treble Center Frequency: 10kHz, 12.5kHz, 15kHz, 17.5kHz.

- Loudness Center Frequency: FLAT, 400Hz, 800Hz, 2400Hz.

- Subwoofer Center Frequency: FLAT, 80Hz, 120Hz, 160Hz.

Press to scan preset stations and listen to the first 10 seconds of

each. Press again to stop scanning and listen to the station. Press and

hold to automatically find and store the strongest stations as presets.

Press to select between two AM and three FM bands.

Press to see the next screen of options.

Audio 10

Automatically Store /

Preset Scan 11

Band 12

Next Options 13

11 12

AV615BHM OPERATION

Press to toggle between LOCAL and DX (distance) tuning.

Press to select Program Type / Genre.

Press to turn on/off Traffic Announcements.

Press to select Alternative Frequencies.

Local / Distance 14

Program Type (PTY) 15

Traffic Announcements 16

Alternative Frequencies 17

AM/FM/RDS Tuner Operation

AV615BHM OPERATION

15 16

CD/USB Operation

CD/MP3/WMA

or JPG Operation

Main Menu 1

Current Mode Indicator 2

Repeat 3

Random 4

Phone 5

Direct File Access 6

To play audio files from a disc or MP3/WMA files from a disc or USB

device, insert disc or device and playback will begin automatically. To

return to disc or USB playback from another mode of operation, select the

corresponding icon from the Main Menu.

• Disc Playback - Insert disc into the slot, and playback will begin

automatically.

• USB Playback - Insert a USB device into the USB slot on the side of

the unit.

Press to return to Main Menu screen.

Displays current mode of operation.

Press to select a repeat option: Repeat 1, Repeat Folder or Repeat

Off.

Press to enable or disable random playback.

Press to access the Phone when Bluetooth is enabled. If Bluetooth is

turned off, pressing this button will turn it on.

Press to access the directory of folders and files. Use the up/down

arrows to scroll through the folder list, then press on the name of the

desired folder to access it. Use the up/down arrows to scroll through

the file list, then press on the name of the desired file to access it.

The default display will show Music files. Select the Photo or Video

icons at the bottom of the screen to display those files instead.

AV615BHM OPERATION

CD/USB Operation

Camera 7

Previous Options 8

Mute 9

Previous File/Track 10

Audio 11

Play / Pause 12

Backward 13

Next File/Track 14

Forward 15

Next Options 16

Traffic Announcements 17

Alternative Frequencies 18

Press to access the Camera when the camera function is enabled.

Press to see the previous screen of options.

Press to mute the unit's sound. Press again to unmute, or sound can

be restored by adjusting the volume knob of the front panel.

Press to go back to the previous file or track.

Press to adjust Audio options (refer to page 13 for details).

Press to pause or resume playback.

Press to fast reverse the current track at various speeds: FRx2,

FRx4, FRx8 or FRx20.

Press to advance to the next file or track.

Press to fast forward the current track at various speeds: FRx2,

FRx4, FRx8 or FRx20.

Press to see the next screen of options.

Press to turn on/off Traffic Announcements.

Press to select Alternative Frequencies.

1210 14

98 11 1513 16 17 18

AV615BHM OPERATION

Media Compatibility - USB

File Type WMA MP3

File System FAT FAT 12 X X

FAT 16/FAT 32  

File

Extension

. m p 3 /. M P 3/.M p 3 /. m P 3 X

. w m a /.W M A X

. r m p /. m 4 a X X

MPEG

Format

MPEG 1 X 

MPEG 2 X 

MPEG 2.5 X 

Sampling

Frequency

MPEG 1 X 32/4 4.1/4 8k H z

MPEG 2 X 12/16/22.05/24kHz

MPEG 2.5 X 8/11.025/12k Hz

WMA 32/4 4.1/4 8k H z X

Bitrate

MPEG 1 X 32 ~ 320kbps

MPEG 2 X 8 ~ 160kbps

MPEG 2.5 X 8 ~ 160kbps

WMA 32 ~ 192kbps X

Other

Information

Directory Depth Unlimited Unlimited

File Name Length 32 bytes 32 bytes

Total File Number 2000 files 2000 files

Total Folder Number 200 folders 200 folders

File Number via Folder 2000 files 2000 files

MP3 ID3 TAG

ver.1.x X 

ver.2.x X 

Title, Artist, Album X 

WMA TAG Title, Artist X

Notes:

• For USB mode, it is not possible to view JPG files on the in-dash monitor while the vehicle is moving. This is a safety

feature to prevent driver distraction.

• The JPG image viewer function will only operate when vehicle is in park and the parking brake is engaged.

• Due to ongoing technological advancement, some USB flash drives may be incompatible with

this unit.

AV615BHM OPERATION

Media Compatibility - CD/DVD

File Type WMA MP3

File System

ISO9660 Level 1, Level 2  

Level 3 X X

ISO9660

Extension JOLIET Playback  

Filename 32 bytes 32 bytes

Other

Extensions

ROMEO Playback X X

Filename X X

Apple ISO X X

File

Extension

. m p 3 /. M P 3/. M p 3 /. m P 3 X

. w m a /.W M A X

. r m p /. m 4 a X X

MPEG

Format

MPEG 1 X 

MPEG 2 X 

MPEG 2.5 X 

Sampling

Frequency

MPEG 1 X 32/4 4.1/4 8k H z

MPEG 2 X 12/16/22.05/24kHz

MPEG 2.5 X 8/11.025/12k Hz

WMA 32/4 4.1/4 8k H z X

Bitrate

MPEG 1 X 32 ~ 320kbps

MPEG 2 X 8 ~ 160kbps

MPEG 2.5 X 8 ~ 160kbps

WMA 32 ~ 192kbps X

Other

Information

Directory Depth Unlimited Unlimited

File Name Length 32 bytes 32 bytes

Total File Number 2000 files 2000 files

Total Folder Number 200 folders 200 folders

File Number via Folder 2000 files 2000 files

MP3 ID3 TAG

ver.1.x X 

ver.2.x X 

Title, Artist, Album X 

WMA TAG Title, Artist X

Notes:

• It is not possible to view JPG files on the in-dash monitor while the vehicle is moving. This is a safety feature to prevent

driver distraction.

• The JPG image viewer function will only operate when vehicle is in park and the parking brake is engaged as de-

scribed on page 26.

AV615BHM OPERATION

Media Compatibility

The following types of discs/files are compatible:

• CD-DA, CD-ROM (ISO), CD-R, CD-RW

• DVD Video, DVD+R/RW, DVD-R/RW

• AVI - Max video resolution: 720x480, Max video bit rate: 5000 kbps

• Mpeg2: Max video resolution: 720x480, Max video bit rate: 5000 kbps

• Mpeg4: Max video resolution: 720x480, Max video bit rate: 5000 kbps

• DivX/Xvid: Max video resolution: 720x480, Max video bit rate: 5000 kbps

• SD/USB format type: FAT32/FAT

The following types of discs/files are not compatible:

• WMA files that are protected by DRM (Digital Rights Management)

• WMA lossless format

• Discs recorded with Track At Once or packet writing

• MP3 PRO format, MP3 playlists

• RMP format

• WAV format

• WMV format

• AAC, protected AAC, M4A format

Some recordable DVD's and CD's may be incompatible with this unit,

depending on media type and recording method.

MP3/WMA playback sequence begins in the root folder of the disc or USB

flash drive. Any empty folders or folders that do not include MP3/WMA/JPG

files are skipped.

ISO9660 standards:

• Maximum nested folder depth is 8 (including the root folder).

• Valid characters for folder/file names are letters A-Z (all caps), numbers

0-9, and “_” (underscore). Some characters may not be displayed correctly,

depending on the character type.

• This device can play back discs in Joliet and other standards that conform

to ISO9660. MP3/WMA written in the formats other than the above may

not play and/or their file names or folder names may not be displayed

properly.

Some files may not play or be displayed correctly, depending on sampling

rates and bit rates.

For best results, use the following settings when ripping MP3 files:

128kbps or higher constant bit rate

44.1kHz or higher sampling frequency

For best results, use the following settings when ripping WMA files:

64kbps or higher constant bit rate

44.1kHz or higher sampling frequency

Media Compatibility

Playback Order

Compatible Recording Formats

Notes

AV615BHM OPERATION

Inserting a Disc

Ejecting the Disc

Touchscreen Controls

Main Menu 1

Direct Title Access 2

Direct Chapter Access 3

DVD Menu 4

Additional Options 5

Elapsed Time 6

Mute 7

Previous Chapter 8

Play / Pause 9

Insert disc into the slot, and playback will begin automatically. Sub-

menus may have to be pressed to access the DVD content. Read the

directions of your specific DVD disc for other features.

Press to eject the disc.

Press anywhere on the LCD to display touch screen controls.

Press to return to Main Menu screen.

Press to directly select a chapter or title if allowed by current disc.

Press and use the keypad to directly select a specific chapter.

Press to return to the DVD menu.

Press to reveal additional DVD options:

• Subtitles - Select between subtitle options English and Off.

• Language - Select playback language (if allowed by disc).

• Angle - Select desired playback angle (if allowed by disc).

Displays elapsed time and time remaining on the DVD.

Press to mute the unit's sound. Press again to unmute, or sound can

be restored by adjusting the volume knob of the front panel.

Press to return to the previous chapter on the DVD.

Press to play or pause DVD playback.

DVD Operation

87 9

3 4 5

DVD Operation

Press to advance to the next chapter.

Press to fast reverse playback at various speeds: FRx2, FRx4, FRx8

or FRx20.

Press to fast forward playback at various speeds: FRx2, FRx4, FRx8

or FRx20.

Press to select from the following repeat options: Repeat Chapter,

Repeat Title, Repeat All or Repeat Off.

Press Random to play chapters in random order or Random Off to

play disc in order.

Press to access the Phone when Bluetooth is enabled. If Bluetooth is

turned off, pressing this button will turn it on.

Press to turn on/off Traffic Announcements.

Press to select Alternative Frequencies.

Press to view the previous option screen.

Next Chapter 10

Fast Reverse 11

Fast Forward 12

Repeat 13

Random 14

Phone 15

Traffic Announcements 16

Alternative Frequencies 17

Previous Options 18

10 1211 13 14 1615 17 18

AV615BHM OPERATION

DualMirror™ Operation

The DualMirror™ technology allows you to mirror the screen of select Android

smartphones as well as iPhone, iPod and iPad devices onto the receiver's screen and to

charge your mobile device through the rear USB port. Simply plug in your device to the rear

HDMI and USB inputs, and you are ready to view your favorite navigation or music apps

directly on the receiver’s screen.

Note: The rear USB port is only for charging (not for playback).

Connecting an Android device

Devices

Cable Number Product Description

For Android devices

For iOS devices

Wire Length

5-pin mircoUSB connector to HDMI + USB

11-pin mircoUSB connector to HDMI + USB

HDMI cable & USB cable

The DualMirror™ technology requires the following cables which are sold separately.

SL55A

SL113A

SL115A

DL5i

To HDMI Input

DMH25 WiFi Dongle

(sold separately)

AV615BHM OPERATION

DualMirror™ Operation

Connecting an iPhone, iPod or iPad device

To HDMI Input

DMH25 WiFi Dongle

(sold separately)

AV615BHM OPERATION

Bluetooth Operation

Before you can use a Bluetooth device, it must be paired and

connected. Make sure that Bluetooth is activated on your device

before you begin the pairing process.

The unit broadcasts the pairing signal constantly when no devices

are currently connected. Complete the pairing sequence from

your Bluetooth device. Refer to the owner's manual for your

device for more details. The device name is "AXXERA BT". The

Bluetooth passcode "0000". The unit can be in any mode of

operation when pairing is performed.

Note: On certain phones, pairing may need to be done more than

once if there are connectivity issues.

Most Bluetooth devices support the auto-connect feature and

will connect automatically if the device is in range when the unit

is powered-on. If your device was previously paired but does not

connect, enter the Bluetooth setup menu and ensure that Auto

Connect is On.

To access the phone, select Bluetooth Phone from the Main

Menu or press the phone icon from any operational mode.

Press to return to the Main Menu screen.

Displays current mode of operation.

Use the phone keypad to dial the desired phone number.

Alternately, numbers can be dialed directly from the phone.

Press to redial the last number called.

Press to connect a call.

Press to backspace when typing a number with the keypad.

Press to end a call.

Preparation

Pairing a New Device

Connecting a

Paired Device

Bluetooth Phone

Main Menu 1

Current Mode Indicator 2

Phone Keypad 3

Redial 4

Talk 5

Backspace 6

End Call 7

AV615BHM OPERATION

Bluetooth Operation

Make a Call 8

Dialed Call Log 9

Received Call Log 10

Missed Call Log 11

Contacts 12

View Connections 13

Bluetooth Music

Mute 14

Previous File/Track 15

Audio 16

Play / Pause 17

Traffic Announcements 18

Next File/Track 19

Alternative Frequencies 20

Press to display the keypad and make a call.

Press to display a log of dialed calls. Use the icons on the right to

search for a specific contact or scroll through the list.

Press to display a log of received calls. Use the icons on the right to

search for a specific contact or scroll through the list.

Press to display a log of missed calls. Use the icons on the right to

search for a specific contact or scroll through the list.

Press to display contacts. Use the icons on the right to search for a

specific contact or scroll through the list.

Press to view active and available Bluetooth connections. Use the

icons on the right to disconnect and connect, search or scroll.

To use your Bluetooth connection to play music from your device,

select Bluetooth Music from the Main Menu.

Press to mute the unit's sound. Press again to unmute, or sound can

be restored by adjusting the volume knob of the front panel.

Press to go back to the previous file or track.

Press to adjust Audio options (refer to page 13 for details).

Press to pause or resume playback.

Press to turn on/off Traffic Announcements.

Press to advance to the next file or track.

Press to select Alternative Frequencies.

11 1312

810

91715 1914 16 20

AV615BHM OPERATION

Front 3.5mm Aux Input & Rear RCA A/V Input

Rear Camera Operation (Optional)

Connect an optional audio source into the 3.5mm (front panel) input.

Select auxiliary input from the Main Menu to listen to audio.

Adjust volume on the external audio source as needed (if connected to the

headphone output of the device).

Connect an optional audio/video source to the rear auxiliary input (Red/White/

Yellow RCA connectors). Refer to page 6 for details.

Select AV Input from the Main Menu to listen to audio.

Engage parking brake to watch video.

Connect an optional rear camera to the Camera Input (Black RCA connector).

Refer to the wiring diagram for details.

Manual selection - Touch CAMERA icon from the Main Menu or from any

operational mode (when enabled) to select camera mode. Touch the top left area

on the screen to exit camera mode.

Note: The manual mode is for dedicated cameras that are ALWAYS on while

driving, it is not meant for cameras that are connected to the vehicle's reverse

light.

The unit will automatically select camera mode when connected to the reverse

lamp circuitry.

Note: The external video output is not active when using the rear camera input.

Auxiliary Input

Using AV Input

Using Rear Camera

Auto Selection

AV615BHM OPERATION

Limited One Year Warranty

This warranty gives you specific legal rights. You

may also have other rights which vary from state to

state.

Dual Electronics Corp. warrants this product to the

original purchaser to be free from defects in material

and workmanship for a period of one year from the

date of the original purchase.

Dual Electronics Corp. agrees, at our option, during

the warranty period, to repair any defect in material

or workmanship or to furnish an equal new, renewed

or comparable product (whichever is deemed

necessary) in exchange without charges, subject to

verification of the defect or malfunction and proof

of the date of purchase. Subsequent replacement

products are warranted for the balance of the

original warranty period.

Who is covered? This warranty is extended to the

original retail purchaser for products purchased from

an authorized Dual dealer and used in the U.S.A.

What is covered? This warranty covers all defects

in material and workmanship in this product. The

following are not covered: software, installation/

removal costs, damage resulting from accident,

misuse, abuse, neglect, product modification,

improper installation, incorrect line voltage,

unauthorized repair or failure to follow instructions

supplied with the product, or damage occurring

during return shipment of the product. Specific

license conditions and copyright notices for the

software can be found via www.dualav.com.

What to do?

1. Before you call for service, check the

troubleshooting guide in your owner’s manual. A

slight adjustment of any custom controls may save

you a service call.

2. If you require service during the warranty period,

you must carefully pack the product (preferably

in the original package) and ship it by prepaid

transportation with a copy of the original receipt

from the retailer to an

authorized service center.

3. Please describe your problem in writing and

include your name, a return UPS shipping address

(P.O. Box not acceptable), and a daytime phone

number with your shipment.

4. For more information and for the location of the

nearest authorized service center please contact

us by one of the following methods:

• Call us toll-free at 1-866-382-5476

• E-mail us at cs@dualav.com

Exclusion of Certain Damages: This warranty is

exclusive and in lieu of any and all other warranties,

expressed or implied, including without limitation the

implied warranties of merchantability and fitness for

a particular purpose and any obligation, liability, right,

claim or remedy in contract or tort, whether or not

arising from the company’s negligence, actual or

imputed. No person or representative is authorized

to assume for the company any other liability in

connection with the sale of this product. In no event

shall the company be liable for indirect, incidental or

consequential damages.

AV615BHM OPERATION

Specifications

Disc

FM Tuner

AM Tuner

Front USB

Monitor

General

Frequency response: 20Hz-20kHz

Channel separation @ 1kHz: >80dB

D/A converter: 24 Bit

Tuning range: 87.5MHz-107.9MHz

Usable sensitivity: 10dBf

50dB quieting sensitivity: 20dBf

Stereo separation @ 1kHz: 38dB

Frequency response: 30Hz-13kHz

Tuning range: 530kHz-1710kHz

Usable sensitivity: 24uV

Frequency response: 30Hz-2.3kHz

Compatibility: High Speed USB 2.0

USB Class: Mass storage class

Panel size: 6.2” diagonal measurement

View angle (up/down/left/right): 50/70/70/70

Resolution: 800 (H) x 480 (V)

Brightness (cd/m2): 250

Contrast ratio: 500:1

Pixels: 1,152,000

Speaker output impedance: 4 ohms

Line output voltage: 4 volt RMS

Line output impedance: 200 ohms

Chassis dimensions: 7" x 7" x 4" (W x D x H)

Design and specifications subject to change without notice.

CEA-2006 Power Standard Specifications

(reference: 14.4VDC +/- 0.2V, 20Hz~20kHz)

Power Output: 16 Watts RMS x 4 channels at 4 ohms and < 1%

THD+N

Signal to Noise Ratio: 80dBA (reference: 1 watt into 4 ohms)

AV615BHM OPERATION

Troubleshooting

General

Problem Cause Action

Unit will not turn on

(no power)

Yellow wire not connected or incorrect voltage

Red wire not connected or incorrect voltage Check connections for proper voltage (11~16VDC)

Black wire not connected Check connection to ground

Fuse blown Replace fuse(s)

Unit has power

(but no sound)

Speaker wires not connected Check connections at speakers

One or more speaker wires touching each

other or touching chassis ground

Insulate all bare speaker wires from each other and

chassis ground

Unit blows fuse(s)

Yellow or red wire touching chassis ground Check for pinched wire

Speaker wires touching chassis ground Check for pinched wire

Incorrect fuse rating Use fuses with correct rating

Unit has audio

(but no video)

Parking brake safety circuit not connected

Parking brake not applied

Check connections at parking brake

Apply parking brake as described on page 26

No video display

(when in reverse)

Reverse circuit not connected

Vehicle is not in reverse

Check connections at reverse lamp

Select reverse gear

DVD does not start

playback

Physical defect in media

Wrong region

Check media for scratches

Use discs labeled "Region 1" or "All" only

IR remote does not work Dead battery Replace battery

Excessive skipping Unit is not mounted correctly Check mounting sleeve

Physical defect in media Check media for scratches

Disc Region Incorrect

appears on display Region code error Use discs labeled "Region 1" or "All" only

Please keep your original sales receipt and be prepared to provide this receipt in

the event you require service, as your original receipt is considered the best proof of

purchase and indicates the date you purchased your Axxera product.

Dealer Name

Dealer Phone

Purchase Date

For Your Records

AV615BHM OPERATION

Notes

Dual Electronics Corp.

Toll Free: 1-866-382-5476

Monday-Friday, 9AM-5PM EST

www.axxeraaudio.com

NSA0416-V01

Printed in China

Axxera Av615Bhm Installation And Users Guide 1003451 User Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
