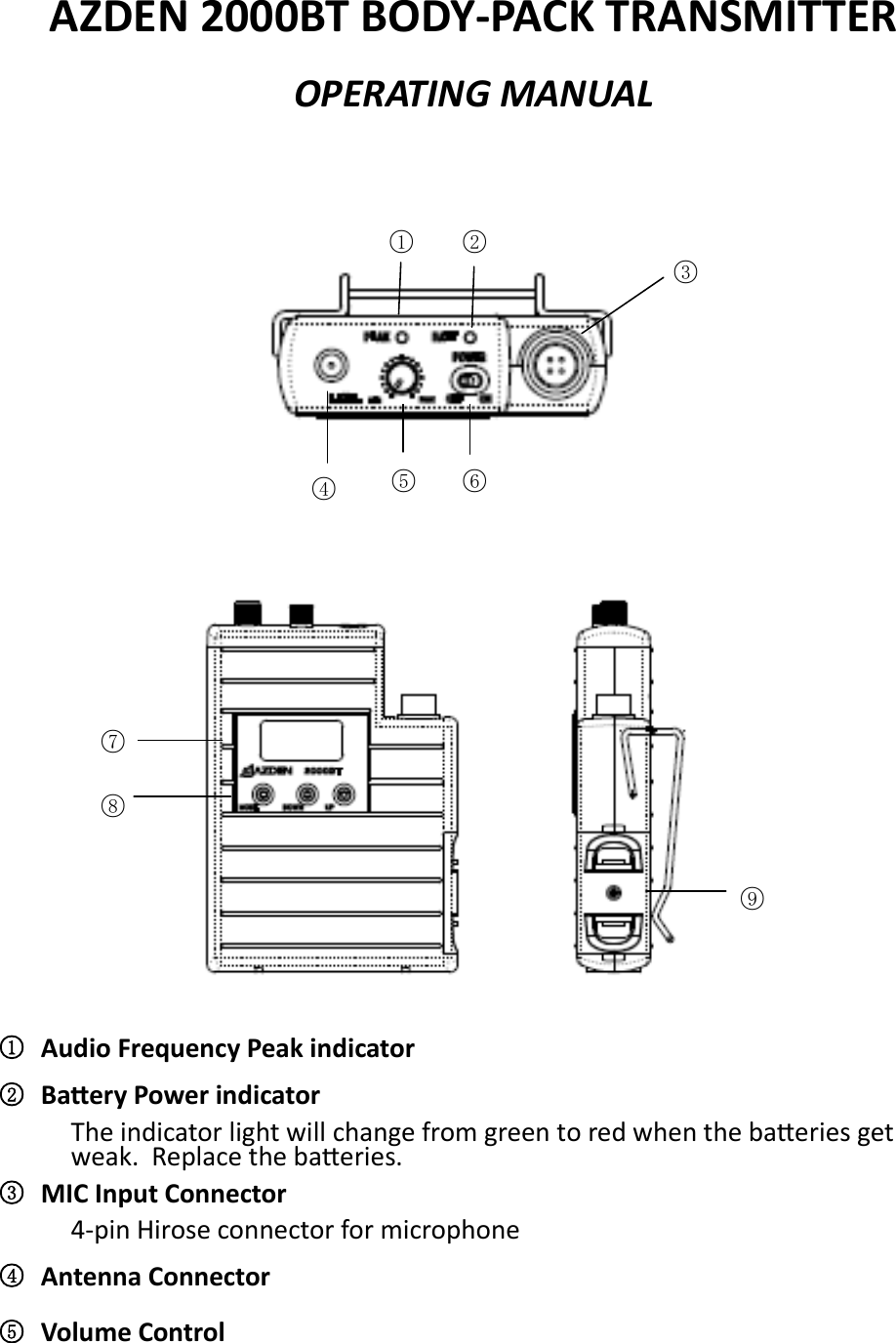

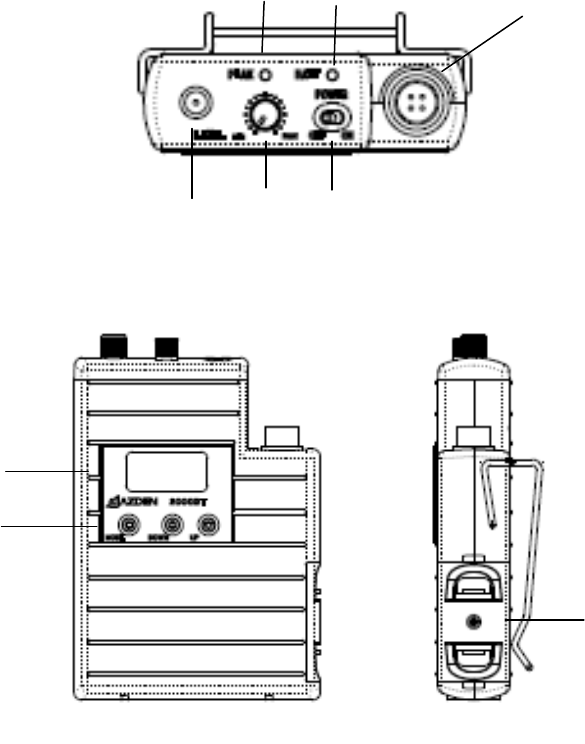

AZDEN 2000BT BODY-PACK TRANSMITTER OPERATING MANUAL ○3 ○1 ○2 ○4 ○5 ○6 ○7 ○8 ○9 ○1 Audio Frequency Peak indicator ○2 Baery Power indicator  The indicator light will change from green to red when the baeries get  weak.  Replace the baeries. ○3 MIC Input Connector  4-pin Hirose connector for microphone ○4 Antenna Connector ○5 Volume Control

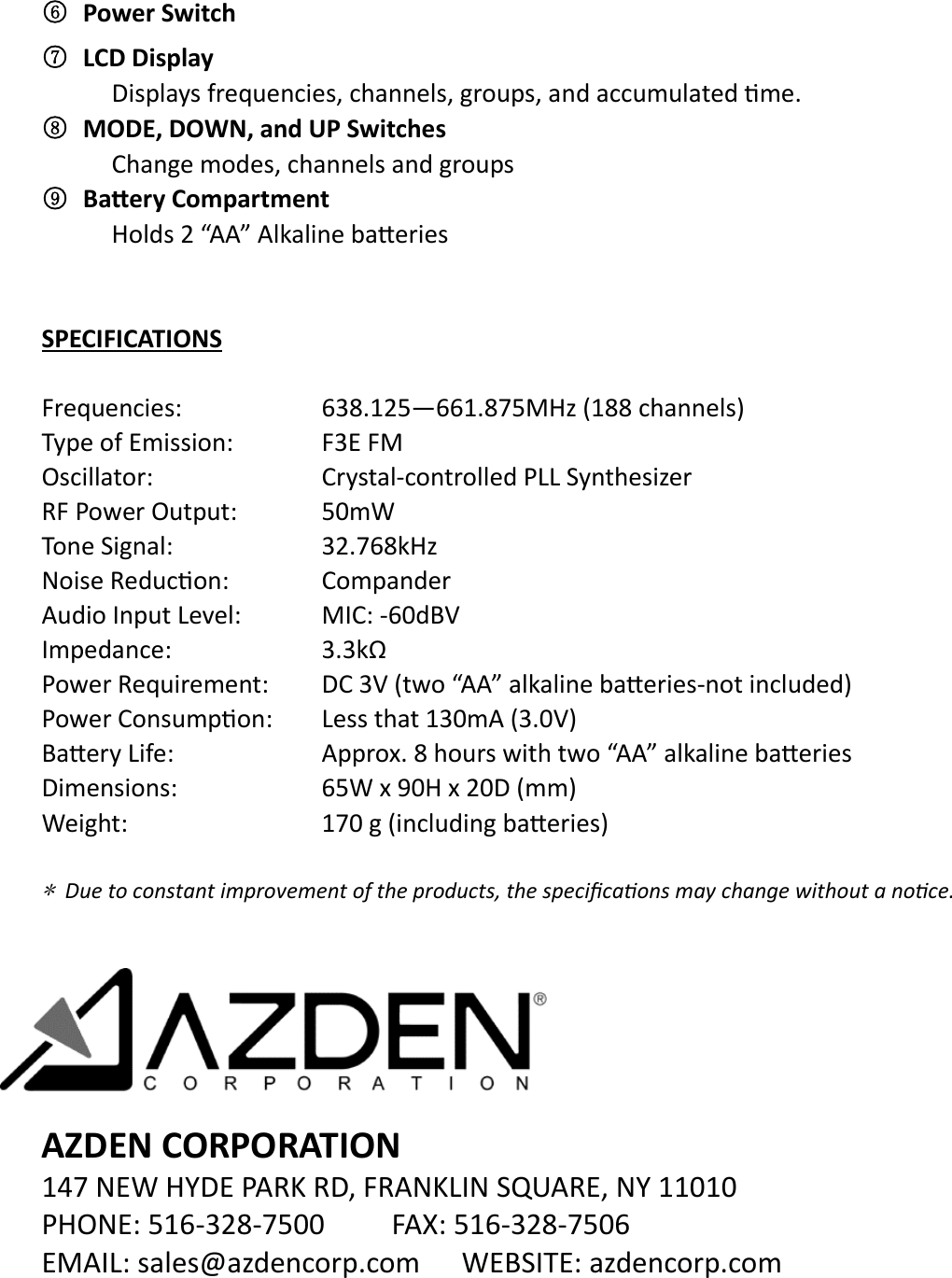

○6 Power Switch ○7 LCD Display  Displays frequencies, channels, groups, and accumulated me. ○8 MODE, DOWN, and UP Switches  Change modes, channels and groups ○9 Baery Compartment  Holds 2 “AA” Alkaline baeries   SPECIFICATIONS  Frequencies:    638.125—661.875MHz (188 channels) Type of Emission:    F3E FM Oscillator:      Crystal-controlled PLL Synthesizer RF Power Output:    50mW Tone Signal:     32.768kHz Noise Reducon:    Compander Audio Input Level:    MIC: -60dBV Impedance:      3.3kΩ Power Requirement: DC 3V (two “AA” alkaline baeries-not included) Power Consumpon: Less that 130mA (3.0V) Baery Life:     Approx. 8 hours with two “AA” alkaline baeries Dimensions:     65W x 90H x 20D (mm) Weight:      170 g (including baeries)  * Due to constant improvement of the products, the specicaons may change without a noce.       AZDEN CORPORATION 147 NEW HYDE PARK RD, FRANKLIN SQUARE, NY 11010 PHONE: 516-328-7500 FAX: 516-328-7506 EMAIL: sales@azdencorp.com WEBSITE: azdencorp.com
