Azpen MingTel Digital Technology AZ15CN Tablet PC User Manual
Azpen Shenzhen MingTel Digital Technology CO., LTD. Tablet PC
User manual
1
User Manual
Tablet PC
TW101
FCC ID: 2AEHNAZ15CN
Azpen Shenzhen Mingtel Digital Technology Co., Ltd
2nd Floor Bld.9 Detai Industrial District, No.460
Daland Huarong Rd. Longhua New District
Shenzhen, China
2
Warning：
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation. changes or modifications not expressly
approved by the party responsible for compliance could void the
user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the
limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are
designed to provide reasonable protection against harmful interference
in a
residential installation. This equipment generates, uses and can radiate
radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However,
there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television
reception,
which can be determined by turning the equipment off and on, the user
is
encouraged to try to correct the interference by one or more of the
following
3
measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
NOTE: This device and its antenna(s) must not be co-located or
operation in conjunction with any other antenna or transmitter.
Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user’s authority to
operate the equipment.
RF Exposure Information:
The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of
tissue. Device Types TW101 (FCC ID: 2AEHNAZ15CN) has also
been tested against this SAR limit.
The highest SAR value reported under this standard during product
certification for use when properly worn on the body is 0.917 W/kg
This device was tested for typical body‐worn operations with the
back of the handset kept 0mm from the body.
The use of belt clips, holsters and similar accessories should not
contain metallic components in its assembly.
The use of accessories that do not satisfy these requirements may not
comply with FCC RF exposure requirements, and should be avoided.
4
Package contents
If any of the items is missing or damaged, please contact your
dealer immediately:
• One Tablet • One AC adapter
• One USB cable • This guide
5
Tablet layout
No. Name No. Name
1 Front facing camera 6 Headphone plug
2 Touchscreen 7 Micro HDMI port
3 Windows button 8 Micro USB 2.0 DC IN
4 USB 3.0 port
6
5 Micro SD card slot
No. Name No. Name
1 Power Button 4 Rear facing camera
2 Volume up/down 5 Speaker
3 Microphone 6 Docking port
7
8

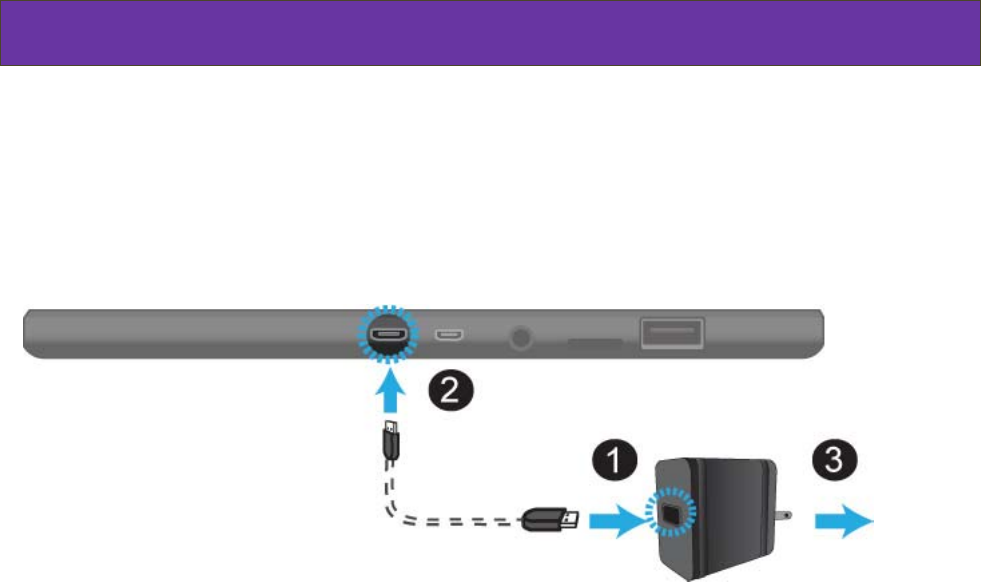

Charging your tablet
If your tablet is just being unpacked from the box, you need to
charge the tablet first. It will take around 4 to 5 hours to be fully
charged.
1. Plug the USB head of the cable into the adapter.
2. Plug the micro-USB head of the cable into the micro-USB
port on your tablet.
3. Plug the adapter into a wall-socket.

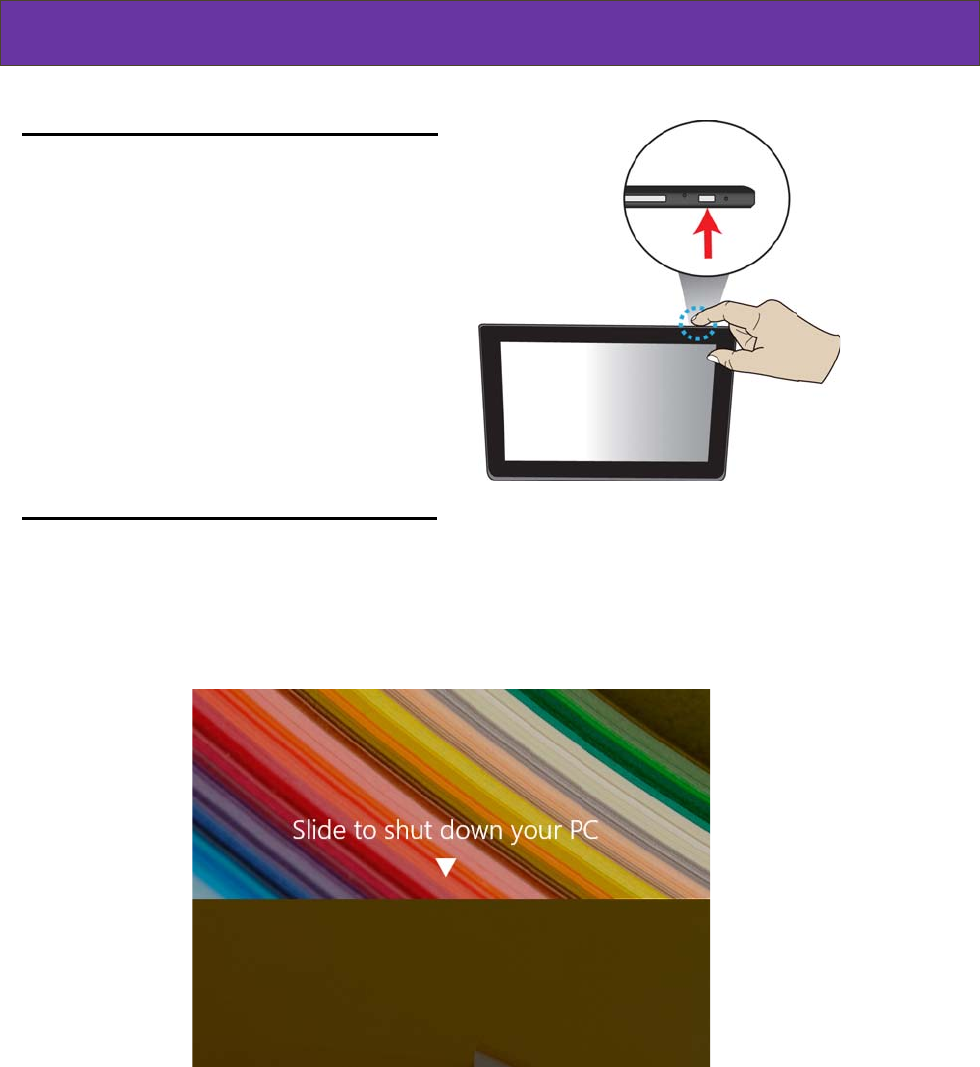

Powe
r
To pow
e
Press an
d
the scre
e
To pow
e
Press an
d
you will s
which is
a
Slide you
power of
f
r
ing ON/
O
e
r on your t
a
d
hold the pow
e
e
n turn on.
e
r off your t
a
d
hold the pow
e
ee an instructi
o
a
s shown belo
w
r finger on the
s
f
itself.
9
O
FF your t
a
a
ble
t
e
r button down
u
a
ble
t
e
r button for at l
o
n appears in th
e
w
.
s
creen downwa
a
blet
u
ntil
east four seco
n
e
middle of the
rd, and the sys
t
n
ds, and
screen,
t
em will
10
Inserting a storage card
Your tablet supports micro-SD cards with storage space 32G
(Max). You can insert the micro SD card and pull it out without
powering down the tablet. To do so, follow the steps below.
Install your Micro SD Card
1. Hold your tablet with front side up.
2. Insert your micro SD card in the direction as shown.
Remove your Micro SD Card
1. Push and release the micro SD card. This will unlock the
card.
2. Pull out the micro SD card.
11
Specifications
Processor
z Intel Bay Trail-T Z3735 F
z Quad core (4C/4T)
z 1.33 GHz (Burst to 1.83GHz)
z 2MB L2 Cache
Memory z DDR3L- 1333
z Default 2 GB
Storage z Single eMMC up to v5.0
z Default 32GB
Wireless z Wi-Fi 802.11 b/g/n +BT4.0
Touchscreen z 10.1-inch 800 x 1280 LCD
z Support 10-points multi-touch
Cameras z Front HD camera: 2.0 M
z Rear HD camera: 2.0M
Battery
z 2Cell1S2P
z Li-polymer
z 7600mAh
Input/Output
z 1 x micro-USB 2.0port (Type B)
z 1 x USB 2.0 port (Type A)
z 1 x Mic/head phone jack combo
z 1 x Micro-HDMI 1.4a
z 1 x micro-SD card slot (Max 32G)
z 1 x Digital MIC
z 1 x Pogo Pin connector (5-pin)
12
Speaker&Mic
z Build-in Speaker x 2
z Internal Digital MIC x 1
AC-Adapter
z DC Output: 5V/2A/10 Watt
z Input Voltage: 100 ~ 240VAC
z Input Frequency: 47 ~ 63Hz
Dimension
(mm) z 268 (W) x 179(H) x 10.75 (D)
Net Weight z < 650 g (w/o adapter& cable)
