Aztech Technologies DSL600EWR 802.11b/g Wireless ADSL 4-port Ethernet/USB Router User Manual users manual
Aztech Technologies Pte Ltd. 802.11b/g Wireless ADSL 4-port Ethernet/USB Router users manual
users manual
ADSL Wireless LAN 4-
Port Ethernet Router
Easy Start
Version 0.1
Contents
Introduction............................................................. 3
Minimum System Requirements ................................ 3
ADSL Router Package............................................... 3
ADSL Router Overview ............................................. 4
Typical ADSL Router Connection................................ 6
Step 1: Connecting the ADSL Router to Your
Computer/Notebook ...................................... 7
Step 2: Configuring Your Ethernet Network Card ....... 10
Step 3: Configuring Your Internet Browser................. 12
Step 4: Connecting to the Internet............................ 13
• Product warranty does not apply to damage caused by lightning, power surges or
wrong voltage usage.
• This product is for use only in UL Listed computers.
Easy Start
Declaration of Conformity
Marking by the above symbol indicates compliance with the Essential Requirements of the
R&TTE Directive of the European Union (1999/5/EC). This equipment meets the following
conformance standards:
EN300 328, EN301 489-17, EN60950
Countries of Operation and Conditions of Use in the European
Community
This device is intends to be operated in all countries of the European Community.
Requirement is for indoors vs. outdoors operation, license requirements and allowed
channels of operation apply in some countries as described in this document.
Note: The user must use the configuration utility provided with this product to check
the current channel of operation and confirm that the devices operating in
conformance with the spectrum usage rules for the European Community countries as
described below.
If operation is occurring outside of the allowable channels as indicated in this guide, then the
user must cease operating the product and consult with the local technical support staff
responsible for the wireless network.
This device may be operated indoors or outdoors in all countries of the European
Community using the 2.4GHz band: Channels 1 – 13, except where noted below:
· In Italy the end-user must apply for a license from the national spectrum authority to
operate this device outdoors.
· In France outdoor operation is only permitted using the 2.4 – 2.454 GHz band: Channels
1 – 7.
1 of 13
Easy Start
Radio Frequency Interference Warnings &
Instructions
(FCC ID: I38-DSL600EWR)
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following methods:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and the receiver
• Connect the equipment into an electrical outlet on a circuit different from that which the radio
receiver is connected
• Consult the dealer or an experienced radio/TV technician for help.
Modifications made to the product, unless expressly approved by the party responsible, could
void the user’s right to operate the equipment.
RF Exposure
To comply with FCC RF exposure compliance requirements, the antenna used for this
transmitter must be installed to provide a separation distance of at least 20cm from all
persons and must not be co-located or operating in conjunction with any other antenna
or transmitter.
2 of 13
Easy Start
Introduction
Thank you on your purchase of the ADSL Wireless LAN 4-Port Ethernet Router! The Wireless
4-Port Router allows you to share high-speed broadband connection with multiple PC using a
single device wired or wireless.
The Wireless Broadband 4-Port Router can be connected to any computer/notebook with a
10/100 Base-T Ethernet card for wired connection or an IEEE 802.11g Wireless adapter. The
Ethernet ports have Auto MDI/MDIX feature which can allows both cross or straight UTP
cable to be utilized. The Wireless 4-port Ethernet Router has an in-built IEEE802.11g
Wireless LAN Access Point for wireless connectivity.
This documentation assumes that you have already installed an Ethernet card or a wireless
adapter on your computer/notebook
Minimum System Requirements
• Pentium® MMX 233MHz
• Ethernet card installed with TCP/IP Protocol (Required only if you are connecting to
the ETHERNET port of your ADSL Router)
• IEEE 802.11b Wireless adapter (Required if you are connecting to the Wireless
Access Point of the router)
• OS independent for Ethernet
• Web Browser support:
Microsoft Internet Explorer 4.0 (or later versions)
Netscape® Navigator 3.02 (or later versions)
ADSL Router Package
For any missing items, please contact your dealer immediately.
ADSL Ethernet Wireless Router Easy Start Telephone extension cable
Power adapter (DC 12V) CAT-5 UTP Straight Ethernet Network cable (RJ-45)
POTS-Splitter1 (optional)
1 Depending on your country of purchase, your package may or may not come with a
POTS Splitter. The POTS Splitter is required if you are connecting a Telephone Set to the
Ethernet Modem. Please refer to Step 1.2 - Connecting to the ADSL Line for details.
POTS-Splitter can also be purchased from your dealer.
3 of 13
Easy Start
ADSL Router Overview

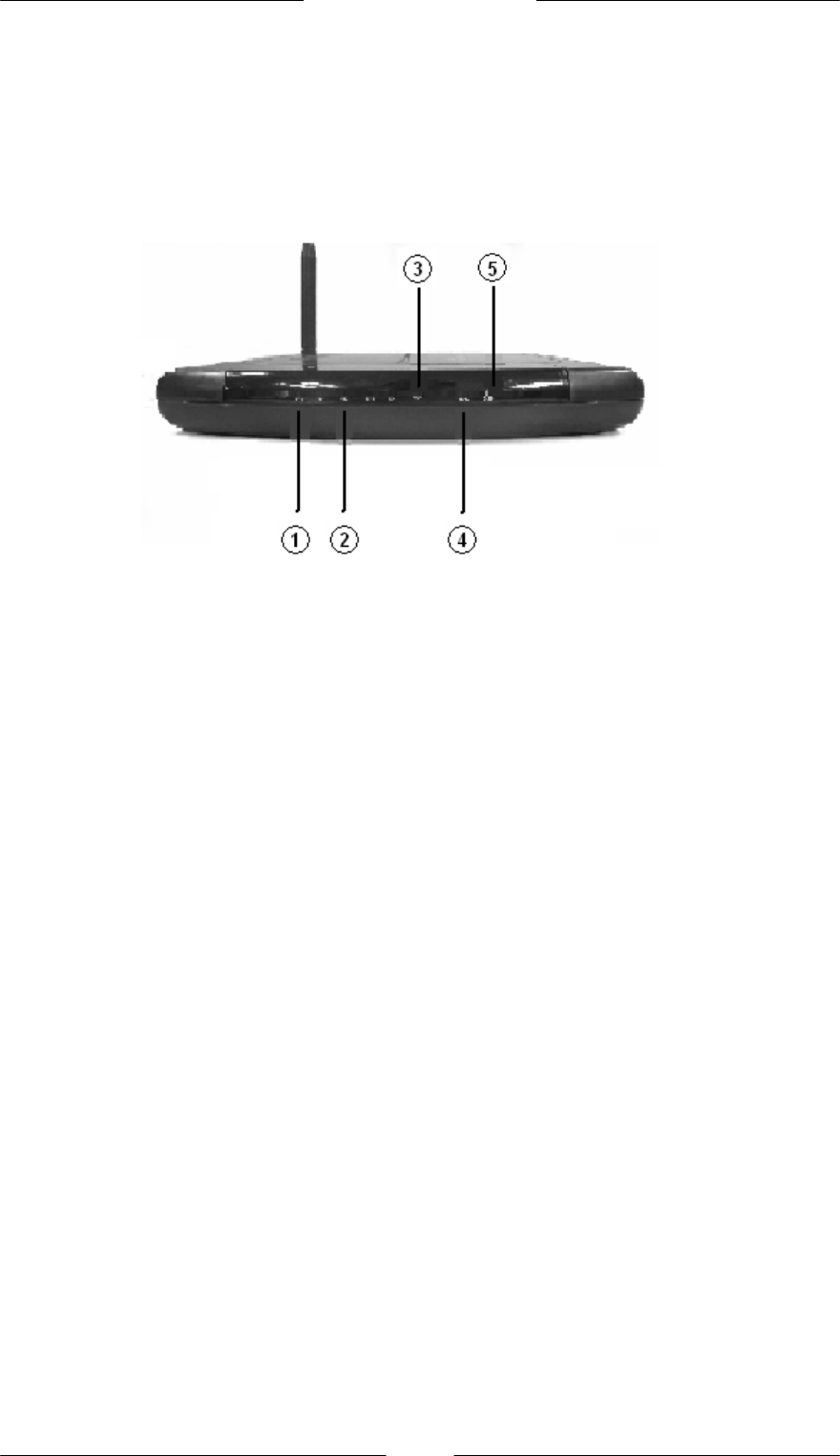

Front Indicators
l
POWER
Lights up when power is supplied to the ADSL Router.
mETHERNET (E1 ~ E4)
Lights up when the Ethernet cable is properly connected from your ADSL Router to the
Ethernet Card.
Flickers when the ADSL is transmitting/receiving data.
n WIRELESS
Lights up when the Wireless LAN connection is established.
o DSL
Lights up when the DSL connection is established.
Flickers when the ADSL Router is trying to establish a connection with the ADSL Service
Provider.
p Internet
Lights up when the PPP connection is established.
4 of 13
Easy Start
Back Panel
l DSL
Telephone jack (RJ-11) to connect to your Telephone Wall Socket (ADSL line).
m RESET
To reset your ADSL Router to factory default settings.(All customised settings that you
have saved will be lost!)Please refer to the below footer2 on how to activate the reset
function.
n ETHERNET
10/100 Base-T Ethernet jack (RJ-45) to connect to your Ethernet Network card or
Ethernet Hub / Switch.
oDC IN
To connect to the Power Adapter that comes with your package.
p POWER SWITCH
To power on or off the modem.
I - indicates ON position
O - indicates OFF position.
q RF Antenna
180° 2.4Ghz Wireless Antenna.
2 To activate the reset function:
- Ensure that your ADSL Router is powered on.
- Use a paper clip or a pencil tip to depress the reset button and release. At
this point, the DSL indicator light will go off, followed by the ETHERNET indicators.
The reset is in progress.
- When the DSL indicator starts blinking, it means that the reset process is
completed. The default settings are now restored.
- ADSL line is established once the DSL indicator lights up.
5 of 13
Easy Start
Typical ADSL Router Connections
Up to 4 PCs Connections
For More than 4 PCs Connections
To connect to more than 4 computers/notebooks, you may further expand one of the Ethernet
Ports via an Ethernet Hub/Switch. For details on how to connect to the Ethernet Switch/Hub,
please refer to the documentation that comes with the unit.
With the Auto MDI/MDIX feature, both cross and straight UTP cable can be utilized
6 of 13
Easy Start
Step 1: Connecting the ADSL Router to Your
Computer/Notebook
Power off your Computer/Notebook or/and any connected devices before
connecting to the ADSL Router!

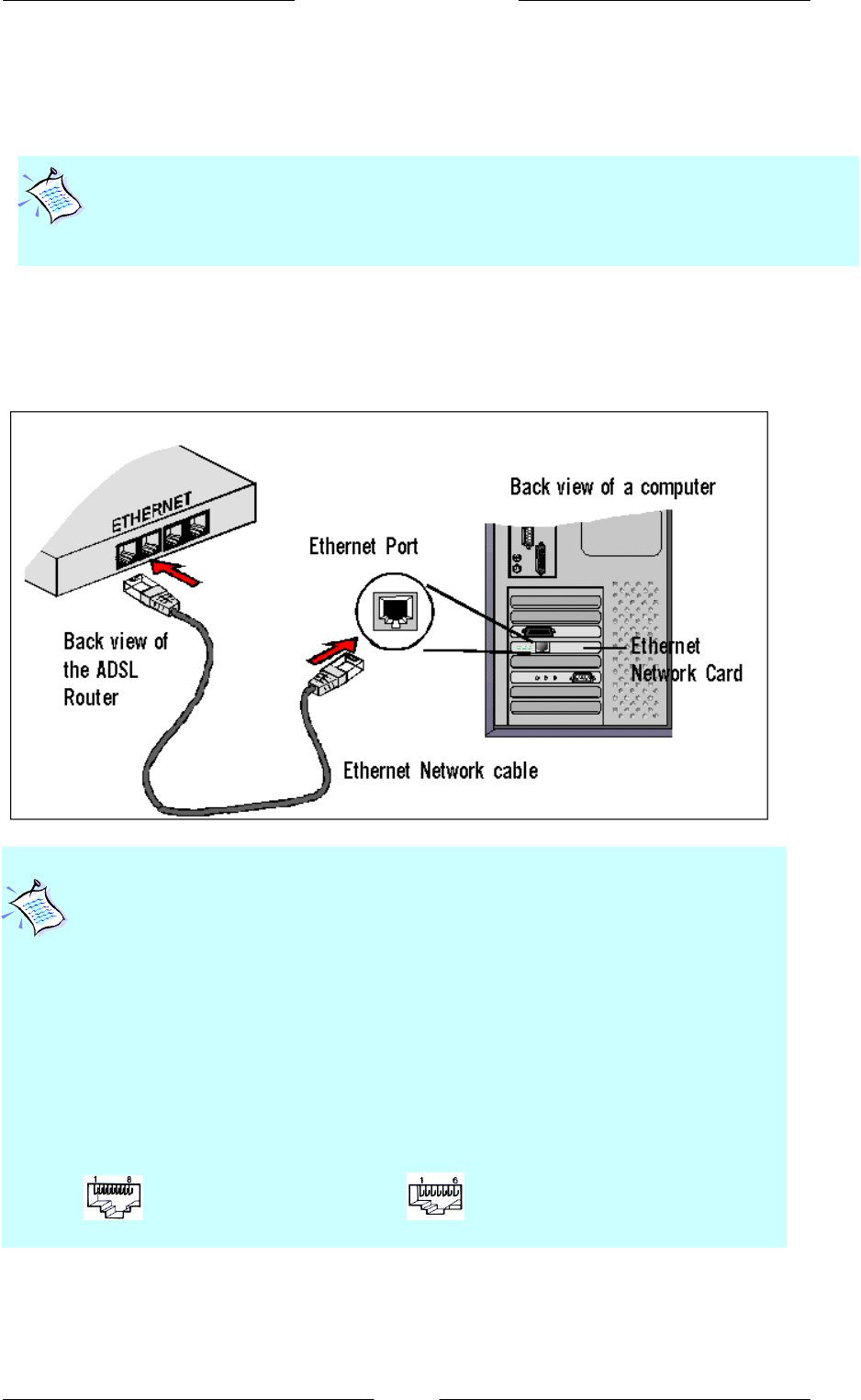

1.1 Connecting to the Ethernet
Connect your computer(s)/notebook(s) to the ADSL 4 Port Router as illustrated. The following
illustration shows the connection of a single computer.
NOT SURE HOW THE ETHERNET PORT LOOKS LIKE?
The following are some tips to help you locate your Ethernet Ports on you
r
Computer/Notebook. Alternatively, you may refer to the documentation that comes
with your Computer/Notebook.
Locating the Ethernet Port on your Computer/Notebook
Most Computers/Notebooks have labels describing the Ports. For Ethernet Port,
you will see either ETHERNET, ETH or RJ45 labelled near the Port.
If your Computer/Notebook does not have such descriptions, try the following.
- Picture A gives the illustration of an Ethernet Port. All Ethernet Ports have
8 conductors on it. Do not mistaken with the LINE Port (Picture B) that has only 6
conductors.
- The Ethernet Port is slightly bigger than the LINE Port.
A. ETHERNET B. LINE
7 of 13
Easy Start
1.2 Connecting to the ADSL Line
To connect the ADSL Ethernet Modem to the ADSL line, carried out Step 1.2(a).
To connect the ADSL Ethernet Modem to the ADSL line and a Telephone Set, carried out
Step 1.2(b).
(a) To connect to the ADSL line
(b) To connect to the ADSL line and Telephone Set
The POTS Splitter(with built-in Microfilter) is a device that allows you to connect both your
Telephone cable and Telephone Set to the same Telephone Wall Socket. The device at the
same time helps to eliminate background noise on the telephone line, ensuring the best
possible phone performance.
8 of 13
Easy Start

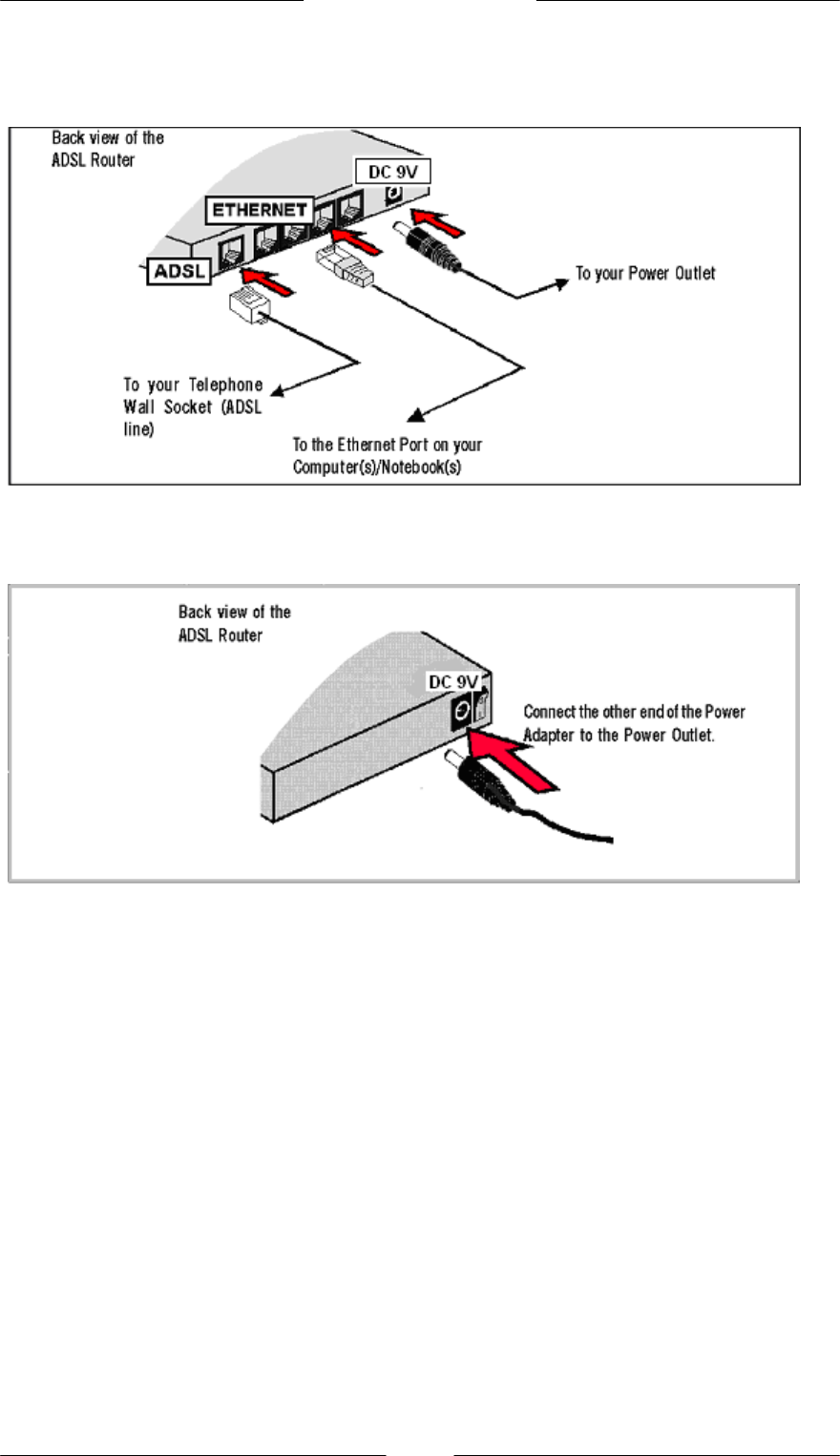

1.3 Checking Your Connections
Please check your connections before proceeding.
1.4 Connecting to the Power Outlet
1.5 Powering On
Power on the Power Outlet that is connected to your ADSL Router.
Power on your Computer(s)/Notebook(s).
Please proceed to Step 2
9 of 13
Easy Start
Step 2: Configuring Your Ethernet Network
Card
2.1 Configuring Your Ethernet Network Card /
Wireless adapter
The following illustrated screen shots serve only as examples. For an
y
dissimilarities, please follow closely the instructions prompted on your Computer.
For configuring your modem, please refer to the User Manual – Web Management
Guide on your Installation CD
2.2 For Windows® 98 Second Edition / Windows® Me
i From your Windows desktop, right-click on the Network Neighborhood icon. Select
Properties.
iiii From the Configuration tab, select TCP/IP-> xxx where xxx refers to the model of
your Ethernet Card or wireless adapter that is connected to your ADSL Router.
Click Properties.
Click the IP Address tab.
Click the option Obtain an IP address automatically and click OK to save the settings.
Ensure that your ADSL Router is powered on. Restart your system.
Proceed to Step 3.
10 of 13
Easy Start
2.3 For Windows® 2000 / Windows® XP
i Windows® 2000:
a) From your Windows desktop, right-click on the icon My Network Places and
select Properties.
b) At the Network and Dial-up Connections window, right-click on the Local Area
Connection icon and select Properties.
Windows® XP:
(Instructions are based on default Start menu option)
a)
b)
From your Windows desktop, click Start > All Programs > Accessories >
Communications > Network Connections.
Right-click on the Local Area Connection icon that reflects the model of your
Ethernet Card or wireless adapter that is connected to your ADSL Router and click
Properties.

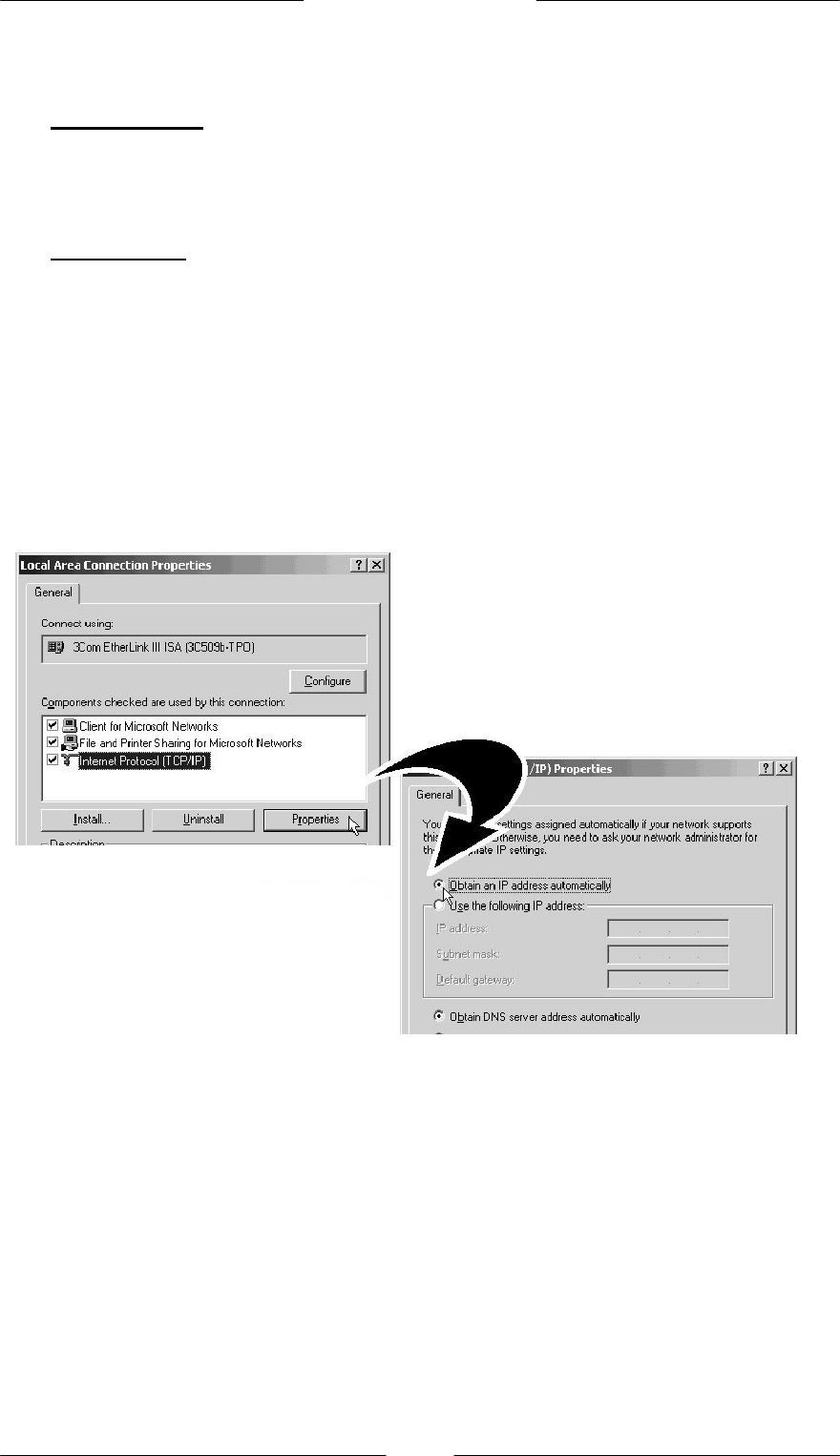

ii Ensure that the field Connect Using indicates the model of your Ethernet Card that is
connected to your ADSL Router.
(This is important especially if you have more than one Local Area Connection icons displayed at the
Network and Dial-up Connections / Network Connections window. Ensure that you have selected the
correct one.)
Select Internet Protocol (TCP/IP) and click Properties.
iii Select the option Obtain an IP address automatically and click OK.
Click OK again to close.
Ensure that your ADSL Router is powered on. Restart your system.
Proceed to Step 3
11 of 13
Easy Start

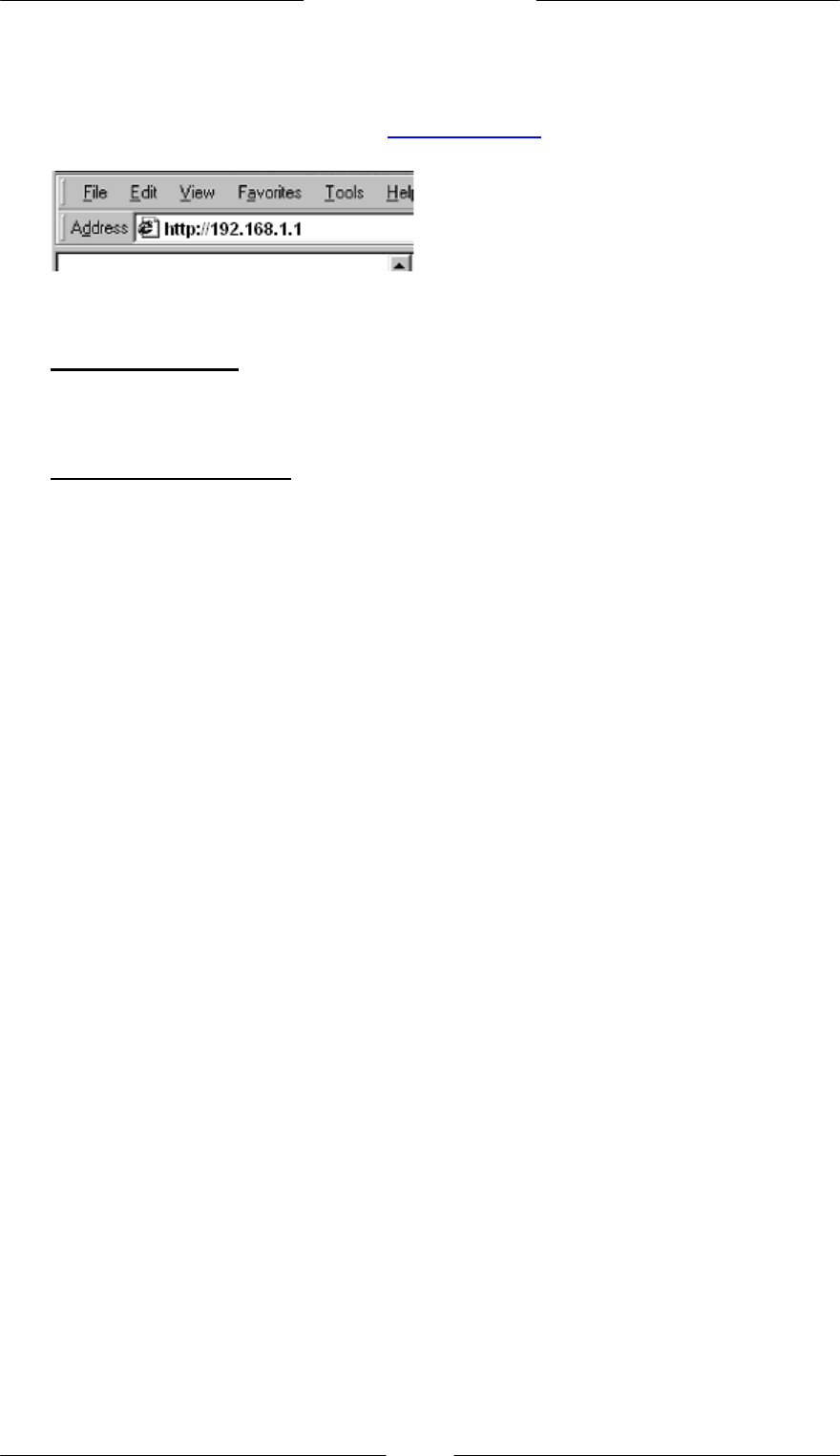

Step 3: Configuring Your Internet Browser
3.1 Microsoft® Internet Explorer™ (based on IE 5.5)

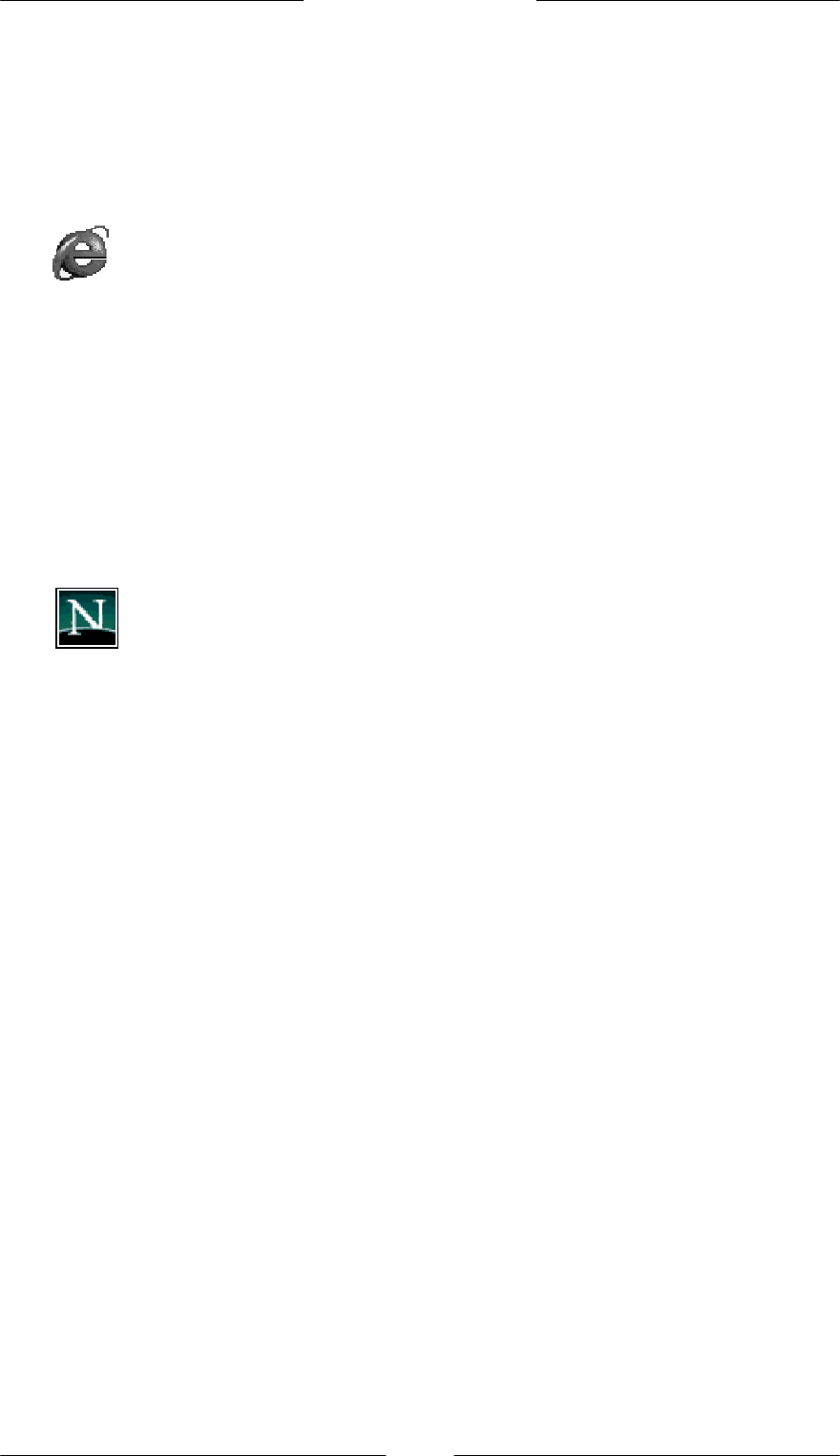

i From your Windows desktop, double-click on your Internet Explorer icon to launch your
Browser.
ii From the Menu, click Tools and select Internet Options... .
iii Select the Connection tab. Click the field, 'Never dial a connection'. (This option will
be grayed off if you have not installed an analog modem on your computer/notebook
before. Proceed with 3.1 iv).
iv Click the LAN Settings... button. Ensure that your Proxy Server is not enabled.
v Click OK to close the dialog box.
You may now proceed to Step 4 to establish your Internet connection.
3.2 Netscape® Navigator
i From your Windows desktop, double-click on your Navigator icon to launch your
Browser.
ii Depending on your Netscape versions, carry out one of the following instructions:
Click Options > Network Preferences.
Select Proxies. Ensure that the No Proxies option is selected.
OR
Click Edit > Preferences.
Select Advanced and click Proxies. Ensure that the option Direct Connection to the
Internet is enabled.
iii Click OK for changes to take effect.
You may now proceed to Step 4 to establish your Internet connection.
12 of 13
Easy Start
Step 4: Connecting to the Internet
i From your Internet Browser, key in http://192.168.1.1 at the address bar and hit
<Enter>.
ii The Login Setting Page will be displayed.
iii For Singapore Users
The ADSL Ethernet Router has been configured by default for SingNet Broadband and
Pacific Internet Broadband users, VPI=0, VCI=100, Protocol=PPPoA VC-Mux. Under
Login Settings, please key in your username and password and click Connect.
For Other Countries Users
For other users using other Internet Service Provider service, please enter relevant
details and click Connect to connect to the Internet. You should refer back to your
Internet Service Provider for the settings.
13 of 13
