Azumi S.A Mobile phone T95045T1
User manual
![](/img.php?id=2430566&img=bg1.png)
A40M User Manual
![](/img.php?id=2430566&img=bg2.png)
1
Warnings
Not following these simple guidelines may be dangerous or
illegal. Read the complete user guide for further
information.
TURN ON SAFELY
Do not turn on the phone when wireless phone is
prohibited or when it may cause interference or danger.
ROAD SAFETY
Obey all road safety laws. Always use both of your hands to
operate the vehicle while driving.
INTERFERENCE
All wireless phones may be sensitive to interference, which
may affect performance.
TURN OFF IN HOSPITALS
Follow all restrictions. Turn off the phone near medical
equipment.
TURN OFF ON AIRCRAFTS
Follow all restrictions. Wireless devices can cause
interference on aircrafts.
![](/img.php?id=2430566&img=bg3.png)
2
TURN OFF WHEN REFUELING
Do not use the phone at/near refueling stations. Do not use
near fuel or chemicals.
USE SENSIBLY
Only qualified personnel may install or repair this product.
ENHANCEMENTS AND BATTERIES
Use only appropriate enhancements and batteries. Do not
connect incompatible products.
WATER-RESISTANCE
Your phone is not water-resistant. Keep it dry.
BACKUP COPIES
Remember to make back-up copies or keep a written
record of all important information stored in your phone.
CONNECTING TO OTHER DEVICES
When connecting to any external device, read its user
guide for detailed safety instructions. Do not connect with
incompatible products.
![](/img.php?id=2430566&img=bg4.png)
3

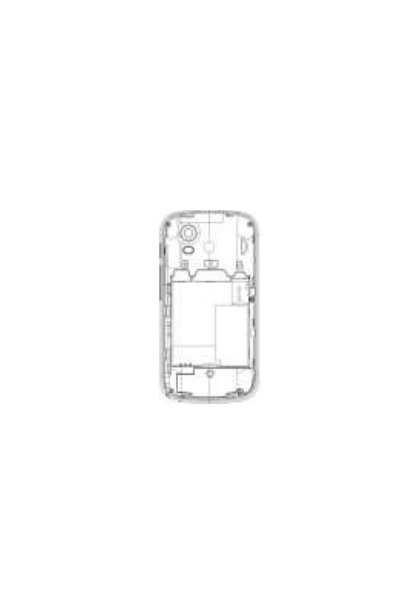

Your Phone
The phone appearance is shown as below. The picture is for reference
only; your phone may be different. Please take your actual phone as
the standard.
Front View
Back View
![](/img.php?id=2430566&img=bg5.png)
4
Keypad Descriptions
Key
Description
Power Key
Long press the key to turn on the phone.
In the power on status, press the key to lock
keypad and screen; long press the key to show
phone options.
Option Key
Press the key to enter option menu.
![](/img.php?id=2430566&img=bg6.png)
5
Key
Description
Home Key
Press the key to return to standby mode.
Long press the key to show recent list.
Back Key
In the menu mode, press the key to go back to
upper menu.
Volume Keys
To adjust incoming call ringtone volume.
During a call, playing music, video, or listening to
radio, press the keys to adjust volume.
Start to Use
Install Memory Card and SIM Card
When you apply for a network, you will get a plug-in SIM card. SIM
(Subscriber Identity Module) card that contains phone number,
service projects and can be used to store phone numbers and
personal information.
![](/img.php?id=2430566&img=bg7.png)
6
Please insert the SIM card according to the mark on the phone.
Make sure that the clipped corner of the SIM card and the metallic
contacts are facing the correct direction. Slide the SIM card into the
slot until it doesn't move up any further.
The direction in which the microSD card has to be inserted into the
designated slot is shown by an label on the phone.
Tip: For additional media storage insert a microSD card.
Attention: Do not bend or scratch SIM card, do not let it contact with
static electricity, dust or water.
Keep all SIM cards where children cannot reach or touch.
Note: Keep the SIM card chip contacts face downward. Make the
SIM card fits card slot.
![](/img.php?id=2430566&img=bg8.png)
7
Remove Memory Card and SIM Card
Note: If the phone is turned on, long press Power Key about 3
seconds until it tips phone options and select Power off and
then press OK to turn off the phone. Then, remove the battery,
SIM card and memory card.
Do not plug or remove memory card in boot state, otherwise it
will cause damage to the file system.
Charge the Battery
1. Before charging, check the battery slot to ensure the battery
has been installed correctly.
2. Plug one end of the charger into phone.
3. Connect another end of the charger to the socket.
4. Start charging. It can be charged whether power on or power
off.
▪ In power on state, when the battery icon on screen start rolling
means it is been charged. When the icon is full and stop rolling
means charge is completed.
▪ In power off state, the battery icon on screen start rolling
means it is been charged. When the icon is full and stop rolling
means charge is completed.
5. Unplug the charger from the socket.
6. Disconnect the charger and phone.
![](/img.php?id=2430566&img=bg9.png)
8
Turn on/off the Phone
Hold down the power
button to turn the phone
on.
Hold down the power
button, then touch Power
off to turn the phone off
Use Touch Screen
Press: Use finger to press the desired option to confirm
selection or start an application.
Long press: Long press the screen in current operation interface,
icon, or input area; you can open the option menu in current
interface.
Slide: Slide the finger on screen horizontally or vertically. For
example, slide the screen in standby mode or main menu
horizontally to change menu page.
Drag: Use finger to long press desired item, drag it to anywhere
on screen. For example, you can drag the icon in main menu to
standby screen.
![](/img.php?id=2430566&img=bga.png)
9
Home Screen
Status Bar
The status bar shows your phone’s status and notifications.
(Notifications are described on the next page.)
Notification icons Status icons
Phone status bar and
notifications
Slide left or right to see
more panels
Touch to enter main menu
Touch to enter message
Touch to enter web
Touch to enter Claro
interface
Touch to enter dial pad
![](/img.php?id=2430566&img=bgb.png)
10
Status icons
The following status icons may appear on your screen:
Icon
Statement
Icon
Statement
SIM
Network
signal level
Headset is
inserted
Indicates
battery
capacity
Bluetooth is
activated
Unread
messages
Wi-Fi is
connected
Missed calls
Airplane
mode is
activated
Alarm is
activated
USB is
connected
Make a Call
1. In standby mode or in main menu, press the dial icon to
enter dial panel, press numbers on screen to enter phone
number.
2. Press dial icon at bottom and select SIM card to dial the
number. You can also press video dial icon to make a video call.
3. Press end icon to cancel the call.
![](/img.php?id=2430566&img=bgc.png)
11
You need to unlock the phone if the keypad and
screen is locked.
You can make calls through call log, contacts, and
messages.
During a call, press Volume Keys to adjust the volume.
Your phone supports intelligent dial. When input
numbers, the phone will search the corresponding
contact in phonebook or call log.
Answer a Call
When there is an incoming call, you can:
▪ Drag the icon toward right to answer the call.
▪ Drag the icon toward left to decline the call.
▪ Drag the icon upward to reject the call with SMS.
![](/img.php?id=2430566&img=bgd.png)
12
Emergency Service
You can call emergency service number directly without SIM card.
Different networks use different emergency numbers, please query
your network operator.
Input Method
Your phone has the built-in input method. In edit mode, long press
to show Input options and set input languages and Android
keyboard settings.
Input English
Press the on-screen keypad to enter corresponding letters.
Input Number
Press “?123”, you can input numbers directly by press the number
icons. Long press the letter icons with number, or after long press,
slide finger to the numbers to input.
Input Symbol
Press “?123” to enter symbol list. Press the desired symbol to input.
Long press “.…” to show symbol list, slide finger to the desired
symbol to input.
Application screen
In standby mode, press the launcher to enter application screen.
Touch to enter app tray.
![](/img.php?id=2430566&img=bge.png)
13
1. Backup and Restore
In this menu, you can choose to BACKUP and RESTORE personal
data and application.
2. Browser
You can use your phone to access Wireless Application Protocol
(WAP) sites and use WAP-based services. To browse WAP pages, you
must subscribe to the data service from your service provider and
configure your phone's relevant settings.
Select the website list on screen or input URL in address bar to visit.
3. Games
Your phone has several built-in games, you can select to play.
Touch an app to launch it
![](/img.php?id=2430566&img=bgf.png)
14
4. Calculator
The calculator can execute simple calculations. Slide the screen
toward left or right, you can change the calculator in Basic panel
and Advanced panel.
5. Calendar
In the calendar, you can check schedules for current month. It has
alarm for the date with schedule. Select one date to check all
schedules for that day, or you can edit or delete the schedules.
6. Claro Services
Your phone has several Claro services such as Portal ideas, iApps,
ideas, ideasmusik, iJuegos, MiClaro, MSNGR, and Plugger. You can
select to use.
7. Camera
By using the camera application, you can take photos or records for
around people or events anytime. Press the Camera icon in main
menu to enter. Press the shoot icon or record icon to take photos or
records.
Press the icons on screen or Option Key to set parameters of the
camera or recorder.
8. Clock
In the clock interface, you can check time and date. Press the alarm
icon, you can add new alarm clock or turn on/off existed alarm
clocks.
In the clock interface, you can also press the icons to enter count
down function, stopwatch, cities settings, night mode, and settings.
![](/img.php?id=2430566&img=bg10.png)
15
9. Downloads
To check all downloads applications.
10. Email
You can use Email to send and receive emails.
Setup Email Account
According to the tips on screen to input email address and password,
and press Next. You can press Manual setup to setup server
information manually.
Check Emails
In the Inbox, select the email you want to check to enter. Press the
icons at bottom to delete, reply, add to favorite.
Compose and Send Email
![](/img.php?id=2430566&img=bg11.png)
16
In the Inbox, press new mail icon to create new email. Input receiver
email address, subject, and content, and then press send icon to
send the email.
Delete Accounts
In the Inbox, press Option Key to select Settings. Select the account
you want to delete and then select Remove account in the option
list. Press OK to confirm and delete the account.
11. File Manager
In this menu, you can select to check Phone storage and SD card.
12. FM Radio
Select FM Radio in the main menu and plug earphone to enter. Press
Power icon to turn on/off the radio. Press setting icon and select
Search, the phone will search available channels and save in the list.
Press the icons on screen to operate the FM radio.
13. Gallery
You can use Gallery to view or manage images and videos.
14. Google Service
Availability of Google applications, services, and features may vary
according to your country or carrier. Please follow local laws and
regulations to use them.
When you turn on your mobile phone for the first time, touch a
Google services such as Gmail, Google, Local, Maps, Navigation,
Play Store, Talk, or YouTube, and you may be prompted to sign in to
your Google account.
![](/img.php?id=2430566&img=bg12.png)
17
Ensure that your mobile phone has an active data connection
(3G/GPRS) before you sign in to your Google account.
If you already have a Google account, enter your username and
password.
15. Messaging
Select Messaging in the main menu or standby mode to enter.
Select new message icon at left down corner to create new SMS or
MMS and send.
1. Enter receiver’s number or add number from contacts
.
2. Press to input message content.
3. If you want to send picture or video file, press + to add pictures,
videos and audio. The message will shift to multimedia
message automatically.
4. Press send icon and select SIM card to send the message.
16. Music
Select Music in main menu. Press Artists, Albums, Songs, and
Playlists at the top of screen to change category. Select one audio
file to play the music. Press the icons on screen to operate the audio
player.
![](/img.php?id=2430566&img=bg13.png)
18
17. System Update
Through WLAN and high-speed wireless network, you can wirelessly
upgrade, convenient stay at home to update the latest software,
have better experience to the mobile phone of new features, and
have a better experience with the optimized functionality.
In the Menu/SystemUpdate, select Auto System Update to set
update check interval.
18. People
In the People, press search icon to search contact, press add new
icon to add new contact. Press Option Key to enter:
Delete Contact
Select one or more contacts, then press OK to delete all selected
contacts.
Contacts to Display
Select All contacts, contacts on SIM card, Phone, or Customize the
contacts to display.
Import/Export
![](/img.php?id=2430566&img=bg14.png)
19
Copy the contacts from SIM cards, phone, phone storage or SD card,
and then select location to copy.
Accounts
Select whether to Auto-sync app data.
Memory Query
To check the memory of phone and SIM cards.
Join Contacts
You can use this function to join same contacts.
19. Phone
Press the icons on screen to input numbers in sequence. After
inputting numbers, press dial icon and select SIM1/2 to dial. Press
video call icon, you can make video call with your phone. Press the
icons at the top screen, you can enter call log or contact.
20. Search
Input keyword in search bar, the phone will match applications or
contacts first. If there is no result, press the arrow icon on right to
link to network and search.
21. Settings
Wireless & Networks
In this menu, you can select and set SIM management, WLAN,
Bluetooth, Data usage, under More... - Airplane mode, VPN,
Tethering & portable hotspot, Mobile networks, and USB Internet.
WLAN
You can connect to a wireless LAN (WLAN), use it to access and
download with high speed.
In Menu/Settings/WIRELESS & NETWORKS, slide the icon beside
WLAN toward right to turn on WLAN. Press WLAN to check available
![](/img.php?id=2430566&img=bg15.png)
20
WLAN networks. Select one open network, you can access to the
network directly. If the network you selected is encrypted, you need
to input password.
Bluetooth
The phone supports Bluetooth. It can exchange information
between devices including mobile phones wirelessly. Through
Bluetooth, you can sync phone and computer, exchange data with
other Bluetooth devices, and can connect to Bluetooth earphone.
In Menu/Settings/WIRELESS & NETWORKS, slide the icon beside
Bluetooth toward right to turn on Bluetooth and set. Before
transmit data, you may need to match with other Bluetooth devices.
Device
In this menu, you can set audio profiles and display, check storage
and battery, and manage apps.
Personal
Location Access
Select whether to access to my location, whether to turn on GPS
satellites, or whether to use WLAN & mobile network location.
Security
You can select SCREEN SECURITY, ENCRYPTION, SIM CARD LOCK,
PASSWORDS, DEVICE ADMINISTRATION, and CREDENTIAL
STORAGE in this menu.
Language & Input
Select and set Language, keyboard & input methods, speech, and
mouse/trackpad.
Backup & Reset
In this menu, select Factory data reset and then select Reset phone
to clear all data in the phone memory. Select DRM reset to delete
all DRM licenses.
Accounts
Add Account
![](/img.php?id=2430566&img=bg16.png)
21
To add new account of Corporate, Email, or Google.
System
Date & Time
Set time and date for the phone.
Scheduled Power On & Off
Set time to power on/off the phone automatically.
Accessibility
To set accessibility functions for the phone.
Developer Options
Select whether to turn on this function and choose the options in
the list.
About Phone
To check status, legal information, etc.
22. Sound Recorder
The phone supports sound record function, recorded files will be
saved with different quality.
23. ToDo
In this menu, you can check to-do items or done items. Press + or
Tap to add new ToDo to add new item. When finish the item, press
DONE to save.
24. Video Player
You can use Video Player to view or manage videos.
25. Voice Search
You can use the voice search function to search via Google search.
Before using this function, you need to check the network settings.
![](/img.php?id=2430566&img=bg17.png)
22
26. Wireless Input Device
Your phone supports wireless input device. You need to turn on
Bluetooth and select to add new device.
Widgets
In the widgets list, you can select desired widget to add to idle
screen.
Care and Maintenance
Battery Care
• Your device is powered by a rechargeable battery. When the power
is weak, please charge the battery. In order to extend the lifespan of
the battery, use all the battery's power before recharging.
• Unplug the charger from the electrical plug and the device when
not in use. Do not leave the battery connected to a charger more
than a week. Overcharging may shorten its lifespan.
• Extreme temperatures can affect the ability of your battery to
charge. Battery needs the fit temperature. If the surrounding
temperature is over 40°C, the battery cannot be charged.
• Use the battery only for its intended purpose. Never use any
charger or battery that is damaged.
Do not short-circuit the battery. Accidental short-circuiting can occur
when a metallic object such as a coin, clip, or pen causes direct
connection of the positive (+) and negative (-) terminals of the
battery. (These look like metal strips on the battery.) Short-circuiting
the terminals may damage the battery or the connecting object.
• Leaving the battery in hot or cold places, such as in a closed car in
summer or a freezer in winter conditions, will reduce the capacity
and lifetime of the battery. Always try to keep the battery between
![](/img.php?id=2430566&img=bg18.png)
23
59°F and 77°F (15°C and 25°C). A hot or cold battery may not
function temporarily, even when the battery is fully charged.
• Battery performance is particularly limited in temperatures below
freezing.
• Do not dispose of batteries in a fire! Dispose of batteries according
to local regulations. Please recycle when possible. Cellphones are
not considered household waste.
Mobile phone maintenance
• Keep the device dry. Precipitation, humidity, and all types of liquids
or moisture can contain minerals that will corrode electronic circuits.
If your device does get wet, remove the battery and allow the device
to dry completely before replacing it.
• Do not use or store the device in dusty, dirty areas. Its moving
parts and electronic components can be damaged.
• Do not store the device in hot areas. High temperatures can
shorten the life of electronic devices, damage batteries, and warp or
melt certain plastics.
• Do not store the device in cold areas. When the device returns to
its normal temperature, moisture can form inside the device and
damage electronic circuit boards.
• Do not attempt to open the device other than as instructed in this
guide.
• Do not drop, knock, or shake the device. Rough handling can break
internal circuit boards and fine mechanics.
• Do not use harsh chemicals, cleaning solvents, or strong
detergents to clean the device.
• Do not paint the device Paint can clog the moving parts and
prevent proper operation.
• Use only the supplied or an approved replacement antenna.
Unauthorized antennas, modifications, or attachments could
![](/img.php?id=2430566&img=bg19.png)
24
damage the device and may violate regulations governing radio
devices.
All of the above suggestions apply to your device, battery, charger,
or any enhancement. If any device is not working properly, take it to
the nearest authorized service facility for service.
Caution: The manufacturer assumes no responsibility for the
consequences of the users does not comply with the above
suggestions or misuse of the phone.
The pictures in user manual only for reference, please
take your actual phone as the standard.
27. 5.FCC Statement
1. This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received,
including interference that may cause undesired
operation.
2. Changes or modifications not expressly approved by the
party responsible for compliance could void the user's
authority to operate the equipment.
NOTE:
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
![](/img.php?id=2430566&img=bg1a.png)
25
reasonable protection against harmful interference in a
residential installation.
This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician
for help.
SAR Information Statement
Your wireless phone is a radio transmitter and receiver. It
is designed and manufactured not to exceed the emission
limits for exposure to radiofrequency (RF) energy set by
the Federal Communications Commission of the U.S.
Government. These limits are part of comprehensive
guidelines and establish permitted levels of RF energy for
![](/img.php?id=2430566&img=bg1b.png)
26
the general population. The guidelines are based on
standards that were developed by independent scientific
organizations through periodic and thorough evaluation
of scientific studies. The standards include a substantial
safety margin designed to assure the safety of all persons,
regardless of age and health. The exposure standard for
wireless mobile phones employs a unit of measurement
known as the Specific Absorption Rate, or SAR. The SAR
limit set by the FCC is 1.6 W/kg. * Tests for SAR are
conducted with the phone transmitting at its highest
certified power level in all tested frequency bands.
Although the SAR is determined at the highest certified
power level, the actual SAR level of the phone while
operating can be well below the maximum value. This is
because the phone is designed to operate at multiple
power levels so as to use only the power required to
reach the network. In general, the closer you are to a
wireless base station antenna, the lower the power
output. Before a phone model is available for sale to the
public, it must be tested and certified to the FCC that it
does not exceed the limit established by the government
adopted requirement for safe exposure. The tests are
performed in positions and locations (e.g., at the ear and
worn on the body) as required by the FCC for each model.
The highest SAR value for this model phone when tested
for use at the ear is 0.596W/Kg and when worn on the
body, as described in this user guide, is
1.095W/Kg(Body-worn measurements differ among
![](/img.php?id=2430566&img=bg1c.png)
27
phone models, depending upon available accessories and
FCC requirements). The maximum scaled SAR in hotspot
mode is 1.095W/Kg.While there may be differences
between the SAR levels of various phones and at various
positions, they all meet the government requirement for
safe exposure. The FCC has granted an Equipment
Authorization for this model phone with all reported SAR
levels evaluated as in compliance with the FCC RF
exposure guidelines. SAR information on this model
phone is on file with the FCC and can be found under the
Display Grant section of http://www.fcc.gov/ oet/fccid
after searching on
FCC ID:QRP-AZUMIA40M Additional information on
Specific Absorption Rates (SAR) can be found on the
Cellular Telecommunications Industry Asso-ciation (CTIA)
web-site at http://www.wow-com.com. * In the United
States and Canada, the SAR limit for mobile phones used
by the public is 1.6 watts/kg (W/kg) averaged over one
gram of tissue. The standard incorporates a sub-stantial
margin of safety to give additional protection for the
public and to account for any variations in measurements.
Body-worn Operation
This device was tested for typical body-worn operations.
To comply with RF exposure requirements, a minimum
separation distance of 10mm must be maintained
between the user’s body and the handset, including the
antenna. Third-party belt-clips, holsters, and similar
![](/img.php?id=2430566&img=bg1d.png)
28
accessories used by this device should not contain any
metallic components. Body-worn accessories that do not
meet these requirements may not comply with RF
exposure requirements and should be avoided. Use only
the supplied or an approved antenna.
