WELCOME
Congratulations on your purchase of the Azumi
mobile phone. Your phone provides many functions
which are practical for daily use, such as a
hands-free loudspeaker, camera, MP3 player, Ultra
clear video
You can read the manual to understand how to use
Azumi mobile phone and experience the
well-established functions and simple operation
method. Please use the original accessory in order to
achieve the best use of effects. Azumi shall not be
responsible for any damage in machinery due to use
of non-original components.

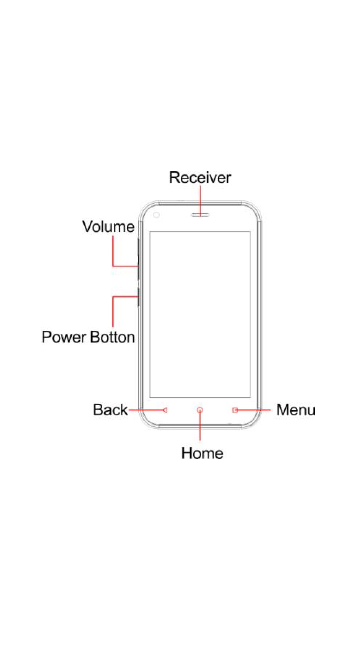

YOUR PHONE-FRONT VIEW

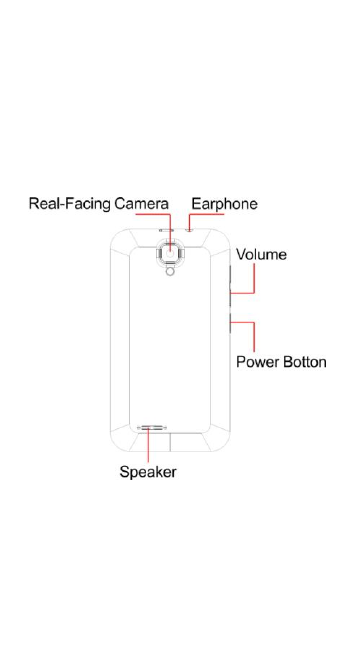

YOUR PHONE-BACK VIEW

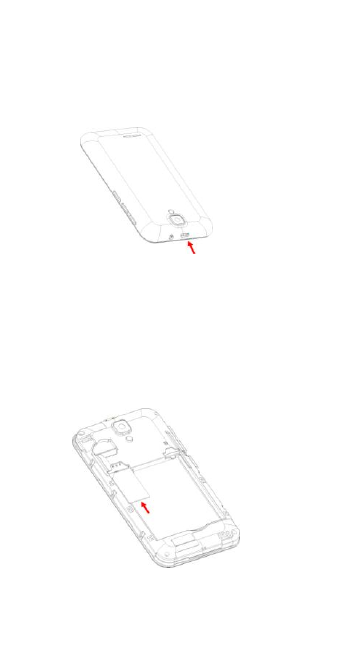

CHARGE THE BATTERY
Connect this end to phone’s USB port.
Tip: Be sure to charge your phone’s battery completely
after inserting it in the phone for the first time.

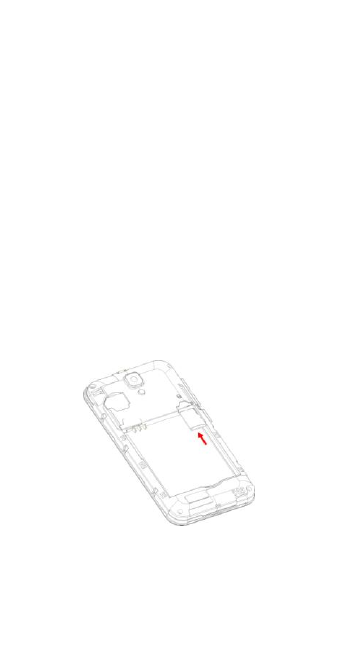

INSERT SIM AND Micro SD CARD
Please insert the SIM card(s) according to the label on
the phone. Make sure that the clipped corner of the
SIM card and the metallic contacts are facing the
correct direction. Slide the SIM card into the slot until it
doesn't move up any further.
Micro SD card slot is above the SIM card slot. The
direction in which the micro SD card has to be inserted
into the designated slot is shown by a label on the
phone.
Tip: For additional media storage insert a micro SD card.

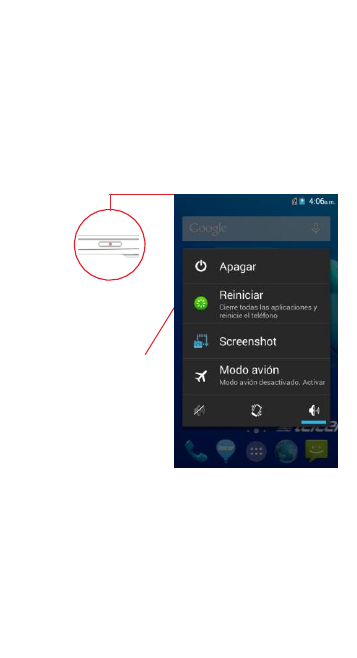

TURN THE PHONE ON& OFF
Hold down the power
button to turn the phone
on.
Hold down the power
button, then touch Power
off to turn the phone off

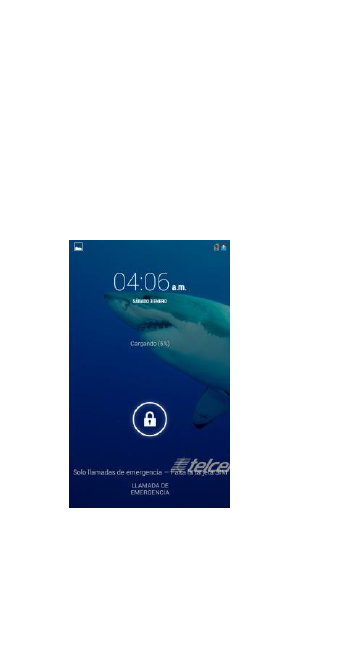

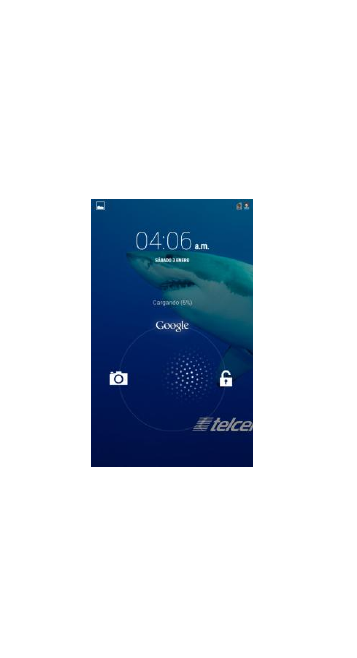

DIM LOCK & WAKE THE PHONE
When the power is on and you want to dim the screen,
press the power button.
When the screen is dimmed and you want to wake the
phone, press the power button and then drag the lock
to the right.
HOME SCREEN
Phone status bar and
notifications
Touch and hold an
empty spot to change
the wallpaper
Slide left or right
to see more panels
Touch it to enter message
Touch it to enter web
Touch it to main menu
Touch it to enter telcel
Touch it to enter dial pad interface
APPS
1. Touch it to enter app tray.
2. Touch an app to launch it
STATUS BAR
The status bar shows your phone’s status and
notifications. (Notifications are described on the next
page.)
Notification icons Status icons
Status icons
The following status icons may appear on your
screen:
Icon
Statement
Icon
Statement
SIM
Network
signal level
Headset is
inserted
Indicates
battery
capacity
Bluetooth is
activated
Unread
messages
Wi-Fi is
connected
Missed calls
Airplane
mode is
activated
Alarm is
activated
USB is
connected

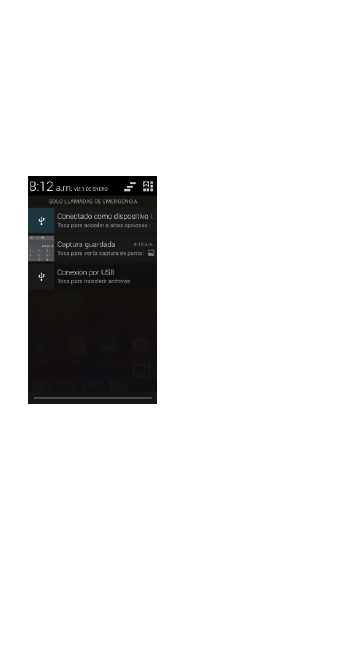

NOTIFICATION PANEL
The notification panel is your center for new events: like
new e-mail, voicemail, updates, and more.
Drag down to display notifications
Touch a notification to respond
MAKE & ANSWER A CALL
1. From the Home screen, touch
2. Touch ,
Dial a number using the dial pad.
3. Touch to initiate the call
Answer a call
Drag
Decline a call
Drag
VOLUME CONTROL WHEN CALLING
Volume key is at the left side of the phone. During a
conversation, you can press the volume key to tune the
sound volume.
SEND A TEXT
1. From the Home screen, touch
2. Touch
3. Touch the To field, then enter a recipient.
4. Touch the Type message field, then enter a message
5. Touch Send the message
ADDING EMAIL ACCOUNTS
The first time you open Email, you are prompted to set
up an email account. After that, you can configure Email
to send and receive email from additional accounts.
To add an email account:
1) Tap the e-mail icon. In Your account interface, tap
Next. In e-mail address option, enter your e-mail
address. In password option, → enter your e-mail
password. Tap Next.
2) Filling the email address and password, tap next to
setup email
3) Tap next to enter your email.
SETTINGS
the settings for various features of the phone
Get to know the settings in your phone so that you can
personalize them to your own requirements. Go to
Settings to configure how your phone looks, sounds,
communication, privacy, and operations in a variety of
ways:
Wi_Fi
You can use Wireless & Network
settings to manage your SIM card,
configure and manage
connections to networks and
devices by using Wi-Fi. You also
can set Bluetooth, data usage,
airplane mode, VPN, tethering &
portable hotspot and mobile
networks in this interface.
Audio
profiles
There are four profiles: General,
Silent, Meeting and Outdoor. You
can set the profiles according to
different conditions.
Display
You can set Wallpaper,
Auto-rotate screen, Brightness,
Daydream, wireless display, Sleep
and Font size in this interface.
Storage
Use the Storage settings to
monitor the used and available
space on your phone and on your
SD card and to manage your SD
card.
Battery
You can view your battery status,
battery level and battery use in
this interface.
Apps
You can use the Applications
settings to view details about the
applications installed on your
phone, to manage their data and
force them to stop, to view and
control currently running services,
and to view the storage used by
applications, etc.
Location
You can turn on Wi-Fi & mobile
network location, GPS satellites,
etc through this function.
Security
You can set the parameters about
security through this function.
Language &
input
Use the Language & Keyboard
settings to select the language for
the text on your phone and for
configuring the input method.
Backup &
reset
You can backup your data and
reset your phone in this interface.
Add account
You should add account first
before using this function.
Data & time
You can use Date & Time settings
to set your preferences for how
dates are displayed. You can also
use these settings to set your own
time and time zone, rather than
obtaining the current time from
the network, etc.
Timer switch
machine
You should set a certain time,
when the time arrive, the phone
would power on/off
automatically.
Accessibility
Enable your installed accessibility
applications and adjust related
settings.
About phone
This function enables you to view
some phone related information.
SET A RINGTONE
Press Perfiles audio, select the profiles
you want to set, you can customize the ringtone and
volume of incoming call, notification ringtone in this
interface.
MULTIMEDIA
listen it, watch it, capture it, enjoy it!
FM RADIO
1. Pull out the telescopic antenna or insert earphone,
then Tap the Power icon to stop or play FM.
2. Tap the forward by 0.1 MHz or scroll the knob icon to
change channel frequency. Press volume key to adjust
the volume.
3. Tap Auto search, Record and Favorites icon to adjust.

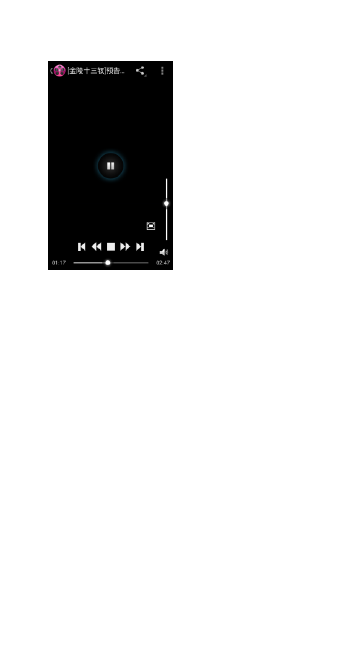

MUSIC
Controls
Play/Pause
Previous/Next
Rewind/Forward
Volume adjust
Now playing: Touch to
open the current playlist.
Shuffle: Touch to shuffle
the current playlist.
Repeat: Touch to repeat
the current playlist; touch
again to repeat the
current track.
Camera
1. Launch the camera by pressing the camera icon on
the home screen
2. In the camera app, tap the screen to focus on a
specific area.
3. Press the camera button all the way down to take a
picture.
SHOOT A VIDEO
1. Press and hold the camera button until it vibrates
then release.
2. In the Camera app, select video
3. Press the camera button to begin filming and press
again to stop filming.
Calculator
1. Launch the calculator by pressing the calculator icon
on the home screen.
2. In the calculator app, enter numbers and arithmetic
operators on the basic screen.
Calendar
You can use the calendar to keep track of important
events. After entering the calendar function menu you
can select year, month and date. Slide the Calendar
screen up and down to switch month.
Sound Recorder
Use this function to record audio files. Two function
icons at the bottom of the Recorder screen are
corresponding to start recording and review record file.
Clock
The clock allows you to view time and date. You can also
add an alarm, set the alarm and turn it on. Then, the
alarm can ring at a specific time you set.
Gallery
Both pictures and videos taken by camera or stored in
SD card can be scanned through this function.
Video player
With Videos, you can play video clips in your device (for
example, the video you captured by the camera) or
video files stored in compatible SD card (if inserted)
SIM1 Toolkit
STK features are provided by your service provider. If
your SIM card supports STK feature, you will see the STK
menu. Different STK has different STK main menu.
Please contact your service provider if the STK does not
work.
Browser
To let you browse the Internet.
File Manager
The phone supports the SD card. You can use the File
Explorer to conveniently manage various directories and
files on the SD card.
USE AS MODEM VIA USB
You can connect your phone to a computer with a USB
cable, to transfer music, pictures, and other files
between your phone’s SD card and the computer.
CONNECT TO Wi-Fi NETWORKS
Wi-Fi is a wireless networking technology that can
provide Internet access at distances of up to 100 meters,
depending on the Wi-Fi router and your surroundings.
Touch Settings> WI-FI . Check Wi-Fi to turn it on. The
phone scans for available Wi-Fi networks and displays
the names of those it finds. Secured networks are
indicated with a Lock icon.
A50c
Corriente eléctrica encendido 开机电流
180-650mA
Corriente eléctrica pantalla 屏幕电流
100-240mA
Voltaje Pantalla 屏幕电压
3.4-4.2 Vcc
Corriente eléctrica Llamada 通话电流
80-520 mA
Voltaje Llamada 通话电压
3.6-4.2 Vcc
Voltaje celular apagado 关机的电压
3.4 Vcc
Cargador de
corriente ca/cc
Entrada 充电器输入电
流电压
100-240Vca，50-60Hz，0.15A
Salida 输出电流电压
5.0Vcc，1A
1.FCC Statement
1. This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received,
including interference that may cause undesired
operation.
2. Changes or modifications not expressly approved by
the party responsible for compliance could void the
user's authority to operate the equipment.
NOTE:
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation.
This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV
technician for help.
SAR Information Statement
Your wireless phone is a radio transmitter and receiver.
It is designed and manufactured not to exceed the
emission limits for exposure to radiofrequency (RF)
energy set by the Federal Communications Commission
of the U.S. Government. These limits are part of
comprehensive guidelines and establish permitted
levels of RF energy for the general population. The
guidelines are based on standards that were developed
by independent scientific organizations through
periodic and thorough evaluation of scientific studies.
The standards include a substantial safety margin
designed to assure the safety of all persons, regardless
of age and health. The exposure standard for wireless
mobile phones employs a unit of measurement known
as the Specific Absorption Rate, or SAR. The SAR limit
set by the FCC is 1.6 W/kg. * Tests for SAR are
conducted with the phone transmitting at its highest
certified power level in all tested frequency bands.
Although the SAR is determined at the highest certified
power level, the actual SAR level of the phone while
operating can be well below the maximum value. This is
because the phone is designed to operate at multiple
power levels so as to use only the power required to
reach the network. In general, the closer you are to a
wireless base station antenna, the lower the power
output. Before a phone model is available for sale to the
public, it must be tested and certified to the FCC that it
does not exceed the limit established by the
government adopted requirement for safe exposure.
The tests are performed in positions and locations (e.g.,
at the ear and worn on the body) as required by the FCC
for each model. The highest SAR value for this model
phone when tested for use at the ear is 1.157W/Kg and
when worn on the body, as described in this user guide,
is 0.730W/Kg(Body-worn measurements differ among
phone models, depending upon available accessories
and FCC requirements). The maximum scaled SAR in
hotspot mode is 0.768W/Kg. While there may be
differences between the SAR levels of various phones
and at various positions, they all meet the government
requirement for safe exposure. The FCC has granted an
Equipment Authorization for this model phone with all
reported SAR levels evaluated as in compliance with the
FCC RF exposure guidelines. SAR information on this
model phone is on file with the FCC and can be found
under the Display Grant section of http://www.fcc.gov/
oet/fccid after searching on
FCC ID: QRP-AZUMIA40Q Additional information on
Specific Absorption Rates (SAR) can be found on the
Cellular Telecommunications Industry Asso-ciation (CTIA)
web-site at http://www.wow-com.com. * In the United
States and Canada, the SAR limit for mobile phones
used by the public is 1.6 watts/kg (W/kg) averaged over
one gram of tissue. The standard incorporates a
sub-stantial margin of safety to give additional
protection for the public and to account for any
variations in measurements.
Body-worn Operation
This device was tested for typical body-worn operations.
To comply with RF exposure requirements, a minimum
separation distance of 10mm must be maintained
between the user’s body and the handset, including the
antenna. Third-party belt-clips, holsters, and similar
accessories used by this device should not contain any
metallic components. Body-worn accessories that do
not meet these requirements may not comply with RF
exposure requirements and should be avoided. Use only
the supplied or an approved antenna.

Navigation menu
