Azumi S.A Mobile phone Users Manual

User manual

Windows Mobile Phone
A40W
User Manual
2
Dear Customer,
Thank you for purchasing A40W Full Touch Screen Mobile Phone.
Kindly read this user manual carefully to learn about key
functional characteristics and operational methods of this mobile
phone.
A40W is a smart phone based on Windows Phone 8.1 operating
system. With applications pre-installed and others that you can
download from internet such as Store which will take you to an
excellent experience of communication and entertainment.
3
Contents
1. POINTS OF ATTENTION ON SAFETY ....................... 4
1.1 SAFETY ALERT AND CAUTIONS ....................................... 4
1.2 PROTECTING YOUR BATTERY ........................................ 5
1.3 CLEANING AND MAINTENANCE ....................................... 7
2. GETTING STARTED ................................................... 8
2.1 PHONE OVERVIEW ........................................................ 8
2.2 OPEN THE BATTERY COVER ........................................... 8
2.3 INSTALL SIM CARD ....................................................... 9
2.4 INSTALL MEMORY CARD .............................................. 10
2.5 POWER ON/OFF .......................................................... 10
2.6 BATTERY CHARGING ....................................................11
3. BASIC OPERATION & KNOWLEDGE ...................... 12
3.1 USING TOUCH SCREEN ............................................... 12
3.2 USING KEYS ............................................................... 12
3.3 POWER ON/OFF .......................................................... 13
3.4 MICROSOFT ACCOUNT ................................................. 13
3.5 ENTER START SCREEN ................................................ 13
3.6 SCREEN LOCK & DISPLAY OFF ..................................... 13
3.7 PERSONALIZE THE START SCREEN ............................... 13
3.8 KIDS CORNER ............................................................. 14
3.9 CHANGE YOUR THEME ................................................. 14
3.10 TAKE A SCREENSHOT .................................................. 14
3.11 STATUS BAR ............................................................... 14
3.12 USING SENSORS ......................................................... 15
3.13 ONEDRIVE ................................................................. 16
3.14 CONTACT ................................................................... 16
3.15 CALL .......................................................................... 16
3.16 MESSAGING ............................................................... 17
3.17 MULTIMEDIA ............................................................... 17
3.18 DOWNLOAD FROM STORE............................................ 17
3.19 OFFICE ...................................................................... 18
4
1. Points of attention on safety
1.1 Safety Alert and Cautions
IMPORTANT! Please read these instructions carefully and follow
them implicitly in case of any dangerous or illicit situations.
Note driving safety
It is strongly recommended that you do not use a mobile phone when
driving. Please use the personal hand free package when a call is
inevitable.
Please put your mobile phone in the mobile phone holder safely, and
don’t put it at a passenger’s seat or any other place that may risk a drop
of your mobile phone in the case of collision or emergency brake.
Switch off your mobile phone on the airplane
Interference caused by mobile phones affects aviation safety, and thus
it is illegal to use it on the airplane. Please make sure your mobile
phone is switched off when you are on a plane.
Switch off your mobile phone in blasting operation area
You should strictly obey relevant laws and regulations and switch off
your mobile phone in or near blasting operation area.
Switch off your mobile phone near dangerous area
Your cell phone is not allowed to switch on when the refueling and
chemical substance area is nearby.
In a hospital
When using it in a hospital, you should be subject to the relevant rules
specified by the hospital. Make sure your mobile phone is switched off
when medical equipment is nearby. Any wireless transmission
equipment, mobile phones included, will affect its performance. Other
electronic equipment may be affected as well. If you have any question
in this regard, please consult relevant doctor or equipment supplier
directly.
Interference
5
Any interference caused by wireless equipment can do damage to its
performance.
Qualified services
Only qualified services are allowed to install or repair mobile phones. If
you install or repair it by yourself, you may break the guarantee rules.
Accessories and batteries
Only manufacturer recognized accessories and batteries can be used.
Reasonable use
It should be used normally. It is absolutely forbidden to put it on the
condition that with an extremely high temperature (over 60 Celsius
degrees), for example, do not put it under the window where it can be
exposed to the sunshine directly. Remember to use wet or antistatic
cloth, instead of using any cloth with static electricity to clean it.
Emergency call
Make sure your mobile phone is powered on and is in the service, if you
would like to make an emergency call number such as 911, pressing
the dial key and confirm your location, simply explain what has
happened, and don’t terminate the call without any permission.
Note: Like any mobile phone, it may not be supported due to the
network coverage and wireless signal transmission. What’s more, some
networks even don’t support the 112 emergency call services.
Therefore, the communication under emergent situations (such as first
aid) should not be completely depended on mobile phones. You can
consult and check with you local network suppliers.
Notes:
· All screen shots in this guide are simulated, Actual displays may vary.
· Instructions to perform tasks in this guide may change depending on
the software version on your phone.
· Unless specified otherwise, all instructions to perform tasks in this
guide assume that you are starting from the home screen.
1.2 Protecting Your Battery
Warn reminders about battery:
Please don’t store your mobile phone battery at an extremely high
or low temperature, for it will affect the service life of the battery,
and shorten the standby time. The service life of the mobile phone
6
battery is subject to a certain limit. It is recommended that you
would better change a battery from the original supplier if the
performance of the battery has declined after using it for a period
of time.
Points of attention on use of battery:
Be sure to switch off the mobile phone before you remove the
battery.
Please use it carefully. A short circuit will occur if the positive
pole (+) and the negative pole (-) of the battery is connected
with a metal object (for example, a coin or clip), it may do
damage to both the battery and the metal object. Make sure
that no metal object will be connected simultaneously with the
positive pole and the negative pole of the battery after it is
removed and put in a bag.
Don’t throw the battery into the fire, or use it under an
extremely high temperature condition.
Don’t dismantle or modify the battery.
Don’t put battery in an occasion with strong mechanical
impact, or use a hard object to penetrate the battery.
Battery should be put in a cool and dry place to avoid direct
sunlight. It should not be placed with a high temperature (over
60 Celsius degrees) environment.
If battery gives out any peculiar smell or getting overheated,
you should stop using it.
If the battery is found to have any crack, deformation, damage
of other type, or electrolyte leakage, it should be stopped
using immediately.
Please clean your skin or clothes immediately with soap and
clear water if they contact leaking electrolyte, and wash your
eyes completely with clear water if any electrolyte splashes
into.
In case of any injury caused by incorrect charge, only original
battery is allowed to be charged.
Don’t use the li-polymer battery when the temperature is
extremely low, for the maximum standby/call time is not
available at a low temperature.
Don’t clean the battery with water or organic solvent, or
immerse the battery in water.
Make sure the battery is fully charged if it has been out of use
7
for a long period.
It is recommended that the rejected battery be returned to the
mobile phone manufacturer or placed in a designated public
area for rejected battery recycling. Don’t mix it with other
garbage or throw it freely.
1.3 Cleaning and Maintenance
Please don’t leave the phone, the battery and the charger in
the bathroom and other high humidity places, and prevent
them from rain.
Please clean the phone, the battery and the charger using soft
and dry cloth.
Please don’t wipe the phone using alcohol, thinner or benzene
and other chemical reagents.
The socket with dirt may cause poor contact and power-off.
Please clean it regularly.
8
2. Getting Started

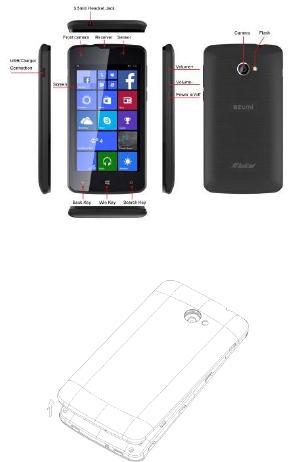

2.1 Phone Overview
2.2 Open the battery cover
Push the battery cover upwards.
9
2.3 Install SIM Card
This phone supports SIM/USIM cards, before you
power on the phone, make sure there is one SIM/USIM card is
inserted in either USIM/SIM card slot.
Note:
Please insert or remove the cards when the phone is power off, or the
phone may be damaged.
10
2.4 Install Memory Card
Aim at the memory card slot and push the memory
card gently, and the card will be inserted correctly.
Note:
If the memory card is failed, please check whether it is correctly
placed at good contact of metal point.
Please insert or remove the memory card when the phone is
power off, otherwise the memory card or the phone might get
damaged and the data on the memory card could be lost.
2.5 Power on/off
In power off status, long press the power key on right
side for about 2 seconds to power on your phone. In power on
status, long press power key for about 2 seconds, then drag the
lock screen down to power off your phone.
11
2.6 Battery Charging
You can charge the battery by connecting the phone
either to a pc USB port or to the provided standard charger use
the provided standard USB cable.
Note: In order to ensure normal operation of the phone, please
make sure to use the designated charger.
12
3. Basic operation & knowledge
3.1 Using Touch Screen
Tap To act on items on the screen, such as application,
settings icons and options, to type letters and symbols using the
onscreen keyboard, or to press onscreen buttons, you simply
touch down your finger on them and then lift your finger without
change the touch down position in a short time.
Tap & hold Touch down your finger on the screen without
lifting up or moving for about 2 seconds. This action will pop-up
an special options list or active some special actions.
Drag Touch down your finger on screen and move without
lifting up to scroll options, switch screens and other contents
displayed on screen.
Flick Drag quickly and release, To scroll through a list or
move quickly, flick across the touch screen, When you flick a
long list, tap the screen to stop it from scrolling.
Pinch In some applications (such as Maps, Browser, and
Gallery), you can zoom in and out by placing two fingers on the
screen at once and pinching them together (to zoom out) or
spreading them apart (to zoom in).
3.2 Using Keys
Power key: Press the power key to lock/unlock your screen.
Press and hold Power key to power on/off the phone.
Volume key: Press the volume keys to change the ring
volume (on the home screen) or the earpiece volume (during a
call). Press the volume button will cancel ringtones when
incoming calls.
Search key: Press search key to open bing search or
Cortana.
Win key: Press Win key to close any menu or app and
return to the start screen. On the start screen, tap an app to
open it. Press and hold Win key to enter to tools feedback hub.
Back key: Opens the previous screen you were working in.
If the onscreen keyboard is open, closes the keyboard.
13
3.3 Power on/off
Power on the phone
Press and hold the power key until the phone vibrates.
Power off the phone
Press and hold the power key, and drag the lock screen
down.
3.4 Microsoft account
With a Microsoft account, you can access all Microsoft
services with a single username and password on your
computer or phone.
To create a Microsoft account later, open a Microsoft app or
service on your phone. Or on the start screen, swipe left, and
tap Settings > email+accounts > add an account.
3.5 Enter start screen
When you sign in, you will enter the start screen. Then you
can pin your favorite apps, websites, and much more to the
start screen, and move or resize tiles as you like.
To switch between the start screen and the apps menu,
simply swipe left or right.
3.6 Screen Lock & Display off
On the start screen, swipe left, tap Settings > lock screen >
Screen times out after, and select the length of time after
which the keys and screen are locked automatically.
To protect your phone against unauthorized use, you can
define a security code, and set your phone to lock itself
automatically when you're not using it.
1. On the start screen, swipe left, and tap Settings > lock
screen.
2. Switch password to On, and type in a security code (at
least 4 digits).
3. Tap Require a password after, and define the length of
time after which the phone is locked automatically.
Press the power key, drag the lock screen up, and type in
your security code to unlock your phone.
3.7 Personalize the start screen
You can set your most-used apps on the start screen. You
can pin your favorite apps to the start screen, and move or
resize tiles as you like.
14
To pin an app, swipe left to go to the apps menu. Tap and
hold the app, and tap pin to start.
To move an icon, tap and hold the icon, drag and drop it to
the new location, and tap the screen.
To resize, tap and hold the icon, and tap the arrow icon. You
can change the size of the icon, the bigger the icon is, the more
info it can show.
To unpin the icon, tap and hold the icon, and tap .
3.8 Kids corner
Switch the kid's start screen on
On the start screen, swipe left, and tap Settings > kid's
corner, then switch Kids Corner to On. Choose which content
your kids can use.
Go to your own start screen
Press the power key twice, and swipe up on your own lock
screen. If you've set a password, type it in.
Go back to the kid's start screen
On your own lock screen, swipe left, and on the kid's lock
screen, swipe up.
3.9 Change your theme
You can change the display colors to match your taste and
mood.
1. On the start screen, swipe left, and tap Settings > start
+ theme.
2. Tap Background or Accent color.
3.10 Take a screenshot
You can capture your screen by pressing the power key and
Volume up key at the same time.
3.11 Status bar
The Status bar appears at the top of every screen. It
displays icons indicating your phone’s status and notifications.
Icon
Description
Signal strength
15
Battery power level
The battery is charging.
Your phone is roaming and not on your
home mobile network.
Vibrate mode is switched on.
Silent mode is switched on.
Airplane mode is switched on.
To open the Notifications panel:
Drag the Status bar down from the top of the screen.
3.12 Using sensors
Proximity Sensor detects how close an object is to the
surface of the screen. This is typically used to detect when your
face is pressed up against the screen, such as during a phone
call. (While talking on the phone, the sensor detects talk activity
and locks the keypad to prevent accidental key presses).
Light Sensor lets you use the ambient light level to adjust
the screen brightness/contrast.
Gravity sensor detects your phones acceleration direction
and takes responding actions according to the running
application.
Rotate the screen display when you rotate the device
while using some features. To set the interface to keep
the orientation when you rotate the device, select
Settings -> Screen rotation, Switch Rotation lock
to On.
Take actions according to the gravitys real time
orientation angle, typically used in games.
Responding to your actions such swing the device in
some applications.
16
3.13 OneDrive
OneDrive is cloud storage for all your documents and photos,
so you can access, share, or restore them if needed. You can
also set it to back up your stuff automatically, so when you take
a photo or a video, it's copied to your cloud album.
With OneDrive, you can easily access your photos,
documents, and other stuff you have uploaded from any of your
devices.
Before you update or download content, you need connect
to the internet and then sign in to you Microsoft account.
There are several places where you can access your stuff on
OneDrive. You can save photos to OneDrive in the Photos hub,
or manage your office documents in the Office hub.
3.14 Contact
You can save and organize your friends' phone numbers,
addresses, and other contact information in the People hub. You
can also get in touch with your friends through social networking
services.
Contacts gives you quick and easy access to the people you
want to reach. When you first turn on your phone and sign into
your account, any contacts existing in account are downloaded
to your phone. After that, your contacts are synchronized: any
changes you make to your contacts on the phone or the web are
made in both places, the next time you sync. Contacts from
accounts are also synced in this way.
Information about your contacts is shared with other
applications, such as Gmail, Messaging, and so on.
If you have more than one account with contact information,
Contacts joins duplicates into a single entry. You can also
manage that process manually.
3.15 Call
Make a call:
Tap on start screen or on the apps menu.
Tap to enter dial board screen, enter the
phone number and tap call button to make a call.
Tap to enter contact list, tap the contact and
then tap mobile phone after entering another
screen.
17
Answer/Reject a call:
When a call incomes in, tap answer to answer a call, tap
ignore to reject an incoming call, tap text reply to send a text
message and then reject the all.
During a call conversation, press the side volume key to
adjust volume, tap at bottom to hold the call, tap to
open the loudspeaker, etc.
3.16 Messaging
You can use Messaging to exchange text messages (SMS)
and multimedia messages (MMS) with your friends on their
mobile phones.
You can send text (SMS) messages of up to 160 characters
to another mobile phone. If you keep typing after the limit, your
message will exchange to two message automatically.
Multimedia (MMS) messages can contain text and a picture,
a recorded voice, an audio file, a video, or a picture slideshow.
Tap on start screen or on the apps menu to
access message.
When new message received, a popup message will be
shown on the notification bar, drag down the bar and tap on the
message to read.
3.17 Multimedia
Camera is a combination camera and camcorder that you
use to shoot and share pictures and videos. Pictures and videos
are stored on the phone’s SD card or phone.
Photos is used to view pictures and play videos that you’ve
taken with Camera, downloaded, or copied onto your SD card or
phone. You can perform basic editing tasks on pictures and set
them as your wallpaper or contact picture.
Music collects all audio files from your SD card or phone to
play.
Video collects all video files from your SD card or phone to
play.
3.18 Download from Store
To download from Store, you need to be signed in to your
Microsoft account on your phone. When you're signed in, you
are offered content compatible with your phone.
18
You can search for and download content directly to your
phone, or browse Store content on your computer and send
links from there to your phone by text message.
Using services or downloading content may cause the
transfer of large amounts of data, which may result in data
costs.
Download an app, game, or other item
You can download free apps, games, or other stuff, or buy
more content for your phone.
1. Tap Store.
2. Tap an item to view its details.
3. If the item has a price, tap buy, or to try the item for free
for a limited time, tap try. If the item is free, tap install.
4. If you're not signed in to your Microsoft account, sign in
now.
5. Follow the instructions shown on your phone.
When the download is complete, you can open or view the item,
or continue browsing for more content. The content type
determines where the item is stored in your phone: music can
be found in the Music hub, videos can be found in the Video hub,
games can be found in the Games hub, and apps can be found in
the apps menu.
3.19 Office
Microsoft Office Mobile
You can work through Microsoft Office Mobile when you
away from your office.
Go to the Office hub to create and edit Word documents and
Excel workbooks.
In the office hub, tap Office, you can create, view or edit
Microsoft Office documents.
Continue with a document on another device
When working on an Office document, tap > save
as.... > Save to > OneDrive. You can save your Office
document on OneDrive and continue your work on another
device.
You can now open the document from OneDrive on another
device and continue where you left off.
1.FCC Statement
19
1. This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including
interference that may cause undesired operation.
2. Changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority
to operate the equipment.
NOTE:
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation.
This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
20
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for
help.
SAR Information Statement
Your wireless phone is a radio transmitter and receiver. It is
designed and manufactured not to exceed the emission limits
for exposure to radiofrequency (RF) energy set by the Federal
Communications Commission of the U.S. Government. These
limits are part of comprehensive guidelines and establish
permitted levels of RF energy for the general population. The
guidelines are based on standards that were developed by
independent scientific organizations through periodic and
thorough evaluation of scientific studies. The standards include
a substantial safety margin designed to assure the safety of all
persons, regardless of age and health. The exposure standard
for wireless mobile phones employs a unit of measurement
known as the Specific Absorption Rate, or SAR. The SAR limit set
by the FCC is 1.6 W/kg. * Tests for SAR are conducted with the
phone transmitting at its highest certified power level in all
tested frequency bands. Although the SAR is determined at the
highest certified power level, the actual SAR level of the phone
21
while operating can be well below the maximum value. This is
because the phone is designed to operate at multiple power
levels so as to use only the power required to reach the network.
In general, the closer you are to a wireless base station antenna,
the lower the power output. Before a phone model is available
for sale to the public, it must be tested and certified to the FCC
that it does not exceed the limit established by the government
adopted requirement for safe exposure. The tests are
performed in positions and locations (e.g., at the ear and worn
on the body) as required by the FCC for each model. The highest
SAR value for this model phone when tested for use at the ear is
0.977W/Kg and when worn on the body, as described in this
user guide, is 0.704W/Kg(Body-worn measurements differ
among phone models, depending upon available accessories
and FCC requirements). The maximum scaled SAR in hotspot
mode is 0.574W/Kg. While there may be differences between
the SAR levels of various phones and at various positions, they
all meet the government requirement for safe exposure. The
FCC has granted an Equipment Authorization for this model
phone with all reported SAR levels evaluated as in compliance
with the FCC RF exposure guidelines. SAR information on this
model phone is on file with the FCC and can be found under the
Display Grant section of http://www.fcc.gov/ oet/fccid after
searching on
22
FCC ID: QRP-AZUMIA40W Additional information on Specific
Absorption Rates (SAR) can be found on the Cellular
Telecommunications Industry Asso-ciation (CTIA) web-site at
http://www.wow-com.com. * In the United States and Canada,
the SAR limit for mobile phones used by the public is 1.6
watts/kg (W/kg) averaged over one gram of tissue. The
standard incorporates a sub-stantial margin of safety to give
additional protection for the public and to account for any
variations in measurements.
Body-worn Operation
This device was tested for typical body-worn operations. To
comply with RF exposure requirements, a minimum separation
distance of 10mm must be maintained between the user’s body
and the handset, including the antenna. Third-party belt-clips,
holsters, and similar accessories used by this device should not
contain any metallic components. Body-worn accessories that
do not meet these requirements may not comply with RF
exposure requirements and should be avoided. Use only the
supplied or an approved antenna.

Navigation menu
