User manual
![](/img.php?id=2399800&img=bg1.png)
WELCOME
Congratulations on your purchase of the Azumi mobile phone. Your phone provides many functions which are
practical for daily use, such as a hands-free loudspeaker, camera, MP3 player, Ultra clear video , WIFI and GPS.
You can read the manual to understand how to use Azumi mobile phone and experience the well-established
functions and simple operation method. Please use the original accessory in order to achieve the best use of effects.
Azumi shall not be responsible for any damage in machinery due to use of non-original components.
![](/img.php?id=2399800&img=bg2.png)
YOUR PHONE-FRONT VIEW
YOUR PHONE-BACK VIEW
![](/img.php?id=2399800&img=bg3.png)

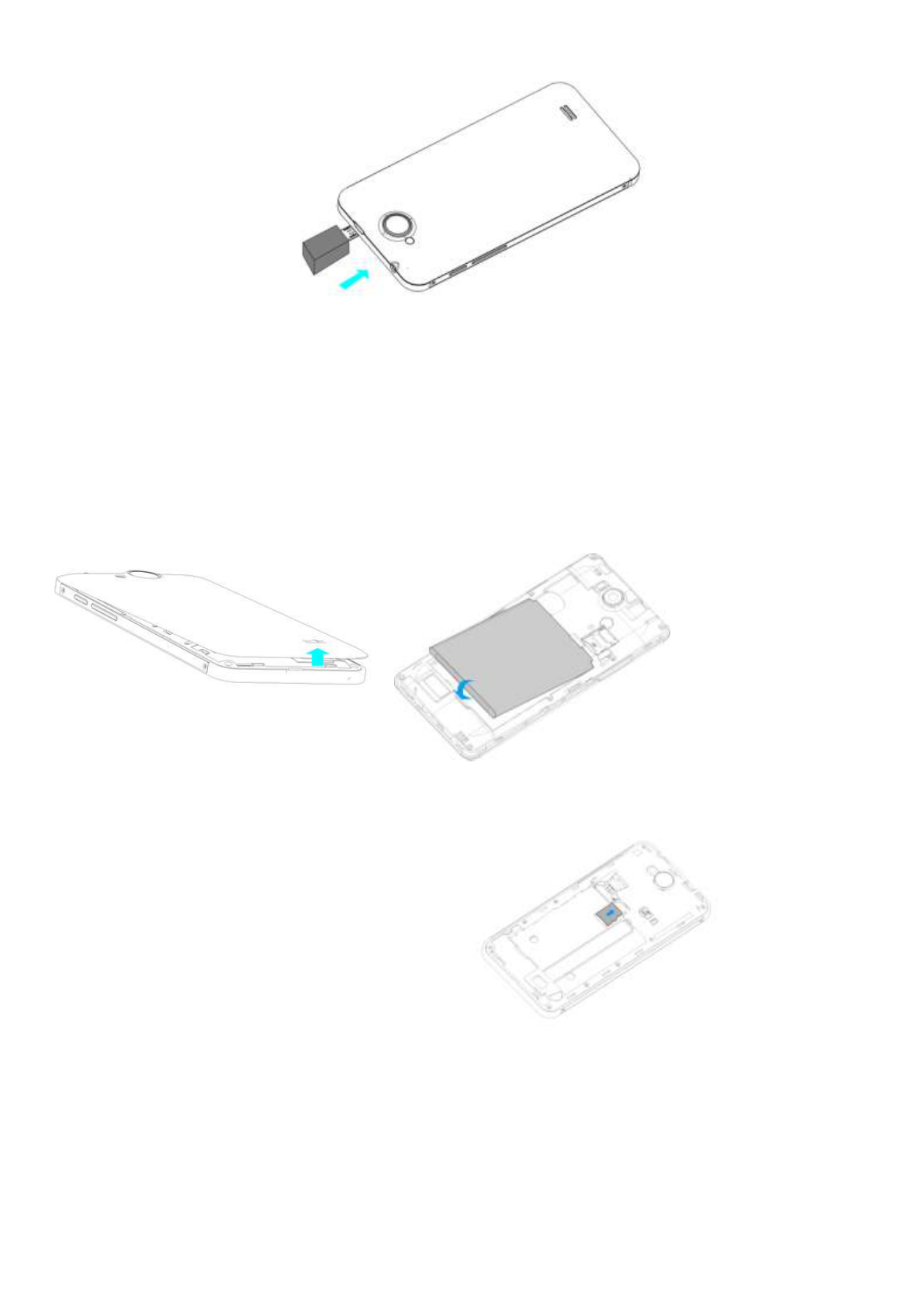

CHARGE THE BATTERY
Connect this end to phone’s USB port.
Tip:Be sure to charge your phone’s battery completely after inserting it in the phone for the first time.
INSERT SIM AND MicroSD CARD
Please insert the SIM card according to the label on the phone. Make sure that the clipped corner of the SIM card and
the metallic contacts are facing the correct direction. Slide the SIM card into the slot until it doesn't move up any
further.
On the right upper corner is the micro SD card slot. The direction in which the microSD card has to be inserted into
the designated slot is shown by an label on the phone.
Tip: For additional media storage insert a microSD card.
![](/img.php?id=2399800&img=bg4.png)

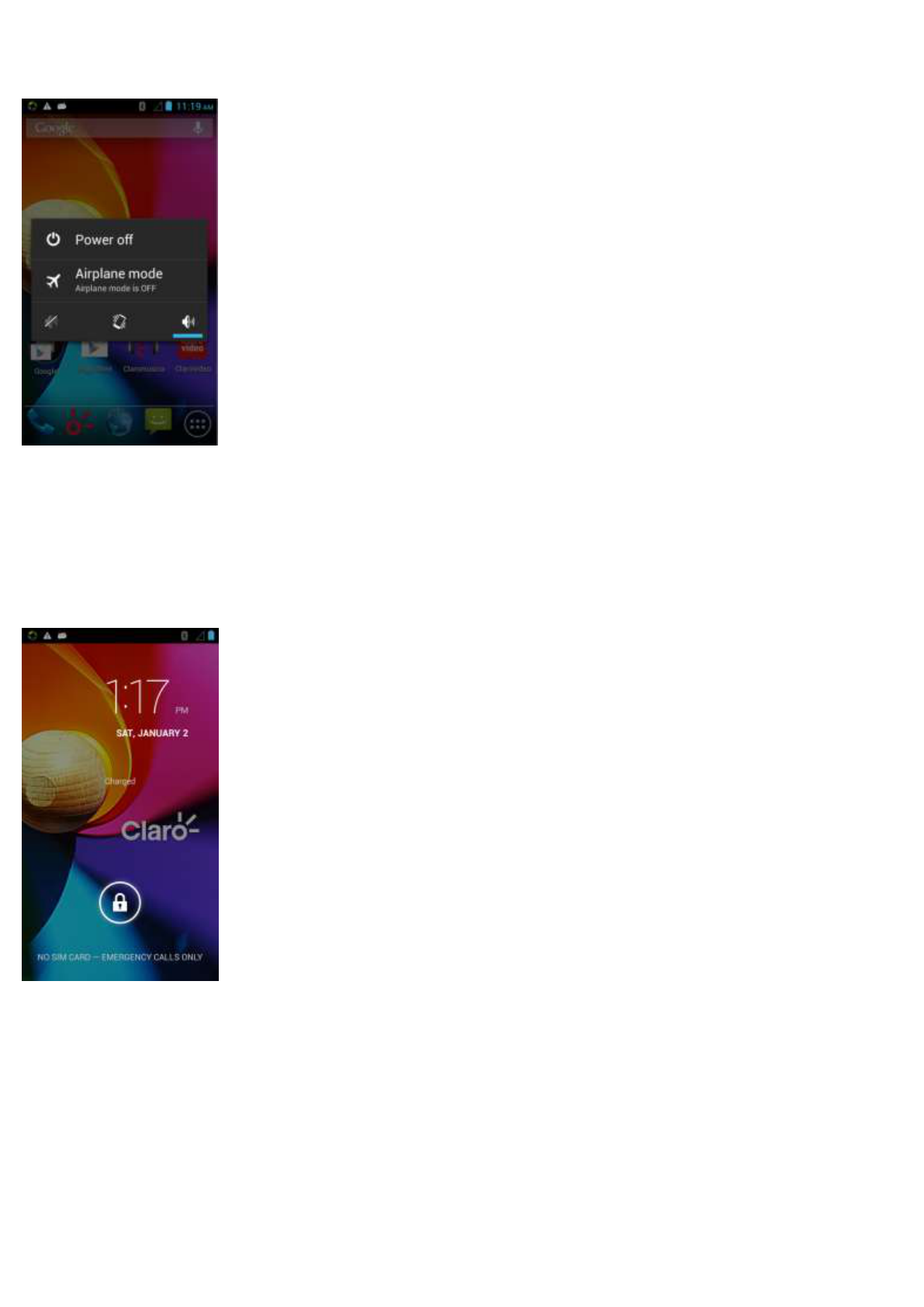

TURN THE PHONE ON& OFF
Hold down the power button to turn on/off the phone.
DIM LOCK & WAKE THE PHONE
When the power is on and you want to dim the screen, press the power button.
When the screen is dimmed
and you want to wake the
phone, press the power
button and then drag the
lock to the right.
![](/img.php?id=2399800&img=bg5.png)

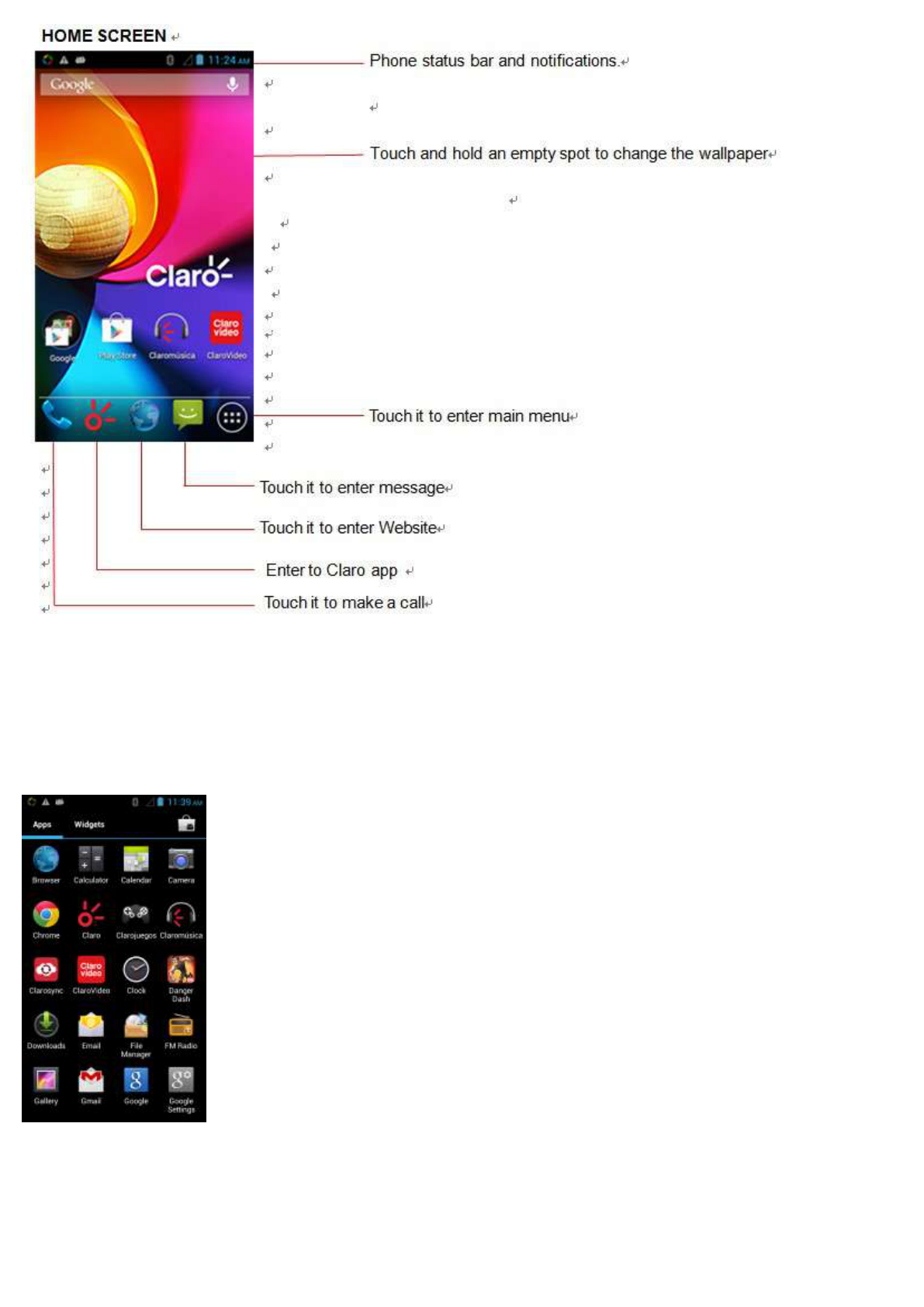

APPS
2.Touch an app to launch it
STATUS BAR
The status bar shows your phone’s status and notifications. (Notifications are described on the next page.)
Status icons
The following status icons may appear on your screen:
1.Touch it to enter app tray.
![](/img.php?id=2399800&img=bg6.png)
Icon
Statement
Icon
Statement
SIM Network signal level
Headset is inserted
Indicates battery capacity
Bluetooth is activated
Unread messages
Wi-Fi is connected
Missed calls
Airplane mode is activated
Alarm is activated
USB is connected
NOTIFICATION PANEL
The notification panel is your center for new events:like new e-mail,voicemail,updates,and more.
Drag down to display
notifications
Touch a notification to respond
MAKE & ANSWER A CALL
1.From the Hom screen.touch
2.Dial a number using the dial pad.
3.Touch to initiate the call
VOLUME CONTROL WHEN CALLING
![](/img.php?id=2399800&img=bg7.png)
Volume key is at the right side of the phone. During a conversation, you can press the volume key to tune the sound
volume.
SEND A TEXT
1. From the Home screen,touch
2. Touch
3. Touch the To field,then enter a recipient.
4. Touch the Type message field,then enter a message
5. Touch Send the message
ADDING EMAIL ACCOUNTS
The first time you open Email, you are prompted to set up an email account. After that, you can configure Email to
send and receive email from additional accounts.
To add an email account: Open the Accounts screen. Touch menu icon and touch Add
account. In the Setup Email screen, enter your email address and password. Touch Next. Or,
if you need to enter email account settings the wizard can’t configure for you, touch Manual
setup, you’re prompted to enter your email account details. Enter any other information
requested by the type of account you’re adding and touch Done. Enter a name for the
account and touch Done. Email starts downloading your email messages and you can start
using it to send and receive messages using the new account.
SETTINGS
Get to know the settings in your phone so that you can personalize them to your own requirements. Go to Settings to
configure how your phone looks, sounds, communication, privacy, and operations in a variety of ways:
Dual SIM settings
Set preferences on how you use SIMs inserted in your phone.
![](/img.php?id=2399800&img=bg8.png)
Wireless &
networks
Manage your wireless connections and connections settings. Let you
configure and manage connections to networks and devices by Using Wi-Fi,
Bluetooth, and mobile networks.
Call settings
Let you configure phone call settings, such as call forwarding, call barring, and
other special features offered by your carrier.
Audio profiles
Configure how your phone rings, vibrates, or alerts you in other ways when
you receive communications, etc.
Display
Let you set the screen brightness, select to switch orientation when you rotate
your phone, and configure other screen settings.
Location & Security
Set location preferences. Protect your phone by setting up different locks and
passwords.
Applications
Manage installed applications.
Accounts & sync
Let you add, remove and manage supported accounts.
Privacy
Let you manage your personal information, restore your settings and other
data when you install an application, and erase all of your personal data from
internal phone storage.
Storage
Let you check out available space on your phone’s internal storage and on
your T-Flash card.
Language & keyboard
Let you select the language for the text on your phone and for configuring the
onscreen keyboard.
Voice input & output
Configure the voice input feature to enter text by speaking.
Accessibility
Enable your installed accessibility applications and adjust related settings.
Data & time
Let you choose preferences such as format and time zones.
Timer Switch Machine
Schedule automatic powering on/off of the phone.
About phone
View information about your phone, such as system updates, status, and
battery use.
SET A RINGTONE
Press , select the profiles you want to set, you can customize the ringtone and volume of
incoming call, notification ringtone in this interface.
FM RADIO
1. Pull out the telescopic antenna or insert earphone, then Tap the Power icon to stop or play FM.
2. Tap the forward by 0.1 MHz or scroll the knob icon to change channel frequency. Press volume key to adjust the
volume.
3. Tap Auto search, Settings, Record and Favorites icon to adjust.
![](/img.php?id=2399800&img=bg9.png)
MUSIC PLAYER
Controls
Play/Pause
Touch /
Previous/Next
Touch /
Rewind/Forward
Touch and hold /
Volume adjust
Press side key
Now playing: Touch to open the current playlist.
Touch
Shuffle: Touch to shuffle the current playlist.
Touch
Repeat: Touch to repeat the current playlist; touch again to
repeat the current track.
Touch
TAKE A PICTURE
1. Launch the camera by pressing the camera icon on the home screen.
2.In the camera app,tape the screen to focus on a specific area.
3.Press the camera button all the way down to take a picture.
SHOOT A VIDEO
1. Press and hold the camera button until it vibrates then release.
2. In the Camera app,select video
3. Press the camera button to begin filming,and press again to stop filming.
USE AS MODEM VIA USB
You can connect your phone to a computer with a USB cable, to transfer music, pictures,
and other files between your phone’s SD card and the computer.
![](/img.php?id=2399800&img=bga.png)
CONNECT TO Wi-Fi NETWORKS
Wi-Fi is a wireless networking technology that can provide Internet access at distances of up to 100 meters,
depending on the Wi-Fi router and your surroundings.
Touch Settings>Wireless & networks > WLAN settings. Check Wi-Fi to turn it on. The phone scans for available Wi-Fi
networks and displays the names of those it finds. Secured networks are indicated with a Lock icon.
A45S
Corriente eléctrica encendido
200-550MA
Corriente eléctrica pantalla
120-190mA
Voltaje Pantalla
2.8V
Corriente eléctrica Llamada
180-280mA
Voltaje Llamada
3.6-4.2
Voltaje celular apagado
3.5V
Voltaje de teléfono
3.6-4.2V
Cargador de corriente
ca/cc
Entrada
100-240V 50/60HZ 150mA
Salida
5.0V 600mA
5.FCC Statement
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause undesired operation.
2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
![](/img.php?id=2399800&img=bgb.png)
SAR Information Statement
Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission
limits for exposure to radiofrequency (RF) energy set by the Federal Communications Commission of the U.S.
Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the
general population. The guidelines are based on standards that were developed by independent scientific
organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial
safety margin designed to assure the safety of all persons, regardless of age and health. The exposure standard for
wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR
limit set by the FCC is 1.6 W/kg. * Tests for SAR are conducted with the phone transmitting at its highest certified
power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the
actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is
designed to operate at multiple power levels so as to use only the power required to reach the network. In general,
the closer you are to a wireless base station antenna, the lower the power output. Before a phone model is available
for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit established by the
government adopted requirement for safe exposure. The tests are performed in positions and locations (e.g., at the
ear and worn on the body) as required by the FCC for each model. The highest SAR value for this model phone when
tested for use at the ear is 0.514W/Kg and when worn on the body, as described in this user guide, is
0.654W/Kg(Body-worn measurements differ among phone models, depending upon available accessories and FCC
requirements). The maximum scaled SAR in hotspot mode is 1.173W/Kg.While there may be differences between
the SAR levels of various phones and at various positions, they all meet the government requirement for safe
exposure. The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels
evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model phone is on file with
the FCC and can be found under the Display Grant section of http://www.fcc.gov/ oet/fccid after searching on
FCC ID:QRP-AZUMIA45S Additional information on Specific Absorption Rates (SAR) can be found on the Cellular
Telecommunications Industry Asso-ciation (CTIA) web-site at http://www.wow-com.com. * In the United States and
Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue.
The standard incorporates a sub-stantial margin of safety to give additional protection for the public and to account for
any variations in measurements.
Body-worn Operation
This device was tested for typical body-worn operations. To comply with RF exposure requirements, a minimum
separation distance of 10mm must be maintained between the user’s body and the handset, including the antenna.
Third-party belt-clips, holsters, and similar accessories used by this device should not contain any metallic
components. Body-worn accessories that do not meet these requirements may not comply with RF exposure
requirements and should be avoided. Use only the supplied or an approved antenna.
