Azumi S.A Mobile phone Keys definition
User manual
MOBILE PHONE
Please read this operation instruction carefully before use. Please keep this operation instruction
with care for future use.
SAFETY PRECAUTIONS
When using this unit, basic Safety Precautions should always be followed to reduce the risk of fire, electric
shock, or personal injury.
1. Read and understand all instructions.
2. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.
3. Do not use this unit near water such as bathtub, shower or pool. Immersion of this unit in water could
cause an electrical shock.
4. Place the unit securely on a stable surface. Serious damage and/or injury may result if the unit falls.
5. Do not cover slots and openings on the unit. They are provided for ventilation and protection against
overheating.
6. Install the unit in a place where nobody can walk on.
7. Never push any objects through slots in this unit. This may result in the risk of fire or electric shock. Never
spill any liquid on the unit.
8. To reduce the risk of electric shock, do not disassemble this unit. Take the unit to authorized service
center or qualified technician when service or repair work is required. Opening or removing covers may
expose you to dangerous voltages or other risks. Incorrect reassembly can cause electric shock when the
unit is subsequently used.
9. Do not expose the unit to extreme temperatures such as areas near a hot radiator or stove or in a hot car.
10. Do not place lighted objects such as candles, cigarettes on the unit.
11. Do not use this unit to report a gas leak in the vicinity of the leak.
WARNING:
To prevent the risk of fire or electrical shock, do not expose this unit to rain or any type of moisture.
MAIN FUNCTIONS
• Works with all operators (subscription or prepaid card)
• Big characters displayed on a backlit screen for a good readability
• Large keys with readable figures
• External 1.1inch LED screen to display time, coming calls, missed calls, and missed messages
• “SOS” button at the back of the phone = as soon as you press the key "SOS", the telephone will
alarm and call the recorded 3 numbers in sequence and send already set SOS message to all
numbers.
ENGLISH
• SMS function
• Speaking: announces number when you press key
• TF card memory support max. 4GB
• Phone book : 250 numbers
• FM radio
• Multimedia:MP3,MP4
• Calendar, calculator and clock with alarm
• Multi-languages
• Autonomy: 150-200 hours (depend on network) standby / 3-4 hours talk
• Flashlight function
Call
functions
Hands free Function YES
Speed Dialing YES
Call History YES
Call waiting YES
Call Restriction YES
Call Forward YES
Phone
Book
Capacity 250
Quick Search YES
Copy/Move between SIM
& Phone
YES
SMS Capability 150
Multiple Broadcast YES
MMS Support
GPRS Support
Settings Phone Language Multi-Language support
Security PIN YES
Others
Calculator YES
FM Radio YES
GPS NO
Torch YES
MP3,mp4 YES
Vibration alert YES
Camera YES
KEY DEFINITION
Key Function
Green Button
(top left)
Displays recent calls (from main menu)
Use as “ok” button to advance in menu options
Answers and connects calls.
Red Button
(Top Right)
Powers phone on / off
As Back button to quit menu options
Ends Calls
Arrow keys
(Top Middle)
Used for menu options by scrolling through ( up, down ).
Number Keys
Used for inputting numbers and characters.
Keys 2 - 9 and , can be used as speed dials for quick calling.
Speed Dial setting:
a) To Add new contact
Hold the desired number key and Set Number option will be shown. Press Green
Button to edit/choose the contact person. It has a condition that the contact person
should have already been input in your Phonebook.
b) To Edit/delete key for speed dials
Scroll the Arrow key to Settings, press Green Button, and then scroll the Arrow key to
Call setup option and choose Speed dial option to update the Set number. Scroll the
Arrow key & select number keys to edit.
Number Key “1” Number 1 for choosing, in the meanwhile, can be used for punctuation options by
scrolling when messaging,
Press the up side of this key, can make the volume louder
Press the down side of this key, can make the volume softer
Volume keys
FM
Long time press the up side of this key,then open FM, long time press again,FM will be
shut down
Flashlight
Long time press the down side of this key,then open Flashlight, long time press
again,Flashlight will be shut down
SOS key
It can be set in advance and make four emergency calls and text messages.
Emergency situations:
When the SOS button is pressed, the phone will issue a loud warning sound and
automatically send messages to the setting SOS phone numbers.
Emergency call Number setting:
Scroll the Arrow key to phone book, press Green Button, and then scroll the Arrow key
to SOS number option to update the emergency call numbers. Enter the call number &
it can be up to FIVE numbers.
Emergency call Text message setting:
Scroll
the Arrow key to Messages, press Green Button, and then scroll the Arrow key to
Emergency SMS option to update the emergency call text massage.
External screen
1.1 inch LED display screen:
Display the time, missed calls, coming calls, missed messaged.
Display the alarm icon when switching on alarm clock
SCREEN ICONS
ICONS MEANING
The battery
The reception status
Alarm
Unread messages
SMS is full
Missed calls
Sound off
Roaming
Keyboard lock
Insert headphones
START TO USE YOUR PHONE
1. Insert the SIM card: remove the battery-cover, then put your SIM card in.
2. Insert the memory card (max. 4GB) : remove the battery-cover, place the memory card.
3. Then install the battery correctly (see illustration above)

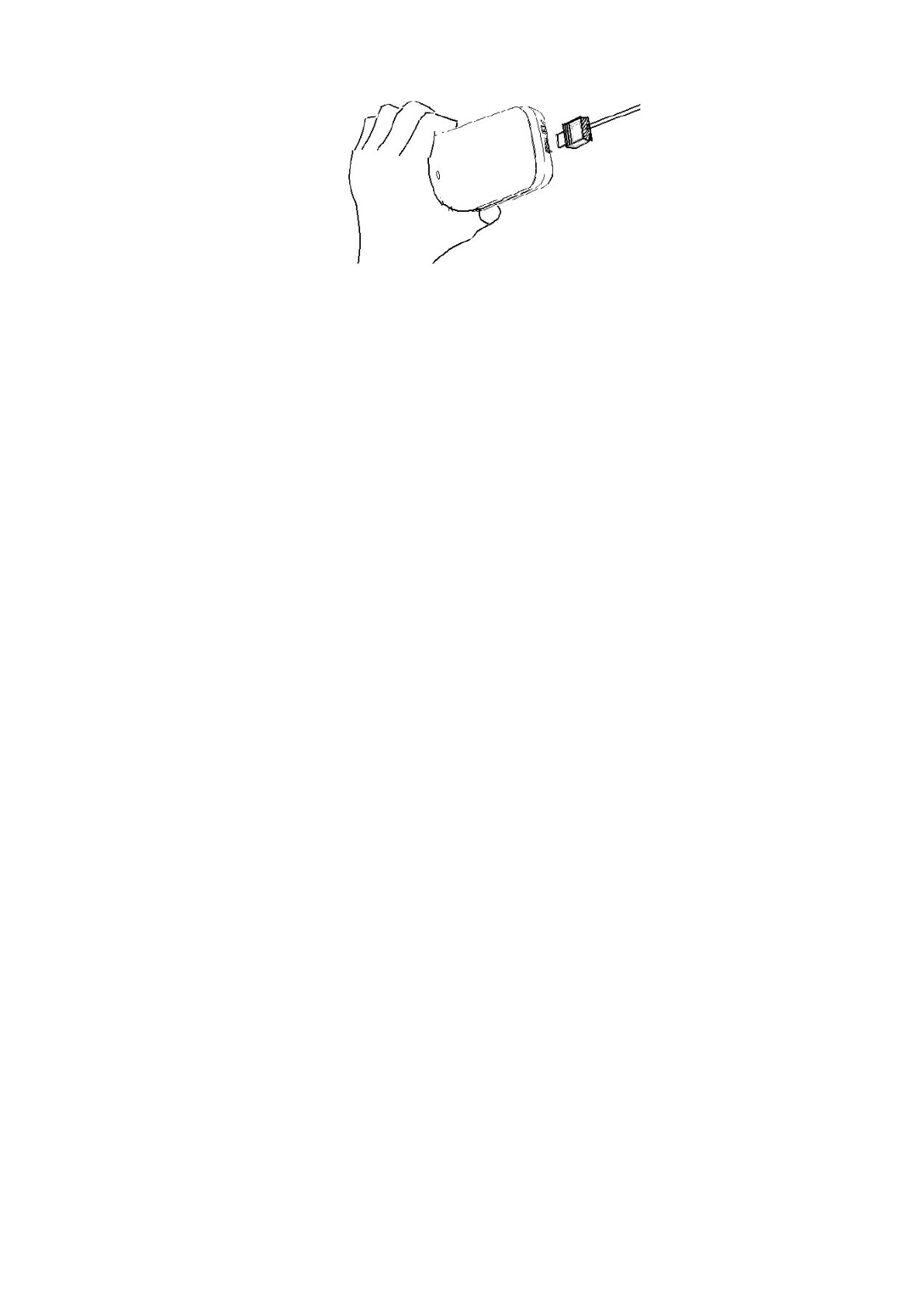

4. Charger
SIM1
SIM2
Add new contact to Phonebook
Scroll the Arrow key to phone book, press Green Button, and then scroll down to Add new contact. Press
Green Button to input Names and Numbers
Call Logs：
Enter into this menu to read the dialled calls, received calls, and Missed calls’ list.\
Messages:
Enter into this menu to read inbox’s messages, Write new messages, Outbox messages.
Number Key Speech
Press the number key, the number can be read as dialing（settings—silent model is off）
Key Sound Mode is ON(settings—phone setup—key sound)
Volume Time is ON (settings—phone setup—Volume)
Time Speech
Time can be read out each Hour if you have the following model setting: (Silent Mode is OFF)
Key Sound Mode is ON
Volume Time is ON
Time and date
Scroll the Arrow key to Settings, then to Phone setup option: you can set the time and date.
Language and Input method
To choose language display and message input method
Multimedia
Support MP3 function. Share the music after insert external T-flash card
Scroll the Arrow key to Settings, you can see multimedia, and enter into for listening and watching.
Alarm, Calculator
Scroll the Arrow key to Settings & then to Alarm option: you can set time for Alarm
Scroll the arrow key to settings, then calculator option: you can use calculator.
Change Ring tone
Scroll the Arrow Key to Settings, choose Phone Setup and find "User profiles" ---"General"---"Customize"---"Tone
setup"---"Incoming call" to choose the tone. Once you select the tone, e.g. MIDI 1,press the green button to confirm
done.
Restore factory settings
Press password 1122 to restore the default setting.
TECHNICAL SPECIFICATIONS
Band GSM850/1900 MHz
Dimension 99.5*50.5*20mm
Weight 80g (with battery)
LCD 2.2inch TFT 176*220
Standby Time 150-200 hours depend on network
Talk Time 3-5 hrs
Battery 800 mAH Li-ion / Voltage: 3.7V / Limited charge voltage : 4.2V
ACCESSORIES
Battery YES
Charger with
cable
YES
Cable NO
Earphone YES
USB cable NO
Wall charger NO
Manual YES
1.FCC Statement
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause undesired
operation.
2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
SAR Information Statement
Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the
emission limits for exposure to radiofrequency (RF) energy set by the Federal Communications Commission of the
U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy
for the general population. The guidelines are based on standards that were developed by independent scientific
organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial
safety margin designed to assure the safety of all persons, regardless of age and health. The exposure standard
for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The
SAR limit set by the FCC is 1.6 W/kg. * Tests for SAR are conducted with the phone transmitting at its highest
certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power
level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the
phone is designed to operate at multiple power levels so as to use only the power required to reach the network.
In general, the closer you are to a wireless base station antenna, the lower the power output. Before a phone
model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit
established by the government adopted requirement for safe exposure. The tests are performed in positions and
locations (e.g., at the ear and worn on the body) as required by the FCC for each model. The highest SAR value
for this model phone when tested for use at the ear is 1.38W/Kg and when worn on the body, as described in this
user guide, is 0.381W/Kg(Body-worn measurements differ among phone models, depending upon available
accessories and FCC requirements). While there may be differences between the SAR levels of various phones
and at various positions, they all meet the government requirement for safe exposure. The FCC has granted an
Equipment Authorization for this model phone with all reported SAR levels evaluated as in compliance with the
FCC RF exposure guidelines. SAR information on this model phone is on file with the FCC and can be found under
the Display Grant section of http://www.fcc.gov/ oet/fccid after searching on
FCC ID: QRP-AZUMIAC24 Additional information on Specific Absorption Rates (SAR) can be found on the
Cellular Telecommunications Industry Asso-ciation (CTIA) web-site at http://www.wow-com.com. * In the United
States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one
gram of tissue. The standard incorporates a sub-stantial margin of safety to give additional protection for the
public and to account for any variations in measurements.
Body-worn Operation
This device was tested for typical body-worn operations. To comply with RF exposure requirements, a minimum
separation distance of 15mm must be maintained between the user’s body and the handset, including the
antenna. Third-party belt-clips, holsters, and similar accessories used by this device should not contain any
metallic components. Body-worn accessories that do not meet these requirements may not comply with RF
exposure requirements and should be avoided. Use only the supplied or an approved antenna.
