User manual
User manual
Product Name: Mobile Phone
Trade Mark: -
Model: IRO A55 Q Pro
WELCOME
Congratulations on the purchase of your Azumi
Mobile phone. Your phone provides many functions
which are practical for daily use, such as a
hands-free loudspeaker, camera, MP3 player and
ultra clear video
You can read the manual to understand how to use
your Azumi mobile phone and experience the
well-established functions and simple operation
method. Please use the original accessoriesy in order
to achieve the best use of your device. Azumi shall
not be responsible for any damage in machinery due
to use of non-original components.
Precautions for users
Before using your Azumi handset, it is important
that all users read the following recommendations:
• Do not wet your Azumi phone
• Use only authorized parts
• Do not open the housing of the phone.
• If the phone or any accessory is not working
properly, take it to a qualified service center.
• Using the stereo headphones or earphones for a
long time (at high volume),it can cause serious
damage to your hearing.
• Do not use the phone while it is charging.
• In extreme heat or cold: Avoid temperatures
below -10 ° C / 14 ° F or above 40 ° C / 104 ° F.
Note: Remember to visit our website
www.azumi-mobile.com and our Facebook page
www.facebook.com/AzumiMobile if you have
questions. Our Team is always available to answer
your queries.

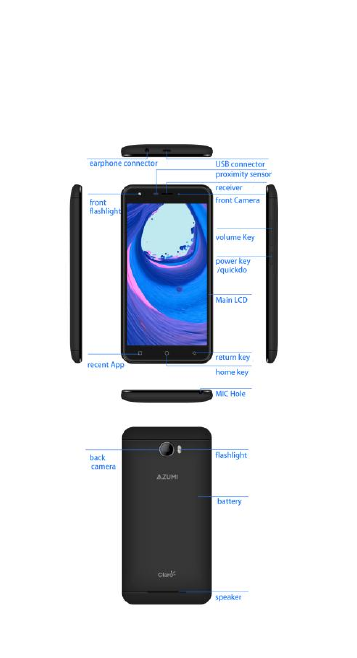

YOUR PHONE FUNCTIONS

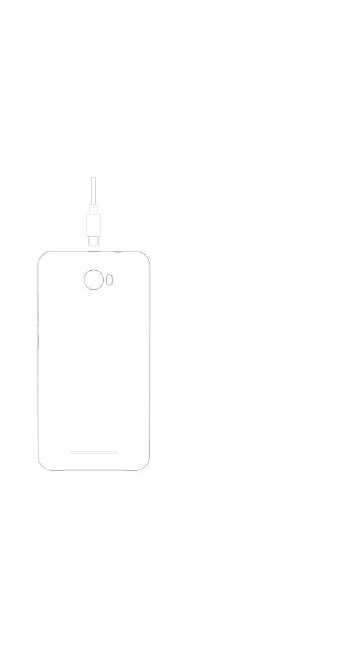

CHARGE THE BATTERY
Connect this end to phone’s USB port.
Tip: Charge the battery before using it for the first
time. Use only AZUMI approved chargers, batteries
and cables.

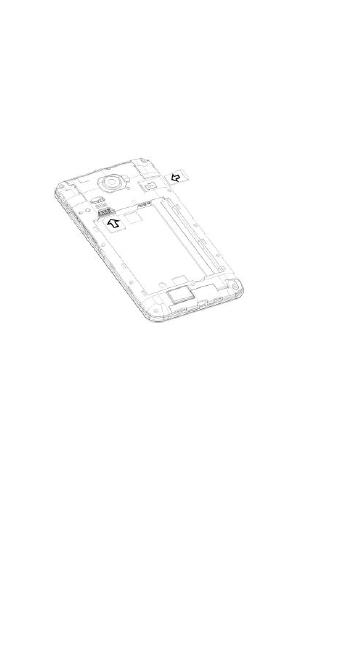

INSERT SIM AND Micro SD CARD
Please insert the SIM card according to the label on the
phone. Make sure that the clipped corner of the SIM
card and the metallic contacts are facing the correct
direction. Slide the SIM card into the slot until it doesn't
move up any further.

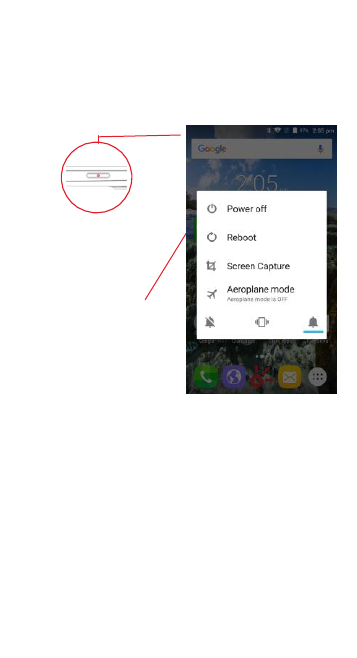

TURNING THE PHONE ON& OFF
Hold down the power
button to turn the phone
on.
Hold down the power
button, then touch Power
off to turn the phone off

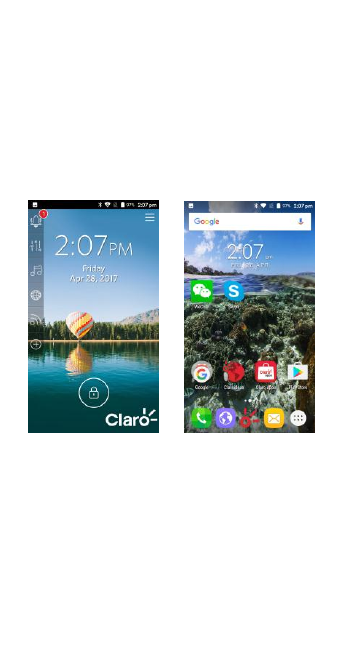

DIM, LOCK & WAKING THE PHONE
When the power is on and you want to dim the screen,
press the power button.
When the screen is dimmed and you want to wake the
phone, press the power button and then drag the lock
right.
HOME SCREEN
Phone status bar and
notifications
Touch and hold an
empty spot to change
the wallpaper
Slide left or right
to see more panels
Touch it to main menu
Touch it to enter messages
Touch it to enter Claro app
Touch it to enter web
Touch it to enter dial pad interface
APPS
1. Touch it to enter app tray.
2. Touch an app to launch it
STATUS BAR
The status bar shows your phone’s status and
notifications. (Notifications are described on the next
page.)
Notification icons Status icons
Status icons
The following status icons may appear on your
screen:
Icon
Statement
Icon
Statement
SIM
Network
signal level
Headset is
inserted
Indicates
battery
capacity
Bluetooth is
activated
Unread
messages
Wi-Fi is
connected
Missed calls
Airplane
mode is
activated
Alarm is
activated
USB is
connected
NOTIFICATION PANEL
The notification panel is your center for new events: like
new e-mail, voicemail, updates, and more.
Drag down to display notifications
Touch a notification to respond
MAKE & ANSWER A CALL
1. From the Home screen, touch
2. Touch to show the dial pad.
3. Dial a number,then touch to
initiate the call.
Answer a call
Drag to right
Decline a call
Drag to left
VOLUME CONTROL WHEN CALLING
Volume key is at the left side of the phone. During a
conversation, you can press the volume key to tune the
sound volume.
SEND A TEXT
1. From the Home screen, touch
2. Touch
3. Touch the ‘To’ field, then enter a recipient.
4. Touch the Type message field, then enter a message
5. Touch Send the message

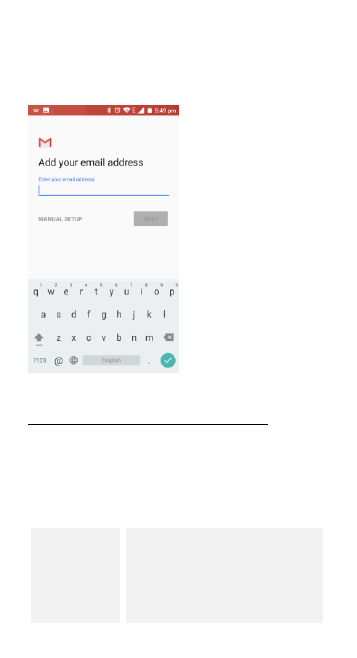

ADDING EMAIL ACCOUNTS
The first time you open Email, you are prompted to set
up an email account. After that, you can configure Email
to send and receive email from additional accounts.
To add an email account:
1) Tap the e-mail icon. In Your account interface, tap
Next. In e-mail address option, enter your e-mail
address. In password option, → enter your e-mail
password. Tap Next.
2) Filling the email address and password, tap next to
setup email
3) Tap next to enter your email.
SETTINGS
The settings for various features of the phone
Get to know the settings your phone so that you can
personalize them to your own requirements. Go to
Settings to configure how your phone looks, sounds,
communication, privacy, and operations in a variety of
ways:
Wi_Fi
You can use Wireless & Network
settings to manage your SIM card,
configure and manage
connections to networks and
devices by using Wi-Fi. You can
can set Bluetooth, data usage,
airplane mode, VPN, tethering &
portable hotspot and mobile
networks in this interface.
Audio
profiles
There are four profiles: General,
Silent, Meeting and Outdoor. You
can set the profiles according to
different conditions.
Display
You can set Wallpapers,
Auto-rotate screen, Brightness,
Daydream, wireless display, Sleep
and Font size in this interface.
Storage
Use the Storage settings to
monitor the used and available
space on your phone and on your
SD card and to manage your SD
card.
Battery
You can view your battery status,
battery level and battery use in
this interface.
Apps
You can use the Applications
settings to view details about the
applications installed on your
phone, to manage their data and
force them to stop, to view and
control services, that are
currently running ,and to view the
storage used by applications, etc.
Location
You can turn on Wi-Fi & mobile
network location, GPS satellites,
etc through this function.
Security
You can set the parameters
related to security through this
function.
Language &
input
Use the Language & Keyboard
settings to select the language for
the text on your phone and for
configuring the input method.
Backup &
reset
You can backup your data and
reset your phone in this interface.
Add account
You should add an account first
before using this function.
Data & time
You can use Date & Time settings
to set your preferences for how
dates are displayed. You can also
use these settings to set your own
time and time zone, rather than
obtaining the current time from
the network, etc.
Schedule
power
on&off
You should set a certain time, at
which the phone would power
on/off automatically.
Accessibility
Enable your installed accessibility
applications and adjust related
settings.
About phone
This function enables you to view
some phone related information.
SET A RINGTONE
Press Sound¬ification, select the
profiles you want to set, you can customize the ringtone
and volume of incoming call, notification ringtone in
this interface.
MULTIMEDIA
listen, watch, capture and enjoy it!
FM RADIO
1.Insert earphone, then Tap the Power icon to stop or
play FM.
2. Tap the forward by 0.1 MHz or scroll the knob icon to
change channel frequency. Press volume key to adjust
the volume.
3. Tap Auto search, Record and Favorites icon to adjust.
MUSIC
Controls
Play/Pause
Touch /
Previous/Next
Touch /
Rewind/Forward
Touch the Progress
bar bar
Volume adjust
Press side key
Now playing: Touch to
open the current playlist.
Touch
Shuffle: Touch to shuffle
the current playlist.
Touch
Repeat: Touch to repeat
the current playlist; touch
again to repeat the
current track.
Touch
Camera
1. Launch the camera by pressing the camera icon on
the home screen
2. In the camera app, tap the screen to focus on a
specific area.
3. Press the camera button all the way down to take a
picture.
SHOOT A VIDEO
1. Press the camera icon
2. In the Camera app, select video
3. Press the camera button to begin filming and press
again to stop filming.
Calculator
1. Launch the calculator by pressing the calculator icon
on the home screen.
2. In the calculator app, enter numbers and arithmetic
operators on the basic screen.
Calendar
You can use the calendar to keep track of important
events. After entering the calendar function menu you
can select year, month and date. Slide the Calendar
screen up and down to switch month.
Sound Recorder
Use this function to record audio files. Two function
icons at the bottom of the Recorder screen are
corresponding to start recording and review recorded
file.
Clock
The clock allows you to view time and date. You can also
add an alarm, set the alarm and turn it on. Then, the
alarm can ring at a specific time you set.
Gallery
Both pictures and videos taken by camera or stored in
SD card can be scanned through this function.

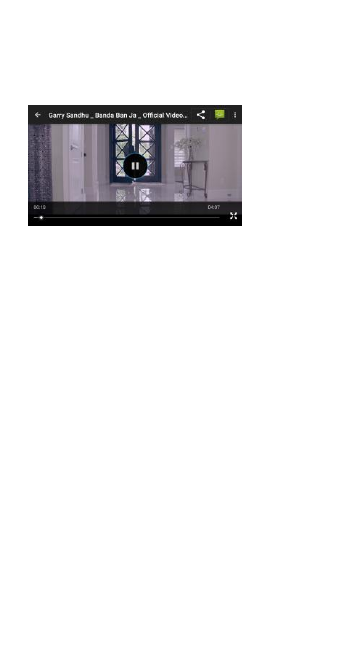

Video player
With Videos, you can play video clips in your device (for
example, the video you captured by the camera) or
video files stored in compatible SD card (if inserted)
SIM1 Toolkit
STK features are provided by your service provider. If
your SIM card supports STK features, you will see the
STK menu. Different STK’s have a different STK main
menu. Please contact your service provider if the STK
does not work.
Browser
To let you browse the Internet.
File Manager
This phone supports an SD card. You can use the File
Explorer to conveniently manage various directories and
files on the SD card.

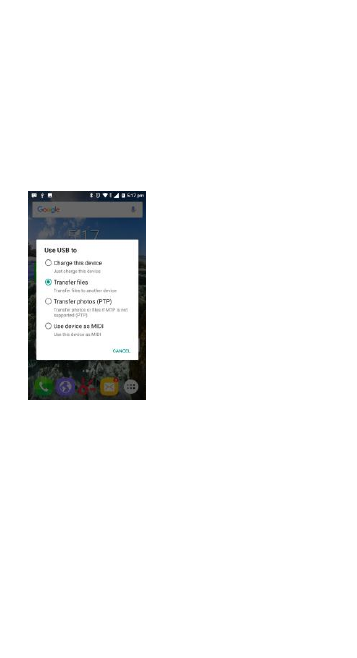

USE AS MODEM VIA USB
You can connect your phone to a computer with a USB
cable, to transfer music, pictures, and other files
between your phone’s SD card and the computer.

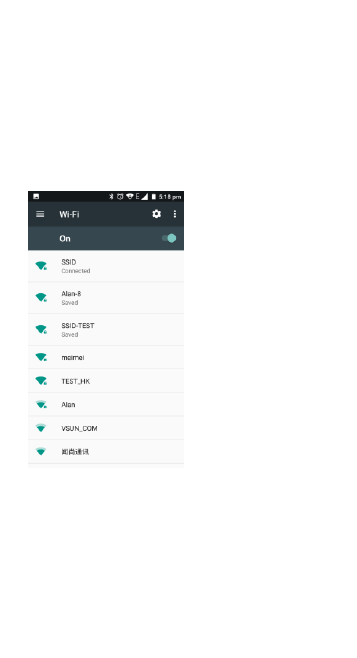

CONNECT TO Wi-Fi NETWORKS
Wi-Fi is a wireless networking technology that can
provide Internet access at distances of up to 50 meters,
depending on the Wi-Fi router and your surroundings.
Touch Settings> WI-FI . Check Wi-Fi to turn it on. The
phone scans for available Wi-Fi networks and displays
the names of those it finds. Secured networks are
indicated with a Lock icon.
FCC Caution
§ 15.19 Labelling requirements.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2)
this device must accept any interference received,
including interference that may cause undesired
operation.
§ 15.21 Information to user.
Any Changes or modifications not expressly approved by
the party responsible for compliance could void the
user's authority to operate the equipment.
§ 15.105 Information to the user.
Note: This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and
receiver.
-Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV
technician for help.
Specific Absorption Rate (SAR) information:
This Mobile Phone meets the government's
requirements for exposure to radio waves. The
guidelines are based on standards that were developed
by independent scientific organizations through periodic
and thorough evaluation of scientific studies. The
standards include a substantial safety margin designed
to assure the safety of all persons regardless of age or
health.
FCC RF Exposure Information and Statement The SAR
limit of USA (FCC) is 1.6 W/kg averaged over one gram
of tissue. Device types: Mobile Phone (FCC ID:
QRP-AZUMIIROA55QP) has also been tested against this
SAR limit. This device was tested for typical body-worn
operations with the back of the handset kept 10mm for
body worn and 10mm for hotspot. To maintain
compliance with FCC RF exposure requirements, use
accessories that maintain a 10mm for body worn and
10mm for hotspot. The use of belt clips, holsters and
similar accessories should not contain metallic
components in its assembly. The use of accessories that
do not satisfy these requirements may not comply with
FCC RF exposure requirements, and should be avoided.
Body-worn Operation
This device was tested for typical body-worn operations.
To comply with RF exposure requirements, a minimum
separation distance of 10mm for body worn and 10mm
for hotspot must be maintained between the user’s
body and the handset, including the antenna.
Third-party belt-clips, holsters, and similar accessories
used by this device should not contain any metallic
components. Body-worn accessories that do not meet
these requirements may not comply with RF exposure
requirements and should be avoided. Use only the
supplied or an approved antenna.
