User Manual

User Guide

IRO A5QL V2

WELCOME



 CongratulationsonyourpurchaseoftheAzumi

mobilephone.Yourphoneprovidesmanyfunctions

whicharepracticalfordailyuse,suchasa

hands‐freeloudspeaker,camera,MP3player,Ultra

clearvideo



 Youcanreadthemanualtounderstandhowtouse

Azumimobilephoneandexperiencethe

well‐establishedfunctionsandsimpleoperation

method.Pleaseusetheoriginalaccessoryinorderto

achievethebestuseofeffects.Azumishallnotbe

responsibleforanydamageinmachineryduetouse

ofnon‐originalcomponents.



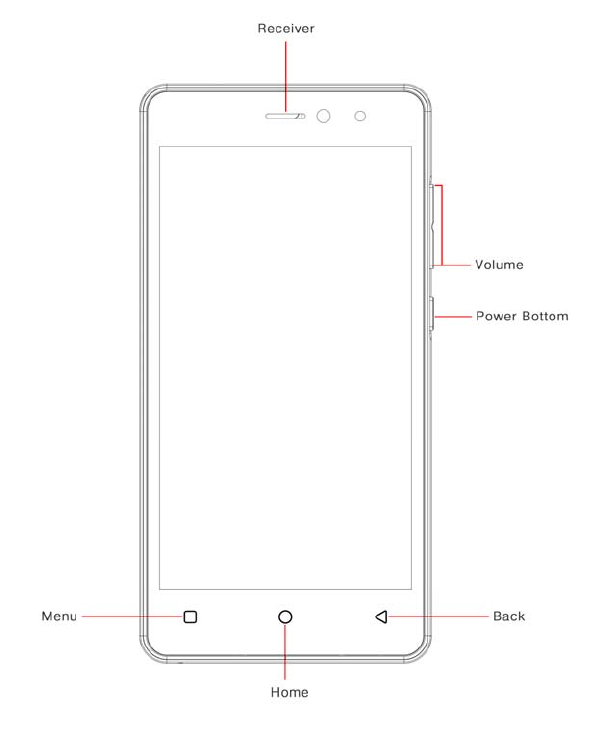

YOURPHONE‐FRONTVIEW



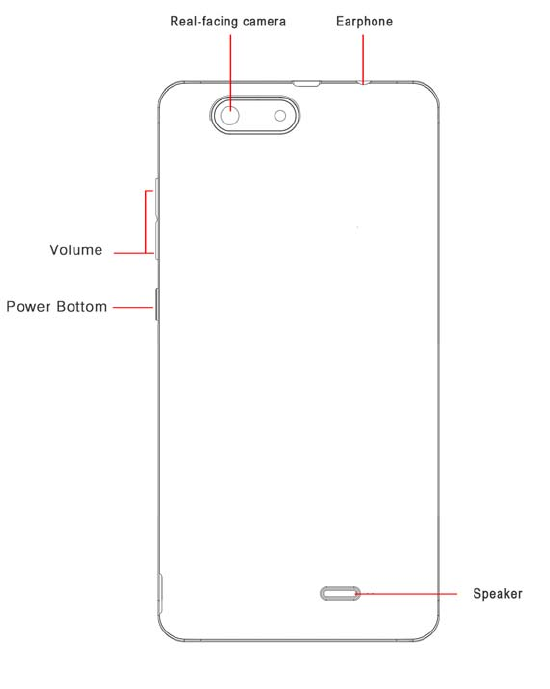

YOURPHONE‐BACKVIEW



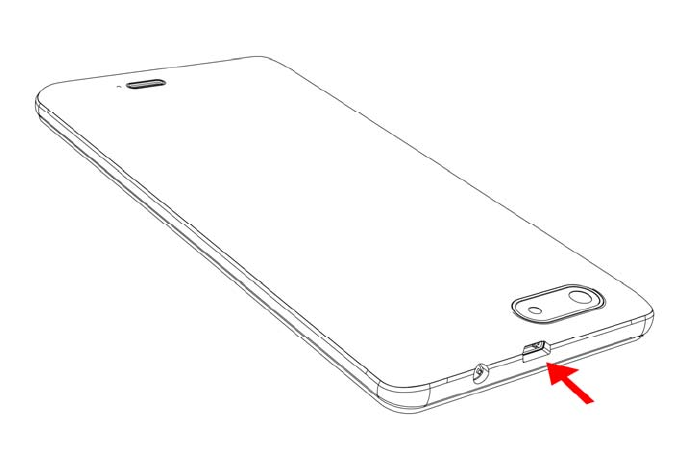

CHARGETHEBATTERY







Connectthisendtophone’sUSBport.



Tip:Besuretochargeyourphone’sbatterycompletely

afterinsertingitinthephoneforthefirsttime.



INSERTSIMANDMicroSDCARD



PleaseinserttheSIMcard(s)accordingtothelabelon

thephone.Makesurethattheclippedcornerofthe

SIMcardandthemetalliccontactsarefacingthe

correctdirection.SlidetheSIMcardintotheslotuntilit

doesn'tmoveupanyfurther.



MicroSDcardslotisabovetheSIMcardslot.The

directioninwhichthemicroSDcardhastobeinserted

intothedesignatedslotisshownbyalabelonthe

phone.



Tip:ForadditionalmediastorageinsertamicroSDcard.





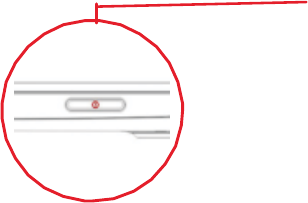

TURNTHEPHONEON&OFF



Holddownthepower

buttontoturnthephone

on.



Holddownthepower

button,thentouchPower

offtoturnthephoneoff



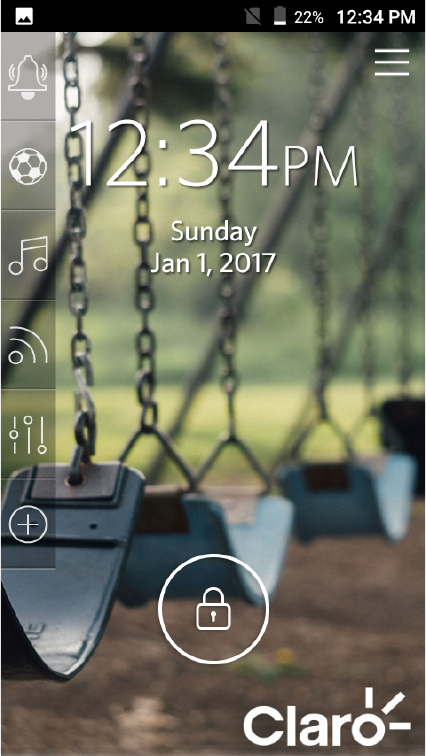

DIMLOCK&WAKETHEPHONE

Whenthepowerisonandyouwanttodimthescreen,

pressthepowerbutton.



Whenthescreenisdimmedandyouwanttowakethe

phone,pressthepowerbuttonandthendragthelock

totheright



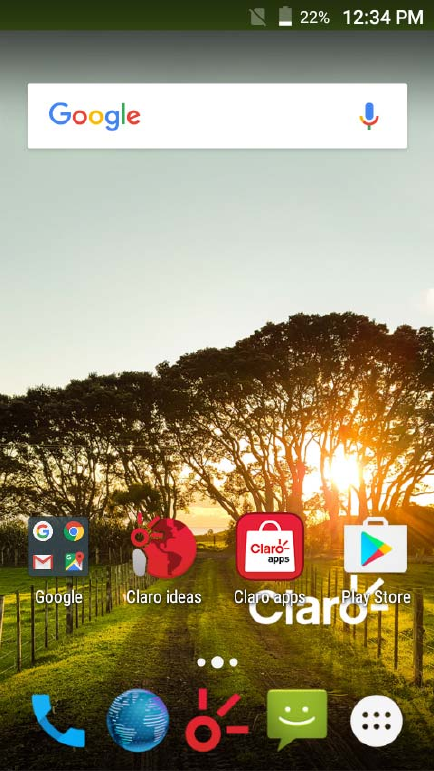

HOMESCREEN

Phonestatusbarand

notifications



Touchandholdan

emptyspottochange

thewallpaper











Touchittomainmenu

Touchittoentermessage

TouchittoClaro

TTouchittoenterweb

Touchittoenterdialpadinterface



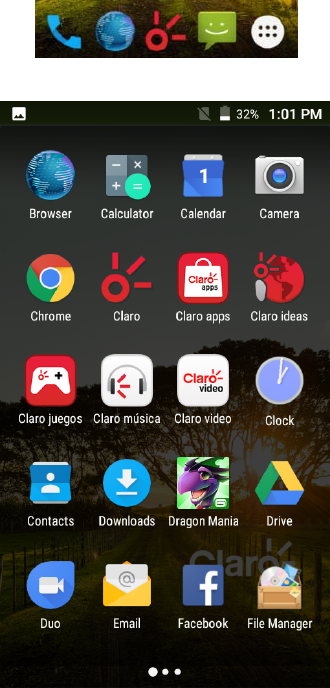

APPS

1.Touchittoenterapptray.



2.Touchanapptolaunchit



STATUSBAR

Thestatusbarshowsyourphone’sstatusand

notifications.(Notificationsaredescribedonthenext

page.)

NotificationiconsStatusicons



Statusicons

Thefollowingstatusiconsmayappearonyour

screen:

IconStatementIconStatement



SIM

Network

signallevel

Headsetis

inserted



Indicates

battery

capacity

Bluetoothis

activated



Unread

messages

Wi‐Fiis

connected

Missedcalls

Airplane

modeis

activated



Alarmis

activated

USBis

connected



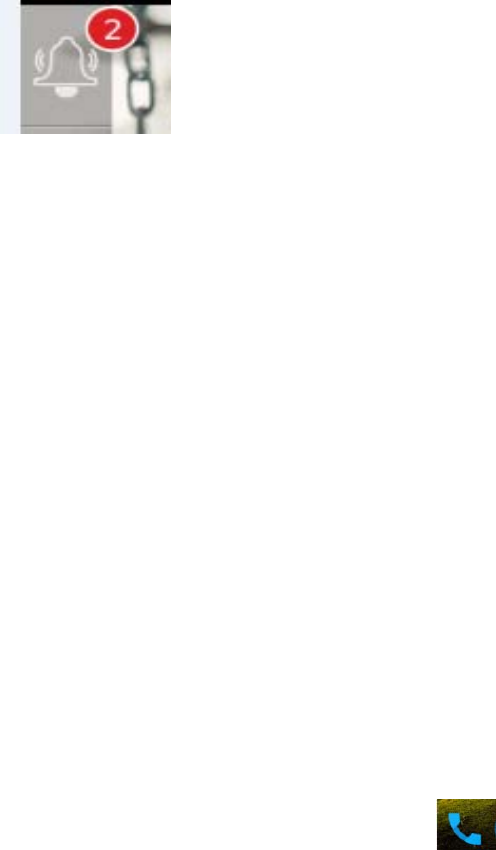

NOTIFICATIONPANEL



Thenotificationpanelisyourcenterfornewevents:like

newe‐mail,voicemail,updates,andmore.



Dragrighttodisplaynotifications



Touchanotificationtorespond



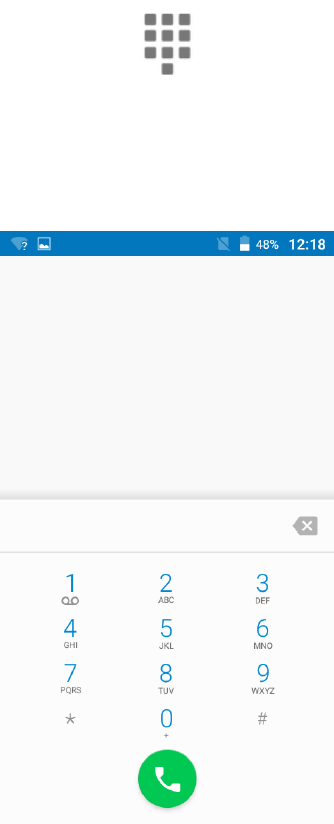

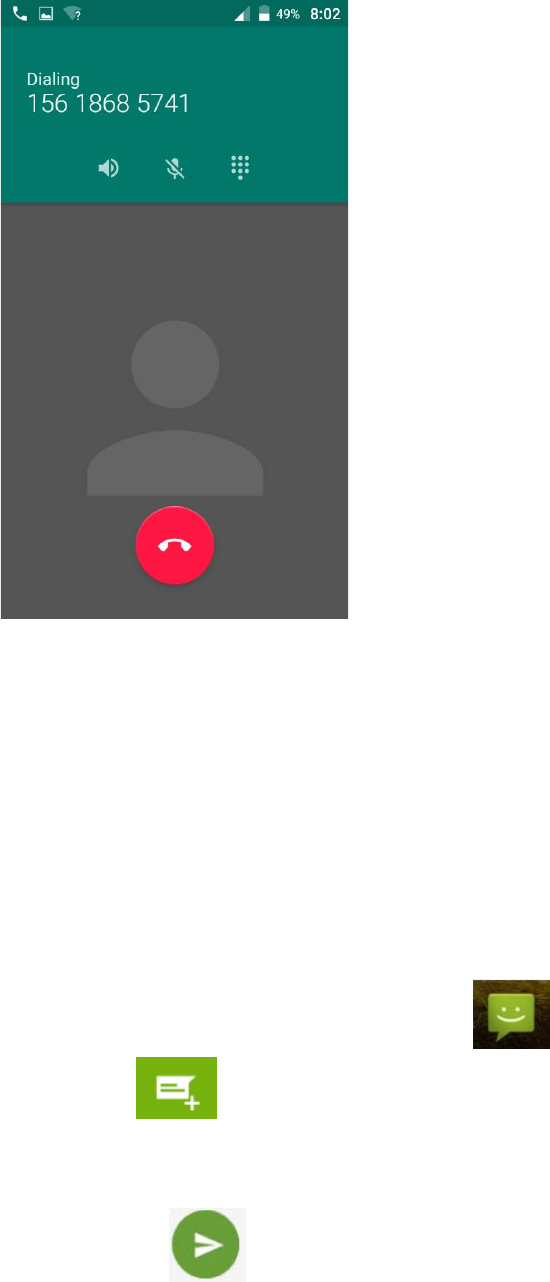

MAKE&ANSWERACALL

1.FromtheHomescreen,touch 

2.Touch,

Dialanumberusingthedialpad.

3.Touchtoinitiatethecall



Answeracall

Drag

Declineacall

Drag

VOLUMECONTROLWHENCALLING

Volumekeyisattheleftsideofthephone.Duringa

conversation,youcanpressthevolumekeytotunethe

soundvolume.



SENDATEXT

1. FromtheHomescreen,touch 

2. Touch

3. TouchtheTofield,thenenterarecipient.

4. TouchtheTypemessagefield,thenenteramessage

5. Touch Sendthemessage

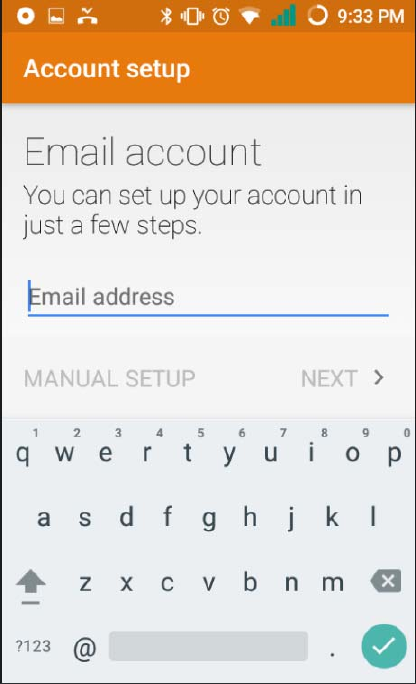

ADDINGEMAILACCOUNTS

ThefirsttimeyouopenEmail,youarepromptedtoset

upanemailaccount.Afterthat,youcanconfigureEmail

tosendandreceiveemailfromadditionalaccounts.

Toaddanemailaccount:

1)Tapthee‐mailicon.InYouraccountinterface,tap

Next.Ine‐mailaddressoption,enteryoure‐mail

address.Inpasswordopon,→enteryoure‐mail

password.TapNext.

2)Fillingtheemailaddressandpassword,tapnextto

setupemail

3)Tapnexttoenteryouremail.



SETTINGS

thesettingsforvariousfeaturesofthephone



Gettoknowthesettingsinyourphonesothatyoucan

personalizethemtoyourownrequirements.Goto

Settingstoconfigurehowyourphonelooks,sounds,

communication,privacy,andoperationsinavarietyof

ways:

Wi_Fi



YoucanuseWireless&Network

settingstomanageyourSIMcard,

configureandmanage

connectionstonetworksand

devicesbyusingWi‐Fi.Youalso

cansetBluetooth,datausage,

airplanemode,VPN,tethering&

portablehotspotandmobile

networksinthisinterface.

SoundYoucanadjustthevolumeand

changetheringtone

Display

YoucansetWallpaper,

Auto‐rotatescreen,Brightness,

Daydream,wirelessdisplay,Sleep

andFontsizeinthisinterface.

Storage

UsetheStoragesettingsto

monitortheusedandavailable

spaceonyourphoneandonyour

SDcardandtomanageyourSD

card.

Battery

Youcanviewyourbatterystatus,

batterylevelandbatteryusein

thisinterface.

Apps

YoucanusetheApplications

settingstoviewdetailsaboutthe

applicationsinstalledonyour

phone,tomanagetheirdataand

forcethemtostop,toviewand

controlcurrentlyrunningservices,

andtoviewthestorageusedby

applications,etc.

Location

YoucanturnonWi‐Fi&mobile

networklocation,GPSsatellites,

etcthroughthisfunction.

SecurityYoucansettheparametersabout

securitythroughthisfunction.

Language&

input

UsetheLanguage&Keyboard

settingstoselectthelanguagefor

thetextonyourphoneandfor

configuringtheinputmethod.

Backup&

reset

Youcanbackupyourdataand

resetyourphoneinthisinterface.

AccountsYoushouldaddaccountfirst

beforeusingthisfunction.

Data&time

YoucanuseDate&Timesettings

tosetyourpreferencesforhow

datesaredisplayed.Youcanalso

usethesesettingstosetyourown

timeandtimezone,ratherthan

obtainingthecurrenttimefrom

thenetwork,etc.

Schedule

power

on&off

Youshouldsetacertaintime,

whenthetimearrive,thephone

wouldpoweron/off

automatically.

Accessibility

Enableyourinstalledaccessibility

applicationsandadjustrelated

settings.

AboutphoneThisfunctionenablesyoutoview

somephonerelatedinformation.



SETARINGTONE

Press Sound,selecttheprofilesyou

wanttoset,youcancustomizetheringtoneandvolume

ofincomingcall,notificationringtoneinthisinterface.



MULTIMEDIA

listenit,watchit,captureit,enjoyit!



FMRADIO

1.Pulloutthetelescopicantennaorinsertearphone,

thenTapthePowericontostoporplayFM.

2.Taptheforwardby0.1MHzorscrolltheknobiconto

changechannelfrequency.Pressvolumekeytoadjust

thevolume.

3.TapAutosearch,RecordandFavoritesicontoadjust.



MUSIC



Controls

Play/PauseTouch/

Previous/NextTouch /

Rewind/Forward

Touchandhold

/

VolumeadjustPresssidekey

Nowplaying:Touchto

openthecurrentplaylist.Touch 

Shuffle:Touchtoshuffle

thecurrentplaylist.Touch 

Repeat:Touchtorepeat

thecurrentplaylist;touch

againtorepeatthe

currenttrack.

Touch 



Camera

1.Launchthecamerabypressingthecameraiconon

thehomescreen

2.Inthecameraapp,tapthescreentofocusona

specificarea.

3.Pressthecamerabuttonallthewaydowntotakea

picture.



SHOOTAVIDEO

1. Pressandholdthecamerabuttonuntilitvibrates

thenrelease.

2. IntheCameraapp,selectvideo

3. Pressthecamerabuttontobeginfilmingandpress

againtostopfilming.



Calculator

1.Launchthecalculatorbypressingthecalculatoricon

onthehomescreen.

2.Inthecalculatorapp,enternumbersandarithmetic

operatorsonthebasicscreen.



Calendar

Youcanusethecalendartokeeptrackofimportant

events.Afterenteringthecalendarfunctionmenuyou

canselectyear,monthanddate.SlidetheCalendar

screenupanddowntoswitchmonth.



SoundRecorder

Usethisfunctiontorecordaudiofiles.Twofunction

iconsatthebottomoftheRecorderscreenare

correspondingtostartrecordingandreviewrecordfile.



Clock

Theclockallowsyoutoviewtimeanddate.Youcanalso

addanalarm,setthealarmandturniton.Then,the

alarmcanringataspecifictimeyouset.



Gallery

Bothpicturesandvideostakenbycameraorstoredin

SDcardcanbescannedthroughthisfunction.



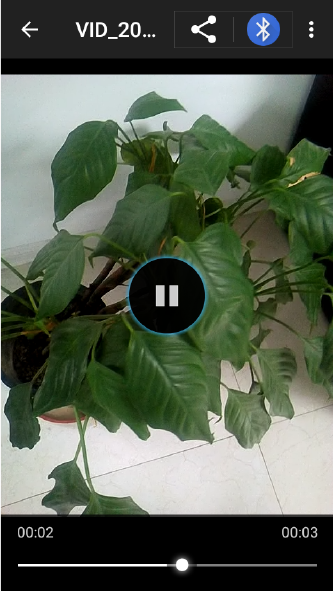

Videoplayer

WithVideos,youcanplayvideoclipsinyourdevice(for

example,thevideoyoucapturedbythecamera)or

videofilesstoredincompatibleSDcard(ifinserted)



SIM1Toolkit

STKfeaturesareprovidedbyyourserviceprovider.If

yourSIMcardsupportsSTKfeature,youwillseetheSTK

menu.DifferentSTKhasdifferentSTKmainmenu.

PleasecontactyourserviceprovideriftheSTKdoesnot

work.



Browser

ToletyoubrowsetheInternet.



FileManager

ThephonesupportstheSDcard.YoucanusetheFile

Explorertoconvenientlymanagevariousdirectoriesand

filesontheSDcard.



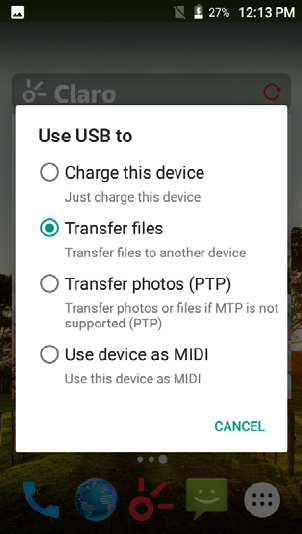

USEASMODEMVIAUSB

YoucanconnectyourphonetoacomputerwithaUSB

cable,totransfermusic,pictures,andotherfiles

betweenyourphone’sSDcardandthecomputer.



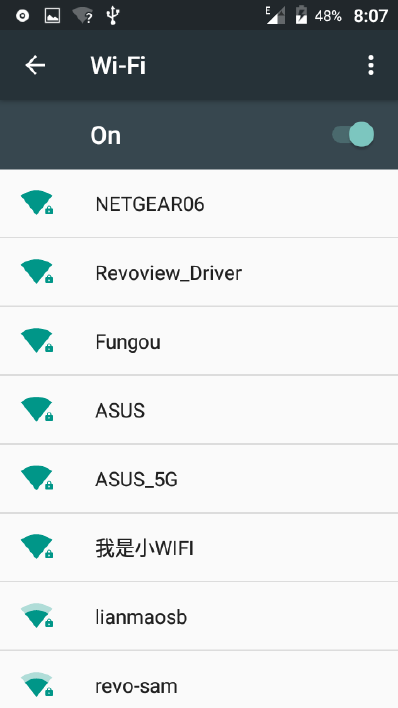

CONNECTTOWi‐FiNETWORKS

Wi‐Fiisawirelessnetworkingtechnologythatcan

provideInternetaccessatdistancesofupto100meters,

dependingontheWi‐Firouterandyoursurroundings.



TouchSettings>Wi‐Fi.CheckWi‐Fitoturniton.The

phonescansforavailableWi‐Finetworksanddisplays

thenamesofthoseitfinds.Securednetworksare

indicatedwithaLockicon.

FCCCaution.

Thisequipmenthasbeentestedandfoundtocomplywi

ththelimitsforaClassBdigitaldevice,pursuanttoPart

15oftheFCCRules.Theselimitsaredesignedtoprovid

ereasonableprotectionagainstharmfulinterferencein

aresidentialinstallation.Thisequipmentgenerates,use

sandcanradiateradiofrequencyenergyand,ifnotinst

alledandusedinaccordancewiththeinstructions,may

causeharmfulinterferencetoradiocommunications.H

owever,thereisnoguaranteethatinterferencewillnot

occurinaparticularinstallation.Ifthisequipmentdoes

causeharmfulinterferencetoradioortelevisionrecepti

on,whichcanbedeterminedbyturningtheequipment

offandon,theuserisencouragedtotrytocorrectthei

nterferencebyoneormoreofthefollowingmeasures:

•Reorientorrelocatethereceivingantenna.

•Increasetheseparationbetweentheequipmentandr

eceiver.

•Connecttheequipmentintoanoutletonacircuitdiff

erentfromthattowhichthereceiverisconnected.

•Consultthedealeroranexperiencedradio/TVtechnic

ianforhelp.

§15.19Labellingrequirements.

Thisdevicecomplieswithpart15oftheFCCRules.

Operationissubjecttothefollowingtwoconditions:(1)

Thisdevicemaynotcauseharmfulinterference,and(2)

thisdevicemustacceptanyinterferencereceived,

includinginterferencethatmaycauseundesired

operation.

§15.21Informationtouser.

AnyChangesormodificationsnotexpresslyapproved

bythepartyresponsibleforcompliancecouldvoidthe

user'sauthoritytooperatetheequipment.

SpecificAbsorptionRate(SAR)information:

This4GMobilePhonemeetsthegovernment's

requirementsforexposuretoradiowaves.The

guidelinesarebasedonstandardsthatweredeveloped

byindependentscientificorganizationsthrough

periodicandthoroughevaluationofscientificstudies.

Thestandardsincludeasubstantialsafetymargin

designedtoassurethesafetyofallpersonsregardless

ofageorhealth.

FCCRFExposureInformationandStatementTheSAR

limitofUSA(FCC)is1.6W/kgaveragedoveronegram

oftissue.Thisdevicewastestedfortypicalbody‐worn

operationswiththebackofthehandsetkept10mmfor

bodyworn.TomaintaincompliancewithFCCRF

exposurerequirements,useaccessoriesthatmaintaina

10mmforbodyworn.Theuseofbeltclips,holstersand

similaraccessoriesshouldnotcontainmetallic

componentsinitsassembly.Theuseofaccessoriesthat

donotsatisfytheserequirementsmaynotcomplywith

FCCRFexposurerequirements,andshouldbeavoided.

Body‐wornOperation

Thisdevicewastestedfortypicalbody‐wornoperations.

TocomplywithRFexposurerequirements,aminimum

separationdistanceof10mmforbodywornmustbe

maintainedbetweentheuser’sbodyandthehandset,

includingtheantenna.Third‐partybelt‐clips,holsters,

andsimilaraccessoriesusedbythisdeviceshouldnot

containanymetalliccomponents.Body‐worn

accessoriesthatdonotmeettheserequirementsmay

notcomplywithRFexposurerequirementsandshould

beavoided.Useonlythesuppliedoranapproved

antenna.



Azumi S A AZUMIIROA5QL2 4G Mobile Phone User Manual

Azumi S.A 4G Mobile Phone

User Manual

Navigation menu

Namespaces

Views

Navigation
