User manual



UserGuide



KIREIA5D

WELCOME



 CongratulationsonthepurchaseofyourAzumi

Mobilephone.Yourphoneprovidesmanyfunctions

whicharepracticalfordailyuse,suchasa

hands‐free，loudspeaker,camera,MP3playerand

ultraclearvideo



 Youcanreadthemanualtounderstandhowtouse

yourAzumimobilephoneandexperiencethe

well‐establishedfunctionsandsimpleoperation

method.Pleaseusetheoriginalaccessoriesinorder

toachievethebestuseofyourdevice.Azumishall

notberesponsibleforanydamageinthemachinery

duetouseofnon‐originalaccessories.



Userprecautions

BeforeusingyourAzumihandset,itisimportant

thatyoureadthefollowingrecommendations:

•Minimizeexposingyourphonetowaterandany

otherliquid.Keepyourphonedryandavoidhumid

spaces.

•Useonlyauthorizedaccessories

•Donottrytoopenyourphone.

•Ifthephoneoranyaccessoryisnotworking

properly,takeittoaqualifiedservicecenter.

•Theuseheadphonesorearphonesfora

prolongedtime(athighvolume)maycauseserious

damagetoyourhearing.

•Donotusethephonewhilecharging.

•Inextremeheatorcold:avoidtemperatures

below‐10°C/14°Forabove40°C/104°F.

Note:Remembertovisitourwebsite

www.azumi‐mobile.comandourFacebookpage

www.facebook.com/Azumi‐Africaifyouhave

questions.OurTeamisalwaysavailabletoanswer

yourqueries.



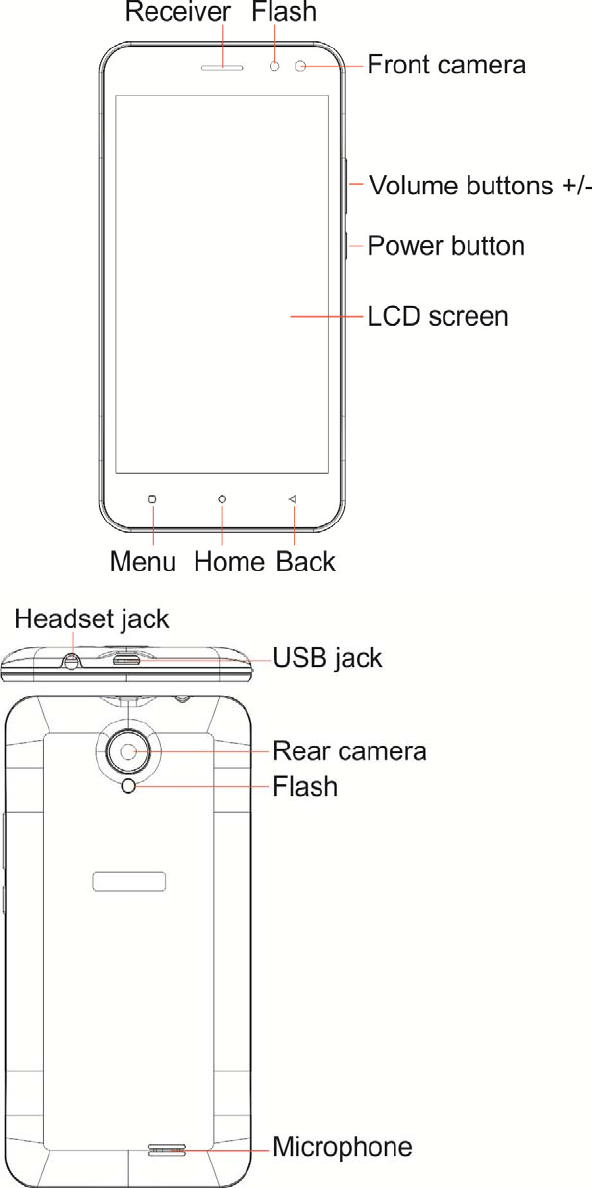

YOURPHONEFUNCTIONS

CHARGETHEBATTERY

 

Connectthisendtophone’sUSBport.



Tip:Chargethebatterybeforeusingitforthefirst

time.UseonlyAZUMIapprovedchargers,batteries

andcables.



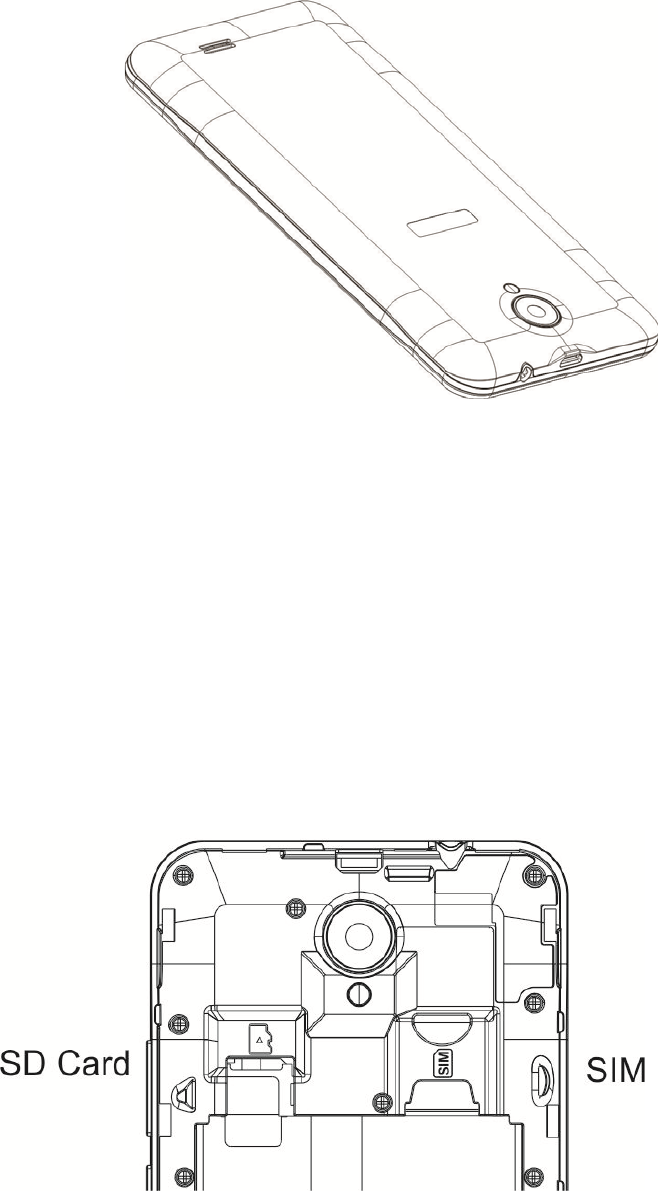

INSERTSIMANDMicroSDCARD



PleaseinserttheSIMcardaccordingtothelabelonthe

phone.MakesurethattheclippedcorneroftheSIM

cardandthemetalliccontactsarefacingthecorrect

direction.SlidetheSIMcardintotheslotuntilitdoesn't

moveupanyfurther.



Tip:ForadditionalmediastorageinsertamicroSDcard.





TURNINGTHEPHONEON&OFF



Holddownthepower

buttontoturnthephone

on.



Holddownthepower

button,thentouchPower

offtoturnthephoneoff



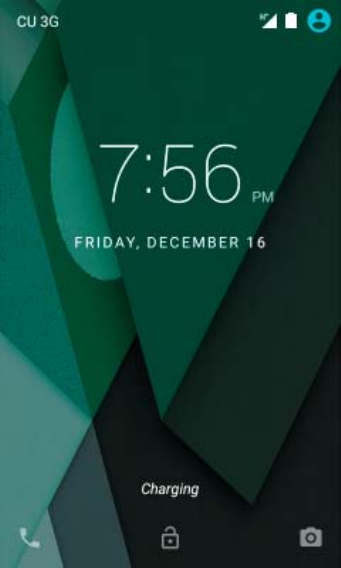

DIM,LOCK&WAKINGTHEPHONE

Whenthepowerisonandyouwanttodimthescreen,

pressthepowerbutton.



Whenthescreenisdimmedandyouwanttowakethe

phone,pressthepowerbuttonandslideyourfinger

frombottomtotop.



HOMESCREEN

Phonestatusbarand

notifications



Touchandholdan

emptyspottochange

thewallpaper





Slideleftorright

toseemorepanels





Touchittoentercamera

Touchittoenterweb

Touchittoentermainmenu

Touchittoentermessages

Touchittoenterthedialpadinterface



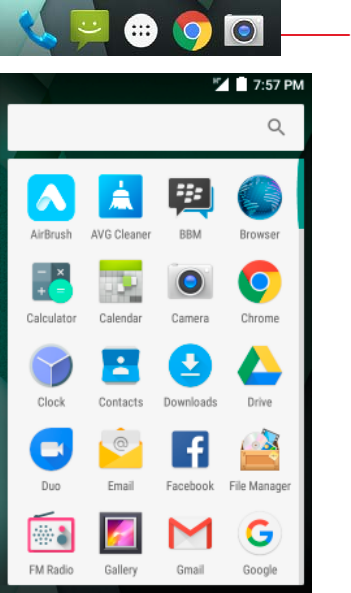

APPS

1.Touchittoenterapptray.



2.Touchanapptolaunchit



STATUSBAR

Thestatusbarshowsyourphone’sstatusand

notifications.(Notificationsaredescribedonthenext

page.)

NotificationiconsStatusicons



Statusicons

Thefollowingstatusiconsmayappearonyour

screen:

IconStatementIconStatement



SIM

Network

signallevel

Headsetis

inserted



Indicates

battery

capacity

Bluetoothis

activated



Unread

messages

Wi‐Fiis

connected

Missedcalls

Airplane

modeis

activated



Alarmis

activated

USBis

connected



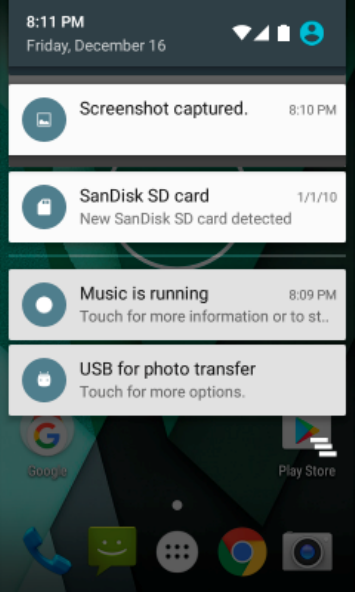

NOTIFICATIONPANEL



Thenotificationpanelisyour

centerfornewevents:likenew

e‐mail,voicemail,updates,and

more.



Dragdowntodisplay

notifications.



Touchanotificationtorespond



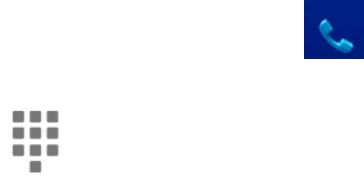

MAKE&ANSWERACALL

1.FromtheHomescreen,touch 

2.Touchtoshowthedialpad

3.Dialanumber,thentouch

toinitiatethecall.



Answeracall

Dragtotheright



Declineacall

Dragtotheleft

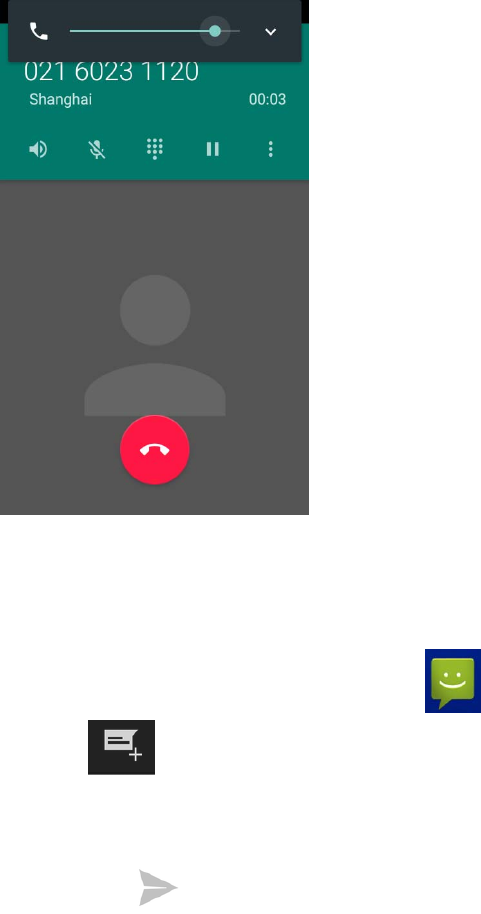

VOLUMECONTROLWHENCALLING

Volumekeyisattheleftsideofthephone.Duringa

conversation,youcanpressthevolumekeytotunethe

soundvolume.



SENDATEXT

1. FromtheHomescreen,touch 

2. Touch

3. Touchthe“To”field,thenenterarecipient.

4. TouchtheTypemessagefield,thenenteramessage

5. Touch Sendthemessage



ADDINGEMAILACCOUNTS

ThefirsttimeyouopenEmail,youwillbepromptedto

setupanemailaccount.Afterthat,youcanconfigure

Emailtosendandreceiveemailfromadditional

accounts.

Toaddanemailaccount:

1)Tapthee‐mailicon.InYouraccountinterface,tap

Next.Ine‐mailaddressoption,enteryoure‐mail

address.Inpasswordopon,→enteryoure‐mail

password.TapNext.

2)Fillingtheemailaddressandpassword,tapnextto

setupemail

3)Tapnexttoenteryouremail.



SETTINGS

Thesettingsforvariousfeaturesofthephone



Gettoknowthesettingsonyourphonesothatyoucan

personalizethemtoyourownrequirements.Goto

Settingstoconfigurehowyourphonelooks,sounds,

communication,privacy,andoperationsinavarietyof

ways:

Wi‐Fi



YoucanuseWireless&Network

settingstomanageyourSIMcard,

configureandmanage

connectionstonetworksand

devicesbyusingWi‐Fi.Youcan

setBluetooth,datausage,

airplanemode,VPN,tethering&

portablehotspotandmobile

networksinthisinterface.

Audio

profiles

Therearefourprofiles:General,

Silent,MeetingandOutdoor.You

cansettheprofilesaccordingto

differentconditions.

Display

YoucansetWallpaper,

Auto‐rotatescreen,Brightness,

Daydream,wirelessdisplay,Sleep

andFontsizeinthisinterface.

Storage

UsetheStoragesettingsto

monitortheusedandavailable

spaceonyourphoneandonyour

SDcardandtomanageyourSD

card.

Battery

Youcanviewyourbatterystatus,

batterylevelandbatteryusein

thisinterface.

Apps

YoucanusetheApplications

settingstoviewdetailsaboutthe

applicationsinstalledonyour

phone,tomanagetheirdataand

forcethemtostop,toviewand

controlservicesthatarecurrently

running,andtoviewthestorage

usedbyapplications,etc.

Location

YoucanturnonWi‐Fi&mobile

networklocation,GPSsatellites,

etcthroughthisfunction.

Security

Youcansettheparameters

relatedtosecuritythroughthis

function.

Language&

input

UsetheLanguage&Keyboard

settingstoselectthelanguagefor

thetextonyourphoneandfor

configuringtheinputmethod.

Backup&

reset

Youcanbackupyourdataand

resetyourphoneinthisinterface.

AddaccountYoushouldaddanaccountfirst

beforeusingthisfunction.

Data&time

YoucanuseDate&Timesettings

tosetyourpreferencesforhow

datesaredisplayed.Youcanalso

usethesesettingstosetyourown

timeandtimezone,ratherthan

obtainingthecurrenttimefrom

thenetwork,etc.

Timerswitch

machine

Youshouldsetacertaintime,

whenthetimearrive,thephone

wouldpoweron/off

automatically.

Accessibility

Enableyourinstalledaccessibility

applicationsandadjustrelated

settings.

AboutphoneThisfunctionenablesyoutoview

somephonerelatedinformation.



SETARINGTONE

PressSound&notification,selectthe

profilesyouwanttoset,youcancustomizetheringtone

andvolumeofincomingcall,notificationringtonein

thisinterface.



MULTIMEDIA

listen,watch,captureandenjoyit!



FMRADIO

1.Insertearphone,thenTapthePowericontostopor

playFM.

2.Taptheforwardby0.1MHzorscrolltheknobiconto

changechannelfrequency.Pressvolumekeytoadjust

thevolume.

3.TapAutosearch,RecordandFavoritesicontoadjust.



MUSIC



Controls

Play/PauseTouch/

Previous/NextTouch /

Rewind/ForwardTouchtheProgress

bar

VolumeadjustPresssidekey

Nowplaying:Touchto

openthecurrentplaylist.Touch 

Shuffle:Touchtoshuffle

thecurrentplaylist.Touch 

Repeat:Touchtorepeat

thecurrentplaylist;touch

againtorepeatthe

currenttrack.

Touch 



Camera

1.Launchthecamerabypressingthecameraiconon

thehomescreen

2.Inthecameraapp,tapthescreentofocusona

specificarea.

3.Pressthecamerabuttonallthewaydowntotakea

picture.



SHOOTAVIDEO

1. Pressthecameraicon.

2. IntheCameraapp,selectvideo

3. Pressthecamerabuttontobeginfilmingandpress

againtostopfilming.



Calculator

1.Launchthecalculatorbypressingthecalculatoricon

onthehomescreen.

2.Inthecalculatorapp,enternumbersandarithmetic

operatorsonthebasicscreen.



Calendar

Youcanusethecalendartokeeptrackofimportant

events.Afterenteringthecalendarfunctionmenuyou

canselectyear,monthanddate.SlidetheCalendar

screenupanddowntoswitchmonth.



SoundRecorder

Usethisfunctiontorecordaudiofiles.Twofunction

iconsatthebottomoftheRecorderscreenare

correspondingtostartrecordingandreviewrecorded

file.



Clock

Theclockallowsyoutoviewtimeanddate.Youcanalso

addanalarm,setthealarmandturniton.Then,the

alarmcanringataspecifictimeyouset.



Gallery

Bothpicturesandvideostakenbycameraorstoredin

SDcardcanbescannedthroughthisfunction.



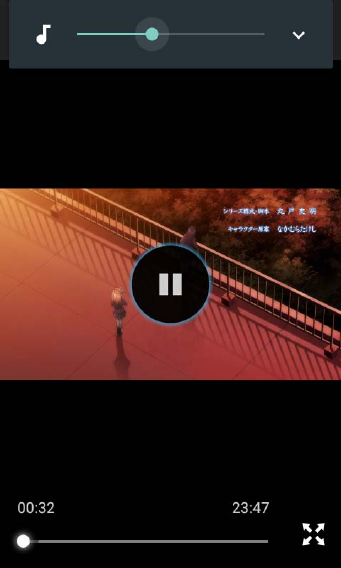

Videoplayer

WithVideos,youcanplayvideoclipsinyourdevice(for

example,thevideoyoucapturedbythecamera)or

videofilesstoredincompatibleSDcard(ifinserted)



SIM1Toolkit

STKfeaturesareprovidedbyyourserviceprovider.If

yourSIMcardsupportsSTKfeature,youwillseetheSTK

menu.DifferentSTK’shavedifferentSTKmainmenu.

PleasecontactyourserviceprovideriftheSTKdoesnot

work.



Browser

ToletyoubrowsetheInternet.



FileManager

ThisphonesupportsanSDcard.YoucanusetheFile

Explorertoconvenientlymanagevariousdirectoriesand

filesontheSDcard.



USEASMODEMVIAUSB

YoucanconnectyourphonetoacomputerwithaUSB

cable,totransfermusic,pictures,andotherfiles

betweenyourphone’sSDcardandthecomputer.



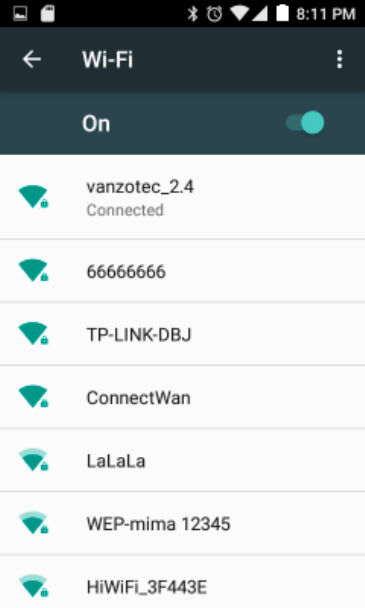

CONNECTTOWi‐FiNETWORKS

Wi‐Fiisawirelessnetworkingtechnologythatcan

provideInternetaccessatdistancesofupto100meters,

dependingontheWi‐Firouterandyoursurroundings.



TouchSettings>WI‐FI.CheckWi‐Fitoturniton.The

phonescansforavailableWi‐Finetworksanddisplays

thenamesofthoseitfinds.Securednetworksare

indicatedwithaLockicon.



HealthandSafetyInformation

Pleasereadthefollowingguidelinesregardingthe

useofyourphone.Notfollowingthemmaybe

dangerousorillegal.



Certificationinformation(SAR)



Yourphoneisdesignednottoexceedthelimitsof

emissionofradiowavesrecommendedby

internationalguidelines.Theseguidelinesinclude

safetymarginsdesignedtoassuretheprotectionof

allpersons,regardlessofageandhealth.



SAR(specificabsorptionrate)istheunitof

body‐absorbedRFquantitywhenthephoneisin

use.SARvalueisascertainedaccordingtothe

highestRFlevelgeneratedduringlaboratorytests.

ThetrueSARlevelduringphoneusagewillbefar

lowerthanthislevel.

TheSARvalueofthephonemaychangedepending

onfactorssuchashowcloseyouaretoanetwork

tower,useofaccessoriesandotherenhancements.

ThehighestSARvalueofthedeviceis0.362W/kg

(head)and0.813W/kg(body)averagedover10gm

ofhumantissue.

TheSARvaluemaydifferdependingonnational

reporting,testingrequirementsandthenetwork

band.





SARrecommendations

Useawirelesshands‐freesystem(headphone,

headset)withalowpowerBluetoothemitter.

PleasekeepyourcallsshortanduseSMSwhenever

moreconvenient.Thisadviceappliesespeciallyto

children,adolescentsandpregnantwomen.

Trytouseyourcellphonewhenthesignalqualityis

good.

Peoplehavingactivemedicalimplantsshould

preferablykeepthecellphoneatleast15cmaway

fromtheimplant.

Maintainapreferabledistanceof15mmfromthe

device.







Safedriving

Donotusethephonewhiledriving.Whenyouhave

tousethephone,pleaseusethepersonal

hands‐freekit.

Pleasedonotputthephoneontoanypassenger

seatoranyplacefromwhichitmayfalldownin

caseofvehicularcollisionoremergencybraking.



Duringflight

Flightisinfluencedbyinterferencecausedbythe

phone.Itisillegaltouseaphoneontheairplane.

Pleaseturnoffyourphoneorswitchtoflightmode

duringaflight.





Inhospitals

Yourphone’sradiowavesmayinterferewiththe

functioningofmedicaldevices.Consultaphysician

orthemanufacturerofthemedicaldeviceto

determinewhethertheyareadequatelyshielded

fromexternalradiofrequency.Switchoffyour

devicewhenregulationsinstructyoutodoso.

Donotcarrythewirelessdeviceinthebreast

pocket.

Turnoffthephoneifthereisanyreasontosuspect

thatinterferenceistakingplace.

Unsafeareas

Pleaseturnoffyourphonewhenyouareclosetoa

gasstationorinthevicinityofanyplacewherefuel

andchemicalpreparations,oranyotherdangerous

goodsarestored.



Takingcareofyourdevice



Yourdeviceisaproductofsuperiordesignand

craftsmanshipandshouldbehandledwithcare.The

followingsuggestionswillhelpyouprotectyour

phone.

Keepthedevicedry.Ifyourdevicegetswet,

removethebatterywithoutturningonthedevice,

wipeitwithadryclothandtakeittotheservice

center.

Donotstorethedeviceinhighorcoldtemperature.

Hightemperaturescanshortenthelifeofelectronic

devicesanddamagebatteries.

Donotuseorstorethedeviceindusty,dirtyareas.

Itsmovingpartsandelectroniccomponentscanbe

damaged.

Donotattempttoopenthedeviceotherthanas

instructedinthisguide.Repairingthephoneby

yourselfandnotusingourauthorizedservice

agents/centersgoesagainstthewarrantyrules.



Donotdrop,knockorshakethedevice.Rough

handlingcanbreakinternalcircuitboardsandfine

mechanics.

Donotuseharshchemicals,cleaningsolvents,or

strongdetergentstocleanthedevice.Onlyusea

soft,clean,dryclothtocleanthesurfaceofthe

device.

Donotstoreyourdevicenearmagneticfieldsor

allowyourdevicetocomeincontactwithmagnetic

fieldsforextendedperiodsoftime.



Batteryrecommendations

Pleaseputthebatteryinawell‐ventilatedplaceout

ofdirectsunlight.Chargethebatteryatroom

temperaturerange.

Ifthetimespanofthebatteryaftercharging

becomesmuchshorterthanusual,thebatterylifeis

atanend.Replacethebatterywithanewbatteryof

thesamemakeandspecification.



Donotdiscardthebatterywithhouseholdtrash.

Pleasedisposeoftheusedbatteryaccordingto

yourlocalenvironmentallawsandguidelines.

Usemanufacturerapprovedbatteries,chargers,

accessoriesandsupplies.Wewillnotberesponsible

fortheuser’ssafetywhenusingunapproved

batteriesoraccessories.



Recycleyourphone



TheWEEElogo(shownattheleft)appearsonthe

product(battery,handset,andcharger)toindicate

thatthisproductmustnotbedisposedofor

dumpedwithyourotherhouseholdwaste.Youare

liabletodisposeofallyourelectronicorelectrical

wasteequipmentbyrelocatingovertothespecified

collectionpointforrecyclingofsuchhazardous

waste.



Collectionandproperrecoveryofyourelectronic

wasteequipmentatthetimeofdisposalwillallow

ustohelppreservetheenvironment.Recyclingof

theelectronicwasteequipmentwillensuresafety

ofhumanhealthandtheenvironment.



Disclaimers



Thecoloursandspecificationsshown/mentionedin

theusermanualmaydifferfromtheactualproduct.

Imagesshownareforrepresentationpurposesonly.

Otherproductlogosandcompanynames

mentionedhereinmaybetrademarksortrade

namesoftheirrespectiveowners.



Thecontentofthismanualmayvaryfromthe

actualcontentdisplayedonthemobilephone.In

suchacase,thelattershallgovern.

Wekeeptherighttomakemodificationstoanyof

thecontentinthisuserguidewithoutpublic

announcementorpriornotification.

Fordeviceswithexternalpowersupplies,theplug

socketshouldbeplacedinshortdistanceandbe

easilyaccessible.

Usingthewrongtypeofbatteryreplacementmay

increasethechanceofexplosion.Besuretofollow

theinstructionsfordisposalofusedbatteries.





Copyrights

Allrightsreserved.Reproduction,transfer,

distributionorstorageofpartorallofthecontents

inthisdocumentinanyformwithouttheprior

writtenpermissionofisstrictlyprohibited.



Topreventpossiblehearingdamage,

donotlistenathighvolumelevelsof

longperiods.



Tousethedeviceonlywiththeearphonesincluded,

neverchangetheearphonesincludedforanother

one.



FCCCaution.

Thisequipmenthasbeentestedandfoundtocompl

ywiththelimitsforaClassBdigitaldevice,pursuan

ttoPart15oftheFCCRules.Theselimitsaredesign

edtoprovidereasonableprotectionagainstharmful

interferenceinaresidentialinstallation.Thisequip

mentgenerates,usesandcanradiateradiofrequen

cyenergyand,ifnotinstalledandusedinaccordanc

ewiththeinstructions,maycauseharmfulinterfere

ncetoradiocommunications.However,thereisno

guaranteethatinterferencewillnotoccurinaparti

cularinstallation.Ifthisequipmentdoescauseharm

fulinterferencetoradioortelevisionreception,whi

chcanbedeterminedbyturningtheequipmentoff

andon,theuserisencouragedtotrytocorrectthei

nterferencebyoneormoreofthefollowingmeasur

es:

•Reorientorrelocatethereceivingantenna.

•Increasetheseparationbetweentheequipmenta

ndreceiver.

•Connecttheequipmentintoanoutletonacircuit

differentfromthattowhichthereceiverisconnect

ed.

•Consultthedealeroranexperiencedradio/TVtec

hnicianforhelp.



§15.19Labellingrequirements.

Thisdevicecomplieswithpart15oftheFCCRules.

Operationissubjecttothefollowingtwoconditions:

(1)Thisdevicemaynotcauseharmfulinterference,

and(2)thisdevicemustacceptanyinterference

received,includinginterferencethatmaycause

undesiredoperation.

§15.21Informationtouser.

AnyChangesormodificationsnotexpressly

approvedbythepartyresponsibleforcompliance

couldvoidtheuser'sauthoritytooperatethe

equipment.

SpecificAbsorptionRate(SAR)information:

ThisMobilePhonemeetsthegovernment's

requirementsforexposuretoradiowaves.The

guidelinesarebasedonstandardsthatwere

developedbyindependentscientificorganizations

throughperiodicandthoroughevaluationof

scientificstudies.Thestandardsincludea

substantialsafetymargindesignedtoassurethe

safetyofallpersonsregardlessofageorhealth.

FCCRFExposureInformationandStatementThe

SARlimitofUSA(FCC)is1.6W/kgaveragedover

onegramoftissue.Thisdevicewastestedfor

typicalbody‐wornoperationswiththebackofthe

handsetkept10mmforbodyworn.Tomaintain

compliancewithFCCRFexposurerequirements,

useaccessoriesthatmaintaina10mmforbody

worn.Theuseofbeltclips,holstersandsimilar

accessoriesshouldnotcontainmetalliccomponents

initsassembly.Theuseofaccessoriesthatdonot

satisfytheserequirementsmaynotcomplywith

FCCRFexposurerequirements,andshouldbe

avoided.

Body‐wornOperation

Thisdevicewastestedfortypicalbody‐worn

operations.TocomplywithRFexposure

requirements,aminimumseparationdistanceof

10mmforbodywornmustbemaintainedbetween

theuser’sbodyandthehandset,includingthe

antenna.Third‐partybelt‐clips,holsters,andsimilar

accessoriesusedbythisdeviceshouldnotcontain

anymetalliccomponents.Body‐wornaccessories

thatdonotmeettheserequirementsmaynot

complywithRFexposurerequirementsandshould

beavoided.Useonlythesuppliedoranapproved

antenna.



Azumi S A AZUMIKIREIA5D 3G Mobile Phone User Manual

Azumi S.A 3G Mobile Phone

User manual

Navigation menu

Namespaces

Views

Navigation
