Azumi S A AZUMIL2N Mobile Phone User Manual AZUMI L2N quick 2
Azumi S.A Mobile Phone AZUMI L2N quick 2
User manual
Phone layout
The phone has 21 keypad keys,and a charger/headset port.
Icons on the main screen
Alarm Gprs Unread message Ring Battery Vibrate Ring and vibrate
Ring after vibrate Bluetooth
Basic operation
insert sim card

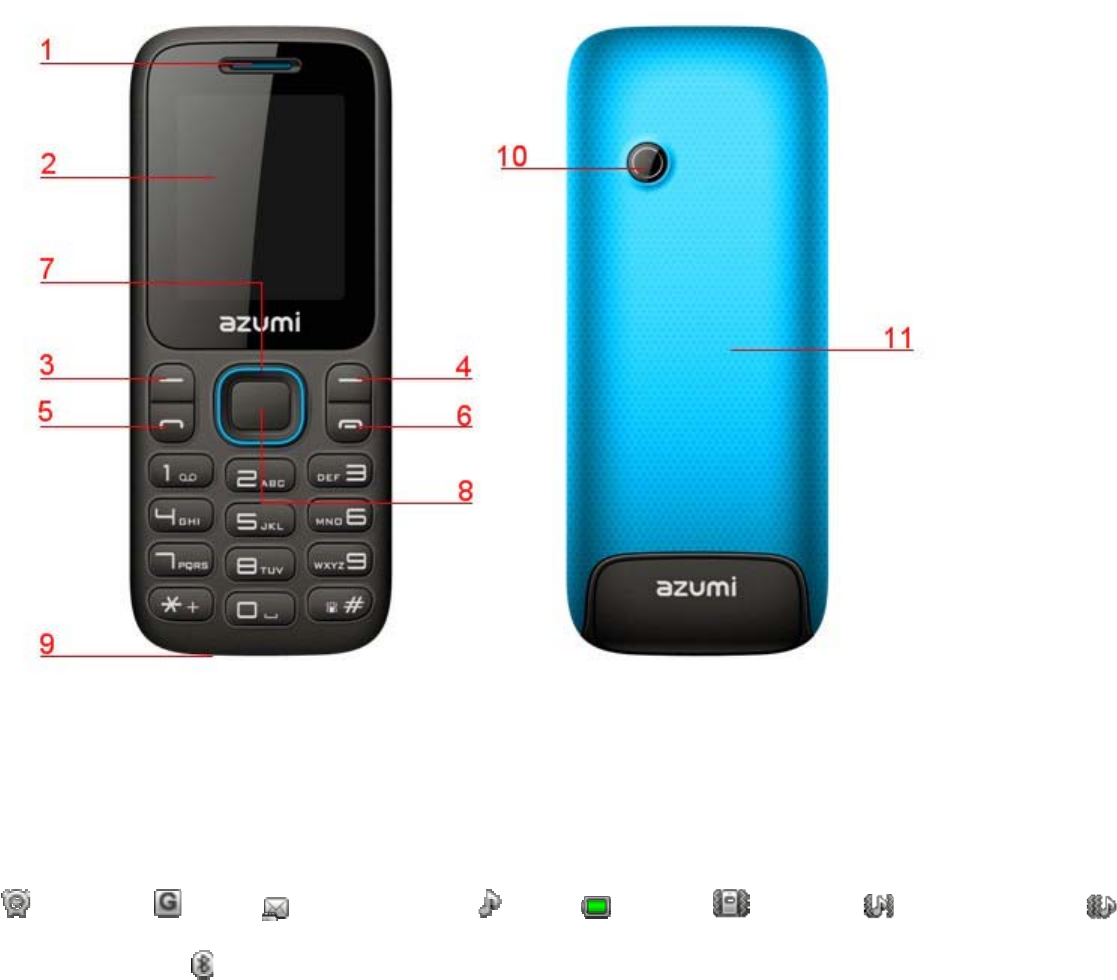

1. Earpiece 2. Display
3. Left key 4.Right key
5.Call/Dial Key 6.End/Power Key
7.Navigation Keys 8.Center Key
9.MIC 10.Camera
11.Back Cover
Push the back cover above the battery downward and remove it in order to nsert the SIM card into the SIM
card slot.
insert micro SD card
Push the back cover above the battery downward and remove it in order to insert the card into the card slot.
Note:Before to inseter Sim card or SD card, you must to power off the mobile phone
1、Switch On/Off the Phone
To turn on/off the phone, press and hold the End/Power key.
If you have enabled the SIM Lock function then enter the PIN code (the 4 to 8 digits secret code of your SIM card). It is
preconfigured and provided to you by your network operator or retailer. If you enter an incorrect PIN code 3 times in
succession, your SIM card will be locked. To unlock it, you must obtain a code from your network operator.
2、To Make Calls
If the icon appears on the screen, then you can make or receive calls.
• Input the phone number (should affix the international/national/regional code or district code if necessary) and then
press the dial/call icon to make a call.
• You can select a contact number from the phonebook and call the contact person.
Tip: The signal strength may influence the quality of connection.
3、To Dial International Number
The phone supports dialing the international emergency phone number, such as 112 and 911. With the phone, you can
dial an emergency call in any country or region under the normal situation regardless of SIM card inserted when the
phone is located within the coverage of the GSM network. Input the emergency phone number and press Call icon to
dial.
The phone will select the main network automatically after powered on if it is located within the coverage of the main
network. The phone can use other network, called as roaming, if the phone is not located within the coverage of the
main network when the network operator protocol permits.
You can dial or answer a call when the symbol of the network operator appears on the screen.
4、Answer/Reject an Incoming Call
• Press Dial Key to receive the incoming call. You can use the earphone to answer the call when the generic
earphone or Bluetooth earphone is inserted in the phone.
• Press End Key to reject an incoming call.
5、Options During a Call
Press <Options> to use the following functions during the call:
• Hold: temporarily hold the current call.
• End Single Call: end the current call.
• New Call: call the opposite party to build a Call to Many.
• Phonebook: enter in the phonebook menu.
• Call History: access the call logs.
• Messaging: enter in the SMS menu.
• Sound Recorder: record the current call.
• Mute: open or close the mute mode.
• DTMF: open or close the DTMF function during the call.
• Volume: adjust the volume during the call.
Frequently Asked Questions
1、How to Lock/Unlock keypad
To lock: From the standby screen, press Left soft key then press * on the screen.
To unlock: Press Left soft key then press * on the screen.
2、How to activate Silent mode
From the Dialing screen, long press “#” to switch to Silent mode
3、How to enable MMS
From main menu, select Messages, scroll down message settings, and select Multimedia message. Then
choose your SIM operator, and Activate.
4、How to activate Phone Lock
Please go into main menu,select Settings/Security setting/Phone security/Phone lock.You will be asked for a
password ,pls defult passcode as 0000 ,the phone is now locked.When you turn it on,you will be asked for
the password.To deactivate ,repeat the process.
5. FM radio
You can use the application as a traditional FM radio with automatic tuning and saved channels. In FM
radio interface, you can press up and down direction key to search channels manually, left and right direction
key to enable auto research, OK key to start /pause playing.
You can press * or # key to tune volume.
6. How to adjust the volume during a conversation
During a conversation, you can press up and down direction keep to tune volume, press right soft key to
turn on/off hands-free etc. For details, refer to the menu guide.
7. Alarm
Five alarm clocks are set but deactivated by default. You can activate one, multiple or all of them as
needed. For each alarm clock, the ringing date and the ringing time can be set.
Set an alarm
1 Go to Tools>Alarm.
2 Select an alarm, press Edit to edit the alarm.
3 Press right soft key to finish setting the alarm.
Turn off an alarm
1 Go to Tools>Alarm.
2 Select the alarm you want to turn off, press Edit.
3 Press the navigation key to select Off then press right soft key to save.
Stop an alarm
When the alarm rings,
• Select Stop: The alarm stops.
• Select Snooze: The alarm will sound again after the set Snooze (min) interval.
8. Audio player
Use this function to play audio files. By pressing the corresponding key can you control the playing
process of audio player: play/pause（OK key）, switch to last song/next song （press left or right direction key）,
fast forward (press and hold right direction key) and rewind (press and hold left direction key). In audio player
interface, you can press * or # key to tune volume.
9. Bluetooth
You can transfer data, such as music to other device using Bluetooth. Search the device and
accept/transfer data. The received data is automatically stored in the directory.
¾ Connect to other device
1. Press power to turn on Bluetooth.
2. Press My device>Search new device.
3. Press the device name which you want to connect. Press pair and select Yes to pair the device.
4. The other device will be inquired whether to pair with the device, select Yes, pair successful.
¾ Send file via Bluetooth
Select a file you want to send, press options>send>via Bluetooth >select the device you want to send>the
other device accept the file.
FCC Statement
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause undesired operation.
2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to
operate the equipment.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
SAR Information Statement
Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for
exposure to radiofrequency (RF) energy set by the Federal Communications Commission of the U.S. Government. These
limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The
guidelines are based on standards that were developed by independent scientific organizations through periodic and
thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of
all persons, regardless of age and health. The exposure standard for wireless mobile phones employs a unit of measurement
known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. * Tests for SAR are conducted with
the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the
highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is
because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network.
In general, the closer you are to a wireless base station antenna, the lower the power output. Before a phone model is
available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit established by the
government adopted requirement for safe exposure. The tests are performed in positions and locations (e.g., at the ear and
worn on the body) as required by the FCC for each model. The highest SAR value for this model phone when tested for use at
the ear is 0.675W/Kg and when worn on the body, as described in this user guide, is 0.389W/Kg(Body-worn measurements
differ among phone models, depending upon available accessories and FCC requirements). While there may be differences
between the SAR levels of various phones and at various positions, they all meet the government requirement for safe
exposure. The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in
compliance with the FCC RFexposure guidelines. SAR information on this model phone is on file with the FCC and can be
found under the Display Grant section of http://www.fcc.gov/ oet/fccid after searching on
FCC ID: QRP-AZUMIL2N Additional information on Specific Absorption Rates (SAR) can be found on the Cellular
Telecommunications Industry Asso-ciation (CTIA) web-site at http://www.wow-com.com. * In the United States and Canada,
the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard
incorporates a sub-stantial margin of safety to give additional protection for the public and to account for any variations in
measurements.
Body-worn Operation
This device was tested for typical body-worn operations. To comply with RF exposure requirements, a minimum separation
distance of 15mm must be maintained between the user’s body and the handset, including the antenna. Third-party belt-clips,
holsters, and similar accessories used by this device should not contain any metallic components. Body-worn accessories
that do not meet these requirements may not comply with RF exposure requirements and should be avoided. Use only the
supplied or an approved antenna.
