User manual
17
Contents
1 GET STARTED............................................................... 19
1.1 SIM CARD INFORMATION............................................. 19
1.2 INSTALL AND CHARGE THE PHONE................................ 19
1.3 FOR YOUR SAFETY...................................................... 19
2 FUNCTION MENU ........................................................ 21
2.1 FILE MANAGER............................................................ 21
2.2 PHONEBOOK................................................................ 21
2.3 USER PROFILES ........................................................... 21
2.4 SETTINGS .................................................................... 22
2.5 CALL HISTORY............................................................. 24
2.6 DAILER ....................................................................... 25
2.7 MESSAGEING............................................................. 25
2.8 CONNECTIVITY............................................................ 27
2.9 TV.............................................................................. 27
2.10 CAMERA ................................................................... 27
2.11 IMAGE VIWER ............................................................ 28
2.12 VIDEO RECORDER...................................................... 28
2.13 VIDEO PLAYER .......................................................... 28
2.14 AUDIO PLAYER.......................................................... 29
2.15 SOUND RECORDER..................................................... 29
2.16 FM RADIO ................................................................ 29
2. 17 CALENDAR ............................................................... 29
2. 18 TASKS ...................................................................... 30
2. 19 ALARM..................................................................... 30
2. 20 WORLD CLOCK......................................................... 30
2. 21 NOTES...................................................................... 30
18
2.22 WEB.......................................................................... 30
2. 23 CALCULATOR............................................................ 30
2. 24 UNIT CONVERTER ..................................................... 31
2. 25CURRENCY CONVERTER............................................. 31
2. 26 STOPWATCH.............................................................. 31
2. 27 EBOOK READER ........................................................ 31
2.28 BLUETOOTH .............................................................. 31
2.29 SERVICES .................................................................. 31
19
1 Get started
1.1 SIM card information
When you subscribe to a cellular network, you receive a
plug-in SIM (Subscriber Identity Module) card loaded with your
subscription details, such as your PIN, and available optional
services.
1.2 Install and charge the phone
Remove the battery cover and the battery
If the phone is already on, first turn it off by pressing and
holding on/off key.
Insert the SIM card.
Make sure that the gold-colored contacts on the card are face
down
Install the battery.
Replace the battery cover.
Plug the charger into the phone
Plug the charger into a standard AC wall outlet.
When the phone is completely charged (the battery icon
becomes still), unplug the charger from the power outlet.
Remove the charger from the phone.
Switch the Phone On/Off.
Enter Your Pin (Access Codes is 1234) if it is necessary.
Dial the Phone Number Required.
1.3 For Your Safety
Please read these safety guidelines before using your mobile
phone to assure the safe and proper use of the phone.
Switch off the phone when refueling.
20
Switch off in an aircraft.
Keep your phone dry.
Keep your phone away from small children and pets.
Do not store the phone in hot areas.
Do not store the phone in cold areas.
Do not drop, knock or shake the phone.
Do not put the phone in or on heating devices, such as a
microwave oven, stove or radiator. The phone may explode when
overheated.
Do not use batteries of different specifications otherwise they
will cause an explosion.
Prohibit using any accessory without our approval, otherwise
accident may occur.
If your phone has a flash or light, do not use it too close to the
eyes. Use only the supplied or an approved replacement antenna.
Do not attempt to open the phone’s casing.
If the phone or any of its accessories are not working properly,
take them to your nearest qualified service center.
Using the earpieces or stereo headset for extended time can
cause a serious damage to your hearing.
Do not use the phone while charging the phone.
Extreme heat or cold ：Avoid temperatures below
-10°C/14°F or above 40°C/104°F.
21
2 Function Menu

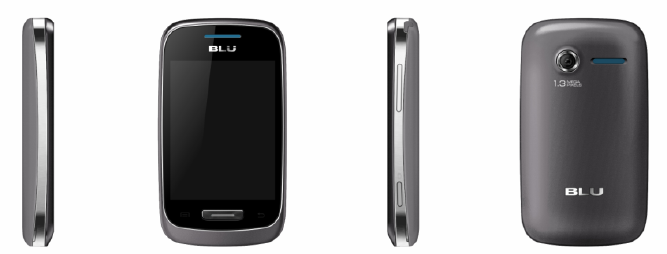

Phone overview
*The picture is for reference only, please make the object by the standard.
2.1 File manager
Use this menu to view the stored files in the phone or the
micro SD card. In the main menu interface, click “File Manager” to
enter this submenu, menu display Phone and “Memory Card：\”( if
the Memory card have insert into the mobile-phone).
2.2 Phonebook
You can fast locate the number of the person you want to
contact. Please enter the initial letter of the person’s name, and
related records about it will display in the middle of the screen. You
can locate your records, and then you can view, send SMS/MMS,
call, edit, delete, copy, move and so on.
2.3 User Profiles
Your mobile phone provides many different user profiles for
22
you to set your mobile phone’s ring tone according to case and
environments.
Select the needful profile:
Activate: to activate selecting profile.
Customize: to set the selected mode.
2.4 Settings
2.4.1 Dual SIM switch
You can select two kinds of mode to switch SIM: Manually
and Automatically.
2.4.2 Dual SIM settings
You can select three kinds of mode: Dual SIM open, only
SIM1 open, Only SIM2 open.
2.4.3 Pen calibration
You can click screen to calibrat the phone.
2.4.4 Phone Settings
You can configure the following options as desired: Time and
Date, Schedule power on/off, Language, Pref. input method,
Encoding, Wallpaper, Screen saver, Power on/off display, Auto
update of date and time, Flight mode, UART settings, LCD
backlight.
2.4.5 Security Settings
This function provides you with related settings about safety
use.
23
2.4.5.1 Phone security
The Phone Lock can prevent the unauthorized use of your
mobile phone.
Attention: The default phone lock code is 1122.
2.4.5.2 Auto keypad lock
You can set auto keypad on or off.
2.4.6 Call Settings
SIM1/SIM2 Call Setting
Call waiting: To enable call waiting function.
Call divert: To set the call condition by which calls are
diverted to another number.
Call Barring: Allows you to restrict incoming calls and
outgoing calls from your phone.
Line switch (Line1/ Line2): This is a network service to
select phone line 1 or 2, which is the subscriber number for making
calls within ALS Setting submenu.
Advance settings
Blacklist: To filter and block incoming calls.
Whitelist: Can add white list telephone number or IP address,
or dialogue list records do edit, delete action.
Auto redial: This option allow you set redial automatically
when the call receiver is busy.
IP dial: you can dial IP call.
Background sound: Set background sound when you are
calling.
Call time display: Set the phone to display the call time.
Call time reminder: You can set the call time reminder.
24
Auto quick end: Set to end the call automatically.
Reject by SMS: When you have incoming call you can reject
call and meanwhile send SMS by activate this function. Answer
mode: you can select answer mode when receive incoming call.
2.4.7 Restore Factory Settings
You can restore the relevant settings to the manufacturer’s
settings. The initial password is “1122”.
2.4.8 Sound Effects
You can change: Normal Bass Dance Classical Treble Party
Pop Rock Effect.
2.5 Call history
SIM1/SIM2 call history
All calls: Displays all call logs.
Missed calls: Displays the most recent received calls that you
did not answer.
Dialed calls: Displays the most recent calls you have dialed.
Received calls: Displays the most recent calls you have
received.
Call timers: Press the “Ok” to enter “Call Timers” submenu,
can look over call time record up to now.
Call cost: Press the “Ok” to enter “Call Cost” submenu, can
look over call cost record up to now.
Text msg. counter: To view the current SMS counter, include
the two options: “Sent” and “Received”. Press “Reset” to clear.
GPRS counter: Enter this submenu to view the quantity of
data flow transmitted on the network via GPRS. This includes
viewing the Last Sent, Last Received, All Sent or All Received
25
data flow quantity. You can also reset it to zero by the Reset
Counter.
2.6 Dailer
Click the Dailer to dial the number and then press dial key to
make a telephone call to the people who you want to call.
2.7 Messaging
2.7.1 Write messaging
Use this menu to create and send a message (SMS or MMS).
The SMS/MMS function is dependent on the network service and
your network may or may not support the service. Please confirm in
writing short message has been properly set before the information
center number.
2.7.2 Inbox
Inbox/Conversations deposit received all text messaging and
MMS.
2.7.3 Drafts
After editing of information, information will select save to
draft box location.
2.7.4 Outbox
In sending messages, select save and send when after the
failure, and transmit information will be stored in boxes.
2.7.5 Sent messages
In sending messages, select save and send and the news will
26
save to transmit information.
2.7.6 Achive
You can move the message from Inbox to Archive to archive.
2.7.7 Delete messages
You can choose delete inbox, draft, out boxes, already issued
information, folders and all the information for the corresponding
delete action.
2.7.8 Broadcast message
This network service allows you to receive the broadcast
messages on various topics such as weather, traffic, local district
code, local hospitals, taxis or pharmacy in your area. For more
information about broadcast message topics, please contact your
service provider.
2.7.9 Templates
Information list that phrase for the selected edit, delete,
template create new short message from template operation.
2.7.10 Message settings
Text message setting
Within the message settings sub-menu, you can define default
values on common parameters for mobile-originated messages.
Multimedia Message settings
Within the message settings sub-menu, you can define default
values on common parameters for mobile-originated messages.
Service Message
Enable push: According to Enable choose accept all, accept
authenticated or trusted, Disable.
27
Enable service loading: According to Enable service loading
choose Prompt, Auto launch, Disable.
2.8 Connectivity
Data account
This menu allows you to change the settings for the GSM and
GPRS network services. For further details, contact your service
provider.
2.9 TV
Analog TV allows users anywhere receive analog TV signals,
and adjust the volume in the player interface, full-screen switching,
regulating such as operating channel.
2.10 Camera
Camera Settings
Presses the “Option”, can select the operation as follows:
Album: You may view the photos in this menu.
Camera settings: To set some relative spec.
Image settings: You may set image size and quality.
White balance: You may set the balance of light.
Scene Mode: To take photos with different scene.
Effect Settings: To set special shot effect
Storage: To set the default storage path.
Restore default: To restore to the camera’s default settings.
2.11 Image viwer
You can convenient look over the photos list.
28
2.12 Video recorder
In preview window of the video, press the “setting”, you can
put up operation as follows:
Video recorder settings: To set some spec of the video
recorder.
Video settings: You can set the video quality.
White balance: You may set the balance of light.
Effect Settings: To set special shot effect
Storage: To set the default storage path.
Restore default: To restore to the video player’s default
settings
2.13 Video Player
Press the “Option”, can select the operation as follows:
Play to play the current movies.
Forward to select To Phonebook, To Screen Saver.
Rename to reedit the current movies name.
Delete to delete the current movies.
Delete All Files to delete the all movies.
Sort to array all movies.
Storage to select storage.
2.14 Audio Player
In the Audio Player menu interface, In the Audio Player
menu interface, press the “List” to display the play list of music,
press the “Option”, can Play the current music, look over Detail
message of music, Refresh List and Settings the attribute about the
Audio Player.
29
2.15 Sound recorder
You can record sound in AMR, WAV format and use it as ring
tone, MMS attachment and so on.
2.16 FM Radio
In the FM Radio menu interface, press “Option”
Channel list: to save and edit the auto-search result;
Manual input: manually enter the figure of the channel you
want to start exact search;
Auto search: auto search channels.
Settings: to set Background Play and Loud Speaker.
2. 17 Calendar
Enter Calendar submenu, screen will display the current
month, click date to change date.
You can enter “Add Event” menu to add and edit routing, and
then you can view, view all, add event, and jump to date and so on.
2. 18 Tasks
This feature lists out all your tasks you have added. You can
also view, add, edit, delete, delete overdue, delete all, jump to date,
send Vcalendar and save as file as desired.
2. 19 Alarm
The mobile-phone can set five alarms at most, and hold out the
alarm when the phone is power off.
2. 20 World Clock
Enter World Clock submenu, display world time zone map,
30
move coordinate location by the left/right icon, the interface will
show the city time located by the coordinate.
2. 21 Notes
Enter Notes submenu, can add some contents should be
recorded, and can add the note content after being an editor, delete
operation.
2.22 Web
Your mobile phone supports wireless application protocol
(WAP) service. You can access many different WAP services such
as news, weather reports, flight information, and
others. These services are especially designed for mobile phones and
maintained by WAP service providers.
2. 23 Calculator
Your mobile phone provides a calculator with 4 basic functions
to facilitate simple calculations.
2. 24 Unit converter
Enter Unit converter submenu, first choose conversion unit,
implement the length and the length, width and breadth of the
conversion between.
2. 25Currency converter
Enter Currency converter submenu, first input Rate, and
press the “OK” to enter. Press the “OK”, conversion result will
display in the other frame.
31
2. 26 Stopwatch
Start Split Timing, and then select “View record” to see
timing records.
2. 27 Ebook reader
Enter Ebook read submenu, cn read suffix expansion. TXT
electronic document called to document name can make changes and
display decoding way.
2.28 Bluetooth
You may establish wireless connection with other compatible
devices with the Bluetooth technology; you may send music files
and etc. with the Bluetooth technology; and you may establish
wireless connection with compatible PC, in addition to establish
communication via the connected compatible Bluetooth earphone.
2.29 Services
STK*
Press the left soft key to enter the “STK” main menu. Here
you can use the value-added services provided by your network
operator.
* The company reserves the right to issue no further notice in case of upgrade or
modification of this model.
32
FCC Statement
1. This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received,
including interference that may cause undesired operation.
2. Changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority
to operate the equipment.
NOTE:
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation.
This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
33
SAR Information Statement
Your wireless phone is a radio transmitter and receiver. It is
designed and manufactured not to exceed the emission limits
for exposure to radiofrequency (RF) energy set by the Federal
Communications Commission of the U.S. Government. These
limits are part of comprehensive guidelines and establish
permitted levels of RF energy for the general population. The
guidelines are based on standards that were developed by
independent scientific organizations through periodic and
thorough evaluation of scientific studies. The standards
include a substantial safety margin designed to assure the
safety of all persons, regardless of age and health. The
exposure standard for wireless mobile phones employs a unit
of measurement known as the Specific Absorption Rate, or
SAR. The SAR limit set by the FCC is 1.6 W/kg. * Tests for
SAR are conducted with the phone transmitting at its highest
certified power level in all tested frequency bands. Although
the SAR is determined at the highest certified power level,
the actual SAR level of the phone while operating can be well
below the maximum value. This is because the phone is
designed to operate at multiple power levels so as to use only
the power required to reach the network. In general, the closer
you are to a wireless base station antenna, the lower the
power output. Before a phone model is available for sale to
the public, it must be tested and certified to the FCC that it
does not exceed the limit established by the government
34
adopted requirement for safe exposure. The tests are
performed in positions and locations (e.g., at the ear and worn
on the body) as required by the FCC for each model. The
highest SAR value for this model phone when tested for use
at the ear is 0.523W/Kg and when worn on the body, as
described in this user guide, is 1.05W/Kg(Body-worn
measurements differ among phone models, depending upon
available accessories and FCC requirements). While there
may be differences between the SAR levels of various phones
and at various positions, they all meet the government
requirement for safe exposure. The FCC has granted an
Equipment Authorization for this model phone with all
reported SAR levels evaluated as in compliance with the FCC
RFexposure guidelines. SAR information on this model
phone is on file with the FCC and can be found under the
Display Grant section of http://www.fcc.gov/ oet/fccid after
searching on
FCC ID: QRP-AZUMIQ15 Additional information on
Specific Absorption Rates (SAR) can be found on the
Cellular Telecommunications Industry Asso-ciation (CTIA)
web-site at http://www.wow-com.com. * In the United States
and Canada, the SAR limit for mobile phones used by the
public is 1.6 watts/kg (W/kg) averaged over one gram of
tissue. The standard incorporates a sub-stantial margin of
safety to give additional protection for the public and to
account for any variations in measurements.
35
Body-worn Operation
This device was tested for typical body-worn operations. To
comply with RF exposure requirements, a minimum
separation distance of 15mm must be maintained between the
user’s body and the handset, including the antenna.
Third-party belt-clips, holsters, and similar accessories used
by this device should not contain any metallic components.
Body-worn accessories that do not meet these requirements
may not comply with RF exposure requirements and should
be avoided. Use only the supplied or an approved antenna.
