AW-CB178NF
Wireless LAN & Bluetooth Module IC
MFG Tool Command User Guide
Version 0.1
Document
release Date Modification Initials Approved
Ver. 0.1 2014/09/22 Initial version Terry Chu
- 2 -
1. AW-CB178NF WLAN & Bluetooth MFG Tool Command User Guide
z When you test AW-CB178NF, please insert AW-CB178NF into connector J2 in the first. And you
need to take a screw column with H1 hole to make AW-CB178NF combined with carrier board.

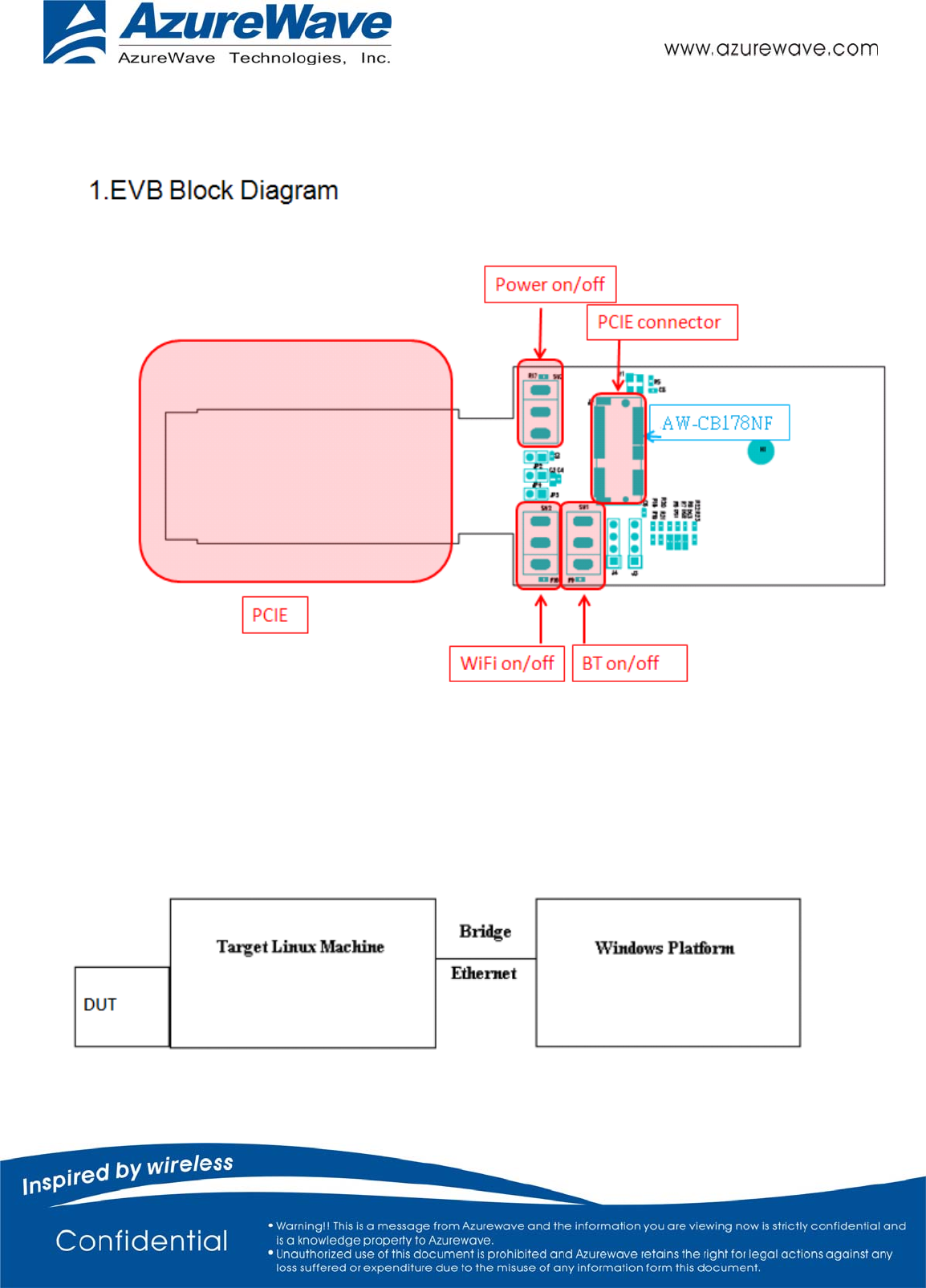

1.1 Environment set up and Bridge Mode Tool
(1) The “Manufacturing Bridge” refers to the application that allows a user to send commands between
Target platform and Windows XP platform. The environment enables the user to test performance of
the AW-CB178NF.
Manufacturing Bridge mode
- 3 -

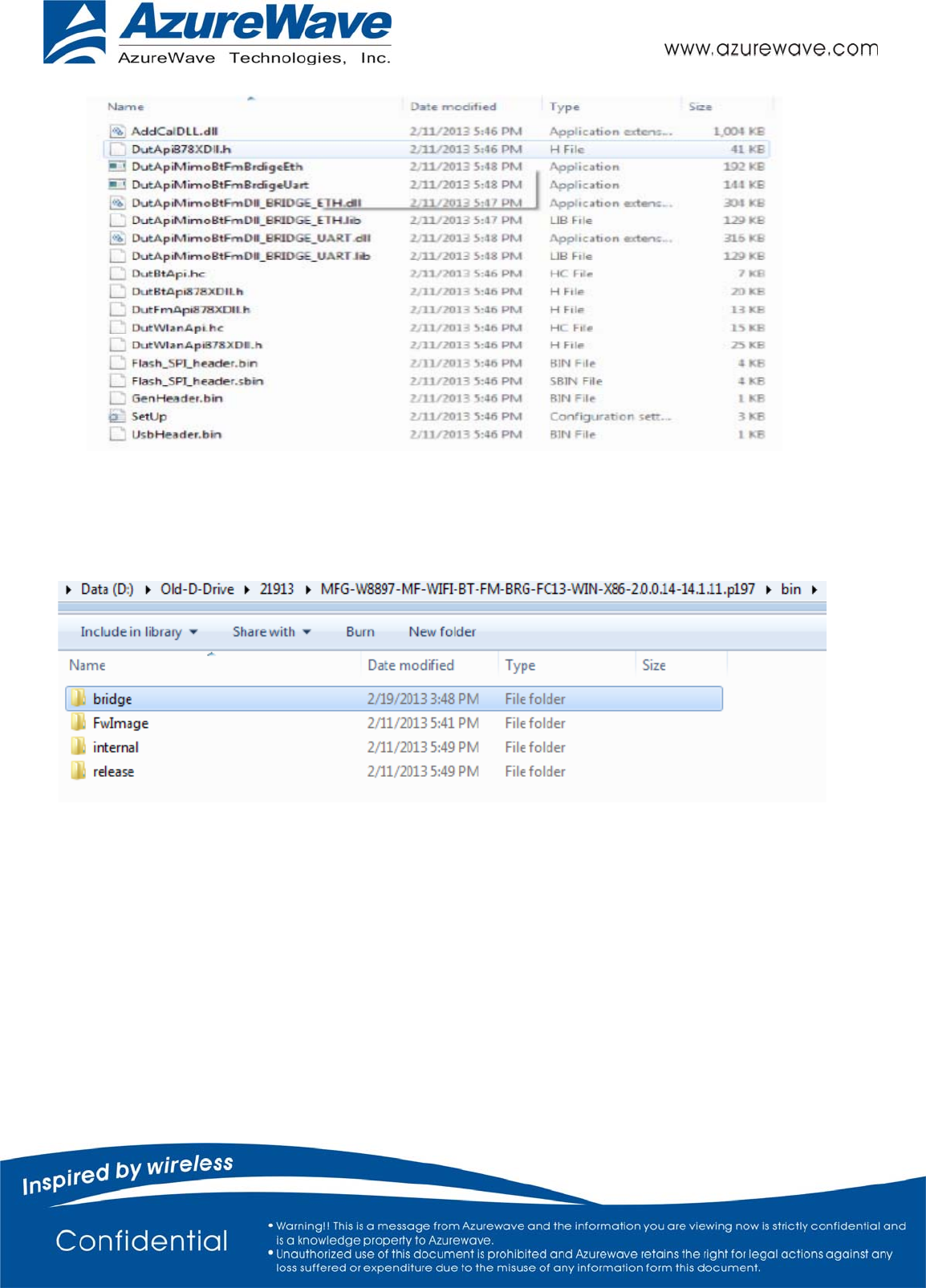

(2) bin Folder Contents
Download the latest MFG release from the Marvell Extranet and unzip it. The bin folder should look
similar to the figure shown below. The release contains three folders: bridge, FwImage, and internal.

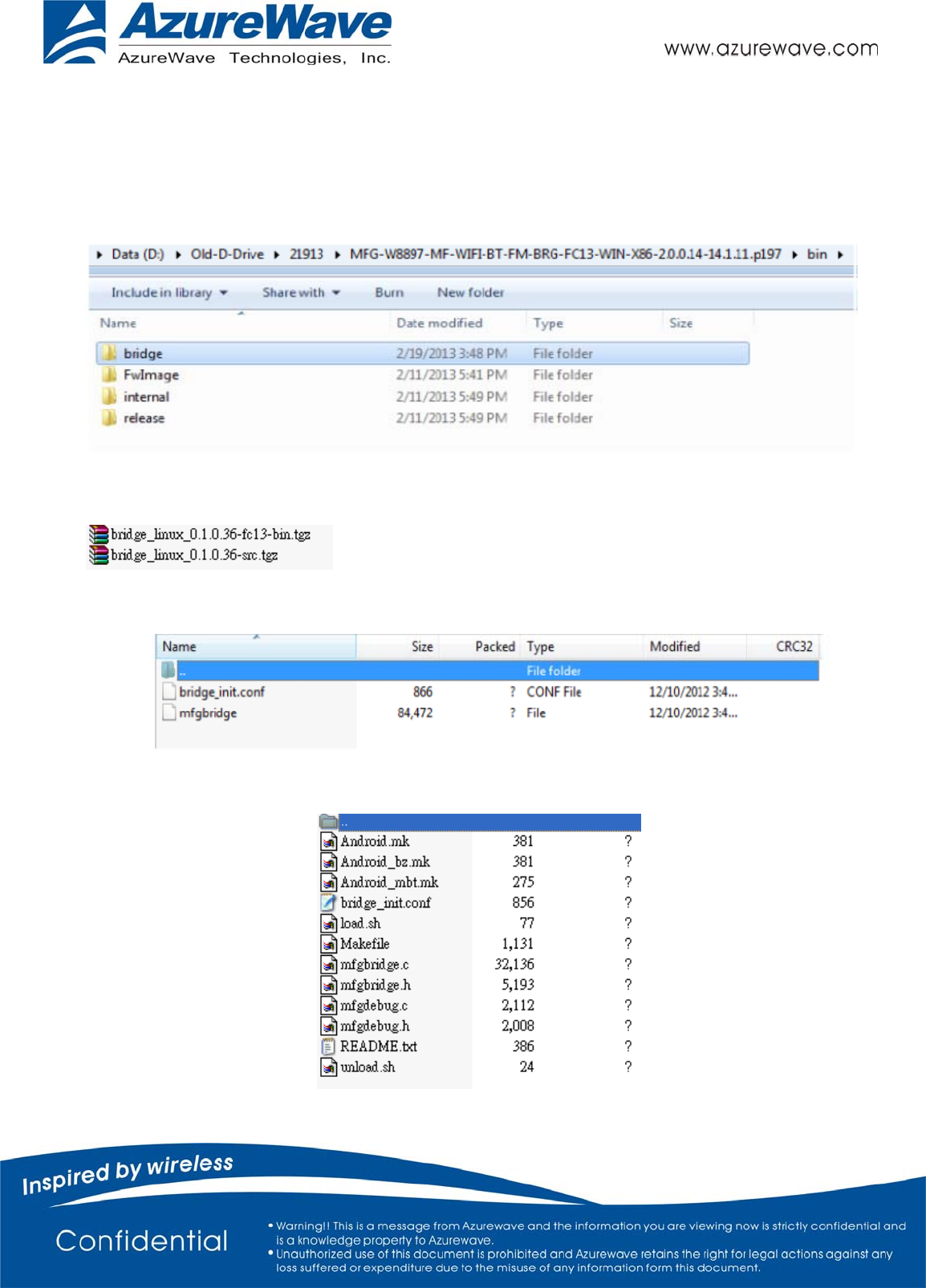

(3) Bridge Folder
Within the bridge folder are two .tgz files.
a. File bridge_linux_0.1.0.29-fc13-bin contains the following files.
b. File bridge_linux_0.1.0.22-src.tgz contains the source files for the bridge.
- 4 -

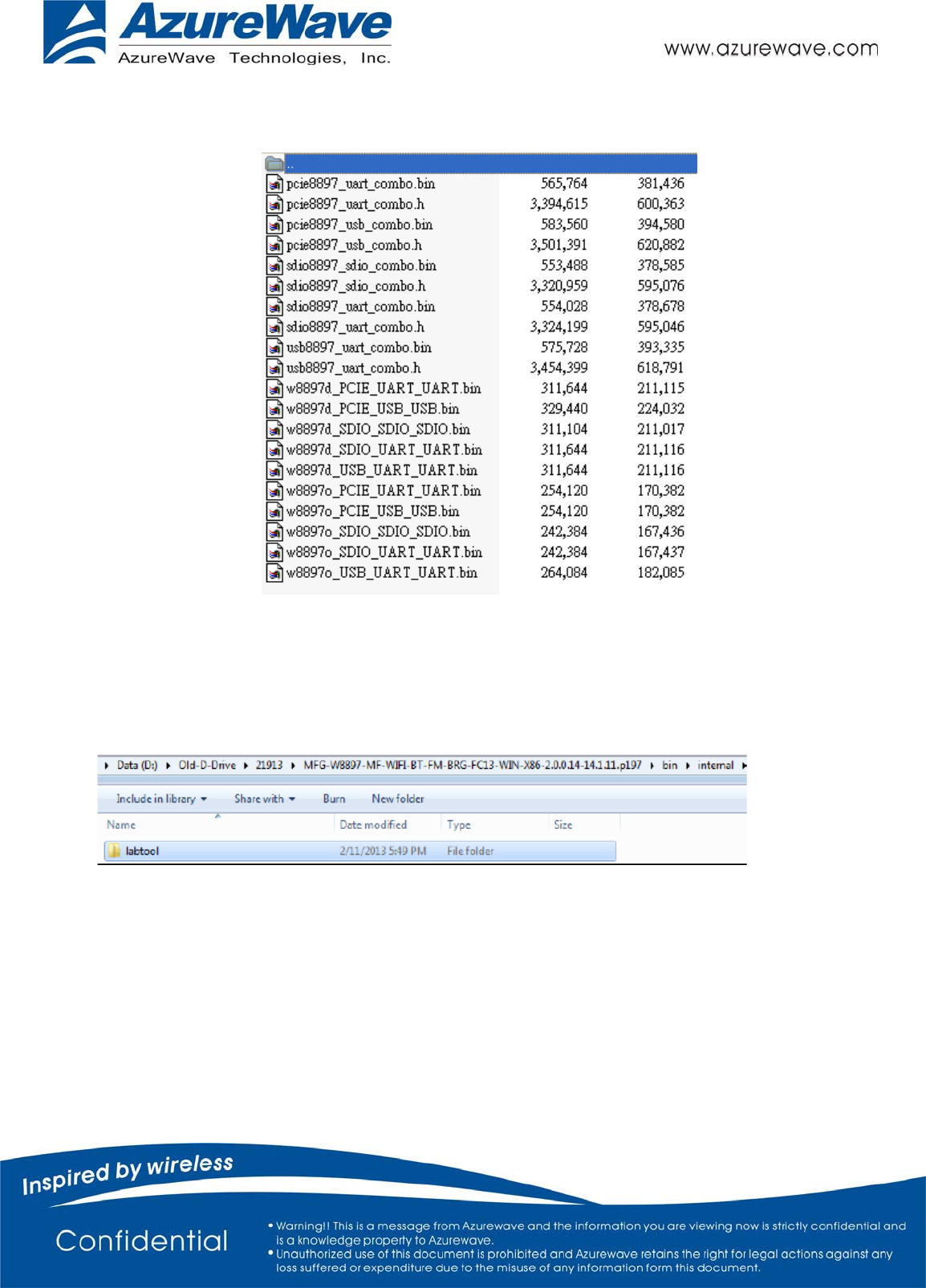

(4)FwImage Folder
Within the FwImage folder are 15 .bin files.
a. The corresponding Firmware should be placed in the /lib/Firmware/mrvl folder
(5)Internal Folder
Within the internal folder is the labtool and labtool_src folder. For this document’s purpose, only the
details of the labtool folder will be discussed.
The contents of the labtool folder is shown below.
- 5 -
The Labtool executable is labeled (DutApiMimoBtFmBridgeEth.exe)
1.2 Using the Contents of the MFG Release Package
(1) For the Bridge Utility that runs on the target platform, go to the folder shown below.
Obtain the bridge_linux_x.x.x.x_src.tgz file. The source files include a makefile for standard Linux
distribution and Android. The same bridge tool can be compiled and run on an Android platform.
After successful compilation, an “mfgbridge” executable will be produced and will run on the target
platform. In the same folder, make sure to include the bridge_init.conf file from the bridge source code.
On the given Host Linux system, the following files have to be transferred & reside on the system.
(Transfer the files over via flash memory or tftp over the host.)
Place the firmware in /lib/firmware/mrvl/
pcie8897_usb_combo.bin
- 6 -
PLEASE NOTE THE DRIVER IS NOT PART OF THE MANUFACTURING PACKAGE
The user must compile the driver per your specific Linux OS and Kernel. This is due to that the driver is
dependent on the actual OS and kernel version. This next section will describe the steps needed to be
done before you can install the driver and run it.
Please download the production driver package from the extranet at the below location:
My Products/ Wireless/ 88W8897/ Software
Unzip these three zipped files:
a. XXX-8897-FC13-X86-X.X.X.X _X-app-src.tgz
b. XXX-8897-FC13-X86-X.X.X.X_X-GPL-src.tgz
c. XXX-8897-FC13-X86-X.X.X.X_X-mlan-src.tgz
From the unzipped files, go to the subdirectory wlan_src
*Make sure to have kernel headers and kernel libs before executing the “make” commands below.
make clean
make build
Go up one folder to copy both *.ko files to your directory in where you have the other files in where you
want to run the insmod command.
Here is the sample list of files (as a minimum) at 1 location:
bridge_init.conf
mfgbridge
mlan.ko
pcie8897.ko

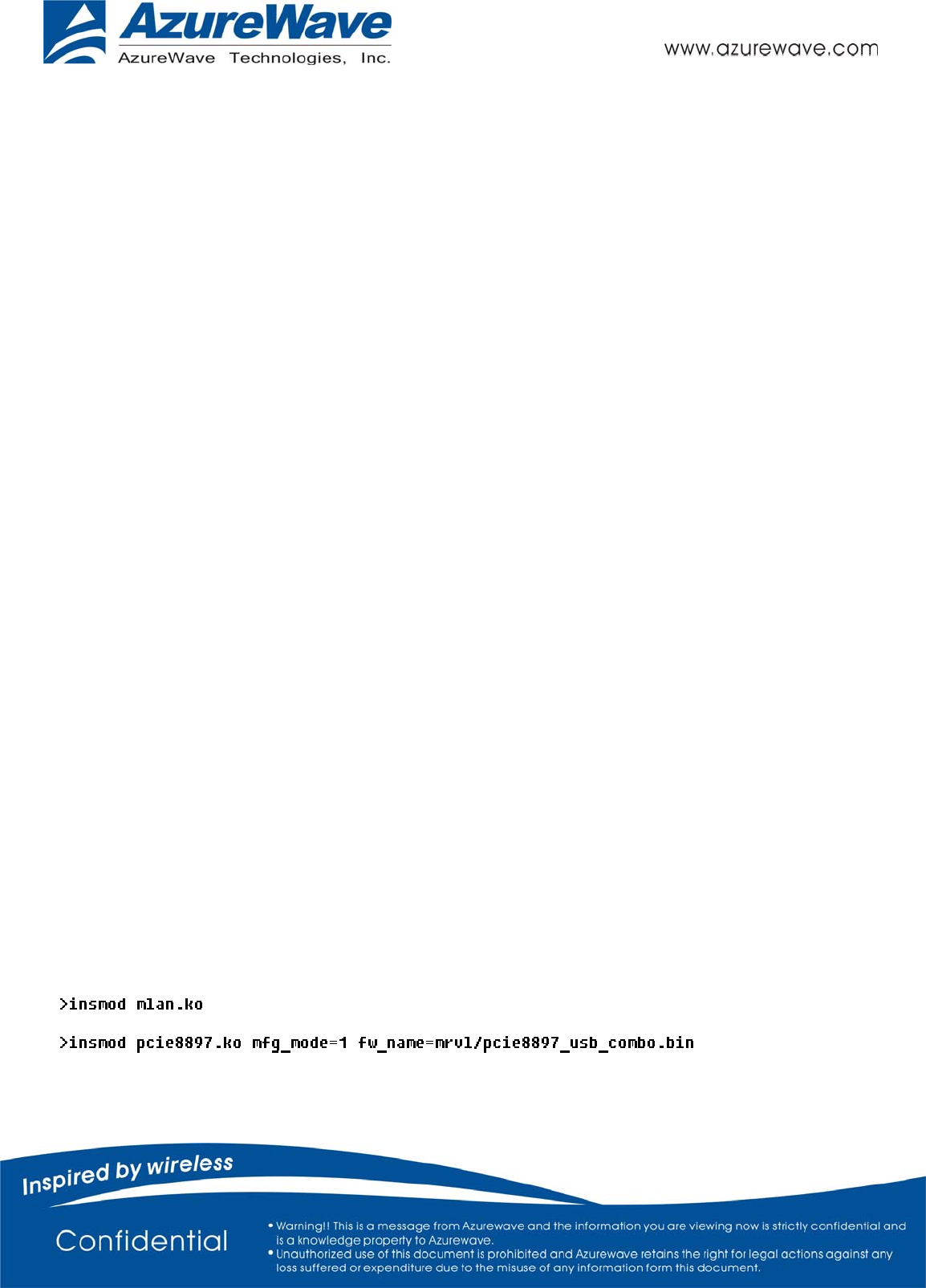

Now you can run the following commands to install the driver and firmware and start the Manufacturing
bridge application with the following commands.
On the target platform, use the following commands to put the 88W8897 in MFG mode:
- 7 -

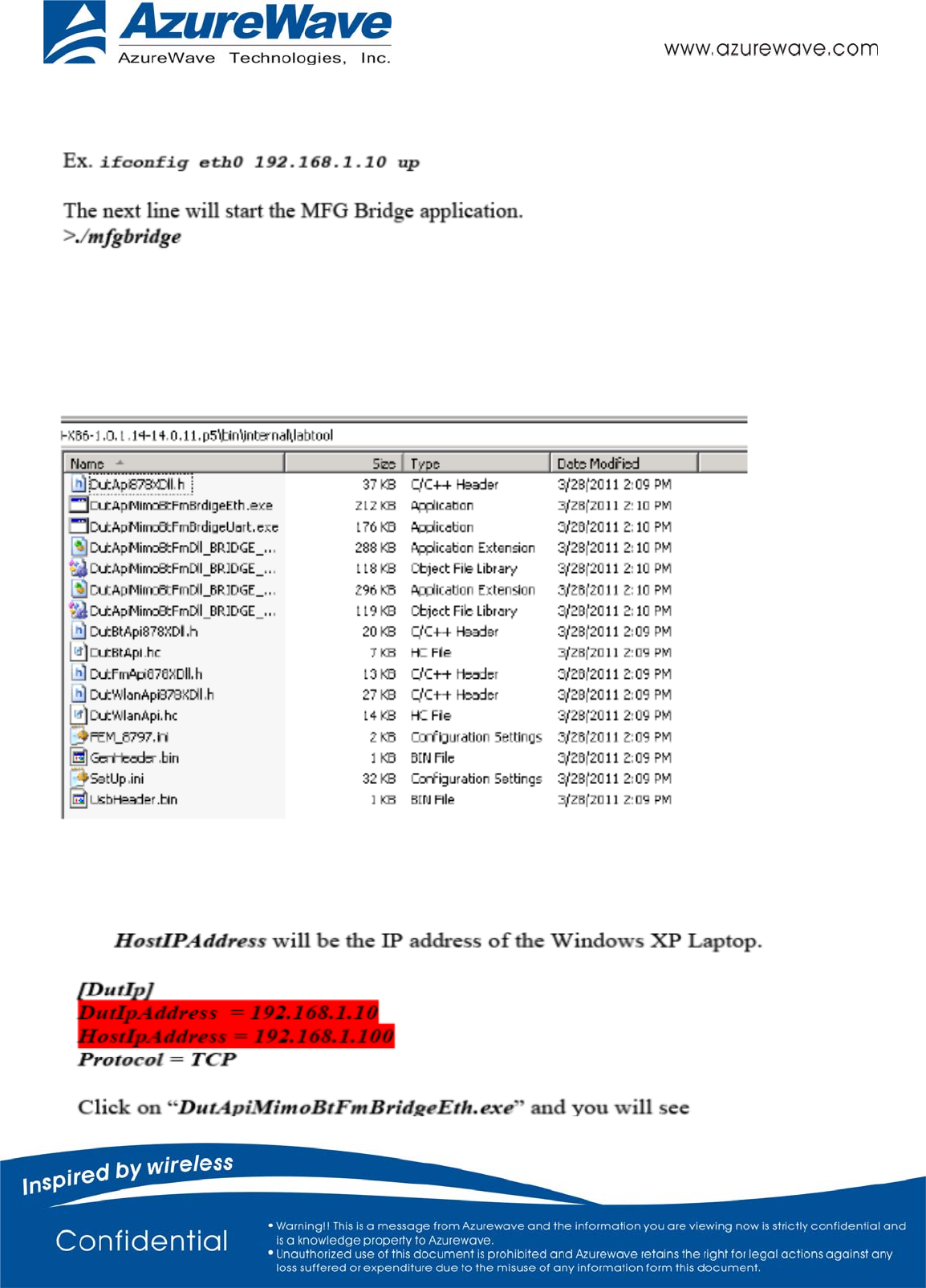

Bring up the ethernet interface and specify an IP address to the Target platform. This address must match
the IP for the DUT in which the Host XP is expecting.
At this point, the target is ready to receive Labtool commands. On the Windows XP laptop where the
Labtool release was downloaded, go to the folder shown below:
Edit the “SetUp.ini” file as shown in the lines highlighted in RED below. The setup
DutIpAddress will be the IP address of your target.
- 8 -
1.3 Initial Command

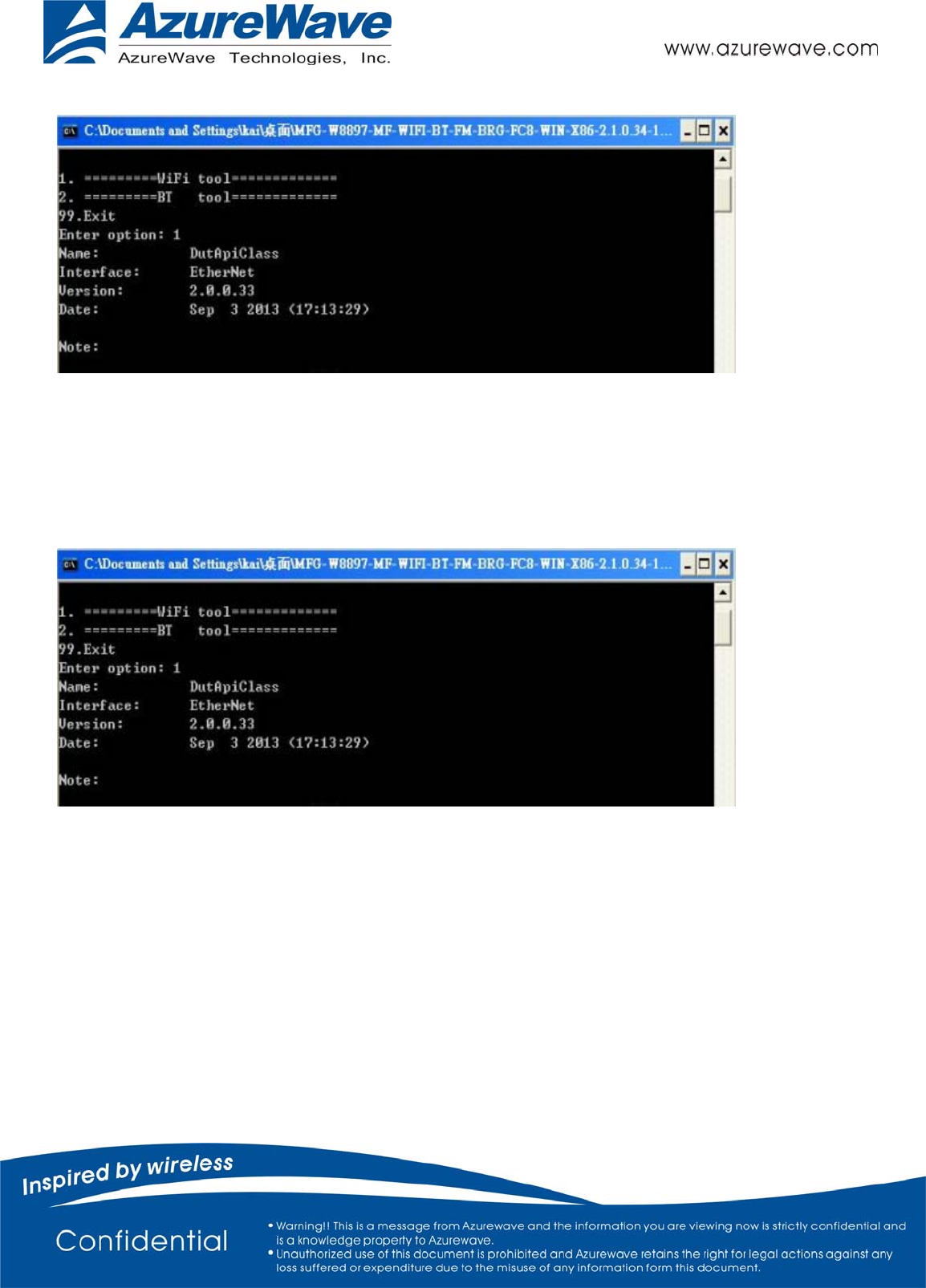

As the information showed on your screen, please enter these commands below to start your test.
(Figure 9)
Command: 1 Wi-Fi testing
Command: 2 BT testing
Figure 9
1.3 Generate 802.11a/b/g/n Packet commands
a. Tx on CH 6 at 10 dBm with a CCK-11Mbps data rate in 20 MHz BW mode on path A
25 // Stop Tx
10 1 1 // Set Path A Only
30 0 // Set to 2.4 GHz Band
112 0 // Set to 20 MHz BW
12 6 // Set to CH 6
- 9 -
22 0 6 10 0 // Set to CH 6 at 10 dBm Output Power with CCK/BPSK Data Rate on Path A
25 1 4 // Tx at 11 Mbps
--------------------------------------------------------------------------------------------------------------------------------------
b. Tx on CH 6 at 10 dBm with a CCK-11Mbps data rate in 20 MHz BW mode on path B
25 // Stop Tx
10 2 2 // Set Path B Only
30 0 // Set to 2.4 GHz Band
112 0 // Set to 20 MHz BW
12 6 // Set to CH 6
22 1 6 10 0 // Set to CH 6 at 10 dBm Output Power with CCK/BPSK Data Rate on Path B
25 1 4 // Tx at 11 Mbps
----------------------------------------------------------------------------------------------------------------------------------
c. Tx on CH 36 at 8 dBm with a MCS7 Data rate in 20 MHz BW Mode on Path A
25 // Stop Tx
10 1 1 // Set Path A
30 1 // Set to 5 GHz Band
112 0 // Set to 20 MHz BW
12 36 // Set to CH 36
22 0 36 8 1 // Set to CH 36 at 8 dBm Output Power with OFDM Data Rate on Path A
25 1 22 // Tx at MCS 7
-----------------------------------------------------------------------------------------------------------------------------------
d. Tx on CH 36 at 12 dBm with a MCS7 Data rate in 40 MHz BW Mode on Path A
25 // Stop Tx
10 1 1 // Set Path A
30 1 // Set to 5 GHz Band
112 1 // Set to 40 MHz BW
12 36 // Set to CH 36.
22 0 36 12 1 // Set to CH 36 at 12 dBm Output Power with OFDM Data Rate on path A
25 1 22 // Tx at MCS 7
-----------------------------------------------------------------------------------------------------------------------------------
d. Tx on CH 36(5210MHz) at 11 dBm with a MCS9 Data rate in 80 MHz BW Mode on Path A
- 10 -
25 // Stop Tx
10 1 1 // Set Path A
30 1 // Set to 5 GHz Band
112 4 // Set to 40 MHz BW
12 36 // Set to CH 36.
22 0 36 11 1 // Set to CH 36 at 11 dBm Output Power with OFDM Data Rate on path A
25 1 110 // Tx at MCS 9
Data rate set up
B mode & G mode:
1Mbps 5.5Mbps 11Mbps 6Mbps 9Mbps 12Mbps 18Mbps 24Mbps
1 3 4 6 7 8 9 10
36Mbps 48Mbps 54Mbps
11 12 13
N mode:
MCS0 MCS1 MCS2 MCS3 MCS4 MCS5 MCS6 MCS7
15 16 17 18 19 20 21 22
VHT Data Rates:
101 for VHT_SS1_MCS0
102 for VHT_SS1_MCS1
103 for VHT_SS1_MCS2
104 for VHT_SS1_MCS3
105 for VHT_SS1_MCS4
106 for VHT_SS1_MCS5
107 for VHT_SS1_MCS6
108 for VHT_SS1_MCS7
109 for VHT_SS1_MCS8
110 for VHT_SS1_MCS9
111 for VHT_SS2_MCS0
112 for VHT_SS2_MCS1
113 for VHT_SS2_MCS2
114 for VHT_SS2_MCS3
115 for VHT_SS2_MCS4
- 11 -
116 for VHT_SS2_MCS5
117 for VHT_SS2_MCS6
118 for VHT_SS2_MCS7
119 for VHT_SS2_MCS8
120 for VHT_SS2_MCS9
After you type above command, you can measure the 802.11b/g/n packet by your RF test instrument (exp:
Agilent 4010, IQview…).
1.4 Generate 802.11b/g/n continuous symbol Commands
a. Cont. Tx on CH 36 at 8 dBm with a MCS7 Data rate in 20 MHz BW Mode on Path A
17 // Stop Cont. Tx
25 // Stop Tx
10 1 1 // Set Path A
30 1 // Set to 5 GHz Band
112 0 // Set to 20 MHz BW
12 36 // Set to CH 36
22 0 36 8 1 // Set to CH 36 at 8 dBm Output Power with OFDM Data Rate on Path A
25 1 22 // Tx at MCS 7
25 // Stop Tx
17 1 22 // Cont. Tx at MCS7
17 // Stop Cont. Tx
1.5 Test RX sensitivity Commands
a. Rx on CH 157 in 20 MHz BW Mode on both Path A
25 // Stop Tx
10 1 1 // Set to Path A
30 1 // Set to 5 GHz Band
112 0 // Set to 20 MHz BW
12 100 // Set to CH 100
31 //
Clear all the received packets
32 // Get Rx Packet Count and then clear the Rx packet counter
1.6 Others Commands
- 12 -
(1) Command 45Æ Check the MAC
(2) Command 99Æ Quit the test mode/ Quit the MFG tool
1.7 BT test mode Commands
This is how we test our BT: let BT enter test mode, then connect to tester for testing.
(1) Command 45ÆCheck BT MAC.
(2) Command 78 1ÆBT enter test mode.
After you type above command, you can measure BT signal both TX/RX and the other BT test items by
your BT instrument.
