AW-CU288 EVB I1 User Guide
V0.3
2014/07/14
Kai. Wu
Confidential
Relative Software
ދᐙׂᒳᇆ 2
Application Software
FTDI VCP Drivers (FT2232D)
Libusb-win32-bin-1.2.6.0
Cygwin
Set-up Procedure
1. Download FTDI VCP Drivers (FT2232D)
2. Download Libusb-win32-bin-1.2.6.0
3. Set Up CU288 EVB for Windows
4. Install FTDI VCP Drivers
5. Install Libusb-win32-bin-1.2.6.0
6. Install Cygwin
,QVHUWILOH³2SHQ2&']LS´By wmsdk_bundle-2.13.78)
8. Burning MCU Image with normal firmware
9. Run WIFI Normal Driver
10. Burning MCU Image with MFG firmware
11. Run WIFI MFG tool
Confidential
1. Download FTDI VCP Drivers (FT2232D)
ދᐙׂᒳᇆ 3

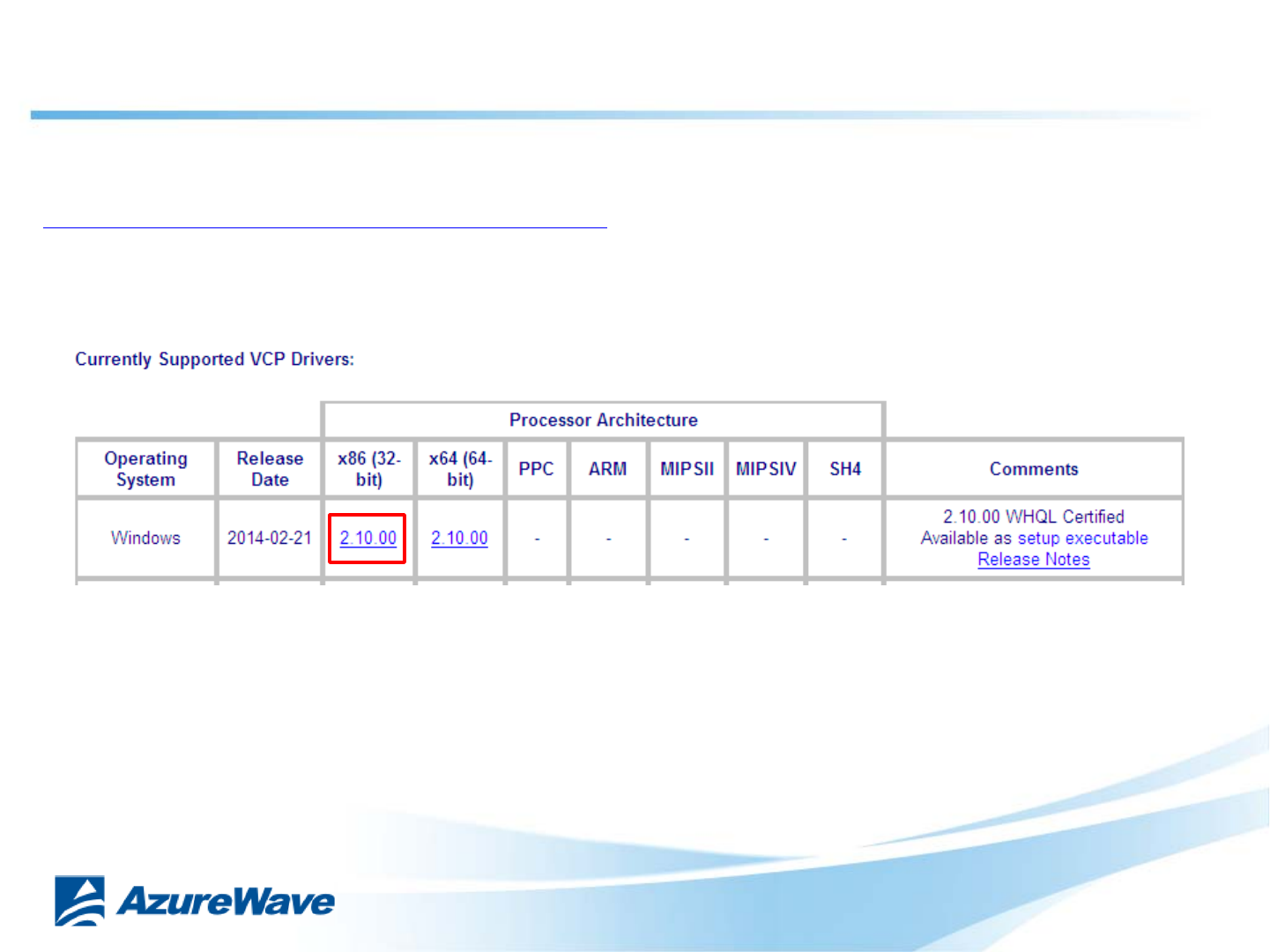

,QVWDOOWKHGULYHUPDQXDOO\<RXFDQJHWWKHGULYHUIURP)7',¶VZHEVLWH
http://www.ftdichip.com/Drivers/VCP.htm
Confidential
2. Download Libusb-win32
ދᐙׂᒳᇆ 4

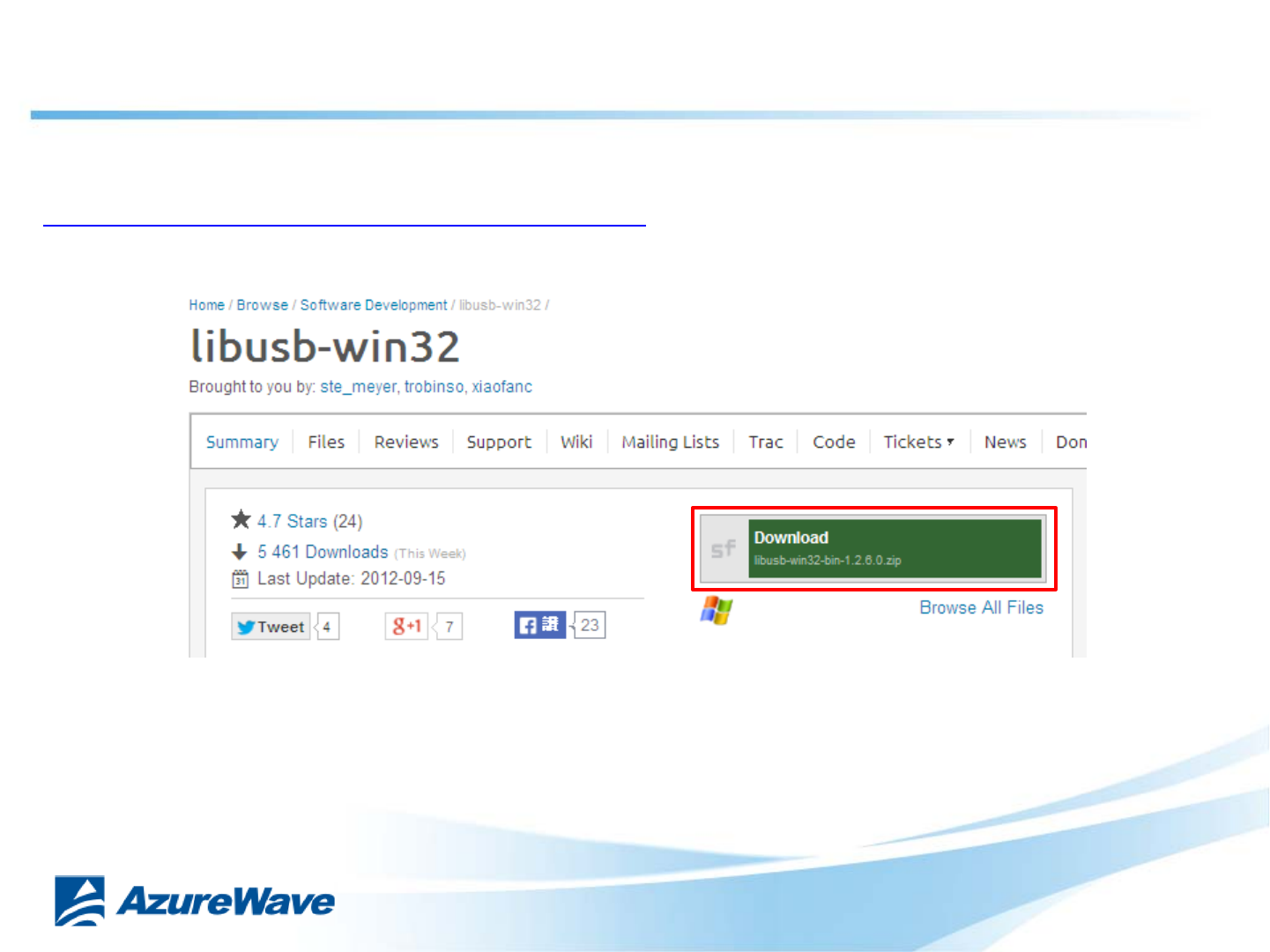

You can get the driver from libusb-ZLQ¶VZHEVLWH
http://sourceforge.net/projects/libusb-win32
Confidential
3. Set Up CU288 EVB for Windows
ދᐙׂᒳᇆ 5

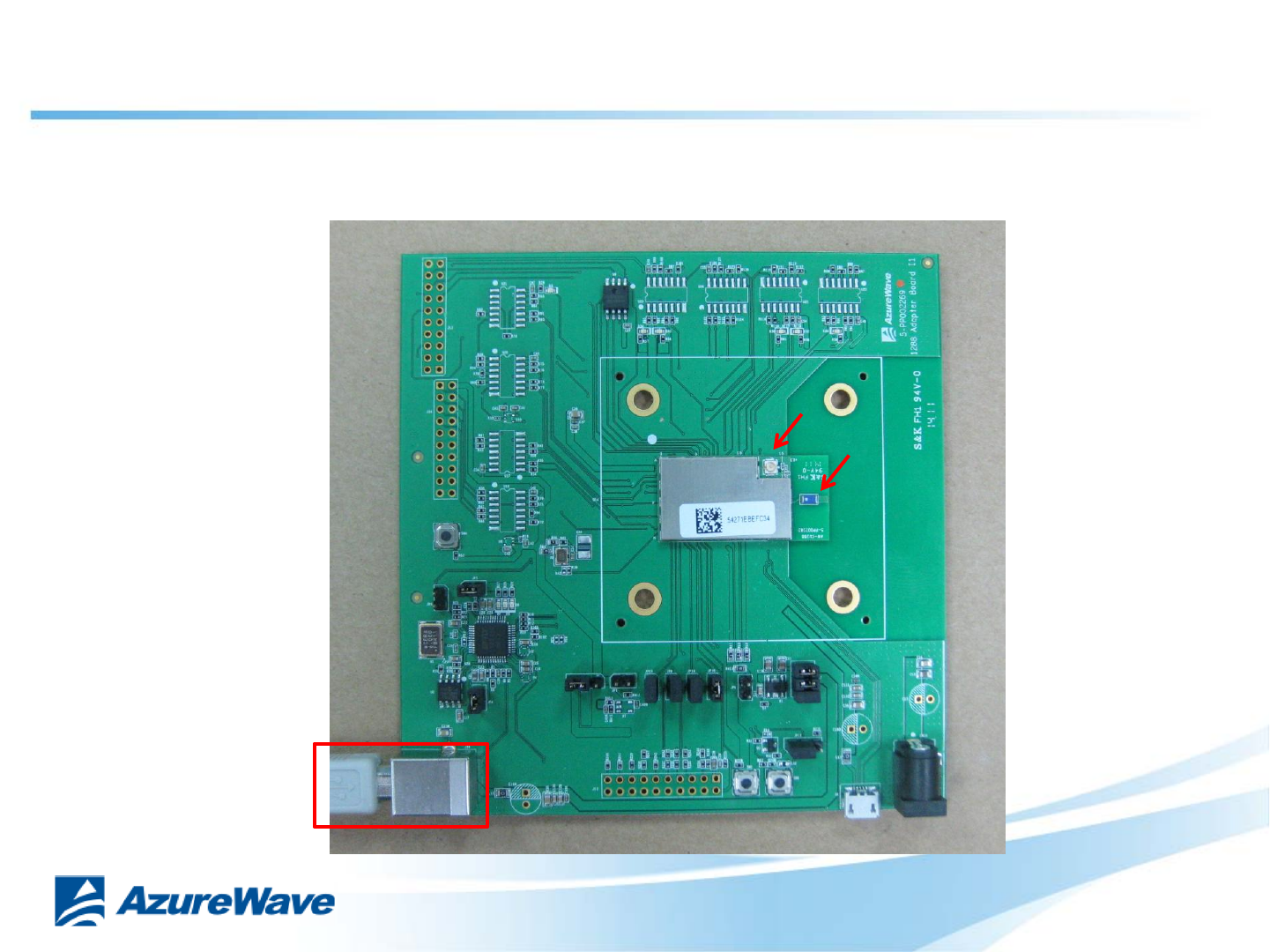

The USB port connects the CU288 evaluation board to the PC.
ANT2
ANT1
Confidential
4-1. Install FTDI VCP Drivers
ދᐙׂᒳᇆ 6
DONE
Confidential
4-2. Install FTDI VCP Drivers
ދᐙׂᒳᇆ 7
Verifying Driver Installation:
To verify that driver installation has completed successfully, you can open the
³'HYLFH0DQDJHU´ULJKW-click My Computer, select Properties).
In the System Properties windows, select Hardware, Device Manager.

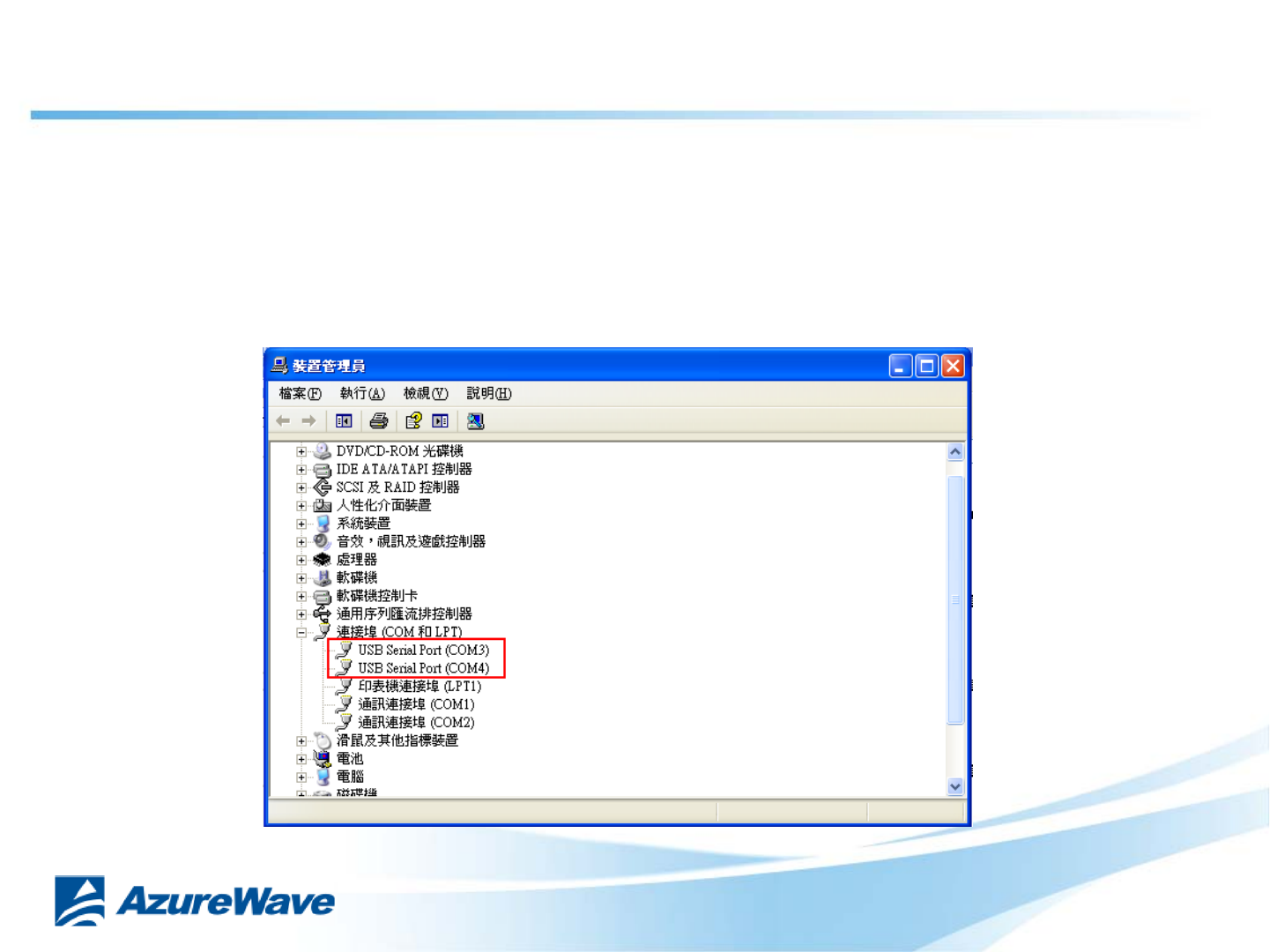

7ZR³86%6HULDO3RUW´VKRXOGEHOLVWHGXQGHU0<-PC\Ports (COM & LPT)
Confidential
5-1. Install Libusb-win32
ދᐙׂᒳᇆ 8

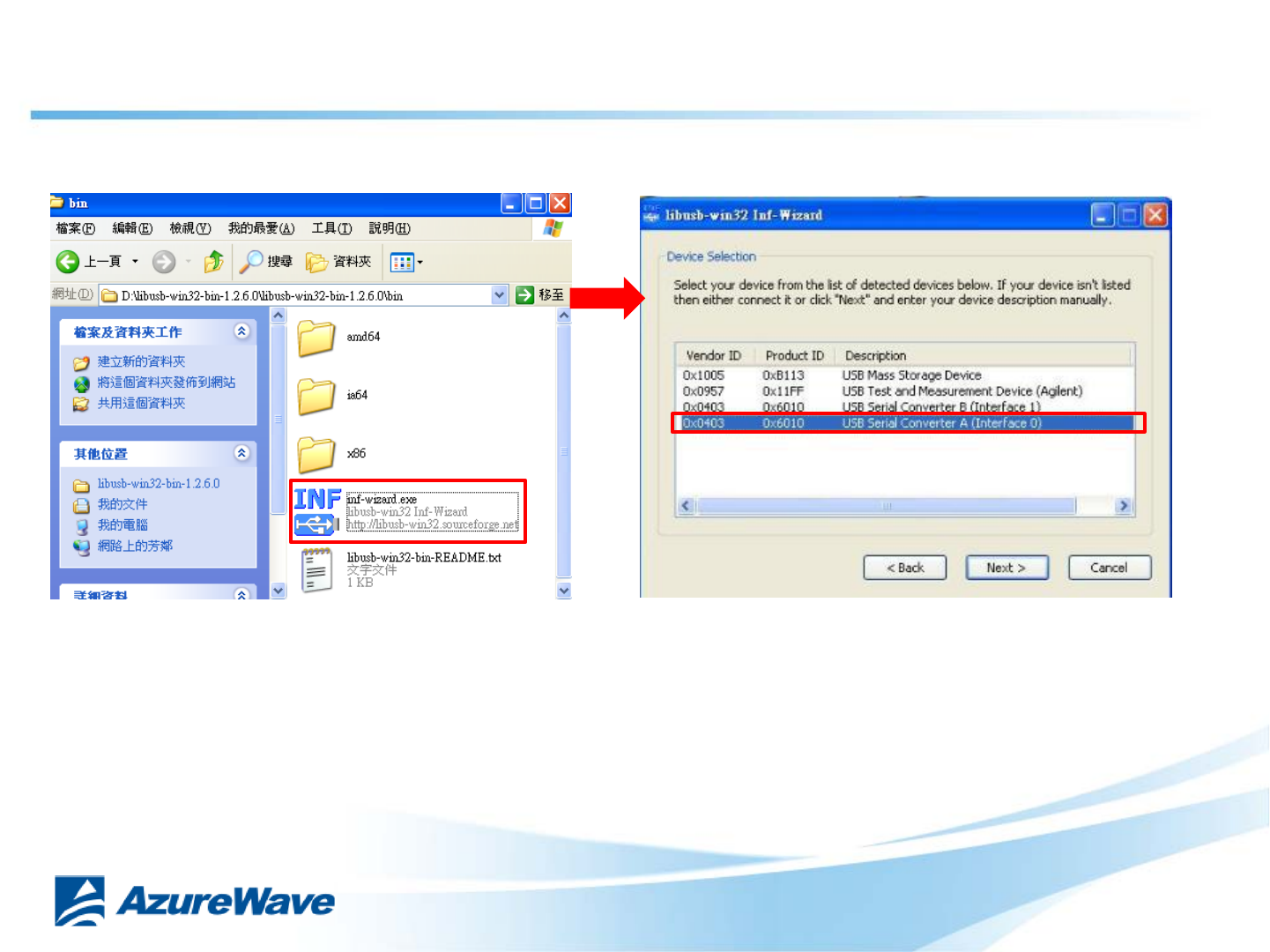

Install inf-wizard: USB Serial Converter A (Interface 0)
Confidential
5-2. Install Libusb-win32
ދᐙׂᒳᇆ 9

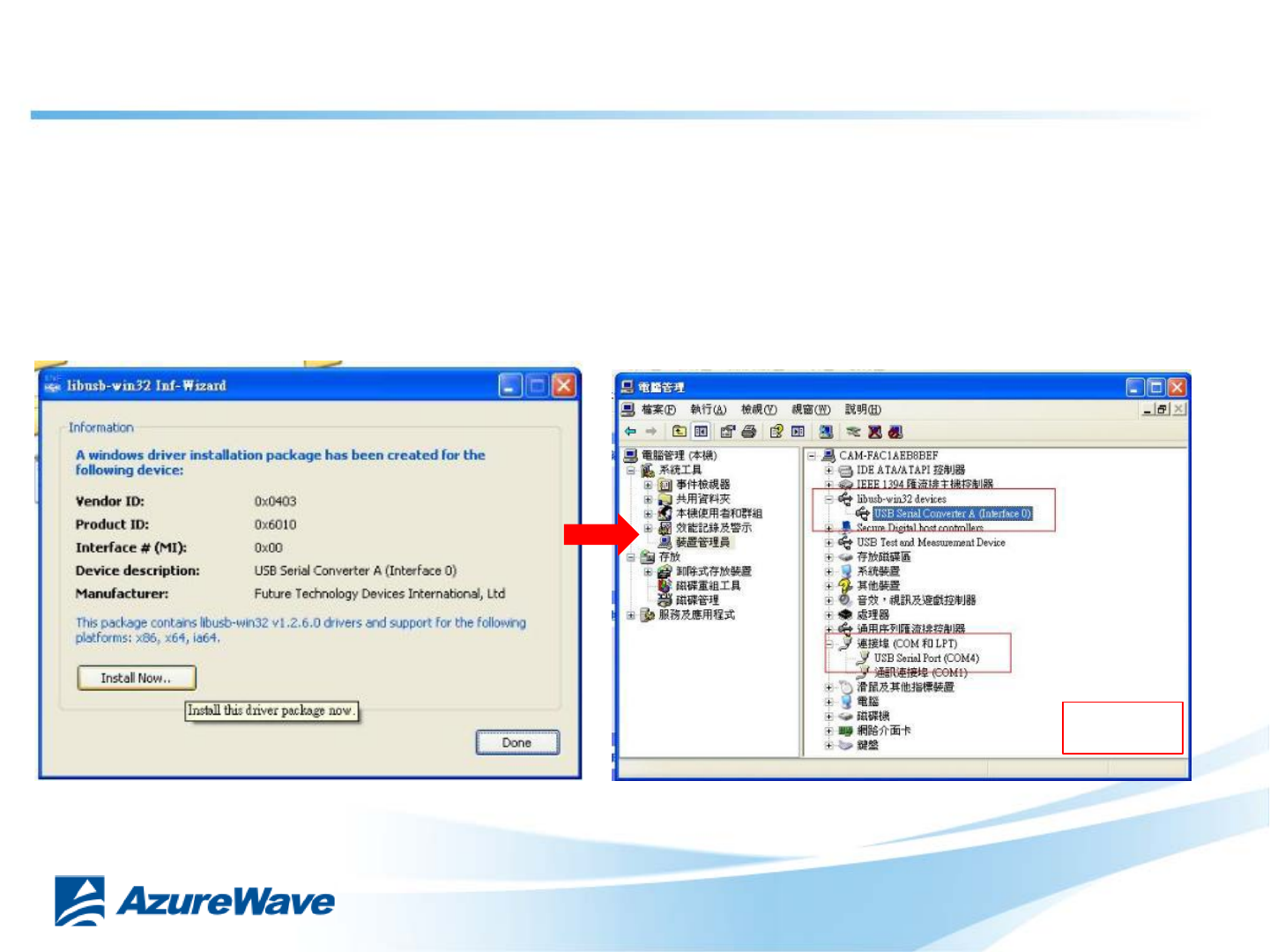

Verifying Driver Installation:
To verify that driver installation has completed successfully, you can open the
³'HYLFH0DQDJHU´ULJKW-click My Computer, select Properties).
In the System Properties windows, select Hardware, Device Manager.
One ³USB Serial &RQYHUWHU$´should be listed under MY-PC\Ports (lib usb-
win32 devices)
DONE
Confidential
6-1. Install Cygwin
ދᐙׂᒳᇆ 10
Install Cygwin:
1. Install Cygwin from: http://www.cygwin.com/setup_x86.exe (for x86 32-bit systems) or
http://www.cygwin.com/setup_x86_64.exe (for x86 64-bit systems)
2. Select the option Install from Internet
3. Use default installation path: c:\cygwin. If you chose an alternate installation directory, please
make sure that there are no spaces in the path.
4. Pick the Local Package Directory (this is the download cache directory)
5. Select the option Direct Connection
6. Select any mirror you want to use
7. Add additional packages to the default selection:
&OLFN³1H[W´7KHCygwin Setup window will show the progress as each package gets installed.
Note:
If you are not familiar with cygwin, please visit http://cygwin.com/ for additional
information and details. In particular, the Cygwin User Guide
(http://cygwin.com/cygwin-ug-net/) is a good resource for new users.
Confidential
6-2. Install Cygwin
ދᐙׂᒳᇆ 11
DONE
Confidential
7-,QVHUWILOH³2SHQ2&']LS´
ދᐙׂᒳᇆ 12

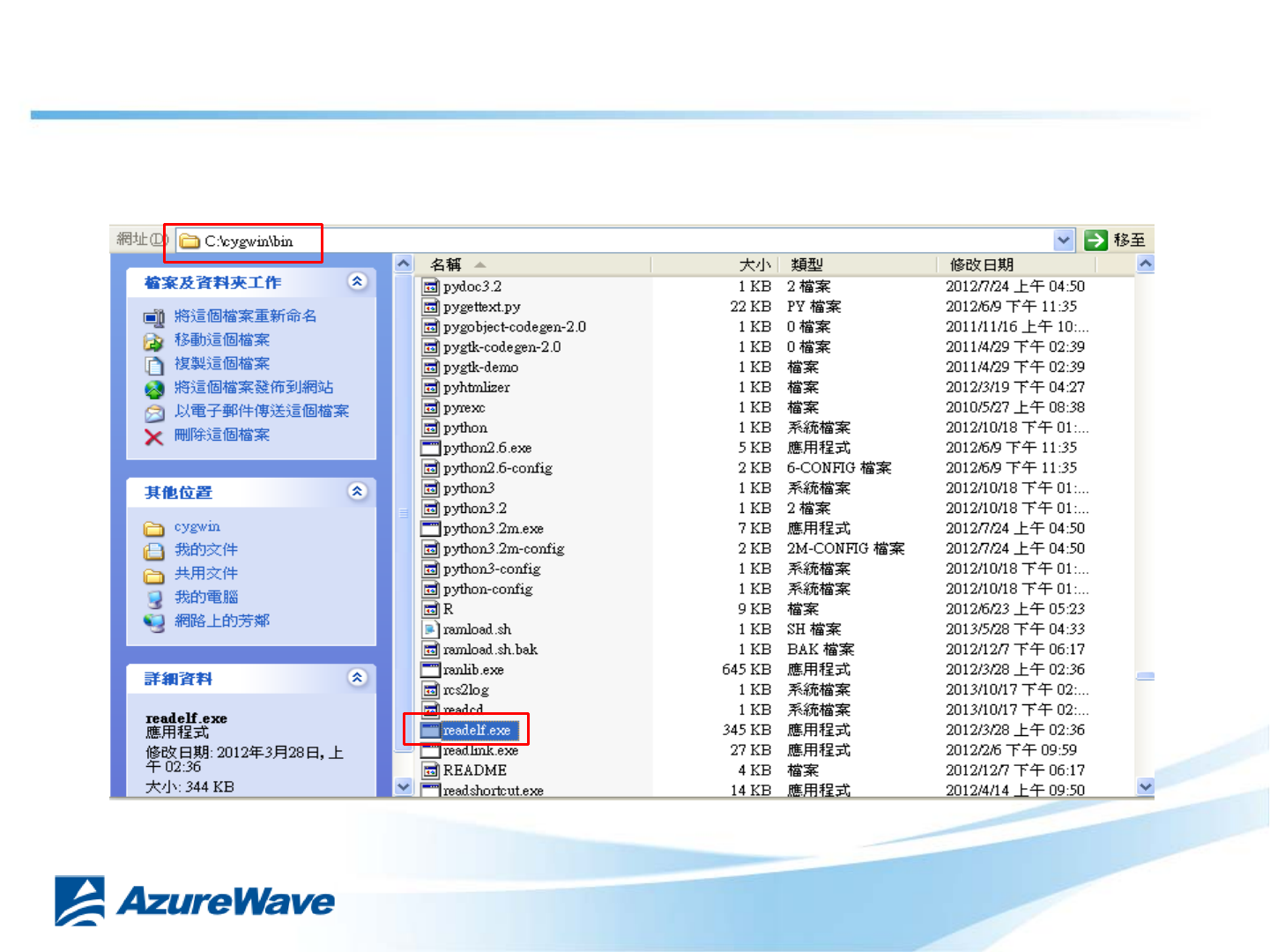

8Q]LS³&8B2SHQ2&']LS´DQGSXW³UHDGHOIH[H´WR&\cygwin\bin
Confidential
ދᐙׂᒳᇆ 13
8Q]LS³&8B2SHQ2&']LS´DQGSXWWKHPWR&\cygwin\
7-,QVHUWILOH³2SHQ2&']LS´
Confidential
ދᐙׂᒳᇆ 14

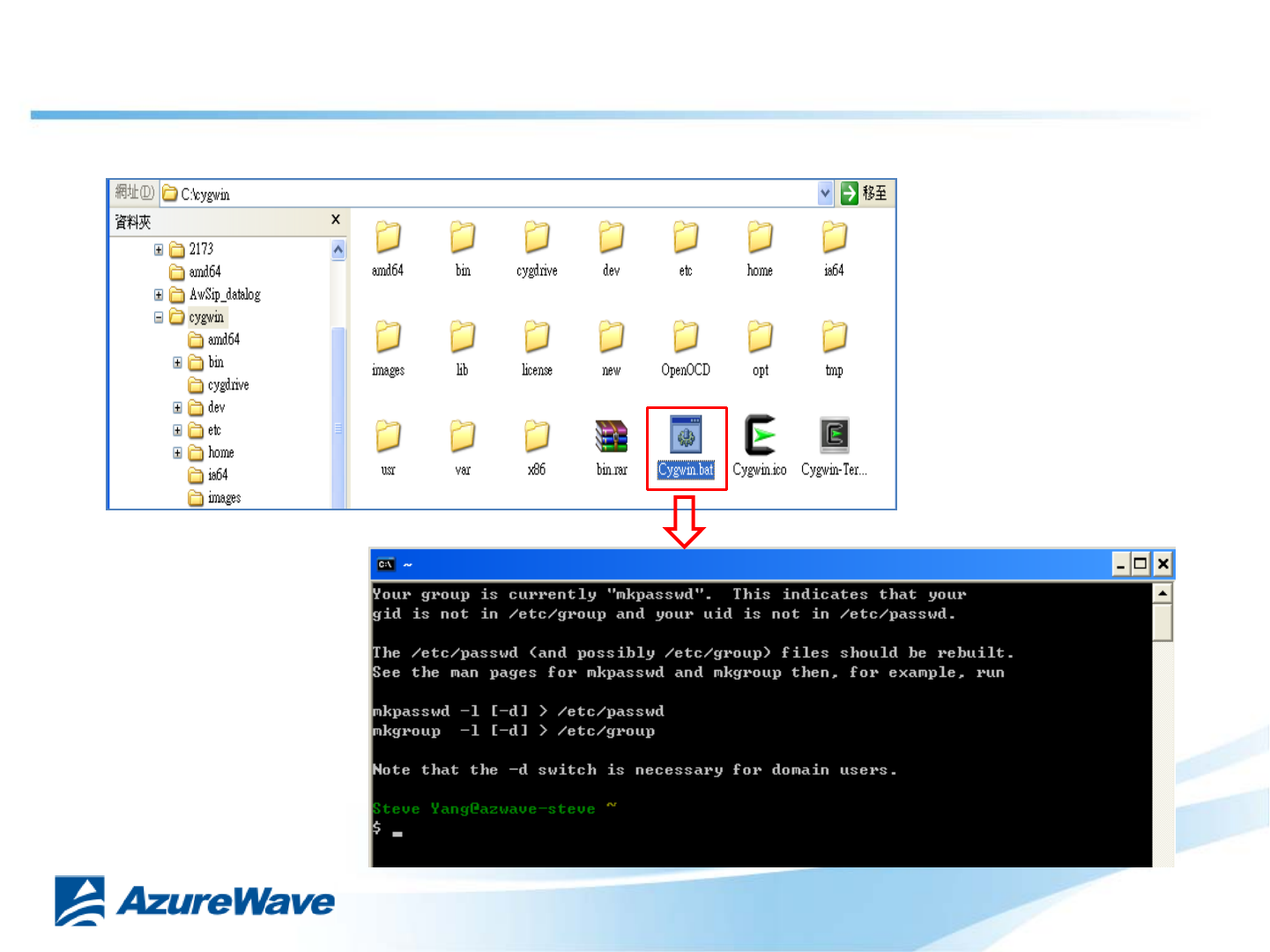

Process C:\cygwin\Cygwin.bat
7-,QVHUWILOH³2SHQ2&']LS´
Confidential
ދᐙׂᒳᇆ 15

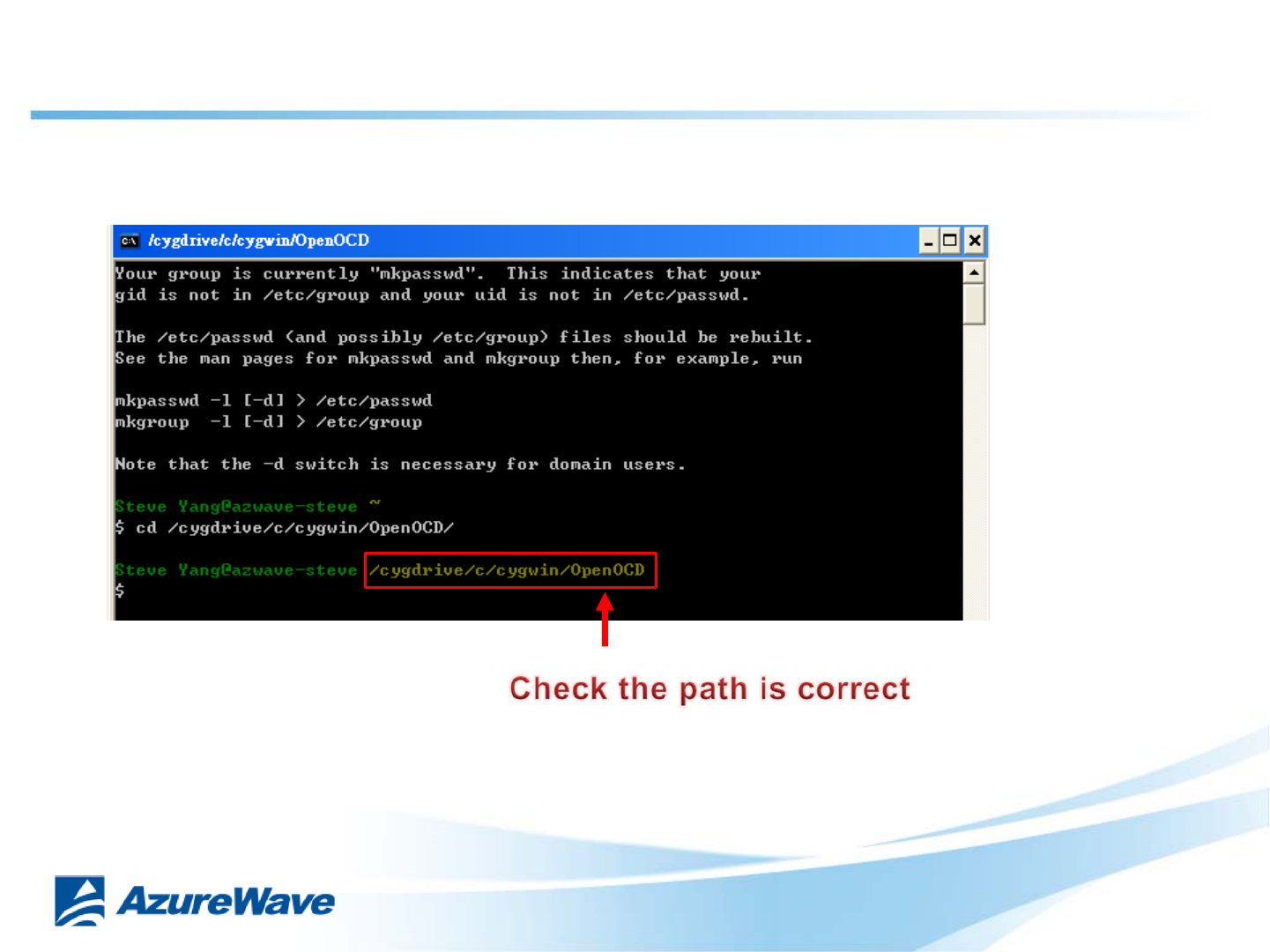

Key in command : cd /cygdrive/c/cygwin/OpenOCD
7-,QVHUWILOH³2SHQ2&']LS´
Confidential
8-1. Burning Normal F/W
ދᐙׂᒳᇆ 16

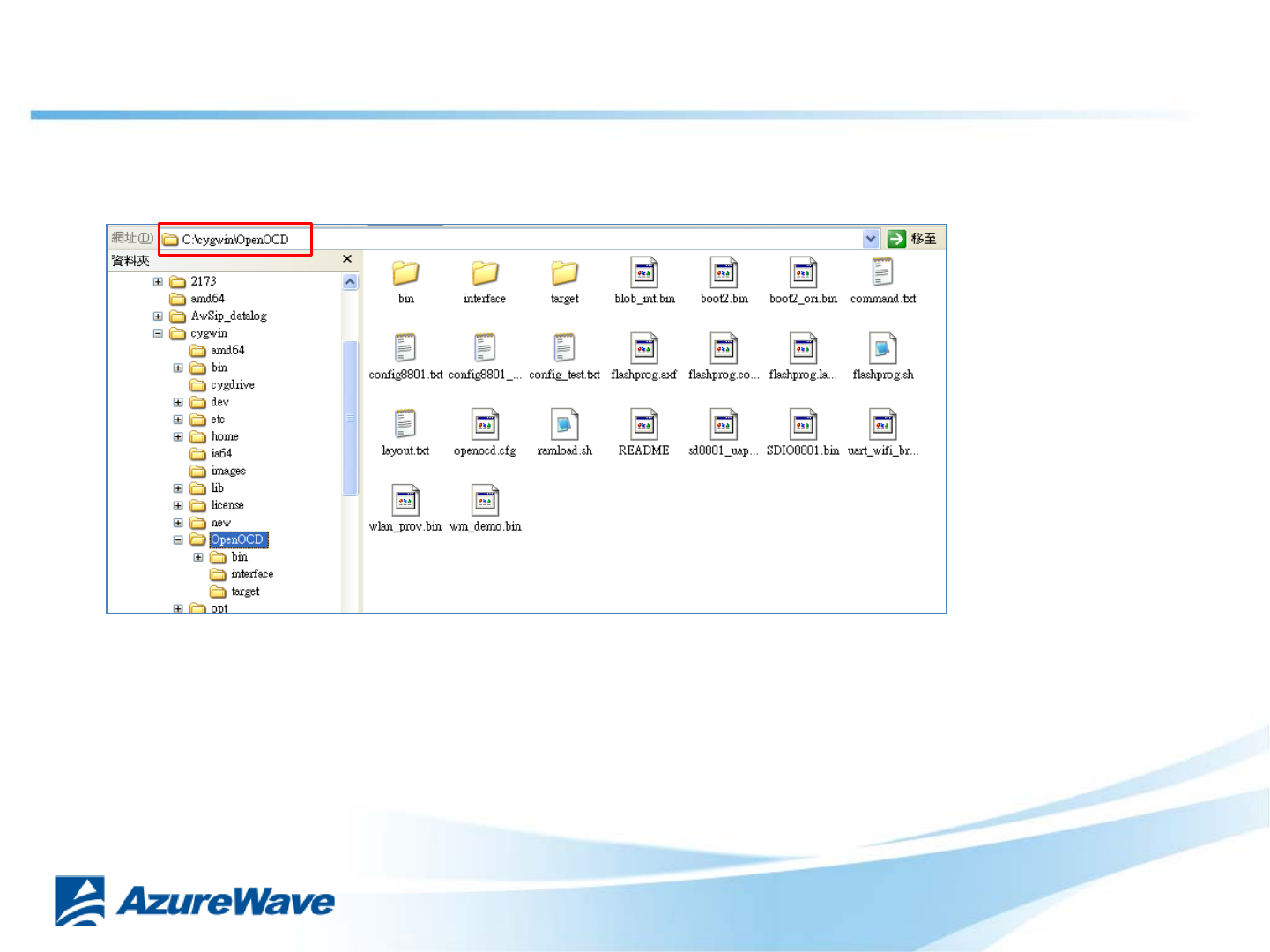

Check config8801.txt, layout.txt «files in OpenOCD folder
Check files name
Confidential
8-2. Burning Normal F/W
ދᐙׂᒳᇆ 17

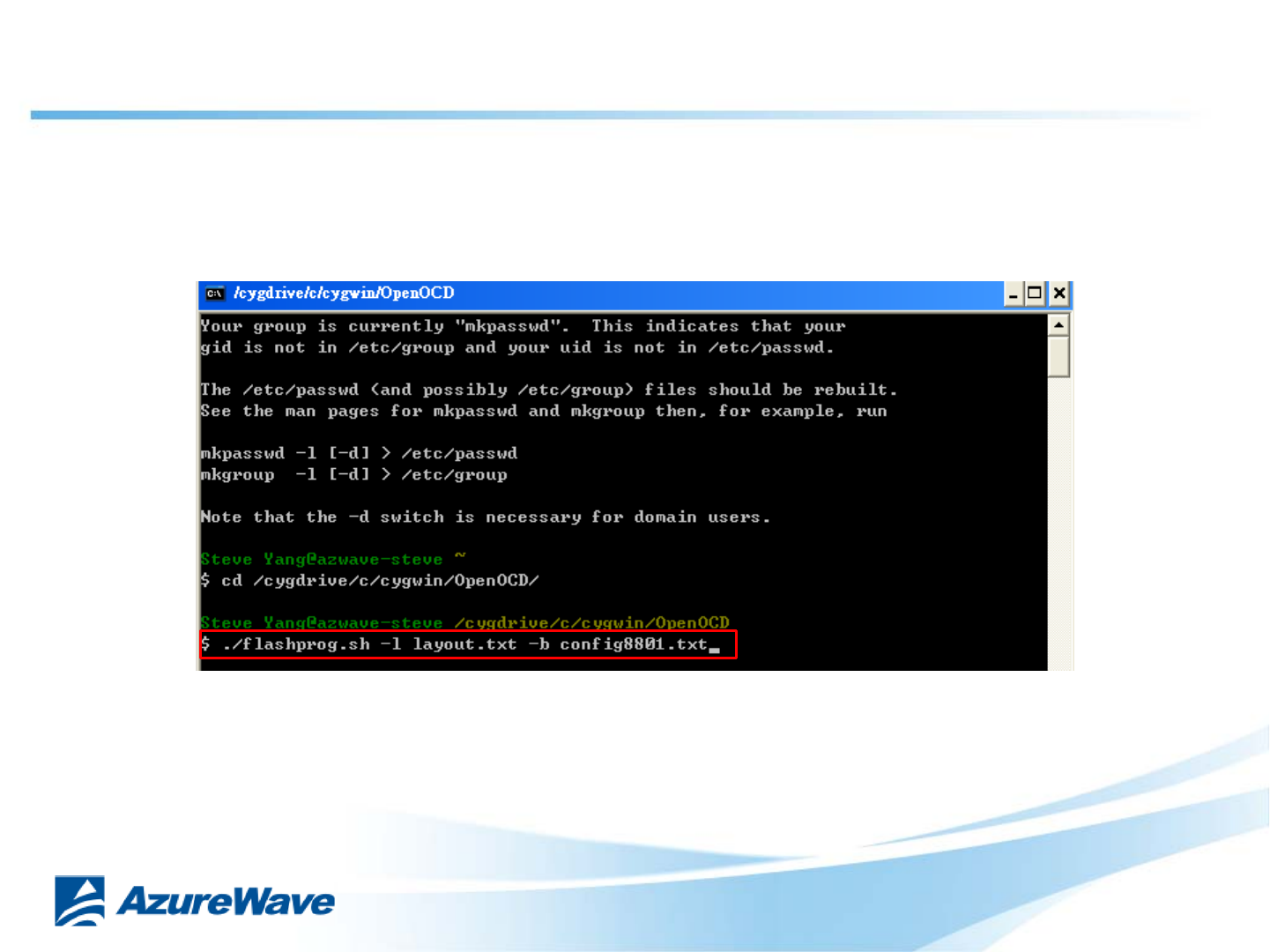

Key in command : ./flashprog.sh -l layout.txt -b config8801.txt
Confidential
ދᐙׂᒳᇆ 18

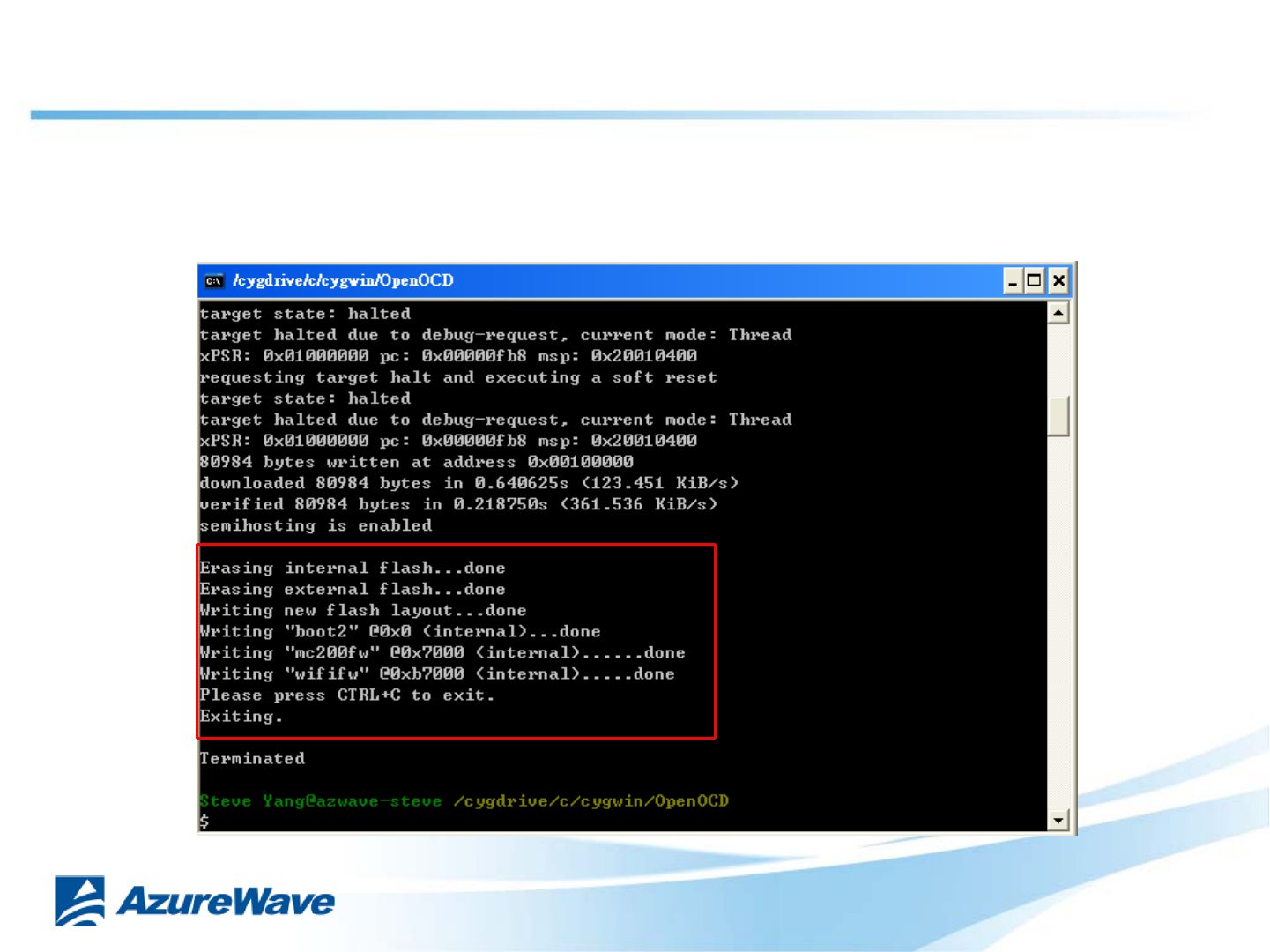

Burning information print as followed:
Note : Please restart DUT after burning (Plug-in and Plug-out USB)
8-3. Burning Normal F/W
Confidential
9-1. Run normal F/W
ދᐙׂᒳᇆ 19

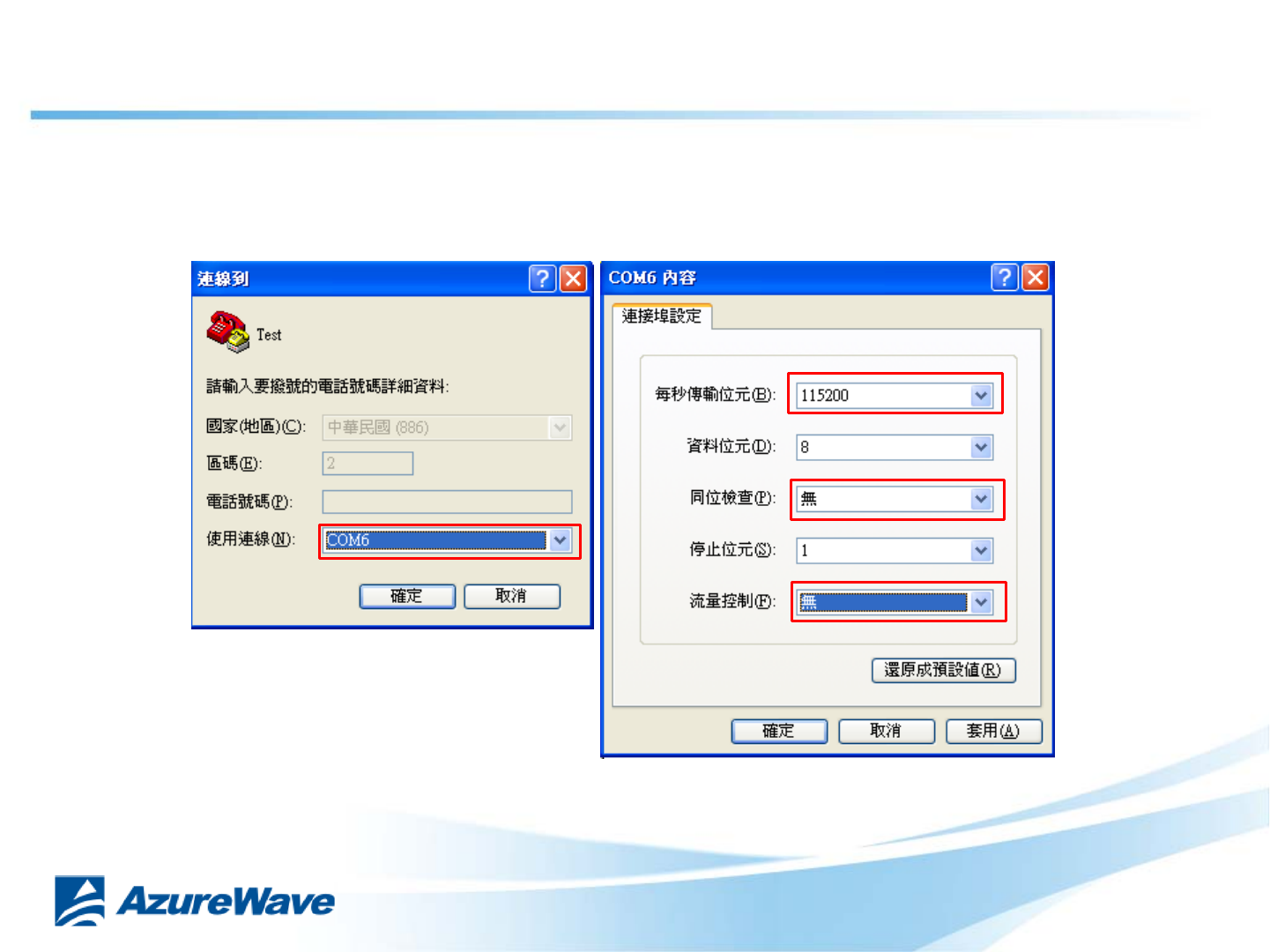

Open OS terminal and set USB comport (reference to page9 ), set baud-
rate as 115200
off
off
115200
Confidential
ދᐙׂᒳᇆ 20

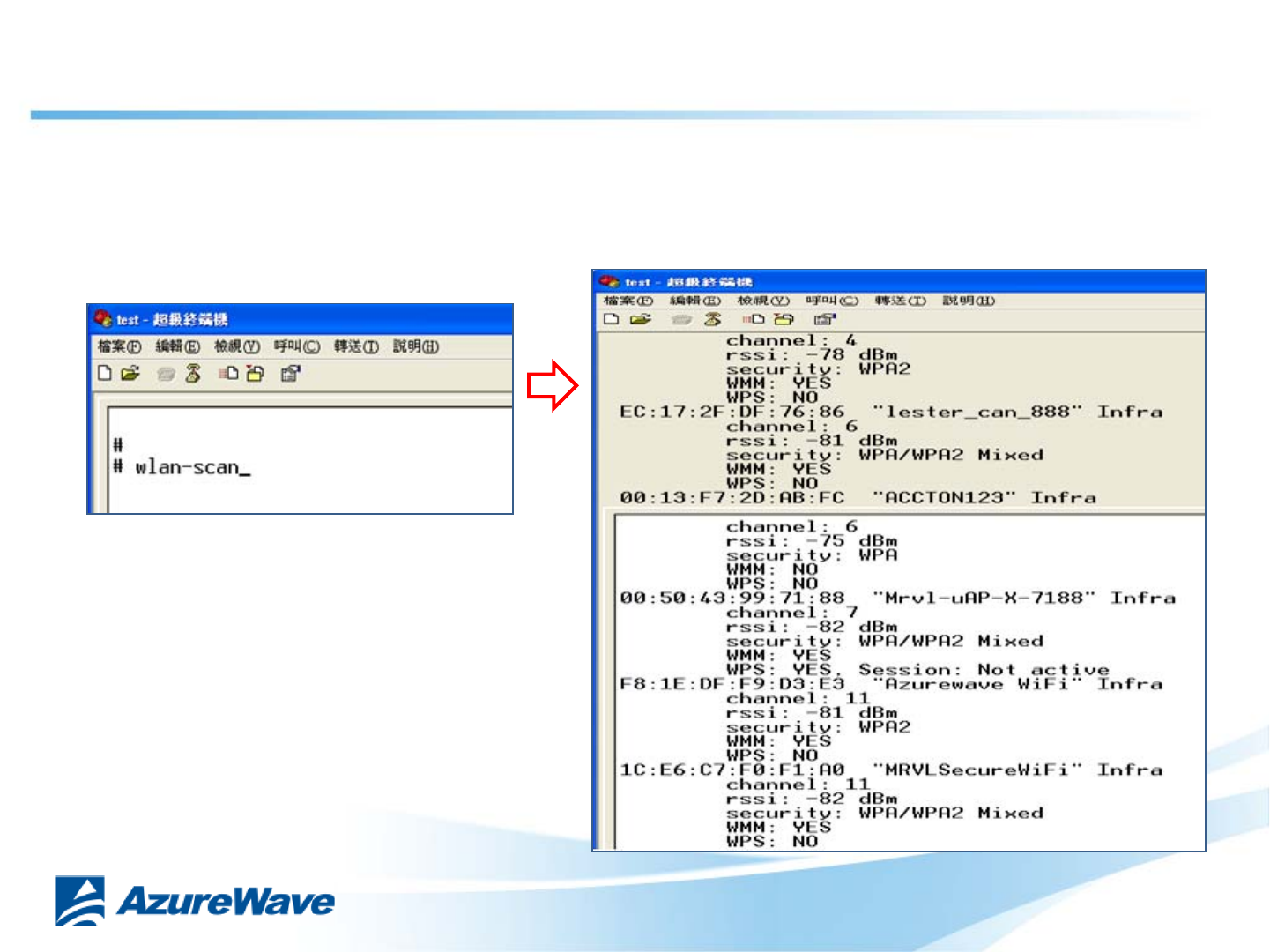

That will scan around AP
9-2. Run normal F/W
EX:
wlan-scan
Enter help on the screen to see a full list of commands available for use
Confidential
10-1. Burning MFG F/W
ދᐙׂᒳᇆ 21
Check config8801_mfg.txt, layout.txt «ILOHVin OpenOCD folder
Check files name
Confidential
ދᐙׂᒳᇆ 22

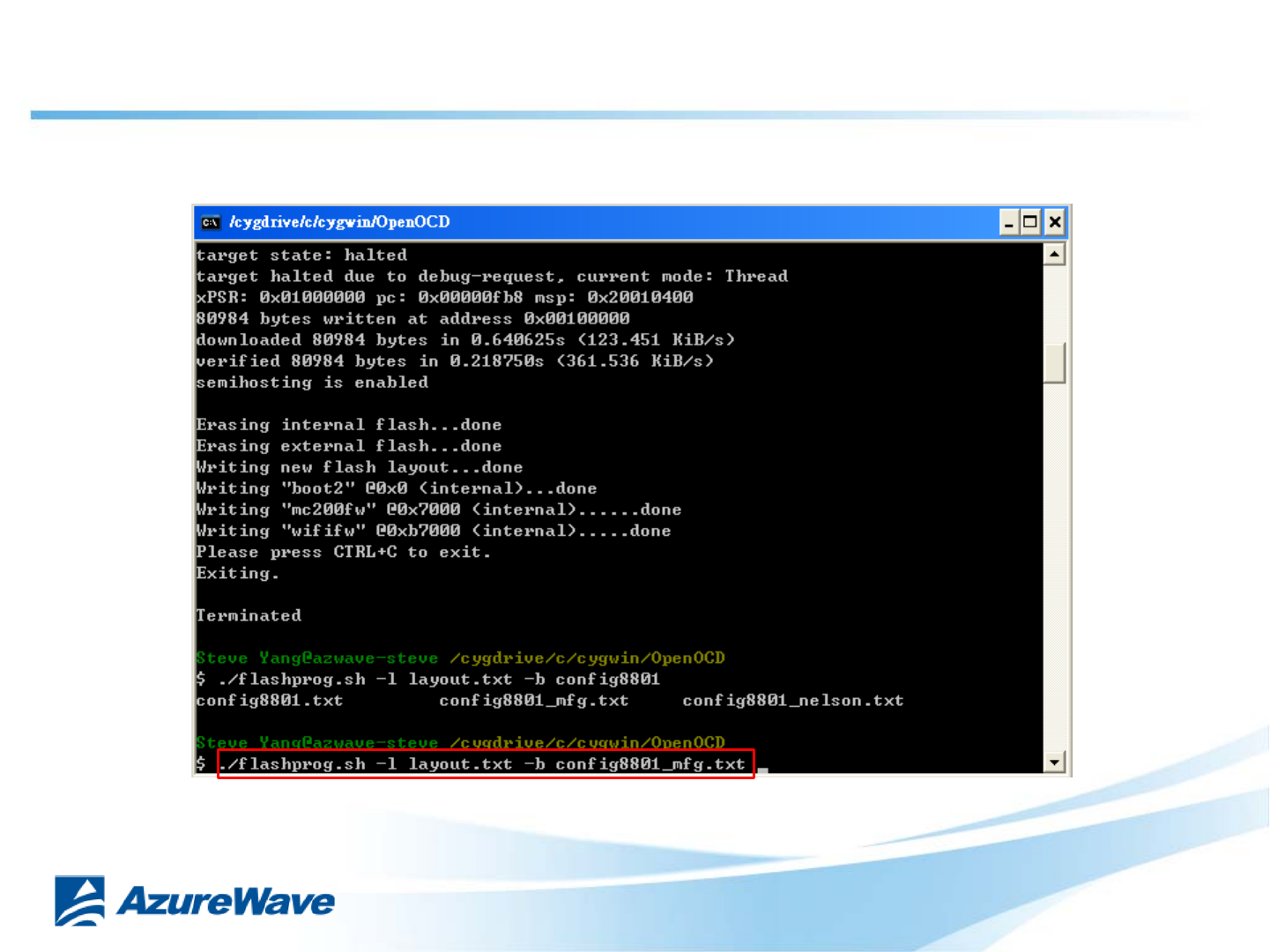

Command : ./flashprog.sh ±l layout.txt ±b config8801_mfg.txt
10-2. Burning MFG F/W
Confidential
ދᐙׂᒳᇆ 23
Burning information print as followed:
Note : Please restart DUT after burning (Plug-in and Plug-out USB)
10-3. Burning MFG F/W
Confidential

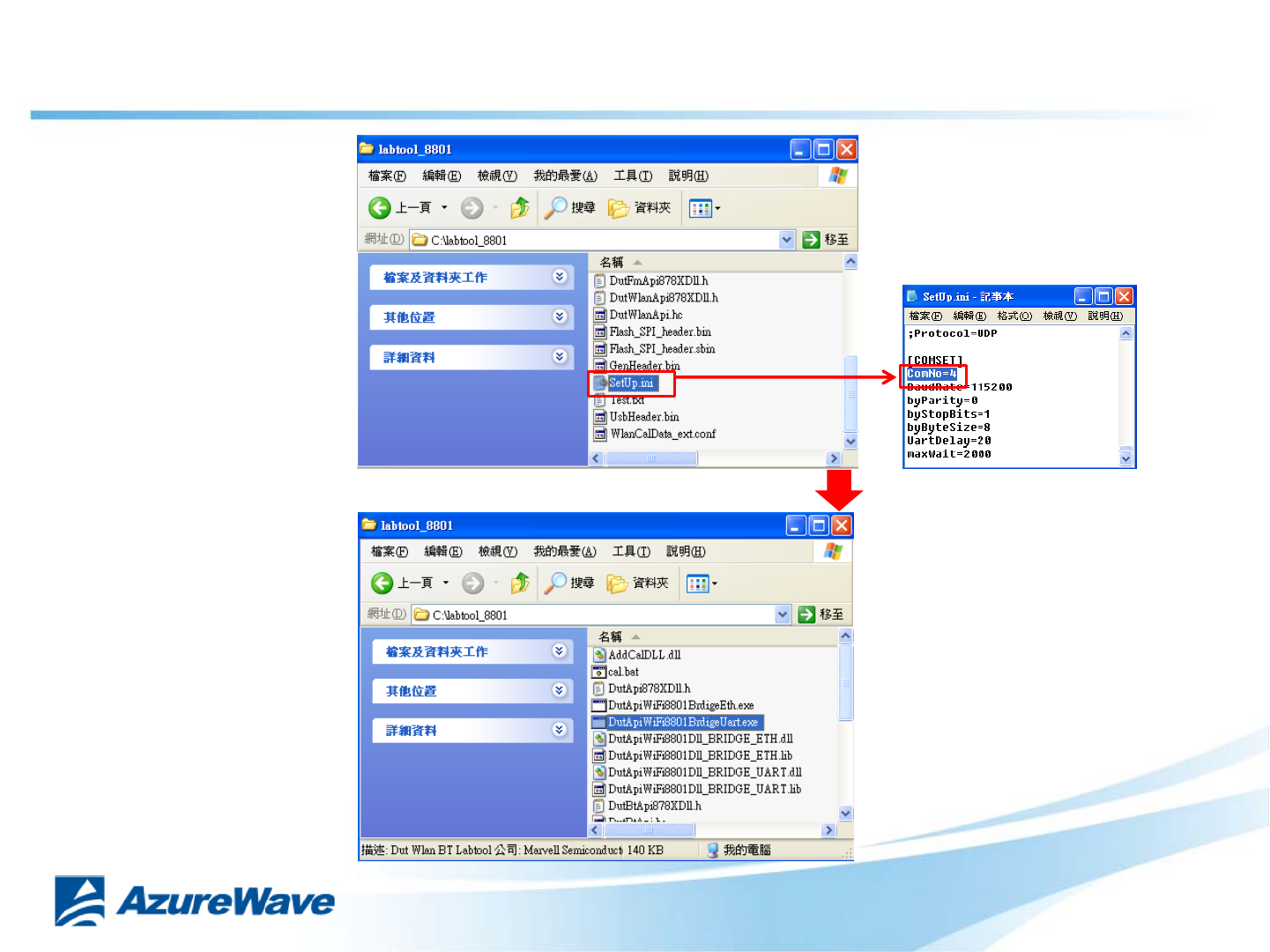

Set USB comport

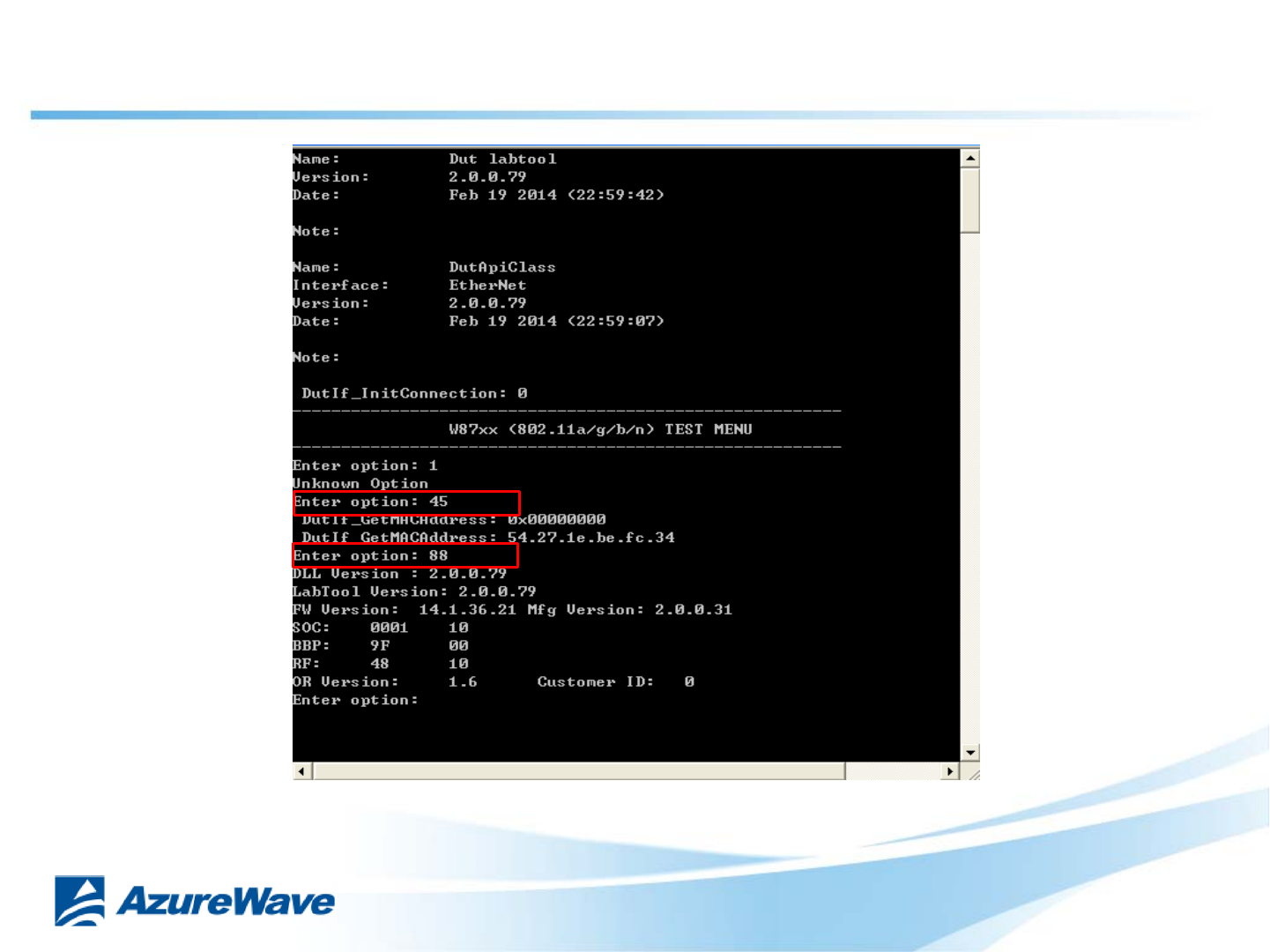

Run Marvel 88w8801 MFG tool
11-1. Run Marvel 88w8801 WIFI MFG tool
Confidential
11-2. Run Marvel 88w8801 WIFI MFG tool
ދᐙׂᒳᇆ 25
