AzureWave Technologies WH064T 60GHz wireless HD TX module User Manual
AzureWave Technologies, Inc. 60GHz wireless HD TX module
User manual
WirelessHD TX Module
User’s Manual
60G Module FCC Statement :
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
● Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following three
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
(3) This module may not be integrated into host devices that are addressed for operation inside
airplanes/satellites.
FCC Caution: Any changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
IMPORTANT NOTE:
This module is intended for OEM integrator. The OEM integrator is responsible for the
compliance to all the rules that apply to the product into which this certified RF module is
integrated.
Additional testing and certification may be necessary when multiple modules are used.
USERS MANUAL OF THE END PRODUCT:
In the users manual of the end product, the end user has to be informed to keep at least 20cm
separation with the antenna while this end product is installed and operated. The end user has
to be informed that the FCC radio-frequency exposure guidelines for an uncontrolled
environment can be satisfied. The end user has to also be informed that any changes or
modifications not expressly approved by the manufacturer could void the user's authority to
operate this equipment. If the size of the end product is smaller than 8x10cm, then additional
FCC part 15.19 statement is required to be available in the users manual: This device complies
with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device
may not cause harmful interference and (2) this device must accept any interference received,
including interference that may cause undesired operation.
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following " Contains TX FCC
ID: TLZ-WH064T ". If the size of the end product is larger than 8x10cm, then the following
FCC part 15.19 statement has to also be available on the label: This device complies with
Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may
not cause harmful interference and (2) this device must accept any interference received,
including interference that may cause undesired operation.
60G Module IC Statement :
CAN ICES-3 (B)/NMB-3(B)
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts
de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas
produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique
subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
IMPORTANT NOTE:
IC Radiation Exposure Statement:
This equipment complies with IC RSS-102 radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with minimum
distance 20cm between the radiator & your body.
IMPORTANT NOTE:
This module is intended for OEM integrator. The OEM integrator is still responsible for
the IC compliance requirement of the end product, which integrates this module.
Any changes or modifications not expressly approved by the manufacturer could void
the user's authority to operate this equipment.
USERS MANUAL OF THE END PRODUCT:
In the users manual of the end product, the end user has to be informed to keep at
least 20cm separation with the antenna while this end product is installed and operated.
The end user has to be informed that the IC radio-frequency exposure guidelines for an
uncontrolled environment can be satisfied. The end user has to also be informed that
any changes or modifications not expressly approved by the manufacturer could void
the user's authority to operate this equipment. IC statement is required to be available
in the users manual: This Class B digital apparatus complies with Canadian ICES-003.
Operation is subject to the following two conditions: (1) this device may not cause
harmful interference and (2) this device must accept any interference received,
including interference that may cause undesired operation.
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following " Contains TX
IC : 6100A-AWWH064T .
60G Module CE Statement :
This equipment complies with EU radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance
20cm between the radiator & your body.
Index
1 Introduction ................................................................................................................ 1
1.1 Product Layout ........................................................................................................... 2
1.2 Features ....................................................................................................................... 3
1.3 Package Content......................................................................................................... 3
1.4 Specification Table ..................................................................................................... 3
2 Installation Steps ........................................................................................................ 5
3 LED and Reset button behavior ............................................................................... 6
1
1 Introduction
AzureWave AW-WH064 WirelessHD RX and TX RF modules are able to transmit and receive
uncompressed HDMI video, multi-channel audio and control data wirelessly by 60 GHz
frequency band with 4Gbps bandwidth. AW-WH064 replaces the HDMI cable and simplifies
home theater system installation. The source devices, such as BD player, Set Top Box or Tablet,
they don’t need to be located near to the TV.
2

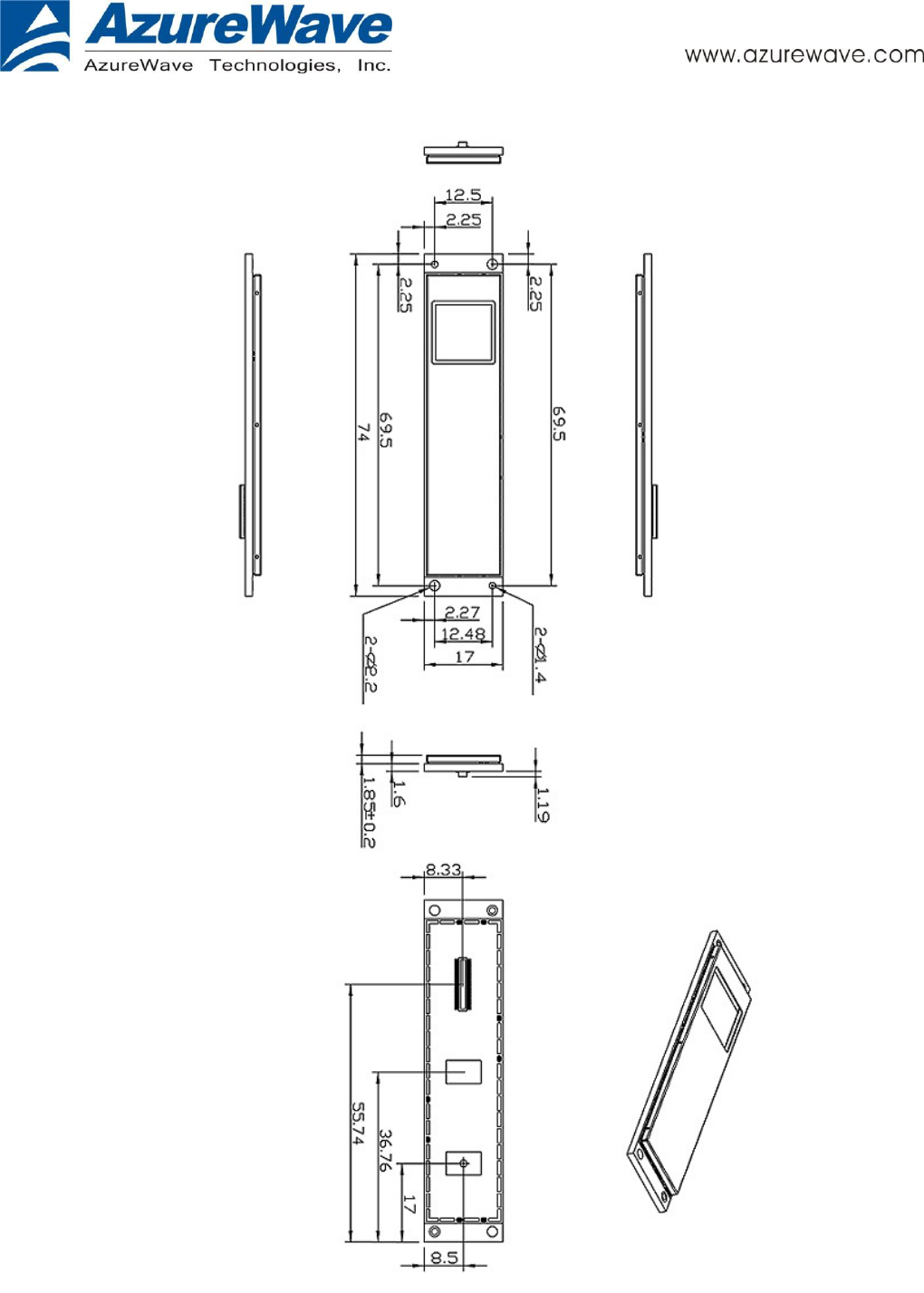

1.1 Product Layout
Front View
Back View
3
1.2 Features
Standard: WirelessHD 1.1
Frequency: 60GHz
Data Rate: 4Gbps
Distance: 10m (In Room)
No Video Compression
Latency: <1ms
Support for video resolutions from 480i/576i to 1080p/60Hz
~ 8 Channels Audio (32 ~ 192KHz)
Array Antenna
HDMI 1.4a Compatible
HDCP 2.0 Support, 128-bit AES
1.3 Package Content
The package include the below package content:
One set of AW-WH064T and AW-WH064R
Power Adapter
User’s Manual
1.4 Specification Table
Model Name
AW-WH064T & AW-WH064R
Product Description
WirelessHD RF Module
WirelessHD Standard
WirelessHD V1.1
HDMI Standard
HDMI 1.4a
Connector
50pin Board to Board connector
Major Chipset
TX:
Sil6310 - WirelessHD RF Transceiver
Sil6320 – WirelessHD Transmitter Network Processor
RX:
Sil6310 - WirelessHD RF Transceiver
Sil6321 –WirelessHD Receiver Network Processor
Dimension
70x15 mm
Antenna
12 Antenna Array support Beam-forming
Operating Conditions
Voltage
5V
4
Current
Max: 807mA, Average: 422mA, Min: 226mA
Display
Resolution
Up to 1080p @60
Video Format
4:4:4 36bit Deep Color
Audio
Channel
2~8
Sample Rate
32-192kHz
Back-channel
HDMI-ARC/LR-Audio
RF Specifications
Frequency Range
59.40~63.72GHz
Modulation
HRP: OFDM with QPSK , 16-QAM
LRP: OFDM with BPSK
Occupied Bandwidth
HRP:1.76Ghz
LRP: 92Mhz
Output Power
Min.
Typ.
Max.
HRP
23 dBm
26 dBm
28 dBm
LRP
18 dBm
21 dBm
31 dBm
Receive Sensitivity
HRP: -69 dBm
PHY Rates
HRP: Up to 3.81 Gbps
MRP: Up to 1.19 Gbps
LRP: Up to 10.17 Mbps
Operating Range
Indoor: 10 m
(The transmission speed may vary according to the
environment)
Security
HDCP 2.0, 128-bit AES
Operation & Storage Environment
Temperature
Storage: -10~ 60℃
Operating: -5~ 50℃
Humidity
Storage:90%
Operating:80%
Life Time
MTTF
50,000 Hr(s)
AW-WH064T Power Consumption
HRP 1080p
2.445 Watts
HRP 720p
2.13 Watts
LRP
2.08 Watts
5
Idle mode
2.06 Watts
AW-WH064R Power Consumption
HRP 1080p
2.26 Watts
HRP 720p
2.025 Watts
LRP
1.75 Watts
Idle mode
1.76 Watts

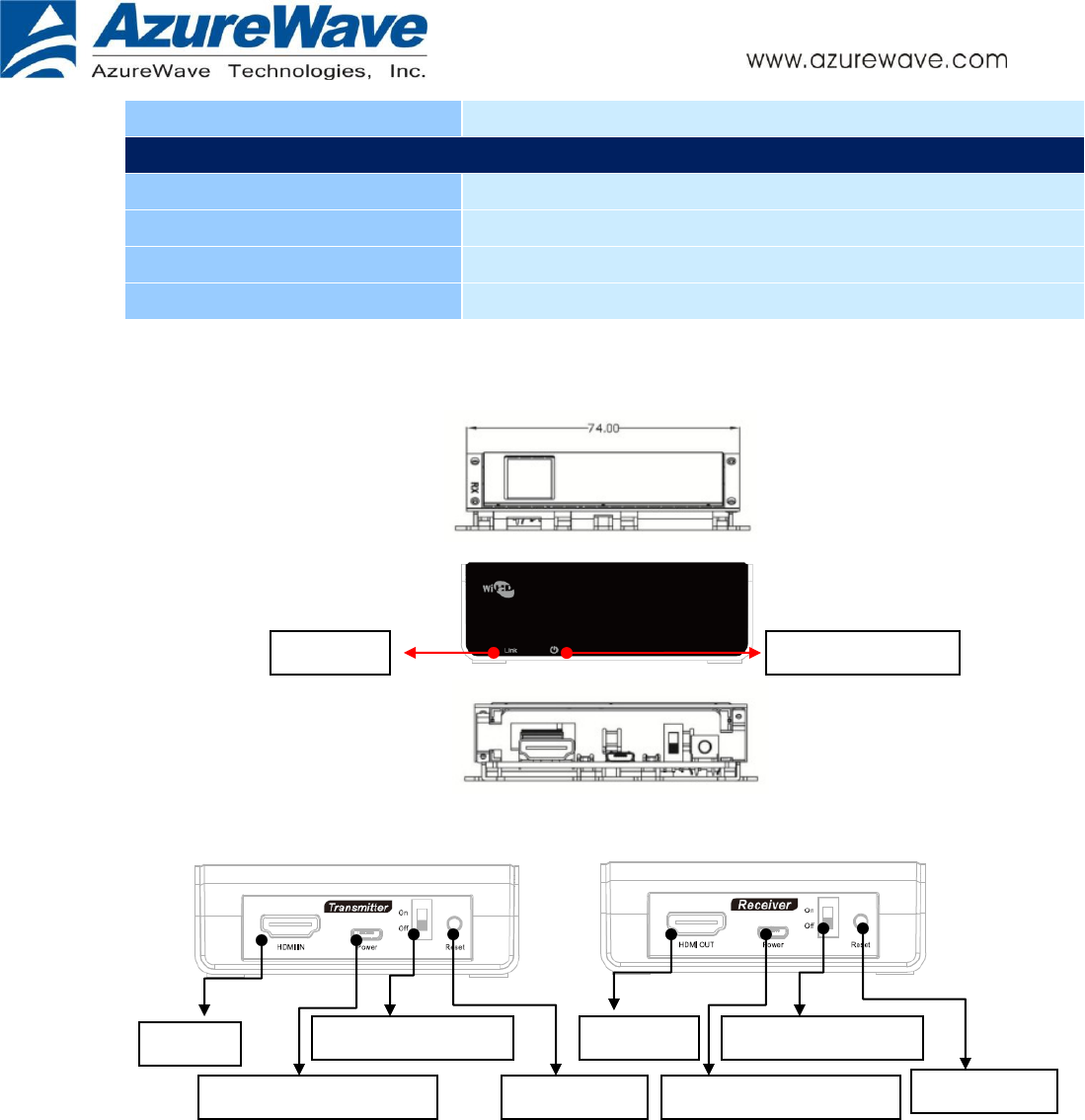

2 Installation Steps
1. Connect AW-WH064T and AW-WH064R to I/O board
PCBA Front view:
Front view with housing:
PCBA Back view:
Back view with housing:
TX- RX-
2. Connect the power adapter to the WirelessHD product and power outlet, both
Transmitter and Receiver.
3. Connect HDMI connector on AW-WH064T to media source such as BD Player. One
end from media source and the other end to Transmitter HDMI IN.
4. Connect HDMI connector on AW-WH064R to flat panel display such as LCD TV by
HDMI cable. One end from Receiver HDMI OUT and the other end to TV HDMI IN.
5. Turn on power, slide the switch to On for both sides.
6. After 10 ~ 30 seconds, it can connect automatically and the TV can display normally
for the source content.
HDMI IN
+5V Power by MircoUSB
Power slide switch
Reset button
HDMI OUT
+5V Power by MircoUSB
Power slide switch
Reset button
Link LED
Power LED
6
3 LED and Reset button behavior
Power LED: It is always on after power on.
Link LED behavior:
LED is OFF. The module is not powered, has not yet started, or is in Power Save mode if
power LED is on.
LED is blinking slowly. The module has started but has not yet associated with any network.
LED is blinking fast. The module is attached to a network but is disconnected (or not yet
connected), meaning no video connections are currently processed.
LED is ON. The module is hosting an ongoing audio video connection with a station in the
network.
TX Transmitter module Reset Button:
When the module is ON:
Short press(1 second): NEXT-WVAN. This function allows users to switch the current
association over to the next available network. This disconnects the current connection and
triggers a channel scan and association to the next available coordinator. Each time the signal
goes LOW, the radio switches to the next network in order of channel priority, when available,
until the transmitter module is re-associated with its first network.
Long press(5 seconds): RESET to FACTORY. This function allows users to reset the
transmitter module to its original shipping condition. All run time settings are erased from
memory. The main use of this function is to set the current channel setting to factory default,
which is LR2 HR2.
RX Receiver module Reset Button:
When the module is ON:
Short press(1 second): NEXT-SOURCE.This function allows users to switch the source of the
audio/video to another WirelessHD transmitter in range. This disconnects the current video
connection and triggers a connection to the next source available in the current network
device list. Each time the signal goes LOW, the audio/video source switches to the next video
source, until the receiver module is reconnected to its original audio/video source. If there is
only one WirelessHD audio/video source transmitter in range, the short press will not have
any effect because there is no video source to switch to.
Long press(5 seconds): RESET to FACTORY. This function allows users to reset the receiver
module to its original shipping condition. All run time settings are erased from memory. The
main use of this function is to set the current channel setting to factory default, which is LR2
HR2.
