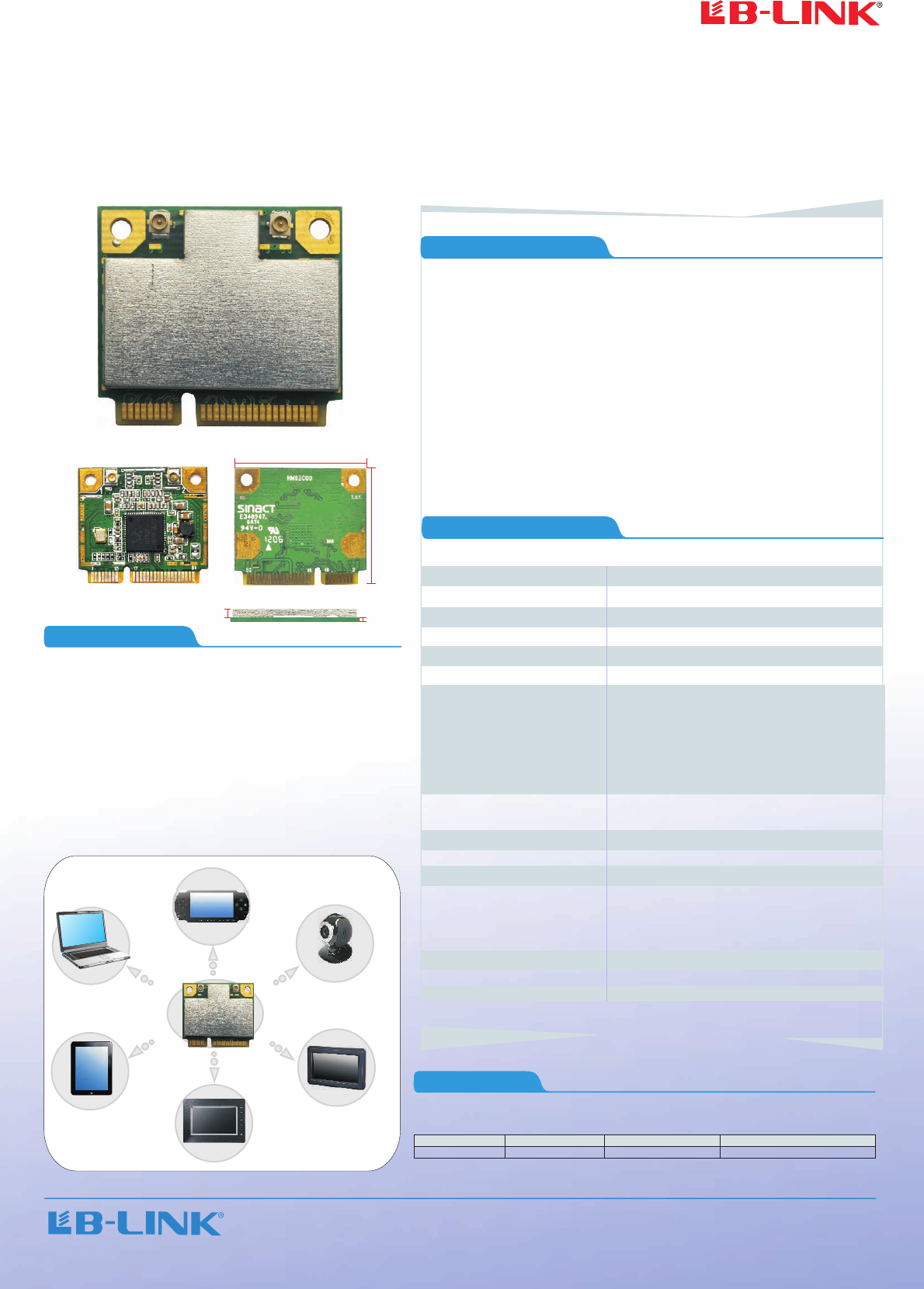

B LINK ELECTRONIC BL-LW08-5 WLAN 11b/g/n MINI PCIE MODULE User Manual BL LW08 5 8
B-LINK ELECTRONIC LIMITED WLAN 11b/g/n MINI PCIE MODULE BL LW08 5 8
User Manual
50 430*187*90mm
RTL8192CE Chipset
BL-LW08-5
29.8mm
26.5mm
Package Size：
Product Features
Product description
Product Specifications
Bulk
Net weight (kg) Gross weight (kg) Cubic meter(mm)
Pcs/box Carton
MINI PCI-E 300M WIRELESS MODULE
This product is a high-speed PCI-E wireless modules, interconnected
with other wireless devices to meet the standards, support for th e la te st
64 / 1 2 8 b i t WE P d a t a en c r y p t i o n , s u p port WPA -P S K / WP A 2 -P S K ,
WPA/WPA2 security mechanism.This product uses the 11N w i r el e s s
technology, compatible IEEE802.11b/g/n standard wireless transmission
speeds up to 300Mbps. Compared the traditional 54Mbps11g products and
150Mbps products, with higher wireless b a nd w i d t h within the LAN data
transmission more efficient, and effective in reducing the network delay, so
that voice and video, online games, online on demand is more fluid.
◎
Support standards: the IEEE 802.11b, the IEEE 802.11g,
the IEEE 802.11n
◎ Automatically detect the network and the transmission rate
◎ Support 64/128 bit WEP data encryption, support WPA-PSK/
WPA2-PSK, WPA/WPA2 security to protect wireless network
Infringement and misappropriation
◎ Support WMM, voice and video services to more fluid The
◎ Installation and configuration simple, plug and play, fast
and convenient
◎ Support Windows XP/Vista/WIN7/LINUX operating system
PSP
网络摄像头
GPS
数码相框
Table PC
Digital photo frame
Netbooks
Item
IEEE 802.11b,IEEE 802.11g, IEEE 802.11n
2.4-2.4835GHz
Transmission rate
15dBm(MAX)
Interface Type
11
Working channel
Description
29.8*26.5 mm*1
Master Model RTL8192CE
300 Mbps(MAX)
PCI Express
270M: -73dBm@10% PER
130M: -73dBm@10% PER
108M: -73dBm@10% PER
54M: -73dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Windows XP/Vista/WIN7 LINUX/
Standards
Frequency Range
Work Mode
Ad-Hoc
Infrastructure
Support Operating System
Wireless Range Indoors up to 100m, Outdoors up to300m.
Wireless Transmit Power
Receiver Sensitivity
Operating Temperature 0 C~40 C
Operating Humidity 10% ~ 90%, non condensation
Storage Humidity 5%~90%, non condensation
Dimensions
°
°
Storage Temperature -40 C~70 C
°°
Add:NO 268,FuQian Rd,Jutang Community,GuanLan Town BaoAn District,ShenZhen,518110,China
Tel:+86-755-28023440 Fax:+86-755-28029002 Email:sales@lefen.com http//www.lefen.com
2mm 1mm
Web camera
This WLAN 11b/g/n 2x2 MINI PCIE MODULE has two exactly the same antenna
which is the Integral Dipole Antenna with 1 dBi gain.
FCC ID: X2NBL-LW08-5
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
The device complies with industry Canada license-exempt RSS standard(s). Operation of this
device is subject to the following two conditions: (1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne
doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement."
For product available in the UAS/Canada market, ony channel 1-11 can be operated, selection of
other channels is not possible.
IMPORTANT NOTE:
Integration is strictly limited to mobile/fixed categorized end-products where a separation distance
of at least 20 cm between the radiating part and any human body can be assured during normal
operating conditions.
IMPORTANT NOTE:
In the event that these conditions can not be met (for example certain laptop configurations or
co-location with another transmitter).then the FCC authorization is no longer considered valid and
the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will
be responsible for re-evaluating the end product (including the transmitter) and obtaining a
separate FCC authorization.
IMPORTANT NOTE:
This module is intended for OEM integrator only and the OEM integrators are instructed to ensure
that the end user has no manual instructions to remove or install the device. The OEM integrator is
still responsible for the FCC compliance requirement of the end product, which integrates this
module.
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following “Contains TX FCC ID:
X2NBL-LW08-5” .If the size of the end product is smaller than 8x10cm, then additional FCC part
15.19 statement is required to be available in the users manual: This device complies with Part 15
of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
