B and W Electronics Development 14BW05002 Bluetooth Keyboard Case User Manual
Shenzhen B&W; Electronics Development Limited Bluetooth Keyboard Case Users Manual
Users Manual
3
ßÚÌÛÎ ÍßÔÛÍ ÍËÐÐÑÎÌ MODEL: BW05002-5,12/2014
USA 866 235 5029 mp656@messageplex.com
Welcome
Congratulations on choosing to buy a BAUHN ®
product.
All products brought to you by BAUHN ®
are manufactured to the highest standards
of performance and safety and, as part of our philosophy of customer service and
satisfaction, are backed by our comprehensive 2 Year Warranty. We hope you will enjoy
using your purchase for many years to come.
4
ßÚÌÛÎ ÍßÔÛÍ ÍËÐÐÑÎÌ MODEL: BW05002-5, 12/2014
USA 866 235 5029 mp656@messageplex.com
General Safety Instructions
Read this manual thoroughly before first use, even if you are familiar with this type
of product. Keep the manual in a safe place for future reference, along with the
completed warranty card, purchase receipt and carton. If applicable, pass these
instructions on to the next owner of the appliance.
In order to prevent environmental factors (dampness, dust, food, liquid etc.) harming
the Tablet Case and Keyboard (short: the product), only use it in a well ventilated,
clean and dry environment, away from excessive heat or moisture.
Keep the product away from direct sunlight or heat sources.
Only charge the product via the supplied USB cable. Do not charge it any other way.
In case of damage, do not disassemble, repair or modify the product yourself.
Contact the after sales support line for advice on repair or replacement, or refer
servicing to qualified personnel only.
This product is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the product by a
person responsible for their safety.
Children should be supervised to ensure they do not play with the product.
Keep the product away from sharp objects.
Do not put any object on top of the product.
Do not expose the product to microwaves.
Do not twist or distort the keyboard.
Keep the product away from oils, chemicals or any other organic liquids.
Use water or alcohol based disinfectants for cleaning the silicone keyboard.
FCC STATEMENT
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause
undesired operation.
2. Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
RF warning statement:
The device has been evaluated to meet general RF exposure requirement. The device can be used
in portable exposure condition without restriction.
5
ßÚÌÛÎ ÍßÔÛÍ ÍËÐÐÑÎÌ
866 235 5029
Parts List
1
2
1
Holding frame for tablet
2
Keyboa
r
d
3
USB Cha
r
ging cable
4
Power on/o
f
5
Bluetooth connect button
6
Power indicator light
7
Cha
r
ging indicator light
8
Bluetooth indicator light
9
Capital lock indicator light
10
Cha
r
ging interface
4
5
6
7
8
9
10
3
6
ßÚÌÛÎ ÍßÔÛÍ ÍËÐÐÑÎÌ MODEL: BW05002-5, 12/2014
USA 866 235 5029 mp656@messageplex.com
Features
Compatibility
The Keyboard can be connected to the Galaxy Tab (series), Mobile Internet Devices
(MID), Smartphones, PCs and other bluetooth enabled devices. For other bluetooth
enabled devices, please verify the bluetooth standard and compatibility before
attempting to connect to the keyboard.
NOTE: Depending on the operating system and version of the connected device,
some function keys may not work.
7
ßÚÌÛÎ ÍßÔÛÍ ÍËÐÐÑÎÌ MODEL: BW05002-5, 46608, 12/2014
USA 866 235 5029 mp656@messageplex.com
Getting Started
Before first use
Unpack the product but keep all packaging materials until you have made sure your
new Tablet Keyboard and Case is undamaged and in good working order. Plastic
wrapping can be a suffocation hazard for babies and young children, so ensure all
packaging materials are out of their reach.
Inspect the USB cable for damage. Do not use the product if the product or the
USB cable have been damaged or are not working properly.
Charging
Before first use, the Keyboard needs to be charged. During use, a flashing ‘power’
light indicates that the battery power is low and the device needs recharging. To
charge/recharge the device:
Step 1: Connect the USB cable’s micro connection to the keyboard charging interface.
Step 2: Connect the USB cable’s regular connection to the computer’s USB interface.
Step 3: The green ‘charge’ indicator light will stay on when the keyboard is charging.
Once fully charged, the green indicator light will turn off.
Step 4: After you have finished charging, disconnect the USB cable, taking care not to
damage the USB interface.
Powering on/off
Slide the Power On/Off switch to the ‘On’ position. The blue ‘Bluetooth’ and the
red ‘Power’ indictors will illuminate for 4–5 seconds and then go off.
After use, always turn off the power to extend the battery life.
Slide the Power On/Off switch to the ‘Off’ position to power off.
Storage
If you intend not to use the Keyboard for an extended time, make sure it is fully
charged before storing it away. Storing it with a depleted battery will shorten the
lifespan of the keyboard’s internal lithium battery.
8
ßÚÌÛÎ ÍßÔÛÍ ÍËÐÐÑÎÌ
866 235 5029
Pairing the Keyboa
r
d with an Galaxy
T
ab
T
T
The following instructions a
r
e for pairing the p
r
oduct with a Galaxy
T
ab.
T
T
Step 1:
Slide the Power On/O
f
f switch to the ‘On’ position. The blue ‘Bluetooth’ and
the
r
ed ‘Power’ indictors will illuminate for 4–5 seconds and then go o
f
f
.
Step 2:
P
r
e
s
s
th
e
‘C
o
n
n
e
c
t
’
b
u
t
to
n
,
t
h
e
r
ed ‘Power’
l
ed ‘Power’
ed ‘Power’
ig
h
t
w
ill
b
e
o
n
a
n
d
t
h
e
b
l
u
e
‘
B
l
u
et
o
o
t
h
’
l
i
gh
t
w
i
l
l
s
t
a
r
t
b
l
i
n
k
i
n
g
.
T
h
e
K
e
y
bo
a
r
d
i
s
n
o
w
r
e
a
d
y
fo
r
co
n
n
ect
i
o
n
t
o
y
o
u
r
G
a
l
a
x
y
T
a
T
T
b
.
Step 3:
T
u
T
T
r
n on and unlock your
T
ablet
T
T
.
Go to Settings
on your Galaxy
T
ab home
T
T
sc
r
een. Alte
r
native, p
r
ess the Icon
to get access to all your apps and choose
Settings
f
r
om the list.
Instructions
Connect button
Power switch
Select the Settings icon.
9
ßÚÌÛÎ ÍßÔÛÍ ÍËÐÐÑÎÌ MODEL: BW05002-5, 12/2014
USA 866 235 5029 mp656@messageplex.com

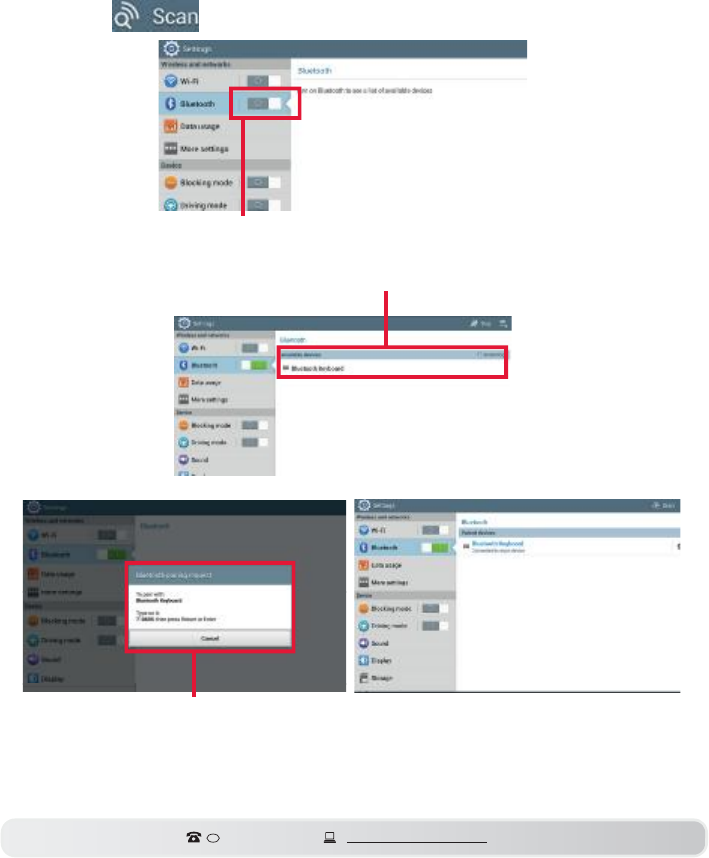

Step 4: Under ‘Wireless and networks’, slide the Bluetooth switch to the On position.
Your tablet will automatically begin to scan for available devices.
If your Tablet does not automatically start searching for available devices, click on the
Scan icon
Step 5: Choose the Bluetooth Keyboard shown in the list of Available devices
Instructions (Cont.)
Slide the Bluetooth switch to the On
position
NOTE: Do not fold the cover of the Keyboard while it is still in use.
Enter the password code displayed on the
screen, then press the Enter key.
Upon successful connection, the
Keyboard will be listed as “Connected to
input device” and the ‘Bluetooth’ light will
stop blinking.
10
ßÚÌÛÎ ÍßÔÛÍ ÍËÐÐÑÎÌ MODEL: BW05002-5, 12/2014
USA 866 235 5029 mp656@messageplex.com
Other Useful Information
Troubleshooting guide
Unable to connect
1. Make sure the Keyboard is within its effective working range (33ft).
2. Make sure the Keyboard is still paired. If not, pair the units again.
3. If the Keyboard is connected to any other Bluetooth products, please cancel, turn
off the keyboard and pair again.
4. Check the battery power and recharge the unit, if necessary.
If none of the solutions offered above help you solve your problem, contact our after
sales support line for advice.
Responsible disposal
At the end of its working life, do not throw this device out with your household
rubbish. Electrical and electronic products contain substances that can have a
detrimental effect on the environment and human health if disposed of inappropriately.
Observe any local regulations regarding the disposal of computer products and
dispose of it appropriately for recycling. Contact your local authorities for advice on
disposal/recycling facilities in your area.
NOTE:
“The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by HANDS (IP) Holdings Pty Ltd is under
license. Other trademarks and trade names are those of their respective owners
**Images of Galaxy Tab are for demonstration purposes only. Galaxy Tab sold
separately.
Galaxy Tab is a trademark of Samsung Inc..
