B and W Electronics Development 16AHC06 Bluetooth speaker User Manual YM C06 English manual ver1

Shenzhen B&W; Electronics Development Limited Bluetooth speaker YM C06 English manual ver1

User Manual

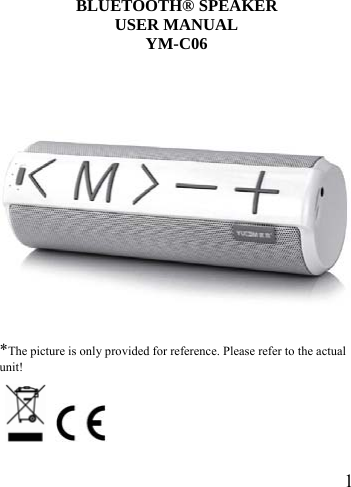

1 BLUETOOTH® SPEAKER USER MANUAL YM-C06 *The picture is only provided for reference. Please refer to the actual unit!

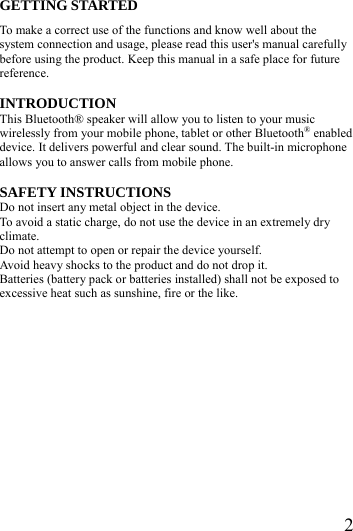

2GETTING STARTED To make a correct use of the functions and know well about the system connection and usage, please read this user's manual carefully before using the product. Keep this manual in a safe place for future reference. INTRODUCTION This Bluetooth® speaker will allow you to listen to your music wirelessly from your mobile phone, tablet or other Bluetooth® enabled device. It delivers powerful and clear sound. The built-in microphone allows you to answer calls from mobile phone. SAFETY INSTRUCTIONS Do not insert any metal object in the device. To avoid a static charge, do not use the device in an extremely dry climate. Do not attempt to open or repair the device yourself. Avoid heavy shocks to the product and do not drop it. Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

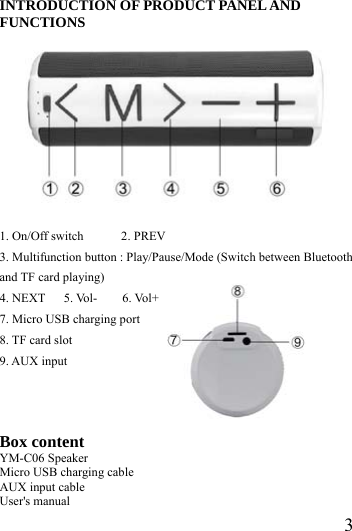

3INTRODUCTION OF PRODUCT PANEL AND FUNCTIONS 1. On/Off switch 2. PREV 3. Multifunction button : Play/Pause/Mode (Switch between Bluetooth and TF card playing) 4. NEXT 5. Vol- 6. Vol+ 7. Micro USB charging port 8. TF card slot 9. AUX input Box content YM-C06 Speaker Micro USB charging cable AUX input cable User's manual

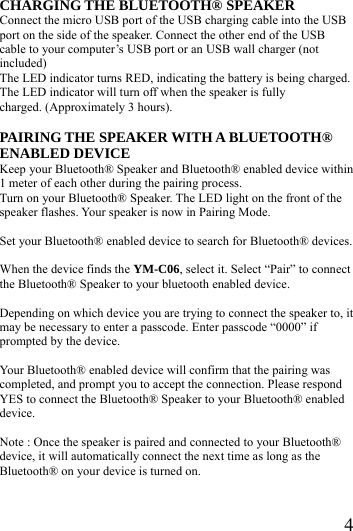

4CHARGING THE BLUETOOTH® SPEAKER Connect the micro USB port of the USB charging cable into the USB port on the side of the speaker. Connect the other end of the USB cable to your computer’s USB port or an USB wall charger (not included) The LED indicator turns RED, indicating the battery is being charged. The LED indicator will turn off when the speaker is fully charged. (Approximately 3 hours). PAIRING THE SPEAKER WITH A BLUETOOTH® ENABLED DEVICE Keep your Bluetooth® Speaker and Bluetooth® enabled device within 1 meter of each other during the pairing process. Turn on your Bluetooth® Speaker. The LED light on the front of the speaker flashes. Your speaker is now in Pairing Mode. Set your Bluetooth® enabled device to search for Bluetooth® devices. When the device finds the YM-C06, select it. Select “Pair” to connect the Bluetooth® Speaker to your bluetooth enabled device. Depending on which device you are trying to connect the speaker to, it may be necessary to enter a passcode. Enter passcode “0000” if prompted by the device. Your Bluetooth® enabled device will confirm that the pairing was completed, and prompt you to accept the connection. Please respond YES to connect the Bluetooth® Speaker to your Bluetooth® enabled device. Note : Once the speaker is paired and connected to your Bluetooth® device, it will automatically connect the next time as long as the Bluetooth® on your device is turned on.

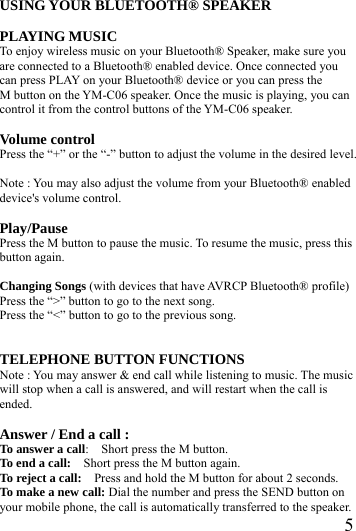

5USING YOUR BLUETOOTH® SPEAKER PLAYING MUSIC To enjoy wireless music on your Bluetooth® Speaker, make sure you are connected to a Bluetooth® enabled device. Once connected you can press PLAY on your Bluetooth® device or you can press the M button on the YM-C06 speaker. Once the music is playing, you can control it from the control buttons of the YM-C06 speaker. Volume control Press the “+” or the “-” button to adjust the volume in the desired level. Note : You may also adjust the volume from your Bluetooth® enabled device's volume control. Play/Pause Press the M button to pause the music. To resume the music, press this button again. Changing Songs (with devices that have AVRCP Bluetooth® profile) Press the “>” button to go to the next song. Press the “<” button to go to the previous song. TELEPHONE BUTTON FUNCTIONS Note : You may answer & end call while listening to music. The music will stop when a call is answered, and will restart when the call is ended. Answer / End a call : To answer a call: Short press the M button. To end a call: Short press the M button again. To reject a call: Press and hold the M button for about 2 seconds. To make a new call: Dial the number and press the SEND button on your mobile phone, the call is automatically transferred to the speaker.

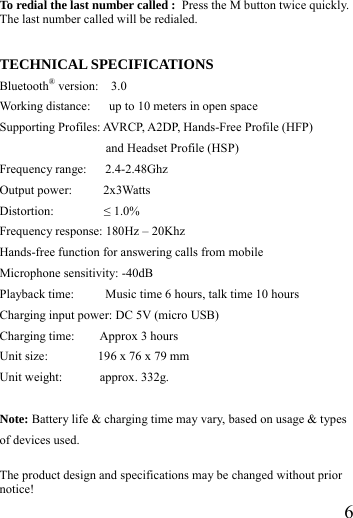

6 To redial the last number called : Press the M button twice quickly. The last number called will be redialed. TECHNICAL SPECIFICATIONS Bluetooth® version: 3.0 Working distance: up to 10 meters in open space Supporting Profiles: AVRCP, A2DP, Hands-Free Profile (HFP) and Headset Profile (HSP) Frequency range: 2.4-2.48Ghz Output power: 2x3Watts Distortion: ≤ 1.0% Frequency response: 180Hz – 20Khz Hands-free function for answering calls from mobile Microphone sensitivity: -40dB Playback time: Music time 6 hours, talk time 10 hours Charging input power: DC 5V (micro USB) Charging time: Approx 3 hours Unit size: 196 x 76 x 79 mm Unit weight: approx. 332g. Note: Battery life & charging time may vary, based on usage & types of devices used. The product design and specifications may be changed without prior notice!

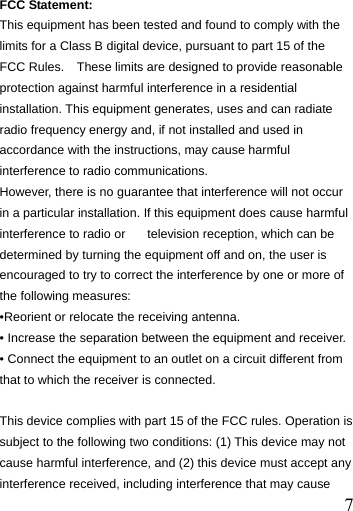

7 FCC Statement: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause

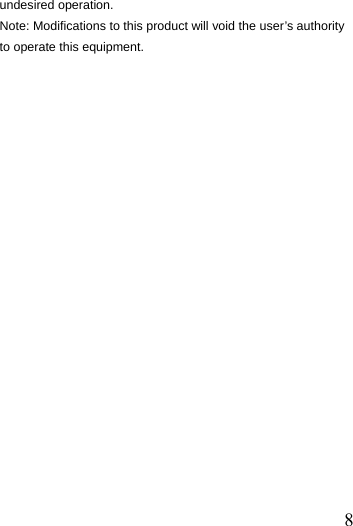

8undesired operation. Note: Modifications to this product will void the user’s authority to operate this equipment.
