User Manual

SmartMesh® IP Node 2.4GHz

(MESH RF IoT Module)

802.15.4e Wireless Node Module

User Manual

USA Headquarters

Advantech B+B SmartWorx

707 Dayton Road

Ottawa, IL 61350 USA

Phone (815) 433-5100 -- General Fax (815) 433-5105

Website: www.advantech-bb.com

support@advantech-bb.com

European Headquarters

Advantech B+B SmartWorx

Westlink Commercial Park

Oranmore, Co. Galway, Ireland

Phone +353 91-792444 -- Fax +353 91-792445

Document: SmartMeshIP_Node_2.4GH_R1_1116m.docx

CONTENTS

Figures ........................................................................................................................................................................... 4

Tables ............................................................................................................................................................................. 5

Features ......................................................................................................................................................................... 6

Network Features ...................................................................................................................................................... 6

505-10368-00/505-10369-00 Features ..................................................................................................................... 6

Description..................................................................................................................................................................... 7

SmartMesh Network Overview ..................................................................................................................................... 8

Absolute Maximum Ratings ......................................................................................................................................... 10

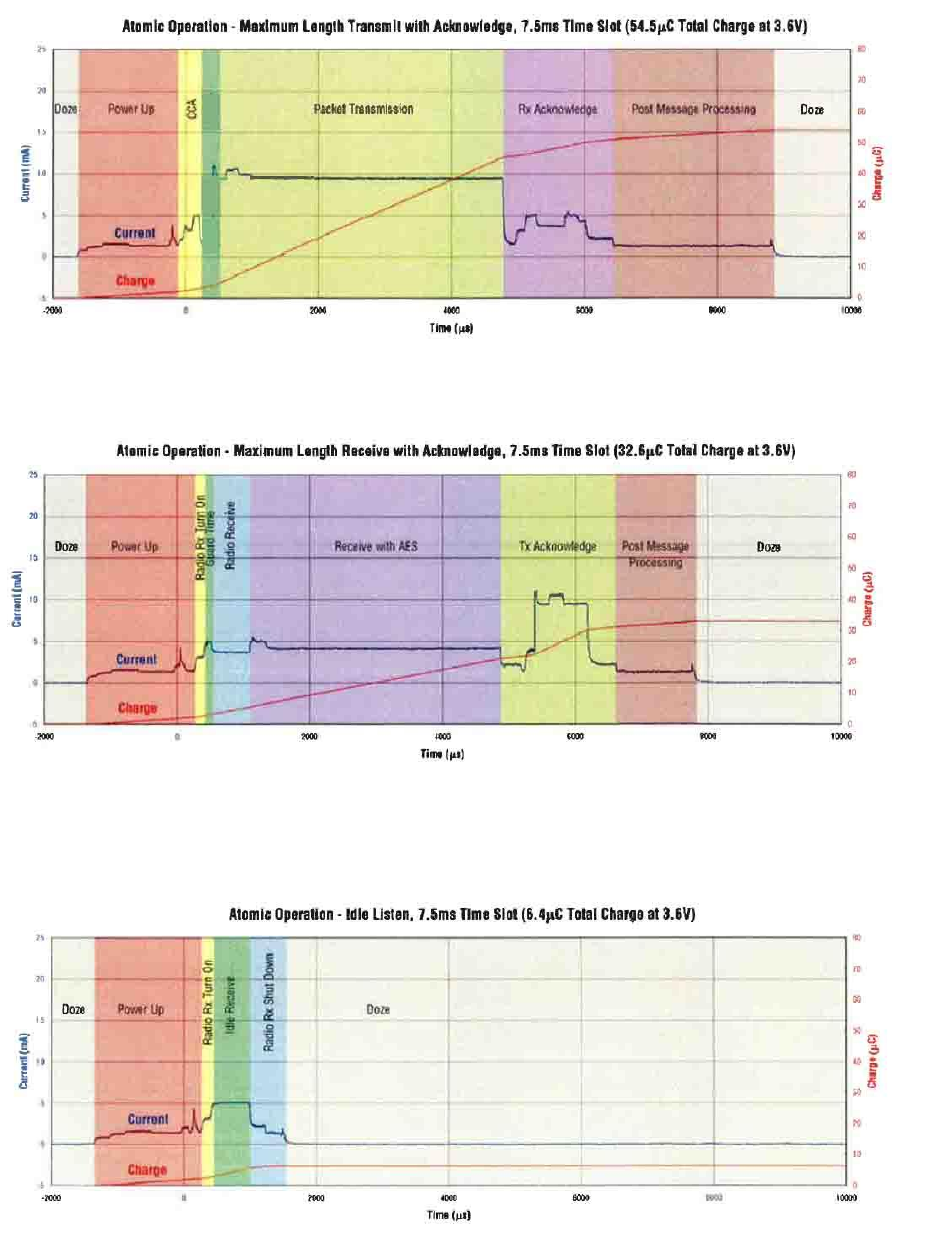

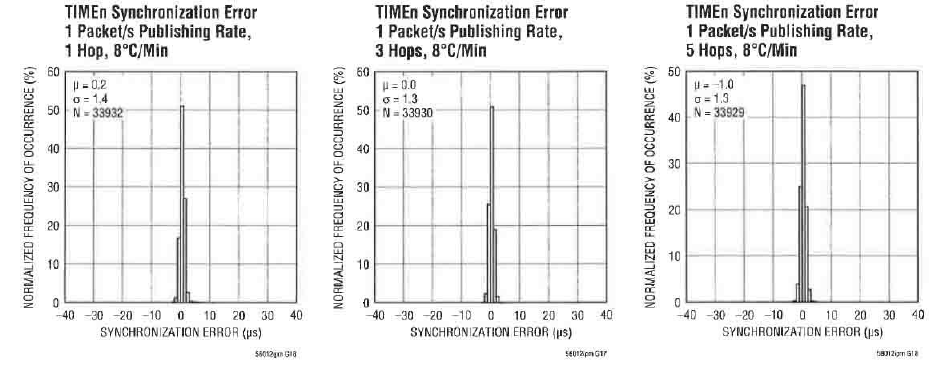

Typical Performance Characteristics ........................................................................................................................... 18

Pin Functions ............................................................................................................................................................... 24

Operation ..................................................................................................................................................................... 28

Power Supply ........................................................................................................................................................... 29

Supply Monitoring and Reset .................................................................................................................................. 29

Precision Timing ....................................................................................................................................................... 30

Application Time Synchronization ........................................................................................................................... 30

Time References ...................................................................................................................................................... 30

Relaxation Oscillator ................................................................................................................................................ 30

20MHz Crystal .......................................................................................................................................................... 31

Radio ........................................................................................................................................................................ 31

UARTs....................................................................................................................................................................... 31

API UART Protocol ................................................................................................................................................... 31

UART Mode 4 ........................................................................................................................................................... 32

CLI UART .................................................................................................................................................................. 32

Autonomous MAC ................................................................................................................................................... 32

Security .................................................................................................................................................................... 33

Temperature Sensor ................................................................................................................................................ 33

RADIO INHIBIT ......................................................................................................................................................... 33

Factory Installed Software ....................................................................................................................................... 33

Flash Data Retention ............................................................................................................................................... 34

Start-Up ................................................................................................................................................................... 36

Serial Flash Emulation .............................................................................................................................................. 36

Operation ................................................................................................................................................................. 36

Active State .............................................................................................................................................................. 36

Doze State ................................................................................................................................................................ 36

Applications Information ............................................................................................................................................. 37

Signal/Data Acquisition and Control ........................................................................................................................ 37

Soldering Information .............................................................................................................................................. 37

fcc, industry canada, SAFETY INFORMATION AND WARNINGS ................................................................................... 38

FCC Compliance Statement ..................................................................................................................................... 38

INDUSTRY CANADA Compliance Statement ............................................................................................................ 38

FCC RF Radiation Exposure Statement .................................................................................................................... 38

Modification warning .............................................................................................................................................. 38

Advantech B+B SmartWorx Technical Support ........................................................................................................... 39

FIGURES

Figure 1. Mesh Network ................................................................................................................................................ 8

Figure 2. Mesh network ................................................................................................................................................. 9

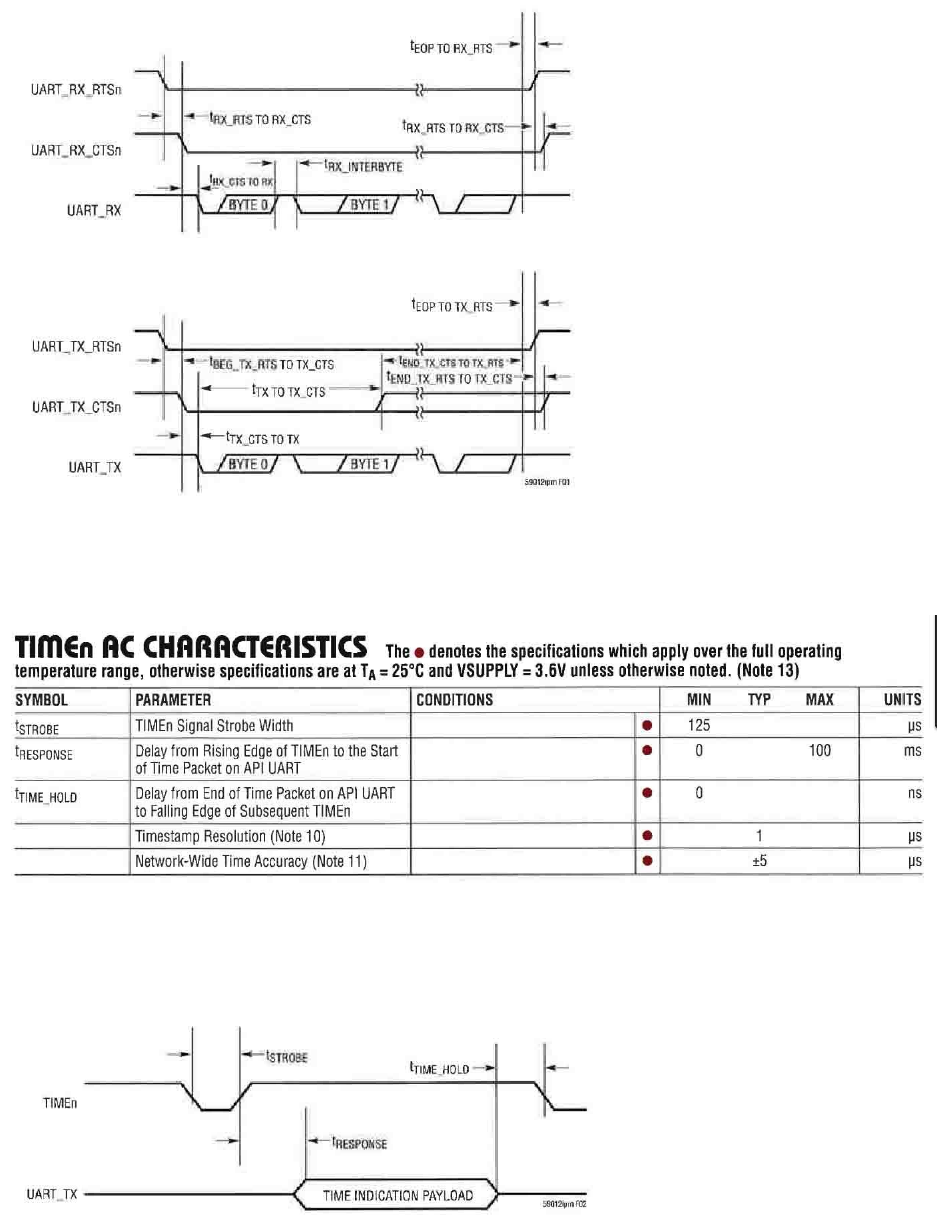

Figure 3. API UART Timing ........................................................................................................................................... 15

Figure 4. Timestamp Timing ........................................................................................................................................ 15

Figure 5. Radio Inhibit Timing ...................................................................................................................................... 16

Figure 6. Flash programming interface timing ............................................................................................................ 17

Figure 7. Mesh network ............................................................................................................................................... 19

Figure 8. Example network graphs .............................................................................................................................. 19

Figure 9. ....................................................................................................................................................................... 20

Figure 10. ..................................................................................................................................................................... 20

Figure 11. ..................................................................................................................................................................... 21

Figure 12. ..................................................................................................................................................................... 21

Figure 13. ..................................................................................................................................................................... 21

Figure 14. ..................................................................................................................................................................... 22

Figure 15. ..................................................................................................................................................................... 23

Figure 16 ...................................................................................................................................................................... 23

Figure 17 ...................................................................................................................................................................... 23

Figure 18. Analog input chain ...................................................................................................................................... 27

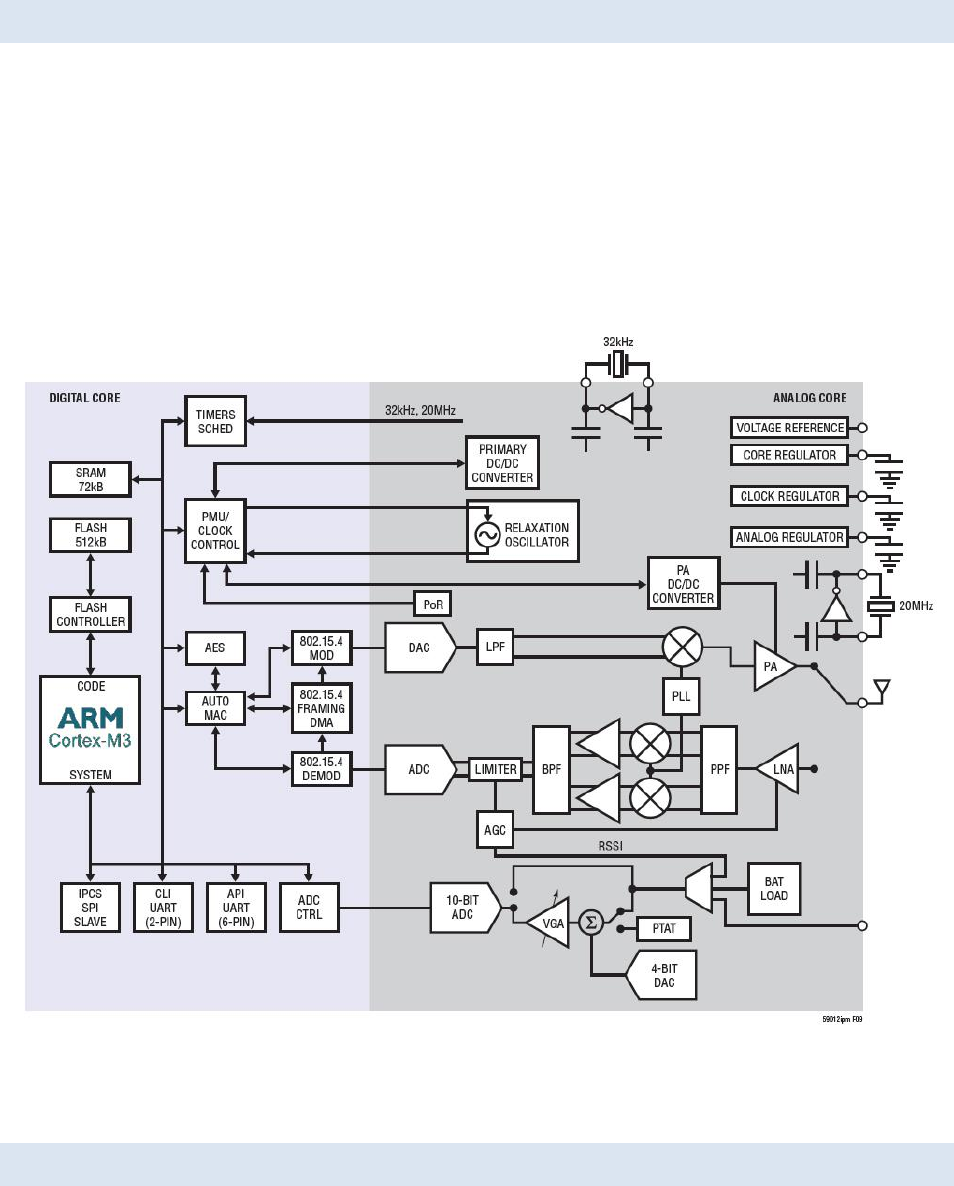

Figure 19. WSM2400 block diagram ............................................................................................................................ 29

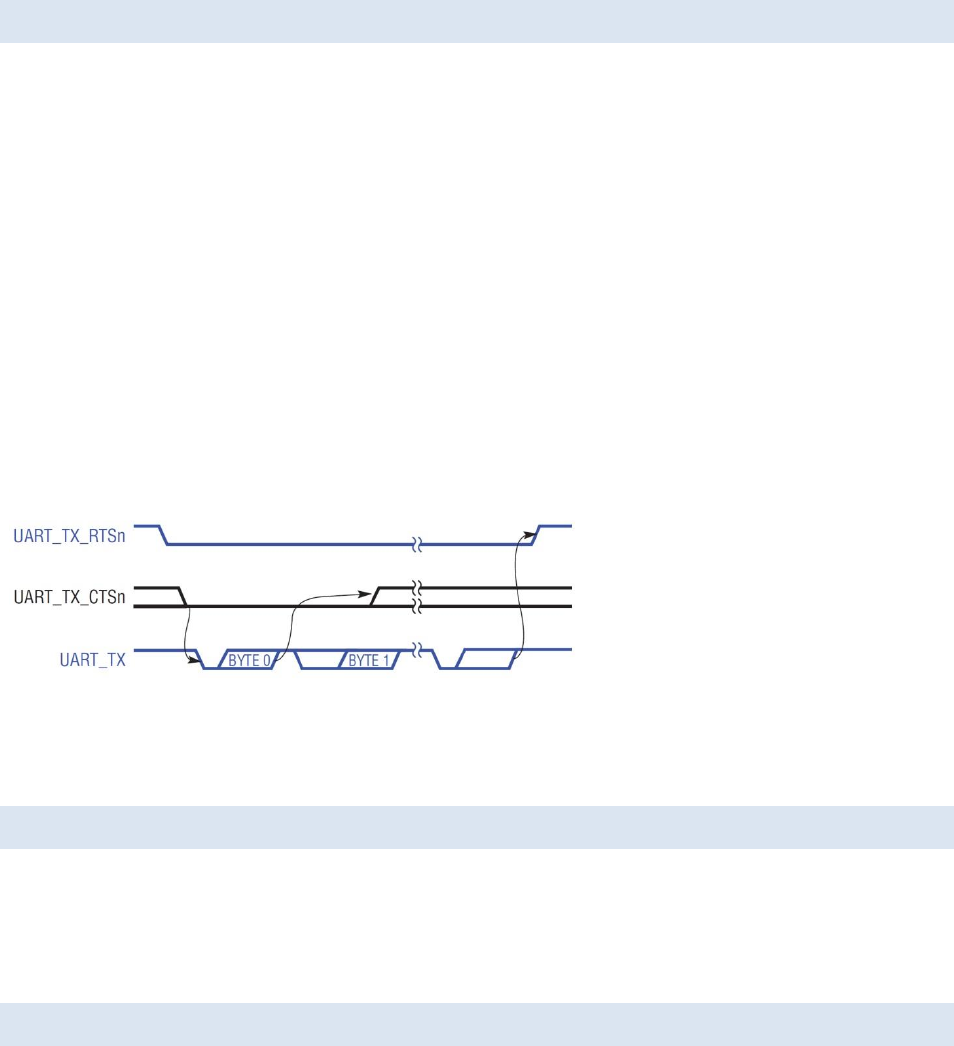

Figure 20. UART Mode 4 flow control ......................................................................................................................... 32

Figure 21. Equation ...................................................................................................................................................... 34

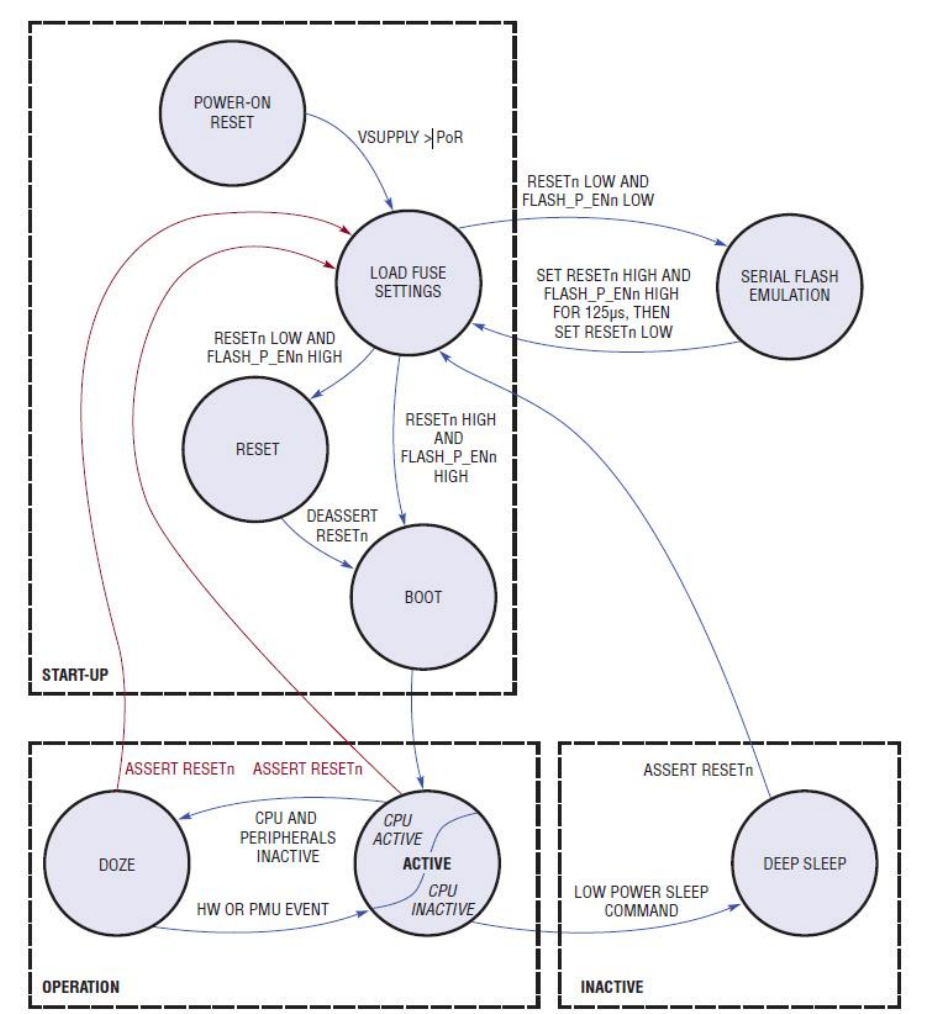

Figure 22. WSM2400 state diagram ............................................................................................................................ 35

TABLES

Table 1. Recommended operating conditions ............................................................................................................. 10

Table 2. DC characteristics ........................................................................................................................................... 11

Table 3. Radio specifications ....................................................................................................................................... 11

Table 4. Radio receiver characteristics ........................................................................................................................ 12

Table 5. Radio transmitter characteristics ................................................................................................................... 12

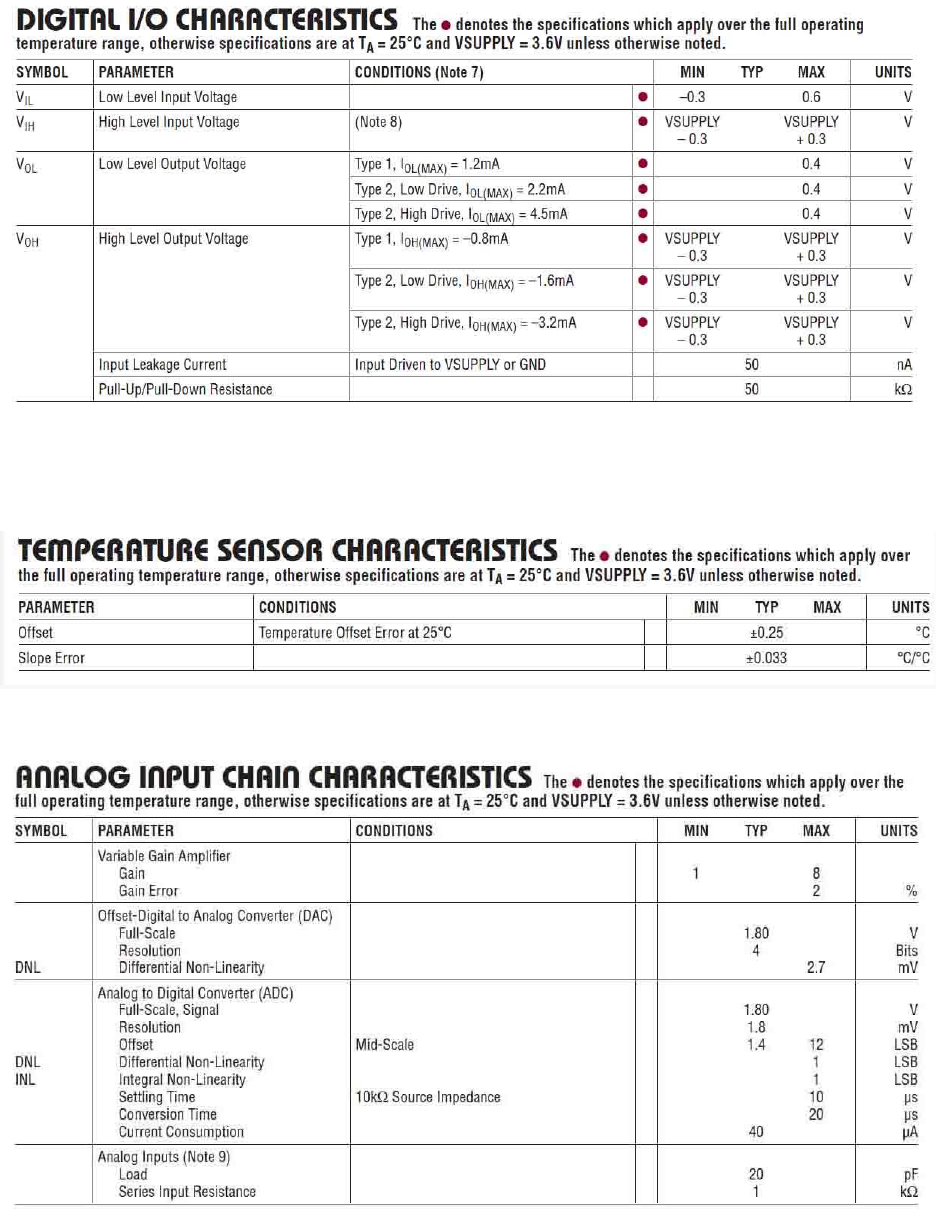

Table 6. Digital I/O characteristics ............................................................................................................................... 13

Table 7. Temperature sensor characteristics .............................................................................................................. 13

Table 8. Analog input characteristics ........................................................................................................................... 13

Table 9. System characteristics.................................................................................................................................... 14

Table 10. UART AC characteristics ............................................................................................................................... 14

Table 11. Timen AC characteristics .............................................................................................................................. 15

Table 12. Radio inhibit ac characteristics .................................................................................................................... 16

Table 13. Flash AC characteristics ................................................................................................................................ 16

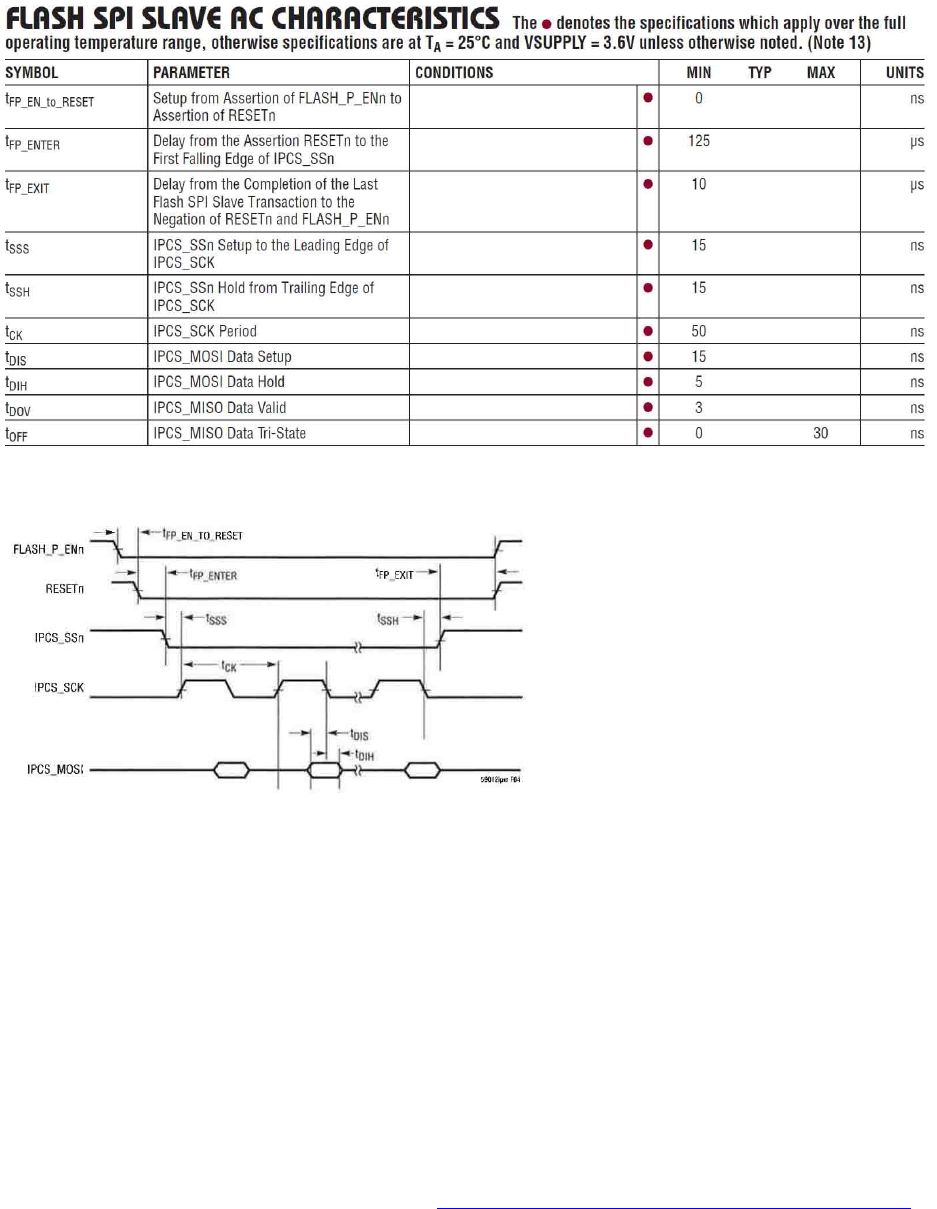

Table 14. Flash SPI slave characteristics ...................................................................................................................... 17

FEATURES

NETWORK FEATURES

Complete Radio Transceiver, Embedded Processor, and Networking Software for Forming a Self-

Healing Mesh Network

SmartMesh® Networks Incorporate:

 Time Synchronized Network-Wide Scheduling

 Per Transmission Frequency Hopping

 Redundant Spatially Diverse Topologies

 Network-Wide Reliability and Power Optimization

 NIST Certified Security

SmartMesh Networks Deliver:

 >99.999% Network Reliability Achieved in the Most Challenging RF Environments

 Sub 50μA Routing Nodes

Compliant to 6LoWPAN Internet Protocol (IP) and IEEE 802.15.4e Standards

505-10368-00/505-10369-00 FEATURES

Industry-Leading Low Power Radio Technology with:

 4.5mA to Receive a Packet

 5.4mA to Transmit at 0dBm

 9.7mA to Transmit at 8dBm

RF Modular Certifications include USA, Canada, EU and Japan.

PCB Assembly with Chip Antenna (505-10368-00) or with U.FL Antenna Connector (505-10369-00).

DESCRIPTION

SmartMesh IP™ wireless sensor networks are self-managing, low power Internet Protocol (IP) networks

built from wireless nodes called motes. The 505-10368-00/505-10369-00 is the IP mote product in the

WSM2400®* family of IEEE 802.15.4e printed circuit board assembly solutions, featuring a highly-

integrated, low power radio as well as an ARM Cortex-M3 32-bit microprocessor running Dust’s

embedded SmartMesh IP networking software.

Both the 505-10368-00 (with chip antenna) and the 505-10369-00 (with U.FL connector), are designed

for surface mount assembly. With Dust’s time-synchronized SmartMesh IP networks, all motes in the

network may route, source or terminate data, while providing many years of battery powered

operation. The SmartMesh IP software provided with the 505-10368-00/505-10369-00 is fully tested and

validated, and is readily configured via a software Application Programming Interface.

SmartMesh IP motes deliver a highly flexible network with proven reliability and low power

performance in an easy-to-integrate platform.

SMARTMESH NETWORK OVERVIEW

A SmartMesh network consists of a self-forming multi-hop mesh of nodes, known as motes, which

collect and relay data, and a network manager that monitors and manages network performance and

security, and exchanges data with a host application.

SmartMesh networks communicate using a time slotted channel hopping (TSCH) link layer, pioneered by

Dust Networks. In a TSCH network, all motes in the network are synchronized to within less than a

millisecond. Time in the network is organized into time slots, which enables collision-free packet

exchange and per-transmission channel-hopping. In a SmartMesh network, every device has one or

more parents (e.g. mote 3 has motes 1 and 2 as parents) that provide redundant paths to overcome

communications interruption due to interference, physical obstruction or multi-path fading. If a packet

transmission fails on one path, the next retransmission may try on a different path and different RF

channel.

A network begins to form when the network manager instructs its on-board Access Point (AP) radio to

begin sending advertisements—packets that contain information that enables a device to synchronize to

the network and request to join. This message exchange is part of the security handshake that

establishes encrypted communications between the manager or application, and mote. Once motes

have joined the network, they maintain synchronization through time corrections when a packet is

acknowledged.

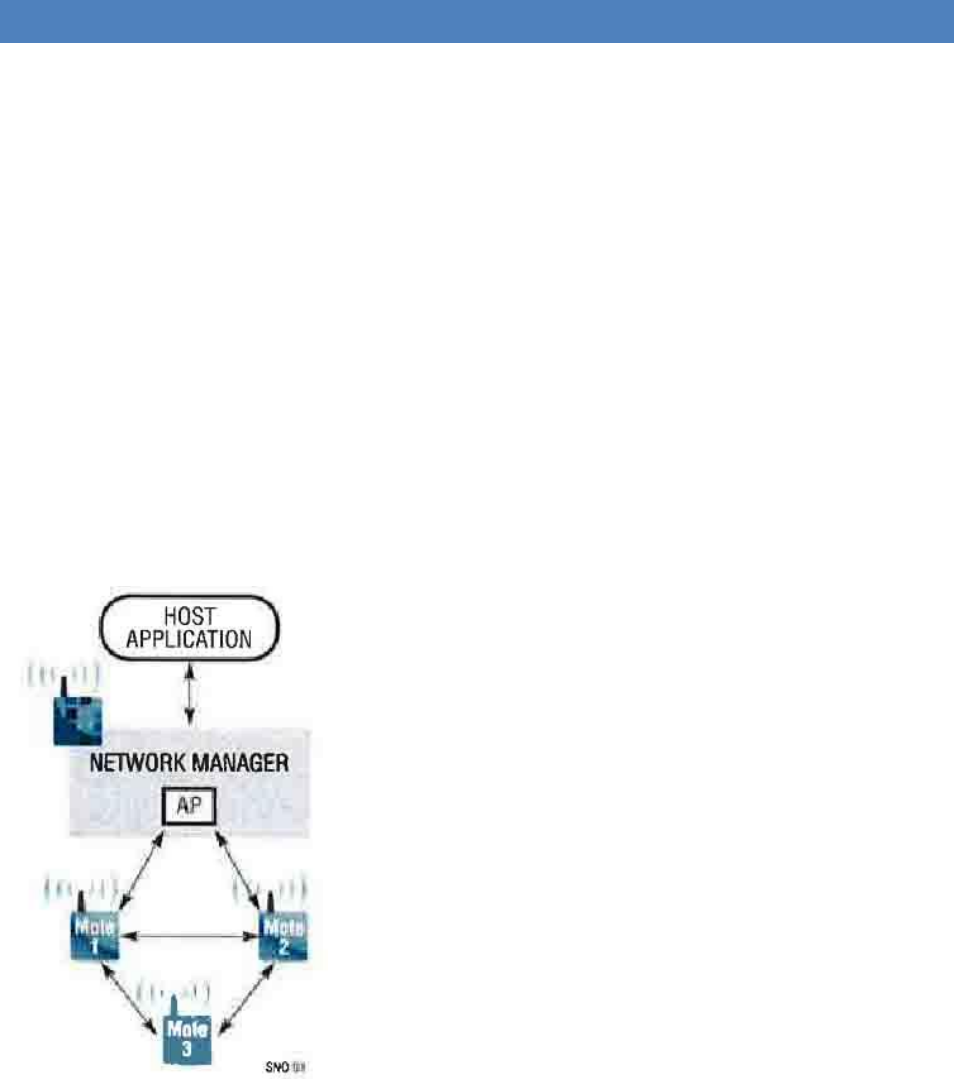

Figure 1. Mesh Network

An ongoing discovery process ensures that the network continually discovers new paths as the RF

conditions change. In addition, each mote in the network tracks performance statistics (e.g. quality of

used paths, and lists of potential paths) and periodically sends that information to the network manager

in packets called health reports.

The Network Manager uses health reports to continually optimize the network to maintain >99.999%

data reliability even in the most challenging RF environments. The use of TSCH allows SmartMesh

devices to sleep in between scheduled communications and draw very little power in this state. Motes

are only active in time slots where they are scheduled to transmit or receive, typically resulting in a duty

cycle of < 1%. The optimization software in the Network Manager coordinates this schedule

automatically. When combined with the WSM2400 low power radio, every mote in a SmartMesh

network—even busy routing ones—can run on batteries for years. By default, all motes in a network are

capable of routing traffic from other motes, which simplifies installation by avoiding the complexity of

having distinct routers vs non-routing end nodes. Motes may be configured as non-routing to further

reduce that particular mote’s power consumption and to support a wide variety of network topologies.

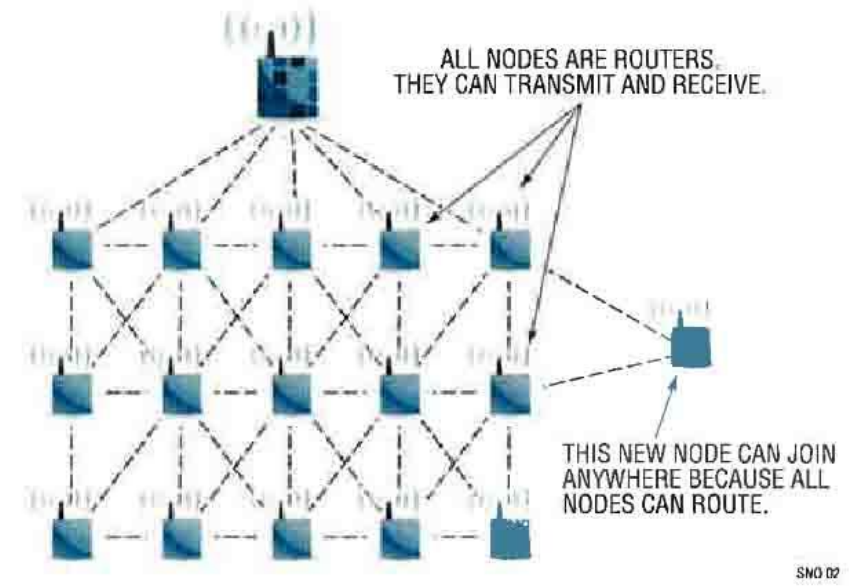

Figure 2. Mesh network

At the heart of SmartMesh motes and network managers is the WSM2400 IEEE 802.15.4e System-on-

Chip (SoC), featuring Dust Networks’ highly integrated, low power radio design, plus an ARM Cortex-M3

32-bit microprocessor running SmartMesh networking software. The SmartMesh networking software

comes fully compiled yet is configurable via a rich set of Application Programming Interfaces (APIs)

which allows a host application to interact with the network, e.g. to transfer information to a device, to

configure data publishing rates on one or more motes, or to monitor network state or performance

metrics. Data publishing can be uniform or different for each device, with motes being able to publish

infrequently or faster than once per second as needed.

ABSOLUTE MAXIMUM RATINGS

Supply Voltage on VSUPPLY...................................3.76V

Input Voltage on AI_0/1/2/3 Inputs.......................1.80V

Voltage on Any Digital I/O pin.............................. –0.3V to VSUPPLY + 0.3V

Input RF Level....................................................... +10dBm

Storage Temperature Range (Note 3)…………...... –55°C to 105°C

Operating Temperature Range............................–40°C to 85°C

CAUTION: This part is sensitive to electrostatic discharge (ESD). It is very important that proper ESD

precautions be observed when handling the 505-10368-00/505-10369-00.

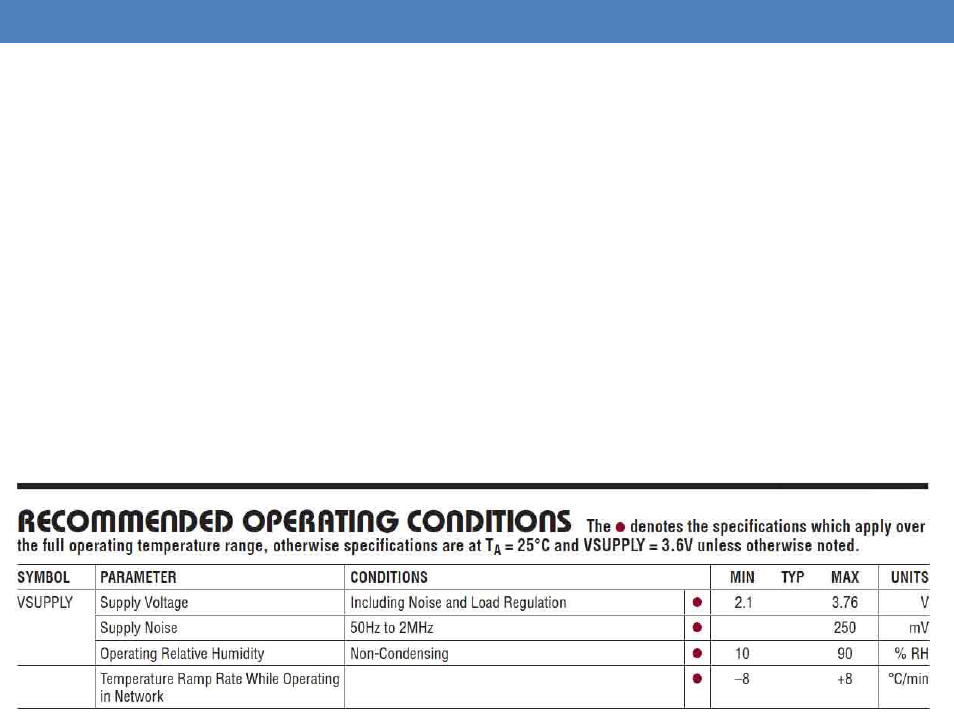

Table 1. Recommended operating conditions

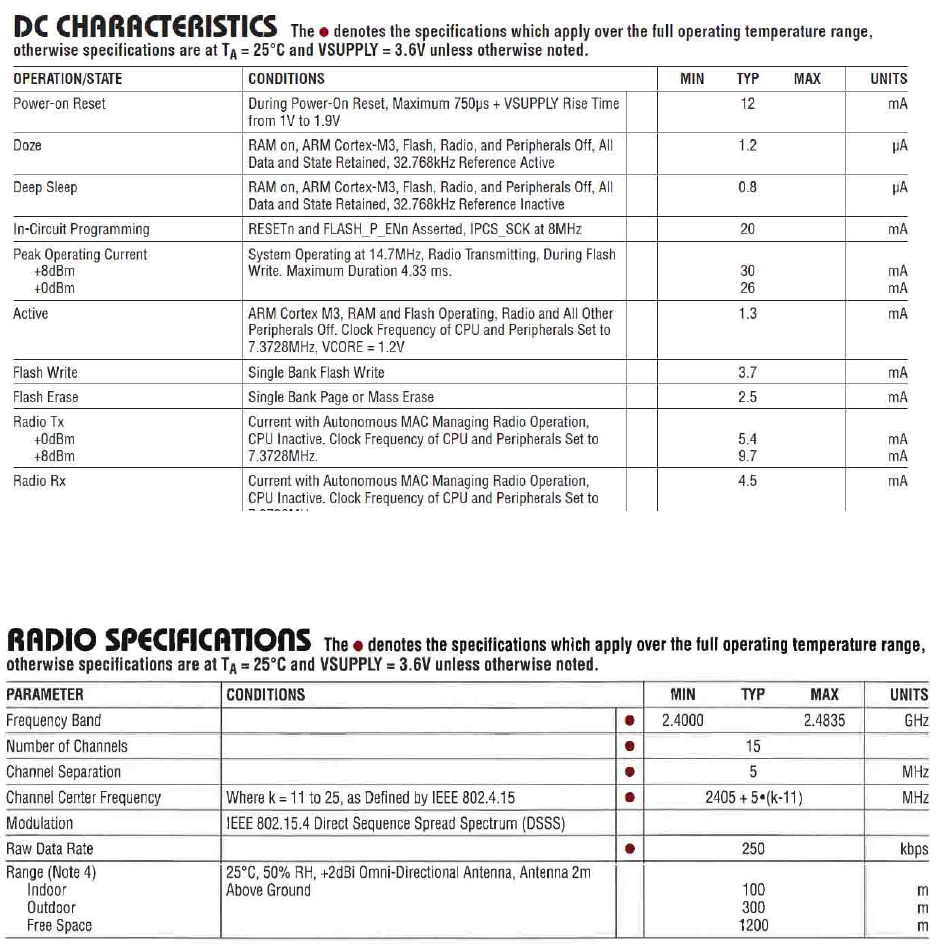

Table 2. DC characteristics

Table 3. Radio specifications

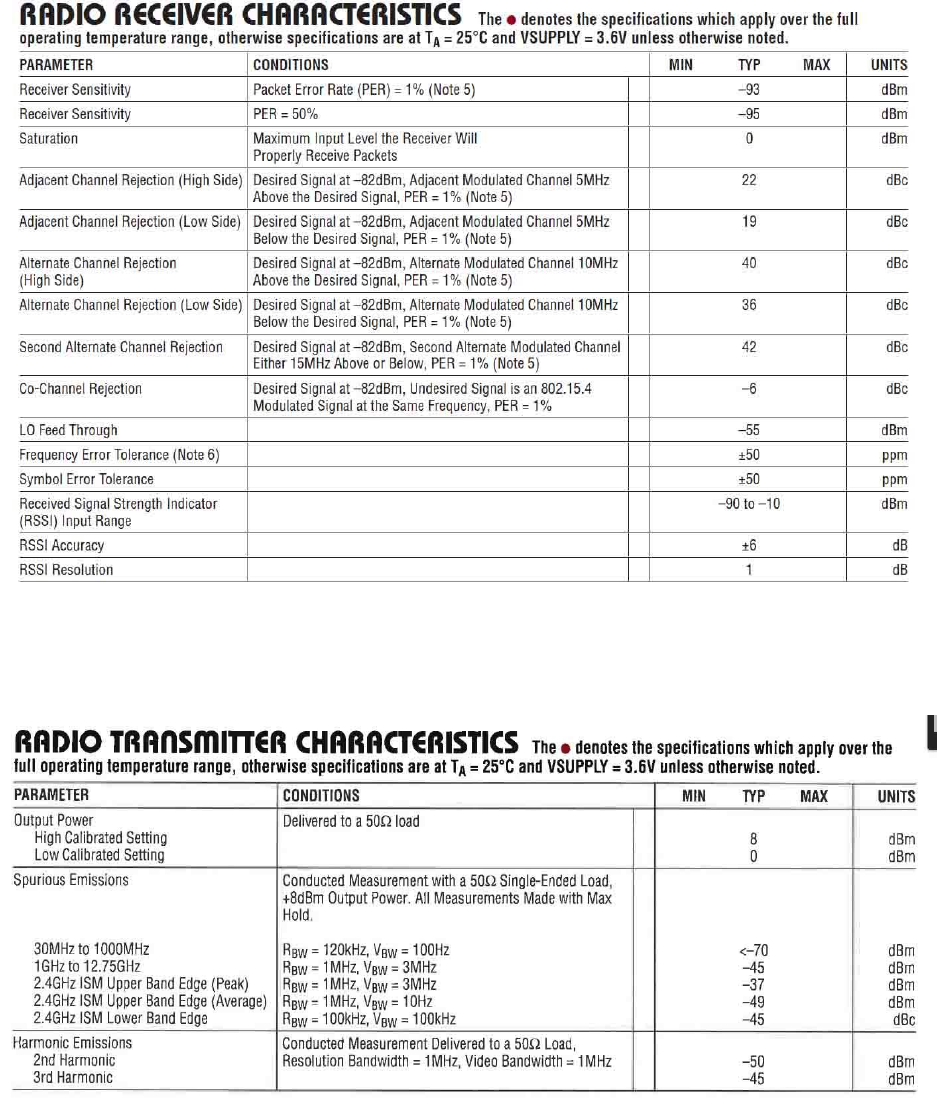

Table 4. Radio receiver characteristics

Table 5. Radio transmitter characteristics

Table 6. Digital I/O characteristics

Table 7. Temperature sensor characteristics

Table 8. Analog input characteristics

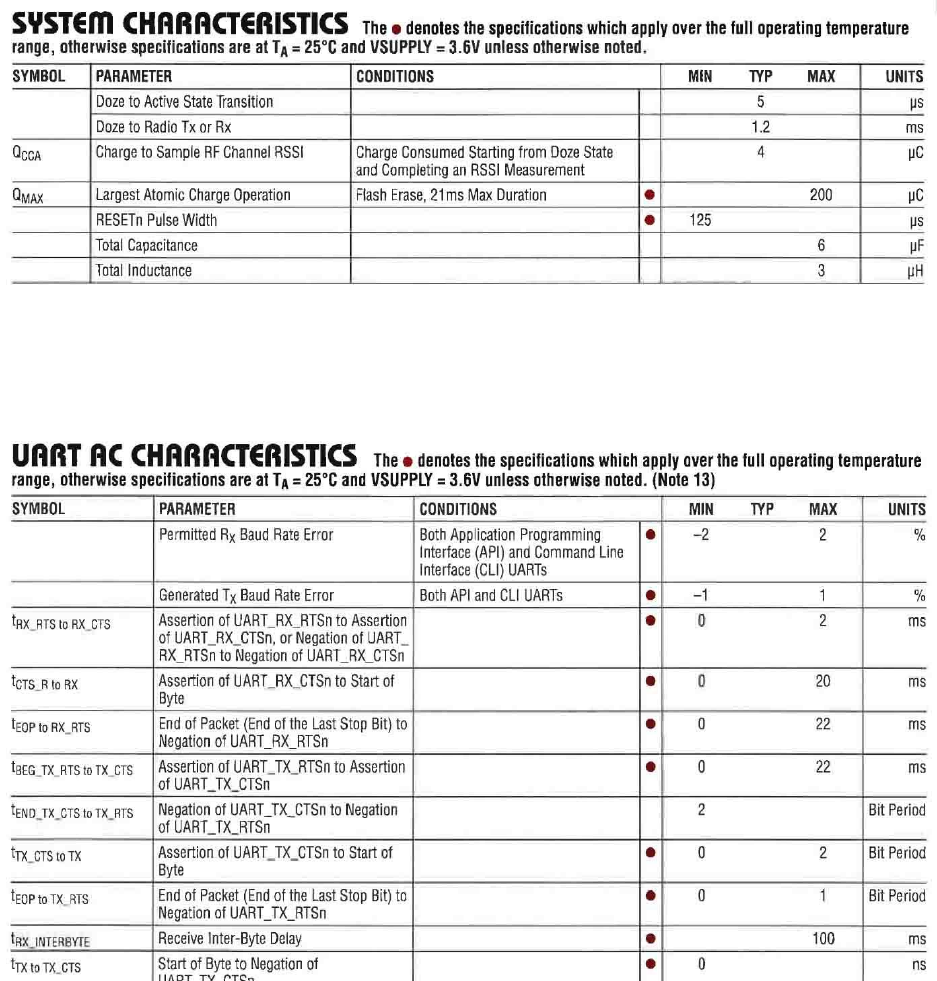

Table 9. System characteristics

Table 10. UART AC characteristics

Figure 3. API UART Timing

Table 11. Timen AC characteristics

Figure 4. Timestamp Timing

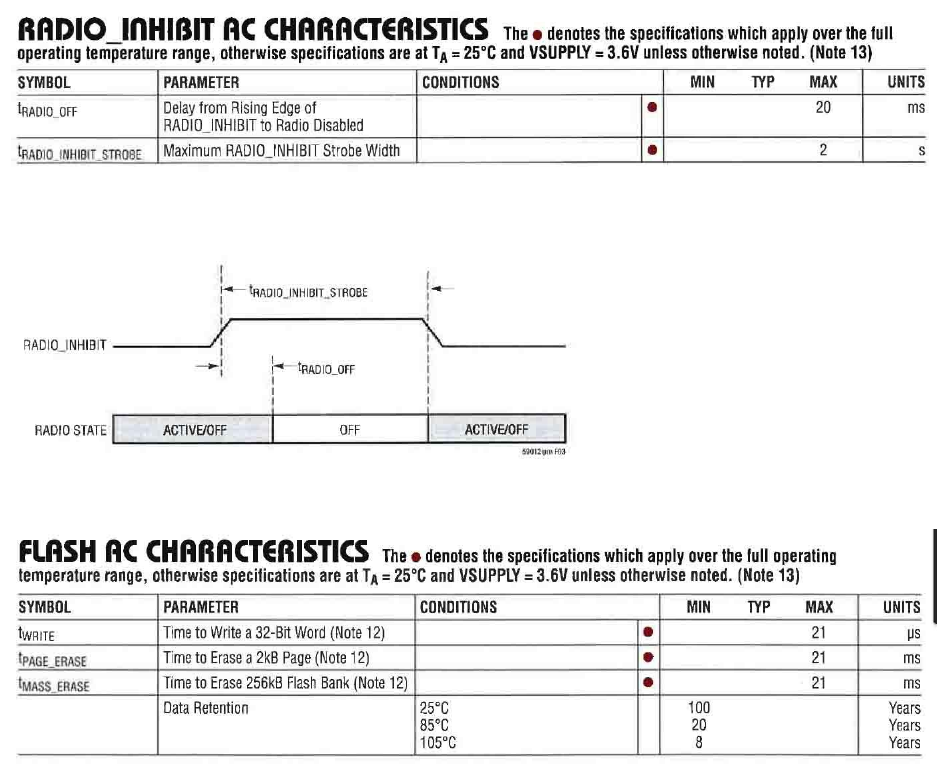

Table 12. Radio inhibit ac characteristics

Figure 5. Radio Inhibit Timing

Table 13. Flash AC characteristics

Table 14. Flash SPI slave characteristics

Figure 6. Flash programming interface timing

Note 1: Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. Exposure

to any Absolute Maximum Rating condition for extended periods may affect device reliability and lifetime.

Note 2: ESD (electrostatic discharge) sensitive device. ESD protection devices are used extensively internal to WSM2400.

However, high electrostatic discharge can damage or degrade the device. Use proper ESD handling precautions.

Note 3: Extended storage at high temperature is discouraged, as this negatively affects the data retention of WSM2400’s

calibration data. See the FLASH Data Retention section for details.

Note 4: Actual RF range is subject to a number of installation-specific variables including, but not restricted to ambient

temperature, relative humidity, presence of active interference sources, line-of-sight obstacles, and near-presence of objects

(for example, trees, walls, signage, and so on) that may induce multipath fading. As a result, range varies.

Note 5: As Specified by IEEE Std. 802.15.4-2006: Wireless Medium Access Control (MAC) and Physical Layer (PHY) Specifications

for Low-Rate Wireless Personal Area Networks (LR-WPANs) http://standards.ieee.org/findstds/standard/802.15.4-2011.html.

Note 6: IEEE Std. 802.15.4-2006 requires transmitters to maintain a frequency tolerance of better than ±40 ppm.

Note 7: Per-pin I/O types are provided in the Pin Functions section.

Note 8: VIH maximum voltage input must respect the VSUPPLY maximum voltage specification.

Note 9: The analog inputs to the ADC can be modeled as a series resistor to a capacitor. At a minimum the entire circuit,

including the source impedance for the signal driving the analog input should be designed to settle to within ¼ LSB within the

sampling window to match the performance of the ADC..

Note 10: Network time accuracy is a statistical measure and varies over the temperature range, reporting rate and the location

of the device relative to the manager in the network. See the Typical Performance Characteristics section for a more detailed

description.

Note 11: Code execution from flash banks being written or erased is suspended until completion of the flash operation.

Note 12: Guaranteed by design. Not production tested.

TYPICAL PERFORMANCE CHARACTERISTICS

Network motes typically route through at least two parents the traffic destined for the manager. The

supply current graphs shown in Figure 8 include a parameter called descendants. In these graphs the

term descendants is short for traffic-weighted descendants and refers to an amount of activity

equivalent to the number of descendants if all of the network traffic directed to the mote in question.

Generally the number of descendants of a parent is more typically 2x or more, than the number of

traffic-weighted descendants. For example, with reference to Figure 7, Network Graph mote P1 has 0.75

traffic-weighted descendants. To obtain this value notice that mote D1 routes half its packets through

mote P1 adding 0.5 to the traffic weighted descendant value; the other half of D1’s traffic is routed

through its other parent, P2. Mote D2 routes half its packets through mote D1 (the other half going

through parent P3), which we know routes half its packets to moteP1, adding another 0.25 to the traffic-

weighted descendant value for a total traffic-weighted descendant value of 0.75

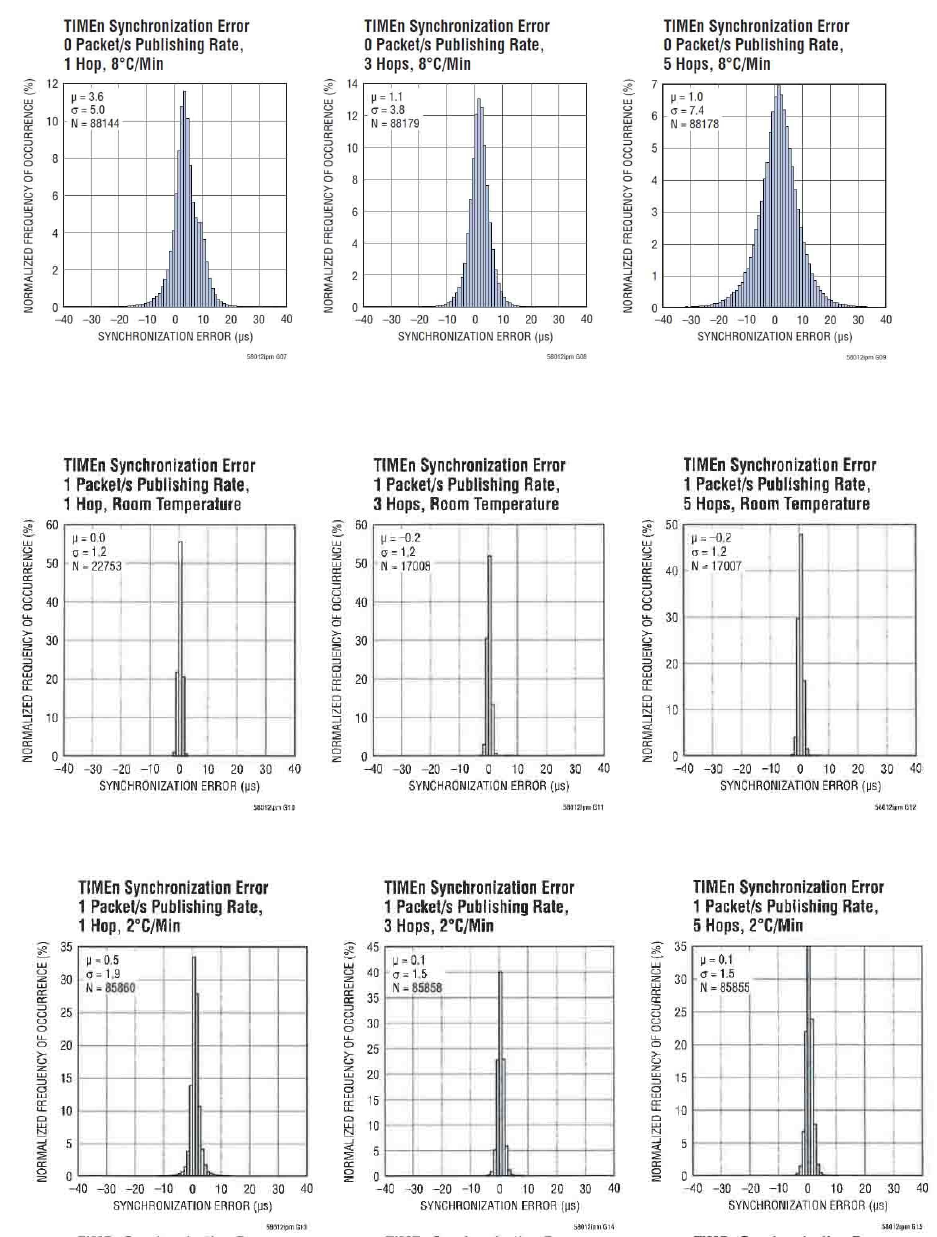

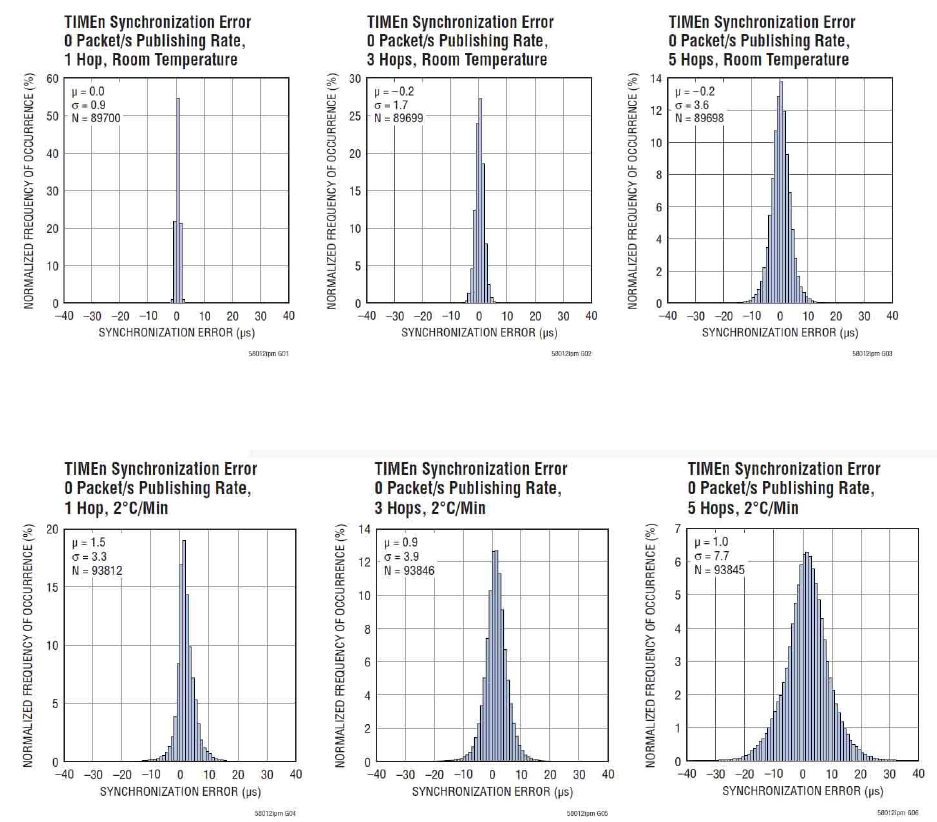

As described in the Application Time Synchronization section, WSM2400 provides two mechanisms for

applications to maintain a time base across a network. The synchronization performance plots that

follow were generated using the more precise TIMEn input. Publishing rate is the rate a mote

application sends upstream data. Synchronization improves as the publishing rate increases. Baseline

synchronization performance is provided for a network operating with a publishing rate of zero. Actual

performance for applications in network will improve as publishing rates increase. All synchronization

testing was performed with the 1-hop mote inside a temperature chamber. Timing errors due to

temperature changes and temperature differences both between the manager and this mote and

between this mote and its descendants therefore propagated down through the network. The

synchronization of the 3-hop and 5-hop motes to the manager was then affected by the temperature

ramps even though they were at room temperature. For 2°C/minute testing the temperature chamber

was cycled between –40°C and 85°C at this rate for 24 hours. For 8°C/minute testing, the temperature

chamber was rapidly cycled between 85°C and 45°C for 8 hours, followed by rapid cycling between –5°C

and 45°C for 8 hours, and lastly, rapid cycling between –40°C and 15°C for 8 hours.

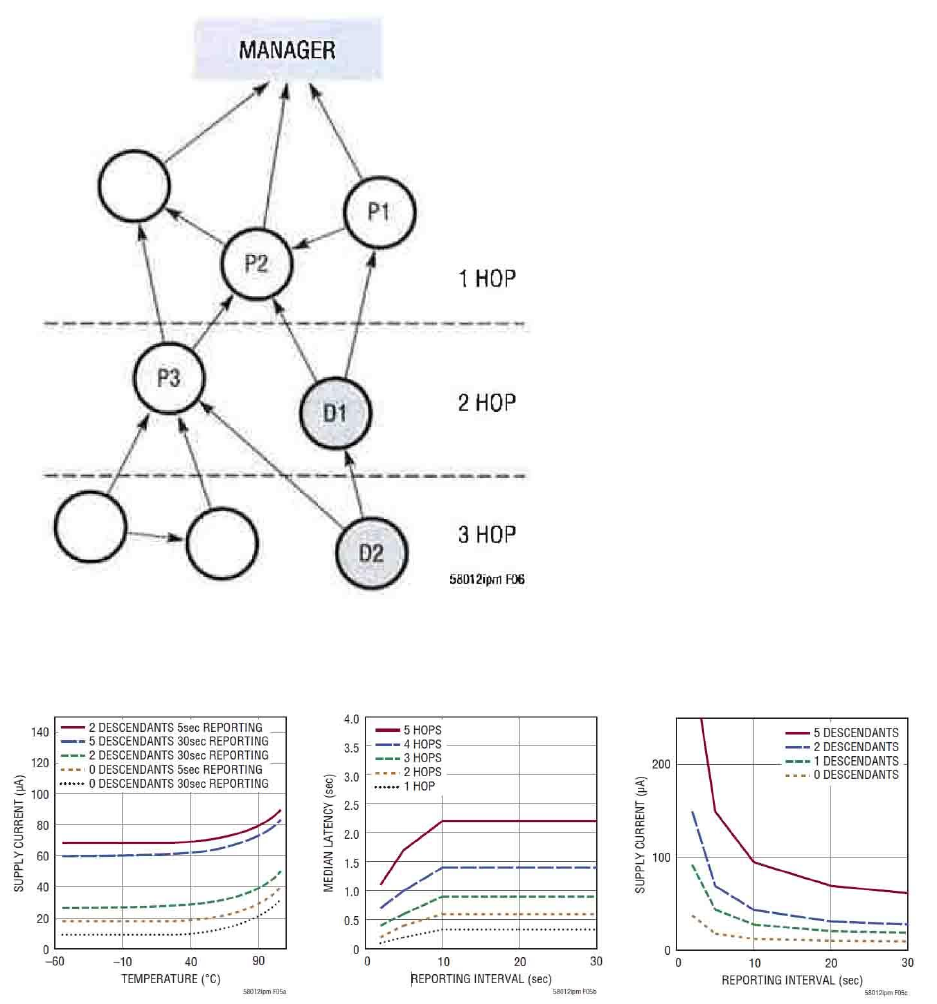

Figure 7. Mesh network

Figure 8. Example network graphs

Figure 9.

Figure 10.

Figure 11.

Figure 12.

Figure 13.

Figure 14.

As described in the SmartMesh Network Overview section, devices in network spend the vast majority

of their time inactive in their lowest power state (doze). On a synchronous schedule a mote will wake to

communicate with another mote. Regularly occurring sequences which wake, perform a significant

function and return to sleep are considered atomic. These operations are considered atomic as the

sequence of events cannot be separated into smaller events while performing a useful function. For

example, transmission of a packet over the radio is an atomic operation. Atomic operations may be

characterized in either charge or energy. In a time slot where a mote successfully sends a packet, an

atomic transmit includes setup prior to sending the message, sending the message, receiving the

acknowledgment and the post processing needed as a result of the message being sent. Similarly in a

time slot when a mote successfully receives a packet, an atomic receive includes setup prior to listening,

listening until the start of the packet transition, receiving the packet, sending the acknowledge and the

post processing required due to the arrival of the packet.

To ensure reliability each mote in the network is provided multiple time slots for each packet it

nominally will send and forward. The time slots are assigned to communicate upstream with at least two

different motes. When combined with frequency hopping this provides temporal, special and spectral

redundancy. Given this approach a mote will often listen for a message that it will never receive, since

the time slot is not being used by the transmitting mote. It has already successfully transmitted the

packet. Since typically 3 time slots are scheduled for every 1 packet to be sent or forwarded, motes will

perform more of these atomic “idle listens” than atomic transmit or atomic receive sequences.

Examples of transmit, receive and idle listen atomic operations are shown below.

Figure 15.

Figure 16

Figure 17

PIN FUNCTIONS

The following table organizes the pins by functional groups. For those I/O with multiple functions the

alternate functions are shown on the second and third line in their respective row. The No column

provides the pin number. The second column lists the function. The Type column lists the I/O type. The

I/O column lists the direction of the signal relative to WSM2400. The Pull column shows which signals

have a fixed passive pull-up or pull-down. The Description column provides a brief signal description.

NOTE: Pin functions shown in italics are currently not supported in software

No.

Power Supply

Type

I/0

PULL

Description

GND

Power

Ground Connection

GND

Power

Ground Connection

GND

Power

Ground Connection

GND

Power

Ground Connection

GND

Power

Ground Connection

GND

Power

Ground Connection

GND

Power

Ground Connection

GND

Power

Ground Connection

GND

Power

Ground Connection

GND

Power

Ground Connection

VSUPPLY

Power

Power Supply Input to WSM2400

No.

Radio

Type

I/0

PULL

Description

RADIO_INHIBIT

GPIO15

1(Note 14)

I/O

Radio Inhibit

General Purpose Digital I/O

GPIO17

I/O

General Purpose Digital I/O

GPIO18

I/O

General Purpose Digital I/O

GPIO19

I/O

General Purpose Digital I/O

Antenna

N/A

Chip Antenna/U.FL Connector

No.

Analog

Type

I/0

PULL

Description

AI_0

Analog

Analog Input 0

AI_1

Analog

Analog Input 1

AI_2

Analog

Analog Input 2

AI_3

Analog

Analog Input 3

No.

Reset

Type

I/0

PULL

Description

RESETn

Reset input, Active Low

No.

JTAG

Type

I/0

PULL

Description

TDI

JTAG Test Data In

TDO

JTAG Test Data Out

TMS

JTAG Test mode Select

TCK

DOWN

JTAG Test Clock

No.

GPIOs

(NOTE 14)

Type

I/0

PULL

Description

DP4 (GPIO23)

I/O

General Purpose Digital I/O

DP3 (GPIO22)

TIMER8_EXT

I/O

General Purpose Digital I/O

External Input to 8-Bit Timer/Counter

DP2 (GPIO21)

LPTIMER_EXT

I/O

General Purpose Digital I/O

External Input to Low Power Timer/Counter

DP0 (GPIO0)

SPIM-SS-2n

I/O

General Purpose Digital I/O

SPI Master Slave Select 2, Active Low

DP1 (GPIO20)

TIMER16_EXT

I/O

General Purpose Digital I/O

External Input to 16-Bit Timer/Counter

No.

SPECIAL

PURPOSE

Type

I/0

PULL

Description

SLEEPn

GPIO14

1(Note 14)

I/O

Deep Sleep, Active Low

General Purpose Digital I/O

PWM0

TIMER16_OUT

GPIO16

I/O

Pulse Width Modulator 0

16-Bit Timer/Counter Match Output/PWM

General Purpose Digital I/O

TIMEn

GPIO1

1(Note 14)

I/O

Time Capture Request, Active Low

General Purpose Digital I/O

No.

CLI

Type

I/0

PULL

Description

UARTC0_TX

CLI UART 0 Transmit

UARTC0_RX

CLI UART 0 Receive

No.

SPI MASTER

Type

I/0

PULL

Description

SPIM-MISO

GPIO11

I/O

SPI Master(MISO) Master In Slave Out Port

General Purpose Digital I/O

SPIM_MOSI

GPIO10

I/O

SPI Master(MOSI) Master Out Slave In Port

General Purpose Digital I/O

SPIM_SCK

GPIO9

I/O

SPI Master(SCK) Serial Clock Port

General Purpose Digital I/O

SPIM_SS_1n

GPIO13

I/O

SPI Master Slave Select 1, Active Low

General Purpose Digital I/O

SPIM-SS_0n

GPIO12

I/O

SPI Master Slave Select 0, Active Low

General Purpose Digital I/O

No.

IPCS SPI/FLASH

PROGRAMMING

Type

I/0

PULL

Description

IPCS_MISO

TIMER16_OUT

GPIO6

I/O

SPI_Flash Emulation, Master In Slave Out

16-Bit Timer/Counter Math Output/PWM

General Purpose Digital I/O

IPCS_MOSI

TIMER16_EXT

GPIO5

I/O

SPI_Flash Emulation, Master Out Slave In

External Input to 16-Bit Timer/Counter

General Purpose Digital I/O

IPCS_SCK

TIMER8_EXT

GPIO4

I/O

SPI_Flash Emulation, Serial Clock

External Input to 8-Bit Timer/Counter

General Purpose Digital I/O

IPCS_SSn

LPTIMER_EXT

GPIO3

I/O

SPI_Flash Emulation Slave Select, Active Low

External Input to Low Power Timer/Counter

General Purpose Digital I/O

FLASH_P_ENn

Flash Programming Enable, Active Low

No.

I2C/1-WIRE/SPI

SLAVE

Type

I/0

PULL

Description

SPIS_MISO

UARTC1_TX

1_Wire

I/O

SPI Slave (MISO) Master In Slave Out

CLI UART 1 Transmit

1 Wire Master

SPIS_MOSI

UARTC1_RX

GPIO26

I/O

SPI Slave (MOSI) Master Out Slave In

CLI UART 1 Receive

General Purpose Digital I/O

SPIS_SCK

SCL

I/O

SPI Slave (SCK) Serial Clock

I2C Serial Clock

SPIS_SSn

SDA

I/O

SPI Slave Select, Active Low

I2C Serial Data

No.

API UART

Type

I/0

PULL

Description

UART_RX_RTSn

1 (Note 14)

UART Receive, Request to Send, Active Low

UART_RX_CTSn

UART Receive, Clear to Send, Active Low

UART_RX

1 (Note 14)

UART Receive

UART_TX_RTSn

UART Transmit, Request to Send, Active Low

UART_TX_CTSn

1 (Note 14)

UART Transmit, Clear to Send, Active Low

UART_TX

UART Transmit

Note 14: These inputs are always enabled and must be driven or pulled to

a valid state to avoid leakage

Note 15: See also pins 13, 18, and 23 for additional GPIO ports

VSUPPLY: System and I/O Power Supply. Provides power to the module. The digital-interface I/O

voltages are also set by this voltage.

ANTENNA: Multiplexed Receiver Input and Transmitter Output Pin. The impedance presented to the

U.FL connector should be 50Ω, single-ended with respect to ground.

AI_0, AI_1, AI_2, AI_3: Analog Inputs. These pins are multiplexed to the analog input chain. The analog

input chain, as shown in Figure 18, is software-configurable and includes a variable-gain amplifier, an

offset-DAC for adjusting input range, and a 10-bit ADC. Valid input range is between 0V to 1.8V. Analog

inputs can be sampled as described in section Signal/Data Acquisition and Control.

Figure 18. Analog input chain

RESETn: The asynchronous reset signal is internally pulled up. Resetting WSM2400 will result in the ARM

Cortex M3 rebooting and loss of network connectivity. Use of this signal for resetting WSM2400 is not

recommended, except during power-on and in-circuit programming.

RADIO_INHIBIT: RADIO_INHIBIT provides a mechanism for an external device to temporarily disable

radio operation. Failure to observe the timing requirements defined in the RADIO_INHIBIT AC

Characteristics section may result in unreliable network operation. In designs where the

RADIO_INHIBIT function is not needed. The input must either be tied, pulled or actively driven low to

avoid excess leakage.

TMS, TCK, TDI, TDO: JTAG Port Supporting Software Debug and Boundary Scan.

SLEEPn: The SLEEPn function is not currently supported in software. The SLEEPn input must either be

tied, pulled or actively driven high to avoid excess leakage.

UART_RX, UART_RX_RTSn, UART_RX_CTSn, UART_TX, UART_TX_RTSn, UART_TX_CTSn: The API UART

interface includes bidirectional wake up and flow control. Unused input signals must be driven or pulled

to their inactive state.

TIMEn: Strobing the TIMEn input is the most accurate method to acquire the network time maintained

by WSM2400. WSM2400 latches the network time stamp with sub-microsecond resolution on the rising

edge of the TIMEn signal and produces a packet on the API serial port containing the timing information.

UARTC0_RX, UARTC0_TX: The CLI UART provides a mechanism for monitoring, configuration and

control of WSM2400 during operation.

GPIO3, GPIO4, GPIO5, GPIO6, GPIO20, GPIO21, GPIO22, GPIO23, GPIO26: General purpose I/Os that

can be sampled or driven as described in the Signal/Data Acquisition and Control section.

FLASH_P_ENn, IPCS_SSn, IPCS_SCK, IPCS_MISO, IPCS_SSn: The In-Circuit Programming Control System

(IPCS) bus enables in-circuit programming of WSM2400’s flash memory. IPCS_SCK is a clock and should

be terminated appropriately for the driving source to prevent overshoot and ringing.

OPERATION

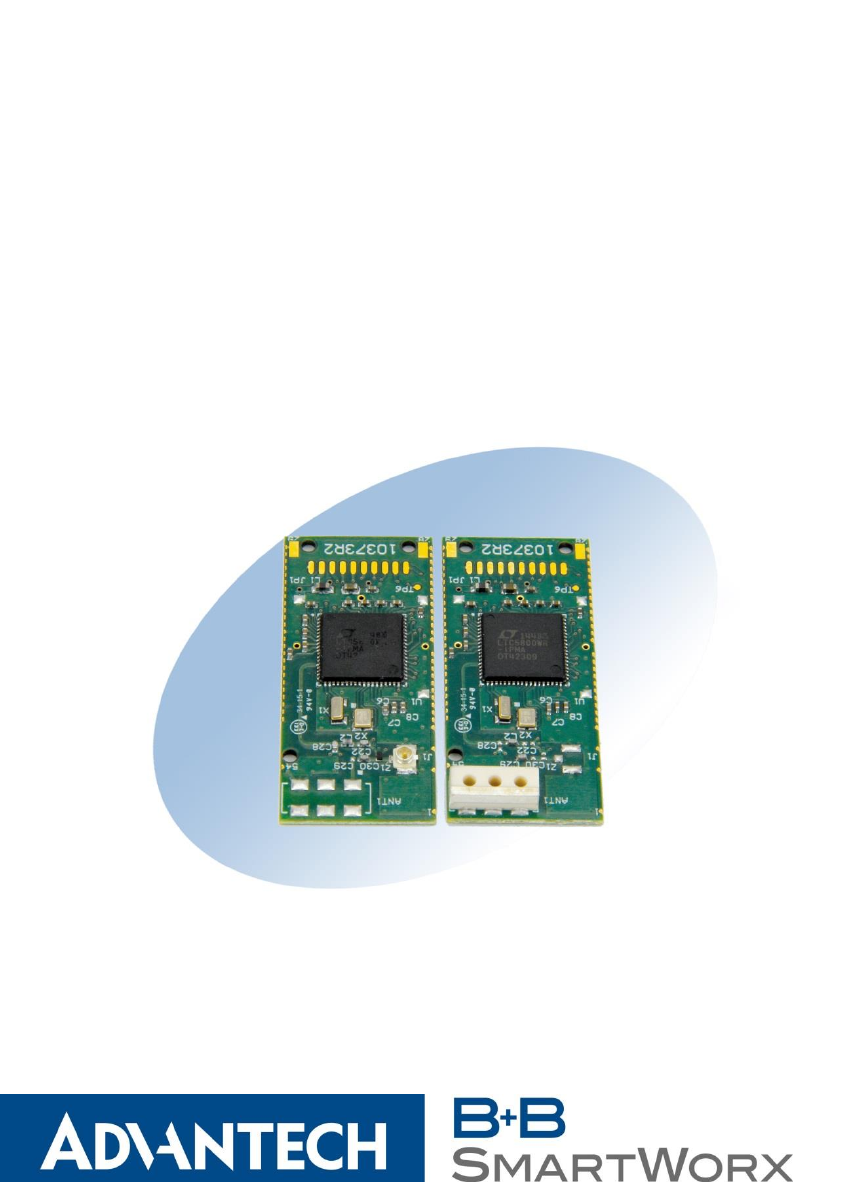

The 505-10368-00/505-10369-00 is the world’s most energy efficient IEEE 802.15.4 compliant platform,

enabling battery and energy harvested applications. With a powerful 32-bit ARM Cortex-M3, best-in-

class radio, flash, RAM and purpose-built peripherals, WSM2400 provides a flexible, scalable and robust

networking solution for applications demanding minimal energy consumption and data reliability in

even the most challenging RF environments.

Shown in Figure 19, WSM2400 integrates purpose-built peripherals that excel in both low operating-

energy consumption and the ability to rapidly and precisely cycle between operating and low-power

states. Items in the gray shaded region labeled Analog Core correspond to the analog/RF components.

POWER SUPPLY

WSM2400 is powered from a single pin, VSUPPLY, which powers the I/O cells and is also used to

generate internal supplies. WSM2400’s two on-chip DC/DC converters minimize WSM2400’s energy

consumption while the device is awake. To conserve power the DC/DC converters are disabled when the

device is in low power state. WSM2400’s power supply conditioning architecture, including the two

integrated DC/ DC converters and three integrated low dropout regulators, provides excellent rejection

of supply noise. WSM2400’s operating supply voltage range is high enough to support direct connection

to lithium-thionyl chloride (Li-SOCl2) sources and wide enough to support battery operation over a

broad temperature range.

Figure 19. WSM2400 block diagram

SUPPLY MONITORING AND RESET

WSM2400 integrates a Power-on Reset (PoR) circuit. As the RESETn input pin is nominally configured

with an internal pull-up resistor, no connection is required. For a graceful shutdown, the software and

the networking layers should be cleanly halted via API commands prior to assertion of the RESETn pin.

WSM2400 includes a soft brown-out monitor that fully protects the flash from corruption in the event

that power is removed while writing to flash. Integrated flash supervisory functionality, in conjunction

with a fault tolerant file system, yields a robust non-volatile storage solution.

PRECISION TIMING

A major feature of WSM2400 over competing 802.15.4 product offerings is its low-power dedicated

timing hardware and timing algorithms. This functionality provides timing precision two to three orders

of magnitude better than any other low-power solution available at the time of publication. Improved

timing accuracy allows motes to minimize the amount of radio listening time required to ensure packet

reception thereby lowering even further the power consumed by SmartMesh networks. WSM2400’s

patented timing hardware and timing algorithms provide superior performance over rapid temperature

changes, further differentiating WSM2400’s reliability when compared with other wireless products. In

addition, precise timing enables networks to reduce spectral dead time, increasing total network

throughput.

APPLICATION TIME SYNCHRONIZATION

In addition to coordinating time slots across the network, which is transparent to the user, WSM2400’s

timing management is used to support two mechanisms to share network time. Having an accurate,

shared, network-wide time base enables events to be accurately time stamped or tasks to be performed

in a synchronized fashion across a network. WSM2400 will send a time packet through its serial

interface when one of the following occurs:

 WSM2400 receives an API request to read time

 The TIMEn signal is asserted

The use of TIMEn has the advantage of being more accurate. The value of the timestamp is captured in

hardware relative to the rising edge of TIMEn. If an API request is used, due to packet processing, the

value of the timestamp may be captured several milliseconds after receipt of the packet due to packet

processing. See the TIMEn AC Characteristics section for the time function’s definition and

specifications.

TIME REFERENCES

WSM2400 includes three clock sources: an internal relaxation oscillator, a low power oscillator designed

for a 32.768kHz crystal, and the radio reference oscillator designed for a 20MHz crystal.

RELAXATION OSCILLATOR

The relaxation oscillator is the primary clock source for WSM2400, providing the clock for the CPU,

memory subsystems, and all peripherals. The internal relaxation oscillator is dynamically calibrated to

7.3728 MHz. The internal relaxation oscillator typically starts up in a few μs, providing an expedient, low

energy method for duty cycling between active and low power states. Quick start-up from the doze

state, defined in the State Diagram section, allows WSM2400 to wake up and receive data over the

UART and SPI interfaces by simply detecting activity on the appropriate signals.

32.768kHz Crystal Once WSM2400 is powered up and the 32.768kHz crystal source has begun

oscillating, the 32.768kHz crystal remains operational while in the active state, and is used as the timing

basis when in doze state. See the State Diagram section for a description of WSM2400’s operational

states.

20MHZ CRYSTAL

The 20 MHz crystal source provides a frequency reference for the radio, and is automatically enabled

and disabled by WSM2400 as needed.

RADIO

WSM2400 includes the lowest power commercially available 2.4GHz IEEE 802.15.4e radio by a

substantial margin. (Please refer to the Radio Specifications section for power consumption numbers.).

WSM2400’s integrated power amplifier is calibrated and temperature compensated to consistently

provide power at a limit suitable for worldwide radio certifications. Additionally, WSM2400 uniquely

includes a hardware-based autonomous MAC that handles precise sequencing of peripherals, including

the transmitter, the receiver, and Advanced Encryption Standard (AES) peripherals. The hardware-based

autonomous Media Access Controller (MAC) minimizes CPU activity, thereby further decreasing power

consumption.

UARTS

The principal network interface is through the application programming interface (API) UART. A

Command-Line Interface (CLI) is also provided for support of test and debug functions. Both UARTs

sense activity continuously, consuming virtually no power until data is transferred over the port and

then automatically returning to their lowest power state after the conclusion of a transfer.

API UART PROTOCOL

The API UART protocol was created with the goal of supporting a wide range of companion Multipoint

Control Units (MCUs) while reducing power consumption of the system. The receive half of the API

UART protocol includes two additional signals in addition to UART_RX: UART_RX_ RTSn and

UART_RX_CTSn. The transmit half of the API UART protocol includes two additional signals in addition

to UART_TX: UART_TX_RTSn and UART_TX_CTSn. The API UART protocol is referred to as Mode 4. In the

Figures accompanying the protocol descriptions, signals driven by the companion processor are drawn

in black and signals driven by WSM2400 are drawn in blue.

UART MODE 4

UART Mode 4 incorporates level sensitive flow control on the TX channel and requires no flow control

on the RX channel, supporting 115200 baud. The use of level sensitive flow control signals enables

higher data rates with the option of using a reduced set of the flow control signals; however, with the

companion processor must negate UART_TX_CTSn prior to the end of the packet and wait at least

tRX_RTS to RX_CTS between sending packets. See the UART AC Characteristics section for complete

timing specifications. Packets are HDLC encoded with one stop bit and no parity bit. The use of the RX

flow control signals (UART_RX_RTSn and UART_RX_CTSn) for Mode 4 are optional. The flow control

signals for the TX channel are shown in Figure 20. UART Mode 4 Transmit Flow Control. Transfers are

initiated by WSM2400 asserting UART_TX_RTSn. The UART_TX_CTSn signal may be actively driven by

the companion processor when ready to receive a packet or UART_TX_CTSn may be tied low if the

companion processor is always ready to receive a packet. After detecting a logic ‘0’ on UART_TX_CTSn

WSM2400 sends the entire packet. Following the transmission of the final byte in the packet WSM2400

negates UART_TX_RTSn and waits for a minimum period defined in the UART AC Characteristics section

before asserting UART_TX_RTSn again. For details on the timing of the UART protocol, see the UART AC

Characteristics section.

Figure 20. UART Mode 4 flow control

CLI UART

The Command Line Interface (CLI) UART port is a two wire protocol (TX and RX) that operates at a fixed

9600 baud rate with one stop bit and no parity. The CLI UART interface is intended to support command

line instructions and response activity.

AUTONOMOUS MAC

WSM2400 was designed as a system solution to provide a reliable, ultralow power, and secure network.

A reliable network capable of dynamically optimizing operation over changing environments requires

solutions that are far too complex to completely support through hardware acceleration alone. As

described in the Precision Timing section, proper time management is essential for optimizing a solution

that is both low power and reliable. To address these requirements WSM2400 includes the autonomous

MAC, which incorporates a coprocessor for controlling all of the time critical radio operations. The

autonomous MAC provides two benefits: first, preventing variable software latency from affecting

network timing and second, greatly reducing system power consumption by allowing the CPU to remain

inactive during the majority of the radio activity. The autonomous MAC, provides software independent

timing control of the radio and radio related functions, resulting in superior reliability and exceptionally

low power.

SECURITY

Network security is an often overlooked component of a complete network solution. Proper

implementation of security protocols is significant in terms of both engineering effort and market value

in an OEM product. WSM2400 system solutions provide a FIPS-197 validated encryption scheme that

includes authentication and encryption at the MAC and network layers with separate keys for each

mote. This not only yields end-to-end security, but if a mote is somehow compromised, communication

from other motes is still secure. A mechanism for secure key exchange allows keys to be kept fresh. To

prevent physical attacks, WSM2400 includes hardware support for electronically locking devices,

thereby preventing access to WSM2400’s flash and RAM memory and thus the keys and code stored

therein.

TEMPERATURE SENSOR

WSM2400 includes a calibrated temperature sensor on chip. The temperature readings are available

locally through WSM2400’s serial API, in addition to being available via the network manager. The

performance characteristics of the temperature sensor can be found in the Temperature Sensor

Characteristics section.

RADIO INHIBIT

The RADIO_INHIBIT input enables an external controller to temporarily disable the radio software

drivers (for example, to take a sensor reading that is susceptible to radio interference). When

RADIO_INHIBIT is asserted the software radio drivers will disallow radio operations including clear

channel assessment, packet transmits, or packet receipts. If the radio is active in the current timeslot

when RADIO_INHIBIT is asserted the radio will be disabled after the present operation completes. For

details on the timing associated with RADIO_INHIBIT, see the RADIO_INHIBIT AC Characteristics section.

FACTORY INSTALLED SO FTWARE

This product is provided with software programmed into the device. Devices can be configured via

either the CLI or API ports.

FLASH DATA RETENTION

WSM2400 contains internal flash (non-volatile memory) to store calibration results, unique ID,

configuration settings and software images. Flash retention over the operating temperature range. See

Electrical Characteristics and Absolute Maximum Ratings sections. Nondestructive storage above the

operating temperature range of –40°C to 85°C is possible; although, this may result in a degradation of

retention characteristics. The degradation in flash retention for temperatures >85°C can be

approximated by calculating the dimensionless acceleration factor using the following equation.

Figure 21. Equation

TUSE = is the specified temperature retention in °C

TSTRESS = actual storage temperature in °C

Example: Calculate the effect on retention when storing at a temperature of 105°C.

TSTRESS = 105°C

TUSE = 85°C

AF = 2.8

So the overall retention of the flash would be degraded by a factor of 2.8, reducing data retention from

20 years at 85°C to 7.1 years at 105°C.

State Diagram In order to provide capabilities and flexibility in addition to ultralow power, WSM2400

operates in various states, as shown in Figure 22. WSM2400 State Diagram and described in this section.

State transitions shown in red are not recommended.

Figure 22. WSM2400 state diagram

START-UP

Start-up occurs as a result of either crossing the power-on reset threshold or asserting RESETn. After the

completion of power-on reset or the falling edge of an internally synchronized RESETn, WSM2400 loads

its fuse table which, as described in the previous section, includes setting I/O direction. In this state,

WSM2400 checks the state of the FLASH_P_ENn and RESETn and enters the serial flash emulation mode

if both signals are asserted. If the FLASH_P_ENn pin is not asserted but RESETn is asserted, WSM2400

automatically reduces its energy consumption to a minimum until RESETn is released. Once RESETn is

de-asserted, WSM2400 goes through a boot sequence, and then enters the active state.

SERIAL FLASH EMULATI ON

When both RESETn and FLASH_P_ENn are asserted, WSM2400 disables normal operation and enters a

mode to emulate the operation of a serial flash. In this mode, its flash can be programmed.

OPERATION

Once WSM2400 has completed start-up, WSM2400 transitions to the operational group of states

(active/CPU active, active/ CPU inactive, and Doze). There, WSM2400 cycles between the various states,

automatically selecting the lowest possible power state while fulfilling the demands of network

operation.

ACTIVE STATE

In the active state, WSM2400’s relaxation oscillator is running and peripherals are enabled as needed.

The ARM Cortex-M3 cycles between CPU-active and CPU-inactive (referred to in the ARM Cortex-M3

literature as sleep now mode). WSM2400’s extensive use of DMA and intelligent peripherals that

independently move WSM2400 between active state and doze state minimizes the time the CPU is

active, significantly reducing WSM2400’s energy consumption.

DOZE STATE

The doze state consumes orders of magnitude less current than the active state and is entered when all

of the peripherals and the CPU are inactive. In the doze state WSM2400’s full state is retained, timing is

maintained, and WSM2400 is configured to detect, wake, and rapidly respond to activity on I/Os (such

as UART signals and the TIMEn pin). In the doze state the 32.768kHz oscillator and associated timers are

active.

APPLICATIONS INFORMATION

SIGNAL/DATA ACQUISIT ION AND CONTROL

SmartMesh IP software includes embedded application support for sampling temperature, WSM2400’s

ADC and GPIO inputs, and support for actuating GPIO outputs. The Onchip Application Protocol (OAP)

enables these functions via data packets sent through the network manager over the air, removing the

need for a microprocessor connected to the mote or embedded software development on WSM2400.

SOLDERING INFORMATION

The 505-10368-00 and 505-10369-00 are suitable for both eutectic PbSn and RoHS-6 reflow. The

maximum reflow soldering temperature is 260°C. A more detailed description of layout

recommendations, assembly procedures and design considerations is included in the 505-10368-00 and

505-10369-00 Hardware Integration Guide.

FCC, INDUSTRY CANADA, SAFETY INFORMATION AND WARNINGS

FCC COMPLIANCE STATEMENT

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) This device must accept any interference

received, including interference that may cause undesired operation.

INDUSTRY CANADA COMPLIANCE STATEMENT

This Class B digital apparatus complies with Canadian ICES-003. Operation is subject to the following two

conditions: (1) this device may not cause interference, and (2) this device must accept any interference,

including interference that may cause undesired operation of the device.

Cet appareil numérique de la classe B est conforme à la norme IECS -003 du Canada . Le fonctionnement

est soumis aux deux conditions suivantes : (1) ce dispositif ne peut pas provoquer d'interférences et

(2) cet appareil doit accepter toute interférence , y compris les interférences qui peuvent causer un

mauvais fonctionnement de l'appareil.

FCC RF RADIATION EXPOSURE STATEMENT

WARNING: These B+B SmartWorx devices radiate radio frequency energy at a level below the United

States FCC radio frequency exposure limits. Nevertheless, this device should be used in such a manner

that the potential for human contact during normal operation is minimized.

MODIFICATION WARNING

US FCC Modification warning (FCC Part 15.21) Warning: changes or modifications to this equipment not

expressly approved by B+B SmartWorx could void the user’s authority to operate the equipment. In

addition, damage or performance problems resulting from modification may not be covered under

warranty.

ADVANTECH B+B SMARTWORX TECHNICAL SUPPORT

Phone: 1-800-346-3119

(Monday - Friday, 7 a.m. to 5:30 p.m. CST)

Fax: 815-433-5109

Email: support@advantech-bb.com

Web: www.advantech-bb.com

B plus B SmartWorx WSM2400 MESH RF loT Module User Manual

B&B; Electronics MESH RF loT Module

User Manual

Navigation menu

Namespaces

Views

Navigation
