BAICHUAN SECURITY TECHNOLOGY 485CAM WiFi IP Camera User Manual
SHENZHEN BAICHUAN SECURITY TECHNOLOGY CO., LTD WiFi IP Camera
User Manual
M480CAM111215E | © Swann 2015
Helpdesk/Technical Support
Technical Support E-mail: tech@swann.com
Telephone Helpdesk
USA Toll Free 1-800-627-2799
USA Parts & Warranty 1-800-627-2799
(M-F, 9am-5pm US PT)
AUSTRALIA 1800 788 210
NEW ZEALAND Toll Free 0800 479 266
UK 0808 168 9031
5
Limited Warranty - Terms & Conditions
Swann Communications warrants this product
against defects in workmanship and material for
a period of one (1) year from its original purchase
date. You must present your receipt as proof of
purchase for warranty validation. Any unit which
proves defective during the stated period will
be repaired without charge for parts or labour
or replaced at the sole discretion of Swann. The
end user is responsible for all freight charges in-
curred to send the product to Swann’s repair cen-
tres. The end user is responsible for all shipping
costs incurred when shipping from and to any
country other than the country of origin.
The warranty does not cover any incidental, ac-
cidental or consequential damages arising from
the use of or the inability to use this product. Any
costs associated with the fitting or removal of this
product by a tradesman or other person or any
other costs associated with its use are the re-
sponsibility of the end user. This warranty applies
to the original purchaser of the product only and
is not transferable to any third party. Unauthor-
ized end user or third party modifications to any
component will render all warranties void. By law
some countries do not allow limitations on certain
exclusions in this warranty. Where applicable by
local laws, regulations and legal rights will take
precedence.
For Australia: Our goods come with guarantees
which cannot be excluded under Australian Con-
sumer Law. You are entitled to a replacement
or refund for a major failure and for compensa-
tion for any other reasonably foreseeable loss or
damage. You are also entitled to have the goods
repaired or replaced if the goods fail to be of ac-
ceptable quality.
6
FCC Verification
This equipment has been tested and found to comply with the limits for Class B digital device, pursu-
ant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and the receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is con-
nected
• Consult the dealer or an experienced radio/TV technician for help
These devices comply with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) These devices may not cause harmful interference.
(2) These devices must accept any interference received, including interference that may cause unde-
sired operation.
Wi-Fi
DAY/NIGHT CAMERA
Add-on Camera for Swann HD Wi-Fi Monitoring Systems
EN INSTRUCTION MANUAL
1
Introduction
Congratulations on your purchase of this Wi-Fi
Day/Night Camera.
• A state of the art surveillance camera with
1080p video technology
• Seeing is believing with 1080p HD Cameras
(2 Megapixel) perfect for most locations
around home or business
• Latest infrared cut filter for amazing night
vision to 66ft/20m for clarity in low light
• Sturdy metal construction suits indoor &
outdoor applications with IP66 rating for any
weather conditions
• Deter thieves, safeguard loved ones, protect
your property & cut the cost of crime with
this professional surveillance camera from
Swann
Important instructions
1) Make sure your camera is fixed correctly and
stable if fastened in place.
2) Only use the supplied power extension cable
and power adapter (12V).
3) Do not operate if wires and terminals are ex-
posed.
Please note - Have a look at the camera location
tips included with your NVR, to select the best lo-
cation for your camera (the camera location tips
provided here are for general purpose only).
Important note - All jurisdictions have specific
laws and regulations relating to the use of cam-
eras. Before using any camera for any purpose,
it is the buyer’s responsibility to be aware of all
applicable laws and regulations that prohibit or
limit the use of cameras.
2

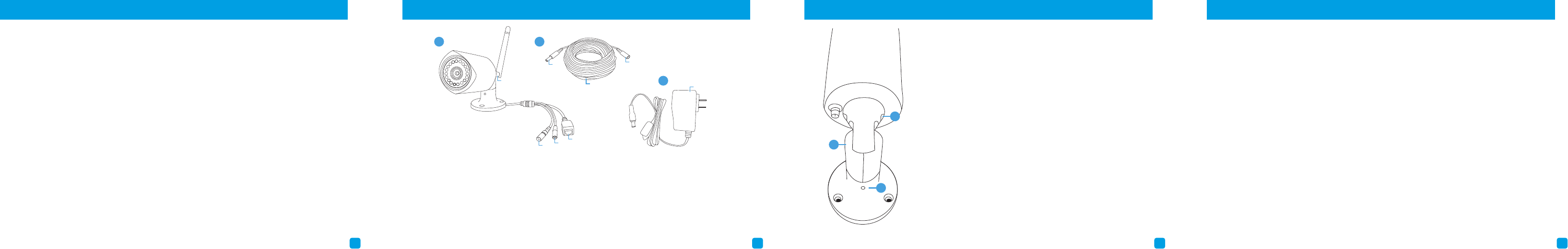

Connecting your Camera
3
Mounting your Camera
Your camera has three points of articulation (before mounting your
camera, remove the Wi-Fi antenna first then reattach when finished). The
most obvious is the screw secured elbow joint in the centre of the stand
(2). Using an L-wrench, loosen the hex screw and adjust to the position
you want (up or down). Tighten the screw again to secure in place.
The second point of articulation (1) is the radial joint where the neck of
the stand is attached directly to your camera. This enables you to rotate
your camera left or right so your images will be oriented correctly. Using
an L-wrench, loosen both screws (left side and right side) and position
accordingly. Tighten both screws again to secure in place.
To rotate the camera stand left or right (3), loosen both screws located at
the base and position accordingly. Tighten both screws again to secure
in place.
Of course, there will always be some outlying cases where your camera
simply won’t fit. Maybe you have a hanging awning, or a drain pipe in
an inconvenient spot. In these cases, we suggest obtaining a mounting
bracket, which should be available from any good hardware store.
4
Camera Location Tips
Some things to consider when choosing a location -
1) What you want to monitor and where you’ll get the
best view of it.
2) How you’re going to connect your camera to your
monitoring system; remember that cables and
connections should be kept out of the weather.
3) How to keep your camera out of harm’s way. It’s
recommended to mount your camera at an elevated
position.
4) Place your camera as close to the area of interest
as practicable. The best position is from about 4m
(13ft) above looking slightly down, keeping in mind
the details you are looking for.
5) Although the sky looks nice when you look at the
live view from your camera, it is an unlikely direction
for an offender to approach, make sure your camera
has minimal sky in it as the light in daylight can make
the foreground of the image darker.
6) Think about the most likely way a potential offender
may approach your home, use your cameras to give
you the best coverage of these areas.
7) The camera’s casing is resistant to water, different
weather conditions and tampering. It would take
an overwhelming event of this kind to damage the
housing of your camera. However, the cable and
connector are vulnerable and require protection.
8) Even though your camera is weather and water-
resistant, prolonged exposure to adverse weather
conditions such as sunlight or excessive moisture,
may eventually damage the internal components of
the camera and adversely affect its performance.
9) When running your cable, try to avoid bending it at
sharp angles.
10) Don’t put your cable near live electrical wiring.
AC electricity generates radio “noise” which can
interfere with the signal from your camera.
1. Use a clockwise motion to connect the provided Wi-
Fi antenna to the Wi-Fi connection located at the rear.
Connect the Power Input on the camera to the Power
Output on the Power Extension Cable.
2. Connect the Power Input on the Power Extension
Cable to the Power Adapter.
3. Connect the Power Adapter to a wall socket then
press the wall socket’s switch to the on position.
Reset - Press and hold the reset button, connect
power and continue holding for 10 seconds.
LAN - This can be used to configure your camera to
your wired or Wi-Fi network.
LAN
Reset
Power
Input
Power
Output
Power
Input
Power Extension
Cable Power Adapter
1 2
3
Connected the provided
Wi-Fi antenna here
1
2
3
FCCCaution
Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothe
followingtwoconditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2)
thisdevicemustacceptanyinterferencereceived,includinginterferencethatmay
causeundesiredoperation.
AnyChangesormodificationsnotexpresslyapprovedbythepartyresponsiblefor
compliancecouldvoidtheuser'sauthoritytooperatetheequipment.
Note: ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClass
Bdigitaldevice,pursuanttopart15oftheFCCRules.Theselimitsaredesignedto
providereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.
Thisequipmentgeneratesusesandcanradiateradiofrequencyenergyand,ifnot
installedandusedinaccordancewiththeinstructions,maycauseharmfulinterference
toradiocommunications.However,thereisnoguaranteethatinterferencewillnot
occurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferenceto
radioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoff
andon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthe
followingmeasures:
-Reorientorrelocatethereceivingantenna.
-Increasetheseparationbetweentheequipmentandreceiver.
-Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthe
receiverisconnected.
-Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforan
uncontrolledenvironment.Thisequipmentshouldbeinstalledandoperatedwith
minimumdistance20cmbetweentheradiator&yourbody.
