BAOLONG AUTOMOTIVE 201FS43X Tire Pressure Monitoring System User Manual
SHANGHAI BAOLONG AUTOMOTIVE CORPORATION Tire Pressure Monitoring System
User Manual
User’s Manual
FS43X0L3 is the transmitting module of the TPMS.

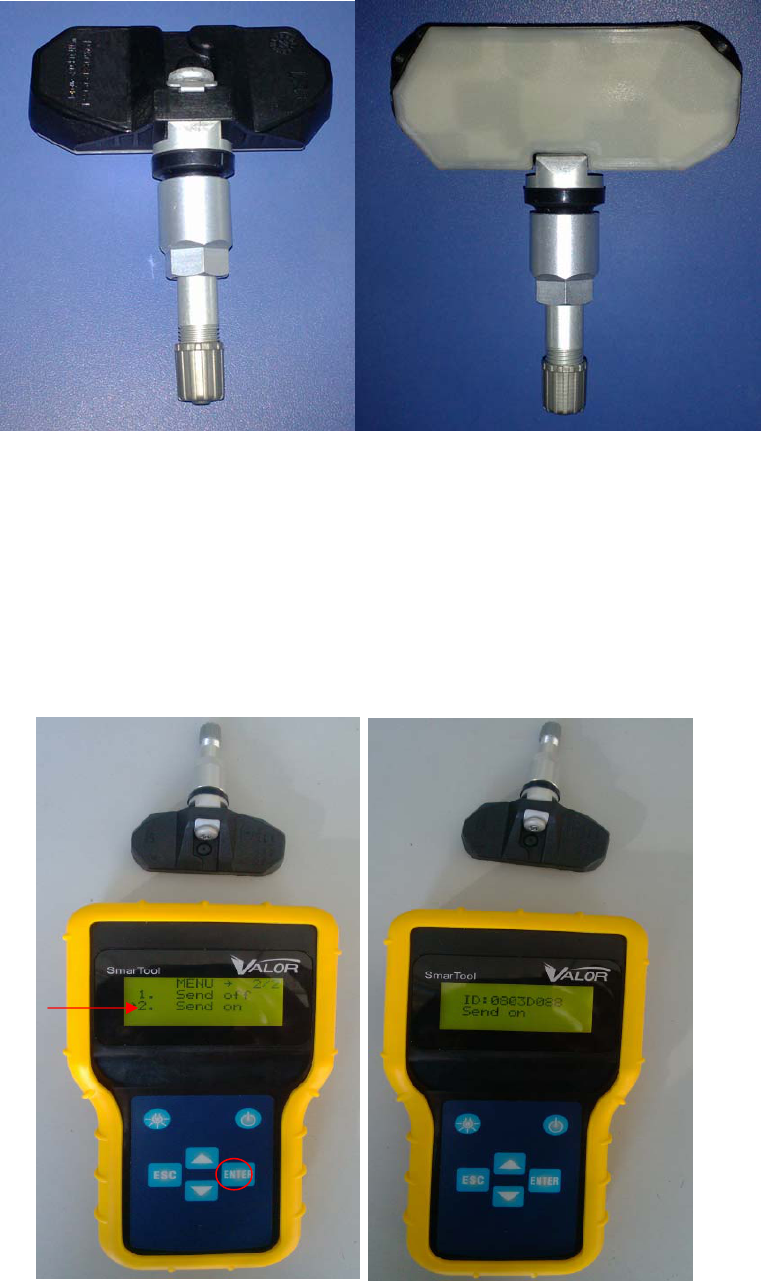

1. Exterior: The exterior is as following, the users can install this product on the rim
inside the tire through the corresponding tire valve.
2. Testing methods
Testing Tool: Wakeup Tool
Testing procedures:
a)、Aim the front of the tool at the sensor(as the following picture):

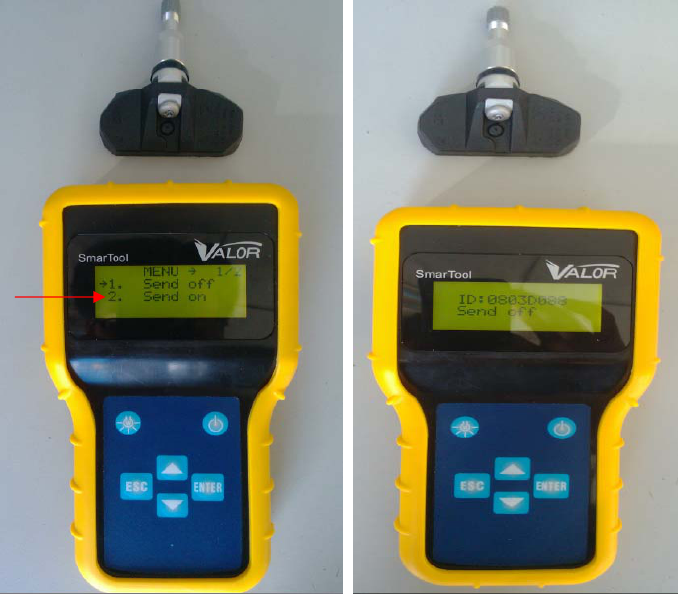

b)、Turn on the tool and press the “UP” and “DOWN” key to chose “2.Send on(Arrow
Pointing)”, then press the “ENTER” key. When the tool’s display shows ID Number
and “Send on”, it means the sensor is under continuous mode of transmitting. The
transmitting period is 3 frames/15s.
It shows in the following pictures:
Fronta
g
The reverse side
c)、After the testing, wake up the tool again to chose “1.Send off” and then press
“ENTER” key. When the tool’s display shows ID Number and “Send off”, it means
the sensor is under stationary mode. At this time, it will not send any data (Note:
Every time after the test, the sensor should be switched to “Send off”).
FCC Warning Statement
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
